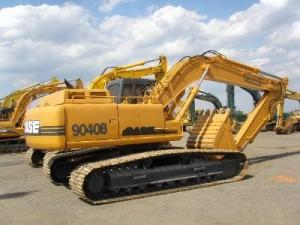

Specification Engine Make Case Model 6T-830 Net Power 178 hp 132.7 kw Power Measured @ 2200 rpm Displacement 505 cu in 8.3 L Torque Measured @ 1500 rpm Max Torque 574 lb ft 778.2 Nm Number of Cylinders 6 Aspiration Turbocharged Operational Operating Weight 53140 lb 24103.9 kg Fuel Capacity 81.9 gal 310 L Cooling System Fluid Capacity 6.7 gal 25.5 L Hydrauilc System Fluid Capacity 58.1 gal 220 L Engine Oil Capacity 5.8 gal 22 L Swing Drive Fluid Capacity 1.6 gal 6 L Operating Voltage 24 V Alternator Supplied Amperage 65 amps Hydraulic System Relief Valve Pressure 4554 psi 218 kPa Hydraulic Pump Flow Capacity 56 gal/min 212 L/min Swing Mechanism Swing Speed 10.4 rpm Undercarriage Number of Shoes per Side 51 Shoe Size 32 in 812.8 mm Number of Carrier Rollers per Side 2 Number of Track Rollers per Side 9 Ground Pressure 5.2 psi 35.9 kPa Max Travel Speed 3.4 mph 5.5 km/h Drawbar Pull 43000 lb 191.3 kN Buckets
Case Excavator 9040b, Schematic Set Pdf Manual
Reference Bucket Capacity 1.2 yd3 0.92 m3 Minimum Bucket Capacity 0.95 yd3 0.73 m3 Maximum Bucket Capacity 1.8 yd3 1.4 m3 Boom/Stick Option (HEX) 1 Boom/Stick Option (HEX) 1 Boom 19'2" (5800mm)/ Stick 11'7" (3500mm) Shipping Height of Unit 10.6 ft in 3220 mm Shipping Length of Unit 32.8 ft in 10010 mm Max Digging Depth 24.2 ft in 7390 mm Max Reach Along Ground 35 ft in 10670 mm Max Cutting Height 32.6 ft in 9930 mm Max Loading Height 22.6 ft in 6880 mm Max Vertical Wall Digging Depth 21.9 ft in 6680 mm
