SELECTED WORKS | PORTFOLIO

CARLO MIGUEL

2022-2023

CV

Phone: (+63) 933 810 9735 Email: ranesescarlo@gmail.com Address: Rosalina - 1, Puan Davao City, Davao del Sur Facebook: facebook.com/carlomiguel24

Education

Affiliations and Seminars

ATENEO DE DAVAO UNIVERSITY

UAPSA-DORIC AdDU

Bachelor of Science in Architecture May 2023

Member | 2018-2019

ATENEO DE DAVAO UNIVERSITY

Participant | 2019

Senior Highschool April 2018

DAVAO CITY SPECIAL NATIONAL HIGHSCHOOL Junior Highschool April 2016

SOAP BUBBLE DESIGN SEMINAR LEED BIOPHILIC DESIGN WEBINAR Participant | 2022

Work Experience FREELANCE DESIGNER

Grade School April 2012

2020-Present Designed commercial, residential-commercial, and residential buildings for clients.

Crafted interior design for spaces and rooms subjected for renovations.

Created and offers 3d modeling, rendering, and graphic illustration services.

Produced plans and computer aided drawings and offers assistance for commercial and residential projects.

DAVAO CITY SPECIAL ELEMENTARY SCHOOL

FREELANCE GRAPHIC ILLUSTRATOR AND DESIGNER

PRECIOUS INTERNATIONAL SCHOOL OF DAVAO Junior Highschool April 2013

DAVAO CITY SPECIAL ELEMENTARY SCHOOL

Pre-school April 2006

Awards Daloy Dabaw: Interschool Design Competition 1st Runner Up | 2019

Dean’s Lister

SY 2020-2021 | 3RD Year 1st Semester SY 2022-2023 | 5TH Year 1st Semester

President’s Lister

SY 2021-2022 | 4TH Year 1st Semester

Best in Research SY 2022-2023

2020-Present Produced and sells artworks for NFT online business projects and community.

Designed logos for online platforms and businesses.

Designed materials and banners intended for online business promotions.

SOFTWARES

LANGUAGE

AutoCAD

ENGLISH

SketchUp Lumion Enscape

FILIPINO DAVAO BISAYA (LOCAL LANGUAGE)

Adobe Photoshop Adobe illustrator Canva Wondershare Filmora MS Office

Hi! I am Carlo Miguel Rañeses, an aspiring

architecture apprentice, who likes to explore the nature of dwelling spaces within the city.

It has always been my goal as an architect to create liveable spaces that can create series of stories with relevance to sustainability, and at the same time without neglecting the art driven from architecture from time to time.

My love for minimalist and modern design was driven by the works Frank Lloyd Wright however, architects such as Bjarke Ingles, Frank Ghery, Santiago Calatrava, and Daniel Libeskind made me realize that the science of architecture has truly been an exciting, fascinating and keeps my passion grow over time.

contents

Page 01

Page 07

1 2

AMPO A Proposed University Chapel Individual

NEW HORIZONS A Proposed Highrise Apartment building Collaborative

“Mass is meant to be heard not seen”

The idea to utilize biomimicry design for the passive cooling and sun shading device for the highrise building.

A chapel that follows a circular planning upon shaping the user behavior within the space

Page 15

Page 29

34

HARDINIA VILLAPARK SUBDIVISION A Proposed Lowcost Housing Individual

ELMANO Planning, Concepts, and Residential Units Individual

Crafting a food sensitive urban planning and design for residential dwelling units that highly considers the economic and physical aspects of food security.

Conceptual models and 3d illustrations for planning and concepts of a study. The portion highlights the use of adobe illustration as a mode to illustrate concepts. Residential Plans and Perspective.

BEST IN RESEARCH SY 2022-2023

PORTFOLIO | 2022-2023

AMPO

The idea on creating a subtle dialect of the spiritual presence from the space due to the absence portrayed by the minimalist design.

The structure interplays with the neutral colors of concrete and steel and as well as showing the structural skeleton from the columns and beams. In this sense, the design portrays honesty and purity which is enough to make it to a metaphor that the function of the chapel depicts is the same for its users.

Sketchup + Enscape Adobe Photoshop Adobe Illustrator

1

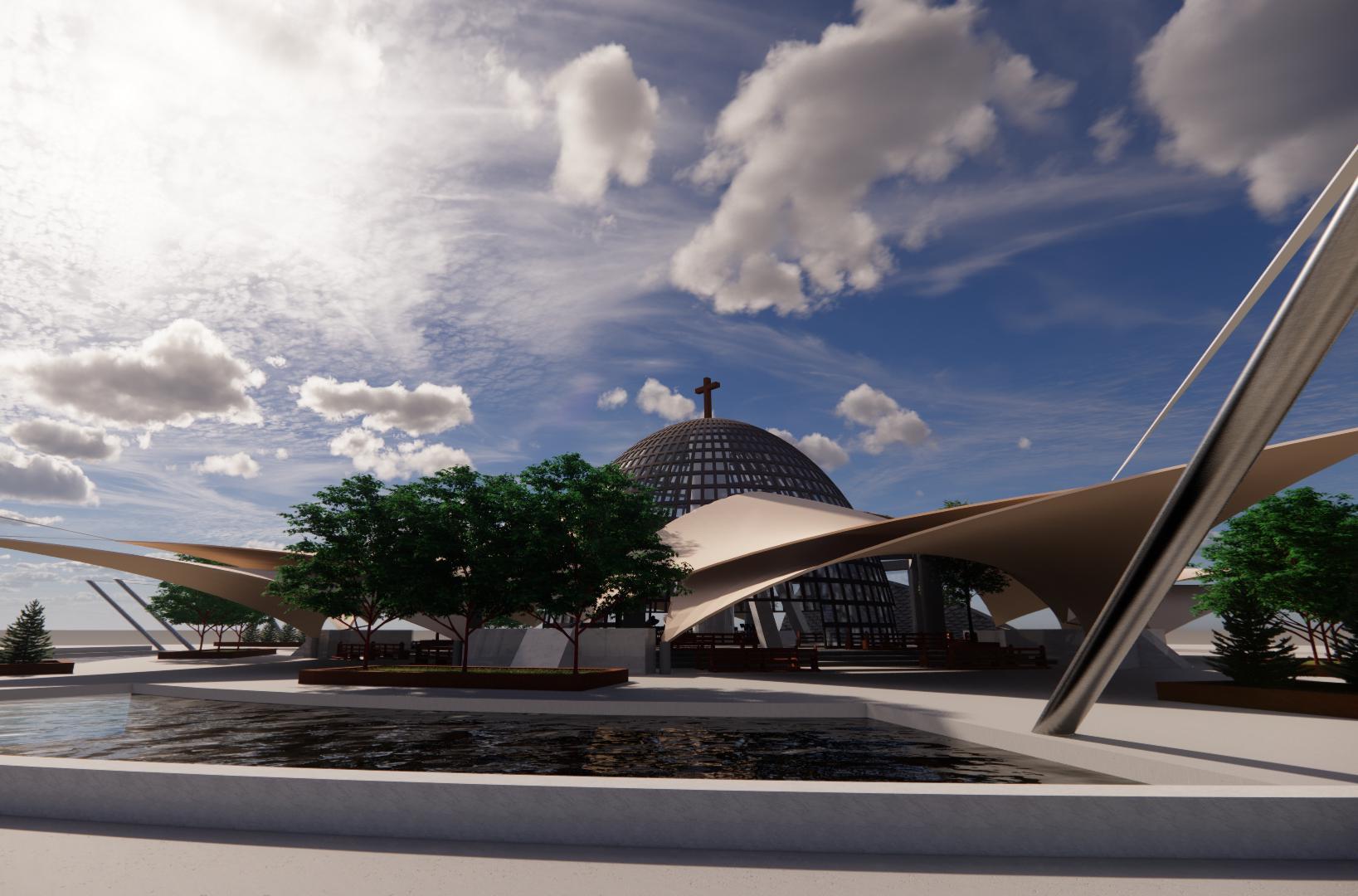

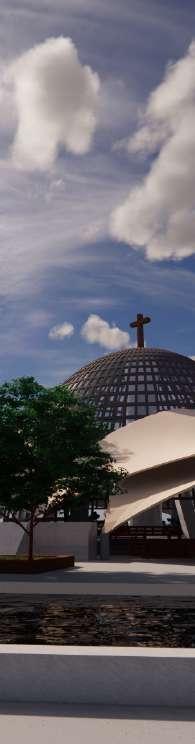

Man’s eye exterior perspective along the east side of the chapel.

AMPO: A PROPOSED UNIVERSITY CHAPEL

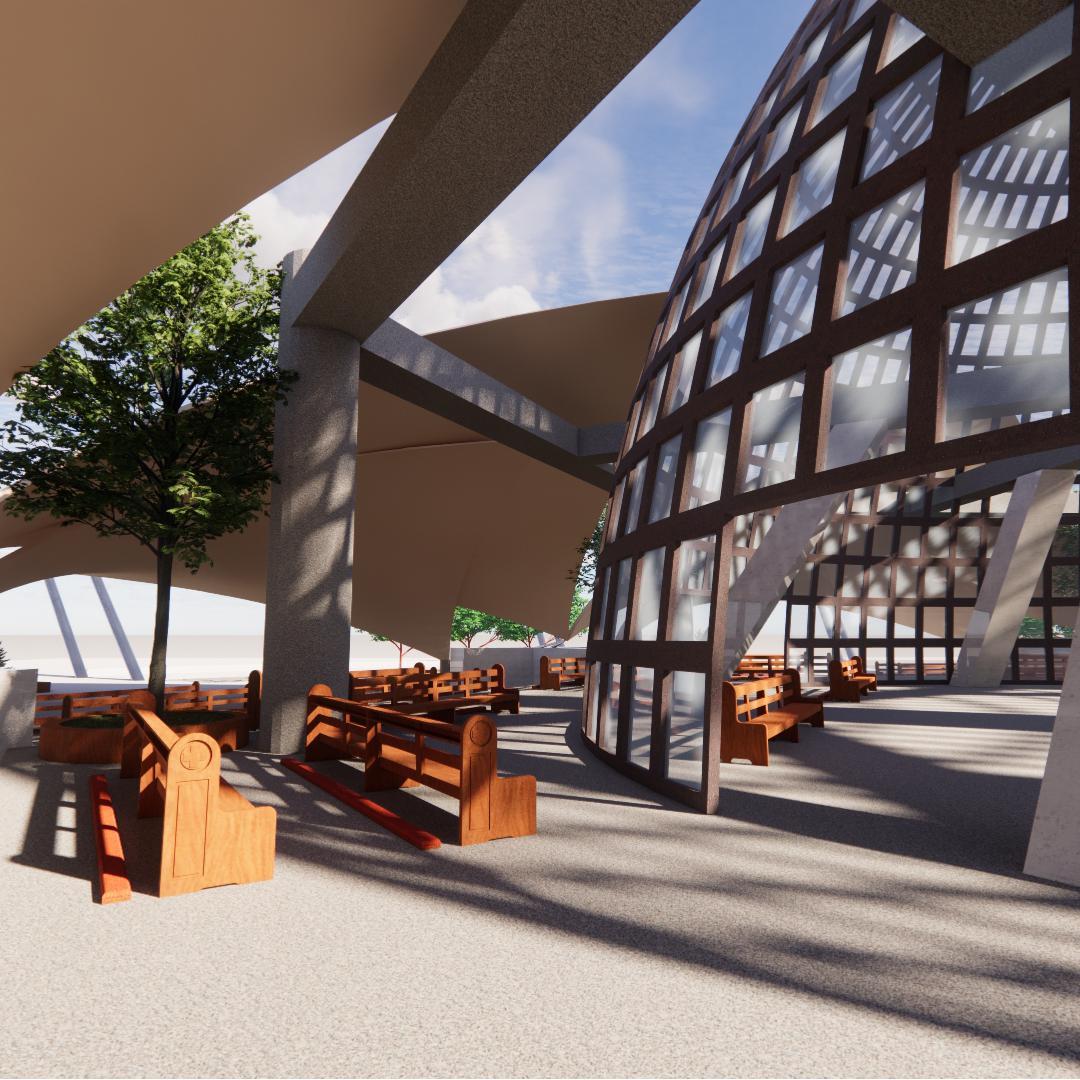

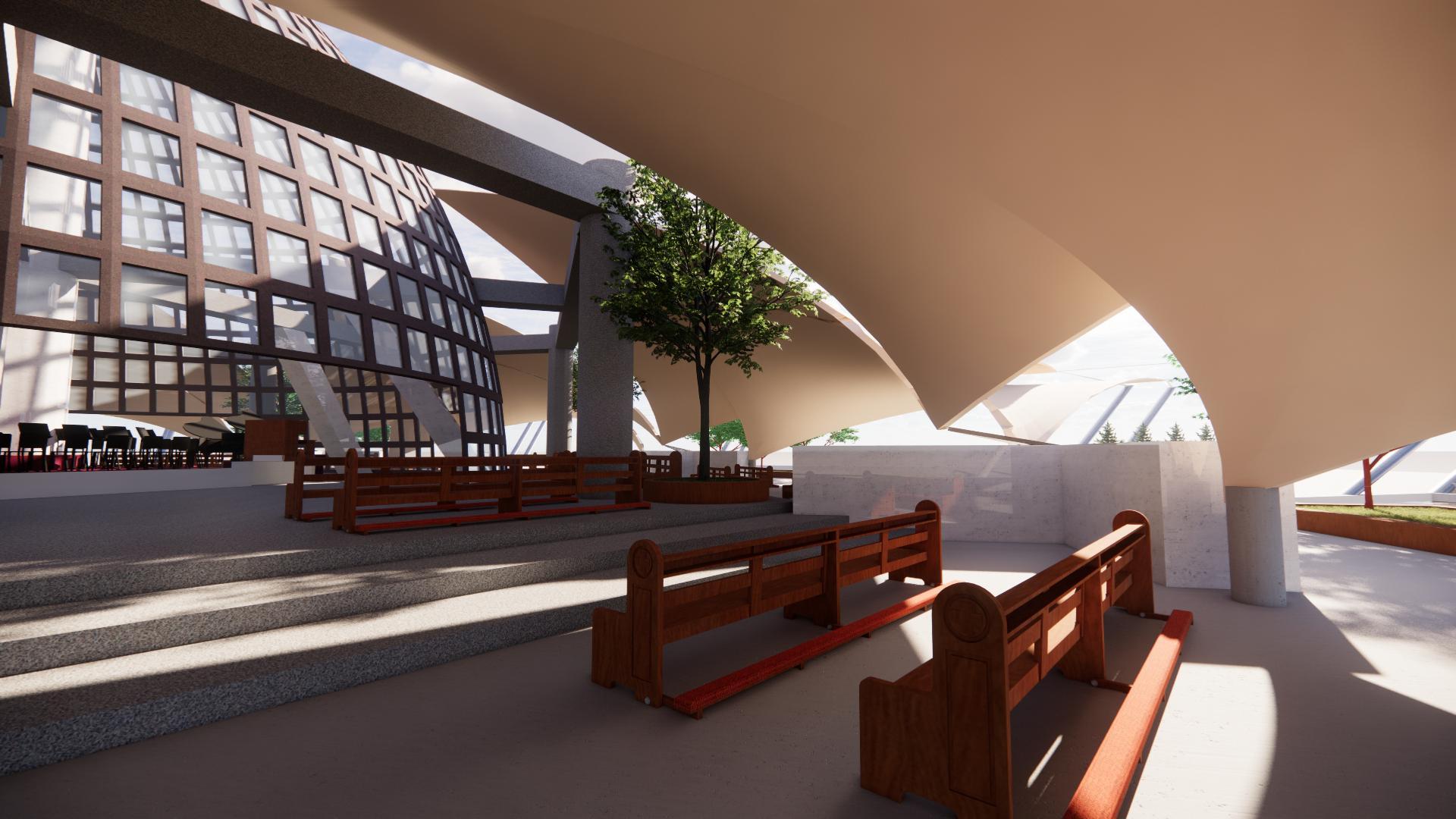

East side Opening view of Church Pews The idea of using modern deconstructivism was inspired by the works of Frank Ghery point of view on architecture. It is said that mass is meant to be heard not seen the chapel is also inspired by the circular planning of Leandro Locsin on Holy Sacrifice Chapel.

East side Opening Interior perspective

West side Opening of Interior perspective 2

PORTFOLIO | 2022-2023

Adding a big cylindrical column at the center of the building to support the dome and to stabilize the whole structure.

The geodesic dome allows the sunlight enter the space at the same time protects its users from the rain.

Since majority of the structure is open, adding vegetations inside will lessen the noise it can produce on its supporting.

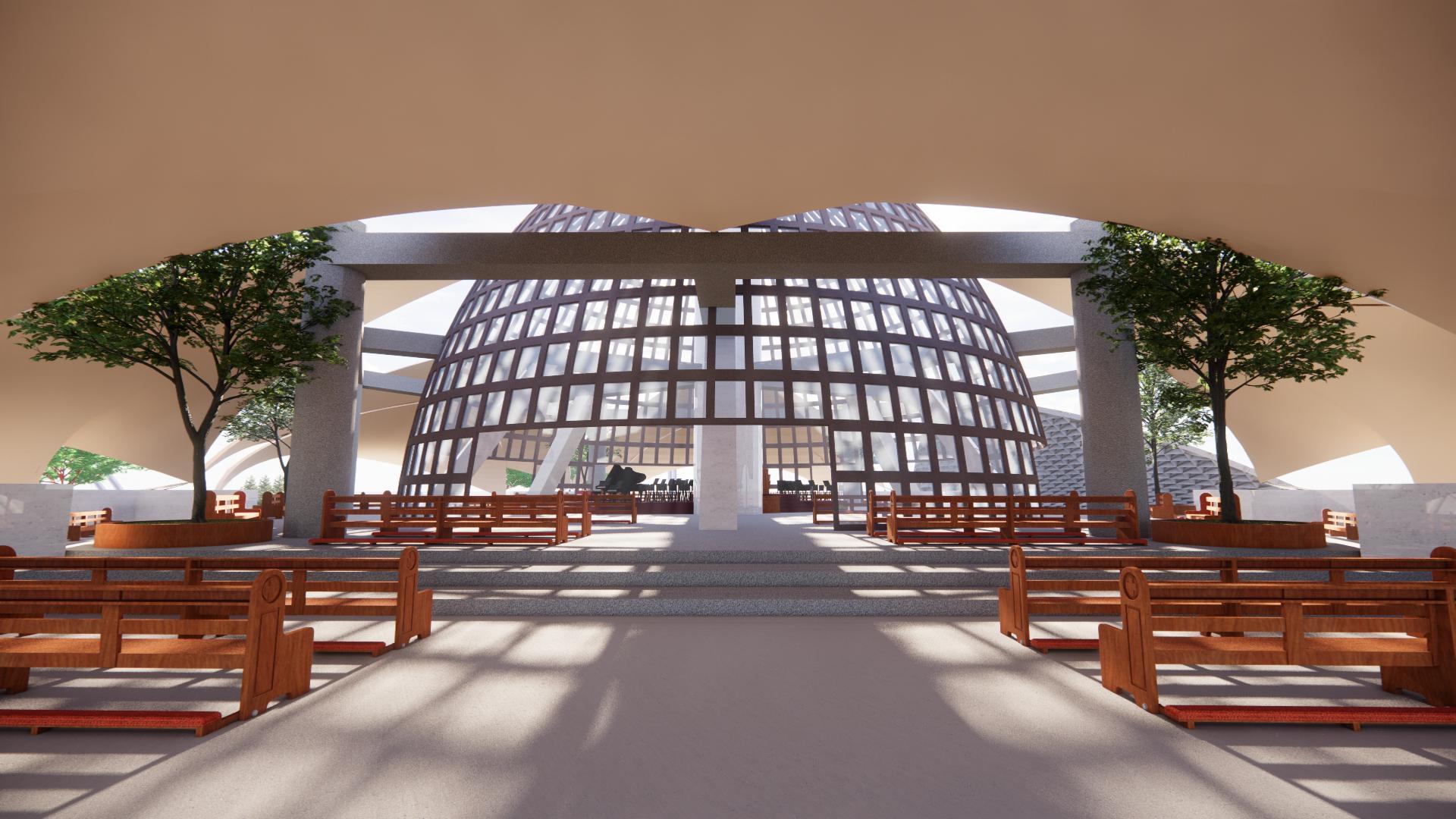

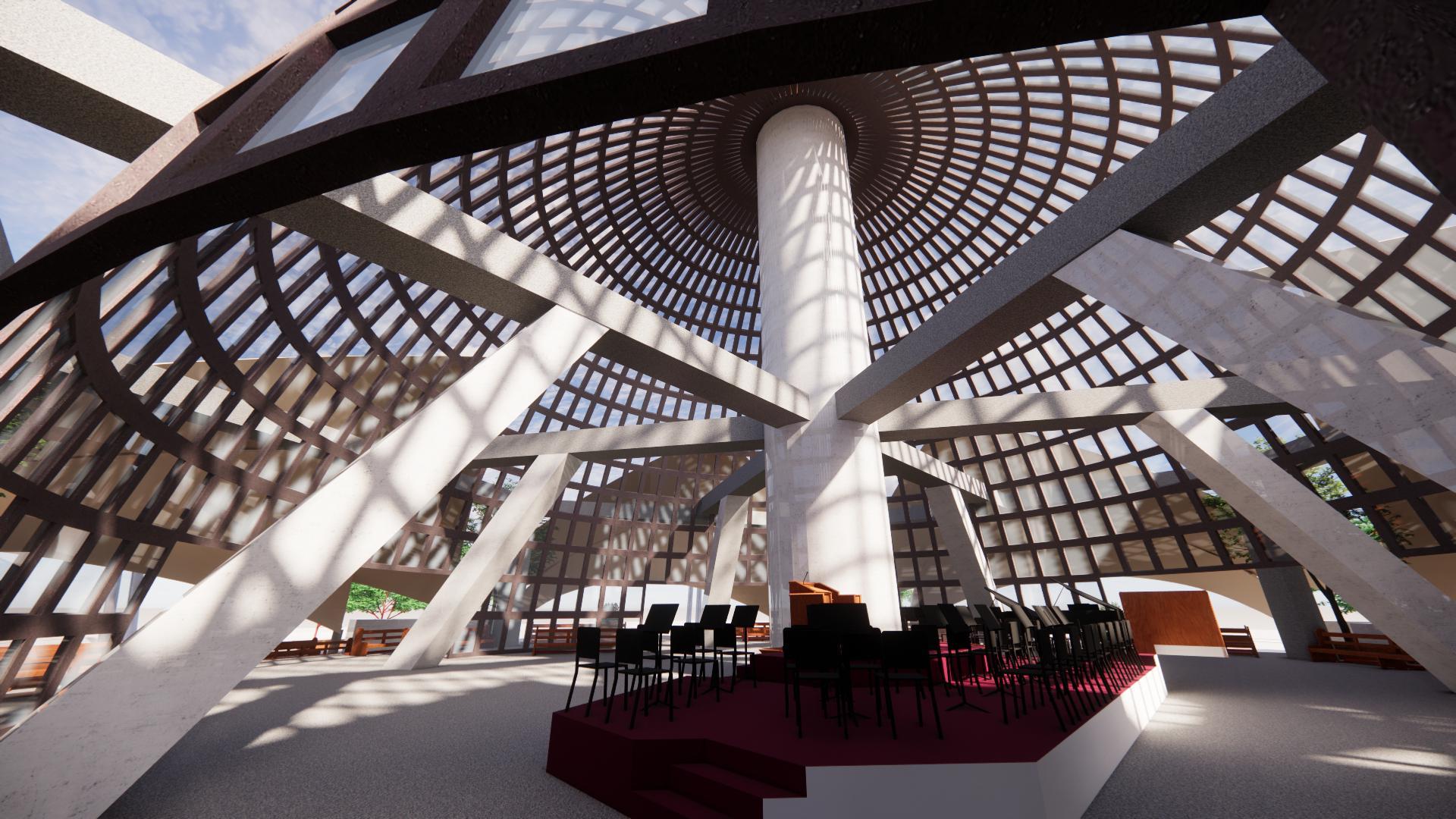

Altar and Church Choir Interior Perspective

3

AMPO: A PROPOSED UNIVERSITY CHAPEL

THE FORM

Santan flower is a local flower and utilized as the main inspiration of the form of the building.

The main form of a santan flower.

Adding holes for passive cooling and day lighting.

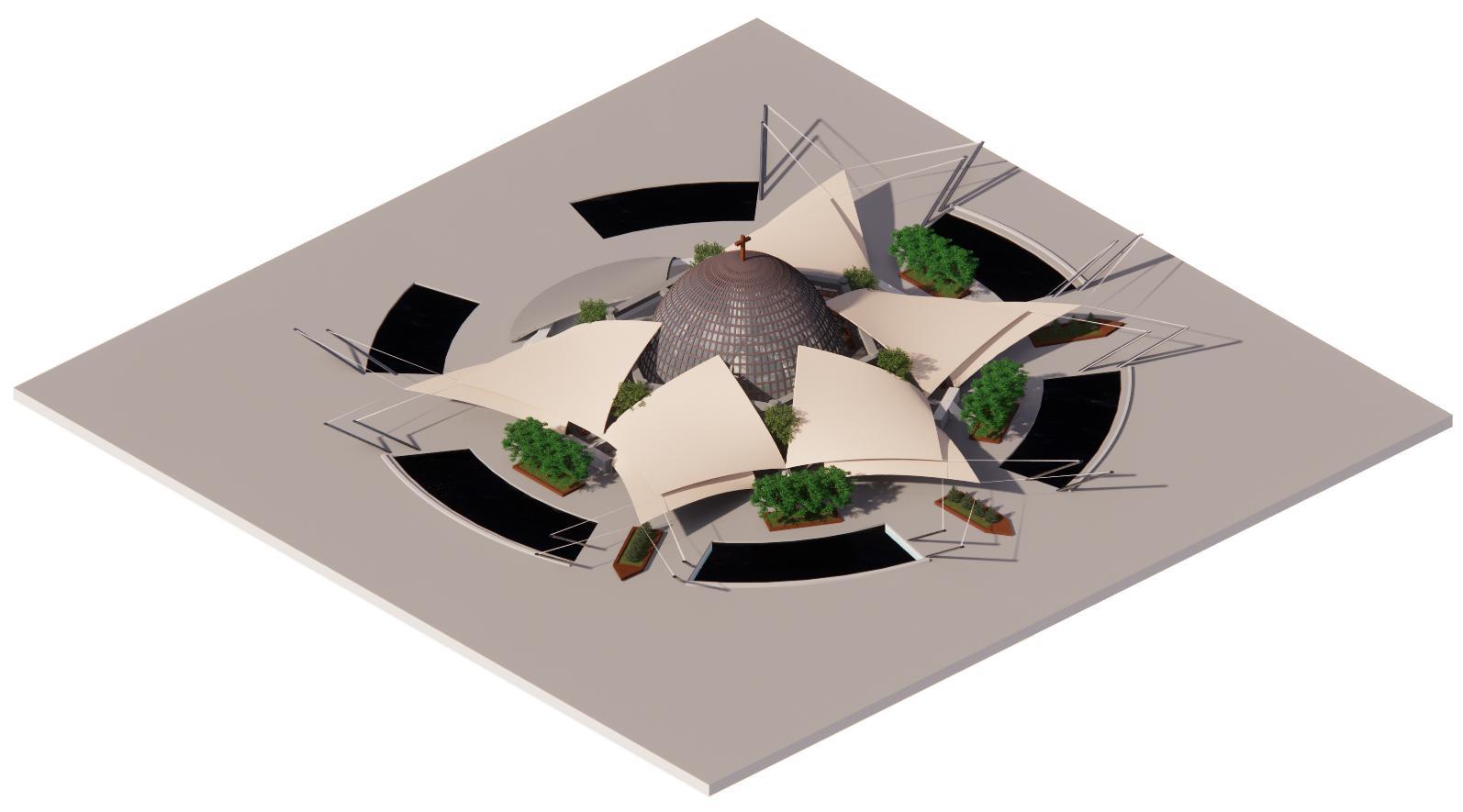

Chapel Aerial Perspective

ADVANCE BUILDING CONSTRUCTION The thin shell is used as roofing for the sacristy space and the chapel public comfort rooms.

The geodesic dome is used to enclose the main spaces of the university chapel such as the altar, church pews, etc.

The tensile structure uses two cables on its one end to have more space for the church openings of users.

4

AMPO

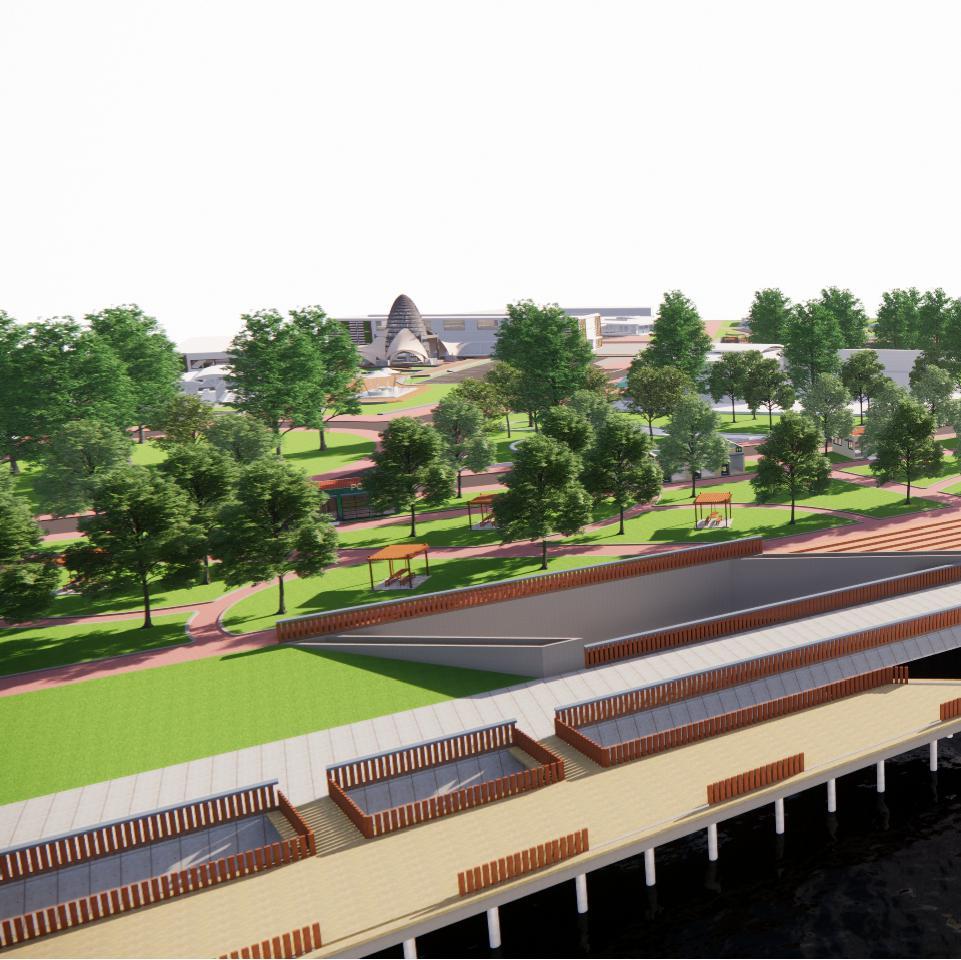

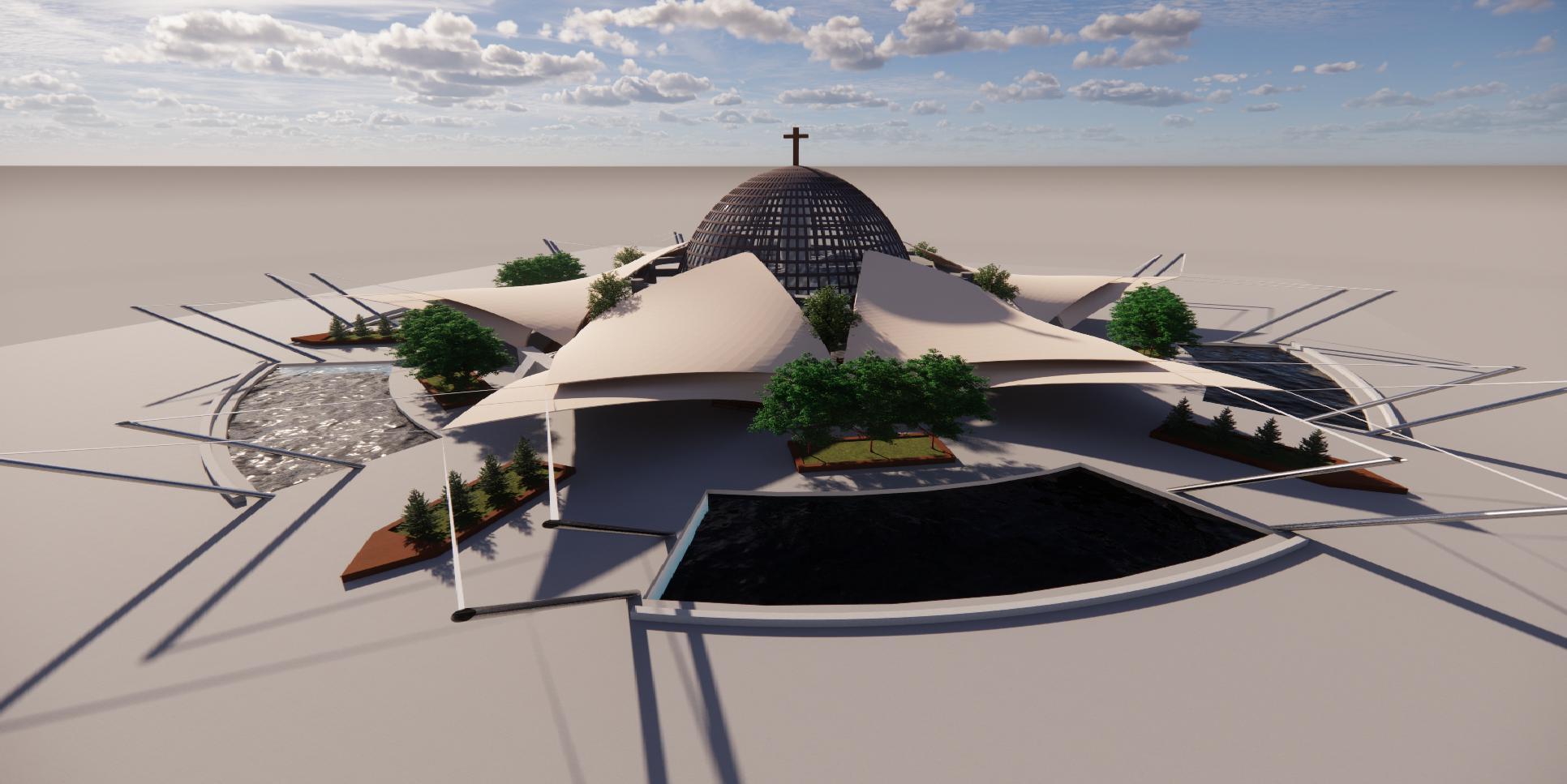

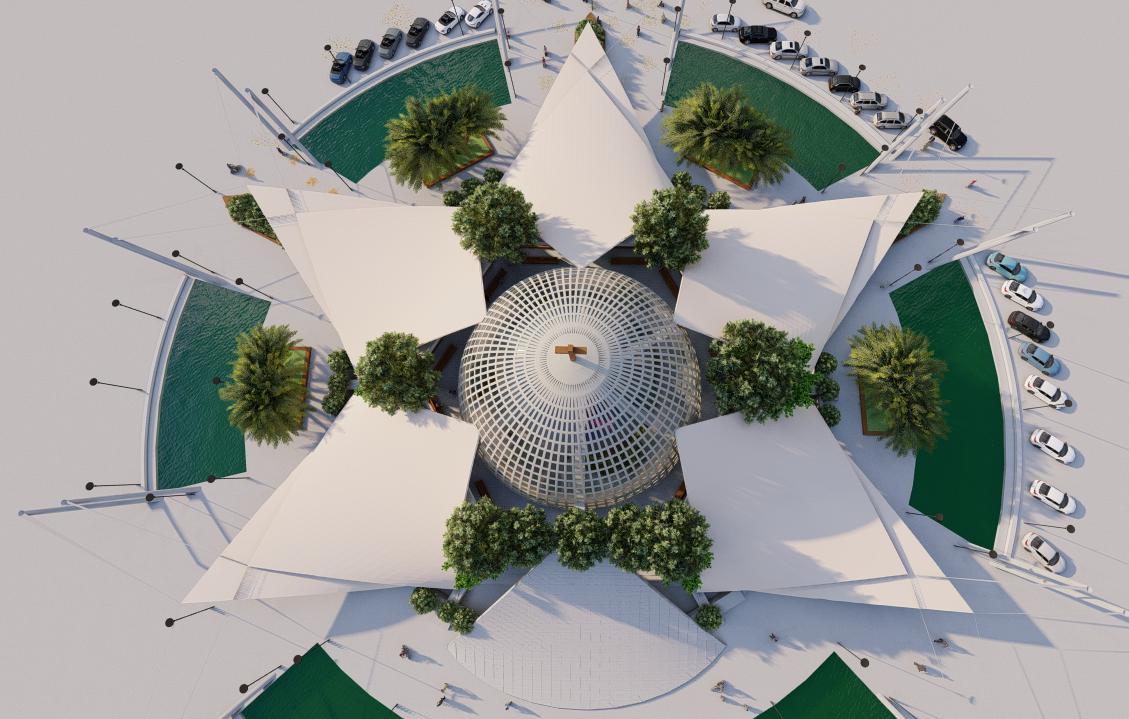

Aerial perspective of the proposed university chapel.

PORTFOLIO | 2022-2023

NEW HORIZONS

Highrise buildings are costantly evolving over time. The idea of creating a building that observes passive cooling and at the same time recognizes the effect of daylighting within the building. The building condemn the idea of using ample amount of electricity which is why the whole concept was derived from a more tropical setting.

Sketchup + Enscape Adobe Photoshop Adobe Illustrator AutoCad

7

One architectural element that is applied in the building is the use of biomimicry design. The main objective of this design is to use its form and at the same time functions as the main tropical contributor towards the building.

Exterior Perspective of the east view of the Chapel

NEW HORIZONS A PROPOSED HIGHRISE APARTMENT

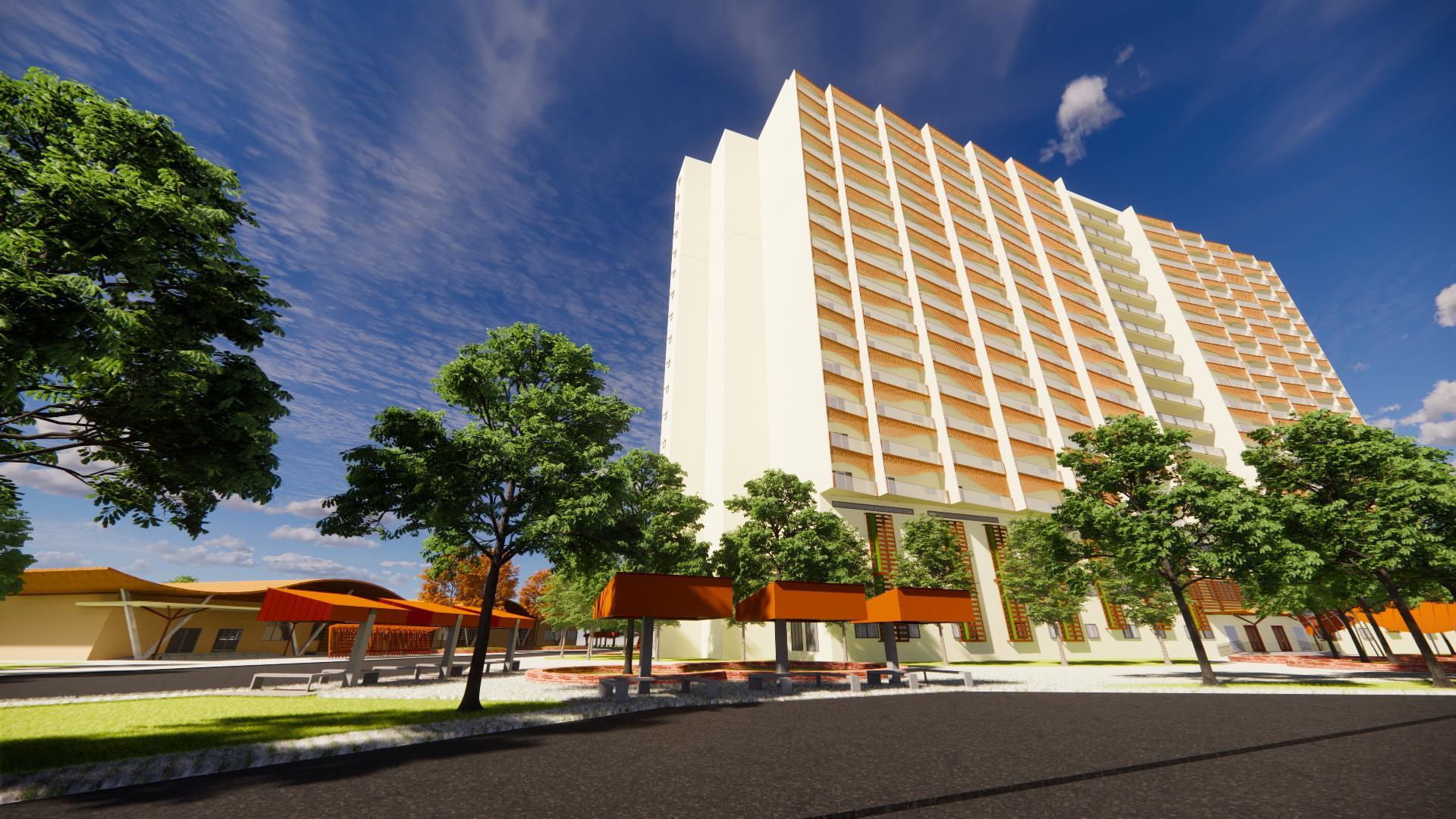

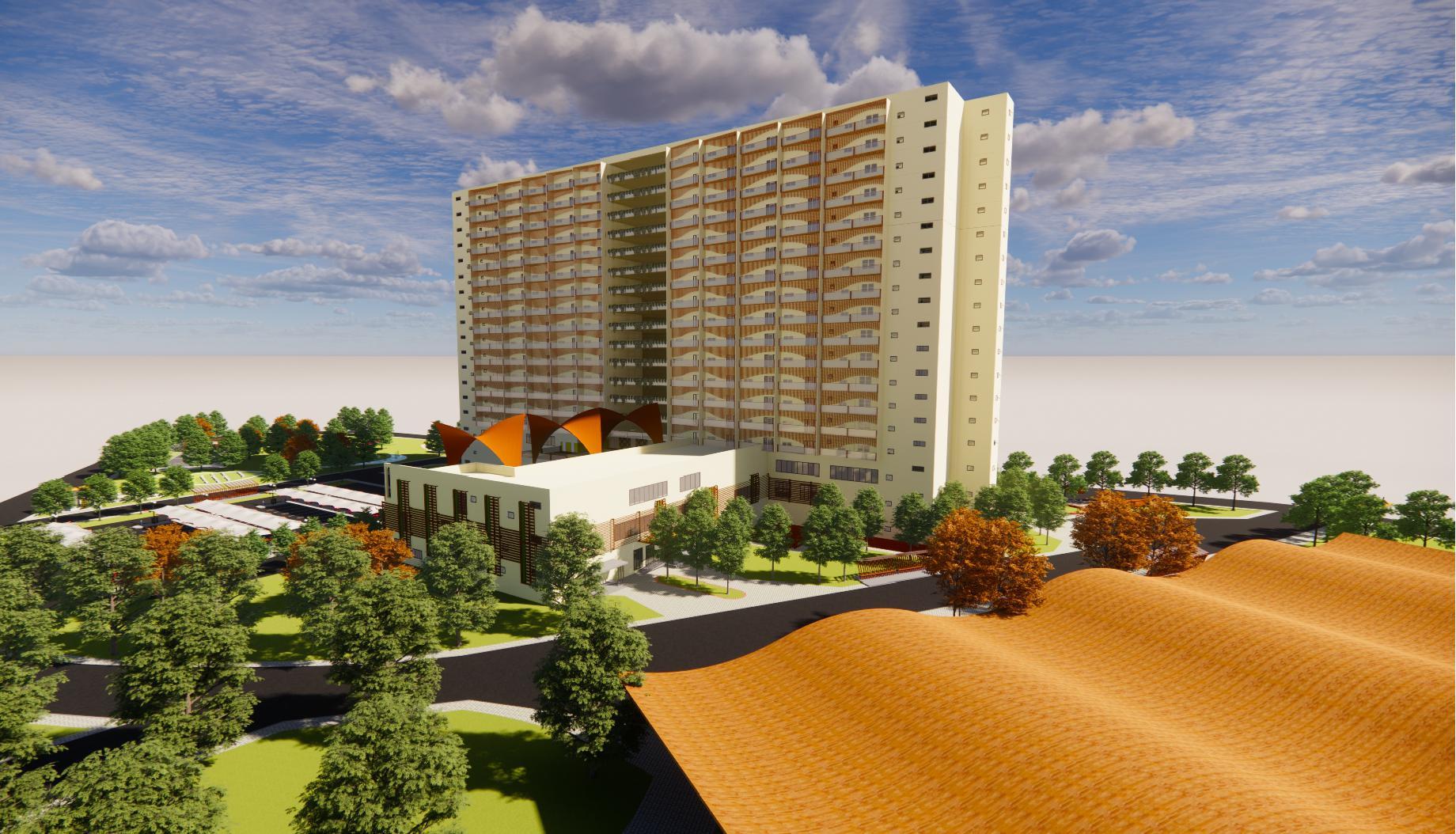

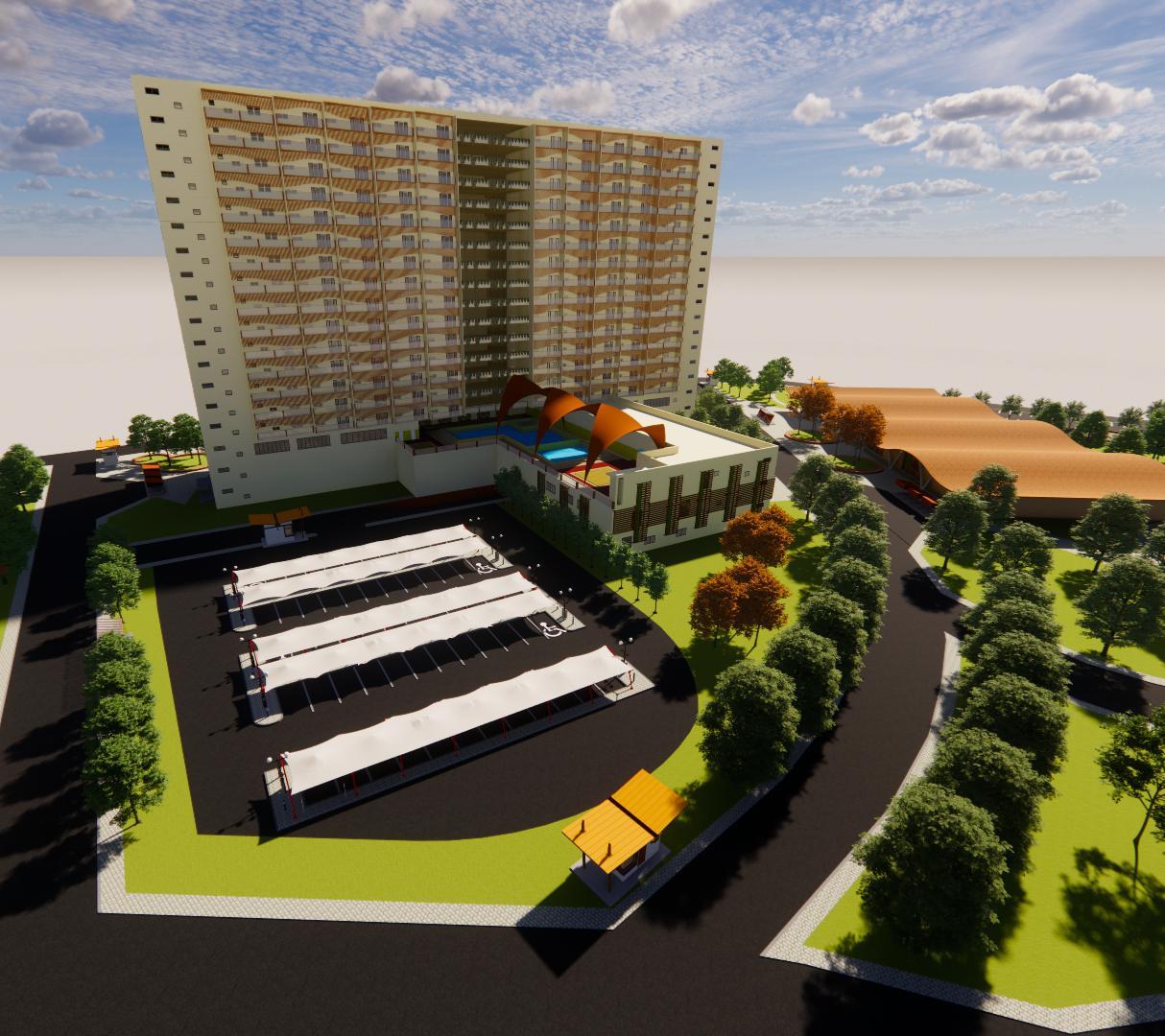

Highrise Apartment Aerial Perspective

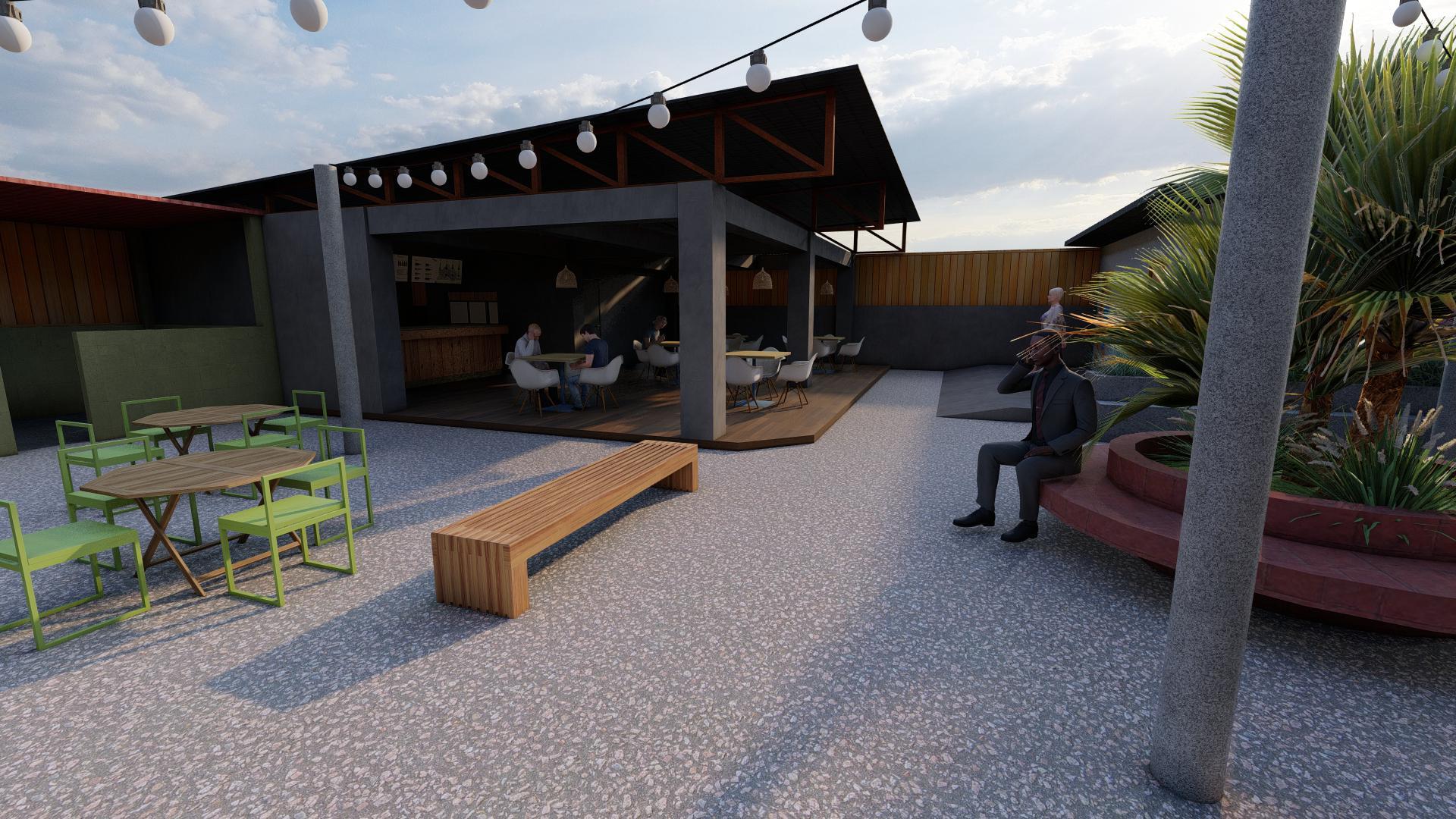

Student Center is a supplementary building within the site to support student occupants of the apartment building. Furthermore, highrise apartment building with its sutendet center also acknowledged the idea of creating an identity through biomimicry design strategies.

Student Center Exterior Perspective

8

PORTFOLIO | 2022-2023

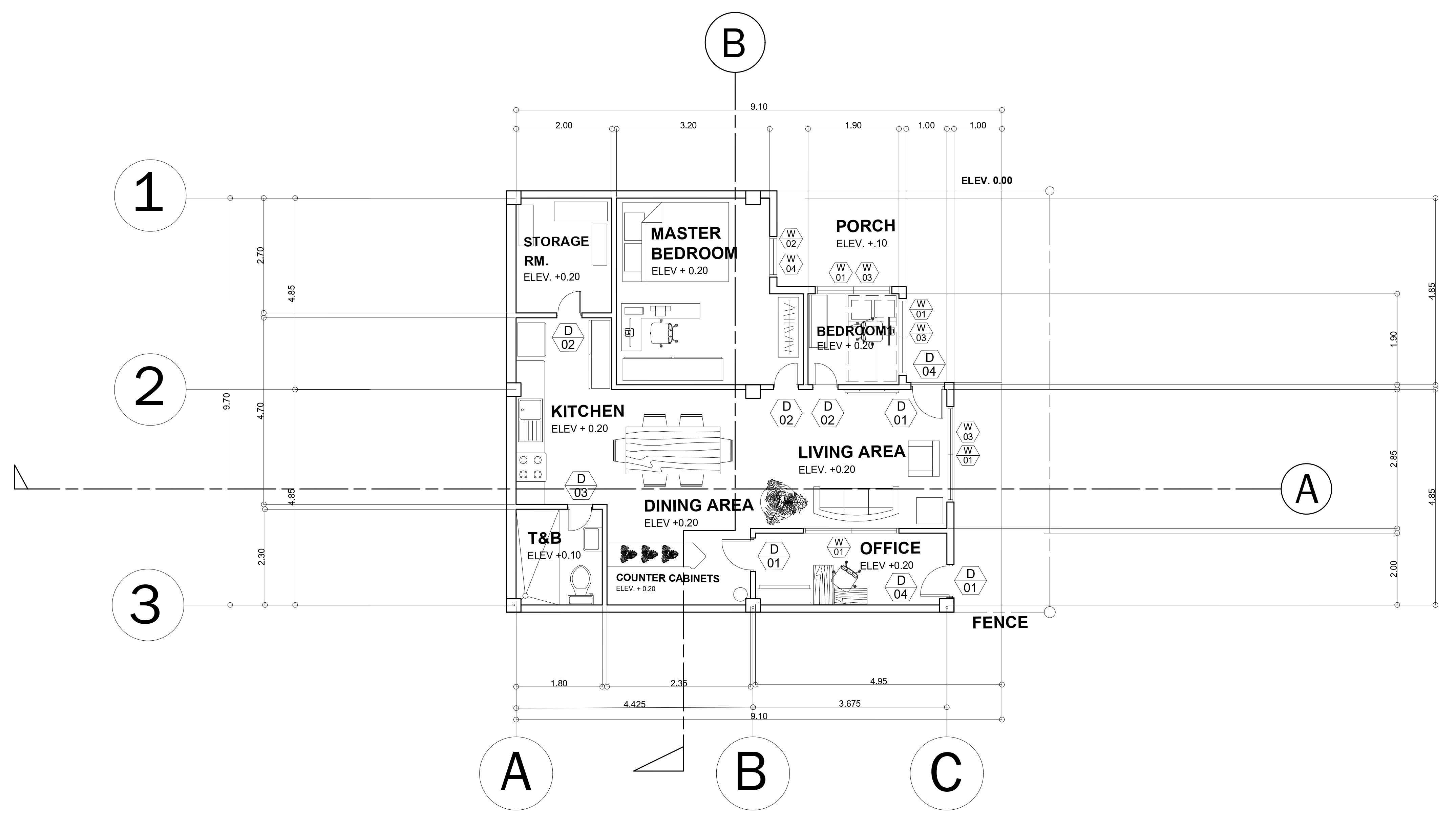

GROUND FLOOR PLAN NOT TO SCALE

9

NEW HORIZONS A PROPOSED HIGHRISE APARTMENT

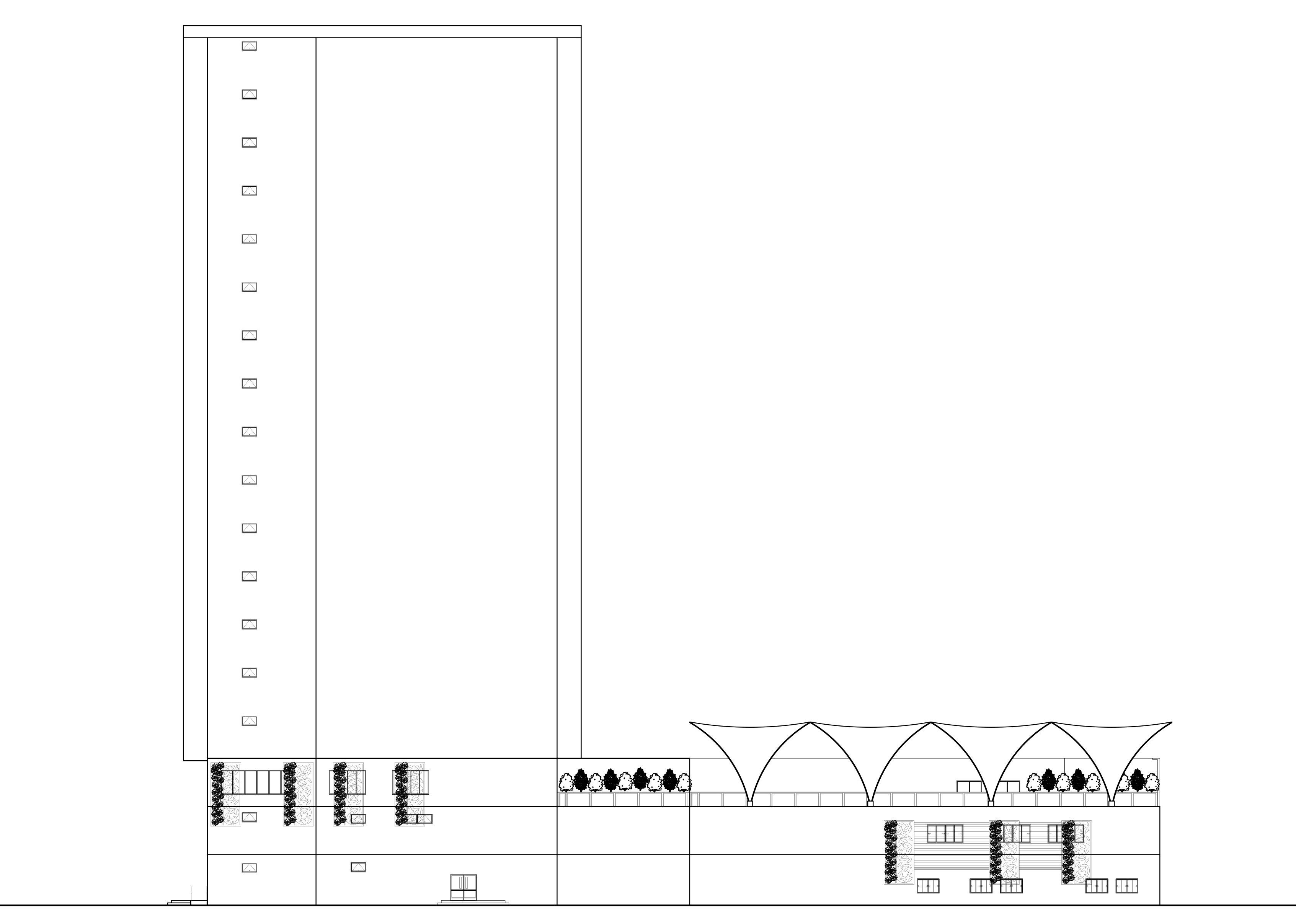

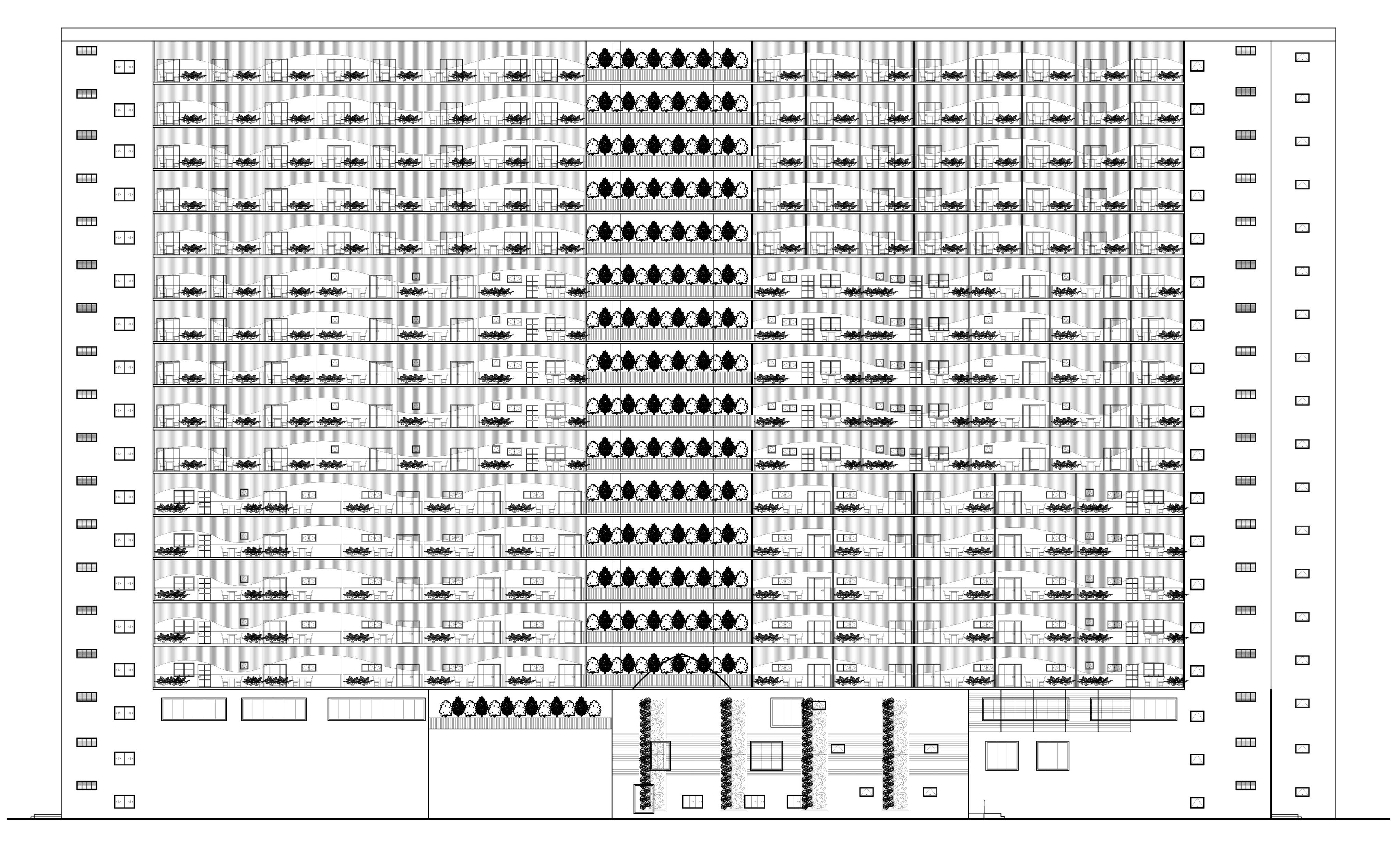

REAR ELEVATION NOT TO SCALE

RIGHT SIDE ELEVATION NOT TO SCALE

10

PORTFOLIO | 2022-2023

Mimosa Pudica or also known as “Makahiya” plant was used for louvers for the apartment rooms. The louvers is a mechanical type of model in which users can also have the chance to fold them and adjust them depending on their convenience and desired location.

Mimosa Pudica Louvers Aerial Perspective

Mimosa Pudica Front Facade Perspective

11

NEW HORIZONS A PROPOSED HIGHRISE APARTMENT

Mimosa Pudica Aerial Perspective

12

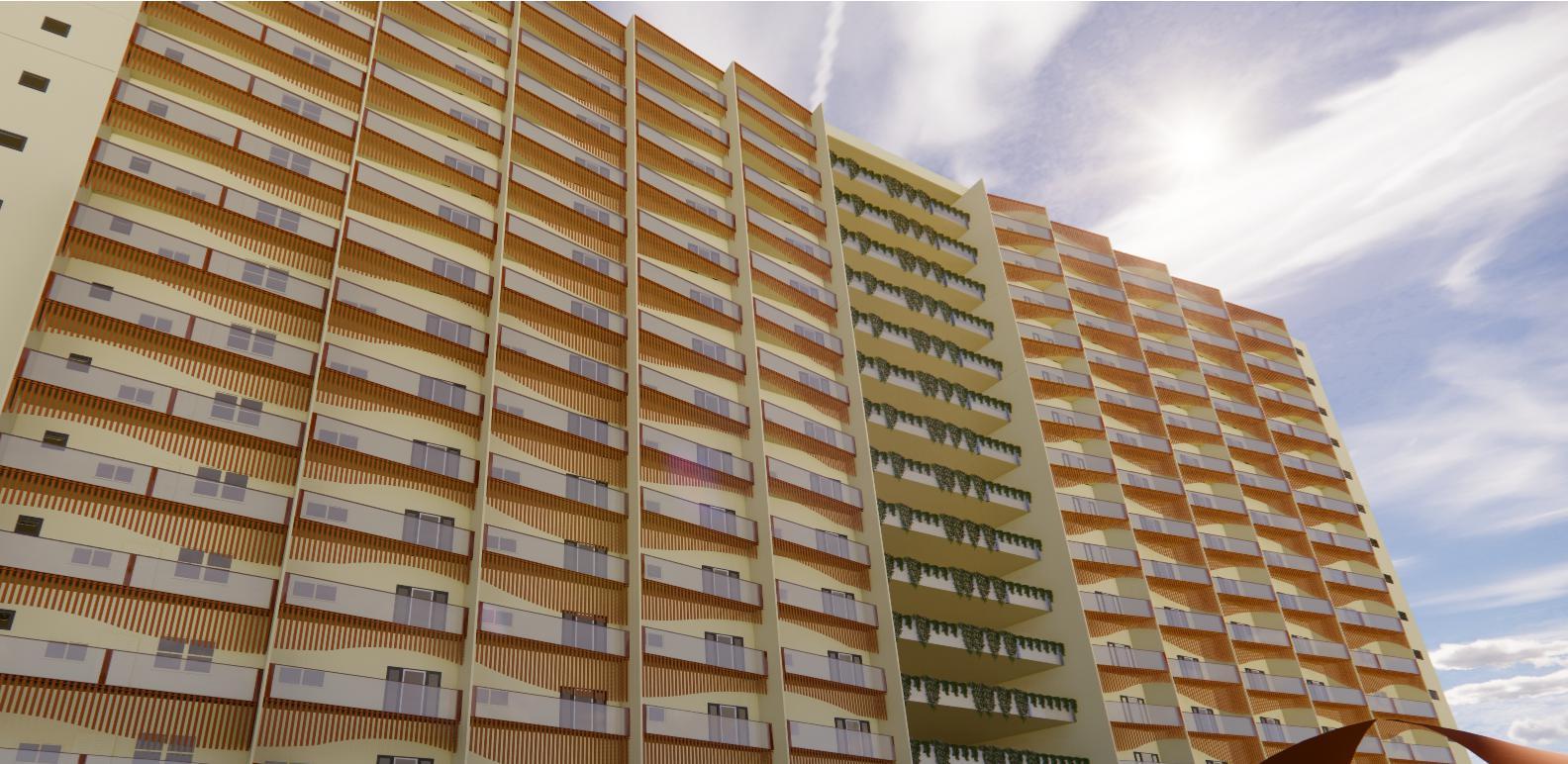

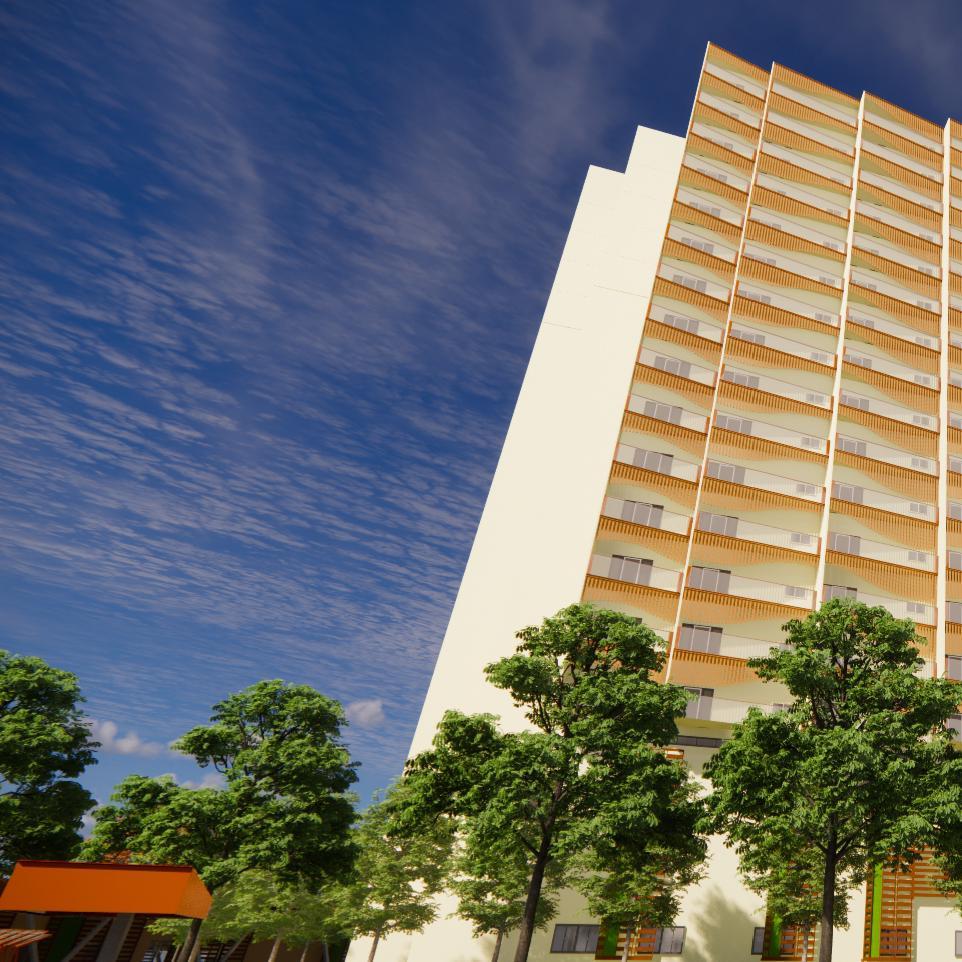

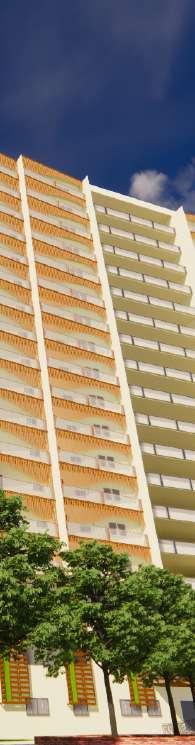

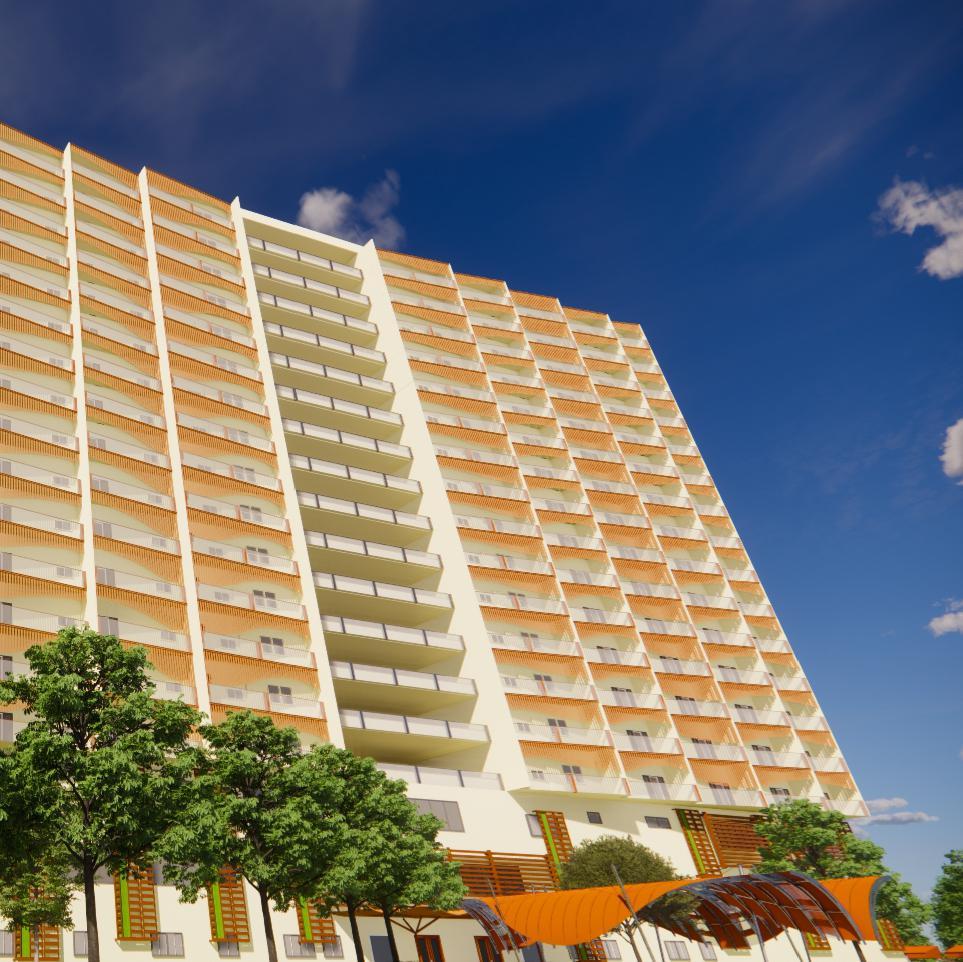

NEW HORIZONS Front Facade of the proposed highrise apartment building.

PORTFOLIO | 2022-2023

HARDINIA VILLAPARK SUBDIVISION

BEST IN RESEARCH SY 2022-2023

Food security plays an important role for it dictates the users’ access towards available food. But when the pandemic hit together with its frequent lockdowns, food security in the country became a crucial issue that needs to be addressed. The main idea of the study is to conceptualize and formulate design consideration for food sensitive community planning in the lens of the lowest socio-economic status in the city since these people are the most vulnerable subjects for relevant issues with regards to food security.

Sketchup + Enscape Lumion 10 Adobe Photoshop Adobe Illustrator AutoCAD

15

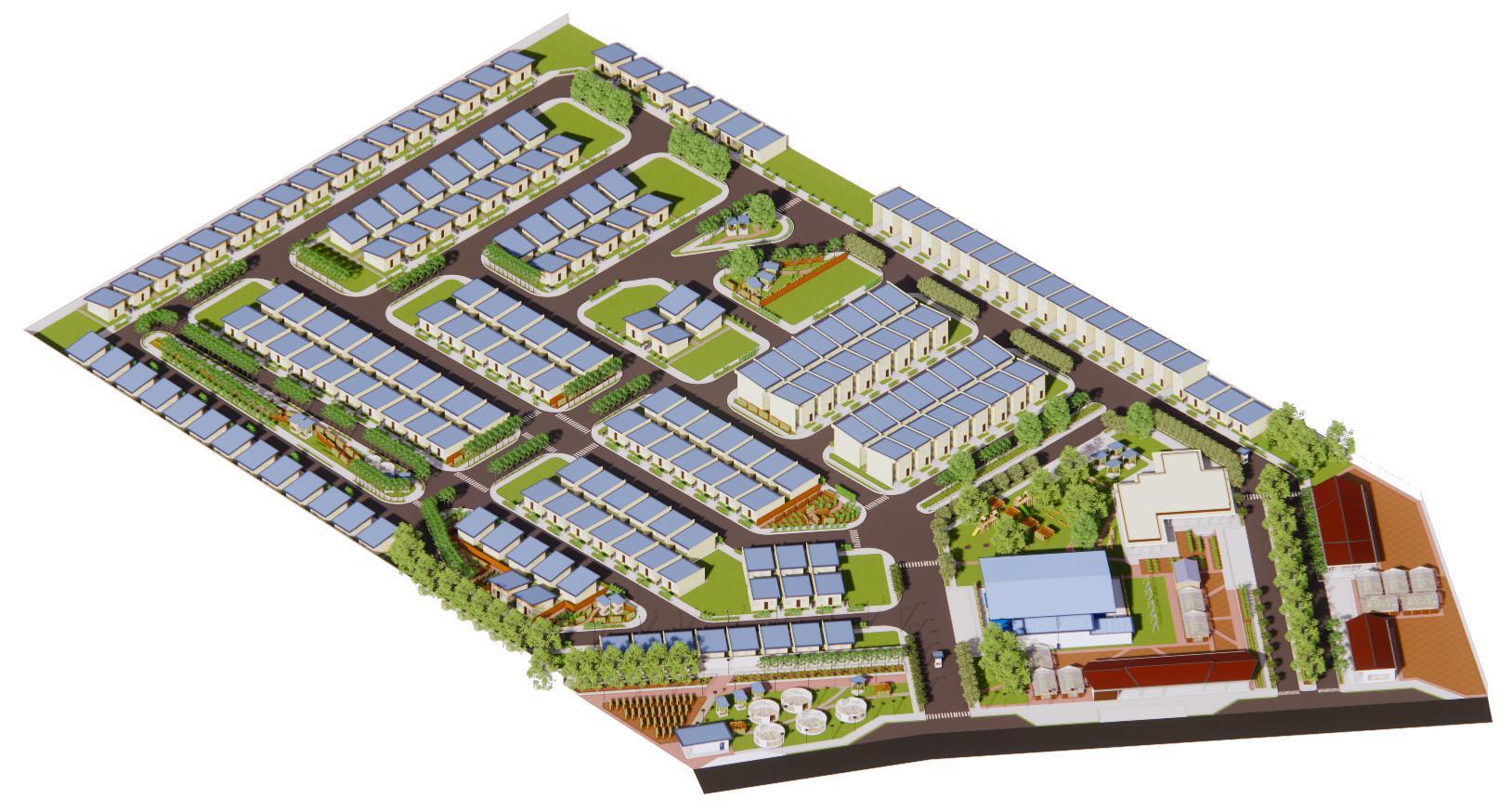

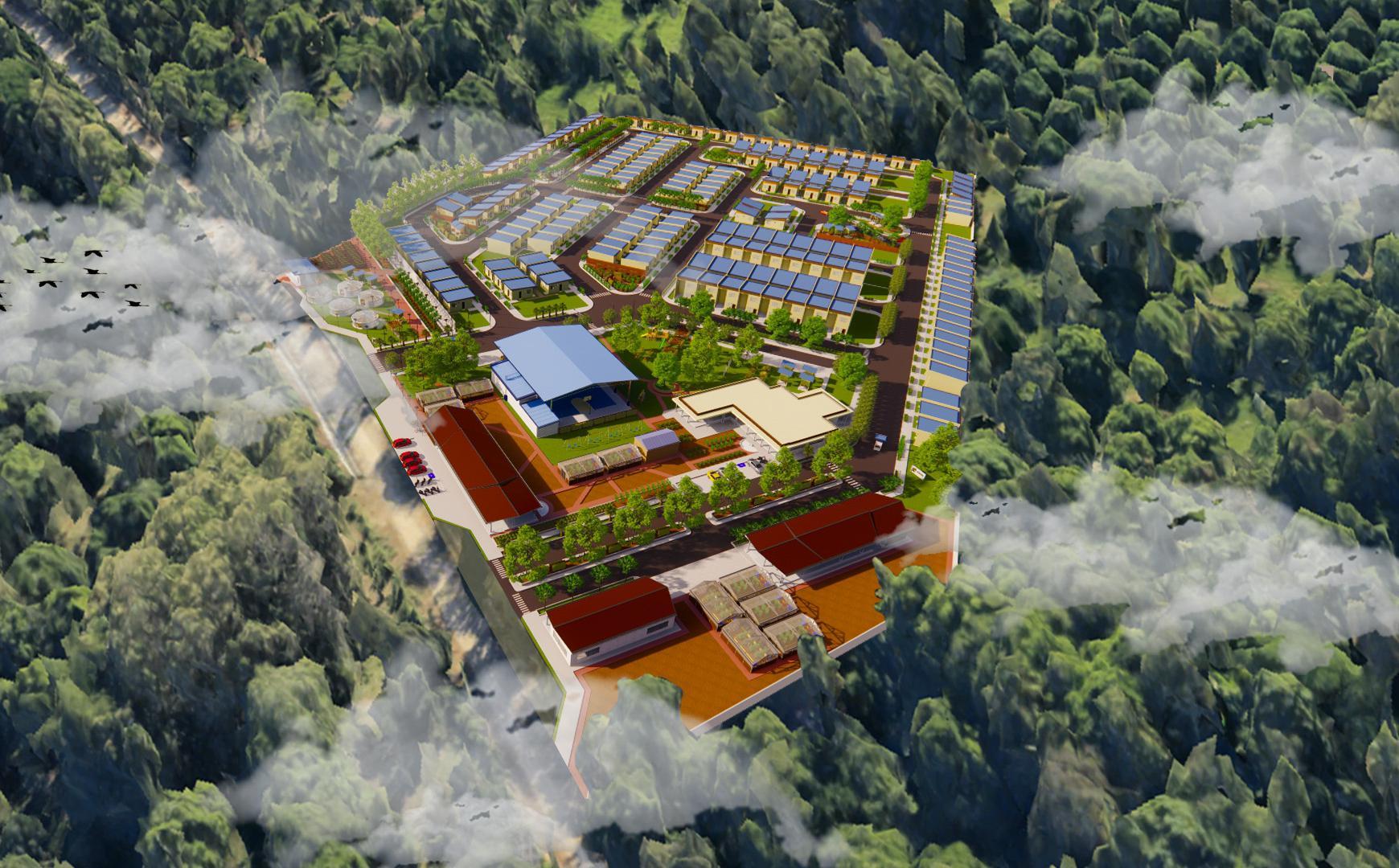

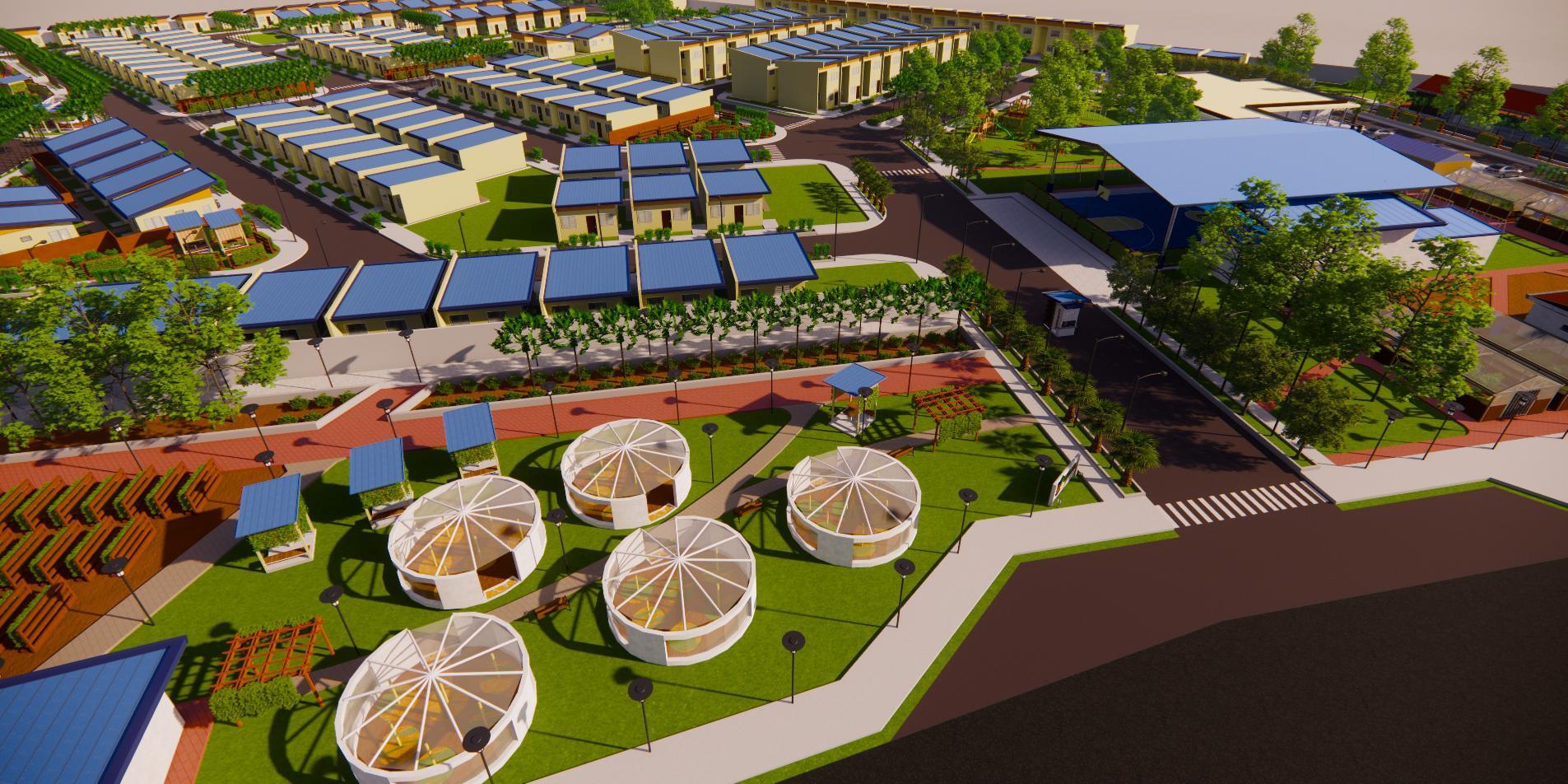

Aerial perspective of Hardinia Villapark Subdivision

HARDINIA VILLAPARK SUBDIVISION: A PROPOSED LOW-COST HOUSING

Aside from food production strategies implied towards the planning on the subdivision, the users also has the option to earn their own sari-sari stores which was zoned within the residential area. Public agriculture parks were also proposed to let the public use it for recreational area and at the same time be able to learn from the different food production used within the area.

Agriculture pocket park

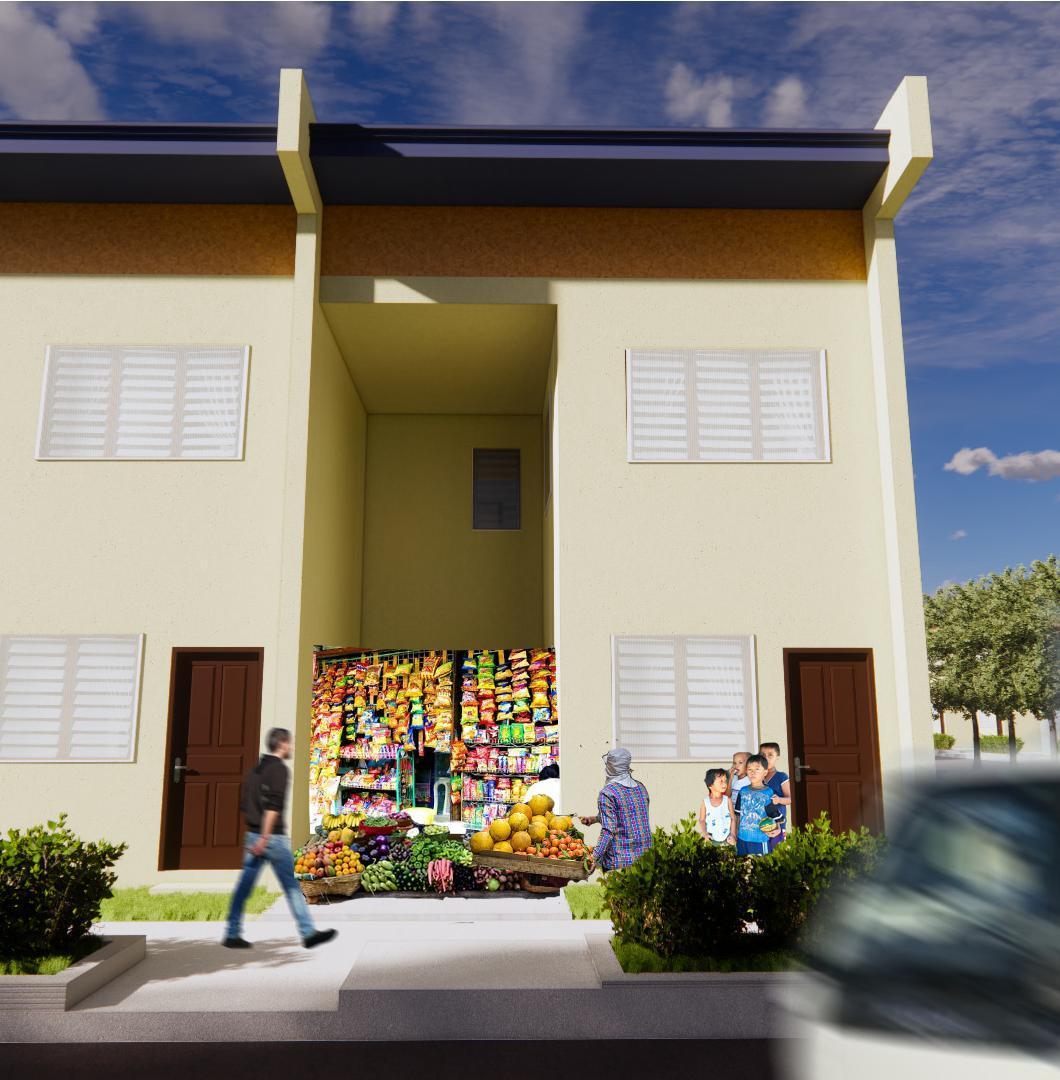

Neighborhood Sundry Store Zone

Aerial perspective of the public agriculture park

16

PORTFOLIO | 2022-2023

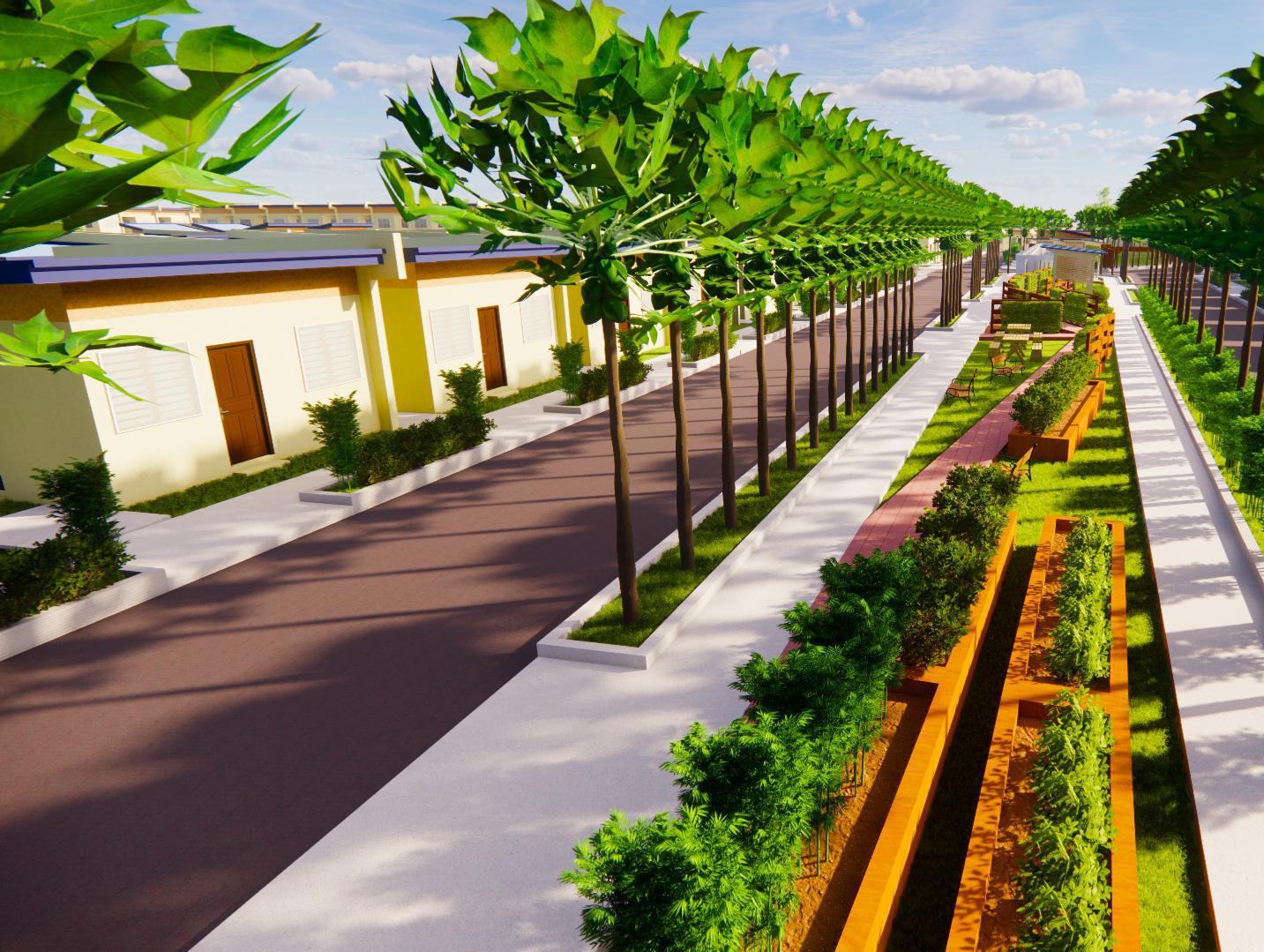

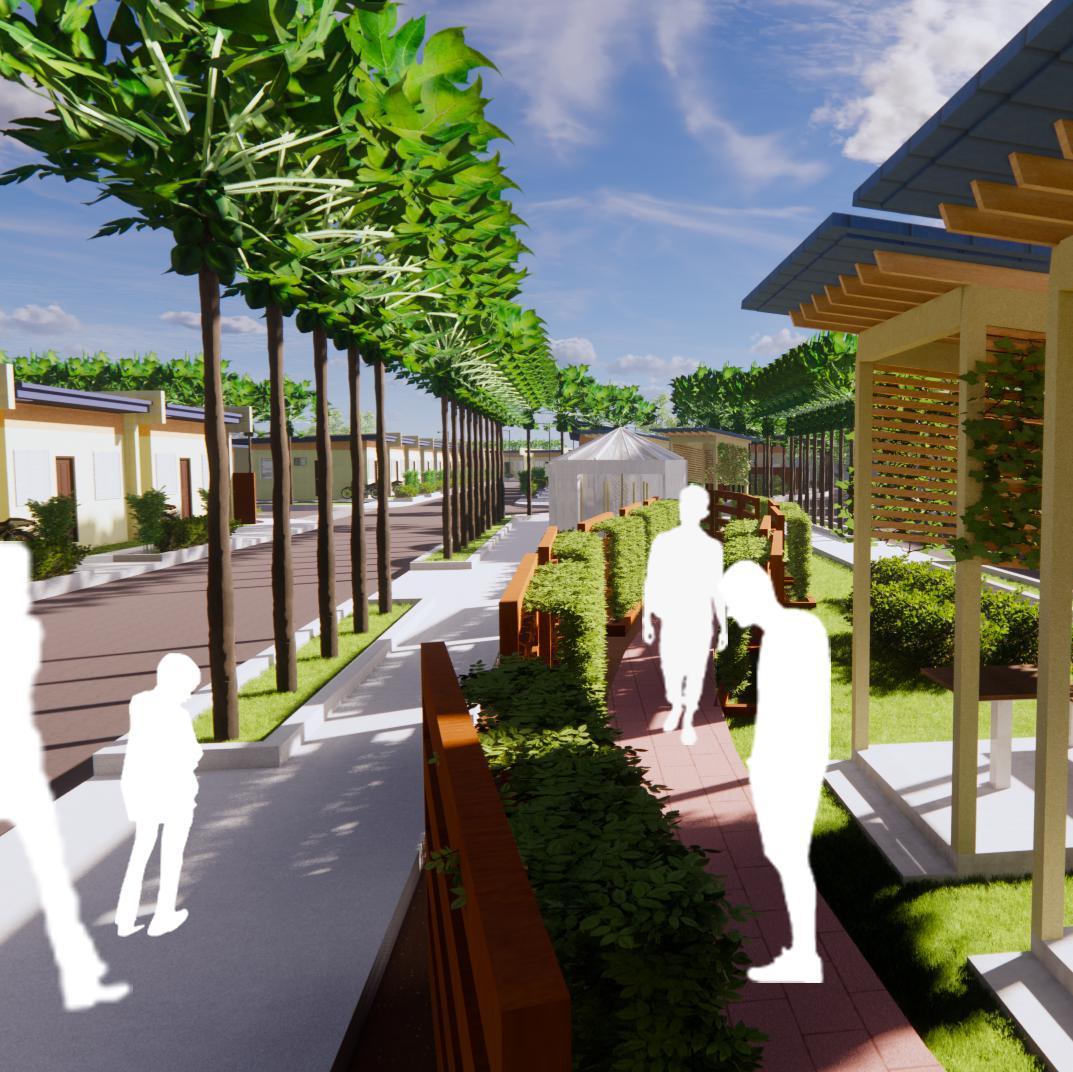

LINEAR AGRICULTURE PARK

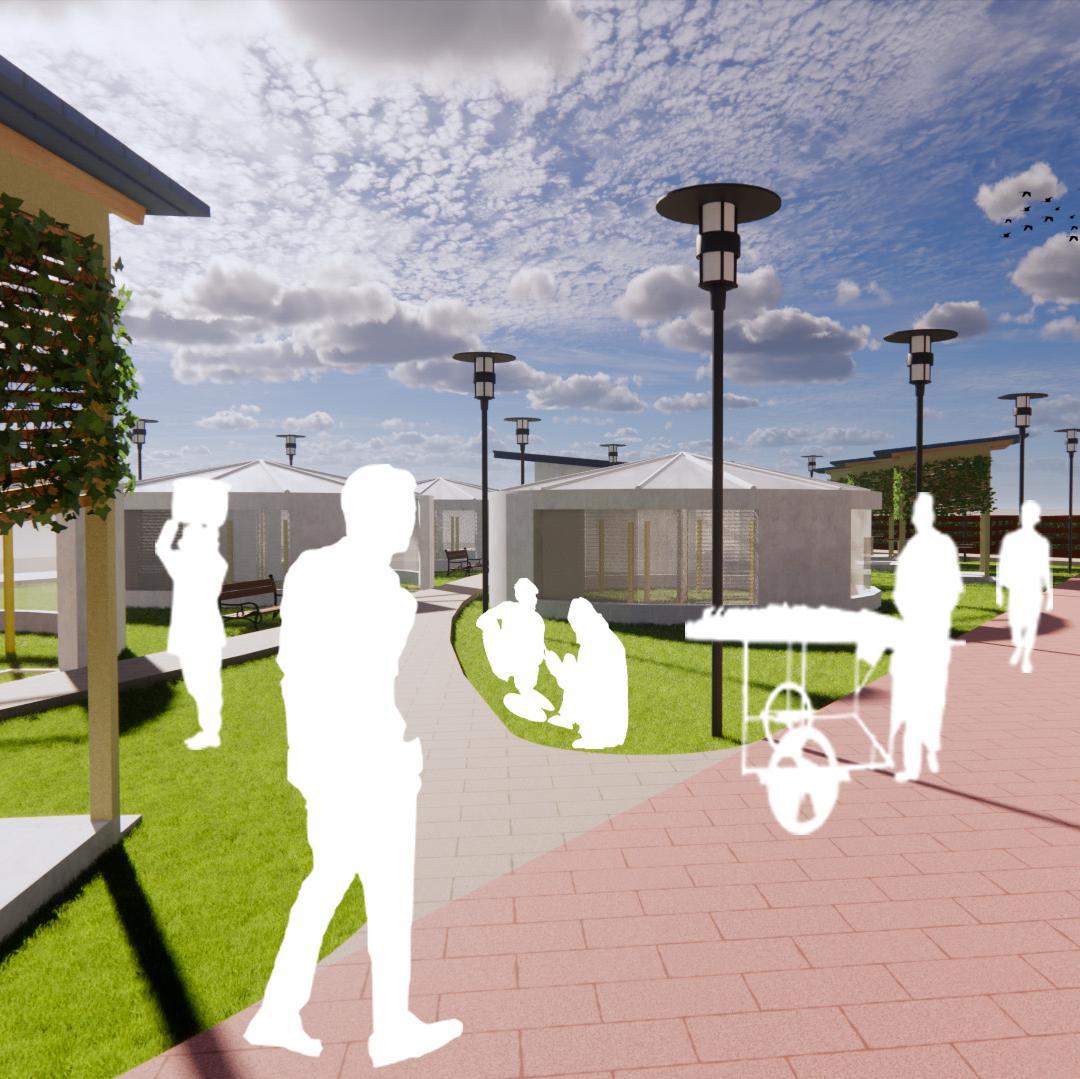

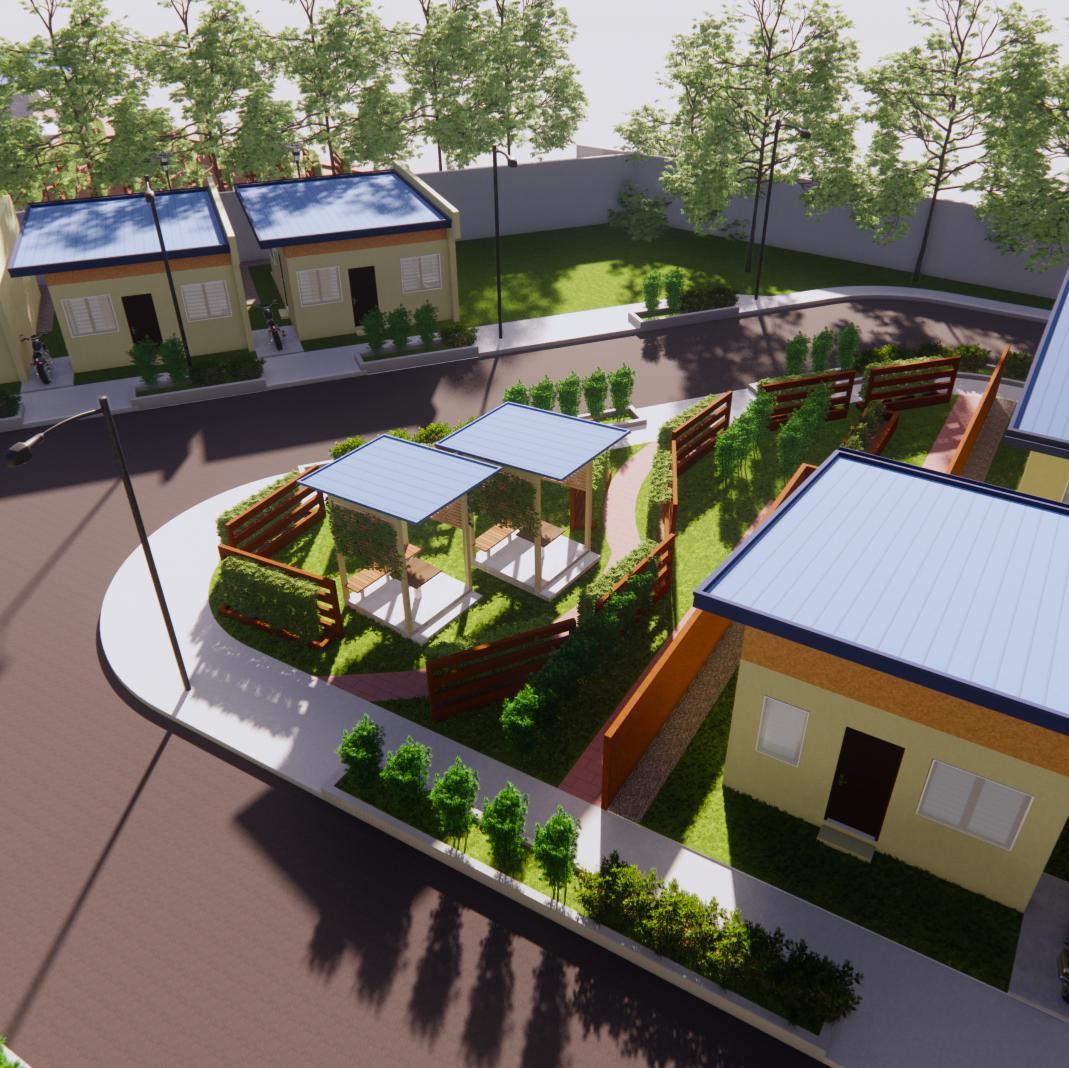

POCKET PARKS: EDIBLE PLANTS AS A LANDSCAPE ELEMENT

POCKET PARKS: EDIBLE PLANTS AS A LANDSCAPE ELEMENT

17

HARDINIA VILLAPARK SUBDIVISION: A PROPOSED LOW-COST HOUSING

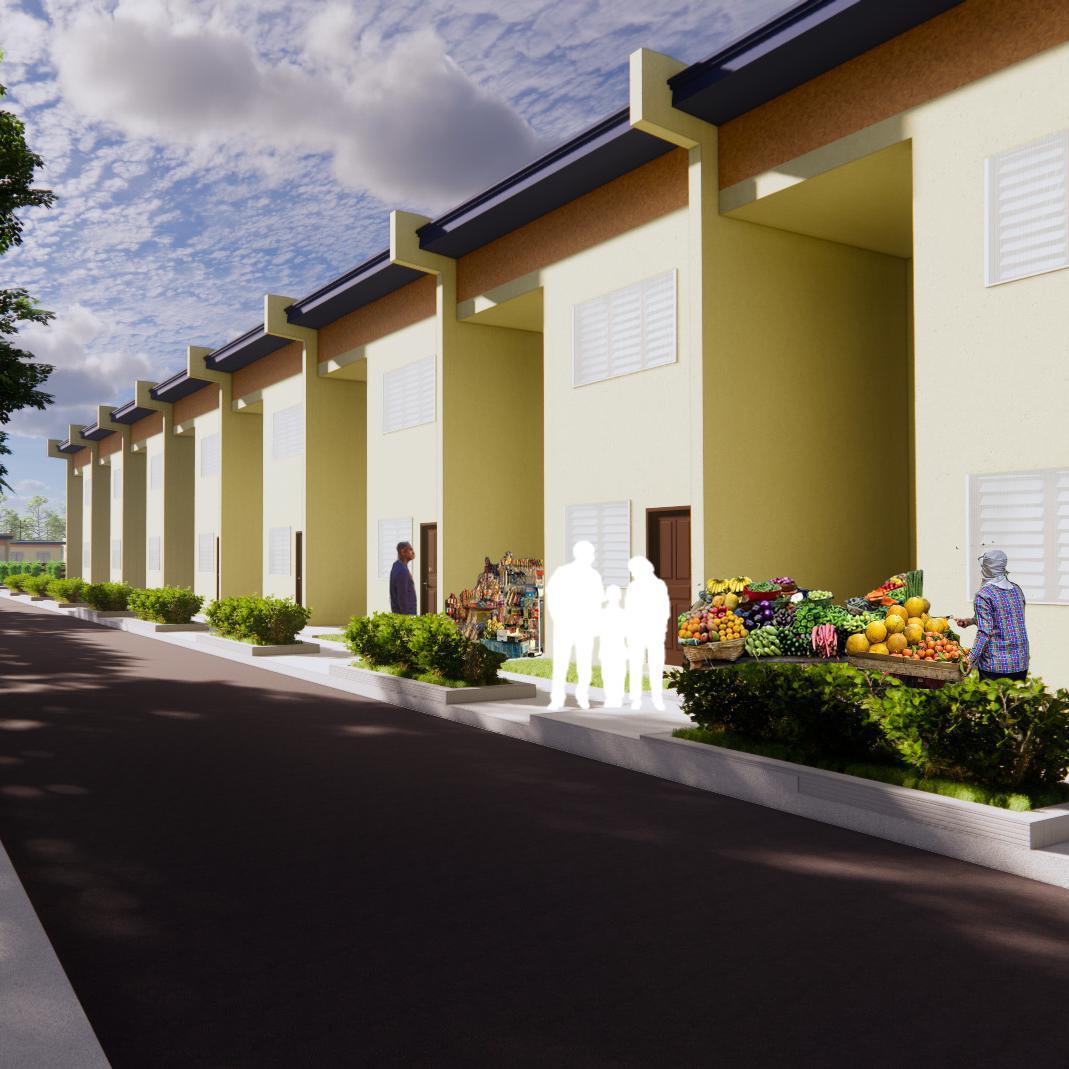

NEIGHBORHOOD SUNDRY STORE ZONE

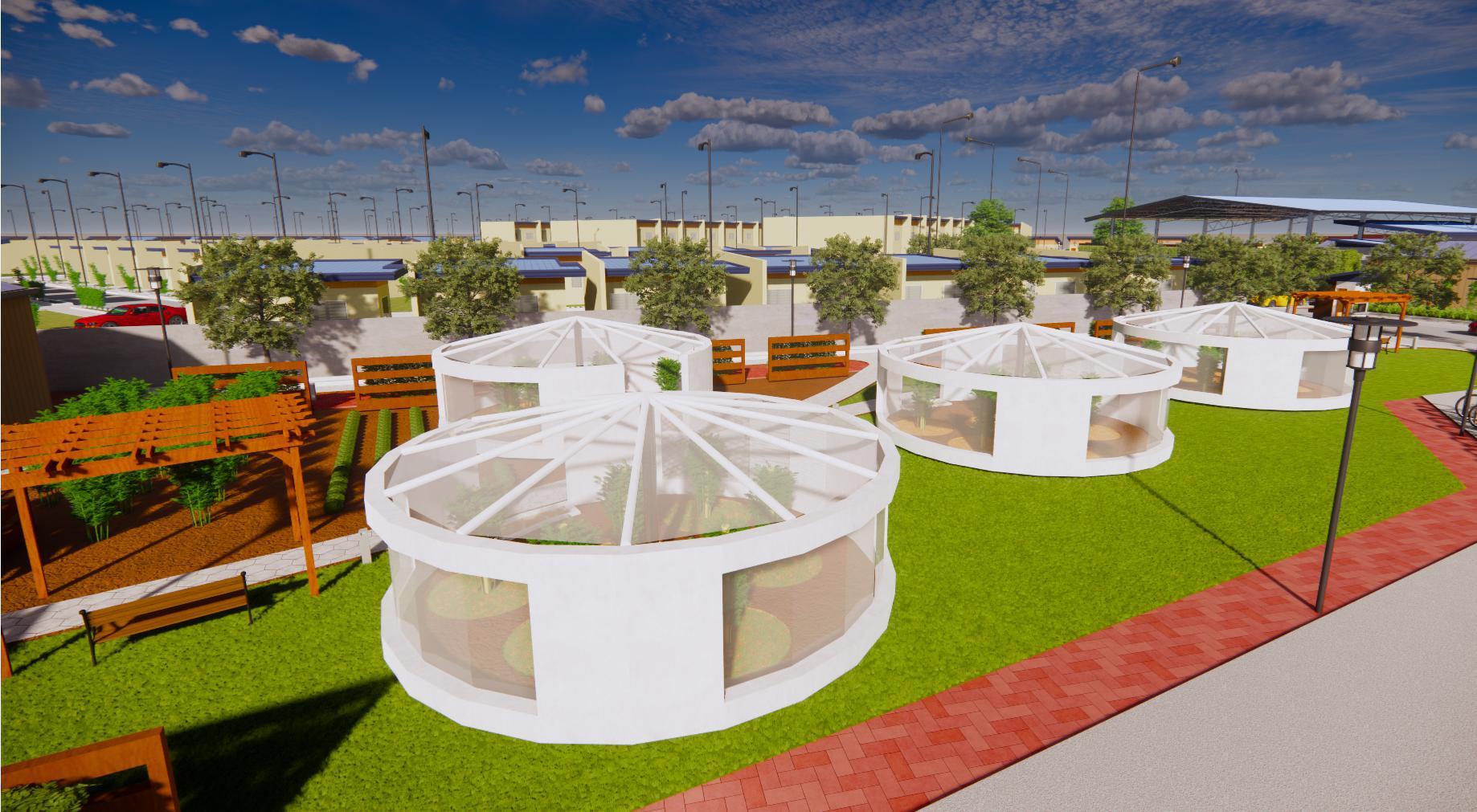

COMMUNITY GARDENS FOR TRAINING AND TESTING CROPS

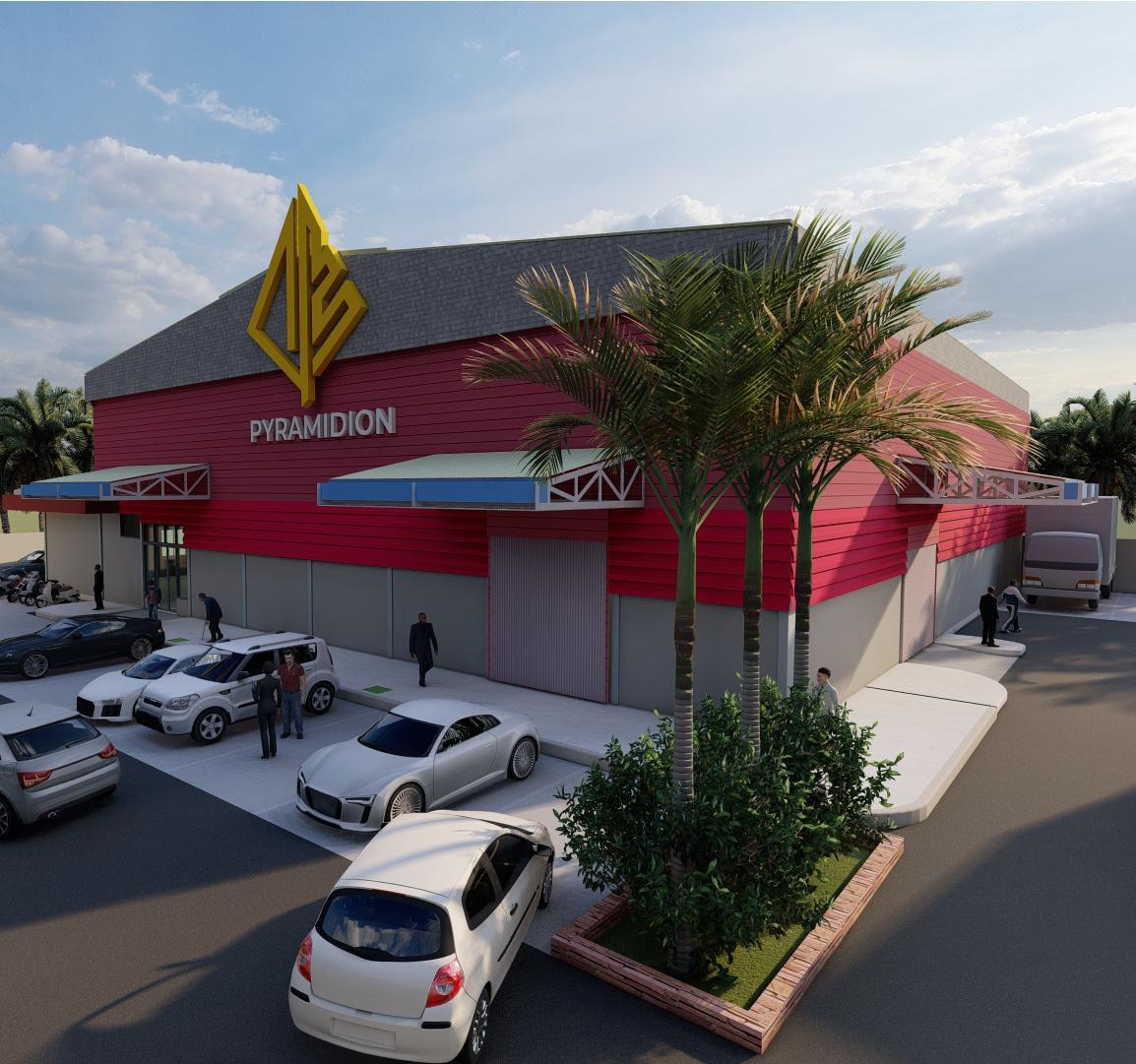

COMMERCIAL SPACES WITH LAND INTENDED FOR FOOD PRODUCTION

COMMUNITY FARMER’S MARKET

18

PORTFOLIO | 2022-2023

R2

R1 R3

R4

W1 W2

C3 W1

W1 D3 D2

GREEN OPEN SPACE FOR CIRCULATION

GREEN OPEN SPACE INTENDED FOR GARDENING

C3 C2 D1 C2

D2 W1

C4

R1

4MM THK. PREPAINTED G.I SHEET LONG SPAN RIB TYPE

R2

G.A 24 PRE-PAINTED GUTTER WITH 1” X 12” FASCIA BOARD

R3

FIXED WOOD SOFFIT LOUVER VENT

R4

8MM FIBER CEMENT BOARD

W1

13 PANELS JALOUSIE WINDOW WITH MOSQUITO SCREEN NET

W2

4 PANELS JALOUSIE WINDOW WITH MOSQUITO SCREEN NET

19

W1

13 PANELS JALOUSIE WINDOW WITH MOSQUITO SCREEN NET

W2

4 PANELS JALOUSIE WINDOW WITH MOSQUITO SCREEN NET

D1

DOOR DIMENSION: 2100MM X 800MM 1/4” PLYWOOD FACES 1 - 3/4” THK. HOLLOW CORE FLUSH DOOR WITH 2” X 5” KILN-DRIED TANGUILE DOOR JAMBS AND HEAD

D2

DOOR DIMENSION: 2100MM X 700MM 1/4” PLYWOOD FACES 1 - 3/4” THK. HOLLOW CORE FLUSH DOOR WITH 2” X 5” KILN-DRIED TANGUILE DOOR JAMBS AND HEAD

D3

DOOR DIMENSION: 2100MM X 600MM PLAIN PVC FLUSH DOOR PANEL WITH PVC LOUVERS AND PVC DOOR JAMBS AND HEAD

C1

REINFORCED COLUMN 200MM X 200MM WITH 250MM X 300MM ROOF BEAM

C2

CONCRETE SLAB 300MM X 800MM X 100MM THK.

C3

STEEL HALF-TRUSS ANGLE BAR 50MM X 50MM X 5MM THK.

C4

CONCRETE SLAB FOR MOTOR CYCLE PARKING 2000MM X 1500MM X 50MM THK.

HARDINIA VILLAPARK SUBDIVISION: A PROPOSED LOW-COST HOUSING

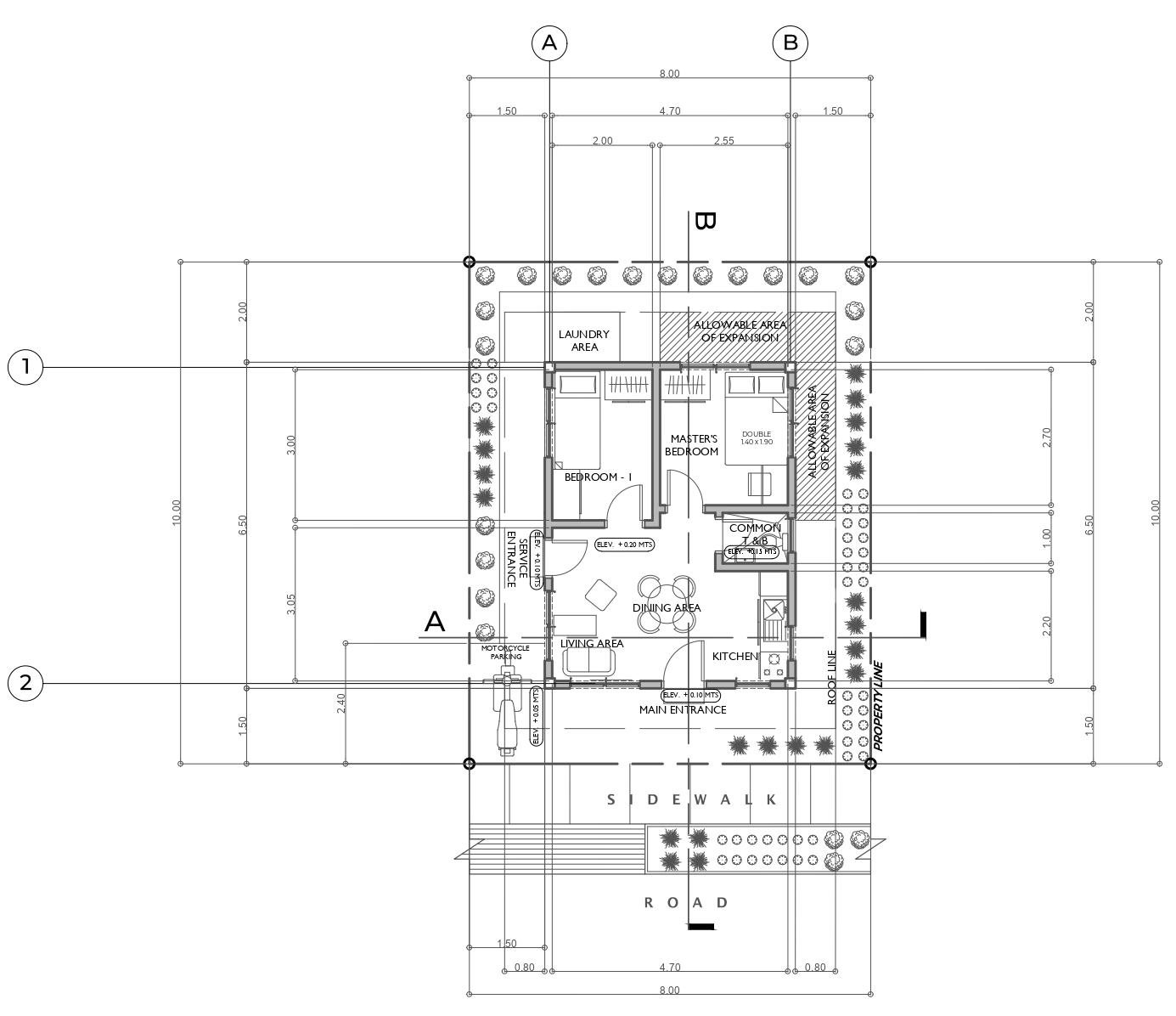

SINGLE DETACHED MASTER PLAN

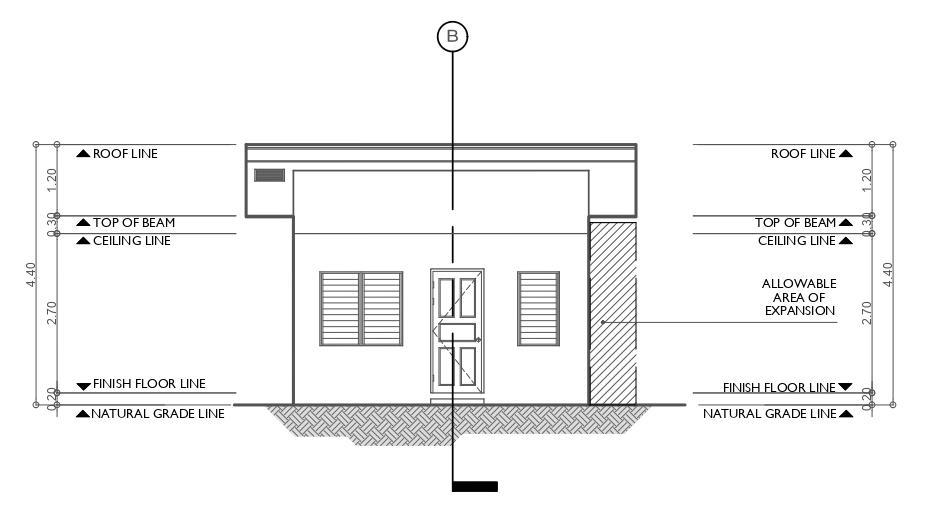

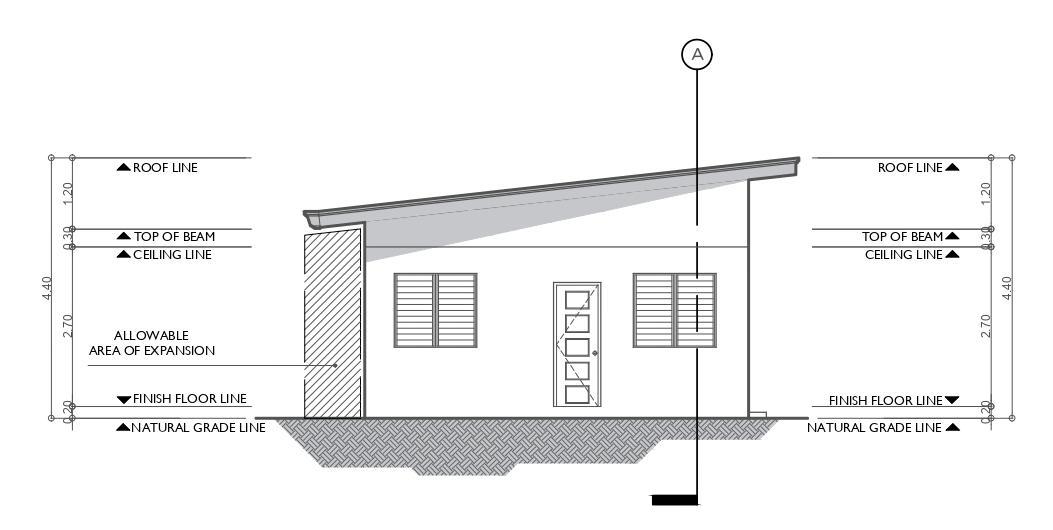

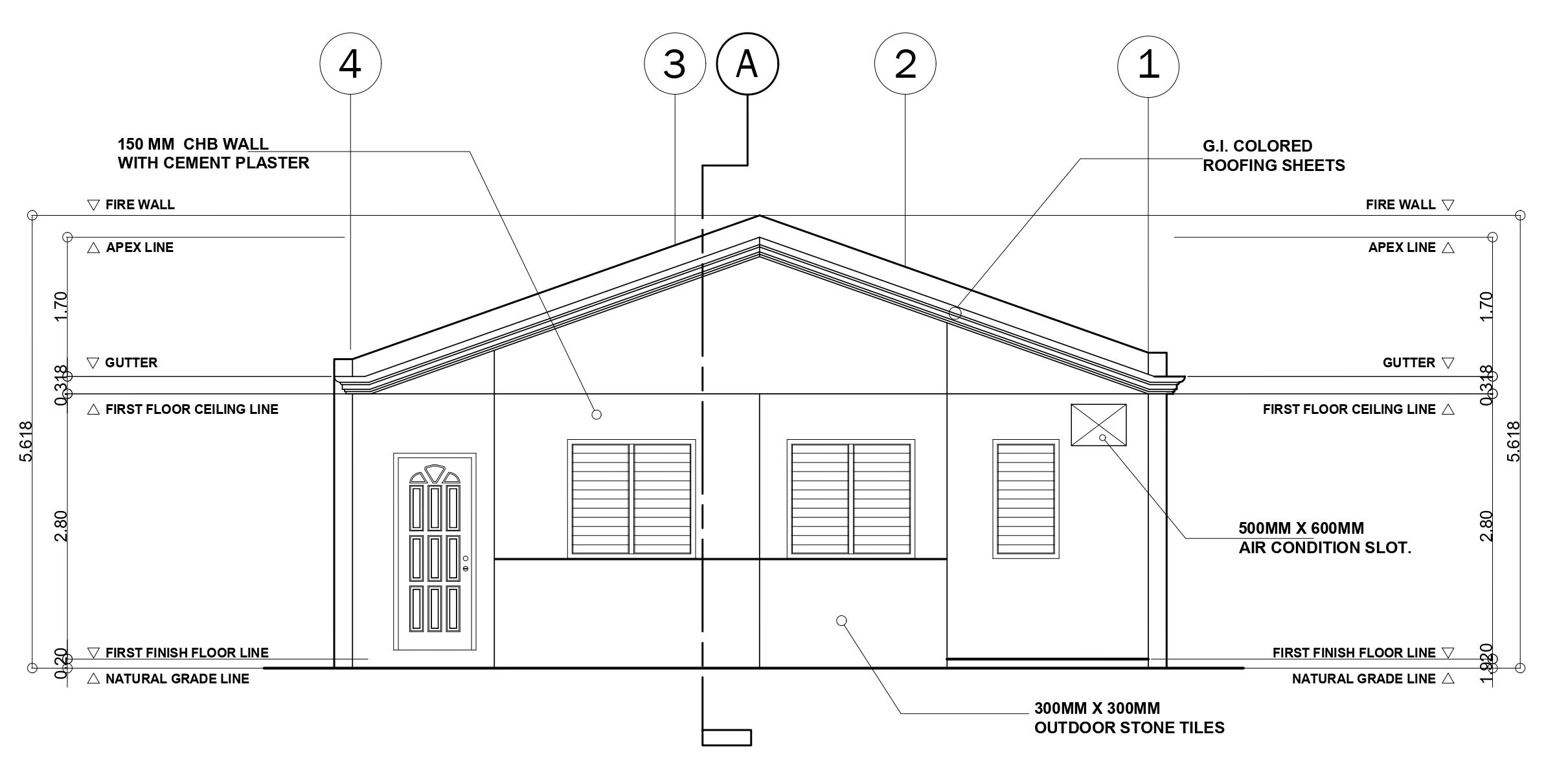

SOUTH ELEVATION

WEST ELEVATION

20

PORTFOLIO | 2022-2023

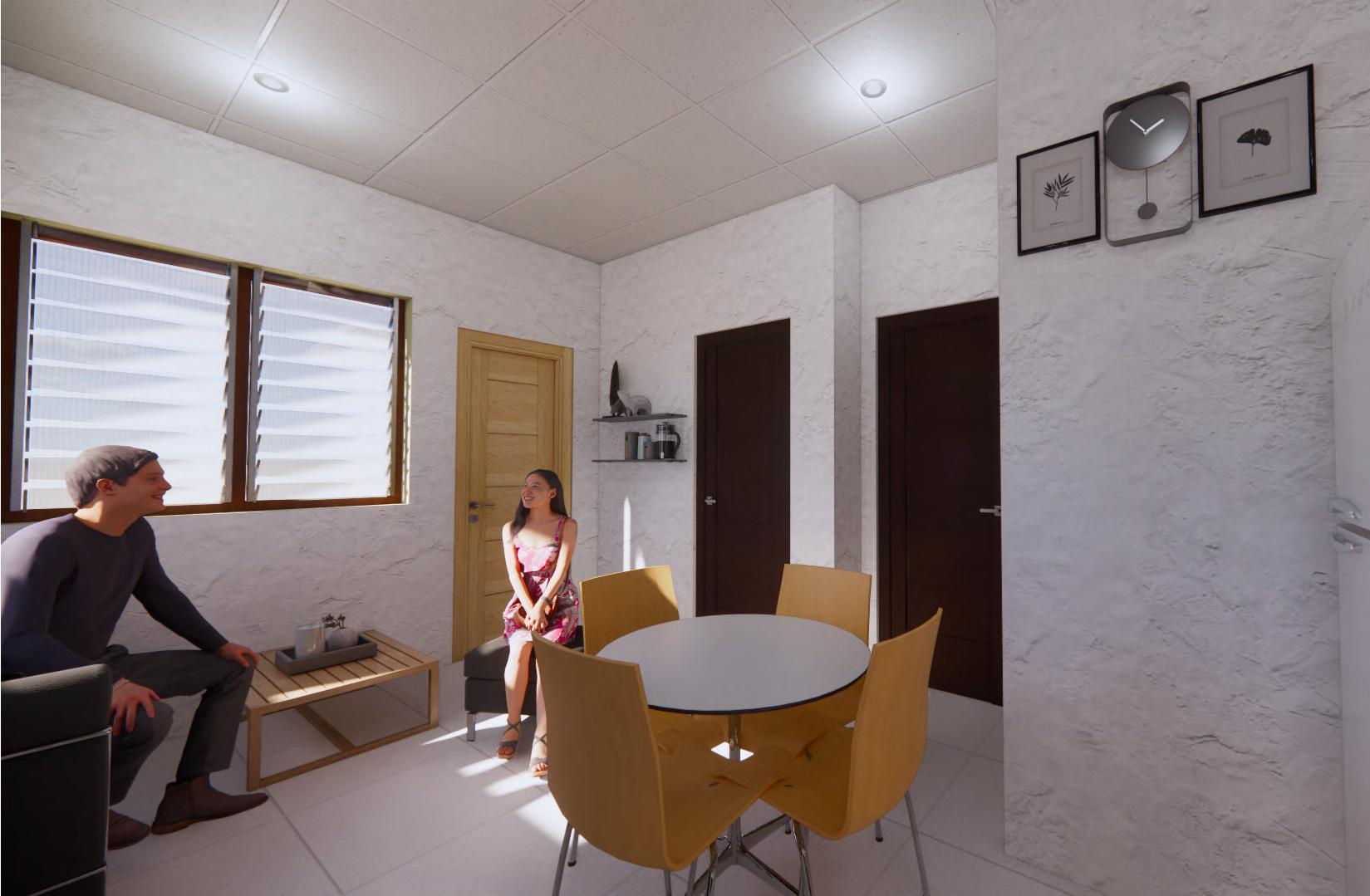

Interior Perspective of Single Detached Unit

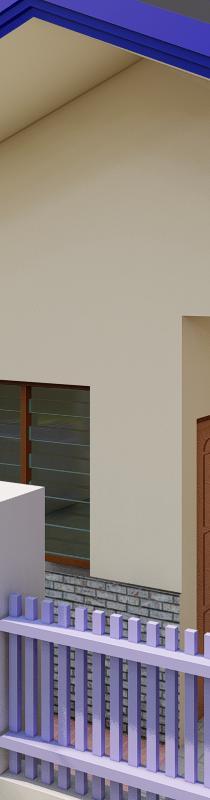

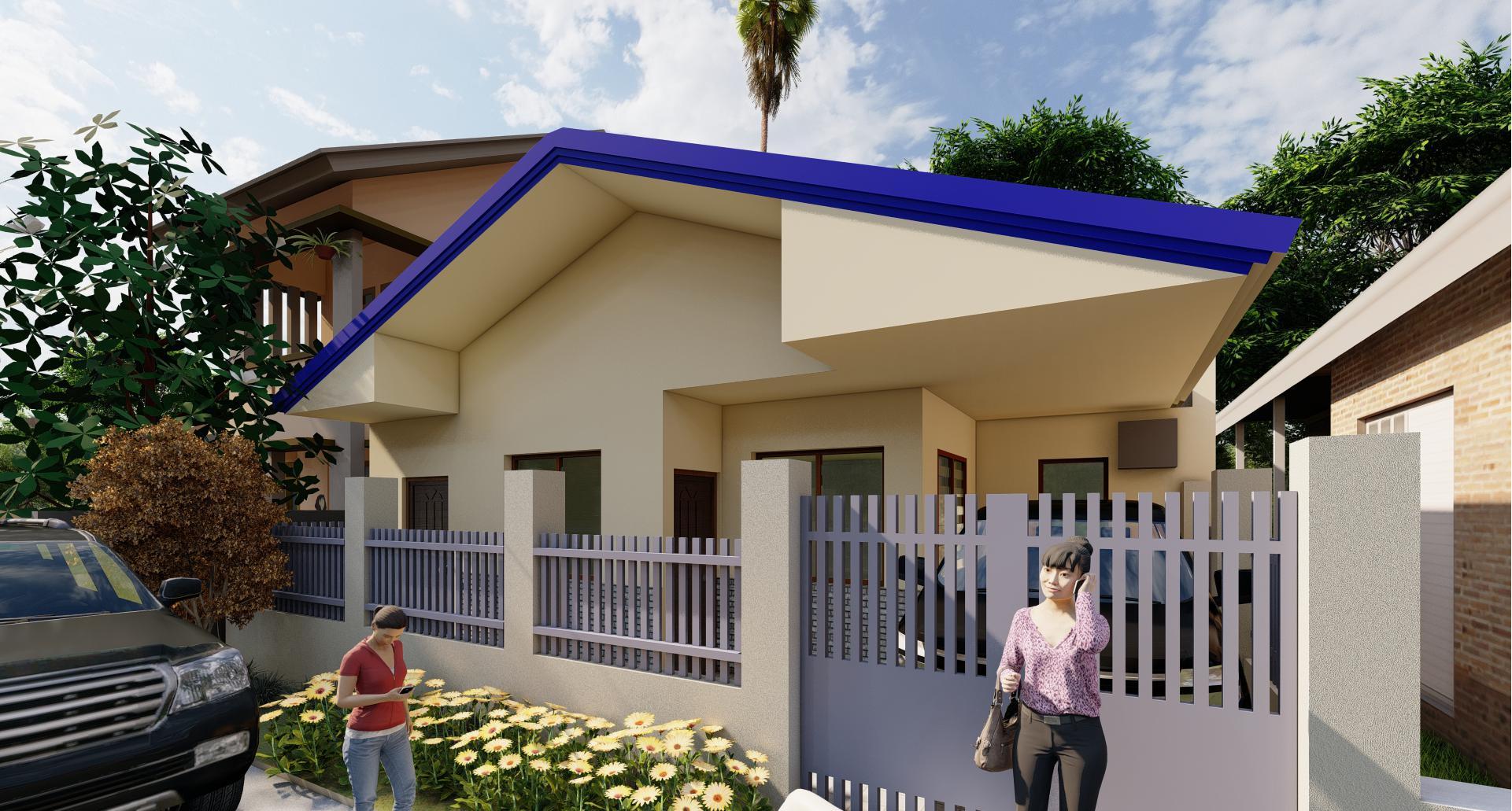

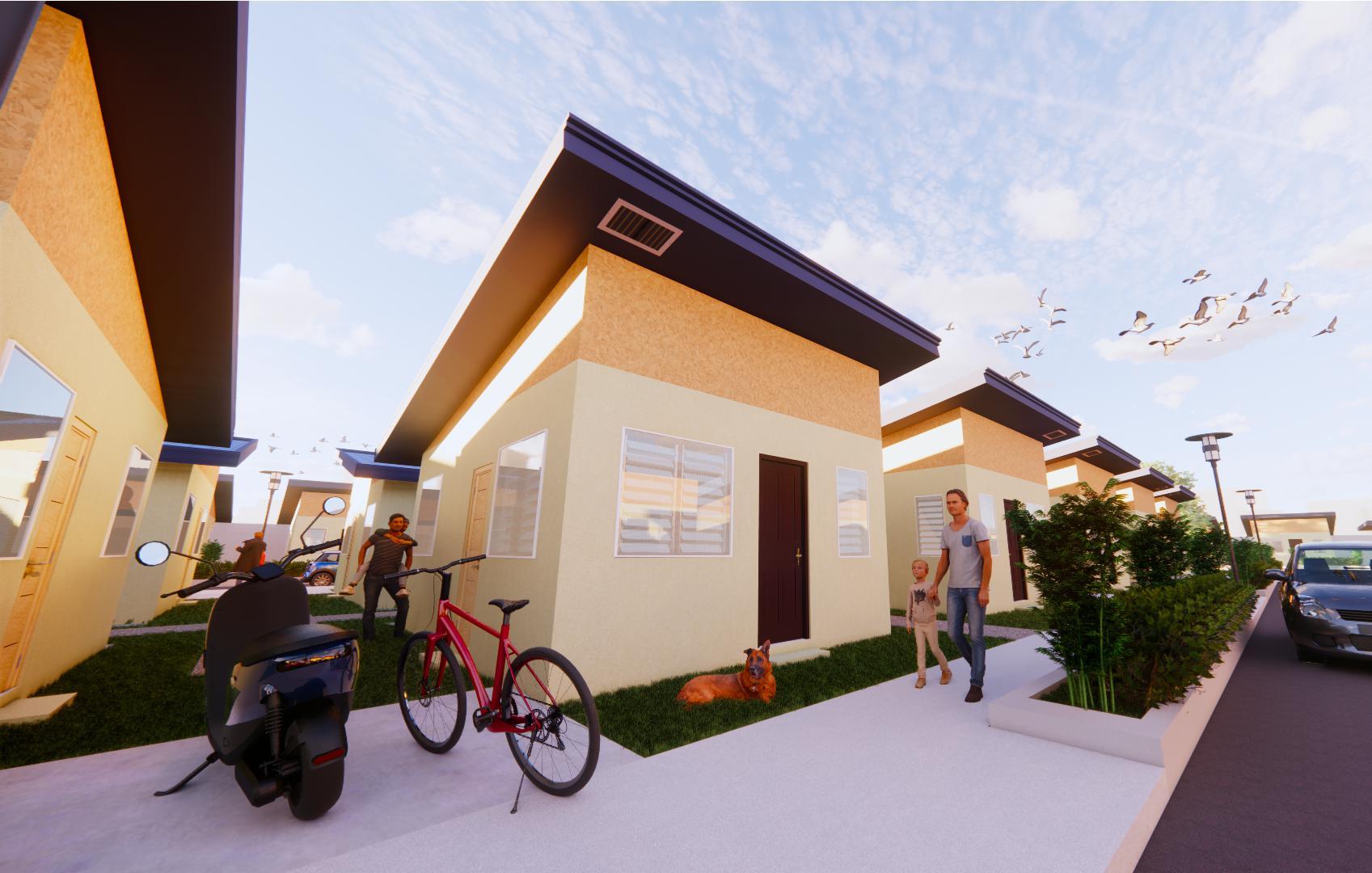

Exterior Perspective of Single Detached Unit

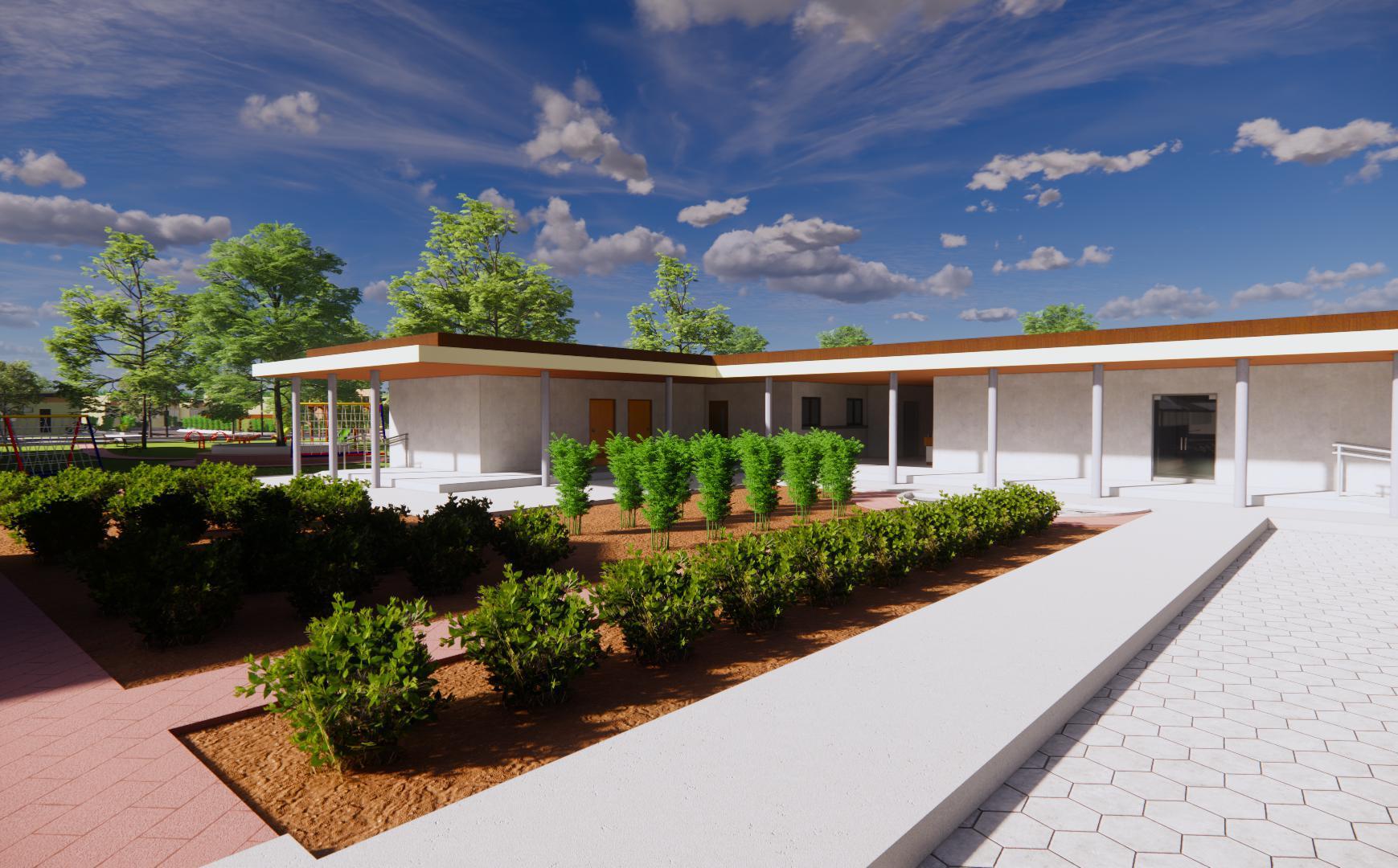

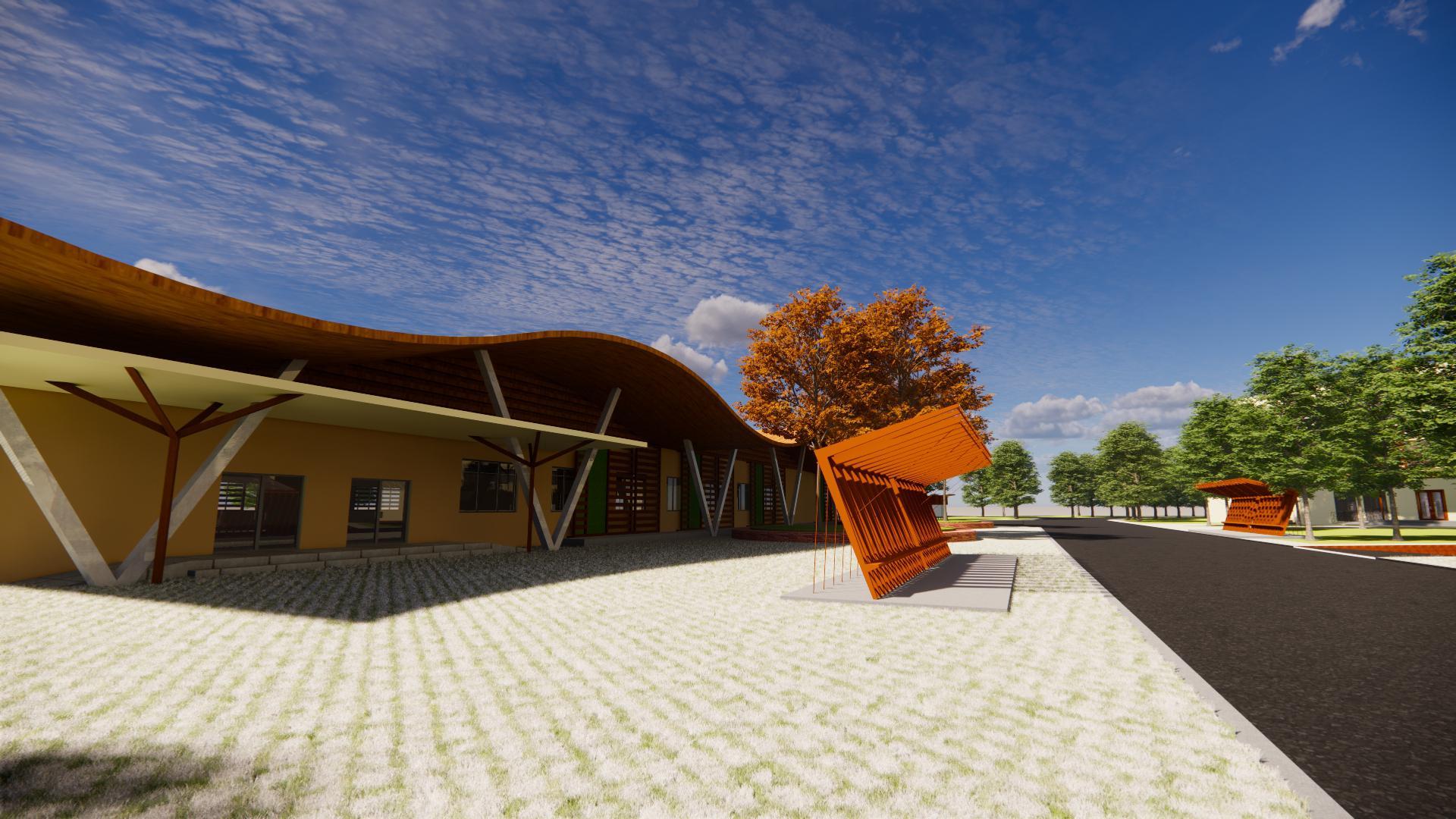

General Administration Building and Residential Zone Exterior Perspective

21

HARDINIA VILLAPARK SUBDIVISION: A PROPOSED LOW-COST HOUSING

Supplementary Buildings within the community

General Administration Building as a means to support the food security strategies to be proposed within the community.

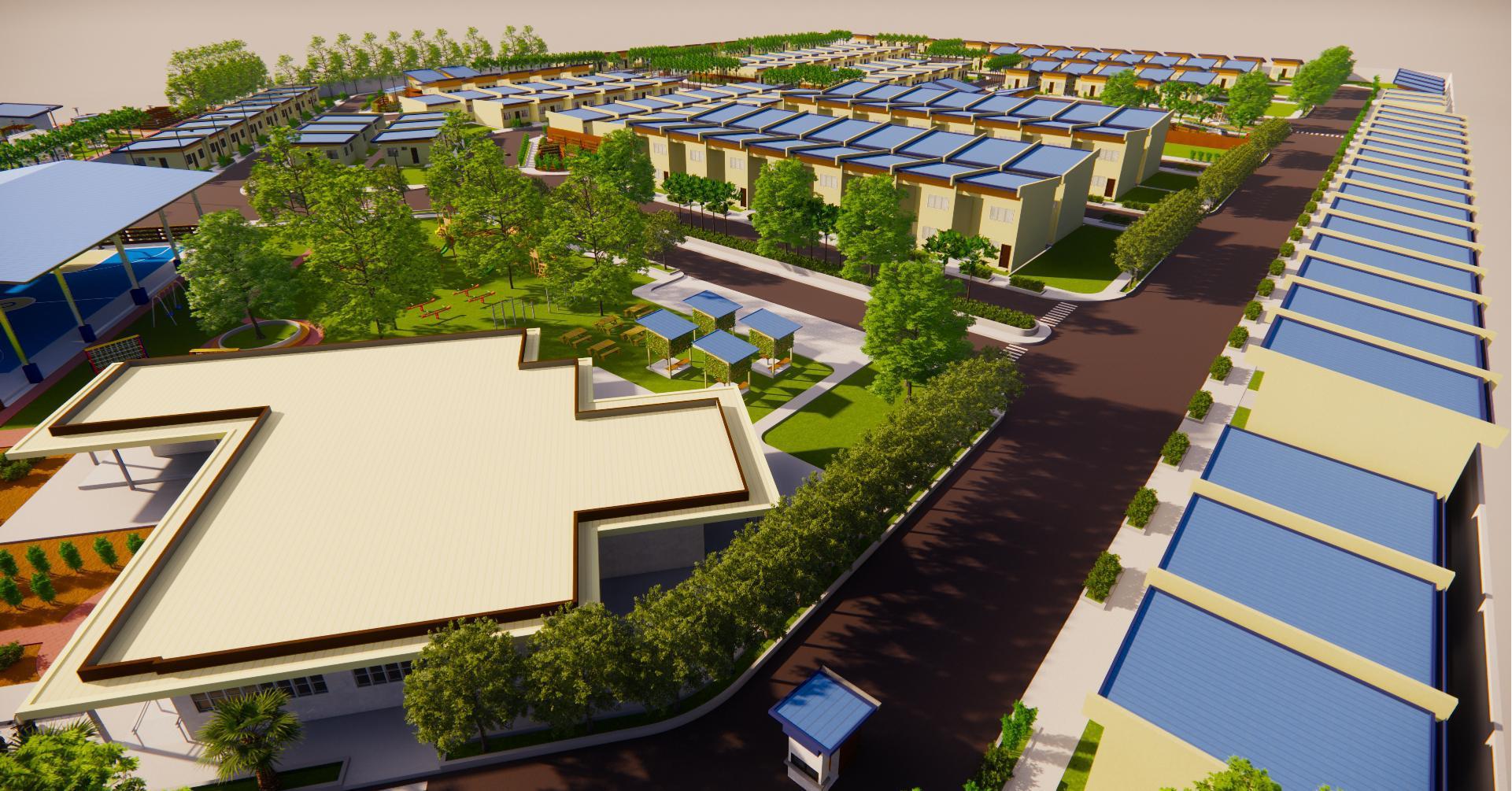

Residential zone aerial perspective

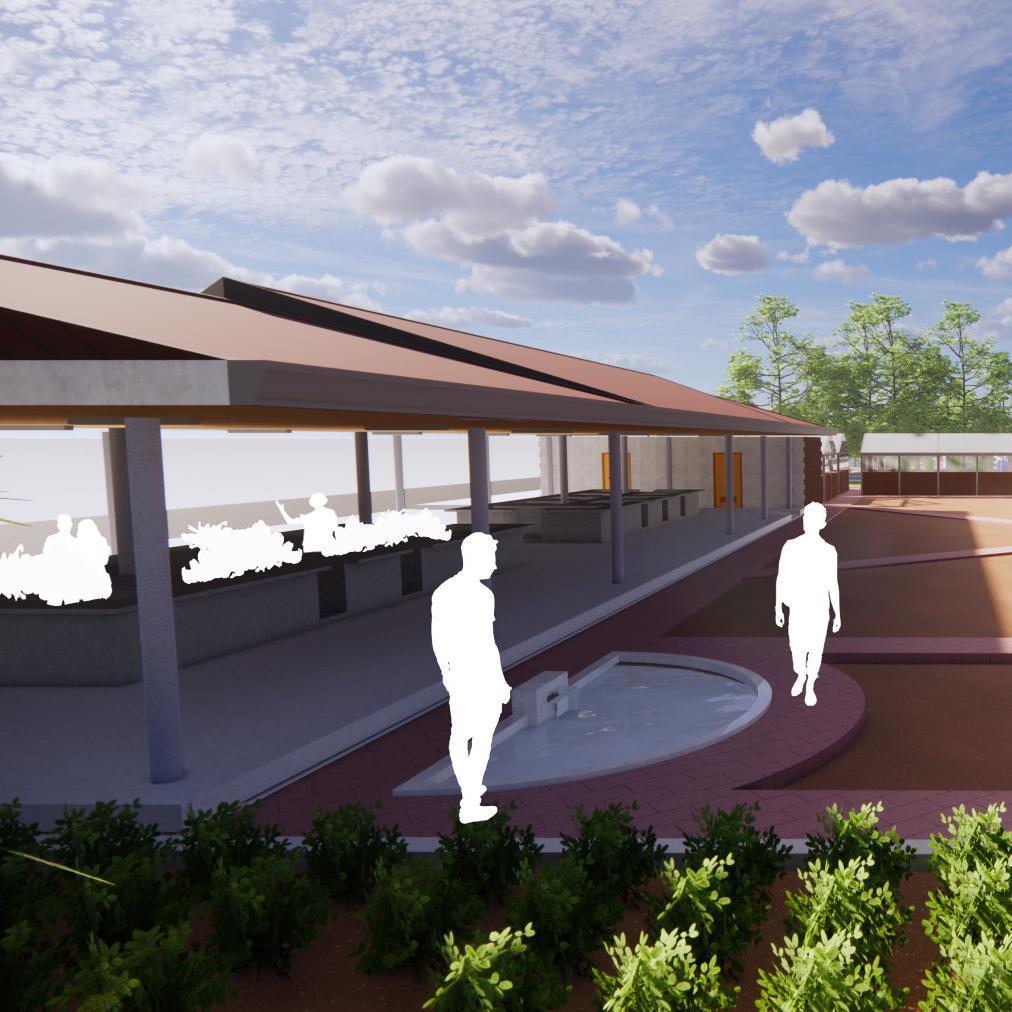

Community Market with testing facilities for the programs, orientations, and tests involving food production.

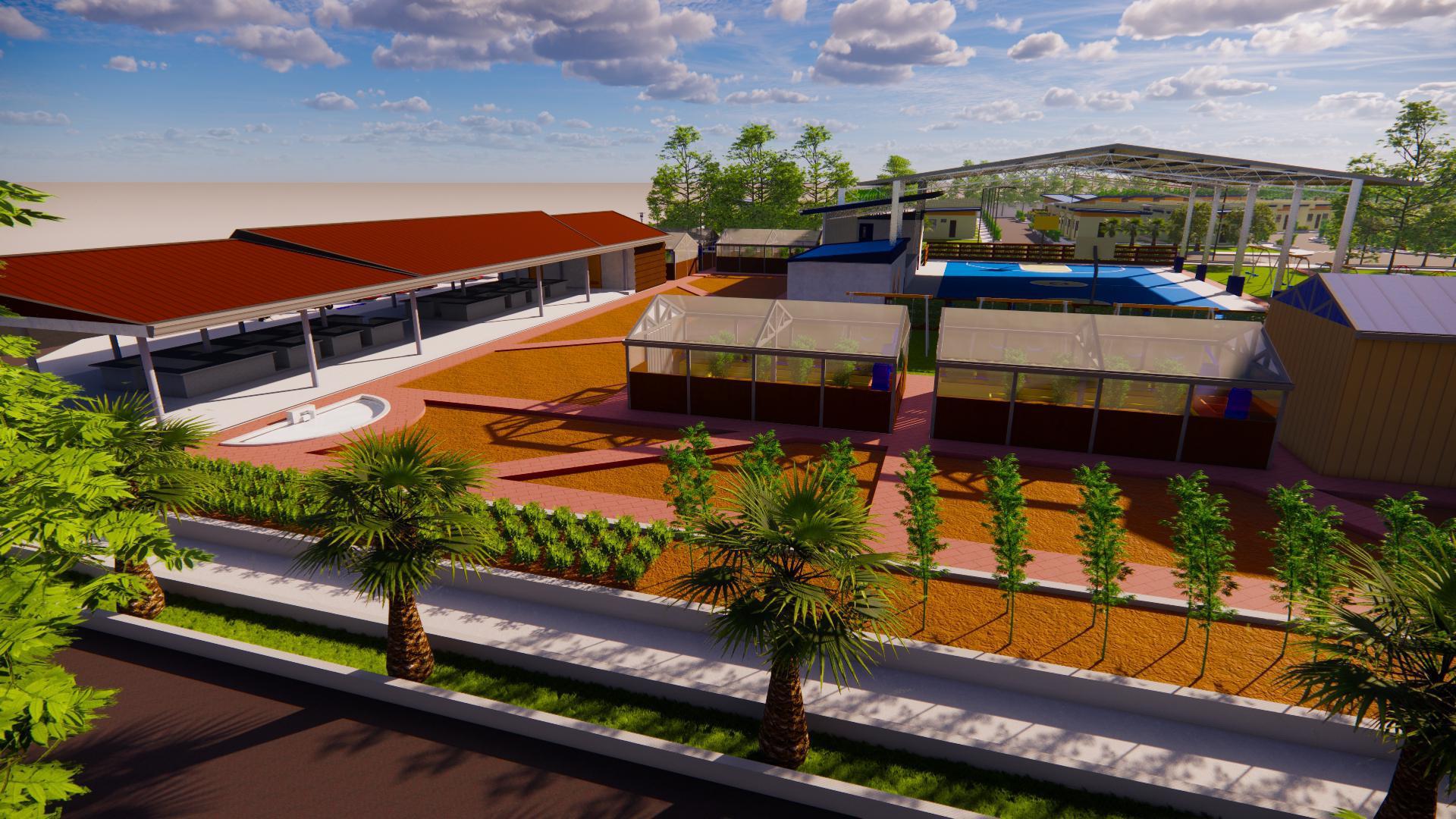

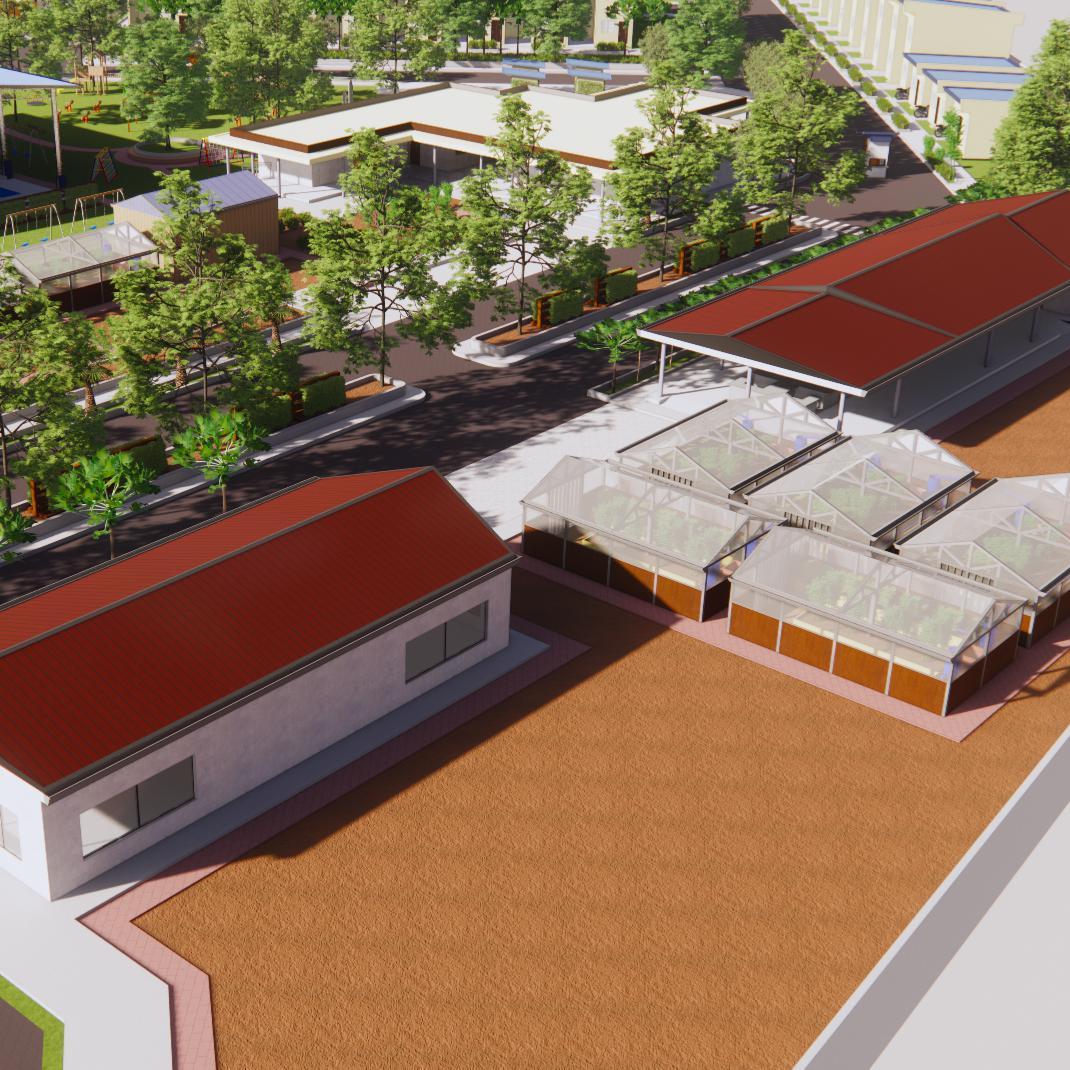

Aerial perspective of community market and testing facilities for food production

22

PORTFOLIO | 2022-2023

01

02

03

CUTTING EDGES TO ADAPT THE IDEA OF INCORPORATING FOOD SECURITY.

INITIAL FORM OF THE BUILDING

ADDING CIRCULATION AROUND THE BUILDING.

04

05

06

DEFINING OPENINGS BASED ON ITS ZONING AND CIRCULATION WITHIN THE BUILDING.

ADDING STRUCTURAL ELEMENTS FOR THE BUILDING

07

08

ADDING PARAPET ROOF

FINAL BUILDING FORM

DISTRIBUTING THE ZONES WITHIN THE BUILDING. ADMINISTRATION DEPARTMENT TOILET FACILITIES ADMINISTRATION OFFICES ADDRESSING COMMUNITY CONCERNS CIRCULATION SPACES ALSO SERVED AS COMMON SPACE FOR PUBLIC LOBBIES AND RECEPTION AREA.

General Administration Building Evolution of Forms 01

03

02

INITIAL FORM OF THE BUILDING

ADDING SPACE FOR COMMERCIAL STALLS

DEPRESSING SPACE FOR OPEN PLANNING

04

ADDING OPENINGS, STRUCTURAL ELEMENTS AND ROOFING FOR THE SPACE

05

FINAL BUILDING FORM

Community Market Evolution of Forms

23

HARDINIA VILLAPARK SUBDIVISION: A PROPOSED LOW-COST HOUSING

COMMUNITY RESIDENT USER CIRCULATION

01

02

03

RESIDENT AND NON-RESIDENT USER CIRCULATION

04

01

04 03

COMMUNITY NON-RESIDENT USER CIRCULATION

01

02

02

03

MARKET VENDOR CIRCULATION

STAFF / AUXILIARY/ OFFICE USER CIRCULATION

04

01

01 03

02 02

03

04

05

LEGENDS PUBLIC HALLWAY LOBBY / RECEPTION / COMMON SPACE FOR CIRCULATION RESIDENT COMMON EMTRY POINTS / HALLWAY COMMUNITY CENTER OFFICE SPACES TOILET FACILITIES

01 - TO DELIVERY / PUBLIC PARKING 02 - TO COMMUNITY GARDEN 03 - TO PARKS AND PLAYGROUND 04 - TO RESIDENTIAL ZONE 05 - TO DELIVERY / STAFF PARKING

General Administration Building User Behavior Analysis

LEGENDS COMMON SPACE FOR CIRCULATION PWD RAMPS DELIVERY RAMPS COMMUNITY MARKET RENTABLE SPACE TOILET FACILITIES

01 - TO COMMUNITY GARDEN 02 - TO PUBLIC PARKING / DELIVERY PARKING 03 - TO LOADING AND UNLOADING ZONE / DROP OFF 04 - TO PEDESTRIAN FOR COMMERCIAL SPACE

Community Market User Behavior Analysis

24

PORTFOLIO | 2022-2023

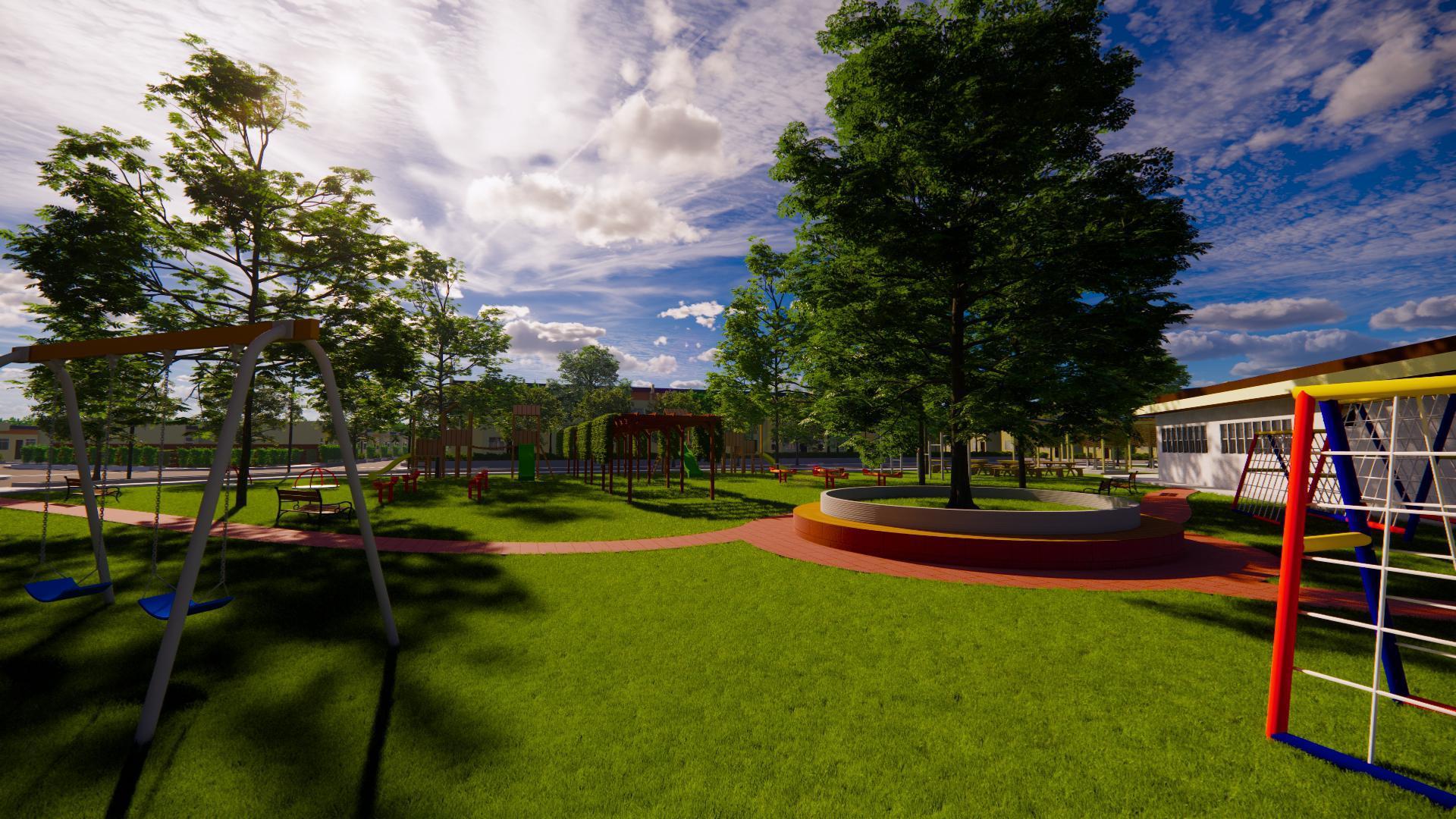

Playground Exterior Perspective

Vegetations present within the site are edible plants to create an identity and character of the community itself.

25

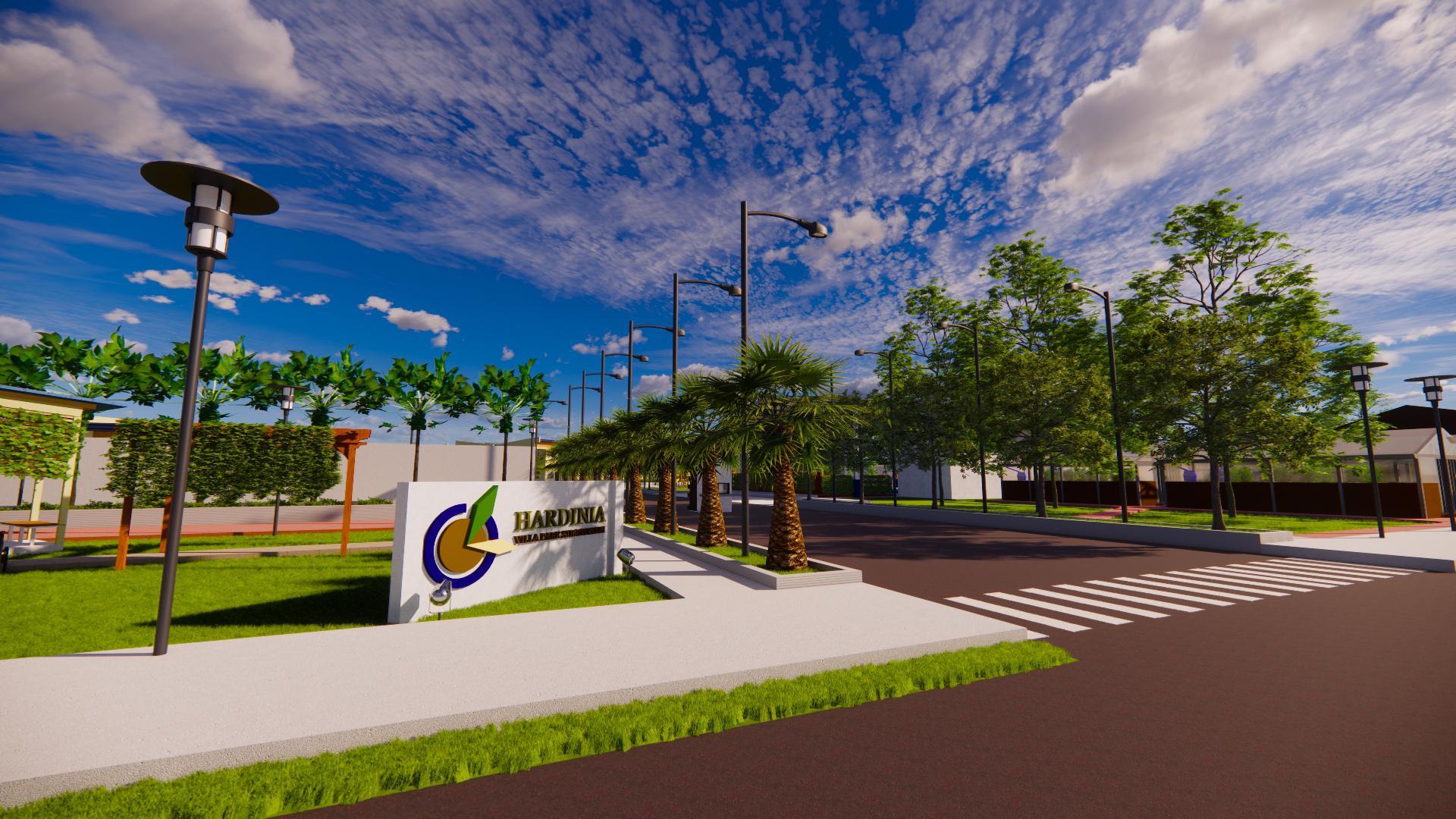

Gate 1 Exterior Perspective

HARDINIA VILLAPARK SUBDIVISION: A PROPOSED LOW-COST HOUSING

B2 NORTH

H5

H6 B5

B5

KEY PLAN

B5

H6

B5

NORTH

H2

NOT TO SCALE

H7 H1

B6

B4

B1

B1

B3 H6

B1 B1 B1

H3

H4

LEG EN DS H1 H2 H3 H4 H5

C LA Y BRI C KS PA VERS

PA T T ERN: BA SKET W EA V E SIZE: 225 X 1 1 2. 50 X 7 5 MILLIMET ERS

SI LT Y C LA Y SO I L

PRESENT T UGBOK CLA Y SOIL

C O N C RET E SI DEW A LK

CA ST IN PLA CE CONCRET E DEPT H: 1 50 MILLIMET ERS

C O N C RET E RO A D

CA S T I N PLA CE DEPT H: 280 MILLIMET ERS

FO O T BA T H A N D SA N I T A T I O N A REA MA IN SA NIT A RY A REA A ND W A T ER SUPPLY

CONCRETE PAVERS

H6

HEXAGON PAVERS SIZE: 300X300 MILLIMETERS

H7

COMMUNITY TESTING AND TRAINING GARDENS

B1 B2 B3

B4 B5

G REEN HO U SE

B6

C O MMU N I T Y MA RKET

COMMUNIT Y PUBLIC/ COMMERCIA L SPA CES

GAZEBO

TYPICAL GAZEBO LAYOUT WITHIN THE COMMUNITY

CROPS STORAGE UNIT

TYPICAL PLANT STORAGE

ADMINISTRATION BUILDING

COMMUNIT Y MA IN OFFICES

MU LT I PU RPO SE C O U RT COMMUNIT Y PUBLIC/ COMMERCIA L SPA CES

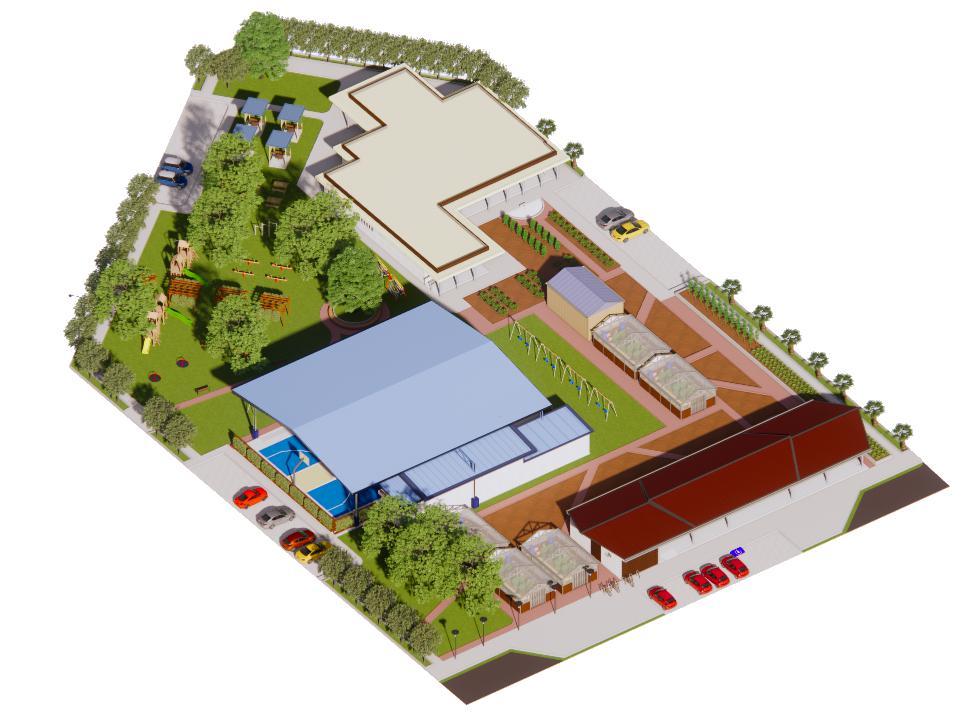

Semi-private zone isometric layout and hardscape layout

26

HARDINIA VILLAPARK SUBDIVISION Aerial Perspective of the proposed low-cost housing community Best in Research 2022-2023

PORTFOLIO | 2022-2023

ELMANO

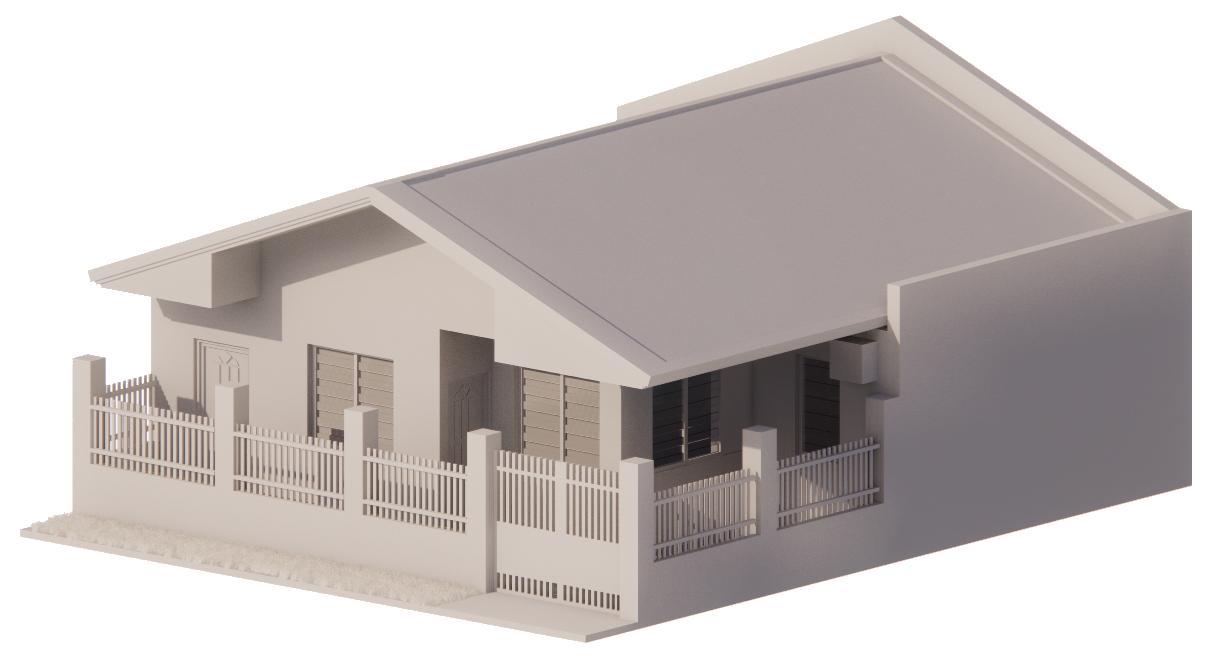

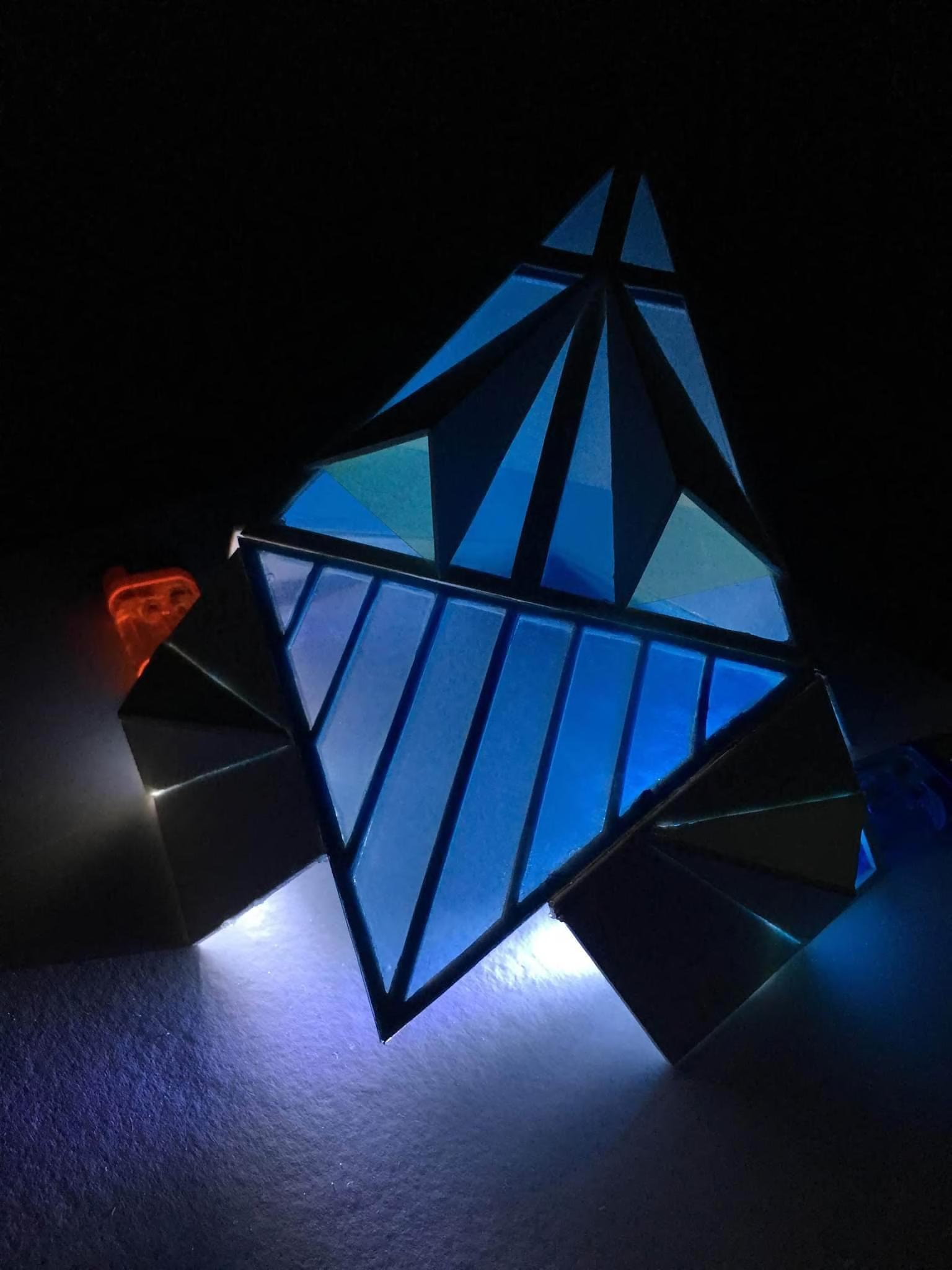

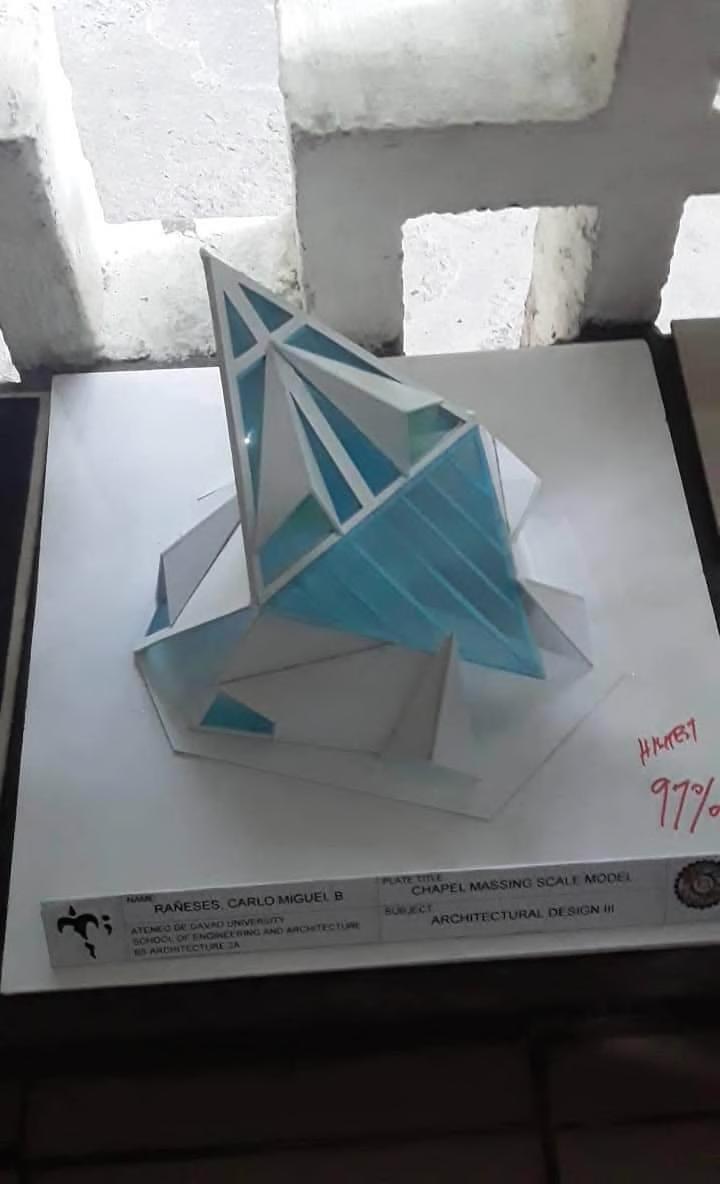

Elmano are series of conceptual axonometric diagrams, scale models, and infographics to better understand architecture. The plans and designs showed in this portion were the applications from architecture courses taught during college. Also, part of this section are the rendered perspectives, plans and concepts of buildings.

THE STAIRWAYS

THE EXITS

WIDTH: 600MM MINIMUM LANDING-TO-LANDING: 3.60 M.

HOUSES WITH LESS THAN 10 OCCUPANTS

1 EXIT POINT

HOUSES WITH 10 OR MORE OCCUPANTS:

2 EXIT POINTS

COLOR LEGEND HEAD ROOM TREAD RISER NOSING

2.00 M. MINIMUM 200 MM. MINIMUM 200 MM. MINIMUM

HANDRAILS 800 MM. - 1200MM FROM FLOOR HANDRAILS ARE NOT REQUIRED FOR STAIRS LESS THAN 4 STEPS.

THE WINDOWS

PERCENTAGE

REGULAR ROOMS: BEDROOMS, MASTERBEDROOMS, GUESTROOMS

10%

BATHROOMS:

5%

THE DOORS DOOR HEIGHTS BATHROOM AND MEZZANINE DOORS OTHER DOORS

WINDING/CIRCULAR STAIRWAYS

DOOR WIDTHS

150 MM IS THE MINIMUM TREAD AT ANY POINT.

MAIN DOOR BEDROOM OR SERVICE DOOR BATHROOM

1.80 METERS 2.00 METERS

800 MM 700 MM 600 MM

MAY BE USED IF THE REQUIRED TREAD DIMENSION IS PROVIDED AT A POINT NOT MORE THAN 300MM FROM THE NARROW END OF THE STAIRWAY.

LADDER LADDERS SHOULD HAVE A LANDING AT EVERY 1.80 METERS OF RISE.

THE CEILING HEIGHTS

150 MM OR 6” THICK 300 MM EXTENSIONS ABOVE ROOF AND BUILDING EDGES

2.00 M IS THE MINIMUM CEILING HEIGHT 1.80 M IS THE MINIMUM ELEVATION FROM FLOOR TO CEILING FOR MEZANINE FLOOR

THE PATHWALKS

PATHWALKS MAY ONLY BE USED AS ACCESS TO PROPERTY ONLY FOR SOCIALIZED HOUSING.

Sketchup + Enscape, Lumion Adobe Photoshop Adobe Illustrator

29

THE FIREWALLS

REQUIRED WHENEVER A DWELLING ABUTS ON A PROPERTY LINE. CEILINGS SHOULD BE COMPARTMENTALIZED AND NOT CONTINUOUS FROM ONE SPACE TO ANOTHER.

Infographics for Rowhouse Units under BP 220

EL MANO INFOGRAPHICS, CONCEPTS, AND RENDERS

Concept Massing for a Chapel Sintra Board Shoeglue Transparent Folder Gluestick Small LED Lights

30

PORTFOLIO | 2022-2023

GROUND FLOOR PLAN NOT TO SCALE

SOUTH ELEVATION NOT TO SCALE Residential Plans

31

EL MANO INFOGRAPHICS, CONCEPTS, AND RENDERS

Isometric 3D Massing Model

The residential unit plans and rendered drawing is located in Rosalina 1 Puan Davao City.

One Storey Residential Facade

32

PORTFOLIO | 2022-2023

Pyramidion Roofing Supplies and Services Aerial Perspective

33

EL MANO INFOGRAPHICS, CONCEPTS, AND RENDERS

Night Exterior Perspective Commercial Complex

The rendered plan is located in Lanang Davao City and it is a commercial complex.

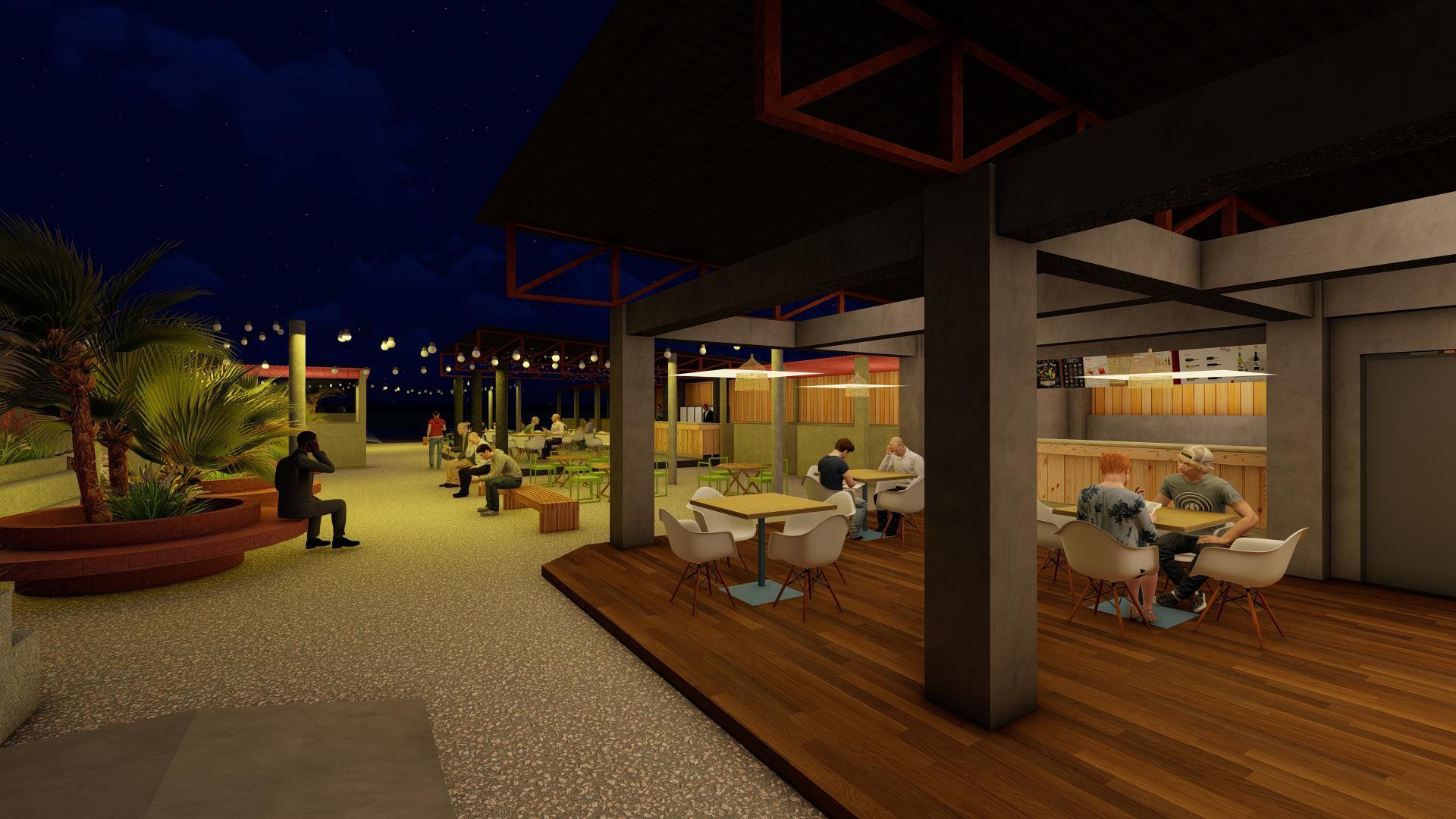

Alfresco Restaurant Exterior Perspective

34

ELMANO

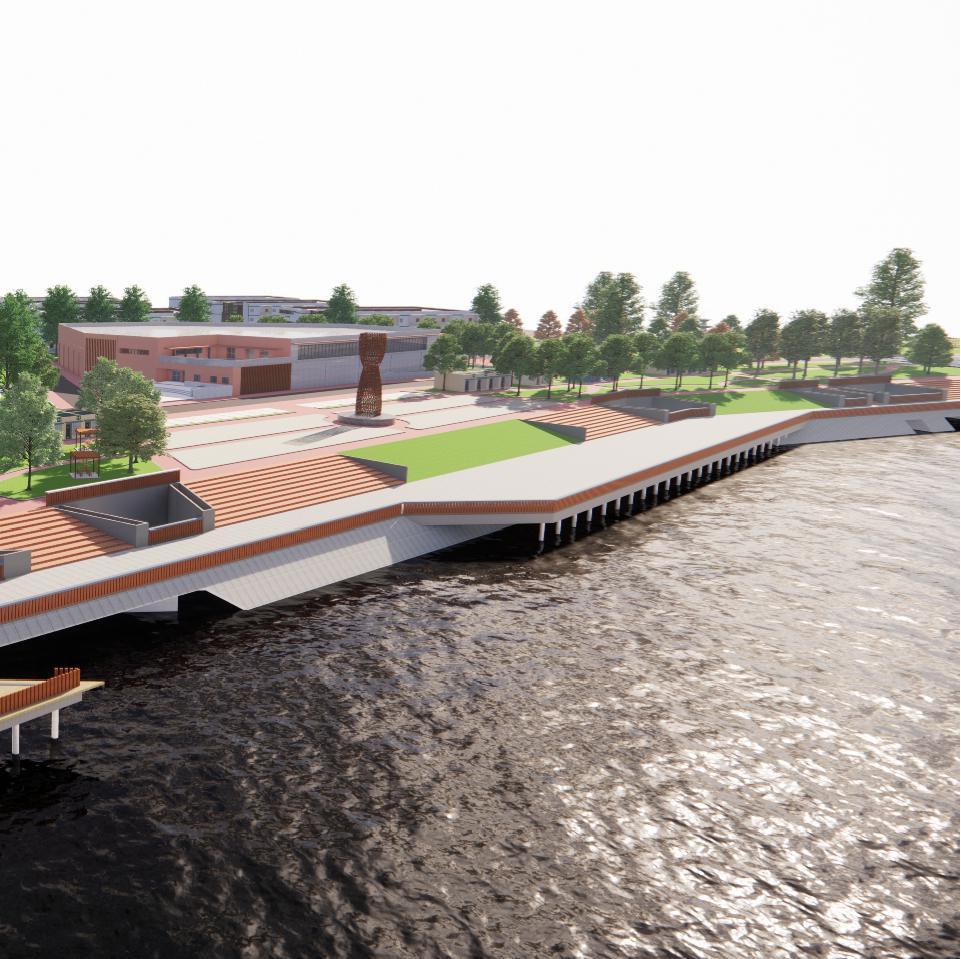

Reinvisioning Davao River Corridor, Bankerohan Esplanad Aerial Perspective

PORTFOLIO | 2022-2023

DIGITAL ARTS

Digital drawings is a hobby that I gain during pandemic and I used to work with clients online. In this section is where I showcase some of the commissioned artworks that I did for my clients during pandemic. All the artworks were made through mouse and keyboard and the app of adobe illustrator.

The Traveling Astronaut

Lost in an Island 37

Traditional Korean Culture Concept

DIGITAL ARTWORKS

The Client wanted to use gravity falls as the main theme of the artwork and at the same time, wanted to put a multiverse concept. The art then create a concept out of the animated film of Spiderman by Miles Morales.

Gravity Falls across the Multiverse 38

SELECTED WORKS | PORTFOLIO

CARLO MIGUEL

2022-2023
