IBA ZAMBALES INTERNATIONAL

A state-of-the-art international airport unfolds sensory design and culture.

CONTENTS

10

SELECTED WORKS

HIRAYA ATLETA SPORTS ARENA

A sport arena for the past, present and future of the Philippines.

14

SELECTED WORKS

3-DOOR APARTMENT IN PARANAQUE

A modern inspired apartment designed for a specific budget

18

EXTERIOR RENDERS

Collection of residential, institutional, recreational, commercial buildings by the designer

28 INTERIOR RENDERS

Collection of interior designs of a loft house and modern residential house

32 2D DRAFTING

Collection of drawing documents using BIM

36 SCALE MODELS

Collection of three impactful scale model created by the designer

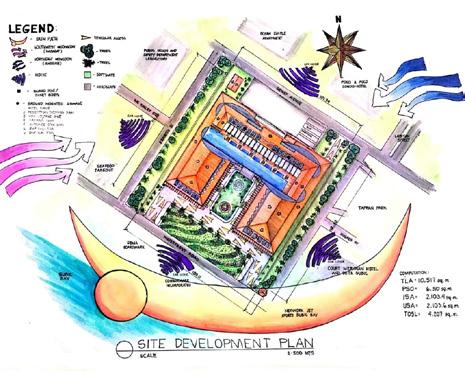

38 SKETCHES

Collection of free hand sketches, plates, paintings using different mediums

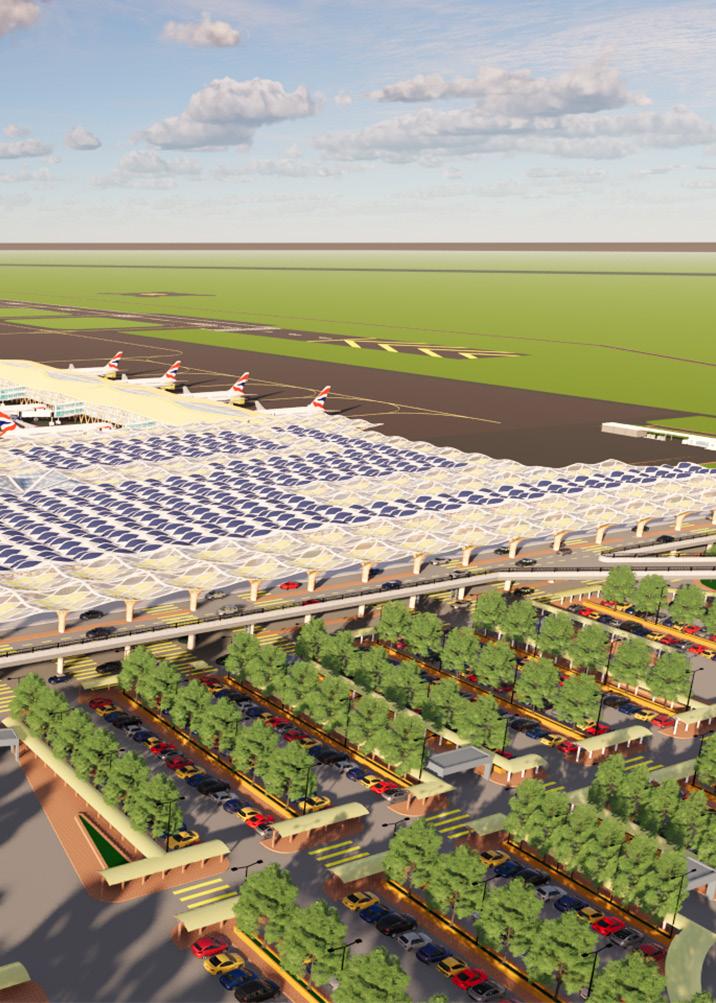

IBA ZAMBALES INTERNATIONAL AIRPORT

YEAR: 2023

TYPE: COMMERCIAL

USE FOR: THESIS/CAPSTONE

Watch Walkthrough

Top 2 Design 9 Capstone Award & Top 5 Scale Model Capstone Award, May 2023

SOFTWARE USED:

My capstone proposal, IZIA, caters to over 4 million passengers by the year 2034. It is a place accentuated by commercial and communal spaces that showcase the culture of the area. The mango forest-inspired airport would highlight the festivities, products, and surroundings of Zambales. This airport will give its visitors reasons to travel more and celebrate the uniqueness of the town while enticing their five senses throughout the project. Sensory design makes the users experience the place holistically, making an unforgettable experience while forming a trademark for the airport.

IZIA IZIA IZIA

AutoCAD Sketchup Adobe Photoshop

Enscape

SECOND FLOOR PLAN

GROUND FLOOR PLAN

Mango trees provide a captivating shade for people to enjoy and relax. The concept of “tree crown shyness” enables the penetration of light and creates patterns under the tree. These designs materialize on the terminal. Through skylighting, tessellated roofs, and tree branching columns, it creates a mango tree forest aesthetic.

Diffused morning sunlight will penetrate from the rear side facing the north orientation, and there will be fixed roof windows to bathe the terminal in natural light from the northeast portion. The wave-like ceiling, inspired by the waving of mango tree leaves, was designed to reduce solar glare and heat. In addition, it creates the effect of aerodynamics, just like how the mango tree flows along with the wind.

Rainwater Harvesting Roof System

Second Floor Plan (Departure Floor)

Ground Floor Plan (Arrival Floor)

Basement Floor Plan (Utility & Baggage System Floor)

The roofing system will catch rainwater through its butterfly-type shape. Then the water will go down to the pipes inside the tree-branching columns. After that, it will be filtered and then collected inside the rainwater cisterns underground. This filtered water will be supplied for non-potable water activities such as gardening, cooling, aircraft washing, handwashing, toilet flushing, and fire suppression.

There is another way to utilize this rainwater. One particular usage is for its aroma. After intricate filtration, it will be scented by processed mango skin peel scent oils; a thing people just throw out will be reused as a fragrance. Resulting in mango-scented water that can be smelled inside the airport’s public spaces. This is a design strategy to separate spaces through smell and, at the same time, give a psychologically positive effect to the passengers.

LEGEND:

1. Main Gate

2. Service Gate

3. Left Runway

4. Right Runway

5. Control Tower

6. Aircraft Hangar

7. Cargo Facility

8. Cargo Apron

9. Passenger Terminal

10. Passenger Apron

11. Fire Station

12. Parking Area

13. Material Recovery Facility

14. Water Facility

15. Transformer

16. Fuel Facility

17. Catering Facility

18. Aircraft Stands & GSE Facility

19. Helicopter Stands

20. Doppler Vhf Omni Directional Range

21. Cargo Service Gate

22. Wind Direction Indicator

23. Security Post

24. Shuttle Terminal

25. Proposal Train Station Area

SITE DEVELOPMENT PLAN

HIRAYA ATLETA SPORTS ARENA

YEAR: 2023

TYPE: COMMERCIAL/RECREATIONAL USE FOR: NATIONAL COMPETITION

COLLABORATORS:

Acosta, Ma. Carmela

Calipay, Jovellyn

Martinez, Quimark Vestidas

Zamora, Marie Kyle

Watch Walkthrough

SOFTWARE USED:

The design of the arena is inspired by the salakot, a traditional wide brimmed hat in the Philippines symbolizing the identity of the Filipino, as it is often worn by the National personification Juan Dela Cruz. HIRAYA ATLETA SPORTS ARENA: A Proposed Multifunctional Sports Arena located in Clark, Pampanga, intends to provide players and the general public with a contemporary and multifunctional place for training, recreation, and sporting opportunities. The multifunctional sports arena focuses on providing additional training facilities that are not currently provided by the existing sport facilities in Clark, Pampanga, as well as a Sports Training Facility in which the Philippines has continually participated in the past twenty (20) Olympic Games. Moreover, an arena venue that has a 5,000-seating capacity, Public Amphitheater, Park, commercial and entertainment spaces is provided for sport events and recreational purposes. Other sport spaces such as Offices for committee, sport sciences, dormitory and Medical Clinics for Emergency Traumas are also provided in maximizing the quality experience by the athletes. Additionally, fall out bunker called “Kublian” is provided “As an architect, you design for the present, with an awareness of the past, for a future which is essentially unknown” -

Norman Foster

We design the arena by the said philosophy in mind, The team design in accordance with the current problems that needed to be address which the lack of spaces for our athletes to train. Being aware of the past events concluding to the specific 8 sports that the Philippines’ athletes compete and represented in the previous Olympic games, and the addition of the Filam friendship happen in Clark, Pampanga. Lastly, we design the arena by thinking of the future events that might befall us, creating underground spaces that can be a safe haven for the people, serves as an additional function of the arena focuses on protection and safety.

2nd Runner Up of Worldbex Projéto Ideas and Design Competition

AutoCAD Sketchup Adobe Photoshop Lumion

HIRAYA HIRAYA HIRAYA

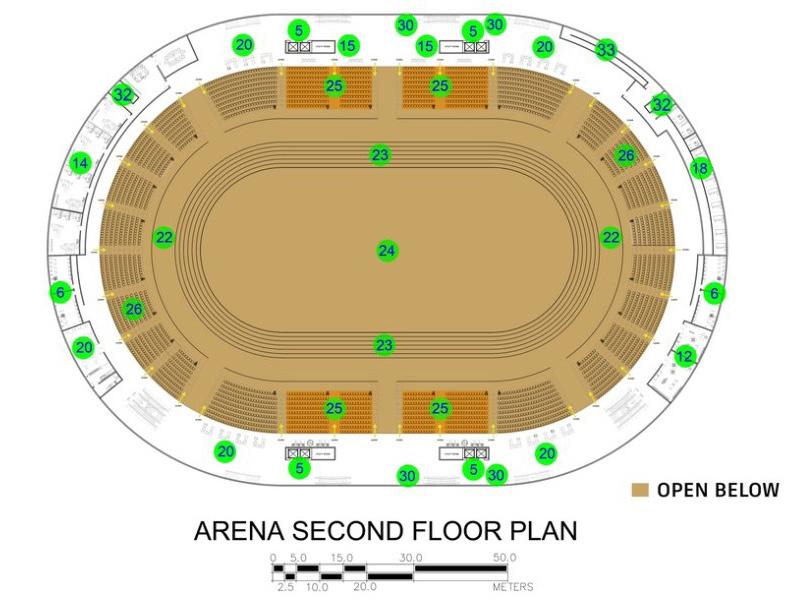

Hiraya Atleta Sports Arena Interior Perspective

Hiraya Atleta Sports Arena Cross Section

THREE-DOOR APARTMENT IN PARANAQUE

YEAR: 2019

TYPE: RESIDENTIAL

USE FOR: INTERNSHIP

SOFTWARE USED:

AutoCAD Sketchup Adobe Photoshop Lumion

APARTMENT APARTMENT APARTMENT

My responsibility during my internship is the 3-Door Apartment Project in San Antonio Valley II, Parañaque. As a designer, I am tasked with doing competitive budget research, cad floor plans, 3D modeling, design of the apartment based on the specified budget, and presentation.

The fitted budget is PHP 25,000 per square meter. I created detailed floor plans, 3D exterior and interior models, and a walkthrough of the 105-square-meter apartment with the said budget. The ground-floor apartment units include a 2-car garage, porch, office room, foyer, living area, dining area, kitchen, common toilet and bath, maids bedroom, and service area. The second floor has two bedrooms, a master bedroom with a walk-in closet and a built-in toilet and bath, and a family area with a common toilet and bath.

Watch Walkthrough

Scheme 1 Scheme 2

Ground Floor Plan

Second Floor Plan

Living Area, Dining Area & Kitchen View

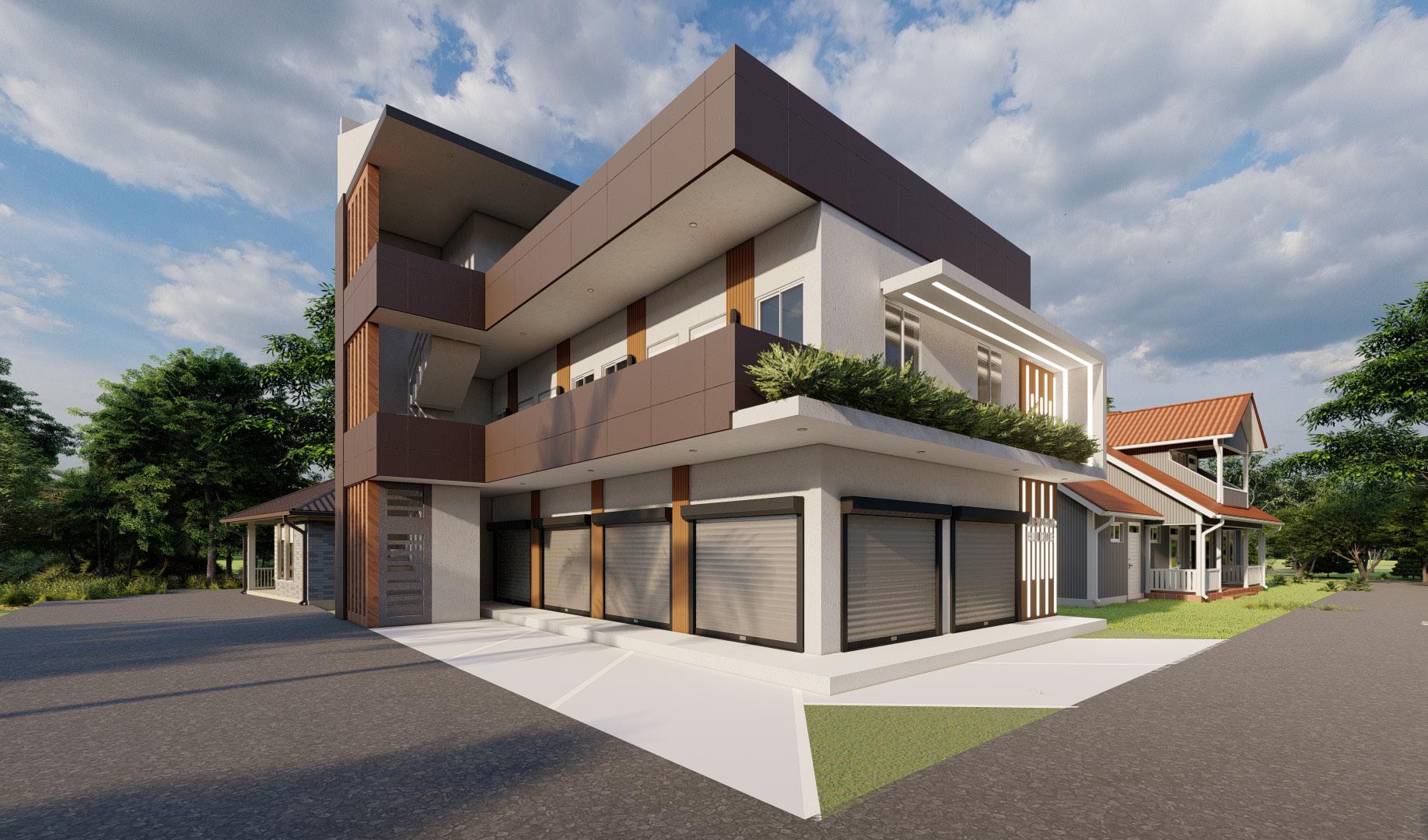

Three-Door Apartment Facade

Modern Residential House - Front View (Day)

Modern Residential House - Front View (Night)

Two-Storey Residential House (Night)

Two-Storey Residential House (Day)

Tree House Side View

Tree House Front View

Guevarra Commercial Building - Scheme 2

Guevarra Commercial Building - Scheme 1

Organic Shape Museum - Facade

Organic Shape Museum - Aerial View

Bloom Pavillion (Night)

Bloom Pavillion (Day)

Proposed 5- Star Hotel in Subic (Collaboration)

Proposed 5- Star Hotel in Subic (Collaboration)

Proposed Leyte Provincial Capitol - Front Facade (Collaboration)

Proposed Leyte Provincial Capitol (Collaboration)

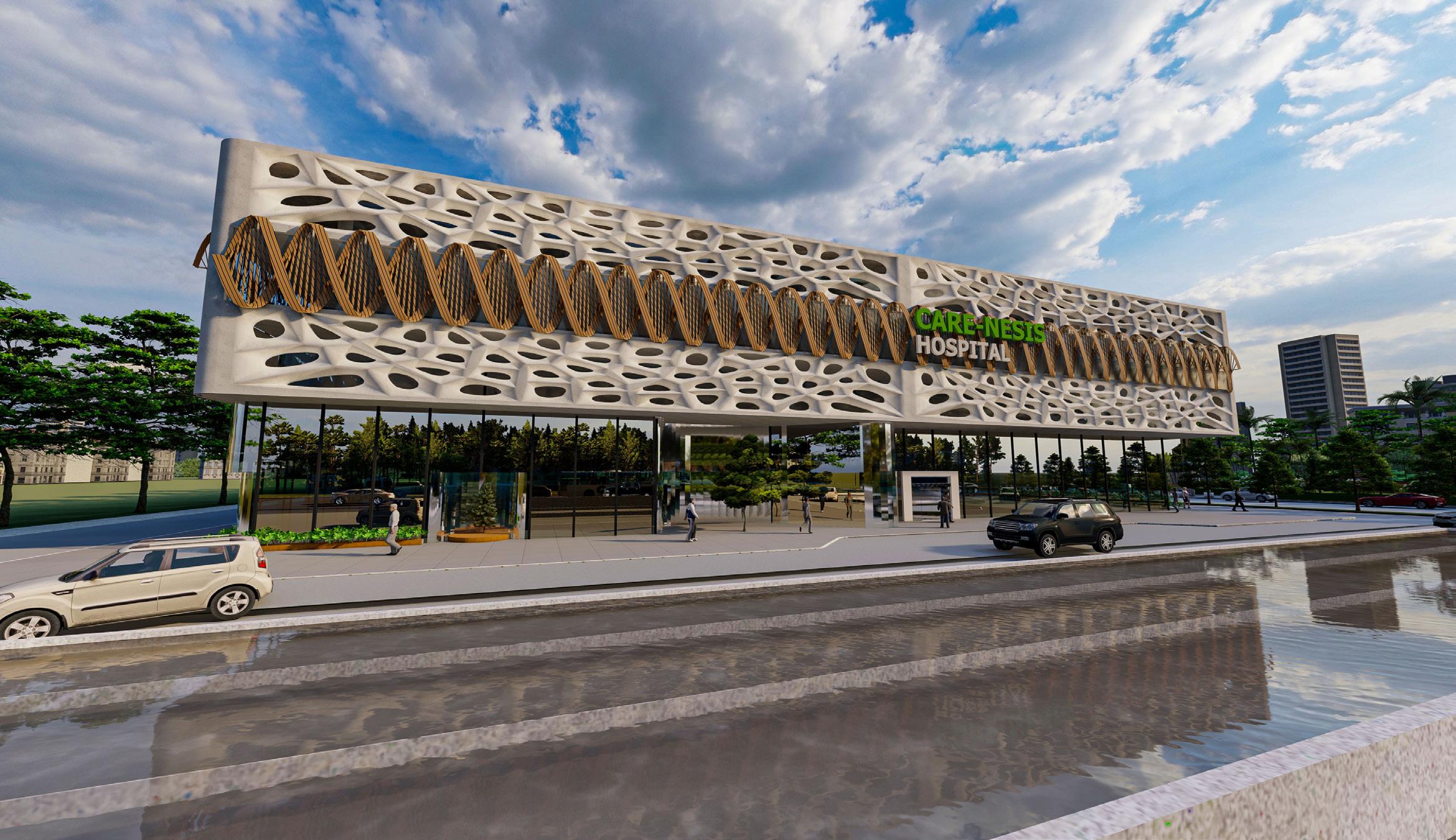

Carenesis: A Proposed Hospital and Medical School Complex in Leyte - Main Hospital (Collaboration)

Carenesis: A Proposed Hospital and Medical School Complex in Leyte (Collaboration)

INTERIOR RENDER INTERIOR RENDER

INTERIOR RENDER

INTERIOR RENDER

INTERIOR RENDER INTERIOR RENDER

INTERIOR RENDER INTERIOR RENDER

INTERIOR RENDER INTERIOR RENDER

INTERIOR RENDER INTERIOR RENDER

INTERIOR RENDER

SOFTWARE USED:

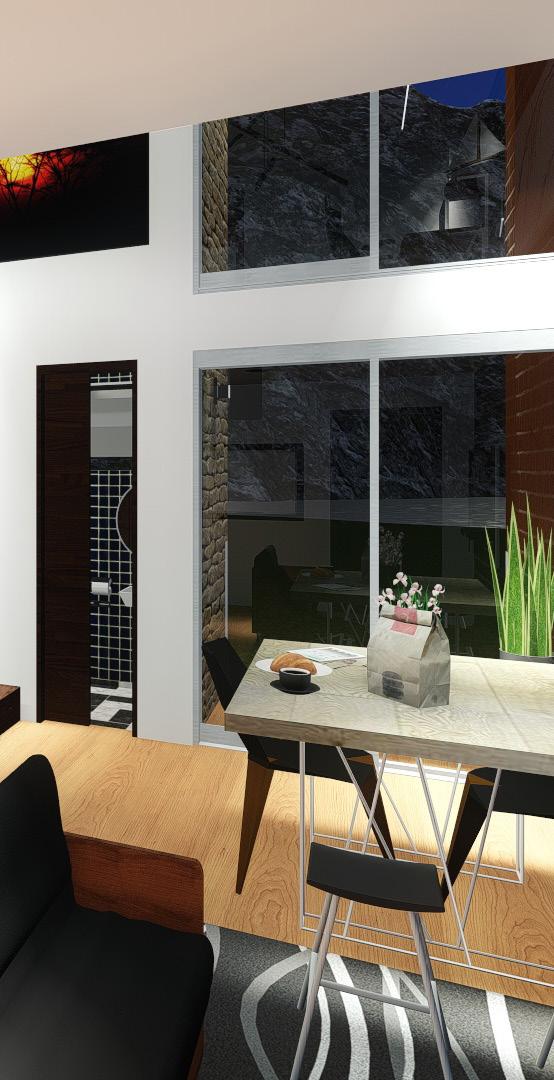

Living Area and Kitchen (Modern Loft Design)

Bed and Study Area (Modern Loft Design)

Living Area (Modern Residential House)

Dining Area and Kitchen (Modern Residential House)

Toilet & Bath (Modern Residential House)

Bedroom (Modern Residential House)

Floorplans

Exterior Perspective, Site Development Plan & Vicinity Map

Reflected Ceiling Plans

Elevations

Sections

Stair Plan, Stair Section & Stair Details

MODEL SCALE MODEL SCALE MODEL SCALE MODEL SCALE MODEL SCALE MODEL SCALE MODEL SCALE MODEL SCALE MODEL SCALE MODEL

MODEL SCALE MODEL SCALE

SCALE

SOFTWARE USED:

Hiraya Atleta Sports Arena Scale Model (Collaboration)

Iba Zambales International Airport Scale Model

Uphill Sloping Residential House Scale Model
