SELECTED WORKS

01 MULTI-FAMILY HOUSING 02 INTERVENTION OF GENARO MENDEZ PASSENGER BUS TERMINAL part a elevated linear park part b mall part c hotel

03 PROGRESSIVE SOCIAL HOUSING

FULL NAME Carleidy Durán Quiroz

EMAIL carleidydq@gmail.com TEL (786)9616392

ADRESS MIAMI FL

Welcome to my architecture design portfolio, showcasing a selection of my university projects and diverse skill set in graphic design, drawing, photography, and rendering.

I am currently looking for my internships so i invite you to enjoy this demonstration of my work and consider the potential to work with you.

EDUCATION

BACHELOR OF SCIENCE

José Félix Ribas

2008-2013

ARCHITECT

UNET

(Universidad Nacional experimental del Táchira)

2013-present

OTHER STUDIES

SENIOR TECHNICIAN IN PLASTIC ARTS

School of plastic arts

Valentin Hernandez Useche

2016-2019 LENGUAJES

Native Spanish

SKILLS

Plan reading architectural

blueprint draftsman

Dimensioning plans

Teamwork

I work under pressure

Drawing and painting

Graphic design

rendering

photo editing

SOFWARE SKILLS

CAD autocad

sketchup

ADOBE photoshop

illustrator

indesign

OTHERS

twinmotion

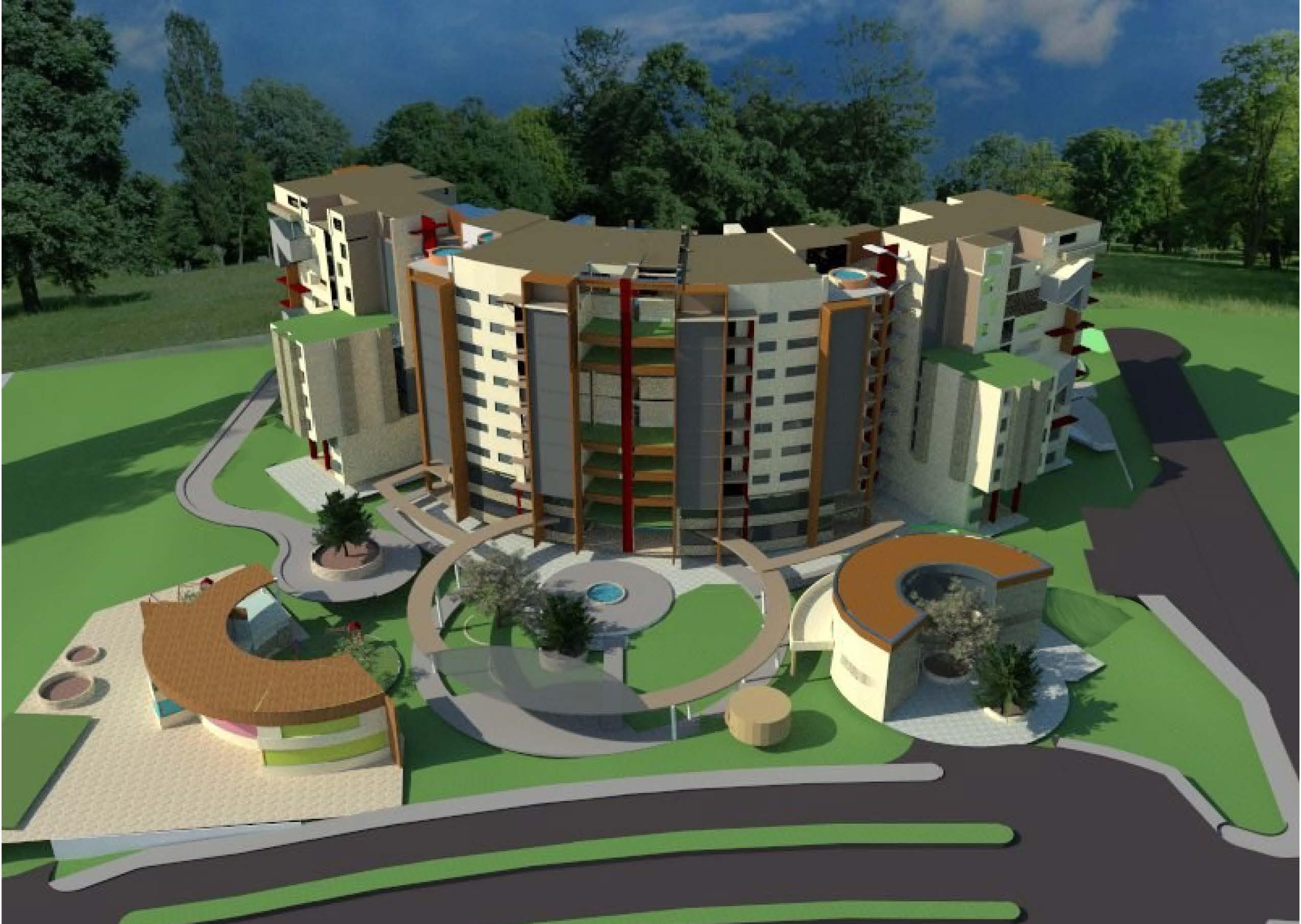

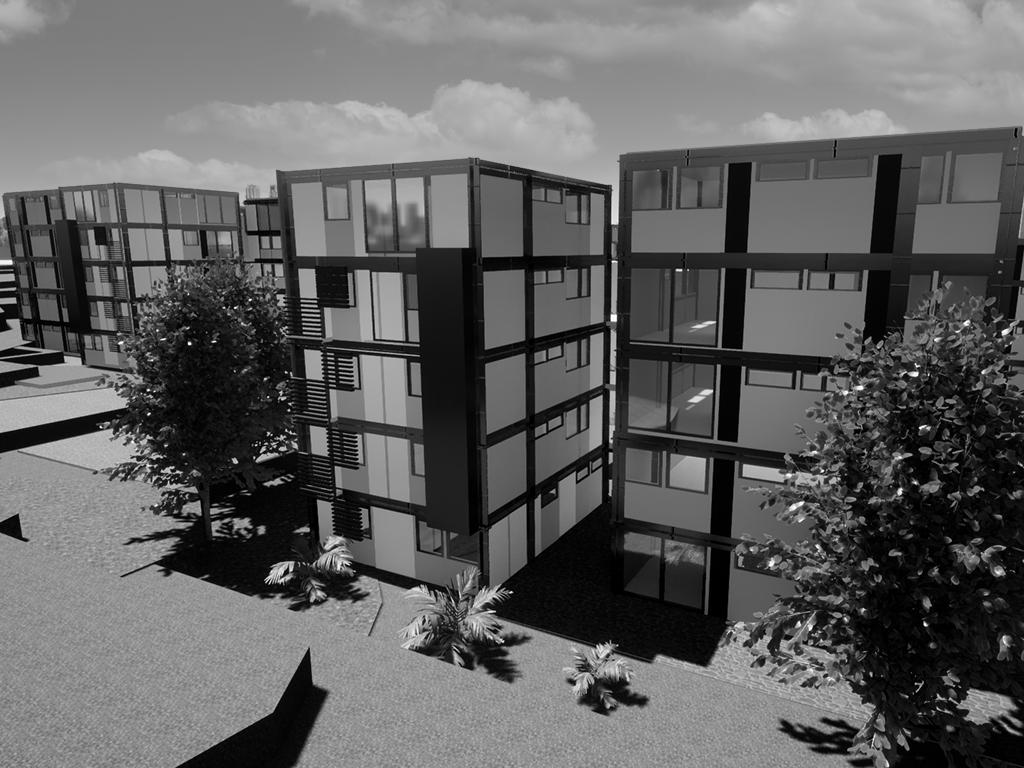

MULTIFAMILY HOUSING

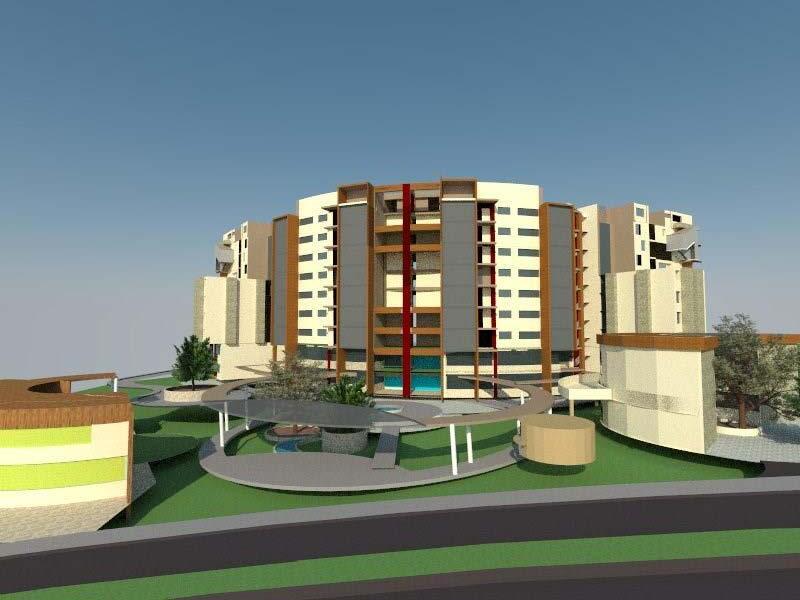

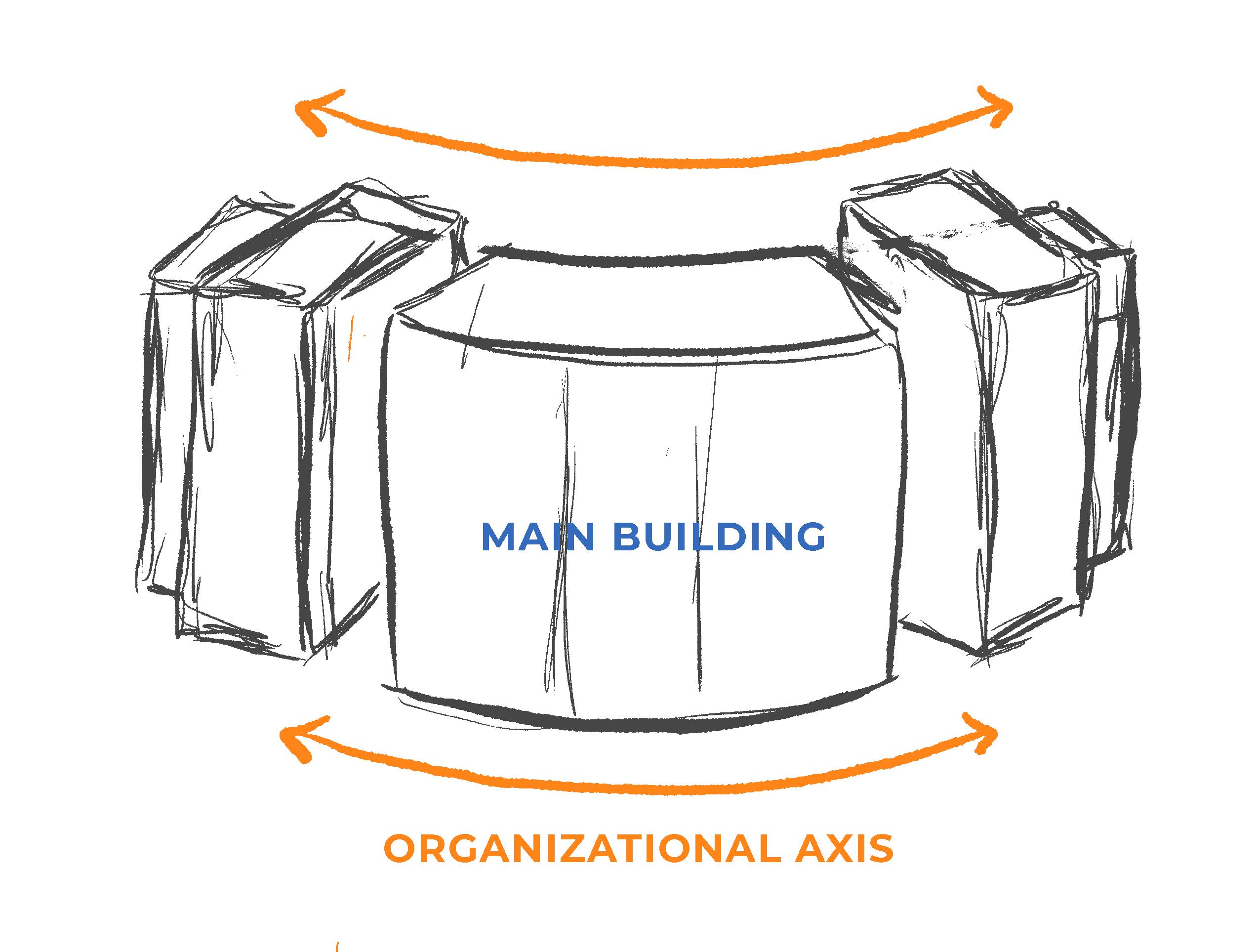

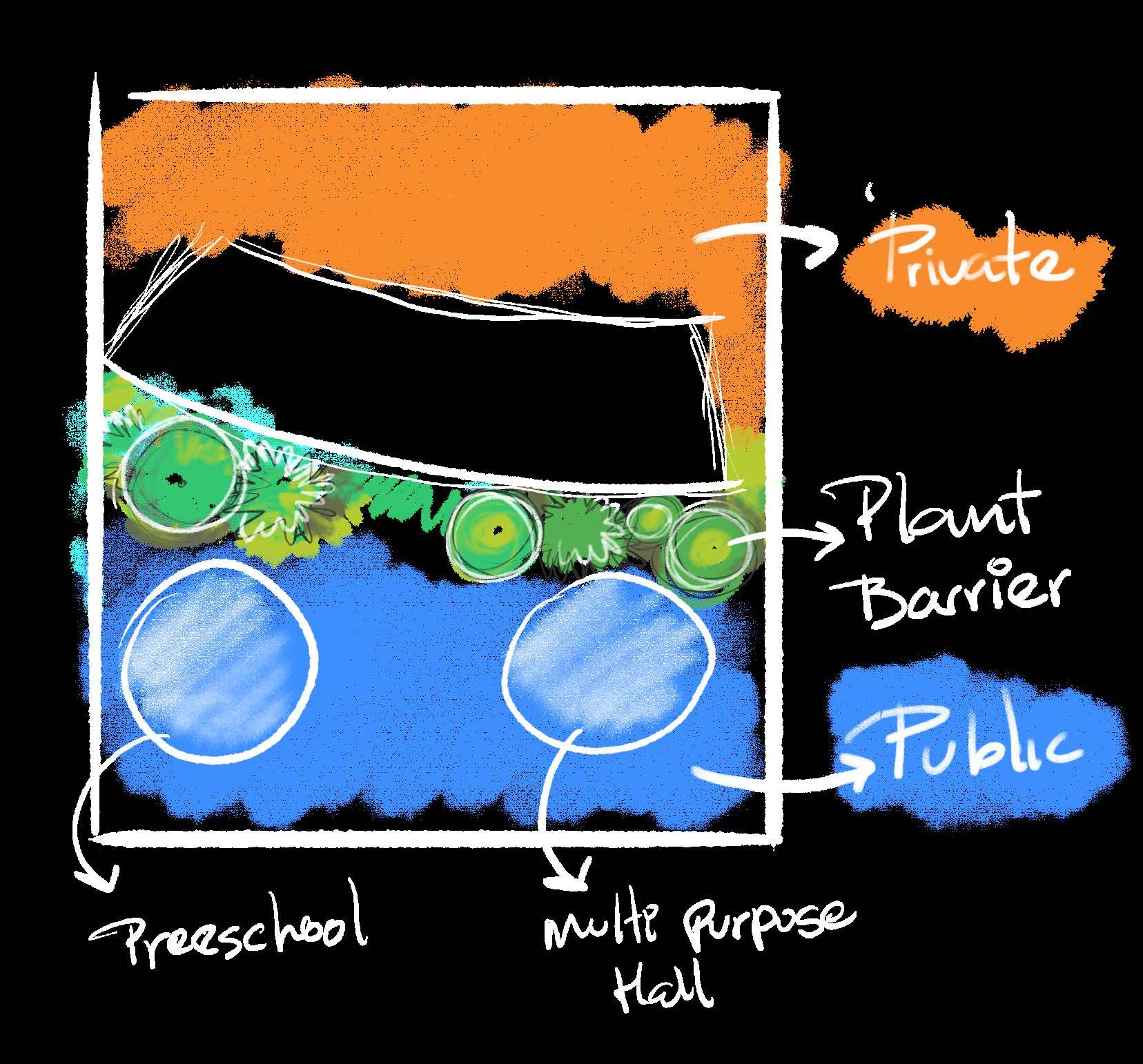

The project creates optimal and pleasant living spaces for a multi-family building. The volumetry is designed with a semi-circular axis that distributes space to different buildings, resulting in an enveloping shape towards the private area and a front towards the public area.

The land of the project consists of an area of: 15579.32m2 with retreats: 6m from the front and 10m from the side retreat

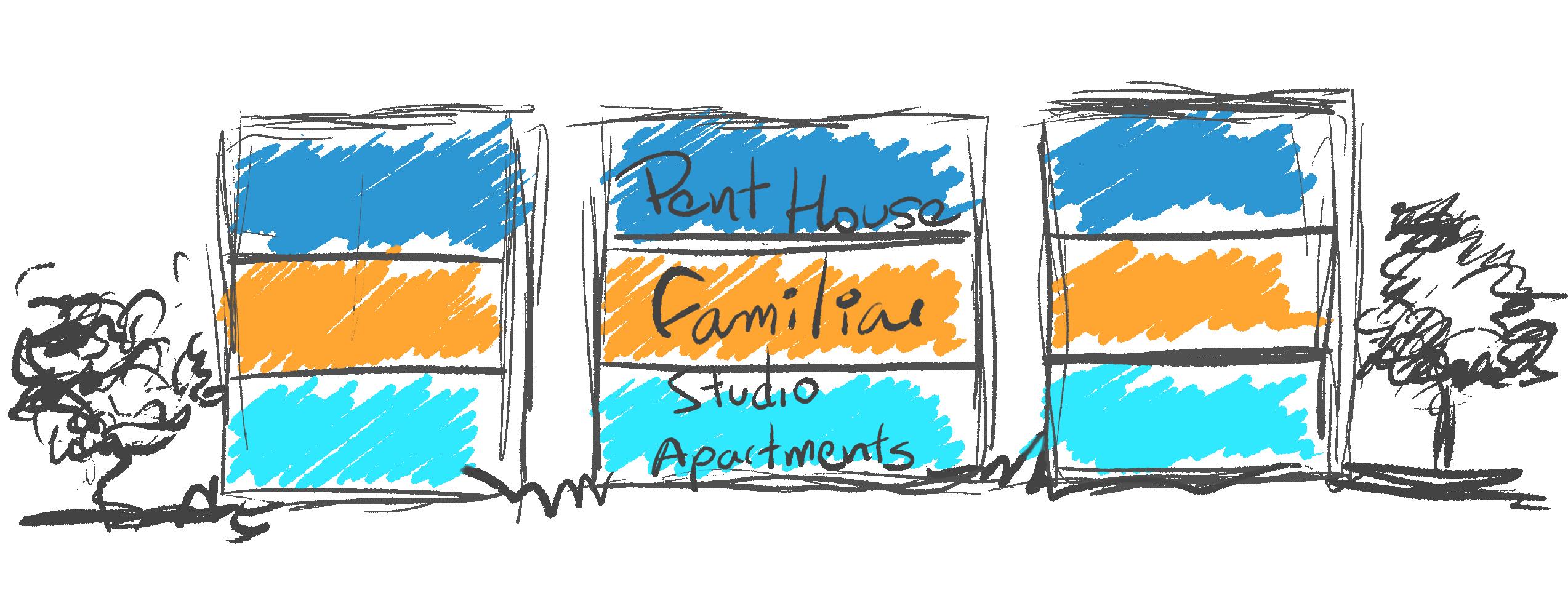

120 apartments 3 typologies

*Studio: 55-68m2

*Average: 130m2

*Family:135.58m2

240 parking spaces in 3 basements: 8674.29m2

Preschool Parking and visitors: 560.32m2

RECREATIVE AREAS

*Pool area:1018.6m2

*playing field 672.24m2

*Cycle track: 770.30m2

*Roads: 578.59m2

*Multipurpose:363.47m2

*Preschool:380m2

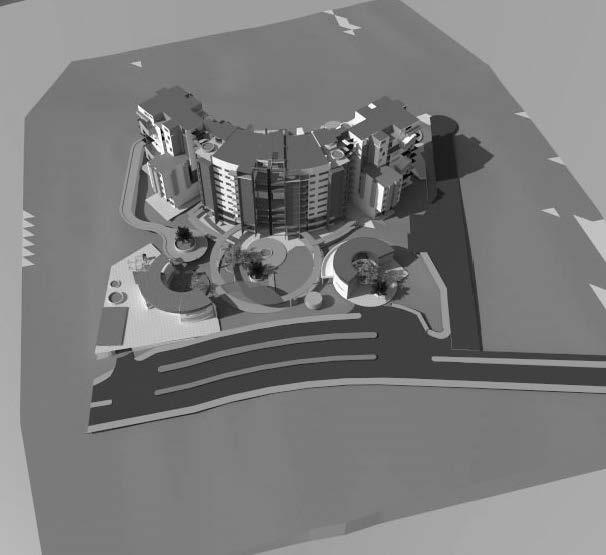

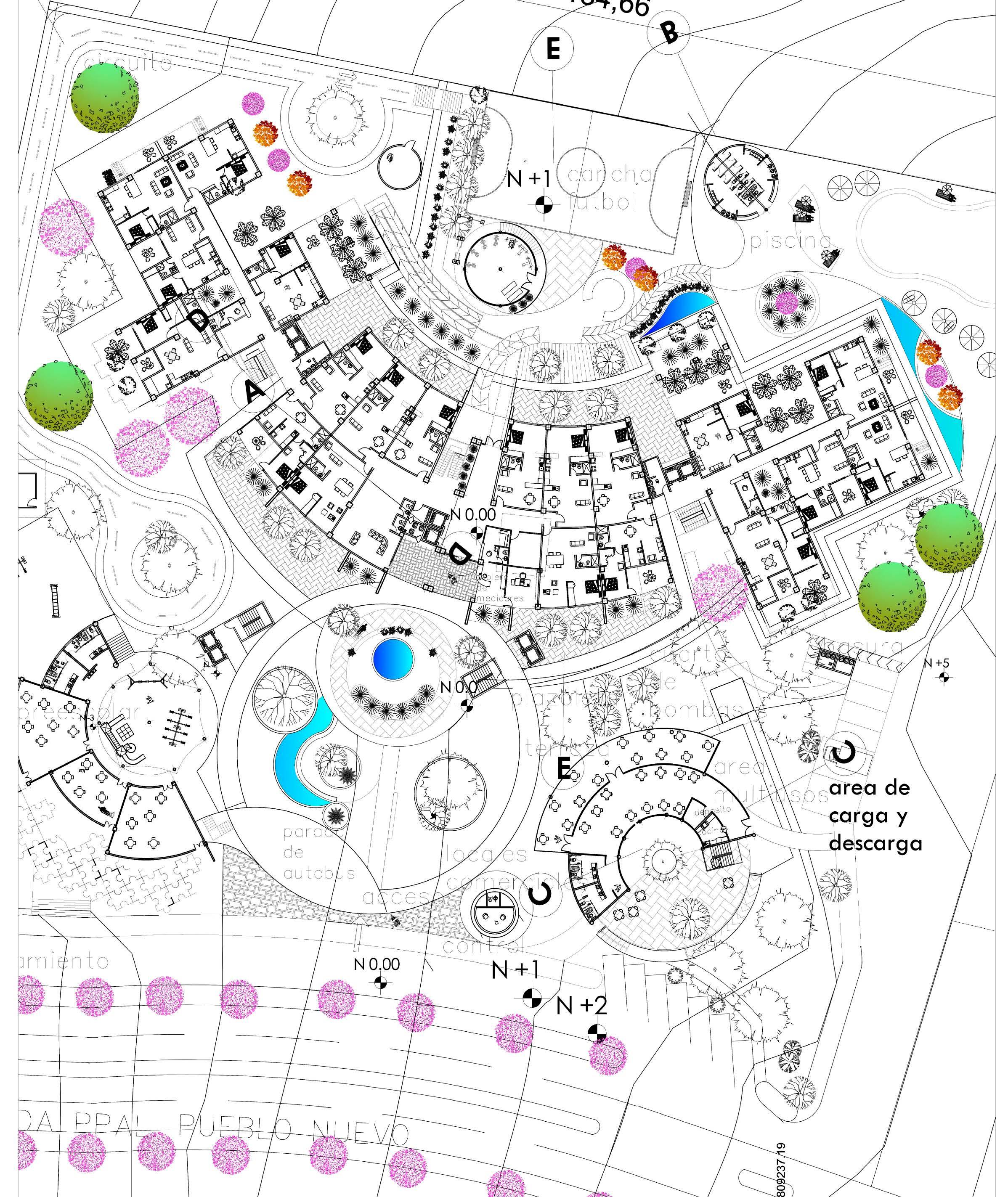

MASTER PLAN

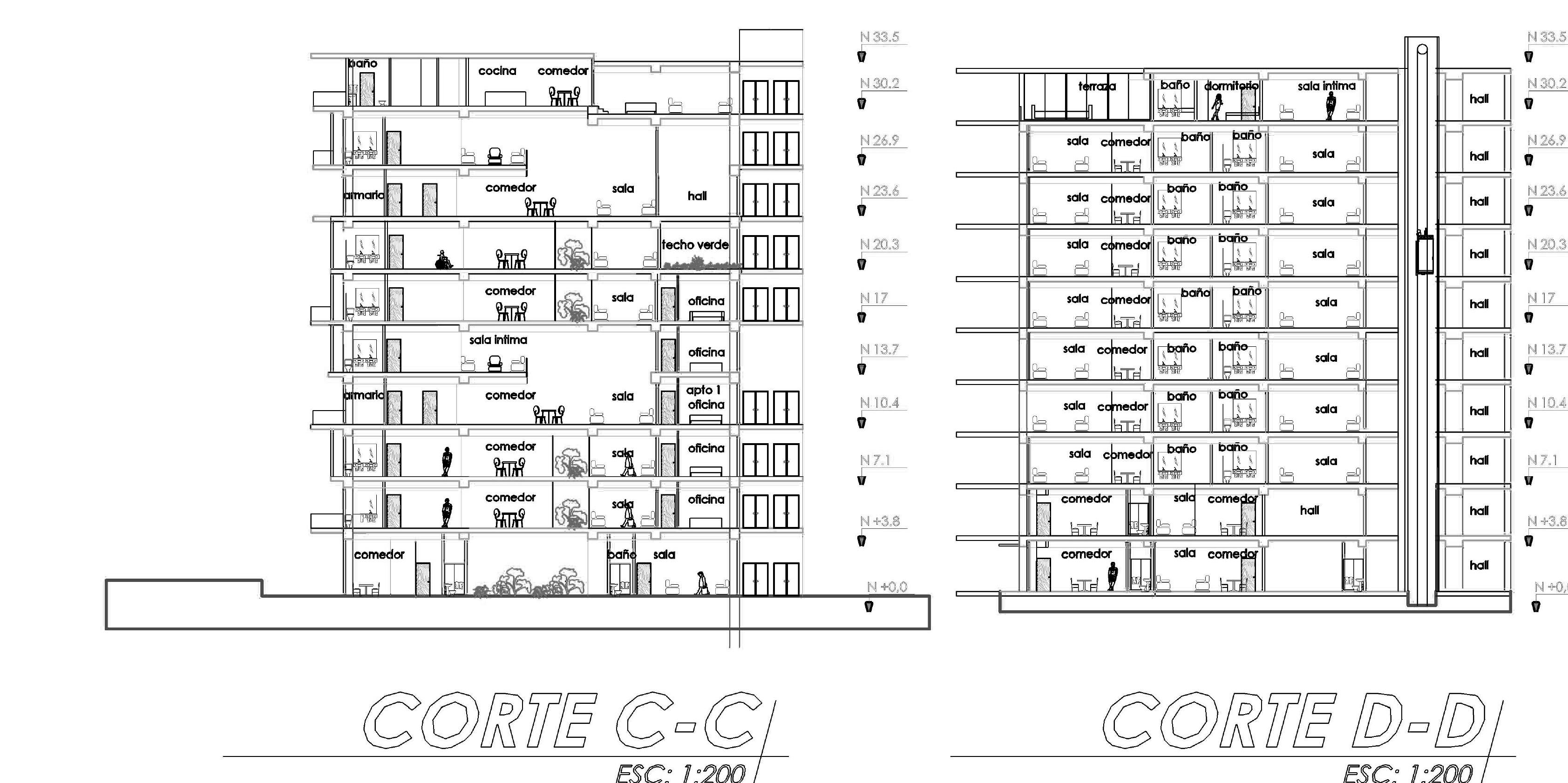

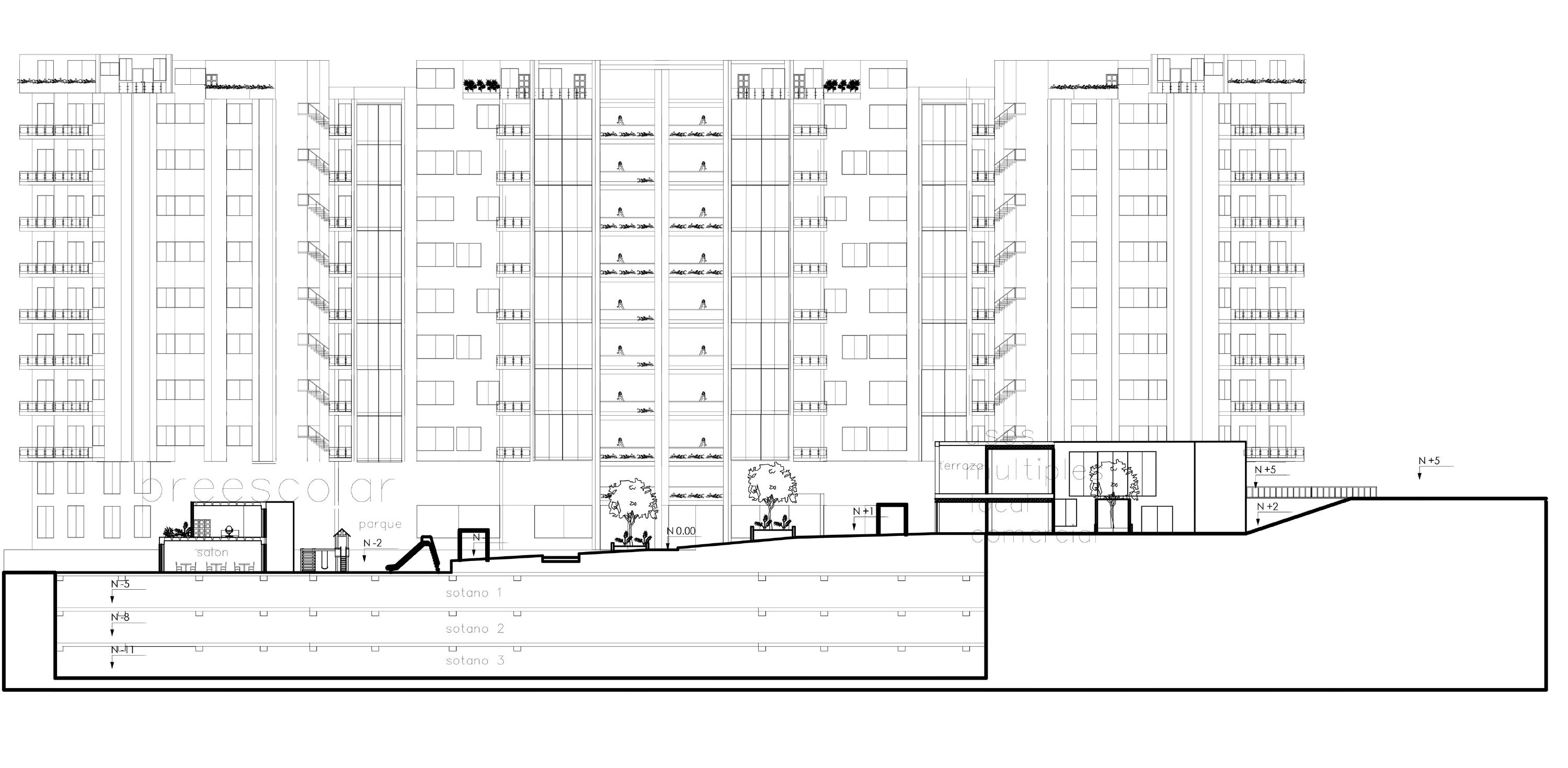

SECTIONS

BUILDING

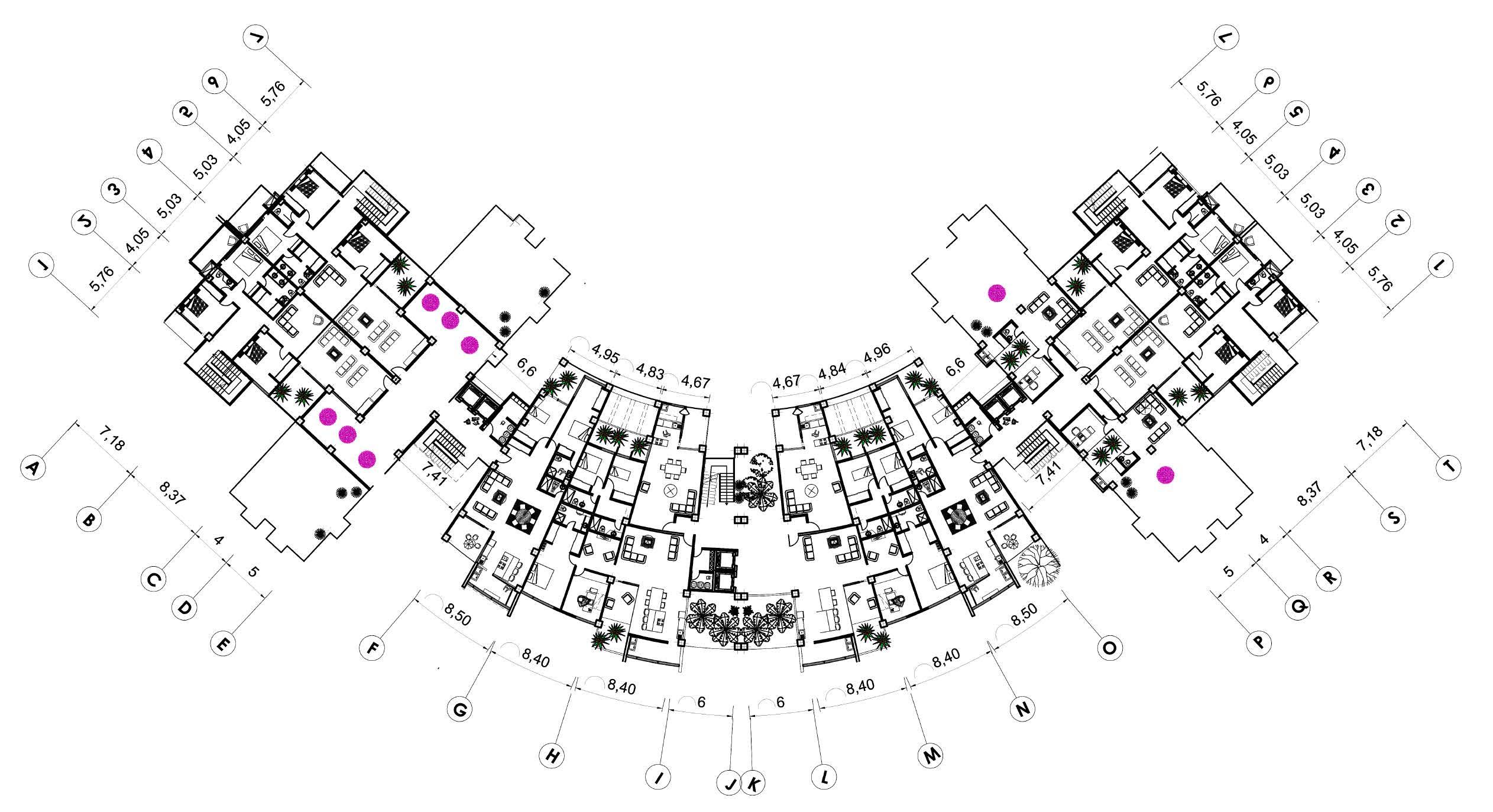

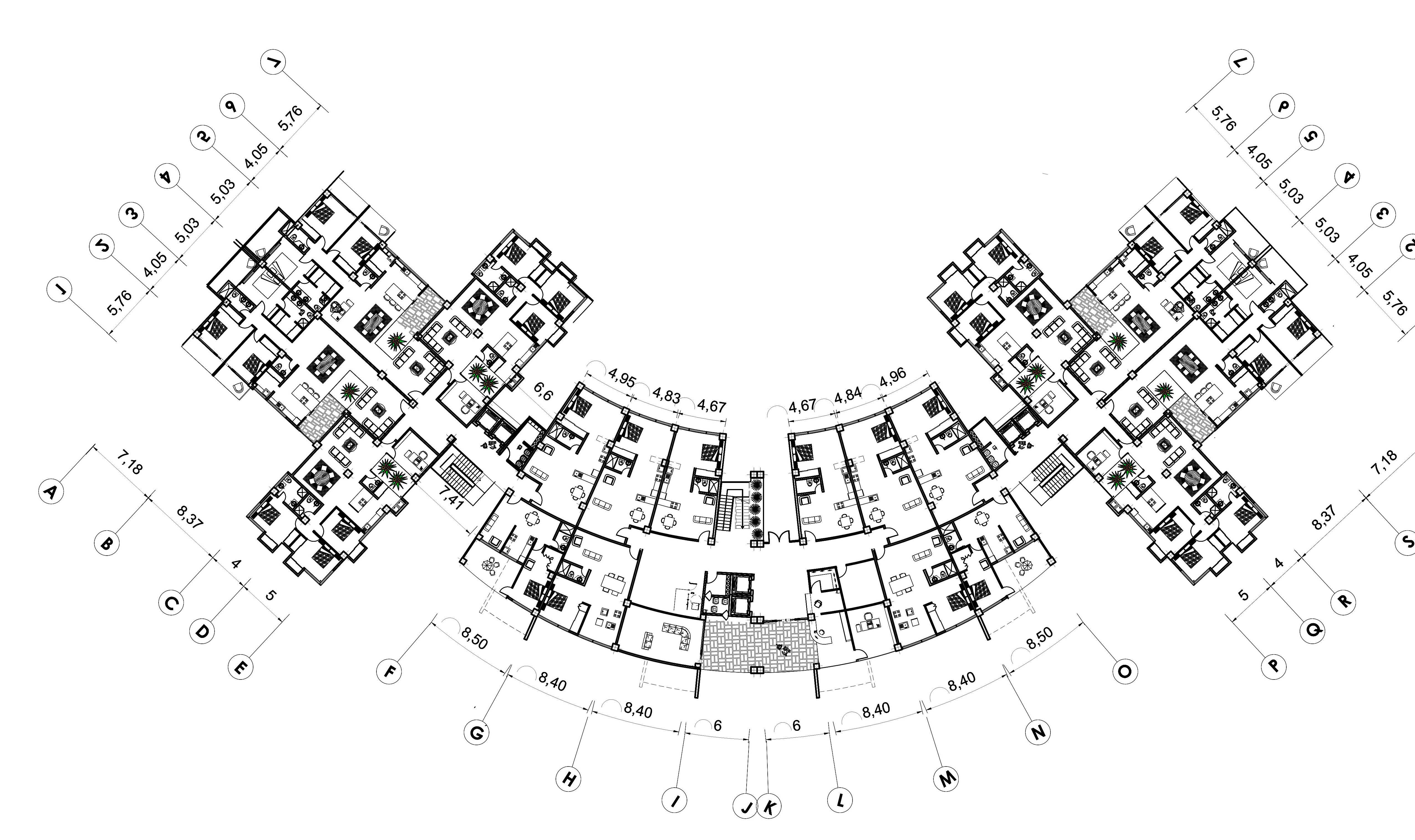

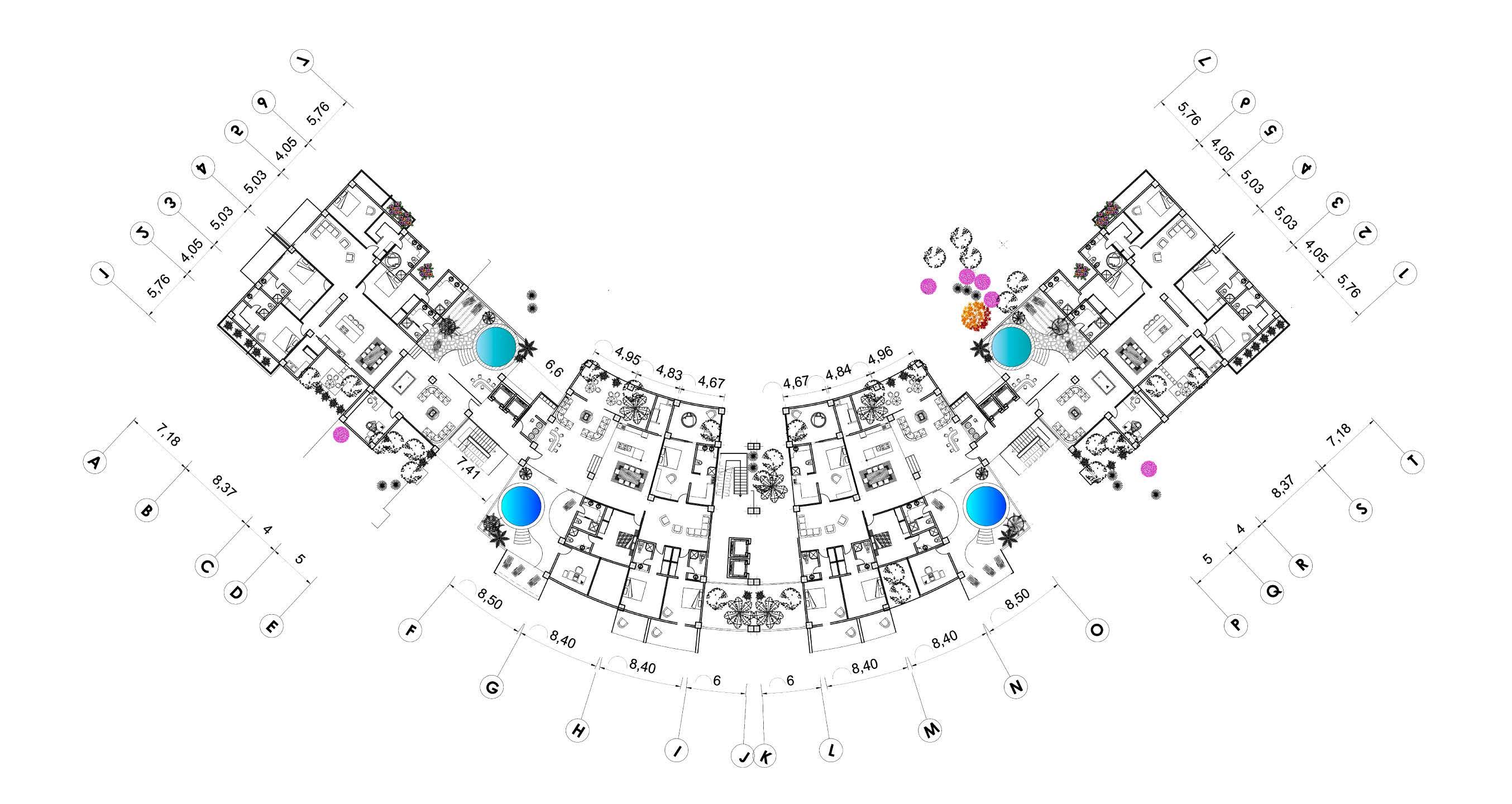

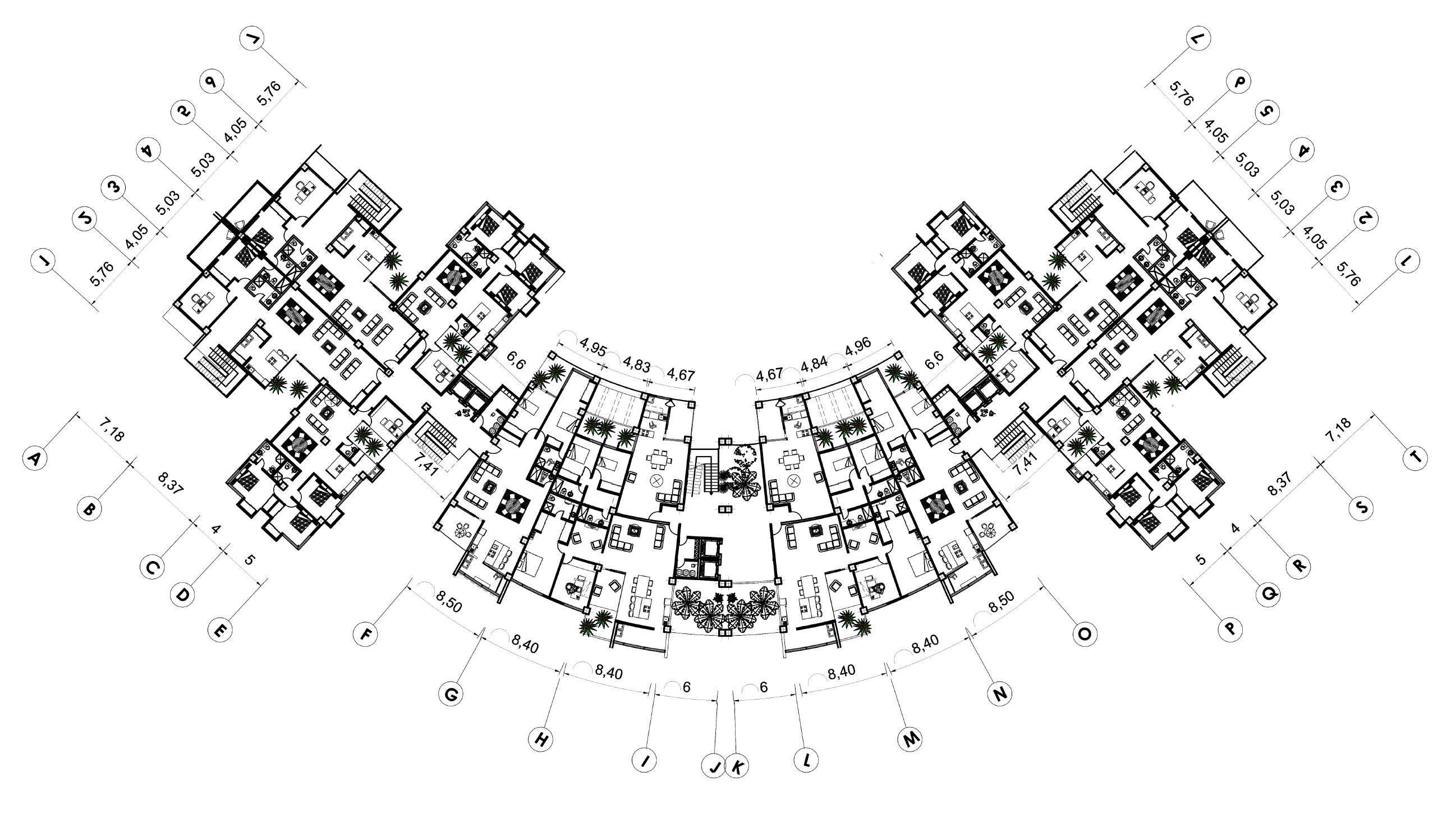

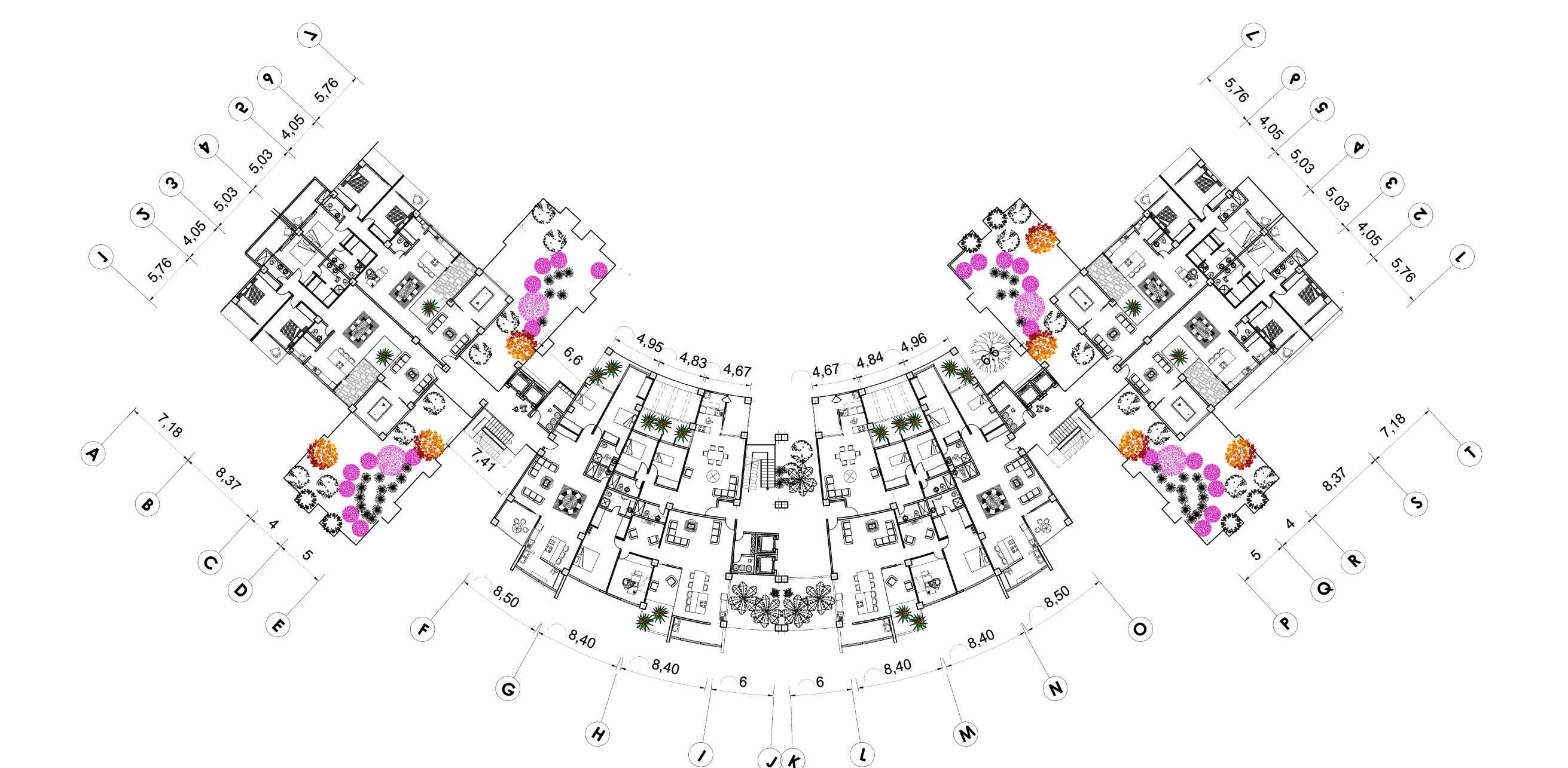

FLOOR PLAN

2ND FLOOR

5TH- 9TH DUPLEX FLOOR

4TH- 8TH DUPLEX FLOOR

#2

#3

#4

#5

#1

7TH FLOOR

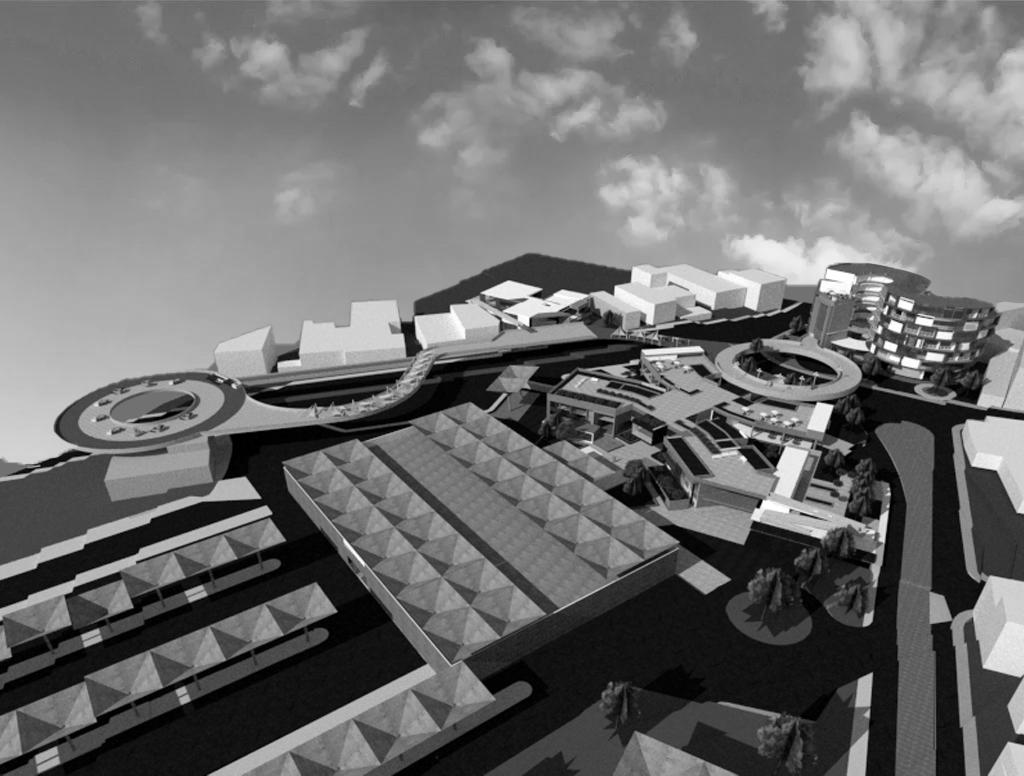

INTERVENTION OF THE GENARO MENDEZ BUS

TERMINAL

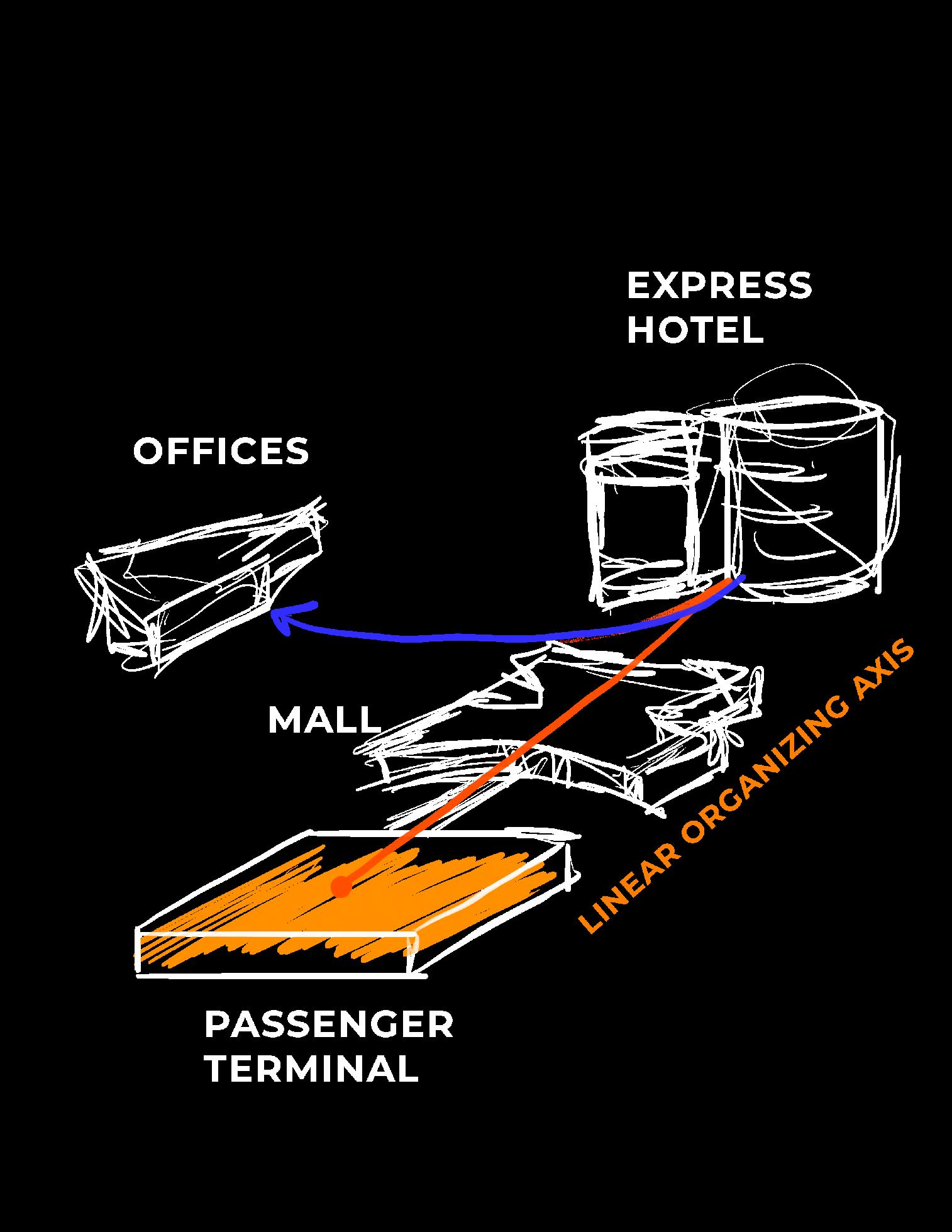

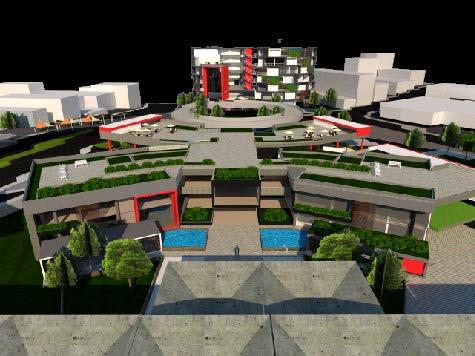

The project aimed to modernize the Genaro Mendéz bus terminal to accommodate the area's current dynamics. Our design includes an integrated complex that adds offices, an express hotel, and a shopping center connected to the sector by an elevated linear park.

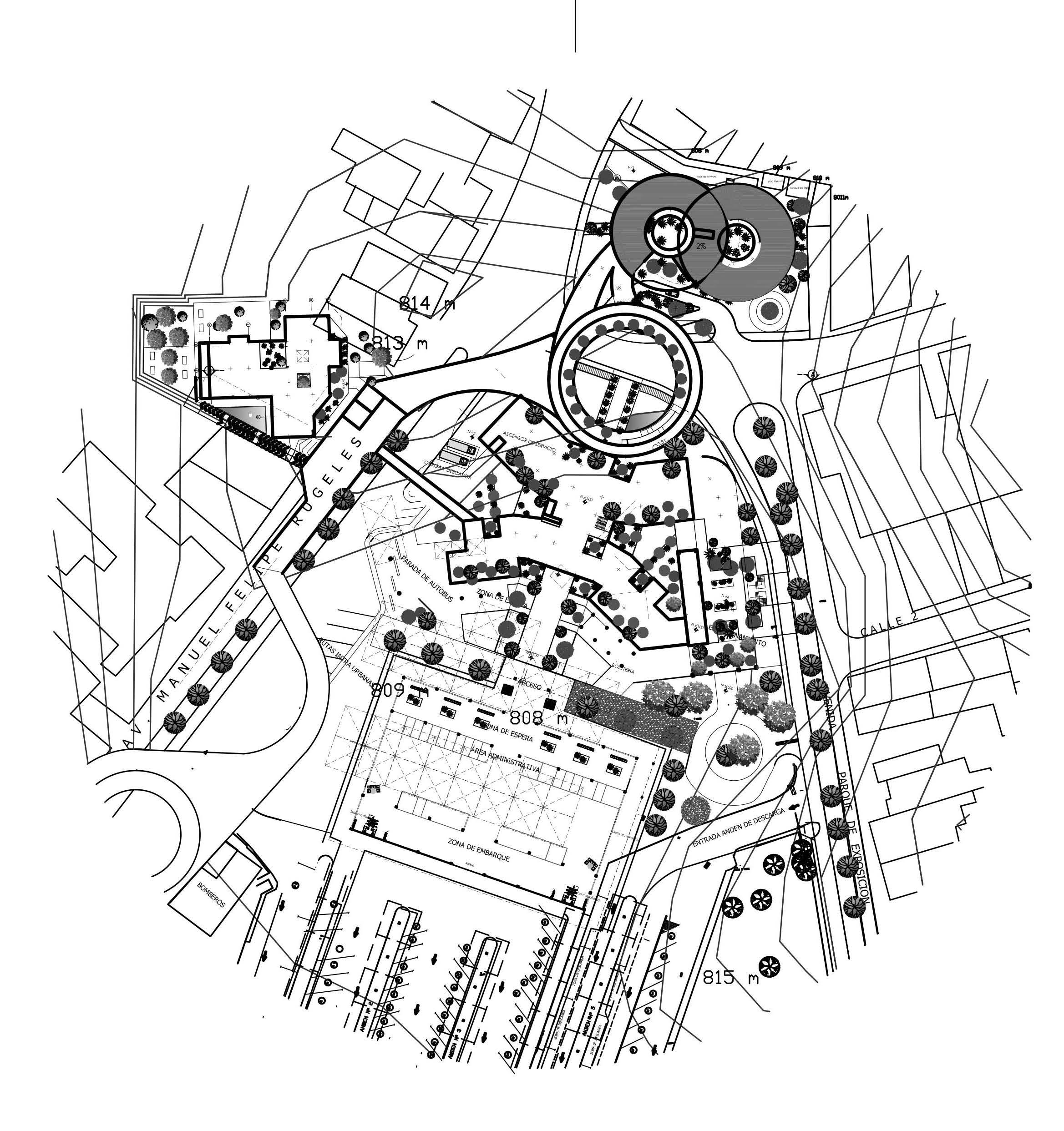

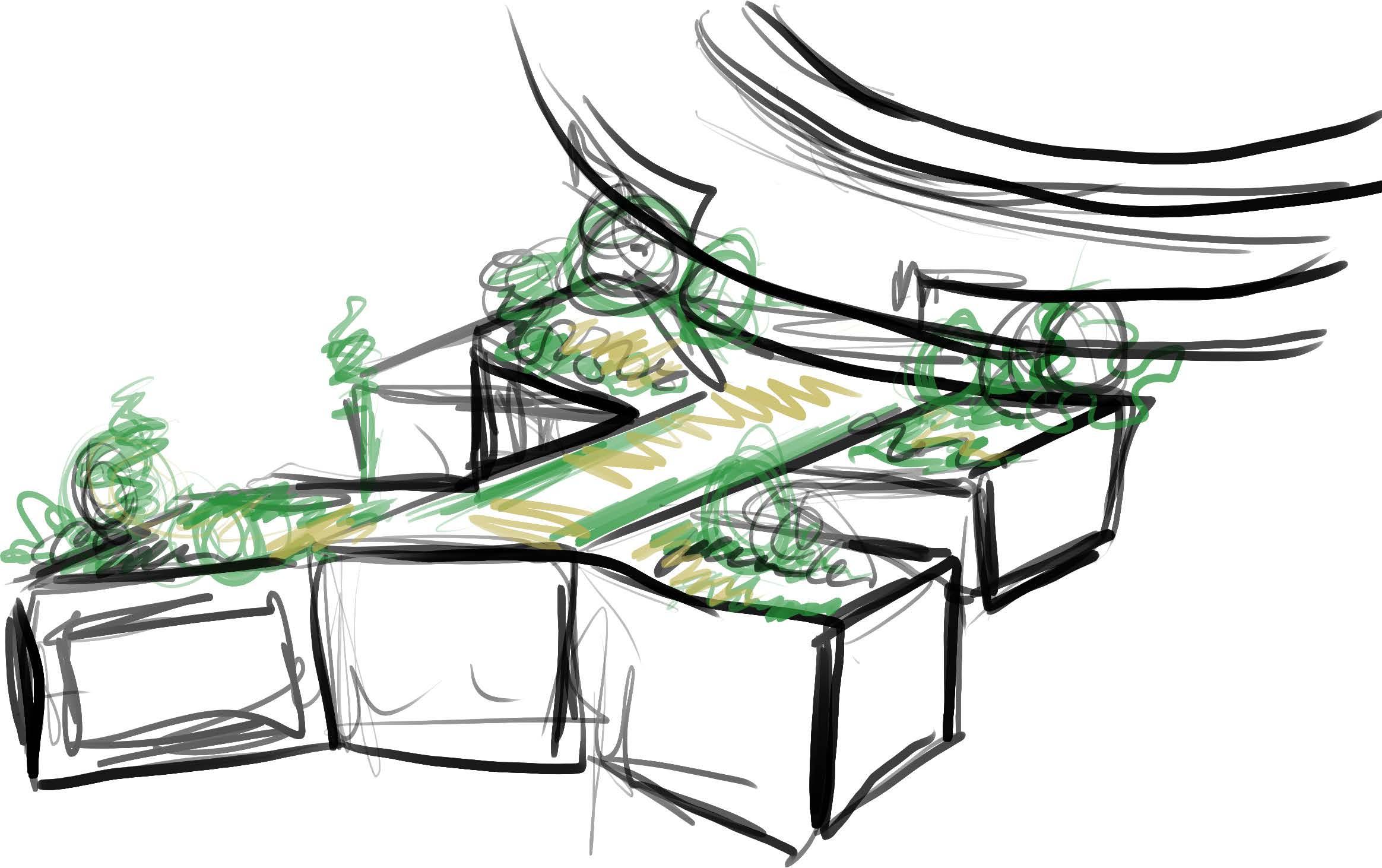

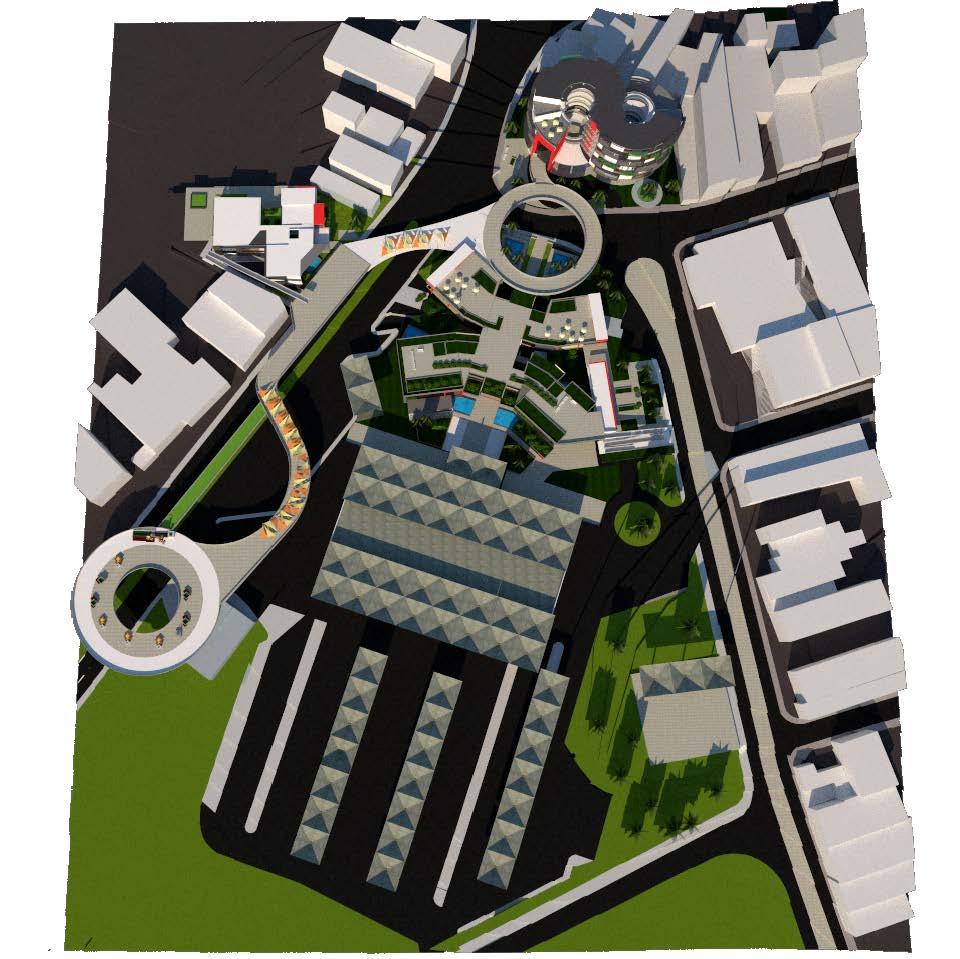

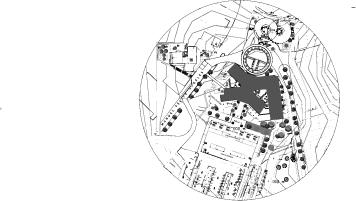

MACRO PROPOSAL

The terminal as a belt of unification.

CONCEPT

Integrate contrasting architectural, urban, and visual elements to break the social routine and malfunctioning of the sector.

PART A

PLAZA AEREA

CONECTION

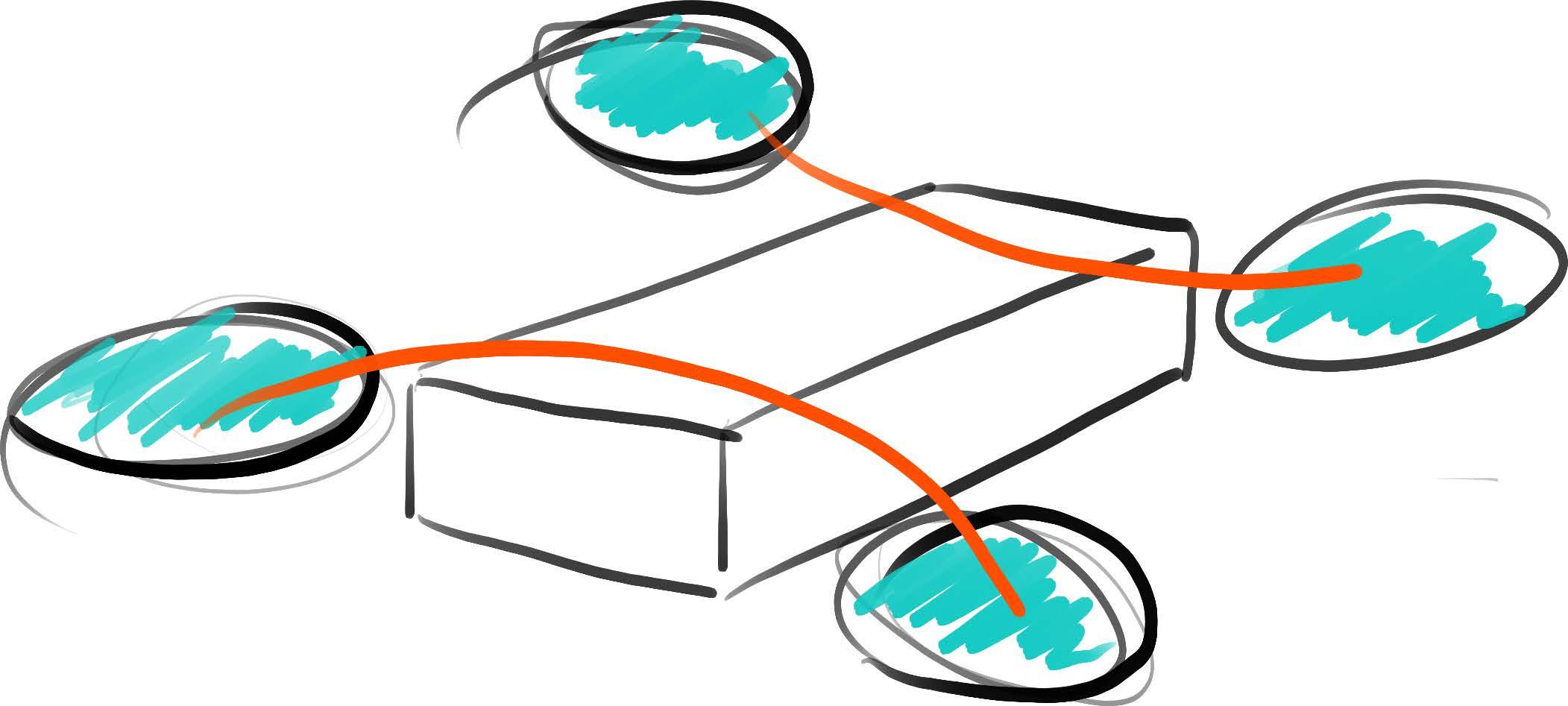

Element that connects all the points of the proposal, and that opens towards the terminal.

This is developed as the need to allow better pedestrian circulation in the area

PART B

Anteroom to the terminal where the building environment merges with the nature to meet the needs immediate of the users.

connection with plaza aerea

URBAN

GREEN SPACE

HOTEL AND TERMINAL CONNECTION LINE

commercial area commercial area commercial area

commercial area

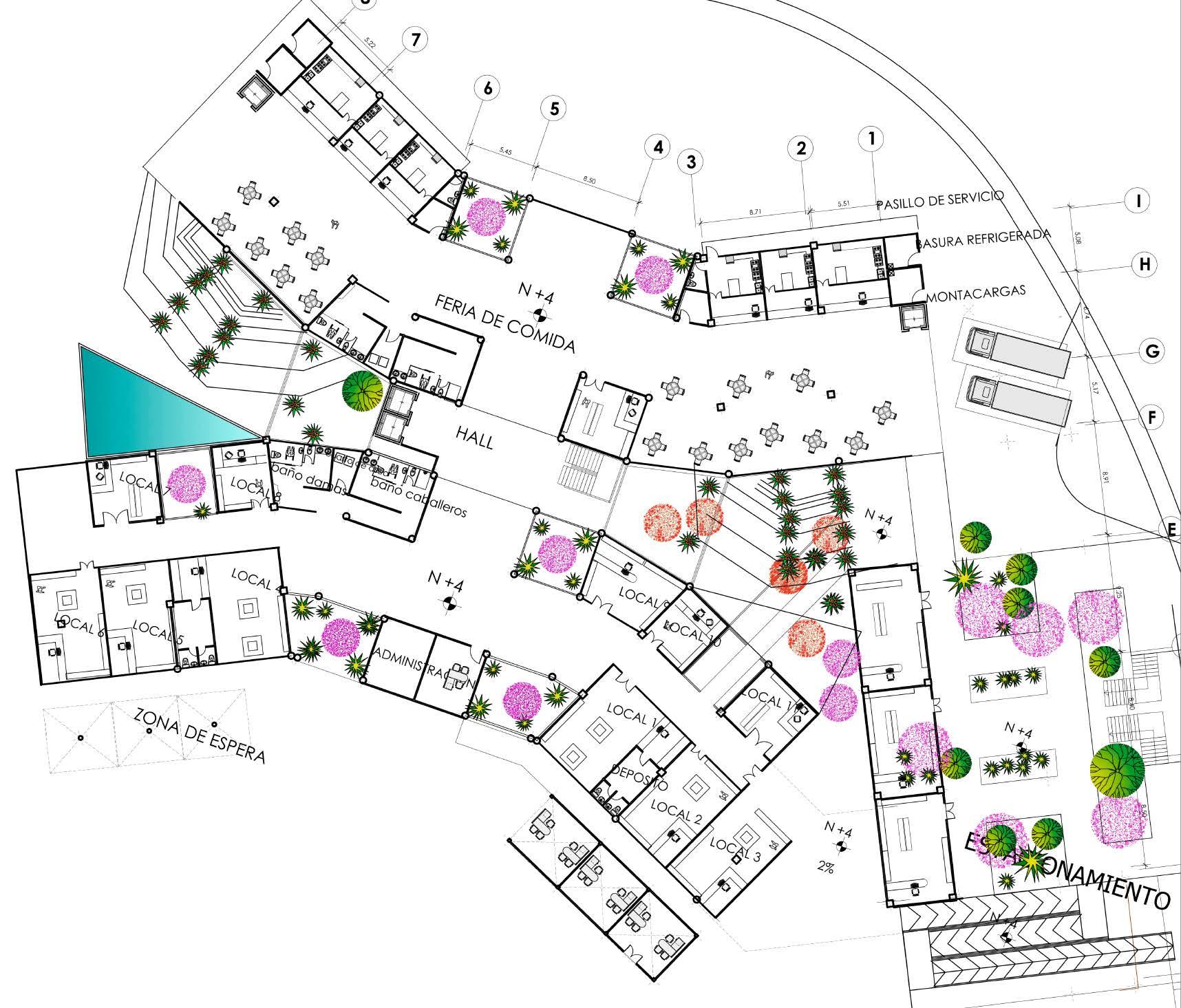

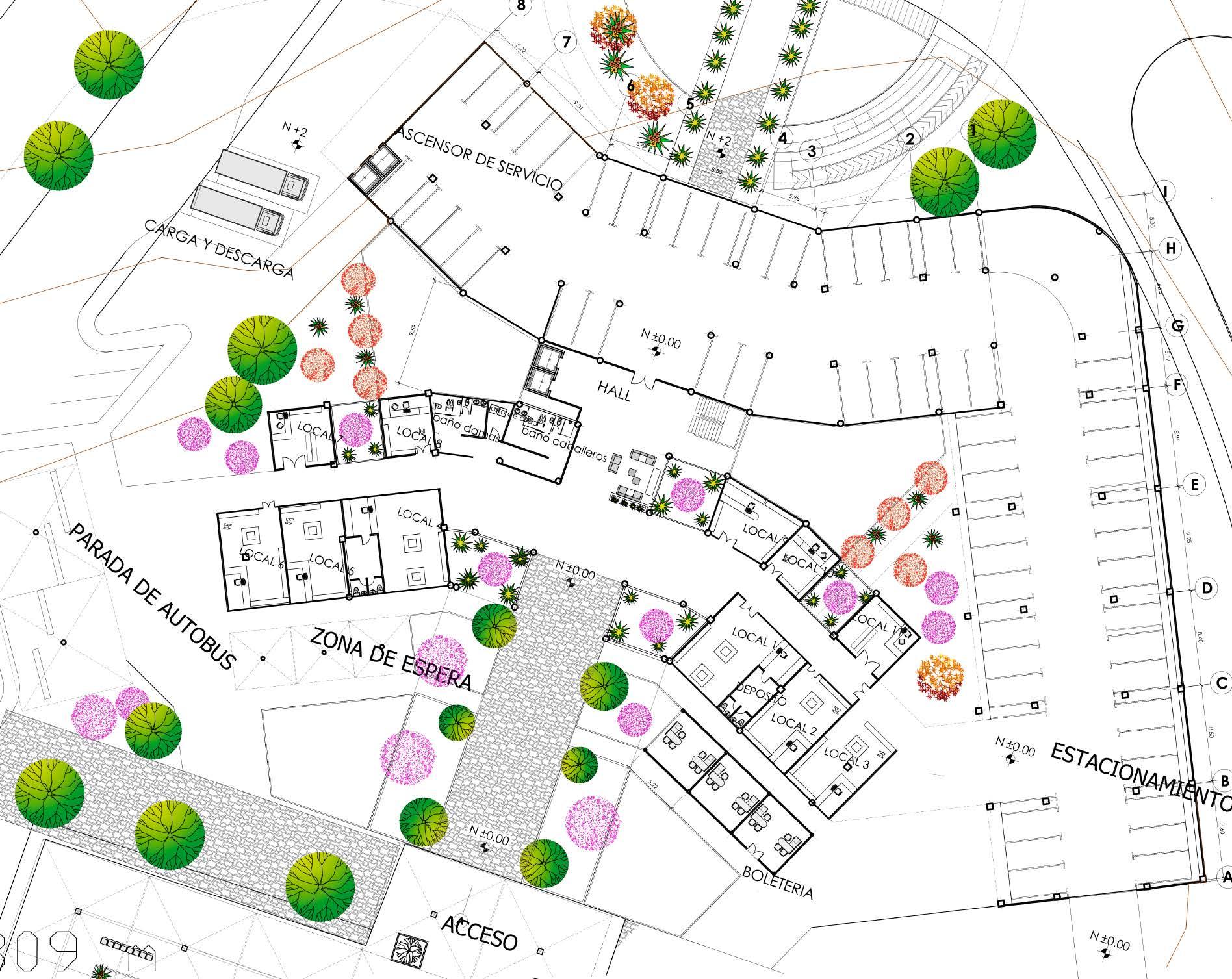

FLOOR PLAN

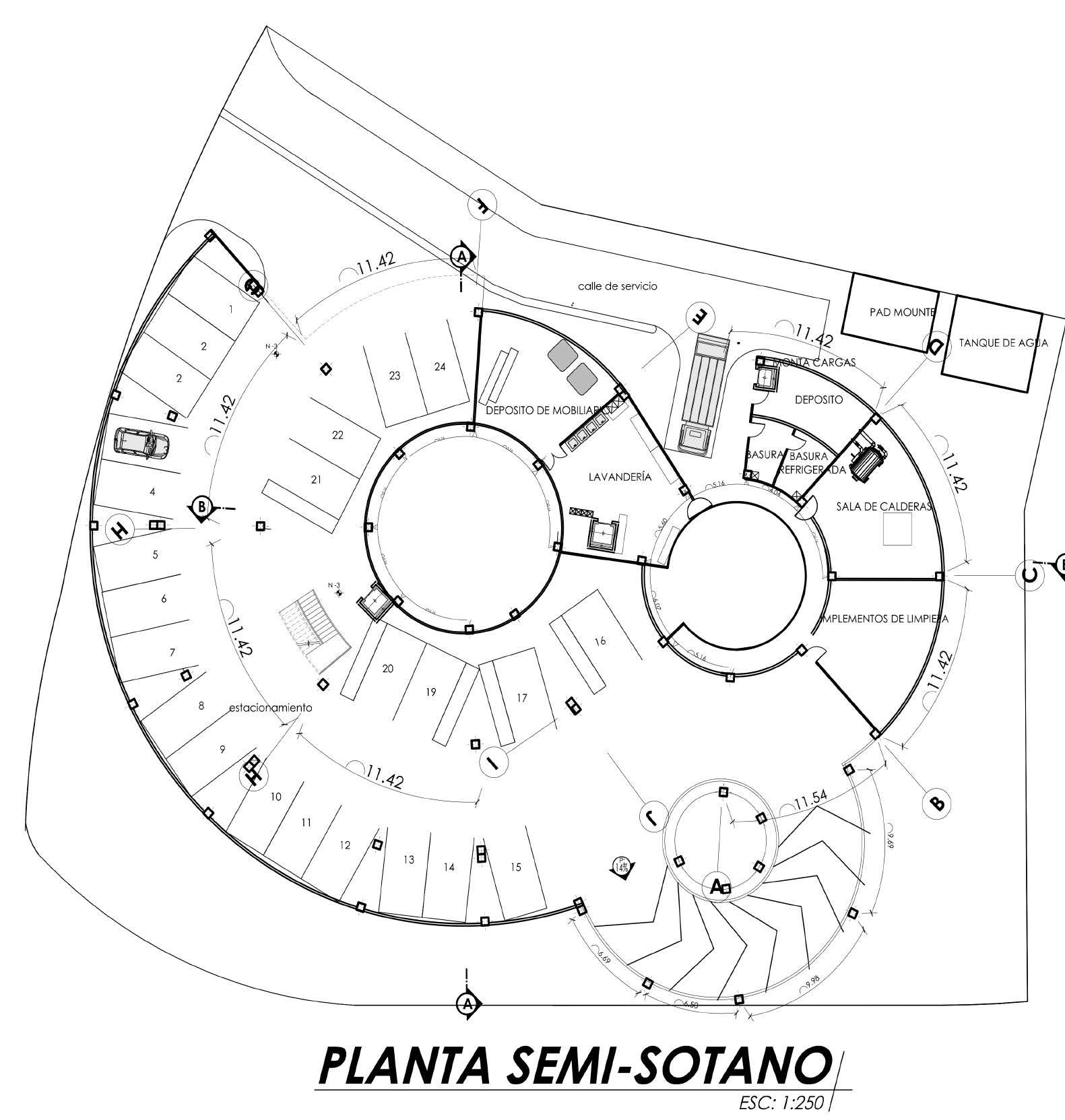

BASEMENT

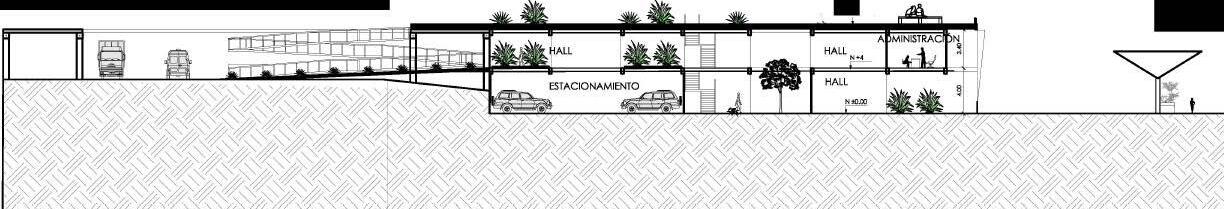

SECTIONS

PART C

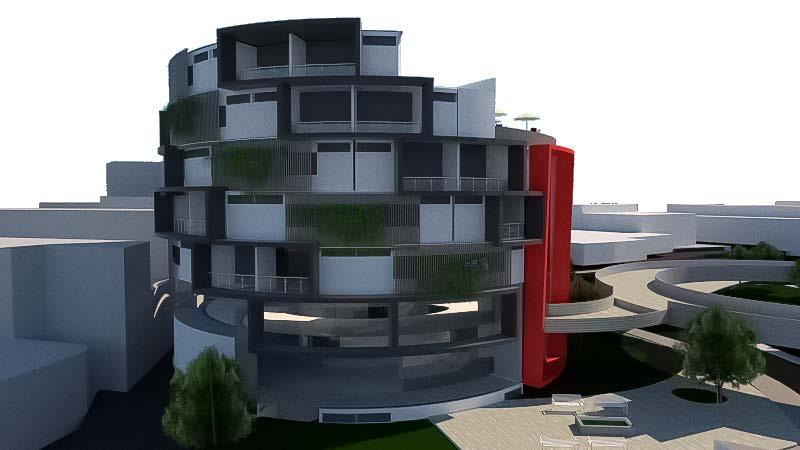

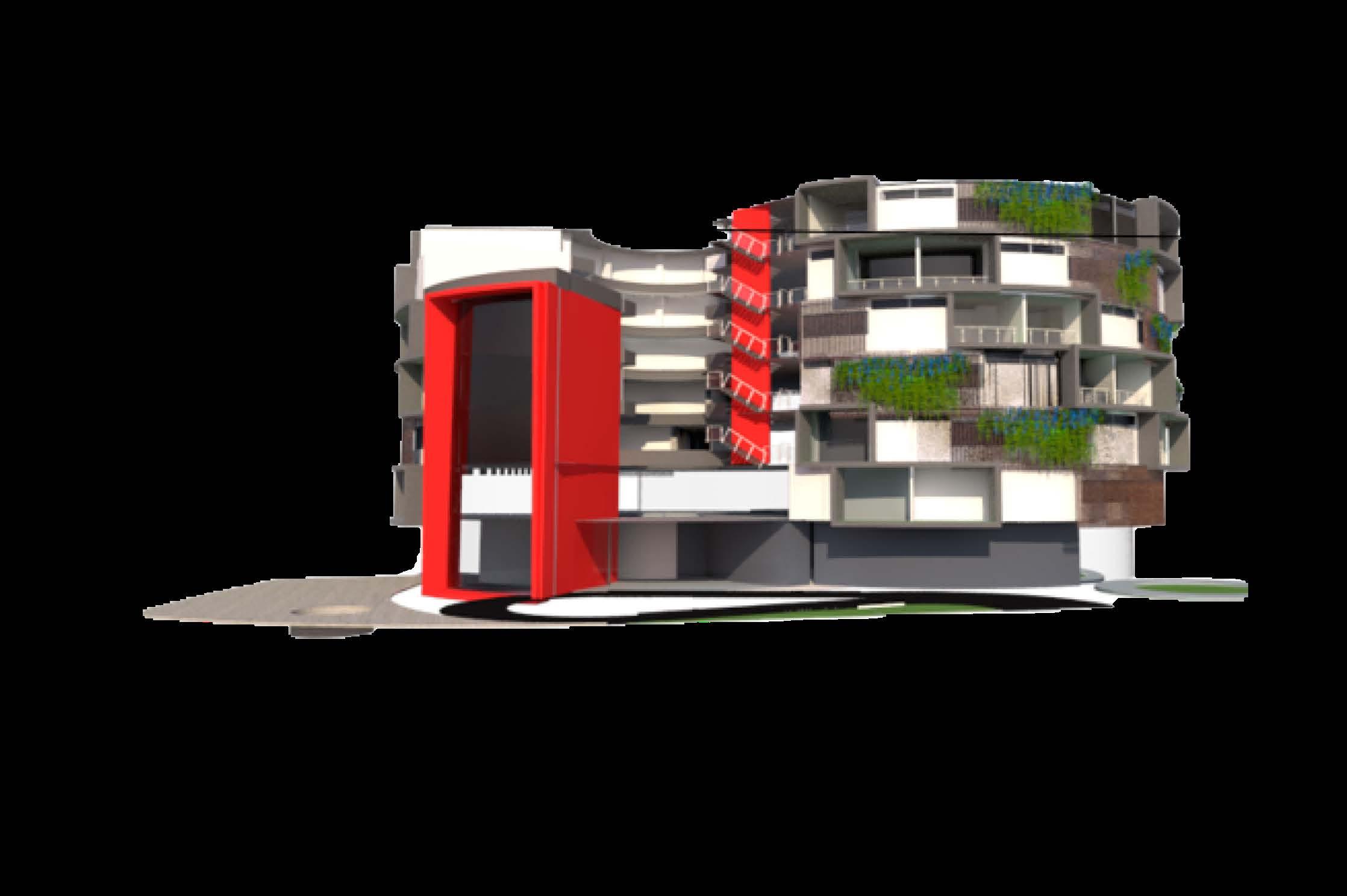

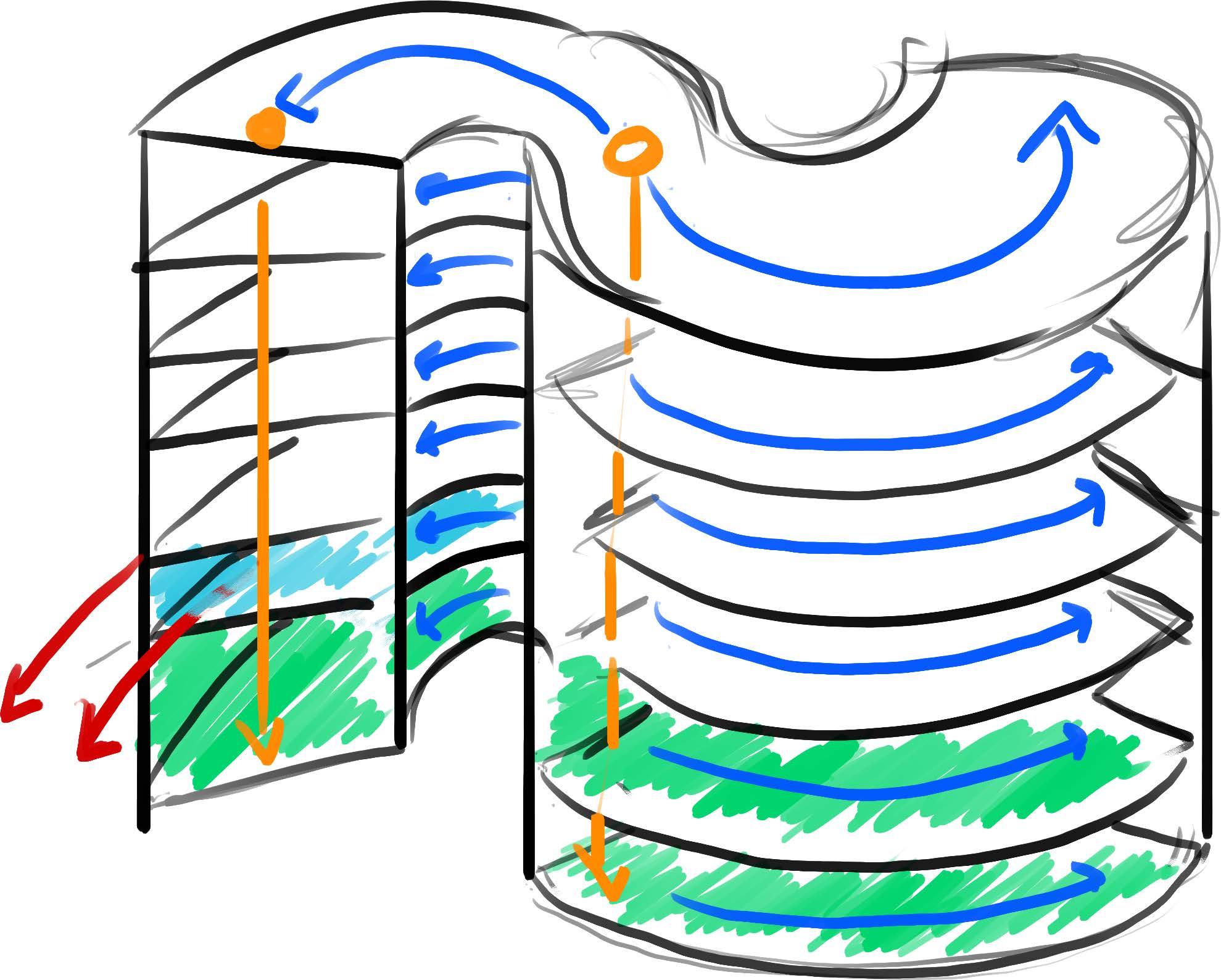

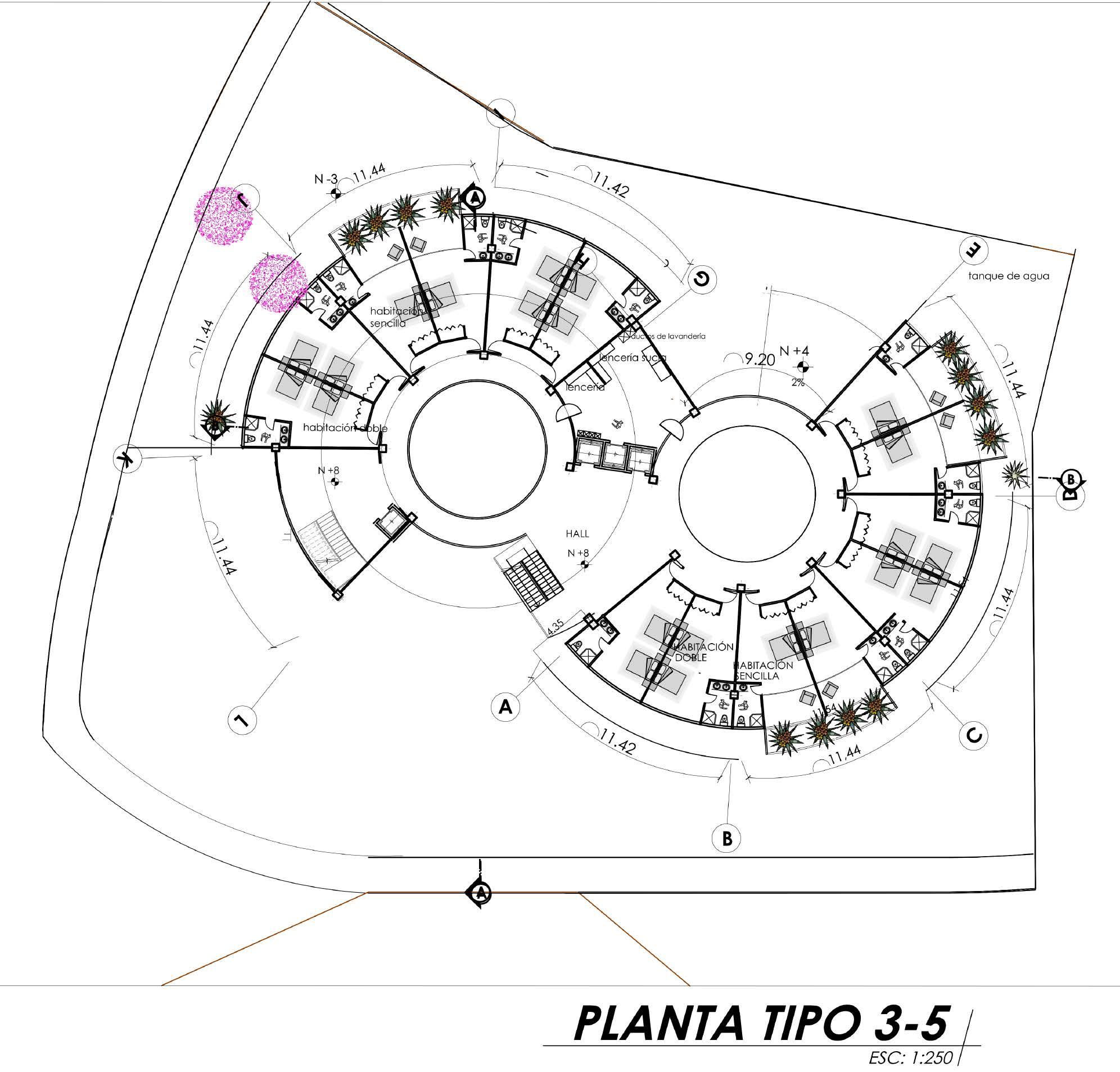

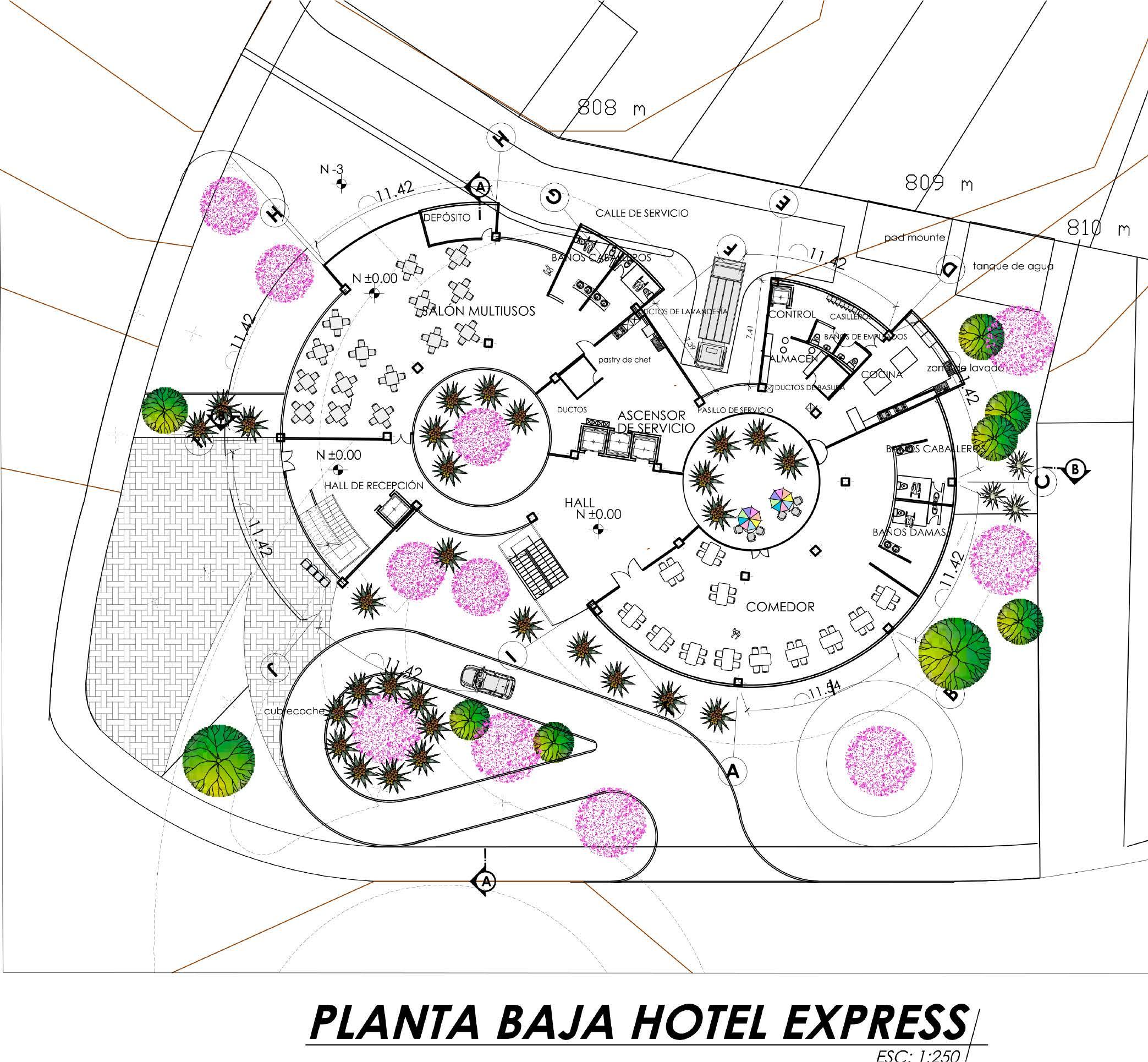

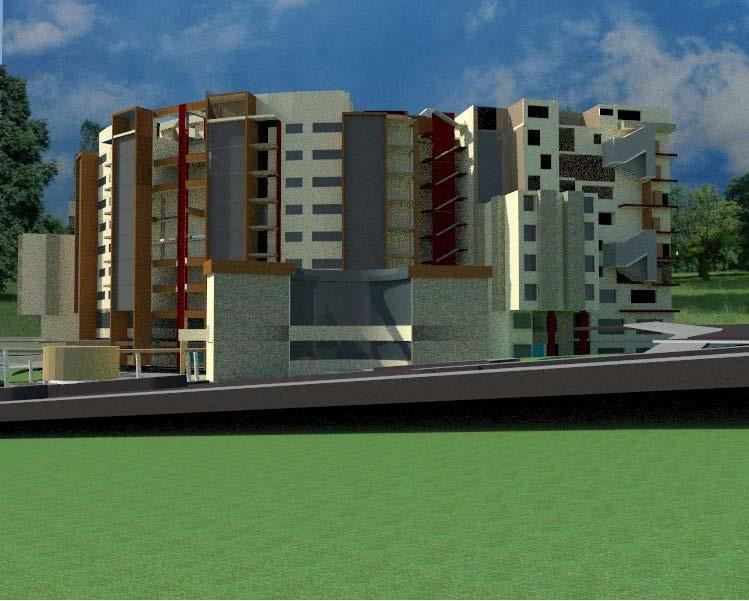

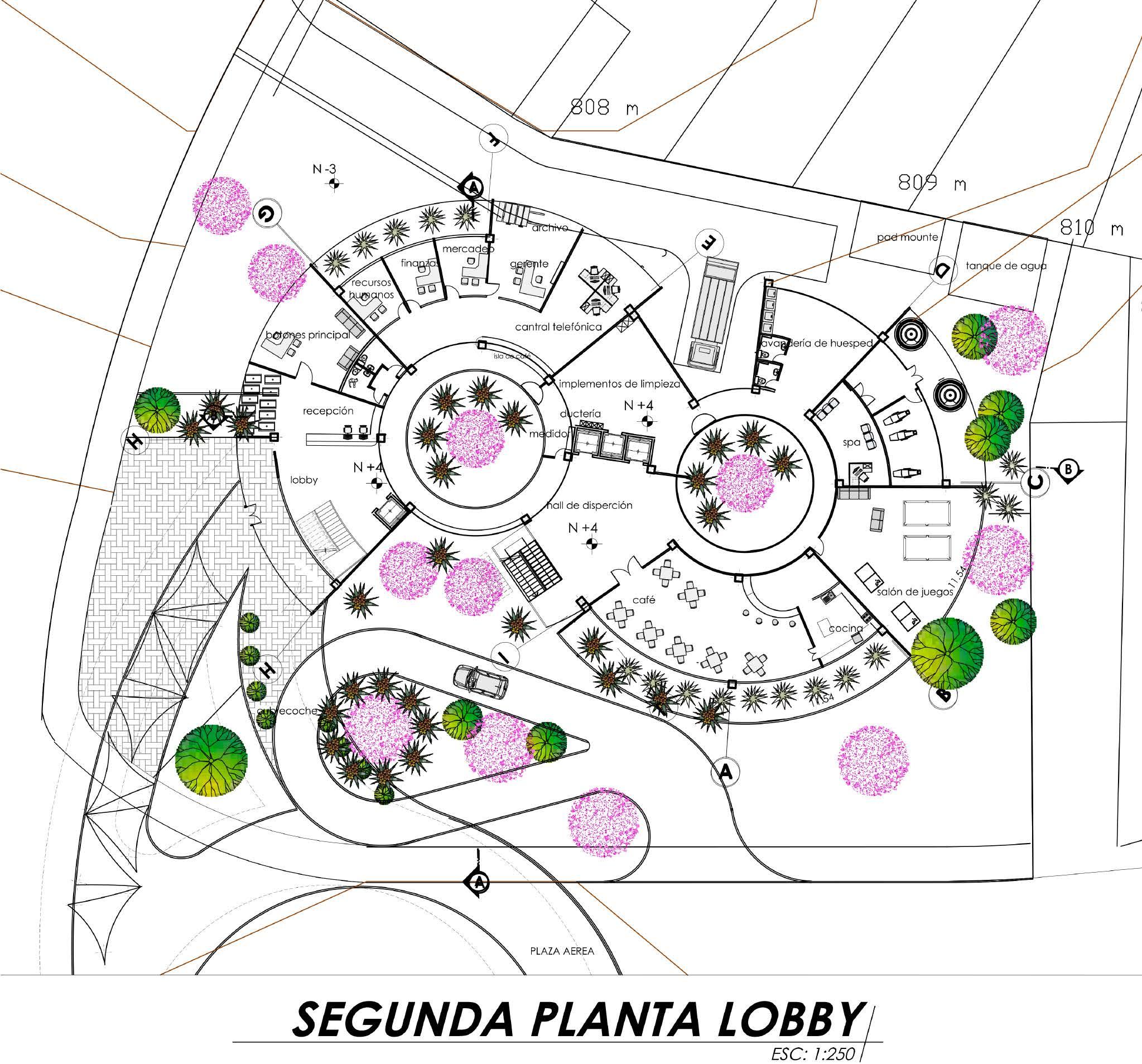

This building is an organic response that imposes itself in a sector saturated with straight lines EXPRESS HOTEL

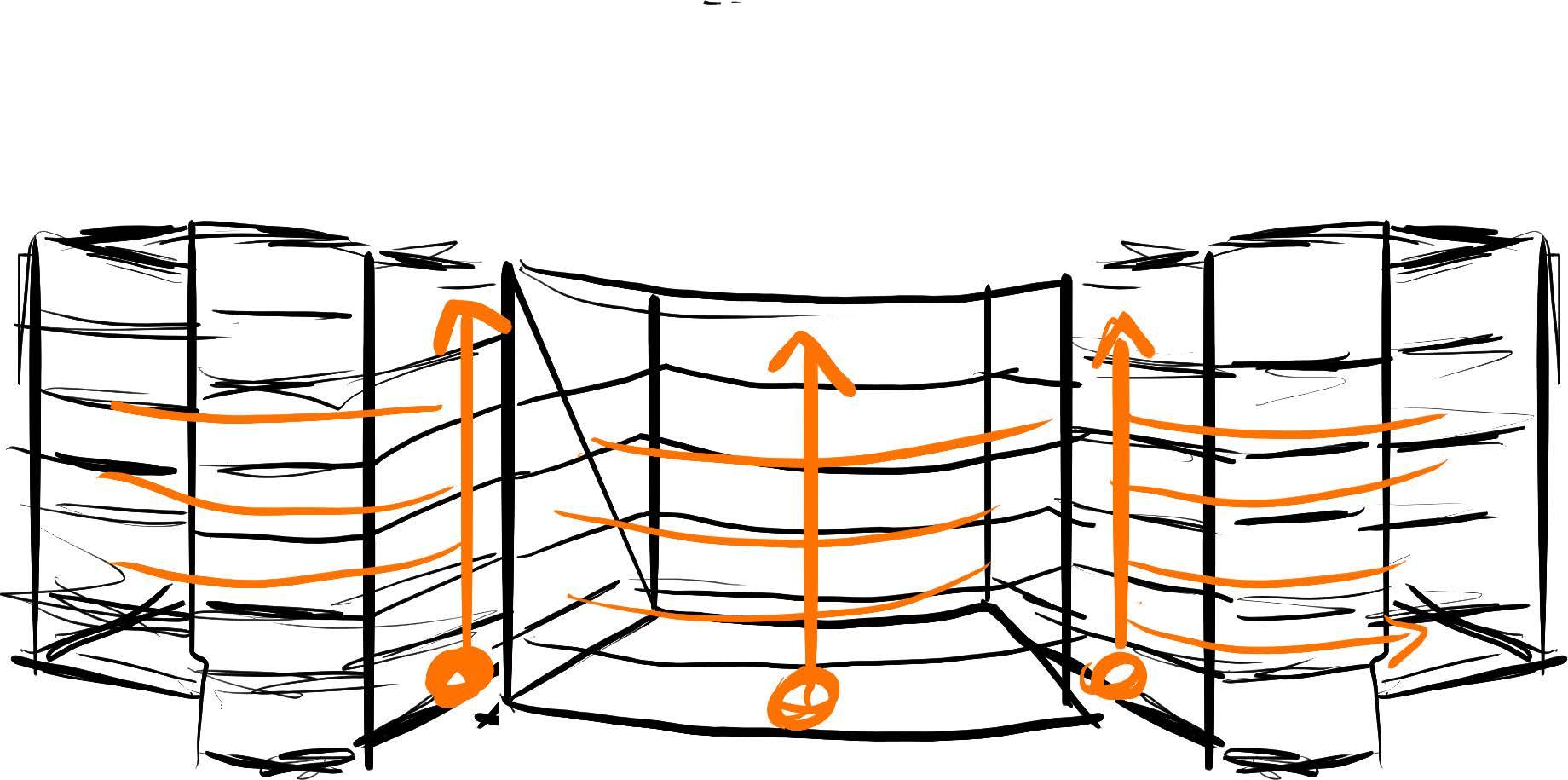

VERTICAL CIRCULATION

COMPLEMENTARY USES FOR GUESTS

ADMINISTRATIVE

CONNECTION WITH SQUARE

DOUBLE CENTRALIZATION AROUND CENTRAL GARDENS

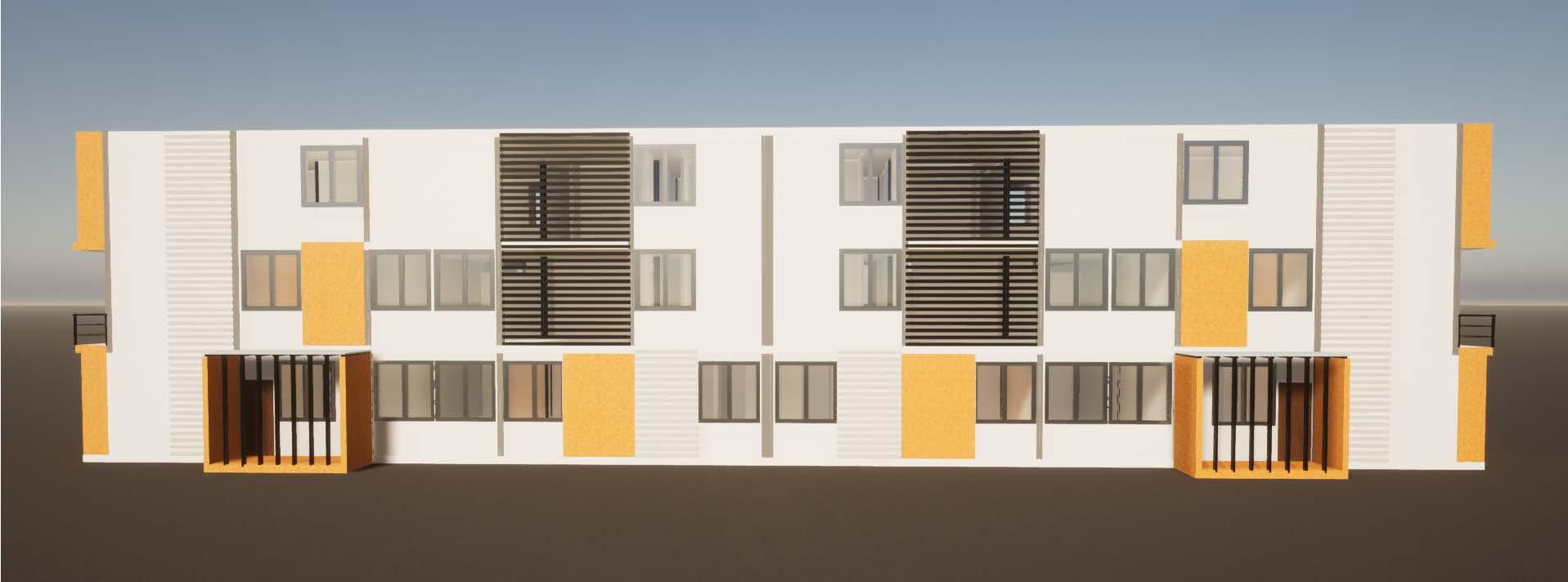

FRONT ELEVATION

SECTION B-B

SECTION A-A

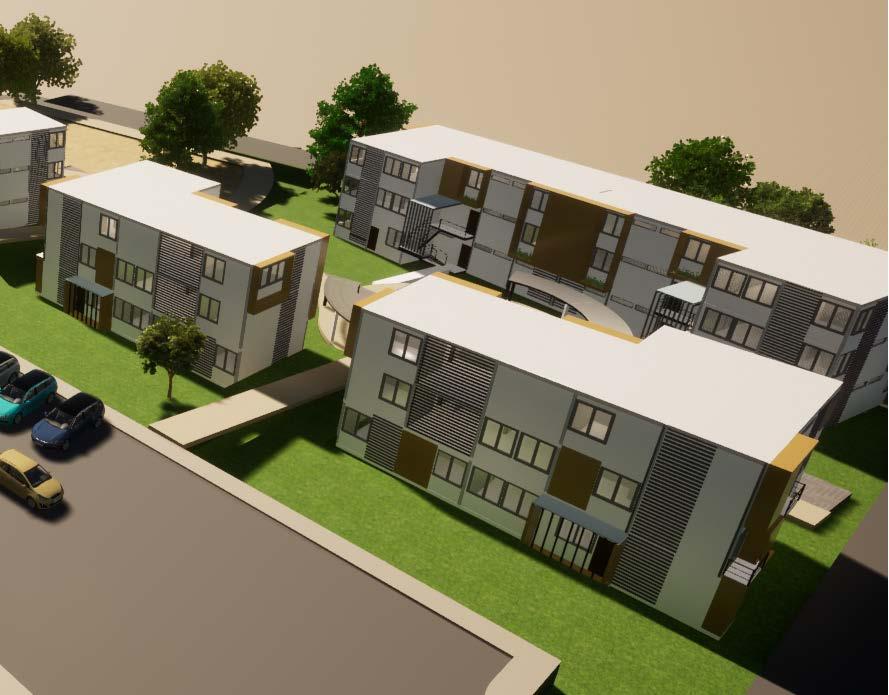

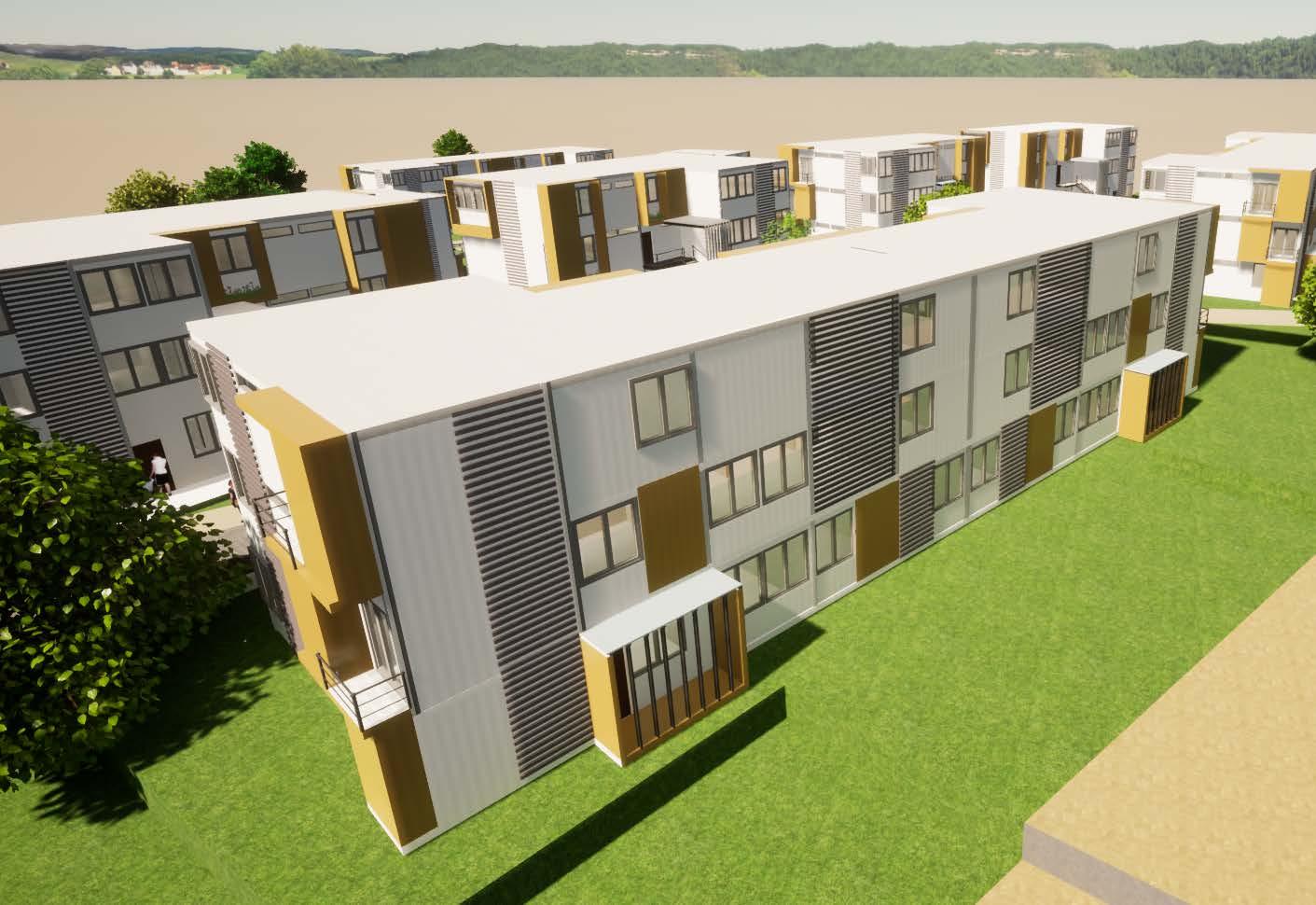

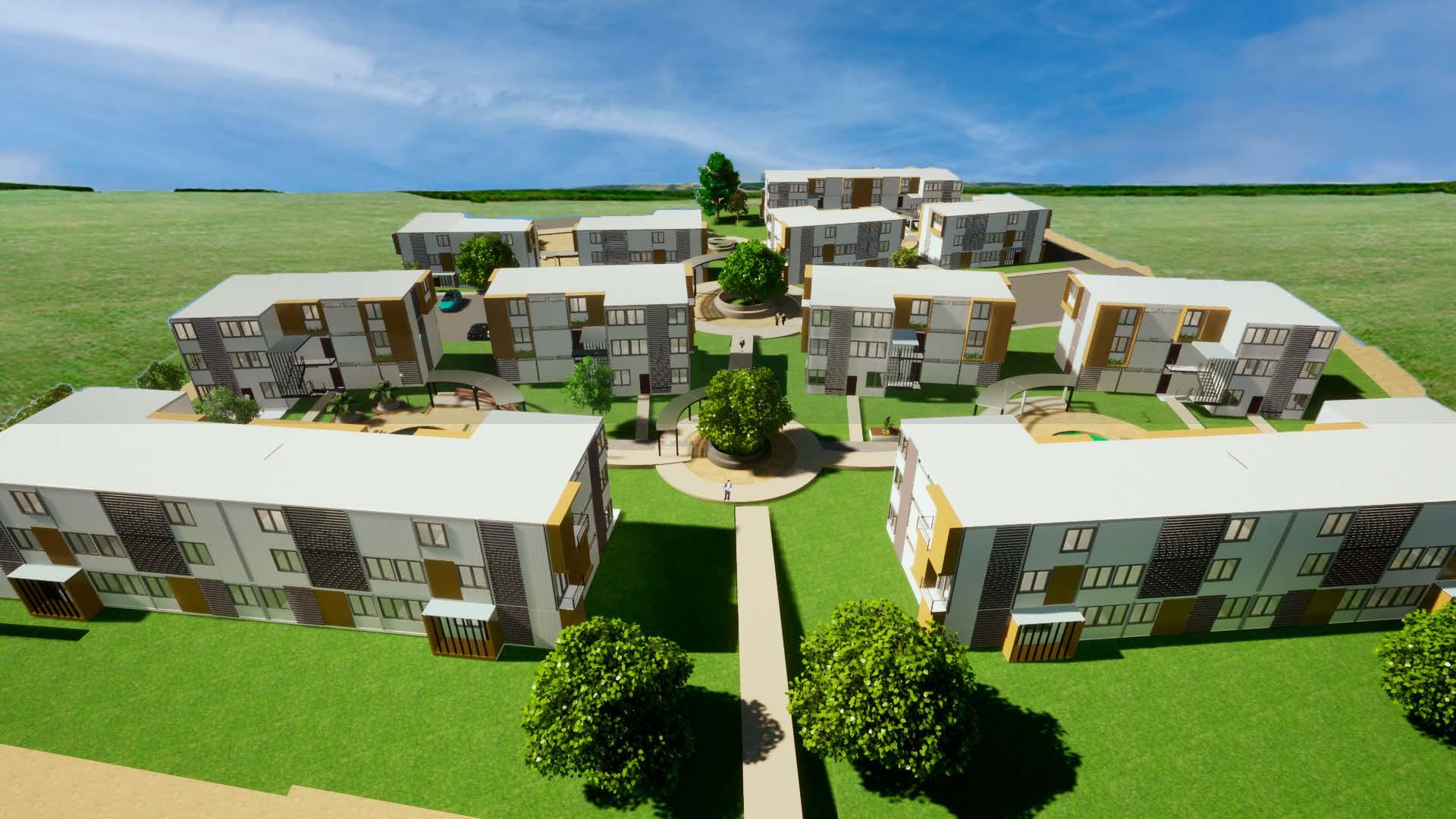

PROGRESSIVE SOCIAL HOUSING

design that meets comfort needs. Thermal quality, low cost, flexibility and growth make this project progressive over time

PROPOSAL

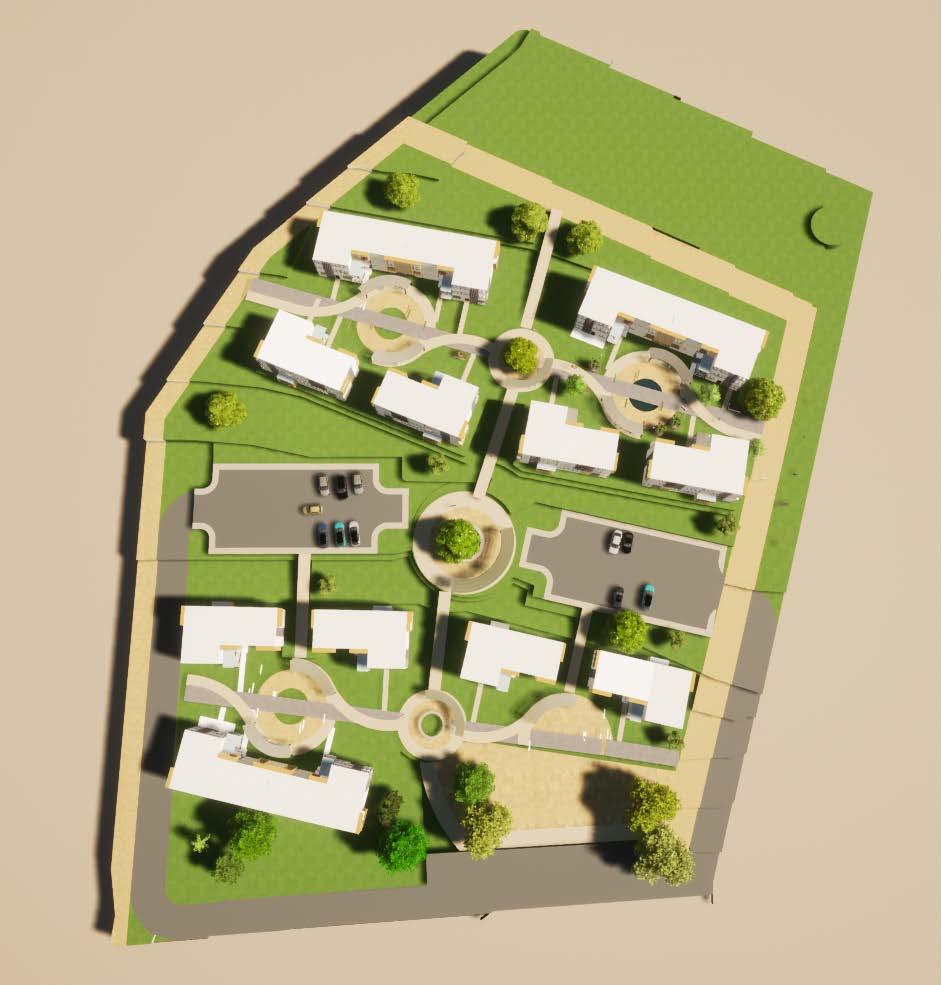

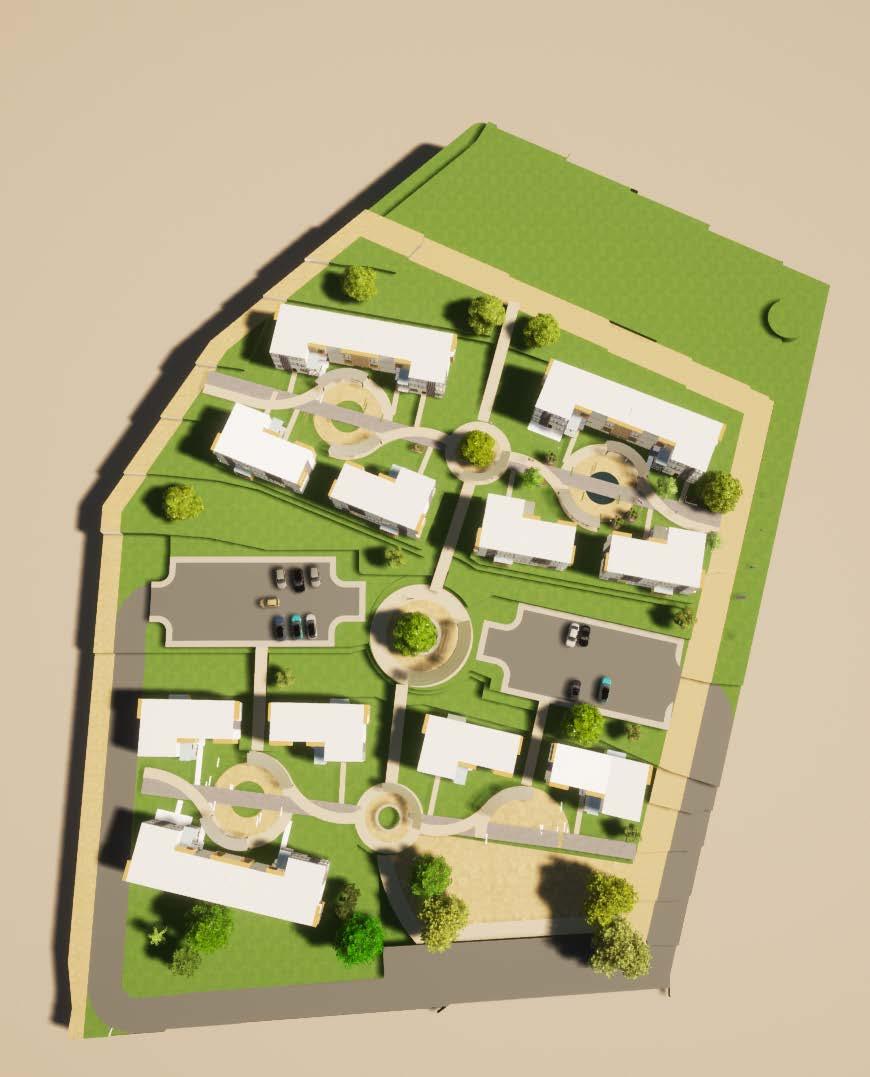

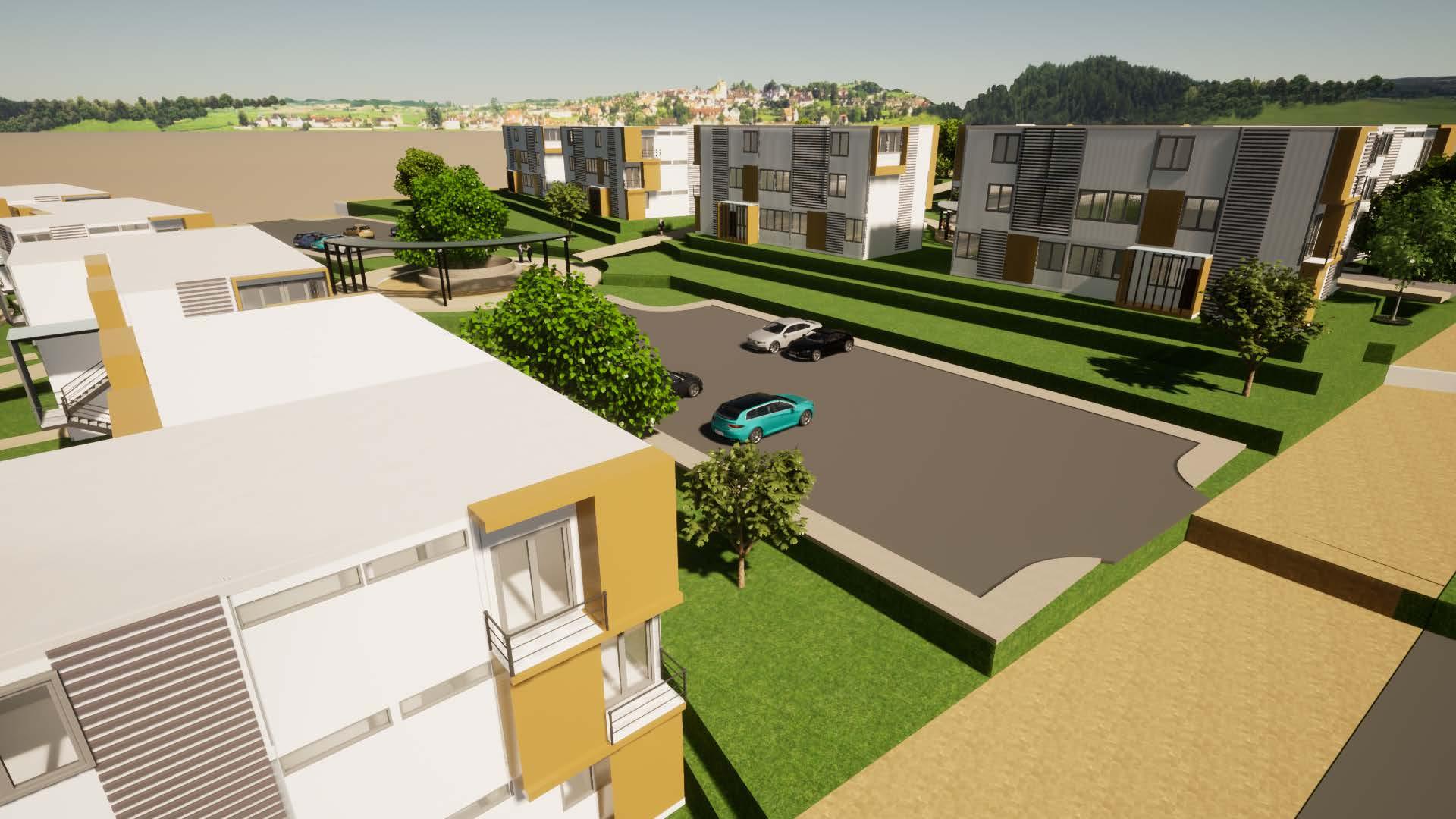

The proposal is made up of 56 family homes,parking lots with 76 parking spaces and 20 parking spaces for visitors., the outside boundaries were used as recreational areas with gardens and playgrounds

FIRST FLOOR

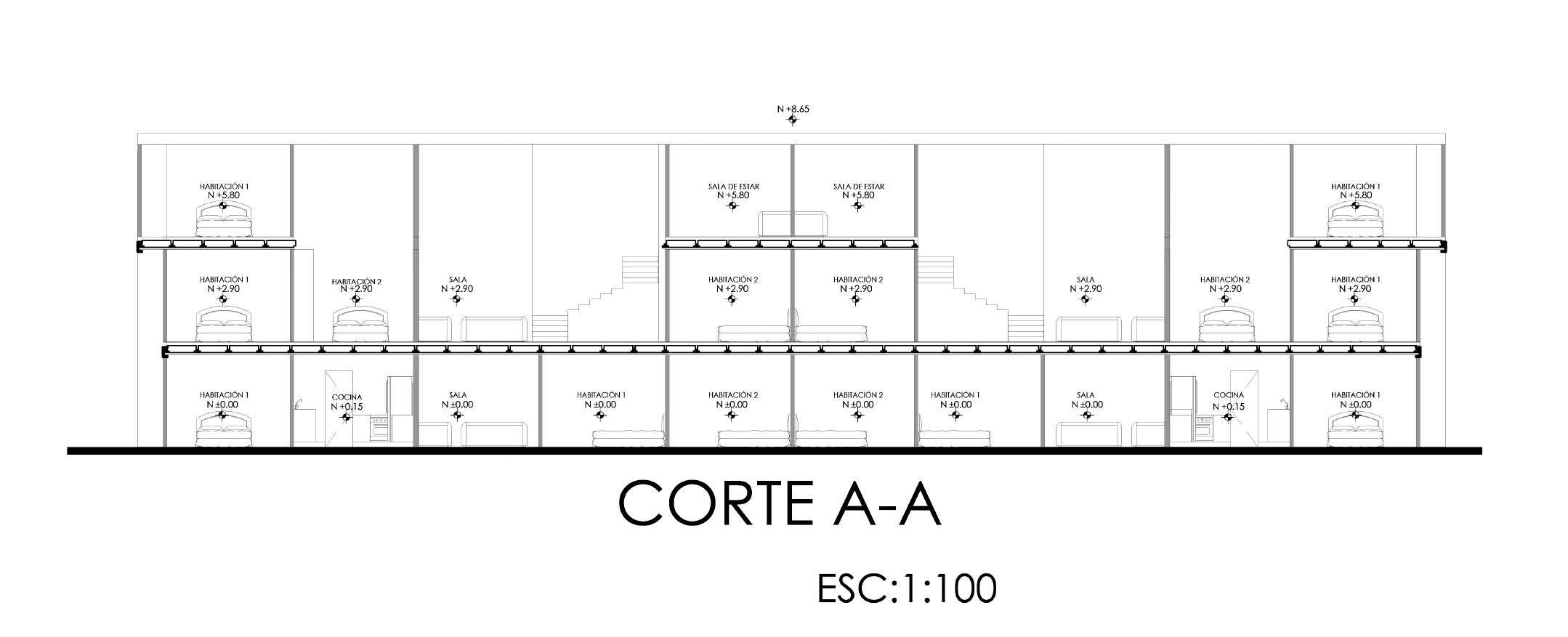

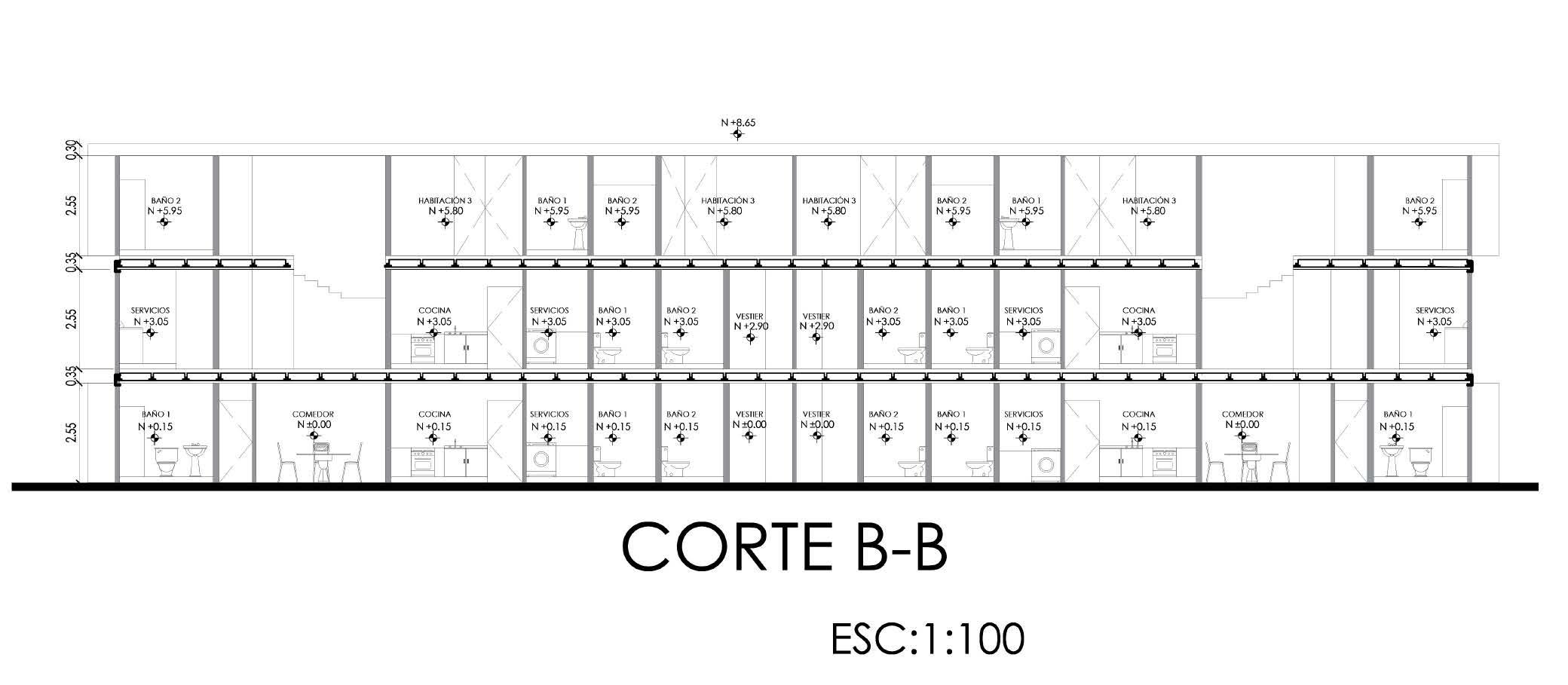

SECTIONS

2ND FLOOR

3RD FLOOR

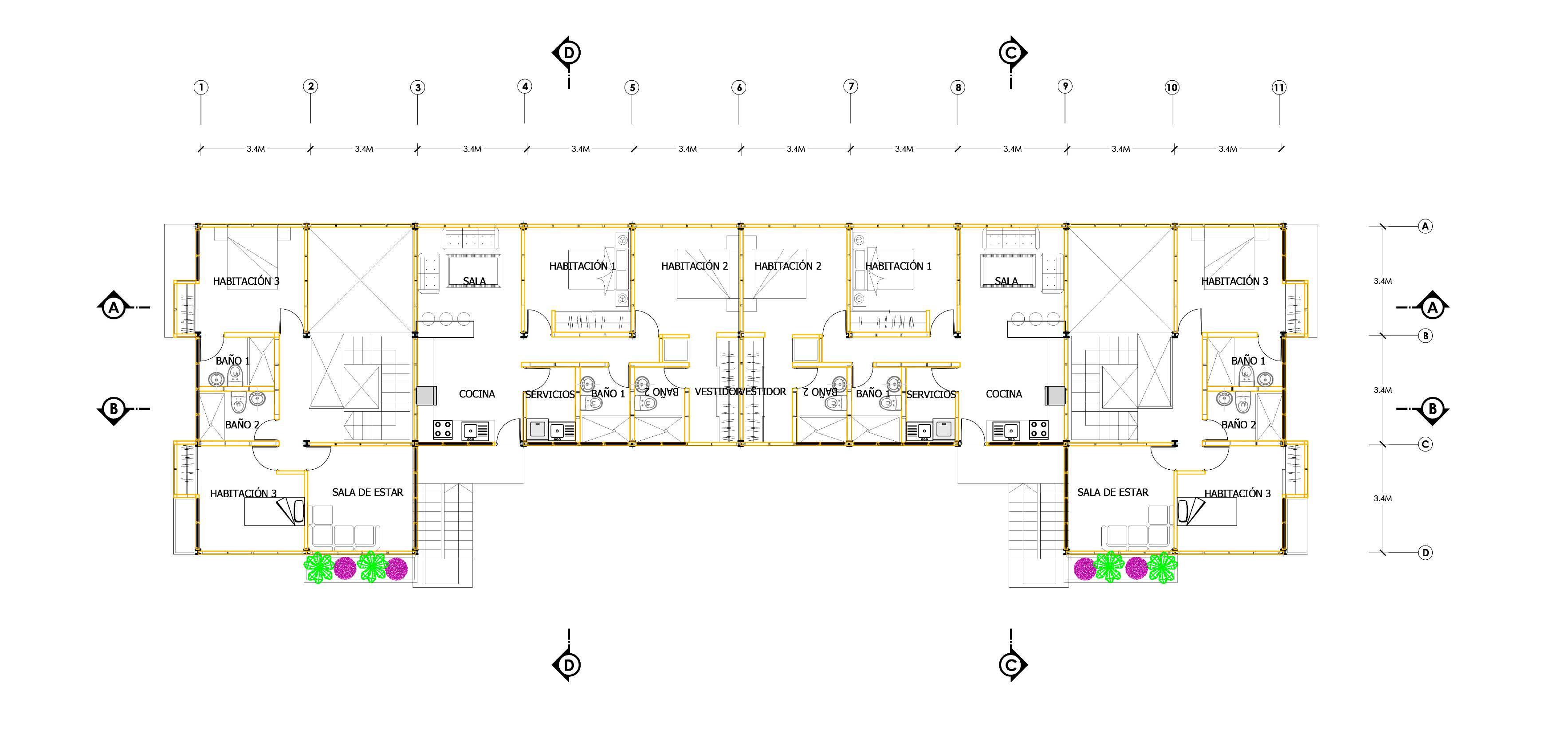

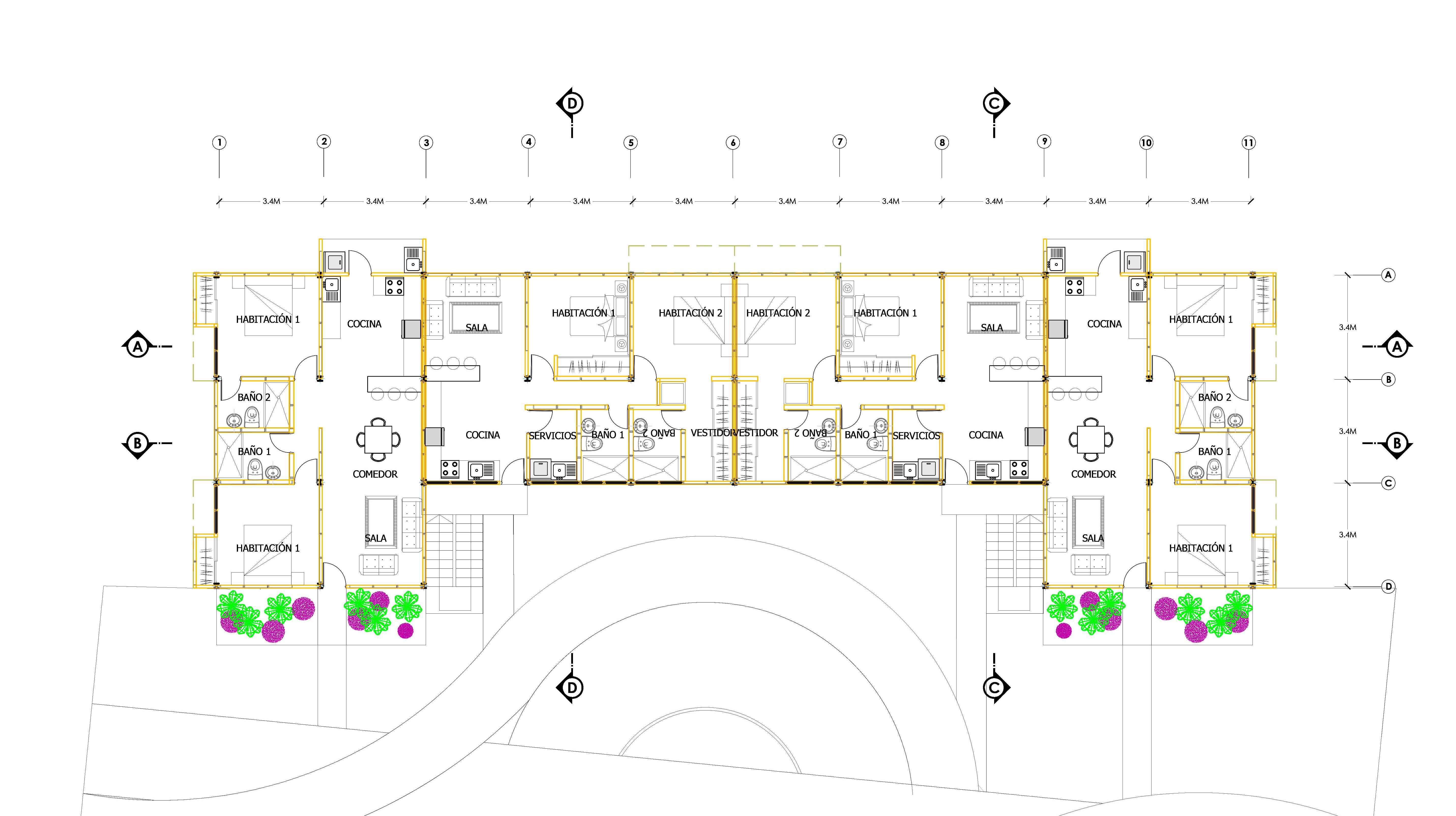

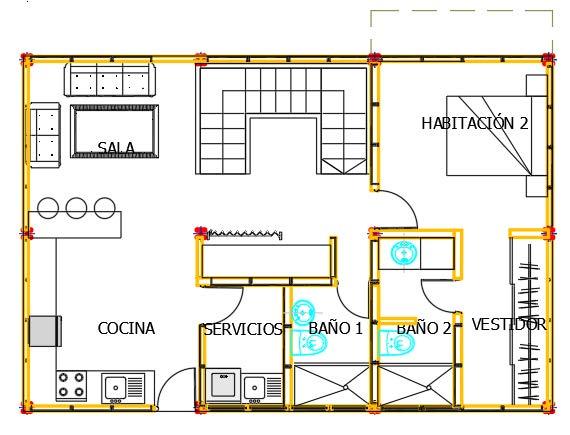

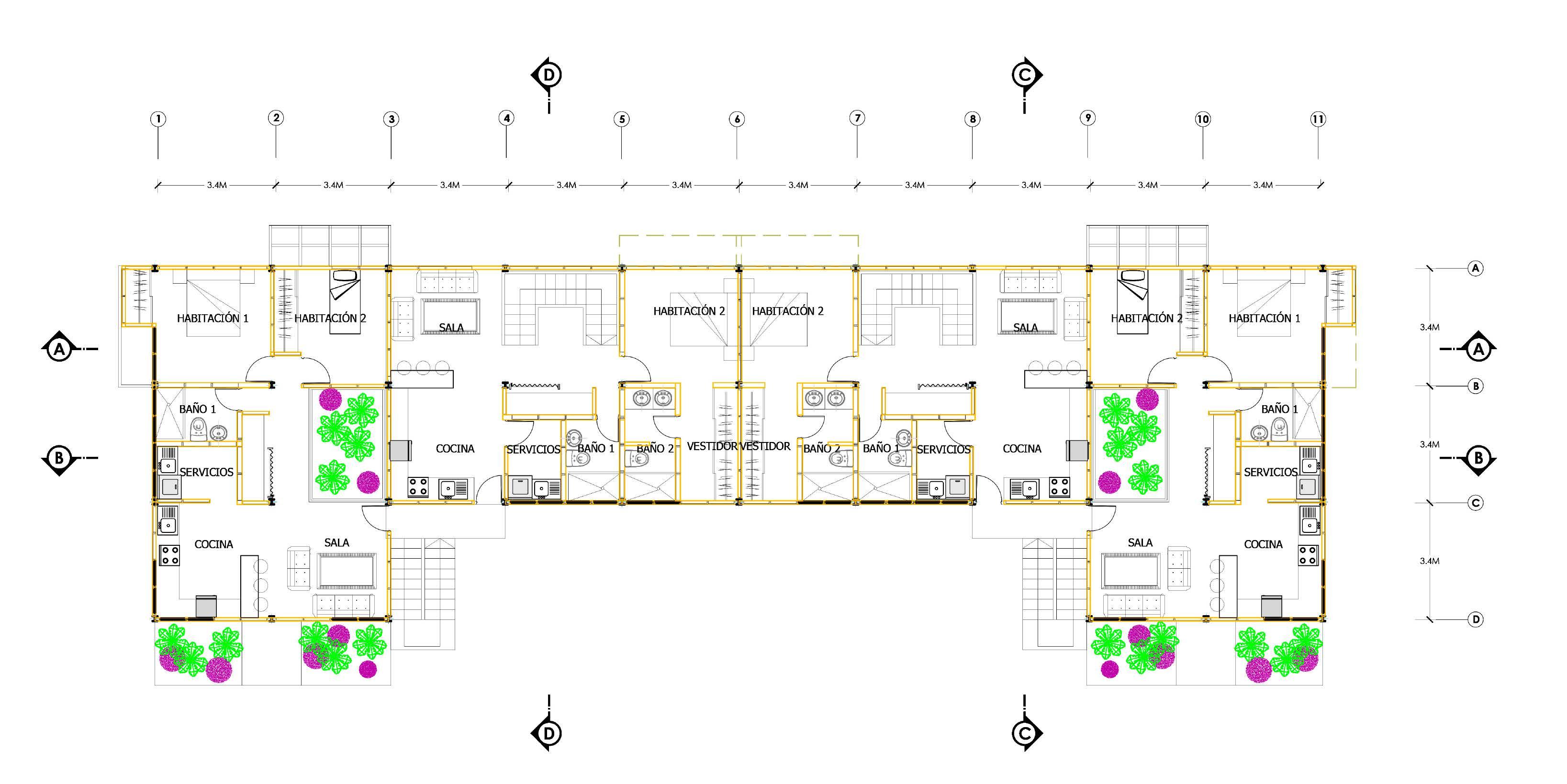

FLOOR PLAN

ARCHITECTURE

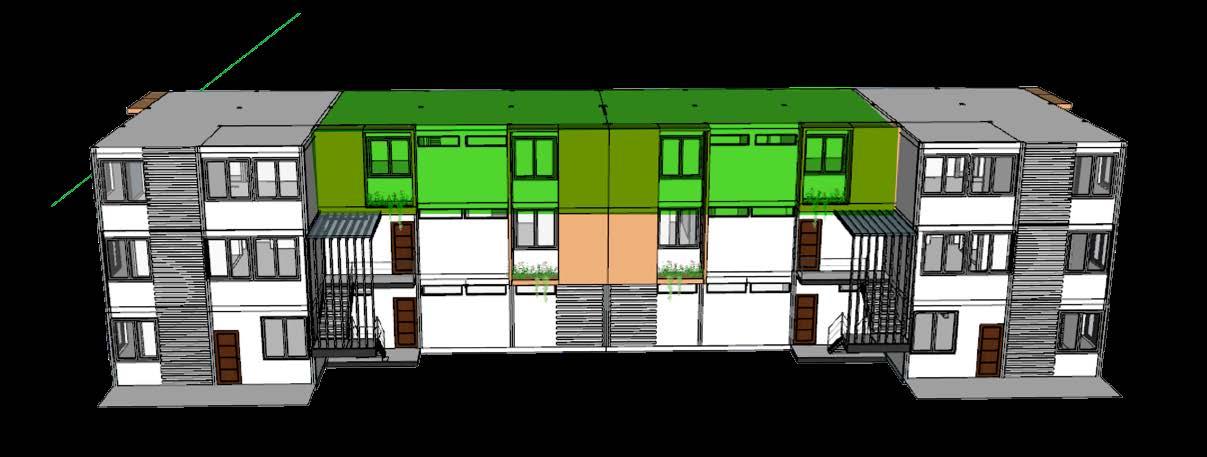

PROGRESSIVITY AND FLEXIBILITY

the owners of the second floor apartments have the possibility of further develop their apartments through the construction of a third floor, which would allow them to add three more room and two bathrooms to their existing floor plan.

DISTRIBUTION

The houses are subdivided by uses and transformability.

The central point of stairs and/or garden also helps to individualize functions.

PHASE 2

PHASE 1

PHASE 1

PHASE 2

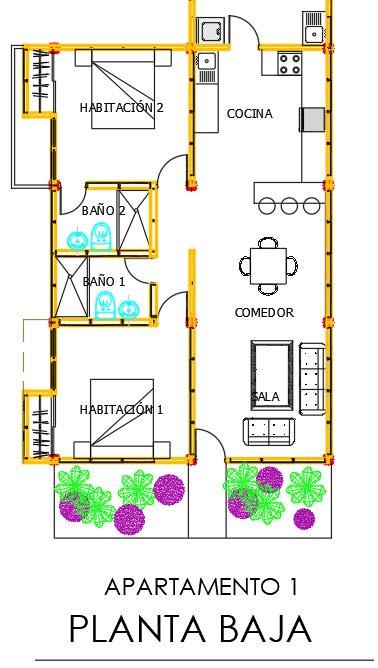

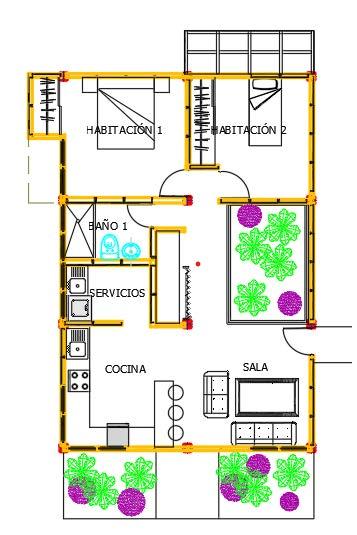

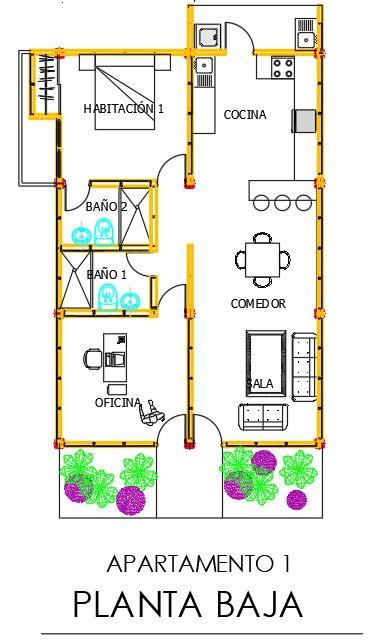

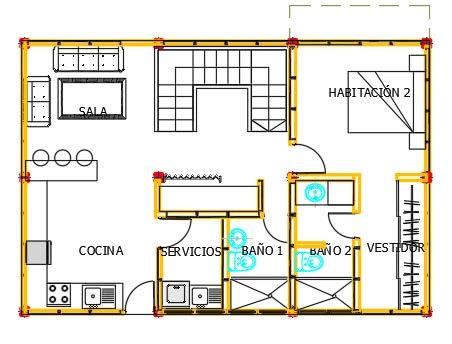

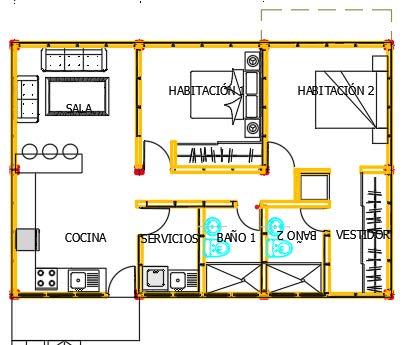

2 bedrooms/ 2 bathrooms/ services/ kitchen/ living room/dinning room

LOCATION

ALTERNATIVE

FLEXIBILITY

In this case, the uses can be varied according to need and it can be accessed through independent entrances.

PHASE 2

2 bedrooms/2 bathrooms/services/kitchen/ dining room.

plant destined to family already constituted of 2 to 3 people.

LOCATION

PHASE 1

APARTMENT 2

2DN FLOOR

PHASE 1

PHASE 2

APARTMENT 2

2DN FLOOR

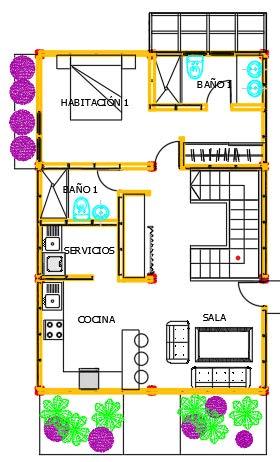

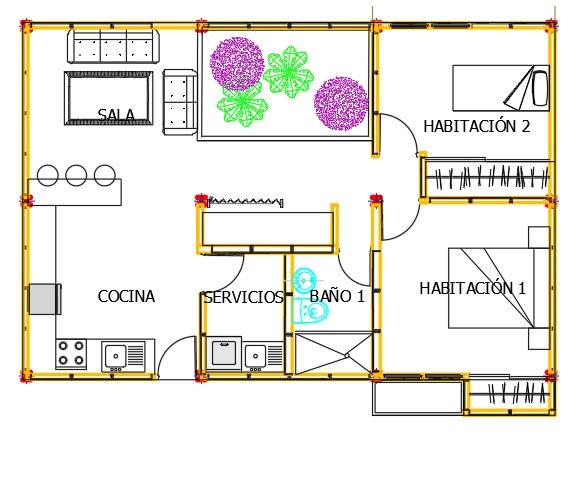

2 bedrooms / 1 bathroom / services / kitchen / FLEXIBILITY AND PROGRESSIVITY

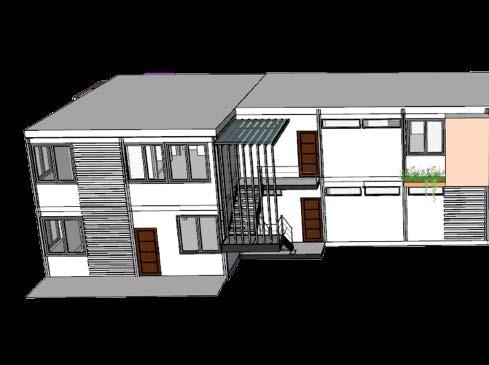

In this case, a 1-story apartment is sold with the possibility of expanding to a second floor, thus leaving a duplex with more space, rooms and amenities.

LOCATION

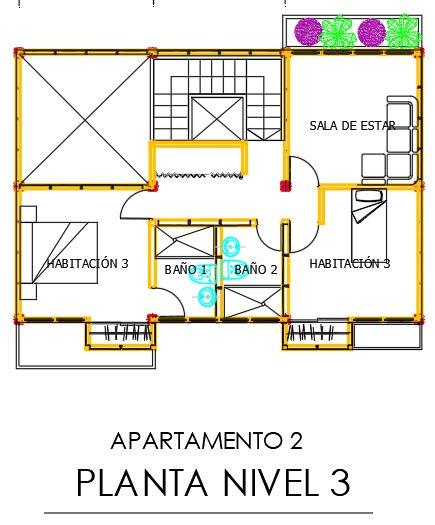

PHASE 3

APARTMENT 2

3RD FLOOR

PHASE 3

2 bedrooms / 2 bathrooms services / private room / terrace

LOCATION

PHASE 1

PHASE 2

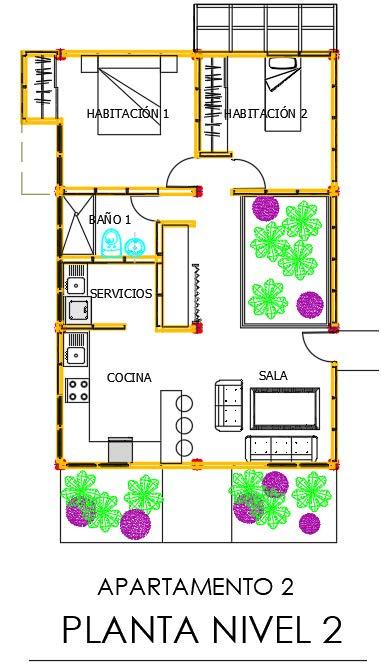

APARTMENT 2

2DN FLOOR

PHASE 1

2 bedrooms/ 1 bathroom/ services/ kitchen/ living room

PHASE 2

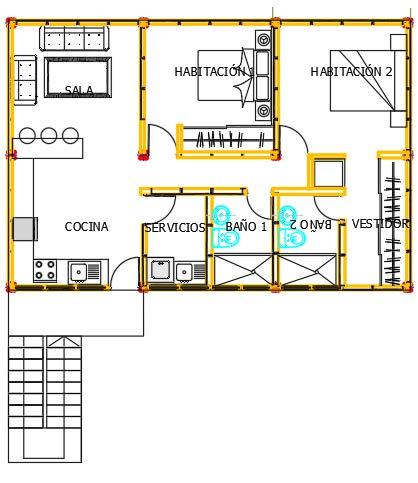

3 bedrooms/4 bathrooms/dressing room/ private living room/living room/dining rooM

LOCATION

PHASE 3

PHASE 3

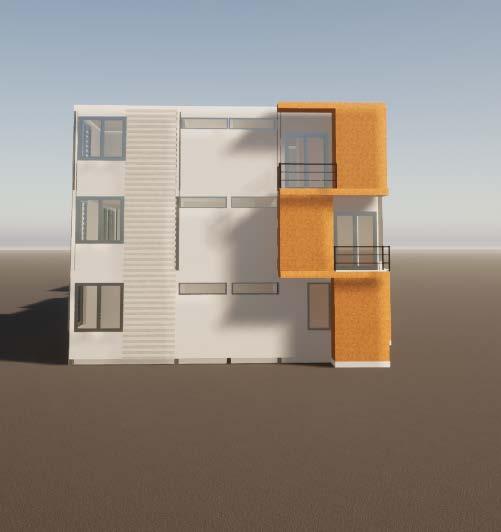

FLEXIBILITY AND PROGRESSIVITY

A 1-floor apartment for sale with the possibility of growth to a second floor.

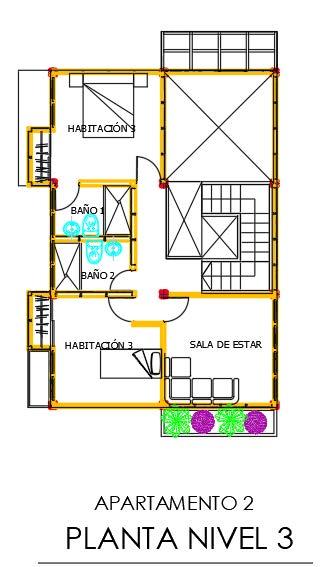

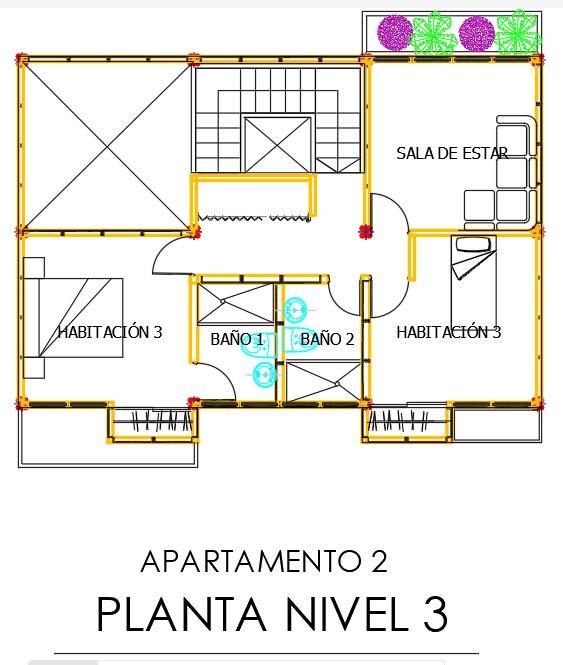

APARTMENT 2

3RD FLOOR

SEGUNDO PISO DEL DUPLEX

2hab/ 2bath/ services/ kitchen/ living room/ dinner

This second floor is created since the moment

LOCATION

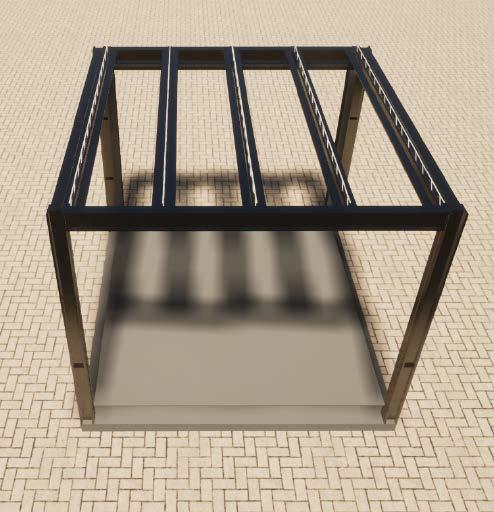

STRUCTURAL SYSTEM

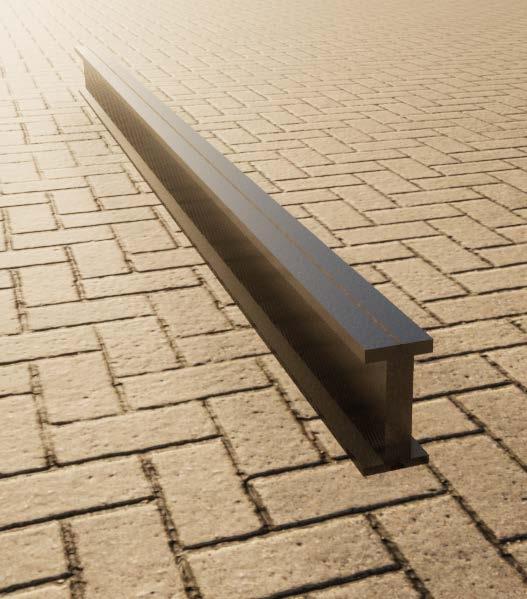

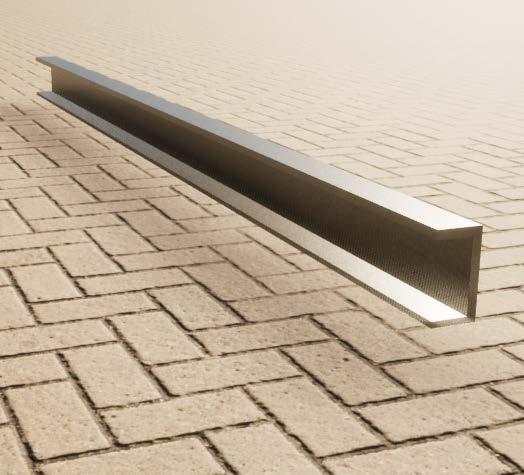

BEAM PERFILES

STRAPS PERFILES

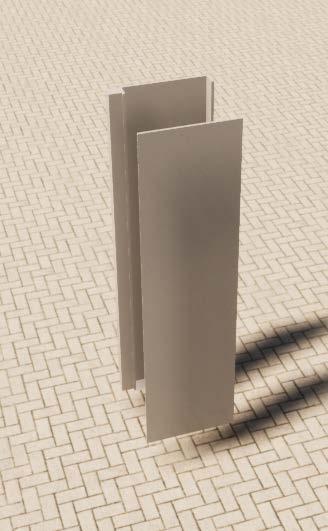

COLUMNS

WALL PANELS

MODULES

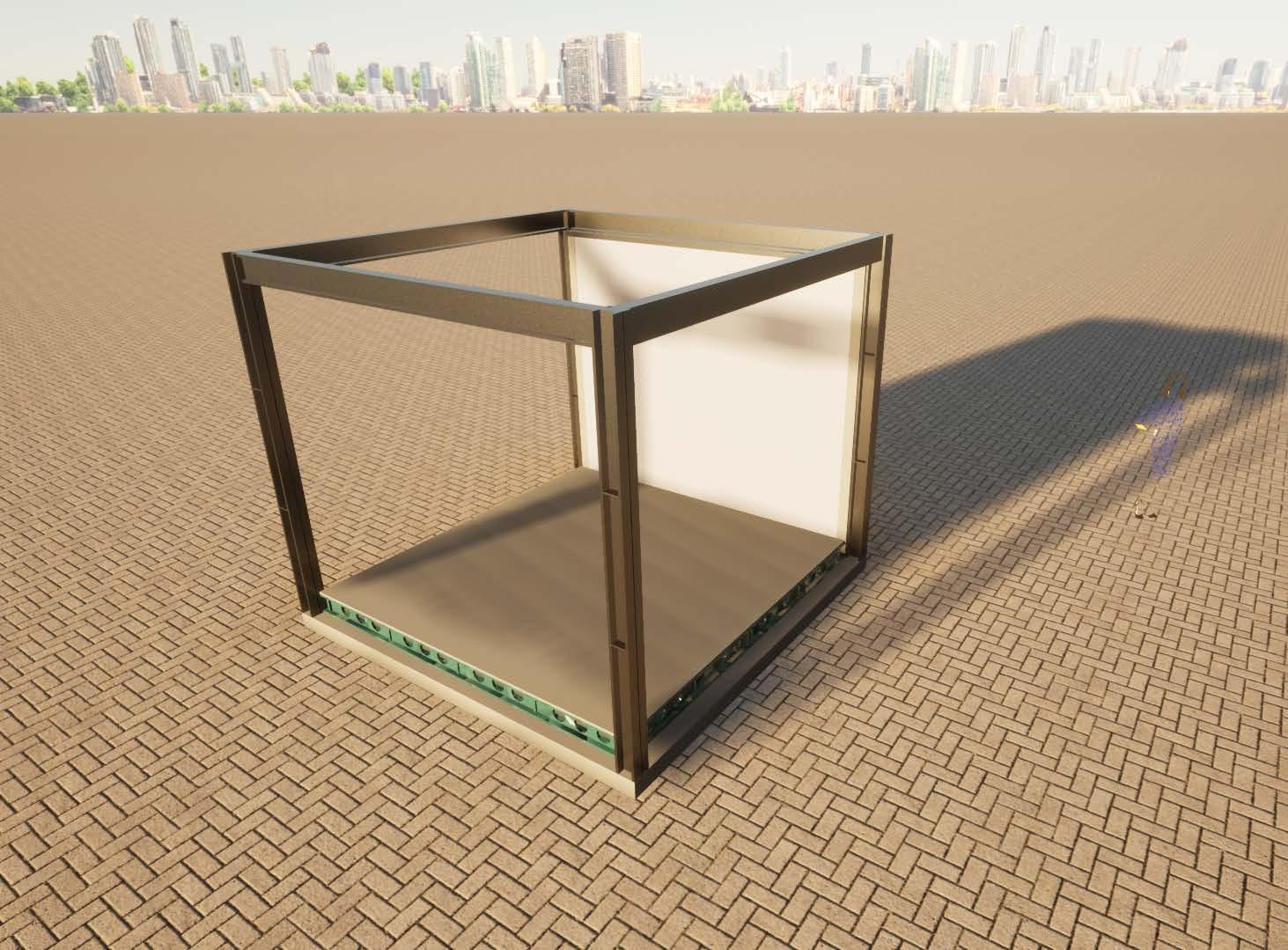

Skeletal structural system stiffened formed by metal column beam modules 3.6x3.6X3M

MEZZANINE

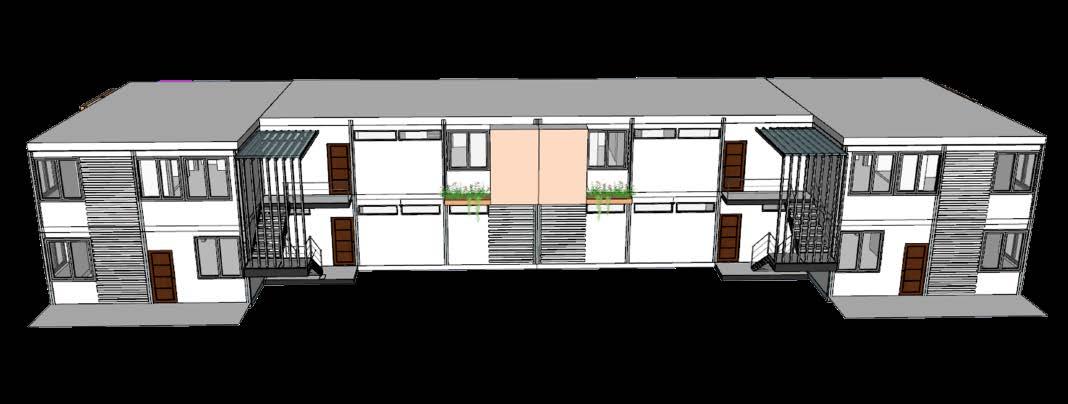

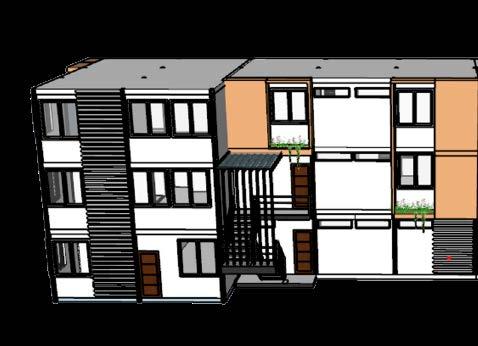

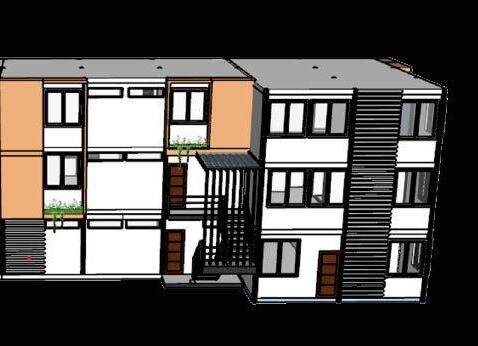

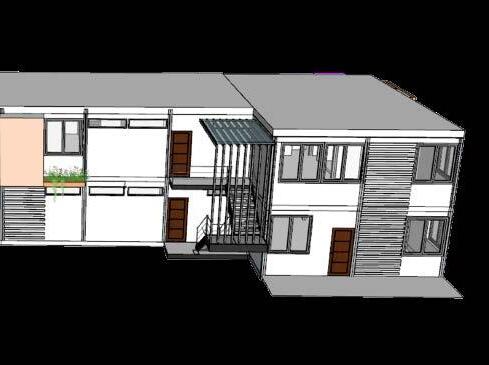

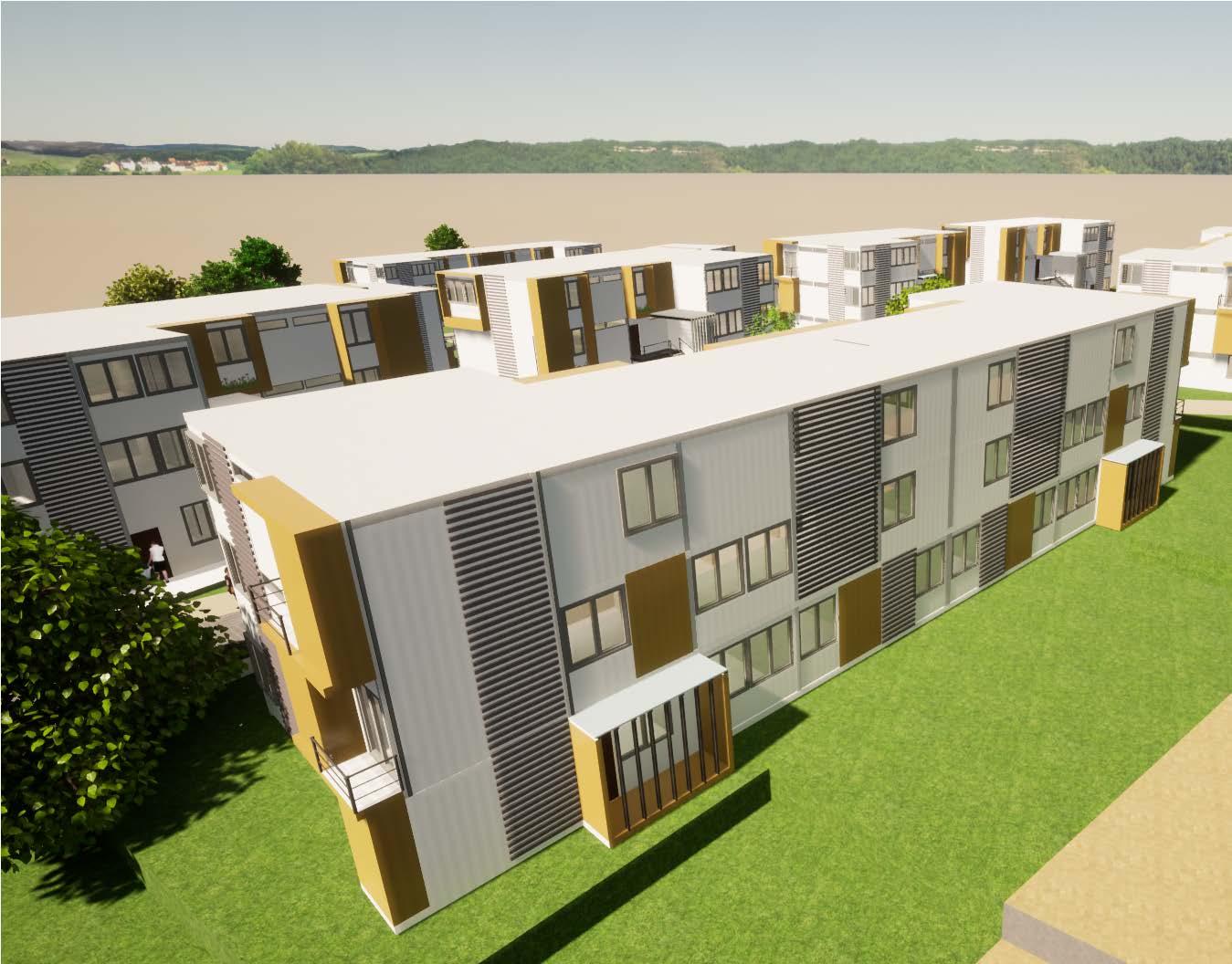

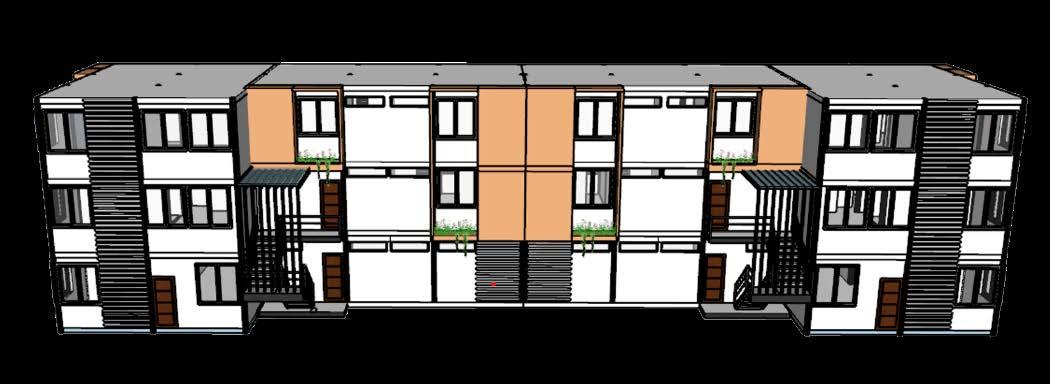

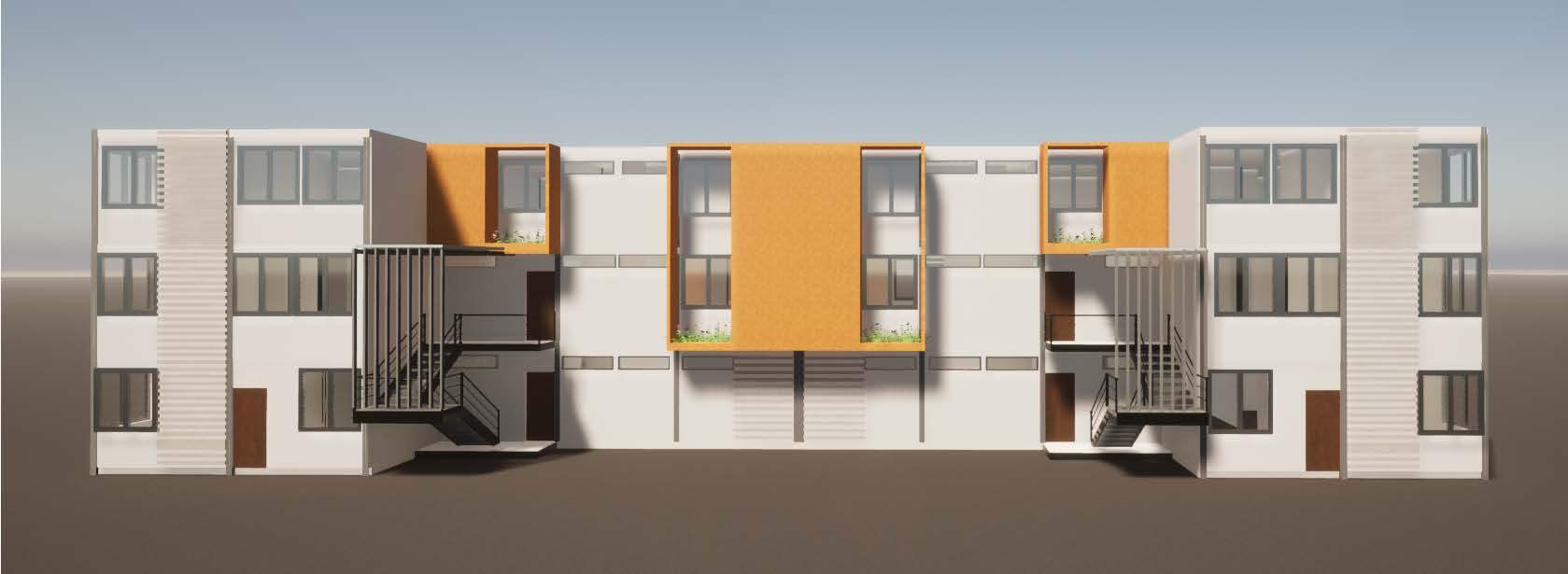

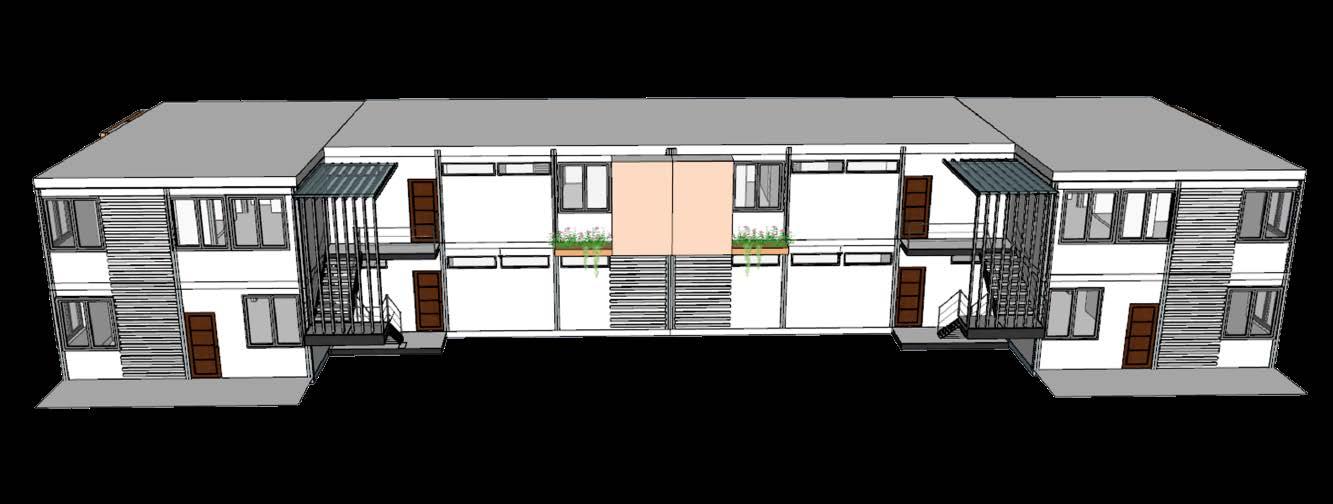

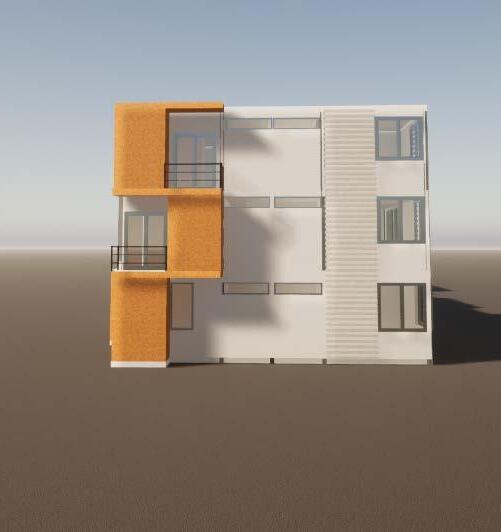

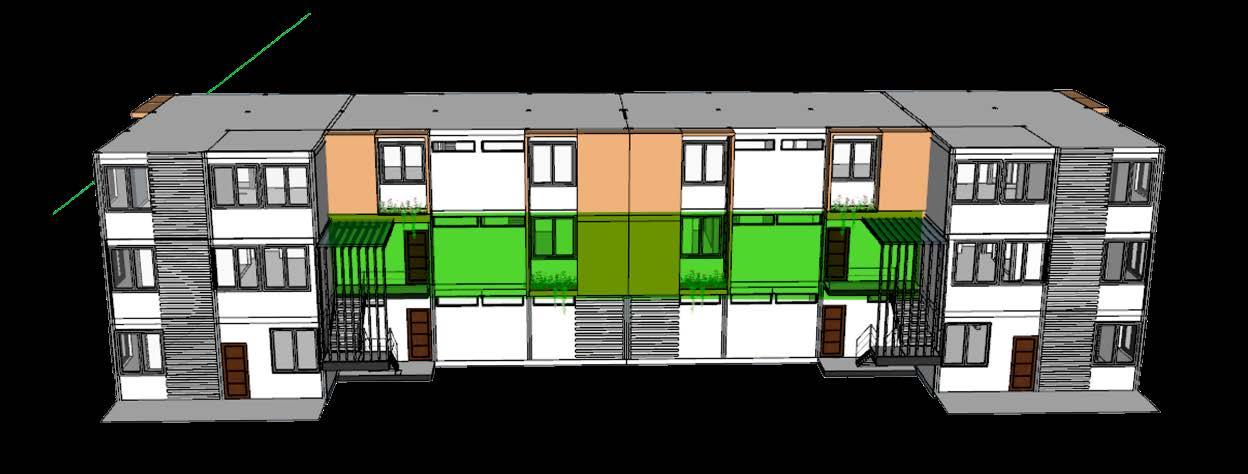

VOLUMETRY

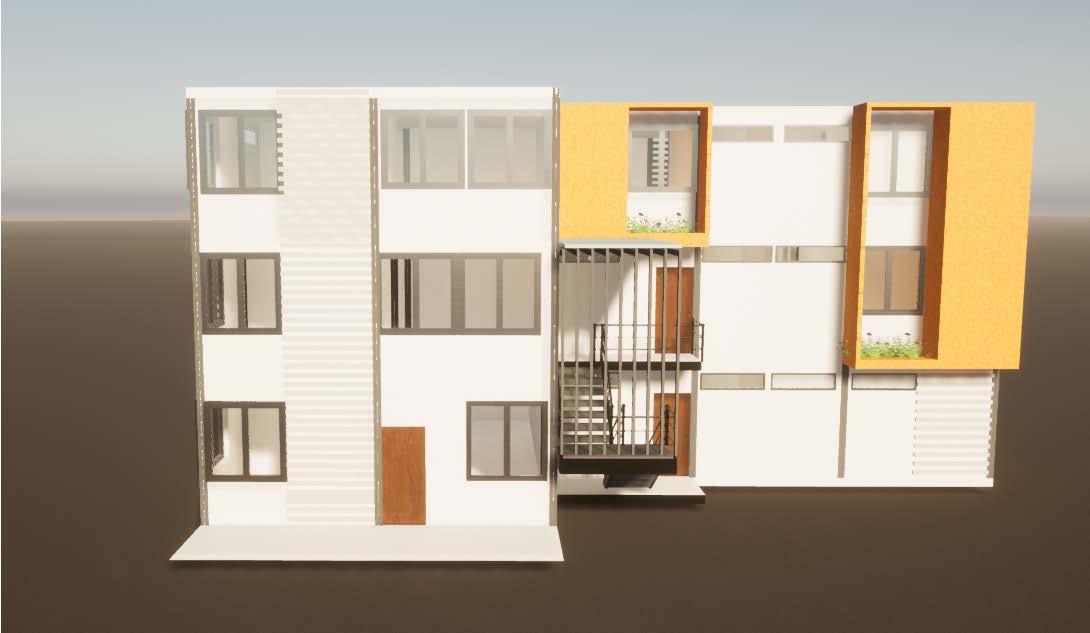

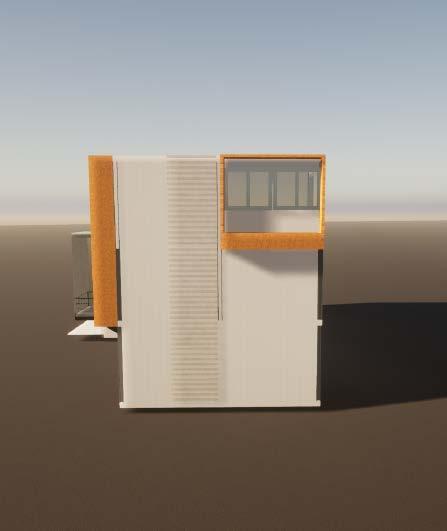

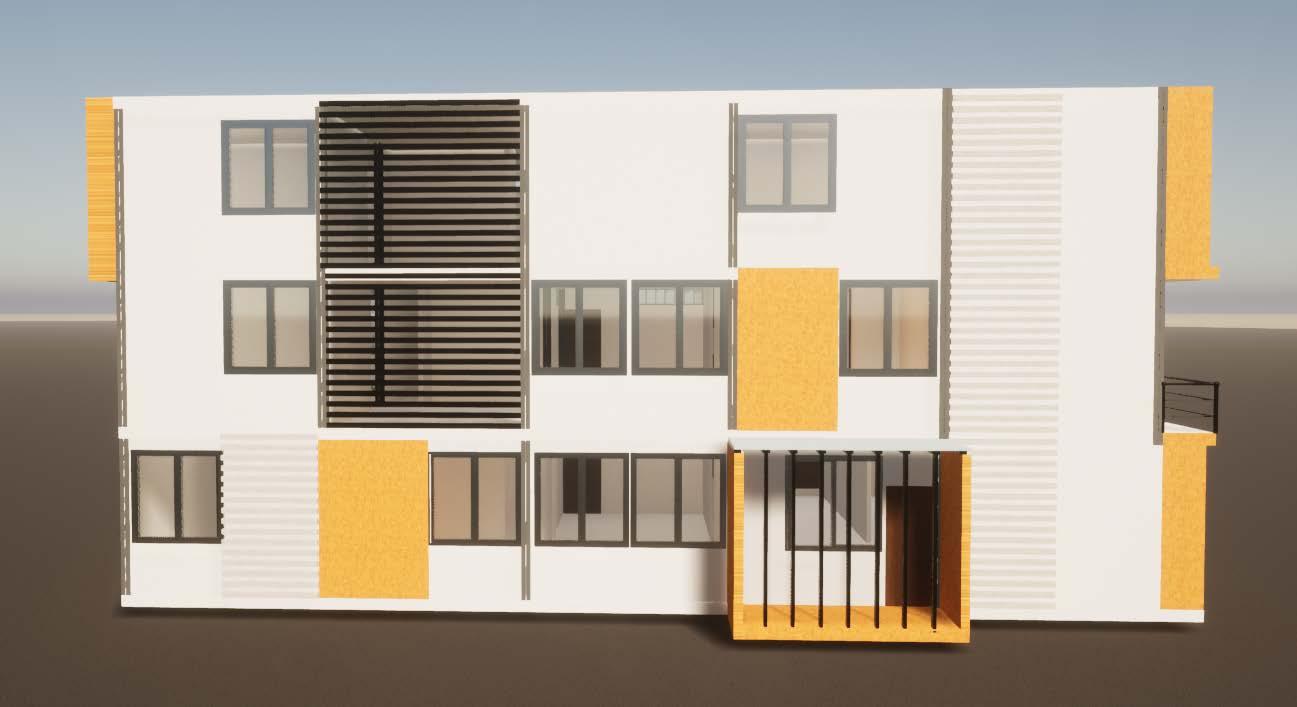

A set of volumes is established on the facade that are managed through the use of balconies, planters, screens for air conditioners and planters.

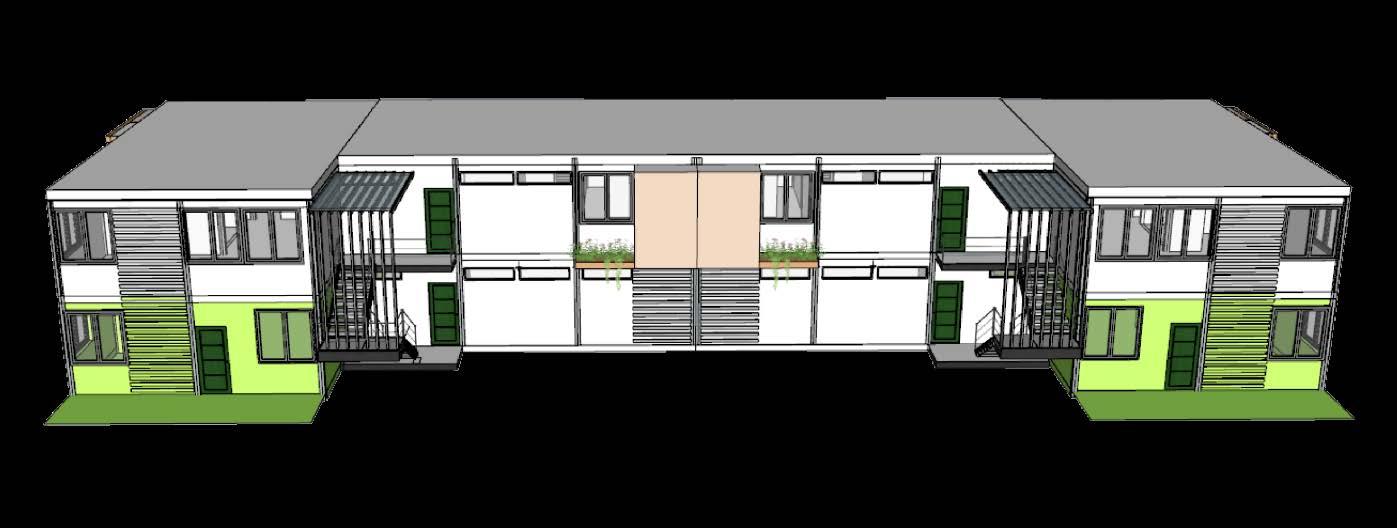

TYPE A

TYPE B

The shape of the 4 large buildings help control the flow of pedestrian access, while the smaller buildings divide themselves to create a connectionz

Convergence and planning of the road, social, residential and urban network of the different housing cells

56 family home

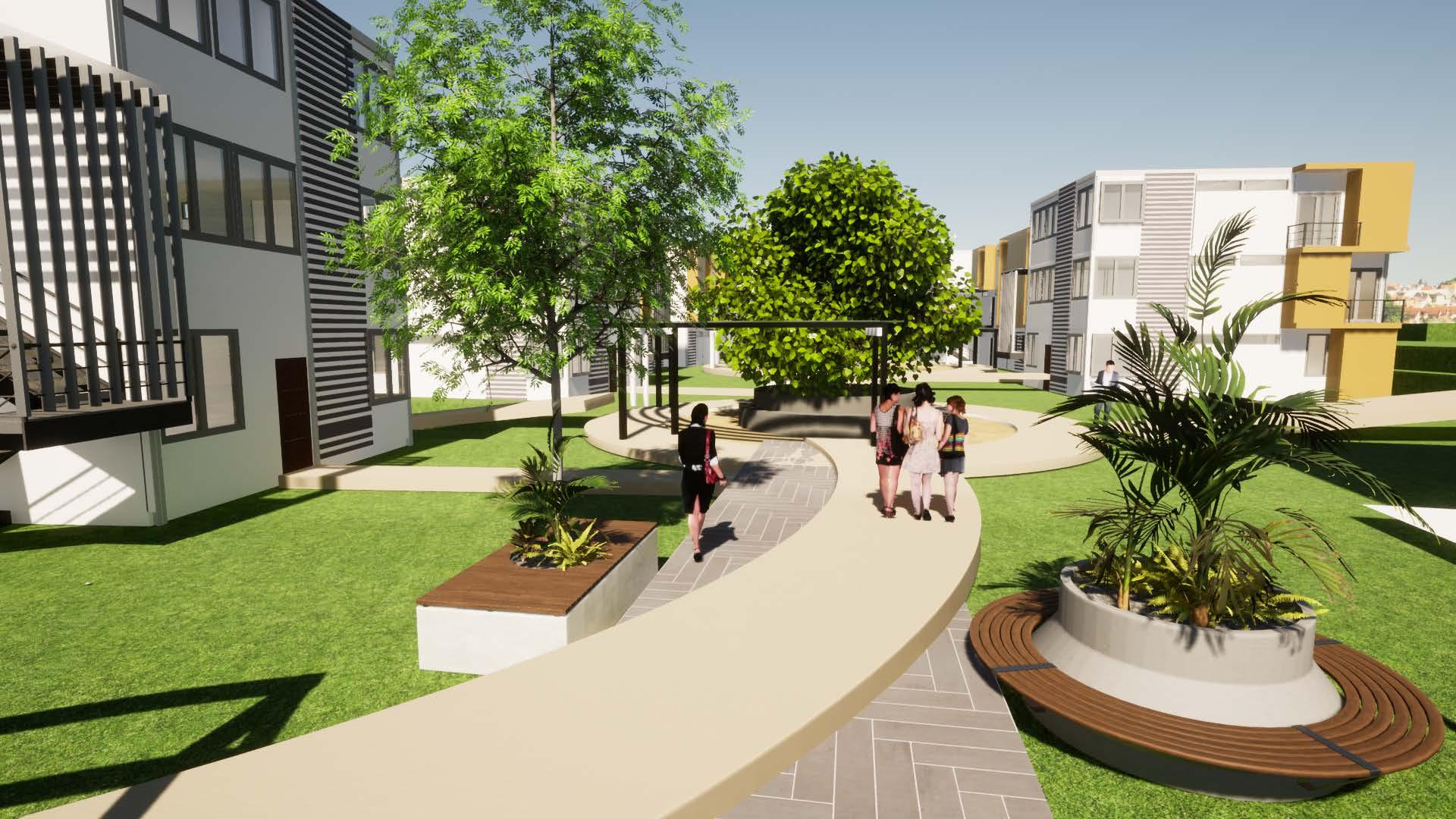

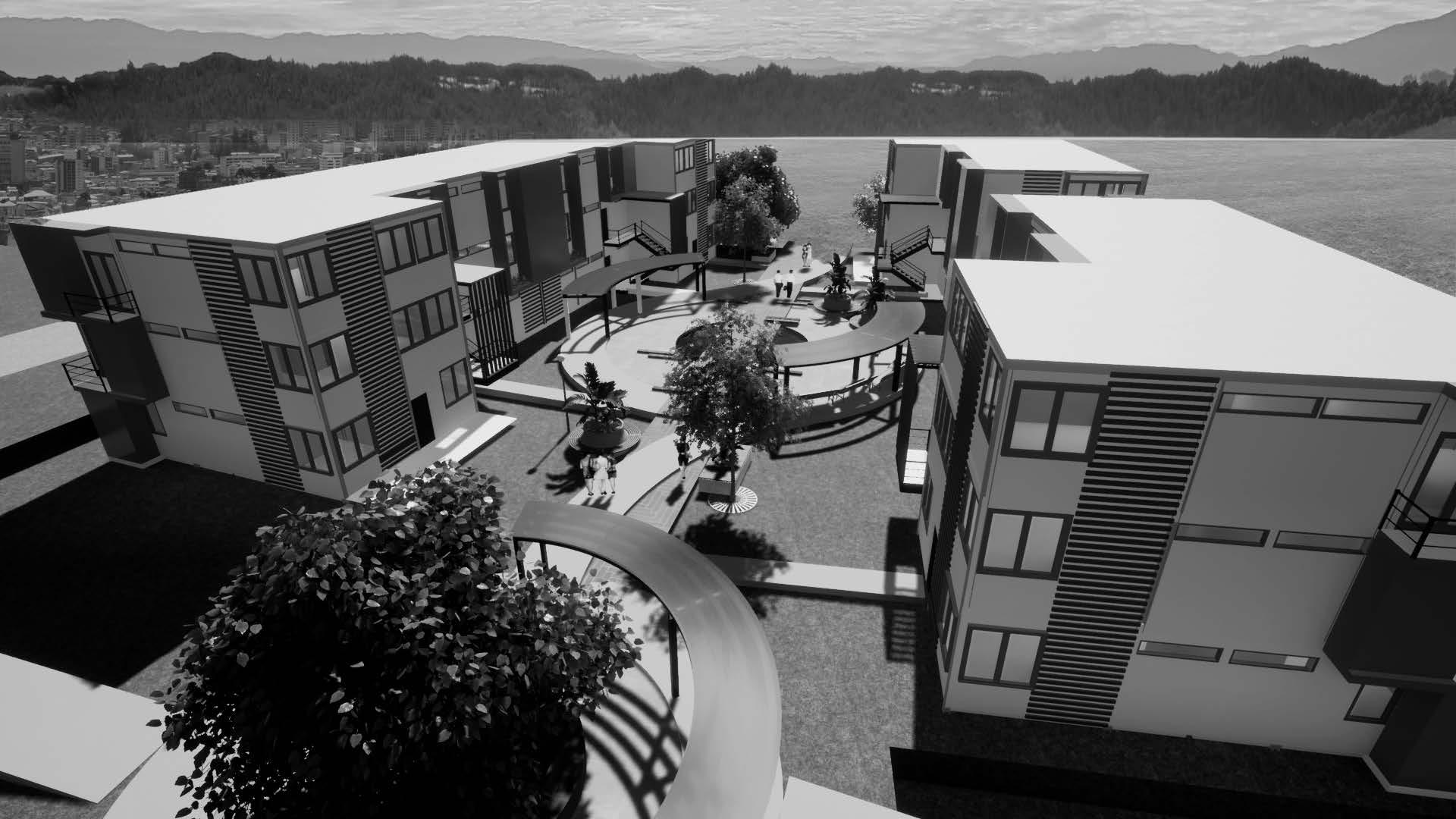

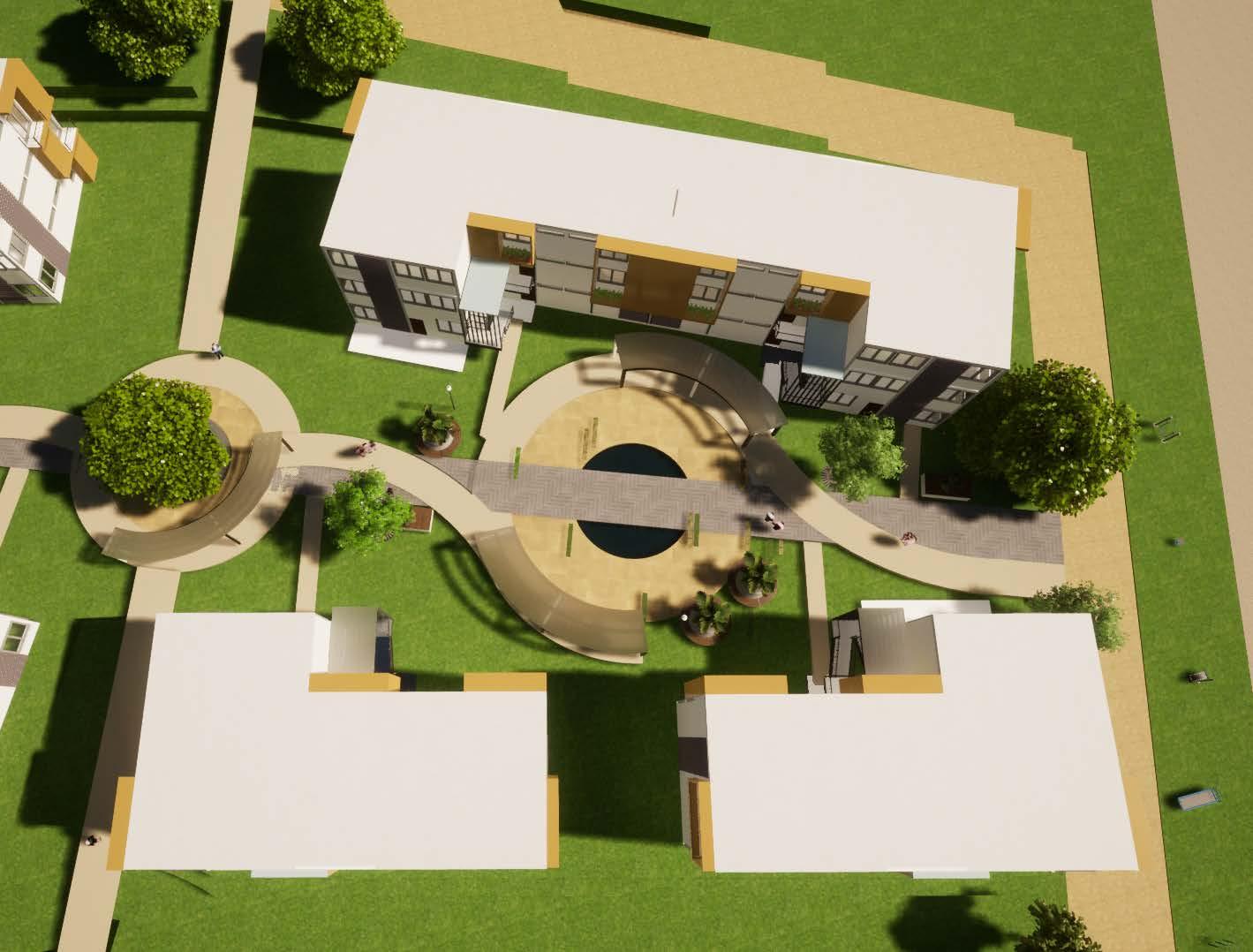

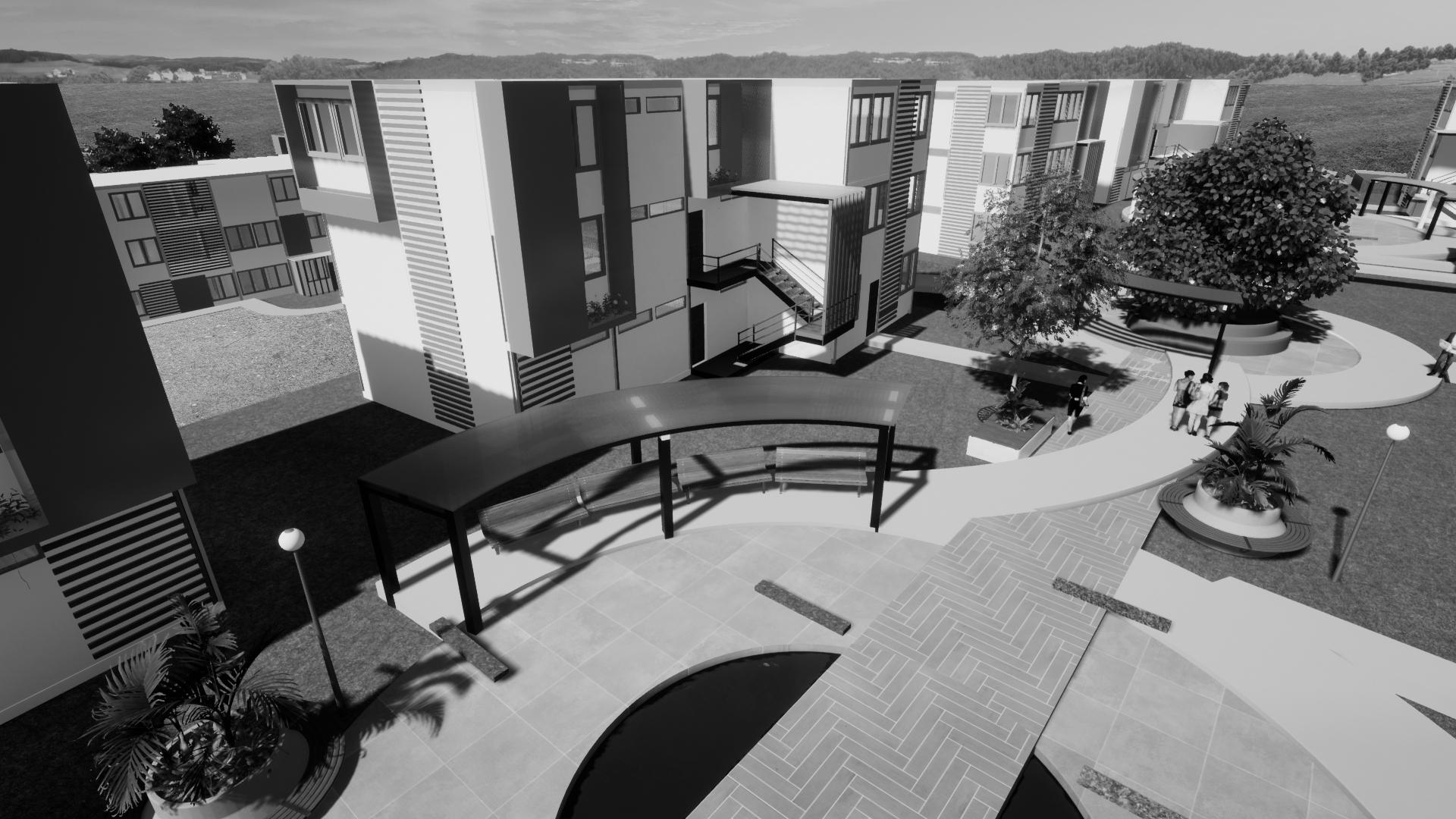

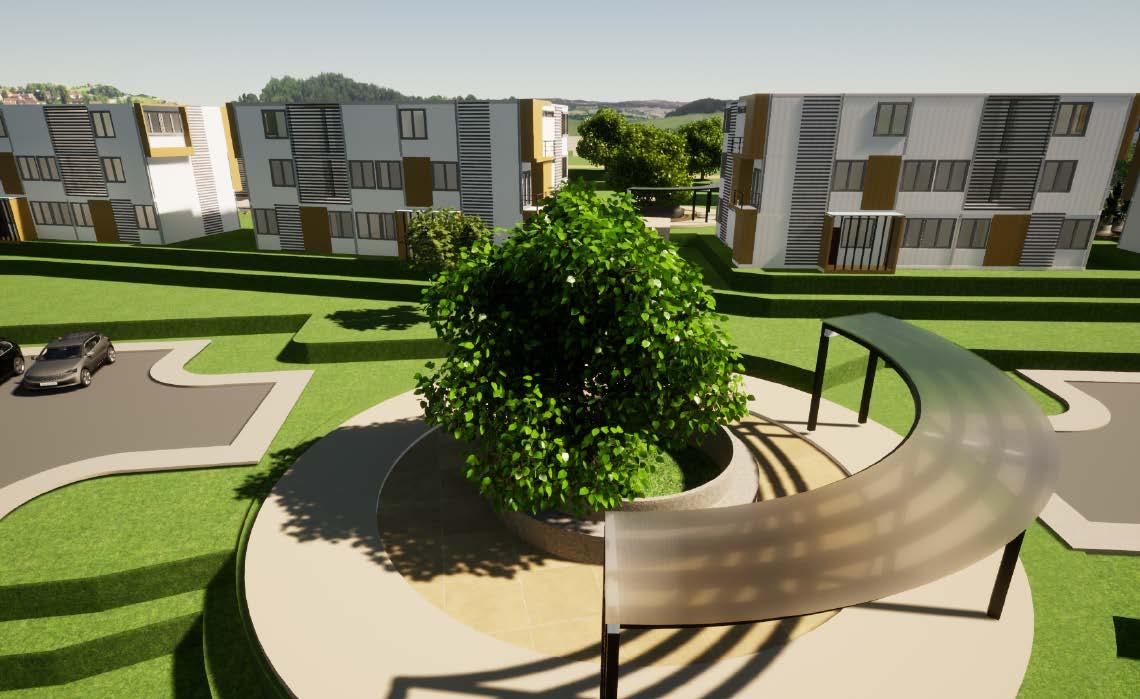

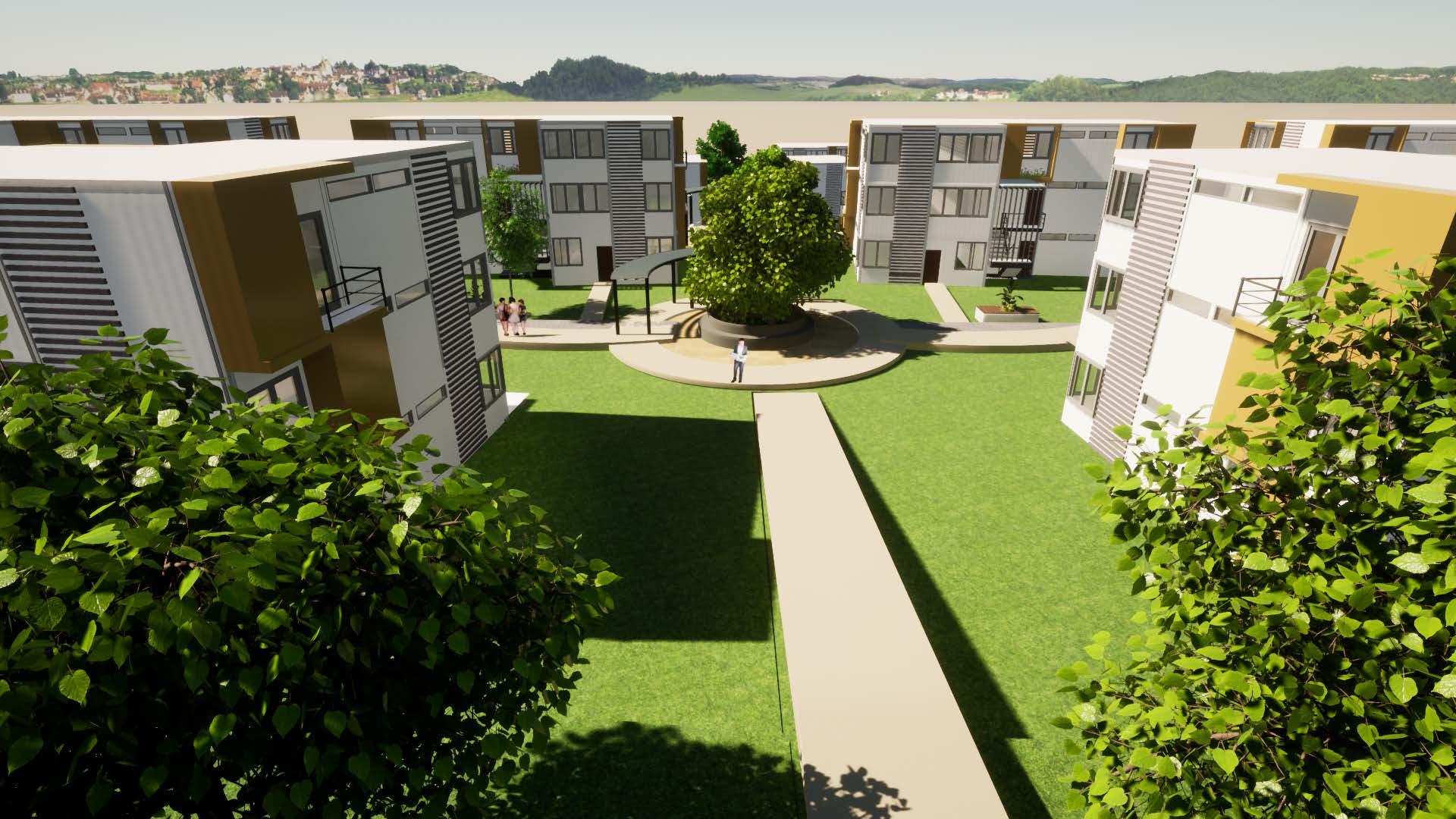

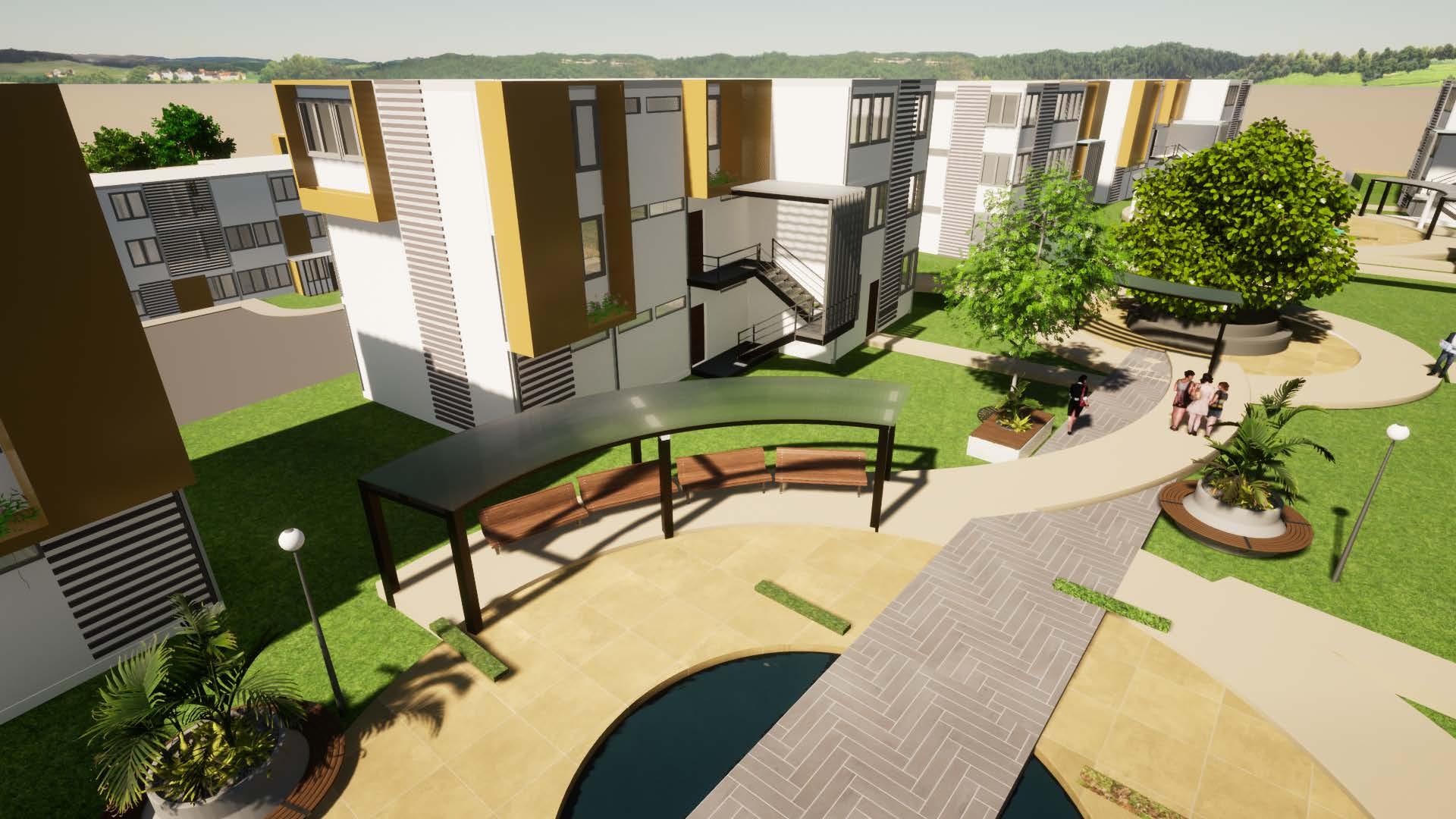

Central plazas organize the buildings

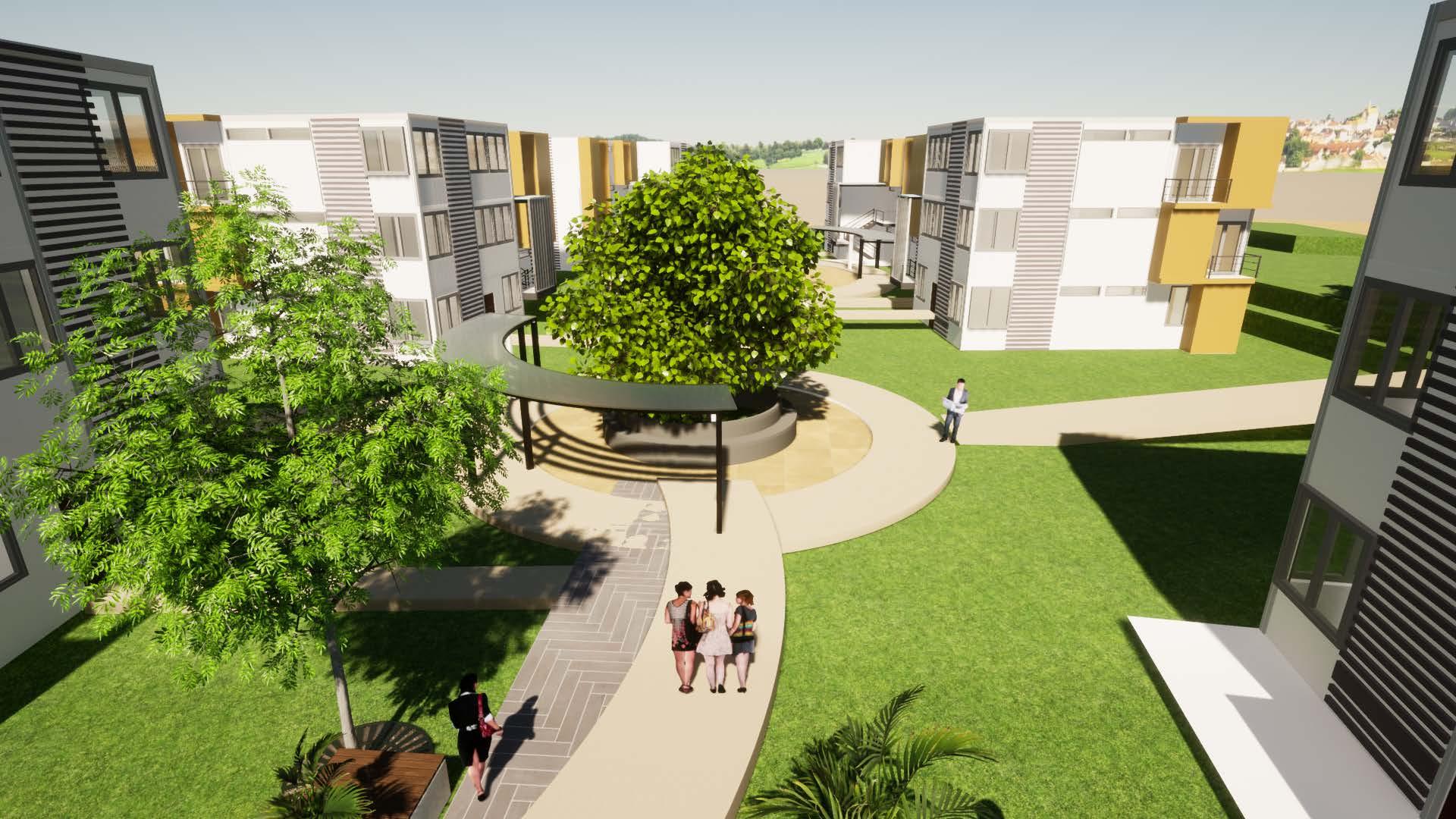

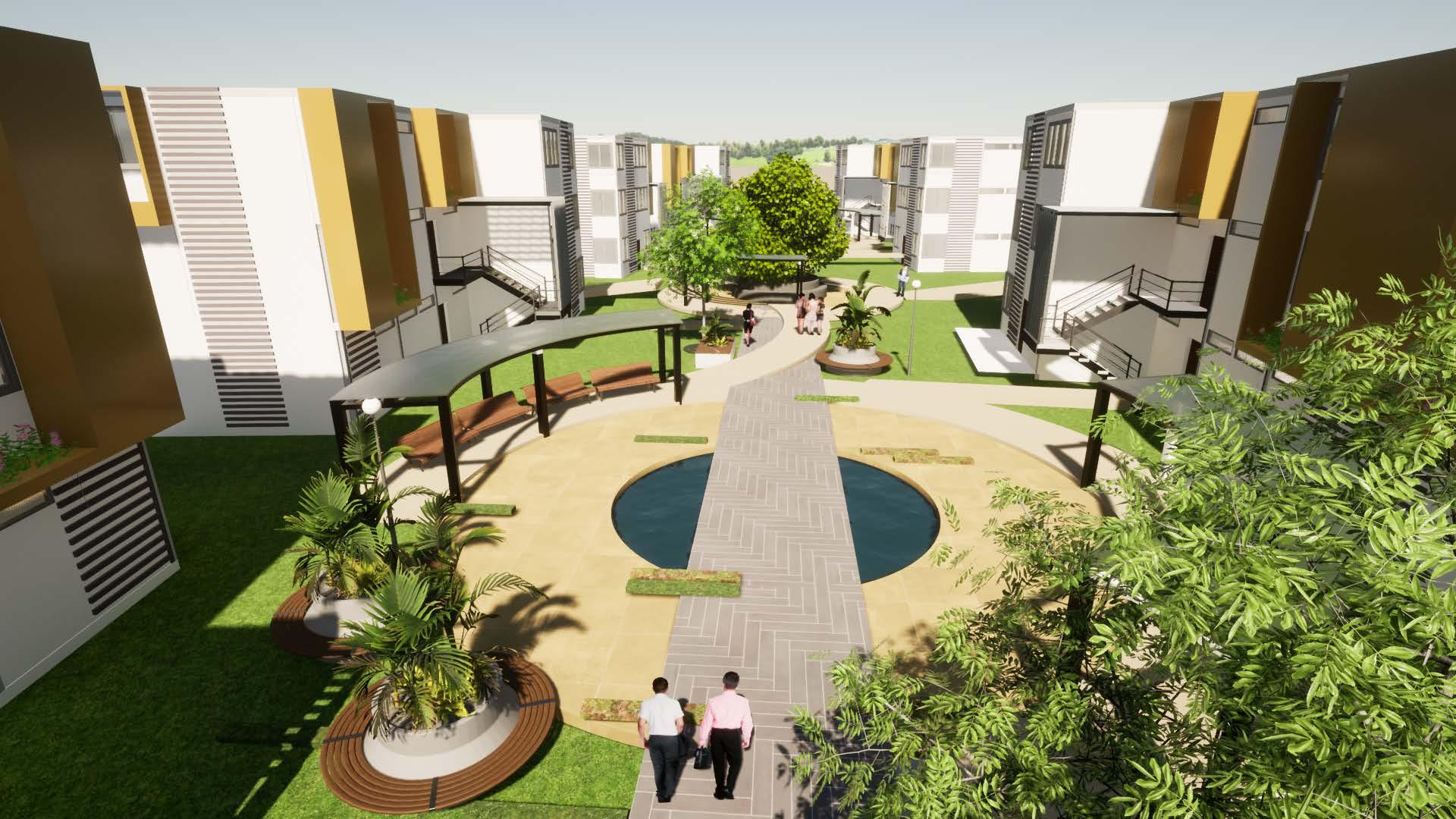

Central area as the heart of the proposal from which a permeable and continuous site is developed, with its private, public and semi-public area

CONFORMATION OF CELLS

The shorter sides of the buildings receive more sunlight. The building are located to blend with the site’s topography

PLAYING FIELD

PARKING

PARKING

SQUARE

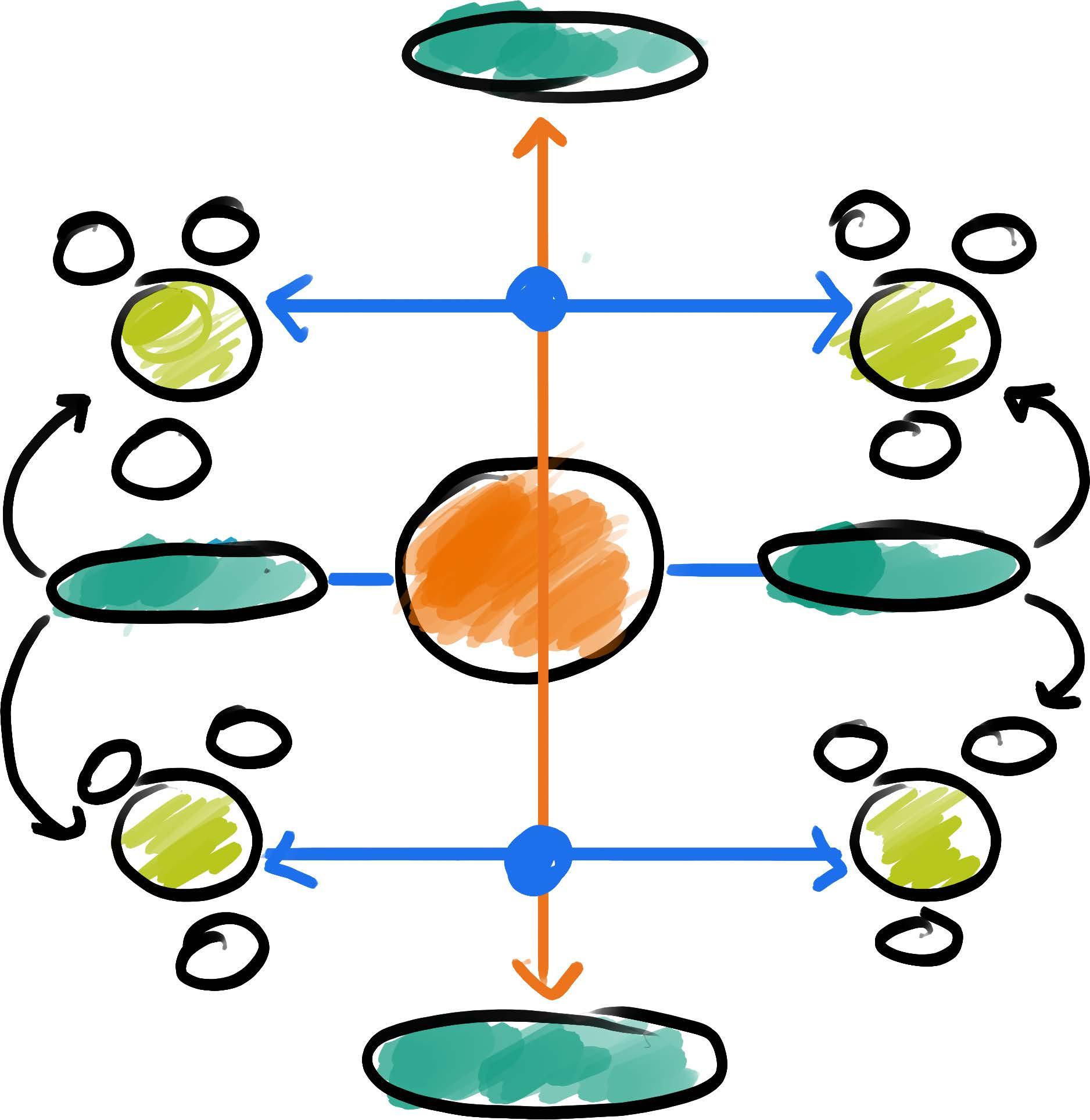

LINEAR AXIS ORGANIZER SECONDARY DISPERSION AXIS

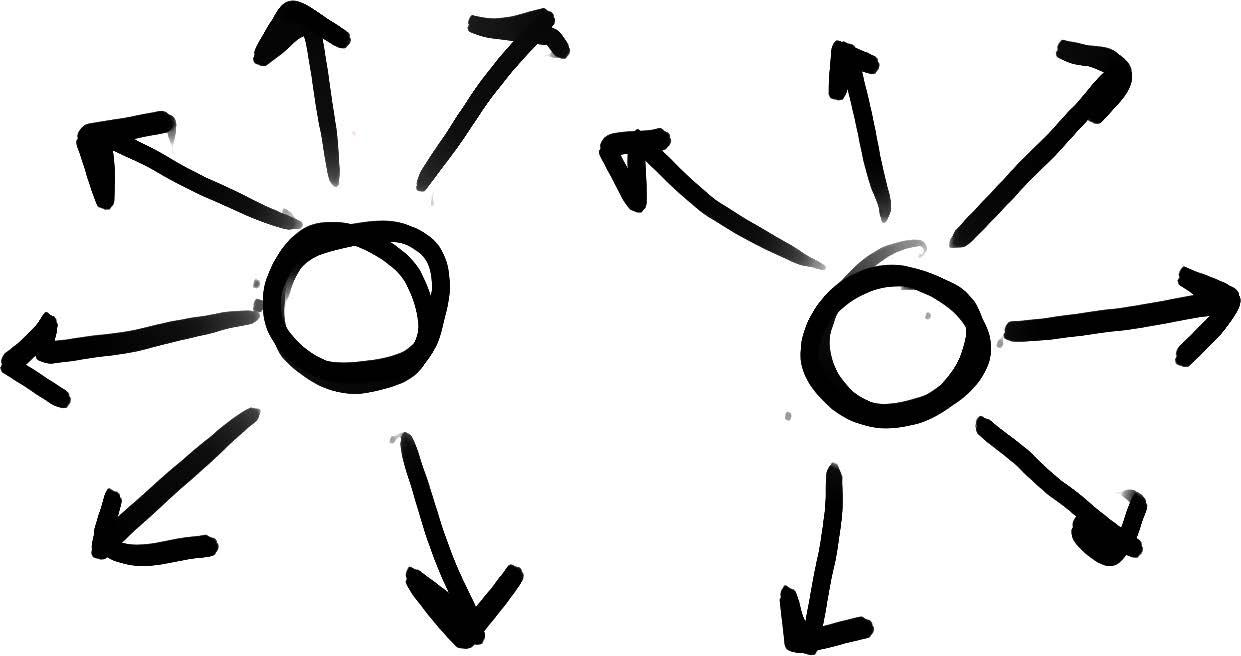

CREATION OF HOUSING CELLS THAT RADIATE FROM A CENTRAL SQUARE AS A POINT WHERE THE SECONDARY EXERCISES LEAD OFF.

COMPLEMENTARY COMMON USES

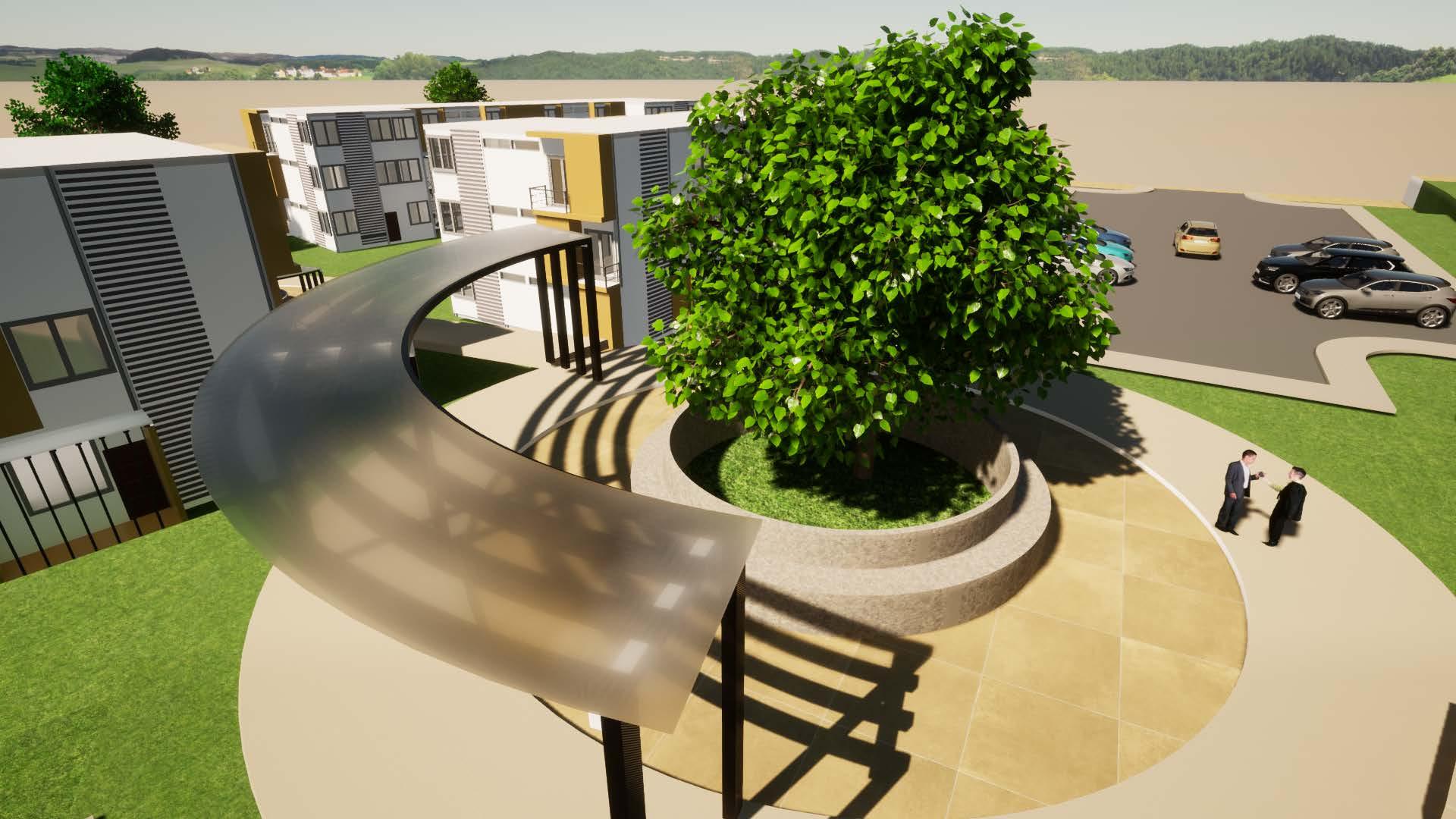

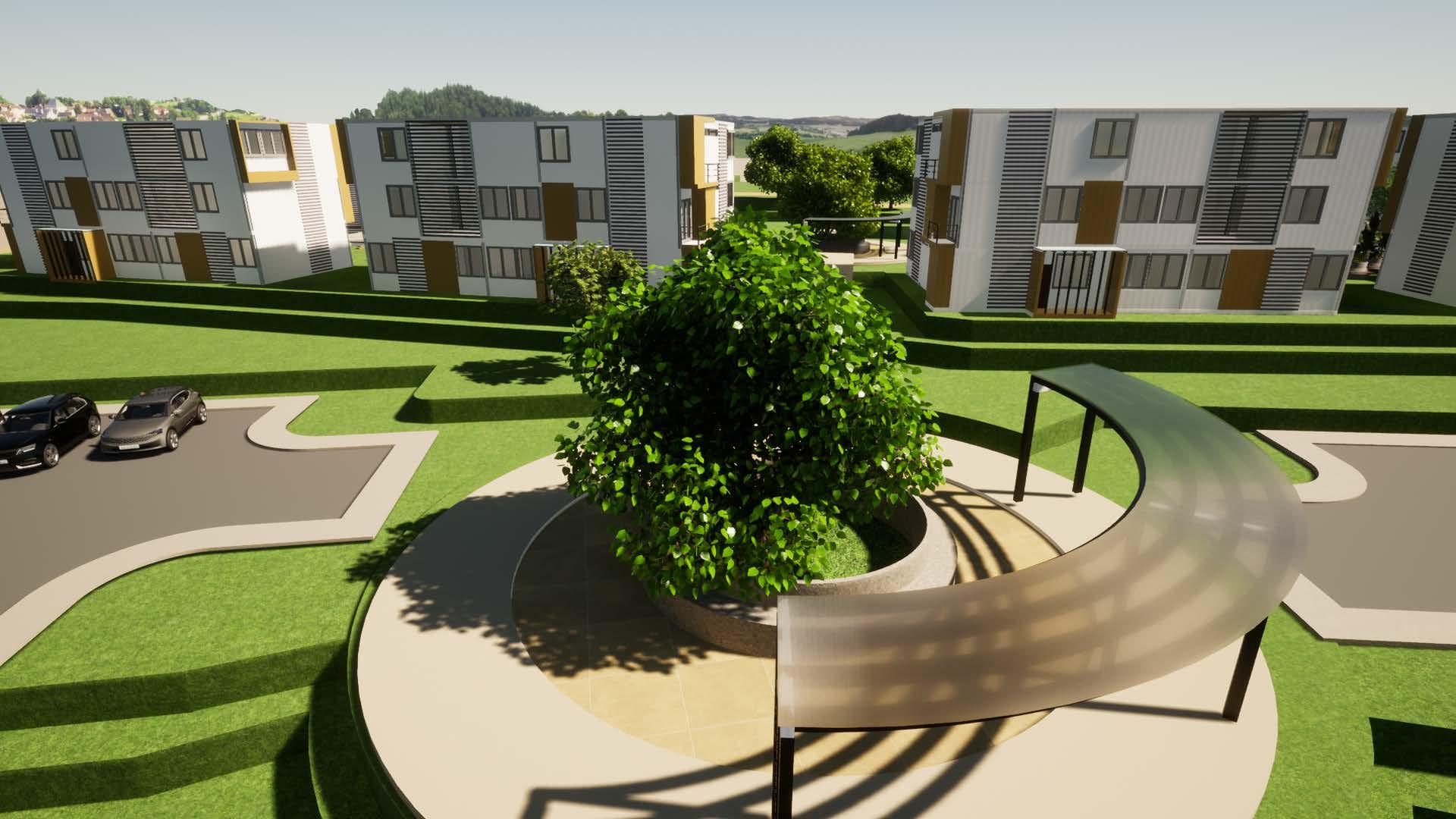

CENTRAL SQUARE AS A MIDDLE POINT FOR LEISURE

AXIS CONVERGENCE NODES

CENTRAL SQUARES AS COLLECTORS TO DWELLINGS

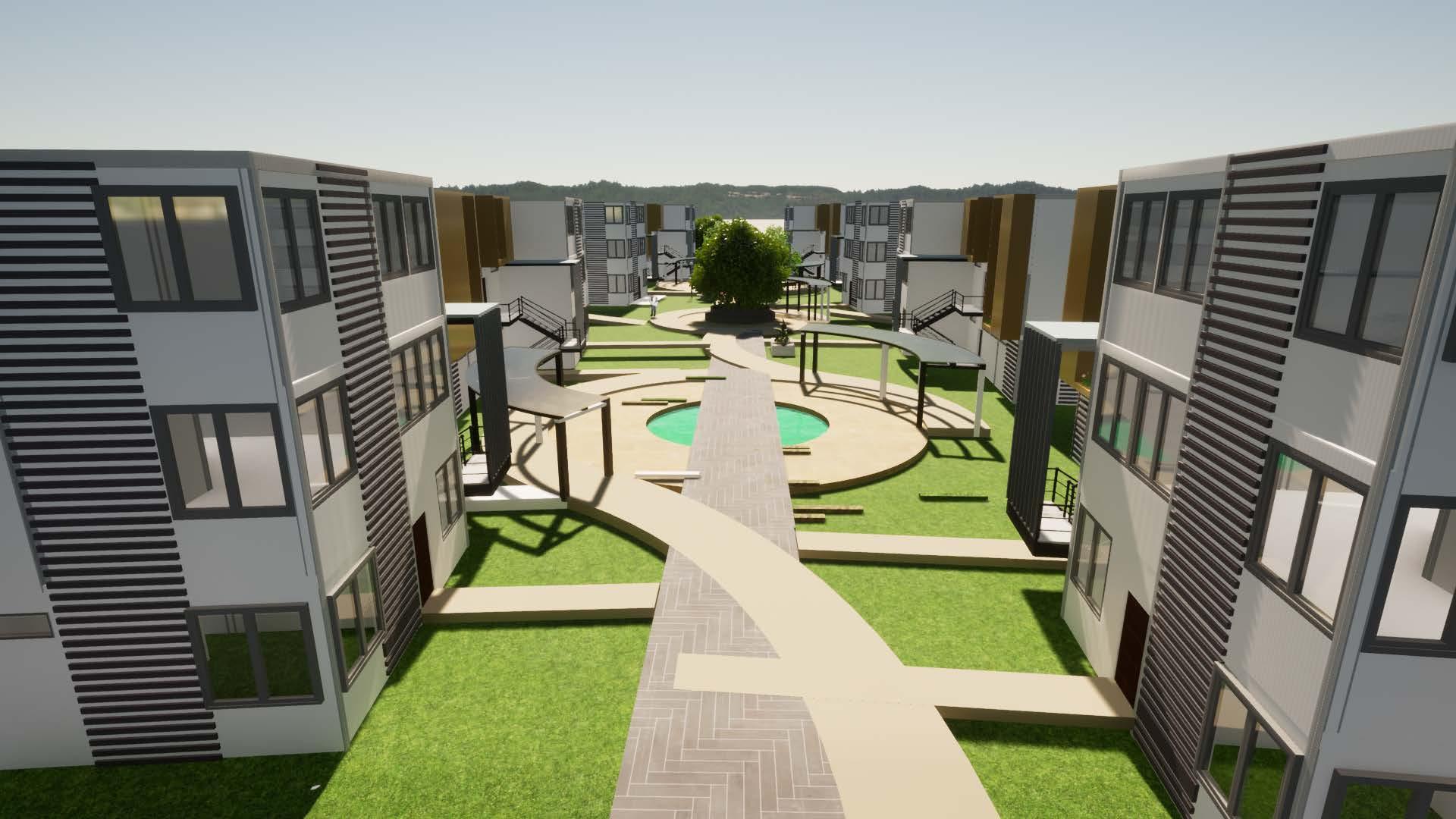

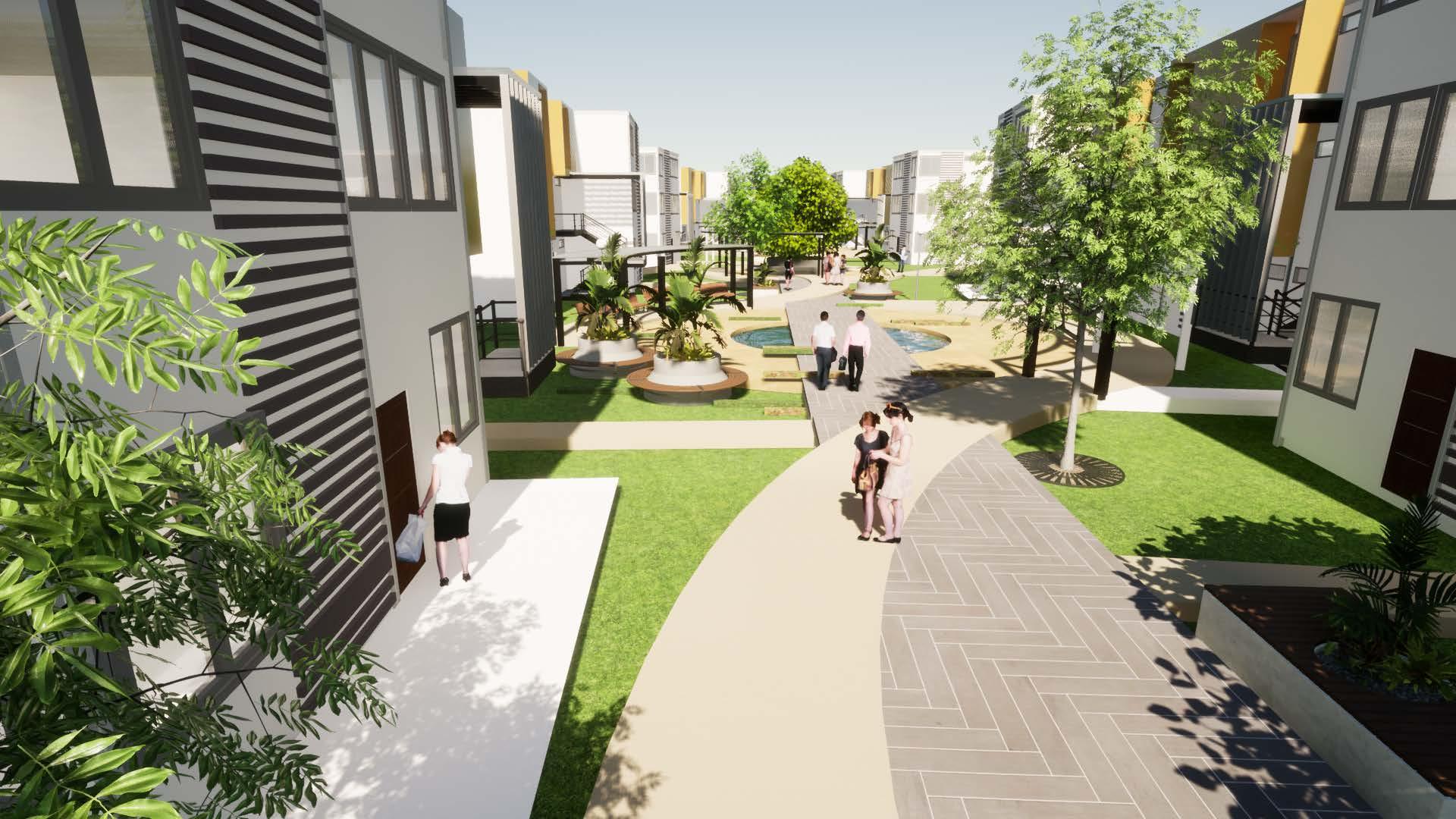

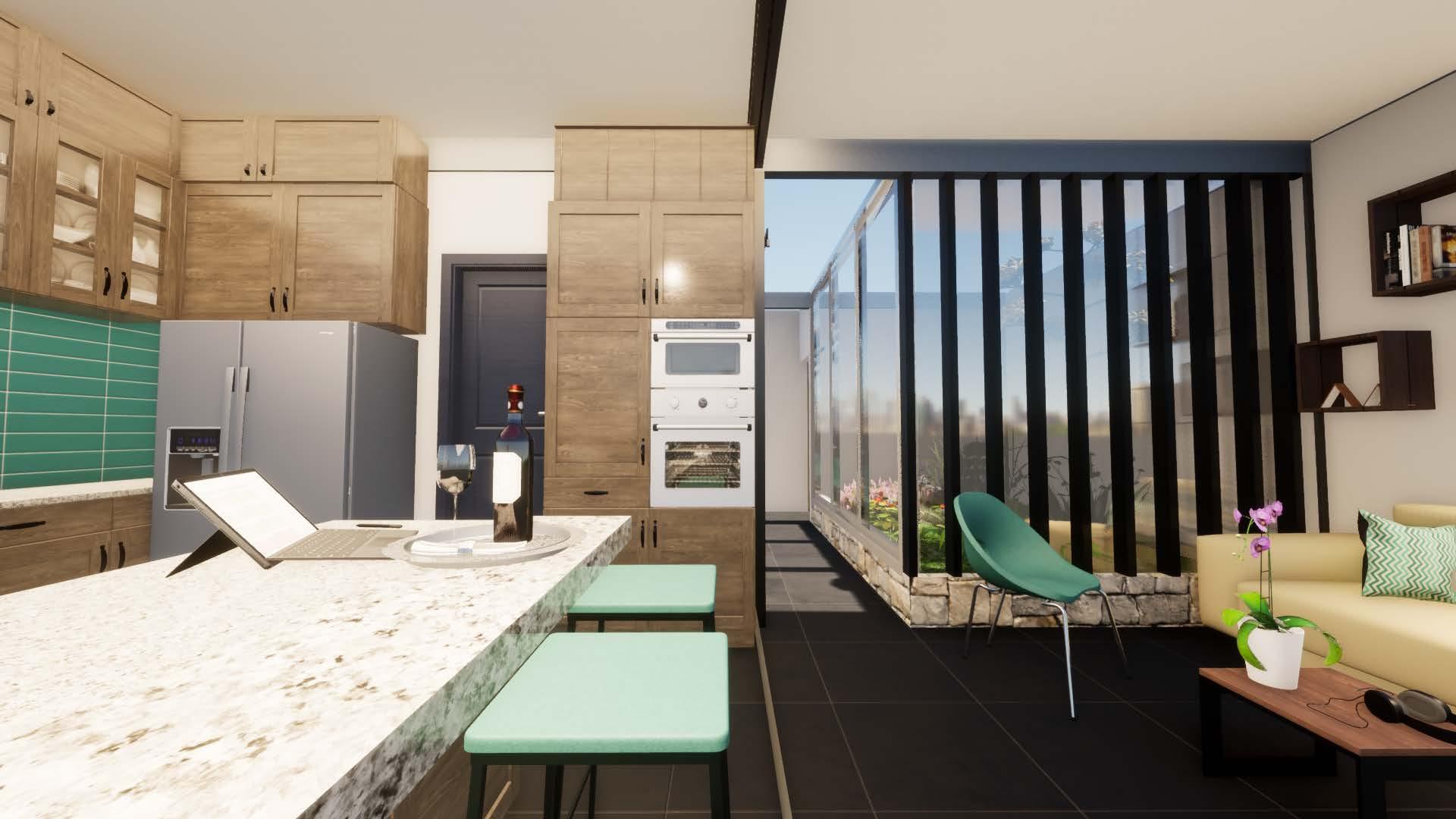

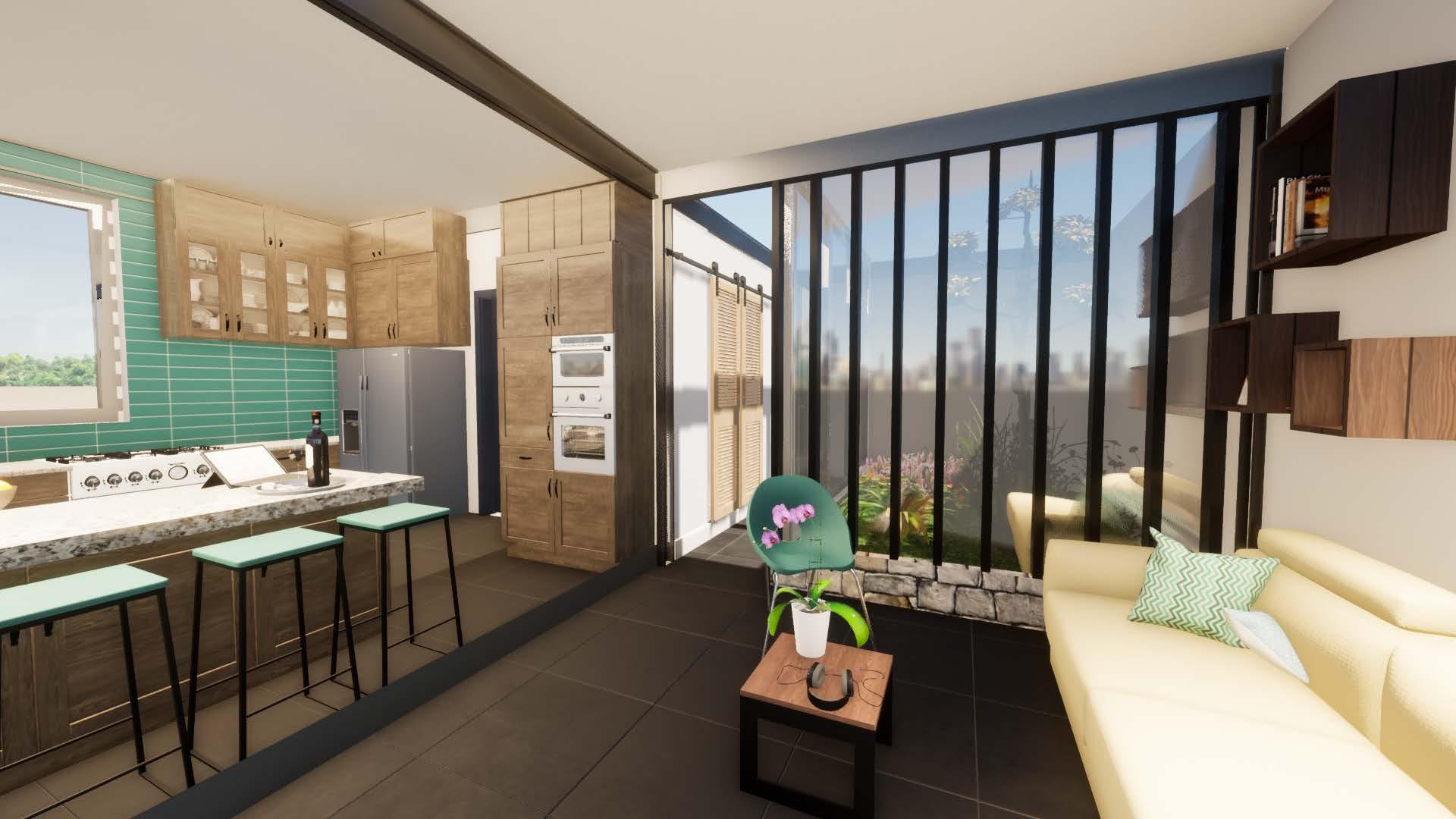

INTERIOR RENDERS
