M. Arch & Thesis Portfolio

CARL STANBRO

M. ARCH PORTFOLIO

2

Table of Contents Pages 4-7 Second Nature - Situated Technologies Research Studio

Pages 8-13

Architecture of Phase Change - Thesis

Pages 14-15

Conditional Form - Technical Methods

Pages 16-19

Patterns in Nature - Technical Methods

3

Second Nature

Project: The Water Tile Situated Technologies Graduate Research Studio The context for this research studio is situated in the Netherlands, a country with a long history of shaping the natural environment for human habitation. Issues of flooding and water management within the country became a key area of investigation. One aspect that has a huge impact on floods and overloading drainage systems is rooftop runoff. This project proposes a smart roof tiling system that works on a local level, and when aggregated over a whole city, can have a greater regional significance. The geometry of the tile consists of a fixed bottom piece and a top piece allowed to rotate to a horizontal position. The actuator for rotation is expanding hydrogel, a smart material which can hold 200 times is own volume in water. Rain water runoff is held in the hydrogel as well on the top piece which then evaporates back into the atmosphere over time.

KAMPEN, Netherlands

Large flood barriers. Each the size of the Eiffel Tower

The city of Kampen was chosen as the site because of the local flood barrier system it uses to create an unbroken wall along the length of the adjacent river. The local technique is an opposite response to large regional barriers and used as the concept in The Water Tile design

Roofs unaffected by flood waters Water Square holds water allowing the city sewer system has time to drain 4

2 tsp. Dry

Absorption Time

2 tsp. Wet

Cubes 1.5” X 1.5” X 1.5”

.25” X .25” X .25”

Granules

Hydrogel grows 216 times its original size.

Powder

95.54% Water

Stiffeners

Fabric - Contracted

Controlled growth with stiffeners

Powder Hyrdrogel

Fabric - Expanded

5

A

B

Section A

1”

2”

A

B

A

B

A

Top

Section B

Containers

Section A

B

Section A

6

Bottom

Section B

0:00

0:25

0:45

1:30

3:00

7

Thesis

Project: The Architecture of Phase Change: Experiments with Superabosrbent Hydrogel This work developed out of The Water Tile project as a further investigation of superabsorbent hydrogel to discover its potentials in architecture. Because of the unique properties that hydrogel exhibits in the phase change cycle of water, there are a multitude of different performance characteristics that need to be explored and understood. A set of experiments was developed to show these potentials approached from four different categories: physical movement, visual porosity, collection and reuse of water, and visual illuminancy. Although distinct in outcomes, the rigs built to conduct the experiments within each category all followed a common style of construction, scale and architectural form. For the final thesis proposal, I developed a theoretical space consisting of two infinitely extended planes connected by four different micro-climate columns each using what was learned in the experimental process to have a direct impact on the surrounding space

Hydrogel (Powder)

Absorption

Hydrogel Fabric

Hydrogel Bandage

Sheet Hydrogel

Plastic Bolts Fabric

8

Hydrogel

Evaporation

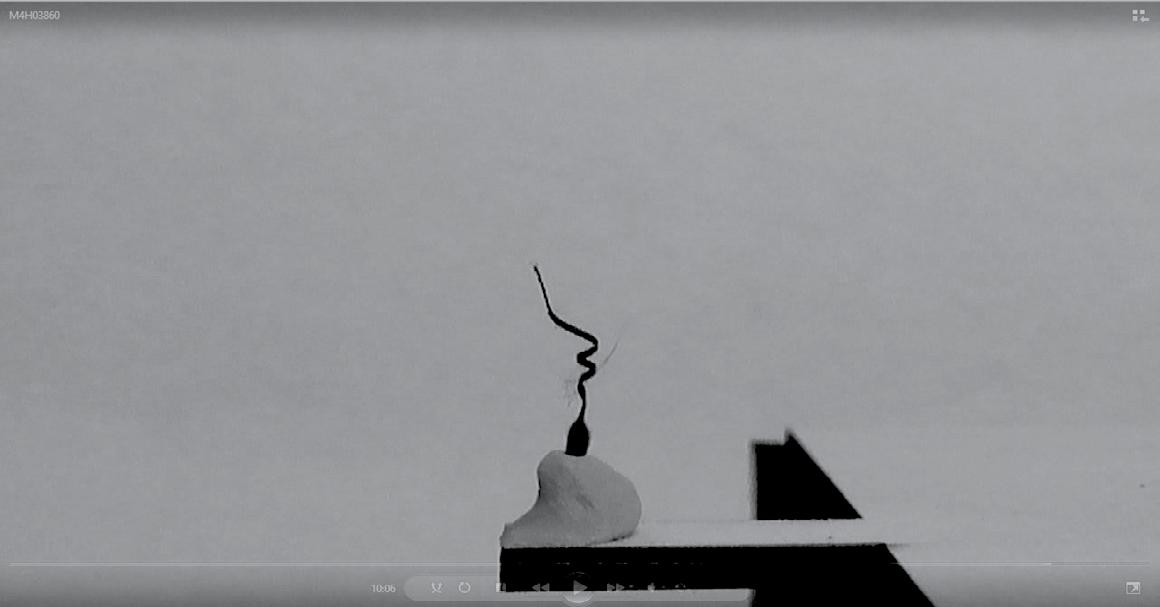

Erodium Seed Study These bi-laminate seeds have the property of curling and uncurling with changes is moisture. This provides the seeds with movement along the ground as well as a self-burial mechanism. Range of motion, distance traveled, and physical geometry were studied by subjecting the seeds to moisture and recording buy use of time-lapse. Ultimately the shape change that occurs from the bi-laminancy is what proved to be the most interesting. Contrary to the hydrogels, this system has a fixed end shape without the use of a container or stiffener.

0:00

Bi-laminate Curl

Seed coiled and uncoiled

2:40

Geometric Module Study

Seed range of motion

7:07

9

Physical Movement

Visual Porosity

Water Extraction Arduino

Punctures to allow water to make contact with hydrogel

Heat Lamp

Clear Plexi Heat Lamp

Clear Plexi

Temperature/Humidity Sensor Light Sensor

Hydrogel Container

Water Collection Container

Arduino

Camera

10

Visual Porosity

Light Exposure Temperature (˚C)

57min Minimum Visual Porosity Reached

450 640 440 620 430 600420 580410

400 560 390 540 380 520370

360

5

10

15

20

25

30

35

40

45

50

55

60

65

350

70

75

80

85

90

95

100

105

110

115

120

125

130

135

140

145

150

155

160 165

95

100

Time (minutes)

340 330

Growth Pattern

5

10

15

20

25

30

35

40

45

50

55

60

65

70

75

80

85

90

Time (minutes)

11

Physical Movement 3.25” 3”

2-1/4 tsp. Hydrogel Total 350 Grams Added Total Distance Traveled: 3/4 inches Total Time: 12min.

Height (in)

2.75” 2.5” 2.25” 2” 1.75” 1.5” 1.25” 1” 0.75” 0.5

”

0.25 ” 1min

2min

3min

4min

5min

6min

7min

8min

Time

12

9min

10min

11min

12min

13min

14min

15min

13

Conditional Form Project: Cooling Tower, Cable Net Hybrid Study Situated Technologies Technical Methods Inspired by the work of the Institute for Lightweight Structures, the cable net and pulled fabric surface research was combined to form a hybrid system.

Programmatically, this is to be understood as a prototype for a full-scale pavilion structure. The research was conducted both physically, through study models, and digitally, using kangaroo and grasshopper. Through an iterative process of physical modeling, the final model uses standard methods to form parabolas as well as internal springs to arrive at the pseudo parabolic form. The location where the springs attach to the fabric, a straight cut is made which turns into a lens shape from the stretching of the fabric. This opens the internal space to lighting as well as allows for cross ventilation.

Cooling Tower

Iteration 1

Parabolic Study 14

Pulled Fabric Study

Iteration 2

Surface Detail

Interior Looking Up

Lighting Study

Hybrid System Prototype

15

Patterns In Nature Project: Frost Study Material Cultures Technical Methods

This project was an in-depth study of frost formation on glass, exploring how the pattern forms, and what are the controlling parameters. This was done in both drawing and modeling side by side in an iterative process. Investigation started at the microscopic level where it was discovered the ‘branches’ off the pattern were due to the hexagonal nature of the hydrogen bonds. At a larger scale, an imperfection must be present in the glass which becomes the nucleation site for the branches of the frost. A 2-dimensional pattern was established of aggregated hexagons which was then turned into a 3-dimensional pattern by slightly bending the connecting surface between hexagons. The resulting prototype was varying 3D printed hexagons, creating an undulating unit aggregation envisioned at a larger architectural scale. This pattern could have applications in facades or ceiling structures. dangling bonds

dangling bonds

Water molecule formation dictates growth.

This is used as the base parameter.

Frost on Glass

Distance 1 Distance 2

Distance 3

Distance 1 Distance 2

Distance 3

Imperfection (“Fault Line”) 16

Nucleation Sites and Distance Established

Distance 1 107°

Distance 2

Distance 3

Ice Molecule Bond Angle

Distance 1 107°

Ice Molecule Bond Angle

Distance 2

Distance 3

Snowflake Growth

Frost Growth on Surface

17

1”

Small Module

1”

Medium Module

1”

Edge Proximity

Large Module

Section

18

10˚

10˚

Connecting Surface

19
