CAMDEN PUBLIC BUILDING DESIGN MANUAL

CAMDEN COUNCIL

Camden Council thanks all who have contributed to this Camden Public Building Design Manual, including artists and photographers.

PHOTOGRAPHS & GRAPHIC IMAGES

All photographs, graphic images and drawings within this document have been prepared or provided by Camden Council unless noted otherwise.

ARTWORKS

All artworks within this document are by Alan Baker and sourced from the Camden Council Alan Baker art collection unless noted otherwise.

ISSUE DATE REVIEWED 1 August 2023

CAMDEN COUNCIL

70 Central Avenue, Oran Park, NSW 2570 PO Box 183, Camden 2570

Telephone: 02 4654 7777

Email: mail@camden.nsw.gov.au

DISCLAIMER

While every reasonable effort has been made to ensure that this document is correct at the at the time of production, Camden Council, its agents and employees disclaim any liability to any person in respect of anything or consequence of anything done or omitted to be done in reliance upon the whole or any part of this document.

ABN: 31 117 341 764 Fax: 02 4654 7829

Photograph.01 St John's Church, Camden, 2015, by Brett Atkins

ACKNOWLEDGEMENT OF COUNTRY

Camden Council acknowledges that the Camden LGA is situated on the sacred Traditional Lands and Waterways of the Dharawal people. We also recognise surrounding Dharug and Gundungurra people that may have connections to these lands. We pay our respects to Elders past, present, and emerging, and to all Aboriginal and Torres Strait Islander peoples on these lands and celebrate their continuing contribution to the life of Camden LGA.

Photograph.02 " By the River" by Danielle Mate, Chellaston Reserve, Camden, 2019

1.0 INTRODUCTION

Photograph.03 Camden's evolving character, by Brett Atkins

The Camden Public Building Design Manual (CPBDM) is one of a suite of design documents prepared by Camden Council to set guidelines for the development of existing and future public buildings within the Camden Local Government Area (LGA).

The CPBDM provides design guidance to ensure that future developments and upgraded buildings provide facilities that meet the needs of the new and emerging communities of Camden.

1.2 Scope

1.1 Purpose

The purpose of the CPBDM is to provide a set of design principles, guidelines and requirements for the development of existing and future public buildings in the Camden LGA. This CPBDM details a baseline standard, which will set an expectation of high quality, well reasoned, and thoroughly considered design for all existing or proposed public buildings located within the Public Domain.

The CPBDM applies to all areas within the Camden LGA. It provides detailed requirements for public buildings and is intended to be read in conjunction with the Camden Council Development Control Plan and the Camden Growth Centre Precincts Development Control Plan.

1.3 Users

This manual is provided for internal and external stakeholders as well as professionals involved in the development, planning, design and approval of buildings in the Public Domain within the Camden Council LGA.

1.4 Camden Local Strategic Planning Statement

Camden Local Strategic Planning Statement (CLSPS) is a document which demonstrates how the Camden LGA will meet the community's needs over the next 20 years. The CLSPS is made up of four themes: Infrastructure and Collaboration, Liveability, Productivity, and Sustainability. These four themes will be implemented through 21 local priorities.

CPBDM is a key document in delivering local priorities identified in the LSPS as it will guide decisions and actions relating to public buildings.

1.5 Camden Community Strategic Plan

The Community Strategic Plan 2036 is the community’s plan for the Camden LGA. It establishes five key directions.

The work undertaken in this design manual supports and advances the following directions:

W1 Our community is welcoming and inclusive, everyone feels included and involved:

+ The CPBDM ensures an adequate, accessible and high quality built space is made available across the Camden LGA.

W2 Our community is healthy and active with access to open space, facilities and services that support well being:

+ The CPBDM provides direction to ensure that public buildings are designed to enable positive long -term health benefits across the Camden LGA.

+ The CPBDM sets minimum standards for built facilities which reflect community needs.

W3 Our community has opportunities to design and build safe and inviting places for all to enjoy:

+ The CPBDM sets design principles which will contribute to strong, cohesive, healthy and safe communities.

LB2 Our public spaces and places are vibrant and accessible:

+ The CPBDM ensures infrastructure and facilities are well planned, delivered and maintained to create high quality urban and rural environments that meet our diverse needs and respond to our climate.

Photograph.04 Argyle Street by Brett Atkins

1.6 Design Manual Framework

The CPBDM sits within a hierarchy of documents guiding development within the Camden LGA.

All of the current documents applicable to development are included or referenced on the Camden Council website.

The CPBDM is one of a suite of manuals which provide detailed direction for design and construction of the buildings within the Public Domain.

The CPBDM is to be read with all of its companion manuals, details and specifications.

These documents are referenced throughout the CPBDM.

In addition, all design and construction, including all materials and workmanship, are to be completed in accordance with all relevant and current regulations, including but not limited to:

The National Construction Code;

All relevant Australian Standards; and

The requirements of all relevant authorities, including Camden Council.

1.7 Using the CPBDM

The CPBDM provides detailed guidance and minimum standard design requirements for all Public Buildings within the Camden LGA.

PUBLIC BUILDINGS

Section 2 of this Design Manual describes requirements for all Public Buildings and includes the following sections which are applicable to all public building types:

Design Principles

Construction Requirements

Design Guidelines

COMMON PUBLIC BUILDING TYPES

Sections 3, 4, 5, 6 and 7 of the CPBDM describe common public building types and contains the following information. All requirements should be further developed and refined by designers in conjunction with the Camden Council to ensure the public building design is specific to individual scenarios including user group and location.

Definition of the Building Type

The definition of Building Type provides an overview of the building type included within that section.

Schedule of Areas

The Schedule of Areas outlines all of the spaces to be incorporated in the Building Type.

Data Sheets - Appendix A to D

The Data Sheets describe the requirements of each space in detail within the Building Type.

Construction Details - Appendix E

Provides typical construction details applicable to all Public Building types.

Parts Schedule - Appendix F

Provides parts schedules applicable to all Public Building types.

Checklists - Appendix G

The Checklists are to be completed and submitted to the Camden Council as part of the review process.

Design Principles Checklist – this list aims to summarise where the public building complies and differs from the Camden Public Domain Design Principles.

Construction Requirements Checklist – this list aims to summarise where the public building complies and differs from the Camden Public Domain Construction Requirements.

Fig.02

Photograph.05 Argyle Street Camden

2.0 PUBLIC BUILDING DESIGN

Camden Council recognises that public buildings are a key component for creating successful communities. Development within the Camden LGA provides an exceptional opportunity to set the foundations of sustainable, liveable, and prosperous neighbourhoods. We are committed to applying forward thinking and carefully crafted design strategy to achieve fit for purpose, meaningful, exhilarating and delightful places for the existing and emerging communities of Camden. This chapter establishes the principles and guidelines which underpin successful design for all Public Building types.

2.1 Introduction

A Public Building is a constructed set of spaces located together to create a place for members of the community to gather and socially connect.

The type of Public Building that these spaces become depends on the use of the building.

2.2 Public Building Categories

Public Buildings in the Camden LGA, based on asset management strategies in place, are divided into five categories: Very High Profile, High Profile, Medium Profile, Low Profile and Very Low Profile. Low Profile and Very Low profile categories are not discussed in this document.

VERY HIGH PROFILE

Including CIVIC BUILDING | LIBRARY | TOWN HALL | ART GALLERY + THE LIKE

This Public Building type is a significant cultural icon for the wider community. It is a destination for community members and visitors to gather for everyday visits as well as larger events. It is a large, high profile facility with higher quality finishes, fixtures and services.

This Public Building type will always be designed and documented for construction by specialist consultants engaged directly by Camden Council.

HIGH PROFILE

Including COMMUNITY CENTRE | SPACE FOR SERVICE PROVIDERS | EVENT SPACE + THE LIKE

This Public Building type is a central hub created for community participation. It is a destination for community members to gather for everyday visits as well as local events. It is a multi-purpose medium profile facility with medium quality finishes, fixtures and services.

MEDIUM PROFILE

Including SPORTS FACILITY BUILDING | PUBLIC TOILET + THE LIKE

This Public Building type is created for a specific functional requirement. It is attached to a destination used by community members to gather for everyday visits as well as local events. It is a specific purpose low profile facility with robust quality finishes, fixtures and services.

2.3 Community Centre

Community Centre is a public building classified as high profile amongst Camden Council's built assets.

A Community Centre is one building with minimum of one single large hire space + associated areas.

Community Centre buildings are not required to be designed for a specific use.

The top three most common uses for Community Centres at the time of writing these standards are:

Physical Culture Dance Classes

Martial Arts Classes

Religious Group Gatherings

If you categorised Community Centres into three sizes, they would include the following:

Small | 100 Seated People Capacity

Medium | 200 Seated People Capacity

Large | 300 Seated People Capacity

The Community Centre described in this manual is a small Community Centre.

STANDARD REQUIREMENTS

This document includes a set of standard requirements to be incorporated into the design and construction of Community Centre buildings within the Camden LGA.

Any variations to the requirements set out in this document are to be approved by Camden Council prior to incorporation in documentation for each building.

IMPORTANT NOTES

A Community Centre is a place that will be hired out for use by members of the public. It is important the hireable area is a clearly defined zone with one main door access and no doors connecting to other hireable areas.

The objective of this document is to ensure that the building is suitable for long-term use by all members of the public.

2.3.1 Schedule of Areas – Community Centre

The following are the areas that combine to make up a Community Centre. The dimensions and areas for each space are nominal requirements. Confirm final dimensions and area requirements with Camden Council. The following areas are internal dimensions. Refer Appendix A for data sheets.

2.4 Sports Facility Building

A Sports Facility Building is a public building classified as medium profile amongst Camden Council's built assets.

The information in this design manual sets minimum requirements for a Sports Facility Building.

The requirements are not specific to the code of sport that a Sports Facility Building will be built for.

As such, current requirements for the specific code of sport that is being played in the Sports field, court or similar sports facilities for which the Sports Facility Building is being designed are required to be obtained and incorporated in the design to ensure specific requirements are being met.

Each Sports Facility Building will be required to address at least two sports fields.

SPORTSGROUND CATEGORIES

The standard requirements within this document are applicable to a building that is associated with a local sportsground with two sports fields.

If the building to be designed facilitates the users of another sportsground category with more than two fields, or with courts or similar, the size for users is required to increase according to capacity.

The users for each specific sports category that will use each building is referred to in this section of the document as the user group.

USER GROUP

It is a requirement of the design process and this document that the user group requirements are incorporated in the design of a Sports Facility Building. This may include the specific space required for storage areas, particular requirements for change rooms or how many change rooms are needed.

With the ongoing focus on increasing amenity to support female participation in sport, Council will consider the inclusion of female friendly facility provisions such as additional changerooms.

Specific user group requirements can be obtained through the Camden Council

STANDARD REQUIREMENTS

This document includes a set of standard requirements to be incorporated into the design and construction of a public Sports Facility Building within the Camden LGA.

Any variations to the requirements set out in this document are to be approved by Camden Council prior to incorporation in documentation for each building.

IMPORTANT NOTES

A Sports Facility Building, also known as a Club House, is an important place in the cultural fabric of the community. Not only does it hold the functional requirements of a sporting code, it holds the recreational and social interactions for the players, their families, their supporters and the local community.

A Sports Facility Building is a place that will be hired out for use by members of the public. It is important the hireable area is a clearly defined zone with one main door access and no doors connecting to other hireable areas.

The objective of this document is to ensure that the building is suitable for long-term use by all members of the public.

The following are the areas that combine to make up a Sports Facility Building. The dimensions and areas for each space are nominal requirements. Confirm final dimensions and area requirements with Camden Council. The following areas are internal dimensions. Refer Appendix B for data sheets.

2.5 Space for Service Providers

Spaces for Service Providers are areas that will be leased by organisations providing a service to the local community. These areas can be either:

1. stand alone as an independent building or spaces classified as medium profile amongst Camden Council's built assets; OR

2. inserted in a public building classified as very high profile amongst Camden Council's built assets.

The most important consideration when it comes to a Space for Service Providers, is its location. Spaces for Services Providers are required to be located in a place with the following conditions:

Within walking distance to public transport;

Within walking distance to local commonly used retail outlets such as supermarkets, hairdressers, newsagents or the like; and

Within walking distance or co-located with other commonly used community facilities, such as a library, school or the like.

If you categorised a Space for Service Providers into three sizes they would include the following: SMALL

Includes all Spaces described in this manual.

MEDIUM

Includes all Spaces described for a small scale, as well as larger dimensions for the Entry Space, Work Space and meeting spaces and additional toilets.

LARGE

Includes all Spaces described for a medium scale, as well as larger dimensions for the covered Forecourt and entry space, multiple spaces for the work space and meeting spaces, a greeting desk within the entry space, a cafe and additional toilets that include shower facilities.

STANDARD REQUIREMENTS

This document includes a set of standard requirements to be incorporated into the design and construction of Spaces for Service Providers buildings within the Camden LGA.

Any variations to the requirements set out in this document are to be approved by Camden Council prior to incorporation in documentation for each building.

IMPORTANT NOTES

A Space for Service Providers is a place that will be accessed by members of the public who may not wish to be seen accessing the service. Consideration should therefore be given to how people will discreetly access the spaces. As such, a Space for Service Providers should be:

- located at ground level; and

- co-located or located near an alternative community use facility

The objective of this document is to ensure that the building is suitable for long-term use by all members of the public.

The following are the areas that combine to make up a Space for Service Providers. Refer Appendix C for data sheets.

2.6 Event Space

An Event Space is a public building classified as medium profile amongst Camden Council's built assets.

It is a set of simple internal and external areas that will be hired by members of the public to be used for events. These may include informal or formal functions such as birthday parties or corporate gatherings.

STANDARD REQUIREMENTS

This document includes a set of standard requirements to be incorporated into the design and construction of an Event Space within the Camden LGA.

Any variations to the requirements set out in this document are to be approved by Camden Council prior to incorporation in documentation for each building.

IMPORTANT NOTES

An Event Space is a place that will be hired out for use by members of the public. It is important the hireable area is a clearly defined zone with one main door access.

The objective of this document is to ensure that the building is suitable for long-term use by all members of the public.

The following are the areas that combine to make up an Event Space. Refer Appendix D for data sheets.

2.7 Public Toilet

A Public Toilet Block is a public building classified as medium profile amongst Camden Council's built assets.

STANDARD REQUIREMENTS

This document includes a set of standard requirements to be incorporated into the design and construction of Public Toilet buildings within the Camden LGA.

Any variations to the requirements set out in this document are to be approved by Camden Council prior to incorporation in documentation for each building.

IMPORTANT NOTES

The objective of this document is to ensure that the building is suitable for long-term use by all members of the public.

2.7.1 Schedule of Areas - Public Toilet

The following are the areas that combine to make up a Public Toilet Block.

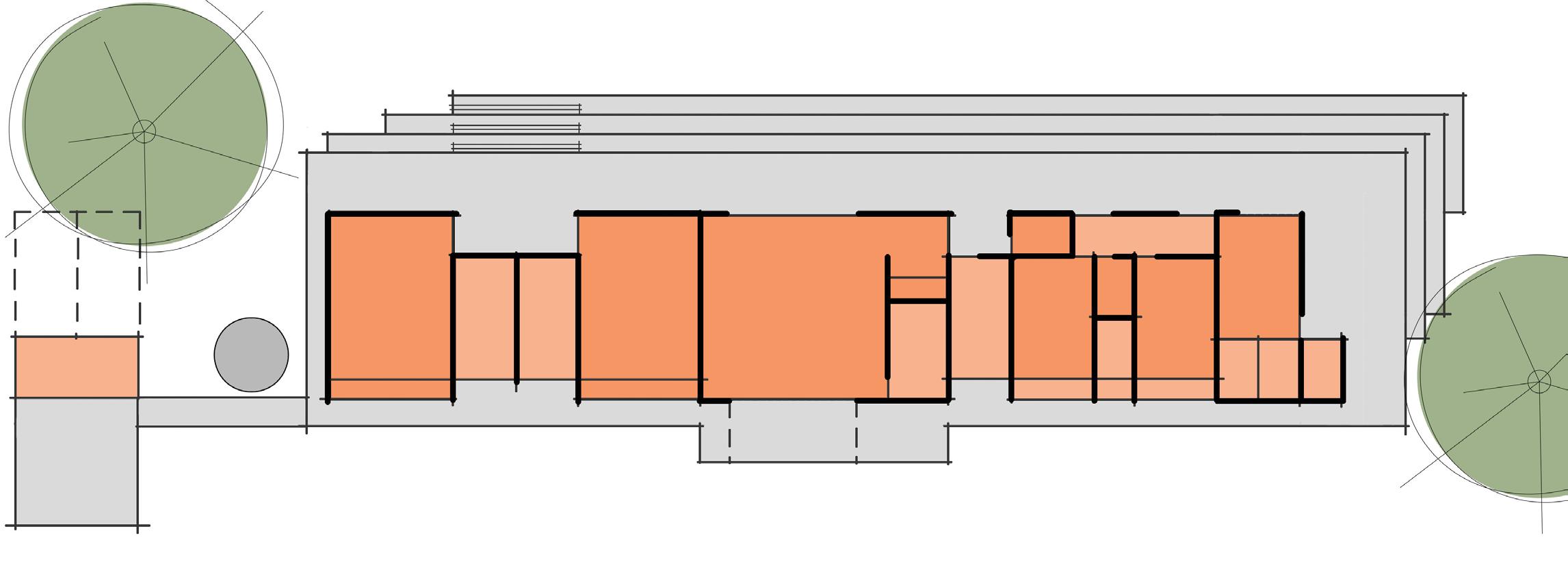

2.7.2 Drawings – Public Toilet

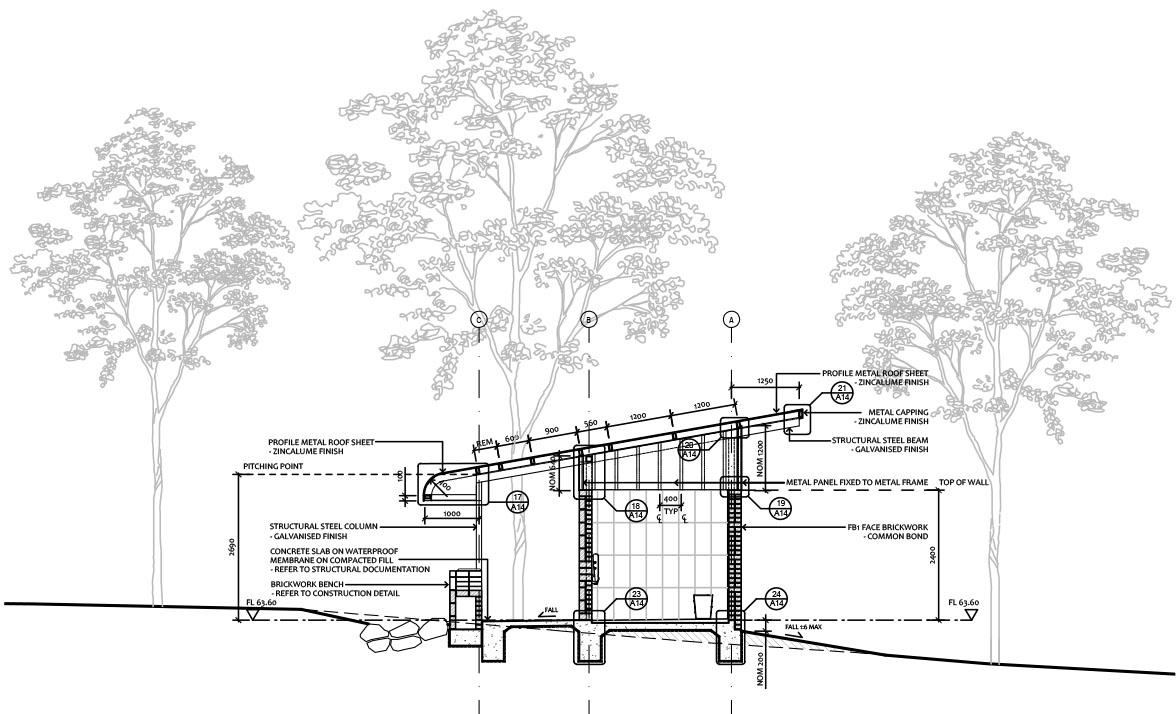

The following drawings are a sample of a full set of documentation that describe a Public Toilet in the Camden LGA and can be used as a starting point to document and construct a Public Toilet building.

The full set of documentation for a Public Toilet building is held by and can be requested from Camden Council.

3.0

DESIGN PRINCIPLES

3.1 Design Principles

The principles outlined in the CPBDM underpin successful design in Camden. These principles must drive the design of every newly built and updated existing built space within the Camden LGA. The following principles should be applied not as individual elements, but rather as a group that when implemented will ensure that community-focused, safe, responsive and sustainable outcomes are achieved

PLACE BASED NATURAL & SUSTAINABLE HOLISTIC & INTEGRATED CREATIVITY & INNOVATION

Create the design for a public building that is individual and specific to the history and people of the place in which it is located.

Use wayfinding in the development of the design of a public building to ensure that users move through the spaces instinctively.

Integrate the design for public buildings into the natural setting.

Locate the building to maximise the benefits of the local environment.

All significant local environmental patterns should be retained and incorporated in the design. Ensure to allow for future anticipated changes in climate.

Ensure the built forms where possible have an orientation that is north facing to capture the light and take advantage of passive solar design.

Choose materials for construction that have low embodied energy and are manufactured for longevity.

Take the opportunity to promote sustainable initiatives in the design of the building without compromising the use of the building.

Incorporate the landscape design with the building design to create continuity and connection between the built form and the landscape.

Design the built form to give the local community a sense of ownership.

Learn the unique characteristics of the local community and use this information to inform the design for the building. The existing patterns of use and distinctive site activities should be integrated in the design. Both intended and unplanned activity should be considered.

Ensure the design is fit for purpose and considers creative built solutions.

Camden Council aspires to apply the best design approach to the built environment. This involves embracing creative solutions, new technology, craftsmanship and artistic creativity.

RELEVANT & INCLUSIVE HEALTHY & ACTIVE BEAUTIFUL & ENGAGING

A successful public building is one that is relevant to the community and addresses their specific needs.

All public buildings should aim to be inclusive and should be designed to be easily accessible for the people who will use the building – babies, toddlers, older children and their carers as well as an aging population.

Design for longevity and future expansion.

It is important that the design of public building & open space encourages wellbeing and a healthy lifestyle.

Activate the space around a building beyond its immediate use in order to create spaces that can be used for physical interaction and activity.

Provide shade to make the use comforatble.

Beauty is a function.

Add outdoor spaces to buildings to break up their solidity and create a built form that is integral to the landscape.

Create visual connections between indoor and outdoors spaces, as well as between outdoorto-outdoor spaces and indoor-to-indoor spaces.

Create robust architecture without designing a bunker.

CONNECTING WITH COUNTRY

Camden's Public Buildings are key gathering places for Camden's many and varied communities. Including the voices of the First Peoples of Australia in the planning and design process can help create truly fit for purpose and inclusive spaces for the future of Camden while also respecting the unique and long history of Australia.

4.0 CONSTRUCTION REQUIREMENTS

4.1 Construction Requirements

The following construction requirements underpin successful construction in Camden to ensure the design intent is delivered for the building. These principles must be included in the construction documentation and be a part of the construction delivery for every newly built and updated existing built space within the Camden LGA.

INSPECTION POINTS TRADE NAMES AS CONSTRUCTED DRAWINGS

Include inspection points within documentation for construction to ensure that the quality of workmanship is checked regularly by the Contract Administrator and that the building is suitable for purpose. No work is to proceed beyond any inspection point until the work is executed to the satisfaction of the Contract Administrator.

It is the Contractor's responsibility to keep a detailed and organised photographic record of pre-existing conditions, as well as all completed structural and services works, particularly where the element will be permanently concealed.

Where a trade name, brand or catalogue number is referred to in the documents for construction, the Contractor may substitute similar material or equipment provided that in the opinion of the Contract Administrator the characteristics of type, quality, finish, appearance, method of construction and performance are not less than that specified, and are accepted as suitable by the Contract Administrator.

Such acceptance shall not be anticipated because of a similar approval having been given in a previous contract.

Ensure that information for the location of in-ground services and other constructed works are accurately recorded as construction progresses. Require that all as constructed drawings are submitted by the Contractor in hard copy and digital pdf as well as dwg formats. As constructed drawings are a condition of Practical Completion.

Review all of the information in the as constructed drawings and confirm that it is correct prior to accepting that the as constructed drawings are suitable.

OPERATION & MAINTENANCE MANUALS

Ensure that information for all of the services and equipment relating to the operation and maintenance of the Public Building is collated in one place. Prepare a written schedule for the operation and maintenance for all of the services and equipment installed in the Public Building.

Require that all Operation and Maintenance Manuals are submitted in hard copy and digital pdf as well as doc formats. Operation and Maintenance Manuals are a condition of Practical Completion.

WARRANTIES HAND OVER CONSULTATION

DESIGN + DOCUMENTATION

The Contractor shall warrant the construction of the works including materials and installation with a warranty in writing submitted to the Contract Administrator prior to the Date of Practical Completion.

The Contractor shall also obtain and ensure that the Camden Council will have the benefit of all warranties applicable to the materials and installation included in the construction works.

A meeting is required to occur on site no more than 30 calendar days after the Date of Practical Completion and will be held to explain the operation of the Public Building to Camden Council representatives.

Establish and maintain regular consultation points with Camden Council throughout the design and documentation period. Co-ordinate the necessary consultation points with the Camden Council prior to the commencement of the design process.

The departments of Camden Council to be consulted during the design + documentation process include but are not limited to the following:

- Sport & Recreation

- Building Maintenance

- Waste Management

- Health

CONSTRUCTION

Establish and maintain regular consultation points with Camden Council throughout the construction period of the process.

Involve a Representative from the following Camden Council departments to confirm keying requirements for a Public Building:

- Buildi ng Maintenance

- Waste Management

Involve a Representative from the following Camden Council departments in inspections that assess the works for Practical Completion:

- Building Maintena nce

Involve a representative from the Camden Council Environmental Health department in inspections for the following Public Building types:

Food Premises where Food is for Sale including Retail Fitouts, Canteens or similar

Public Swimming Pools including Splash Parks Cooling Towers and similar regulated areas

5.0 DESIGN GUIDELINES

5.1 Introduction

The following guidelines apply to all Public Buildings being newly designed and constructed, or existing buildings having alterations undertaken, within the Camden LGA.

Apply all requirements unless agreed otherwise with Camden Council prior to incorporation into the design and construction documentation for a public building.

5.2 Location

Locate the building to take the maximum benefit of the following:

Use For instance, locate a Sports Facility Building that has seating for spectators in a location where it will give the best outcome for spectators and players viewing and participating in the sports event.

Orientation For instance, ensure the long side of the building & high use areas, where possible ,face north, and position openings, solid walls and screens to take advantage or protect from weather patterns.

Proximity For instance, ensure the building is located in proximity to service main connections, public transport links and the like.

5.3 Layout

It is important that the layout for the building is simple and efficient in its use of space and materials.

Locate usable outdoor spaces such as courtyards, on the north side of the building.

Always locate a concrete hardstand directly outside the door access to Store Areas, such as an Equipment Store.

Design the building openings to ensure natural cross ventilation is achieved.

5.4 Soil

SOIL CLASSIFICATION

The predominant soil type in the Camden LGA is clay.

Ensure a geotechnical investigation of the soil type is completed for the specific site of each Public Building and the design meets the requirements of the conditions of the soil as well as the strata below. CLEAN FILL

Ensure that written certification to confirm that Virgin Excavated Natural Material (VENM) proposed to be used in the works is submitted by the Contractor to the Contract Administrator prior to commencement of works and prior to the delivery of clean fill to the site.

Ensure that this requirement is included in contract documentation for the works.

EROSION

& SEDIMENT

CONTROL

Erosion and sediment control is to be implemented by the Contractor to ensure waste is not carried by the wind and waste spoil is disposed of safely and not carried off the site of the construction works.

Ensure that this requirement is included in contract documentation for the works.

5.5 Safety

Crowd Safety

In certain circumstances public buildings may become a target for hostile vehicle attack. This threat should be assessed for each project based on previous events, current social conditions, and the proposed public building type.

All public building designs should aim to reduce opportunities for accidental or hostile vehicle entry on the grounds. This should be done by the placement of trees, plants, mounding, retaining walls, steps and furniture.

Larger parks and sports grounds (local and regional) which are designed to host events must include hostile-vehicle mitigation measures. These measures must be considered from the beginning of the design process and incorporated and integrated into the design solution.

Refer to Hostile Vehicle Guidelines for Crowded Places , a guide for owners, operators and designers released by the Australia-New Zealand Counter-Terrorism Committee.

Crime Prevention Through Environmental Design (CPTED)

All new and upgraded public buildings should be designed using Crime Prevention Through Environmental Design (CPTED) principles. CPTED is a crime prevention strategy that focuses on the planning, design and structure of open spaces. When designing a public building with CPETD principles the following guidelines apply:

Create good natural surveillance:

+ Orientate the public building to create good natural surveillance utilising the sites natural topography and vegetation.

+ Create unobstructed views from the street and/or neighbouring properties.

Allow for natural access control:

+ Create barriers between potential risks in order to provide a secure and enclosed environment. For example, when next to a busy road or waterway use planting, mounding, rocks or fencing to create a barrier.

Create territorial reinforcement:

+ When Public Buildings are being designed, the local community should be involved to create a sense of ownership from the public. Places that feel owned and cared for are likely to be used, enjoyed and revisited.

+ Allow for the design to be symbolic of the area; for example, select colours, design style and fixtures that relate to the area/community.

Allow for successful management:

+ Select materials, finishes and equipment to ensure maintenance regimes can be sustained over time.

+ Introduce a management program that will keep the facility and environment in a clean and well -maintained state.

+ Select plants that will avoid blocking sight lines when they reach maturity, that are durable and low maintenance.

Safety in Design is about integrating hazard identification and risk assessment methods early in the design or planning process, to eliminate or minimise risks of injury during construction, use, maintenance and decommissioning of a project. When designing a Public Building, the following guidelines apply:

Identify risks through the design process to effectively minimise hazards within the design outcome; A safety in design check must be undertaken and submitted to Camden Council at least once during each phase of a project; and

For further information regarding safety in design refer to Camden Council – Safety in Design –Procedure 16.0.

Camden Council considers it important to provide a safe environment for its community. The primary security use of CCTV is to discourage and/or detect unlawful behaviour. CCTV can also help improve perceptions of safety within the community. Camden Council recognises that CCTV is only one of a range of strategies that can be used to reduce crime. The preferred approach is to consider options such as creating clear sight lines, minimising concealed areas, installing appropriate lighting, enhancing natural surveillance, increasing access control and improving signage. The use and installation of CCTV should only be seen as a last resort.

Refer to the Camden Council's Use of CCTV Policy for further information regarding the installation and use of CCTV.

5.6 Community Engagement

Every public building project, whether undertaken by Council or delivered by an external team, must undertake an appropriate level of community engagement.

Community and stakeholder engagement is all about involving people in decision-making, especially those who may be affected by the decisions made or can influence implementation.

Councils have a responsibility to advocate on behalf of their communities, as well as to deliver a range of essential services.

Please refer to the Community Engagement Policy and Communications and Community Engagement Strategy on www.camden.nsw.gov.au for further guidance.

5.7 Connecting with Country

Camden Council recognises that Traditional Owners have distinct cultural rights and responsibilities to care for Country and must be involved in decision-making about the design, management, and protection of their cultural heritage.

Meaningful consultation with the Aboriginal community is essential to the process of public buidling design development. It enables Aboriginal Peoples to have a voice and work in partnership with Council to ensure that projects reflect the needs and priorities of our local Aboriginal community.

Involvement of Aboriginal community should be based on the scale and significance of the project.

Refer to The Connecting with Country Framework prepared by the Government Architect NSW for further guidance on how to respond to Country when planning and designing public buildings in Camden.

5.8 Construction

Generally, the main structural and construction elements for a public building are to include:

Concrete Floor Slab on Ground;

Face Brickwork External Walls;

Steel Framed or Brickwork Internal Walls;

Structural Steel Framework with Galvanised Finish; and

Profile Metal Roof Sheet.

What is not suitable in the design for construction elements in Public Buildings?

Do not create ledges in any of the built elements where birds can sit. This includes structural steel elements with flanges or similar that create locations where birds can rest.

Box Gutters are not suitable.

FLOOR

Setdown the Main Concrete Slab within the defined area of a space to accommodate any fall across the finished floor. Screed within the concrete slab setdown to set the falls for the finished floor.

EXTERNAL WALLS

Face brickwork walls are suitable for the construction of external walls. Brickwork walls may be constructed full height to the underside of the roof sheet or at lower level to minimum 2,600 millimetres above floor or main slab level in order to create a system for natural ventilation above.

It is suitable to design a natural ventilation system at high level from minimum 2,600 millimeters above floor or main slab level. The high level framed wall is to be a steel framed wall system with perforated or laser cut metal sheet directly fixed to the frame. The metal sheet is to have a galvanised, clear anodised or powdercoat finish.

Ensure the following in the design and construction documentation for external walls:

As the predominant soil type is clay, construct brickwork walls from the top of the concrete slab on ground rather than from strip footings to reduce the risk of cracking;

Top course of all brickwork walls is to be solid core;

Lintel for openings in brickwork walls is to be a full height brickwork course;

If there is no masonry lintel on the top of the opening, align the top of the door or window frame with the top of the adjacent top course of brickwork;

Ensure that a ledge is not created to the external face of the building at the connection between the lower and higher level wall types;

Ensure that structural support is incorporated in walls where fixtures, fittings and the like are designed to be fixed;

All walls to food premises are required to be of solid construction in accordance with AS4674 Design, Construction and Fit-Out of Food Premises; and

Western facades should be provided with external shade (trees or external fixtures) to minimise heat gain and light coloured materials should also be used.

INTERNAL WALLS

Steel framed or brickwork walls are suitable for internal walls.

Ensure the following in the design and construction documentation for internal walls:

Top course of all brickwork walls to be solid core;

Lintel for openings in brickwork walls to be a full height brickwork course;

If there is no masonry lintel on the top of the opening, align the top of the door or window frame with the top of the adjacent top course of brickwork;

Ensure that structural support is incorporated in walls where fixtures, fittings and the like are designed to be fixed; and

All walls to food premises are required to be of solid construction in accordance with AS4674 Design, Construction and Fit-Out of Food Premises;

CEILING + SOFFIT

Steel framed ceiling and soffit frame either raking or level are suitable.

Ensure the following in the design and construction documentation for ceilings and soffits:

Ensure structural support is included in the ceiling space to accommodate mechanical service loads and the like;

Include proprietary ceiling access panels in appropriate locations to access services and the like in the ceiling space.

Banana clips are not suitable to be used in a suspended ceiling system; and

Solid set plasterboard ceilings are to be provided in all food premises. Drop-in panels, shadowline edges and the like are not permitted in these spaces.

ROOF

Steel framed roof structure with profile metal roof sheet including all associate metal flashings, cappings and accessories is suitable.

Ensure the following in the design and construction documentation for roofs:

Ensure the underside of the roof lining/structure | sheet, whichever is the lower, is a minimum of 3,000 millimetres above the surface level directly below the edge of the roof;

Design the roof structure to support renewable energy technology either now or in the future, such as solar collection panels;

Size the overhang of the roof to north of the building in accordance with the sun's azimuth to allow sunlight to penetrate through openings in the building at 12 noon on 21 June, and to limit sunlight into the building at 12 noon on 21 December;

Incorporate the immediate use of solar panels or future installation of photovoltaic cells on the roof of the building in the future to add to mains electrical power to the building. This includes all structural support required. All solar systems should have a monitoring system installed that can provide real time data and reporting of faults. System should be sized to match expected daytime load, unless provision for a battery is also included with a target to supply at least 20% of the site's electricity demand;

Incorporate the installation of a rainwater collection system including gutters, downpipes, a rainwater tank and associated parts to capture water from the roof for re-use in the landscape;

Roof accessories such as flashing and the like are to match the finish of the associated profile metal roof sheet; and

Incorporate a drip edge to the full perimeter of the edge of the roof.

CLADDING + LINING

Expressed joints, flushed joints and PVC jointing systems in Fibre Cement Sheet Cladding and Lining are not suitable. A ‘V’ butt joint is suitable.

5.9 Materials

The materials used as components in a public building must meet the following longevity, maintenance, and sustainability criteria:

Recycled, re-usable and repurposed materials should be used where possible. This includes selection of such materials that can be re-used at the end of their life;

Locally sourced and renewable sources should be sought;

− Materials and finishes should be hard wearing and require a low level of maintenance; and

Low or no emission products where possible.

What is not suitable in the design for materials in Public Buildings?

Sheet Carpet

Floor Vinyl Tiles

Painted white surfaces to low level up to 2100mm space above finished floor or ground level

Extended use of white segmental pavers

Rendered wall surfaces

Items fixed to the surface of external walls

Timber floor surfaces

Coloured anodised finish to aluminium surfaces

− The cores of brickwork exposed to surfaces of the building

Any twin wall sheet system with a total wall thickness of less than 50mm

Metal mesh as substitute to a perforated metal panel

FLOOR

Ensure the following in the design and construction documentation for floor material selections:

Carpet to be low pile carpet tiles – Interface Commercial Carpet Tile or equal approved;

Floor Vinyl to be commercial grade sheet vinyl with continuous welded joints;

An epoxy seamless floor system is a suitable alternative to most locations where floor vinyl is noted in Data Sheets; and

Floor Tiles to be larger format with a minimum 300x300 millimetres dimension each.

ROOF

Roof Cladding

Ensure the following in the design and construction documentation for roof cladding material selections:

0.48 BMT profile metal roof sheet with a zincalume or light shade colorbond colour finish, with low solar reflectivity to minimise urban heat gain; and roof accessories to match the finish of the profile metal roof sheet. Gutters, Downpipes and Roof Accessories

Ensure the following in the design and construction documentation for downpipe and overflow material selections:

All downpipes and overflow pipes to be nominal 150 millimetres diameter round metal with gutter size to suit. All downpipes and full height overflow pipes to finish 50 millimetres above and central to a grated stormwater pit. The top of the grated stormwater pit is to be flush with the adjacent finished surface level;

All downpipes or full height overflow pipes to be constructed with or have a Circular Hollow Section sleeve to fully surround the downpipe or overflow pipe. The galvanised mild steel Circular Hollow Section shall begin 50 millimetres above the stormwater collection pit and have integral plate steel cleats with galvanised finish fixed to the main buildings structure; Catch roof water to water tank where water tanks will be installed; and Box gutters are not suitable.

PAINT

Ensure the following in the design and construction documentation for paint and similar material selections:

Ensure all paint, adhesives and similar products specified are Low or No Volatile Organic Compound;

Surface sealant applied to external areas of the building, such as to a concrete slab, is to be a clear Penetrating UV Stabilised Sealant;

Surface sealant applied to internal areas of the building, such as to a concrete slab, is to be a clear Penetrating Sealant;

The preferred paint system for doors is a very hard-wearing paint system that can be easily cleaned and will protect the door for longer but is not easily painted over; and

Ensure all Composite Wood Products have a low emission formaldehyde.

5.10 Openings

Openings include any door, window or similar in the external or internal fabric of the building. What is not suitable in the design for openings in Public Buildings?

slide rail or sliding arm door closers

louvres to a Kitchen or kiosk/canteen

DOORS

Typically all external and internal doors are to be 40 millimetres thick Solid Core Timber Door Leaf in a Pressed Metal Frame with Galvanised and Paint Finish. Or within a commercial grade aluminium frame.

Ensure the following in the design and construction documentation for doors selections:

All doors are to be lockable with their own card access, with the exception of doors to Public Toilet spaces;

All doors to public toilet spaces are to include an indicator bolt locking mechanism to each individual toilet cubicle as well as an automatic electronic locking system to each external door that accesses the space. If there is a single individual door that accesses both a cubicle and is also the external door to the space, this door is required to have both an indicator bolt and automatic electronic locking system;

Weather strips are to be designed and installed to all sides of all external door leaves and frame to ensure a weather tight outcome;

All external doors are to swing out;

Operable walls are not suitable;

Roller shutters to be hand operated with wind clips and have external twin sliding pad bolts;

All external doors to be fitted with effective pest exclusion devices to ensure exclusion of pests and rodents from the premises; and

Incorporate fire doors if they are applicable to the requirements of the building.

GLAZED WINDOWS AND DOORS

Typically all external and internal glazed windows and doors are to have a commercial grade Aluminium Frame with Clear Anodised or Powdercoat Finish.

Ensure the following in the design and construction documentation for doors selections:

All glazed doors are to be lockable with their own card access;

Weather strips are to be designed and installed to all sides of all external door leaves and frame to ensure a weather tight outcome;

All external doors are to swing out;

All windows are to be lockable with their own key with insect screens on the openable portion;

All glazed windows and doors to be a double glazed system; and

All external windows to be fitted with effective pest exclusion devices to ensure exclusion of pests and rodents from the premises.

SCREENS

Security Screens

A Security Screen is a fully welded mild steel Rectangular Hollow Frame or similar with laser cut, perforated metal plate, steel bar or similar insert to create a secure barrier.

Ensure the following in the design and construction documentation for security screens:

A Security Screen may be a sliding or hinged operable door;

The insert should include an artistic impression or design to enhance the visual impact; and

All external Security Screens shall be deadlocked, automatic self closing and able to be held in the open position as required.

Insect Screens

An Insect Screen is an Aluminium Frame with Stainless Steel mesh or perforated panel insert panel with Powdercoat Finish.

Ensure the following in the design and construction documentation for insect screens:

An Insect Screen may be a sliding or hinged operable door;

The insert panel should be Crimsafe, Clearshield or equal approved; and

All external Insect Screens shall be lockable, automatic self closing and able to be held in the open position as required.

DOOR HARDWARE

Ensure the following in the design and construction documentation for door hardware:

Fix door hardware all the way through a solid core timber door rather than to just one side;

− Pull handles are required to doors to public toilet facilities where the door is external. Door handles are not suitable for these locations; and

− Include strike protection plates for all external doors to ensure doors cannot be kicked open.

KEYING

Confirm all keying with Camden Council prior to commencement of works.

5.11 Insulation

Install insulation in accordance with the National Construction Code and ensure insulation is installed to all of the full extent of all of the following locations:

Roof

5.12 Fixtures

What is not suitable in the design for fixtures in a Public Building?

Handles for mixers and taps that can unscrew from their base

Powdercoat finish to sinks, basins, taps and similar

5.13 Fittings

SIGNS

Ensure the following in the design and construction documentation for signs:

One building sign is required to identify the building;

Signs are required to identify each space within the building;

Clarify the sign type and design with Camden Council; and

Supply and install all signs required in accordance with current regulation requirements.

What is not suitable in the design for signs in a Public Building?

Adhesive Vinyl Signs

− Signs that act as artwork across a door

Bins with plastic inserts, with the exception of very high profile building types

Hooks mounted to the rear of doors in wet areas – this does not include cubicle doors

5.14 Public Art

Establish an element that is part of the building fabric that will be an element of art in the building.

This element will be designed by a professional public artist in accordance with the Camden Council Public Art Policy.

The theme of the artwork is to represent ‘place’.

The following opportunities exist to include artwork in public buildings. Ensure that artwork is not applied to an element of a public building that will need to be replaced in the future, such as door leafs, removable panels and similar.

Natural Ventilation Systems

Brickwork Walls

Security Screens

Footpaths | Paving

Fences including fence panels

Floors

Signage

Tiling

5.15 Graffiti

Graffiti is frequently applied to public buildings in the Camden LGA.

Formulate a written graffiti strategy that does not include the use of an anti-graffiti applied paint coating and incorporate the approved strategy in the design.

5.16 Termite Management

Formulate a written termite management strategy, submit the strategy to the Camden Council Project Manger for review and approval then incorporate the approved strategy in the design.

5.17 Flood

Flood events are a common occurrence in the Camden LGA.

It is preferable that all public buildings are constructed above the Flood Planning Level. However, in some instances, its location will be determined to accommodate use by members of the public.

As such, all public buildings are required to be designed to accommodate the events of flood that occur in the location they are to be constructed.

Prior to commencement of the design, clarify the flood events that occur on the site where a public building is proposed to be located or where it is already located. This is a requirement for work for new as well as existing buildings.

Specific and current information with relation to flood events can be obtained from Camden Council.

As a minimum, the following will be required to inform the design of a proposed or existing public building:

The Flood Planning Level;

If the location is categorised as a Floodway, Flood Storage or Flood Fringe area; Flood Event Data for a 1 in 5, 1 in 20 and 1 in 100 year flood event including the Depth and Velocity of the flood water at each event; and

The Flood Event that Camden Council determine the building should be designed for.

Regardless of which flood event requirements the building is being designed to meet, more common flood events should be considered in the design.

If located within a flood hazard area, a building will be partially or fully inundated by flood water.

The design of a public building in a flood hazard area is required to incorporate: strategies to mitigate the affects of flood water; and strategies to return the building to operation following a flood event.

Ensure the following in the design and construction documentation for all public buildings identified to be located in a flood hazard area:

Design the building with a wet floodproofing strategy which means that the building is designed to be flooded with water in the event of a flood;

Design the form of the building to reduce the affect of the velocity of flood water;

Orient the building to reduce the effect of the velocity of flood water;

Design the structure of the building to withstand the velocity and hydrostatic forces of flood water; Where a building will be inundated, install services for the building as high as possible and ensure means for servicing these services are accomodated;

Ensure that water can enter and drain simply and quickly from the building as the flood waters rise and fall;

Ensure that materials specified for a building are suitable for and will withstand flood conditions;

Ensure that cleaning the building including flushing service pipework following a flood event are considered in the design of the building to maintain the operation of the building; and

Ensure that the replacement of parts following a flood event are considered in the design of the building to reduce on-going maintenance costs.

The following are not suitable for public buildings located in a flood hazard area:

Cavities within the building where air pockets can occur or which are required to be cleaned out following a flood event. This includes wall cavities.

As a minimum, reference the following current documents when designing a public building in a location with a flood event:

Camden Council Flood Risk Management Policy;

The National Construction Code;

The Australian Building Codes Board Construction of Buildings in Flood Hazard Areas Information Handbook; and

Reducing the Vulnerability of Buildings to Flood Damage – Guidance of Building in Flood Prone Areas prepared for the Hawkesbury-Nepean Flood Management Planning Committee.

Additional information can be obtained from Camden Council's web site or by communicating directly with Camden Council.

5.18 Resilience to Climate Change

A changing climate creates not only global but regional challenges with communities, infrastructure and natural areas impacted. Changes to our climate are expected to include increases in extreme temperatures and weather events, as well as changes to the timing and distribution of rainfall and fire seasons. In line with Camden Council's Sustainability Strategy the following guidelines apply:

Site Specific Intervention

− The installation of green roofs and green walls, thereby improving the thermal efficiency of buildings and reducing the use of conventional heating and cooling systems, whilst also alleviating flood risk.

− The technical and creative use of open space for ground source heating and cooling.

Working Practices

If possible, local and sustainable sourcing of construction materials are preferable, with timber from sustainable sources and greater use of recycled content.

Procurement of contractual services from organisations which demonstrate that effective measures are in place to minimise the carbon intensity of capital works and site management activities.

Renewable energy

It is encouraged to be fully committed to the maximisation of renewable energy capacity as an essential aspect of climate change mitigation whilst ensuring the robust protection and enhancement of the built environment.

Incorporating grey water (domestic wastewater) recycling systems into the design process can assist in adapting to hotter and drier summers when pressure on conventional supplies is likely to be greatest. Consider using grey water in place of these conventional supplies in, for example, irrigation and toilet systems.

5.19 Services

Ensure the following in the design and construction documentation for services:

Provide access points to underground hydraulic services at regular intervals as well as at points where the pipe has a joint, connection or bend;

Provide access points to concealed services within the building at regular intervals as well as at points where the pipe has a joint, connection or bend;

Incorporate card reader access rather than keyed access;

Incorporate automatic locking mechanisms on external doors to public toilet cubicle facilities; and

Incorporate sensor lighting to toilets and store rooms with manually switched lighting to all other areas.

The following is not suitable for the Design for Services in a Public Building

Pipework under an on-ground concrete slab is not suitable. Run services parallel and adjacent to the building outside of the building line and enter the building when required.

Maintain all services for a single building within that building. Do not extend services from one building to another building. Service connections between the two buildings do not work. They cause confusion when trying to source a problem and they do not allow for separation of the buildings in the future.

Exposed conduits are not suitable. Conceal all pipework and conduits in walls, ceilings, or similar areas unless noted otherwise. Ensure services are accessible.

Installation of tundishes within a Kitchen or Kiosk | Canteen space is not suitable.

WATER SERVICES

Ensure the following in the design and construction documentation for water services:

Hot water facilities are to be provided to clubrooms, changeroom showers, meeting rooms and kitchen areas (as a minimum);

An electric heat pump system is Camden Council’s preferred way to heat water for a public building. Locate the hot water unit in the services duct for the building and confirm with Camden Council that the location of the hot water unit is suitable for each individual building type;

Thermostatic mixing valves shall be provided to all hot water services in accordance with the NSW Plumbing Code;

Self closing valves are to be incorporated in taps where the use is suitable;

All toilets are required to connect directly to main water service supply with a flush valve rather than cistern system. Public toilets are not to be connected to a water tank supply system; and

Any water use sourced from water tanks is to be clearly identified for non-potable use and not suitable for consumption.

WASTE WATER SERVICES

Ensure the following in the design and construction documentation for waste water services:

Connect all waste water producing fixtures to a sewer main or approved on-site sewerage management system;

In any situation where an on-site waste water collection system is proposed, follow the process for application and approval in accordance with Camden Council requirements;

An on-site waste water system is to be located away from areas which are used by people and is required to be fenced to ensure that the areas above it are not used by the public for recreational use;

All systems connecting to an on-site waste water management system are to have a back-up pump as well as a visible and audible alarm clearly located in case of failure and with back to base capability. A fixed sign is to be located adjacent to the visual alarm that shows a phone number at Camden Council to be called in case the alarm is activated;

− An on-site waste water disposal system is to have a Certificate of Accreditation issued by NSW Health; The entire system is to be designed by a suitably qualified waste water design consultant; and In addition to requirements of the waste water authority, a Management Plan for on-site waste water disposal is required to be submitted with all application documentation .

ELECTRICAL SERVICES

Ensure the following in the design and construction documentation for electrical services:

The Electrical Distribution Board is to house the building systems as well as the field lighting controller;

Natural lighting is to be utilised in each space;

Provision to be made for electric vehicle charging at relevant community facilities;

Light Emitting Diode typical to light fittings in all spaces;

External lighting shall be vandal-proof and IP56 rated. It shall be primarily controlled by a PE cell; however, include a manual override switch located in the Electrical Distribution Board;

Lighting to be zoned to allow for individual control;

Internal lighting to be controlled by motion detectors in some spaces:

+ Lighting for all Change Rooms, Toilets, and Stores to be operated with a motion sensor with a manual override housed in the Kitchen or Kiosk / Canteen.

+ Lighting control for Kitchen and Kiosk / Canteen as well as all other areas to be controlled with a manual switch within each space.

Locate lighting directly over hand basins / mirrors.

Solar

Solar Photo Voltaic panels to be installed and sized to meet projected average daytime energy usage. Wherever possible comply with the target of generating at least 20% of the site's energy from solar panels, consistent with the draft Design and Place SEPP.

Ensure that both north and west facing roof area is provided to suit the dimensions and installation of solar panels including all associated fittings, connections and the like. Solar panels are to be designed to suit the use of the building. Provision of a battery can be considered where the dominant energy use occurs at night time.

If Solar Photo Voltaic panels are not part of the immediate construction works for the building, allow provision for them to be incorporated in the future.

Batteries

Sonnen cobalt free batteries or equal approved.

Communications

Incorporate telephone services including data and communications where applicable.

A Public Address system is required for most public buildings and must cater for music broadcast as well as for announcements within the building. It must also separately broadcast across the associated external areas such as courtyard or sports field.

Power

All toilets are required to connect directly to main power service supply.

MECHANICAL SERVICES

Heating, ventilating, and air conditioning systems are to be separately zoned for regularly occupied rooms with timed controls in each space.

GAS SERVICES

Use of permanent gas appliances should be avoided in all new buildings.

A reticulated gas connection is not required to a barbecue area associated with a building.

Gas bottles are acceptable for use in outdoor areas such as an outdoor barbecue area. The use and storage of gas bottles is required to comply with current applicable regulations.

SECURITY

Incorporate an access and security system with a back-to-base capability.

Confirm requirements with Camden Council prior to commencing the design.

FIRE

The type and location of all fire hose reels are to be designed in accordance with current regulation.

The installation of a sprinkler system, fire hose reels, fire hydrants, and the like to be specifically designed to each buildings circumstance.

SUB-METERING

Sub-meters must be installed where there is more than one usage of a facility to allow breakdown of usage. Sub-meters must be installed for each room, level or major equipment such as HVAC and have wi-fi capability.

Current Transformer or CT metering is to be installed for the facilities with sub-metering to allow Camden Council to lease out particular spaces to end users within the community.

The following is the predominant operational arrangement:

Sports fields and building

Remainder of open space areas

Proposed sub-metering required to achieve this is as follows but should be confirmed with Camden Council prior to commencing the design.

Electrical Services

+ main building

+ external lighting

+ miscellaneous open space area elements such as Irrigation and the like

Water Services

+ main building

+ water to all remaining external areas

+ harvested stormwater

Summer Landscape by Alan Baker

6.1 Schedule of Areas-Community Centre

The following are the areas that combine to make up a Community Centre. The dimensions and areas for each space are nominal requirements. Confirm final dimensions and area requirements with Camden Council. The following areas are internal dimensions.

EXTERNAL AREAS UNCOVERED

6.2 Data Sheets

HOW TO READ THE DATA SHEETS

Each individual space has a data sheet.

A datasheet describes the purpose of the space as well as the requirements of the space.

If a requirement is not included, it is generally an item that can be determined specific to the individual project.

All vertical heights are measured above the main horizontal surface level directly below the item.

Refer to the Parts Schedule for specification of particular Fixtures, Fittings, Equipment and the like that are required to be incorporated in Camden Council Public Buildings.

 This Icon means that a decision can be determined that is specific to the individual project.

r This Icon means that there is no comment to be provided or that the item is not applicable.

A space dedicated to the arrival of pedestrians to the building.

To provide an uncovered area to gather on arrival.

The space may incorporate a place to stage impromptu or planned performances or an outdoor cinema with a film played on the wall of the building.

The space is to be a memorable location for visitors and locals with connection to people and place. The space should be able to be trafficked by vehicles.

Directly Connected to: Covered Forecourt | Pedestrian Access Paths | Landscaped Area

Indirectly Connected to: Car Park

Council Open Space Design Manual

The Arrival Sign should be distinctive to the place and design of the building.

A space dedicated to the gathering of people as an extension of the external Covered Court Yard and internal Community Hall areas.

To provide an uncovered area to gather on the north side of the building.

The space should be able to be relatively flat and be able to be trafficked by vehicles.

It is important that the Court Yard is securely fenced, with double gate access for vehicles arriving from the car park area.

A space dedicated to the collection of

or stormwater that will be re-used on the site.

To provide for the storage of water collection tanks.

Water tank or tanks are to be fully sealed, secured and provide for access by Camden Council only in order to maintain the tank in conjunction with associated connections.

To be suitably located for gravity fed water collection and distribution.

A space dedicated to the arrival of pedestrians to the building.

To provide a covered area to gather and shelter from weather on arrival.

The space is to be a memorable location for visitors and locals with connection to people and place. This is also a space to park prams, bikes, mobility scooters and similar.

Indirectly

The Outdoor Covered Gathering Place for the Building Nominal 50 People Standing

A space dedicated to the gathering of people as an extension of the internal Community Hall area.

To provide a covered area to gather on the north side of the building.

It is important that the Court Yard is securely fenced, with double gate access for vehicles arriving from the car park area.

To protect the full external perimeter at the base of the external face of the Building.

Construct a cold tooled joint between the concrete surround and the external face of the building construction. Fall the concrete away from building. Ensure a solid compacted base and continuous concrete edge thickening to the outside edge of the concrete surround.

A covered external space that has a concrete surface finish or segmental pavement surface finish with a minimum width of 1,200 mm does not require a concrete surround.

Directly Connected to: Community Centre Building | Landscaped Area

Indirectly Connected to: Other Hard Stands

Camden Council Open Space Design Manual

A space dedicated to the collection of waste generated from the use of the building.

To provide for the storage of all required appropriate enclosed bin receptacles.

To provide for access by users of the building to deliver waste to the space.

To provide for access by Camden Council to collect waste.

To be suitably enclosed to prevent access and harbourage of pests and vermin, polluted wastewater runoff and unpleasant odour.

The area is either required to have a roof that covers the space to its full extent, or the floor surface must fall to drain to the sewer

This uncovered or covered area can be, but is not required to be, attached to the main building.

Locate near the Kitchen where most of the waste is generated for this building.

Locate adjacent a Minimum 3,000 mm wide, 12,500 mm long and 4,500 mm high clear Vehicle Hardstand.

A minimum 1,600 mm wide direct access with smooth ground | floor surface finish is required to access the Waste Collection space from the Vehicle Hardstand.

The Vehicle Hardstand and access areas may have multiple uses, so long as they are always available to be accessed by a waste collection vehicle at the times that they visit.

Directly Connected to: Access Area | Vehicle Hardstand | Kitchen

Indirectly Connected to: Community Centre | Court Yard

Twice the Area of the bins housed there Specific to Number of Bins Specific to Number of Bins

Specific to the Height of the Largest Bin when it has its Lid Open plus Nominal 1,000mm or 2,600mm - Whichever is Higher

Camden Council Waste Management Guidelines with specific reference to Commercial Development | Commercial Premises | Community Facility requirements.

For storage of all required bin receptacles refer to Clause 4.4 Multi-Dwelling Housing as well as Clause 4.6 Mixed Use Developments

Sydney Water Trade Waste requirements.

AS4674 Design, Construction and Fit-Out of Food Premises Where construction requirements for waste storage areas [enclosed spaces and open] relate to food premises.

Type 3 can be used with Low Level and High Level Walls The motorised system is required to be able to be accessed from the inside or outside.

Opening Hardware Confirm with Camden Council, including the Waste Team, prior to commencement of works.

Ensure doors or gates are to be able to be left open while waste is collected and carried through.

Ensure a card reader is located adjacent the opening for security and access.

INTERNAL AREAS

A space dedicated to the arrival of pedestrians to the inside of the building.

To provide a fully enclosed area to gather on arrival.

The space is to be a memorable location for visitors and locals which connects people with place. Include open clear wall space with a hanging rail for hanging artwork and similar.

Directly Connected to: Covered Forecourt | Community Hall

Indirectly Connected to: Female Toilet | Male Toilet | Universal Access Toilet

The Area for Community Members to Gather for Events Minimum 100 People Seated

A space dedicated for the use of functions and events attended by community members.

To provide a fully enclosed multi-functional area that opens directly to the Court Yard outside.

The Community Hall is the hub of the Community Centre and known as the Main Hire Area. All other associated areas, including the Kitchen and Stores, should all open directly to the Community Hall.

Dividing the Community Hall Main Hire Area with operable walls or similar to create smaller 'flexible' hireable spaces is not suitable. Smaller spaces will not be used.

Exposed structural elements such as cross beams and similar at high level are not suitable in this space.

Window Glazed Aluminium Frame Clear Anodised or Powdercoat

Insect Screen Stainless Steel Mesh or Perforated Panel with Aluminium Frame Powdercoat Black To Full Extent of Window Opening

Opening Hardware Confirm with Camden Council prior to commencement of works.

Locate in Wall on North Side of Building

The Window may be Operable

White Colours are not suitable

White Colours are not suitable

Ensure a card reader is located on the external face of the wall to each space adjacent all door openings for security and access.

Fixtures None r Fix to Structural Steel Column or Low Level Wall

Fittings None r Confirm requirements with Camden Council

Equipment None r r

Fixed Furniture Mirrored Panels to One Wall for nominal 5000mm length and nominal 2400 mm height. With solid panel or panels that can slide over the mirrored area to its full extent, or slide to the side of them depending on use.

Loose Furniture Not Included in the Delivery of the Building r Supply by Others

Fire Blanket, Fire Extinguisher, Fire Hydrant, Fire Hose Reel, Sprinklers or similar

The Area for the Preparation of Food and Beverages Nominal 20 People Standing

A space dedicated for the preparation of various types of food and beverages.

To provide a fully enclosed area with seamless impervious surfaces.

The Kitchen is required to be fully compartmentalised from the rest of the spaces in the building and sealed from access by pests and vermin.

It is noted that this area is defined as a space for the sale of food and is required to be designed and constructed to suit regulatory requirements for this purpose.

This large kitchen area is to be designed with ample space for bringing people together.

Directly Connected to: Community Hall | Store | Waste Collection

Indirectly Connected to: Female Toilet | Male Toilet | Toilet for Use by All

It is important that openings are able to be sealed to eliminate access by pests.

It is noted that hinged doors are a permissible alternative to roller shutters to seal the opening to serveries.

It is noted that an insect screen provides a sealed solution to any opening.

It is not permissible to include a Servery or shutter connecting from the Kitchen to another space.

It is not permissible to design a louvre as an opening type in this space.

Water Trade Waste Requirements

Consultation with Camden Council to establish specific requirements.

All materials and the joints between each are to be SMOOTH - IMPERVIOUS - EASY TO CLEAN

It is not permissible to include ceiling drop panels in this space.

It is not permissible to include shadow line edges in this space.

One Leaf To Full Extent of External Door Window Glazed Aluminium Frame

Locate in Wall on North Side of Building

The Window may be Operable but a louvre is not permissible

White Colours are not suitable

Incorporate pest exclusion devices such as Insect Screens and Weather Strips to All Windows to Kitchen

Insect Screen Stainless Steel Mesh or Perforated Panel with Aluminium Frame Powdercoat Black To Full Extent of Window Opening White Colours are not suitable

Opening Hardware Confirm with Camden Council prior to commencement of works.

Incorporate pest exclusion devices

Ensure a card reader is located on the external face of the wall to each space adjacent all door openings for security and access.

Equipment

Soap Dispenser One Locate with Hand Wash Basin

Nominal 900 mm wide

Commercial Grade Free

Standing Cooker with Legs to raise Base of Cooker 150mm Minimum above Finished Floor Level

Nominal 900 mm wide Rangehood One Locate directly above Cooker Vent to Outside

Boiling Water Unit

Nominal 900 mm wide 1,800 mm high Two Door Vertical Refrigerator Unit

Equipped with timer or automatic shutoff when not in use

Refrigerator at the top and Freezer at the base of Unit

Microwave Two r

Provision of Service Connection for a Commercial Coffee Machine

Supply of Coffee Machine by Others

NO DISHWASHER TO BE INSTALLED r A Dishwasher in this space is not suitable

Fixed Furniture Stainless steel benches to full extent of internal walls with integrated splashbacks and sinks.

One integrated double bowl sink

One integrated single bowl sink

INTEGRATED SINKS

or storage under benches are required

WATER SOURCE One single sink for general purpose use, but not for cleaning or hand washing, located near the proposed coffee machine or similar place where water needs to be sourced for use. This water cannot be taken from the cleaning sink.

CLEANING One double bowl sink for cleaning and sanitising equipment. Each bowl should be big enough to hold the largest piece of equipment in the kiosk, such as a really big pan. There needs to be a space for ‘loading’ [stacking dirty dishes] on one side and ‘drainage’ [drying clean dishes] on the other side.

Nominal 2,000 mm long x 1,200 mm wide Stainless Steel Island Bench One Locate Central to Space

NOTE As much bench space as possible is required in this space.

No underbench storage, cupboard space or shelves are required.

Loose Furniture Not Included in the Delivery of the Building r Supply by Others

Lighting Light Fitting As Required In Ceiling

Flush Mount and Fully Seal between Kitchen Space and Ceiling Space

Power Double Power Outlet As Required Flush Mount and Fully Seal

Communications Communication Outlet As Required Flush Mount and Fully Seal

Heating Ducted or Split System As Required Flush Mount and Fully Seal

Cooling Ducted or Split System As Required Flush Mount and Fully Seal

Ventilation Natural Ventilation As Required Window

Security Connect to Building Security System As Required

Fire Fire Blanket, Fire Extinguisher, Fire Hydrant, Fire Hose Reel, Sprinklers or similar As Required

NOTE

Install a continuous collar around all locations where any pipe or ductwork penetrates the wall or ceiling to the space.

Flush Mount and Fully Seal all penetrations to the Kitchen, including penetrations made for service connections such as power outlets. Ensure that there are no penetrations in the light fittings to create a connection between the Kitchen and Ceiling space when a light bulb is changed.

Water Hot and Cold Water to All Taps All water connections direct to the Water Main As Required All Fixtures and Equipment required to be connected to water.

Taps (including basin) to deliver water through one common spout.

Waste Water All waste water connections direct to the Sewer Main or approved on-site sewage management system As Required All Fixtures and Equipment required to be connected to a waste for water Floor Waste One On the floor directly in front of the double bowl sink

Gas Use of permanent gas appliances should be avoided in all new buildings None All Fixtures and Equipment required to be electric

The Area for the Self Service Tea Making and Similar Not Applicable

A space dedicated for use by community members to prepare drinks or heat food.

To provide an area that can be used as an alternative to installing a full size kitchen to a Community Centre.

A Kitchenette is not required to be connected to a Community Hall area if a Kitchen is included in the design of the building to be connected to a Community Hall area.

A Kitchenette may be required by the use of the building to be connected to other spaces of the building.

A Kitchenette is defined as a space for self service where food is not for sale and as such is not required to adhere to food safety regulations.

Camden Council Consultation with Camden Council to establish specific requirements.

Boiling Water Unit

Fixed Furniture Kitchenette cabinetwork with enclosed cupboard space below and enclosed cupboard space above bench top. No open shelves.

Glass Splashback with Standard Colour Backing

Equipped with timer or automatic shutoff when not in use

Compact laminate doors as well as drawer fronts and laminate finish to cabinet work

length of kitchenette bench top and full height between top of bench and high level cupboards

wastewater producing fixtures and fittings required to be connected.

Gas Use of permanent gas appliances should be avoided in all new buildings

The Area for Female Community Members to Use the Toilet Specific to the Building

A space dedicated for the use of female members of the community, including young children, to use the toilet.

To provide a fully enclosed area for provision of toilet facilities.

Ensure that there is not a line of sight from outside the entry to the Toilet Area to the Internal Layout of the Toilet Area by incorporating a wall switchback or similar.

Directly Connected to: Shared Wash Area | Community Hall

Indirectly Connected to: Court Yard

Camden Council AS1428 Design for Access and Mobility

Consultation with Camden Council to establish specific requirements.

Opening

Confirm with Camden Council prior to commencement of works.

Colours are not

Specification of fitout items and installation of those items are all required to comply with AS1428 where applicable.

The Area for Male Community Members to Use the Toilet Specific to the Building

A space dedicated for the use of male members of the community, including young children, to use the toilet.

To provide a fully enclosed area for provision of toilet facilities.

Ensure that there is not a line of sight from outside the entry to the Toilet Area to the Internal Layout of the Toilet Area by incorporating a wall switchback or similar.

Directly Connected to: Shared Wash Area | Community Hall

Indirectly Connected to: Court Yard

Opening Hardware Confirm with Camden Council prior to commencement of works.

Specification of fitout items and installation of those items are all required to comply with AS1428 where applicable. T Y P E Description Number NOTE Fixtures Toilet As Required

Urinal As Required Partitions to the Urinal are Not Required

Connect Toilets and Urinal to Service Duct.

In-Wall Panel Access to Toilet and Urinal Services are not suitable.

Fittings Toilet Roll Holder As Required to Match the Number of Toilets

As Required to Match the Number of Toilets

r

Central to Back of Each Toilet Cubicle Door

Fire Extinguisher, Fire Hydrant, Fire Hose Reel, Sprinklers or similar

Area for Use by All as Toilet and Change Facilities One

A space dedicated for use by anyone including young children.

To provide a fully enclosed area for provision of universally accessible toilet facilities in accordance with AS1428 as well as change facilities for all ages including young children.

Directly Connected to: Shared Wash Space | Community Hall

Indirectly Connected to: Court Yard

The Area for Use by All to Wash Hands Specific to Building

A space dedicated for use by anyone including young children.

To provide a partially enclosed area for provision of hand washing facilities for all ages including young children and particularly for those using the Female Toilet and Male Toilet.

This space may be internal and not connected directly to the outside by a window.

The hand washing facilities in this space are not required to comply with AS1428.

The Area for Storage of Equipment by the Community Not Applicable

A space dedicated for use by community members hiring the facility to store their equipment.

To provide a fully enclosed and secure area for storing equipment. This may include larger and smaller items.

The Store will be used as a secondary hire area where groups or individuals who hire the Community Hall, also known as the Main Hire Area, will store items relating to their activities.

No services including cleaners sinks or electrical equipment are to be located within the store.

Directly Connected to: Community Hall

Indirectly Connected to: Entry Foyer

The Area for Storage of Equipment by the Community Not Applicable

A space dedicated for use by community members hiring the facility to store their equipment.

To provide a fully enclosed and secure area for storing equipment. This may include larger and smaller items.

The Store will be used as a secondary hire area where groups or individuals who hire the Community Hall, also known as the Main Hire Area, will store items relating to their activities. No services including cleaners sinks or electrical equipment are to be located within the store.

Directly Connected to: Community Hall

Indirectly Connected to: Entry Foyer

Confirm with Camden Council prior to commencement of works.

a card reader is located on the external face of the wall to the space adjacent the door opening for security and access.

The Area for Storage of Equipment by the Community Not Applicable

A space dedicated for use by community members hiring the facility to store their equipment.

To provide a fully enclosed and secure area for storing equipment. This may include smaller items.

The Store will be used as a secondary hire area where groups or individuals who hire the Community Hall, also known as the Main Hire Area, will store items relating to their activities.

This small store may be a cabinet.

No services including cleaners sinks or electrical equipment are to be located within the store.

Directly Connected to: Community Hall

Indirectly Connected to: Entry Foyer

Confirm with Camden Council prior to commencement of works.

a card reader is located on the external face of the wall to the space adjacent the door opening for security and access.

Council Consultation with Camden Council to establish specific requirements.

Fixed Furniture Cabinetwork to match the dimensional requirements for a Small Store One Lockable cupboard space or lockable storage area.

Cupboard space to have Compact Laminate doors with Laminate Finish to Carcass and Melamine Finish to Shelves

Loose Furniture Not Included in the Delivery of the Building r Supply by Others

The Area for Storage of Furniture by Camden Council Not Applicable

A space dedicated to store furniture owned by Camden Council that is used by Community Members hiring the Community Centre.

To provide a fully enclosed and secure area for storing furniture. This may include larger and smaller items such as tables, chairs, trolleys and the like. Ensure that furniture store room is large enough to accommodate the furniture requirements of the facility at seated capacity.

The Store will be used an area where groups or individuals who hire the Community Hall, also known as the Main Hire Area, will access the store to use the furniture therein.

No services including cleaners sinks or electrical equipment are to be located within the store.

Directly Connected to: Community Hall

Indirectly Connected to: Entry Foyer

Camden Council Consultation with Camden Council to establish specific requirements.

The Area for Cleaners Storage One Person Standing

A space dedicated for use by Camden Council to store cleaning items for the building.

To provide a fully enclosed area for storing cleaning equipment and products.

Connecting the Cleaners Store directly to the Female Toilet, Male Toilet, Universal Access Toilet, Shared Wash Area, Entry Foyer, Kitchen or any other store is not suitable.

Directly Connected to: To Suit Building

Indirectly Connected to:

Opening Hardware Confirm with Camden Council prior to commencement of works.

Camden Council Consultation with Camden Council to establish specific requirements.

The Area for Electrical Equipment Servicing the Building Not Applicable

A space dedicated for locating electrical services such as distribution boards and the like.

To provide a fully enclosed area for electrical boards, mechanical boards and similar. No other

Directly

Indirectly Connected to:

The Area for Operational Equipment Servicing the Building Not Applicable

A space dedicated for locating operational services such as distribution boards and the like.

To provide a fully enclosed area for irrigation controls and other services.

No other item is permitted to be located within this space.

Directly Connected to: To Suit Building

Indirectly Connected to:

The Area to House Services Connecting to Toilets Not Applicable

A space dedicated for locating services connecting to toilets, including flushing systems and the like.

To provide a fully enclosed area for these and other similar services.

This space is a separate room and not an enclosed space within the toilet areas that is accessed though a wall panel.

A door to this space from a Female Toilet, Male Toilet or Universal Access Toilet is not suitable. Ensure there is a minimum 600mm wide clear area in the duct to manoeuvre in the space to service the equipment, fixtures and fittings located there.

Directly Connected to: Outside

Indirectly Connected to: Female Toilet | Male Toilet | Universal Access Toilet

Camden Council Consultation with Camden Council to establish specific requirements.

7.0 APPENDIX B DATA SHEETS

SPORTS FACILITY BUILDING

The following are the areas that combine to make up a Sporting Facility Building. The dimensions and areas for each space are nominal requirements. Confirm final dimensions and area requirements with Camden Council. The following areas are internal dimensions.

7.2 Data Sheets

HOW TO READ THE DATA SHEETS

Each individual space has a data sheet.

A datasheet describes the purpose of the space as well as the requirements of the space.

If a requirement is not included, it is generally an item that can be determined specific to the individual project.

All vertical heights are measured above the main horizontal surface level directly below the item.

Refer to the Parts Schedule for specification of particular Fixtures, Fittings, Equipment and the like that are required to be incorporated in Camden Council Public Buildings.

 This Icon means that a decision can be determined that is specific to the individual project.

r This Icon means that there is no comment to be provided or that the item is not applicable.

A space dedicated to the arrival of pedestrians to the building.

To provide an uncovered area to gather on arrival.

The space is to be a memorable location for visitors and locals with connection to people and place. The space should be able to be trafficked by vehicles.

Indirectly Connected to: Car Park

The Collection of Waste for the Building Not Applicable

A space dedicated to the collection of waste generated from the use of the building.

To provide for the storage of all required appropriate enclosed bin receptacles.

To provide for access by users of the building to deliver waste to the space.

To provide for access by Camden Council to collect waste.

To be suitably enclosed to prevent access and harbourage of pests and vermin, polluted wastewater runoff and unpleasant odour.

The area is either required to have a roof that covers the space to its full extent, or the floor surface must fall to drain to the sewer

This uncovered or covered area can be, but is not required to be, attached to the main building.

Locate near the Kitchen where most of the waste is generated for this building.

Locate adjacent a Minimum 3,000 mm wide, 12,500 mm long and 4,500 mm high clear Vehicle Hardstand.

A minimum 1,600 mm wide direct access with smooth ground | floor surface finish is required to access the Waste Collection space from the Vehicle Hardstand.

The Vehicle Hardstand and access areas may have multiple uses, so long as they are always available to be accessed by a waste collection vehicle at the times that they visit.

Directly Connected to: Access Area | Vehicle Hardstand | Kiosk | Canteen

Indirectly Connected to: Sports Fields

Twice the Area of the bins

there Specific to Number of Bins, no smaller than 3m.

to Number of Bins, no smaller than 3m. Specific to the Height of the Largest Bin when it has its Lid Open plus Nominal 1,000mm or 2,600mm - Whichever is Higher

Camden Council Waste Management Guidelines with specific reference to Commercial Development | Commercial Premises | Community Facility requirements

For storage of all required bin receptacles refer to Clause 4.4 Multi-Dwelling Housing as well as Clause 4.6 Mixed Use Developments

Sydney Water Trade Waste requirements.

AS4674 Design, Construction and Fit-Out of Food Premises Where construction requirements for waste storage areas [enclosed spaces and open] relate to food premises.

Type 3 can be used with Low Level and High Level Walls

The motorised system is required to be able to be accessed from the inside or outside.

Opening Hardware Confirm with Camden Council, including the Waste Team, prior to commencement of works.

Ensure doors or gates are to be able to be left open while waste is collected and carried through.

Ensure a card reader is located adjacent the opening for security and access.

Fittings Sign Instructing Users on How to Use the Waste Collection Area

Mains Water or Harvested Non-Potable Rain Water Collection

to Hose Cock

Column or

Level

Confirm requirements with Camden Council

The Storage Area for a Water Tank Specific to the Building

A space dedicated to the collection of rain or stormwater that will be re-used on the site.

To provide for the storage of water collection tanks.

Water tank or tanks are to be fully sealed, secured and provide for access by Camden Council only in order to maintain the tank in conjunction with associated connections.

To be suitably located for gravity fed water collection and distribution.

EXTERNAL AREAS COVERED

A space dedicated to the arrival of pedestrians to the building.

To provide a covered area to gather and shelter from weather on arrival.

The space is to be a memorable location for visitors and locals with connection to people and place. This is also a space to park prams, bikes, mobility scooters and similar.

The Viewing Area from the Building to the Sports Field Specific to the Building

A space dedicated for spectators to view sporting fields associated with the building.

To provide a covered area to gather and shelter from weather to view games.

The space is to be simple, safe and practical for use by spectators of all ages.

Directly Connected to: Spectator Seating | Sports Field

Indirectly Connected to: Car Park | Kiosk | Canteen | First Aid

Directly Connected to: Spectator Seating | Kiosk | Canteen

Indirectly Connected to: Toilets | First Aid

The Area for Use of Mobile Barbecue Equipment Specific to the Building

A space dedicated for users to use a mobile barbecue for the preparation of food.

To provide a covered area to cook barbecue food to supplement the services from the Kiosk | Canteen. This area should connect directly with the Kiosk | Canteen - in other words, a person should be able to move between the two.

A 'guard' in the form of a screen or wall is to be designed and constructed to where the rear side of the barbecue will be located for use. This guard or wall is required to be a minimum height that matches a standard mobile barbecue. It can be designed for use as a servery if the top of the wall is wrapped in a stainless steel finish.

The space is to be simple, safe and practical for use by spectators of all ages.

Fixed barbecue equipment is not suitable in this space.

Directly Connected to: Kiosk | Canteen and its Queuing Area | Barbecue Store

Indirectly Connected to: Spectator Seating

Ceiling | Soffit 9mm Fibre Cement Sheet Paint

Cornice Square Edge Paint

Expressed Joint in Sheet Lining is not suitable

Shadowline is not suitable Structure Structural Steel Frame Galvanised

Fully Enclosed Steel Hollow Section Frame with Steel End Caps

Fixtures Hose Cock One Wall mount in a location adjacent the barbecue area, but not within the area where the barbecue will be located.

A hand basin with tap, soap dispenser and paper towel dispenser must be located within 5 metres of the person standing and using the Barbecue Area.

One The hand basin may be located within the Kiosk | Canteen, However the person using the barbecue must have access to the Kiosk | Canteen.

The hand basin may be portable and if so, it would ideally have warm water.

The hand basin cannot be located within a toilet facility.

Mains Water or Harvested NonPotable Rain Water Connected to Hose

for where the mobile barbecue will be used.

Extinguisher,

Hose Reel, Sprinklers or similar

To protect the full external perimeter at the base of the external face of the Building.

Construct a cold tooled joint between the concrete surround and the external face of the building construction. Fall the concrete away from building. Ensure a solid compacted base and continuous concrete edge thickening to the outside edge of the concrete surround.

A covered external space that has a concrete surface finish or segmental pavement surface finish with a minimum width of 1,200 mm does not require a concrete surround.

Directly

Indirectly

A space dedicated for the Club hiring the space to gather for specific functions such as meetings or events.

To provide a fully enclosed multi-functional area with views to the Sports Field outside.

Directly Connected to: Covered Forecourt

Indirectly Connected to: Sports Field

Council Consultation with User Group to establish specific requirements.

Insect Screen Stainless Steel Mesh or Perforated Panel with Aluminium Frame Clear Anodised or Powdercoat

Full Extent of Window

Opening Hardware Confirm with Camden Council prior to commencement of works.

to be included in Operable Part of Window White Colours are not suitable

Ensure a card reader is located on the external face of the wall to each space adjacent all door openings for security and access.

Fixtures Sink

Locate in Kitchenette Cabinetwork

Locate for Sink in Kitchenette Fittings None r r

Equipment Single Door Small Capacity Refrigerator

Locate in Kitchenette Cabinetwork

Boiling Water Unit One Locate over Sink in Kitchenette

Fixed Furniture Kitchenette

Bench top with one set of drawers and cupboard space below.

High level cupboards above bench.

Glass Splashback between top of bench and underside of high level cupboards to full lenght of bench top.

To have accomodation for a microwave in cabinetry

A kitchenette is defined

Compact laminate doors as well as drawer fronts and laminate finish to cabinet work.

Lockable cupboard space or lockable storage area.

The Area for the Sale of Food and Beverages Specific to the Building

A space dedicated for users of the space to sell various types of food and beverages.

To provide a fully enclosed area with seamless impervious surfaces.

The Kiosk | Canteen is required to be fully compartmentalised from the rest of the spaces in the building and sealed from access by pests.

It is noted that this area is defined as a space for the sale of food and is required to be designed and constructed to suit regulatory requirements for this purpose.

Directly Connected to: Stores | Kiosk | Canteen Queuing Area | Barbecue Area

Indirectly Connected to: Spectator Seating | Waste Collection

It is important that openings are able to be sealed to eliminate access by pests.

It is noted that hinged doors are a suitable alternative to roller shutters to seal the opening to serveries.

It is noted that an insect screen provides a sealed solution to any opening.

It is not suitable to include a Servery or shutter connecting from the Kitchen to another space.

It is not suitable to design a louvre as an opening type in this space.

with Camden Council to establish specific requirements.

All materials and the joints between each are to be

It is not permissible to include ceiling drop panels in this space. It is not permissible to include shadow line edges in

Insect Screen Stainless Steel Mesh or Perforated Panel with Aluminium Frame Powdercoat Black Minimum 850 mm Clear Width to One Leaf To Full Extent of External Door

Window Glazed Aluminium Frame Clear Anodised or Powdercoat

Locate in Wall on North Side of Building

The Window may be Operable

White Colours are not suitable

Insect Screen Stainless Steel Mesh or Perforated Panel with Aluminium Frame Powdercoat Black To Full Extent of Window Opening Screen to be included in Operable Part of Window

Shutter to Servery Heavy duty lockable Roller Shutter with wind clips or Solid Core Timber Hinged Shutter

Shutter Frame to Servery Shutter Track or Pressed Metal Frame

Colorbond to Roller Shutter Paint to Hinged Shutter  Dimensions of Opening to Servery

White Colours are not suitable

Shutter to be located to secure the Servery

Galvanised with Paint  Dimensions of Opening to Servery r

The shutter to the servery should be easy to operate.

It is not suitable to locate an enclosure to house the shutter within the Kiosk | Canteen space.

Security Screen to Servery Steel Framed to full extent of Shutter Galvanised  Width of Opening to Servery

The security screen is to be used as a part security | fly screen with an openable area at its base to pass items across the servery from the Kiosk to the purchaser.

Opening Hardware Confirm with Camden Council prior to commencement of works.

Ensure a card reader is located on the external face of the wall to each space adjacent all door openings for security and access.

Wash Basin

This basin is specifically dedicated for hand washing and must be located within 5 metres of every location a person can stand within the Kiosk | Canteen

Tap to Hand Wash Basin One r

Tap to Sink Two r Fittings Paper Towel Dispenser

Soap Dispenser

Hand Rail for Tea Towel As Required r

Nominal 900 mm wide

Commercial Grade Free

Standing Cooker with Legs to raise Base of Cooker 150mm Minimum above Finished Floor Level

Stove Top with Electric Oven Confirm if required by User Group

Boiling Water Unit One Equipped with timer or automatic shutoff when not in use

Nominal 1,600 mm wide 1,800 mm high Two Door

Vertical Refrigerator Unit

Nominal 900 mm wide 1,800 mm high Single Door Vertical Freezer Unit

Pie Oven | Warmer

Provision of Service Connection for a Commercial Coffee Machine

Supply by Others

by

of Coffee Machine by Others

NO DISHWASHER TO BE INSTALLED r A Dishwasher in this space is not suitable

Fixed Furniture Stainless steel benches to full extent of internal walls with integrated splashbacks and sinks.

One integrated double bowl sink

One integrated single bowl sink One No shelving or storage under benches are required

INTEGRATED SINKS

WATER SOURCE One single sink for general purpose use, but not for cleaning or hand washing, located near the proposed coffee machine or similar place where water needs to be sourced for use. This water cannot be taken from the cleaning sink.

CLEANING One double bowl sink for cleaning and sanitising equipment. Each bowl should be big enough to hold the largest piece of equipment in the kiosk, such as a really big pan. There needs to be a space for ‘loading’ [stacking dirty dishes] on one side and ‘drainage’ [drying clean dishes] on the other side.

Bucket traps required to all integrated sinks.

3,000 mm long Stainless Steel Servery Counter

r Stainless Steel Cash Drawers

Under Bench at Servery Loose Furniture Not Included in the Delivery of the Building r Supply by Others

All wastewater producing fixtures and fittings required to be connected.

Hot and Cold Water to All Taps All water connections direct to the Water Main As Required All Fixtures and Equipment required to be connected to water Taps (including basin) to deliver water through one common spout. Waste Water All waste water connections direct to the Sewer Main or approved on-site sewage management system

NOTE Waste water from cleaning the room is to go down a floor waste away from where food will be handled. Locate floor waste directly in front of the double bowl sink where cleaning will be done.

Do not locate open tundishes within Kiosk | Canteen. Gas Use of permanent gas appliances should be avoided in all new buildings

All Fixtures and Equipment required to be electric

Connect to Building Security System

Fire Blanket, Fire Extinguisher, Fire Hydrant, Fire Hose Reel, Sprinklers or similar

NOTE Install a continuous collar around all locations where any pipe or ductwork penetrates the wall or ceiling to the space.

Flush Mount and Fully Seal all penetrations to the Kitchen, including penetrations made for service connections such as power outlets. Ensure that there are no penetrations in the light fittings to create a connection between the Kiosk | Canteen and Ceiling space when a light bulb is changed.

The Area for Exclusive Use by Referees Specific to the Building

A space dedicated for use by referees as a change room and to store personal items.

To provide a fully enclosed area that has the ability to be used by a multiple number of referees before, during and after games played on associated Sports Fields.

As such, the Referees Room should have direct and clear access to the Sports Field.

It is important that the Referees Room is located away from the players Change Rooms. For instance, at opposite ends of the building.

Indirectly Connected

A space dedicated for use to apply first aid for injuries.

To provide a fully enclosed area that can be a clean and reasonably sterile space for tending to those who are injured.

This space is required to have direct access to enable emergency service personnel to transport stretchers on wheels with no impediments.

Directly Connected to: Kiosk | Canteen

Indirectly Connected to: Sports Field | Spectators Stand

Camden Council Consultation with User Group to establish specific requirements.

A space dedicated for use by players to gather for game preparation and discussion.

To provide a fully enclosed area that has the ability for multiple players, their coaches and associated parties to use before, during and after games played on an associated Sports Field.

Depending on the level and use of the facility there may be a requirement for up to 4 change rooms to accommodate male and female use at same time – noting that all changerooms should be interchangeable for genders.

The area required for bench space and ancillary facilities may vary depending on the sport that the building is designed to support. For instance, cricketers with long kit bags for their larger size kit will require more space to prepare than those preparing to play a game of tennis.

This space is required to be extremely hard wearing.

Ensure that there is not a line of sight from outside the entry to the Change Room to the Internal Layout of the Change Room by incorporating a wall switchback or similar.

Ensure that all spaces designated as shower cubicles are concealed for individual privacy. A shared shower space is not suitable.

It is important that the Referees Room is located away from the players Change Rooms. For instance, at opposite end of the building.

Camden Council Consultation with User Group to establish specific requirements.

Sign to Entry – A sign with the ability to slide across to change from saying ‘FEMALE’ to ‘MALE’

Sign to Entry – A sign with the ability to slide across to change from saying ‘HOME’ to ‘AWAY’

Furniture Toilet Partition including all associated fittings, door hardware and the like

Shower Partition with Seat including all associated fittings, door hardware and the like

Mounted Bench

with Front Leg to Floor

Bench Seat to be typically U-Shaped, particularly for Team Sport requirements. Ensure that the players can sit on the bench seat and the coach can stand central to speak with them. Loose Furniture Not Included in the Delivery of the Building r

The Area for Female Members of the Public to Use the Toilet Specific to the Building

A space dedicated for the use of female members of the community, including young children, to use the toilet.

To provide a fully enclosed area for provision of toilet facilities.

Ensure to increase the number of toilets to this space if the building is servicing the needs of predominantly female sports whose players may be using the facility. This is particularly applicable to Netball Courts.

Ensure that there is not a line of sight from outside the entry to the Toilet Area to the Internal Layout of the Toilet Area by incorporating a wall switchback or similar.

Hot and Cold Water to All Taps

water connections direct to the Water Main

All waste water connections direct to the Sewer Main or approved on-site sewage management system

Required All Fixtures and Equipment required to be connected to water

Directly Connected to: Spectator Seating | Kiosk | Canteen Queuing Area

Indirectly Connected to: Sports Field

Required All wastewater producing fixtures and fittings required to be connected.

Standards Camden Council AS1428 Design for Access and Mobility Consultation with Camden Council to establish specific requirements.

Specification of fitout items and installation of those items are all required to comply with AS1428 where applicable.

The Area for Male Community Members to Use the Toilet Specific to the Building

A space dedicated for the use of male members of the community, including young children, to use the toilet.

To provide a fully enclosed area for provision of toilet facilities.

Ensure that there is not a line of sight from outside the entry to the Toilet Area to the Internal Layout of the Toilet Area by incorporating a wall switchback or similar.

Hot and Cold Water

All Taps All water connections direct to the Water Main

Water All waste water connections direct to the Sewer Main or approved on-site sewage management system

Required All Fixtures and Equipment required to be connected to water

Directly Connected to: Spectator Seating | Kiosk | Canteen Queuing Area

Indirectly Connected to: Sports Field

Required All wastewater producing fixtures and fittings required to be connected.

Australian Standards Camden Council AS1428 Design for Access and Mobility Consultation with Camden Council to establish specific requirements.

Opening Hardware Confirm with Camden Council prior to commencement of works.

Specification of fitout items and installation of those items are all required to comply with AS1428 where applicable.

Fixtures Toilet As Required r

Toilet Minimum One r

As Required Partitions to the Urinal are Not Required

Connect Toilets and Urinal to Service Duct.

In-Wall Panel Access to Toilet and Urinal Services are not suitable.

Fittings Toilet Roll Holder As Required to Match the Number of Toilets Required r Hook As Required to Match the Number of Toilets

Required

Rail

Locate Central to Back of Each Toilet Cubicle Door

r Equipment None r r Fixed Furniture Toilet Partition including all fittings, door hardware and the like As Required to Match the Number of Toilets Required Compact Laminate Partition System

Loose Furniture Not Included in the Delivery of the Building r Supply by Others

The Area for Use by All to Wash Hands Specific to Building

A space dedicated for use by anyone including young children.

To provide a partially enclosed area for provision of hand washing facilities for all ages including young children and particularly for those using the Female Toilet and Male Toilet.

The hand washing facilities in this space are not required to comply with AS1428.

Hot and Cold Water to All Taps

All water connections direct to the Water Main

Required All Fixtures and Equipment required to be connected to water Waste Water All waste water connections direct to the Sewer Main or approved on-site sewage management system

Directly Connected to: Female Toilet | Male Toilet | Spectator Seating Indirectly Connected to: Sports Field

All wastewater producing fixtures and fittings required to be connected.

Council Consultation with Camden Council to establish specific requirements.

The Area for Storage of Equipment by the User Group Not Applicable

A space dedicated for use by the User Group hiring the facility to store their equipment.

To provide a fully enclosed and secure area for storing sporting equipment. This may include larger and smaller items such as line markers, ride on lawn mowers as well as posts or similar.

Note that this space is not required to be within the building envelope of the Club House.

As an alternative, it can be located as part of a separate building in a location agreed with Camden Council.

It is important to liaise with user groups to establish requirements for the store.

No electrical equipment is to be located within the store.

Directly Connected to: Vehicle Access

Indirectly Connected to: Sports Field

The Area for Storage of Items Relating to the Kiosk | Canteen by the User Group Not Applicable

A space dedicated for use by the User Group hiring the facility to store dry items relating to the Kiosk | Canteen.

To provide a fully enclosed and secure area for storing dry items such as food and the like on shelves or similar.

It is important to liaise with user groups to establish requirements for the store.

No services including cleaners sinks or electrical equipment are to be located within the store.

Directly Connected to: Kiosk | Canteen

Indirectly Connected to: Barbecue Area

Camden Council Consultation with User Group to establish specific requirements.

with Camden Council prior to commencement of works.

The Area for Storage of Furniture by Camden Council Not Applicable

A space dedicated to store furniture owned by Camden Council that is used by Community Members hiring the Community Centre.

To provide a fully enclosed and secure area for storing furniture. This may include larger and smaller items such as tables, chairs, trolleys and the like.

The Store will be used an area where groups or individuals who hire the Community Hall, also known as the Main Hire Area, will access the store to use the furniture therein.

No services including cleaners sinks or electrical equipment are to be located within the store.

Camden Council Consultation with Camden Council to establish specific requirements.

The Area for Storage of a Mobile Barbecue + Gas Bottles by the User Group Not Applicable

A space dedicated for use by the User Group hiring the facility to store their mobile barebeque and its gas bottle.

To provide a fully enclosed and secure area for storing a standard size external use mobile gas powered barbecue. The enclosed space is required to be sealed from access by pests.

No services including cleaners sinks or electrical equipment are to be located within the store.

Sprinklers or similar

Directly Connected to: Barbecue Area

Indirectly Connected to: Kiosk | Canteen

Camden Council Consultation with User Group to establish specific requirements.

The Area for Cleaners Storage One Person Standing

A space dedicated for use by Camden Council or their cleaning contractor to store cleaning items for use in cleaning the building.

To provide a fully enclosed and secure area for storing cleaning equipment and products.

No electrical equipment are to be located within the store.

Connecting the Cleaners Store directly to the Female Toilet, Male Toilet, Universal Access Toilet, Shared Wash Area, Entry Foyer, Kitchen or any other store is not suitable.

Directly Connected

Indirectly

Council Consultation with User Group to establish specific requirements.

The Area for Electrical Equipment Servicing the Building Not Applicable

A space dedicated for locating electrical services such as distribution boards and the like.

To provide a fully enclosed area for electrical boards, mechanical boards and similar. No other item is permitted to be located within this space.

Directly Connected to: To Suit Building

Indirectly Connected to:

Camden Council Consultation with Camden Council to establish specific requirements.

The Area for Operational Equipment Servicing the Building Not Applicable

A space dedicated for locating operational services such as distribution boards and the like.

To provide a fully enclosed area for irrigation controls and other services.

No other item is permitted to be located within this space.

Note that this space is not required to be within the building envelope of the Club House.

As an alternative, it can be located as part of a separate building in a location agreed with Camden Council.

Directly Connected

Indirectly Connected

The Area to House Services Connecting to Toilets Not Applicable

A space dedicated for locating services connecting to toilets, including flushing systems and the like.

To provide a fully enclosed area for these and other similar services.

This space is a separate room and not an enclosed space within the toilet areas that is accessed though a wall panel.

A door to this space from a Female Toilet, Male Toilet or Universal Access Toilet is not suitable. Ensure there is a minimum 600mm wide clear area in the duct to manoeuvre in the space to service the equipment, fixtures and fittings located there.

Council Consultation with Camden Council to establish specific requirements.

8.0 APPENDIX C DATA SHEETS SPACE FOR SERVICE PROVIDERS

are the areas that combine to make up Space for Service Providers.

8.2 Data Sheets

HOW TO READ THE DATA SHEETS

Each individual space has a data sheet.

A datasheet describes the purpose of the space as well as the requirements of the space. If a requirement is not included, it is generally an item that can be determined specific to the individual project.

All vertical heights are measured above the main horizontal surface level directly below the item.

Refer to the Parts Schedule for specification of particular Fixtures, Fittings, Equipment and the like that are required to be incorporated in Camden Council Public Buildings.

 This Icon means that a decision can be determined that is specific to the individual project.

r This Icon means that there is no comment to be provided or that the item is not applicable.

A space dedicated to the arrival of pedestrians to the building.

To provide an uncovered area to gather on arrival.

The space is to be a memorable location for visitors and locals with connection to people and place. The space should be able to be trafficked by vehicles.

Indirectly Connected to: Public Transport

A space dedicated to the collection of rain or stormwater that will be re-used on the

To provide for the storage of water collection tanks.

Water tank or tanks are to be fully sealed, secured and provide for access by Camden Council only in order to maintain the tank in conjunction with associated connections.

To be suitably located for gravity fed water collection and distribution.

Connected to: Space for Service Providers

EXTERNAL AREAS COVERED

A space dedicated to the arrival of pedestrians to the building.

To provide a covered area to gather and shelter from weather on arrival.

The space is to be a memorable location for visitors and locals with connection to people and place. This is also a space to park prams, bikes, mobility scooters and similar.

Indirectly

The Area for Pedestrian Traffic Around the Building Specific to Building

To protect the full external perimeter at the base of the external face of the Building.

Construct a cold tooled joint between the concrete surround and the external face of the building construction. Fall the concrete away from building. Ensure a solid compacted base and continuous concrete edge thickening to the outside edge of the concrete surround.

A covered external space that has a concrete surface finish or segmental pavement surface finish with a minimum width of 1,200 mm does not require a concrete surround.

Directly Connected to: Community Centre Building | Landscaped Area

Indirectly Connected to: Other Hard Stands

Camden Council Open Space Design Manual

A space dedicated to the collection of waste generated from the use of the building.

To provide for the storage of all required appropriate enclosed bin receptacles.

To provide for access by users of the building to deliver waste to the space.

To provide for access by Camden Council to collect waste.

To be suitably enclosed to prevent vermin, polluted wastewater runoff and unpleasant odour.

The area is either required to have a roof that covers the space to its full extent, or the floor surface must fall to drain to the sewer, or the fall to drain to an adjacent landscaped area.

This uncovered or covered area can be, but is not required to be, attached to the main building.

Locate near the Kitchen where most of the waste is generated for this building.

Locate adjacent a Minimum 3,000 mm wide, 12,500 mm long and 4,500 mm high Vehicle Hardstand.

A minimum 1,600 mm wide direct access with smooth ground | floor surface finish is required to access the Waste Collection space from the Vehicle Hardstand.

The Vehicle Hardstand and access areas may have multiple uses, so long as they are always available to be accessed by a waste collection vehicle at the times that they visit.

Directly Connected to: Access Area | Vehicle Hardstand | Kitchen

Indirectly Connected to: Community Centre | Court Yard

Twice the Area of the bins housed there Specific to Number of Bins Specific to Number of Bins

Specific to the Height of the Largest Bin when it has its Lid Open plus Nominal 1,000mm or 2,600mm - Whichever is Higher

Camden Council Waste Management Guidelines with specific reference to Commercial Development | Commercial Premises | Community Facility requirements.

For storage of all required bin receptacles refer to Clause 4.4 Multi-Dwelling Housing as well as Clause 4.6 Mixed Use Developments Sydney Water Trade Waste requirements.

AS4674 Design, Construction and Fit-Out of Food Premises Where construction requirements for waste storage areas [enclosed spaces and open] relate to food premises.

Opening Hardware Confirm with Camden Council, including the Waste Team, prior to commencement of works.

Ensure doors or gates are to be able to be left open while waste is collected and carried through.

Ensure a card reader is located adjacent the opening for security and access.

INTERNAL AREAS

A space dedicated to the arrival of pedestrians to the inside of the building.

To provide a fully enclosed area to gather on arrival.

The space is to be a memorable location for visitors and locals which connects people with place. Include open clear wall space with a hanging rail for hanging artwork and similar.

Include a place where items bought to the space by visitors can be stored while they are visiting service providers. Items may include prams, bags and similar.

Include an open clear wall space with a hanging rail for hanging artwork.

The Area for Employees of Service Providers Nominal 5 People Seated

A space dedicated for use by employees of service providers to work.

To provide a fully enclosed multi-functional area for either lease to a single service provider or for lease to several service providers as a 'hot spot' type set of work stations.

The space is to open directly to the Entry Space as well as to the Covered Forecourt.

The space should also have a direct access to the Private Meeting Space and the Store.

Directly Connected to: Covered Forecourt | Entry Space | Store | Private Meeting Space

Indirectly Connected to: Public Meeting Space | Kitchenette

Camden Council Consultation with Camden Council to establish specific requirements.

The Area for Use by Members of the Public Nominal 10 People Seated

A space dedicated for hire by employees of service providers and members of the public.

To provide a fully enclosed multi-functional area for short term hire for such use as home work clubs and similar.

The space is to open directly to the Entry Space

Directly Connected to: Entry Space

Indirectly Connected to: Kitchenette

Camden Council Consultation with Camden Council to establish specific requirements.

Area for Use by Service Provider Employees Nominal 3 People Seated

A space dedicated for use by employees of service providers to meet privately with members of the pubic as well as each other.

To provide a fully enclosed multi-functional area for meeting and discussing private matters. The space is to open directly to the Entry Space as well as the Work Space.

Directly Connected to: Entry Space | Work Space

Indirectly Connected to: Kitchenette

Camden Council Consultation with Camden Council to establish specific requirements.

Window Glazed Aluminium Frame Clear Anodised or Powdercoat

Insect Screen Stainless Steel Mesh or Perforated Panel with Aluminium Frame Powdercoat Black To Full Extent of Window Opening White Colours are not suitable

Opening Hardware Confirm with Camden Council prior to commencement of works.

Ensure a card reader is located on the external face of the wall to each space adjacent all door openings for security and access.

r

Fittings Confirm with Camden Council Confirm with Camden Council r

Equipment Confirm with Camden Council Confirm with Camden Council r

The Area for the Self Service Tea Making and Similar Not Applicable

A space dedicated for use by employees of service providers as well as members of the public to prepare drinks or heat food.

A Kitchenette is defined as a space for self service where food is not for sale and as such is not required to adhere to food safety regulations.

Directly Connected to: Entry Space

Indirectly Connected to: Waste Collection | Work Space | Public Meeting Space

Camden Council Consultation with Camden Council to establish specific requirements.

spout.

The Area for Use by All as Toilet and Change Facilities

A space dedicated for use by anyone including young children.

To provide a fully enclosed area for provision of universally accessible toilet facilities in accordance with AS1428 as well as change facilities for all ages including young children.

Directly Connected to: Entry Space

Indirectly Connected to: Public Meeting Space | Work Space

Camden Council AS1428 Design for Access and Mobility

 Water Hot and Cold Water to All Taps All water connections direct to the Water Main As Required All Fixtures and Equipment required to be connected to water Waste Water All waste water connections direct to the Sewer Main or approved on-site sewage management system As Required All wastewater producing fixtures and fittings required to be connected.

The Area for Storage of Items by Service Providers Not Applicable

A space dedicated for use by employees of service providers using the Work Space to store their equipment.

To provide a fully enclosed and secure area for storing items such as stationary. This may include larger and smaller items.

The Store will be included in the hire of the Work Space.

No services including cleaners sinks or electrical equipment are to be located within the store.

Camden Council Consultation with Camden Council to establish specific requirements.

The Area for Cleaners Storage One Person Standing

A space dedicated for use by Camden Council to store cleaning items for the building.

To provide a fully enclosed area for storing cleaning equipment and products.

Connecting the Cleaners Store directly to the Female Toilet, Male Toilet, Universal Access Toilet, Shared Wash Area, Entry Foyer, Kitchen or any other store is not suitable.

Directly Connected to: To Suit Building

Indirectly Connected to:

Camden Council Consultation with Camden Council to establish specific requirements.

A

dedicated for locating electrical services such as distribution boards and the like.

To provide a fully enclosed area for electrical boards, mechanical boards and similar.

No other item is permitted to be located within this space.

Directly Connected to: To Suit Building

Indirectly Connected to:

Camden Council Consultation with Camden Council to establish specific requirements.

The Area for Operational Equipment Servicing the Building Not Applicable

A space dedicated for locating operational services such as distribution boards and the like.

To provide a fully enclosed area for irrigation controls and other services.

No other item is permitted to be located within this space.

Directly Connected to: To Suit Building

Indirectly Connected to:

Camden Council Consultation with Camden Council to establish specific requirements.

9.0 APPENDIX D DATA SHEETS EVENT SPACE

9.2 Data Sheets

HOW TO READ THE DATA SHEETS

Each individual space has a data sheet.

A datasheet describes the purpose of the space as well as the requirements of the space.

If a requirement is not included, it is generally an item that can be determined specific to the individual project.

All vertical heights are measured above the main horizontal surface level directly below the item.

Refer to the Parts Schedule for specification of particular Fixtures, Fittings, Equipment and the like that are required to be incorporated in Camden Council Public Buildings.

 This Icon means that a decision can be determined that is specific to the individual project.

r This Icon means that there is no comment to be provided or that the item is not applicable.

EXTERNAL AREAS UNCOVERED

A space dedicated to the arrival of pedestrians to the building.

To provide an uncovered area to gather on arrival.

The space may incorporate a place to stage impromptu or planned performances or an outdoor cinema with a film played on the wall of the building.

The space is to be a memorable location for visitors and locals with connection to people and place. The space should be able to be trafficked by vehicles.

Directly Connected to: Covered Forecourt | Pedestrian Access Paths | Landscaped Area

Indirectly Connected to: Car Park

Camden Council Open Space Design Manual

that will be re-used

To provide for the storage of water collection

Water tank or tanks are to be fully sealed, secured and provide for access by Camden Council only in order to maintain the tank in conjunction with associated connections.

To be suitably located for gravity fed water collection and distribution.

2.0 EXTERNAL AREAS COVERED

A space dedicated to the arrival of pedestrians to the building.

To provide a covered area to gather and shelter from weather on arrival.

The space is to be a memorable location for visitors and locals with connection to people and place. This is also a space to park prams, bikes, mobility scooters and similar.

Indirectly

The Area for Pedestrian Traffic Around the Building Specific to Building

To protect the full external perimeter at the base of the external face of the Building. Construct a cold tooled joint between the concrete surround and the external face of the building construction. Fall the concrete away from building. Ensure a solid compacted base and continuous concrete edge thickening to the outside edge of the concrete surround.

A covered external space that has a concrete surface finish or segmental pavement surface finish with a minimum width of 1,200 mm does not require a concrete surround.

Directly Connected to: Event Space | Landscaped Area

Indirectly Connected to: Other Hard Stands

Camden Council Open Space Design Manual

of

A space dedicated to the collection of waste generated from the use of the building.

To provide for the storage of all required appropriate enclosed bin receptacles.

To provide for access by users of the building to deliver waste to the space.

To provide for access by Camden Council to collect waste.

To be suitably enclosed to prevent access and harbourage of pests and vermin, polluted wastewater runoff and unpleasant odour.

The area is either required to have a roof that covers the space to its full extent, or the floor surface must fall to drain to the sewer

This uncovered or covered area can be, but is not required to be, attached to the main building.

Locate near the Kitchen where most of the waste is generated for this building.

Locate adjacent a Minimum 3,000 mm wide, 12,500 mm long and 4,500 mm high clear Vehicle Hardstand.

A minimum 1,600 mm wide direct access with smooth ground | floor surface finish is required to access the Waste Collection space from the Vehicle Hardstand.

The Vehicle Hardstand and access areas may have multiple uses, so long as they are always available to be accessed by a waste collection vehicle at the times that they visit.

Directly Connected to: Vehicle Hardstand

Indirectly Connected to: Event Space

Twice the Area of the bins housed there

Specific to Number of Bins

Specific to Number of Bins

Specific to the Height of the Largest Bin when it has its Lid Open plus Nominal 1,000mm or 2,600mm - Whichever is Higher

Camden Council Waste Management Guidelines with specific reference to Commercial Development | Commercial Premises | Community Facility requirements. Sydney Water Trade Waste requirements.

AS4674 Design, Construction and Fit-Out of Food Premises Where construction requirements for waste storage areas [enclosed spaces and open] relate to food premises.

Opening Hardware Confirm with Camden Council, including the Waste Team, prior to commencement of works.

Ensure doors or gates are to be able to be left open while waste is collected and carried through.

Ensure a card reader is located adjacent the opening for security and access.

INTERNAL AREAS

The Area for the Community to Gather for Events Nominal 150 People Standing D

A space dedicated for use for functions and events attended by community members.

To provide a fully enclosed multi-functional area that opens directly to the Covered Forecourt.

This is the hub of the building and known as the Main Hire Area.

Dividing the Event Space with an operable wall or similar to create smaller 'flexible' hireable spaces is not suitable. Smaller spaces will not be used.

Exposed structural members at high level are not suitable.

The space is to be a memorable location for visitors and locals which connects people with place. C

Directly Connected to: Covered Forecourt

Indirectly Connected to: Landscaped Area | Public Toilet

Window Glazed Aluminium Frame Clear Anodised or Powdercoat

Locate in Wall on North Side of Building

The Window may be Operable White Colours are not suitable

Insect Screen Stainless Steel Mesh or Perforated Panel with Aluminium Frame Powdercoat  To Full Extent of Window Opening White Colours are not suitable

Opening Hardware Confirm with Camden Council prior to commencement of works.

Ensure a card reader is located on the external face of the wall to each space adjacent all door openings for security and access.

Fittings Confirm with Camden Council Confirm with Camden Council r

Equipment Confirm with Camden Council Confirm with Camden Council r

Fixed Furniture Confirm with Camden Council Confirm with Camden Council r Loose Furniture Not Included in the Delivery of the Building r Supply by Others

Ducted or Split System As Required

Fire Blanket, Fire Extinguisher, Fire Hydrant, Fire Hose Reel, Sprinklers or similar

The Area for Storage of Equipment by Camden Council Not Applicable

A space dedicated for use by Camden Council to store items of furniture and equipment that will be used in the Event Space.

To provide a fully enclosed and secure area for storing equipment. This may include larger and smaller items.

No services including cleaners sinks or electrical equipment are to be located within the store.

Directly Connected to: Community Hall

Indirectly Connected to: Entry Foyer

Camden Council Consultation with Camden Council to establish specific requirements.

The Area for Electrical Equipment Servicing the Building Not Applicable

A space dedicated for locating electrical services such as distribution boards and the like.

To provide a fully enclosed area for electrical boards, mechanical boards and similar.

No other item is permitted to be located within this space.

Directly Connected to: To Suit Building

Indirectly Connected to:

Camden Council Consultation with Camden Council to establish specific requirements.

The Area for Operational Equipment Servicing the Building Not Applicable

A space dedicated for locating operational services such as distribution boards and the like.

To provide a fully enclosed area for irrigation controls and other services.

No other item is permitted to be located within this space.

Directly Connected to: To Suit Building

Indirectly Connected to:

10.0 APPENDIX E CONSTRUCTION DETAILS

10.1 Introduction

Construction Details show the preferred connection of construction materials to be incorporated in a public building in the Camden LGA.

STANDARD REQUIREMENTS

This document includes a set of standard requirements to be incorporated into the design and construction of public buildings within the Camden LGA.

Any variations to the requirements set out in this document are to be approved by Camden Council prior to incorporation in documentation for each building.

APPLICATION

The construction details within this document are applicable to a building that is associated with a high and medium profile public building as categorised among Camden Councils built assets.

A very high profile public building can use these construction details for a high or medium profile public building, however other proposed construction details may also be considered by Camden Council for these very high profile building types.

IMPORTANT NOTES

The objective of this document is to ensure that the building is suitable for long term use by all members of the public.

10.2 Drawings

The following drawings describe a sample of typical construction details to be used for public buildings in the Camden LGA and can be used as a starting point to document and construct a public building.

If requested for a public building being designed in the Camden LGA, typical construction details can be obtained from Camden Council in .dwg format.

NEW BUILDING WORK

EXISTING BUILDING WORK

NOTE

Ensure a continuous profile filler strip is included in all junctions between profile metal sheet and all flashing types.

Downpipe

Downpipe

11.0

APPENDIX F PARTS SCHEDULE

11.1 Introduction

A Parts Schedule is a list of items to be incorporated in a public building.

This is not a complete list of all of the elements of a public building, however incorporates items that are important for Camden Council with relation to the suitability for each public building type. These parts or items include the following:

- Fixtures

- Fittings

- Equipment

- Fixed Furniture

STANDARD REQUIREMENTS

This document includes a set of standard requirements to be incorporated into the design and construction of public buildings within the Camden LGA.

Any variations to the requirements set out in this document are to be approved by Camden Council prior to incorporation in documentation for each building.

SCHEDULE CATEGORIES

The standard requirements within this document are applicable to a building that is associated with a high and medium profile public building as categorised among Camden Councils built assets.

A higher profile building type can use parts from a lower profile building type Parts Schedule.

For instance, a high profile public building can use parts from a medium profile Parts Schedule.

However a medium profile public building cannot use items from a high profile Parts Schedule.

A very high profile public building can use the parts specified in the schedule for high or medium profile public building, however other proposed items may also be considered by Camden Council for these very high profile building types.

IMPORTANT NOTES

The Parts Schedule includes specific product selections.

Alternative substitutions of similar products may be proposed for incorporation in the public building being designed that are equivalent in function, quality and the like.

Submit all technical information associated with each proposed alternative item to Camden Council for approval prior to incorporation of the item in the design.

Install all materials and parts in accordance with manufacturers written specifications.

The objective of this document is to ensure that the building is suitable for long-term use by all members of the public.

The following schedules describe typical items to be incorporated in public buildings in the Camden LGA and can be used as a starting point to document and construct a public building.

All items detailed in the Parts Schedule are examples of minimum requirements for each item specified.

Each item to be provided is to be as specified in this schedule or to be a similar product equivalent in function, quality, replacement part availability and the like.

Any item proposed to be substituted for an item noted within this schedule is required to be approved by Camden Council prior to inclusion in documentation.

Supply and install all material parts in accordance with manufacturers current written specifications.

All specific products identified in this schedule are currently available at the time of writing.

All images are from suppliers websites and are current at the time of writing.

NOTE for SPORTS FACILITY BUILDINGS

A Sports Facility Building is classified as medium profile in Camden Councils public building assets.

The parts of this building type are a combination of the high and medium profile Parts Schedules.

− Apply medium profile Parts Schedule to Change Rooms

Apply high profile Parts Schedule to All Other Areas

11.2 Parts Schedule: HIGH PROFILE - PUBLIC BUILDINGS

UAT Access Toilet 618335W Caroma Leda Care Wall Faced Back Inlet Pan AT Ambulant Toilet 846905W 846915W Caroma Care 660 Cleanflush Wall Faced Close Coupled Easy Height Pan With Uniorbital Connector T Toilet 618410W Caroma Leda Wall Faced Back Inlet Pan TS Toilet Seat 320030 Caroma Pedigree II Single Flap Care with Leda Care Wall Faced Back Inlet Pan

OR 254007 Caroma Caravelle Single Flap Care Seat with Care 660 Wall Faced Close Coupled Easy Height Pan

REST Back Rest To Suit Specified Toilet

The Enware range of flushing systems are suitable.

Incorporate Flushsaver systems where appropriate to the purpose. Refer to documentation from the Water Conservation Services International.

FB Flush Button Included with Flush Valve with double flush buttons mounted on a stainless steel face plate and is supplied with blue rings to meet luminescence contrast requirement of AS1428. Suitable for flushing all accessible Britex pans and combi units.

Urinal Trough

Sanistep Urinal With Optional Extra: 100mm Outlet

UF Urinal Flusher FSM Britex Smart Saniflush Sensor System

The Enware range of flushing systems are also suitable.

Incorporate Flushsaver systems where appropriate to the purpose. Refer to documentation from the Water Conservation Services International. AHB Access Hand Basin 632100W Caroma Opal 720 Wall Basin with Shelf

4060 Caroma Evolution Care Beverage Bowl Overmount CS Cleaners Sink CSL Britex Cleaners Sink with Legs

HB Hand Basin Caroma Opal Hand Basin Range

HBOBL Britex Oblique Basin

Tap

CSF Britex Floor Mounted Cleaners Sink

With Optional Extra: 1500mm Splashback

TFC745P Enware-Delabie TempoStop Time Flow Basin Pillar Tap – Push Button

TFC740510 Enware-Delabie Temposoft Time Flow Basin Tap – Push Button

TFC741510 Enware-Delabie Temposoft Time Flow Bib Tap – Push Button

SINK Kitchenette 4061 Caroma Evolution Care Single Bowl Overmount

TAP Tap – Timed Flow Lever

TFC745L Enware-Delabie TempoStop Time Flow Basin Pillar Tap - Lever Action

OR TW-9106 Britex Front Lever Timed Flow Bib Tap

TAP Access Tap

Lever

SLM806D Enware-Oras Cubista Series Basin Mixer with Accessible Lever Handle

OR ATM606L Enware Aquablend SQX Thermostatic Basin Mixer – Extended 100mm Lever Handle

TAP Cleaner

VP317S Enware School Patter Recess Set with SP120 Spout SHR Shower Head VP310 Enware School Pattern Shower Outlet 8LPM

FITTINGS

029 Britex Stainless Steel Hook 3

OR B-542 Bobrick Stainless Steel Coat Hook PTD Paper Towel Dispenser

Interleaved Paper Towel Dispenser – Kimberley Clark Aquarius SD Soap Dispenser

Kimberly-Clark Professional Aquarius Soap Dispenser TRH Toilet Roll Holder

Professional Aquarius Jumbo Toilet Roll Dispenser

OR 70210

Kimberly-Clark

Professional Aquarius

Jumbo Double Roll

Toilet Roll Holder

TO BE CONFIRMED IF THIS IS AVAILABLE - NOT ON WEBSITE

LO Lockers

SH Shelf

BTX-10010

Laminex Coin + Key Operated Locker

System Three Doors High and Compact Laminate Constructed

Britex 300mm Stainless Steel Shelf

EQUIPMENT

HD Hand Dryer 10-20201-2 ASI JD Macdonald TriUmph™ High-Speed Hand Dryer – White, Roval™ Collection

BWU Boiling Water Unit FOR KIOSKS | CANTEENS

BC Baby Change KB200-SS Koala Care Horizontal Wall Mounted Baby Change Station in Grey

TANK On-Site Sewerage Tank

Zip Hydroboil in a size to suit the capacity required for its purpose.

OR

Zip Autoboil in a size to suit the capacity required for its purpose. FOR KITCHENS + KITCHENETTES

Zip Hydrotap with underbench unit sized to suit the capacity required for its purpose. OR Billi underbench commercial unit sized to suit the capacity required for its purpose.

ENSURE THE SYSTEM IS SUITABLE FOR THE SPECIFIC SITE + USE NSW Ministry of Health accredited Bioseptic or equal accredited tank

11.3 Parts Schedule: MEDIUM PROFILE- PUBLIC BUILDINGS

The Enware range of flushing systems are suitable.

Incorporate Flushsaver systems where appropriate to the purpose. Refer to documentation from the Water Conservation Services International.

Included with Flush Valve with double flush buttons mounted on a stainless steel face plate and is supplied with blue rings to meet luminescence contrast requirement of AS1428. Suitable for flushing all accessible Britex pans and combi units.

With Optional Extra: 100mm Outlet

The Enware range of flushing systems are also suitable.

Incorporate Flushsaver systems where appropriate to the purpose. Refer to documentation from the

Conservation Services International.

AHB Access Hand Basin HBDA Britex Accessible Hand Basin

With Optional Extra: Integral Splashback up to 300mm

Hand Basin

Britex Oblique Basin CS Cleaners Sink

Britex Cleaners Sink with Legs OR

CSF Britex Floor Mounted Cleaners Sink

With Optional Extra: 1500mm Splashback TAP Tap

Timed Flow Button

TFC745P Enware-Delabie TempoStop Time Flow Basin Pillar Tap – Push Button

OR TFC740510 Enware-Delabie

Temposoft Time Flow

Basin Tap – Push Button

OR TFC741510 Enware-Delabie

Temposoft Time Flow Bib Tap – Push Button

OR DET619 Enware Detention Button

Timed Flow Basin Tap

- Connect to Timed Flow Push Button

DET619 Detention Basin Outlet — 5lpm (Suits Flow Rates of 4 to 8lpm)

DET603RC Enware Detention Button

Timed Flow Self Closing Push Button with 7-15 second delay

- Connect to Tap 1

Tap

TFC745L Enware-Delabie TempoStop Time Flow Basin Pillar Tap - Lever Action

OR TW-9106 Britex Front Lever Timed Flow Bib Tap

Cubista

Basin Mixer with Accessible Lever Handle

Aquablend SQX Thermostatic Basin Mixer

Professional Optimum Hand Towel Dispenser for Interleaf Paper Towels

REF ITEM PRODUCT CODE DESCRIPTION

HD Hand Dryer

10-0197-2-93 ASI JD Macdonald

Turbo-Dri Hand Dryer Satin Stainless Steel

10-0199-2-93 ASI JD Macdonald

Turbo-Slim™ HighSpeed Hand Dryer –Satin Stainless Steel

10-20200-2 ASI JD Macdonald

Tri-Umph™ HighSpeed Hand Dryer – Silver, Roval™ Collection

BWU Boiling Water Unit FOR KIOSKS | CANTEENS Zip Hydroboil in a size to suit the capacity required for its purpose. OR Zip Autoboil in a size to suit the capacity required for its purpose.

REF ITEM

TANK On-Site Sewerage Tank

FOR KITCHENS + KITCHENETTES Zip Hydrotap with underbench unit sized to suit the capacity required for its purpose. OR Billi underbench commercial unit sized to suit the capacity required for its purpose.

ENSURE THE SYSTEM IS SUITABLE FOR THE SPECIFIC SITE + USE NSW Ministry of Health accredited Bioseptic or equal accredited tank.

12.0 APPENDIX G

CHECKLISTS

12.1 Design Principles Checklist

Confirm that all of the Design Principles have been incorporated in the design for the proposed public building. Provide justification for any departure.

No

1 PLACE BASED

DESIGN PRINCIPLES

Write a brief statement for how the design applies the design principle of 'Place Based' as outlined in this document.

2 NATURAL + SUSTAINABLE

Write a brief statement for how the design applies the design principle of 'Natural + Sustainable' as outlined in this document.

3 HOLISTIC + INTEGRATED

Write a brief statement for how the design applies the design principle of 'Holistic + Integrated' as outlined in this document.

4 CREATIVITY + INNOVATION

Write a brief statement for how the design applies the design principle of 'Creativity + Innovation' as outlined in this document.

5 RELEVANT + INCLUSIVE

Write a brief statement for how the design applies the design principle of 'Relevant + Inclusive' as outlined in this document.

6 HEALTHY + ACTIVE

Write a brief statement for how the design applies the design principle of 'Healthy + Active' as outlined in this document.

7 BEAUTIFUL + ENGAGING

Write a brief statement for how the design applies the design principle of 'Beautiful + Engaging' as outlined in this document.

8 CONNECTING WITH COUNTRY

Write a brief statement for how the design applies the design principle of 'Connecting with Country as outlined in this document.

12.2 Construction Requirements Checklist

Confirm that all of the Construction Requirements have been included in construction documentation for the proposed public building. Provide justification for any departure.

No

1 INSPECTION POINTS

CONSTRUCTION REQUIREMENTS

Confirm the construction principle of 'Inspection Points' as outlined in this document are incorporated in construction documentation.

CONFIRM YES | NO

2 TRADE NAMES

Confirm the construction principle of 'Trade Names' as outlined in this document are incorporated in construction documentation.

CONFIRM YES | NO

3 AS CONSTRUCTED DRAWINGS

Confirm the construction principle of 'As Constructed Drawings' as outlined in this document are incorporated in construction documentation.

4 OPERATION + MAINTENANCE MANUALS

CONFIRM YES | NO

Confirm the construction principle of 'Operation + Maintenance Manuals' as outlined in this document are incorporated in construction documentation.

5 WARRANTIES

CONFIRM YES | NO

Confirm the construction principle of 'Warranties' as outlined in this document are incorporated in construction documentation.

CONFIRM YES | NO

6 HANDOVER

Confirm the construction principle of 'Handover' as outlined in this document are incorporated in construction documentation.

CONFIRM YES | NO

7 CONSULTATION

Confirm the construction principle of 'Involvement' as outlined in this document is incorporated in construction documentation.

CONFIRM YES | NO

CAMDEN COUNCIL

ARTWORK | Front + Back Cover by Alan Baker
