Hello A little about us
Since 1990, Cablecraft have been supplying a range of over 28,000 cable and accessory products to projects on a global scale. Our products are tested to the highest standards, naturally, and manufacturing part of the range ourselves in the UK allows us complete control of the process.
We combine this with our dedication, knowledge and drive to always go that extra mile for our customers to make sure we can always find you the right product at the right time, without compromise.
In 2012, we saw an opportunity to provide our customers with even more service offerings available from one source... enter the launch of Identification Solutions - custom printing and engraving - and our Tool Centre - tool calibrations, servicing and repairs. Offering these services now means we are able to support customers with bespoke requirements, as well as enhance the safety and reliability of equipment in our industry.
In 2020, Cablecraft became a part of Shoal Group, which brings together the experience and expertise of multiple supplier teams into a single offering. Cablecraft join FS Cables, SWA, Shoal Export and Birch Valley to provide endless solutions from one source.
Comprising of 02
Count on us for more than products
A unique service that can’t be matched
Custom Printing & Engraving Service
When it comes to custom printed and engraved labels, markers and signs, we offer a comprehensive service that has you covered in every detail.
Page 4 - 15
Tool Calibration, Repair & Training Service
Checked and tested tooling is a must for producing safe and reliable installations, which is why we offer a service that ensures your tools are performing to the leading industry standards.
Page 16 - 19
03

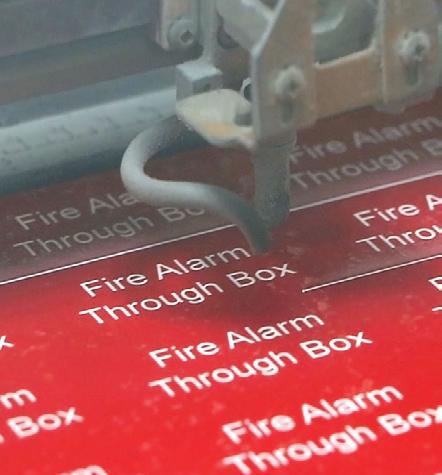

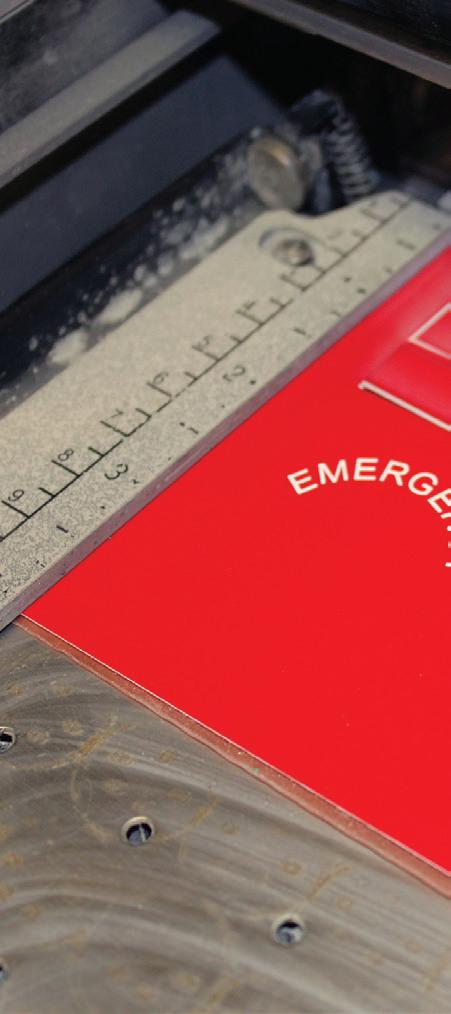

In-House Service Custom Printing & Engraving
Make your mark
Identification is a must for safety, efficiency and future reference. When it comes to custom printed and engraved labels, markers and signs, we’ve got you covered.
Our in-house custom printing and engraving department produce quality custom identification for jobs that require those bespoke touches. Offering a fast turnaround service, design assistance and quality materials whilst still being competitive on price.
Our technicians are on also hand to help at no extra cost. We’re here from 8.30am to 5.00pm Monday to Friday. Contact us today.
Why choose us?
Fast turnaround
Quality materials
Fully customised to your requirements
Free technical support
Our range includes
Vinyl & PVC labels & signs
Engraved flexible acrylic
Engraved rigid traffolyte
Heat shrink cable markers
Stainless steel markers & tags
DIN rail terminal markers
Desktop printing systems
Tie-on cable markers
Contact
ident@cablecraft.co.uk
04
us today with your enquiry, simply call 01582 606033 or email

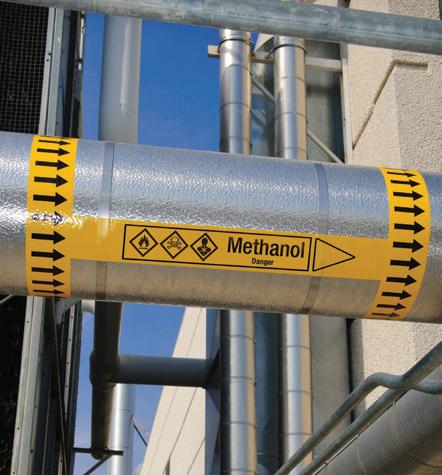

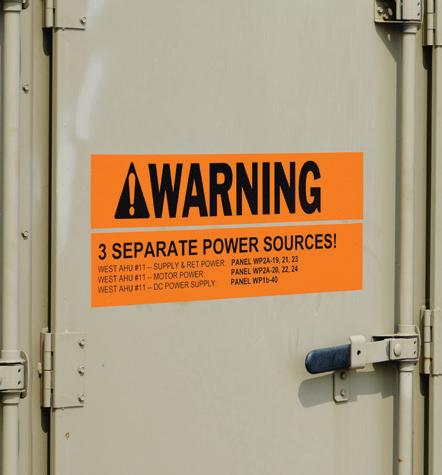

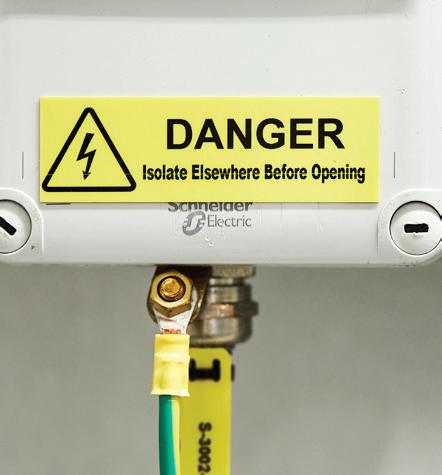

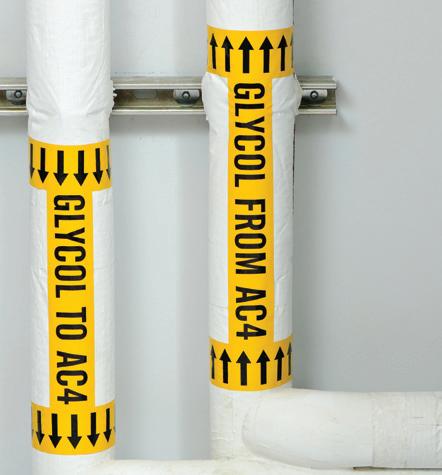

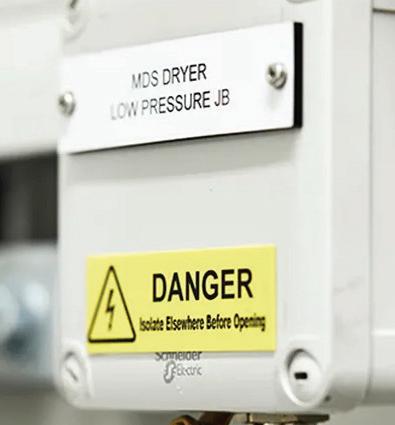

Custom-Made Product Vinyl & PVC Labels & Signs
Quality & durable
Produced from a UV resistant, flexible self-adhesive material and available with an extra layer of lamination for enhanced durability. We can customise to virtually any shape, size or design to meet your individual requirements.
Specification
Made from UV resistant material
Suitable for indoor and outdoor applications
Custom options
Extra lamination
Colour
Size
Design
Applications
Safety identification
Electrical identification
Product identification
Facility identification
05

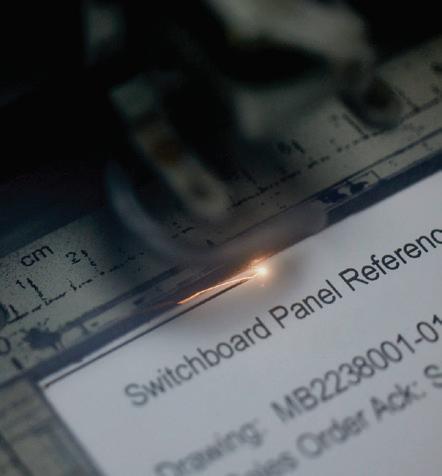

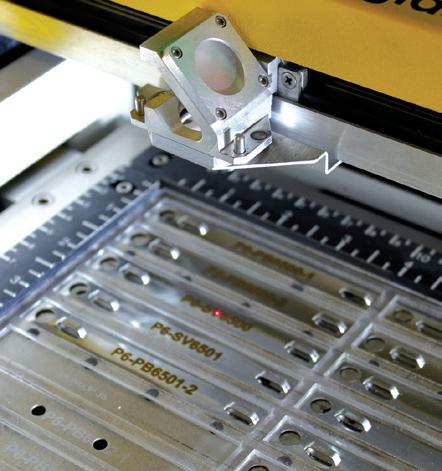

Custom-Made Product Flexible Laser Engraved Labels
Fully customisable to your requirements
Manufactured from a high impact acrylic plastic, our laser engraved labels are fully customisable to your individual requirements. Ideal where long term durability is required, suitable for indoor and outdoor use.
Specification
Made from flexible acrylic
Polyester coated
Colour options
B W W B W
Other colours available to order, contact us for more details.
Custom options
Self-adhesive backing
Fixing holes
Available in a thickness of 0.6mm, 1.5mm or 3.0mm
06

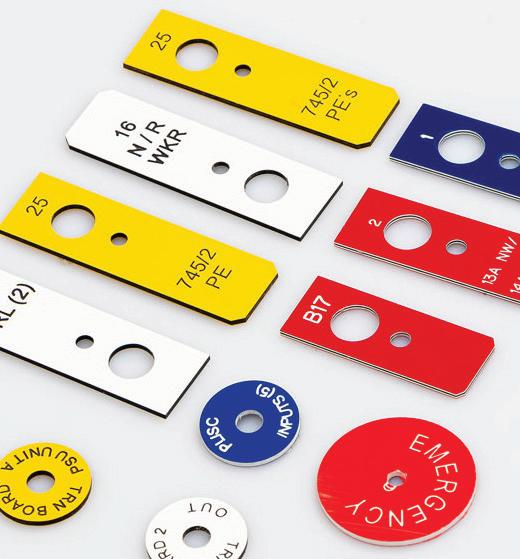

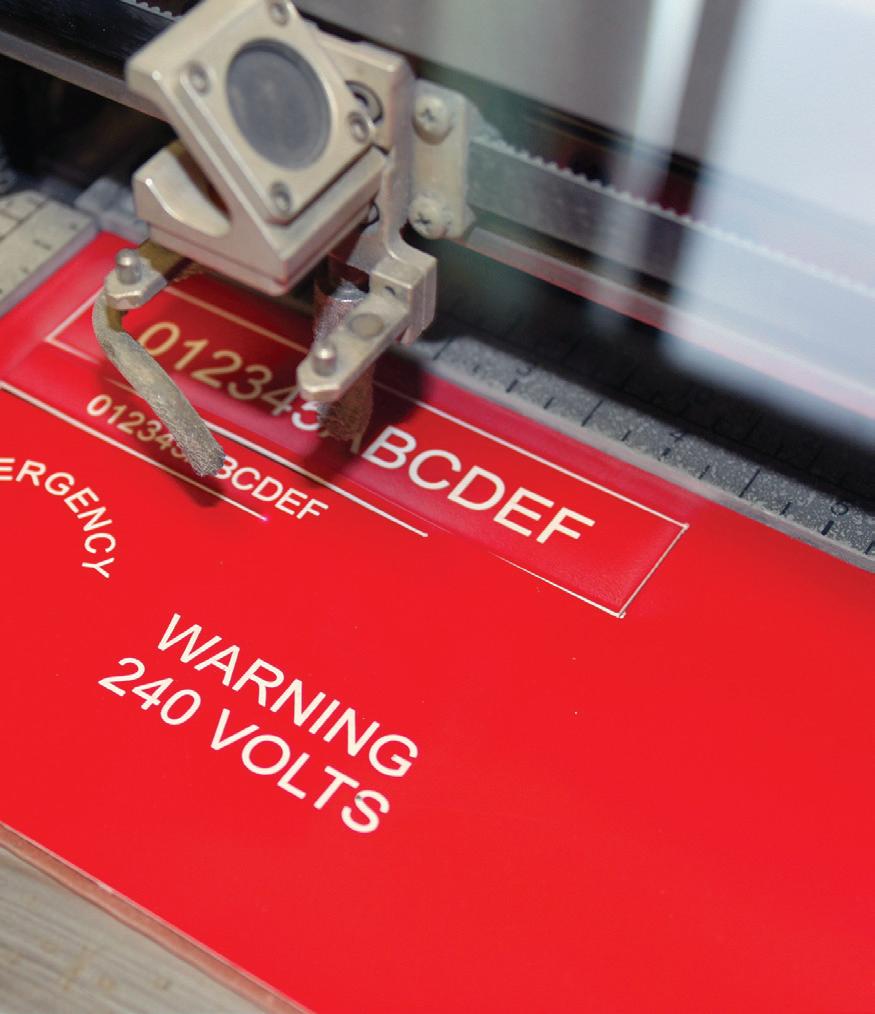

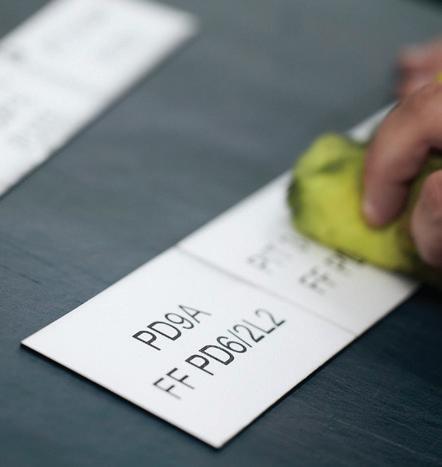

Custom-Made Product Rigid Traffolyte Engraved Labels
Made to virtually any shape or size
Produced from 3ply rigid multi-layered laminate, our tough and highly durable traffolyte labels can be customised to virtually any shape or size. Supplied with custom fixing holes or a permanent self-adhesive backing.
Specification
Made from 3ply multi-layered laminate
Highly durable material
Colour options
B W W B W
Other colours available to order, contact us for more details.
Custom options
Self-adhesive backing
Fixing holes
Available in virtually any required shape or size
07

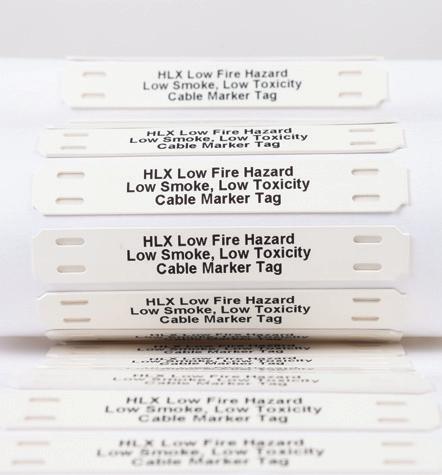

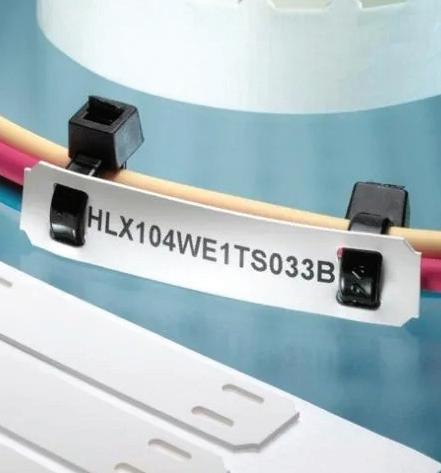

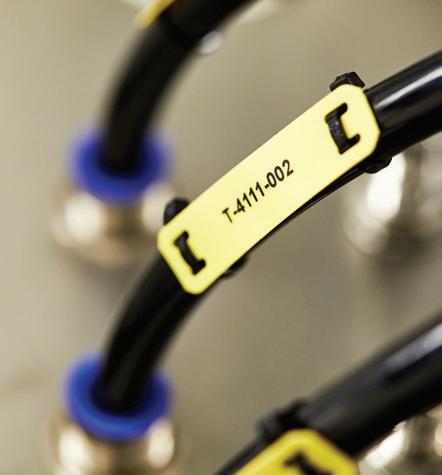

Custom-Made Product Low Fire Hazard Tie-On Cable Markers
Part number: HLX
These cable markers are manufactured using specially developed radiation cross-linked polymer. Formulated to give low fire hazard, zero-halogen, low smoke, low toxicity and UV stabilised properties, making them ideal for use in aggressive environments. They can be attached to the application using cable ties.
Specification
Made from cross-linked polymer
For temperature range -40°C to +105°C
Resistance to burning LOI 39%
Low fire hazard, zero halogen & self-extinguishing
EN45545-2 R22/R23R24 HL3, MIL STD 202, London Underground, BS6853, NF F 16-101 & SAE AS5942
Colour options
Sizes available
From 45mm to 90mm (width)
08
B B

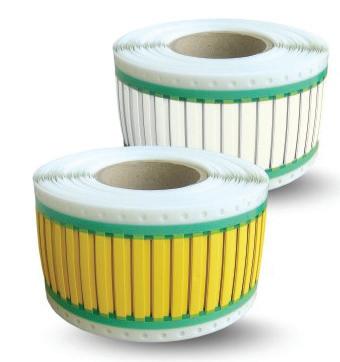

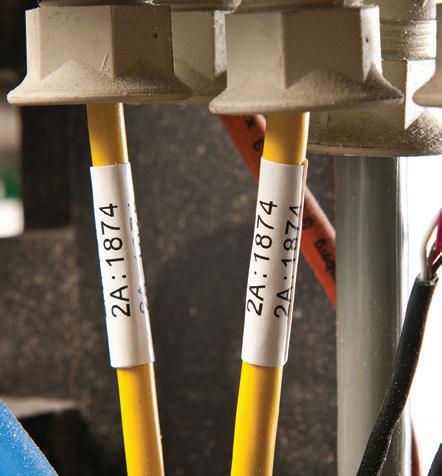

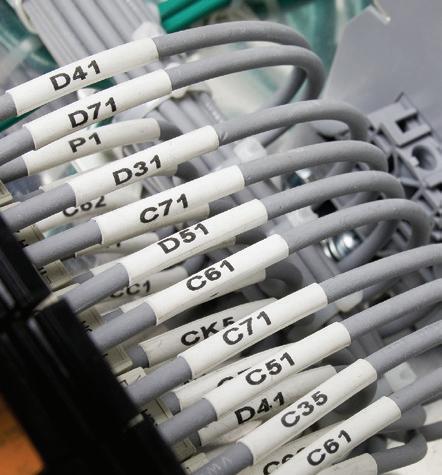

Custom-Made Product High Flame Retardant Heat Shrink Sleeves
Part number: HSI
Designed to meet high performance requirements, these pre-cut, ladder format heat shrink sleeves are extremely durable with markings remaining legible even after exposure to harsh abrasion, solvents and fuels.
Specification
Made from radiation cross-linked polyolefin
For temperature range -55°C to +135°C
3:1 shrink ratio
Low fire hazard
UL recognised, BS 6853, DIN 5510-2, REACH, RoHS, London Underground & military approved.
Colour options
B B
Sizes available
From 2.4mm to 50.8mm (width)
Other options
We stock a large range of heat shrink sleeves to a variety of specifications and sizes. Contact us for more information.
09

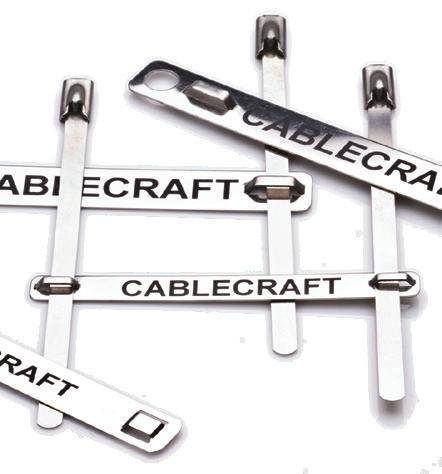

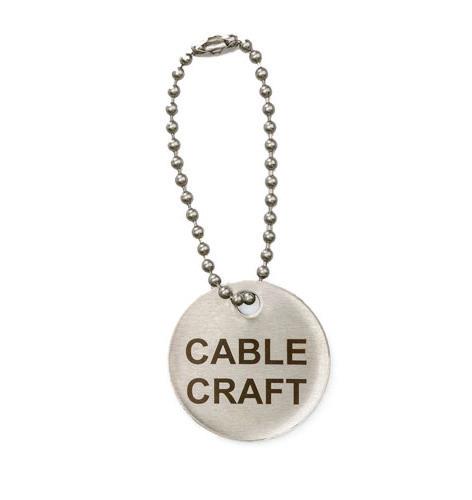

Custom-Made Product Stainless Steel Cable Markers & Tags
Part number: SSPP
Our 316 grade stainless steel laser etched cable markers and tags are produced with the latest technology. Their excellent durability makes them ideal for the most hostile environments.
Specification
Made from AISI 316 grade stainless steel
Maximum operating tempetaure 500°C
Halogen-free
Sizes available
Part no: Dimensions
SSPP1 89mm x 10mm
SSPP2 75mm x 7mm
SSPP3 95mm x 12mm
SSPP5 89mm x 19mm
SSPP6 63mm x 38mm
VALVE TAGS 38mm dia - bespoke sizes also available
Laser etching options
Bold block letters & numbers
Upper & lower case
True type fonts
Logos, graphics & bar coding
10

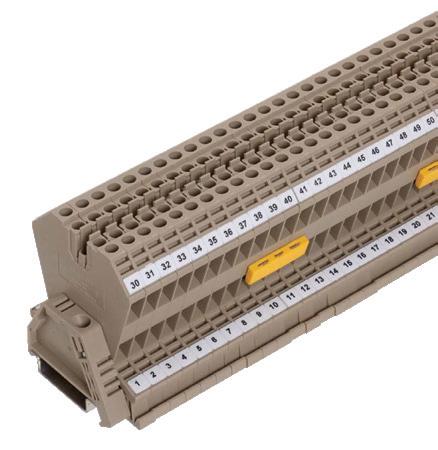

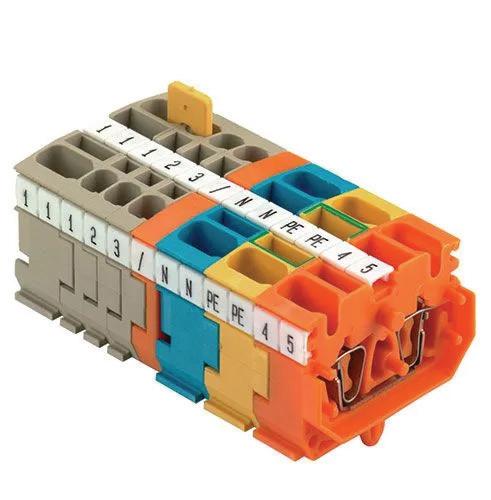

Custom-Made Product DIN Rail Terminal Markers
Part number: DEK
Made from a halogen-free polyamide material, the din rail terminal markers are ideal for clearly marking din rail terminal blocks. Supplied on strips for fast installation.
Specification
Made from halogen-free polyamide 6.6 material
For temperature range -40°C to +100°C
Flammability rating UL94 V2
Colour options
Sizes available
5.0mm x 5.0mm (10 markers per strip)
5.0mm x 6.0mm (10 markers per strip)
11
B
Product Desktop Printing Systems
Identify what matters
Evolis design and manufacturers this market leading range of printing systems, recognised worldwide for their quality and reliability.
We’re proud to partner with Evolis as Platinum resellers stocking a wide range of desktop card printers and consumables. Using the most advanced technologies we’re able to provide fast, powerful and efficient identification solutions.
Printers available
Badgy200 ID Card Printer
Zenius Single Sided Card Printer
Primacy 2 Double Sided Card Printer
Other products
Therma-Mark Tie-On Cable Markers
Therma-Mark Label Software
Evolis Badgy200 card printer
Produce professional, high-quality personalised ID cards featuring any information you need including images, photos, text and barcodes.
Single-sided ID card printer
300 dpi print head
Prints up to 95 colour cards per hour
Compact size to fit into any workspace
12
Printer Bundles Available

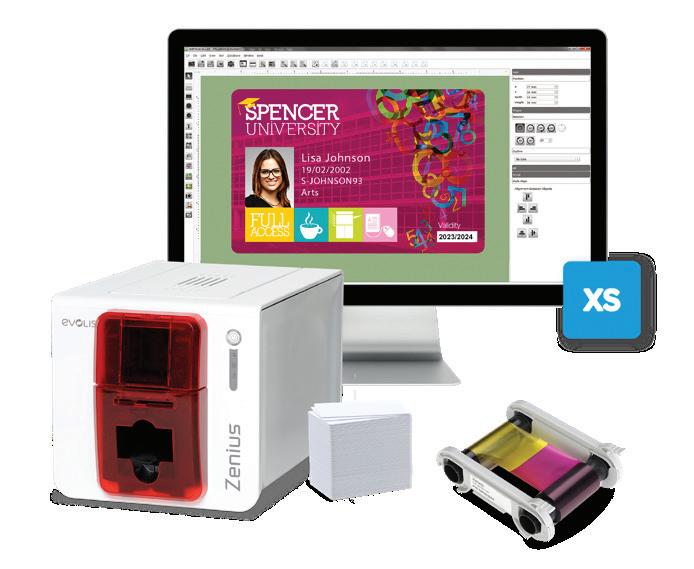

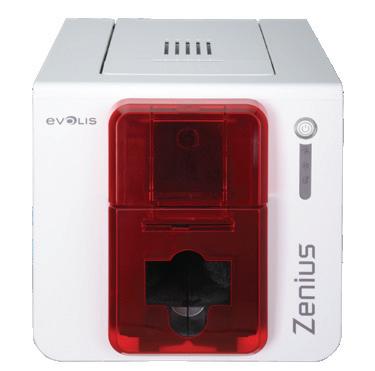

Evolis Zenius card printer
Designed to print on a large variety of cards in monochrome or colour. This user friendly printer is compact and cost-effective printing solution.
Single-sided, edge-to-edge printing
300 dpi print head
Prints in monochrome or colour
Prints up to 150 colour cards per hour
Compatible with our Therma-Mark card range

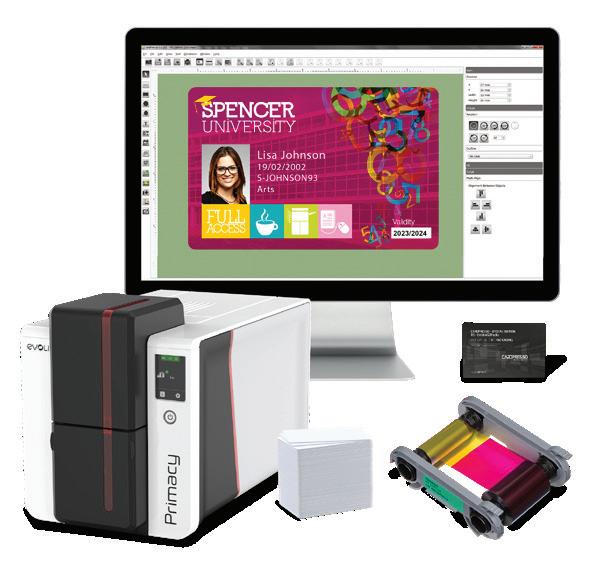

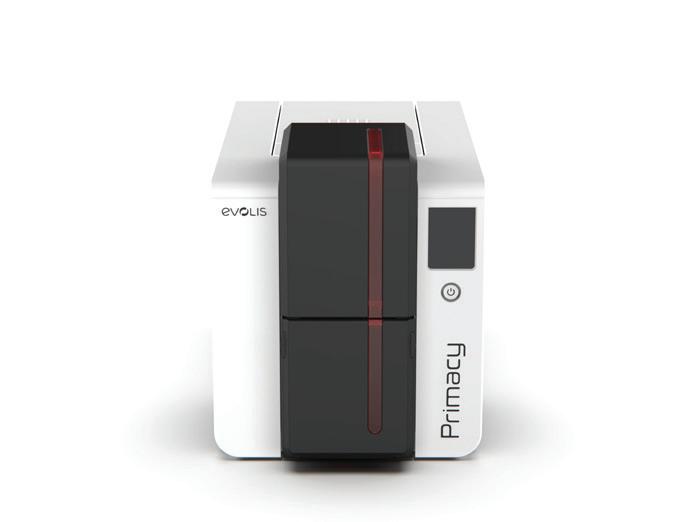

Evolis Primacy 2 card printer
Packed with high-tech features, the Primacy card printer is the ideal solution for medium to large volume printing on a large variety of cards.
LCD touch screen
Customisable resolution up to 1200 dpi
Edge-to-edge printing, single or double sided
Dual-sided card lamination module available
Printer Bundles Available
Prints up to 235 colour cards per hour
Compatible with our Therma-Mark card range
Therma-Mark label software
Compatible with Evolis Zenius, Primacy & Primacy 2 card printers.
Quickly create cable labels to your own specification.
Therma-Mark tie-on labels
Manufactured by us from specially blended, halogen-free ASA plastic. Provide clear, durable printing in one or two rows.
See full specification on page 14.
13

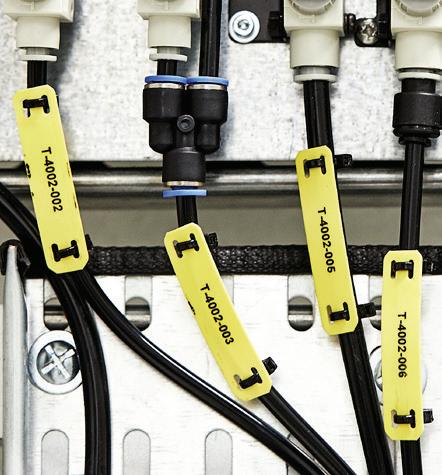

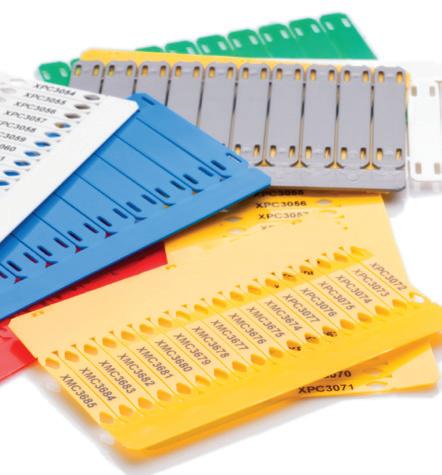

Custom-Made Product Tie-on Cable Markers
Part Number: G Card
Manufactured by us from specially blended, halogen-free ASA plastic, our tested and approved cable markers provide clear, durable printing in one or two rows. The markers can be individually removed from the card and attached to the cable or wire using cable ties.
Specification
Made from ASA halogen-free plastic
For temperature range -40°C to +90°C
Tested to MIL-M-81531, chemical r, ISO 4890-2:2013
Colour options
B B B B B B B
Sizes available
Part no: Dimensions
G2 PP (colour) 86mm x 27mm
G3 PP (colour) 76mm x 14mm
G4 PP (colour) 76mm x 10mm
G4L PP (colour) 86mm x 13mm
G10 PP (colour) 44mm x 8mm
Other options
We stock a large range of custom printed labels to a variety of specifications and sizes. Contact us for more information.
14
We’re proud to partner with and supply a variety of products from leading brands in the cable identification and accessories industry including: Our Partners Smarter together Need a solution that’s not listed? Get in touch. 01582 606033 sales@cablecraft.co.uk cablecraft.co.uk /company/cablecraft @cablecraft1 We will always go that extra mile for our customers to make sure we can always find the right product at the right time, without compromise. 15

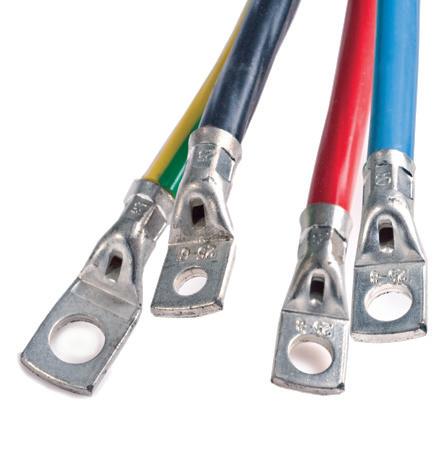

In-House Service Tool Calibration, Repairs & Training
Stay compliant
In the ever-evolving electrical installation market, some core requirements never change – the need for quality, reliable electrical terminations. That’s why we offer a complete solution to support our customers crimping systems through training, tool repair and calibration services.
Our hands-on group crimp training course provides the knowledge and skills to produce quality crimp terminations to meet the latest industry standards.
Our experienced technical team have over 100 years of combined knowledge to support your projects.
Services available
Crimping tool calibration
Tool inspection & repairs
Test & measurement equipment calibration
Crimp training course
16

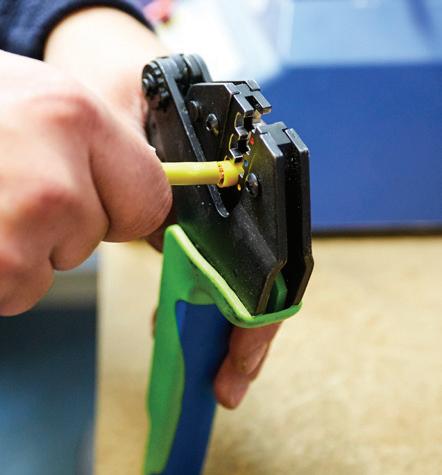

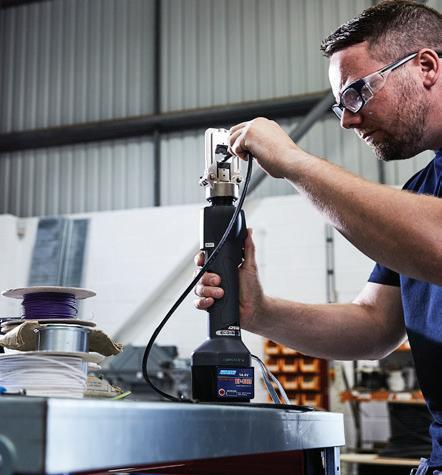

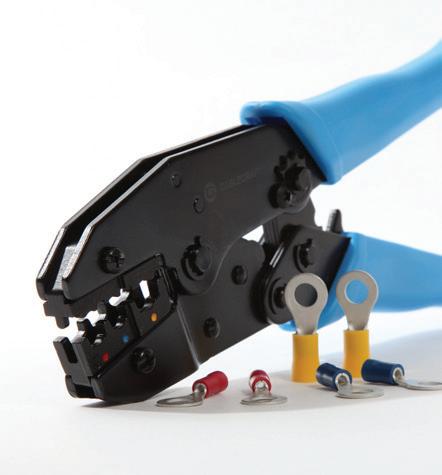

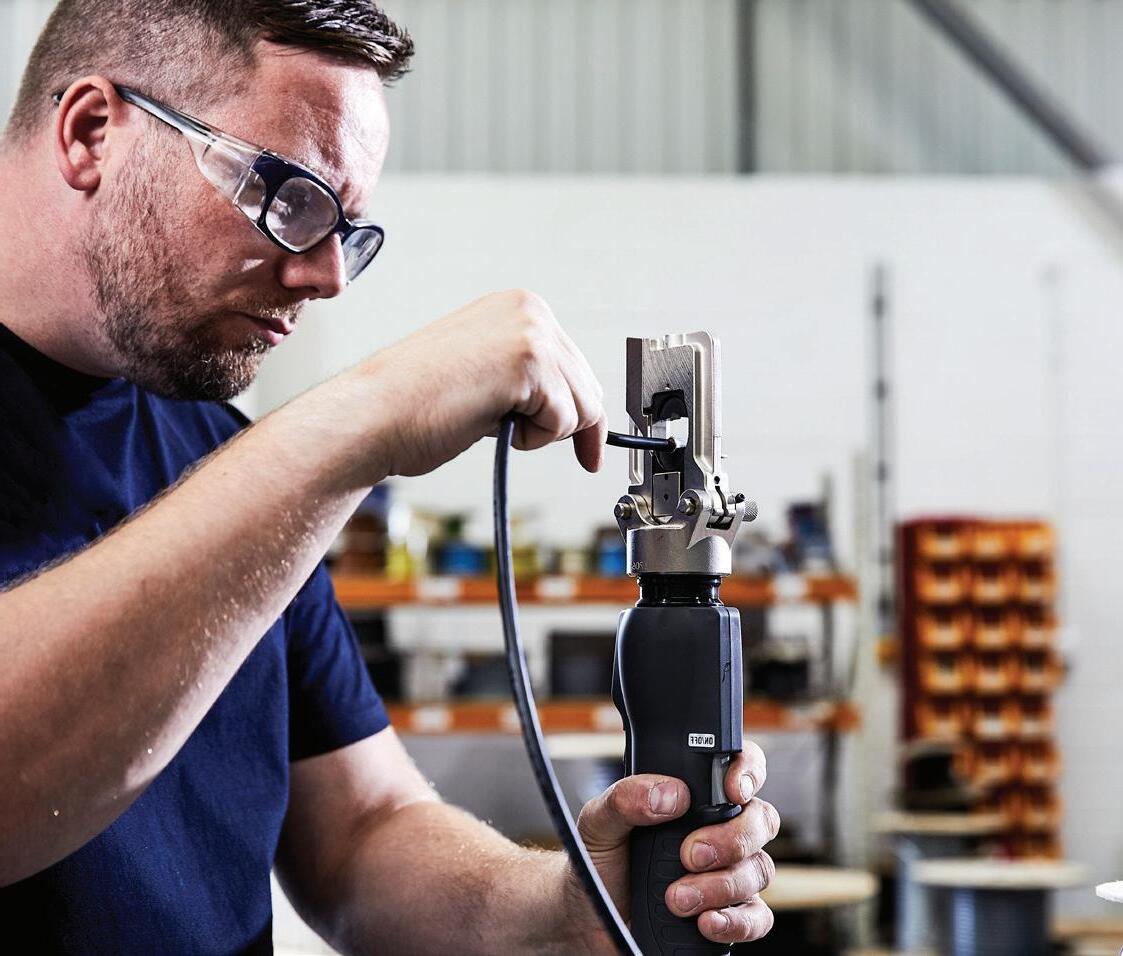

Service Crimping Tool Calibration
We’ve got you covered
Our in-house service offers tool calibration for both new and used crimp tooling. Complete with a test certificate, laser engraving for traceability and an annual service reminder for re-calibration. We’ve got you covered.
Our service includes
Full traceability including serialised certification
Ability to calibrate new or used tools
Electrical standard BS-EN 61238-1-1:2019
Rail standard RSE STD 024 Part 6
Calibrate electrical test & measurement equipment
Industry leading turnaround time
Latest Electrical Standard Calibrations
Latest Rail Standard Calibrations
17
Service Tool Inspection & Repairs
Put your tools in reliable hands
Our repair service covers all tools purchased from Cablecraft, as well as tools from leading manufacturers. If your experiencing problems with your tool or it’s damaged, we can get it back to working as it should with our reliable service. Simply book an inspection carried out by our in-house technicians.
The process
Initial inspection - our technicians assess your tool.
Repair estimate - we will discuss the breakdown of your estimate before repairing.
Repair & calibrate - once we have your approval we will repair and calibrate your tool.
Our service includes
Free Cablecraft tool repairs within guarantee*
Free inpections on a select range of tools
Use of quality parts from manufacturer
3rd party repair service available for other manufacturers
18

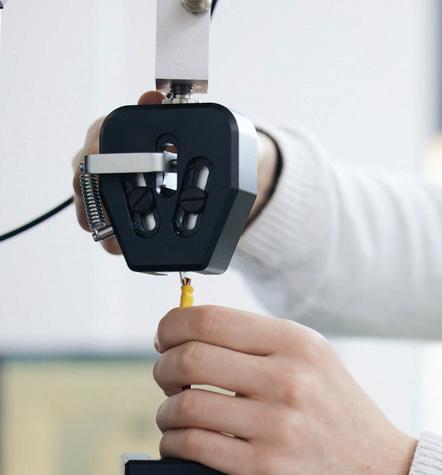

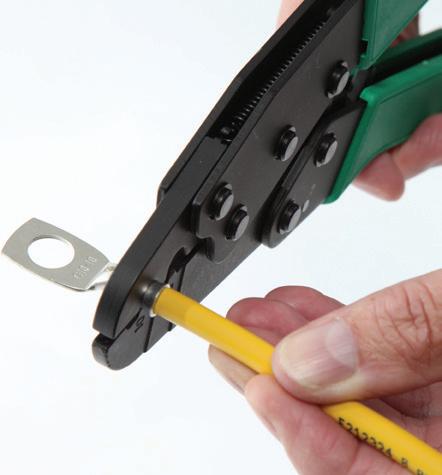

Service Group Crimp Training Course
Quality crimp connections
We offer a hands-on group training course that helps you understand the importance of achieving quality crimp connections, and how to correctly produce them. This course is available for up to 10 delegates and can be held at one of our sites in South of England, or in-house at your premises.
What you will learn
The 5 elements of a quality crimping system
Correct tool and terminal selection
Wire stripping techniques
Operation and maintenace of crimping tools
Practical application of crimping tools
Gauging and calibration
Evalutation of crimp joint standards
Health and safety overview
Physical testing of crimp samples*
*Only available on courses held at our head office.
What you will earn
All attendees receive a certificate of attendance and a good practice crimping guide for future reference. Our crimping course will give you the knowledge to crimp to the latest industry standards.
19
Book a course today or get in touch with your enquiry. sales@cablecraft.co.uk 01582 606033 BS EN 61238-1:2019 BS EN 60352-2:2006+A1:2013 BS 7727:1994 LUL Work Instruction W0185 A
Get in touch
We’re here to help
Our team are on hand to help with any project assistance, technical support, quoting, and ordering from 8.30am to 5.00pm Monday to Friday.
