Roehm 5 - Automation by BTS Company d.o.o.

AUTOMATION TECHNOLOGY

EDITION 8

Table of contents AUTOMATIONTECHNOLOGY 2-jaw parallel gripper RPP 5006 RPP-A 5028 3-jaw centric gripper RZP 5046 RZP-A 5064 2-jaw long stroke gripper RGP 5080 RGPO 5090 Application-specific grippers RDPP - sealed parallel grippers 5098 RPR - compact long stroke grippers 5098 Synthetic grippers RRMG 5102 RRMG-MRK 5103 Swivel units RSP-Flex 5108 Zero point clamping system EASYLOCK 5112 Errorsandcorrectionsarereserved!

5002 TYPERPPRPP-ARZPRZP-A 2-jawparallelgripper3-jawcentricgripper Gripping force 208-21900N240-3450N650-38000N700-16500N Stroke per jaw 2-45mm2-16mm3-35mm3-16mm Gripping type Clamping type Gripping force safety device Actuation optionaloptional Page 5006502850465064 www.eshop.roehm.biz AutomationTechnology Operation guide Operation guide hydraulicalactuated pneumaticalactuated externalgripping internalgripping parallelgripping centricgripping

5003 TYPERGPRGPORPRRRMG/RRMG-MRK 2-jawlongstrokegripperSyntheticgripper Gripping force 630-2950N1250-3000N260-1100N80-150N Stroke per jaw 30-50mm60-100mm14-28mm2,6-4,3mm Gripping type Clamping type Gripping force safety device -Optional Actuation optional Page 5080509050985102 www.eshop.roehm.biz AutomationTechnology Operation guide Operation guide grippingforcesafetydeviceexternalgripping grippingforcesafetydeviceinternalgripping

5004 VideoRPP RÖHM Parallelgripper Pneumatic NOMENCLATURE RPP -A / GA-1 / V- 100 A = Alternative jawfixtureby tongueand groove Sizes 50-380 Jawstrokevariant 1 =longstroke 2 =shortstroke Optional: Springsafety GA =outsidegrip GI =insidegrip Optional: V =VitonFKMsealingfor temperatures upto150°C www.eshop.roehm.biz

ADVANTAGES AT A GLANCE

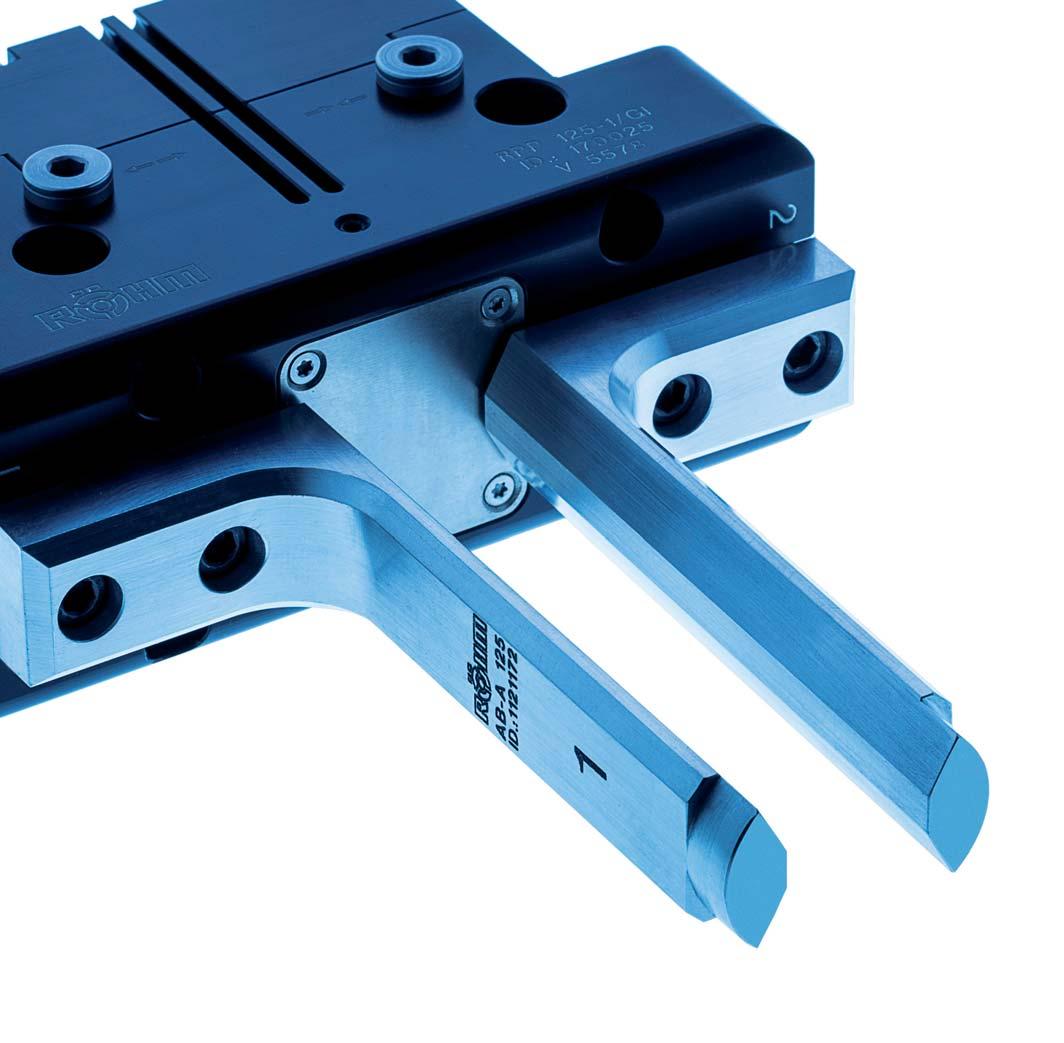

5005 2-JAW PARALLEL GRIPPER

Equippedwithtwoparallelgripperfingers,RÖHMgrippersareoptimallysuitedforuniversalgripping ofroundandangularworkpieces.Especiallyonrobotsorportals,the2-jawparallelgripperswillconvincewiththeircompactdesign,lowdeadweightandhighgrippingforce. Lubricatingpocketsinthe jawsforoptimalgreasedistributionandhighavailability Maximumprecisionandservice lifethankstobasejawsinproven T-slotguideWedgehookprinciplewithpneumaticactuationforhighforceand torqueabsorption Highgrippingforcewithlowdeadweightandcompactdesign Maximumflexibilitythankstoversatileconnectionandfasteningoptions LongservicelifeandhighreliabilitythankstospeciallygroundbasejawsinprovenT-slotguide Positioncanbequeried usinginductiveandmagneticsensors Basicbodymadeofhighstrength,hard-coated aluminiumalloy Ovalpistonsensuremaximum grippingforcewithcompact outerdimensions 2-jaw parallel gripper www.eshop.roehm.biz

RPP-50

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Hightorquesupportforusinglonggripperfingersthankstoelongatedjawguide Maximumflexibilitythankstoversatileconnectionandfasteningoptions Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

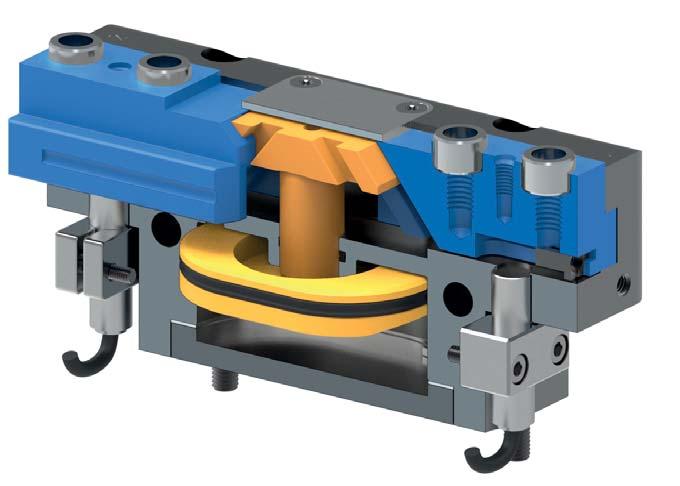

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation(hydraulicactuationavailableon request) -Positionmonitoringwithinductiveormagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request) -Integrablepurgeairconnectiontopreventcontamination

5006 Parallel gripper RPP 2-jawparallelgripper

C40 RPP-50 - 2-jaw parallel gripper airoperated Item No. 170119 170120 170121 170122 170123 170124 DesignRPP-50-1RPP-50-2RPP-50-1/GARPP-50-2/GARPP-50-1/GIRPP-50-2/GI Grippingforceat6barN208398242462264505 Strokeperjawmm424242 Grippingforcemaintained N--35653565 Recommendedworkpiece weightkg 0,71,450,71,450,71,45 Weightkg0,190,190,230,230,230,23 Widthmm656565656565 Heightmm313147474747 Depthmm303030303030 MxNm202020202020 MyNm252525252525 MzNm101010101010 FzN500500500500500500 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max. withGA/GI bar --4-74-74-74-7 Clamping times0,020,020,020,020,030,03 Openingtimes0,020,020,030,030,020,02 Airconsumptionpercyclecm 3555555 Max.allowablelengthofjawmm646464646464 www.eshop.roehm.biz onrequest

5007 Parallel gripper RPP 2-jawparallelgripper RPP-50 Max. load on gripper and jaw Clamping force diagram exterior gripping 200 400 600 0204060 RPP 50-1 RPP 50-2 RPP 50-1 GA RPP 50-2 GA A A SectionA-A 22,6±0,2 8,7±0,2 35±0,02 52 2,5 8 ø6h6 (4x) ø3,3 R (4x)3 ø6h6(2x) 22±0,02 M4 (4x) 11 8 ø6,1 (2x) Sleeveø6 2,5 forgripperconnection ø6(2x) ø3,3 42 65 30 10,5-0,2 M3/4deep(2x) directconnection M5/6deepfor 46 sealingairconnection M3 (4x) 8 18 1112±0,02 RPP50-1:18,8 RPP50-2:20,8 25±0,2 13 2 8,5 31 M3 (4x) ø5h6 (4x) 30 14,5±0,0225±0,210±0,2 35±0,02 42 104,1 Sensorholderø3 (2x) 62 47 C-nutfor magneticsensors 16 29 MAX.81 29 15 10,5 3 2,5 75 RPP 50-1/2: 35,5 RP P 50-1/2 GA/GI: 51,5 RPP 50-2 MAX.31,5; MIN.27,5 M5/6deep(2x)10±0,2airconnection 65 RPP50-1:3,05 RPP50-2:4,05 TypGA/GIwithgrippingforcesafetydevice ViewX X 12±0,02 RPP50-2MAX.31,5;MIN.27,5 RPP50-1MAX.33,5;MIN.25,5 RPP 50-1 MAX.33,5; MIN.25,5 M5/6deepfor(2x) airconnection O-ring Ø3x1 Tubelessdirectconnection AdapterGripper ø5ø3 0,65 M3 onwww.eshop.roehm.biz request

RPP-64

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

1,531,531,53

Widthmm767676767676

5008 Parallel gripper RPP 2-jawparallelgripper

C40 RPP-64 - 2-jaw parallel gripper airoperated Item No. 170001 170002 170003 170004 170005 170006 DesignRPP-64-1RPP-64-2RPP-64-1/GARPP-64-2/GARPP-64-1/GIRPP-64-2/GI Grippingforceat6barN316605458876487932 Strokeperjawmm636363 Grippingforcemaintained N--100200100200 Recommendedworkpiece weightkg

Weightkg0,30,30,40,40,40,4

Heightmm393957575757 Depthmm363636363636 MxNm404040404040 MyNm606060606060 MzNm404040404040 FzN110011001100110011001100 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max. withGA/GI bar --4-74-74-74-7 Clamping times0,030,030,020,020,040,04 Openingtimes0,030,030,040,040,020,02 Airconsumptionpercyclecm3101010101010 Max.allowablelengthofjawmm908585808580 www.eshop.roehm.biz onrequest

5009 Parallel gripper RPP 2-jawparallelgripper RPP-64 Max. load on gripper and jaw onwww.eshop.roehm.biz request Clamping force diagram exterior gripping A A Section A-A 27±0,2 10±0,2 42±0,02 58 2,5 13 Ø8h6 (2x) Ø 4,2 R4(4x) Ø 8h6 (2x) 27±0,02 M5 (4x) 12 15 Ø7,4 (4x) sleeve Ø8 for gripper connection 2,5 Ø7,4 (2x) Ø4,2 36 -0,211 M3/4 deep (2x) for direct connection M5 /6 deep for sealing air M4 (4x) 7 12 1:64PP R2 2 RPP 64-2: 25 21 4,25 13±0,02 RPP 64-2 MAX.34,5; MIN.28,5 10 2,5 M4 (4x) Ø6h6 (4x) 39 31±0,2 M5/6 deep (2x) air connection 70 52 31±0,2 15 42±0,02 38 76 52 5756 AX M8 9 111929 86 44,5 Height RPP 64-1/2: Height RPP 64-1/2 GA/GI: 62,5 3 3,5 M5/6 deep (2x) air connection Ø8Sensorholder (2x) C-nut for magnetic sensors RPP 64-2 MAX.34,5; MIN.28,5 10±0,218±0,02 76 13±0,02 4,211 18 33 10±0,2 7 4,5 Type GA/GI with gripping force safety deviceAccessories: protective cover X M3 0,65 Ø 5 Ø3 Tubeless direct connection O-ring Ø3x1,0 Adapter Gripper 40,5RPP 64-1 MAX.; MIN.28,5 40,5RPP 64-1 MAX.; MIN.28,5

RPP-80

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

5010 Parallel gripper RPP 2-jawparallelgripper

C40 RPP-80 - 2-jaw parallel gripper airoperated Item No. 170007 170008 170009 170010 170011 170012 DesignRPP-80-1RPP-80-2RPP-80-1/GARPP-80-2/GARPP-80-1/GIRPP-80-2/GI Grippingforceat6barN47088661511566571236 Strokeperjawmm848484 Grippingforcemaintained N--160300160300 Recommendedworkpiece weightkg 2,24,32,24,32,24,3 Weightkg0,50,50,60,60,60,6 Widthmm969696969696 Heightmm494967676767 Depthmm424242424242 MxNm606060606060 MyNm959595959595 MzNm555555555555 FzN150015001500150015001500 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max. withGA/GI bar --4-74-74-74-7 Clamping times0,040,040,030,030,050,05 Openingtimes0,040,040,050,050,030,03 Airconsumptionpercyclecm3212121212121 Max.allowablelengthofjawmm110105105100105100 www.eshop.roehm.biz onrequest

RPP-80

5011

Parallel gripper RPP

2-jawparallelgripper

Max. load on gripper and jaw onwww.eshop.roehm.biz request Clamping force diagram exterior gripping

RPP-100

C40

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

5012 Parallel gripper RPP 2-jawparallelgripper

RPP-100 - 2-jaw parallel gripper airoperated Item No. 170013 170014 170015 170016 170018 170019 DesignRPP-100-1RPP-100-2RPP-100-1/GARPP-100-2/GARPP-100-1/GIRPP-100-2/GI Grippingforceat6barN8301570981185710441977 Strokeperjawmm105105105 Grippingforcemaintained N--260500260450 Recommendedworkpiece weightkg 3,573,573,57 Weightkg0,80,81111 Widthmm120120120120120120 Heightmm555581818181 Depthmm505050505050 MxNm808080808080 MyNm115115115115115115 MzNm707070707070 FzN200020002000200020002000 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,070,070,050,050,090,09 Openingtimes0,070,070,090,090,050,05 Airconsumptionpercyclecm3404040404040 Max.allowablelengthofjawmm145135135125135125 www.eshop.roehm.biz onrequest

RPP-100

5013

Parallel gripper RPP

2-jawparallelgripper

Max. load on gripper and jaw Clamping force diagram exterior gripping onwww.eshop.roehm.biz request

RPP-125

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

kg 6,212,56,212,56,212,5

5014 Parallel gripper RPP 2-jawparallelgripper

C40 RPP-125 - 2-jaw parallel gripper airoperated Item No. 170020 170021 170022 170023 170025 170026 DesignRPP-125-1RPP-125-2RPP-125-1/GARPP-125-2/GARPP-125-1/GIRPP-125-2/GI Grippingforceat6barN124325001568316216253277 Strokeperjawmm136136136 Grippingforcemaintained N--350750350750 Recommendedworkpieceweight

Weightkg1,51,51,91,91,91,9 Widthmm151151151151151151 Heightmm636393939393 Depthmm606060606060 MxNm120120120120120120 MyNm145145145145145145 MzNm100100100100100100 FzN280028002800280028002800 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,10,10,080,080,120,12 Openingtimes0,10,10,120,120,080,08 Airconsumptionpercyclecm3808080808080 Max.allowablelengthofjawmm180170170160170160 www.eshop.roehm.biz onrequest

RPP-125

5015

Parallel gripper RPP

2-jawparallelgripper

Max. load on gripper and jaw Clamping force diagram exterior gripping onwww.eshop.roehm.biz request

RPP-160

C40

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation(hydraulicactuationavailableon request) -Positionmonitoringwithinductiveormagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

-Integrablepurgeairconnectiontopreventcontamination

DesignRPP-160-1RPP-160-2RPP-160-1/GARPP-160-2/GARPP-160-1/GIRPP-160-2/GI

917917917

Recommendedworkpiece

Widthmm192192192192192192 Heightmm7777117117117117 Depthmm727272727272 MxNm170170170170170170

MzNm130130130130130130 FzN430043004300430043004300

2-82-8----

--4-74-74-74-7

5016 Parallel gripper RPP 2-jawparallelgripper

RPP-160 - 2-jaw parallel gripper airoperated Item No. 170029 170030 170031 170032 170033 170034

Grippingforceat6barN200037752555480526645010 Strokeperjawmm168168168 Grippingforcemaintained N--55011005501100

weightkg

Weightkg2,82,83,63,63,63,6

MyNm180180180180180180

Operatingpressuremin./max. withoutGA/GI bar

Operatingpressuremin./max. withGA/GI bar

Clamping times0,150,150,250,250,120,12 Openingtimes0,150,150,250,250,120,12 Airconsumptionpercyclecm3160160160160160160 Max.allowablelengthofjawmm220210210200210200 www.eshop.roehm.biz onrequest

RPP-160

5017

Parallel gripper RPP

2-jawparallelgripper

Max. load on gripper and jaw Clamping force diagram exterior gripping onwww.eshop.roehm.biz request

RPP-200

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

5018 Parallel gripper RPP 2-jawparallelgripper

C40 RPP-200 - 2-jaw parallel gripper airoperated Item No. 170035 170036 170037 170038 170039 170040 DesignRPP-200-1RPP-200-2RPP-200-1/GARPP-200-2/GARPP-200-1/GIRPP-200-2/GI Grippingforceat6barN308052403940670040906950 Strokeperjawmm251425142514 Grippingforcemaintained N--90015009001500 Recommendedworkpieceweight kg 142414241424 Weightkg5,55,57,57,57,57,5 Widthmm234234234234234234 Heightmm9191141141141141 Depthmm100100100100100100 MxNm180180180180180180 MyNm200200200200200200 MzNm140140140140140140 FzN500050005000500050005000 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,350,350,30,30,60,6 Openingtimes0,350,350,60,60,30,3 Airconsumptionpercyclecm 3390390390390390390 Max.allowablelengthofjawmm280240240200240200 www.eshop.roehm.biz onrequest

RPP-200

5019

Parallel gripper RPP

2-jawparallelgripper

Max. load on gripper and jaw Clamping force diagram exterior gripping onwww.eshop.roehm.biz request

RPP-240

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated

-Wedgehookprinciplewithpneumaticactuation(hydraulicactuationavailableon

request)

5020 Parallel gripper RPP 2-jawparallelgripper

Hightorquesupportforusinglonggripperfingersthankstoelongatedjawguide Maximumflexibilitythankstoversatileconnectionandfasteningoptions

aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife

request) -Positionmonitoringwithinductiveormagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on

-Integrablepurgeairconnectiontopreventcontamination C40 RPP-240 - 2-jaw parallel gripper airoperated Item No. 170100 170101 170102 170103 170104 170105 DesignRPP-240-1RPP-240-2RPP-240-1/GARPP-240-2/GARPP-240-1/GIRPP-240-2/GI Grippingforceat6barN430973245256893455269392 Strokeperjawmm301730173017 Grippingforcemaintained N--1000160010001600 Recommendedworkpieceweight kg 213521352135 Weightkg8,89,212121212 Widthmm270270270270270270 Heightmm107107163,5163,5163,5163,5 Depthmm115115115115115115 MxNm260260260260260260 MyNm250250250250250250 MzNm160160160160160160 FzN620062006200620062006200 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,450,450,350,350,650,65 Openingtimes0,450,450,650,650,350,35 Airconsumptionpercyclecm3650650650650650650 Max.allowablelengthofjawmm320280280240280240 www.eshop.roehm.biz onrequest

5021

Parallel gripper RPP

2-jawparallelgripper RPP-240 Max. load on gripper and jaw Clamping force diagram exterior gripping onwww.eshop.roehm.biz request

RPP-300

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

5022 Parallel gripper RPP 2-jawparallelgripper

C40 RPP-300 - 2-jaw parallel gripper airoperated Item No. 170041 170042 170043 170044 170045 170046 DesignRPP-300-1RPP-300-2RPP-300-1/GARPP-300-2/GARPP-300-1/GIRPP-300-2/GI Grippingforceat6barN640011000759012910786013360 Strokeperjawmm352035203520 Grippingforcemaintained N--1300220013002200 Recommendedworkpiece weightkg 315231523152 Weightkg141417171717 Widthmm320320320320320320 Heightmm122122172172172172 Depthmm140140140140140140 MxNm400400400400400400 MyNm400400400400400400 MzNm250250250250250250 FzN800080008000800080008000 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max. withGA/GI bar --4-74-74-74-7 Clamping times0,50,50,40,40,70,7 Openingtimes0,50,50,70,70,40,4 Airconsumptionpercyclecm 3104010401040104010401040 Max.allowablelengthofjawmm350300300250300250 www.eshop.roehm.biz onrequest

RPP-300

5023

Parallel gripper RPP

2-jawparallelgripper

Max. load on gripper and jaw Clamping force diagram exterior gripping onwww.eshop.roehm.biz request

RPP-380

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to380,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

kg 488235,5824882

5024 Parallel gripper RPP 2-jawparallelgripper

C40 RPP-380 - 2-jaw parallel gripper airoperated Item No. 172113 172114 172115 172116 172117 172118 DesignRPP-380-1RPP-380-2RPP-380-1/GARPP-380-2/GARPP-380-1/GIRPP-380-2/GI Grippingforceat6barN96201635012470212001290021900 Strokeperjawmm452645264526 Grippingforcemaintained N--2850485028504850 Recommendedworkpieceweight

Weightkg282835,535,535,535,5 Widthmm310410410410410410 Heightmm226,5155226,5226,5226,5226,5 Depthmm170170170170170170 MxNm560560560560560560 MyNm560560560560560560 MzNm370370370370370370 FzN100001000010000100001000010000 Operatingpressuremin./max. withoutGA/GI bar 2,5-82,5-8---Operatingpressuremin./max.with GA/GI bar --4-6,54-6,54-6,54-6,5 Clamping times0,60,60,450,450,80,8 Openingtimes0,60,60,80,80,50,5 Max.allowablelengthofjawmm400350350300350300 www.eshop.roehm.biz onrequest

5025 Parallel gripper RPP 2-jawparallelgripper RPP-380 Max. load on gripper and jaw Clamping force diagram exterior gripping 5000 0100200300400 10000 15000 20000 RPP 380-1 RPP 380-1 GA RPP 380-2 RPP 380-2 GA Total gripping force F(N) at 6 bar Effective length of jaw L(mm) F(N) 25000 onwww.eshop.roehm.biz request

Accessories RPP

Jaw blank - steel (includingfixingscrews) 2-jawset

Item no. NumberofjawsDesignFor

170574 2steelRPP-50 170575 2steelRPP-64 170576 2steelRPP-80 170577 2steelRPP-100 170578 2steelRPP-125 170579 2steelRPP-160 170580 2steelRPP-200 170581 2steelRPP-240 170582 2steelRPP-300 170583 2steelRPP-380

Jaw blank - aluminium (includingfixingscrews) 2-jawset

Item no. NumberofjawsDesignFor

170584 2aluminiumRPP-50 170585 2aluminiumRPP-64 170586 2aluminiumRPP-80 170587 2aluminiumRPP-100 170588 2aluminiumRPP-125 170589 2aluminiumRPP-160 170590 2aluminiumRPP-200 170591 2aluminiumRPP-240 170592 2aluminiumRPP-300 170593 2aluminiumRPP-380

Protective coverCompressed air connection -L-Plugconnector

Item no. For 170540 RPP-64 170541 RPP-80 170542 RPP-100 170543 RPP-125 170544 RPP-160 170545 RPP-200 170546 RPP-240 170547 RPP-300

RPP-50

RPP-380

maintenance

switch

Item no. DesignFor

L-Plugconnector M5-6mm RPP-50/RPP-64/ RPP-80

L-Plugconnector 1/8-6mmRPP-100-RPP-240

L-Plugconnector 1/4-6mmRPP-300/RPP-380

Size (diameter/

3x2730cmcable,plugM8x1-S49RPP-50

M8x1x30,55mcable,openleadsRPP-64/-80/-100

M8x1x46,53mcable,openleadsRPP-125/-380

5026 Accessories RPP

170594

170548

802539

477025

477024

Pressure

fordoubleactinggripper(G1/8) Proximity

Item no. 1078823 Item no.

length) DesignFor 1149503

229114

389661

Magnetic field sensors Item no. Size (diameter/length) DesignFor 1231970 C-Nut30cmcable,plugM8x1-S49RPP-50 1306268 C-Nut2mcable, openlead RPP-64to RPP-380 www.eshop.roehm.biz onrequest 2-jawparallelgripper

Accessories

RPP - 2-jaw set170574170575170576170577170578170579170580170581170582

- 3-jaw set170596170500170502170504170506170508170510170512170514 A30324151608096109130 B152022303540405060 C506480100125160200220200 D+0,04/+0,02568101014161622 E+0,222,52,5334446

±0,1 55679,5101515,520 G±0,1 121316202432404446 H45577191115146181204177 J3,44,55,56,66,61113,513,517,5 K6810111118202026 L234568131016

Weightperjawkg0,150,250,451,01,753,25,08,010,2

RPP

2-jaw

- 3-jaw set170597170550170552170554170556170558170560170562170564

5027

RPP Jaw blank - steel (includingfixingscrews) RPP / RZP 50 6480100125160200240300

RZP

Jaw blank - aluminium (includingfixingscrews) RPP / RZP 50 6480100125160200240300

set170584170585170586170587170588170589170590170591170592 RZP

A30324151608096109130 B152025303540455060 C506480100125160200220200 D+0,04/+0,02568101014161622 E+0,222,52,5334446 F±0,1 55679,5101515,520 G±0,1 121316202432404446 H43556988112141176200170 J3,44,55,56,66,61113,513,517,5 K6810111118202026 L23456891016 Weightperjawkg0,050,10,180,350,61,22,02,83,4 SectionA-A SectionA-A onrequest Accessories RPP www.eshop.roehm.biz 2-jawparallelgripper

RPP-A

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviatongueandgroove.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Maximumflexibilitythankstoversatileconnectionandfasteningoptions

Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation(hydraulicactuationavailableon request)

-Positionmonitoringwithinductiveormagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

-Integrablepurgeairconnectiontopreventcontamination

DesignRPP-A50-1RPP-A50-2RPP-A50-2/GARPP-A50-2/GARPP-A50-1/GIRPP-A50-2/GI

Strokeperjawmm424242 Grippingforcemaintained N--30603060

kg 0,851,60,851,60,851,6

Widthmm505050505050 Heightmm474747474747 Depthmm282828282828 MxNm121212121212

MzNm101010101010 FzN250250250250250250

Operatingpressuremin./max.

2-82-8----

--4-6,54-6,54-6,54-6,5

Clamping times0,020,020,010,010,020,02 Openingtimes0,020,020,020,020,010,01

5028 2-jaw parallel gripper RPP-A 2-jawparallelgripper

C40 RPP-A 50 - 2-jaw parallel gripper airoperatedwithtongueandgroove Item No. 438040 438041 438042 438043 438044 438045

Grippingforceat6barN170320210380220410

Recommendedworkpieceweight

Weightkg0,130,160,170,170,170,17

MyNm101010101010

withoutGA/GI bar

Operatingpressuremin./max.with GA/GI bar

Airconsumptionpercyclecm3555555 Max.allowablelengthofjawmm505050505050 www.eshop.roehm.biz onrequest

RPP-A

5029

2-jaw parallel gripper RPP-A

2-jawparallelgripper

50 Max. load on gripper and jaw Clamping force diagram exterior gripping onwww.eshop.roehm.biz request

RPP-A

C40

RPP-A

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviatongueandgroove.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Maximumflexibilitythankstoversatileconnectionandfasteningoptions

Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation(hydraulicactuationavailableon request)

-Positionmonitoringwithinductiveormagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

-Integrablepurgeairconnectiontopreventcontamination

--8015080150

5030 2-jaw parallel gripper RPP-A 2-jawparallelgripper

64 - 2-jaw parallel gripper airoperatedwithtongueandgroove Item No. 436763 436764 436765 436766 436767 436768 DesignRPP-A64-1RPP-A64-2RPP-A64-1/GARPP-A64-2/GARPP-A64-1/GIRPP-A64-2/GI Grippingforceat6barN240450320600350650 Strokeperjawmm636363 Grippingforcemaintained N

Recommendedworkpiece weightkg 1,22,21,22,21,22,2 Weightkg0,30,30,420,420,420,42 Widthmm646464646464 Heightmm404058585858 Depthmm363636363636 MxNm151515151515 MyNm303030303030 MzNm252525252525 FzN450450450450450450 Operatingpressuremin./ max.withoutGA/GI bar 2-82-8---Operatingpressuremin./ max.withGA/GI bar --4-74-74-74-7 Clamping times0,020,020,010,010,020,02 Openingtimes0,020,020,020,020,10,1 Airconsumptionper cyclecm 3 101010101010 Max.allowablelengthof jawmm 646464646464 www.eshop.roehm.biz onrequest

5031 2-jaw parallel gripper RPP-A 2-jawparallelgripper RPP-A 64 Max. load on gripper and jaw Clamping force diagram exterior gripping 0 200 400 600 800 020406080 RPP-A 64-1RPP-A 64-2 RPP-A 64-1 GARPP-A 64-2 GA 0 Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) Type GA/GI with gripping force safety device Accessories: Protective cover Tubeless direct connection Adapter Gripper Sensor holder -Ø 8 O-ring M5 /6 deep (2x) for air connection M5 /6 deep (2x) for air connection deep M5/6 deep for sealing air M5/6 deep for sealing air M3 /3 deep (2x) direct connection onwww.eshop.roehm.biz request

RPP-A

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviatongueandgroove.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Maximumflexibilitythankstoversatileconnectionandfasteningoptions

Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation(hydraulicactuationavailableon request)

-Positionmonitoringwithinductiveormagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

-Integrablepurgeairconnectiontopreventcontamination

Grippingforcemaintained N--140270140270

1,93,51,93,51,93,5

Widthmm808080808080 Heightmm505071717171

MxNm303030303030

FzN600600600600600600

2-82-8----

--4-74-74-74-7

5032 2-jaw parallel gripper RPP-A 2-jawparallelgripper

C40 RPP-A 80 - 2-jaw parallel gripper airoperatedwithtongueandgroove Item No. 434844 435027 435028 435029 435030 435031 DesignRPP-A80-1RPP-A80-2RPP-A80-1/GARPP-A80-2/GARPP-A80-1/GIRPP-A80-2/GI Grippingforceat6barN3807005209705501000 Strokeperjawmm848484

Recommendedworkpieceweight kg

Weightkg0,450,450,60,60,60,6

Depthmm424242424242

MyNm909090909090 MzNm353535353535

Operatingpressuremin./max. withoutGA/GI bar

Operatingpressuremin./max.with GA/GI bar

Clamping times0,030,030,020,020,030,03 Openingtimes0,030,030,030,030,020,02 Airconsumptionpercyclecm 3202020202020 Max.allowablelengthofjawmm808080808080 www.eshop.roehm.biz onrequest

5033 2-jaw parallel gripper RPP-A 2-jawparallelgripper RPP-A 80 Max. load on gripper and jaw Clamping force diagram exterior gripping 300 600 900 1200 0255075100 0 RPP-A 80-1 RPP-A 80-2 RPP-A 80-1 GA RPP-A 80-2 GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) Tubeless direct connection Adapter Gripper Sensor holder -Ø 8 O-ring M5 /6 deep (2x) for air connection M5 /6 deep for air connection deep M5/6 deep for sealing air M5/6 deep for sealing air M4 /4 deep (2x) direct connection Type GA/GI with gripping force safety device Accessories: Protective cover onwww.eshop.roehm.biz request

RPP-A

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviatongueandgroove.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Maximumflexibilitythankstoversatileconnectionandfasteningoptions

Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation(hydraulicactuationavailableon request)

-Positionmonitoringwithinductiveormagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

-Integrablepurgeairconnectiontopreventcontamination

Widthmm100100100100100100

Depthmm505050505050

5034 2-jaw parallel gripper RPP-A 2-jawparallelgripper

100

C40 RPP-A 100 - 2-jaw parallel gripper airoperatedwithtongueandgroove Item No. 434845 435032 435033 434846 435034 435035 DesignRPP-A100-1RPP-A100-2RPP-A100-1/GARPP-A100-2/GARPP-A100-1/GIRPP-A100-2/GI Grippingforceat6barN600116075014508001550 Strokeperjawmm105105105 Grippingforcemaintained N--150290150290 Recommendedworkpieceweight kg 35,535,535,5 Weightkg0,750,750,950,950,950,95

Heightmm565682,582,582,582,5

MxNm454545454545 MyNm959595959595 MzNm454545454545 FzN800800800800800800 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,050,050,030,030,050,05 Openingtimes0,050,050,050,050,030,03 Airconsumptionpercyclecm3404040404040 Max.allowablelengthofjawmm100100100100100100 www.eshop.roehm.biz onrequest

5035 2-jaw parallel gripper RPP-A 2-jawparallelgripper RPP-A 100 Max. load on gripper and jaw Clamping force diagram exterior gripping 0 400 800 1200 1600 2000 0255075100125 0 RPP-A 100-1 GA RPP-A 100-2 GA RPP-A 100-1 RPP-A 100-2 Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) Tubeless direct connection Gripper Sensor holder -Ø 8 O-ring G1/8“ /8 deep (2x) air connection M5 /6 deep (2x) for air connection deep M5/6 deep for sealing air M5/6 deep for sealing air M5 /5 deep (2x) direct connection Type GA/GI with gripping force safety device Accessories: Protective cover Clamping sleeve Ø6,5 onwww.eshop.roehm.biz request

RPP-A

weightkg

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviatongueandgroove.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Maximumflexibilitythankstoversatileconnectionandfasteningoptions

Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation(hydraulicactuationavailableon request)

-Positionmonitoringwithinductiveormagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

-Integrablepurgeairconnectiontopreventcontamination

Widthmm125125125125125125

--4-74-74-74-7

5036 2-jaw parallel gripper RPP-A 2-jawparallelgripper

125

C40 RPP-A 125 - 2-jaw parallel gripper airoperatedwithtongueandgroove Item No. 435036 435037 435038 434847 435039 435040 DesignRPP-A125-1RPP-A125-2RPP-A125-1/GARPP-A125-2/GARPP-A125-1/GIRPP-A125-2/GI Grippingforceat6barN95019001230245013002520 Strokeperjawmm136136136 Grippingforcemaintained N--280550280550 Recommendedworkpiece

4,59,54,59,54,59,5 Weightkg1,31,31,651,651,651,65

Heightmm6464104104104104 Depthmm606060606060 MxNm606060606060 MyNm100100100100100100 MzNm707070707070 FzN900900900900900900 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max. withGA/GI bar

Clamping times0,080,080,070,070,10,1 Openingtimes0,080,080,10,10,070,07 Airconsumptionpercyclecm 3707070707070 Max.allowablelengthofjawmm125125125125125125 www.eshop.roehm.biz onrequest

5037 2-jaw parallel gripper RPP-A 2-jawparallelgripper RPP-A 125 Max. load on gripper and jaw Clamping force diagram exterior gripping 0 700 1400 2100 2800 0255075100125150 0 RPP-A 125-1 RPP-A 125-2 RPP-A 125-1 GA RPP-A 125-2 GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) Tubeless direct connection Adapter Gripper Sensor holder -Ø 8 O-ring G1/8“ /8 deep (2x) air connection M5 /6 deep (2x) for air connection deep M5/6 deep for sealing air M5/6 deep for sealing air M5 /5 deep (2x) direct connection Type GA/GI with gripping force safety device Accessories: Protective cover onwww.eshop.roehm.biz request

RPP-A

APPLICATION

Universalgrippingofroundandangularworkpieceswithtwoparallelgripperfingers forhandlingwithrobotsorportals.

TYPE

Availablefromsizes50to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviatongueandgroove.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Maximumflexibilitythankstoversatileconnectionandfasteningoptions

Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation(hydraulicactuationavailableon request)

-Positionmonitoringwithinductiveormagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

-Integrablepurgeairconnectiontopreventcontamination

DesignRPP-A160-1RPP-A160-2RPP-A160-1/GARPP-A160-2/GARPP-A160-1/GIRPP-A160-2/GI

6,512,56,512,56,512,5

Widthmm160160160160160160

Depthmm727272727272 MxNm808080808080

MzNm808080808080

Operatingpressuremin./max.

2-82-8----

--4-74-74-74-7

3130130130130130130

5038 2-jaw parallel gripper RPP-A 2-jawparallelgripper

160

C40 RPP-A 160 - 2-jaw parallel gripper airoperatedwithtongueandgroove Item No. 434848 435041 436525 436526 436527 436528

Grippingforceat6barN130025001700330018503450 Strokeperjawmm168168168 Grippingforcemaintained N--400800400800 Recommendedworkpieceweight kg

Weightkg2,52,53,13,13,13,1

Heightmm7878126126126126

MyNm100100100100100100

FzN110011001100110011001100

withoutGA/GI bar

Operatingpressuremin./max.with GA/GI bar

Clamping times0,10,10,120,120,30,3 Openingtimes0,10,10,30,30,120,12 Airconsumptionpercyclecm

Max.allowablelengthofjawmm160160160160160160 www.eshop.roehm.biz onrequest

5039 2-jaw parallel gripper RPP-A 2-jawparallelgripper RPP-A 160 Max. load on gripper and jaw Clamping force diagram exterior gripping 800 1600 2400 3200 4000 04080120160 RPP-A 160-1 RPP-A 160-2 RPP-A 160-1 GA RPP-A 160-2 GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) Tubeless direct connection Adapter Gripper Ø 8 (2x) O-ring G1/8“ /10 deep (2x) air connection M5 /6 deep (2x) for air connection deep M5/6 deep for sealing air M5/6 deep for sealing air M5 /5 deep (2x) direct connection Sensor holder Type GA/GI with gripping force safety device Accessories: Protective cover onwww.eshop.roehm.biz request

Accessories

-L-Plugconnector

plugM8x1-S49RPP-A50

leads RPP-A64/ RPP-A80/ RPP-A100

leads RPP-A125RPP-A160

5040 Accessories RPP-A

RPP-A Jaw blank - steel (includingfixingscrews) 2-jawset Jaw blank - aluminium (includingfixingscrews) 2-jawset Item no. NumberofjawsDesignFor 170683 2steelRPP-A50 170675 2steelRPP-A64 170676 2steelRPP-A80 170677 2steelRPP-A100 170678 2steelRPP-A125 170679 2steelRPP-A160 Item no. NumberofjawsDesignFor 170693 2aluminiumRPP-A50 170685 2aluminiumRPP-A50 170686 2aluminiumRPP-A80 170687 2aluminiumRPP-A100 170688 2aluminiumRPP-A125 170689 2aluminiumRPP-A160 Protective coverCompressed air connection

Item no. For 170708 RPP-A50 170700 RPP-A64 170701 RPP-A80 170702 RPP-A100 170703 RPP-A125 170704 RPP-A125 Item no. DesignFor 802539 L-PlugconnectorM56mm RPP-50/RPP-64/ RPP-80 477025 L-Plugconnector1/86mmRPP-100-RPP-240 Pressure maintenance fordoubleactinggripper(G1/8) Proximity switch Item no. 1078823 Item no. Size(diameter/ length) DesignFor 1149503 3x2730cmcable,

229114 M8x1x30,55mcable,open

389661 M8x1x46,53mcable,open

Magnetic field sensors Item no. Size (diameter/length) DesignFor 1231970 C-Nut30cmcable,plugM8x1-S49RPP-50 1306268 C-Nut2mcable, openlead RPP-64to RPP-160 www.eshop.roehm.biz onrequest 2-jawparallelgripper

3,5456811

121316202432

K6810111115 L22,5333,54 Mf75568810

Q434568

5041 Jaw blank - steel (includingfixingscrews) RPP-A / RZP-A Jaw blank - steel 506480100125160 RPP-A - 2-jaw set170683170675170676170677170678170679 RZP-A - 3-jaw set-170825170826170827170828170829 A263241516080 B152022303540 C5068,585,5105,5130,5166,5 D+0,01/+0,03445668 E+0,224,55,55,55,56,5 F±0,1

G±0,1

H45,559,574,594,5119,5153,5 J3,44,55,56,66,69

N-0,3/-0,522,8252126334151 O-0,3/-0,5810,212,214,216,220,2 P+0,112,514172125,531

Weightperjawkg0,130,260,461,01,83,5 Accessories RPP-A SectionA-A onrequest Accessories RPP-A www.eshop.roehm.biz 2-jawparallelgripper

Accessories

SectionA-A

A263241516080 B152022303540 C5068,585,5105,5130,5166,5 D+0,01/+0,03445668 E+0,224,55,55,55,56,5

±0,1 3,5456811

±0,1 121316202432 H45,559,574,594,5119,5153,5 J3,44,55,56,66,69 K6810111115 L22,5333,54 Mf75568810 N-0,3/-0,522,8252126334151 O-0,3/-0,5810,212,214,216,220,2 P+0,112,514172125,531 Q434568

5042

RPP-A Jaw blank - aluminium (includingfixingscrews) RPP-A / RZP-A Jaw blank - aluminium 506480100125160 RPP-A - 2-jaw set170693170685170686170687170688170689 RZP-A - 3-jaw set-170835170836170837170838170839

Weightperjawkg0,130,10,160,350,621,2

onrequest Accessories RPP-A www.eshop.roehm.biz 2-jawparallelgripper

5043 Notes Notes www.eshop.roehm.biz

5044 RÖHM Z centricgripper Pneumatic NOMENCLATURE RZP -A / GA-1 / V- 100 A = Alternative jawfixtureby tongueand groove Sizes 64-300 Jawstrokevariant 1 =longstroke 2 =shortstroke Optional: springsafety GA =outsidegrip GI =insidegrip Optional: V =VitonFKMsealingfor temperatures upto150°C www.eshop.roehm.biz

3-JAW CENTRIC GRIPPER

Equippedwiththreecentricallyarrangedgripperfingers,RÖHMRZPgrippersareoptimallysuitedfor universalandself-centeringgrippingofroundworkpieces.Especiallyonrobotsorportals,the3-jaw centricgripperswillconvincewiththeircompactdesign,lowdeadweightandhighgrippingforce.

ADVANTAGES AT A GLANCE

Lubricatingpocketsinthe jawsforoptimalgreasedistributionandhighavailability

Maximumprecisionandservicelife

Basicbodymadeofhighstrength,hard-coatedaluminiumalloy

Wedgehookprinciplewithpneumaticactuationforhighforceand torqueabsorption

Positioncanbequeried usinginductiveandmagneticsensors

5045

thankstobasejawsinprovenT-slot guide

Highgrippingforcewithlowdeadweightandcompactdesign Maximumflexibilitythankstoversatileconnectionandfasteningoptions Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsinproven T-slotguide

3-jaw centric gripper

www.eshop.roehm.biz

RZP-64

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to300,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign Hightorquesupportforusinglonggripperfingersthankstoelongatedjawguide Maximumflexibilitythankstoversatileconnectionandfasteningoptions Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

kg 3,263,263,26 Weightkg0,450,450,550,550,550,55 Heightmm43,343,356,856,856,856,8 Ømm767676767676

MyNm606060606060 MzNm404040404040 FzN110011001100110011001100

2-82-8----

--4-74-74-74-7

Openingtimes0,030,030,040,040,020,02

3252525252525

5046 Centric gripper RZP 3-jawcentricgripper

-Integrablepurgeairconnectiontopreventcontamination C40 RZP-64 - 3-jaw centric gripper airoperated Item No. 170050 170051 170052 170053 170054 170055 DesignRZP-64/3-1RZP-64/3-2RZP-64/3-1GARZP-64/3-2GARZP-64/3-1GIRZP-64/3-2GI Grippingforceat6barN650120085016009001700 Strokeperjawmm636363 Grippingforcemaintained N--200400200400 Recommendedworkpieceweight

MxNm404040404040

Operatingpressuremin./max. withoutGA/GI bar

Operatingpressuremin./max.with GA/GI bar

Clamping times0,030,030,020,020,040,04

Airconsumptionpercyclecm

Max.allowablelengthofjawmm908585808580 www.eshop.roehm.biz onrequest

5047 Centric gripper RZP 3-jawcentricgripper RZP-64 Max. load on gripper and jaw 500 020406080 1000 1500 2000RZP64-1 RZP64-1GA RZP64-2 RZP64-2GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

RZP-80

C40

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to300,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request) -Integrablepurgeairconnectiontopreventcontamination

5048 Centric gripper RZP 3-jawcentricgripper

RZP-80 - 3-jaw centric gripper airoperated Item No. 170056 170057 170058 170059 170060 170061 DesignRZP-80/3-1GARZP-80/3-2GA Grippingforceat6barN120024001550310017003250 Strokeperjawmm848484 Grippingforcemaintained N--350700350700 Recommendedworkpieceweightkg612612612 Weightkg0,80,81111 Heightmm49,349,364,364,364,364,3 Ømm969696969696 MxNm606060606060 MyNm959595959595 MzNm555555555555 FzN150015001500150015001500 Operatingpressuremin./max.without GA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,050,050,030,030,060,06 Openingtimes0,050,050,050,050,040,04 Airconsumptionpercyclecm3606060606060 Max.allowablelengthofjawmm110105100100105100 www.eshop.roehm.biz onrequest

RZP-80

5049 Centric gripper RZP 3-jawcentricgripper

Max. load on gripper and jaw Clamping force diagram exterior gripping 1000 020406080100 2000 3000 4000 RZP80-1 RZP80-1GA RZP80-2 RZP80-2GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

RZP-100

C40

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to300,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request) -Integrablepurgeairconnectiontopreventcontamination

Recommendedworkpieceweightkg102010201020 Weightkg1,41,42222 Heightmm59,359,379,379,379,379,3 Ømm120120120120120120 MxNm808080808080

MzNm707070707070

5050 Centric gripper RZP 3-jawcentricgripper

RZP-100 - 3-jaw centric gripper airoperated Item No. 170062 170063 170064 170065 170066 170067 DesignRZP-100/3-1RZP-100/3-2RZP-100/3-1GARZP-100/3-2GARZP-100/3-1GIRZP-100/3-2GI Grippingforceat6barN200040002650530028005620 Strokeperjawmm105105105 Grippingforcemaintained N--65013006501300

MyNm115115115115115115

FzN200020002000200020002000 Operatingpressuremin./max.without GA/GI bar 2-82-8---Operatingpressuremin./max.withGA/ GI bar --4-74-74-74-7 Clamping times0,10,10,10,10,20,2 Openingtimes0,10,10,20,20,10,1 Airconsumptionpercyclecm 3120120120120120120 Max.allowablelengthofjawmm145135135125135125 www.eshop.roehm.biz onrequest

5051 Centric gripper RZP 3-jawcentricgripper RZP-100 Max. load on gripper and jaw Clamping force diagram exterior gripping 2000 0255075100125 4000 6000 8000 RZP100-1 RZP100-1GA RZP100-2 RZP100-2GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

RZP-125

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to300,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

aluminiumalloy

-Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

kg 163016301630

5052 Centric gripper RZP 3-jawcentricgripper

Hightorquesupportforusinglonggripperfingersthankstoelongatedjawguide Maximumflexibilitythankstoversatileconnectionandfasteningoptions

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife

-Integrablepurgeairconnectiontopreventcontamination C40 RZP-125 - 3-jaw centric gripper airoperated Item No. 170068 170069 170070 170071 170072 170073 DesignRZP-125/3-1RZP-125/3-2RZP-125/3-1GARZP-125/3-2GARZP-125/3-1GIRZP-125/3-2GI Grippingforceat6barN320060004200780044008000 Strokeperjawmm136136136 Grippingforcemaintained N--1000180010001800 Recommendedworkpieceweight

Weightkg2,42,43,23,23,23,2 Heightmm676791,591,591,591,5 Ømm150150150150150150 MxNm120120120120120120 MyNm145145145145145145 MzNm100100100100100100 FzN280028002800280028002800 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,20,20,170,170,350,35 Openingtimes0,20,20,350,350,170,17 Airconsumptionpercyclecm 3230230230230230230 Max.allowablelengthofjawmm180170170160170160 www.eshop.roehm.biz onrequest

5053 Centric gripper RZP 3-jawcentricgripper RZP-125 Max. load on gripper and jaw Clamping force diagram exterior gripping 2000 04080120160 4000 6000 8000 10000 RZP125-1 RZP125-1GA RZP125-2 RZP125-2GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

RZP-160

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to300,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

5054 Centric gripper RZP 3-jawcentricgripper

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife

-Integrablepurgeairconnectiontopreventcontamination C40 RZP-160 - 3-jaw centric gripper airoperated Item No. 170074 170075 170076 170077 170078 170079 DesignRZP-160/3-1RZP-160/3-2RZP-160/3-1GARZP-160/3-2GARZP-160/3-1GIRZP-160/3-2GI Grippingforceat6barN600011000800015000850016000 Strokeperjawmm168168168 Grippingforcemaintained N--2000400020004000 Recommendedworkpieceweightkg305530553055 Weightkg5,55,58888 Heightmm8181111111111111 Ømm190190190190190190 MxNm170170170170170170 MyNm180180180180180180 MzNm130130130130130130 FzN430043004300430043004300 Operatingpressuremin./max.without GA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,50,50,40,40,80,8 Openingtimes0,50,50,80,80,40,4 Airconsumptionpercyclecm3520520520520520520 Max.allowablelengthofjawmm220210210200200200 www.eshop.roehm.biz onrequest

5055 Centric gripper RZP 3-jawcentricgripper RZP-160 Max. load on gripper and jaw Clamping force diagram exterior gripping 4000 04080120160200 8000 12000 16000 RZP160-1 RZP160-1GA RZP160-2 RZP160-2GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

RZP-200

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to300,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

5056 Centric gripper RZP 3-jawcentricgripper

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife

-Integrablepurgeairconnectiontopreventcontamination C40 RZP-200 - 3-jaw centric gripper airoperated Item No. 170080 170081 170082 170083 170084 170085 DesignRZP-200/3-1RZP-200/3-2RZP-200/3-1GARZP-200/3-2GARZP-200/3-1GIRZP-200/3-2GI Grippingforceat6barN750012500930015500950016200 Strokeperjawmm251425142514 Grippingforcemaintained N--1800300018003000 Recommendedworkpieceweightkg376237623762 Weightkg101013131313 Heightmm9696132132132132 Ømm250250250250250250 MxNm180180180180180180 MyNm200200200200200200 MzNm100100100100100100 FzN500050005000500050005000 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times1,21,2111,51,5 Openingtimes1,21,21,51,511 Airconsumptionpercyclecm 3100010001000100010001000 Max.allowablelengthofjawmm280250250200250200 www.eshop.roehm.biz onrequest

5057 Centric gripper RZP 3-jawcentricgripper RZP-200 Max. load on gripper and jaw Clamping force diagram exterior gripping 4000 050100150200250300 8000 12000 16000 20000 24000 RZP200-1 RZP200-1GA RZP200-2 RZP200-2GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

RZP-240

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to300,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request)

539053905390

5058 Centric gripper RZP 3-jawcentricgripper

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife

-Integrablepurgeairconnectiontopreventcontamination C40 RZP-240 - 3-jaw centric gripper airoperated Item No. 170086 170087 170088 170089 170090 170091 DesignRZP-240/3-1RZP-240/3-2RZP-240/3-1GARZP-240/3-2GARZP-240/3-1GIRZP-240/3-2GI Grippingforceat6barN105001800014000240001500025000 Strokeperjawmm301730173017 Grippingforcemaintained N--3500600035006000 Recommendedworkpieceweight kg

Weightkg202024242424 Heightmm128,1128,1171,5171,5171,5171,5 Ømm290290290290290290 MxNm265265265265265265 MyNm250250250250250250 MzNm160160160160160160 FzN620062006200620062006200 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times1,31,31,11,11,71,7 Openingtimes1,31,32,12,11,11,1 Airconsumptionpercyclecm3170017001700170017001700 Max.allowablelengthofjawmm300250250200250200 www.eshop.roehm.biz onrequest

5059 Centric gripper RZP 3-jawcentricgripper RZP-240 Max. load on gripper and jaw Clamping force diagram exterior gripping 050100150200250300 6000 12000 18000 24000 30000 RZP240-1 RZP240-1GA RZP240-2 RZP240-2GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

RZP-300

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to300,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request) -Integrablepurgeairconnectiontopreventcontamination

5060 Centric gripper RZP 3-jawcentricgripper

C40 RZP-300 - 3-jaw centric gripper airoperated Item No. 170092 170093 170094 170095 170096 170097 DesignRZP-300/3-1RZP-300/3-2RZP-300/3-1GARZP-300/3-2GARZP-300/3-1GIRZP-300/3-2GI Grippingforceat6barN160002800020000375002250038000 Strokeperjawmm352035203520 Grippingforcemaintained N--6000950060009500 Recommendedworkpieceweightkg801408011080140 Weightkg303040404040 Heightmm146146196196196196 Ømm345345345345345345 MxNm400400400400400400 MyNm400400400400400400 MzNm250250250250250250 FzN800080008000800080008000 Operatingpressuremin./max.without GA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times1,31,31,21,222 Openingtimes1,31,32,52,51,21,2 Airconsumptionpercyclecm 3270027002700270027002700 Max.allowablelengthofjawmm250225225200225200 www.eshop.roehm.biz onrequest

5061 Centric gripper RZP 3-jawcentricgripper RZP-300 Max. load on gripper and jaw Clamping force diagram exterior gripping 050100150200250 10000 20000 30000 40000 50000 RZP300-1 RZP300-1GA RZP300-2 RZP300-2GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

Accessories RZP

Jaw blank - aluminium (includingfixingscrews) 3-jawset

Item

NumberofjawsDesignFor

170550 3aluminiumRZP-64

3aluminiumRZP-80 170554 3aluminiumRZP-100 170556 3aluminiumRZP-125 170558 3aluminiumRZP-160 170560 3aluminiumRZP-200

3aluminiumRZP-240 170564 3aluminiumRZP-300

Jaw blank - steel (includingfixingscrews) 3-jawset

Item no. NumberofjawsDesignFor

3steelRZP-64 170502 3steelRZP-80 170504 3steelRZP-100 170506 3steelRZP-125 170508 3steelRZP-160 170510 3steelRZP-200 170512 3steelRZP-240 170514 3steelRZP-300

Protective coverResilient

Item

For

RZP-64 170811 RZP-80 170812 RZP-100 170813 RZP-125 170814 RZP-160 170815 RZP-200 170816 RZP-240 170817 RZP-300

Item no. For

RZP-64 170517 RZP-80

RZP-100

RZP-125

RZP-160

RZP-200

RZP-240

RZP-300

L-Plugconnector M5-6mm RPP-50/RPP-64/ RPP-80

L-Plugconnector 1/8-6mmRPP-100-RPP-240

L-Plugconnector 1/4-6mmRPP-300/RPP-380

5062 Accessories RZP

no.

170552

170562

170500

pressure piece

no.

170810

170516

170518

170519

170520

170521

170522

170523

Pressure maintenance fordoubleactinggripper(G1/8) Compressed air connection -L-Plugconnector Item no. 1078823 Item no. DesignFor 802539

477025

477024

Proximity switchMagnetic field sensors Item no. Size(diameter/ length) DesignFor 229114 M8x1x30,55mcable, openleads RZP-64/-80/100/-125/-160 389661 M8x1x46,53mcable, openleads RZP-200/-240/300 Item no. Size(diameter/ length) DesignFor 1231970 C-Nut30cmcable,plugM8x1-S49allsizes,alltypes www.eshop.roehm.biz onrequest 3-jawcentricgripper

SectionA-A

RPP - 2-jaw set170575170576170577170578170579170580170581170582

- 3-jaw set170500170502170504170506170508170510170512170514 A324151608096109130 B2022303540405060 C6480100125160200220200 D+0,04/+0,0268101014161622 E+0,22,52,5334446

F±0,1 5679,5101515,520 G±0,1 1316202432404446 H577191115146181204177

J4,55,56,66,61113,513,517,5 K810111118202026 L34568131016

Weightperjawkg0,250,451,01,753,25,08,010,2

RPP - 2-jaw

- 3-jaw set170550170552170554170556170558170560170562170564 A324151608096109130 B2025303540455060 C6480100125160200220200 D+0,04/+0,0268101014161622 E+0,22,52,5334446

F±0,1 5679,5101515,520 G±0,1 1316202432404446 H556988112141176200170

J4,55,56,66,61113,513,517,5 K810111118202026 L3456891016

Weightperjawkg0,10,180,350,61,22,02,83,4

5063 Accessories RZP Jaw blank - steel (includingfixingscrews) RPP / RZP6480100125160200240300

RZP

Jaw blank - aluminium (includingfixingscrews) RPP / RZP6480100125160200240300

set170585170586170587170588170589170590170591170592 RZP

SectionA-A onrequest Accessories RZP www.eshop.roehm.biz 3-jawcentricgripper

RZP-A

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated

-OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on

5064 3-jaw centric gripper RZP-A 3-jawcentricgripper

Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

Maximumflexibilitythankstoversatileconnectionandfasteningoptions Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors

request) -Integrablepurgeairconnectiontopreventcontamination C40 RZP-A 64 - 3-jaw centric gripper airoperatedwithtongueandgroove Item No. 436958 436959 436960 436961 436962 436963 DesignRZP-A64/3-1RZP-A64/3-2RZP-A64/3-1GARZP-A64/3-2GARZP-A64/3-1GIRZP-A64/3-2GI Grippingforceat6barN7001350880170010001900 Strokeperjawmm636363 Grippingforcemaintained N--180350180350 Recommendedworkpieceweightkg3,56,53,56,53,56,5 Weightkg0,40,40,50,50,50,5 Heightmm424255,555,555,555,5 Ømm646464646464 MxNm151515151515 MyNm303030303030 MzNm252525252525 FzN140014001400140014001400 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,010,010,030,030,040,04 Openingtimes0,010,010,040,040,030,03 Airconsumptionpercyclecm3252525252525 Max.allowablelengthofjawmm646464646464 www.eshop.roehm.biz onrequest

RZP-A

5065 3-jaw centric gripper RZP-A 3-jawcentricgripper

64 Max. load on gripper and jaw Clamping force diagram exterior gripping 500 1000 1500 2000 0255075 RZP-A 64/3-1 RZP-A 64/3-2 RZP-A 64/3-1 GA RZP-A 64/3-2 GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

RZP-A

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated

-OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on

5066 3-jaw centric gripper RZP-A 3-jawcentricgripper

Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

Maximumflexibilitythankstoversatileconnectionandfasteningoptions Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors

request) -Integrablepurgeairconnectiontopreventcontamination C40 RZP-A 80 - 3-jaw centric gripper airoperatedwithtongueandgroove Item No. 434833 435042 434837 435043 434838 435044 DesignRZP-A80/3-1RZP-A80/3-2RZP-A80/3-1GARZP-A80/3-2GARZP-A80/3-1GIRZP-A80/3-2GI Grippingforceat6barN100025001600340017003500 Strokeperjawmm848484 Grippingforcemaintained N--350700350700 Recommendedworkpieceweight kg 512512512 Weightkg0,750,750,950,950,950,95 Heightmm484863636363 Ømm808080808080 MxNm303030303030 MyNm909090909090 MzNm353535353535 FzN180018001800180018001800 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,060,060,050,050,080,08 Openingtimes0,050,050,080,080,050,05 Airconsumptionpercyclecm 3606060606060 Max.allowablelengthofjawmm808080808080 www.eshop.roehm.biz onrequest

RZP-A

5067 3-jaw centric gripper RZP-A 3-jawcentricgripper

80 Max. load on gripper and jaw Clamping force diagram exterior gripping 0 1000 2000 3000 4000 0255075100 RZP-A 80/3-1 RZP-A 80/3-2 RZP-A 80/3-1 GA RZP-A 80/3-2 GA Total gripping force F(N) at 6 bar Effective length of jaw L (mm) F(N) onwww.eshop.roehm.biz request

RZP-A

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated

5068 3-jaw centric gripper RZP-A 3-jawcentricgripper

100

Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

Maximumflexibilitythankstoversatileconnectionandfasteningoptions Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request) -Integrablepurgeairconnectiontopreventcontamination C40 RZP-A 100 - 3-jaw centric gripper airoperatedwithtongueandgroove Item No. 434891 434892 434900 434840 434839 434901 DesignRZP-A100/3-1RZP-A100/3-2RZP-A100/3-1GARZP-A100/3-2GARZP-A100/3-1GIRZP-A100/3-2GI Grippingforceat6barN200040002500500026505100 Strokeperjawmm105105105 Grippingforcemaintained N--50010005001000 Recommendedworkpieceweight kg 102010201020 Weightkg1,31,31,91,91,91,9 Heightmm585878787878 Ømm100100100100100100 MxNm454545454545 MyNm959595959595 MzNm454545454545 FzN230023002300230023002300 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,10,10,10,10,20,2 Openingtimes0,10,10,20,20,10,1 Airconsumptionpercyclecm3120120120120120120 Max.allowablelengthofjawmm100100100100100100 www.eshop.roehm.biz onrequest

RZP-A

5069 3-jaw centric gripper RZP-A 3-jawcentricgripper

100 Max. load on gripper and jaw Clamping force diagram exterior gripping 3000 6000 9000 04080120 RZP-A 100/3-1 RZP-A 100/3-2 RZP-A 100/3-1 GA RZP-A 100/3-2 GA F(N) Total gripping force F(N) at 6 bar Effective length of jaw L (mm) onwww.eshop.roehm.biz request

RZP-A

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE Availablefromsizes64to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover. Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

Maximumflexibilitythankstoversatileconnectionandfasteningoptions Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request) -Integrablepurgeairconnectiontopreventcontamination

5070 3-jaw centric gripper RZP-A 3-jawcentricgripper

125

C40 RZP-A 125 - 3-jaw centric gripper airoperatedwithtongueandgroove Item No. 434841 434902 434842 434914 434843 434915 DesignRZP-A125/3-1RZP-A125/3-2RZP-A125/3-1GARZP-A125/3-2GARZP-A125/3-1GIRZP-A125/3-2GI Grippingforceat6barN330065004200810043008300 Strokeperjawmm136136136 Grippingforcemaintained N--90016008001600 Recommendedworkpieceweightkg163216321632 Weightkg2,32,33,43,43,43,4 Heightmm666680,580,580,580,5 Ømm125125125125125125 MxNm606060606060 MyNm100100100100100100 MzNm707070707070 FzN250025002500250025002500 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,20,20,150,150,350,35 Openingtimes0,20,20,350,350,150,15 Airconsumptionpercyclecm3230230230230230230 Max.allowablelengthofjawmm125125125125125125 www.eshop.roehm.biz onrequest

RZP-A

5071 3-jaw centric gripper RZP-A 3-jawcentricgripper

125 Max. load on gripper and jaw Clamping force diagram exterior gripping 4000 8000 12000 03570105140 RZP 125/3-1 RZP-A 125/3-2 RZP 125/3-1 GA RZP-A 125/3-2 GA F(N) Total gripping force F(N) at 6 bar Effective length of jaw L (mm) onwww.eshop.roehm.biz request

RZP-A

APPLICATION

Universalgrippingofroundandcylindricalworkpieceswiththreecentricallyarranged gripperfingersforhandlingwithrobotsorportals.

TYPE

Availablefromsizes64to160,eachintwostrokevariants.Optionallywithgripping forcesafetydeviceand/ordirtcover.

CUSTOMERBENEFITS

Highgrippingforcewithlowdeadweightandcompactdesign

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated

-OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on

5072 3-jaw centric gripper RZP-A 3-jawcentricgripper

160

Fasteningofthegripperfingersviacenteringsleeves(includedinthescopeof delivery).

Maximumflexibilitythankstoversatileconnectionandfasteningoptions Longservicelifeandhighreliabilitythankstospeciallygroundbasejawsin provenT-slotguide

aluminiumalloy -Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Wedgehookprinciplewithpneumaticactuation -Optionalinductiveandmagneticpositionsensors

request) -Integrablepurgeairconnectiontopreventcontamination C40 RZP-A 160 - 3-jaw centric gripper airoperatedwithtongueandgroove Item No. 435045 435046 435055 435056 435057 435058 DesignRZP-A160/3-1RZP-A160/3-2RZP-A160/3-1GARZP-A160/3-2GARZP-A160/3-1GIRZP-A160/3-2GI Grippingforceat6barN600012000800016000850016500 Strokeperjawmm168168168 Grippingforcemaintained N--2000400020004000 Recommendedworkpieceweight kg 306030603060 Weightkg4,54,56,66,66,66,6 Heightmm7878108108108108 Ømm160160160160160160 MxNm808080808080 MyNm100100100100100100 MzNm808080808080 FzN280028002800280028002800 Operatingpressuremin./max. withoutGA/GI bar 2-82-8---Operatingpressuremin./max.with GA/GI bar --4-74-74-74-7 Clamping times0,40,40,40,40,80,8 Openingtimes0,40,40,80,80,40,4 Airconsumptionpercyclecm3520520520520520520 Max.allowablelengthofjawmm160160160160160160 www.eshop.roehm.biz onrequest

RZP-A

5073 3-jaw centric gripper RZP-A 3-jawcentricgripper

160 Max. load on gripper and jaw Clamping force diagram exterior gripping 4000 8000 12000 16000 20000 04080120160 RZP-A 160/3-1 RZP-A 160/3-2 RZP-A 160/3-1 GA RZP-A 160/3-2 GA F(N) Total gripping force F(N) at 6 bar Effective length of jaw L (mm) onwww.eshop.roehm.biz request

Accessories RZP-A

Jaw

3steelRZP-A80

3steelRZP-A100

3steelRZP-A160

Jaw

Resilient pressure piece

RZP-A64

RZP-A80

RZP-A100

RZP-A125

RZP-A160

Compressed air connection -L-Plugconnector

L-Plugconnector M5-6mm RPP-50/RPP-64/ RPP-80

L-Plugconnector 1/8-6mmRPP-100-RPP-240

Pressure maintenance fordoubleactinggripper(G1/8)

switch

Item no. Size(diameter/ length)

M8x1x30,55mcable, openleads RZP-A64/ RZP-A-160

5074 Accessories RZP-A

blank

steel (includingfixingscrews) 3-jawset

blank

aluminium (includingfixingscrews) 3-jawset Item no. NumberofjawsDesignFor 170825 3steelRZP-A64 170826

170827

170828 3steelRZP-A125 170829

Item no. NumberofjawsDesignFor 170835 3aluminiumRZP-A64 170836 3aluminiumRZP-A80 170837 3aluminiumRZP-A100 170838 3aluminiumRZP-A125 170839 3aluminiumRZP-A160

Item no. For 165573

170868

170870

170871

170872

Item no. 1078823

Proximity

Item no. DesignFor 802539

477025

DesignFor 229114

www.eshop.roehm.biz onrequest 3-jawcentricgripper

1316202432

K810111115 L2,5333,54 Mf7568810 N-0,3/-0,52126334151

P+0,114172125,531 Q34568

5075 Accessories RZP-A Jaw blank - steel (includingfixingscrews) RPP-A / RZP-A Jaw blank - steel 6480100125160 RPP-A - 2-jaw set170675170676170677170678170679 RZP-A - 3-jaw set170825170826170827170828170829 A3241516080 B2022303540 C68,585,5105,5130,5166,5 D+0,01/+0,0345668 E+0,24,55,55,55,56,5 F±0,1 456811 G±0,1

H59,574,594,5119,5153,5 J4,55,56,66,69

O-0,3/-0,510,212,214,216,220,2

Weightperjawkg0,260,461,01,83,5 SectionA-A onrequest Accessories RZP-A www.eshop.roehm.biz 3-jawcentricgripper

Accessories RZP-A

A3241516080 B2022303540 C68,585,5105,5130,5166,5 D+0,01/+0,0345668 E+0,24,55,55,55,56,5

±0,1 456811

±0,1 1316202432 H59,574,594,5119,5153,5 J4,55,56,66,69 K810111115 L2,5333,54 Mf7568810 N-0,3/-0,52126334151 O-0,3/-0,510,212,214,216,220,2 P+0,114172125,531 Q34568

5076 Jaw blank - aluminium (includingfixingscrews) RPP-A / RZP-A Jaw blank - aluminium 6480100125160 RPP-A - 2-jaw set170685170686170687170688170689 RZP-A - 3-jaw set170835170836170837170838170839

Weightperjawkg0,10,160,350,621,2

SectionA-A onrequest Accessories RZP-A www.eshop.roehm.biz 3-jawcentricgripper

5077 Notes Notes www.eshop.roehm.biz

5078 RÖHM G longstroke gripper Pneumatic (sealedversion) NOMENCLATURE RGP O / V/ GA- 100 O = Openversionforlongerjaw stroke Sizes RGP:30-50 RGPO:40-60 Optional: springsafety GA =outside grip Optional: V =VitonFKMsealingfor temperatures upto150°C www.eshop.roehm.biz

The2-jawlongstrokegripperallowsforlargejawstrokes,thankstoitsdesign,andisthereforeoptimallysuitedforhandlinglargepartsandahighpartdiversity.Duetothesealedguide,itisoftenused inroughenvironments.Thecentricclampingisrealizedviathesynchronizationofthetwotoothed rackswithagearwheel.

nium

Sealedwithhighlyprecise

Centricclampingisrealizedvia thesynchronizationofthetwo toothedrackswithagearwheel

5079 2-JAW LONG STROKE GRIPPER

Gripperbodymadeofhighstrength,hard-coatedalumi-

Robustdoublepistonguide incompacthousing Highgrippingforcewithsimultaneouslyhighjawstrokebymeansofdouble-actingpressurepistons Hightorquesupportforusinglonggripperfingersbymeansofrobustflatguide Sealedforroughambientconditionswithquad-ringsealandhighlypreciseintermediatejaws Positioncanbequeried usinginductiveandmagnetic sensors

intermediatejawsandquadringseals 2-jaw long stroke gripper ADVANTAGES AT A GLANCE www.eshop.roehm.biz

APPLICATION

Sealedlarge-strokegripperforhandlinglargepartsandhighpartvariety.

TYPE

Availableinsizes30,40and50withintegratedseal-optionallywithgrippingforce securingdevice.

Highprecisionthankstodouble-pistondrivesynchronizedviagearwheel.

CUSTOMERBENEFITS

Highgrippingforcewithsimultaneouslyhighjawstrokebymeansofdoubleactingpressurepistons

Hightorquesupportforusinglonggripperfingersthankstoelongatedjawguide Sealedforroughambientconditionswithquad-ringsealandhighlyprecise intermediatejaws

Maximumflexibilitythankstoversatileconnectionandfasteningoptions

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

-Allfunctionalpartsmadeofhardenedsteelformaximumservicelife -Robustdoublepistonguideincompactdesign -Optionalinductiveandmagneticpositionsensors -OptionallyavailablewithFKMsealsforhighertemperaturesupto150°C(on request) -Integrablepurgeairconnectiontopreventcontamination

C40

RGP-30 -

DesignRGP30RGP30-GA Grippingforceat6barN630720 Strokeperjawmm3030 Grippingforcemaintained N-90 Recommendedworkpieceweightkg33 Weightkg3,23,2 Widthmm134134 Heightmm6666 Depthmm9494 MxNm3030 MyNm9595 MzNm4545 FzN10001000 Operatingpressuremin./max.withoutGA/GI bar2-8Operatingpressuremin./max.withGA/GI bar-5-6,5 Clamping times0,30,35 Openingtimes0,30,35

Airconsumptionpercyclecm

5080 Long stroke gripper RGP 2-jaw longstroke gripper RGP-30

2-jaw long stroke gripper airoperated Item No. 170109 170110

39292 Max.allowablelengthofjawmm150100 www.eshop.roehm.biz onrequest

5081 Long stroke gripper RGP 2-jaw longstroke gripper RGP-30 Max. load on gripper and jaw Clamping force diagram 250 500 750 1000 RGP 30 / 4 bar RGP 30 / 6 bar RGP 30 / 8 bar 250 500 750 1000 0255075100125150 RGP 30 / 4 bar RGP 30 GA/6 bar RGP 30 / 6 bar RGP 30 / 8 bar Clamping force diagram – exterior gripping Effective length of jaw L (mm) F(N) Clamping force diagram – interior gripping F(N) onwww.eshop.roehm.biz request

RGP-40

C40

RGP-40 - 2-jaw long stroke gripper airoperated

APPLICATION

Sealedlarge-strokegripperforhandlinglargepartsandhighpartvariety.

TYPE

Availableinsizes30,40and50withintegratedseal-optionallywithgrippingforce securingdevice.

Highprecisionthankstodouble-pistondrivesynchronizedviagearwheel.

CUSTOMERBENEFITS

Highgrippingforcewithsimultaneouslyhighjawstrokebymeansofdoubleactingpressurepistons

Hightorquesupportforusinglonggripperfingersthankstoelongatedjawguide Sealedforroughambientconditionswithquad-ringsealandhighlyprecise intermediatejaws

Maximumflexibilitythankstoversatileconnectionandfasteningoptions

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

DesignRGP40RGP40-GARGP40-GI Grippingforceat6barN126015401380 Strokeperjawmm404040 Grippingforcemaintained N-150150 Recommendedworkpieceweightkg6,36,35,5 Weightkg5,65,65,6 Widthmm171171171 Heightmm838383 Depthmm115115115 MxNm505050 MyNm100100100 MzNm707070 FzN110011001100

Operatingpressuremin./max.withoutGA/GI bar2-8-Operatingpressuremin./max.withGA/GI bar-5-6,55-6,5 Clamping times0,30,30,4 Openingtimes0,30,40,3

Airconsumptionpercyclecm3240240240 Max.allowablelengthofjawmm200150150

5082 Long stroke gripper RGP 2-jaw longstroke gripper

Item No. 170111 170112 170113

www.eshop.roehm.biz onrequest

5083 Long stroke gripper RGP 2-jaw longstroke gripper RGP-40 Max. load on gripper and jaw Clamping force diagram Clamping force diagram – exterior gripping Effective length of jaw L (mm) F(N) Clamping force diagram – interior gripping F(N) 400 800 1200 1600 050100150200 RGP 40 / 4 bar RGP 40 / 6 bar RGP 40 GA /6 bar RPG 40 / 8 bar 400 800 1200 1600 RGP 40 / 4 bar RGP 40 / 6 bar RGP 40 GI/6 bar RGP 40 / 8 bar onwww.eshop.roehm.biz request

RGP-50

C40

RGP-50 -

APPLICATION

Sealedlarge-strokegripperforhandlinglargepartsandhighpartvariety.

TYPE

Availableinsizes30,40and50withintegratedseal-optionallywithgrippingforce securingdevice.

Highprecisionthankstodouble-pistondrivesynchronizedviagearwheel.

CUSTOMERBENEFITS

Highgrippingforcewithsimultaneouslyhighjawstrokebymeansofdoubleactingpressurepistons

Hightorquesupportforusinglonggripperfingersthankstoelongatedjawguide Sealedforroughambientconditionswithquad-ringsealandhighlyprecise intermediatejaws

Maximumflexibilitythankstoversatileconnectionandfasteningoptions

TECHNICALFEATURES

-Centricallyclampingincompactdesignmadeofhigh-strength,hard-coated aluminiumalloy

DesignRGP50RGP50-GARGP50-GI

MxNm606060 MyNm100100100 MzNm808080

Operatingpressuremin./max.withoutGA/GI bar2-8-Operatingpressuremin./max.withGA/GI bar-5-6,55-6,5 Clamping times0,60,50,7 Openingtimes0,70,80,6

5084 Long stroke gripper RGP 2-jaw longstroke gripper

2-jaw long stroke gripper airoperated Item No. 170114 170115 170116

Grippingforceat6barN260029502680 Strokeperjawmm505050 Grippingforcemaintained N-450450 Recommendedworkpieceweightkg131311,5 Weightkg111111 Widthmm218218218 Heightmm103103103 Depthmm141141141

FzN130013001300

Airconsumptionpercyclecm3600600600 Max.allowablelengthofjawmm250200200 www.eshop.roehm.biz onrequest

5085 Long stroke gripper RGP 2-jaw longstroke gripper RGP-50 Max. load on gripper and jaw Clamping force diagram Clamping force diagram – exterior gripping Effective length of jaw L (mm) F(N) Clamping force diagram – interior gripping F(N) 800 1600 2400 3200 4000 050100150200250 RGP 50 / 4 bar RGP 50 6 bar RGP 50 GA / 6 bar RGP 50 8 bar 800 1600 2400 3200 4000 050100150200250 RGP 50 4 bar RGP 50 / 6 bar RGP 50 GI/6 bar RGP 50 / 8 bar onwww.eshop.roehm.biz request

5086 Accessories RGP Accessories RGP Intermediate jaw - steel (includingfixingscrews) 2-jawset Jaw blank - steel (includingfixingscrews) 2-jawset Item no. NumberofjawsDesignFor 170993 2steelRGP-30 170995 2steelRGP-40 170997 2steelRGP-50 Item no. NumberofjawsDesignFor 1146146 2steelRGP-30 1146144 2steelRGP-40 1131198 2steelRGP-50 Pressure maintenance fordoubleactinggripper(G1/8) Compressed air connection -L-Plugconnector Item no. 1078823 Item no. DesignFor 477025 L-Plugconnector 1/8-6mmallsizes,alltypes Proximity switchMagnetic field sensors Item no. Size(diameter/ length) DesignFor 229114 M8x1x30,55mcable,openleadsallsizes,alltypes Item no. Size(diameter/ length) DesignFor 1132737 T-Nut5mcable,3openleadsallsizes,alltypes www.eshop.roehm.biz onrequest 2-jaw longstroke gripper

Accessories

A283242 a1182025 B546280 b1253038 b2364050 C100150200 c1131722 c2303440 c322,526,532,5 D+0,02/+0,04101214 E+0,023,63,64,6

±0,1 87,59

±0,02 202532 H6,88,511 J6,6911 K1113,516,5 R152025 W57°57°57° Weightperjawkg0,61,22,6

5087

RGP Jaw blank - steel (includingfixingscrews) RGP Jaw blank - steel 304050 RGP - 2-jaw set114614611461441131198

onrequest Accessories RGP www.eshop.roehm.biz 2-jaw longstroke gripper

set170993170995170997 A364050 a1182025 a21012,516 B59,56786 b113,514,520 b21012,516 b336,540,550,5 C26,528,535 c187,59 c2202125 c3161720,5 D+0,02/+0,04101214 E+0,023,53,54,6 F±0,1182025 G±0,02 202532 H6,88,511 J6,6911 K1113,516,5 L182328 MM6M8M10 Nx20°8912 Px45°7810 R5,56,56,5 WeightperjawKg0,61,22,6

SizeØ10Ø12Ø14

5088 Accessories RGP 2-jaw longstroke gripper Intermediate jaw - steel (includingfixingscrews) RGP Intermediate jaw - steel 304050 RGP - 2-jaw

Centering sleeve170264170265170266

SectionA-A onrequest Accessories RGP www.eshop.roehm.biz

5089 Notes Notes www.eshop.roehm.biz

APPLICATION

Premiumlargestrokegripperwithlargestrokeandgroundjawguides.

CUSTOMERBENEFITS

Upto5millioncyclesmaintenance-free Availableonrequest:temperature-resistantversion(uptoapprox.150°C)

TECHNICALFEATURES

-Gripperbodymadeofhigh-strength,hard-coatedaluminium -Toothedracks,intermediatejawsandgearwheelmadeofhardenedsteel -Hightorqueabsorptionoftheintermediatejawsduetotherobustflatguideof thetoothedracks

-Suitablefortheuseoflongtopjaws -Centricclampingisrealizedviathesynchronizationofthetwotoothedrackswith onegearwheel -Specialgrippertypeavailablewithadditionalspringsettopreventlossof grippingforceduringexternalorinternalgripping -Energysupplypossiblebymeansofscrewconnectionorviahoselessdirect connection

DesignRGPO4060RGPO4060-GA Grippingforceat6barN12501920 Strokeperjawmm6060

Recommendedworkpieceweightkg5,55,5 Weightkg3,84,2 Widthmm170170 Heightmm8080 Depthmm100100 MxNm8080 MyNm125125 MzNm100100 FzN30003000

Operatingpressuremin./max.withoutGA/GI bar3-8

Operatingpressuremin./max.withGA/GI bar4-8 Clamping times0,350,4 Openingtimes0,350,35

Airconsumptionpercyclecm3278278

Max.allowablelengthofjawmm150150

5090 2-jaw long stroke gripper Longstroke gripperRGPO RGPO-4060

RGPO

4060 - 2-jaw large stroke gripper airoperated Item No. 172774 172775

www.eshop.roehm.biz onrequest

5091 2-jaw long stroke gripper Longstroke gripperRGPO RGPO-4060 Max. load on gripper and jaw Clamping force diagram exterior gripping 300 050100150200 600 900 1200 Total gripping force F(N) at 6 bar Effective length of jaw L(mm) F(N) 1500 2500 onwww.eshop.roehm.biz request

RGPO-40100

APPLICATION

Premiumlargestrokegripperwithlargestrokeandgroundjawguides.

CUSTOMERBENEFITS

Upto5millioncyclesmaintenance-free Availableonrequest:temperature-resistantversion(uptoapprox.150°C)

TECHNICALFEATURES

-Gripperbodymadeofhigh-strength,hard-coatedaluminium -Toothedracks,intermediatejawsandgearwheelmadeofhardenedsteel -Hightorqueabsorptionoftheintermediatejawsduetotherobustflatguideof thetoothedracks

DesignRGPO40100

Grippingforceat6barN1250

Strokeperjawmm100

Recommendedworkpieceweightkg5,5 Weightkg5,3 Widthmm170 Heightmm80 Depthmm100 MxNm80 MyNm125 MzNm100 FzN3000

Operatingpressuremin./max.withoutGA/GI bar3-8 Clamping times0,35 Openingtimes0,35

Airconsumptionpercyclecm3278

Max.allowablelengthofjawmm150

5092 2-jaw long stroke gripper Longstroke gripperRGPO

RGPO

40100 - 2-jaw large stroke gripper airoperated Item No. 172777

www.eshop.roehm.biz onrequest

5093 2-jaw long stroke gripper Longstroke gripperRGPO RGPO-40100 Max. load on gripper and jaw Clamping force diagram exterior gripping 300 050100150200 600 900 1200 Total gripping force F(N) at 6 bar Effective length of jaw L(mm) F(N) 1500 2500 onwww.eshop.roehm.biz request

APPLICATION

Premiumlargestrokegripperwithlargestrokeandgroundjawguides.

CUSTOMERBENEFITS

Upto5millioncyclesmaintenance-free Availableonrequest:temperature-resistantversion(uptoapprox.150°C)

TECHNICALFEATURES

-Gripperbodymadeofhigh-strength,hard-coatedaluminium -Toothedracks,intermediatejawsandgearwheelmadeofhardenedsteel -Hightorqueabsorptionoftheintermediatejawsduetotherobustflatguideof thetoothedracks

DesignRGPO6360RGPO6360-GA Grippingforceat6barN30004000 Strokeperjawmm6060

Recommendedworkpieceweightkg1515 Weightkg1011 Widthmm185185 Heightmm121,5121,5 Depthmm154154 MxNm200200 MyNm300300 MzNm250250 FzN90009000

Operatingpressuremin./max.withoutGA/GI bar3-8

Operatingpressuremin./max.withGA/GI bar4-8 Clamping times0,40,4 Openingtimes0,40,5

Airconsumptionpercyclecm3710710 Max.allowablelengthofjawmm200200

5094 2-jaw long stroke gripper Longstroke gripperRGPO RGPO-6360

RGPO

6360 - 2-jaw large stroke gripper airoperated Item No. 172794 172795

www.eshop.roehm.biz onrequest

5095 2-jaw long stroke gripper Longstroke gripperRGPO RGPO-6360 Max. load on gripper and jaw Clamping force diagram exterior gripping 700 080160240320 1400 2100 2800 Total gripping force F(N) at 6 bar Effective length of jaw L(mm) F(N) 3500 400 onwww.eshop.roehm.biz request

APPLICATION

Premiumlargestrokegripperwithlargestrokeandgroundjawguides.

CUSTOMERBENEFITS

Upto5millioncyclesmaintenance-free Availableonrequest:temperature-resistantversion(uptoapprox.150°C)

TECHNICALFEATURES

-Gripperbodymadeofhigh-strength,hard-coatedaluminium -Toothedracks,intermediatejawsandgearwheelmadeofhardenedsteel -Hightorqueabsorptionoftheintermediatejawsduetotherobustflatguideof thetoothedracks

DesignRGPO63100 Grippingforceat6barN3000 Strokeperjawmm100

Recommendedworkpieceweightkg15 Weightkg13,4 Widthmm185 Heightmm121,5 Depthmm154 MxNm200 MyNm300 MzNm250 FzN9000

Operatingpressuremin./max.withoutGA/GI bar3-8 Clamping times0,7 Openingtimes0,7 Airconsumptionpercyclecm31180

Max.allowablelengthofjawmm200

5096 2-jaw long stroke gripper Longstroke gripperRGPO RGPO-63100

RGPO

63100 - 2-jaw large stroke gripper airoperated Item No. 172797

www.eshop.roehm.biz onrequest

5097 2-jaw long stroke gripper Longstroke gripperRGPO RGPO-63100 Max. load on gripper and jaw Clamping force diagram exterior gripping 700 080160240320 1400 2100 2800 Total gripping force F(N) at 6 bar Effective length of jaw L(mm) F(N) 3500 400 onwww.eshop.roehm.biz request

Application-specific grippers

RDPP - Sealed parallel gripper

APPLICATION

Sealedparallelgripperwithprecisesquareguideforrough environments.

TYPE

Availableinsizes80to160inespeciallycompactdesign.

CUSTOMERBENEFITS

Doublysealedprecisionsquareguideforuseunderdrillingor grindingemulsions

Optionallywithgrippingforcesecuringdeviceforinnerandouter clamping

Gripperfingersmountedlaterallyforminimumloaddistance

Maximumflexibilitythankstoversatileconnectionandfastening options

TECHNICALFEATURES

Centricallyclampingincompactdesignmadeofhigh-strength,hardcoatedaluminiumalloy.Allfunctionalpartsmadeofhardenedsteel formaximumservicelife.Positioncanbequeriedusinginductiveand magneticsensors.

Othersizesavailableonrequest.OptionallyavailablewithFKMseals forhighertemperaturesupto150°C(onrequest).

RPR - Compact long stroke gripper

APPLICATION

Compactlongstrokegripperforhandlinglargepartsandhighpart variety.

TYPE

Availableinsizes22and42inespeciallycompactdesign.Highprecisionthankstodouble-pistondrivesynchronizedviagearwheel.

CUSTOMERBENEFITS

Compactdesignwithlongjawstrokeforespeciallycramped spatialconditions

Highgrippingforcewithsimultaneouslylongjawstrokebymeans ofdouble-actingpressurepistons

Gripperfingersmountedlaterallyforminimumloaddistance

Maximumflexibilitythankstoversatileconnectionandfastening options

TECHNICALFEATURES

Centricallyclampingincompactdesignmadeofhigh-strength,hardcoatedaluminiumalloy.Allfunctionalpartsmadeofhardenedsteelfor maximumservicelife.Robustdouble-pistonguideincompacthousing,pneumaticallyactuated.Positioncanbequeriedusinginductive andmagneticsensors.Integrateddampingringintheendpositionsfor highavailability.

Othersizesavailableonrequest.OptionallyavailablewithFKMseals forhighertemperaturesupto150°C(onrequest).

5098

Application-specificgrippers

Application specific grippers www.eshop.roehm.biz

5099 Notes Notes www.eshop.roehm.biz

INDIVIDUAL SINGLE PIECE WITH OPTIMIZED DESIGN

Withthehelpofa3Dmodeloftheworkpiece, thesyntheticRRMGgripperisindividuallyandperfectlyadaptedtotherespectiveworkpiece.Special jawswithfree-formsurfacesallowthesecuregrippingandclampingofeverysensitiveworkpiecewith complexgeometries.

Theparticularlyrobustandresistantdesignofthe newsyntheticRRMGgrippermakesa30%higher clampingforcepossible.

5100

VideoSynthetic

gripper RÖHM Rapid Manufacturing Gripper RRMG - 2 Sizes 2-3 www.eshop.roehm.biz

SYNTHETIC

Whetherroundmaterial,prismaticworkpiecesorfree-formsurfaces,thesyntheticRRMGgripper fromRÖHMisindividuallyadaptedtotheworkpieceandproduced.Onlya3Dmodeloftheworkpieceisrequired,andRÖHMwillproducetheindividualsyntheticRRMGgripperbasedonthat. Thiscustomer-specificsolutionisthereforeperfectforgrippingandclampingsensitiveworkpieces withcomplexgeometries.

ADVANTAGES AT A GLANCE

Customizedjawsperfectly adaptedtotheworkpiece

New,robust,resistant andweight-reduced design

5101

GRIPPER

Component-specificindividualpieceforsensitiveworkpieceswithcomplexgeometries FEM-optimizeddesignwith30%higherclampingforceforagreaterrangeofuse Upto16milliongrippercycleswit houtrequiredmaintenanceorsignsofwear

FEM-optimizedstructure withreinforcementribsinthe T-profileformaximumrigidity andlongservicelife

Integratedsensorqueryfor maximumprocessreliability andautomation

Synthethic gripper

www.eshop.roehm.biz

APPLICATION

Syntheticgripperforlight,sensitiveworkpieceswithcomplexgeometries.

TYPE

SyntheticgripperRRMG-customizedandperfectlyadaptedjawsontheformofthe

CUSTOMERBENEFITS

Partspecificuniquegripperforsensitiveworkpieceswithcomplexgeometries

TECHNICALFEATURES

5102

workpiece.

FEMoptimizedstructurewith30%higherclampingforce Customizedandperfectlyadaptedtotheworkpieceusingthe3D-model Applicationspecificdesignoftheflangeformaximumflexibility Upto16milliongrippingcycleswithoutmaintenanceorwearandtear

-Syntheticallybuiltbyselectivelasersintheringforshortdeliverytimes -EspeciallyrobustanddurablematerialpolyamidwithFEM-optimizedstructure -Optionalpositionmonitoringbyinstallablestandardsensors -Positionmonitoringbymagneticsensorspossible -Furtherdesignsandsizesonrequest(e.g.doublegripper,internalgripper,etc.) SyntheticgripperRRMG RRMG Synthetic gripper RRMG www.eshop.roehm.biz Synthetic gripper RRMG SizeGripping force* N Stroke* mm Clamping point X A mm B mm C mm D mm E mm F mm G mm H mm I mm J mm KØ mm RRMG 2802,623,29275,83750475,52531133,44,5 RRMG 31524,331,2118,692,45066547,23542,5184,25,5 *AtclampingpointX

APPLICATION

AdditivemanufacturedgripperwithHRC-functionforcustomer-specificandcomplex workpiecegeometries.Roundingofedgesandcornersaswellastherobustanddurable designensureprotectionoftheworkerfrominjuryinaccordancewiththelatestISO10218 andISO/TS15066standardsbyadditionalflexibility.

TYPE

Additivemanufacturedgripperwithcustomizedandperfectlyadaptedjawsontheformof theworkpiece.

CUSTOMERBENEFITS

Accurategrippingofallconceivableworkpieceshapesthroughformfittingadaptionof thegripperfingersbyadditivemanufacturing Upto120Nofgrippingforce,dependingonthecontourandsurfaceoftheworkpiece Maintenance-freeforupto10milliongrippingcycles–withupto100grippingcycles perminute

Solid,durabledesignwithextremelylownetweight(300g)

TECHNICALFEATURES

-Grippingpositioncanbechangedby90°withtheflange

-Optionalpositionmonitoringbyinstallablestandardsensors -Positionmonitoringbymagneticsensorspossible -Furtherdesignsandsizesonrequest(e.g.doublegripper,internalgripper,etc.)

5103 Synthetic gripper RRMG-MRK www.eshop.roehm.biz SyntheticgripperRRMG-MRK RRMG-MRK

-Theclampingpositioniscomfortablyreachedbyintegratedsensors

-Syntheticallybuiltbyselectivelasersintheringforshortdeliverytimes -EspeciallyrobustanddurablematerialpolyamidwithFEM-optimizedstructure

Synthetic gripper RRMG-MRK Gripping force* N Stroke* mm Clamping point X A mm B mm C mm D mm E mm F mm G mm H mm I mm J mm KØ mm RRMG-MRK 120**4,331,2118,693,45566557,24547,5184,25,5 *AtclampingpointX **Max.clampingforcemustbecontrolledbyairpressure ExclusivedistributionthroughKUKASystemsGmbH

Operation

RSP-Flex - basic unit*

•Withthroughhole

RSP-Flex - basic unit with fluid feedthrough*

•Withfluidfeedthroughandthroughhole

•4-wayfluidfeedthrough(RSP32-Flex)

•8-wayfluidfeedthrough(RSP42-Flex/RSP52-Flex)

RSP-Flex - basic unit with fluid and cable feedthrough*

•Withfluidfeedthrough,withcablefeedthrough

•+8-waycablefeedthrough(RSP32-Flex)

•+8-waycablefeedthrough(RSP42-Flex/RSP52-Flex)

RSP-Flex - basic unit with fluid and cable feedthrough and inductive attachment kit*

•Withfluidfeedthrough,withcablefeedthrough,withinductiveattachmentkitformonitoringtheswivelpositionwithproximityswitches

•++inductiveattachmentkit(RSP32-Flex)

++inductiveattachmentkit(RSP42-Flex/RSP52-Flex)

*Themonitoringoftheswivelpositionbyupto6magneticsensorsisrecommendedforallswivelunits

SWIVEL ANGLE AND END POSITION ADJUSTMENT

5104

-F4 -F8 -F4 -F8 -KD8 -KD8 -F4 -F8 -KD8 -KD8 -AS -AS RSP-90-J3 Pivotangle90° Endposition±3° RSP-180-J3 Pivotangle180° Endposition±3° RSP-180-J90 Pivotangle180° Endposition90±3° RSP-180-J3-MV Pivotangle90°-180°-90° Endposition±3° withmechanicallylocked middleposition Swivelunits

guide Operation guide www.eshop.roehm.biz

Operation

Nounintentionalreadjustmentoftheendposition

Stoppistonshockabsorberislockedthroughresilient

THE DAMPER SETTING MAKES THE DIFFERENCE

Simple load adaptation

The trick with the click

5105 RSP-FLEX END POSITION ADJUSTMENT

Flexibleandeasydamperadjustmentfromoutside usingawrench.Itisnotnecessarytoexchangeor disassembletheswivelunit.Result:Canbequicklyand easilyintegratedinthesystem.

Theshockabsorberhardnesscanbeuniquelydocumented.Thankstothesnap-inadjustability,thesystem-specific settingcanbequicklyandreliablyreproduced.

Swivelunits

guide Operation guide www.eshop.roehm.biz

thankstotheuseofthelocknutwithfinethread Steplessadjustmentoftheendangle Endpositionisnotmaladjustedwhentheshock absorberisadjusted

pressurepiece RetainingLocknutClosurering cap Stopsleeve Stoppistonendposition Stoppiston shockabsorber Retainingring Resilientpressurepiece

5106 NOMENCLATURE 1.Selectthesize(32/42/52) 2.Isafluidfeedthroughrequired,yes/no? 3.Cablefeedthrough,yes/no? 4.Inductiveattachmentkit,yes/no? RSP 52 -J3 -F8 -KD8 -AS Pneumatically actuated swivelunit 1. 32/42/52 (Size) -180° (Swivelangle) -J3 (Endposition adjustability) 2. -F4/-F8 (4-/8-wayfluid feedthrough) 3. Cablefeedthrough(M8), sensorplug 4. Inductiveattachmentkit -180° -MV -MV (Middleposition locked) -Flex (flexibledamper adjustment) -Flex www.eshop.roehm.biz

Especiallyfortheautomatedloadingandunloadingtomachinetools,aswellasforthefastand

tocomplicatedspecialdesigns.Thankstothemodularstructureandtheextensiveexpansionoptions,theyareflexibleandreliablyintegrated.Theinnovativeshockabsorberconceptwithflexible andinfinitelyvariableadjustabilityinallendpositionsallowsforsmoothlyandpreciseswiveling.

5107 SWIVEL UNIT RSP-FLEX

preciseinsertionofcomponentsinassemblysystems,theRSP-Flexswivelunitsofferanalternative

Smoothlyandpreciseswivelingthankstoinnovativeshockabsorberconcept Hightorquethankstoenlargedpistondiameterforfastercycletimes Maintenance-freeupto10millionswivelcycles Maintenance-freeprecision shockabsorberswithhigh performance Flexiblyadjustable shockabsorber hardness Finelyadjustableendposition settingwithoutlossinprecision Stronglydimensionedballbearingguideforhighloadcapacity Variantwithlockedmiddle positionforadditional swivelrange

Swivel

unit RSP-Flex ADVANTAGES AT A GLANCE www.eshop.roehm.biz

APPLICATION

TYPE

CUSTOMERBENEFITS

TECHNICALFEATURES

5108 Swivel Units RSP-Flex Swivel Units RSP-Flex 32

Swivelunitwithhightorqueandcompactdesign. Flexiblyadjustablehardnessoftheshockabsorbers.

Realisetwodampingranges,„hard“and„soft“withoneswivelunit!

Uniformdampingintheendpositions Fineadjustmentofthedampersattheendpositionsettings Optimalbearingsupportoftherotaryplateforseveralmillioncycles Energysupplypossiblebymeansofscrewconnectionorviahoselessdirect connection Canbeusedinallpositions- e.g.vertical,suspended,horizontal

-Bodymadeofhigh-strength,hard-coatedaluminium -Pinionshaftandrackmadeofhardenedsteel -Endpositioncanbeinfinitelyvariablyadjusted±3°or±90° -Optionalinductiveandmagneticpositionsensors -Upto8-foldfluidfeeder -Upto9-fold cablefeed-through 0,5 1,0 1,5 2,0 2,5 3,0 0,51,01,52,02,5 Moment of inertia [kgm²] Swiveling time [sec] RSP-FLEX32 C40 RSP-Flex, airoperated RSP32-Flex-90-J3RSP32-Flex-180-J3RSP32-Flex-180-J90RSP32-Flex-180-J3-MV RSP-Flex Basic unit 174000 174001 174002 174003 RSP-Flex + fluid feed-through* 174006 174007 174008 174009 RSP-Flex + fluid feed-through* + cable feedthrough** 174012 174013 174014 174015 RSP-Flex + fluid feed-through* + cable feedthrough** + proximity switch adapter*** 174018 174019 174020 174021 Pivot angle°90180180180+2x90 Endpositionadjustability °±3±390±3±3 Mid-positionadjustability °---±3 Torqueat6bar Nm10101010 Nominaloperatingpressure(min./max.) bar6666 Connectinghoseømm6666 Operating temperaturemin./max. °C5-805-805-805-80 Repeataccurancy°±0,01±0,01±0,01±0,01 Weightkg2,52,52,53,6 AxialbearingloadFz N800800800800 RadialbearingloadMy Nmm19191919 *Numberoffluidfeed-throughRSP32=4;RSP42/RSP52=8(max.8bar) **Numberofsignals=RSP32=8;RSP42/52=10(24V,max.1A),plugmachinesideM16,plugtoolsideM8 ***Numberofholdersforproximityswitches:3 www.eshop.roehm.biz onrequest

RSP-Flex

APPLICATION

TYPE

CUSTOMERBENEFITS

TECHNICALFEATURES

5109 Swivel Units RSP-Flex Swivel Units

Swivelunitwithhightorqueandcompactdesign. Flexiblyadjustablehardnessoftheshockabsorbers.

Realisetwodampingranges,„hard“and„soft“withoneswivelunit!

-Bodymadeofhigh-strength,hard-coatedaluminium -Pinionshaftandrackmadeofhardenedsteel -Endpositioncanbeinfinitelyvariablyadjusted±3°or±90° -Optionalinductiveandmagneticpositionsensors -Upto8-foldfluidfeeder -Upto9-fold cablefeed-through 1,0 2,0 3,0 4,0 5,0 6,0 7,0 0,51,01,52,02,53,0 RSP-FLEX42 Moment of inertia [kgm²] Swiveling time [sec] C40 RSP-Flex 42, airoperated RSP42-Flex-90-J3RSP42-Flex-180-J3RSP42-Flex-180-J90RSP42-Flex-180-J3-MV RSP-Flex Basic unit 174024 174025 174026 174027 RSP-Flex + fluid feed-through* 174030 174031 174032 174033 RSP-Flex + fluid feed-through* + cable feedthrough** 174036 174037 174038 174039 RSP-Flex + fluid feed-through* + cable feedthrough** + proximity switch adapter*** 174042 174043 174044 174045 Pivot angle°90180180180+2x90 Endpositionadjustability °±3±390±3±3 Mid-positionadjustability °---±3 Torqueat6bar Nm23232323 Nominaloperatingpressure(min./max.) bar6666 Connectinghoseømm Operating temperaturemin./max. °C5-805-805-805-80 Repeataccurancy°±0,01±0,01±0,01±0,01 Weightkg5555 AxialbearingloadFz N2900290029002900 RadialbearingloadMy Nmm68686868 *Numberoffluidfeed-throughRSP32=4;RSP42/RSP52=8(max.8bar) **Numberofsignals=RSP32=8;RSP42/52=10(24V,max.1A),plugmachinesideM16,plugtoolsideM8 ***Numberofholdersforproximityswitches:3 onwww.eshop.roehm.biz request

APPLICATION

TYPE

CUSTOMERBENEFITS

TECHNICALFEATURES

5110 Swivel Units RSP-Flex Swivel Units RSP-Flex 52

Swivelunitwithhightorqueandcompactdesign. Flexiblyadjustablehardnessoftheshockabsorbers.

Realisetwodampingranges,„hard“and„soft“withoneswivelunit!

-Bodymadeofhigh-strength,hard-coatedaluminium -Pinionshaftandrackmadeofhardenedsteel -Endpositioncanbeinfinitelyvariablyadjusted±3°or±90° -Optionalinductiveandmagneticpositionsensors -Upto8-foldfluidfeeder -Upto9-fold cablefeed-through 0 2 4 6 8 10 12 14 16 18 20 0,51,01,52,02,53,03,5 Moment of inertia [kgm²] Swiveling time [sec] RSP-FLEX52 C40 RSP-Flex 52, airoperated RSP52-Flex-90-J3RSP52-Flex-180-J3RSP52-Flex-180-J90RSP52-Flex-180-J3-MV RSP-Flex Basic unit 174048 174049 174050 174051 RSP-Flex + fluid feed-through* 174054 174055 174056 174057 RSP-Flex + fluid feed-through* + cable feedthrough** 174060 174061 174062 174063 RSP-Flex + fluid feed-through* + cable feedthrough** + proximity switch adapter*** 174066 174067 174068 174069 Pivot angle°90180180180+2x90 Endpositionadjustability °±3±39090±3±3 Mid-positionadjustability °---±3 Torqueat6bar Nm58585858 Nominaloperatingpressure(min./max.) bar6666 Connectinghoseømm Operating temperaturemin./max. °C5-805-805-805-80 Repeataccurancy°±0,01±0,01±0,01±0,01 Weightkg10,210,210,213,9 AxialbearingloadFz N9000900090009000 RadialbearingloadMy Nmm340340340340 *Numberoffluidfeed-throughRSP32=4;RSP42/RSP52=8(max.8bar) **Numberofsignals=RSP32=8;RSP42/52=10(24V,max.1A),plugmachinesideM16,plugtoolsideM8 ***Numberofholdersforproximityswitches:3 www.eshop.roehm.biz onrequest

Accessories RSP-Flex

Proximity

0,2mcable,M8x1 connectorallsizes,alltypes

withoutcable,M8x1 connectorallsizes,alltypes

5111 Accessories RSP-Flex Swivel UnitsRSP-Flex

Magnetic field sensors Item no. DesignFor 1276722 3mcable,3openleadsallsizes,alltypes 1276723 0,2mcable, M8x1connectorallsizes,alltypes

switch Item no. DesignFor 389661 3mcable,openleadsallsizes,alltypes 1078808

680969

onwww.eshop.roehm.biz request

EASYLOCK zero point clamping system

PalletisingsystemssuchastheEASYLOCKzeropoint clampingsystemfromRÖHMachieveaconsiderable productivityincrease.Thismodularsystemmeetsthe requirementsofcustomer-specificsolutionswiththe best-possibleutilisationofmachinecapacity.Althoughthe machinetoolhadtostopfortheset-uptimeuntilnow,the workpiececannowbeclampedandpositionedonthe palletoutsidethemachinetool.Theset-uptimeisnow onlylimitedtoloadingandunloadingthepallet,which happensinseconds.Ifmultiplemanufacturingprocesses arenecessaryformachining,thenthepalletincludingthe workpiececanbeusedwithoutzeropointloss.Dueto therobustandrust-resistantconstruction,EASYLOCK zeropointclampingcanbeusedthroughout,startingwith machininguptothemeasuringmachines.

THE BENEFITS AT A GLANCE

5112 EASYLOCKzeropointclampingsystem

www.eshop.roehm.biz HIGH PRECISION HIGHEST MODULARITY INCREASED PRODUCTIVITY Freemachinecapacitythroughreductionofset-uptimebyupto90% Veryrapidchangeofworkpieceandclampingfixturesontilt-free clampingandpositioningwithlonginsert Modularbasecarrierdesignvariantsformaximumflexibility Flexibleextensionoptions Repeataccurancyof<0.005mmthankstoprecisionballs Positive-lockingself-inhibitionunaffectedbytensileandlateralforces

The pin system

HOW IT WORKS

WiththeRÖHMEASYLOCKzeropointclampingsystem, theclampingpinistheinterfacebetweenthemachine tableandtheworkpieceorfixture.Theexactpositioning guaranteessecureclamping.Atthesametimetheresultingmachiningforcesaretransferredviatheclampingpin tothepressurecup.Thehigh-precisionpressurecupsof theEASYLOCKsystemensureanabsolutelysecureholdof theworkpieceorfixture.Thehighlockingandholdingforces makethesystemsuitableforallkindsofuse.

MachiningwithEASYLOCK?

EASYLOCKisideallysuitedtoallmachiningprocesseslike grinding,milling,drillingandmeasuring.

Whatismeantbyholdingforce? Holdingforceistheforceatwhichthepalletstillrests securelyontheclampingsystem.Thisforcemustnotbe exceededduringmachining.

Whatismeantbyrepeataccuracy? Therepeataccuracygivesthetolerancerangeforthe recordedworkpiecereferenceswhentheworkpieceisremovedandsubsequentlyreclamped.Therepeataccuracy oftheEASYLOCKsystemisaround<0.005mm.

5113 EASYLOCKzeropointclampingsystem

www.eshop.roehm.biz

REDUCED SET-UP TIMES BY UP TO 90% Without palletising system Machinerun-timeSet-upoftheworkpiece Machinerun-time Palletexchange Simultaneousset-uponthepallet With EASYLOCK zero point clamping system Additionalmachinecapacity EASYLOCK zero point clamping system

Palletising and clamping tools from a single source

THE SYSTEM SOLUTION

Asasystemsupplier,RÖHMoffershighqualityclamping toolsaswellastheappropriatepalletingsolutionswith zeropointclamping.Coordinatedwithoneanother,base carriersanduniversalpalletssupportawiderangeofcombinationoptionstogetherwithRÖHMvices,lathechucks

andcolletchucksaswellaswithpneumaticallyorhydraulicallyoperatedchucksandcentricvices.TheEASYLOCK basecarrierscanbeprovidedwithavarietyofoptionson amodularbasis.

BASE CARRIER EASYLOCK

+optionalwithpositionsensingandcleaningfunction*

+optionalwithindexing

+optionalwithreleasecontrol*

+optionalwithmediafeed-through*

INDEXING:

Securingoftheindividualpalletagainstturning,soensuringexactpositioningevery90°.

MEDIAFEED-THROUGH:

Mediatransmissionthroughthepallet,e.g.foractivationof thepneumatically/hydraulicallyoperatedcentricvices.

POSITIONSENSINGINCLUDINGCLEANINGFUNCTION:

Thisoptionincludesaventilationsystemforcleaningchips andmonitoringthecontactface.

RELEASECONTROL:

Basedonautomatedprocesses,thiscommunicatestothe robotthattheinsertionpinsofthepallethavecomeloose.

5114www.eshop.roehm.biz

EASYLOCKzeropointclampingsystem

*Furtheraccessoriesarerequired(notincludedinthescopeofdelivery) EASYLOCK zero point clamping system

www.eshop.roehm.biz5115 The right pallet makes the difference EASYLOCKzeropointclampingsystem PALLET VICES suitableforNC-CompactvicesRKE,RKE-LV,RZM,RKD-M,RKZ-M PALLET MANUAL CHUCKS suitableforDURO-T/DURO-TAchucks,CAPTIS-Mcolletchucks PALLET PNEUMATIC CHUCK suitableforchuckSSP PALLET PNEUMATIC CENTRIC VICE suitableforcentricviceKZS-P/KZS-PG

Technical data - standard carriers

1 PALLET CARRIER

1314883 hydraulic112200x200x58-withindexing 1314882 pneumatic112200x200x58-withindexing 1313929 hydraulic138200x200x58-withindexing 1313928 pneumatic138200x200x58-withindexing

2 PALLET CARRIER

1314885 hydraulic112200x400x582001314884 pneumatic112200x400x582001313931 hydraulic138200x400x582001313930 pneumatic138200x400x58200-

4 PALLET CARRIER

ID OperationDiameterDimensionsInsidemicrometerOptions

1314887 hydraulic112350x350x582001314886 pneumatic112350x350x582001313933 hydraulic138350x350x582001313932 pneumatic138350x350x58200-

6 PALLET CARRIER

ID OperationDiameterDimensionsInsidemicrometerOptions

1313940 hydraulic112350x600x582001352604 pneumatic112350x600x582001313935 hydraulic138350x600x642001313934 pneumatic138350x600x64200-

5116www.eshop.roehm.biz

EASYLOCKzeropointclampingsystem

OperationDiameterDimensionsInsidemicrometerOptions

Furthersizesonrequest EASYLOCK zero point clamping system

Technical

-

1 PALETT

2 PALETT

4 PALETT

6 PALETT

www.eshop.roehm.biz5117

data

Pallet EASYLOCKzeropointclampingsystem

ID DiameterDimensions 1313941 112200x200x40 1313936 138200x200x40

ID DiameterDimensions 1313942 112200x400x40 1313937 138200x400x40

ID DiameterDimensions 1313943 112350x350x40 1313938 138350x350x40

ID DiameterDimensions 1313944 112350x600x40 1313939 138350x600x40 Furthersizesonrequest EASYLOCK zero point clamping system

Theheadquarters: ourmainplantin Sontheim/Brenz

TheRÖHMmainplantislocatedinSontheim/Brenz.Inthisultra-modernproductionfacilitycomprising41,000m²optimumconditionshavebeenachievedinordertosolvetheextensiverange ofdiscerningconstructionandproductiontasksmakingthecompanyevenbetter,fasterandmore efficientinthefuture.

Sontheim/Brenz

Sontheim IAllnationalandinternationalactivitiesareplannedandcoordinatedattheadministrativeheadquartersin Sontheim.Thankstotheexcellentinfrastructureandtransportroutes,thislocationisidealforacompanyrelyingon

basisforthesuccessofourcompany:itisrichinqualityawarenessandmotivatedemployeeswiththeresultthatwe areideallypreparedforthechallengesofthefuture.Themainplantuniquelyunitesmassproduction,serialproduction andcustomisedindividualproductionunderasingleroof.

perfectproductqualityaswellasmaximumflexibility.Furthermore,theregionaroundSontheimoffersanotherkey

Keylocations forthecompany: DillingenandSt.Georgen

SuchstronggrowthonthepartoftheRÖHMGroupisalsoobviouslyassociatedwithhigher requirementsondevelopmentandproductioncapacities.Thedemandsoftodayandtomorrow canbecompliedwiththetwofacilitiesinDillingenandSt.Georgen.

Dillingen/DanubeSt.Georgen

Plant Dillingen/Danube |ThisbranchplantinDillingen wasputintooperationbytheRÖHMGroupasearlyas1953. Thankstoextremelypositivedevelopment,theplantissubject toconstantexpansionandmodernisation.Forthisreason, newmodernproductionfacilitieswerebuiltin1982and1991. In2007RÖHMbuiltanewproductionhallfortwoportal turningandmillingmachines.Thisenablesmachiningof workpiecesupto4metresinlengthwhichwillsecurea leadingmarketpositionforRÖHMinthefuture.Morethan 300employeesareprimarilyinvolvedinengineeringand manufacturinglathechucks,machinevicesandspecial clampingequipmentforturningandmillingmachineryas wellasformachiningcentres.

Engineering and sales department St. Georgen |

Apartfromstandardmandrels,tailor-madesolutionsfor awidevarietyofrequirementsarealsomanufactured hereinthissmallbutaccomplishedhigh-techforge.

RÖHMretainsmechanicalorpower-operatedmandrels,slidingjawmandrelsandhydraulicmandrelsforits customersfortensioningworkpiecesindrillholesor interiorcontours.

Alwaysclosetoourcustomers.

Withlocationsallaroundtheworld. CustomerorientationatRÖHMhaslesstodowithmarketingthanwithattitude.Weconsidercustomerproximity asanintensivedialoguewithourpartnersaswellasdirectpresenceonkeyinternationalmarkets.

YourcontactsatRÖHM

Manufacturinganddistributionbases

Germany:

RÖHMGmbH Heinrich-Röhm-Straße50 89567Sontheim/Brenz Tel00497325–160 Fax00497325–16510 info@roehm.biz www.roehm.biz

RÖHMGmbH Röhmstraße6 89407Dillingen Tel00499071–508-0 Fax00499071–508-174 infodlg@roehm.biz

RÖHMGmbH Feldbergstr.5 78112St.Georgen Tel0049–7724–946812 Fax0049–7724–5189 Mobil0152–22887050 stg.info@roehm.biz

Brazil: RÖHMIND.ECOM.DE

FERRAMENTASDEFIXAÇÃOLTDA. Rod.RaposoTavares,Km14-BlocoA 2ºandar-sala2-CEP05576-100 SãoPaulo

Tel0055–11–37322222 Fax0055–11–37353097 vendas@rohm.com.br www.br.roehm.biz

China: ROEHMChinaCo.,Ltd. Room702,Building24, No.518XinzhuanRoad, SongjiangDistrict, 201612Shanghai Tel0086–21–37705395

Fax0086–21–37705376 roehmcn@roehm.biz

Czech Republic: RÖHMSLOVAKIAS.R.O. Partizanska73 95701BanovcenadBebravou Slovakia Tel00421–387600222 Fax00421–387600224 Mobil00421–902556777 info@roehm.sk

France: RÖHMS.A.R.L. 325ruePaulLangevin BP90204

F-60744SaintMaximincedex Tel0033–344641000 Fax0033–344640068

fr.roehm@roehm.biz www.rohm.fr

Great Britain: ROHM(GreatBritain)LTD. Unit12theashwaycentre ElmcresentKingston-upon-Thames SurreyKT26HH Tel0044–2085496647 Fax0044–2085411783 rohmgb@roehm.biz www.uk.roehm.biz

Italy:

RÖHMItaliaS.R.L. ViaReissRomoli17-19 20019SettimoMilanese(MI) PalazzoRothenberger Tel0039–02–92103531 Fax0039–02–92101753 rohmitalia@roehm.biz www.roehm-italia.it

Mexico: RÖHMProductsMéxicoS.deR.L. EmilioGarzaMeléndez#6606 Col.CampestreMederos Monterrey,N.L.,México,C.P.64970 Tel005281–9627–0686 info@rohm-products.com

Switzerland: RÖHMSpanntechnikAG Feldstraße39,3360Herzogenbuchsee Tel0041–629563020 Fax0041–629563029 roehmch@roehm-spanntechnik.ch www.ch.roehm.biz

Singapore:

RÖHMAsiaPacificPte.Ltd. 8UbiRoad2

#07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

Slovakia: RÖHMSLOVAKIAS.R.O. Partizanska73 95701BanovcenadBebravou Slovakia Tel00421–387600222 Fax00421–387600224 Mobil00421–914122932 info@roehm.sk

Spain: RÖHMIbericaS.A. C/Rejas,No.9Nave11D 28022Madrid Tel0034–91–3135790 Fax0034–91–3135793 rohmiberica@roehm.biz www.roehm-iberica.es

USA: ROHMProductsofAmerica 2500NorthlakeDrive 30024Suwanee,GA Tel001–770–963–8440 Fax001–770–963–8407 rohmusa@roehm.biz www.us.roehm.biz

Poland: RÖHMPolskaSp.zo.o. AlejeJerozolimskie424A 05-800Pruszków Tel0048–22–759–5990 Fax0048–22–759–5999 roehmpolska@roehm.biz

Portugal: RÖHMIbericaS.A. C/Rejas,No.9Nave11D 28022Madrid Tel00351926853881 es.pjfernandes@roehm.com www.roehm-iberica.es

Hungary: RÖHMHungariaKft. Gyáru.2.(BITEPIpariPark) H-2040Budaörs Tel0036–209–324597 jozsef.alker@roehm.biz

PresenceonallcontinentsfromAfor AustraliatoVforVietnam.Youcanreceive thecontactinformationofourworldwide representationseasilythrough www.roehm.biz.

Sales Agents in GermanyAgents worldwide

Baden-Wuerttemberg: ThomasHaas

Tel07725/914895 Mobile0152/22887120 thomas.haas@roehm.biz

DominikGotthelf Mobile0152/22887093 dominik.gotthelf@roehm.biz

RichardSedlak Tel07021/9498970 Mobile0152/22887030 richard.sedlak@roehm.biz

Baden-Wuerttemberg / Rhineland-Palatinate / Saarland: MichaelSchmitz Tel0033388720403 Mobile0152/22887018 michael.schmitz@roehm.biz

Baden-Wuerttemberg / Bavaria: DirkGaarz Mobil0152/22887116 dirk.gaarz@roehm.biz

Bavaria: JanBirkholz Mobile0152/22887014 jan.birkholz@roehm.biz

GerhardHäutle Tel09071/7299322 Mobile0152/22887015 gerhard.haeutle@roehm.biz ChristianHeigl Mobile0152/22887026 christian.heigl@roehm.biz

Bavaria / Thuringia: SteffenBlatz Mobile0152/22887016 steffen.blatz@roehm.biz

North Rhine-Westphalia / Rhineland-Palatinate RalfSchnichels Tel02152/8973547 Mobile0152/22887025 ralf.schnichels@roehm.biz

North Rhine-Westphalia: FriedhelmSchneider Tel02762/490728 Mobile0152/22887017 friedhelm.schneider@roehm.biz

North Rhine-Westphalia / Lower Saxony ThorstenNolte Tel02721/120182 Mobile0152/22887031 thorsten.nolte@roehm.biz

Lower Saxony / Saxony SusanneBormann Mobile0152/22887088 susanne.bormann@roehm.biz

Berlin, Mecklenburg-Western Pomerania, Brandenburg, Saxony-Anhalt: HendrikSeifert Tel030/70072459 Mobile0152/22887032 hendrik.seifert@roehm.biz

Hesse: KlausDieterHofmann Tel06406/906740 Mobile0152/22887029 k.d.hofmann@roehm.biz

Hamburg / Bremen / Schleswig-Holstein / Lower Saxony: WilliPhillipHövermann Mobile0152/22887148 WilliPhillip.Hoevermann@roehm.biz

Algeria: RÖHMS.A.R.L. 325,ruePaulLangevin 60740St.Maximin,FRANCE Tel0033/344641000 Fax0033/34640068 fr.roehm@roehm.biz www.rohm.fr

Argentina: HimaqS.R.L., Venezuela3652, 1603VillaMartelli Prov.BuenosAires Tel00541/147093505, Fax00541/147093472 himaq@himaq.com.ar

Australia: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

FISHERLAMCOPTYLTD Tel00611300838572 mark.hughes@fisherlamco.com.au

Austria: RichardSchörkhuber Lichtenhof2b 8511St.StefanobStainz Tel0043/3463/81510 Fax0043/3463/81560 Mobil0043/664/9237710 richard.schoerkhuber@roehm.biz

SchachermayerGmbH, SchachermayerStr.2 Postfach3000,4021Linz Tel0043/732/6599-0 Fax0043/732/65991444 maschinenmetall@schachermayer.at

Lackneru.UrnitschGmbH Bahnhofgürtel37,8020Graz Tel0043/316/711480-0 Fax0043/316/71148039 lackner@urnitsch.at

HaberkornUlmerGmbH HoheBrücke,6961Wolfurt Tel0043/5574/695-0 Fax0043/5574/695-99 nfo.wolfurt@haberkorn.com

MetzlerGmbHu.Co.KG ObererPaspelsweg6-8,6830Rankweil Tel.0043/5522/77963-0 Fax0043/5522/77963-6 office@metzler.at

Belarus: RÖHMGmbH Heinrich-Röhm-Straße50 89567Sontheim(Germany) Tel00497325–160 info@roehm.biz www.roehm.ru

Belgium: RÖHMS.A.R.L. 325,ruePaulLangevin 60740St.Maximin,FRANCE Tel0032495727399 Fax003242866948 frederik.hamels@roehm.biz www.rohm.fr

BELTRACY Bergensesteenweg189 1600Sint-Pieters-Leeuw BELGIUM Tel.0032/25436890 Fax0032/25385910 info@beltracy.be www.beltracy.be

Canada: ROHMProductsofAmerica 2500NorthlakeDrive,30024Suwanee,GA Tel001–770-963-8440 Fax001–770-963-8407 rohmusa@roehm.biz www.us.roehm.biz

Chile: RobertKralemann SERVICOMPLtda. Av.Departamental1595 LaFlorida-Santiago Tel0056/2/8894700 rkralemann@gmail.com

Colombia: RÖHMIND.ECOM.DE

FERRAMENTASDEFIXAÇÃOLTDA. Rod.RaposoTavares,Km14-BlocoA 2ºandar-sala2-CEP05576-100 SãoPaulo Tel0055–11–37322222 Fax0055–11–37353097 vendas@rohm.com.br www.br.roehm.biz

Costa Rica: RÖHMIND.ECOM.DE

FERRAMENTASDEFIXAÇÃOLTDA. Rod.RaposoTavares,Km14-BlocoA 2ºandar-sala2-CEP05576-100 SãoPaulo Tel0055–11–37322222 Fax0055–11–37353097 vendas@rohm.com.br www.br.roehm.biz

Croatia:

PFEIFER-TTID.O.O. 40000Cakovec,Croatia Tel00385-9/8303522 Fax00385-1/3639530 marijan.pfeifer@pfeifer-tti.hr

Denmark: RyttergaardToolsA/S Falkevej13 3400Hillerød Dänemark +4536412266 info@ryttergaard.com

Ecuador: RÖHMIND.ECOM.DE

FERRAMENTASDEFIXAÇÃOLTDA. Rod.RaposoTavares,Km14-BlocoA 2ºandar-sala2-CEP05576-100 SãoPaulo Tel0055–11–37322222 Fax0055–11–37353097 vendas@rohm.com.br www.br.roehm.biz

Egypt: DirkJaegemannTradeAgency GmbH&Co.KG 28279Bremen Tel0049/4218392130 Fax0049/4218398921 info@djta.de

Finland:

TeräskonttoriOy, Muuntotie3, 1510Vantaa Tel00358/102192200 Fax00358/102192245 info@teraskonttori.fi

OyInterfiiLtd. Teollisuuskatu35-39LH4 20520Turku,Y-tunnus2374026-3 Tel00358/201474500 Fax00358/201474501 info@interfii.com

Greece: K.S.PAPADOPOULOS&CO EthnikisAntistaseosStr.7-A 55134Thessaloniki-Greece Tel00302310488758 Fax00302310488753 stefanos@agent.com.gr ntinos@agent.com.gr

India:

RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

Indonesia: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

PT.GermantaraToolingServiceIndonesia Jl.RayaBekasiKm.21 PulogadungTradeCentre(PTC)Blok8A/8 Jakarta13920-Indonesia Tel.+622146834110 Mobile+628119593027 kris@group.gts.co.id www.gts.co.id

PT.SOMAGEDEINDONESIA KomplekGriyaIntiSentosa Jl.GriyaAgungNo.3 SunterAgung,Jakarta14350-Indonesia Tel.+62216410730 avi@somagede.com www.somagede.com

Iran: SakhtAbzarParsCo.(SAP) No.19/4SaebTabriziSt., NorthAbbasShiraziAve, MollaSadraAve.,Tehranpostcode19917 Tel.0098/21/88031888 Fax0098/21/88037733 sales@sap-iran.com

Ireland: ROHM(GreatBritain)LTD. Unit12theashwaycentre ElmcresentKingston-upon-Thames SurreyKT26HH Tel0044-2085496647 Fax0044-2085411783 rohmgb@roehm.biz www.uk.roehm.biz

Iceland: FossbergLtd. Dugguvogi6,104Reykjavik Tel.00354/5757606 E-mail:fossberg@fossberg.is

Israel: ETMOSToolDistributingCo.Ltd. 34HAHOFERST.,5811702Holon Tel.00972-3/5581933 Fax00972-3/5581934 etmos@etmos.co.il

Japan: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

TakedaTradeCo.,Ltd. NAKANOSHIMADAI-BUILDING603,3-3-23, NAKANOSHIMA,KITA-KU 530-6106OSAKA Tel.0081368060757 hata@takeda-trade.co.jp

Luxemburg: RÖHMS.A.R.L. 325ruePaulLangevin 60740St.Maximin,FRANCE Tel0033/344641000 Fax0033/344640068 fr.roehm@roehm.biz

Malaysia: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

KSPrecisionTools(M)SDN.BHD. A1-01-05,1stFloor,JalanSR1/9 TamanSerdangRaya,Section9, 43300SeriKembangan SelangorDarulEhsan,Malaysia Tel.603-89417168 michael@ks-precision.com

Agents worldwide

Marocco: RÖHMS.A.R.L. 325,ruePaulLangevin 60740St.Maximin,FRANCE Tel0033/344641000 Fax0033/34640068 fr.roehm@roehm.biz www.rohm.fr

New Zealand: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

TradeToolsLtd 23OliveRoad,Penrose POBox112114 Auckland1642,NewZealand Tel006495258882 sales@tradetools.co.nz

Netherlands: BoorwerkB.V., Flevolaan52A, IndustrieterrianNoord 1382JZWeesp Tel0031/294/432050 Fax0031/294/432152 mail@boorwerk.nl

RÖHMS.A.R.L. 325ruePaulLangevin BP90204 F-60744SaintMaximincedex Tel0033–344641000 Fax0033–344640068 fr.roehm@roehm.biz www.rohm.fr

Norway: Ing.YngveEgeA/S Ryenstubben5 0679Oslo11 Tel0047/23241000 Fax0047/23241001 ege@ege.no

Peru: RÖHMIND.ECOM.DE FERRAMENTASDEFIXAÇÃOLTDA. Rod.RaposoTavares,Km14-BlocoA 2ºandar-sala2-CEP05576-100 SãoPaulo Tel0055–11–37322222 Fax0055–11–37353097 vendas@rohm.com.br www.br.roehm.biz

Philippines: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

NicklausMachineryCorporation 1795MalabonStreet Sta.Cruz,Manila1014Philippines Tel.+6327118414 Mobil+639178278812 nmcservice@yahoo.com www.nicklaus-machinery.com

Romania: KSNTechnikSrl Str.Tabacarilor15B/103 400139CLUJ-NAPOCA,Romania Tel0040/264/449-533 Fax0040/264/449-533 office@ksntechnik.ro

Russia: RÖHMGmbH Heinrich-Röhm-Straße50 89567Sontheim(Germany) Tel00497325–160 info@roehm.biz www.roehm.ru

Saudi Arabia, UAE, Bahrain, Kuwait, Oman, Quatar, Kazakhstan, Lebanon: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2

#07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

COBALTMEFZE SAIFZONE

QI-05-077/C Sharjah,VAE Tel.+971556834422 sales@cobalt-me.com

Sweden: TechpointSystemteknikAB Nyponvaegen4 19144Sollentuna Tel0046/86231330 Fax0046/86231345 info@techpoint.se

LunaAB Sandbergsvägen3, 44180Alingsâs Tel.0046/322606000 Fax0046/322606203 info@luna.se

Singapore: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

GPSystemSingapurPTELTD No.51,BukitBatokCrescent, #04-04/05UnityCentre, Singapur658077 Tel.0065/6861-2663 Fax0065/6861-3500 enquiry@gpsystem.com

Slovenia: BTSCOMPANYTRGOVINAIN ZASTOPANJE,D.O.O. Bratislavka5 1000Ljubljana Tel0038/615841440 masa.bitenc@bts-company.si

South Africa: SupraToolingandAccessoires(Pty)Ltd P.O.Box1892 1460Boksburg,Gauteng SouthAfrica Tel.002764674284 Fax0027119185492 supratoolig@mweb.co.za www.supratooling.co.za

ToolingPromotions P.O.Box3989 Vanderbijlpark1900,Gauteng SouthAfrica Tel00270169311266 Fax00270169311269 info@toolingpromotions.co.za www.toolingpromotions.co.za

South Korea: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

CHEONGDOMACHINETOOLCO.,LTD. RMA-6-103,604-1,KURO-DONG KURO-KU,SEOUL,KOREA Tel+82226784155 cdmt@chol.com www.cdmt.co.kr

KMCCo.,Ltd. Zipcode15090 42-404,204,Gongdan1-daero, Siheung-si,Gyeonggi-do,Korea Tel+82314306789 chelee@naver.com www.entkr.com

Thailand: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

KrasstecCompanyLimited 1205Rama9Soi55,Rama9Rd, SuanLuang,SuanLuang Bangkok10250Thailand Tel66(0)27321144 Mobile66(0)819410509 chaithat@krasstec.com

Tunisia: RÖHMS.A.R.L., 325ruePaulLangevin 60740St.Maximin,FRANCE Tel.0033/344641000 Fax0033/344640068 fr.roehm@roehm.biz

Turkey: SintekMühendislikMakinaSan. VeTic.Ltd.Sti TarabyaMahallesi YumakSok.No:3/A1 34457SARIYER–ISTANBUL Tel.0090/212/2996184 Fax0090/212/2995675 sinan.onurlu@sintekmuhendislik.com

Ukraine: DenisAlexandrov OfficialSalesConsultantRussia onbehalfofRÖHMGmbH Tel.+79851101234 denis.alexandrov.external@roehm.biz www.roehm.ru

Venezuela: RÖHMIND.ECOM.DE FERRAMENTASDEFIXAÇÃOLTDA. Rod.RaposoTavares,Km14-BlocoA 2ºandar-sala2-CEP05576-100 SãoPaulo Tel0055–11–37322222 Fax0055–11–37353097 vendas@rohm.com.br www.br.roehm.biz

Vietnam: RÖHMAsiaPacificPte.Ltd. 8UbiRoad2 #07-10Zervex Singapore408538 Tel0065–64437748 Mobil0065–83288980 info@sg.roehm.biz www.sg.roehm.biz

CUONGANHMACHINERYCO.,LTD 2/27HoangNhuTiep,BoDe. LongBien,Hanoi,Vietnam HanoiOffice:Suite1005-B.HH2B Building,GiaThuyStreet,LongBien District,Hanoi,Vietnam +842438723571

HoChiMinhCityOffice: Suite501,No67PhoQuangStreet,2Ward, TanBinhDistrict,HoChiMinhCity,Vietnam Tel02835470769 contact@cuonganhvn.com www.cuonganhvn.com

General Terms of Sale and Delivery

§ 1 Offer, conclusion of contract and contractual contents

1.OurTermsofSaleshallapplyexclusively;wedonotrecognisecontradictoryterms andconditionsortermsandconditionswhichdeviatefromourTermsofSaleunlesswe hadexplicitlyapprovedtheirvalidityinwriting.OurTermsofSaleshallalsoapplyifwe carryoutthedeliverytothebuyerwithoutreservationintheknowledgeofcontradictory termsandconditionsofthebuyerortermsandconditionswhichdeviatefromourTerms ofSale.

2.OurTermsofSaleshallonlyapplytowardsanentrepreneurwithinthemeaningof Section14BGB[GermanCivilCode].

3.OurGeneralServiceTermsshallapplywithprecedenceovertheseTermsofSalein therespectivevalidversionincases,whichcomprisetheserviceofferofRÖHMGmbH.

4.Ouroffersarealwaystobeunderstoodasinvitatioadofferendumandaretherefore withoutobligationinsofarastheyhavenotexplicitlybeendescribedasbinding.The contractshallonlybeconcludedwithourwrittenconfirmationandinlinewithitsconten tsand–ifawrittenconfirmationismissing–bytheservice/delivery.Ifadelivery/service iscarriedoutimmediatelywithoutaconfirmationthentheinvoiceshallatthesametime bedeemedasanorderconfirmation.

5.Costsfortheproductionofdrawingsforspecialconstructionsaretobeborneby theordererinsofarastheofferdoesnotleadtoanorderforreasons,forwhichweare notresponsible.

6.Alldetailsconcerningweights,dimensions,servicesandtechnicaldata,whichare containedinourprintedmaterial,catalogues,pricelistsorinothercontractualdocu ments,merelyserveforpurposesofinformationandareonlybindinginsofarastheyare explicitlydescribedasbinding.

7.Wereservetherighttomakeconstructionandformchangestotheobjectofcontract insofarasnochangesaremadehereto,whicharedeemedunreasonablefortheorderer.

8.Thedocumentationconsistsofthecompilationdrawing,theBOMwithmarkingofthe partssubjecttowearandtearandsparepartsaswellasassemblyinstructionsupon request.RespectivelyinGermanand/or,uponrequest,inEnglish.Thisfreedocumenta tionwillbesuppliedinadigitalform.ThePDFformatshallapplytodrawings,BOMsand texts.Anyscopeofdocumentationbeyondthisisliabletocostsrespectivelyrequiresa specialagreement.Thedocumentsmaynotbereproducedinfullorinpart,notmade accessibletothirdpartiesorusedforanyotherpurposeapartfromthatforwhichthey werehandedovertothecustomerwithoutourpriorwrittenauthorization.

9.Thecorrespondingmeasurementmethodsfortests,withwhichcertaintemperatures, timesandothermeasuredorcontrolvaluesshouldapply,mustbestipulatedbefore startofdeliveryandrecognisedbybothparties.Ifnostipulationismadethemeasure mentmethodsusuallyappliedbyRÖHMshallapply,weshallprovidethedetailsthereof uponrequest.

10.Sampleswillonlybesuppliedagainstpaymentandowingtoaseparatelyplaced order.

11.Assurances,collateralagreementsandamendmentstothecontractrequireawrit tenforminordertobevalid.Thisrequirementcannotbewaivedorally.

12.Placedordersareirrevocableunlessthesupplierhasapprovedtherevocationin writing.

13.Incaseofexportbusinessthedeliveryiscarriedoutattheconditionsagreedon theorderconfirmation,theinternationalregulationsfortheinterpretationofcustomary contractualformsshallapplyinaddition(incoterms2010oftheInternationalChamber ofCommerce,respectivevalidstatus).

14.OurGeneralBusinessTermsshallapplytotheRÖHMonlineshopwiththefollowing supplementations:

a)Theofferonthepartofthecustomerissubmittedbindingassoonasthecustomer orderstheproductsintheshoppingbasketbyusingthefunction„bindingorder“.

b)Apurchaseintheonlineshopisonlypossibleifthecustomeractivelyagreestoour GeneralBusinessTerms.

c)Mistakesanderrorswithregardtothegoodsavailability,pricesandotherdetailsand dataexcepted.Diagramsintheonlineshoparemerelyforthepurposeofillustration respectivelyasvisualaids;thedescriptionisbinding.

d)Wewillinformthecustomeriftheproductorderedbythecustomeristemporarilyor permanentlynotavailable.

15.Our„productinformation“,technicalinformationleafletsaswellasotherproductspecificpublicationsshallapplyinadditiontotheGeneralBusinessTerms.Theseare alwaystobecompliedwithintheircurrentversion.

§ 2 Prices

1.IntheabsenceofspecialwrittenagreementsthepricesintheFederalRepublicof Germanyshallapply„carriagepaid“recipientplusthestatutoryvalueaddedtax.With exportbusinesstheobjectofdeliveryshallbedeemedassold„exworks“ifnothingis determinedinthecontractconcerningthetypeofsale.AprocessingfeeofEUR15.00 willbechargedforindividualorderswithagoodsvalueoflessthanEUR150.00net,a processingfeeofEUR30.00fororderswithagoodsvalueoflessthanEUR50.00net respectivelyplustheapplicablerateofvalueaddedtax.Thisshallapplytodeliveries withinthedomesticcountryandoverseas.Atthecustomer’srequestthegoodscan bedeliveredtoanalternativeshippingaddressagainstalogisticsfeeintheamountof EUR10.00.

2.Wewouldliketopointoutthatwewillonlycarryouttheshipmentatthecustomer’s request.ThisshallhavenoeffectontheregulationsaccordingtoSection5.

3.Weshallchargethepricesvaliduponconclusionofthecontract,whicharebasedon thecostfactorswhicharevalidatthistime.Shouldthesecostfactors(inparticularma terial,wages,energy,etc.)changebetweenconclusionofthecontractandtheagreed deliverytimethenweareentitledtomakeacorrespondingchangetotheprices.Incase ofexportbusinessthesupplierisentitledtoterminatethecontractextraordinarilywith regardtothepartoftheorderthathasnotyetbeencompletedortoadjusttheprices forthisaccordinglyintheeventofasubstantialdevaluationinthecurrency,inwhichthe orderisconcluded.

4.Incaseofconclusionexworksthegoodswillbeconveyedatthecostsandriskof theorderer.Withallotherconsignmentstheprovisionsstipulatedintheincoterms2010, respectivevalidstatus,willapplywithregardtoinsuranceandtheassumptionofrisks.

5.Wewillinformthebuyerofourproductionquantityforparts/products,whicharepro ducedespeciallyaccordingtothebuyer’srequests.Thebuyerundertakestopurchase thequantitiesconfirmedtohim.

6.Excessandshortfallsindeliveriesofupto5%,withspecialtoolsupto10%,at leasthowever2pieces,arepermittedanddonotsubstantiateanyqualitydefects.The respectivedeliverywillbecharged.

§ 3 Terms of payment

1.Intheabsenceofaspecialagreementthepaymentistobemadewithoutanydeduc tionfreepayingagentwithin10daysaftertheinvoicedate–alsowithpartialdeliveries.

2.Incaseofdefaultofpaymentinterestwillbechargedintheamountofthecreditcosts chargedbybanks,atleasthoweverinterestintheamountof9%abovetherespective baselendingrateoftheECB.

3.Incaseofexportbusinessthepaymentsaretobemadeinlinewiththeagreedterms ofpayment.

4.Costsofthepaymenttransactions,inparticularbankchargesforoverseastransfers tous,shallprincipallybefortheexpenseofthecustomer.

§ 4 Delivery time

1.Thestartofthedeliverydeadlinestatedbyuspresumestheclarificationofalltech nicalquestions.Deliverydatesstatedbyusare–insofarasnotexplicitlyagreedordescribedasbinding–non-bindingandshallmerelyrepresentanexpecteddeliverydate.

2.Thecompliancewithourdeliveryobligationfurtherpresumesthetimelyandproper fulfilmentofthebuyer’sobligations,inparticularthecompliancewiththeagreedterms ofpayment.Therightisreservedtothepleaoftheunfulfilledcontract. Thisrightshallalsoconsistofobligationsfrompreviousdeliverieswhichhavenotbeen satisfiedinfull.

3.Thedeliverydeadlineshallbeginwiththesendingoftheorderconfirmation,however notbeforetheprovisionofthedocuments,permit,releases,etc.,whicharetobepro curedbytheorderer,aswellasnotbeforethereceiptoftheagreeddownpayment.

4.Ifabindingdeliverydatehasbeenagreedthenthesupplieralsohastodeliverwithin thedeadline.Thedeliverydeadlineshallhavebeenadheredtoiftheobjectofdelivery haslefttheplantbythetimeitexpiresornotificationhasbeengiventhattheobjectis readyfordelivery,therightisreservedtothetimelyandcorrectself-delivery.Iftheorde rerchangeshisorderwithregardtopartsofthedeliverythenthedeliverydeadlineshall onlybegintoapplynewagainwiththeconfirmationofthechange.

5.Forcemajeure,war,civilcommotion,strike,lock-outormeasuresofauthorities,no matterforwhatreason,whichopposeadelivery,aswellasdeficienciesofrawmaterials, oftransportmeansaswellastheft–alsoatthesub-suppliers–shallreleasethesupplier fromtheobligationtodeliverwithintheagreeddeadline.Theordereristobenotified immediatelyoftheoccurrenceoftheeventandoftheexpectedimplications.

6.Deliveriesbeforeexpiryofthedeliverytimeandinreasonablepartsarepermitted.

7.Theadherencetothedeliverytimepresumesthefulfilmentoftheorderer’scontractual obligations.

8.TheregulationsofSubclause10shallapplyintheeventofthedelayindeliveryor impossibility.

§ 5 Passing of risk and acceptance

1.Theriskshallpasstotheordererbynolaterthanwiththedespatchofthedelivered partsalsoifpartialdeliveriesaremadeorwehavetakenoverotherservicese.g.the shippingcostsordeliverytothelocationandinstallation.

2.Attheorderer’srequesttheshipmentshallbeinsuredbyusagainsttheft,damages causedbybreakage,transport,fireandwaterandotherinsurablerisksathiscosts.

3.Iftheshipmentisdelayedasaresultofcircumstances,forwhichtheordererisre sponsible,thentheriskshallpasstotheordererfromthedayuponwhichthegoods arereadyforshipment;howeverweareobligedtoprocuretheinsurances,whichhe requests,attherequestandcostsoftheorderer.

4.Deliveredobjectsare,eveniftheyfeatureinsignificantfeatures,tobeacceptedbythe ordererirrespectiveoftherightsfromSection8.

§ 6 Delay in acceptance, order on call

1.Iftheordererdoesnotaccepttheobjectofcontractwithinthedeadlineweareen titledtosethimareasonablefinaldeadline,todisposeotherwiseovertheobjectafter itsexpiryandtosupplytheordererwithareasonablyextendeddeadline.Ourrightsto cancelthecontractunderthepre-requisitesofSection326BGBandtorequestdama gesowingtothenon-fulfilmentshallremainunaffectedhereby.Ifwerequestdamages owingtonon-fulfilmentwecanrequest40%oftheagreedpriceplusvalueaddedtax ascompensationunlesstheordererproveslessdamages.Wereservetherighttoassert higheractualdamages.

2.Orders,whichareconfirmedbyusoncall,must–insofarasnothingspecialhasbeen agreed–beacceptedbynolaterthanwithinoneyearfromtheorderdate.Thesame shallapplyincaseofdatereservationsorsustainable„oncallposition“.Subclause6.1 shallapplyaccordinglyincasethegoodsarenotcalledwithinthestateddeadline.

§ 7 Reservation of title

1.Theobjectsofthedeliveries(reservedgoods)shallremainourpropertyuntiltheful filmentofallclaimstowhichweareentitledagainstthebuyerfromthebusinessrelationship.Insofarasthevalueofallsecurityrights,towhichweareentitledagainstthe buyer,exceedtheamountofallsecuredclaimsbymorethan10%,wewillreleasea correspondingpartofthesecurityrightsatthebuyer’srequest.

2.Duringtheexistenceofthereservationoftitlethebuyerisprohibitedfromapledge orassignmentascollateralandtheresaleonlypermittedforresellersinthecustomary courseofbusinessandonlyundertheconditionthattheresellerreceivesapayment fromhiscustomerorstipulatesthereservationthatthepropertyshallonlypasstothe customerwhenhehassatisfiedhispaymentobligations.

3.Incaseofattachments,seizuresorotherdisposalsorinterventionsofthirdpartiesthe buyerhastoinformusimmediatelysothatwecanfileanactionaccordingtoSection 771ZPO[GermanCodeofCivilProcedure].Insofarasthethirdpartyisnotintheposition toreimburseusthecourtandout-of-courtcostsofanactionaccordingtoSection771 ZPO,thebuyerwillbeliableforthelossincurredtous.

4.Thebuyerundertakestotreattheobjectofpurchasewithduecareandattention;he isinparticularobligedtosufficientlyinsuretheseatthevalueasnewathisowncosts againstdamagescausedbyfire,waterandtheft.Insofarasmaintenanceandinspection workisnecessarythebuyermustcarrythisoutintimeathisowncosts.

General Terms of Sale and Delivery

5.Incaseofbreachesofdutybythebuyer,inparticularwithdefaultofpaymentweare entitledtocancellationandtotakethegoodsback;thebuyerisobligedtohandthe goodsover.Thetakingbackofgoodsrespectivelytheassertionofthereservationof titledoesnotrequireanycancellationofthesupplier;theseactsoranattachmentofthe reservedgoodsbyusshallnotrepresentacancellationofthecontractunlesswehad explicitlydeclaredthis.

6.Ifthebuyerhasresoldtheobjectofpurchaseintheordinarycourseofbusinessthen heshallherebynowalreadyassignallclaimstousintheamountofthefinalinvoice amount(includingvalueaddedtax)ofourclaim,towhichheisentitledfromtheresale againsthisbuyersorthirdparties,irrespectiveofwhethertheobjectofpurchasehas beenresoldwithoutorafterprocessing.Thebuyershallalsoremainauthorizedtocollect thisclaimaftertheassignment.Ourauthorizationtocollecttheclaimourselvesshall remainunaffectedhereby.However,weundertakenottocollecttheclaimaslongasthe buyersatisfieshispaymentobligationsfromthecollectedproceedings,isnotindefault ofpaymentandinparticularnoapplicationhasbeenfiledfortheopeningofinsolvency proceedingsorpaymentshavebeensuspended.Ifthisishoweverthecasewecanre questthatthebuyerannouncestheassignedclaimsandtheirdebtorstous,providesus alldetailswhicharenecessaryforthecollection,handsovertheassociateddocuments andinformsthedebtors(thirdparties)oftheassignment.

7.Theprocessingorconversionoftheobjectofpurchasebythebuyerisalwayscarried outonourbehalf.Iftheobjectofpurchaseisprocessedwithotherobjects,whichdo notbelongtous,thenweshallacquiretheco-ownershiptothenewobjectintheratio ofthevalueoftheobjectofpurchase(endinvoiceamount,includingvalueaddedtax) totheotherprocessedobjectsatthetimeoftheprocessing.Incidentally,thesameshall applytotheobjectproducedbyprocessingastotheobjectofpurchasedeliveredunder reservation.

8.Iftheobjectofpurchaseisinseparablymixedwithotherobjectsthatdonotbelongto usthenweshallacquiretheco-ownershiptothenewobjectintheratioofthevalueofthe objectofpurchase(endinvoiceamount,includingvalueaddedtax)totheothermixed objectsatthetimeofthemixing.Ifthemixingiscarriedouttotheextentthattheobject ofthebuyeristobeseenasthemainobjectthenitshallbedeemedasagreedthatthe buyerassignsustheprorataco-ownership.Thebuyershallstorethethusproducedsole ownershiporco-ownershiponourbehalf.

§ 8 Quality defects

Weshallbeliableforqualitydefectsasfollows:

1.Allthosepartsorservicesaretobesubsequentlyimprovedfreeofchargeatour choice,deliveredorprovidednew,which–irrespectiveoftheoperatingduration–feature aqualitydefectifthiscauseexistedalreadyatthetimewhentheriskwaspassed.

2.Claimsforqualitydefectsshallbecomestatute-barredin12months.Thedeadlinewill beginwiththepassingoftherisk(Subclause6).

3.Thebuyerhastoreportqualitydefectstousimmediatelyinwriting.

4.Incaseofreportsofdefectspaymentsofthebuyermaybewithheldinascope, whichisinreasonablerelationtotheoccurredqualitydefects.Ifthedefectisunjustifiably reportedweareentitledtorequestreimbursementoftheexpensesincurredtousby thebuyer.

5.Wearefirstofallalwaystobegrantedtheopportunityforthesubsequentfulfilment withinareasonableperiodoftime.

6.Ifthesubsequentfulfilmentfailsthebuyercan–irrespectiveofpossibleclaimsfor damages–cancelthecontractorreducetheremuneration.Thebuyercanonlyrequest reimbursementforfruitlessexpensesifweareresponsibleforthedefectowingtowilful intentorgrossnegligence.

7.Defectsshallnotexistwithanonlyinsignificantdeviationfromtheagreedconditions, withanonlyinsignificantimpairmenttotheusability,withnaturalwearandtearorda mages,whicharecausedaftertheriskhaspassedasaresultoffaultyornegligent treatment,excessiveuse,unsuitableoperatingequipmentorowingtospecialexternal influences,whicharenotpresumedaccordingtothecontract,aswellaswithsoftware faultsthatcannotbereproduced.Ifimproperchangesorrepairworkiscarriedoutbythe buyerorbythirdpartiesthenthisandthethusincurredconsequencesshallnotsubstan tiateanydefectseither.Thesameshallapplyifourstipulationsconcerningthehandling andotherinstructionsarenotcompliedwithandapropermaintenanceisnotcarriedout.

8.Claimsofthebuyerowingtotheexpenses,whicharenecessaryforthepurposeofthe subsequentfulfilment,inparticulartransport,route,labourandmaterialcosts,areexclu dediftheexpensesincrease,becausetheobjectofthedeliveryhassubsequentlybeen takentoanotherlocationthanthebuyer’sbranchunlessthetransportationcorresponds withitsuseasintended.

9.Statutoryclaimsforrecourseofthebuyeragainstusshallonlyexisttotheextentthat thebuyerhasnotreachedanyagreementswithitsbuyerthatgobeyondthestatutory claimsfordefects.

10.Subclause9shallapplytoclaimsfordamages.Furtherorotherthanclaimsregulated inthisSubclauseorinSubclause9owingtoaqualitydefectareexcluded.

§ 9 Industrial property rights and copyrights, defects of title Insofarasnototherwiseagreed,weareobligedtomerelyprovidethedeliveryinthe countryoftheplaceofdeliveryfreeofindustrialpropertyrightsandcopyrightsofthird parties(hereinafterpropertyrights).Insofarasathirdpartyassertsjustifiedclaimsowing totheinfringementofpropertyrightsduetodeliveriesprovidedbyusandusedasper contractagainstthebuyer,weshallbeliabletowardsthebuyerasfollowswithinthe deadlinedeterminedinSubclause8.2:

1.Wewill,atourchoiceandatourcosts,eitherobtainarightofuseforthedeliveries concerned,changethesesothatthepropertyrightisnotinfringed,orexchangethese. Ifthisisnotpossibleforusatreasonableconditions,thebuyershallbeentitledtothe statutoryrightstocancellationorreduction.Thebuyercanonlyrequestreimbursement forfruitlessexpensesifweareresponsibleforwilfulintentorgrossnegligence.Ourobli gationtopaycompensationisorientedtoSubclause10.

2.Theafore-mentionedobligationsshallonlyexistifthebuyerinformsusimmediately inwritingabouttheclaimsassertedbythirdparties,doesnotrecogniseaninfringement andwereservetherighttoalldefencemeasuresandsettlementnegotiations.Ifthebuyer discontinuestheuseofthedeliveryforreasonstominimisedamagesorforotherimpor tantreasonsheundertakestoinformthethirdpartythatthediscontinuationoftheuseis notassociatedwitharecognitionofaninfringementofapropertyright.

3.Claimsofthebuyerareexcludedinsofarasheisresponsiblefortheinfringementof propertyright.

4.Claimsofthebuyerarefurtherexcludedinsofarastheinfringementofpropertyrightis causedbyspecialstipulationsofthebuyer,duetoanapplicationthatisnotforeseeable forusorbythefactthatthedeliveryischangedbythebuyerorisusedtogetherwith productsnotdeliveredbyus.

5.IntheeventofinfringementsofpropertyrightstheprovisionsofSubclauses8.4,8.5 and8.9shallapplyaccordinglytotheclaimsofthebuyerregulatedinSubclause13.

6.Furtherorotherclaimsofthebuyeragainstusorourvicariousagentsowingtoa defectoftitlethanthoseregulatedinthisSubclause9areexcluded.

§ 10 Joint and several liability

1.Claimsofthebuyerfordamages–irrespectiveofthelegalnatureoftheasserted claim–areexcluded.

2.Excludedfromthisare:

a)Damagesowingtothebreachofessentialcontractualobligations.Deemedasessen tialaresuchcontractualobligations,thefulfilmentofwhichmakestheproperexecution ofthecontractpossibleatallandonthecompliancewithwhichthecontractualpartner mayasarulerelyanddependon.

b)Damagesfromtheinjurytolife,thebodyorthehealthifweareresponsibleforthe breachofobligation.

c)Forotherdamages,whichareduetoawilfulorgrosslynegligentbreachofduty, wherebyourbreachofdutyisdeemedequivalenttothatofourlegalrepresentativesor vicariousagents.

d)LiabilityaccordingtotheProdHaftG[GermanProductLiabilityAct]

3.Achangetotheburdenofproofforthedisadvantageofthebuyerisnotassociated withtheafore-mentionedregulations.

4.Insofarastheliabilityfordamagesisexcludedorlimitedagainstus,thisshallalsoapply withregardtothepersonalliabilityfordamagesofouremployees,ourcommercialagents andourvicariousagents.

§ 11 Obligations of the buyer to provide assistance

1.Assistanceservicesofthebuyer,whichareexplicitlyortacitlyagreedwithinthe frameworkofthecontract,shallbecarriedoutwithoutaspecialremunerationunless explicitlyotherwiseagreed.

2.Thebuyerisobligedtoinformusaboutallfactsintime,fromwhichitcanbederived thatgoodsandproductsinstockinourcompany,whichwehavemadeavailablewith regardtotheproductioncapacitiesreportedtous,cannotbeusedornotusedinfull.If residualstocksremainthebuyershalltakeoverthestocksandthe,ifapplicableincurred destructioncostsintheeventofaprematurechangetoitsmaterialscheduling.Thisshall alsoapplytoproducts,withwhichwehadtoorderminimumquantitiesonthepartofour suppliersifwehaveinformedthecustomerhereofinadvance.

3.Thebuyerguaranteesthattheproductssuppliedbyhimforprocessingaresuitablefor thispurpose.Wearenotobligedtoexaminetheproductssuppliedbythebuyerforthe conditionandthesuitabilityforthefurtherprocessing.Withintheframeworkofongoing businessrelationshipsaswellasifanobjectforprocessinghasinitiallybeeninspected, testedandreleased,thebuyerundertakestoinformusofeachproductchangewithout requestinwriting.Inthecaseofregularprocessingofobjectsthebuyerisfurtherobliged toexaminetheobjectthatistobeprocessedbyusfordeviationsandchangesforeach changetotheproductionconditionsandinhiscompany,inparticularwiththeexchange oftools,machinesorwiththeintroductionofnewproductionprocessesandtonotifyus ofsuchchangesandmodificationsinwriting.

4.Wedonothavetoexaminetheinstructionsofourbuyers,thematerialselectionor otherregulations,whicharemadebyourbuyer,fortheiraccuracy.

5.Therefore,thebuyerhastoexamineallinstructions,whichheissuesaswellasthe qualityofthematerialsstipulatedormadeavailabletousforthecompliancewiththe statutoryandtechnicalregulations.

6.Ifthebuyerisindefaultwithregardtohisobligationforprovisionortoprovide assistanceafterawrittenwarningweareentitledtothestatutoryrights.

7.Goodsmayonlybereturnedwiththesupplier’sexpresspermission.Anyreturned goodsmustbedeliveredfreeintheiroriginalpackagingandmustbeaccompaniedby thereturnreceiptprovidedbythesupplier.Thegoodsmustbeintheiroriginalstate,i.e. undamagedandfullyfunctional.Returnedgoodswillnolongerbeacceptedwhensix monthshavelapsedfromthedateofdelivery.Returnsofspeciallydesignedorcustommadeitems,aswellasusedgoodswillnotbeaccepted.Wewillchargeahandlingfeeof 20%-40%ofthevalueofthegoods,however,atleastEUR100peritemplusstatutory VAT.Followingpresentationofappropriateevidence,thesupplierreservestherightto chargeahigheramounttothepurchaserinindividualcases;thepurchaserisfreeto provethatthedamagewaslower.

§ 12 Place of performance and place of jurisdiction/miscellaneous

1.Theplaceofperformanceandplaceofpaymentistheregisteredseatofour companyinSontheim/Brenz.

2.ThelawoftheFederalRepublicofGermanyistobeexclusivelyappliedtothe contractualrelationship.TheapplicationoftheConventionoftheUnitedNationsof 11April1980concerningContractsfortheInternationalSaleofGoods(CISG„Law governingthesaleofgoodsofVienna“)isexcluded.

3.Withalldisputesensuingfromthecontractualrelationship,iftheordererisa merchant,alegalentityunderpubliclaworaspecialfundunderpubliclaw,theaction istobefiledatthecourtthathasjurisdictionforourheadquarters.Wearealsoentitled tofileactionattheheadquartersoftheorderer.

4.WestoreyourdataaccordingtoSection23FederalDataProtectionAct.

RÖHM GmbH

89565 Sontheim (Germany)

Status: July 2019

General Service Terms (ASB) of RÖHM GmbH, Sontheim

1. Validity

1.1TheseASBformthebasisforallbusinesstransactionswithourcustomers,which refertotherepairormaintenanceoftheproductsmanufacturedordeliveredbyusin sofarasthesecustomersconcernentrepreneurswithinthemeaningofSection14BGB [GermanCivilCode].

1.2Contradictory,supplementarycontractualtermsandconditionsofthecustomeror thosewhichdeviatefromtheseASBwillnotberecognised.

1.3WithintheframeworkofaregularbusinessrelationshiptheseASBwillalsobevalid aftertheeffectiveinclusionforthefirsttimeifwedonotexplicitlyreferheretoinfollow-up transactions.

1.4InsofarastheASBdonotincludeanyregulations,theGeneralTermsofSaleand DeliveryofRÖHMGmbHshallapply.

2. Offer and conclusion of the contract

2.1Ouroffersare–insofarasnotexplicitlymarkedasbinding–withoutobligationand merelytobeunderstoodasinvitatioadofferendum.Therightisreservedtoaninterim sale.

2.2Contractswithuswillonlybeconcludedwithourwrittenacceptancedeclarationor –ifsuchisnotcarriedout–byourdeliveryandservice.Changesandsupplementations tothecontractsconcludedwithusrequireawrittenform.

2.3Iftheobjectofmaintenanceorrepairwasnotdeliveredbyusthenthecustomer hastopointoutexistingindustrialpropertyrightswithregardtotheobjectifwearenot responsibleforanyfaultthecustomershallindemnifyusfrompossibleclaimsofthird partiesfromindustrialpropertyrights.

2.4InsofarasweareresponsiblefornegligencePar.2.3shallapplyaccordingly.

3. Contractual parts

Theofferandtheproductlistrespectivelyavailabletousandthecustomerareapartof thecontract.

4. Technical documents and plans

4.1Allrightstoourofferdocumentsaswellasdocuments,whichhavebeenhanded over,shallremainreserved.

4.2Thecustomershallrecogniseourrightsandwillnotreproducethedocumentsinfull orinpart,notmaketheseaccessibletothirdpartiesorusetheseforanyotherpurpose thanthatforwhichtheywerehandedovertohimwithoutourpriorwrittenauthorization.

5. Scope of services, maintenance, condition of device, repair

5.1Decisiveforthescopeofourdeliveryandserviceisourbindingofferor–ifsuchis notavailable–ourwrittendeclarationofacceptance.Bothindividualservicescanbe agreed,whichareprincipallytoberemuneratedaccordingtoSubclause12.1,aswell astheservicepackagesdescribedunderSubclause5.2,whicharetoberemunerated accordingto12.2respectively12.3.

5.2Thefollowingactivitiesareapartofourserviceobligationwiththeprocessingof servicepackages:

5.2.1Commissioningofservice

-skilledexecutionofthenecessarycommissioningoftheclampingdeviceandcontrol attheplaceofinstallationinlinewiththeregulationsofthemanufacturer. -assemblyworkoverthecourseofthecommissioningtogetherwiththemachine manufacturer -firstinstructionsandoperatortraining -wewillinvoiceseparaterequestsforthetrainingwithregardtothemaintenanceand useasseparatework.

5.2.2Inspectionservice

Skilledexecutionofthenecessaryinspectionoftheclampingdeviceandcontrolatthe placeofinstallationinlinewiththeregulationsofthemanufacturer.Insofarasadditional maintenanceorrepairsbecomenecessaryatthecustomer’srequestorowingtospecial loads,thesearetoberemuneratedseparatelybythecustomer.

5.2.3Maintenanceservice

Skilledexecutionofthenecessarymaintenanceoftheclampingdeviceandcontrolatthe placeofinstallationinlinewiththeregulationsofthemanufacturer.Insofarasadditional repairsbecomenecessaryatthecustomer’srequestorowingtospecialloads,theseare toberemuneratedseparatelybythecustomer.

5.3Theserviceobligationshallbeginwiththepurchaseorconclusionofaservicepa ckage.Withthepurchaseorconclusionofaservicepackageaftertheexpiryofthe warrantyperiodtheserviceobligationofRÖHMshallonlyrefertosuchproducts,which arecapableofuseandfreeofdefectsatthetimeoftheconclusionorpurchaseofthe servicepackage.Thisistobeensuredbyaninspectionoftheproducts;ifdefectsare determinedthesearetoberemediedbeforethestartofvalidityoftheservicepackageby anecessaryrepairliabletocosts;thisrepairisnotpartoftheservicepackage.

5.4Ourserviceobligationshallnotincludecarryingoutworkonproductsandaccesso ries,whichwas(were)notdeliveredbyus.

5.5Ourserviceobligationshalllapseiftheproductwasnotsubjectedtothefunction andsafetytestsaccordingtothedetailsintheoperatinginstructionsorthirdpartieshave carriedoutworkontheproductsconcernedwithoutourpriorwrittenconsentunlessthis workhasnodisadvantageousinfluenceontheprovisionofourservice.Thesameshall applyiftheproductshavebeendamagedduetocausesforwhichwearenotresponsi ble,forexamplebywater,fire,strokeoflightningorotherimplicationsofforcemajeureas wellaswithimpropertreatmentbythecustomerorthirdparties.

5.6Dependingontheuseandtypeoftheproductanoverhaulmaybenecessaryafter longeruse.Thisisthecaseifthecostsofarepairexceedthecurrentvalueofthepro duct.Overhaulwithinthismeaningisalsothenecessarynewacquisitionofaproductin theabsenceofavailablespareparts.Overhaulsarenotpartoftheserviceobligationwi thintheservicepackages.Ifweareoftheopinionthataproductsthatistobemaintained byusunderaservicepackagerequiresanoverhaul,wewillinformthecustomerhereof bystatingthecurrentvalueestimatedbyusandsubmitanofferfortheoverhaultothe customerwitharemunerationcalculatedaccordingto12.1.

6. Repair/service that cannot be carried out

6.1Theservicesprovidedconcerningthedetailsofacostestimateaswellasthefurther incurredandtobeprovenwork(faultsearchtimeequaltoworkinghours)willbeinvoiced tothecustomeriftherepaircannotbecarriedoutduetoreasonsforwhichRÖHM GmbHisnotresponsible,inparticularbecausethefaultforwhichacomplaintwillbe madedidnotoccurduringtheinspection,sparepartscannotbeprocured,thecustomer culpablymissedtheagreeddateorthecontractwasterminatedduringtheexecution.

6.2Theobjectofrepaironlyneedstoberestoredtotheoriginalconditionagainatthe explicitrequestofthecustomeragainstreimbursementofthecostsunlesstheunderta kenworkwasnotnecessary.

6.3IncaseofarepairthatcannotbecarriedoutRÖHMGmbHshallnotbeliablesubject tosentence2fordamagestotheobjectofrepair,thebreachofcontractualsecondary obligationsandfordamages,whichwerenotsufferedtotheobjectofrepairitself,no mattertowhichlegalgroundsthecustomerrefers.RÖHM,ontheotherhand,willbe liableincaseofwilfulintent,withgrossnegligenceoftheowner/theexecutivebodies orexecutivesaswellaswiththeculpablebreachofessentialcontractualduties.Such contractualobligationsaredeemedessential,thefulfilmentofwhichmakestheproper executionofthecontractpossibleatallandthecompliancewithwhichthecontractual partnermayasarulerelyanddependupon.

7. Duration of the service

7.1Thedetailswithregardtothedurationofrepairsandservicesarebasedupones timatesandmerelyserveasinformationandafirstestimatebythecustomer.Theyare thereforenotbindingiftheyhavenotbeenexplicitlymarkedasbinding.

7.2Incaseofsubsequentlyplacedadditionalandextensionordersorwithnecessary additionalrepairworktheagreedrepairdeadlineshallbeextendedaccordingly.

8. Obligations to provide assistance of the customer

8.1Thecustomerhastodrawourattentiontothestatutory,officialandcompanysafety andotherregulationsapplicableattheplaceofdestinationofourdeliveryandservice, whichrefertothedelivery,theassemblyandtheoperation.

8.2Thecustomerwillinformuswithorimmediatelyafterhisorderaboutpossiblespecial featuresoftheplaceofinstallation,whichmayhaveanimplicationontheproperfunction oftheproducts,inparticularaboutthestructuralconditionandtheconcreteoperating environment.

8.3Thecustomershallensure–alsoduringthewarrantyperiodaccordingtoSubclause 17.5–aregularandskilledmaintenanceoftheproductsdeliveredbyusinsofarasthis wasnottakenoverbyusaspercontract.

8.4Thecustomershalldisposeofthegoodsdeliveredbyusathisownresponsibility andathisowncostsaccordingtotherespectivevalidregulations.Wearenotobligedto createapossibilityforthereturnunlessthiswouldhavebeenstipulatedbylaw.

8.5Thecustomerhastosupporttherepair/maintenancepersonnelwiththeexecution oftherepairathisowncosts.

8.6Thecustomerhastotakethespecialmeasures,whicharenecessaryfortheprotec tionofpersonsandobjectsattheworkplace.Healsohastoinformtherepairmanagers aboutexistingspecialsafetyregulationsinsofarastheseareofsignificancefortherepair personnel.Heshallinformusincaseofbreachesoftherepairpersonnelofsuchsafety regulations.Incaseofseriousbreacheshecanrefusetheinfringingpartyaccesstothe repairlocationbymutualagreementwiththerepairmanager.

8.7Thecustomershallbearasupervisoryandassistanceobligationforthecompliance withthestatutoryworkingtimelimits.BreachesaretobereportedtoRÖHMGmbH.

8.8Thecustomerisobligedtoprovidethereasonableandnecessarytechnicalassi stanceathiscosts,inparticularto:

a)Provisionofthenecessary,suitableassistantsinthenumberthatisnecessaryforthe repairandforthenecessarytime;theassistantshavetofollowtheinstructionsofthe repairmanager.Wedonotassumeanyliabilityfortheassistants.Ifadefectordamages werecausedbytheassistantsowingtoinstructionsoftherepairmanager,thenthe regulationsofSections17and18shallapplyaccordingly.

b)Undertakingofallconstruction,beddingandscaffoldingworkincludingtheprocure mentofthenecessarybuildingmaterials.

c)Provisionofthenecessarydevicesandheavytoolsaswellasthenecessarycommo ditiesandrequiredmaterials.

d)Provisionofheating,lighting,operatingpower,water,includingthenecessaryconnec tions.

e)Provisionofnecessary,dryrooms,whichcanbelockedforthestorageofthetoolfor therepairpersonnel.

f)Protectionoftherepairplaceandmaterialsagainstharmfulinfluencesofallkinds, cleaningoftherepairplace.

g)Provisionofsuitable,theft-proofrecreationroomsandworkrooms(withheating,ligh ting,washingpossibility,sanitaryfacilities)andFirstAidfortherepairpersonnel.

h)Provisionofthematerialsandundertakingofallotheracts,whicharenecessaryforthe adjustmentoftheobjectofrepairandforcarryingoutatestingthatisenvisagedasper contract.

8.9Thetechnicalassistanceoftheorderermustguaranteethattheservicecanbestar tedimmediatelyafterthearrivalofourpersonnelandcarriedoutwithoutdelayuntilthe acceptancebytheorderer.InsofarasspecialplansorinstructionsofRÖHMareneces sary,RÖHMshallmaketheseavailabletotheordererintime.

9. Obligations of the customer to provide assistance in case of maintenance

9.1Theproductsaretobeusedasintendedandaccordingtotheirprotectiontypeand inlinewiththeoperatinginstructionstogetherwiththeirannexes.

9.2IncaseofanagreementofoneoftheservicepackagesdescribedinSubclause5, thecustomerwillplacetheproductsthataretobeinstalled,maintainedorrepairedinto afaultlesscondition,capableofusebeforeconclusionofthecontractathisowncostsif theproductsarenotalreadyinsuchacondition.Ifthecustomerdoesnotproperlysatisfy thisobligationeitherafterawarningonourpartandwithinthedeadlineweareentitled toaccordinglycancelthecontractorthedelivery.Furtherclaimsfordamagesonourpart shallremainunaffected.

9.3Ifthecustomerusesthemaintenanceserviceinterferencesaretobereportedtous immediatelyinwriting,indetailandinanunderstandablemanner.

9.4Ouremployeesandvicariousagentsaretobegrantedtheunimpededandsafe accesstotheproducts.Incaseofdelaysforwhichthecustomerisresponsibleheis obligedtoremuneratethewaitingtimesofouremployeesandvicariousagentsresulting fromthedelayseparately.

9.5Thecustomershallrefrainfromcommissionthirdpartieswiththeservicesduringthe termofaserviceagreement,whichwehavetoprovideaccordingtotheagreementor fromperformingthisworkhimself.

9.6Thecustomerhastodrawourattentiontothestatutory,officialandcompanysafety regulationsandotherregulationsapplicableattheplaceofdestinationofourdeliveryand service,whichrefertothedelivery,theassemblyandtheoperation.

10. Inspection and acceptance

10.1Serviceswillbeprovidedbyusaccordingtotheguidelinesofourqualitycontroland deliveriesinspectedaccordingly.Ifthecustomerrequestsfurtherinspectionsthenthese aretobeagreedinwritingandpaidbythecustomer.Thisshallrelatee.g.tospecialtests fortheacceptance.

General Service Terms (ASB) of RÖHM GmbH, Sontheim

10.2Thecustomerundertakestoacceptourservicesunderthiscontractimmediately afterthereportthattheyhavebeencompleted.Uponrequesthehastodeclaretheir acceptanceinwritingtowardsouremployeesorvicariousagentsinsofarasthereisno essentialdefect.Thisiscarriedoutbythesigningoftheservicereport.

10.3Ourservicesshallbedeemedasacceptedfreeofdefectswiththere-commen cementoftheoperationaluseofthemaintainedorrepairedproduct,inparticularfor productionpurposes,ifnodefectshavebeenpreviouslyreportedbythecustomer.

11. Cost details and cost estimate

11.1Thecreationofthecostestimatesisliabletocostsiftheexecutionoftherepairis notapproved.

11.2.Thecostsforacostestimateamounttotheflatratesfixedinthecurrentpricelist.

11.3Iftherepaircannotbecarriedoutatthesecostsorifouremployeesorvicarious agentsconsidertheexecutionofadditionalworktobenecessaryduringtherepairthe customer’sconsentistobeobtainedifthestatedcostsareexceededbymorethan 15%.

12. Remuneration, maturity and terms of payment

12.1Insofarasnototherwiseagreedandthereisnowarrantycaseourservicesareto beremuneratedaccordingtotheactualworkrequirementpursuanttoourrespectively validgeneralpricelists.Thetimerequiredbyouremployeeswillbesettledintimesec tionsof15min.Inadditiontothetimerequiredfortheworkthatistobeperformedin thesecasesthecustomerwillpaythetravellingandwaitingtimes,overtimesurcharges, expenses,travellingandaccommodationcostsaswellasthecostsofspareparts,ma terialssubjecttowearandtearandconsumablesandreplacementpartsetsaccording toourpriceslistsorinlinewiththeoffer.

12.2Insofarasaflatrateremunerationwasagreedforaservicepackage,ourwork andtravellingcostsandexpensesarethuscovered,nothoweverthecostsforwaiting times,overtimeatthecustomer’srequest,spareparts,materialssubjecttowearand tearandconsumables,replacementpartssetsaswellasotheraccessories.Ourwork forifapplicablenecessaryrepairsistoberemuneratedseparatelybythecustomer accordingtoSubclause12.1.

12.3Thepricesforourservicescanbederivedfromtherespectivepricelistvalidupon conclusionofthecontractandaredeemedexworksplusvalueaddedtax.Thecalcu lationbasisfortheremunerationistheone-shiftoperation,i.e.auseoftheproductsup to160hoursinacalendarmonth.Asurchargetothelistpriceof50%ischargedfor thetwo-shiftoperation,asurchargeof100%forthethree-shiftoperation.Theabove tworatesshallonlyapplytotheservicepackagesdescribedunderSubclause5..Ifthe customerrequestsassignmentsoutsideofournormalworkinghours(Mo-Fr,6:30 am-6:30pm,amax.of7hperday)surchargeswillbecalculatedaccordingtothe respectivevalidpricelist.

12.4Ifourpersonnelandmaterialcostsareincreasedthenweareentitledtoadjustthe contractualpricesaftertheexpiryofthefirstyearuptoamaximumof5%abovethe priceofthepreviousyear.Pricechangeswillbeannouncedtothecustomeratleast onemonthbeforethenewcontractualpricescomeintoforce.Thecustomerisentitled toterminatethecontracteffectiveasofthetimeatwhichthenewpricewouldbecome validforhimforthefirsttime.

13. Transport and insurance with the repair in the plant of RÖHM GmbH

13.1Theobjectforrepairwillbedeliveredbythecustomertousathiscoststogether withtherepairandserviceformandafterexecutionoftherepaircollectedbythecusto meragainorreturntohimatthecustomer’scosts.

13.2Thecustomershallbeartheriskoftransport.

13.3Atthecustomer’srequestashipmentcarriedoutbyuswillbeinsuredatthe customer’scostsagainsttheinsurabletransportrisks,e.g.theft,breakageandfire.

13.4Noinsurancecoverexistsduringtherepairtimeinourplant.Thecustomerhasto ensurethemaintenanceoftheexistinginsurancecoverfortheobjectofrepaire.g.with regardtofire,pipewater,stormandmachinebreakageinsurance.Insurancecovercan onlybeprocuredfortheserisksattheexplicitwishandcostsofthecustomer.

13.5Incaseofdelayofthecustomerwiththetake-overwecanchargeastoragefee forthestorageinourplant.Theobjectofrepaircanalsobestoredotherwiseatour discretion.Thecostsandriskofthestorageduringthedelayshallbefortheexpense ofthecustomer.

14. Repair deadline

14.1.Thedetailsconcerningtherepairdeadlinesarebasedonestimatesandmerely serveforthepurposeofinformationandfirstorientation.Theyarethereforenotbinding unlessthisisexplicitlyagreed.

14.2.Theagreementofabindingrepairdeadline,whichmustbedescribedasbinding, canonlyberequestedbythecustomerifthescopeoftheworkhasbeenprecisely determined.

14.3.Thebindingrepairdeadlinewillhavebeenadheredtoifbythetimethatitexpires theobjectofrepairisreadyfortake-overbythecustomer,intheeventofacontractual lyenvisagedtestingreadyforitsexecution.

14.4.Incaseofsubsequentlyplacedadditionalandextensionordersorwithnecessary additionalrepairworktheagreedrepairdeadlinewillbeextendedaccordingly.

14.5.Iftherepairisdelayedduetomeasureswithinthescopeofindustrialdisputes, inparticularstrikeandlock-outaswellastheoccurrenceofcircumstances,which werenotcausedbyus,areasonableextensiontotherepairdeadlinewilloccurinsofar assuchimpedimentshaveasprovenasubstantialinfluenceonthecompletionofthe repair;thisshallalsoapplyifsuchcircumstancesoccurafterweareindefault.

15. Ban on offsetting and assignment; subcontractors

15.1Thecustomerisonlyentitledtooffsettingintheeventofundisputedclaimsor claimswhichhavebeendeclaredfinalandbinding.Thisshallnotapplyifthecustomer assertsclaimsinthereciprocalrelationship,inparticularclaimsfordefects.

15.2Theassignmentofrightsofthecustomerfromcontractualrelationshipswithus presumesourpriorconsentinordertobevalid.ThisshallnotapplyinsofarasSection 354aHGB[GermanCommercialCode]applies.

15.3Weareentitledtousethirdpartiesinordertofulfilourcontractualobligations.

16. Reservation of title

16.1Thegoodsdeliveredbyusshallremainourpropertyuntilthepaymentofallofour claimsagainstthecustomer,nomatterforwhatlegalgrounds,alsofutureones.Incase ofcurrentaccounttheafore-mentionedpropertyshallbedeemedassecurityforour balanceclaim.

16.2Thecustomermayonlysellwithintheframeworkofhiscustomarybusinesstrans actionsandneitherpledge,norassignthegoodsascollateral.Thecustomerhereby

assignsusforsecurityofourpaymentclaimsagainsthim,intheamountofthevalueof ourdeliveryandservice,allclaimswithallsecondaryrights,whichheacquiresagainst hisbuyerowingtosuchasale.

16.3Aslongasthepropertyhasnotyetbeenassigned,thecustomerhastoinformus immediatelyinwritingifthedeliveredobjectisattachedorisexposedtootherinterven tionsofthirdparties.Insofarasthethirdpartyisnotinthepositiontoreimburseusthe courtandout-of-courtcostsofanactionaccordingtoSection771ZPO[GermanCode ofCivilProcedure]thecustomershallbeliableforthelossincurredtous. 16.4.Weundertaketoreleasethesecuritiestowhichweareentitledatthecustomer’s requestinsofarastheirvalueexceedstheclaimswhicharetobesecuredbymorethan 20%.”

17. Warranty

17.1Insofarasthecreationofaworkhasbeenagreedandthusthelawgoverning contractsforworkandservicesappliesthefollowingshallapply:Ifourservicesare faultythenwearefirstofallentitledandobligedtosubsequentsatisfactionaccording toSection634No.1BGB.Ifthesubsequentsatisfactionfinallyfailsthecustomercan accordingtoSection634No.3cancelthecontractorreducetheremunerationand accordingtoSection634No.4BGBrequestdamages.Claimsofthecustomerfor reimbursementofexpensesaccordingtoSection634No.2BGB(self-execution)are excluded.Subclause18shallapplytoclaimsfordamages.

17.2Insofarasweprovideplanningserviceswithoutexecutingtheseandthusthelaw governingservicecontractsapplies(e.g.intheeventofabreachofourdutiesunder Subclauses5.2.1,5.2.2and5.2.3)thefollowingapplies:Ifourservicesarefaultythen wearefirstofallentitledandobligedtosubsequentimprovement.Ifthesubsequent improvementfinallyfailsthecustomerisentitledtodamagesaccordingtoSubclause 18.

17.3Excludedfromthewarrantyaredamagesasaresultofnaturalwearandtear,faul tymaintenance–insofaraswehavenotcarriedoutthismaintenanceaspercontract, failuretocomplywithoperatingequipmentregulations,excessiveuse,unsuitableope ratingequipment,chemicalorelectrolyticinfluences,faultyconstructionandassembly workofthirdpartiesaswellasothercauses,forwhichwearenotresponsible.

17.4Thewarrantyshalllapseifthecustomerorthirdpartymakeschangesorrepairsto ourservices/productswithoutourpriorwrittenconsentunlessthedefectisnotaresult thereof.

17.5Claimsofthecustomerowingtodefectsofqualityandtitleshallbecomestatutebarredwiththeexpiryof12monthsaftertheacceptanceoftheworkortheknowledge ofdefectswiththeprovisionofplanningservices.

18. Liability

18.1Weshallbeliabletoanunlimitedextentincaseofwilfulintentandgrossneg ligenceaswellaswiththeinjurytolife,thebodyandthehealthaswellaswiththe culpablebreachofessentialcontractualobligations.Deemedasessentialaresuch contractualobligations,thefulfilmentofwhichmakestheproperexecutionofthe contractpossibleatallandthecompliancewithwhichthecontractualpartnermayasa rulerelyanddependon.

18.3Incidentallyourliabilityisexcluded.

18.4AliabilityaccordingtotheProductLiabilityActremainsunaffected.

18.5Thepersonalliabilityofourlegalrepresentativesandvicariousagentsislimitedas ourownliabilityaccordingtotheafore-mentionedprovisions.

19. Term of the contract; termination

19.1ServiceagreementsaccordingtoSubclause5.shallcomeintoforcewhensigned bybothpartiesandshallinitiallyapplyuntiltheendofthecalendaryear,thatfollowsthe yearinwhichthecontractwasconcluded.Thecontractualrelationshipwillsubse quentlybeextendedrespectivelybyonefurtheryearunlessitisterminatedbyoneof thepartieswithaperiodofnoticeof3monthstotheendofthesecondorafollowing year.Contractualrelationshipscanbeterminatedonthewholeoronlywithregardto individualproducts.

19.2Therighttotheextraordinaryterminationforanimportantreasonremainsunaf fected.

20. Place of jurisdiction; applicable law

20.1Withalldisputesensuingfromthecontractualrelationshipiftheordererisamerchant,alegalentityunderpubliclaworaspecialfundunderpubliclaw,theactionisto befiledatthecourtthathasjurisdictionforourheadquarters.Wearealsoentitledtofile anactionattheheadquartersoftheorderer.

20.2ThelegalrelationshipissubjecttothelawoftheFederalRepublicofGermany. GermaninternationalprivatelawandtheVienneseConventionoftheUnitedNations concerningContractsfortheInternationalSaleofGoods(CISG)willnotapply.

RÖHM

GmbH 89565 Sontheim (Germany) Status: October 2015

RÖHM GmbH Heinrich-Röhm-Straße50 89567Sontheim/Brenz Germany Tel+497325160 Fax+49732516510 info@roehm.biz www.roehm.bizId.-Nr.1242320/1118AU
