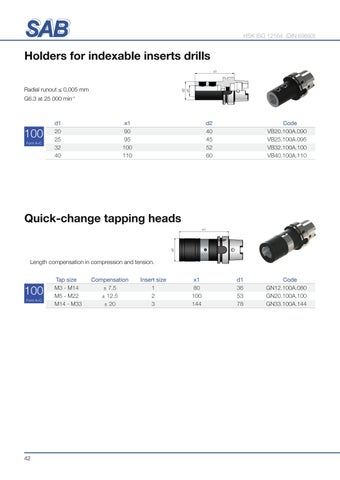

HSK ISO 12164 (DIN 69893)
Holders for indexable inserts drills x1
d2 d1
Radial runout ≤ 0,005 mm G6.3 at 25 000 min-1
100 Form A+C
d1 20 25 32 40
x1 90 95 100 110
d2 40 45 52 60
Code VB20.100A.090 VB25.100A.095 VB32.100A.100 VB40.100A.110
Quick-change tapping heads d1
x1
Length compensation in compression and tension.
100 Form A+C
42
Tap size M3 - M14 M5 - M22 M14 - M33
Compensation ± 7.5 ± 12.5 ± 20
Insert size 1 2 3
x1 80 100 144
d1 36 53 78
Code GN12.100A.080 GN20.100A.100 GN33.100A.144
