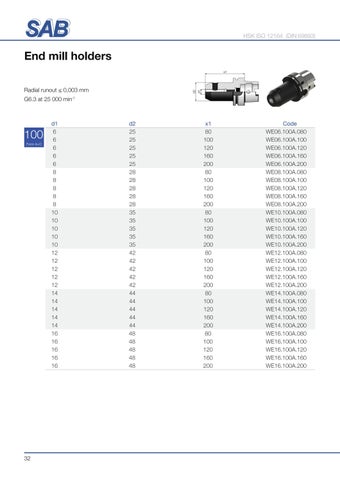

HSK ISO 12164 (DIN 69893)
End mill holders d2
Radial runout ≤ 0,003 mm
d1
x1
G6.3 at 25 000 min-1
100 Form A+C
32
d1 6 6 6 6 6 8 8 8 8 8 10 10 10 10 10 12 12 12 12 12 14 14 14 14 14 16 16 16 16 16
d2 25 25 25 25 25 28 28 28 28 28 35 35 35 35 35 42 42 42 42 42 44 44 44 44 44 48 48 48 48 48
x1 80 100 120 160 200 80 100 120 160 200 80 100 120 160 200 80 100 120 160 200 80 100 120 160 200 80 100 120 160 200
Code WE06.100A.080 WE06.100A.100 WE06.100A.120 WE06.100A.160 WE06.100A.200 WE08.100A.080 WE08.100A.100 WE08.100A.120 WE08.100A.160 WE08.100A.200 WE10.100A.080 WE10.100A.100 WE10.100A.120 WE10.100A.160 WE10.100A.200 WE12.100A.080 WE12.100A.100 WE12.100A.120 WE12.100A.160 WE12.100A.200 WE14.100A.080 WE14.100A.100 WE14.100A.120 WE14.100A.160 WE14.100A.200 WE16.100A.080 WE16.100A.100 WE16.100A.120 WE16.100A.160 WE16.100A.200
