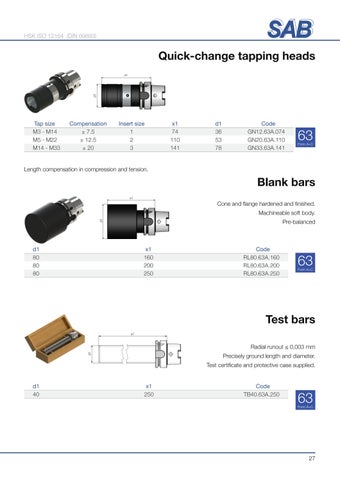

HSK ISO 12164 (DIN 69893)
Quick-change tapping heads
d1
x1
Tap size M3 - M14 M5 - M22 M14 - M33
Compensation ± 7.5 ± 12.5 ± 20
Insert size 1 2 3
x1 74 110 141
d1 36 53 78
Code GN12.63A.074 GN20.63A.110 GN33.63A.141
63
Form A+C
Length compensation in compression and tension.
Blank bars x1
Cone and flange hardened and finished. Machineable soft body. d1
Pre-balanced
d1 80 80 80
x1 160 200 250
Code RL80.63A.160 RL80.63A.200 RL80.63A.250
63
Form A+C
Test bars x1
d1
Radial runout ≤ 0,003 mm Precisely ground length and diameter. Test certificate and protective case supplied.
d1 40
x1 250
Code TB40.63A.250
63
Form A+C
27
