PEEK MACHINING
ADVANTAGES & APPLICATIONS
TIPS,
www.brogan-patrick.com
PEEK

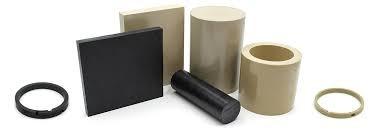

ABOUT PEEK
is a colorless, organic thermoplastic polymer commonly used in engineering applications. It is semi-crystalline and maintains excellent mechanical and chemical resistance properties even at high temperatures.Additionally, it offers resistance to hydrolysis in water, seawater, and steam.

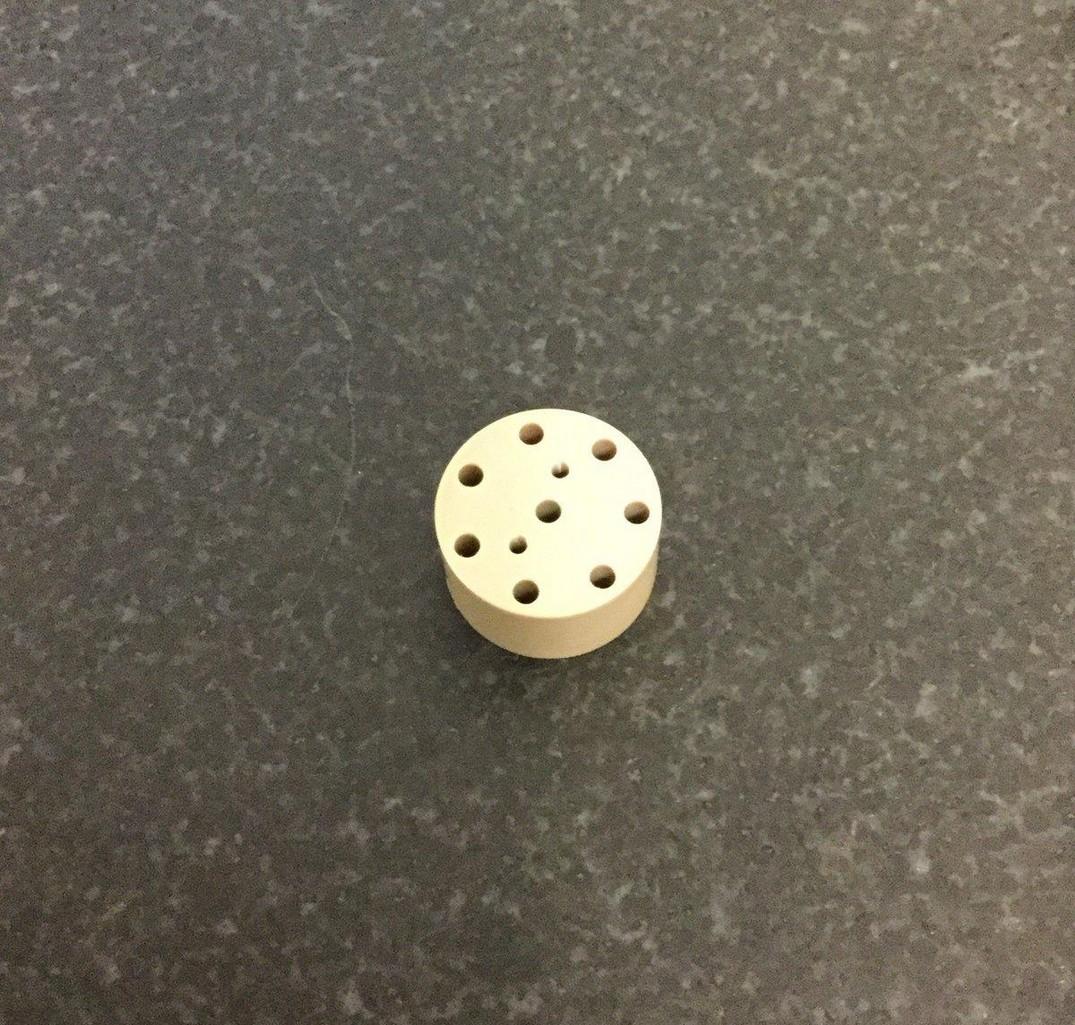

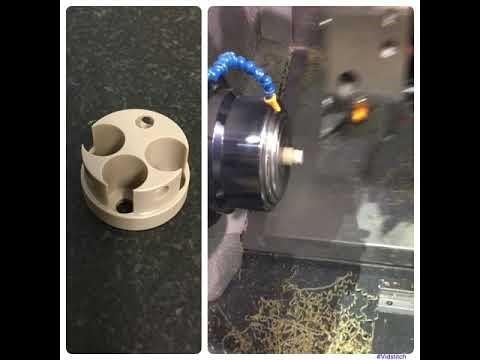

PEEK CNC MACHINING
PEEK can be machined for a variety of applications due to its exceptional properties. Compared to other technical polymers, PEEK has few drawbacks. Its resistance to high temperatures is one of its key features, as it can withstand high temperatures for longer periods of time than most other polymers.This makes it an excellent choice for CNC plastic machining.
PEEK CNC MACHINING
Additionally, PEEK is hydrophobic, which means it does not readily absorb water. It also emits very little gas when in a vacuum, making it quite advantageous. PEEK can be used for a variety of applications, from temporary implantation in patients' bodies to aerospace parts subjected to extremely low vacuums.

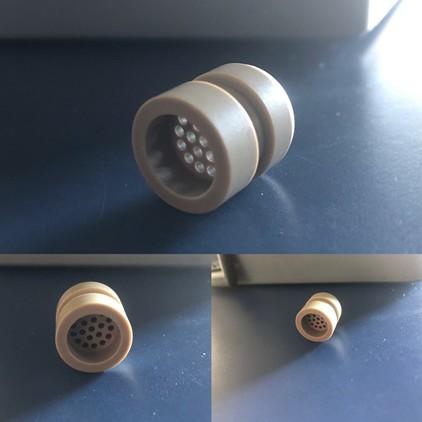

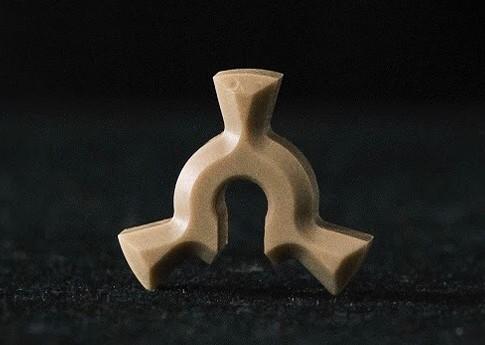

APPLICATIONS • Bearings Washers • Bushings Piston Parts • Rings Medical Implants • Seals Washers Get instant quotes on custom PEEK machined parts with our CNC Plastic Machining Service. Make quick turn prototypes and production parts in days with standard shipping on all US orders.
PEEK CNC MACHINING FINISHES
PEEK components are naturally opaque, and their structure makes it challenging for paints and coatings to adhere to their surface. However, due to its natural resistance to chemicals, it is frequently permissible to leave parts in their machined state. PEEK is easily machined and can achieve smooth surface finishes.Any undesirable tool marks can be removed by mechanically abrading the surface with glass beads.
COST-SAVING DESIGN TIPS
The high cost of the material necessitates a reduction in manufacturing overhead expenses. Requesting annealing during fabrication is one way to reduce the cost of CNC machining in PEEK. Surface and interior cracking may be decreased as a result, which will lower the scrap rate and lower overall costs for the producer.
www.brogan-patrick.com • CNC Machining • CNC Milling • CNC Turning • Screw Machining • CNC Plastic Machining • CNC Turning Machining • Tight Tolerance Machining • Cryogenic Deburring Our Services ThankYou Visit for more information 515 E. Centralia St. Elkhorn,WI 53121 262-723-6909 | sales@brogan-patrick.com
