ARCHITECTURE PORTFOLIO

BRIAN RAMIREZ

2020

• STUDENT ATHLETE BASEBALL PLAYER FOR EL PASO COMMUNITY COLLEGE

• OBTAINED A ASSOCIATE DEGREE IN ARCHITECTURE SCIENCE AT EL PASO COMMUNITY COLLEGE

• ENTRY IN MASTERS OF BUSINESS ADMINISTRATION PROGRAM

• BACHELOR OF SCIENCE IN ARCHITECTURE

• GRADUATED WITH A HIGH SCHOOL DIPLOMA FROM EASTWOOD HIGH SCHOOL.

• ENROLLED AT TEXAS TECH UNIVERSITY HUCKABEE COLLEGE OF ARCHITECTURE

• ACCEPTANCE INTO THE ACCELERATED ARCHITECTURE GRADUATE PROGRAM.

• GRADUATION FALL OF 2025: MASTERS OF ARCHITECTURE

• GRADUATION FALL OF 2025: MASTERS OF BUSINESS ADMINISTRATION

CIELO VISTA MALL UPHEAD RETAIL STORE

01 TEA AND RETAIL STORE

EMPLOYER: CARL DANIEL ARCHITECTS

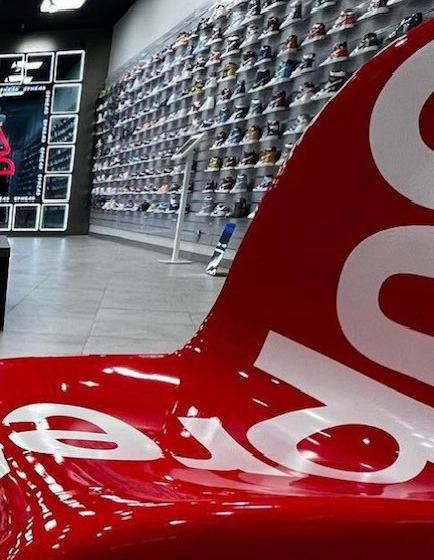

Uphead Tea store, located in Cielo Vista Mall, underwent a renovation project that involved the merging of two units. The newly designed space accommodates an area for shoe display and serving of boba tea. The project encompassed the installation of new flooring, ceiling and millwork for display and serving areas. The design and placement of the equipment not only facilitates the preparation and presentation of tea but also serves as an engaging focal point for customers. The installation of new lighting draws attention to the unique features, colors, and textures of each pair of shoes.

TASKS

Utilzed Revit to produce design and construction documents.

Produced renderings through Lumion for client.

Presented project progress to client.

Communicated with engineering consultants.

Submitted construction set to the city of El Paso for permitting.

EXISTING WALL TO REMAIN

EXISTING DOOR TO REMAIN

REMOVE PORTION OF EXISTING STUD/ GYP WALL. 7'-0" H. REMOVE EXISTING DOOR AND ITS FRAME

EXISTING RESTROOM TO REMAIN

REMOVE EXISTING WALL IN ITS ENTIRETY

REMOVE EXISTING WALL IN ITS ENTIRETY

REMOVE EXISTING WALL IN ITS ENTIRETY

REMOVE EXISTING FLOOR MATERIAL AND PREPARE AREA FOR NEW FLOOR

EXISTING COLUMN TO REMAIN

REMOVE EXISTING WALL IN ITS ENTIRETY

REMOVE & RELOCATE EXISTING DOOR

REMOVE EXISTING FLOOR MATERIAL AND PREPARE AREA FOR NEW FLOOR

REMOVE EXISTING DOOR AND FRAME

EXISTING STOREFRONT WINDOWS TO REMAIN. PROTECT AT ALL TIMES

REMOVE EXISTING WALL IN ITS ENTIRETY

EXISTING

EXISTING MECH. EQUIPMENT ROOM TO REMAIN

REMOVE EXISTING WALL IN ITS ENTIRETY

REMOVE & RELOCATE EXISTING DOOR

REMOVE EXISTING WALL IN ITS ENTIRETY

REMOVE

EXISTING RESTROOM TO REMAIN EXISTING COLUMN

REMOVE EXISTING WALL IN ITS ENTIRETY

IMPROVEMENT PLAN

PLAYA LAKE TOWNHOME DEVELOPMENT

TOWNHOME COMMUNITY DEVELOPMENT 02

The Playa Lake Townhome development is a thoughtfully designed residential community intended to provide comfortable and convenient housing for graduate students and professors at Texas Tech University. This development addresses the growing need for quality accommodations for new faculty members who have faced challenges in finding suitable living spaces.The development is uniquely situated on a plot that includes a protected playa lake, a natural feature requiring construction to maintain a 100-foot distance from its boundaries.

The community comprises three distinct unit types to cater to various housing needs. This includes Type 1: 1 bedroom, 1 bathroom, Type 2: 3 bedrooms, 2 bathrooms, Type 3: 4 bedrooms, 2 bathrooms. Both the front and backyard areas are designed as communal spaces to encourage interaction among residents and create a sense of community. These areas are perfect for relaxation, social gatherings, and fostering a healthy lifestyle.

UNIT TYPE: 2

FLOOR 2
FLOOR 1

SITE CLUSTER

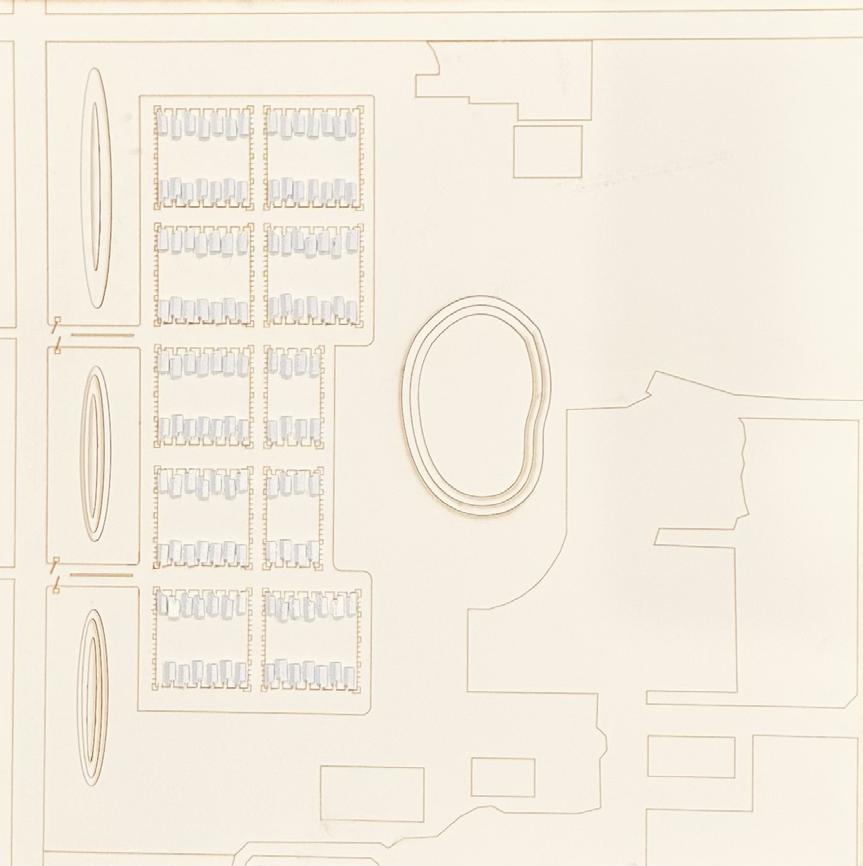

This Playa Lake housing development was created by utilizing a cluster. A span of 320x320-foot area included the layout of 14 residential units. It was divided into 4 Type: 1, 4 Type: 2, and 6 Type: 3 units. Each unit’s backyard faces a communal space featuring walkways, gazebos, and a water feature, designed to foster community interaction.

The cluster is seamlessly integrated into the site, forming a cohesive community with central areas and walkways leading towards a focal point at the playa lake. Connected walking trails enhance accessibility and encourage an active lifestyle. The development is a blend of residential comfort and vibrant outdoor spaces that enhance overall quality of life for its residents.

COMMUNITY SITE

QUAKER AVE

WALKING TRAILS

TTU INNOVATION

HUB PARKING

TTU INNOVATION

HUB

PLAYA LAKE TTU SATELLITE PARKING

PAW BREW

MICRO-MANUFACTURING

PAW BREW

Paw Brew is a dog treat micro manufacturing project. Paw Brew combines the creation of high-quality dog treats with a unique social space for dog lovers. Centered around a patio grill, it offers a space for people to enjoy food while their dogs enjoy fresh, homemade treats. The facility includes specialized production areas equipped with ovens, mixing stations, and other essential tools for crafting dog treats. A dedicated office space supports administrative operations and community outreach efforts. In addition to its manufacturing focus, a restaurant and outdoor patio space creates a vibrant, social environment that invites the Lubbock community to gather, enjoy food, and spend time with their dogs. Paw Brew additionally features a multifunctional space that serves as an educational hub, hosting community events and workshops.

*Paw Brew was 1 of 4 projects selected in Graduate Studio I to be showcased in the Lubbock First Friday Art Trail Festival.

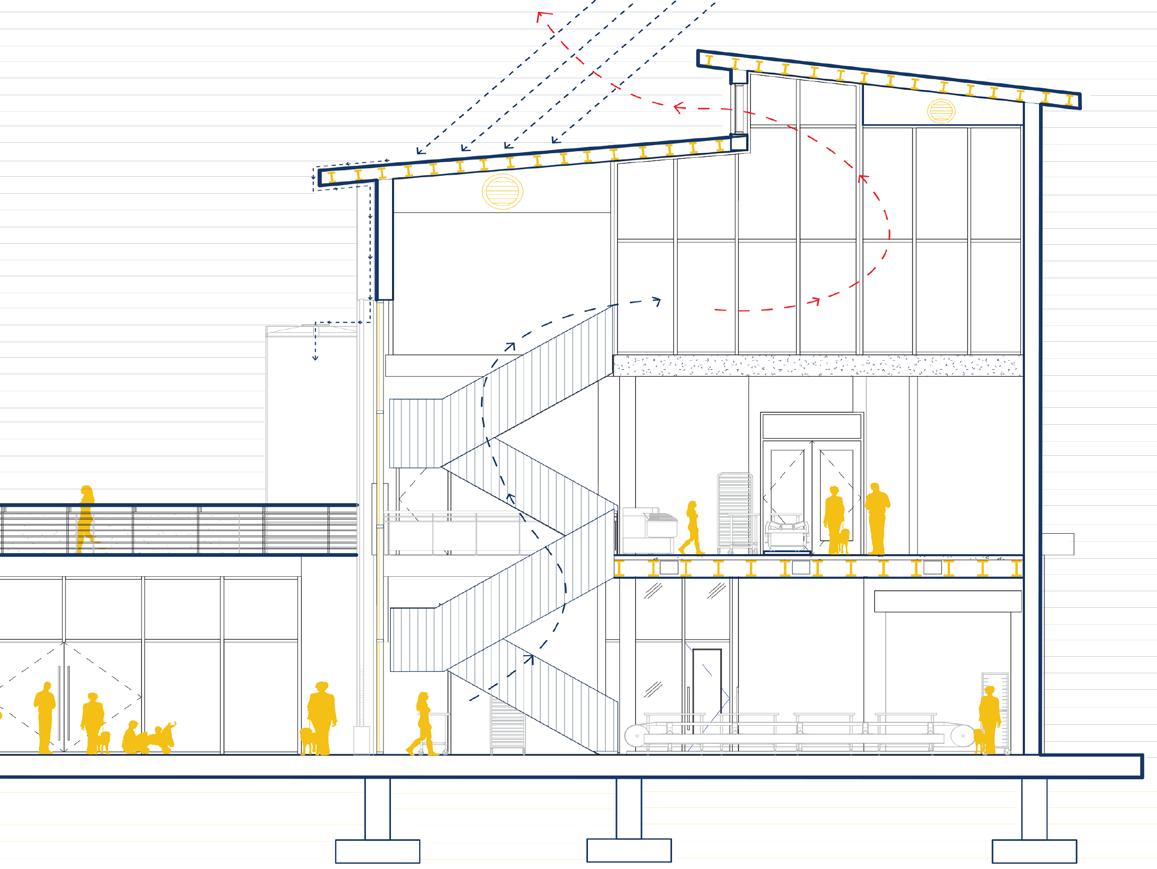

DRIPPING SYSTEM

FACADE STRUCTURAL TIE

DOUBLE PANE GLASS PANEL

STORE FRONT SYSTEM

ALUMINIUM MESH V. GARDEN SYSTEM

2" CONDUIT

WATER PUMP

TYP. POLISHED CONCRETE FINISH

CONCRETE SLAB

TTU COLLEGE OF ARCHITECTURE RENOVATION

TEXAS TECH ARCHITECTURE RENOVATION & ADDITION

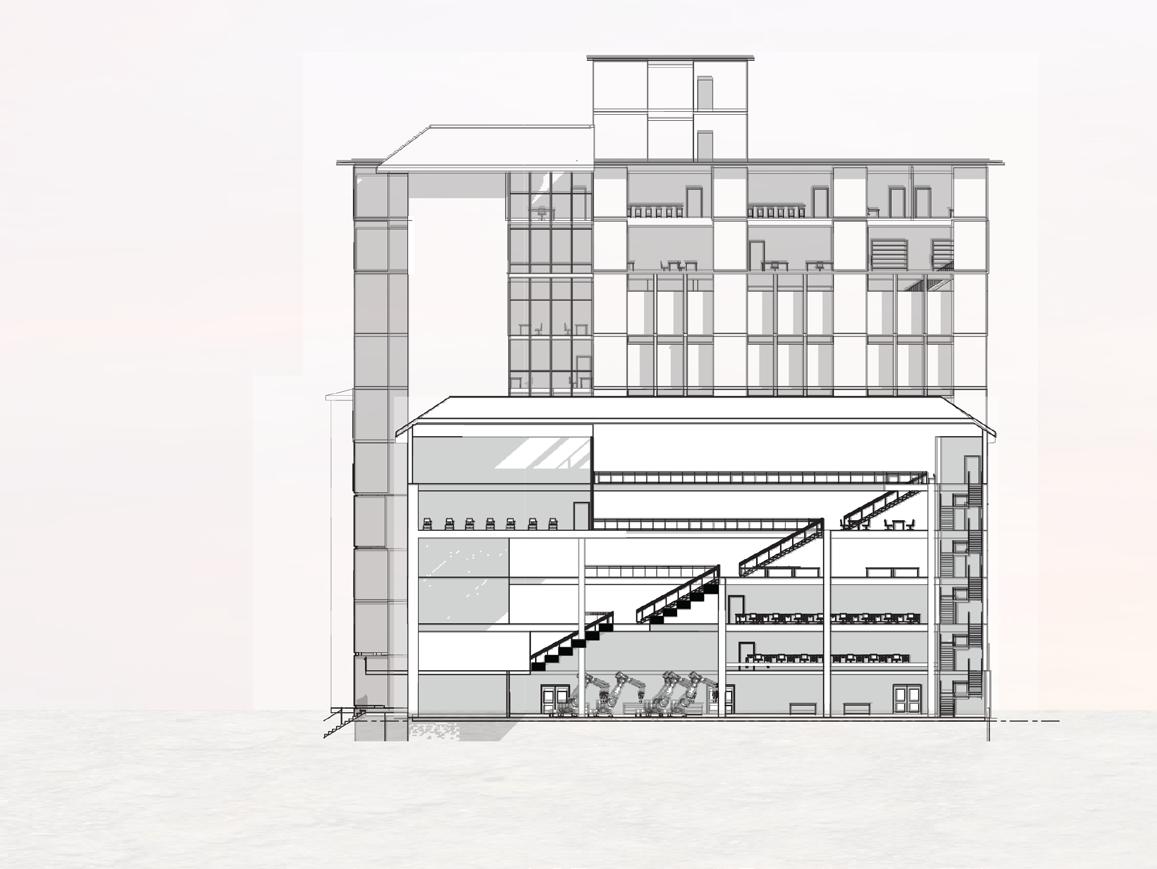

The current state of the Texas Tech Huckabee College of Architecture requires an urgent need for renovation and expansion. The proposed project strategically addresses key challenges, focusing on enhancing vertical connection, creating interactive gathering areas, and providing additional classroom space. The design intent revolves around incorporating the signature brick material used across Texas Tech’s campus. By showcasing the brick in a parametric facade the project highlights the new building as a prominent representation of a school of design. This approach not only respects the university’s architectural identity but also serves as a visual testament to our institution’s dedication to creativity and thoughtful design within the campus environment.

FLOOR 3
FLOOR 2

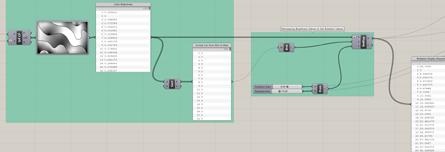

PARAMETRIC BRICK FACADE SCRIPT

MAPPING BRICK TO INPUT SURFACE

GETTING ROTATION VALUES FROM IMAGE ALGORITHM

W12 X 26

L8X4X3/8"

PARAMETRIC BRICK PATTERN

ALUMINUM PIPING

STOREFRONT SYSTEM

DOUBLE PANE GLASS PANEL

WINDOW JAMB

SEALANT

TILE FLOOR FINISH

THIN SET MORTAR

CONCRETE

METAL DECKING

STRUCTURAL BEAM

STOREFRONT SYSTEM

DOUBLE PANE GLASS PANEL

WINDOW JAMB

SEALANT

TILE FLOOR FINISH

CONCRETE

METAL DECKING THIN SET MORTAR

STRUCTURAL BEAM

STOREFRONT SYSTEM

DOUBLE PANE GLASS PANEL

WINDOW JAMB

SEALANT

TILE FLOOR FINISH

THIN SET MORTAR

CONCRETE

METAL DECKING

STRUCTURAL BEAM

CONCRETE WALL

CONCRETE FLOOR FINISH

CONCRETE FOUNDATION

3

- 0"
