PORTFOLIO-Elizabeth Weigl by Elizabeth Weigl

CONTENTS:

Middle Fork Greenway Trailhead*

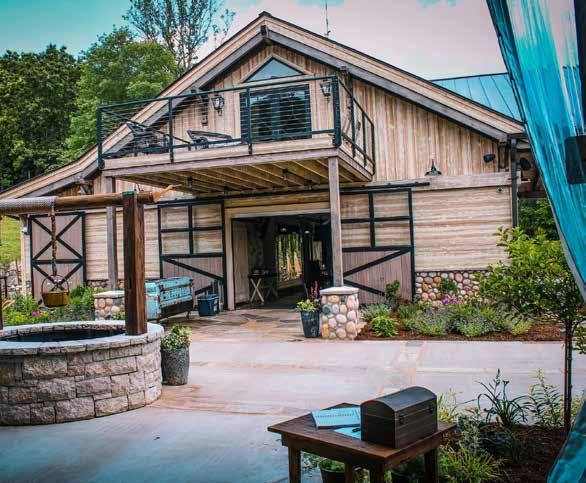

Snapshots of Design Work*

* Design work was completed under the direct guidance, instruction and supervision of a licensed landscape architect.

Manor Lakeside Park* Modern Mountaintop Residence Hemlock House Kiwanis Park*

High

Mountainside

Lowcountry Home

the

Country

Clandestine Courtyard*

01 03 05 06 07 09 10 11 12

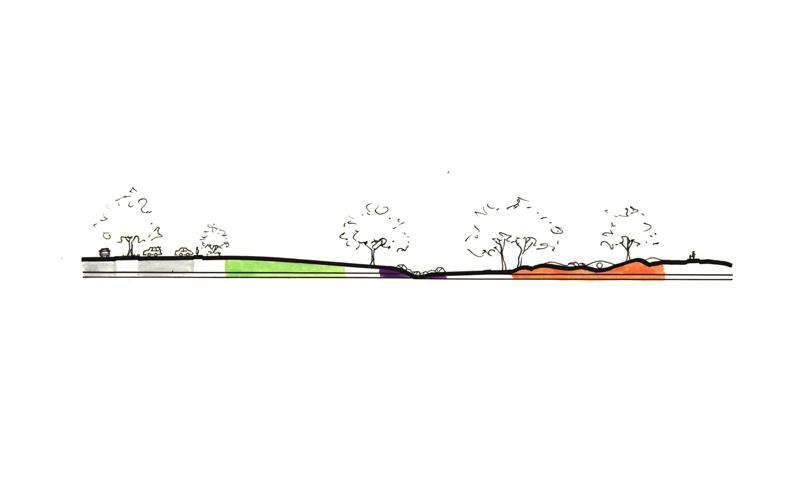

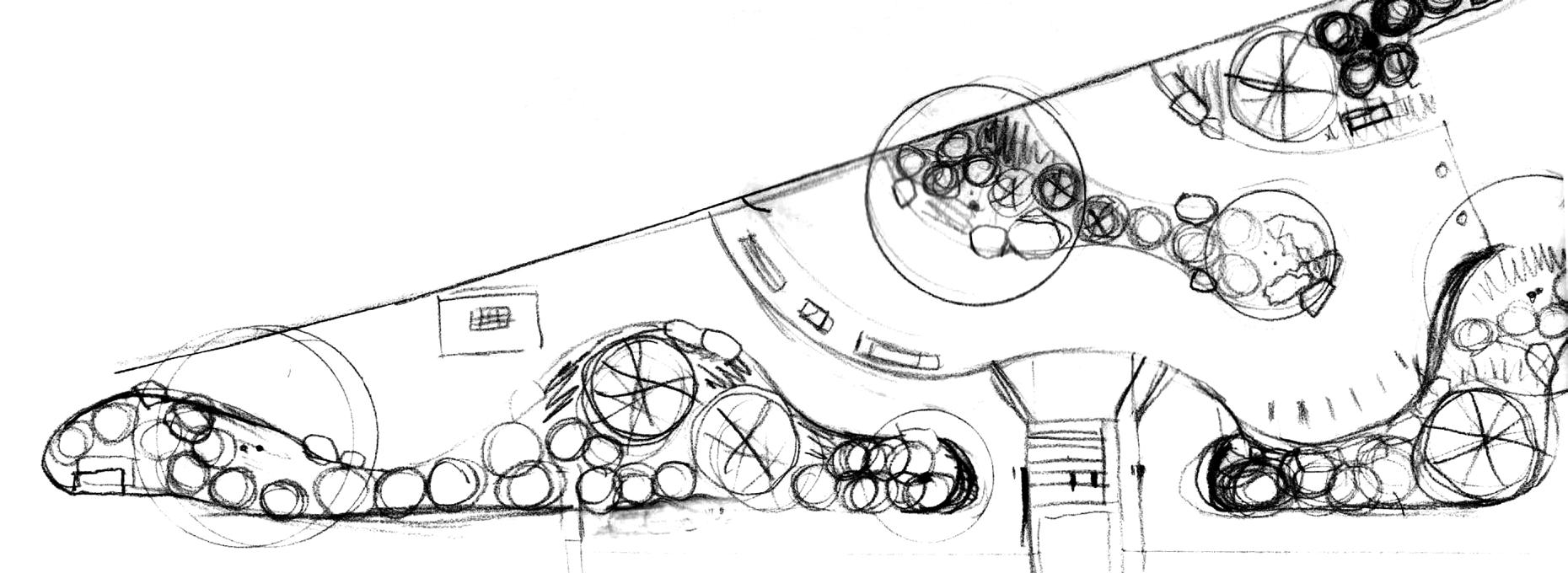

Early Sketch of Trailhead Pocket Park

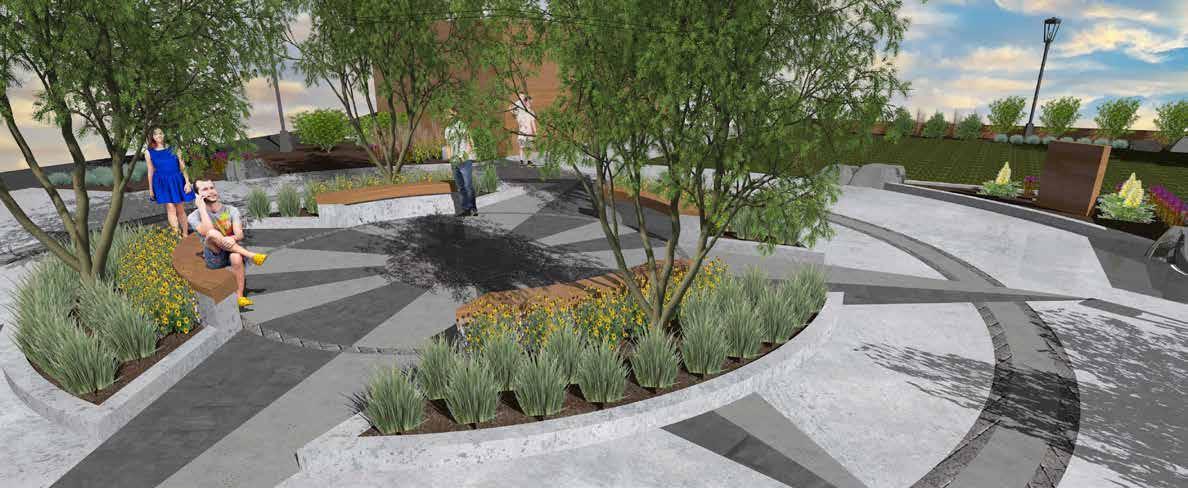

Middle Fork Greenway Trailhead

Whose Project: Mosaic Civic Studio. Subcontracted to collaborate with Mosaic Civic Studio to further an existing design and create a planting plan and a construction plan set.

Duration: September 2018 - March 2019

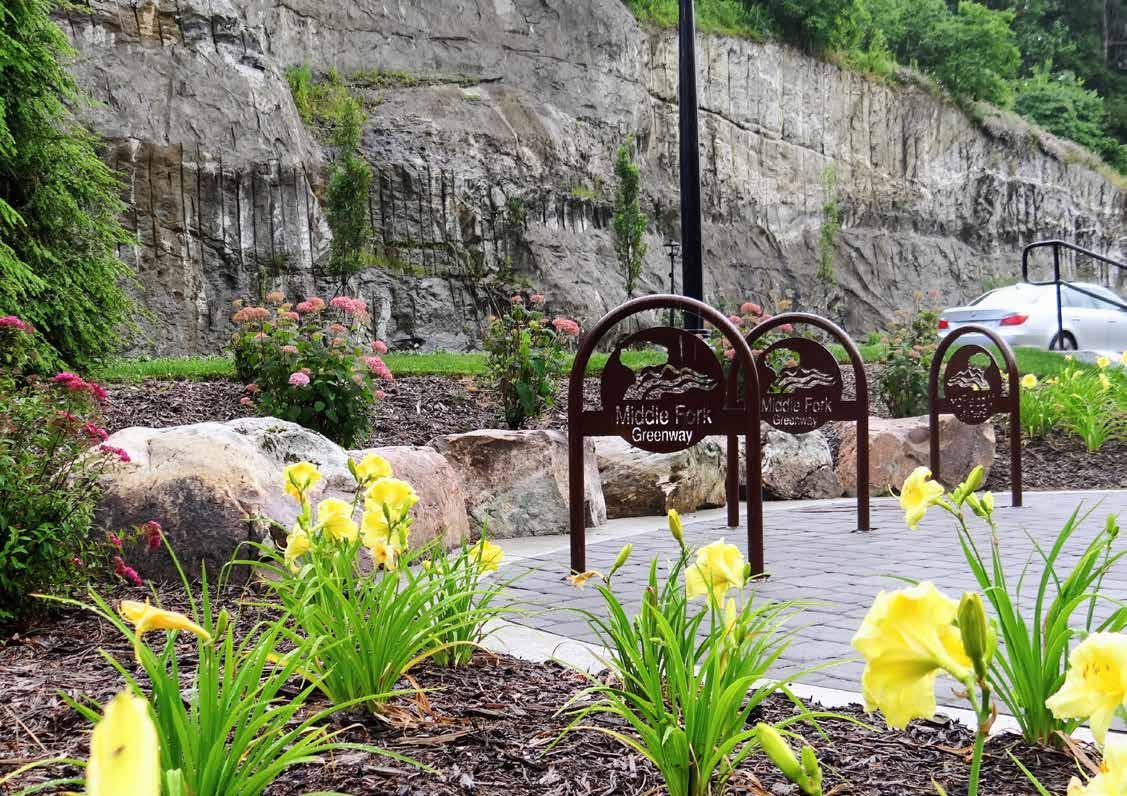

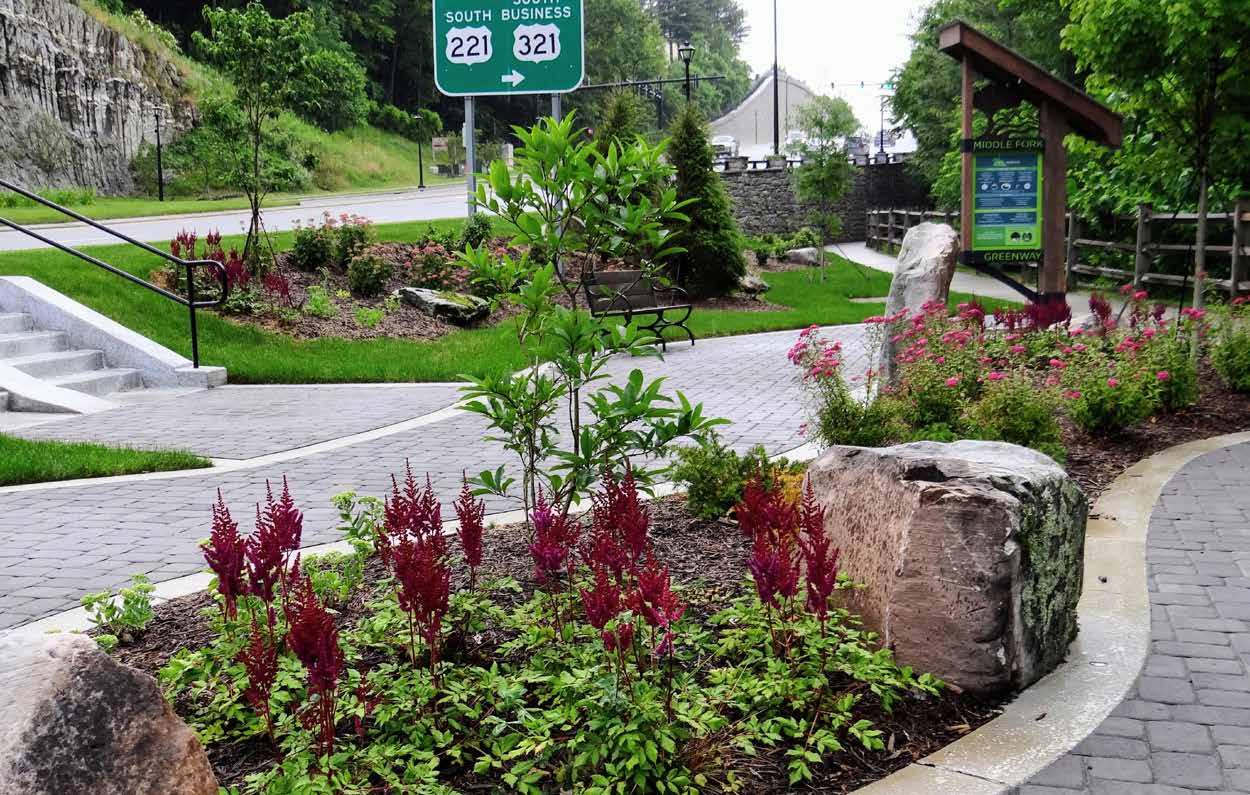

A trailhead pocket park for a 6.5 mi trail connecting Blowing Rock to Boone, North Carolina. The park is situated on a leftover remnant of land from a highway reconstruction project that was transformed into a destination where trail goers can rendezvous and reference trail information before beginning an adventure on the greenway trail system. With multi-modal pedestrian transport in mind, this park is easily accessible from three different access points and provides healthy access to the beautiful natural environment of the Blue Ridge Mountains.

In 2021, the Trailhead was recognized with the Great Place Award by the APA-NC

s dewa k 1 0 10 20 30 40 FT 17 28 5 -7" 2 -0" Sca e 1/4" = 1 - 0" B ke rack Ext S dewa k

Ext Sidewa k Paver Walk Paver Walk

1 2

Sma Boulder (He ping Stone)

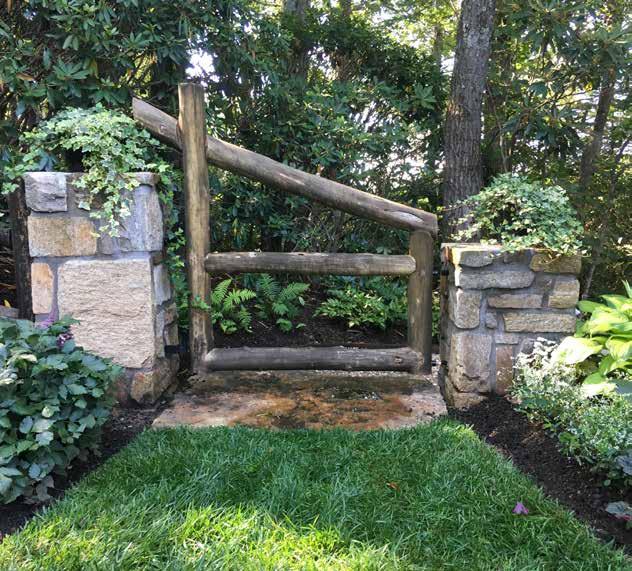

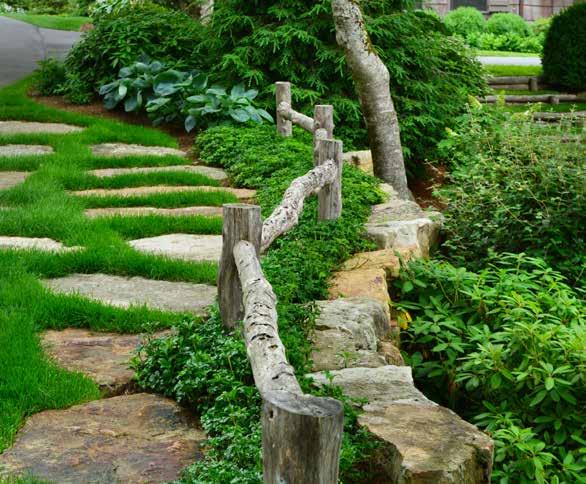

Mountainside Manor

Whose Project: Greenleaf Services- New Construction

Duration: 2014 -2016

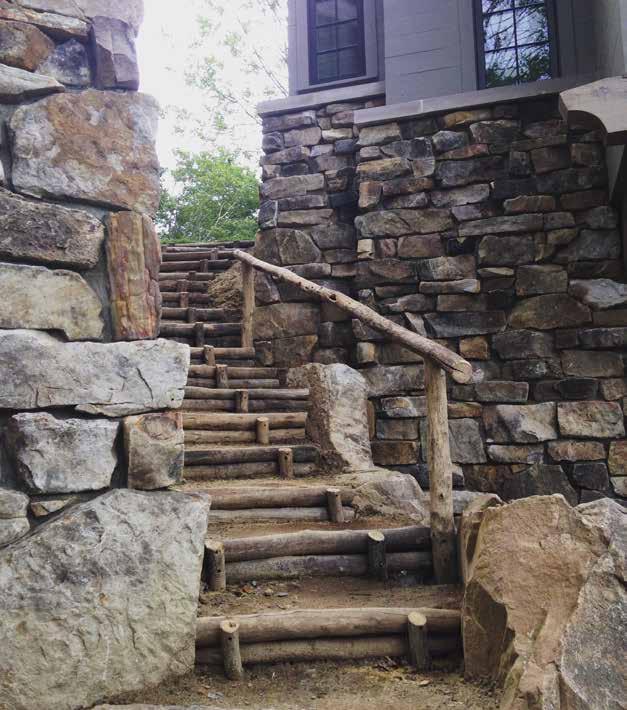

In contrast to the back of this residence, which has vast views of the Blue Ridge Mountains, the front of this residence is low in elevation and smaller in scale. The landscape design in the front of the residence carves niches and pathways out of the existing hillside to create private, intimate spaces. The stone on the facade of the residence extends into the landscape to define the walls of the gardens and to create a privacy barrier from the road above. Mature, native plant material and indigenous building materials celebrate the beauty of the natural landscape.

Residence Blowing Rock, NC November 12, 2015 Scale: 1" = 10'0" E P T U A L M A S T E R P L A N Private Garden Parking Courtyard L A U R E L P A R K H O L L O W D R I V E locust post fence locust post arbor locust post gate gate locust post fence boulder base for statue locust post gate tapered stone columns vehicular access gate gate gravel pathway boulder slab staircase tapered, stone entrance columns locust post staircase with sod tread tapered, stone retaining wall with boulders mulch pathway sod boulder slab stepping stones boulder slab stepping stone spanning river rock swale tapered, stone retaining wall Woodland Walk

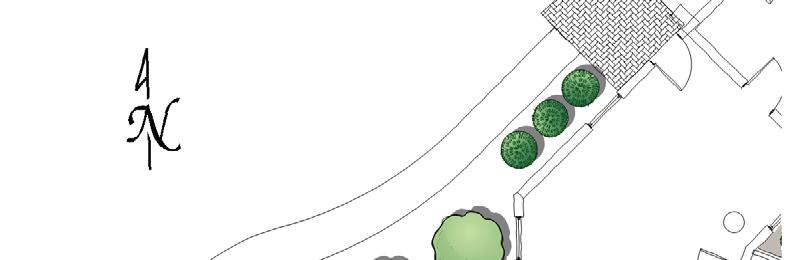

Illustrative Site Plan

Property Corner 992.50' Property Corner 1003.00' Columns 994.00' 18'-0" 18'-0" 2'-4" 13'-4" 1'-6" 3'-5" 1'-6" 3'-3" 4'-6" 2'-4" 13'-6" 1'-8" 1'-4" 1'-9" 12 12 English Village Urn 33"DIA Tapered fieldstone columns, larger stones at bottom Nameplate 11" 3'-0" 2'-0" 3'-0" 4'-0" 1'-6" NOTES: 1. Not for construction.

Elevation of walls at property entrance

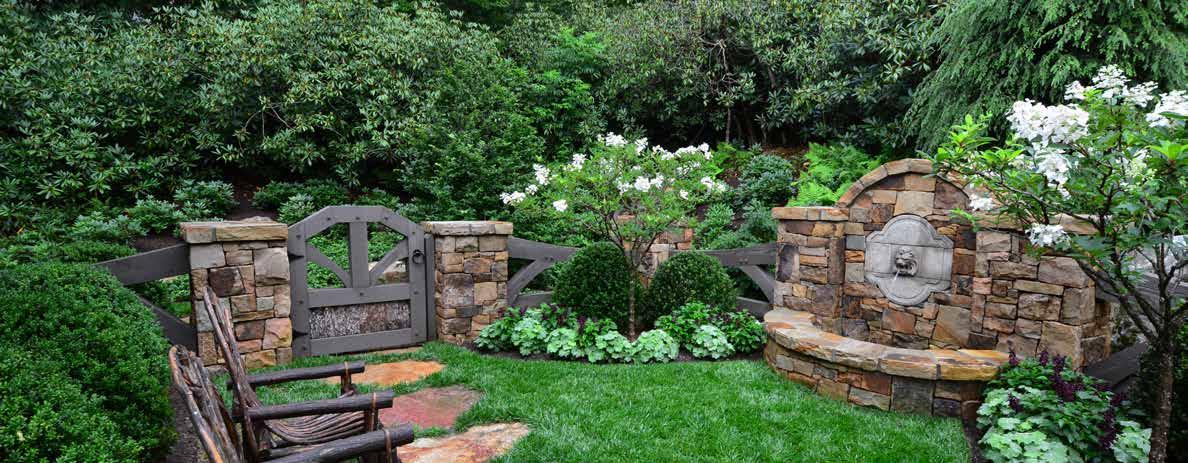

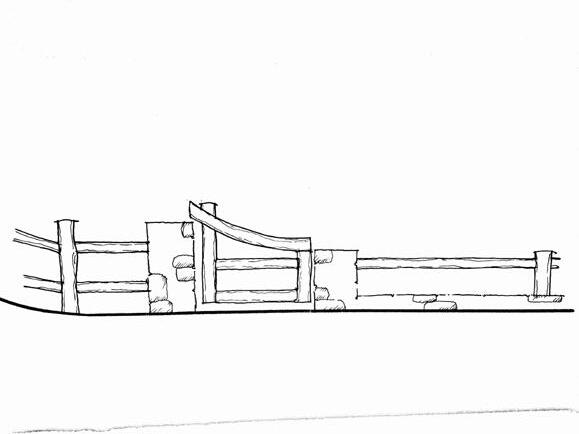

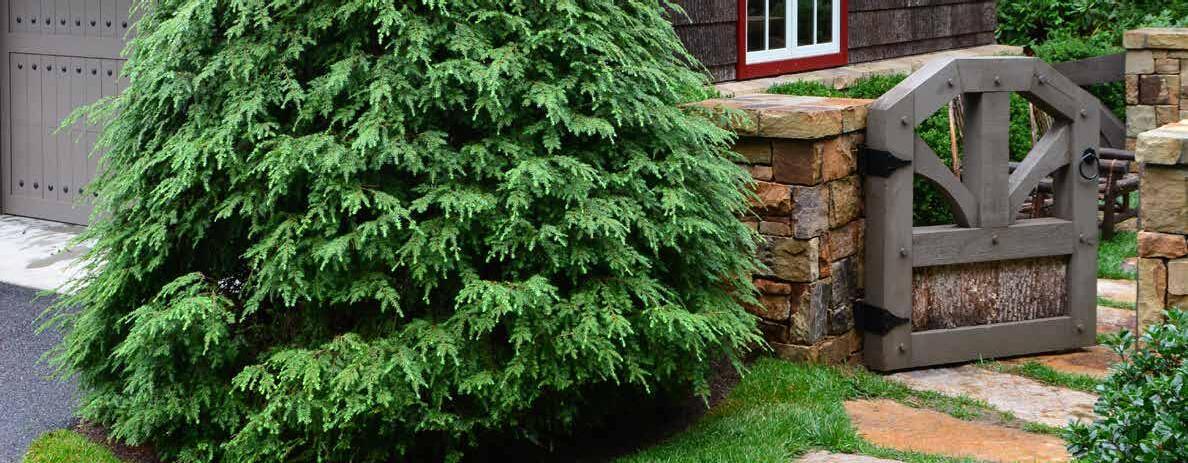

Gate sketch Walls at property entrance

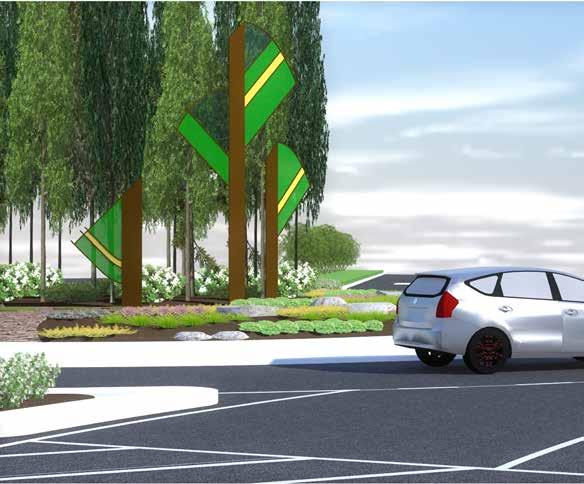

Restroom Pavilion Terraced Seating Pump Track Kiosk Pump Track 30 SP Mountain Bike Disc Golf Kiosk 33SP Seatwall Peagravel SCALE 1" 50' 0" Duration:

design for pump track and mountain bike trail access 5

February 2018 - April 2018 Alternative

Modern Mountaintop Residence

Whose Project: Greenleaf Services, Inc. - New Construction

Duration: 2015

Location: Blowing Rock, NC

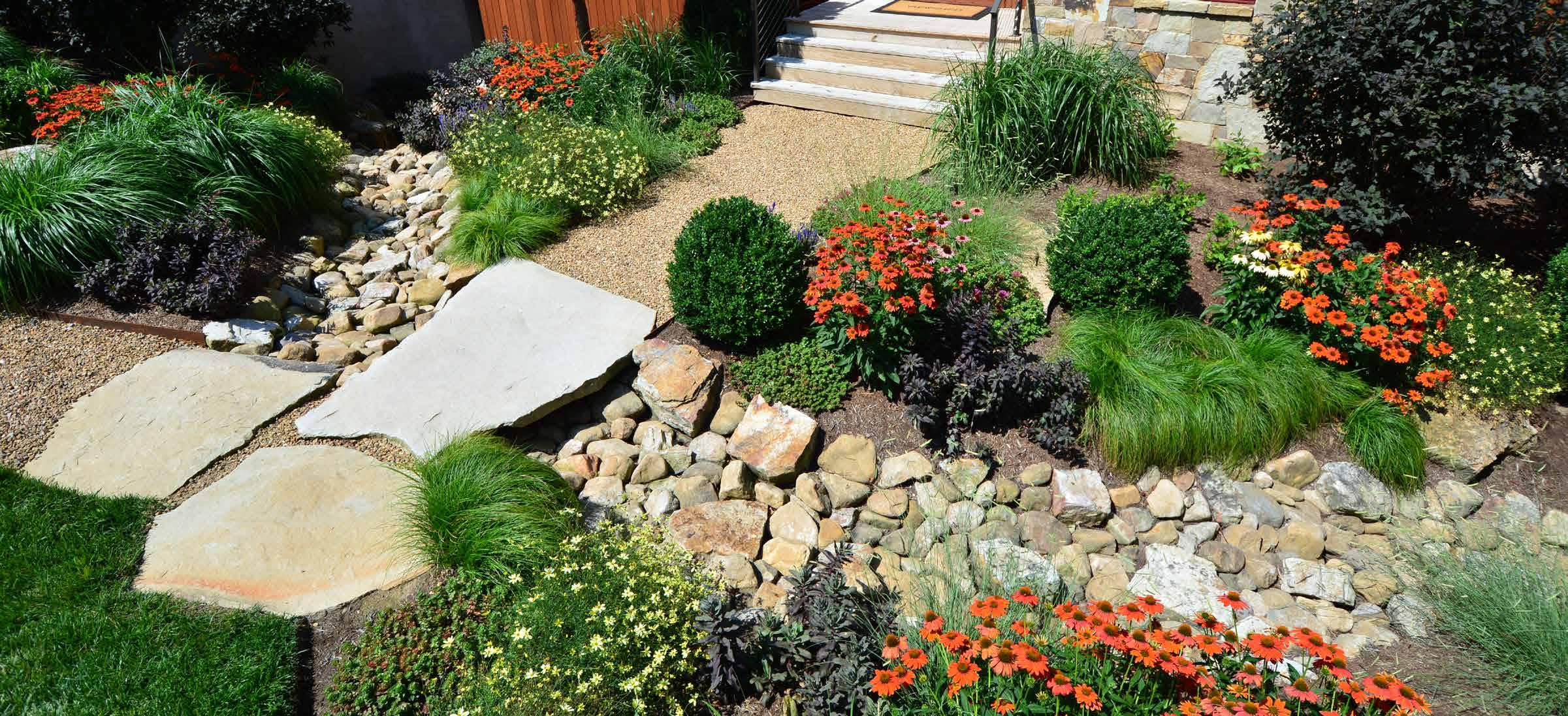

A summer home perched on top of a mountain, this residence had a challenging situation with negative stormwater drainage. However, a site constraint became a design opportunity with creation of a dry swale and stone slab bridge leading to the entry. Mostly native/nativar shrubs, perennials and ornamental grasses soften the hardscape and provide the gorgeous color palette of the landscape.

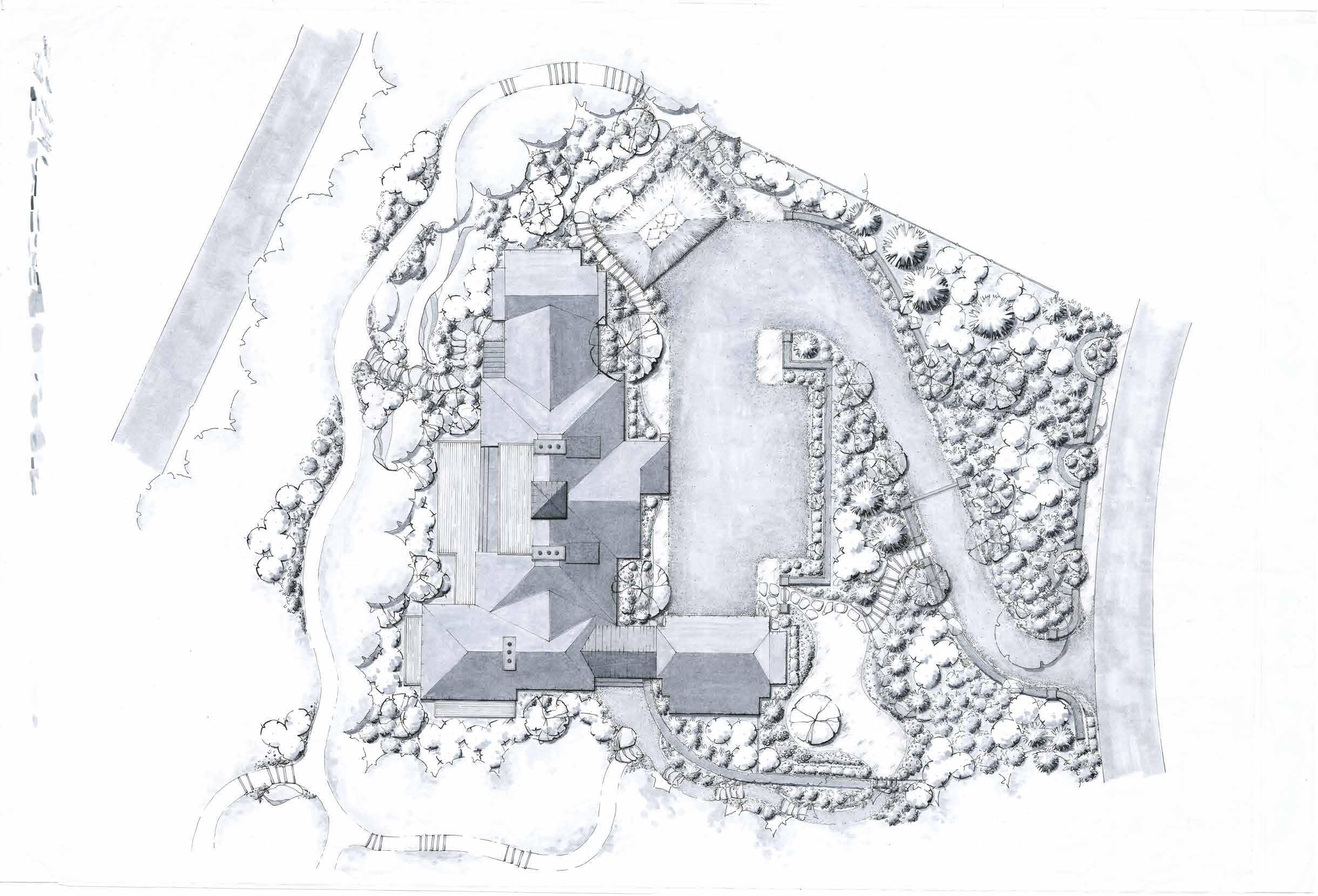

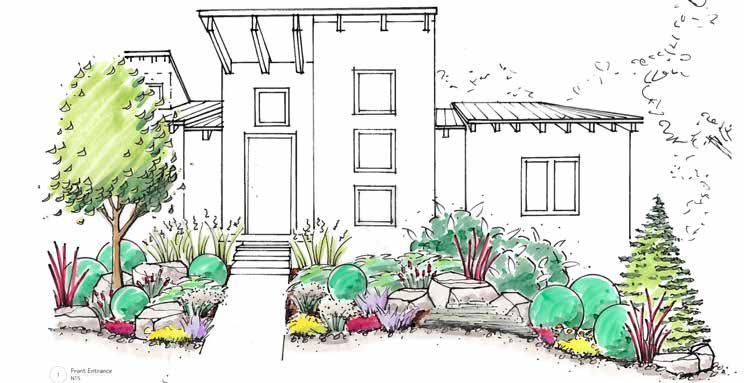

Ilustrative Site Plan Perspective of Residence

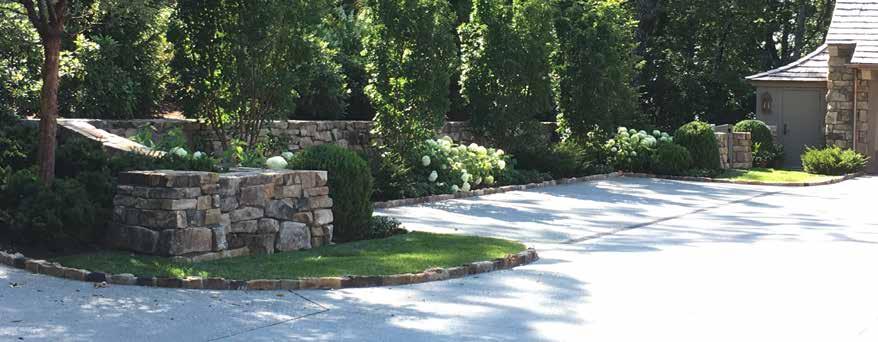

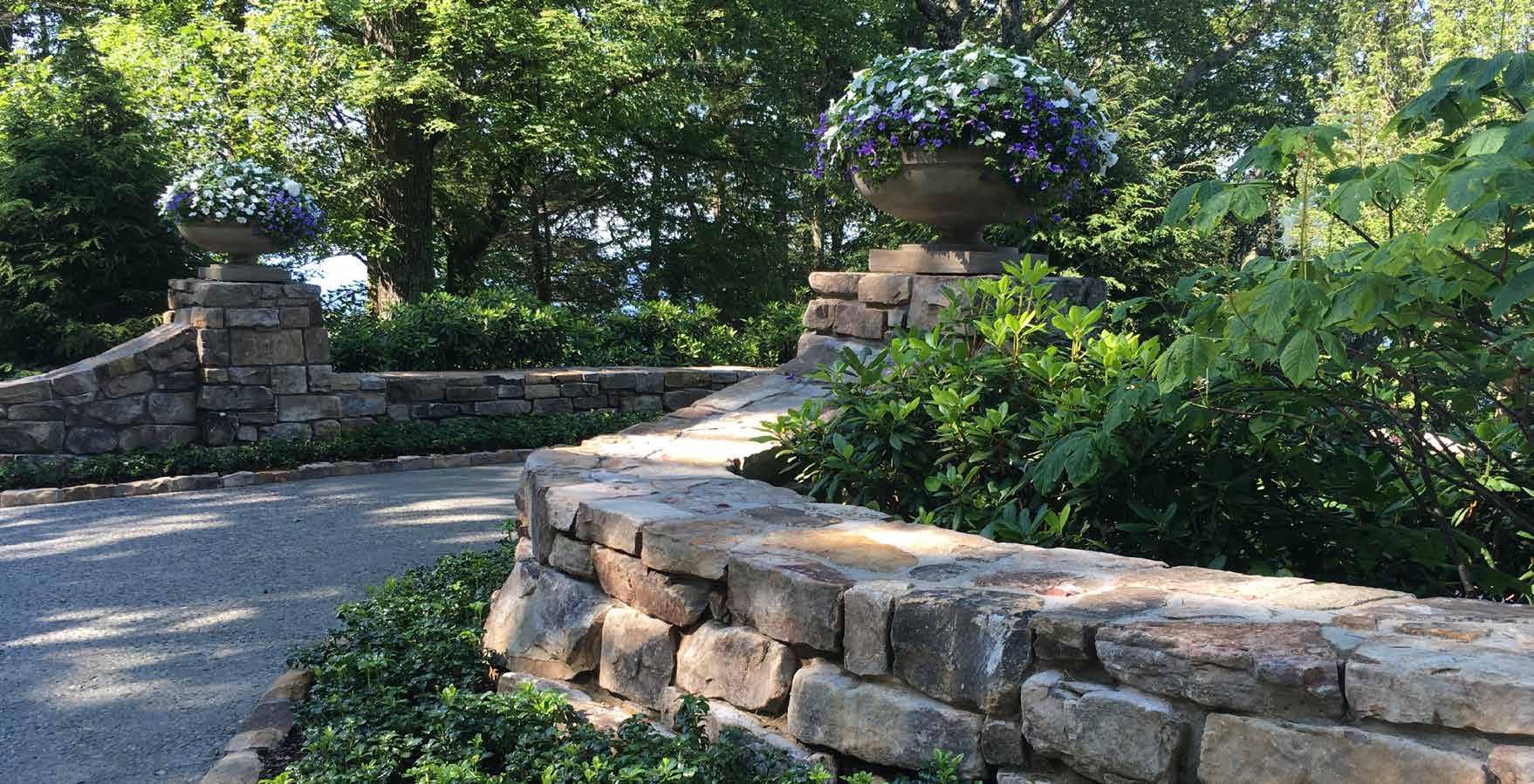

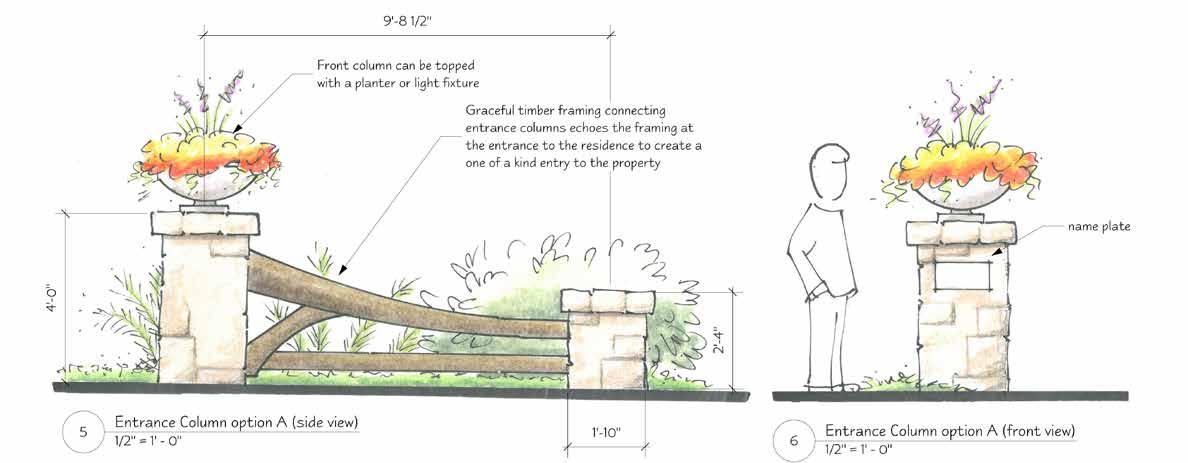

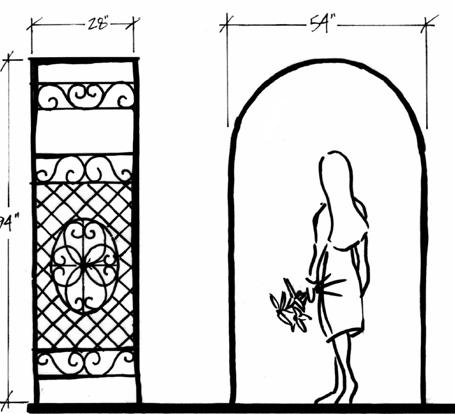

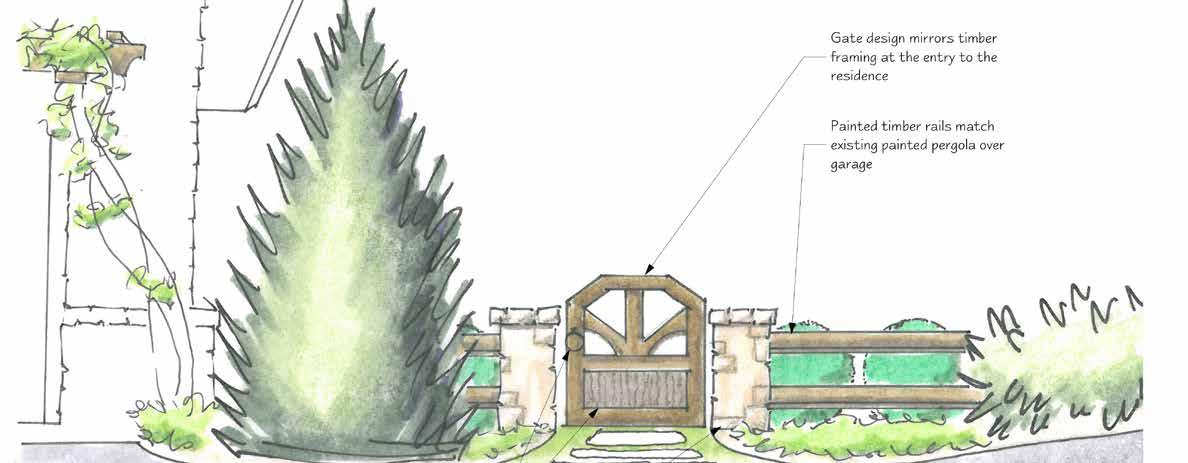

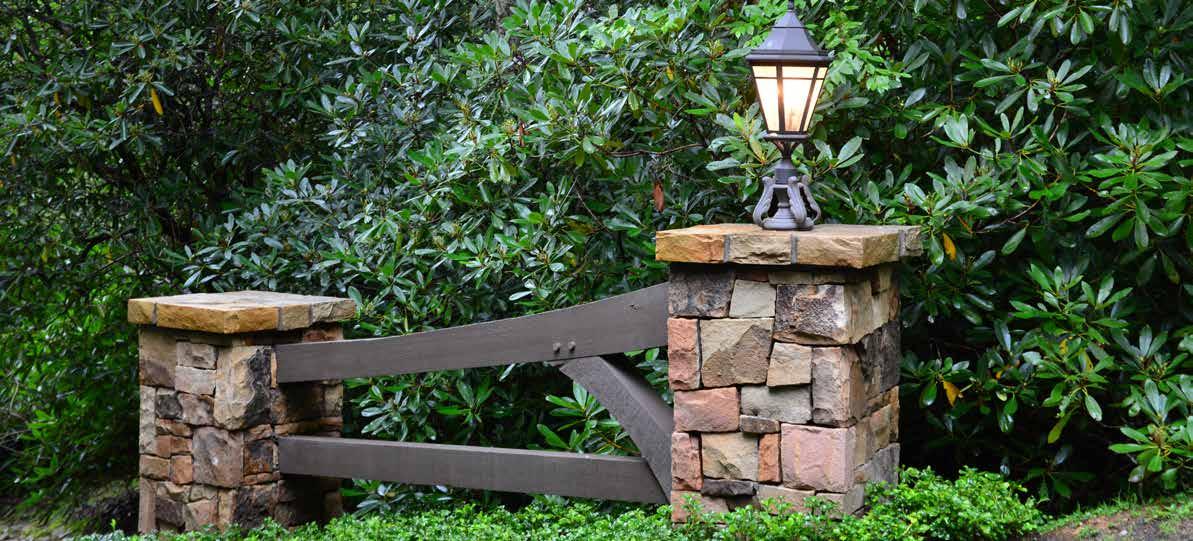

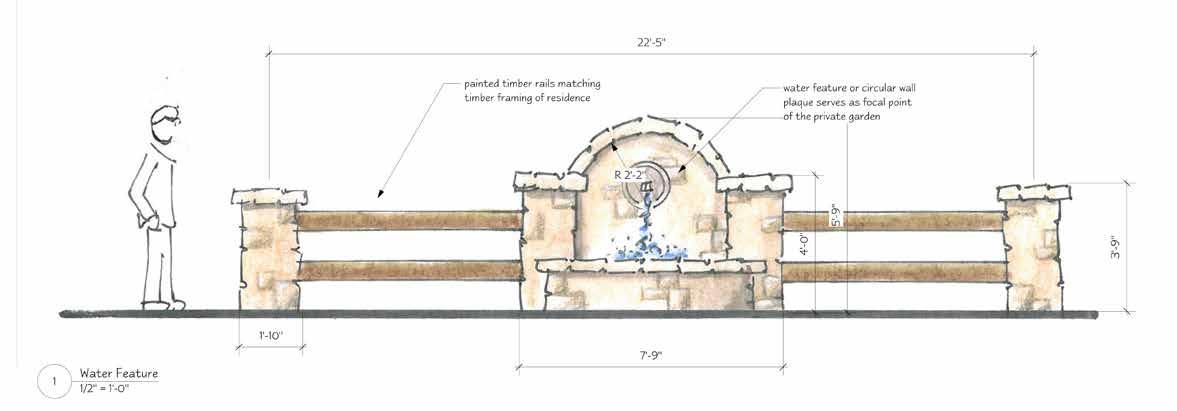

Gate Design Fountain Design Entrance Column Design

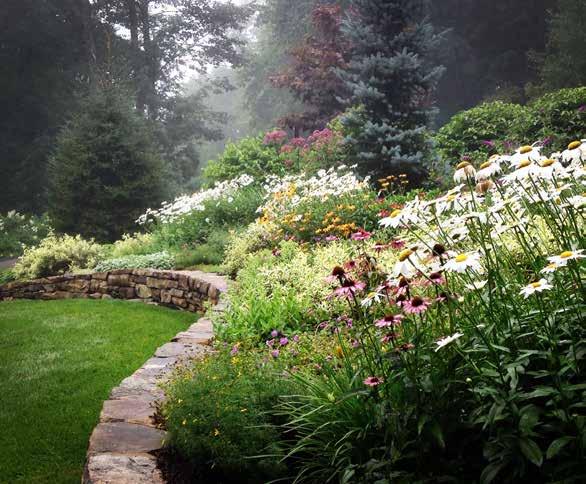

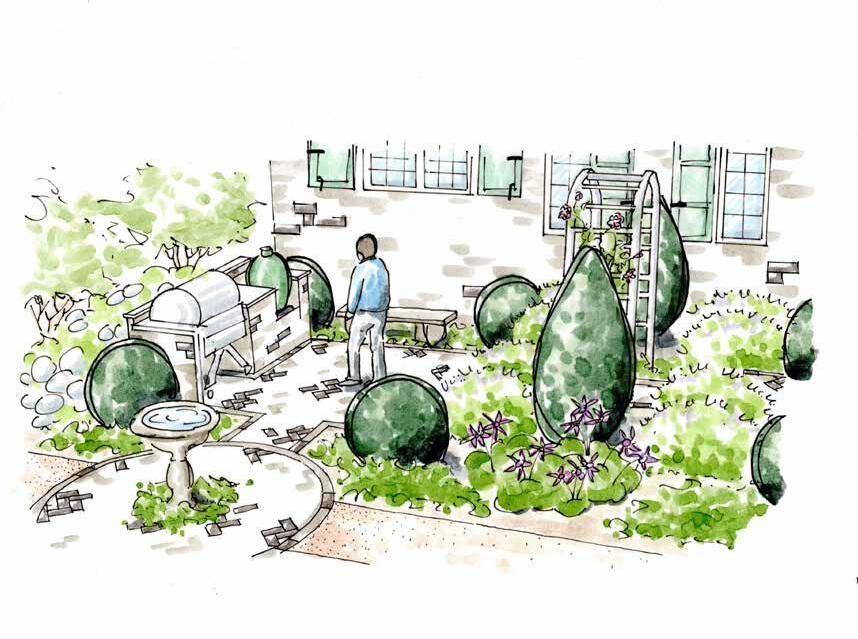

Hemlock House

Whose Project: Greenleaf Services Inc. - Landscape Remodel

Duration: 2015 -2016 (Designed and installed in phases)

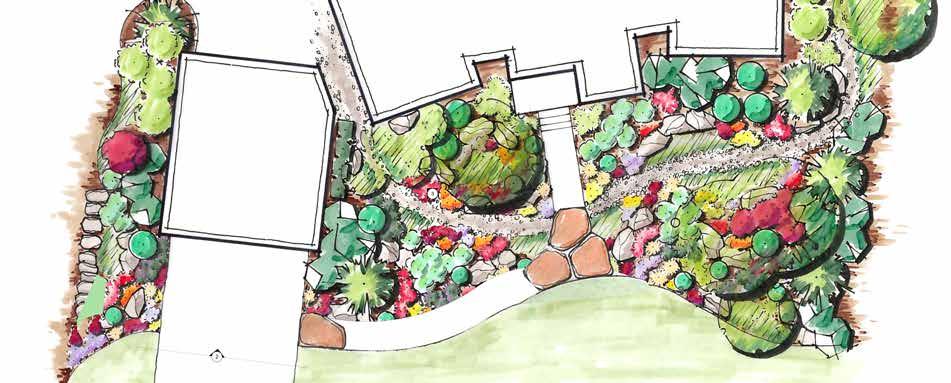

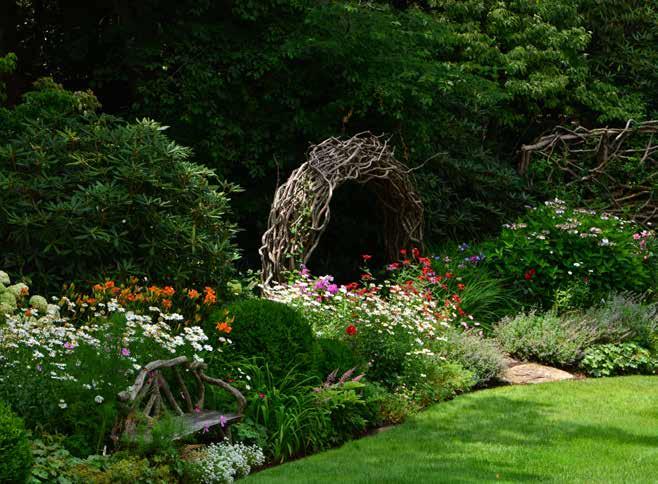

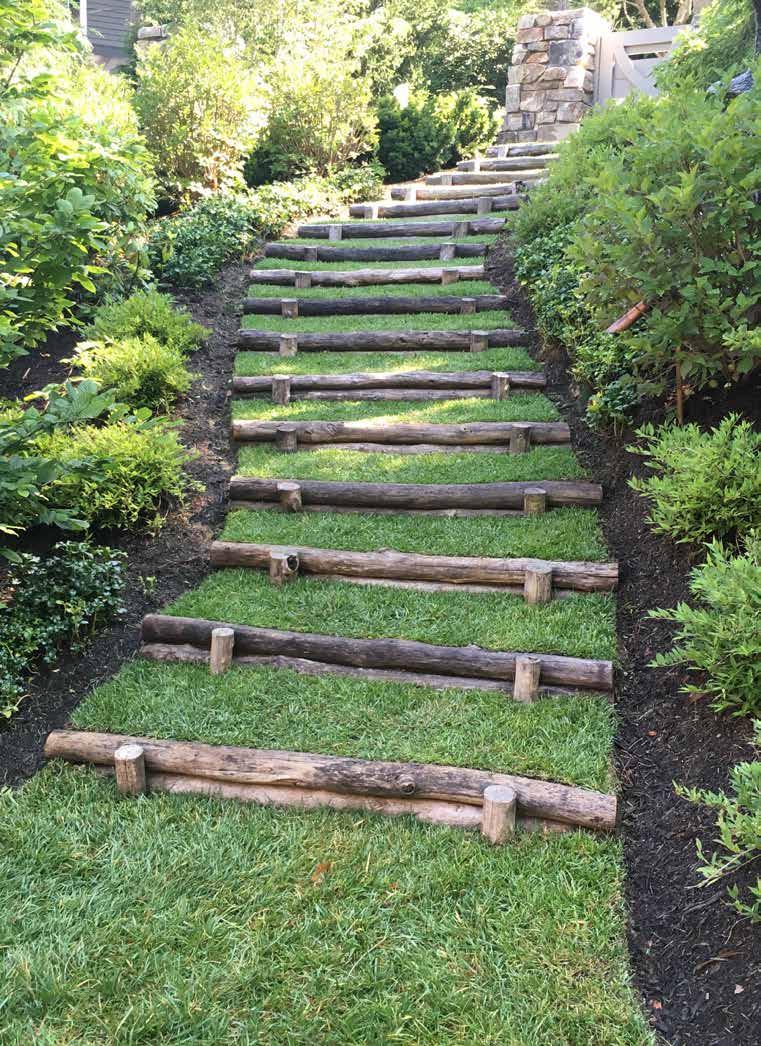

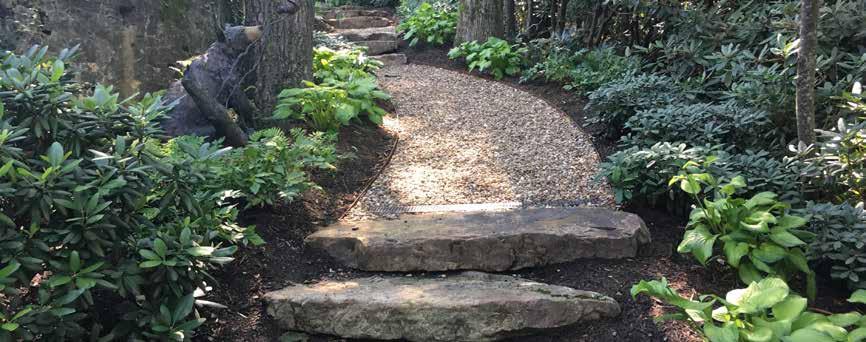

A year-round residence located on Grandfather Golf and Country Club’s golf course. The hard and softscape of this mountain home in Linville, NC was reimagined to create purposeful spaces and timeless, cohesive design . The landscape design includes a secluded garden room and a sinous stepping stone pathway around the back of the residence leading to the golf course by way of a rustic locust bridge. The pathway continues on through the threshold of a rustic arbor and opens up into a large perennial garden that can be viewed from the patio above it.

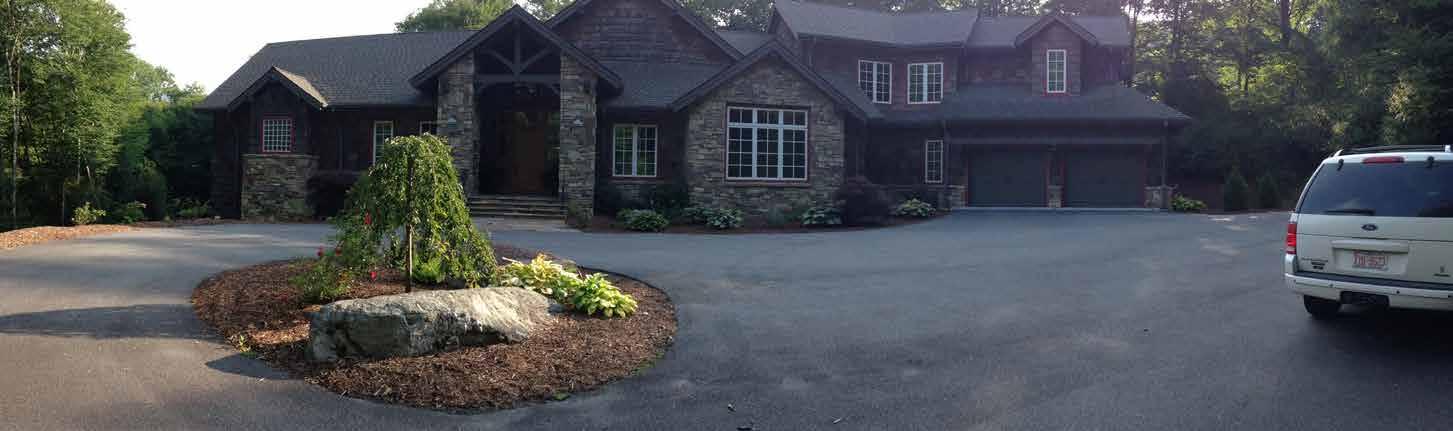

Existing Conditions

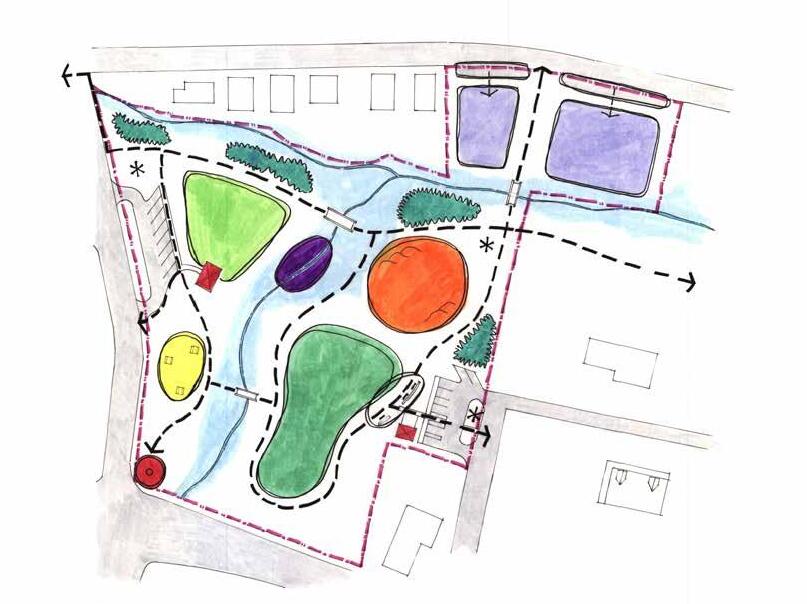

Kiwanis Park

Whose Project: Destination by Design. Subcontracted to collaborate with Destination by Design for the creation of a town park conceptual master plan to revitalize an existing park.

Duration: June 2018 - Feb 2019

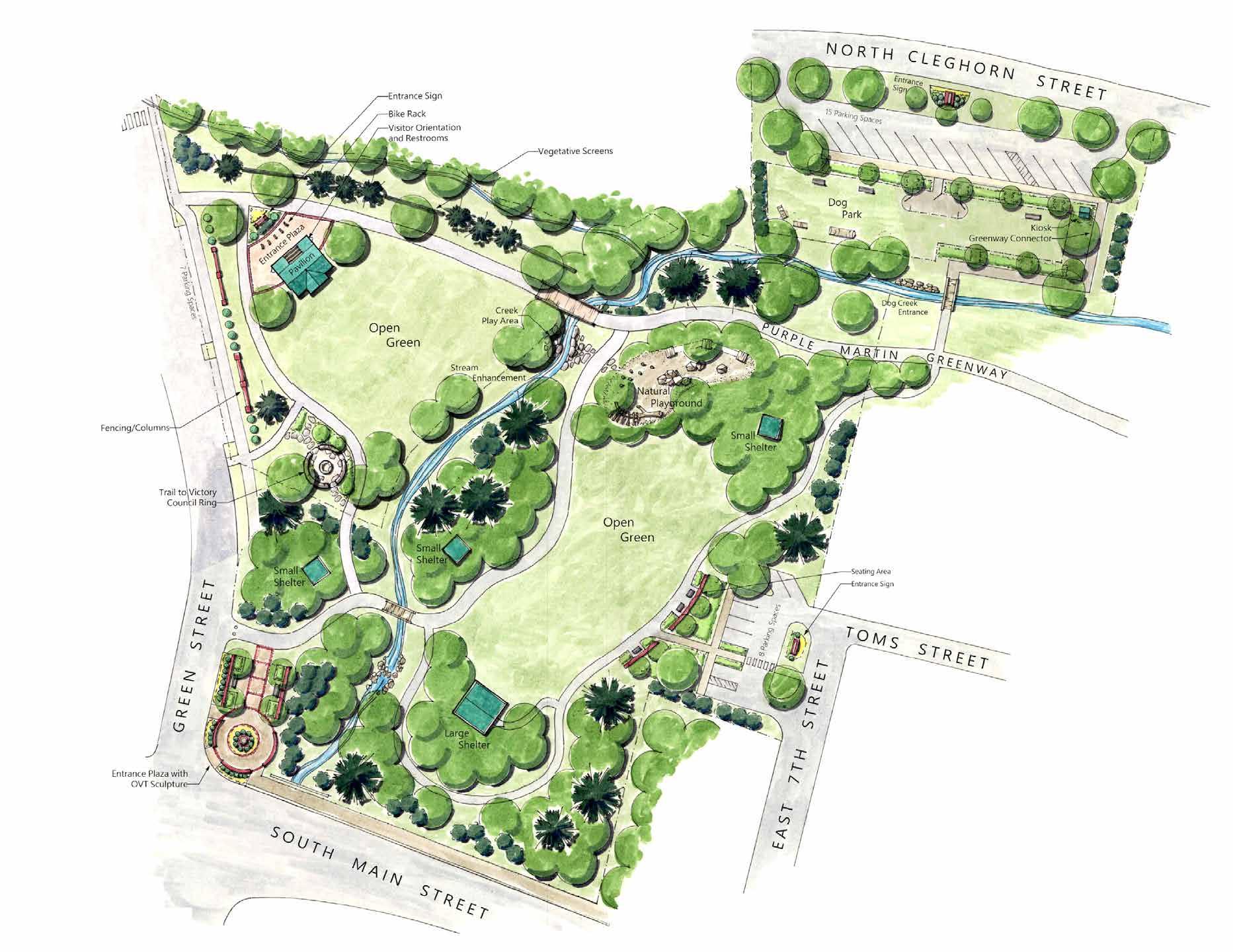

A master plan for the development of park near downtown Rutherfordton, NC along the Purple Martin Greenway. The park engages users with the natural environment and offers a variety of recreational opportunities while fostering community interaction. Programmatic elements of the park design utilize the variety of natural experiences the land has to offer and provides the park users with options for their level of engagement. In addition, the park memorializes the revolutionary war history of the area.

Open Green Park ng Park ng P ayground Creek P ay Park g Rest oom Park g Park ng Park ng Berm Be m Be m Berm Thresho d S gn f e f od zon N O O T H M E E R T A S H T R O M R T Purp Ma t n Gr enway C egho n Creek Th esho d S gn er Pav o Thresh d S gn er 2 2 - 9

Lowcountry Home in the High Country

Whose Project: Branch & Vine Landscape Design - New Construction

Location: Boone, NC

Duration: 2018 - 2022 (Designed and installed in phases)

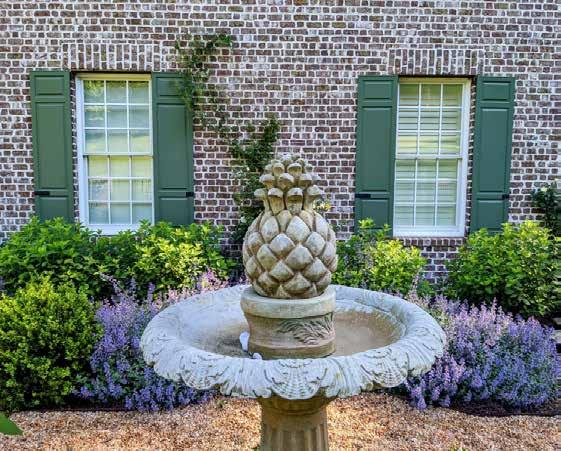

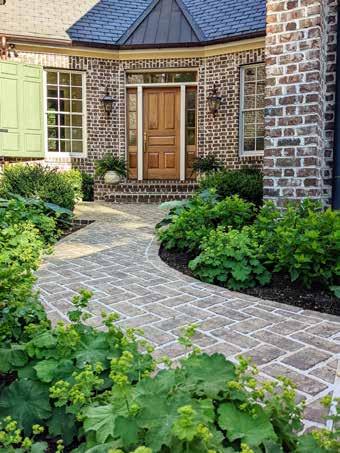

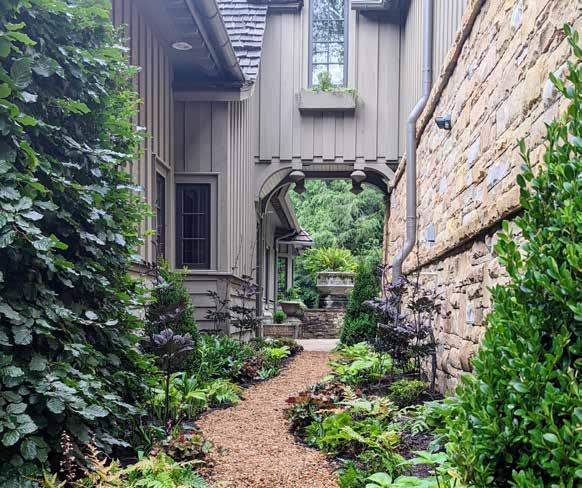

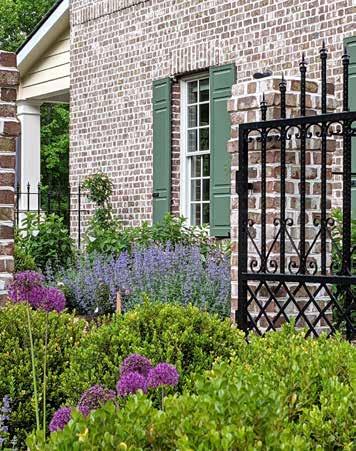

A Charleston inspired forever-home just off of the historic Blue Ridge Parkway. The landscape design echoes the formality of the residence. The building materials and patterns of the building materials are extended into the landscape to create spaces for different activities and to achieve a cohesive design. The design includes a circular drive, a walled garden bursting at the seams with blooms, a patio seating area and a lushly planted atrium.

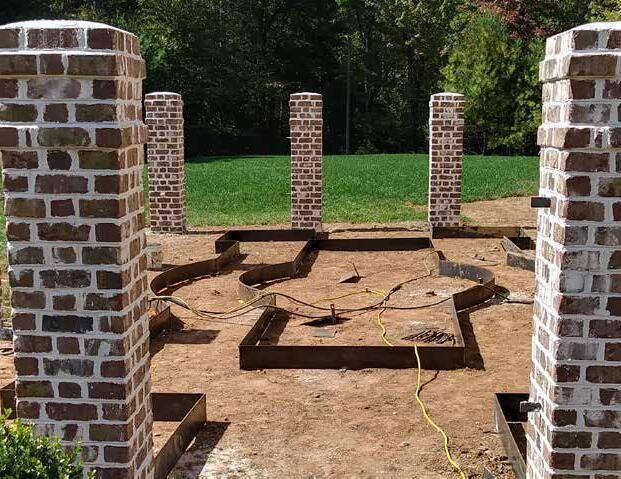

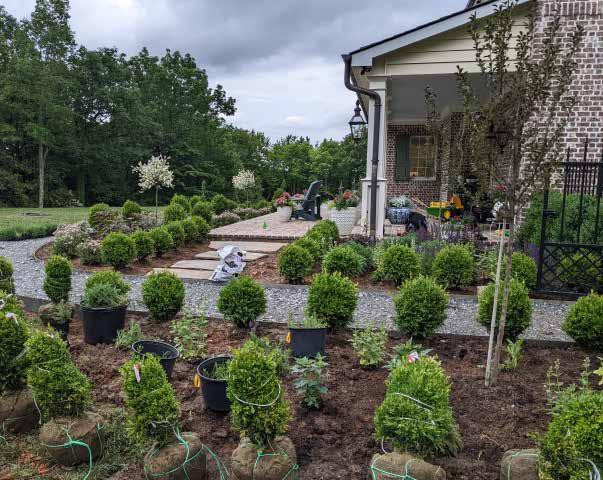

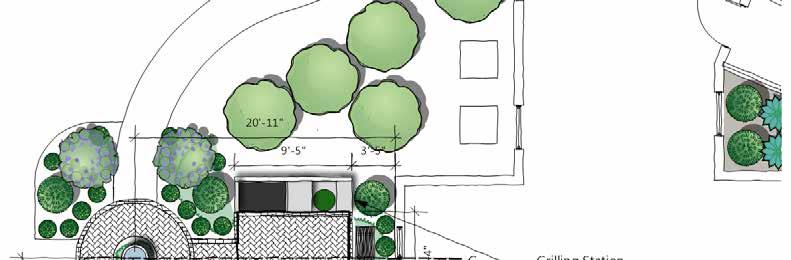

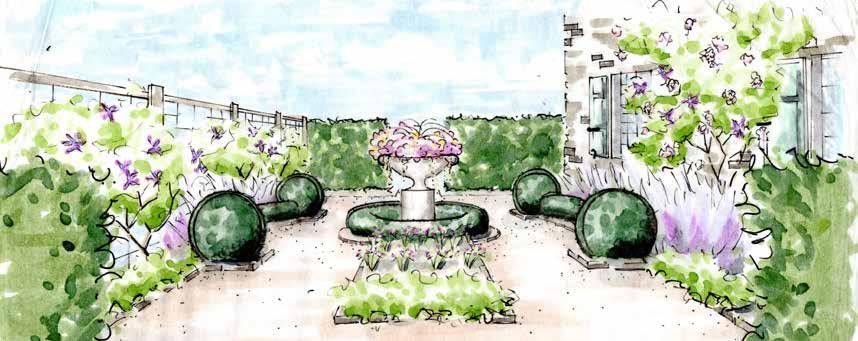

Phase II Perspective Phase II Formal Garden Installation of Formal Garden Phase II installation

Clandestine Courtyard

Whose Project: Mosaic Civic Studio, New Construction Subcontracted to collaborate with Mosiac for all required design drawings.

Duration: October 2020 - Present

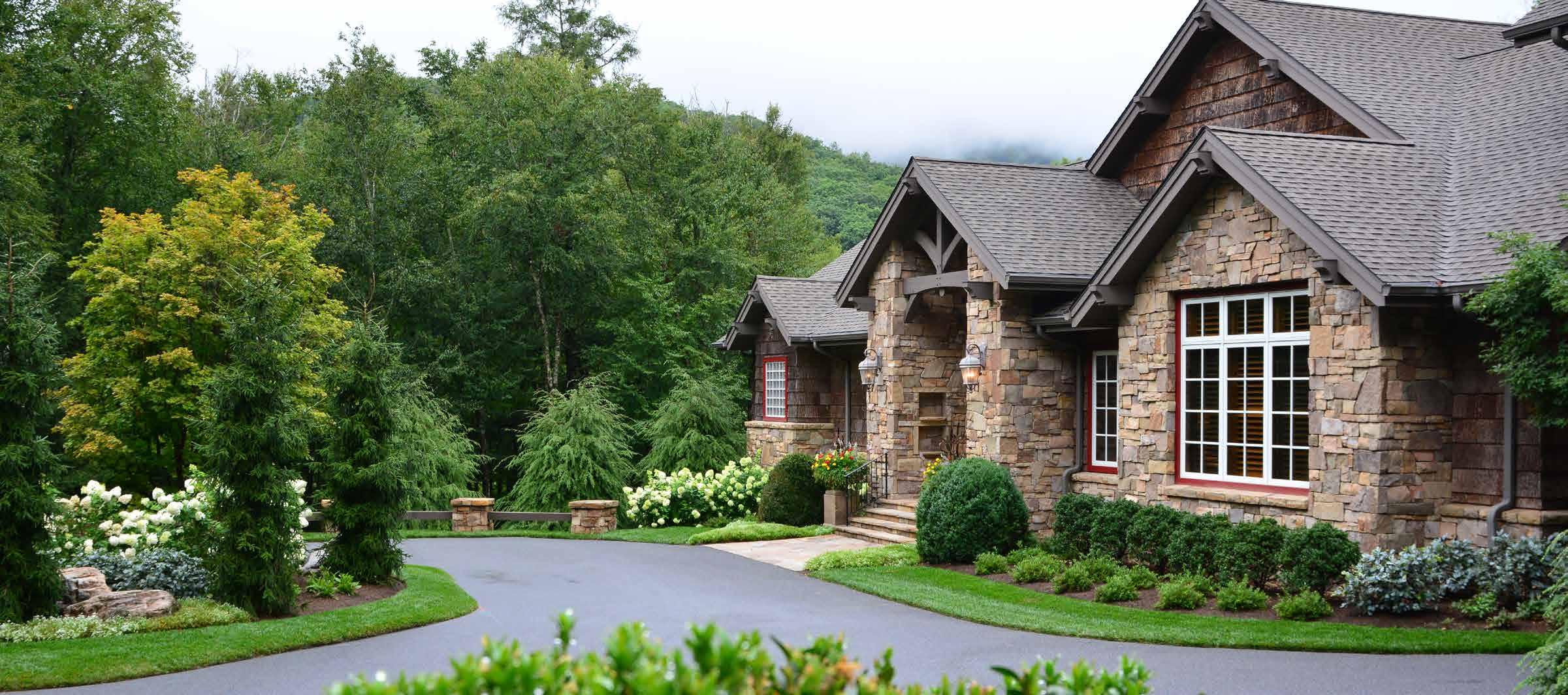

Located in the Blue Ridge Mountain Club near the Blue Ridge Parkway, the residence is situated on a knoll of a wooded property with mountain views. Walkways link the residence to an outdoor room, a courtyard style lawn area with a sunken fire pit seating area. The private and livable courtyard is situated on a previously disturbed area void of plant material with the intent to minimally disturb the existing flora on site.

RED CEDAR RD

245

4.391 acres

Lisle Architecture & Design, Inc. 614 Market Street Wilmington, NC 28401 (910) 763.6053 (o) (910) 763.4517 (f) W. Hargett St. Suite 312 Raleigh, NC 27601 (919) 980.0283 (o) www.LisleArchitecture.com SEAL Bid Set DATE: 08.25.2020 12"Pine 12"Sourwood 16"Pine 20"Pine 12"Pine 16"Pine 15"Pine 12"Cucumber 12"Oak 14"Pine 14"Oak 14"Oak 12"Oak 12"Dbl. Oak 12"Dbl. Maple 2166.9s 2165.6 2164.8 2166.6 2167.2s 82 80 +72'-2" +72'-8" +70'-2" +69'-6" +69'-6" 1st Floor Above +83'-4" +70' +72'-6" 78 76 74 72 70 70 68 66 68 Walkway Heavy Rip Rap/ #57 Stone Heavy Rip Rap/ #57 Stone 245 4.391 Acres 2160 Red Cedar Road 2180 2146.4 2148.7 2170 2170 2150 2140 Significant Tree To Be Removed Significant Tree To Be Removed Significant Tree To Be Removed Significant Tree To Be Removed Sewer Box To Relocated Clear Brush/ Secondary Trees in Conflict with New Drive; Typical for Extent of Drive 2160 2170 2160 2170 2150 2170 Hatched Area Indicates Approximate Exent of Large Portion of Earth, To Be Removed/ Re-located on Site, For Construction Of House R E D C E D A R R O A D Land ng GUEST PARK NG RES DENCE GARAGE P an d s u bed a ea w h n t ve p an ma e a o h d o mu h w h s ope ab a on se d m x Sideby d Tral a u M Sod 0 SQ OUTDOOR ROOM U K N A S N N P E N A A N R WOO S O G 1 1 1 2 1 2 1 2 1 3 1 3 1 4 2 1 2 1 2 1 3 1 3 1 3 1 3 1 3 1 2 1 3 2 3 2 3 2 3 2 4 9 4 1 4 2 4 3 4 4 4 4 4 4 4 5 4 6 4 7 6 1 5 1 5 1 5 1 5 1 5 1 4 4 B ore en on 340 SQ T 1 6 4 1 5 3 1 8 3 5 3 5 1 6 1 6 3 1 5 4 R v c W S A R H N UE 1 3 5 5 YET ROVED ARC-0 10 20 FT1 3 DRAFT B OR TENT ON O M X - 55% SAND 15% TO SO AND 3 % EAF COMPO T 1 - 4 NCH DEPTH TR P E GROUND HARDWOOD MU CH NCH D PTH POND NG DEP H - NCH DEP H LAN MATER A TOL RANT OF LUCTUAT NG WAT R COND T ONS ENG H VAR S 6 PVC P RFORA ED UNDERDRA N N GRAVE BED MU T B 2 ABOVE H GH WA R TAB E UNDERDRA N MUS OUT ALL TO AFE STAB E LOCA ON O STORM DRA N H NV RT OF THE OVER LOW BE H V N ET HA L B 6 ABOV THE E EVAT ON O THE MULCH O NCOURAGE L RAT ON BERM AS NE D D MAX O 3 1 S DE S OP S UNCOM AC ED NA VE SO L M N MUM OF OF GRAVE ABOV AND BE OW P RFORA ED P P C o n c e te A d d e ss N u m b e r P la te Fo u n d a tio n b y o th e rs 50 9 2 -6 " D ry cre e k b e d u n s u n d e r w a l 6 48 1 0 -1 0 " 1 2 -1 1 " 1 '-8 " 4 -0 Bioretention pond Site Materials Plan Elevation: Front entrance gate Outdoor room

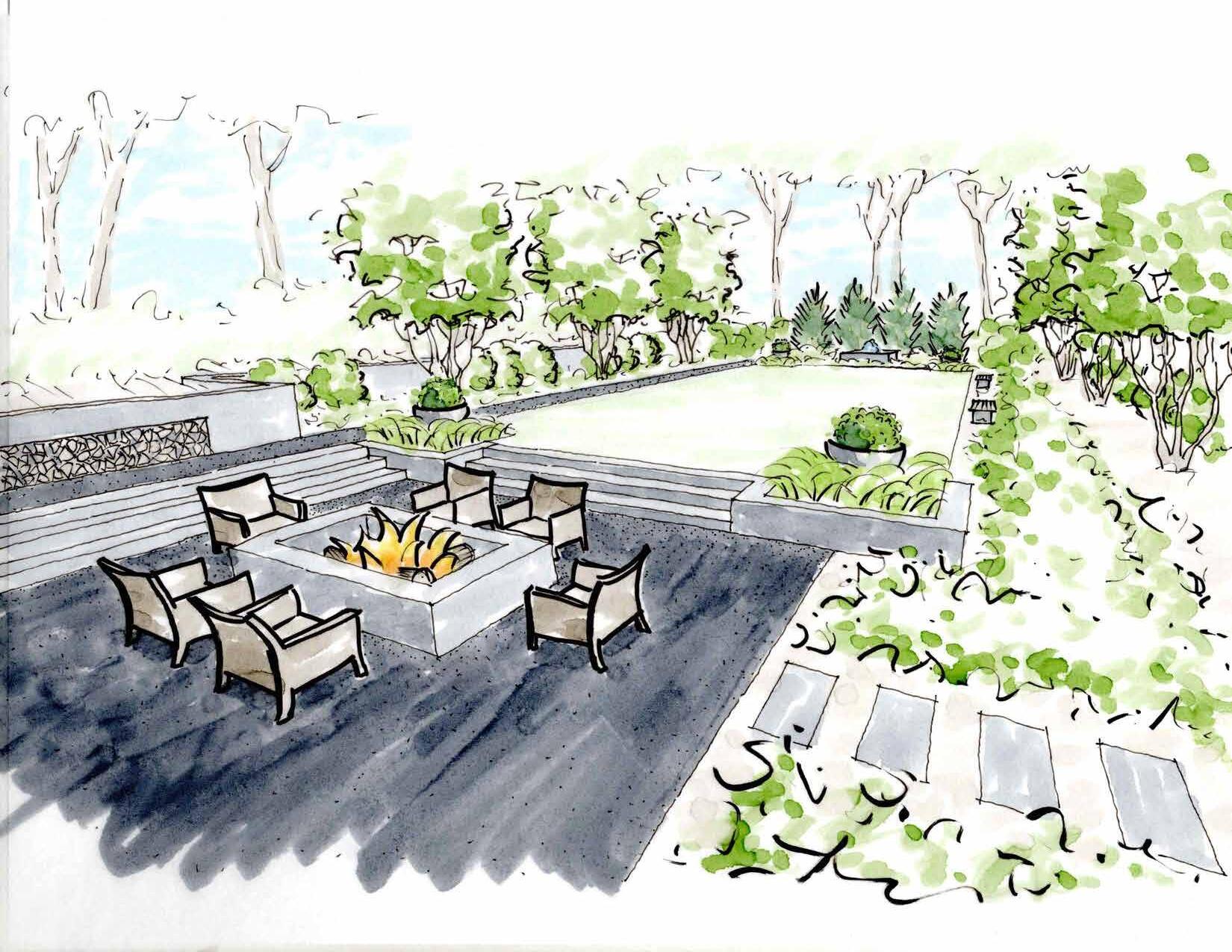

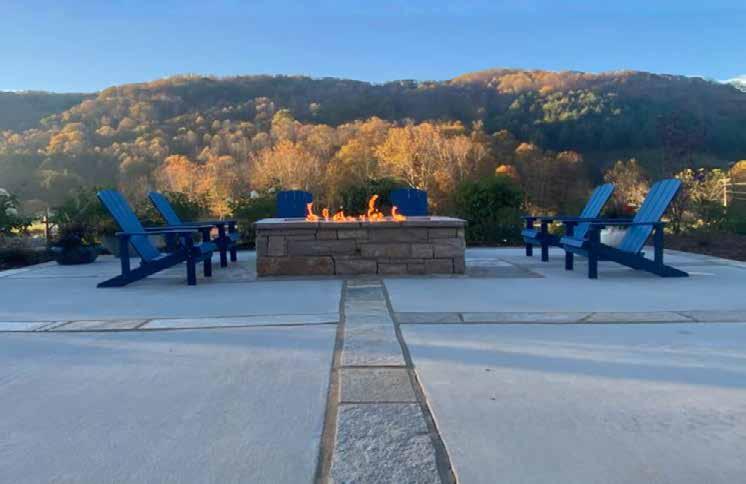

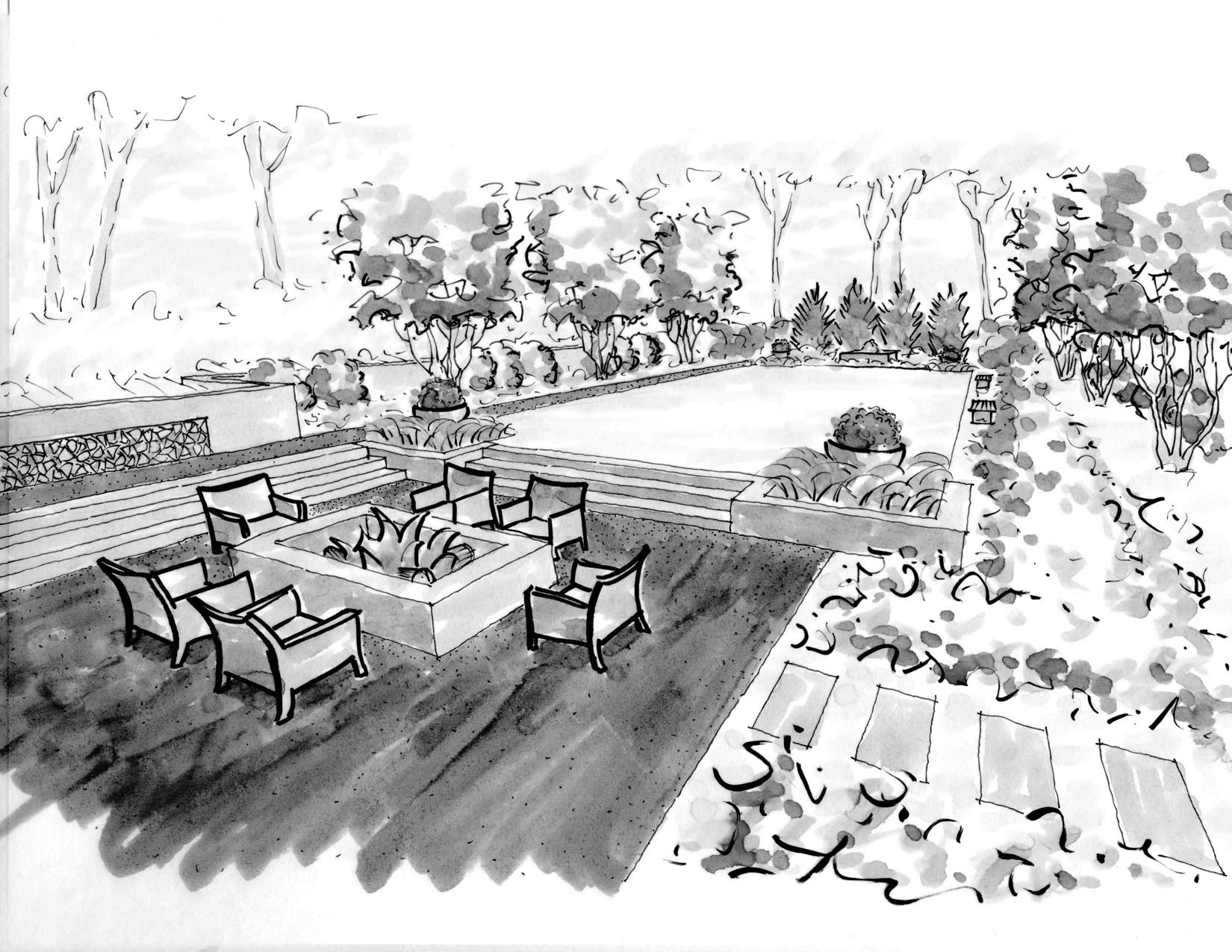

Elevation: Sunken fire pit seating area
