PRE Booklet 2025

Your Global Solution For Stamping and Coil Processing Solutions

Centrally located in Southwest Missouri, Press Room Equipment Company (PRE) is the best value in Press Feeding and Coil Handling Equipment. Since 1979 we have provided industry leadership and design innovation. In 2023 we joined The Bradbury Group to better grow our business and customer base.

Norwalk Innovation began in 1987 to serve the need for an economical, efficient, and safe pay-off device for light gauge steel and wire. Norwalk Innovation became a product line of PRE in 2009.

Since 1956 the bulk of our business concentrated to supplying custom control panels and CNC machine control panels. The business has evolved into providing high speed, close tolerance Servo Feeds, Pull Rolls, Tension Controls, and Loop Controls. Waddington Electronics became a product line of PRE in 2018.

The Bradbury Group is a global family of manufacturing companies dedicated to producing equipment that provides decades of real-world opertaion. The Bradbury facility in Moundridge, KS serves as the global headquarters for the Group.

2

Table of Contents: About Press Room Equipment Co........................................2 Press Feed Systems..................................................................4 Powered Pull Through Straighteners....................................6 Coil Handling Equipment......................................................7 Un-Coiler & Lever Lift..........................................................11 Wire Feed Equipment...........................................................12 High Performance.................................................................13 Cut To Length Lines..............................................................15

Our Vision: To be the most trusted and preferred supplier in the global markets we serve.

3

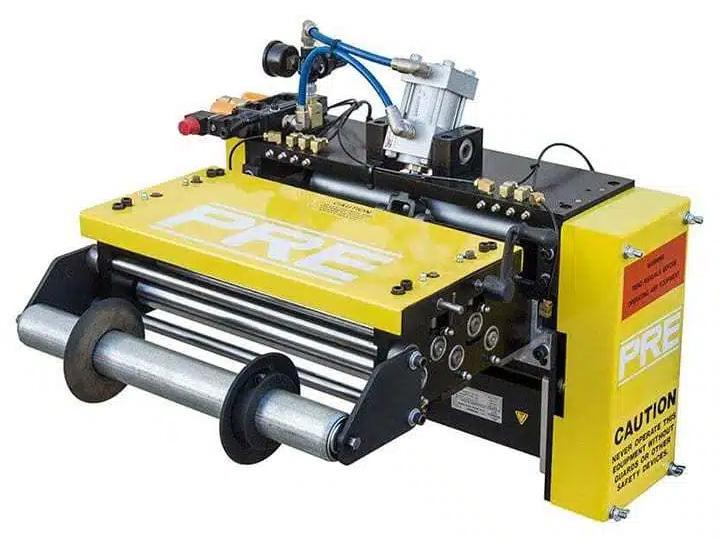

Press Feed Systems PRE Servo Feeds

• • • • • • • •

Non-Stretch Kevlar Belt Stock Widths up to 72 in.

Heavy Duty Dowel Pinned and Bolted Construction Helical Gear Driven Rolls Stock Thickness Capacity to .375 in.

Stock Widths up to 72 in.

Available in 3.25 in., 4.50 in., or 5.50 in. roll diameters Custom Rolls for Feeding Shapes and Extrusions

P20 Series Servo Roll • • • • • • •

Industrial sized “small” roll feed 12 Standard Models to choose from Stock Thickness Capacity to .200 in.

Stock Widths up to 36 in.

Heavy Duty Dowel Pinned and Bolted Construction Helical Gear Driven Rolls Non-Stretch Kevlar Belt

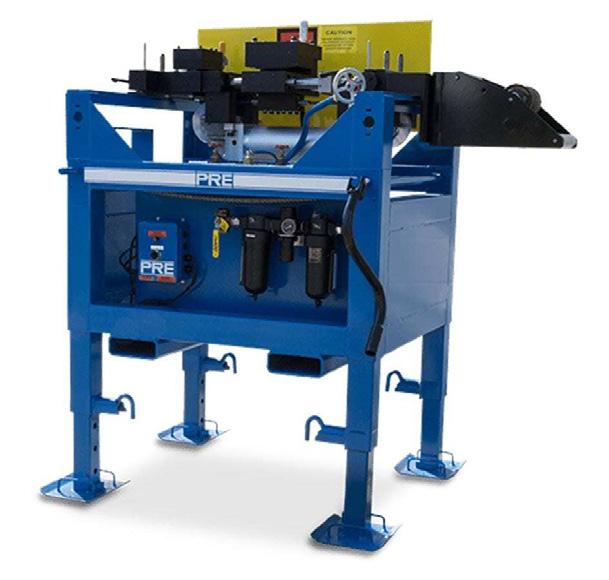

Double Gripper Air Feeds

PRE Double Gripper Air Feeds are designed with the material grippers on a common carriage for accurate controlled material feeding. They are escpically effective with thin and/or flexible materils that require gripping on both sides for fast smooth and accurate feeding.

4

Air Feeds • • • • • • •

Over 240 standard sizes to choose from Handles materials up to 3/8 in. thick Crank operated stroke adjustment with digital readout, no-tools required Standard stroke lengths up to 48 in.

Press control feed switch Pilot release circuit 120 volt ceramic operating valves

PRE makes single gripper, double gripper and bridge gripper style air feeds. The PRE single gripper air feeds are the most accurate, easy to adjust and fastest performing air feed systems available anywhere.

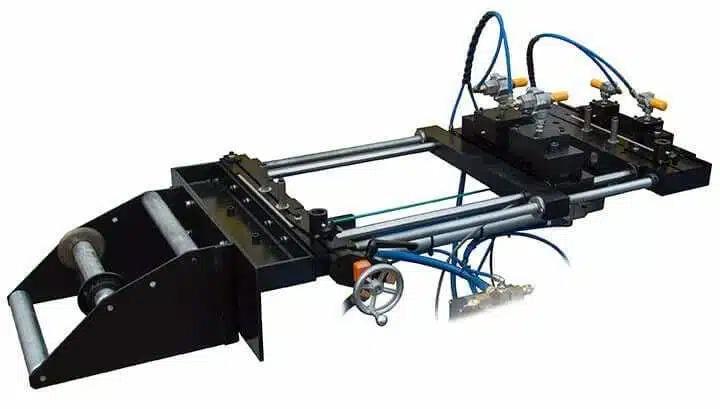

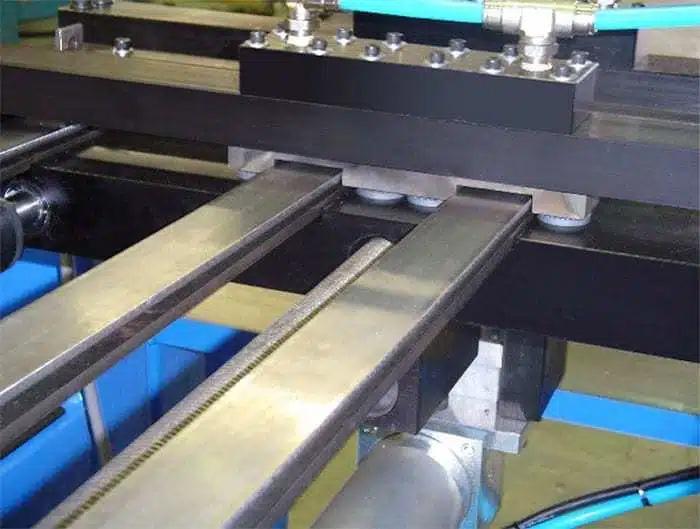

Bridge Gripper Feeds

PRE Bridge Gripper Feeds use a “bridge” bar with grippers that contact the material across its width, except where relieved for anti-buckling rails. Ideal for thin, flexible, or delicate materials, they ensure fast, accurate, and reliable feeding with even force from a center-mounted cylinder.

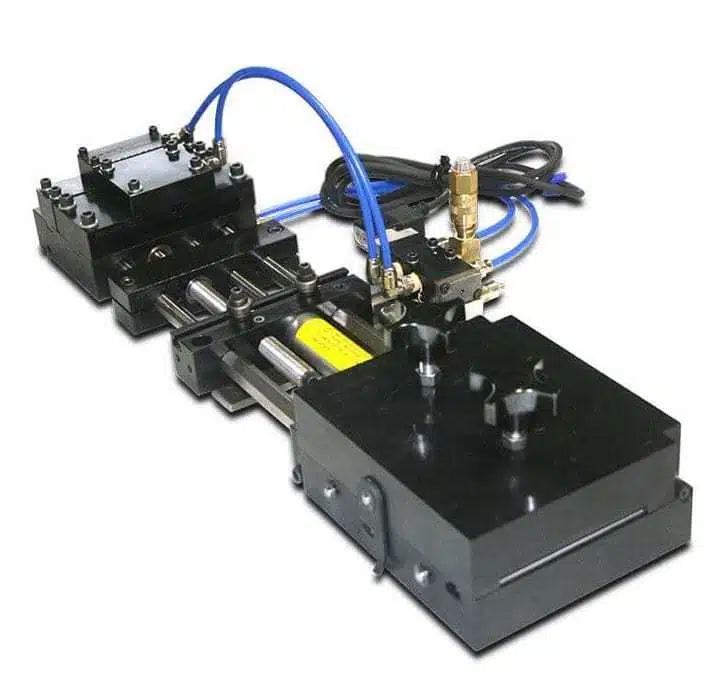

B-11 High Speed Air Feed

Our B-11 Series Hitch Feeds offer a compact, easy-to-install air feed that runs faster than any comparable model, without the hassle of 30+ O-rings or high-maintenance parts.

All B-11 feeds feature an externally mounted 120-volt solenoid valve, eliminating complex internal valving. A hydraulic shock absorber smoothly decelerates the feed block at each stroke end, ensuring precise operation.

5

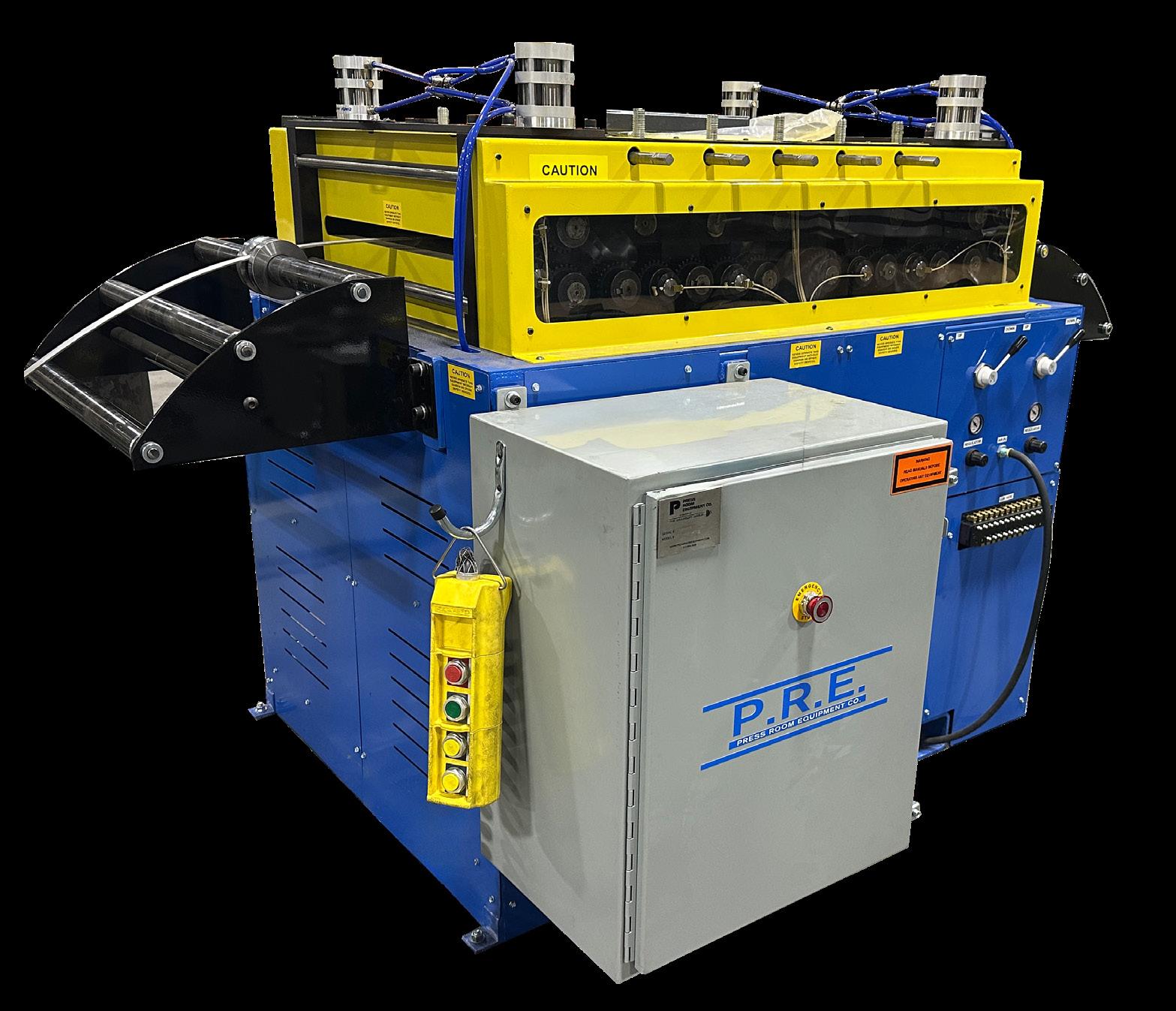

Powered & PullThru Straighteners Powered Straighteners A full range of motorized, variable speed straighteners are designed and built for durability and easy operation.

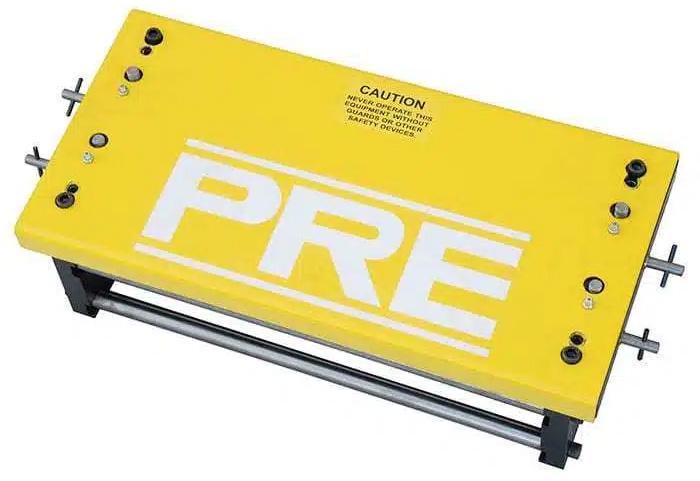

Pull-Thru Straighteners • • • • • •

6

Compact, space-saving design Ideal for light to medium gauge material Pull-thru operation (no powered rolls) Precision-machined straightening rolls Adjustable roll pressure Low maintenance, durable build

Coil Handling

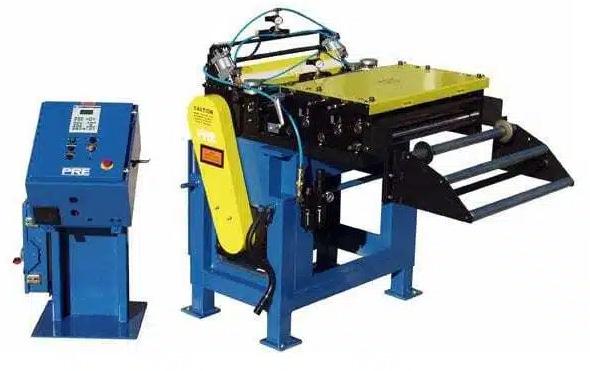

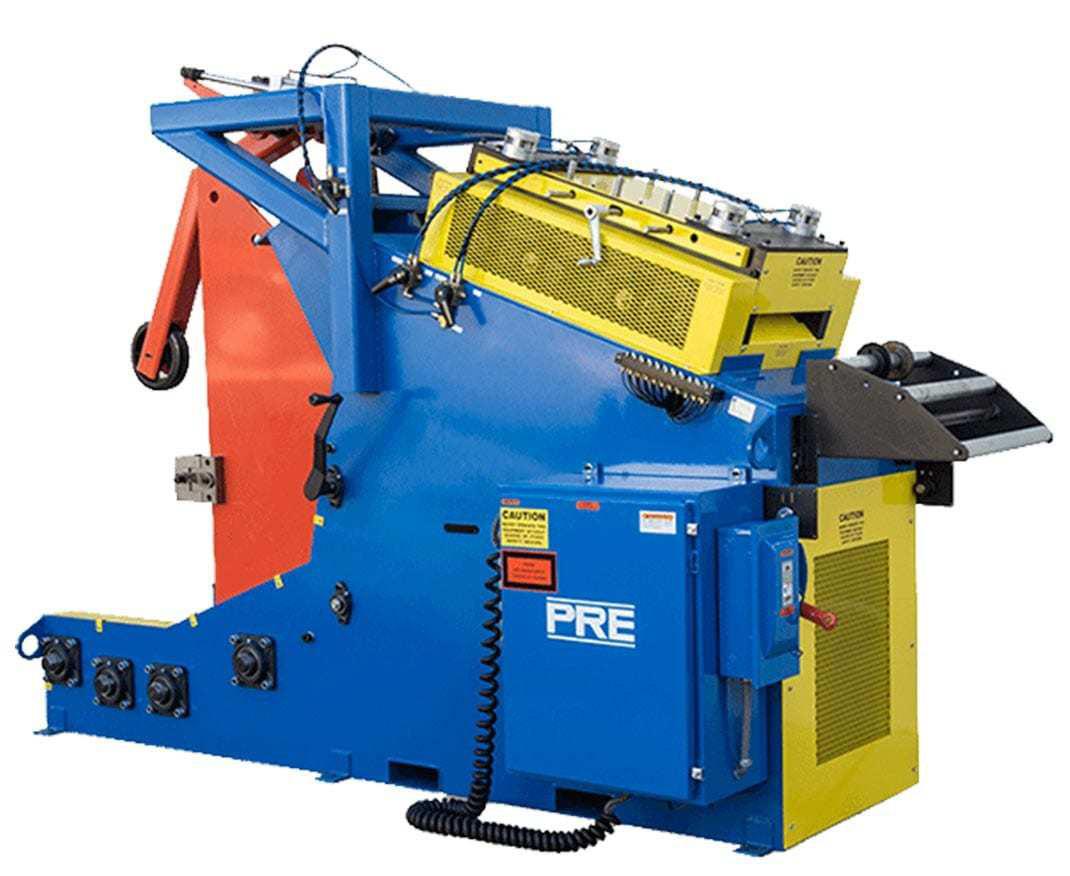

Coil Cradles and Cradle Straighteners PRE Heavy-Duty Coil Cradle Straightener combinations handle coil widths to 60 in. and material thickness to .300 in. Standard coil weight capacities are 6,000, 10,000, and 20,000 lb.

Single Arbor Payout Reel Double Arbor Payout Reel Heavy Gauge Payout Reel 7

Payout Reels PRE offers rugged, reliable coil handling solutions, including payout reels, coil tippers, and coil upenders. Our payout reels are built for durability and smooth operation, available in powered or non-powered designs to suit various applications.

The coil tipper ensures safe, efficient transition of coils between vertical and horizontal positions, reducing damage and improving workplace safety.

The coil upender streamlines material handling, making coil positioning faster, safer, and more precise.

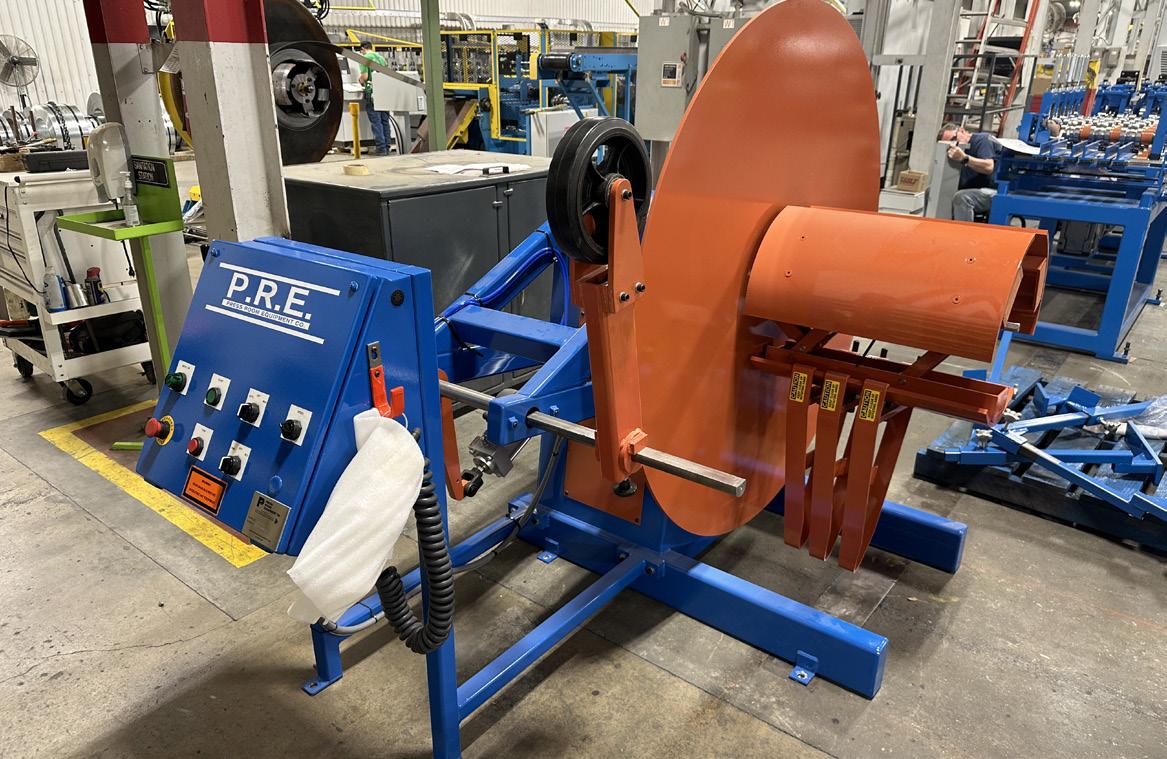

Single Arbor Payout Reels

PRE’s Single Arbor Payoff Reels offer top quality, heavyduty construction, and flexible control options for reliable, long-term performance.

8

Double Arbor Payout Reels

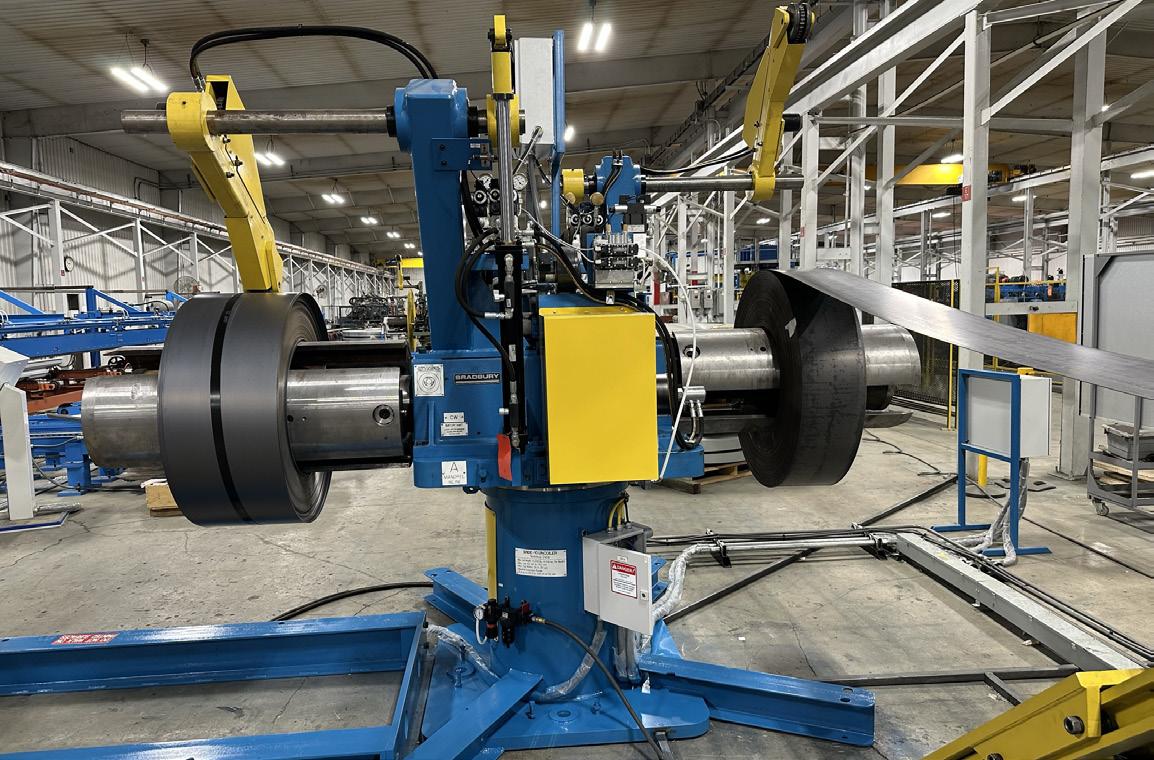

PRE’s Double Arbor Payoff Reel allows quick coil changes and continuous operation, boosting productivity with durable construction and reliable performance.

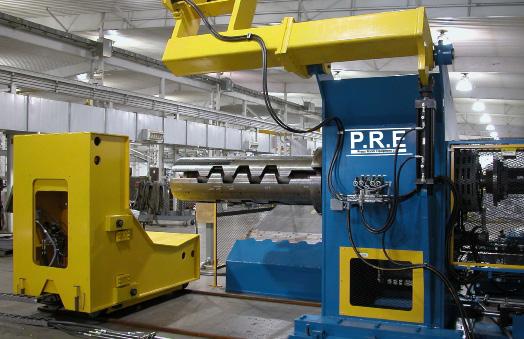

Heavy Gauge Payout Reels

PRE’s Heavy Gauge Payout Reel handles coils up to 30,000 lbs, 0.500” thick, and 24”–72” wide with ease and reliability.

9

Coil Tipper & Coil Upender The PRE Coil Tipper safely and efficiently tips metal coils between vertical and horizontal positions, protecting coils, improving safety, and ensuring easy operation with durable, user-friendly design.

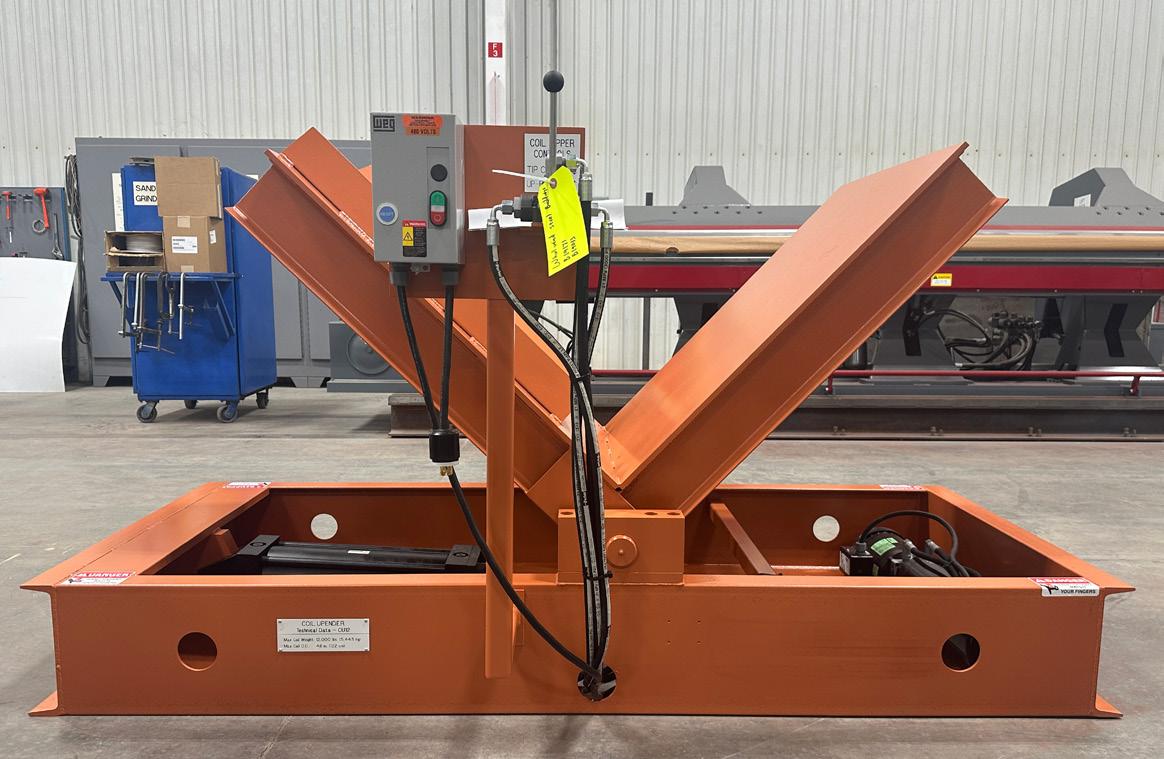

The PRE Coil Upender safely and efficiently rotates heavy coils between vertical and horizontal positions. Standard sizes are 10,000 lb., 15,000 lb., and 20,000 lb. capacities.

10

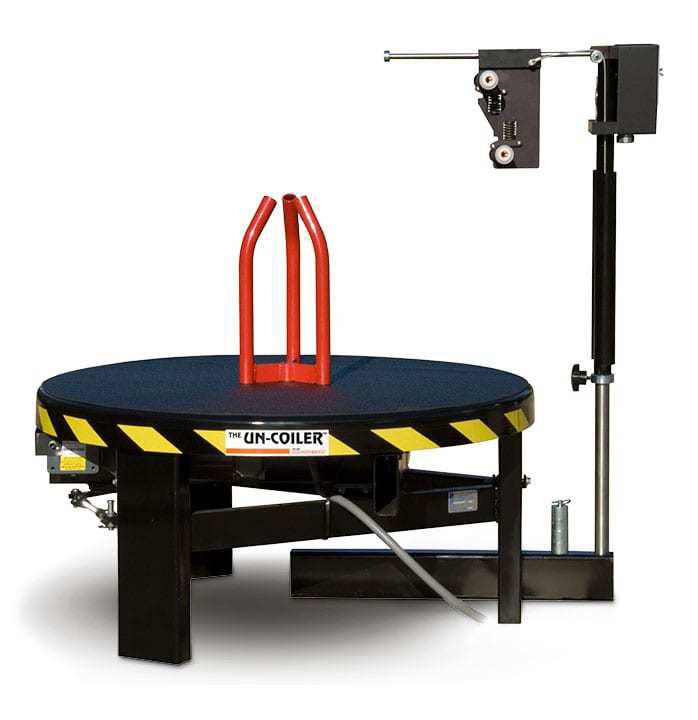

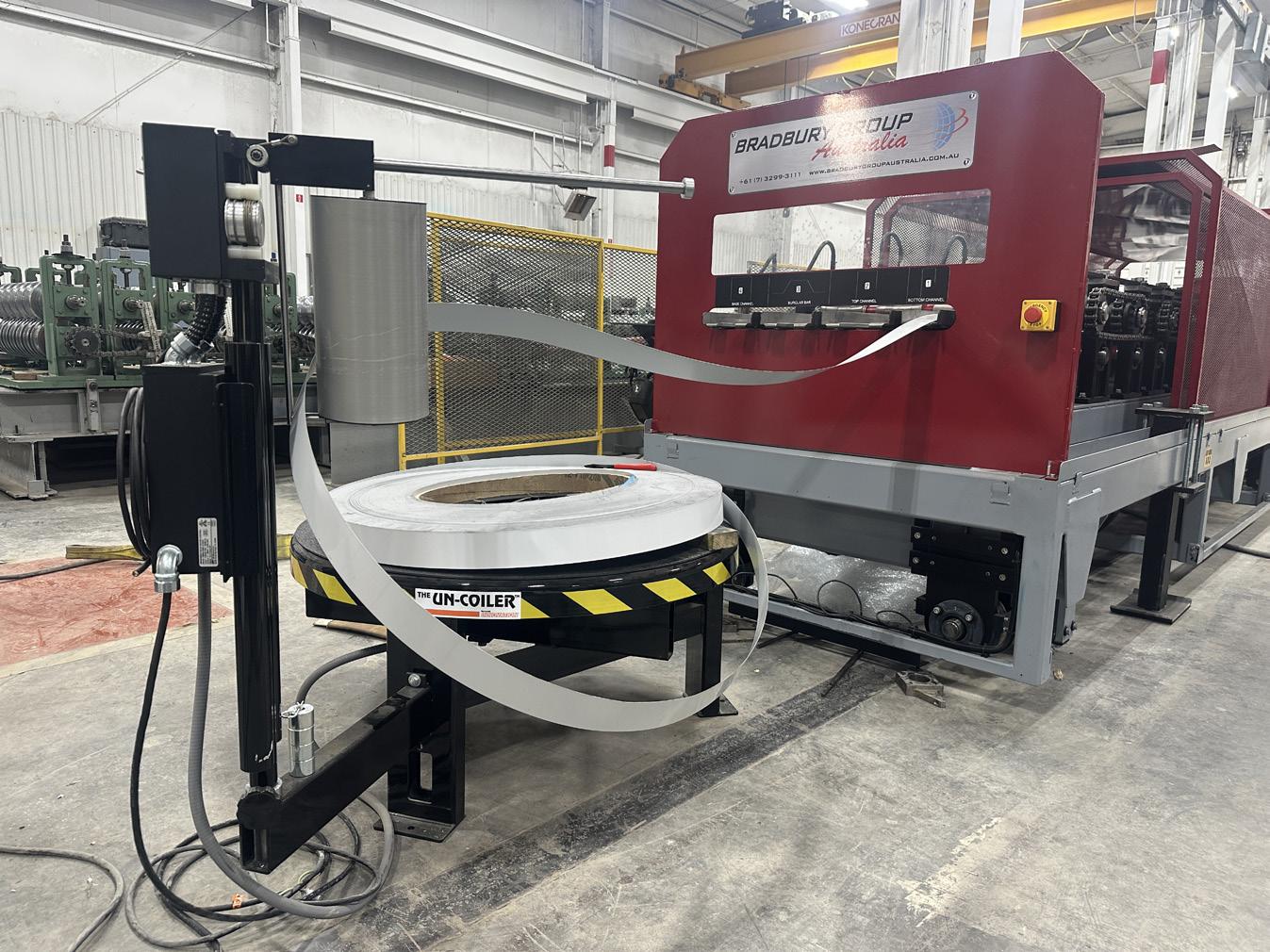

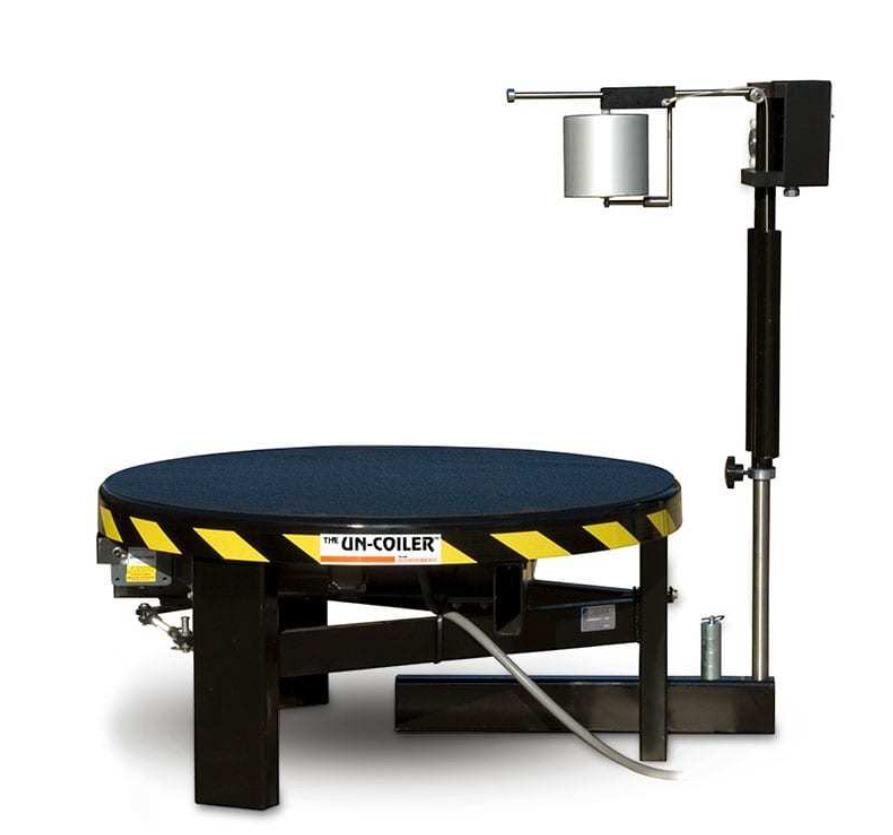

Un-Coiler with Flat Strip Payoff Control Head Norwalk Innovation’s Un-Coiler pallet decoiler is built for flat strip and wire payoff applications, accommodating coils up to 10,000 lbs. It allows quick coil changes, reduces handling time, enhances safety, and improves labor efficiency. The unit’s rigid design ensures durability, while optional caster wheels or forklift access make it easy to move between locations. With the ability to rotate clockwise or counterclockwise, it offers versatile, userfriendly operation.

11

Wire Un-Coilers

The Wire Un-Coiler can handle wire up to .250 inch diameter with a feed in the range of 36-96 RPM. • Variable speed platform controlled by guide drum travel • Reversible payoff direction • Heavy-duty platform • 1,000 to 10,000 lb. models • Top sizes from 24” to 72”

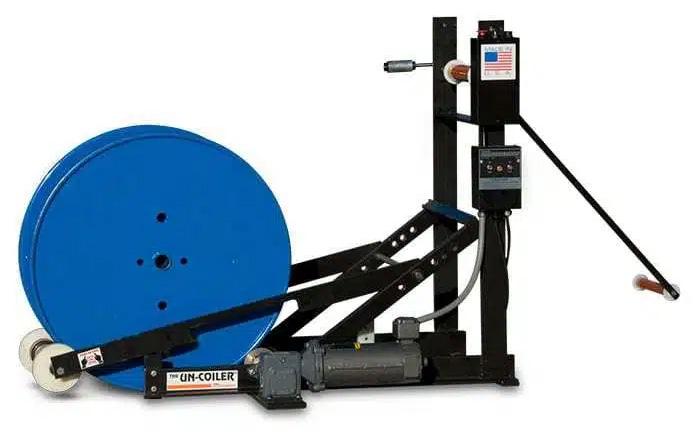

Lever Lift The Un-Coiler Lever Lift Coil Payoff is the newest development in coil feeding equipment for materials loaded on spools. Coil Payoff can be performed by loading the flat strip or wire spools in the vertocal position without additional lifting equipment or strenuous operator labor. Coils can be placed on the drive rollers without effort decreasing production downtime.

• 1,000 and 2,000 lb.

• •

12

models 16” max spool width 18” min. and 36” max spool diameter

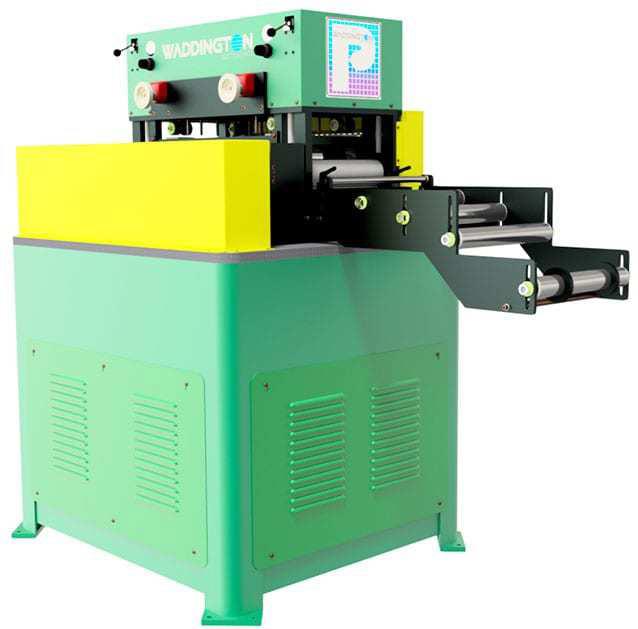

High Performance Precision servo feeds, Straighteners and loop controls. Waddington Electronics has the widest array of servo feed designs available along with precision straighteners, Loop controls, and pull rolls.

When you need to feed, we have the right feed for your application.

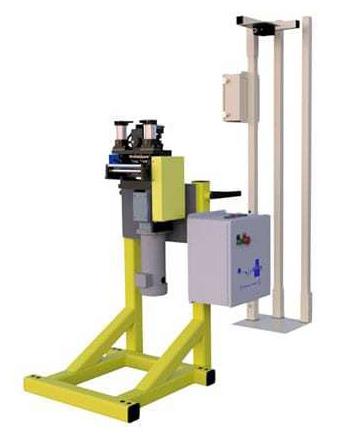

Precision Straightener

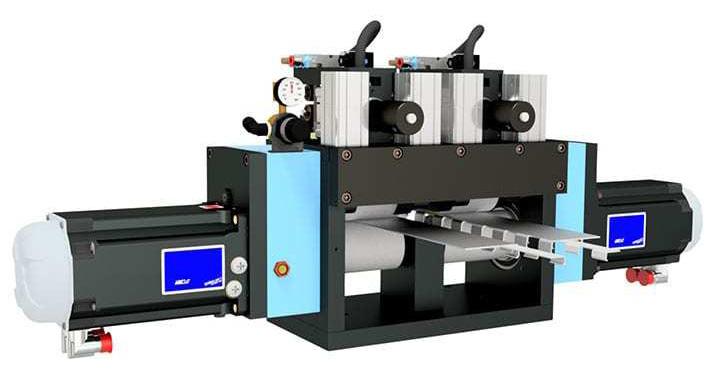

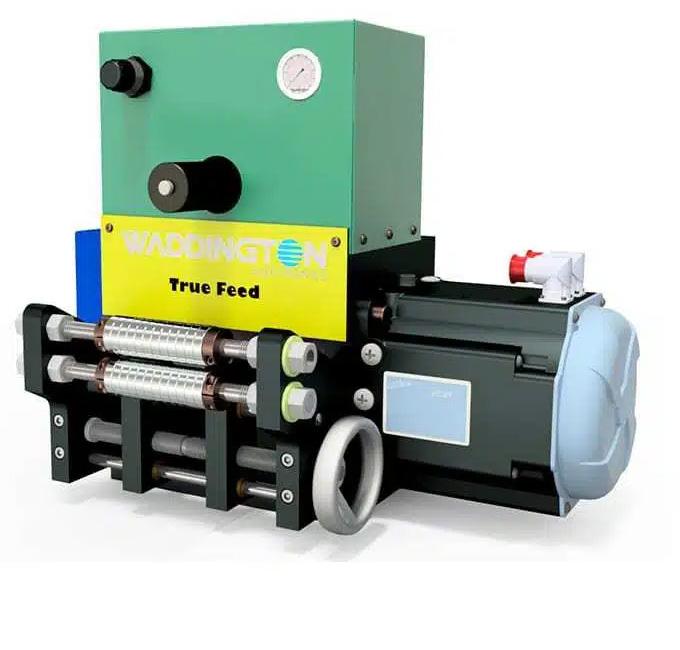

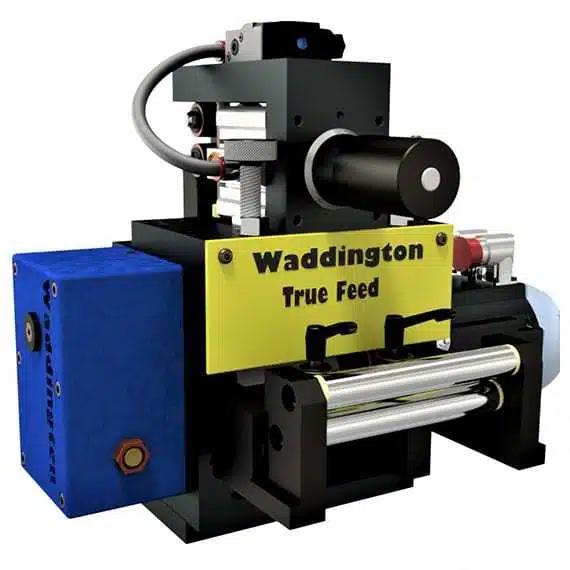

Precision Servo Feed

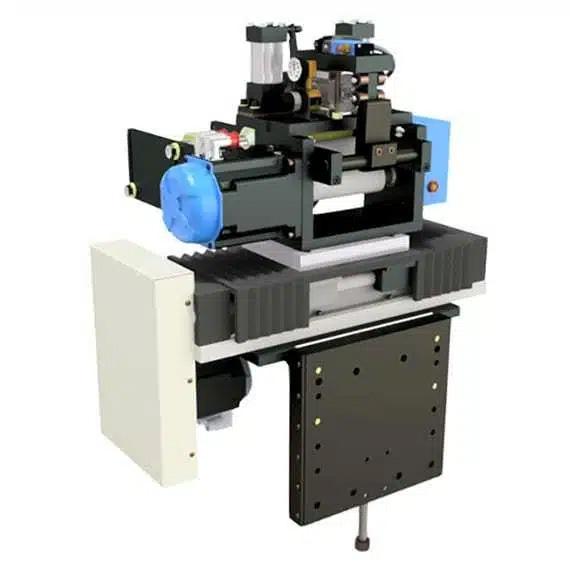

ZigZag Feeds 13

Twin Drive Feed

LD Feed

Pull rolls

WaddingtonElectronics and Press Room Equipment deliver high-performance coil handling solutions engineered for speed, accuracy, and reliability. From advanced servo feeds to robust straighteners, loop controls, and pull rolls, our equipment is built to optimize material flow and enhance production efficiency. With a diverse range of designs and configurations, we can tailor solutions to meet the exact requirements of your application, ensuring consistent results and long-term performance in even the most demanding environments.

14

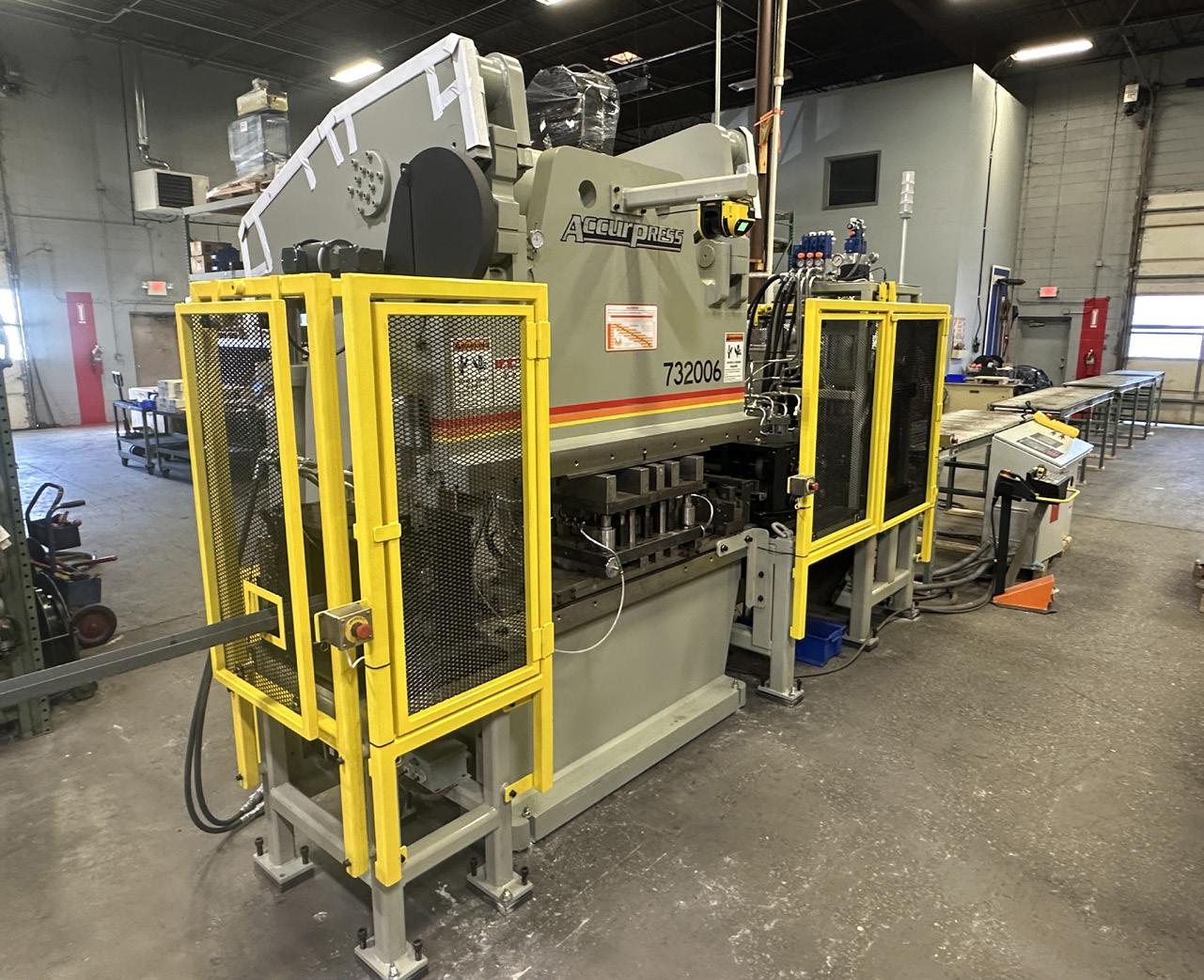

Cut-To-Length Lines Press Room Equipment’s cut-to-length machines deliver precise, efficient processing for a wide range of materials and thicknesses.

Built for durability and accuracy, they can be configured with various feed systems, straighteners, and shears to meet specific production needs. We have a die shop within The Bradbury Group that can incorporate dies into this process, giving us the ability to custom cut material to length. These systems are designed to improve productivity, reduce waste, and ensure consistent, high-quality results in demanding manufacturing environments.

C Channel Cut-To-Length line

15

Press Room Equipment Co., LLC 1650 North Alliance Ave. Springfield, MO, 65803 USA +1.417.864.3636 pressroomequipment.com bradbury@bradburygroup.com A member of
