Built to Last. Built for You. Built by Boyd! Dental Products Catalog Built by Boyd! Your Office Design.
Comfort for your patients. Feature rich for you.
Innovative, functional and ergonomic. That’s what you’ll notice at first glance. Then you’ll see the quality and craftsmanship that goes into every product Boyd creates. From first look, to installation, and beyond—we offer our customers unparalleled products and support.
M3000FB Treatment Chair with FH327 headrest.
FS-14 Monitor Mount*.
BOS279 Doctor Height Stool. See all our stools on
C300 Exam Light chair mounted.
CSU356SQ Chair Side Delivery Unit with Corian top upgrade.
3 Boyd Custom Cabinetry Contact us at 727.471.5072 to discover the office Boyd can create for you.
Orthodontics,
Boyd Products Treatment Chairs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4 Examination Chairs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6 Pediatric Dentistry 8 Patient Chair Bases � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9 Patient Chair � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10 Doctor & Assistant Seating 11 Doctor & Assistant Seating � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12 Delivery Units � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16 Retraction Units 18 Concealed Delivery Units � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19 Choose Your Color � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20 Rear Delivery Systems 21 Delivery System Accessories � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22 Chair Mount Systems For Ease & Economy� � � � � � � � � � � � � � � � � � � � � � � � � � 22 Delivery System Organizer 23 Self-Contained Water Systems � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24 Monitor Mounts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26 Examination Lights 28 Complete Your Practice � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 29 The Boyd Product Warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 31
Office of Dr. Ben Gregg, Gregg
Ashland, Ohio.
Treatment Chairs
Your Patients—At Ease.
Boltaflex Upholstery
Coated with PreFixx™ protective finish for easy cleaning, durability and color fast Engineered to resist staining caused by common disinfecting agents Back and seat stitching options available See page 8 for choices.
The M3000LS is Boyd’s most popular orthodontic treatment chair now offering a variety of features at an affordable price. Unique to the M3000LS is the vertical lift column base which sits 2" lower in the home position than its predecessor M3000LC, allowing a greater range of height to be adjusted for maximum ergonomic positioning In addition to enhanced seat positioning, the M3000LS reclines 35% faster which allows your appointments to run more efficiently.
Putty Frame, Standard Foam and Vinyl PN: 100-3305 Black Frame, Standard Foam and Vinyl PN: 100-3305B Shown with Grand Sierra, D Style Upholstery, FH317 Headrest, Putty Color Base
Contoured One-piece Seat ergonomically designed for patient comfort and easy removal for cleaning or replacement
Low Voltage DC Actuators (motors) provide precise, smooth and quiet movement for patient positioning
Steel Frame and Base Construction
All components are painted using durable, powder-coat process to provide years of corrosion and rust protection Frame and bases are available in putty or black�
Programmable Foot Control
Digital technology operates the chair movements Two, 3-way switches control the one-touch operation of three programmed seating preferences, return to home position and an additional button switch to control an attached Examination Light In addition, one or more manual override levers adjust the back position or elevation
4
The Boyd team is proud to be awarded Orthotown Magazine’s Townie Choice Award for “Best Patient Chairs” from 2013-17, and "Best Operatory Equipment Overall" from 2018-2022. This award voted upon by doctors and their staffs is especially gratifying as acknowledgment of the quality and craftsmanship that goes into every one of our products.
M3000FB features a fixed pedestal base with Boyd’s programmable foot control
Putty Frame, Standard Foam and Vinyl
PN: 100-3000
Black Frame, Standard Foam and Vinyl
PN: 100-3000B
Shown with Grand Sierra, D Style Upholstery, FH307 Headrest, Black Color Base putty color base
M300X is our most economical chair, featuring a fixed pedestal base and motorized reclining back
Putty Frame, Standard Foam and Vinyl
PN: 100-3020
Black Frame, Standard Foam and Vinyl
PN: 100-3020B
Shown with Grand Sierra, B Style Upholstery, FH317 Headrest, Putty Color Base
Add an Arm Optional armrests are available for all M3000 and M3010 series chairs The arms can be lowered to allow the patient easy entry and exit from chair
Putty Trim, Armrest, Right and Left
PN: 68-2200
Black Trim, Armrest, Right and Left
PN: 68-2200B
5
Examination Chairs
Consultations With Comfort.
The M3010LS, Boyd's newest exam and consultation chair, offers increased ergonomic positioning for doctors, office staff and patients that now sits 2" lower at the home position than the M3010LC For increased office efficiency, the new M3010LS reclines 35% faster. This configuration makes the M3010LS a more versatile and efficient platform for conducting routine exams or consultations
Putty Frame, Standard Foam and Vinyl PN: 100-3315
Black Frame, Standard Foam and Vinyl PN: 100-3315B Shown with upgraded Ultraleather Pro, Memory Foam Style Upholstery, FH 300 Headrest, Putty Color Base
Boltaflex Upholstery
Coated with PreFixx™ protective finish for easy cleaning, a and color fast Engineered to resist staining caused by common disinfecting agents Back and seat stitching options available See page 8 for choices.
Synchronized Drop-toe Seat designed to raise and lower in unison with back movement
Low Voltage DC Actuators (motors) provide precise, smooth and quiet movement to position the patient�
Steel Frame and Base Construction
All components are painted using a durable powdercoat process to provide years of corrosion and rust protection Frame and bases are available in putty or black
Programmable Foot Control
Digital technology operates the chair movements Two 3-way switches control the one-touch operation of three programmed seating preferences, return-to-home position and hands-free operation of a chair-mounted Examination Light In addition, one or more manual override levers adjust the back position or elevation
6
The award-winning M3010 series is perfect for offices where space may be a constraint or in consultation rooms. The drop-toe design provides the most natural seated position for patients during consultations or minor exams. Combine with Ultraleather Pro™ upholstery and memory foam padding for additional patient comfort.
E530 & E535 are your records room solution Available in manual pump or motorized lift base, these chairs will provide years of service Both chairs feature durable steel frames, ergonomic winged backs, manually synchronized back and toe sections, adjustable armrests and LL69 double-articulating headrests
The E530 features a manual pump base for vertical lift
Putty Frame, Standard Foam and Vinyl PN: 100-5307
Black Frame, Standard Foam and Vinyl PN: 100-5307B
The E535 features an electric motor for vertical lift
Available in Black Frame only, Standard Foam and Vinyl PN: 100-5357B
M3010FB features a fixed pedestal base with Boyd’s programmable foot control
Shown with Grand Sierra "Almond", D Style Upholstery, FH317 Headrest, Black Color Base
Putty Frame, Standard Foam and Vinyl
PN: 100-3010
Black Frame, Standard Foam and Vinyl
PN: 100-3010B
7
Pediatric Dentistry
Comfort For Children.

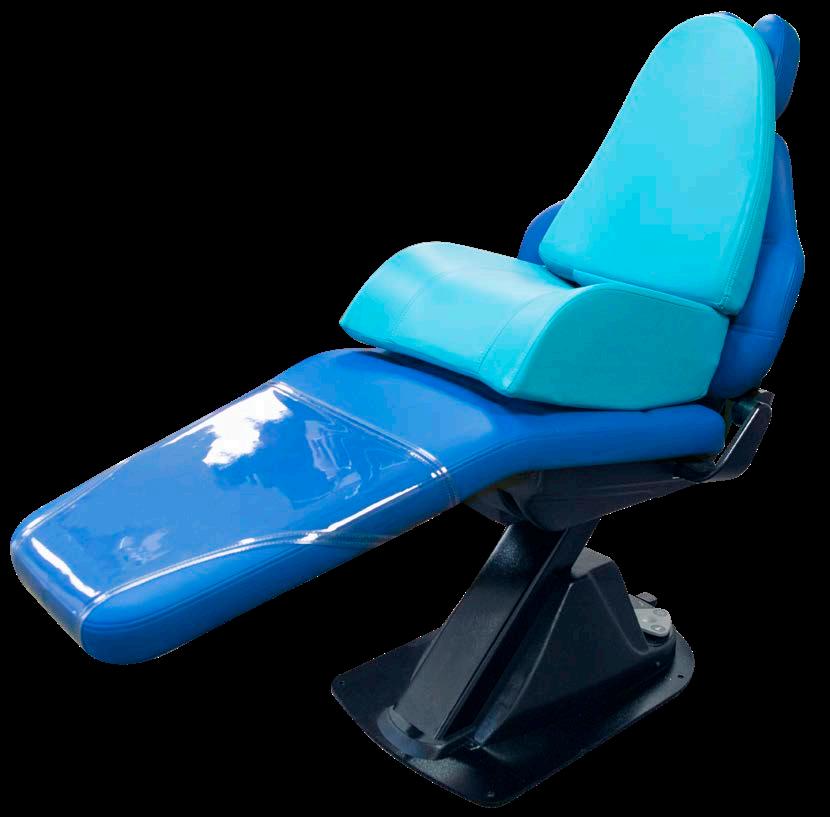

Boyd’s P3000LS Treatment Chair is ideal for pediatric and general dentistry addressing the increasing need for youth oriented dental treatment This model uses the same base and motor configuration as the current M3000LS but will come standard with arms and single articulating headrest. With the seat height at 19” it is ideal for pediatric dental offices and certain general dentistry applications Boyd’s high reliability design equates to lower cost of ownership and minimizes scheduling disruption caused by mechanical failure� This is what we mean when saying “Built to Last!”
Putty PN: 100-3040
Black PN: 100-3040B
Shown with Headrest: AH-300 Articulating, Flat Magnetic, Vinyl, Std Foam, Black
Boyd’s Pedo Benches provide an alternative to chairs for treating children Our benches are adaptable platforms that can be easily modified to meet your specific requirements. Bench tops on both models rise at the mid-section to make the patient more comfortable and aids in proper positioning Both models come with a single articulating headrest, foot protector, full extension soft-close drawers with under mount glides and under toe compartment for additional storage
Drawers Maple dovetailed drawer box with soft close drawer glides and storage compartment at the foot of the bench come standard on Boyd Peds benches
PB4000 is a fully instrumented bench, featuring an automatic delivery system on a pivoting holder bar
Putty Trim, (2) HP Auto PN: 100-4800
Black Trim, (2) HP Auto PN: 100-4800B
Putty Trim, (2) HP Auto, Clean Water System PN: 100-4800CW
Black Trim, (2) HP Auto, Clean Water System PN: 100-4800CWB
Custom Bench Design in Putty PN: 100-4815
Custom Bench Design in Black PN: 100-4815B
Shown with AH300 headrest and Ultraleather “Wet Sand” (291-3491) upholstery
PB4001 is an economical bench that works well in operatory settings using Boyd rear delivery
Putty Trim PN: 100-4804
Black Trim PN: 100-4804B
Custom, Non-Instrumentation in Putty PN: 100-4810
Custom, Non-Instrumentation in Black PN: 100-4810B
Shown with Vista “Cardinal” ( 54056 old # 514978) upholstery, FH327 headrest, Black Trim
BT-281 Stainless Steel Instrument Tray 10"x15" (optional). Mounts 18" above the floor on bench, with pivot pin to rotate right and left under the head of the patient
Rigid arm mount includes bracket with two arms
Putty Trim PN: 95-9155
Black Trim PN: 95-9155B
8
PB4000
PB4001
P3000LS
Storage drawers Storage component located in toe end
BT-281
Patient Chair Bases
Put A New Spin On It.
Boyd offers several base configurations and options to fit your functional specifications. All bases are rated for 500 lbs of lifting capacity to assure years of durrable service�
Swivel Base (Optional) Provides 90 degrees of travel from center (180 degrees total) with locking brake lever located at the 12 o’clock position
Putty PN: 95-0533 Black PN: 95-0533B
M300X Fixed column with non-programmable foot control
M3000FB/M3010FB
Fixed column with programmable foot control
M3000LS/M3010LS
Motorized vertical lift column with programmable foot control
Floor Box Options
Boyd offers 2 different types of utility boxes. The Above Grade Utility Box streamlines your utility access while promoting clinic safety. The UC-1000 Below Grade Utility Box saves time and money by taking the guesswork out of utility locations for your delivery system.
9
Above Grade Utility Box PN: 20-5382K/20-5382BK UC-1000 Below Grade Utility Box PN: 20-5385
Patient Chair
Headrests & Upholstery Styles
Boyd exam chairs come standard with extendable fixed headrests. Headrests can be upgraded to articulating headrests for added flexibility.
FIXED HEADRESTS
FH307 Flat extendible Putty PN: 67-1307 Black PN: 67-1307B
UPGRADE HEADRESTS ARTICULATING
Putty PN: 67-1327
Black PN: 67-1327B
FH300 Flat extendible with magnetic pillow
Putty PN: 67-1300
Black PN: 67-1300B
*Articulating headrests are standard in pediatric benches and P3000LS chair.
FH317 Flat extendible with “V” pillow
Putty PN: 67-1317
Black PN: 67-1317B
UPHOLSTERY STYLE
AH307 Flat articulating
Putty PN: 67-1308
Black PN: 67-1308B
AH317 Flat articulating with “V” pillow� Putty PN: 67-1318 Black PN: 67-1318B
AH300 Flat articulating with magnetic pillow�
Putty PN: 67-1301
Black PN: 67-1301B
Embroidery Option
Make it your own. Add your unique brand or design to the toe section of your treatment chair Beautifully stitched with your practice name or logo
10
FH327 Flat extendible with ponytail slot
“A” Style Cross stitch back and seat
“B” Style Cross stitch back, side stitched seat
“D” Style Side stitched back and seat
“MF” Memory Foam Side stitched back and seat
Doctor & Assistant Seating
Ergonomic, Stylish & Award-Winning.
Boyd’s stools are among the Boyd products selected by practicing Orthodontists for a Townie Choice Award and featured in Orthotown magazine Boyd's stools have been a winner for ten years in a row, and were included in our 2022 TCA for "Best Operatory Equipment Overall." We offer a wide variety of doctor and assistant seating models to fit your office needs. We understand the importance of ergonomic design to help reduce doctor and staff fatigue in a busy practice.
The BOS-279 is Boyd’s most popular seat, offering an ergonomic saddle seat, adjustable seat height and tilt with a floating lumbar support back. The seat is designed for a wide range of adjustments to fit your most comfortable seated position
Fully adjustable padded backrest for proper lumbar support
BOS-279 Doctor height
Seat height range from 17" - 22"
PN: 200-2791
BOS-279 Assistant height
Seat height range from 20" - 28"
PN: 200-2792
Shown with upgraded Ultraleather “Wet Sand” (291-3491) upholstery
Seat tilt to allow adjustment to the proper pelvic/spine alignment Wide ergonomic seat for added stability and comfort
Doctor or assistant height pneumatic cylinders to select the proper height for you and your staff.
Five neoprene coated dual-wheel casters for smooth movement, reduce office noise and prevent damage to flooring.
11
Doctor & Assistant Seating
Ergonomic, Stylish, & Award-Winning.
BOS-46 Features round seat
Doctor seat height 19" - 24"
PN: 200-4610
Assistant seat height 22" - 30"
PN: 200-4620
BOS-248 Features round seat with adjustable back
Doctor seat height 19" - 24"
PN: 200-2481
Assistant seat height 22" - 30"
PN: 200-2482
BOS-249 Features round seat with adjustable seat angle, adjustable back with floating lumbar support.
Doctor seat height 19" - 24"
PN: 200-2491
Assistant seat height 22" - 30"
PN: 200-2492
12
OPTIONS
Fixed Foot Ring for all models (shown)
PN: 60-6400
Adjustable foot ring for all models
PN: 60-6401
BOS-278 Features ergonomic saddle seat
Doctor seat height 17" - 22"
PN: 200-2781
Assistant seat height 20" - 28"
PN: 200-2782
BOS-256 Features round seat, torso wrap arm and fixed foot ring.
Right handed, assistant seat
height 22" - 30"
PN: 200-5672
Left handed, assistant seat
height 22" - 30"
PN: 200-5673
BOS-257 Features round seat, adjustable back with lumbar support, torso wrap arm and fixed foot ring
Right handed, assistant seat
height 22" - 30"
PN: 200-5772
Left handed, assistant seat
height 22" - 30"
PN: 200-5773
13
Delivery Systems
Pick The Size & Features For Your Office.
FS-1 Monitor Mount
M3000LS Treatment Chair
Delivery System
C300 Exam Light
CSU356FLM
�
Built for You. Boyd builds a variety of standard delivery unit models for either chairside, rear or concealed delivery to meet your requirements for functionality and efficiency. The units are offered in a wide variety of laminate choices from manufactures such as Formica™ and Wilsonart™ to help express your style with an almost limitless selection of colors and grains All units are FDA-listed devices and produced at our FDA registard facility where we use the highest quality materials to ensure many years of service
But it doesn’t stop there. If our standard delivery unit models don’t fit your needs, just let us know. Boyd offers free custom design consultation to work with you in designing the delivery unit of your choice� We can help meet the size, features, and options of your specification while maintaining the high quality and craftsmanship that our standard units are known for Contact us at 727.471.5072 to arrange a consultation with one of our designers
CSU456SQ: Boyd's next generation chair side unit has got it all: CorianTM work surface, internal and external medical-grade A/C power receptacles, easy access water bottle — in addition to the top-quality features our award-winning line of clinical side units are known for This state-of-the-art unit, designed with the latest regulations in mind and can be personalized to fit your design aesthetic.
CSU456SQ-FLM Free standing unit (pictured)
Right handed PN: 300-0456SQ
Left handed PN: 356-0456SQL
Clean water option, right handed
PN: 300-0456SQCW
Clean water option, left handed
PN: 300-0456SQCWL
CSU456SQ-FS Full-length mobile unit
Right handed PN: 300-0457SQ
Left handed PN: 300-0457SQL
Clean water option, right handed
PN: 300-0457SQCW
Clean water option, left handed
PN: 300-0457SQCWL
Countertop installed 1.7qt Sharps container conveniently-placed and under-mounted for a streamlined look, maximizing your work space
Options:
4" diameter waste chute and/ or recessed 5" diameter Caviwipe container holder
Automatic delivery system with two handpieces, HVE, saliva ejector and 3-way syringe Choice of either straight or coiled tubing
Plenty of A/C power receptacles to accommodate all your equipment
External 115v medical-grade duplex with USB ports receptacle and internal fused 115v ETL rated receptacle
Office of Dr. Valerie Woo, NOVA Pediatric Dentistry and Orthodontics, Ashburn, Virginia.
Office design & build by Arminco, Inc.
Top two drawers are push-to-open, allowing hands-free access and reducing glove disposal
¾" high-grade plywood interior construction for increased durability and strength
Mobile or Free-standing bases to suit your practice needs
15
Lockable side-access door opens to Sharps container for secure disposal
Delivery Units
Create The Perfect Delivery Unit For Your Office.
CSU351is our narrowest series, fully instrumented chair side units, measuring less than 20" wide The system offers all the standard features of our larger units but with a more compact footprint The CSU-351’s tapered design makes this a popular choice for smaller offices.
Shown as mobile unit with Wilsonart
“Upton Walnut” (7971K-12) Laminate, Wilsonart “Khaki Brown” (D50-60)
Laminate Top, Putty Coiled Tubing, Satin
Nickel Handles�
CSU351-FS Free standing unit
Right handed PN: 351-0761
Left handed PN: 351-0761-L
Clean water options:
Right handed PN: 351-0761-CW
Left handed PN: 351-0761-CWL
CSU351-FLM Full-length mobile unit
Right handed PN: 351-0765
Left handed PN: 351-0765L
Clean water options
Right handed PN: 351-0765CW
Left handed PN: 351-0765CWL
CSU351SQ has the same narrow footprint as the CSU351 but features a squared back, providing more countertop space and rear storage
Shown as mobile unit with Wilsonart “Woolami Brush” (4746-60) laminate, Silestone “Vortium” top, putty coiled tubing, and satin nickel handles
CSU351SQ-FS Free standing unit
Right handed PN: 351-0761SQ
Left handed PN: 351-0761SQ-L
Clean water option, right handed
PN: 351-0761SQ-CW
Clean water option, left handed
PN: 351-0761SQ-CWL
CSU351SQ-FLM Full-length mobile unit
Right handed PN: 351-0765SQ
Left handed PN: 351-0765SQL
Clean water option, right handed
PN: 351-0765SQCW
Clean water option, left handed
PN: 351-0765SQCWL
CSU356SQ provides all benefits of the CSU356 but features a squared back, providing more countertop space and rear storage
Shown as free standing unit with Formica
“Folkstone Sculpted Finish” (927-SP) laminate, Silestone “Zirconium” top, black coiled tubing, and satin nickel handles
CSU356SQ-FS Free standing unit
Right handed PN: 356-0701-SQ
Left handed PN: 356-0701-SQL
Clean water option, right handed PN: 356-0701-SQCW
Clean water option, left handed PN: 356-0701-SQCWL
CSU356SQ-FLM Full-length mobile unit
Right handed PN: 356-0702SQ
Left handed PN: 356-0702SQL
Clean water option, right handed PN: 356-0702SQCW
Clean water option, left handed PN: 356-0702SQCWL
16
27½" 31" 22⅞" 24⅝" 31" 27½" 17⅞" 19⅝" 19⅝" 27½" 17⅞" 31"
CSU356 series is our most popular series offering ample storage in a unit less than 25" wide The CSU356’s tapered design makes it a popular choice for offices of all sizes.
Shown as free standing unit with Formica “Oiled Walnut Naturelle Finish” (5487-NT) laminate, Silestone “Bamboo” top, putty straight tubing, stain nickel handles, and keyboard drawer flip down front
CSU356-FS Free standing unit (pictured)
Right handed PN: 356-0701
Left handed PN: 356-0701L
Clean water option, right handed
PN: 356-0701CW
Clean water option, left handed PN: 356-0701CWL
CSU356-FLM Full-length mobile unit
Right handed PN: 356-0702
Left handed PN: 356-0702L
Clean water option, right handed
PN: 356-0702CW
Clean water option, left handed
PN: 356-0702CWL
CSU362 series is our widest chair side delivery units offering loads of storage in a 27¾" wide unit The CSU362’s tapered design makes it a versatile choice for offices needing more operatory storage.
Shown as free standing unit with Formica “Weathered Ashed Woodbrush Finish” (8842-WR) laminate, Corian “Aqualite” top, putty coiled tubing, and satin nickel handles�
CSU362-FS Free standing unit
Right handed PN: 362-0701
Left handed PN: 362-0701-L
Clean water option, right handed PN: 362-0701CW
Clean water option, left handed PN: 362-0701CW-L
CSU362-FLM Full-length mobile unit
Right handed PN: 362-0702
Left handed PN: 362-0702-L
Clean water option, right handed PN: 362-0702-CW
Clean water option, left handed PN: 362-0702-CWL
CSU362SQ series is our widest chair side delivery units offering loads of storage in a 27¾" wide unit The tapered design makes this a versatile choice for offices needing more opera tory storage
Shown as mobile unit with Wilsonart “Satin Stainless” (4830K-18) laminate, Corian “Arrowroot” top, black coiled tubing and satin nickel handles
CSU362SQ-FS Free standing unit
Right handed PN: 362-0701-SQ
Left handed PN: 362-0701-SQL
Clean water option, right handed PN: 362-0701-SQCW
Clean water option, left handed PN: 362-0701-SQCWL
CSU362SQ-FLM Full-length mobile unit
Right handed PN: 362-0702SQ
Left handed PN: 362-0702SQL
Clean water option, right handed
PN: 362-0702SQCW
Clean water option, left handed PN: 362-0702SQCWL
17 26" 31" 27½" 27¾" 27¾" 26" 27½" 31" 24⅝" 27½" 22⅞" 31"
Retraction Units
Ideal For Rear Delivery Techniques.
CSU370SL retraction delivery system is a slim line version of the CSU370SQ measuring 19" wide for compact operatories This versatile unit can be used for side or rear delivery The CSU370SL includes a removable top for easy cleaning
Shown as mobile unit with Wilsonart “Slate” (D91-60) Laminate, Corian “Noble Ecru” top, and satin nickel handles�
CSU370SL-FS Free standing unit
Left or right handed PN: 370-1102
Clean water option left or right handed PN: 370-1102CW
CSU370SL-FLM Full-length mobile unit
Left or right handed PN: 370-1101
Clean water option, left or right handed PN: 370-0902SQCW
CSU370SQ retraction delivery system used in pediatric or orthodontic offices. The mobile unit provides many of the same storage benefits of the CSU-3351 but with the ability to be moved into the ideal position for you and your staff. A removable top allows for easy cleaning�
Shown as mobile unit with Nevamar “Copper Fusion 2” (FN1002T) Laminate, Nevamar “Coconut Bark” (S5058T) Laminate Top
CSU370SQ Free standing unit
Right handed PN: 370-0901SQ
Left handed PN: 370-0901SQL
Clean water option:
Right handed PN: 370-0901SQCW
Left handed PN: 370-0901SQCWL
CSU370SQ-FLM Full-length mobile unit
Right handed PN: 356-0902
Left handed PN: 356-0902L
Clean water option:
Right handed PN: 356-0902CW
Left handed PN: 356-0902CWL
18
31⅛" 28¼" 29⅜" 31" 30½" 35¾" 17" 38 ½" 19"
Concealed Delivery Units
Unit For Visual Appeal.
CDU415 and CDU425 are Boyd’s unique Concealed Delivery Units keeps dental handpieces out of sight of young dental patients while making them easily accessible to dentists and their chairside assistants The CDU was created out of Boyd’s intimate understanding of the needs of the pediatric dentistry profession� They provide a fully instrumented chair side unit with all the standard features of our traditional chair side unit but with additional work surface and visual appeal
Contact our Design Team at 727 471 5072 to learn how to integrate into custom-designed cabinetry
The units features a fully instrumented pull-out drawer with floating work surface that includes two auto-on handpieces, HVE, Saliva Ejector, and 3-way syringe� The pocket style front door enables the door to be tucked away to prevent interference The unit can be configured for Boyd’s Clean Water System or 3rd party nitrous oxide system
CDU415-FS Free standing unit
Right handed PN: 330-070
Left handed PN: 330-0701L
Clean water option, right handed PN: 330-0701CW
Clean water option, left handed PN: 330-0701CWL
CDU415-FLM Full-length mobile unit
Right handed PN: 330-0702
Left handed PN: 330-0702L
Clean water option, right handed PN: 330-0702CW
Clean water option, left handed PN: 330-0702CWL
CDU425 Free standing unit
PN: 330-0425
Clean water option PN: 330-0425CW
19
27½" 33⅝" 31⅞" 33½" 3" 18" 35 18"
19¾" 24" 31"
CDU415 CDU425
20
Your Color Customize Your Delivery Systems. Designer White D354SL Titanium Grey 9222SS Artic Melange 9070ML Grey Lace 9224SS Black Onyx Mirage 9092MG Midnight Melange 9091ML Zen Gray 9115GS Moon Geyser 9209CM Beige Tempest 1530TM Beachfront 9233SS Avalanche Melange 9175ML Frosty White 1573SL Quarry Melange 9041ML Blanco Riverstone 9137RS Morning Ice 9204CE Pebble 9036EA
Standard Colors Office of CHT Orthodontics, Hinsdale, Illinois.
Choose
Surface
Rear Delivery Systems
Rear Delivery, 12 O’Clock Cabinets.
Like all Boyd cabinetry, our Rear Delivery Units (RDU) can be custom designed to meet your practice requirements� Standard units are designed to accommodate 4-handed dentistry by including an assistant package with our doctor package on the unit’s articulating, retractable arm Our RDU’s are ergonomically designed, durable and versatile to adapt to practice requirements Standard or custom units are built with Boyd’s high level of craftsmanship
Experience our “Built by Boyd” quality!
Standard Features:
• Concealed, pull out rear delivery unit with pocket door, doctor instrumentation and small work surface
• Self-contained, clean water system with 1 liter bottle
• Pocket door, on lower storage cabinet for customer-provided nitrous oxide unit
• One, five-drawer bank, with easy side cabinet access
• Durable ¾” Plywood interior construction
• Wilsonart™, and Formica™ laminate exteriors finishes
• Selection of standard Wilsonart™ Solid Surface countertop colors
• ⅝” hardwood drawer boxes; 1mm edge banded drawer fronts; under-mount, full extension, self-close, drawer glides; concealed, soft-close, European-style door hinges; and 96mm bow style handles
Optional Features:
• Upper cabinet pass-through
• Mask or glove box dispenser
• Stainless steel under mount sink
• Track-style monitor mount system
• LED task lighting
• Soap dispenser
Rear delivery unit
Putty tubing PN: 300-1300
Black tubing PN: 300-1300B
Custom rear delivery unit
Putty tubing PN: 300-1301
Black tubing PN: 300-1301B
21
Delivery System Accessories
Chair Mount Systems For Ease & Economy.
* Must be connected to utilities via standard delivery unit. *
AP-11 Assistant Package
Standard features include: white swing mount holder bar with 3-way syringe, HVE, saliva ejector, and solids collector Mounts on the right or left side of chair Can be mounted on M300X, M3000 series and M3010 series chairs
Right mount, putty PN: 95-2390 Right mount, black PN: 95-2390B Left mount, putty PN: 95-2391 Right mount, black PN: 95-2391B
CSU-320 Under Arm Delivery Unit
Standard features include: side chair mount, 150° swivel from chair side, low- and high-speed syringe with coiled tubing Can be mounted on E530/E535, M300X, M3000 series and M3010 series chairs
Models 530/535
Right mount, putty PN: 320-1020 Left mount, putty PN: 320-1021
Models 300X/3000/3010
Right mount, putty PN: 320-1022 Left mount, putty PN: 320-1023
Flush Switch
Allows air-forced cleaning of water lines to reduce bacteria buildup
(3-way syringe and high-speed handpiece hook up)
On/Off Indicator Light Indicates master switch status.
Unit Master On / Off Toggle activates / deactivates all instrumentation of the delivery unit.
PSI Indicator
Visual indication of PSI delivered to handpiece.
Water Coolant On/Off Switch
Water Coolant Adjustment Flow adjustment for high-speed handpiece.
HVE High Volume Evacuation.
Saliva Ejector Valve
3-Way Syringe
Air/Water Syringe with quick release tip.
Handpiece
Hook Up – Wet Automatic
Switchless activation when lifted from holder. Low speed hook up.
Handpiece Hook Up – Dry Automatic
Switchless activation when lifted from holder. Low speed hook up.
3HP Auto System is available with a supplied water system or self-contained water system.
22
Delivery System Organizer
Organization Is Key.
Boyd delivery systems, whether chair side, rear delivery or concealed, can be customized to meet your functional requirements Our sales team can work with you to design a unit accessorized with one or more of the many optional features Boyd has to offer. If you don’t see it here – just ask! Boyd stocks a wide variety of components, laminates and solid surface materials to bring you many years of satisfaction and service
Quick Disconnect
Air (Yellow) PN: 20-5575
Water (Blue) PN: 20-5574
Fiber Optic Handpiece
PN: 20-5884 / PN 20-5884B
Handpiece Bar & Bar Holders
Bar PN: 95-9941/95-9941B
Holders PN: 20-7100/20-7100B
Mask Box Holder Dispenser
Side Mount PN: 50-2109
Double Glove Box Holder Dispenser
Side Mount PN: 65-9139
23
Drawer Insert Organizers for cabinet models 356, 356SQ, 370SL, 370SQ and 456SQ, 4000, 4001.
Four Straight Pockets PN: 50-0305
Three Small, Three Medium Pockets PN: 50-0325
Two Large, Two Small Pockets PN: 50-0345
Five Straight Pockets PN: 50-0315
Six Small, Three Medium Pockets PN: 50-0335
Two Large, One Long, Two Small Pockets PN: 50-0355
Self-Contained Water Systems
Convenient, Organized & Sanitary.
Let Boyd help design the office of your dreams. Our designers are here to help put your vision to paper and our builders and installers make that vision a reality. Discover the standards that Boyd is known for, and why we proudly say Built by Boyd!
24
Office of Dr. Emily Watson, Warsaw Orthodontics, Plymouth, Indiana.
The use of distilled or sterile water in the delivery unit aides in the prevention of mineral and other deposits that can build up in your system. Further, it eliminates the need for a back-flow check valve when the unit is plumbed to your commercial water source reducing expense and maintenance
Model CWS-07 Self Contained Water System comes standard with a one liter bottle, mounting bracket, pressure adjustment and interconnect tubing� All units are designed for easy access to replenish water as needed�
Options
Quick disconnect for water bottle fits both one and two liter bottles. Makes changing bottles a snap PN: 20-5755
1 liter Water Bottle PN: 20-5400
2 liter Water Bottle PN: 20-5386
25
Bottle located in toe compartment of PB4000
Bottle located in side door on CSU351, 356 and 362
Bottle located in side hatch on CSU370
Bottle located in rear compartment of CSU456SQ
Monitor Mounts
Better Cable Management Means Less Mess & Clutter.
Boyd monitor mounts are designed for Boyd’s CSUs to minimize external exposed cabling between monitor and computer The video signal cable and power cord can be routed via the 7½" monitor mount riser* through a hole in the countertop to the computer storage compartment and internal power receptacles This means fewer cables to interfere with your work surface and unsightly clutter
26
FS-14a Monitor Mount
*New model modifications are 2"-3" higher than previous models.*
SINGULAR MOUNTS
FS-1 Flat Screen and iPad
Compact and adjustable, two tilt joints, 50° tilt, 360° pivot.
Putty PN: 60-0621, Black PN: 60-0621B
MOUNTS
FS-21 Flat Screen
Parallel support for two 22" monitors, 50° tilt, any direction, 5" forward adjustment, 5" height adjustment, 360° pivot.
Putty PN: 60-0636, Black PN: 60-0636B
FS-9a Flat Screen
W / Mini Keyboard Tray* Same features as the FS-1 plus mini keyboard: 12" x 17 1/4"
Putty PN: 60-0643, Black PN: 60-0643B*
FS-14a Flat Screen
W / Full Size Keyboard Tray and Mouse Pad* Same features as the FS-1 Plus full size keyboard tray: 19" x 71/4"
Putty PN: 60-0641, Black PN: 60-0641B*
FS-29a Flat Screen
W / Mini Keyboard Tray* Same features as theFS-21 plus mini keyboard option.
Putty PN: 60-0645, Black PN: 60-0645B
• NEW APPLE PRODUCTS USE FS-14a
FS-24a Flat Screen
W / Full Size Keyboard Tray* Same features as the FS-21 W / Full size keyboard tray.
Horizontal:
Putty PN: 60-0644, Black PN: 60-0644B
Vertical:
Putty PN: 60-0647, Black PN: 60-0646B
FS-5 Apple Monitor Mount
Same features as the FS-15 without the keyboard tray. Professionally conceals the desk stand.
Putty PN: 60-0635, Black PN: 60-0635B
FS-15 Apple Monitor Mount
W / Full Size Keyboard Tray and Mouse Pad Built to hold the weight of up to 27" monitor. No need to remove the stand.
Putty PN: 60-0614, Black PN: 60-0614B
SM-2a Laptop Mount Swivel stand, sturdy and convenient.
27
Putty PN: 60-0642, Black PN: 60-0642B DUAL MONITOR
Examination Lights
Leading The Way With The Latest Technologies.
Boyd’s LED Exam Lights provide the latest in operatory light technology Each model emits clear and natural white light for the best visibility of the oral cavity by using LEDs for cool, power efficient and reliable operation. The diode technology designed into our models emits light in the white to IR range of the light spectrum, avoiding the UV range which could affect UV cure bonding compounds
The C500 Camera Light System includes a fully integrated 30X zoom, High Definition Camera for capturing video and still images for consultation, records, training or other similar uses The camera comes equipped with a wireless remote control for ease of use while taking video or images The system can be used with any video or still image software and practice management systems
Shared features of the C-series LED Exam Lights:
• Natural white color (5000K)
• Variable light intensity
• High color rendering index
• Optimal focal distance 25 5" to 27 5"
• Adjustable, sterilizer-safe hand grips
• Three axis head movement for optimum doctor and assistant functionality
• Available options include chair post, ceiling, and wall mounted
C300 features an Motion Sensor for power on/off, manual light intensity control up to 30,000 LUX and a 4 LED head measuring 12.8" x 8.7".
Putty PN: 600-4505
Black PN: 600-4505B
Post Mount Light post clamp, mounts to 2" post assembly
Putty PN: 20-5107
Black PN: 20-5107B
C500 features Motion Sensor for power on/off, manual light intensity control up to 50,000 LUX, HD video camera and a 8 LED head measuring 11" x 6.5".
Chair Mount:
Putty PN: 600-4530 Black PN: 600-4530B
White PN: 600-4530W
Ceiling Mount White PN: 600-4535W
C600 features Motion Sensor, on / off switch, Touch Panel for easy LED adjustable color temperature, and one-touch UV cure mode
Putty PN: 600-4600
Black PN: 600-4600B
Rigid Folding Arms
Aluminum 1" square x 12" long arm. 1/2" pin, 5/8" bushing.
Putty PN: 95-9108
Black PN: 95-9108B
BT-280 Bracket Table Stainless steel 10"x15" tray, mounts on a standard Boyd light post. Post and chair mount assembly sold separately.
Fits models M300X, M3000 series and M3010 series. Rigid arm mount includes post clamp with two arms.
Putty PN: 95-9139
Black PN: 95-9139B
28
In our effort to continue providing fully-integrated solutions for your office projects, Boyd Industries offers an additional range of products that complement our equipment and cabinetry lines These products, like all of our products, are designed with efficiency and durability in mind. Ask your sales representative how you can complete your practice with Boyd
29 Complete Your Practice Add To The Comfort & Safety Of Your Space. Ready to begin your debut or expansion project? For an office that you and your team will love for years to come, it has to be Built by Boyd! Contact your regional or dealer representative today for a free consultation and quote to get started! Phone 727 471 5072 (local) Web www boydindustries com 800 255 2693 (toll-free) Email sales@boydind com We look forward to helping you build your dream office! Booster Seat Designed for the comfort and accessibility of your young patients, with memory foam and stain-resistant Ultraleather Pro upholstery DryCurve Instrument Dryer Dries instruments in only 20 minutes, to save time before sterilization 20” W x 20” D x 7 ½“ H PN: 330-1100 Cabinetry. Complete your space with our custom cabinetry designed to fit your need
30
• Standard Feature + Optional Feature M300X M3000FB M3000LS M3010FB M3010LS E530 E535 P3000LS PB4000 PB4001 WEIGHT CAPACITY Weight Capacity (lbs) 500 500 500 500 500 350 350 500 350 350 DIMENSIONS Minimum Seat Height (inches) From highest point of seat frame 25.5 25.5 20 25.5 20 19 19 20 27.5 27.5 Maximum Seat Height (inches) From highest point of seat frame 25.5 25.5 26 27.5 26 26 26.5 26 27.5 27.5 Width Without Arms (inches) 24.25 24.25 24.25 24.25 24.25 20 20 - 26 26 Nominal Length (inches) 70.5 70.5 71 63.5 63 58 58 71 76.5 76.5 POWER REQUIREMENTS Amps 10 10 10 10 10 N/A 8 10 N/A N/A 230v AC Convertible • • • • • • + + FEATURES Number of Motorized Functions 1 1 2 1 2 N/A 1 2 N/A N/A Steel Frame • • • • • • • • Putty or Black Trim • • • • • • • • • • Non-Articulating Headrest (FH Models) • • • • • + + + + + Single Articulating Headrest (AH Models) + + + + + + + • • • Dual Articulating Headrest (LL Models) • • Choice of Headrests • • • • • • • • • • Programmable Foot Control • • • • • • Auto Return to Home • • • • • • Safety Stop Feature • • • • • • 120vAC Electrical Outlet • • • • • • + + Vertical Column Base (6" Stroke) • • • Vertical Column Base (8" Stroke) • Pump Base • Electric Hydraulic Base • Seat Swivel + + + + + + Vinyl Upholstery/Standard Foam • • • • • • • • • • Choice of Upholstery Styles • • • • • • • • + + Detachable Upholstery • • • • • • • • Ultraleather™ Upholstery + + + + + + + + + + Memory Foam + + + + + +
Compare Products
The Boyd Product Warranty
We Guarantee Our Products With Pride.
Our team of craftsmen and technicians fabricate and assemble Boyd products to the highest workmanship standards� Their attention to detail coupled with the products durability has distinguished Boyd as the premier Orthodontic and Pediatric Dental equipment product company in the industry
Boyd Industries warrants its chair and cabinetry products against component and/or workmanship defects by offering a three year parts and one year labor warranty commencing on the invoice date of your equipment� The company reserves the right to repair or replace, at its sole discretion, any component or assembly deemed defective� The warranty will be voided if products are improperly maintained or installed or altered from its original design Products distributed by Boyd carry the original equipment manufacturer’s warranty
31
Montana Smiles Orthodontics.
Boyd proudly serves the Orthodontic and Pediatric Dentistry industries and knows the unique requirements of running a successful practice Our products are designed with both functional and ergonomic features to allow you and your staff to perform at the highest efficiency.
Innovation and quality of craftsmanship are what Boyd is all about
When buying Boyd, you can be assured you will be receiving the highest quality equipment available on the market today
Contact us for a design or equipment consultation, or visit our showrooms for tours and product demonstrations�
We look forward to supplying your present and future equipment needs
P 727 561 9292 | F 727 561 9393 Customer service 727 471 5072 | customerservice@boydind com Technical Service 727�471�5071 | techservice@boydind�com www.boydindustries.com
Built to Last. Built for You. Built by Boyd! 70-1903 Rev 0323 Please recycle this catalog when no longer of use Thank you! Proudly designed and manufactured in the USA�
