BMF Merchandising Catalogue

MERCHANDISING CATALOGUE

BMF was founded in 2003 with the mission of helping independent retailers in the Home Improvement Industry renovate their stores. It has since grown to become the most complete solution for the design and supply of fixtures and displays for both dealers and vendors across Canada.

BMF provides a complete menu of services from design and permit drawings through to installation. We stock a wide range of shelving and merchandising accessories in our Burlington Ontario warehouse. This is a real benefit to customers who want extra components during or after renovations or need to complete a project with tight lead times. Our facility also houses BMF’s millwork shop which builds custom displays, sales counters, cladding and cabinets in support of store renovations and new builds. BMF designs and supplies exterior LED signage and pylons and offers numerous options for interior décor. Dealers can supply their own graphics or make use of BMF’s in-house design capability Increasing merchandising intensity through use of overhead storage and efficient accessories has been a hallmark of BMF’s adding value for our clients. Our racking systems eliminate the need for hardware back stock rooms which lowers operating costs, improves service levels, housekeeping, merchandising presentation and inventory control. For some customers, the overhead storage allows them to operate in a smaller footprint which generates substantial savings on rent, utilities and TMI costs.

BMF works with many of the industry’s most respected vendors to develop display systems that help them win new business and refresh their presentations at existing accounts. Our team of designers is well equipped to create either freestanding displays or ones that integrate effectively with standard shelving systems commonly used in our industry. BMF’s assembly area stocks several thousand vendor products which are installed onto displays and shipped directly to stores on a daily basis. We use our network of field installers to cost effectively coordinate rapid rollouts if needed.

2

BMF

Introduction Get to know BMF . . . . . . . . . . . . . . . . . . . . 2-3 Store Renovations . . . . . . . . . . . . . . . . . . . 4-5

Hardware BMF Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7 Storflex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9 Merchandising Accessories . . . . . . . . 12-17 Hardware Displays . . . . . . . . . . . . . . . . 18-25

LBM Pallet Racking & Accessories . . . . . . . 28-29 LBM Displays . . . . . . . . . . . . . . . . . . . . . 30-33

Decor Display Units. . . . . . . . . . . . . . . . . . . . . . 36-41

Service Areas Service Areas . . . . . . . . . . . . . . . . . . . . . 42-43

BMF

3

STORE RENOVATION PROCESS BMF follows a disciplined approach to designing a store. This includes establishing category strategies for each of over 200 sub-categories, developing layout concept options and then allocating available linear footages based on the strategies. This is done for the entire business including Hardware, LBM and Décor as well as Service Areas. This approach ensures the store presents the entire business and reflects the realities of the local market, strengths and weaknesses, and the passions of the owner.

DESIGN

Getting To Know Your Business • • • • • •

Review Objectives, plans & Timing Store Images – Interior & Exterior Establish Category Strategies Site Measure Measure Existing Linear Footages of Product Sub-categories Available Drawings

Project Planning • • • • • • • • • •

4

BMF - STORE RENOVATION PROCESS

Layout Concepts Department Adjacencies Linear Footage Allocation Merchandising Plan Fixtures & Accessory Take Off Displays Sales & Service Counters Signage Plan Detailed Budget Quotation Cash Flow Analysis

Note: Dealer/Owner is involved and needs to approve each step of the planning process. This is essential to ensure the end result meets the agreed passions, knowledge and experience of the owner.

BUILD

Production • • • • • • • •

Non-Stock Fixtures Sales & Service Counters Displays Graphic Design Signage Pick and Pack Stock Accessories Order Consolidation & Shipping Schedule Installation

Installation

*May or may not involve Vendor participation and store staff

• • • • • •

Note: Stores remain open during renovations. BMF works a section at a time with the objective of minimizing disruption to operations. Bin labeling is the responsibility of the store staff and the installation of BMF supplied exterior signage is normally arranged by the dealer with a local installer.

Prep Store Install New Fixtures Merchandise Products* Sales & Service Counters Displays Interior Signage

STORE RENOVATION PROCESS - BMF

5

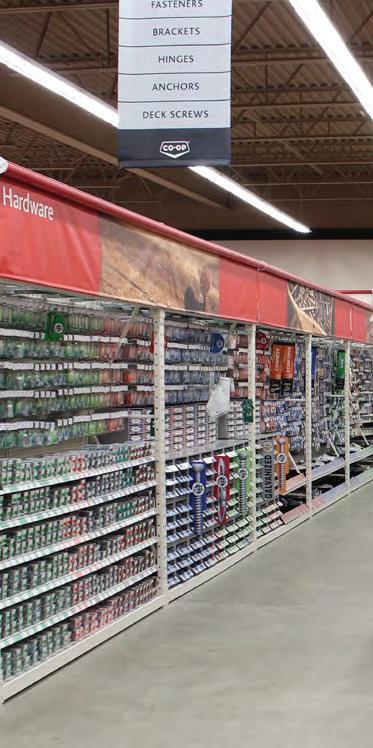

CORE SYSTEM This proprietary BMF system combines the convenience of traditional merchandising using Storflex posts and compatible accessories, with the strength and storage capacity of pallet racking for overhead storage. This “found” space has many benefits.

It eliminates the need for back stock rooms, keeps staff on the sales floor, reduces stockouts, and allows for easy maintenance. Once merchandising planograms have been optimized they don’t need to be adjusted every time new stock arrives. Any product that doesn’t fit into existing facings goes overhead where it can be readily accessed when needed. No more forgotten products, missing bin labels or product on the floor. BMF’s overhead storage blinds allow for convenient access. Sections as long as 56’ can be raised or lowered with a single crank at the end of the aisle. These blinds also provide a great opportunity for branding the store and adding attractive imagery while hiding the often unattractive boxes behind. This system is especially attractive for hardware stores, building centres, pet stores, pool stores, paint stores and industrial/specialty wholesalers with fast moving products.

WIRE DECKING OVERHEAD STORAGE & GRAPHIC BANNERS GO HERE UPPER STEP BEAM

STANDARD PEGBOARD

STORFLEX CORE UNIT

BMF RACKING END FRAME

MELAMINE BASE SHELF

BASE STEP BEAM

6

BMF - BMF CORE

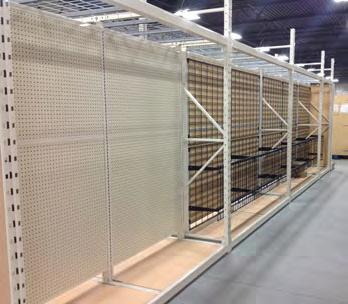

Core units can be mounted into the pallet rack in two ways. As Standard Cores which sit on the back beam or as Floating Cores which are supported by Front to Back beams that sit in the steps of the pallet rack beams.

STANDARD CORES These are used most often around the perimeter of the store. They can also be used in the middle of the store if back-to-back end frames are used. This is necessary for some categories such as lighting or those that required pallet rack beams on one side. Standard Cores require special base beams at the back with built in levelers to translate the weight on the centre post down to the floor. Special brackets are used to attach the vertical core unit posts to the upper and base back beams.

STANDARD CORE UNIT TOP CENTRE BRACKET

STANDARD CORE UNIT BACK BEAM SADDLE BRACKET

STANDARD CORE UNIT TOP END BRACKET

FCUBATC

FCUBABS

FCUBATE

FRONT TO BACK TOP END BRACKET

FRONT TO BACK TOP CENTRE BRACKET

FRONT TO BACK BOTTOM CONNECTOR BRACKET

FCUBFTBTE

FCUBFTBTC

FCUBFTBBC

Common heights for End Frames around the perimeter are 8, 9, 10, or 11’ depending on the desired amount of overstock space above the 7’ merchandising height.

Shelf Depth End Frame

16” 20”

20” 24”

22” 26”

FLOATING CORES These are used in the interior of the store and allow the use of a single wider end frame rather than narrow back-to-back end frames.

These create a very stable unit and simplifies levelling and speed of installation. Floating Cores require 6 Front-to-Back Beams as well as centre post support brackets to translate the weight of the core unit and merchandise to the floor. Special brackets are used to connect the vertical core unit posts to the Front-toBack Beams. Both sides of the same Core Unit are used for merchandising. The most popular height for this application is 9’ end frames with merchandising to 7’ and 2’ of overstock.

Shelf Depth End Frame

16” 36”

20” 44”

22” 48”

FRONT TO BACK CENTRE POST SUPPORT BRACKET

FCUBFTBCP

BMF CORE - BMF

7

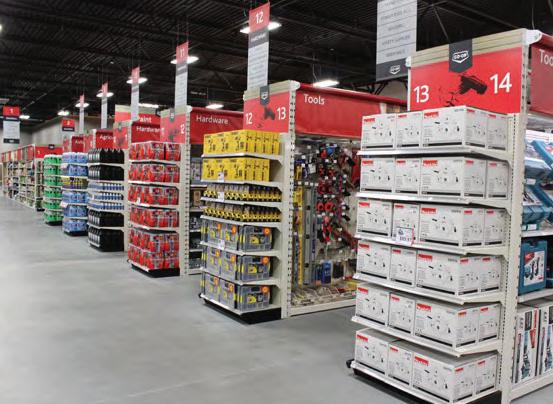

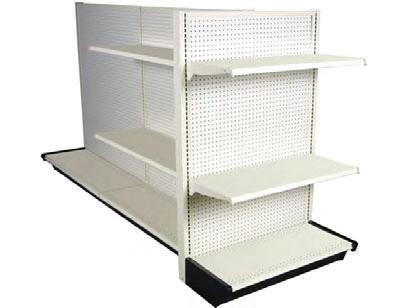

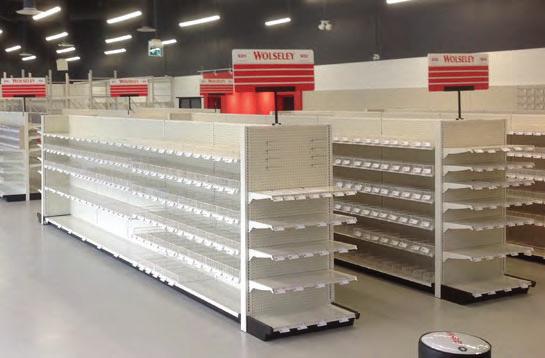

GONDOLA BMF has been the exclusive Canadian Distributor of Storflex Shelving since 2006.

Storflex manufactures its shelving in Corning NY which is a convenient 3 ½ hours away from our Burlington location. Designed originally for the Grocery industry Storflex Shelving is the strongest on the market. BMF has developed numerous merchandising accessories to adapt this shelving to several other retail sectors including building centres and hardware stores. Double sided units are used in the centre of the store while single sided units are used for walls and end caps. Posts are made in 6” increments from 48” up to 96”. Shelves can be supplied in 1” increments ranging from 8” up to 30”. BMF stocks the most common sizes in the popular Pearl colour shown here. This is convenient for customers who need to add shelving or other accessories which are stocked in the matching paint colour and normally available for next day shipment. Other colours are made to order. All Storflex gondolas comes with a sleek 5” base design.

2 POSITION SHELVES Rated for 600lbs

PEGBOARD STANDARD Slotwall available

UPRIGHT 40,000 inch pound rated

BASE SHELVES Rated for 1200lbs Stock Bases: 16”, 20” and 24” Other sizes are available

8

BMF - STORFLEX SHELVING

STORFLEX SHELVING - BMF

9

10

HARDWARE

HARDWARE BMF supplies a wide range of merchandising accessories colour matched to its standard pearl coloured racking and Storflex shelving and Core Units. We have designed merchandising solutions for most standard categories and are continually on the lookout for more opportunities to improve the overall merchandising presentation of the store. BMF has also designed many displays in joint cooperation with banners and vendors. This often includes installing display product in our facility before shipping to stores.

11

HARDWARE MERCHANDISING ACCESSORIES ENDLESS WIRE BASKET

48”W 16” . . . . . . . . . . . . . . . . . . FWEB1648 18” . . . . . . . . . . . . . . . . . . FWEB1848 20” . . . . . . . . . . . . . . . . . . FWEB2048

BASKET DIVIDERS

16” . . . . . . . . . . . . . . . . . . FWBD16 18” . . . . . . . . . . . . . . . . . . FWBD18 20” . . . . . . . . . . . . . . . . . . FWBD20

BASKET & WIRE SHELF BRACKETS

16” . . . . . . . . . . . . . . . . . . . FWBB16 18” . . . . . . . . . . . . . . . . . . . FWBB18 20” . . . . . . . . . . . . . . . . . . . FWBB20

ANGLED BASKET LABEL HOLDERS

2” . . . . . . . . . . . . . . . . . . . . . . . FWLH2.0 2.5” . . . . . . . . . . . . . . . . . . . . . FWLH2.5 3” . . . . . . . . . . . . . . . . . . . . . . . FWLH3

Multi-position bracket flat or angled installations

36”W 16” . . . . . . . . . . . . . . . . . . . FWEB1636

3”D x 48”W WIRE SHELF WITH FORWARD TILT FOR GRAVITY FACING

16” . . . . . . . . . . . . . . . . . . . FWSH1648 20” . . . . . . . . . . . . . . . . . . . FWSH2048

WIRE SHELF DIVIDER

16” . . . . . . . . . . . . . . . . . . . FWSHD16 20” . . . . . . . . . . . . . . . . . . . FWSHD20

3”H FRONT FENCE

36” . . . . . . . . . . . . . . . . . . FWF363 48” . . . . . . . . . . . . . . . . . . FWF483

Install flat or on forward angle for gravity facing

48”W STEEL SHELF WITH WELDED 2-POSITION BRACKETS

8” . . . . . . . . . . . . . . . . . . SFSHD14808 10” . . . . . . . . . . . . . . . . . SFSHD14810 12” . . . . . . . . . . . . . . . . . SFSHD14812 14” . . . . . . . . . . . . . . . . . SFSHD14814 16” . . . . . . . . . . . . . . . . . SFSHD14816 18” . . . . . . . . . . . . . . . . . SFSHD14818 20” . . . . . . . . . . . . . . . . . SFSHD14820 22” . . . . . . . . . . . . . . . . . SFSHD14822 24” . . . . . . . . . . . . . . . . . SFSHD14824 27” . . . . . . . . . . . . . . . . . SFSHD14827

12

36”W STEEL SHELF WITH WELDED 2-POSITION BRACKETS

12” . . . . . . . . . . . . . . . . . SFSHD13612 14” . . . . . . . . . . . . . . . . . SFSHD13614 16” . . . . . . . . . . . . . . . . . SFSHD13616 20” . . . . . . . . . . . . . . . . . SFSHD13620 22” . . . . . . . . . . . . . . . . . SFSHD13622 24” . . . . . . . . . . . . . . . . . SFSHD13624

48”W CAULKING SHELF

16” . . . . . . . . . . . . . . . . . FMBSHE4816 20” . . . . . . . . . . . . . . . . . FMBSHC4820

SHELF FENCE DIVIDERS

16” . . . . . . . . . . . . . . . . . . . FWFD163 18” . . . . . . . . . . . . . . . . . . . FWFD183 20” . . . . . . . . . . . . . . . . . . . FWFD203 22” . . . . . . . . . . . . . . . . . . . FWFD223 27” . . . . . . . . . . . . . . . . . . . FWFD273 4” . . . . . . . . . . . . . . . . . . . . FWFD043 48”W AEROSOL SHELF WITH FORWARD TILT FOR GRAVITY FACING

16” . . . . . . . . . . . . . . . . . FMBSHA4816 20” . . . . . . . . . . . . . . . . . FMBSHA4820

ANGLED BENCH TOOL SHELF

28”x48” . . . . . . . . . . . SFMTLC52848 Rubber Stopped with built in channels to secure tools.

Tilts at 15 degrees.

WIRE PAINT DIVIDER

16” . . . . . . . . . . . . . . . . . . . FWPCD16 20” . . . . . . . . . . . . . . . . . . . FWPCD20

CLEAR LABEL STRIPS

END CAP TOP SUPPORT

SNAP INTO SHELF. . FSCH30-0051 C CHANNEL

FMECTS

ADHESIVE BACKED . . . .FABB5548

ROLLED GOODS DISPENSING BASKET

CLOSET BAR

CLOSET ROD BRACKET

SAW BLADE FACEOUT BRACKETS

Basket for Bulk Screen, Bulk Decorative Chain, Bulk Small Tubing

FMBCLOSETBAR

FMBCRBR

FMBSBFOB

END CAP TO END FRAME CONNECTING BRACKETS

LONG LENGTH PRODUCT HOLDER

ANGLED SAW BLADE BRACKETS

Securely fasten end caps for added safety.

For Convenient End Frame Merchandising

FMBASBB

PAIR . . . . . . . . . . . . . . . . . . . . . FMCECMRP

Bottom Post Bracket - FMBLLPHBPB Top Post Bracket FMBLLPHTPB Top Post Bracket W/ Divider -FMBLLPHTPBD

48” . . . . . . . . . . . . . . . . . . . . . . . . FMCRGBD

MERCHANDISING ACCESSORIES - BMF

13

HARDWARE MERCHANDISING ACCESSORIES TWO PIECE HOOKS

LOOP HOOKS

ALL WIRE BALL END HOOKS

SLATWALL HOOKS

Stocked Sizes: 4”. . . . . . . FHKTPM04 6” . . . . . . . FHKTPM06 8”. . . . . . . FHKTPH08 11” . . . . . . FHKTPH11

Stocked Sizes: 4”. . . . . . FHKLM04 (Medium Duty) 6” . . . . . . FHKLM06 (Medium Duty) 8”. . . . . . FHKLM08 (Heavy Duty) 11” . . . . . FHKLM11 (Heavy Duty)

Stocked Sizes: 4”. . . . . . FHKBM04 (Medium Duty) 6” . . . . . . FHKBM06 (Medium Duty) 8”. . . . . . FHKBM08 (Heavy Duty) 11” . . . . . FHKBM11 (Heavy Duty)

Stocked Sizes: 4”. . . . . FHKSM04 (Medium Duty) 6” . . . . . FHKSM06 (Medium Duty) 8”. . . . . .FHKSH08 (Heavy Duty) 11” . . . . FHKSH11 (Heavy Duty)

ALL WIRE FLIP SCAN HOOKS

HEAVY DUTY UTILITY HOOK

SLOTWALL PICTURE BASKET

CROWBAR DISPLAY

Fits PegBoard or SlatGrid Panels.

SWPH-K

Stocked Sizes: 4”. . . . . . . FHKAH04 (Medium Duty) 6” . . . . . . . FHKAM06 (Medium Duty) 8”. . . . . . . FHKAH08 (Heavy Duty) 11” . . . . . . FHKAH11 (Heavy Duty)

FHKTHUDGT

FMBDCB

Flip Scan Label Holder

2” . . . . FFHKLH2.0 2.5”. . . FFHKLH2.5 3”. . . . .FFHKLH3.0

TOILET SEAT / HOSE DISPLAY

1/2” x 1.5” Cross bar . . FDCB48-CB 14.5” Cross bar divider. FDCB48-CBD 3 Cross bars and 9 dividers per 4’ section

14

BMF - MERCHANDISING ACCESSORIES

INVENTORY CONTROL CLIPS

FMCICC135

ICC30

SECURITY CROSS BAR FOR RETRACTABLE TETHERS

RETRACTABLE TETHERS FOR POWER TOOLS

FCBPTS-4802-K

FMBPTST48

GRINDER RACK

RECIPROCAL SAW RACK

CORDED DRILL RACK

CORDLESS DRILL RACK

Fits PegBoard or SlatGrid & Aluminum Slotwall.

Fits PegBoard or SlatGrid & Aluminum Slotwall.

Fits PegBoard or SlatGrid & Aluminum Slotwall.

Fits PegBoard or SlatGrid & Aluminum Slotwall.

FHKTHGR

FHKTHRSR

FHKTHCDR

FHKTHLDR

JIG / ROUTER / SANDER RACK

SLANTED HAMMER HOOK

CIRCULAR SAW BLADE DISPLAY

Fits PegBoard or SlatGrid & Aluminum Slotwall.

Fits PegBoard or SlatGrid & Aluminum Slotwall.

Heavy duty saw blade hook 1 1/2”.

FHKTHJ

HHS

Flipscan saw blade label holder

FHKTHSB FHKFSSBLH

CIRCULAR SAW RACK

TRIMMER HOOK

Fits PegBoard or SlatGrid & Aluminum Slotwall.

FHKTHTH-K

FHKTHCSR

AXE DISPLAY FACE OUT

FHKTHFOA12-K

SLEDGE DISPLAY FACE OUT

FHKTHFO512-K

MERCHANDISING ACCESSORIES - BMF

15

HARDWARE MERCHANDISING ACCESSORIES BULK WIRE MEASURER

VERTICAL DIVIDER BAR, REGULAR DUTY ARM & HEAVY DUTY ARM

Stocked Sizes: 48”x 2” Standoff . . . . . VDB402 48”x 4” Standoff. . . . . . VDB404 48”x 6” Standoff. . . . . . VDB406 48”x 10” Standoff . . . . .VDB410 48”x 14” Standoff . . . . .VDB414

Regular Duty 3 Position Arm. Made to fit vertical divider bars.

Heavy Duty 3 Position Arm. Made to fit vertical divider bars.

Stocked Sizes: 14”. . . . . . FDVAR14 18” . . . . . .FDVAR18

Stocked Sizes: 10”. . . . . . TVDA-10HD 12” . . . . . .TVDA-12HD 14” . . . . . .TVDA-14HD 18” . . . . . .TVDA-18HD

Available in black 48”x 10” Standoff. . . . . VDB410K 48”x 14” Standoff. . . . . VDB414K

SLOTWALL GRID PANEL, SQUARE GRID & GRID CLIPS

48”W x 36”H Hooks into core unit posts for long handled tools.

(2) Per 4’ section FMBGPBU4836

16

24”X 48” Square Grid

6 required for attaching 2x4 grid panel to cross bars.

FMBBRDIWM - IMPERIAL FMBBRMWM - METRIC FMBBRDRM - ROPE

GRID HOOK

COLLAPSIBLE REEL

Stocked Sizes: 6” Black . . . . . . . R64-6-224 8” Black . . . . . . . R64-8-224

99REEL

FGWGP2448K FMBCBGC

HOT KNIFE ROPE CUTTER

BULK WIRE / ROPE CART

BULK WIRE / ROPE DISPENSER

BULK WIRE / ROPE DISPENSER

FMBBRDHKRC

FMBBWDCART

FMBBWDRDR

FBWRDS-48

BMF - MERCHANDISING ACCESSORIES

SLIDING PEG PANEL

24”W x 68”H Available in 16” or 20” depth Double panels also available.

Each panel adds 50% product capacity to a 4’ section FMBSLPP16 FMBSLPP16D FMBSLPP20 FMBSLPP20D

SHOVEL, RAKES & OTHER LONG HANDLED TOOLS HOLDER

MOP AND BROOM HOOK

Fits PegBoard or SlatGrid Panels.

FHKMOPBROOM

S&THOLDER

HEAVY DUTY LOOP HOOK FOR D HANDLED TOOLS

HOE HOOK

Fits PegBoard or SlatGrid Panels.

Fits PegBoard or SlatGrid Panels.

FHKTHDLH

FHKHOEBRK

MERCHANDISING ACCESSORIES - BMF

17

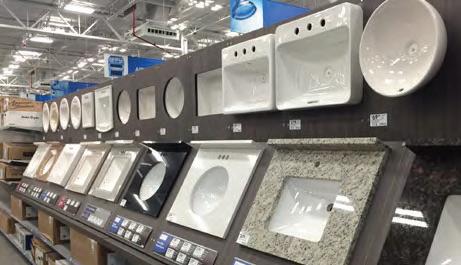

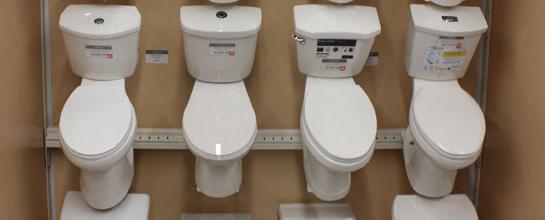

HARDWARE DISPLAY SYSTEMS PLUMBING DISPLAY Educate your customers on what to buy and how to install.

Educate your staff on what to sell and how it’s used.

ELECTRICAL DISPLAY

18

BMF - HARDWARE DISPLAY SYSTEMS

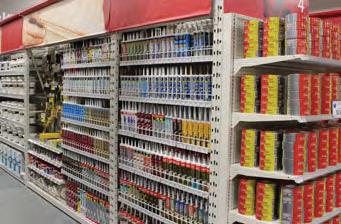

CAULKING DISPLAY

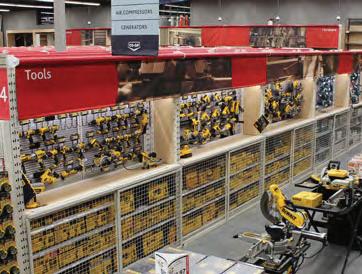

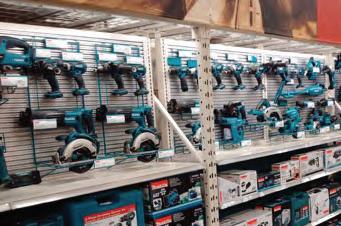

ALUMINUM SLOTWALL Create a compelling and durable backdrop for power tools and related products.

1” on centre slots combine vertical flexibility of pegboard with horizontal agility of slotwall.

HARDWARE DISPLAY SYSTEMS - BMF

19

HARDWARE DISPLAY SYSTEMS BENCH TOOL DISPLAY

TOOL LOCKUP CAGES For Pallet Racking System Slide or Swing door options available

20

BMF - HARDWARE DISPLAY SYSTEMS

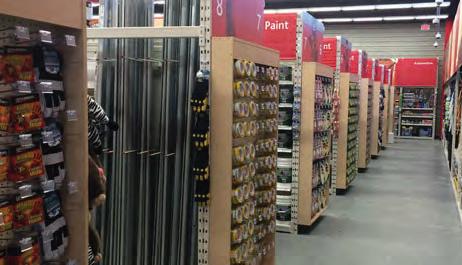

SHALLOW BACK ENDS Creates a finished look to end frames while adding valuable merchandising and display space. Unlike standard end caps these are best suited to permanent product sets and displays.

Made to order Standard Height 84” Standard Widths 36” & 48” But can be built to any width up to 96” Wide.

Standard is pegboard back with options for wood or aluminum slotwall

BULK NAIL BINS

FAN BELT DISPLAY

11”W x 16”D x 8”H . . FMCBINBN255 11”W x 18”D x 10”H . . FMCBINBN60 Rotabins for bulk nails and bolts Fits a lot of sku’s in limited space 44” For Nails FROTABIN5L-44 28” For Bolts FROTABIN6L-28 Bulk Nail Hanging Weigh Scale QSCALE

HARDWARE DISPLAY SYSTEMS - BMF

21

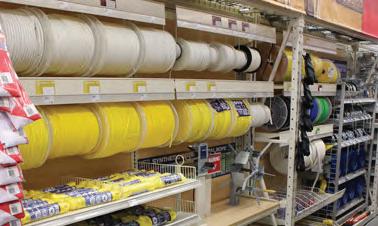

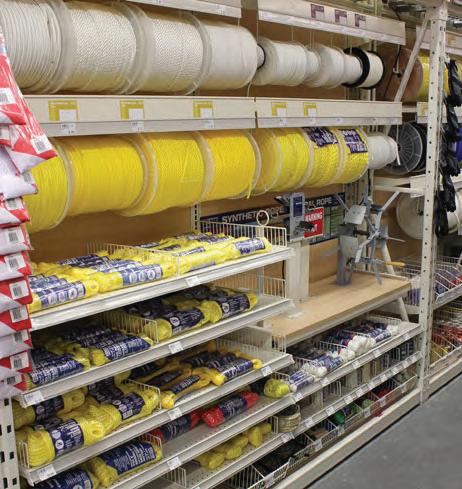

HARDWARE DISPLAY SYSTEMS ROPE DISPLAY

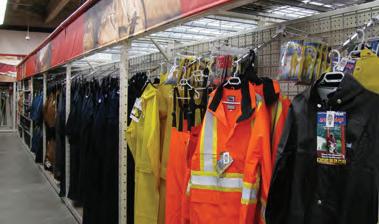

CLOTHING

22

BMF - HARDWARE DISPLAY SYSTEMS

LOCK DISPLAY

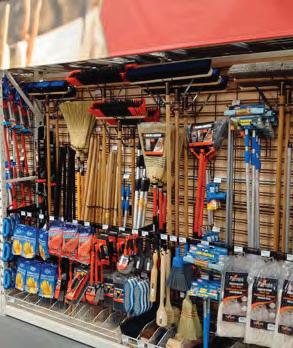

LONG HANDLED TOOL DISPLAY

BULK DISPLAY PLATFORMS Solid steel construction. 4 way pump truck access.

Stocked Sizes: 4’x 4’, 3’x 4’, 2’x 4’

HARDWARE DISPLAY SYSTEMS - BMF

23

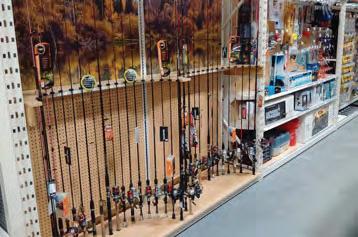

HARDWARE DISPLAY SYSTEMS FISHING ROD DISPLAY

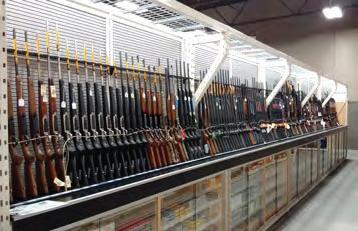

RIFLE DISPLAY

24

BMF - HARDWARE DISPLAY SYSTEMS

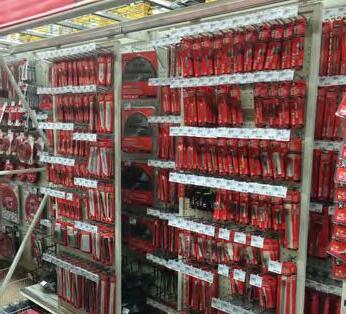

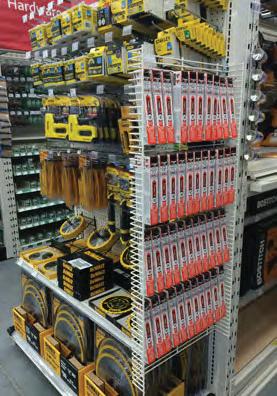

CLIP STRIPS

4 WAY DISPLAYER

Great for end frames as well as gondola posts STRIPROD12C

PROFIT PANELS 48”x 14” PP1448

END FRAME IMPULSE BASKET Great for building add-on sales such as WD40, spray foams and other aerosol products.

6”x 6”x 5”

HARDWARE DISPLAY SYSTEMS - BMF

25

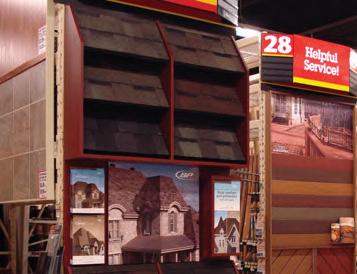

LBM 26

BMF - LBM

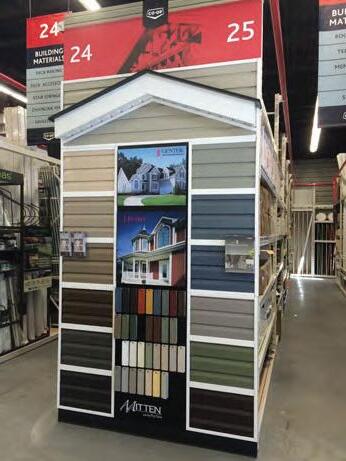

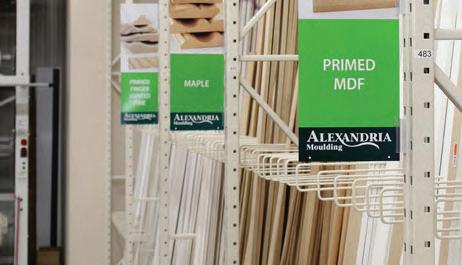

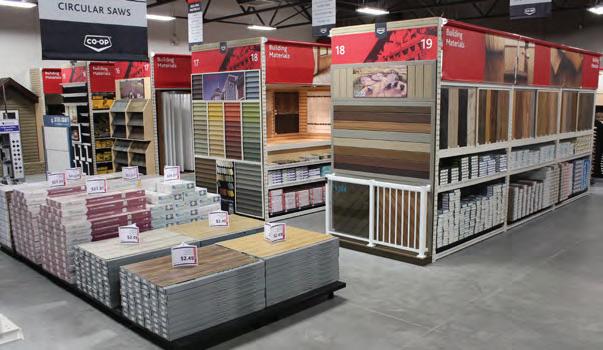

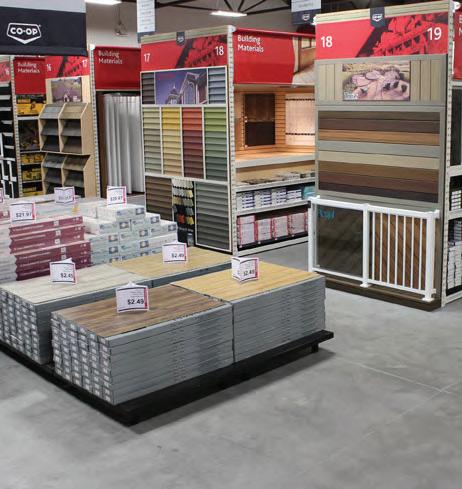

LBM BMF recognizes the importance of the LBM category to most of the clients we deal with. We believe strongly in the need to represent the entire business in the showroom rather than just focus on hardware. This is why we offer a full assortment of merchandising accessories for LBM products and ensure consistency with the overall quality and appearance of the hardware and décor parts of the store.

LBM - BMF

27

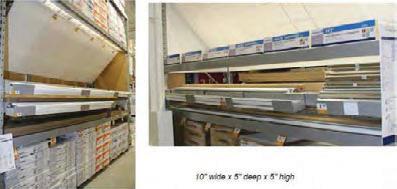

PALLET RACKING ACCESSORIES END FRAME

STEP BEAMS

Common Depths: 24”, 30”, 36”, 42”, 48” Min 12” & Max 72”

Most common sizes for in store 3” & 4”. For load levels on heavier products 4” should be used.

For warehouse applications 4” is most common with 5” & 6” appropriate for some applications.

Standard lengths are 98” and 50” in store and 102” or 108” in warehouse beams can be made to any length up to 18’ but load capacity drops sharply with longer lengths.

All beams include built in safety clips.

Common Heights: 8’, 9’, 10’, 11’, 12’ Min 36”, Max 288”

BAY DIVIDER POST

BASE BEAMS

FEF_ _ _ _

Splits standard pallet racking bay to facilitate merchandising of long and short products in the same bay. Posts are made to fit 12’ end frames and can be cut to any length to fit shorter heights.

FBSB_ _ _ _

Depth Height

Depth Height

Inches

Inches

Feet

Complete the above product code with your desired depth (inches) & height (feet).

Feet

UPPER BEAMS Depth Height

Height

Inches

Feet

Feet

POST PROTECTOR

ROW SPACER

Stocked Sizes: 3”. . . . . . . . . . ROWSP3 Made to Order: 6” . . . . . . . . . ROWSP6 8” . . . . . . . . ROWSP8 12”. . . . . . . ROWSP12

FBDP_ _

FUSB_ _ _ _

Warehouse or store protection when moving equipment.

WIRE DECKING

MOULDING DIVIDERS

1500 lb Capacity, 2”x 4” wire spacing

Used for merchandising long length material in pallet racking.

10” EBWD1048 (for 14 end frames) 16” EBWD1648 (for 14 end frames) 20” EBWD2048 (for 24 end frames) 26” EBWD2648 (for 30 end frames) 32” EBWD3248 (for 36 end frames) 38”EBWD3848 (for 42 end frames) 40” EBWD4048 (for 44 end frames) 44” EBWD4448 (for 48 end frames)

Stocked Sizes

4”x 20” 4”x 27” 4”x 30” 4”x 33”

FDU204 FDU274 FDU304 FDU334

Adds stability and ensures accurate spacing between back to back runs of pallet racking

F3596W

ANGLED U-DIVIDER

2” KICK BEAM

PUSH OUT BEAM

POP BEAM

45 degree angle for pallet rack. To hold product too deep for racking such as gates or utility pipe.

Step beam with 2” kickplate.

Standard lengths are 98” and 50” in store and 102” or 108” in warehouse. Beams can be made to any length up to 18’ but load capacity drops sharply with longer lengths.

Used to support push out beams used for creating A-Frame within pallet racking for mouldings and other long length products which are merchandised vertically.

Standard lengths 50", 98", 102" and 108".

Base beam with 10” angled pop plate.

Standard lengths are 50", 98", 102", 108".

45” for 36” Deep Racking 30” for 24” Deep Racking

FUD45A FUD30A

FBSB_ _ _ _ K

28

BMF - PALLET RACKING ACCESSORIES

FBSB _ _ _ _ POP FMRSB _ _

FORK ENTRY BARS

VERTICAL PANEL DIVIDER - FOR PALLET RACKING

HANDI PANEL DIVIDERS

For 42” & 48” End Frames.

Used to merchandise sheet goods vertically making it easier for customers to select and self serve while reducing damage and shrink.

42" W x 105" H

Combine with 2x6 crossers to create an attractive and functional presentation.

Divider designs prevents Handi panels from dropping between 2x6’s and avoids the confusing and messy look of using wood dividers.

FDWPF42099

42” W x 102” H

42” F3554 48” F3555

HPDF42102

TOOL HOLDER

TOILET SUPPORT BRACKET

Useful for Hoses, Ladders & Pipes

Requires 4” Beam.

M DIVIDER

BATTERY RACK

Stocked Sizes

20” FMBTH20 32” FMBTH32

FBRTS

Stocked size

24”D x 36” H

FDDM3236

Fits 24” Pallet Rack with back beam raised 3” higher than the front beam to create gravity feed.

Made to order

36”D x 72”H

EXTERIOR WALL SQUARES

FMBEXPO2424

FDDM3236

FPRSHB

ADJUSTABLE STANDUP PRODUCT DIVIDER FOR PALLET RACK

Comes With Plate 17” deep and is adjustable from 36” to 60” high.

FDA2236

PALLET RACKING ACCESSORIES - BMF

29

LBM DISPLAY SYSTEMS SPLIT BAY Great way to efficiently display long and short products in a single bay.

SAMPLE DISPLAY PAGES 22”x 48” with 12 pages SDP122248 22”x 48” single page SDP122248 Great for displaying flooring samples, ceiling tiles and siding.

Can be customized to fit.

30

BMF - LBM DISPLAY SYSTEMS

LBM FEATURE ENDS Show off your core building material categories, highlighting products you probably can’t stock in the store.

DOWEL DISPLAYS

LBM DISPLAY SYSTEMS - BMF

31

LBM DISPLAY SYSTEMS MOULDINGS Special pushout beams create an A’Frame inside the racking to keep mouldings straight and secure. POP beams create convenient surface for pricing, product I.D. and information.

VERTICAL DISPLAY UNITS Divider panels safely and conveniently support stand up products.

32

BMF - LBM DISPLAY SYSTEMS

BUILDING MATERIAL SELECTION CENTRES

WINDOW & DOOR DISPLAYS

LBM DISPLAY SYSTEMS - BMF

33

DECOR 34

BMF - DECOR

DECOR The Décor category continues to grow in importance in many home and building centres. This is driven by a strong housing market and countless TV shows inspiring consumers to invest in their homes. Our clients are competing with high end specialty shops and the value of these purchases means homeowners expect to shop in an attractive environment that reflects the investments they are making.

BMF has developed cladding systems and various types of displays that integrate perfectly with our racking and shelving systems. Because our millwork is made to order in our Burlington facility our clients can select the colours and materials of their choosing and rely on BMF’s design staff to make recommendations.

SIGNAGE SYSTEMS

BMF offers a complete signage décor program including graphic design, positioning, sizing, formatting, production and installation. Our unique blind system provides an excellent branding opportunity while covering unsightly overstock. Runs of up to 56’ can be conveniently raised or lowered with a single crank for easy staff access to overstock.

DECOR - BMF

35

DECOR DISPLAY SYSTEMS SUSPENDED CEILING TRACK DISPLAY

10” Wide x 5” Deep x 5” High

SUSPENDED LIGHT CLOUD

Made to order based on store’s size requirements

36

BMF - DECOR DISPLAY SYSTEMS

LIGHT WALL / CLOUD DISPLAY

V-Rack Display VRACK-2438 24”D x 38 5/8” x 27”H VRACK-3044 30”D x 44 5/8” x 36”H VRACK-3654 36”D x 53 5/8” x 42”H VRACK-4263 42”D x 62 3/8” x 54”H

Front Post Cap PC 3x3

Front Post 51 or 60” Depth 24”, 30”, 36”, 42” Height 108”, 120”, 132”, 144”, 168”, 192”

SINK / BASIN DISPLAY

DECOR DISPLAY SYSTEMS - BMF

37

DECOR DISPLAY SYSTEMS CERAMIC TILE DISPLAY

98” . . . . . . . . . . . EBCTDB098 102”. . . . . . . . . . . EBCTDB102 108”. . . . . . . . . . . EBCTDB108 Slotwall Backdrop . . MCTD

MOSAIC TILE DISPLAY 98” . . . . . . . . . . . MTD98 102”. . . . . . . . . . . MTD102 108”. . . . . . . . . . . MTD108

38

BMF - DECOR DISPLAY SYSTEMS

TOILETS

HARDWOOD / LAMINATE FLOORING

DECOR DISPLAY SYSTEMS - BMF

39

DECOR DISPLAY SYSTEMS BATH CLADDING

BATH DISPLAYS

40

BMF - DECOR DISPLAY SYSTEMS

BASIN/SINK DISPLAYS

VANITY DISPLAYS

DECOR DISPLAY SYSTEMS - BMF

41

SERVICE AREAS 42

BMF - SERVICE AREAS

SERVICE AREAS Service is often the differentiating factor that sets one retailer apart from the next. Service means many things but in the end the objective is to make it easy for customers to find help when they need it. A properly designed service area is both visible and functional.

It needs to be attractive and support the overall imagery of the store. Service counters need to be durable and hold up under everyday traffic. They need to provide storage of supplies and reference materials and promote efficient flow of customer traffic and products while also being comfortable for staff. The in aisle work station keeps employees out on the floor yet doesn’t create the impression that it should be staffed at all times.

SERVICE AREAS - BMF

43

Recognized as one of Canada’s fastest growing companies

by Canadian Business Magazine for six consecutive years

INNOVATIVE MERCHANDISING SOLUTIONS 3100 Harvester Rd., Burlington, Ontario Canada P: 905 332 6652 | F: 905 332 5821

www.bmfonline.com
