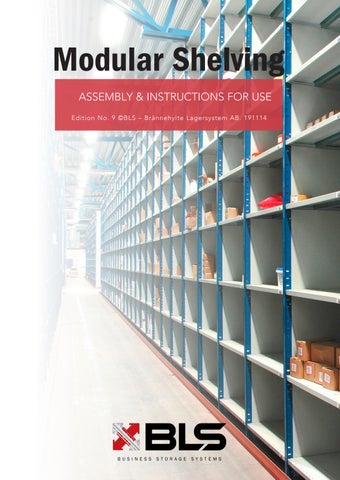

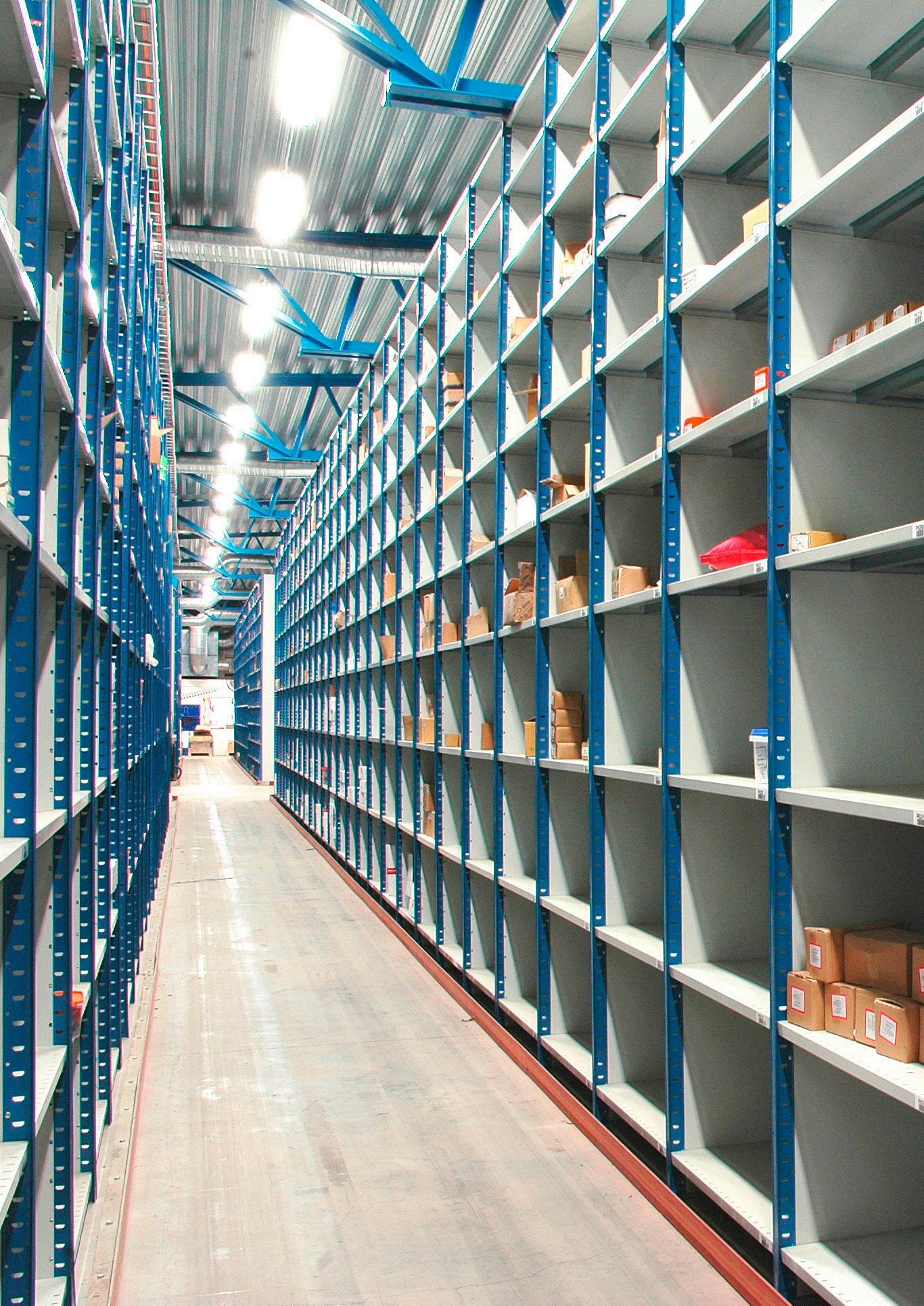

Modular Shelving ASSEMBLY & INSTRUCTIONS FOR USE Edition No. 9 ©BLS – Brännehylte Lagersystem AB. 191114

TABLE OF CONTENTS ABOUT THE INSTRUCTIONS

P. 2

CONTROL & MAINTENANCE

P. 3

BEFORE YOU START ASSEMBLING

P. 4

ASSEMBLY INSTRUCTIONS STARTER BAY

P. 5-7

ASSEMBLY INSTRUCTIONS Extension BAY

P. 8

ASSEMBLY INSTRUCTIONS Drawers

P. 9-10

ASSEMBLY INSTRUCTIONS Door SECTION

P. 11-13

ABOUT THE INSTRUCTIONS Read through the entire manual before beginning the assembly work.

Follow the instructions in the directions for optimal assembly.

The purpose of the assembly instructions is to facilitate correct installation and to inform about applicable regulations. Remember that the instructions are for your safety and the safety of others.

The directions apply to the assembly of frames with heights of 2100 mm and 2500 mm.

This symbol is used to warn/indicate something of importance.

CONTACT US When uncertain or for further information, please contact Brännehylte Lagersystem: Telephone

+46 370- 30 50 00

E-mail

info@blsab.se

Webbsite

www.blsab.se

Postal address

P.O 12, SE-335 04 Hillerstorp

Visiting address Brännehylte Lagersystem AB High Chaparral 33596 Kulltorp

2

This symbol calls attention to or will remind you of something.

CONTROL & MAINTENANCE

OUT-OF- PLUMB The out-of- plumb must not exceed X= H/350

X

ASSEMBLY & CONTROL

Control of the assembly must be performed before using the modular shelving to assure that the instructions for assembly have been followed.

REARRANGEMENT

When rearranging or moving the installation - contact Brännehylte Lagersystem.

DAILY CONTROL

The modular shelving must be checked daily, so that no load-bearing parts that affect the load capacity of the modular shelving are damaged. Damaged load-bearing parts must be exchanged immediately.

X

PERIODIC CONTROL

According to law, the modular shelving must be checked at least once a year so that it is in accordance with the assembly instructions.

LOAD SIGN

Each installation must be equipped with a visibly placed load sign. Supplied load tag shall be attached on each shelf.

ANCHORING The rack must be anchored to the floor if the height/depth relationship exceeds 5:1.

3

BEFORE YOU START RECOMMENDED TOOLS

Ph 2 bits

T 20 bits

RTK 4,8M6

10 mm 6,5 mm art 111306-4-10

art 763510-56

T 25 bits

RTK 4.8 RTK 4,8 4.8 RTK 4,8 RTK 6,5 mm 16 mm mm art6,5 763510-56

16763510-58 mm art

art 763510-58 art 763510-56

6 mm

10 mm

M6 RTK 4,8Shelf nut 16 mmhook art 111306-5-0-7

art 763518 art 763510-58

Multimonti

7.5 x 40 art 111009-3 N.B. Not included!

M6

16 mm art 111306-4-16

RTK 4.8

M6

art 763492-4

M6

M4

6,5 mm 16 mm art 763510-56 art 111306-4-16

RTK 4,8 RTK 4,8 artHinge 763510-52 6,5 mm

4

Washer

nut art 111306-5-0-7

6,5 mm

nut art 111304-5-0-7

M4 RTK 4,8 RTK 4,8

Lock plate 45 mm art 763510-53 mm 6,5 mm 6,5 art 111304-9-45-7

Locking unit art 763510-57

RTK 4,8 Sleeve art 763494 6,5 mm

RTK 4,8 6,5 mm

ASSEMBLY INSTRUCTIONS STARTER BAY 1 WITH BRACE

RTK

RTK 4,8

RTK 4,8

6,5 mm

6,5 mm art 763510-56

16 mm art 763510-58

Note that the holes in the uprights must be aligned before beginning the assembly of the bracket.

1 WITH Side panel The side panels are divided into two sections. Side panels with a height of 2100 mm are divided into one short and one long section.

RTK

RTK 4,8 6,5 mm RTK 4,8 6,5 mm

6,5 mm art 763510-56

RTK 4,8 RTK 4,8 16 mm

6,5 mm art 763510-58

RTK 4

6,5 m

Mount the panels with bolts facing towards the side panels and the nuts facing towards the frames.

RTK 4,8

RTK 4,8

5

RTK 4

2

M6

10 mm

M6

nut

Make sure that the correct hole meets the upright when the beveled edges are lowered towards the footplate.

3 WITH BRACE/BACK CROSS

RTK 4,8

6,5 mm art 763510-56

3 WITH SIDE PANEL/BACK PANEL

RTKRTK4,8

1616 mm mm art 763510-58

RTK

RTK 4,8 6,5 mm

6,5 mm art 763510-56 Assemble the back brace on the inside of the upright for the best fit!

6

RTK 4,8

16 mm art 763510-58

4

Place the upper and lowest shelves first before adding the other shelves to increase stability.

5

6

Multimonti

7,5x40 mm

If necessary, anchor the rack with a Multi-monti at each footplate.

Do not anchor the rack to the wall.

7

ASSEMBLY INSTRUCTIONS EXTENSION BAY

Starter bay + 1 extension bay

Starter bay + 2 extension bays

Starter bay + 3 extension bays

For assembly of maximum section loads exceeding 1,500 kg - please contact Brännehylte Lagersystem, for a correct brace diagram!

Fasteners for the assembly of double racks with back panel are not included.

Contact BLS when assembling a double rack!

8

RTK 4,8

6,5 mm art 763510-56

RTK RTK 4,8 16 mm

16 mm art 763510-58

ASSEMBLY INSTRUCTIONS DRAWERS 1

Bricka

Attach brackets for drawers at each frame.

M6

M6

nut

10 mm

2 B

A

B

Mount the telescope slide to the bracket by pressing it into the inner hook/hole and pressing down the outer.

9

3

A

Assemble the box in the telescope rail by pushing into the inner hook/hole (A) and pressing down the outer (B).

B

Racks with drawers must always be anchored to the floor!

10

ASSEMBLY INSTRUCTIONS DOOR SECTION 1

Door runner Upper art 763510-50

M4

45 mm

Do not tighten bolts immediately!

Center first and then tighten the bolts!

Attach the lower door runner after assembling the upper door runner.

M4 nut

RTK

RTK 4,8 6,5 mm

6,5 mm art 763510-56

RTK 4,8

16 mm art 763510-58

Door runner Lower art 763510-51

11

2

Attach the upper and lower sleeves to both doors.

Note that 2 sleeves must also be mounted on the lock door of the panel.

Sleeve

RTK 4,8 6,5 mm

3

Hinge

Lock plate

Assemble hinge, lock plate and self-drilling screw at the sleeve at the bottom of one of the doors.

12

4

A

Attach the door at the bottom!

B

Place the upper part of the door by the upper door runner. Assemble hinge, lock plate and self-drilling screw, (as in step 3). Attach the door at the bottom!

Repeat steps 3-4 to assemble the second door.

5

6

Press the locking unit in until it clicks!

13
