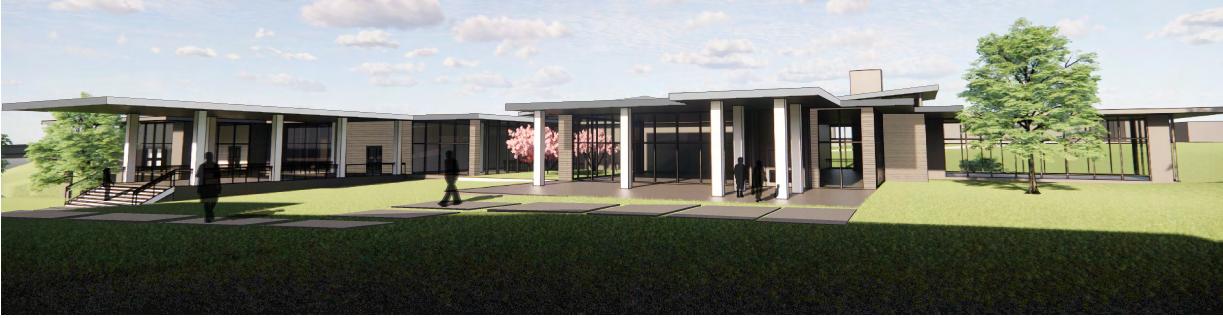

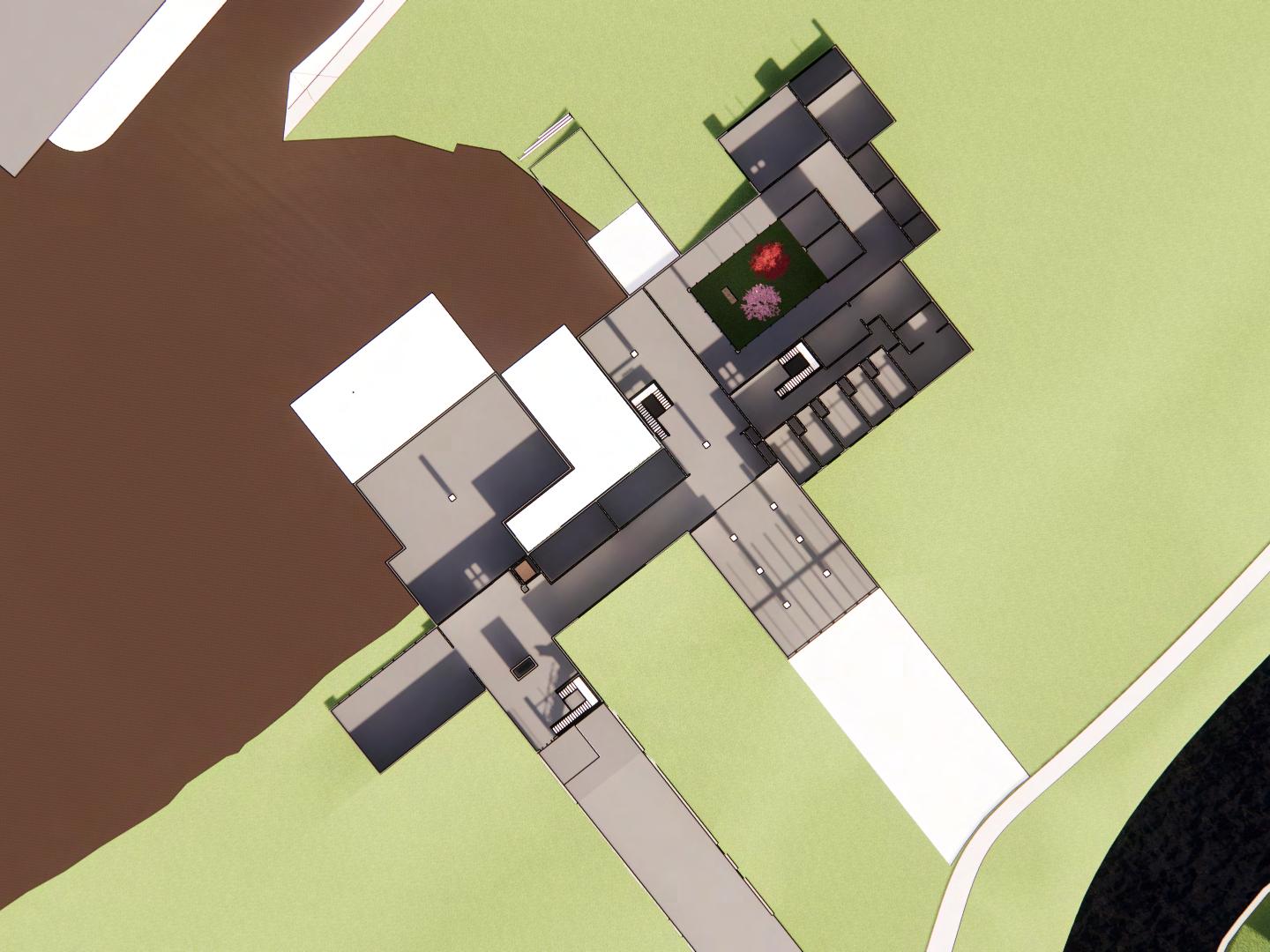

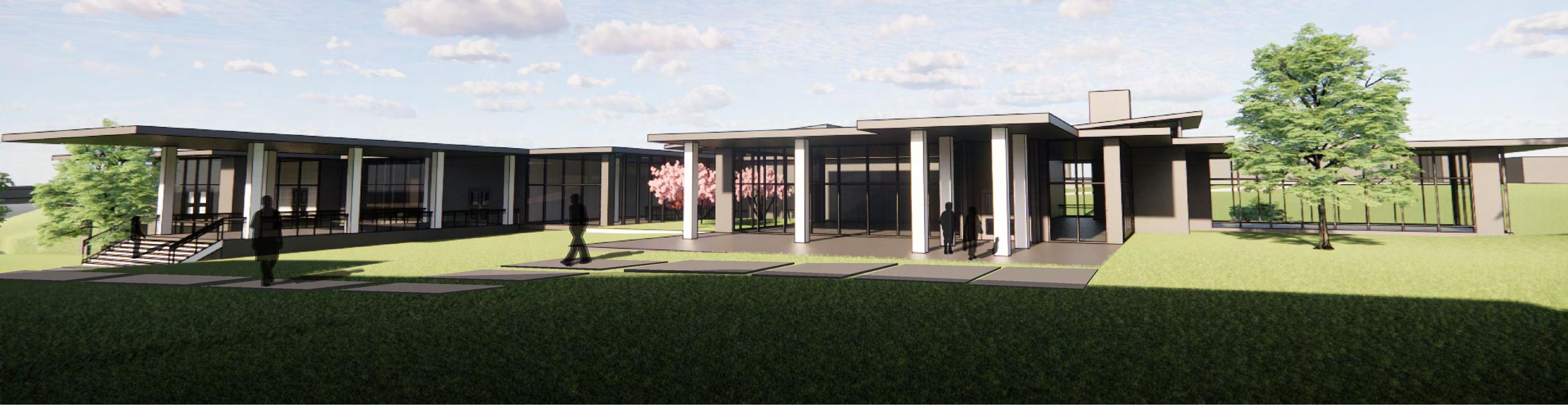

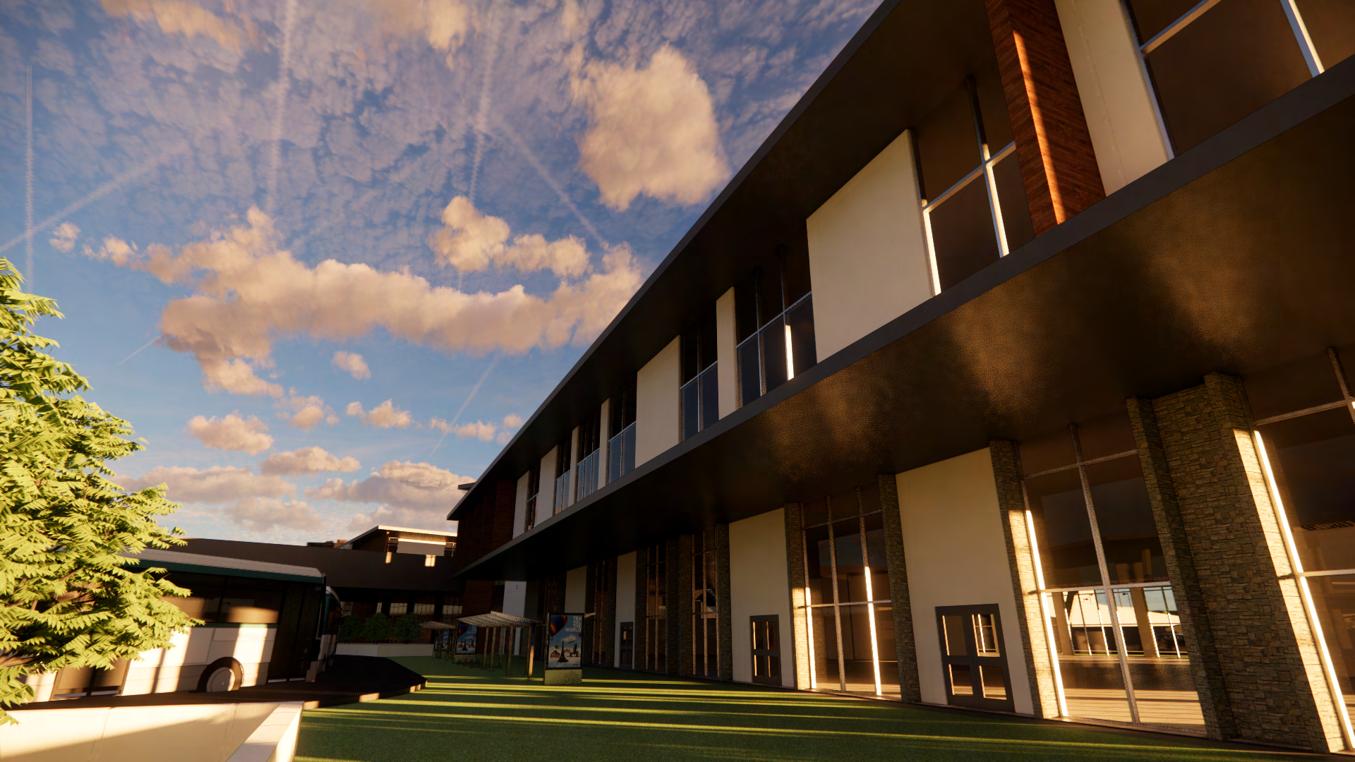

Located in Scranton, PA on the banks of the Lackawanna River, this project’s intent was to serve as both a funeral home and

shelter to mitigate the increase in the presense of homeless people near

river bank.

funeral

creates

spiritual

through

proximity

and view

the southern-facing chapel.

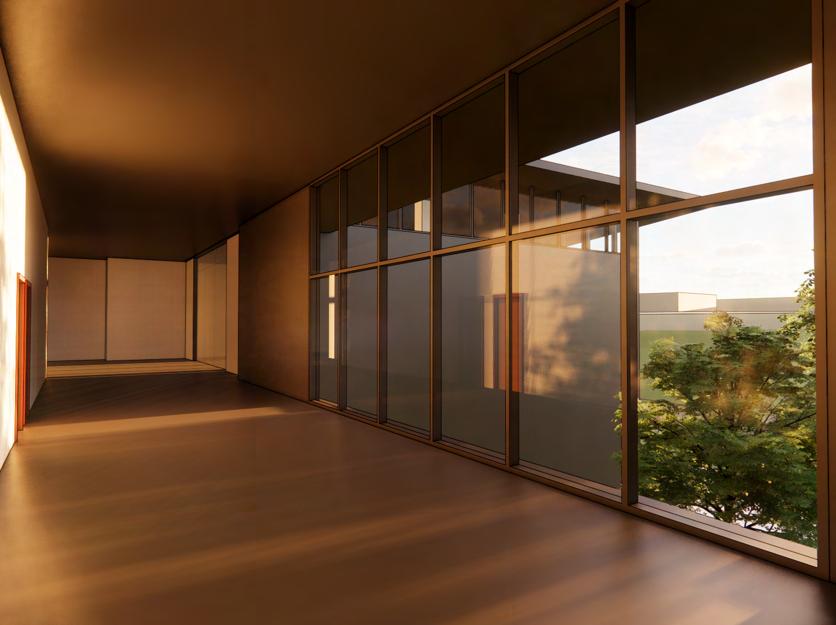

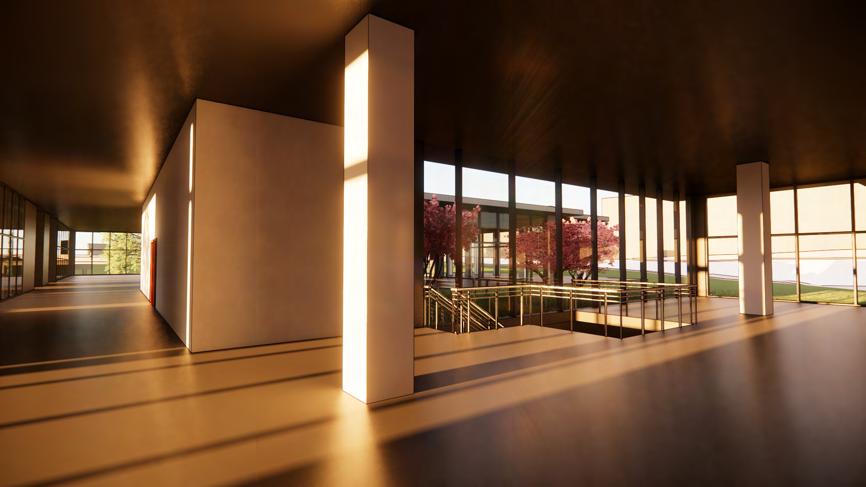

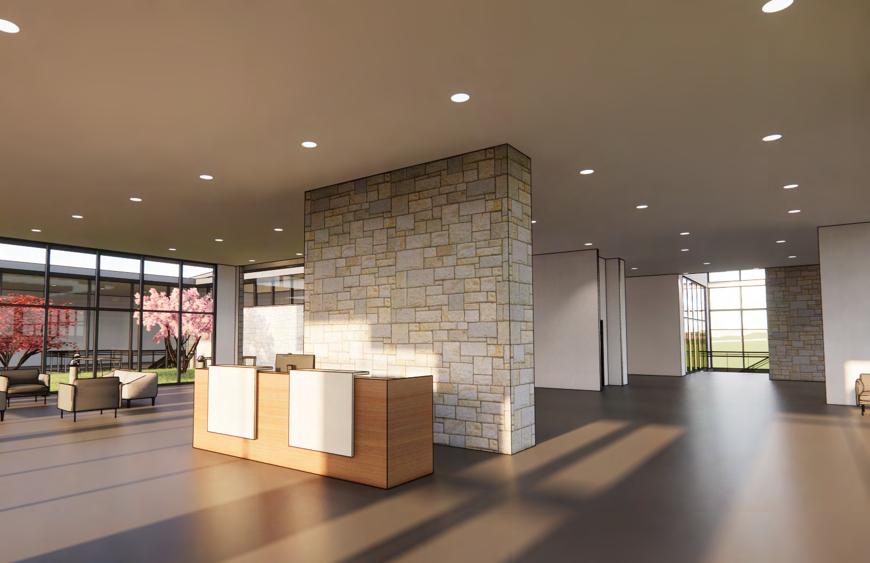

ENTRY HALL FOR FUNERAL HOME

LOCATED ON THE NORTHWEST CORNER OF THE BUILDING. THE ENTRACE FOR THE HOMLESS SHELTER AND REHABILITATION FACILITIES ARE LOCATED ADJACENT TO THE FUNERAL HOME, SITUATED IN THE NORTH FACING SECTION OF THE BUILDING.

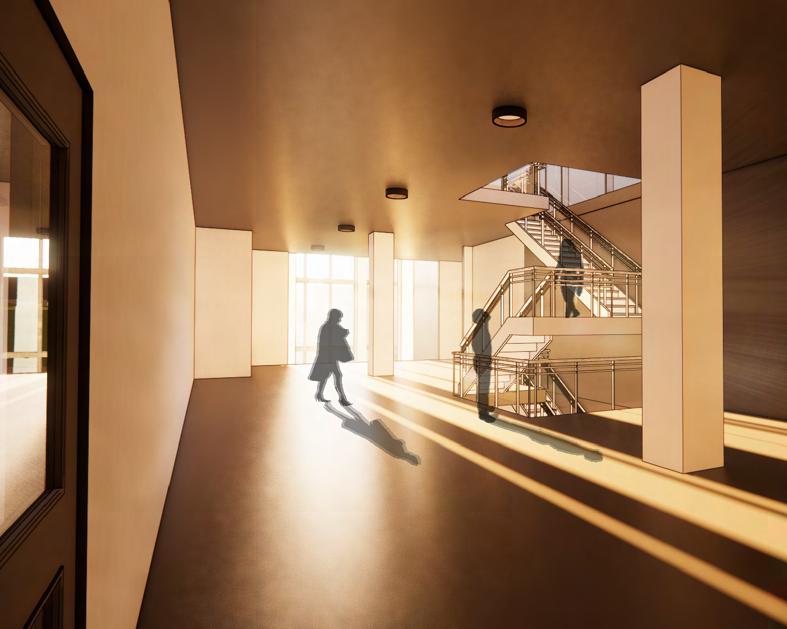

MAIN FORMS OF VERTICAL CIRCULATION INCLUDE STAIRCASE IN SOUTHERN CORNER, CENTRAL STAIRCASE FLANKING SHELTER ENTRACE, AND STAIRCASE SITUATED IN SHELTER HOUSING AREA. ELEVATOR IS LOCATED DIRECTLY OUTSIDE OF THE LOBBY/RECEPTION

1. 3. 5. 2. 4. 6. 4. 10. 5. 7. 9. 8. 11. 12. 1. 2. 3. 4. 5. Entry Hall Elevator Sitting Area Stair Shaft Bathrooms

DN DN

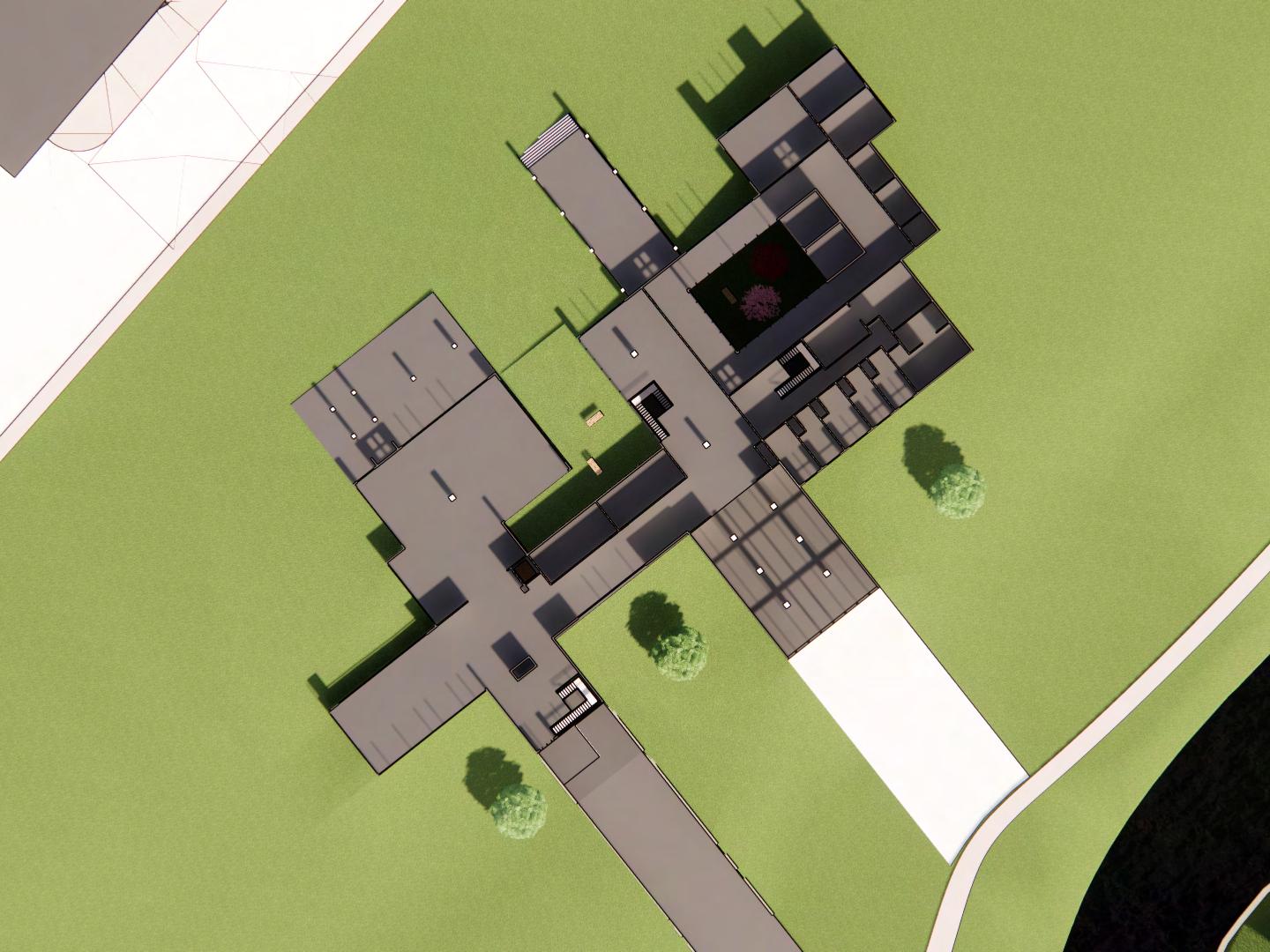

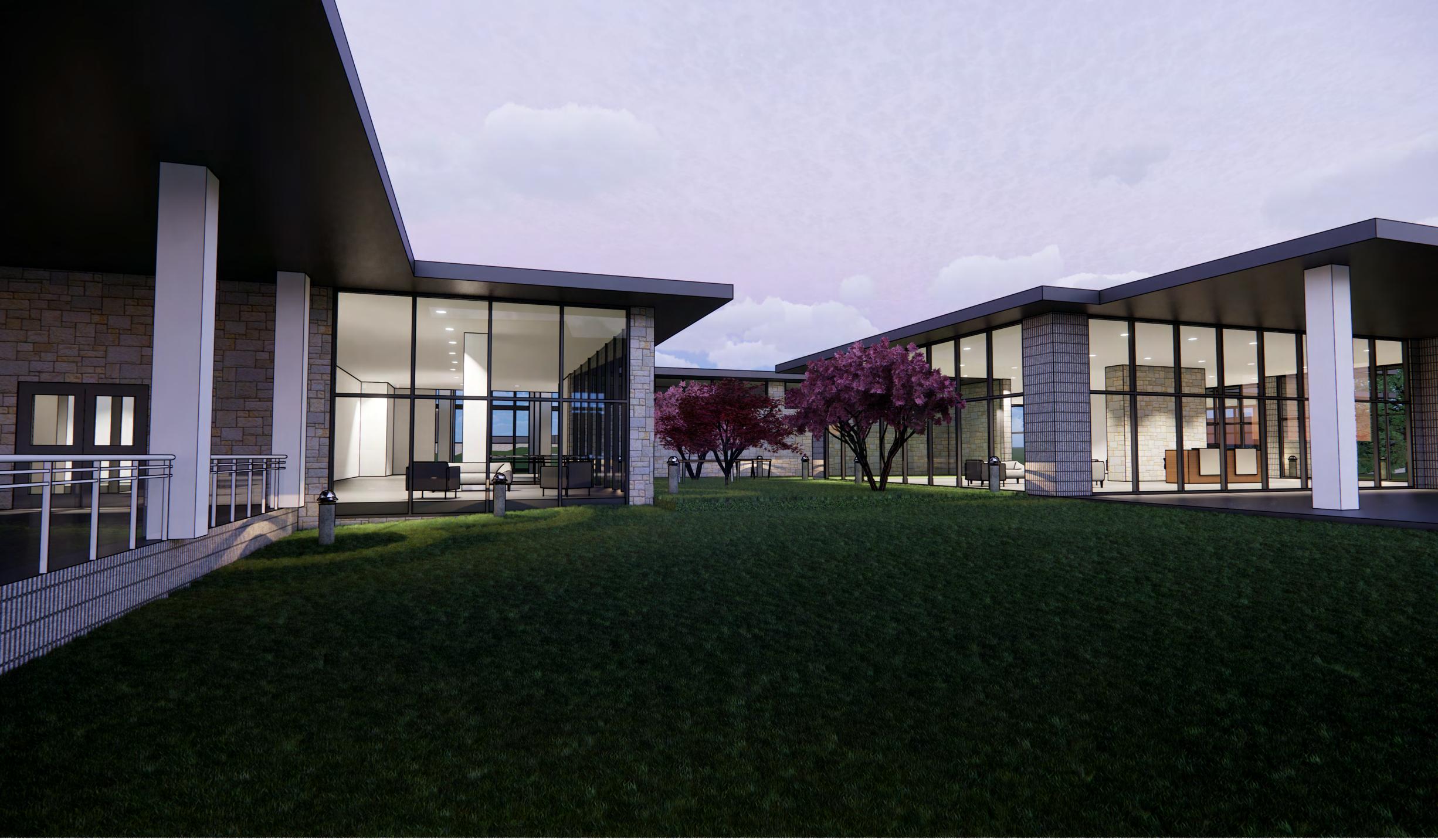

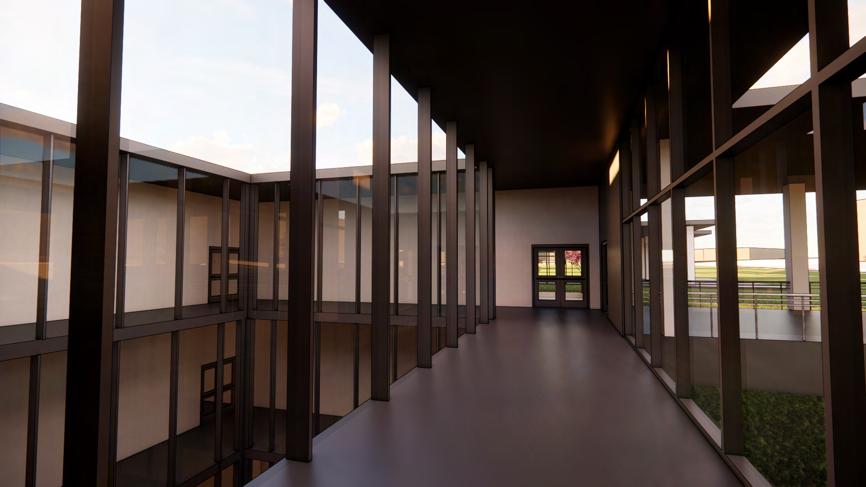

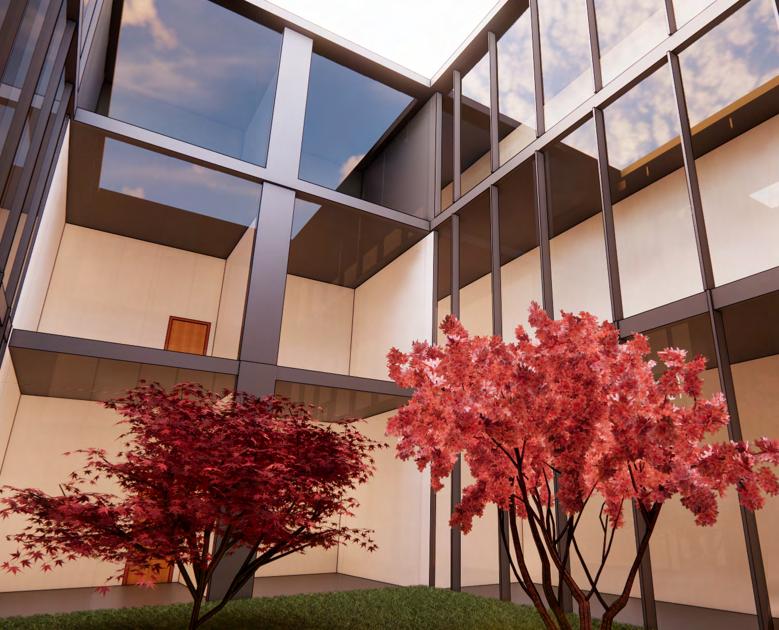

SECOND LEVEL IS DEDICATED TO MAINLY HOMELESS SHELTER/REHAB PROGRAM ELEMENTS. INHABITANTS ARE GRANTED ACCESS TO AMENTITIES WITHIN COURTYARD AREA AND PROGRAMS FLANKING THE COURTYARD ON THE NORTHEASTERN CORNER. PROGRAM INCLUDES DINING HALL, MEDICAL FACILITIES, AND COUNSELING/ ADMINISTRATIVE OFFICES.

HOUSING QUARTERS FOR SHELTER FEATURE 2/1 PERSON BEDROOMS AND CAN HOUSE UP TO 30 PEOPLE AT ONE TIME.

TWO BATHROOM/ SHOWER AREAS ARE LOCATED AT THE EASTERN CORNER OF THE BUILDING ON ALL THREE LEVELS OF SHELTER HOUSING. ONE CENTRAL STAIRCASE IN LIVING AREA GIVES ACCESS TO ALL FLOORS OF HOUSING AND TWO FLOORS OF SHELTER AREA.

14.

3. 5. 2. 4. 6. 4. 10. 5. 7. 9. 8. 13.

1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Entry Hall Elevator Sitting Area Stair Shaft Bathrooms Chapel Homeless Shelter Stair Shaft Homeless Shelter Bedrooms Homeless Shelter Bathrooms Offices Homeless Hygenic Facilities Homeless Shelter Entrance Homeless Shelter Cafeteria 14. Gathering Area

12. DN DN DN

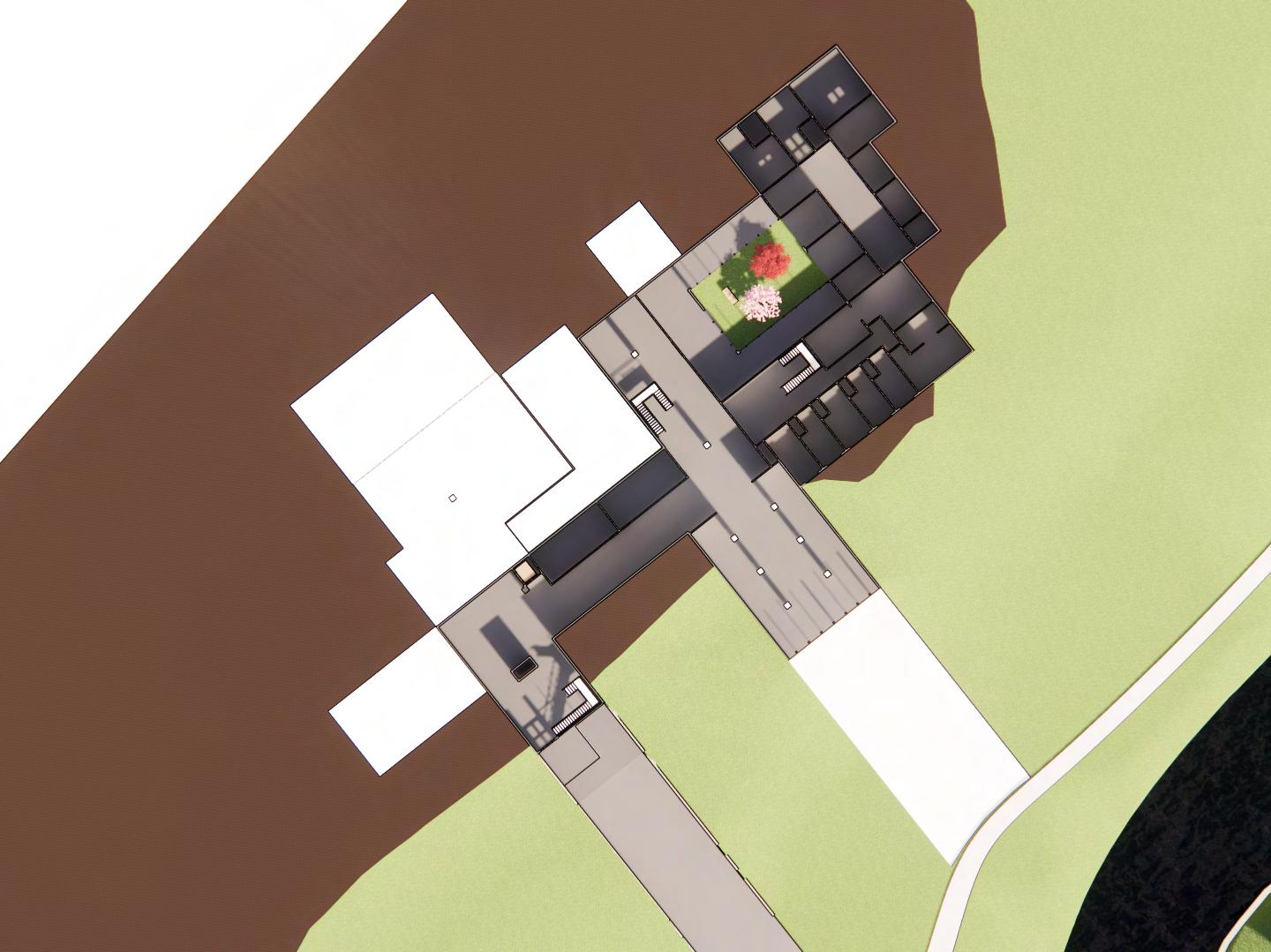

THE BOTTOM LEVEL FEATURES PROGRAM ELEMENTS FOR THE FUNERAL HOME INCLUDING MORTITIAN/BURIAL PREPARATION AREAS, ADMIN. OFFICES, DIRECTOR OFFICES, AND GATHERING AREAS. THE LOWEST LEVEL ALSO IS WHERE THE ENTRANCE TO THE SOUTHEAST FACING CHAPEL LOCATED IN THE REAR OF THE BUILDING.

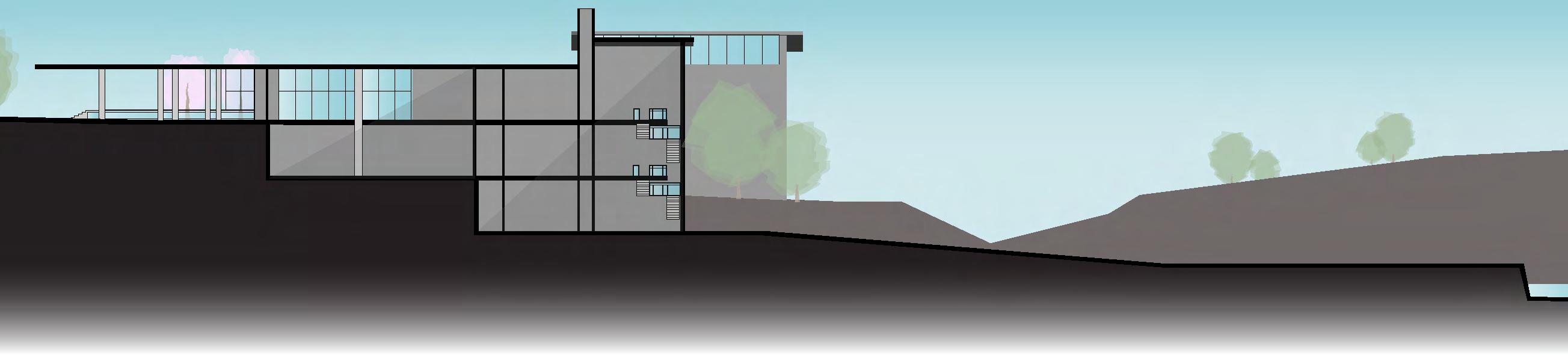

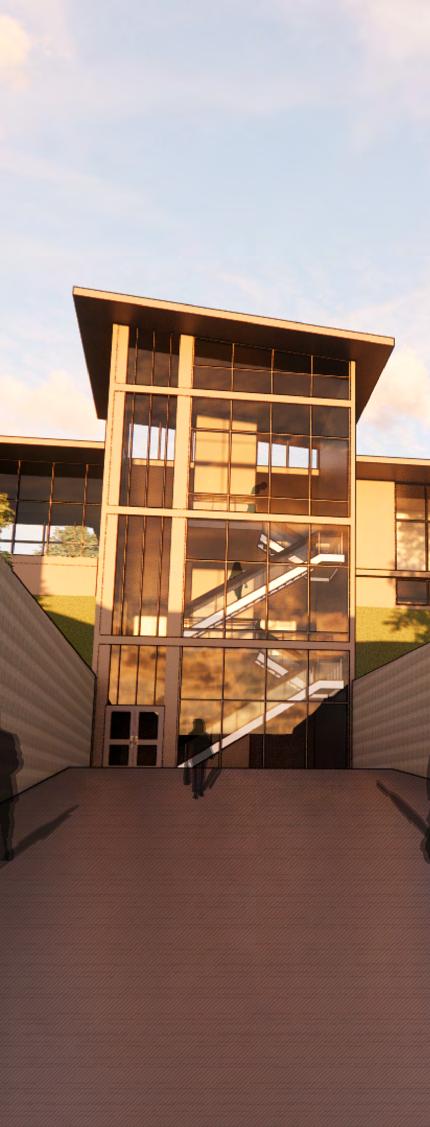

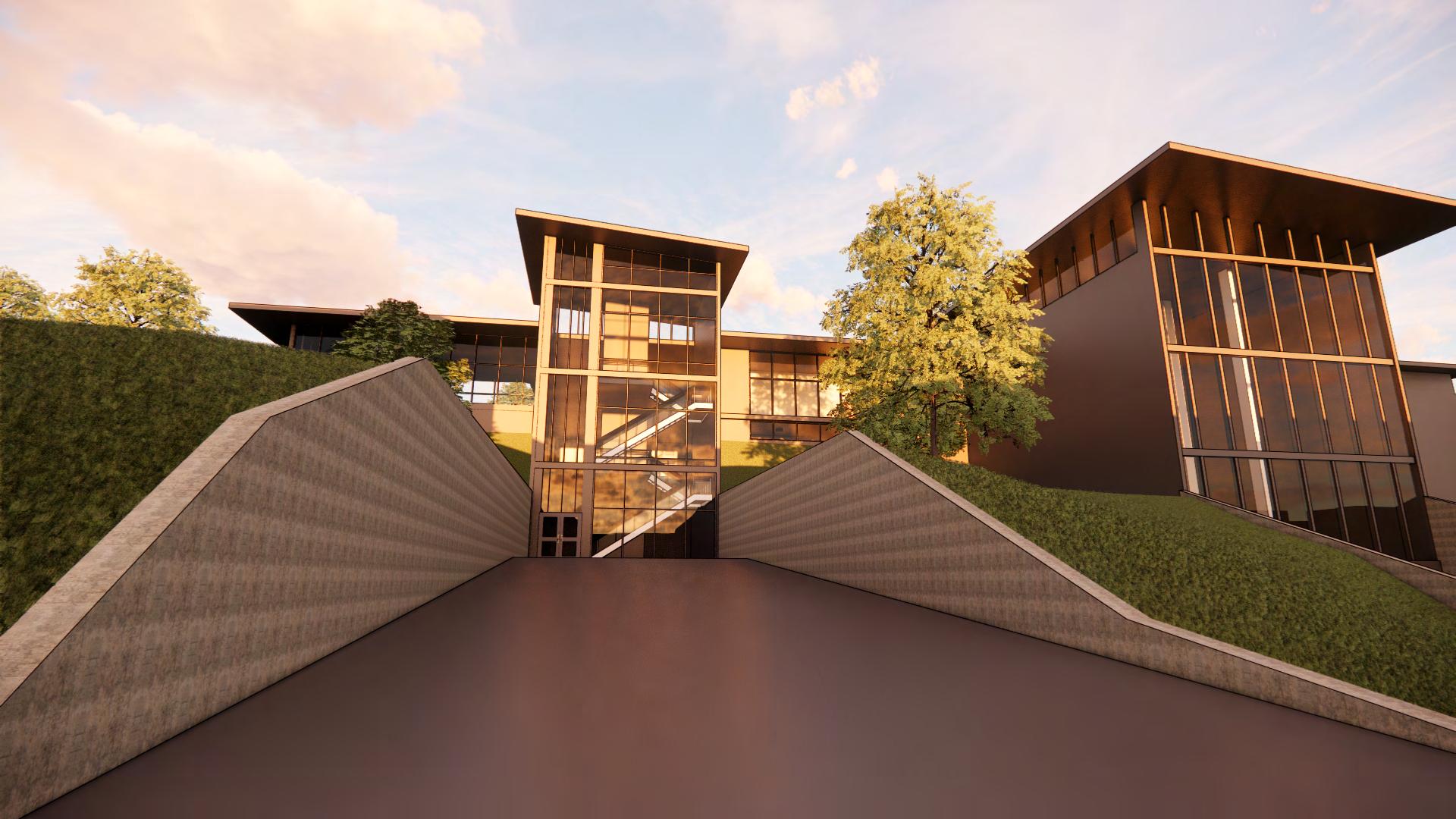

THIS LEVEL OF THE BUILDING IS WHERE THE REAR EXIT/ ENTRANCE TO THE BUILDING IS LOCATED. SITUATED IN THE SOUTHERN STAIRWELL SHAFT, IT GIVES VISITORS ACCESS TO THE REAR PATHWAY CARVED THROUGH THE HILL IN WHICH THE BUILDING IS EMBEDDED INTO. THIS PATHWAY TAKES VISITORS OUT ONTO THE WALKING TRAIL ALONG THE LACKAWANNA RIVER.

15.

5. 2. 4. 6. 4. 10. 5.

7. 9. 8. 18.

16.

17. Mortuary/Body Storage 18. Operating Rooms

17.

UP UP UP

Fifth Year Capstone 2022-2023

FILTER FABRIC STONE GRAVEL PAD 3" PIPE 4" PERFORATED DRAIN PIPE CONC. FOOTING STONE GRAVEL PAD 3" PIPE 4" PERFORATED DRAIN PIPE CONC. FLOOR PAD CAPILLARY BREAK METAL FORM DECKING FINISHED FLOORING MULLION CURTAIN WALL SYSTEM DOUBLE GLAZED GLASS PANEL 5X11 GLULAM TIMBER FLOOR JOIST ANCHOR BOLTS (2)2X4 BLOCKING WOOD SUBFLOORING FOAM INSULATION LAYER 2" CONC. FIN. FLOOR MULLION CURTAIN WALL SYSTEM DOUBLE GLAZED GLASS PANEL 5X11 GLULAM TIMBER FLOOR JOIST ANCHOR BOLTS (2)2X4 BLOCKING WOOD SUBFLOORING FOAM INSULATION LAYER 2" CONC. FIN. FLOOR 5X11 GLULAM TIMBER FLOOR JOIST (2)2X4 BLOCKING (2)2X4 BLOCKING MIN. WOOL INSULATION R-13 INTERIOR DRYWALL FIN. WOOD PANEL EXT. CLADDING W 11X15 STEEL BEAM FIN. CON. PADDING WEBBED TRUSS W 11X15 2X4 BLOCKING METAL FLASHING ROOFING EXT. LAYER 2X4 BLOCKING MIN. WOOL R-13 INSULATION CLG. PANEL DRYWALL INT. FINISH 1:

Fourth Year Semester 1

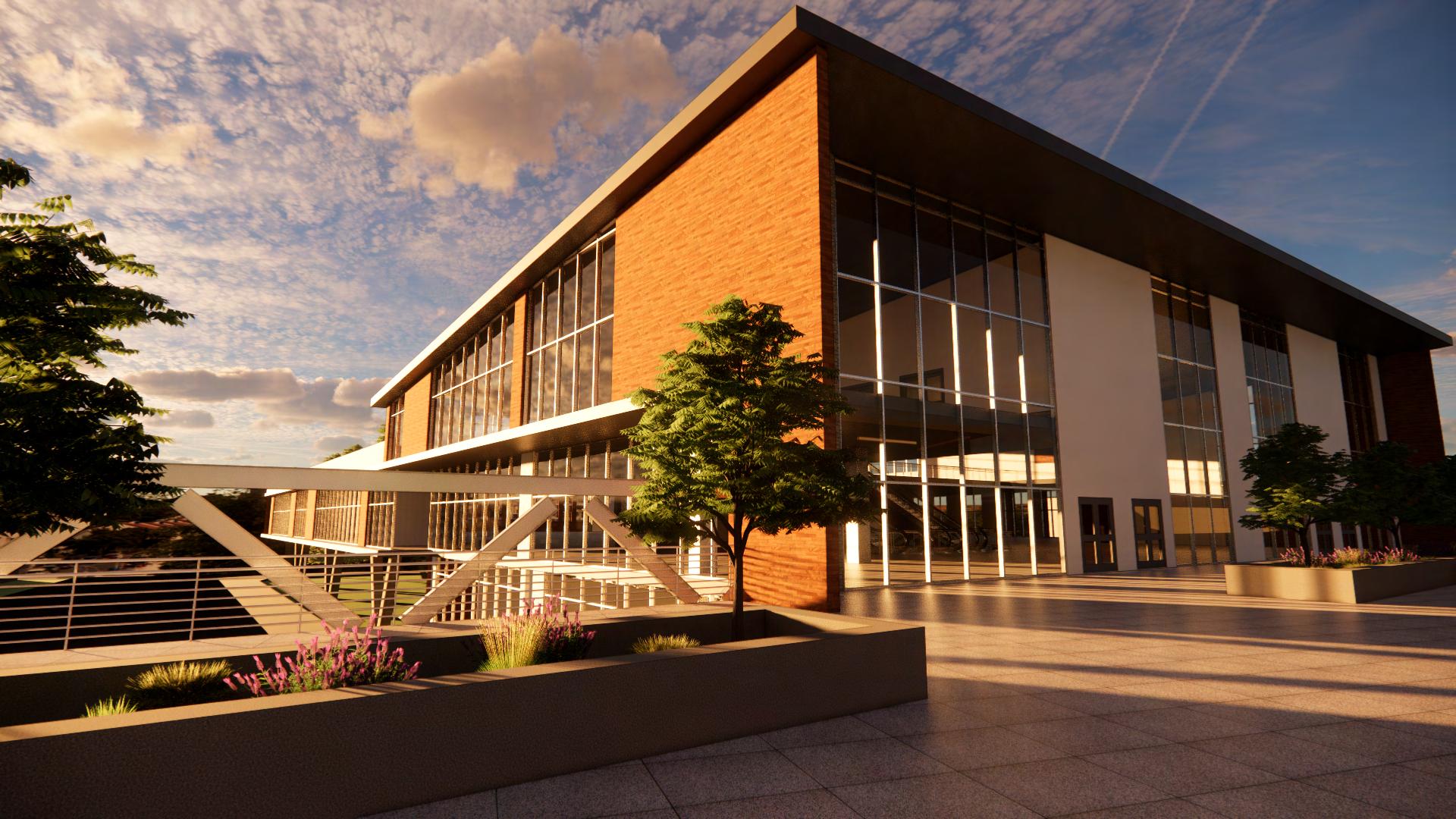

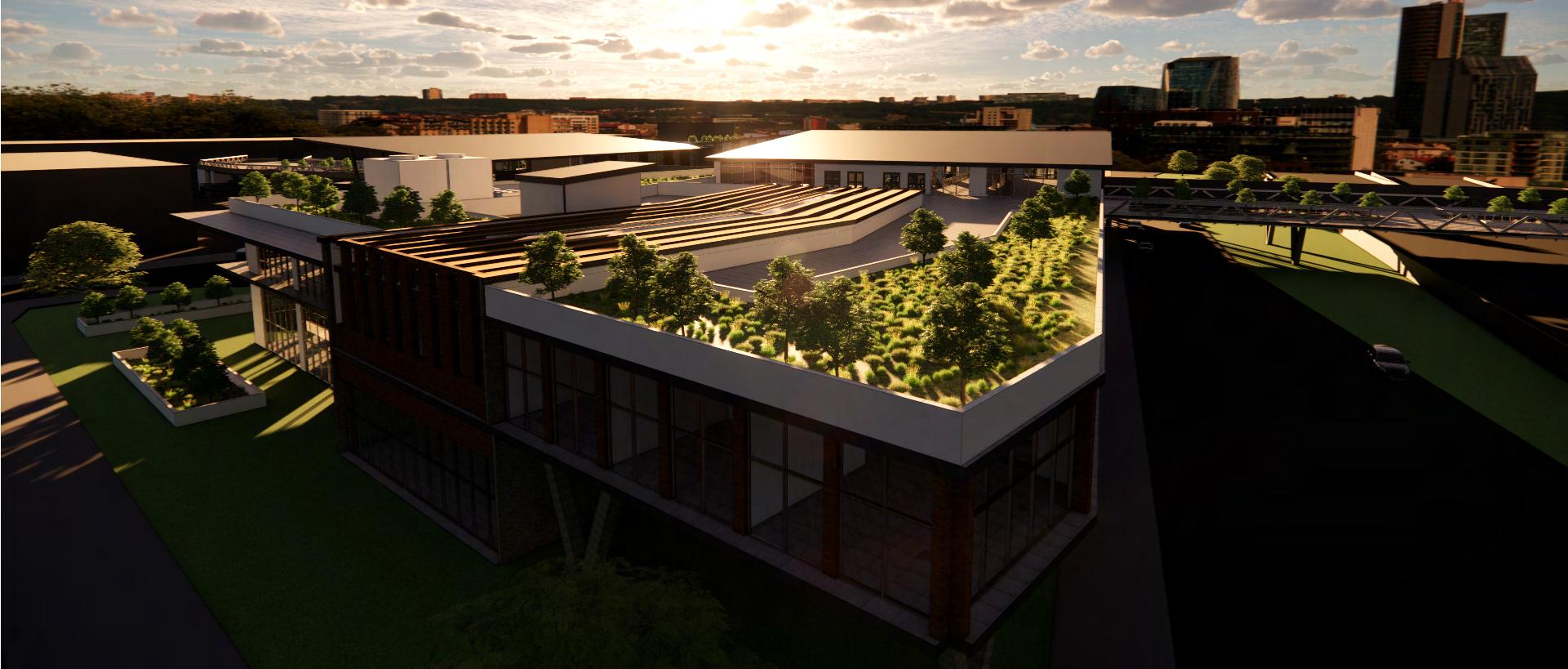

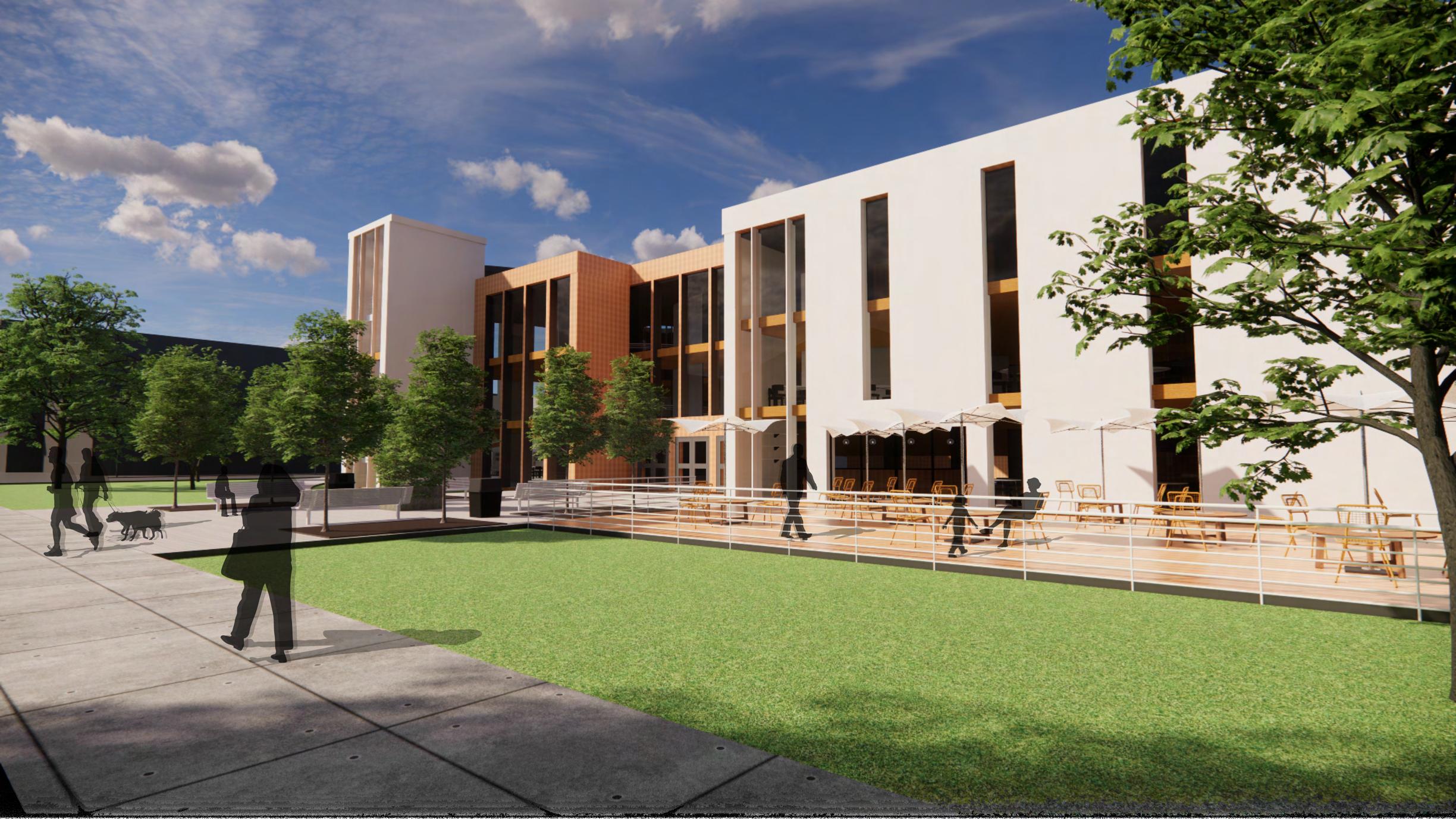

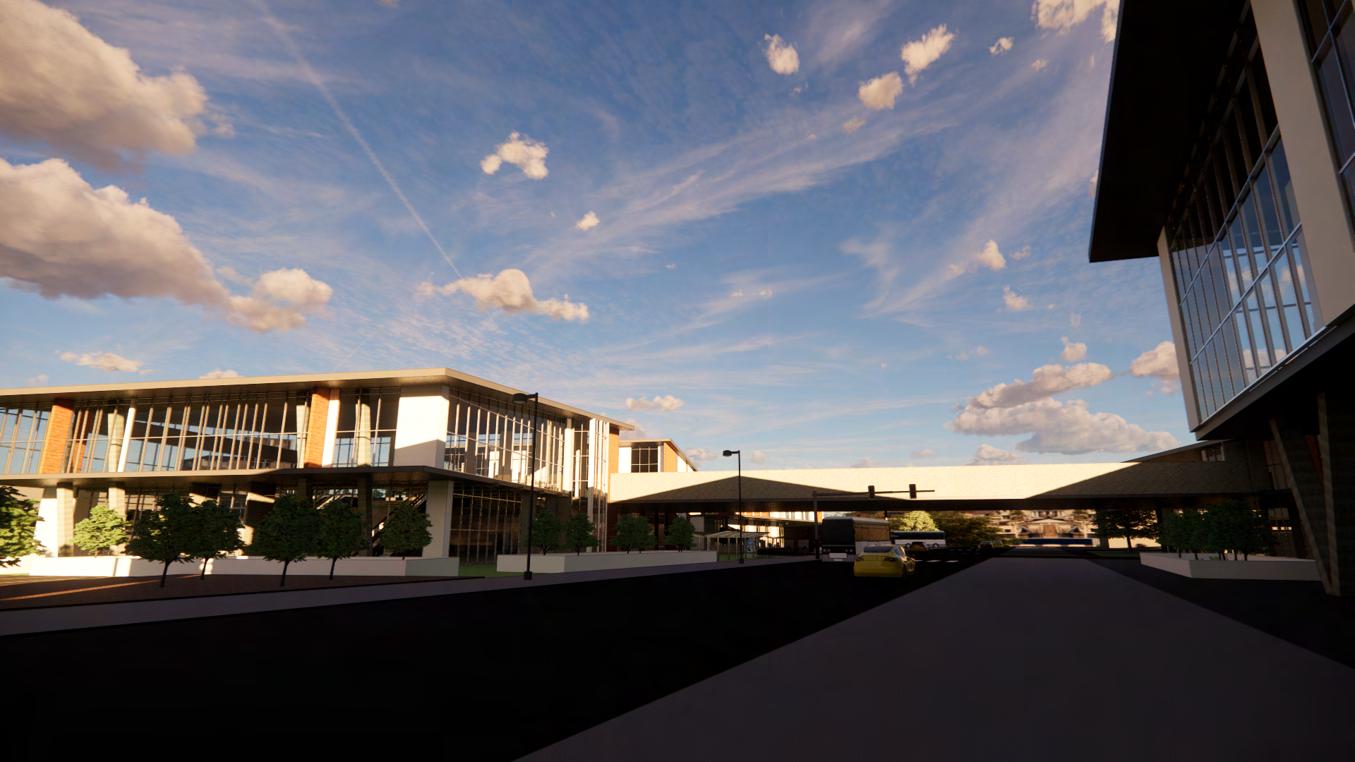

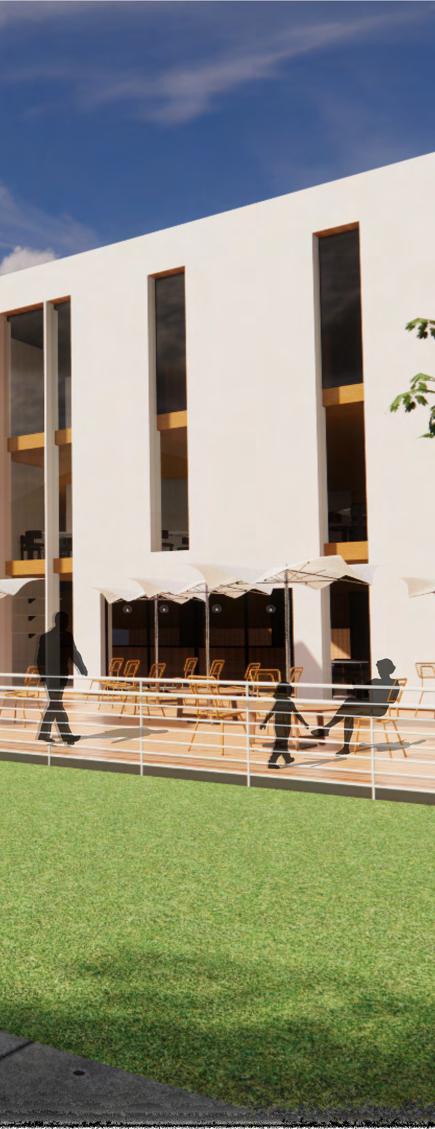

The Scranton Community Center for the Arts was a project entry for the 2022 COTE Design Competition. This competition recognizes projects which integrate health, sustainability, equity, and the AIA Framework for Design Excellence into the design of their buildings.

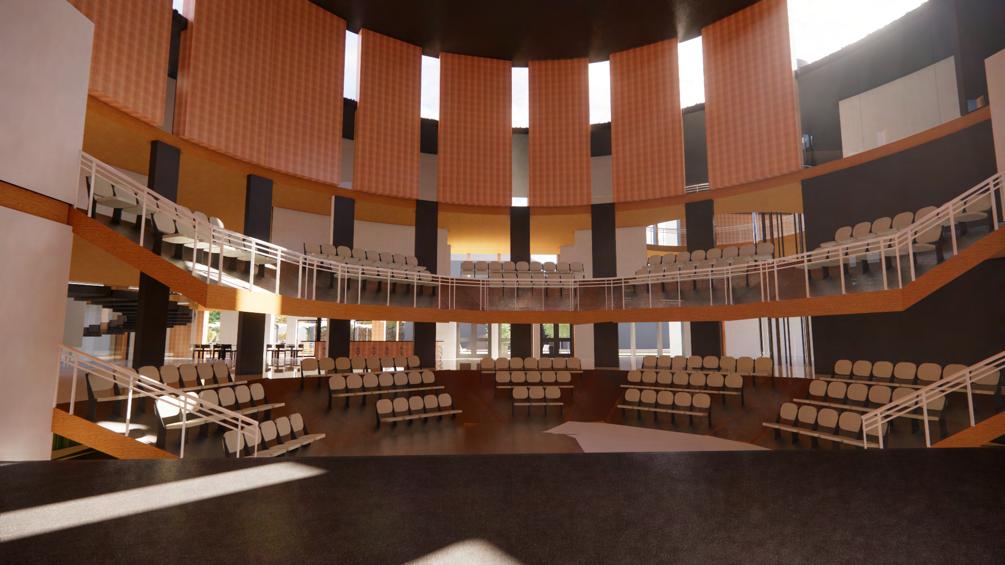

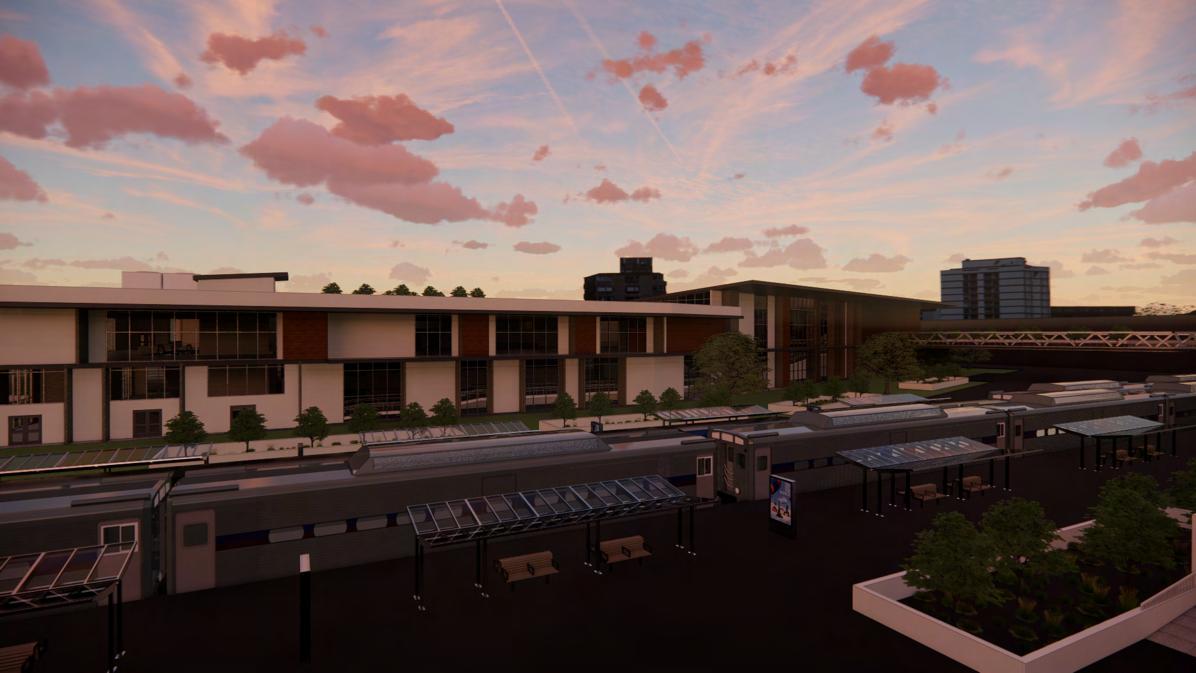

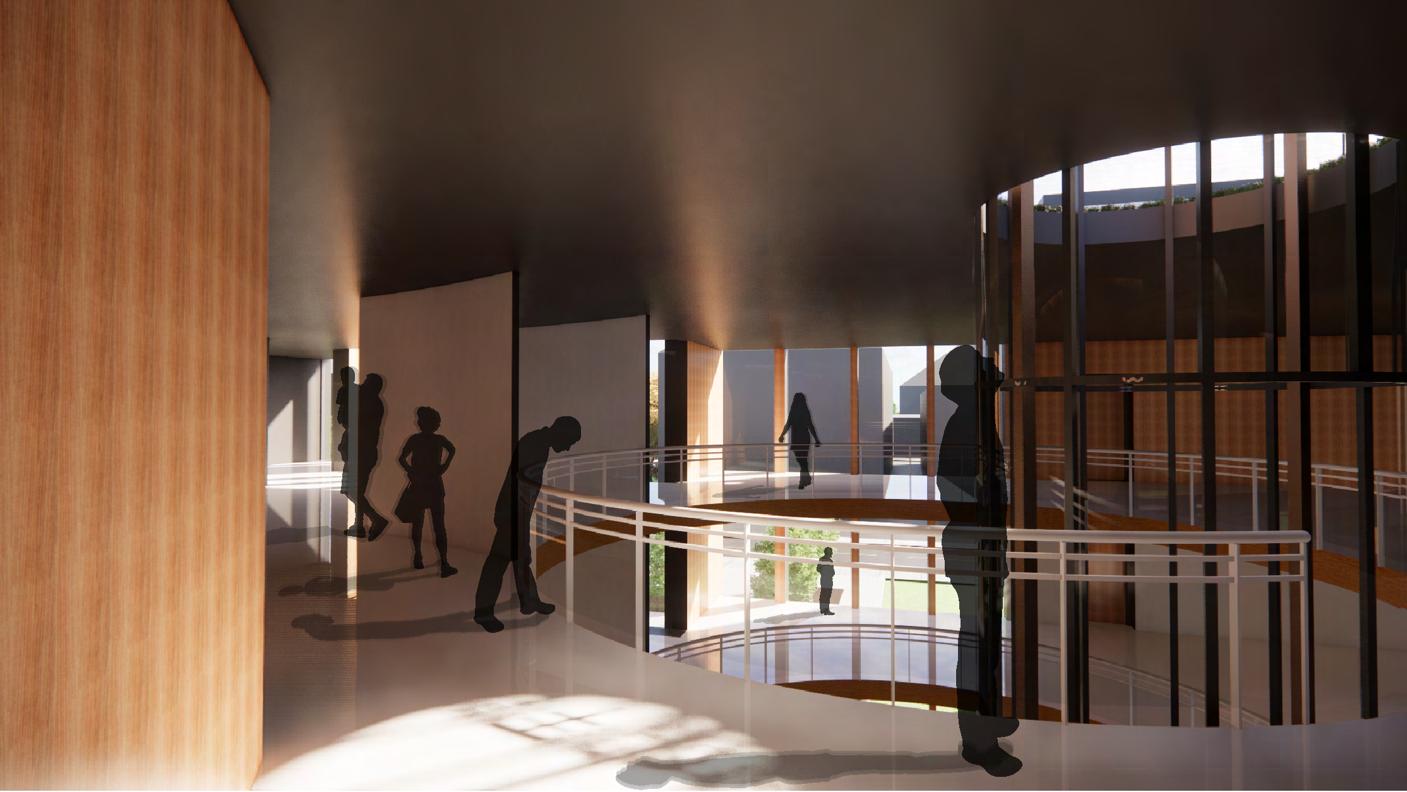

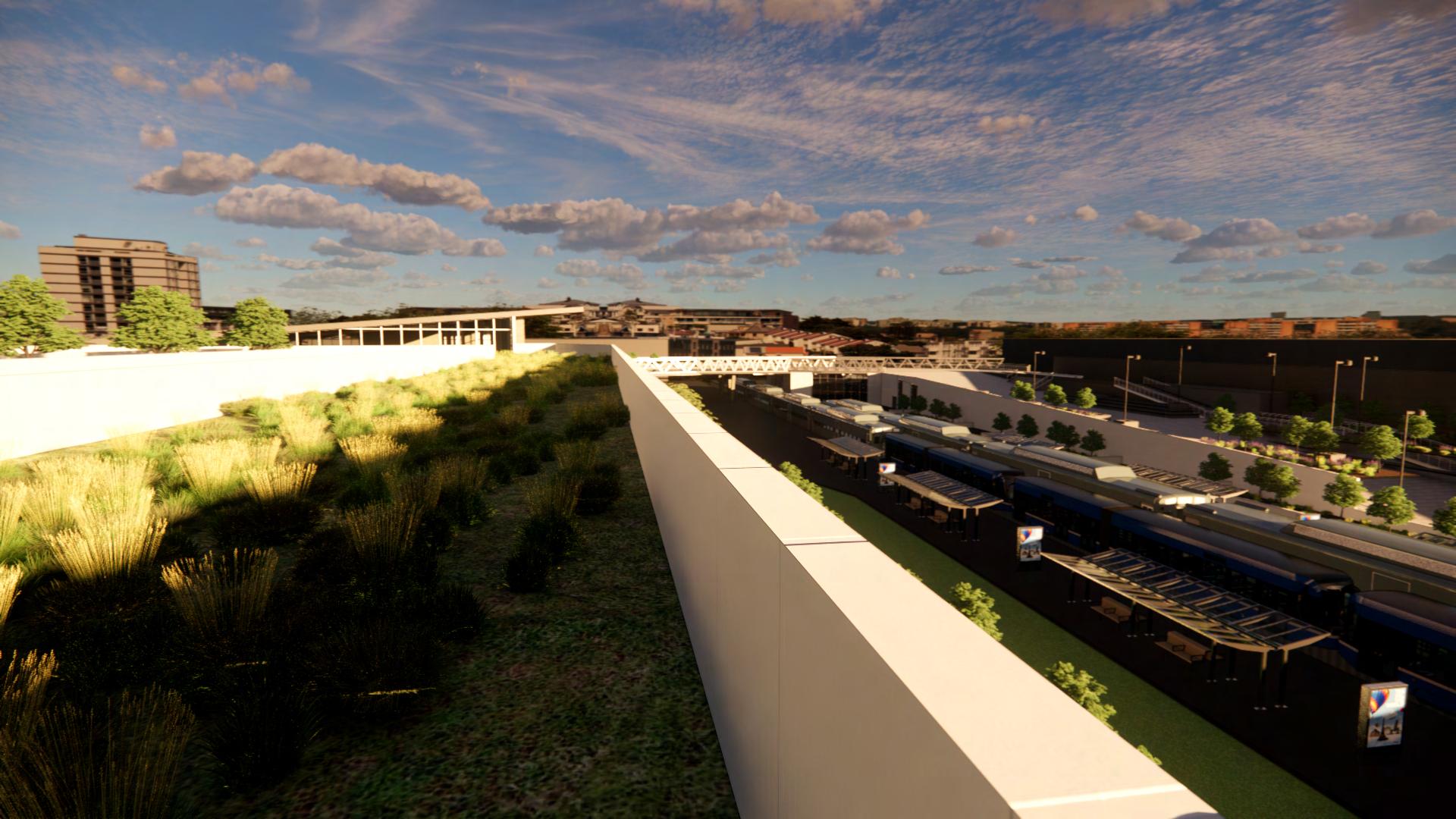

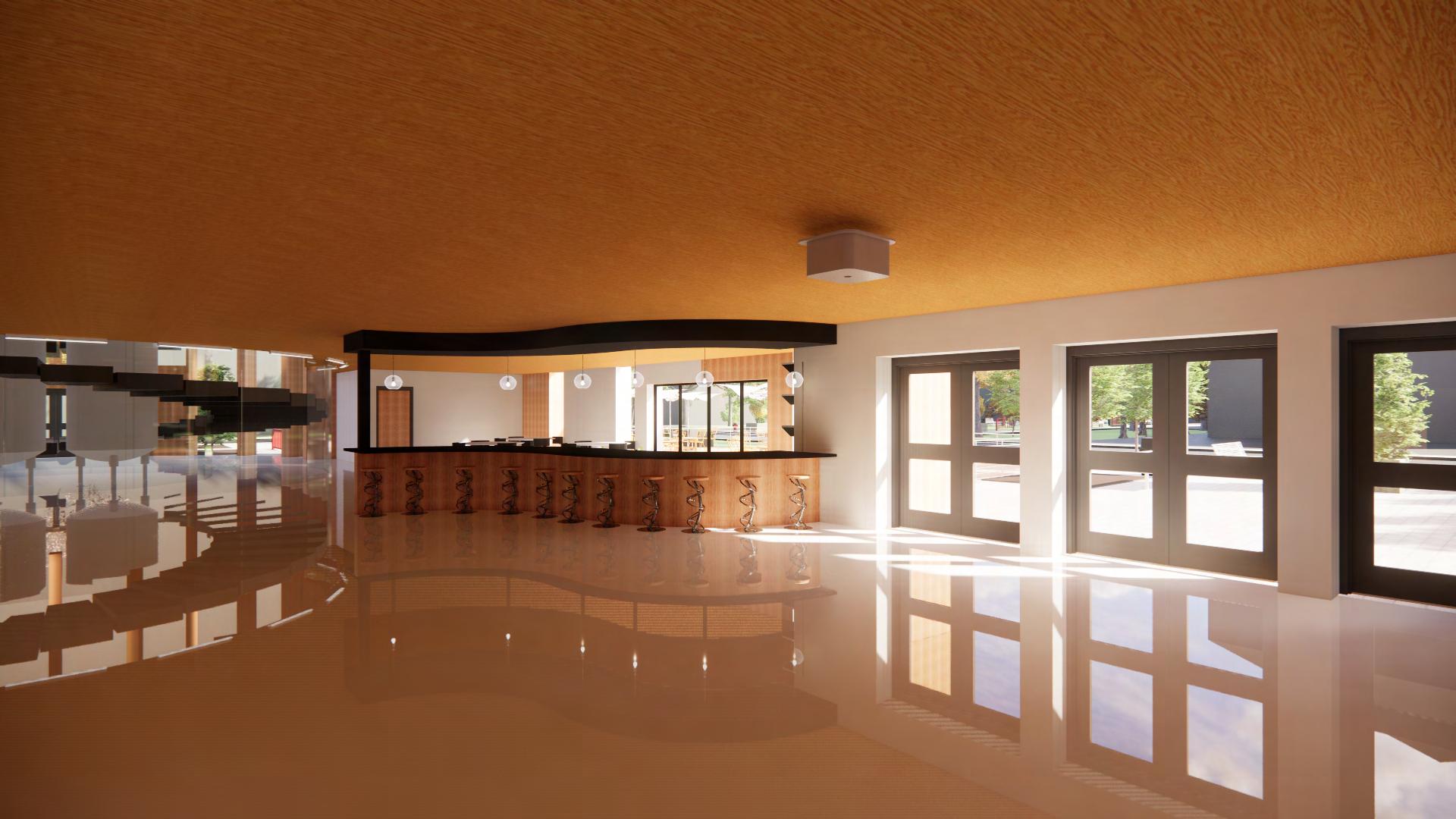

Located in downtown Scranton, PA, the design intent of this center was to provide a space for community enrichent through the arts. The building consists of a theatre, library, gallery spaces, cafe, classrooms, and study rooms. The center utilizes water tubes which line the exterior walls and collect rain and snow. This water is stored in the tubes and used as a thermal mass providing passive heating and cooling throughout the building.

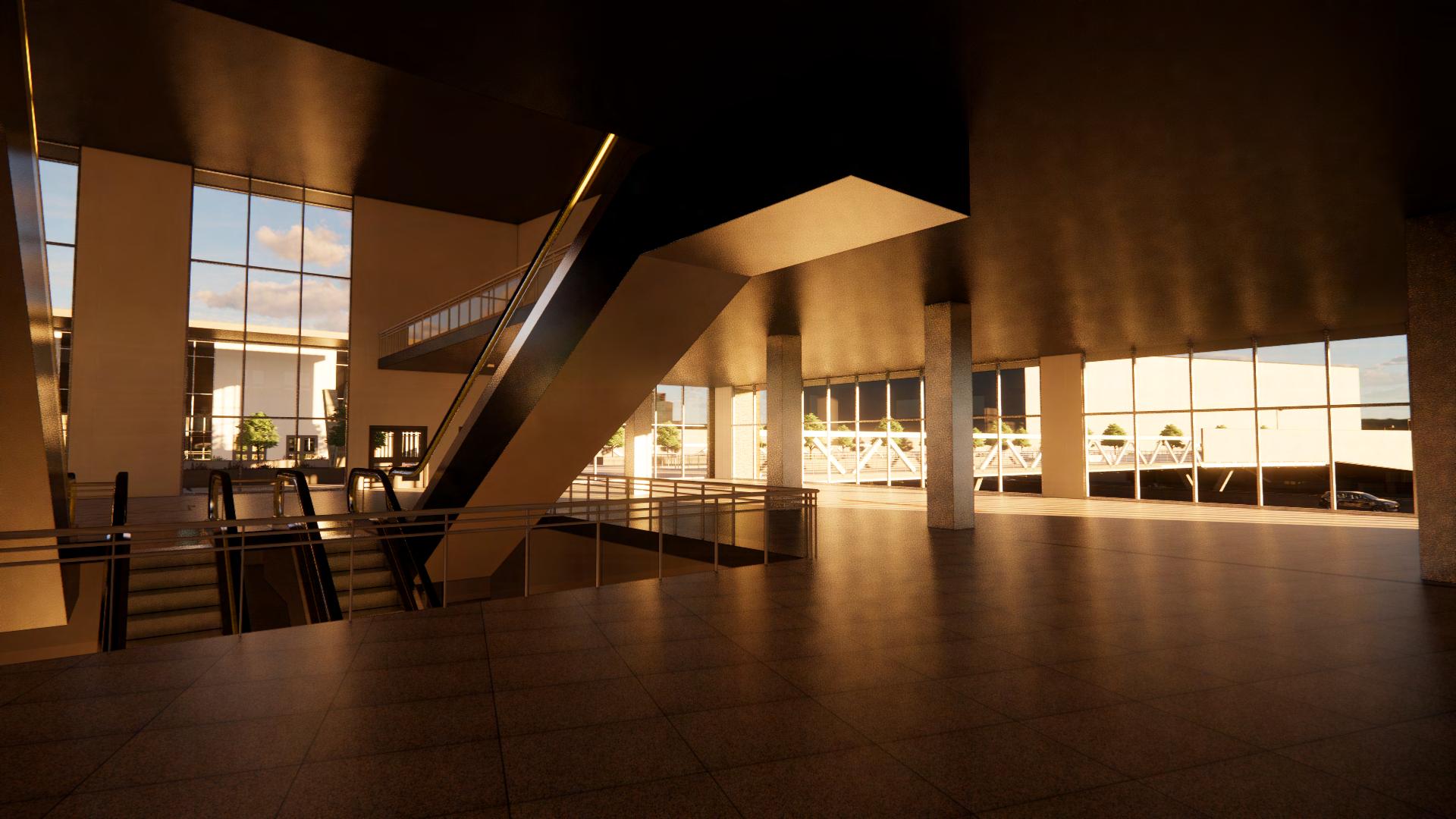

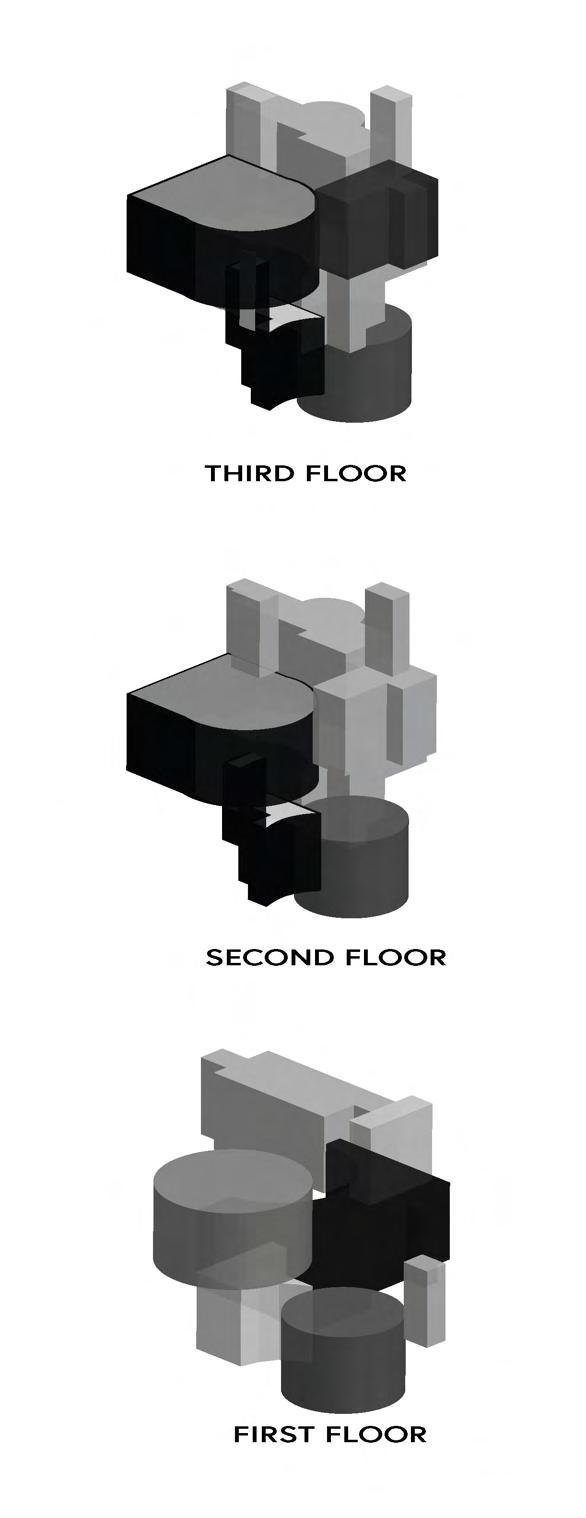

FIRST FLOOR PLAN SECOND FLOOR PLAN THIRD FLOOR PLAN

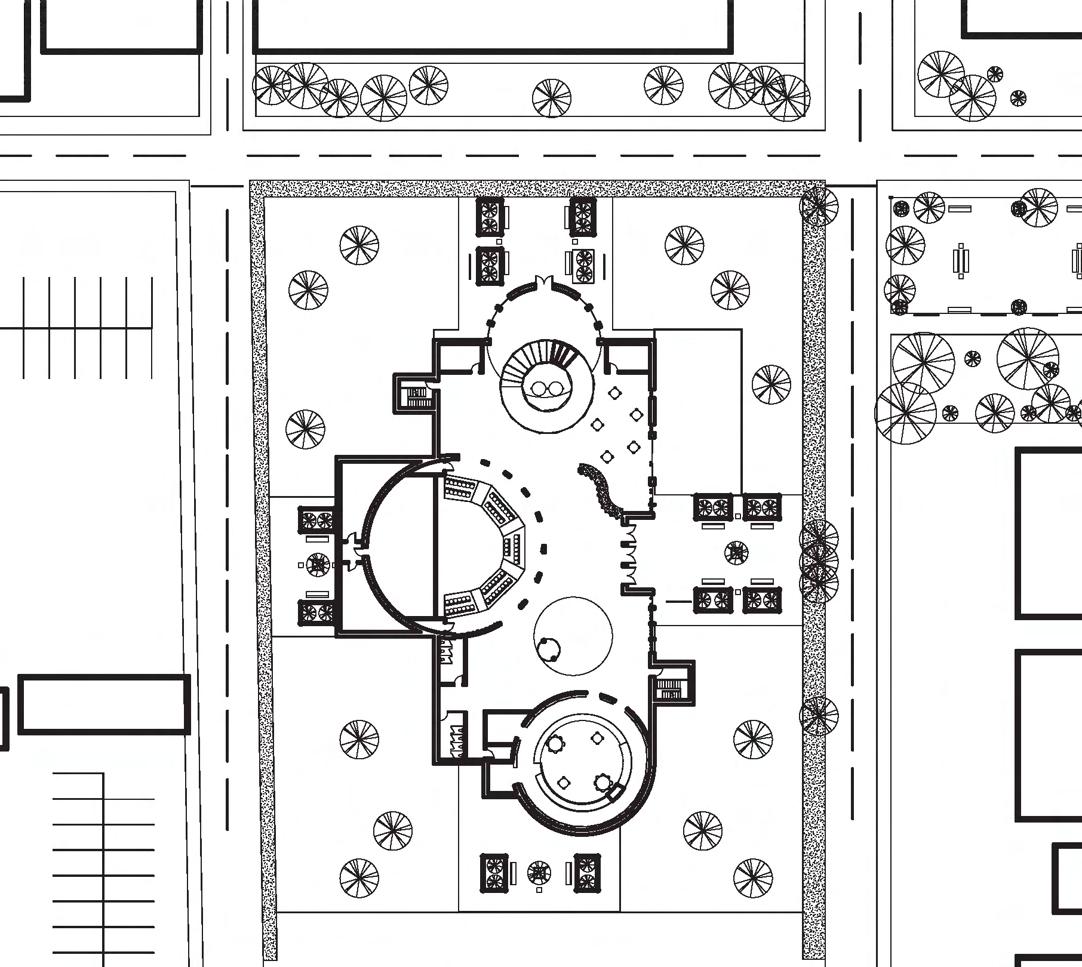

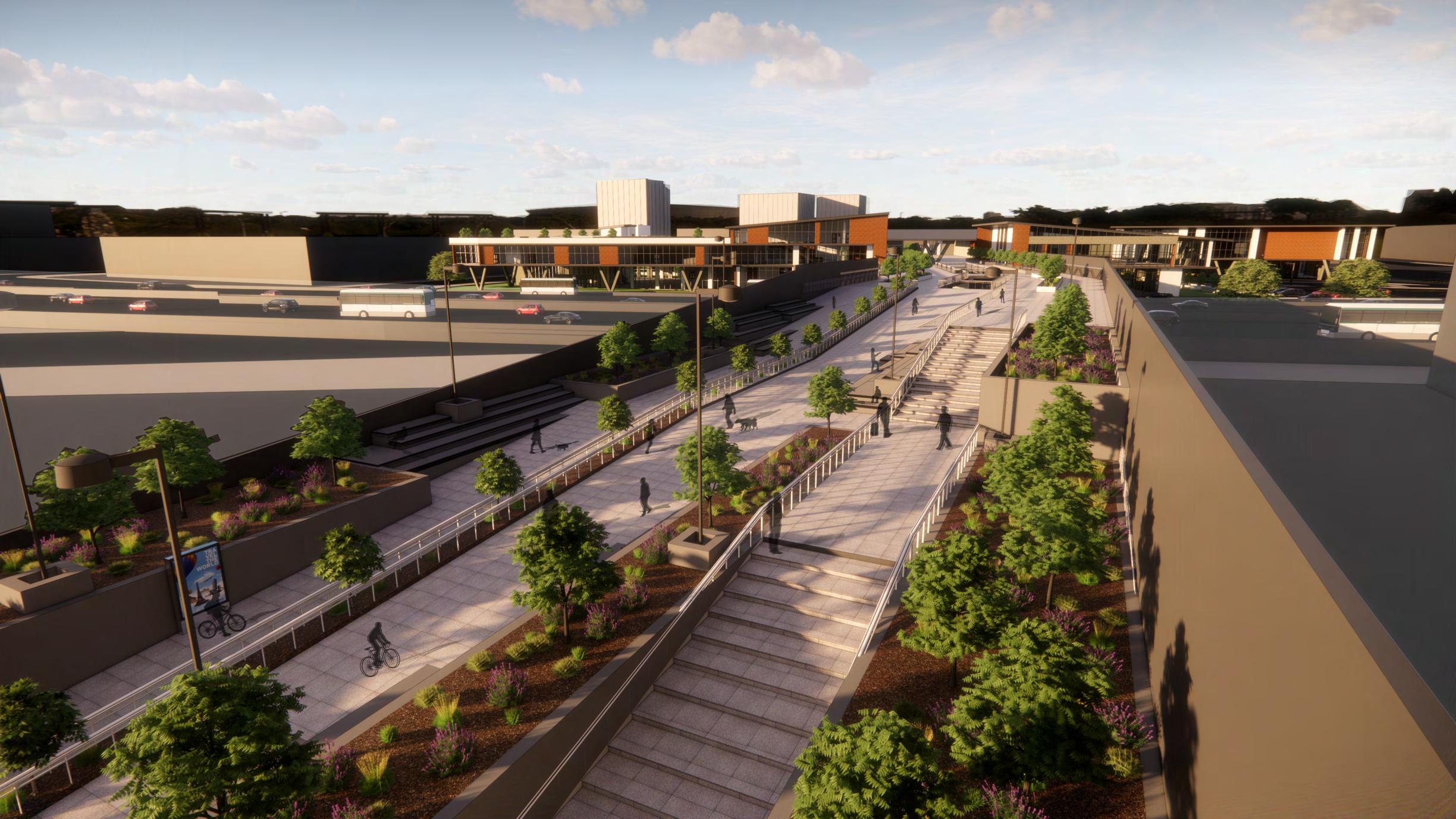

SITE PLAN

Third Year Semester 2

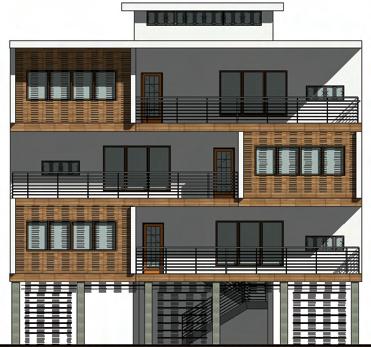

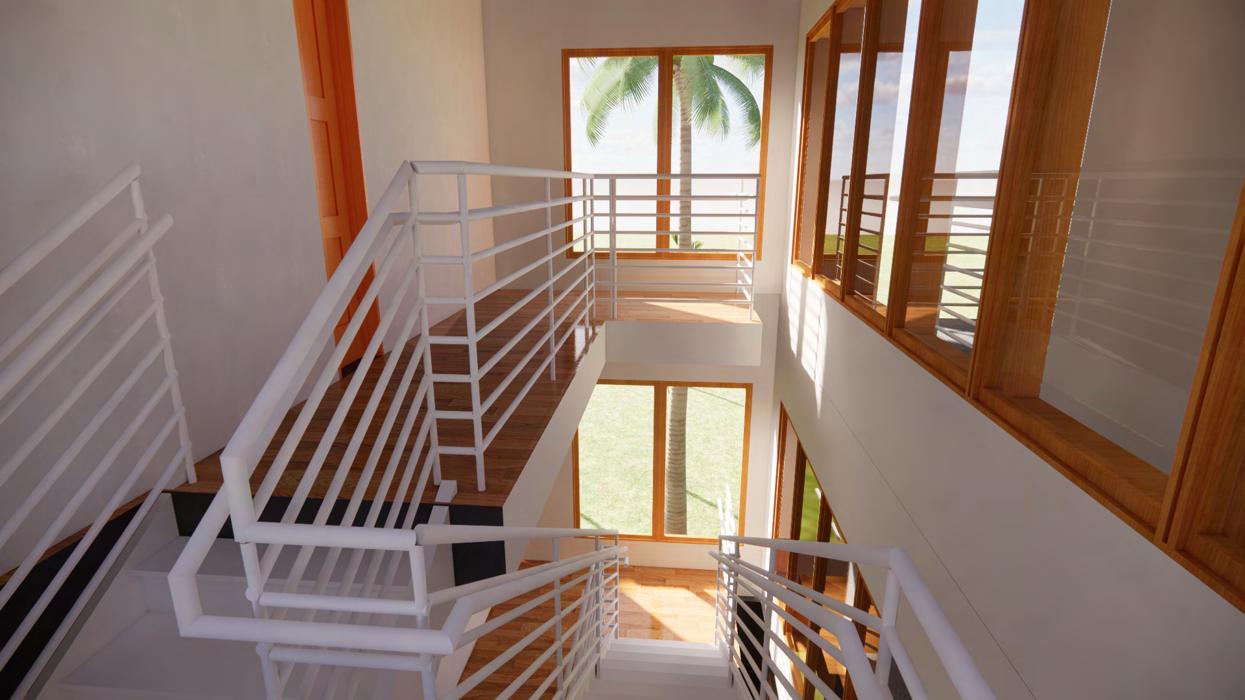

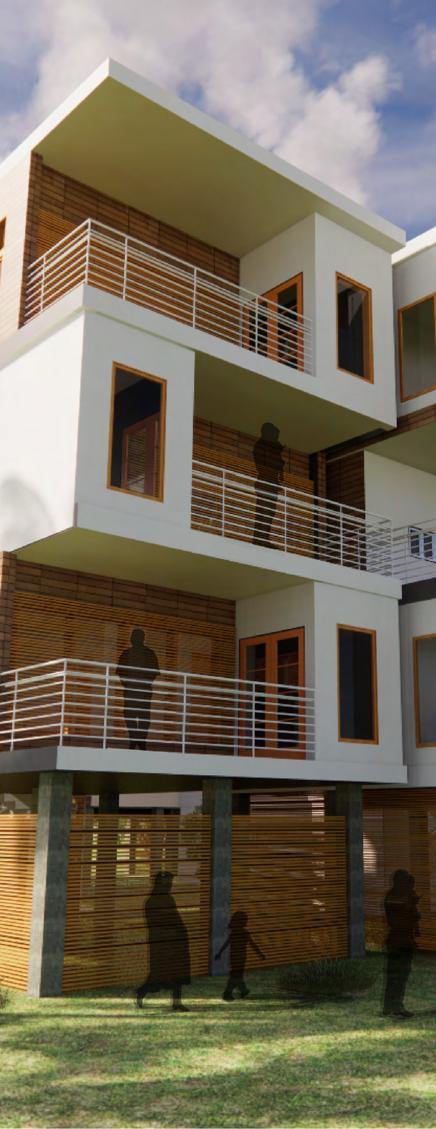

Located in Dar Es Salaam, a city on the coast of TanziaThis housing project addresses the need to relocate the marginalized groups of people forced to inhabite informal settlements spread across Tanzania.

Bedroom UP Bathroom Kitchen Foyer Dining Room Mechanical Balcony 0m 1 23 4 8 Scale: 1:50 Bedroom 1 Bathroom Bedroom 2 Dining Room Kitchen UP Foyer Mechanical Balcony 0m 23 Scale: 1:50

1 Bedroom Apt. Floorplan 2 Bedroom Apt. Floorplan

Third Year Semester 2

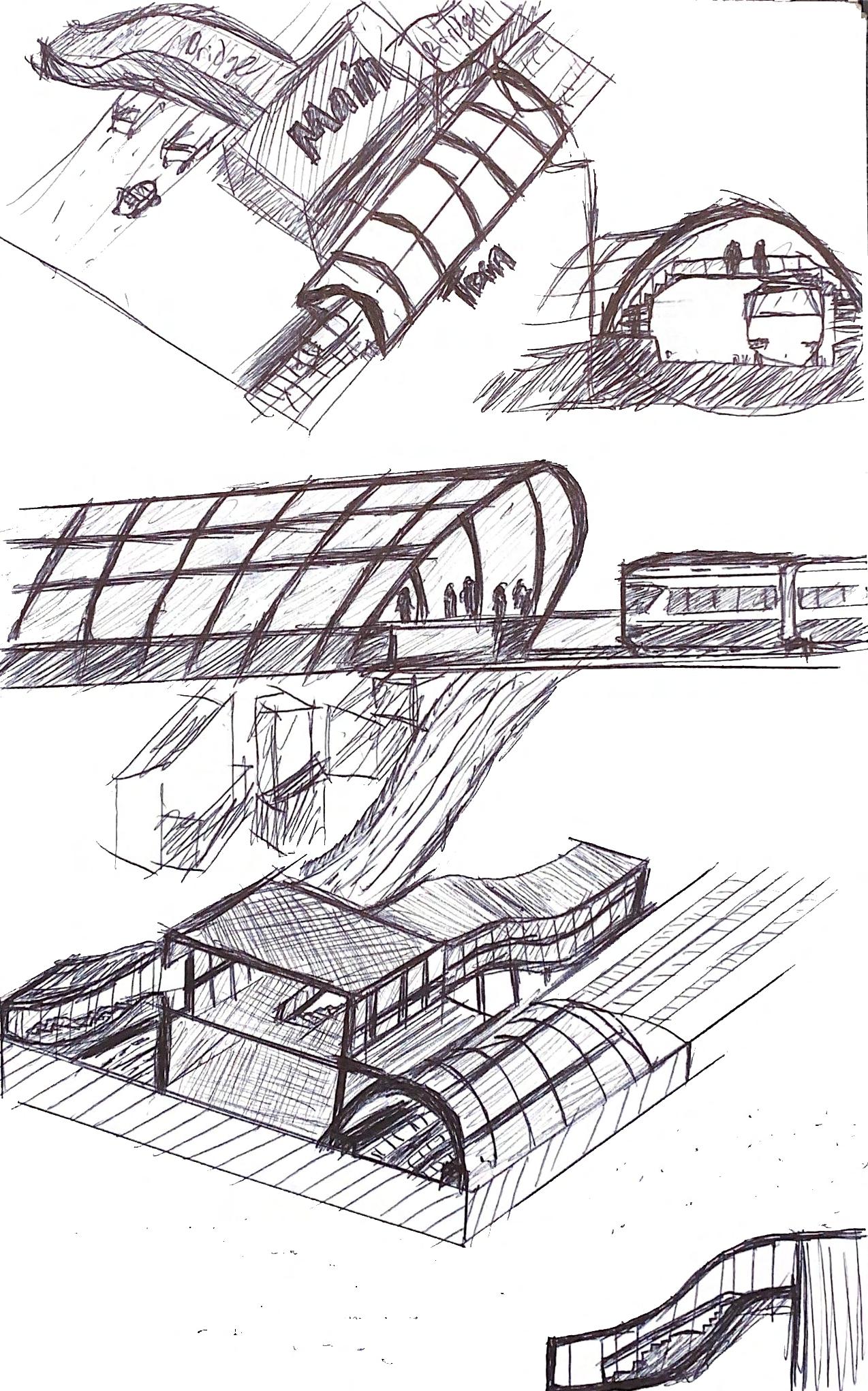

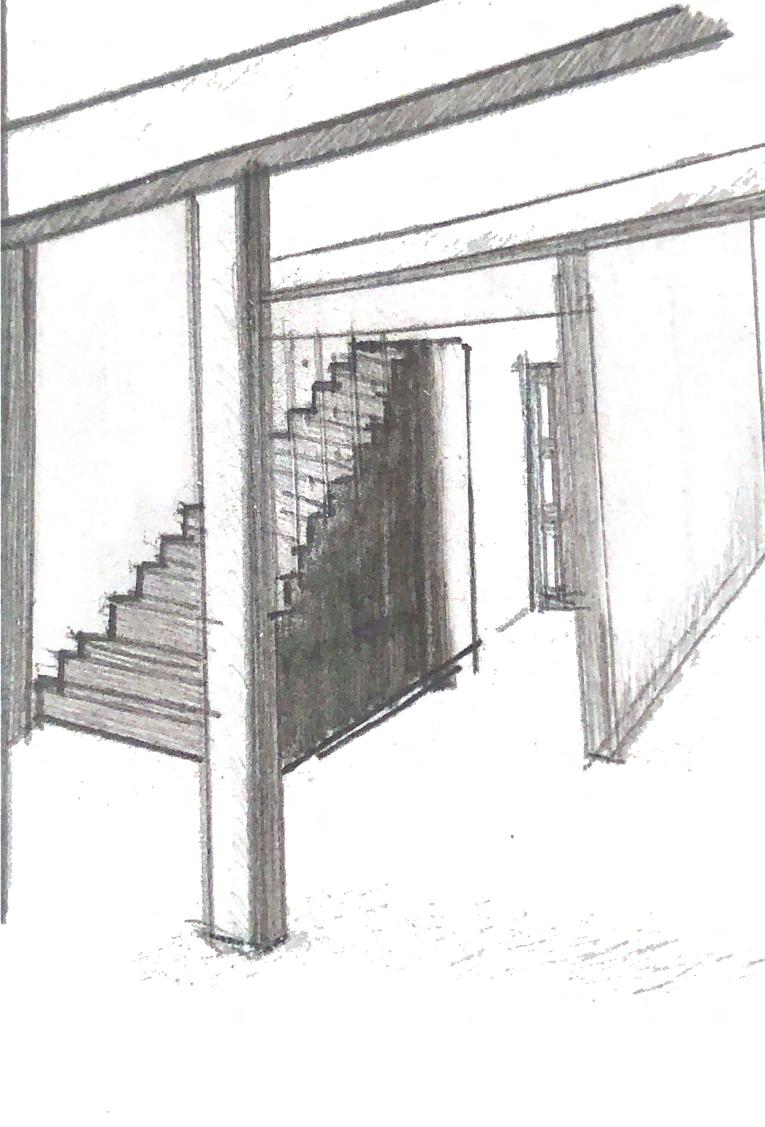

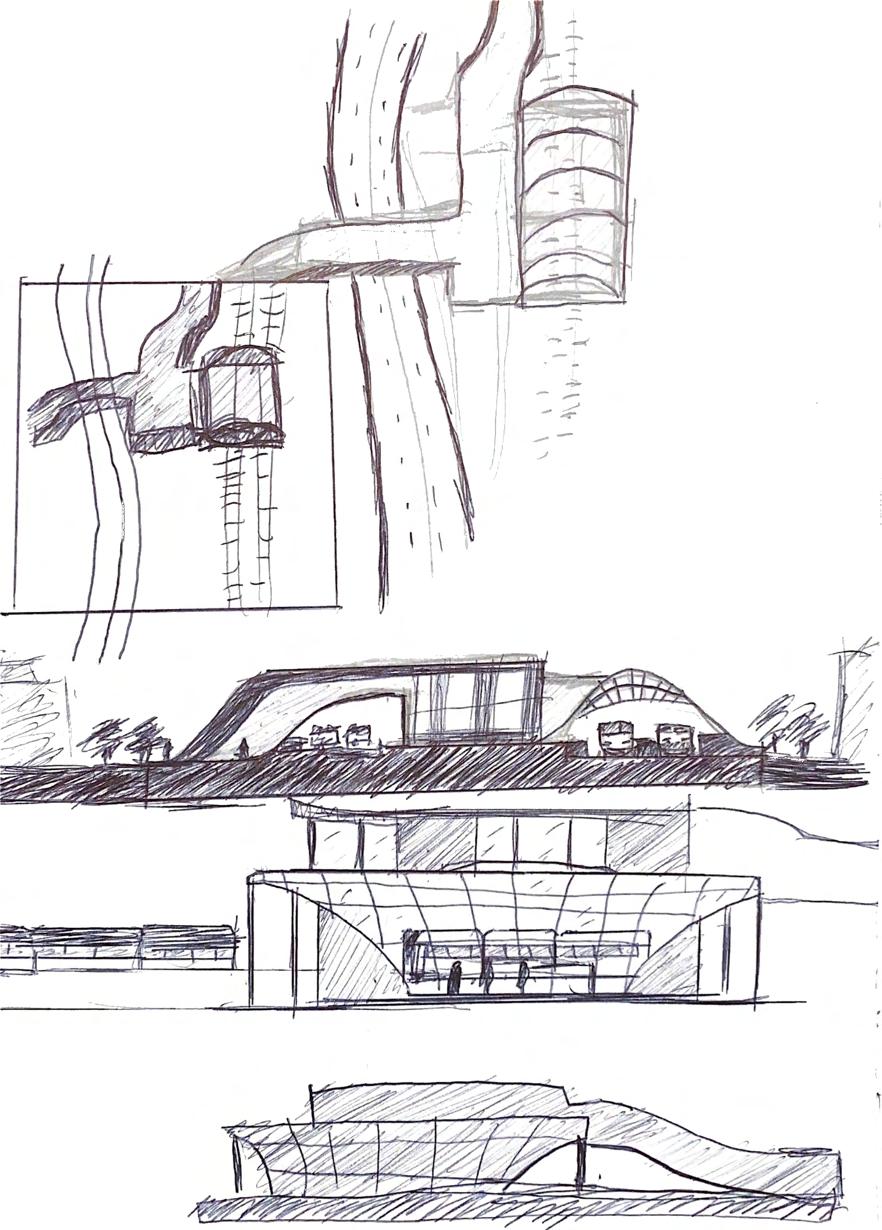

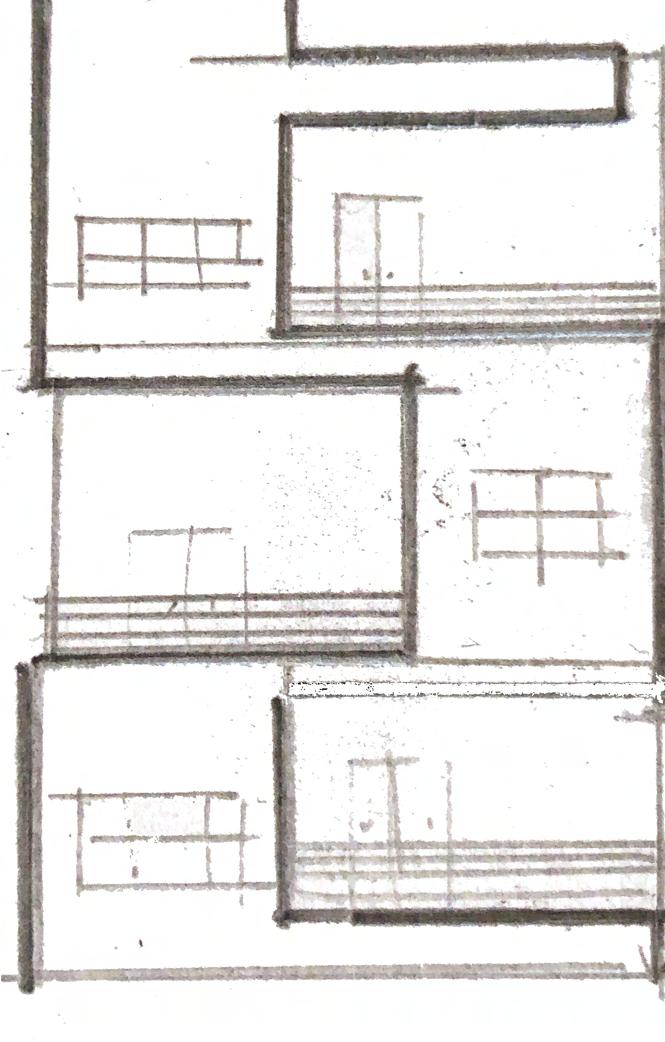

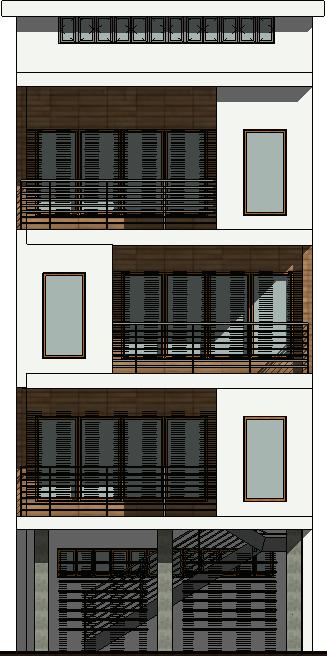

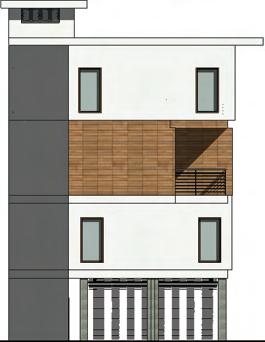

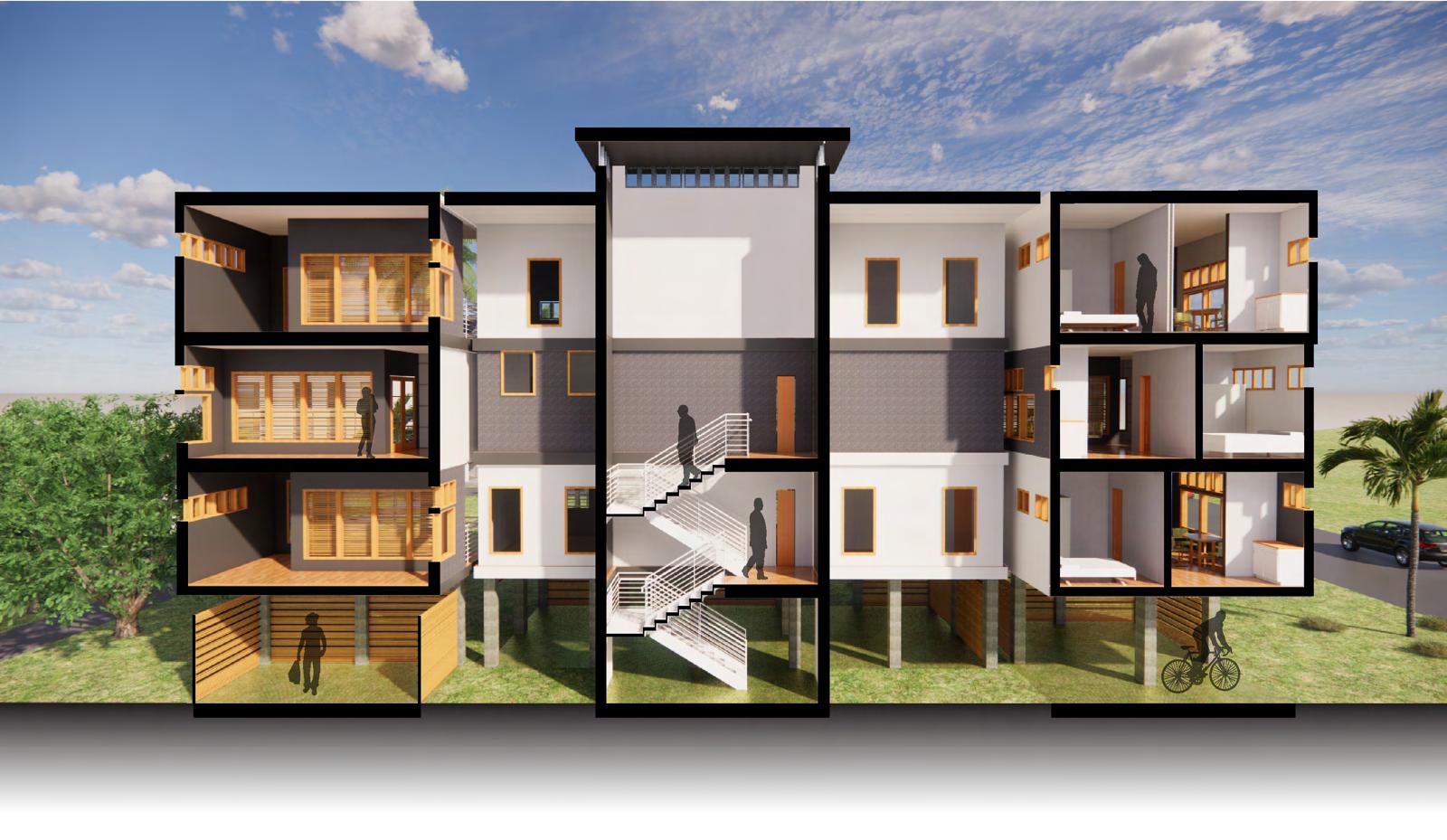

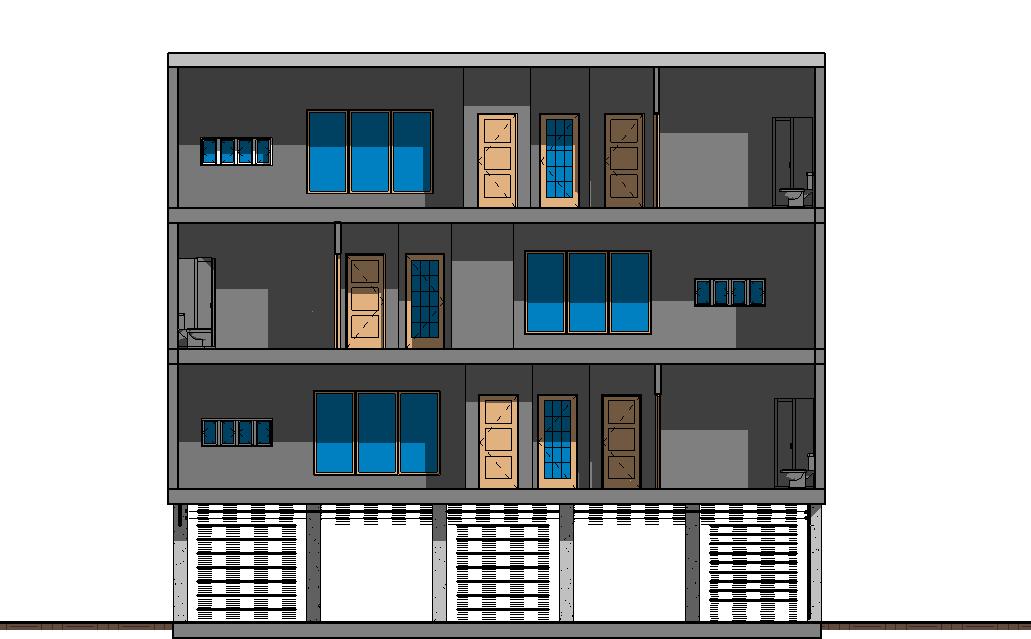

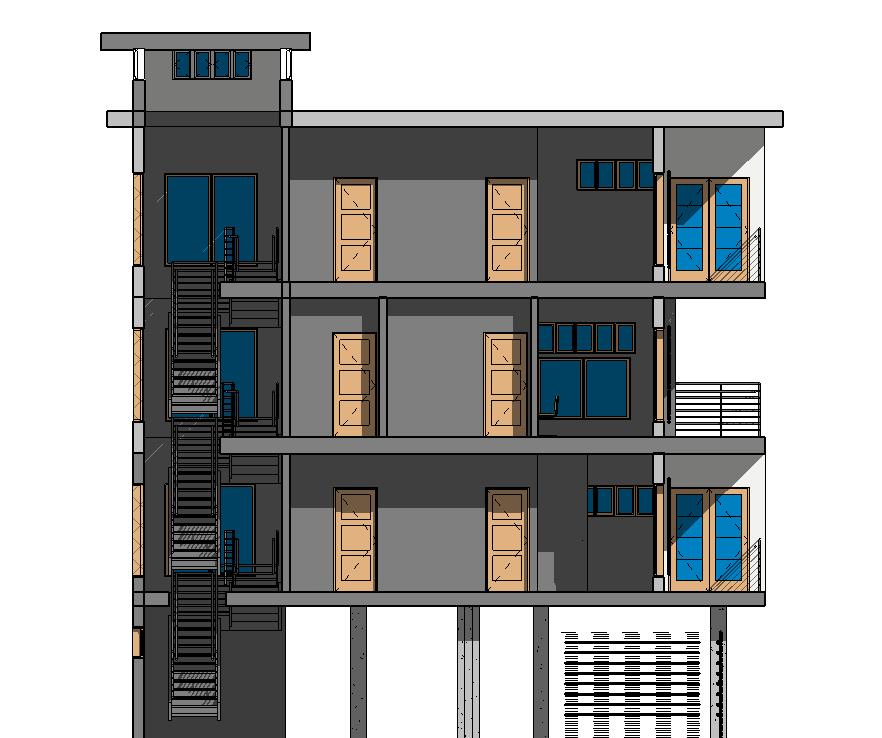

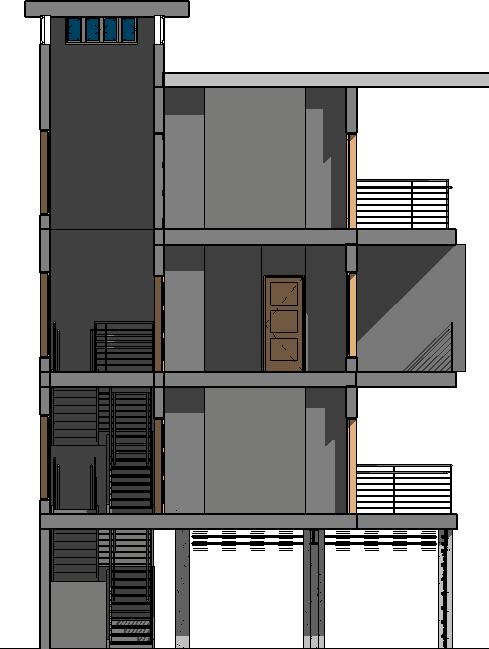

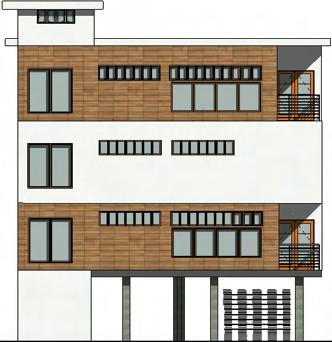

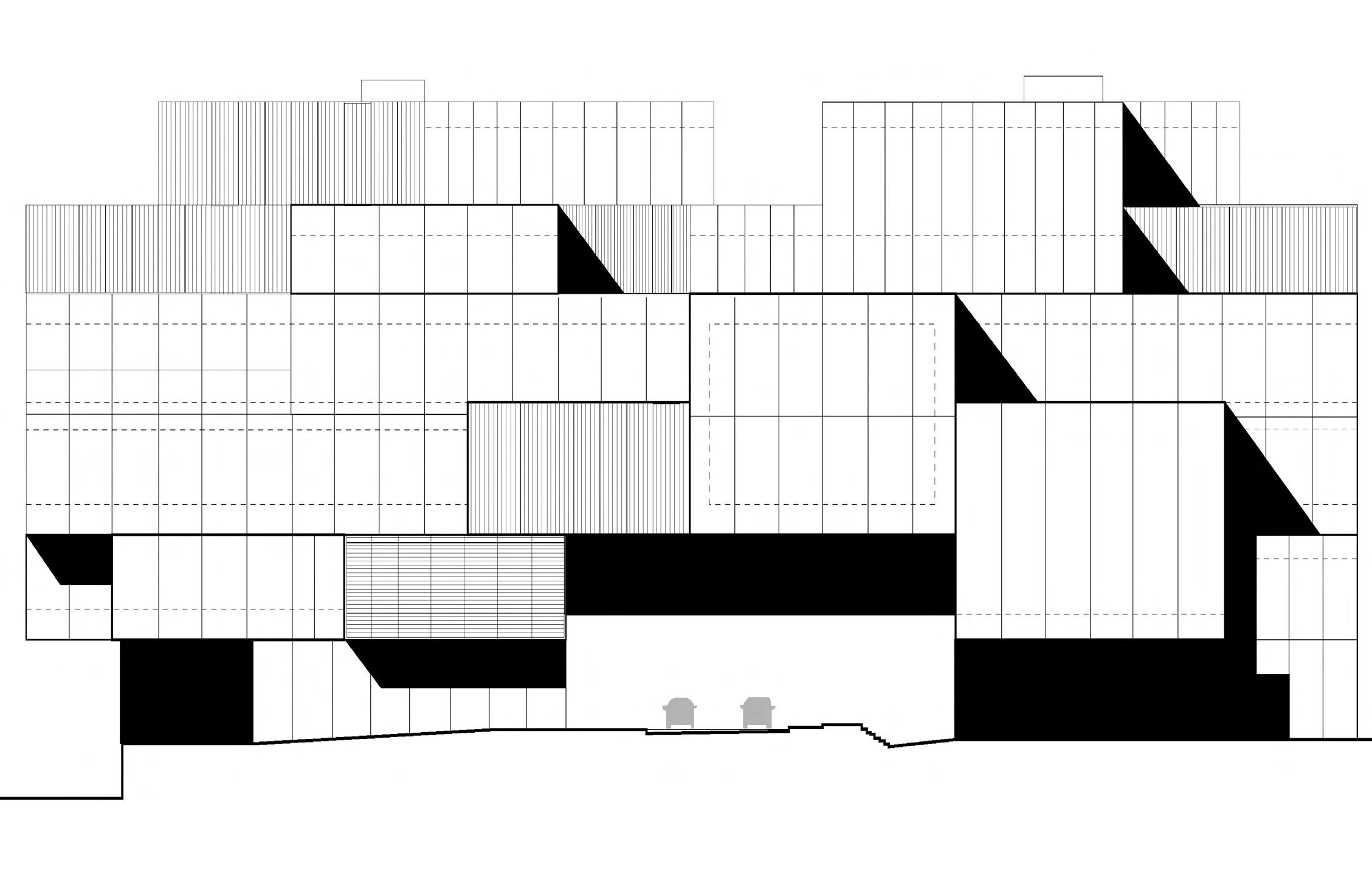

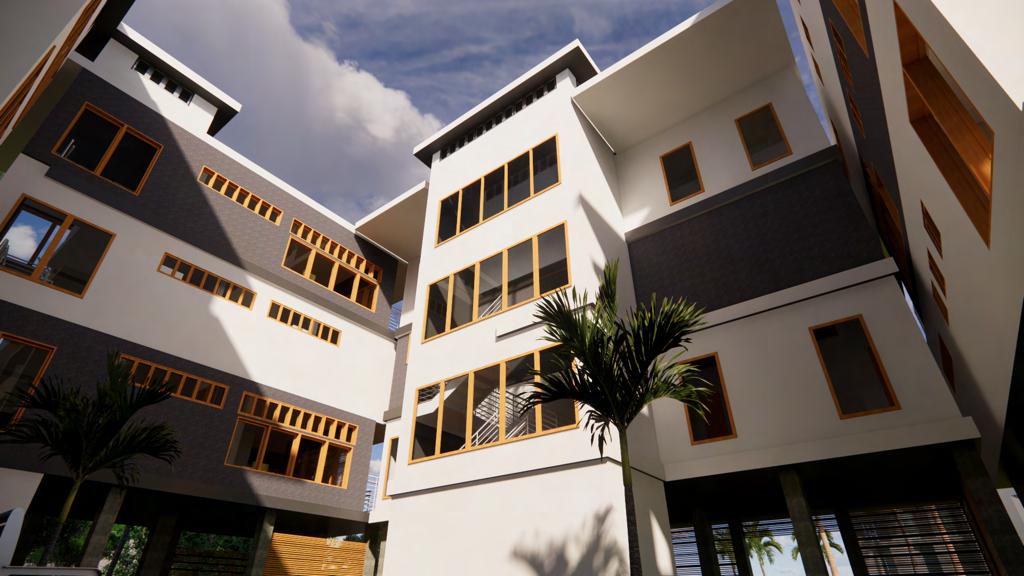

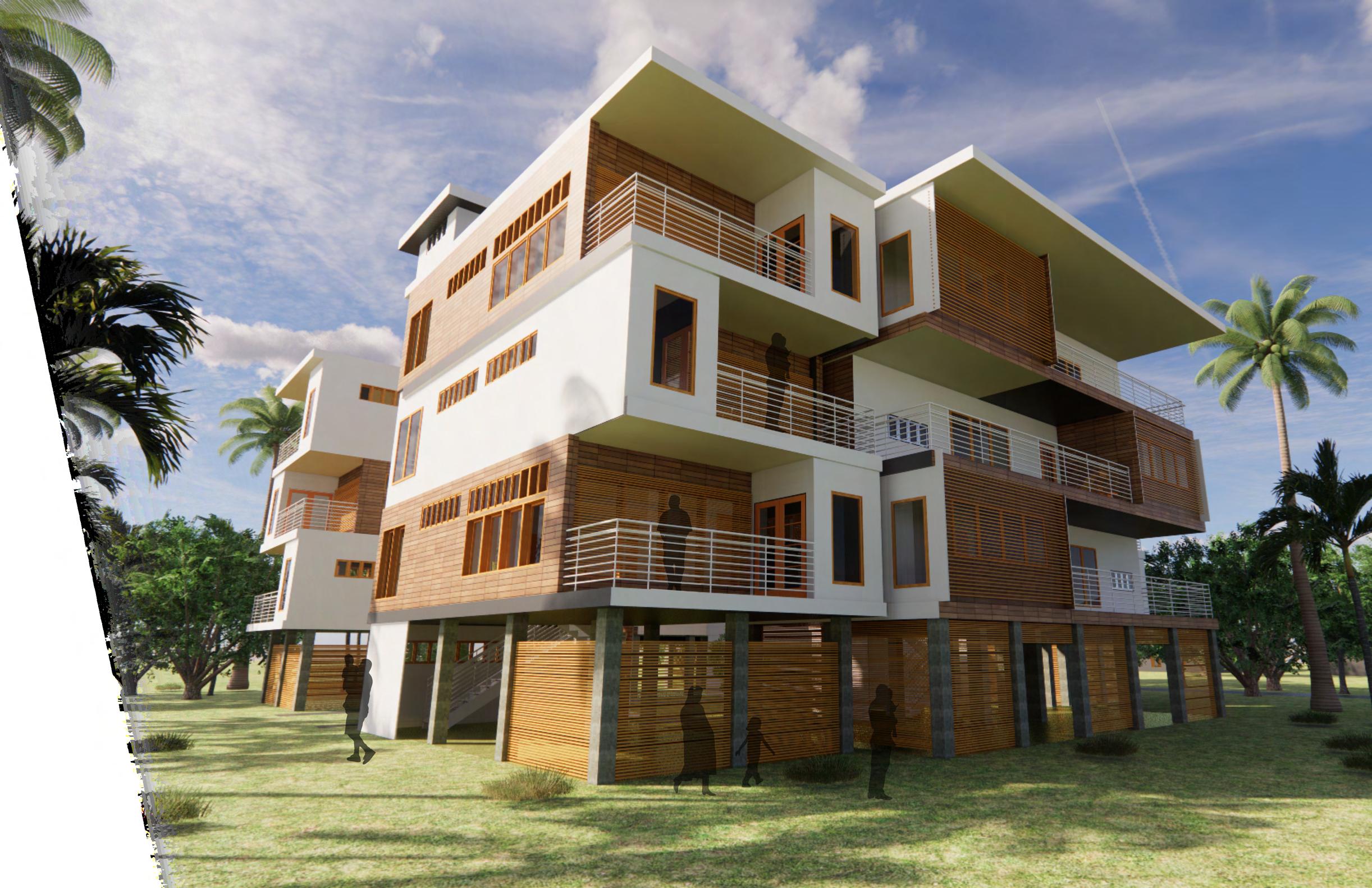

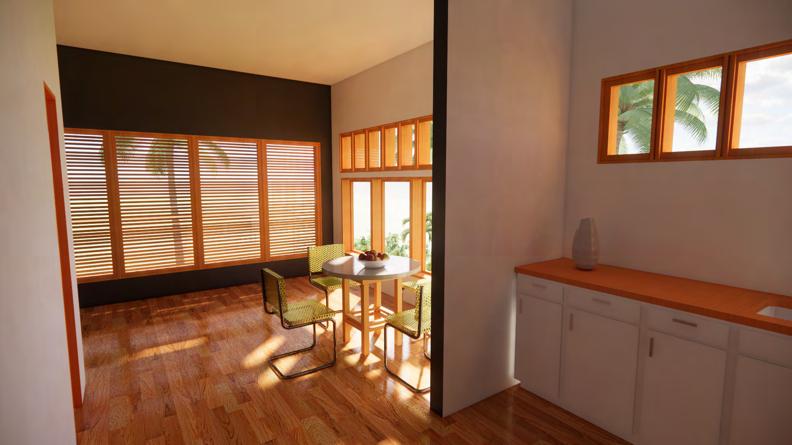

The complex offers both one bedroom and two bedroom apartments equipped with all necessary living arrangements. Each module of the complex features three stories of living space and an open ground level to mitigate flooding which is prone in this area. The facade design in each module creates both balcony space and privacy through it’s protruding design.
