byanney’s residence residence

Byanney’s residence is located in the hills of Shivapuri , Budhanilkantha , Kathmandu. The residence is designed for 4 people.

Following the principle of Master Architect Ludwig Miew Vander Rohe the building is divided into public and private spaces.The plain white walls and use of large windows can be seen in the facades.

3rd SEMESTER PROJECT

budhanilkantha, kathmandu

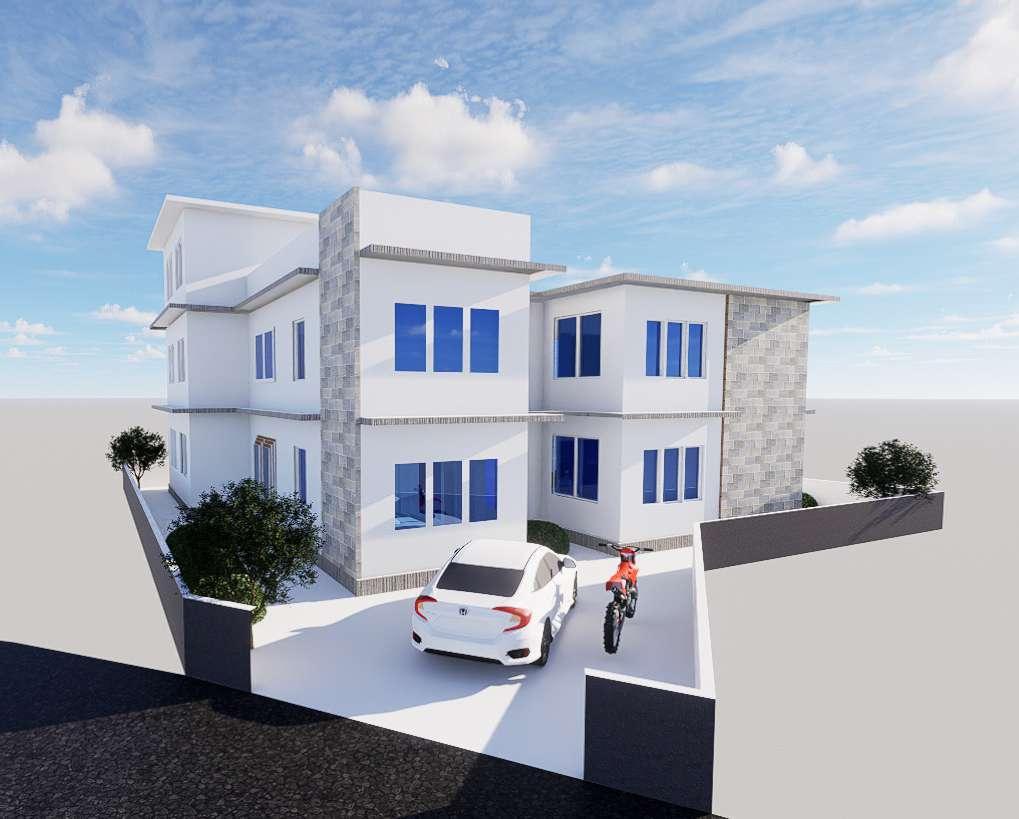

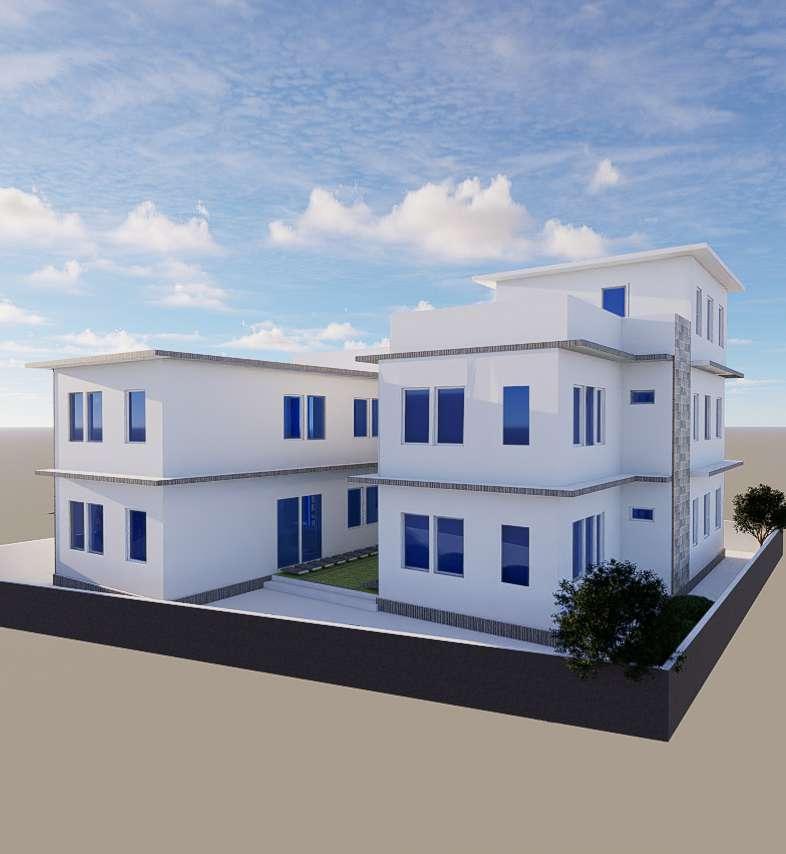

01 3D VIEW FROM WEST

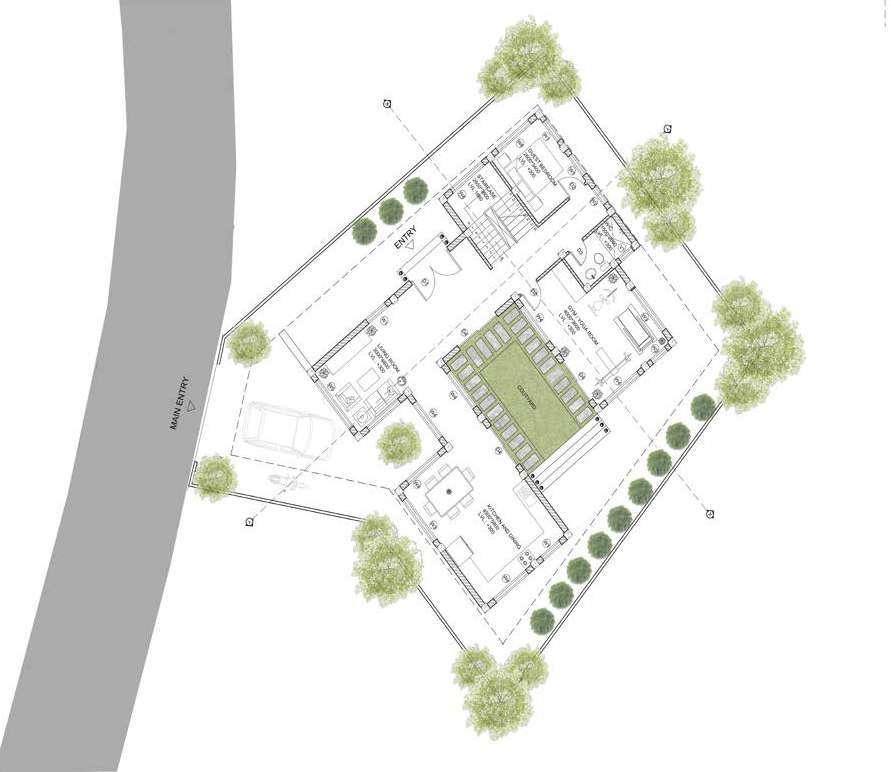

master plan

total area :316.93 m^2

ground coverage ratio : 45.42%

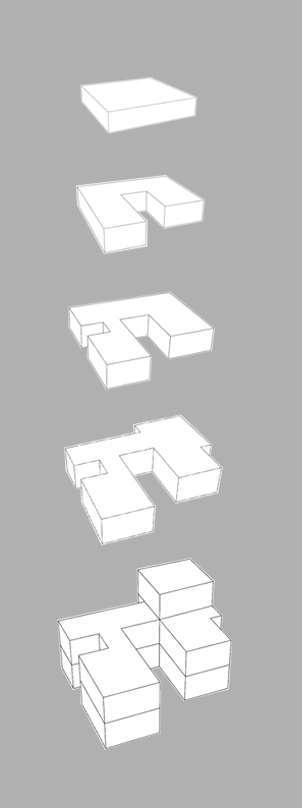

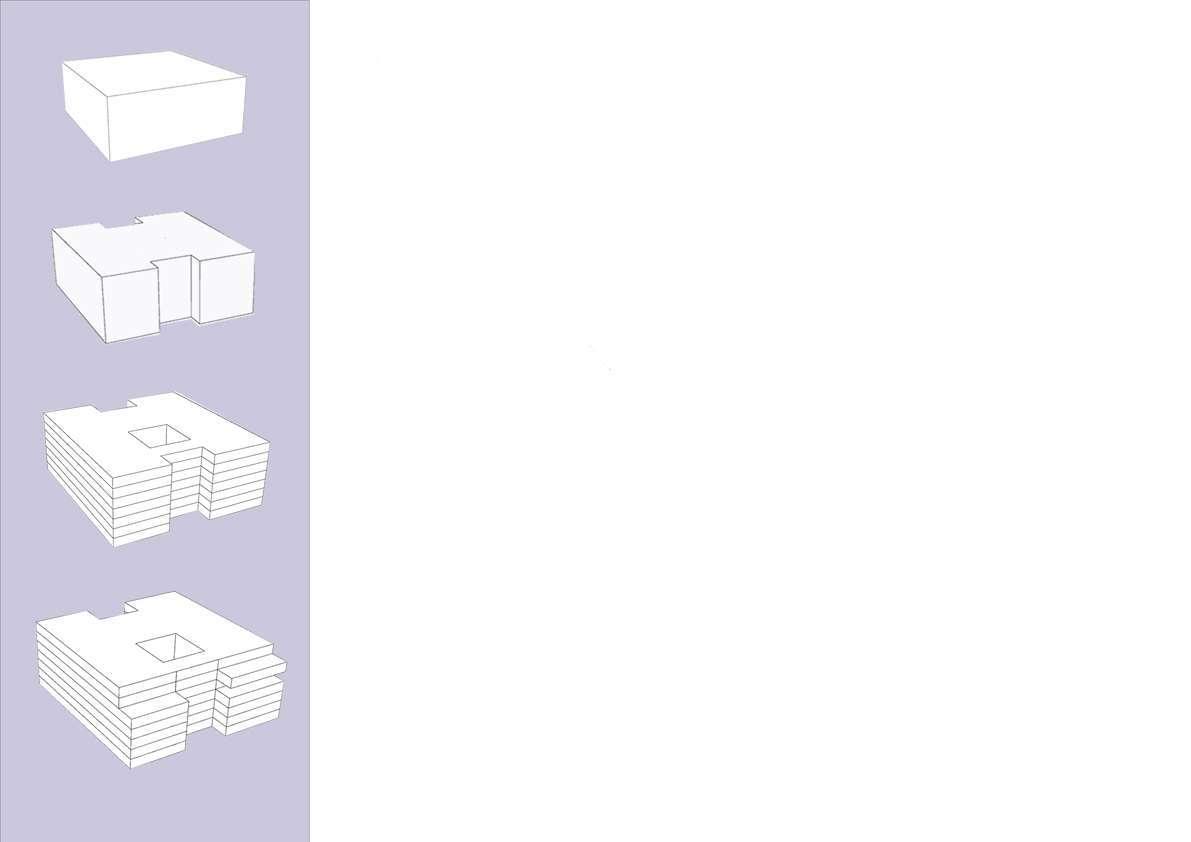

1) taking a geometric shape

2) courtyard connecting interior to exterior space

3) connection of spaces

4) lighting and ventilation

5) addition of spaces

design approach

SECOND FLOOR PLAN

first floor plan second floor plan

section at x-x section at y-y

MASTER BEDROOM LVL4000*3600 :+3170 LAUNDRY ROOM LVL2600*3400 :+3020 W/C LVL1535*2600 :+3020 DAUGHTER'S BEDROOM LVL2600*2900 :+3020 LVL1800*2900COMMONW/C :+3020 READING SPACE LVL2700*2700 :+3020 SON'S LVL3000*4600BEDROOM :+3020 GAME LVL1800*2000ROOM :+3020 FAMILY LVL2700*7800SPACE :+3020 LVL:+43802650*3600STAIRCASE D1 D2 D2 W5 W4 W4 W4 W4 W1 W1 W1 W2 W3 V1 W2 W4 W1 W4 W4 W3 W3 W4 W4 W3 D3 D3 D2 D2 D2 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 UP 9 W D Y Y X X POOJA LVL2600*3400ROOM :+5740 3330TERRACE *8450LVL:+5740 LOWER ROOF 4230TERRACE *5550LVL:+5740 LVL:+43802650*3600STAIRCASE D2 D2 D2 W1 W2 W4 W4 W1 DOWN 1 2 3 4 5 6 8 9 10 11 12 13 14 15 16 7 Y Y X X

LVL ±0000 ROAD LEVEL LVL : ±0300 GROUND FLOOR LVL : ±1000 LINTEL LVL LVL : ± 3020 FIRST FLOOR LVL : ±3420 LINTEL LVL LVL ±5120 SILL LVL LVL : ±5740 SECOND FLOOR LVL : ±6440 LINTEL LVL LVL ±7840 SILL LVL LVL : ±8460 TOP LVL LVL ±2400 SILL LEVEL LVL : ±0000 ROAD LEVEL LVL ±0300 GROUND FLOOR LVL ±1000 LINTEL LVL LVL : ± 3020 FIRST FLOOR LVL ±3420 LINTEL LVL LVL : ±5215 SILL LVL LVL ±5740 SECOND FLOOR LVL ±6440 LINTEL LVL LVL ±7940 SILL LVL LVL ±8460 TOP LVL LVL : ±1700 SILL LEVEL

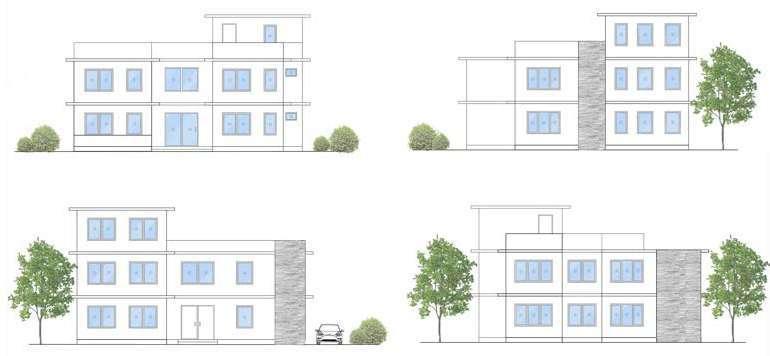

west elevation 04 3D VIEW FROM EAST

south

byalley’s mall

commercial complex

sitapaila, kathmandu

The

5TH SEMESTER PROJECT

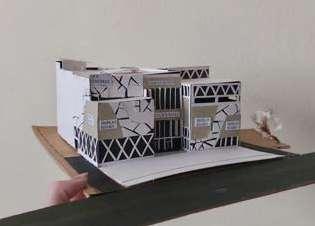

Located at Sitapaila , Kathmandu, Byalley’s Mall is a seven storey building with a provision of basement for parking. The public has access to the building through a plaza at the site’s entrance.

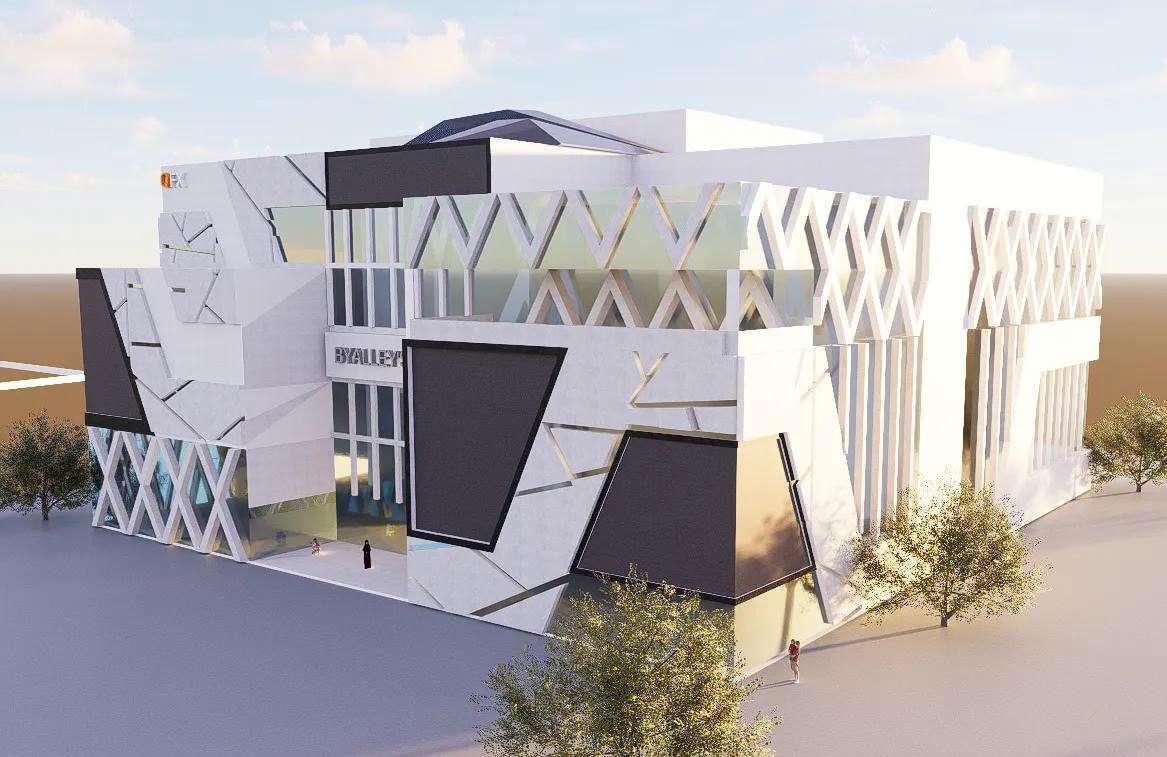

05 3D VIEW FROM NORTH EAST

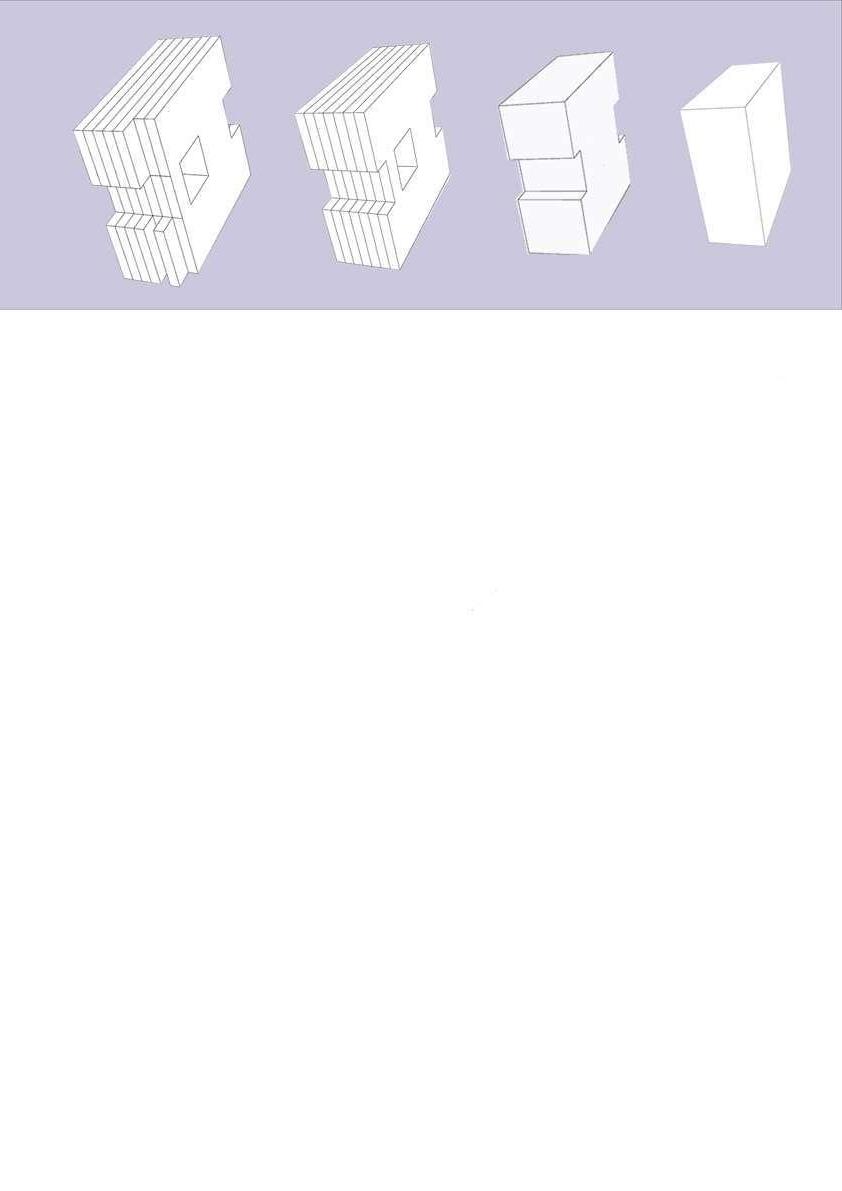

structure is made up of concrete and large glass windows are used for maximum visual assessibility. The projection is done (H-Shape Plan ) for more display area

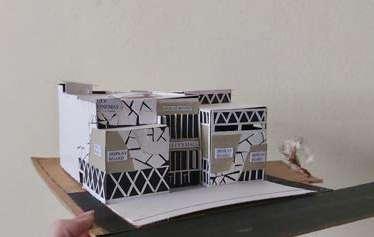

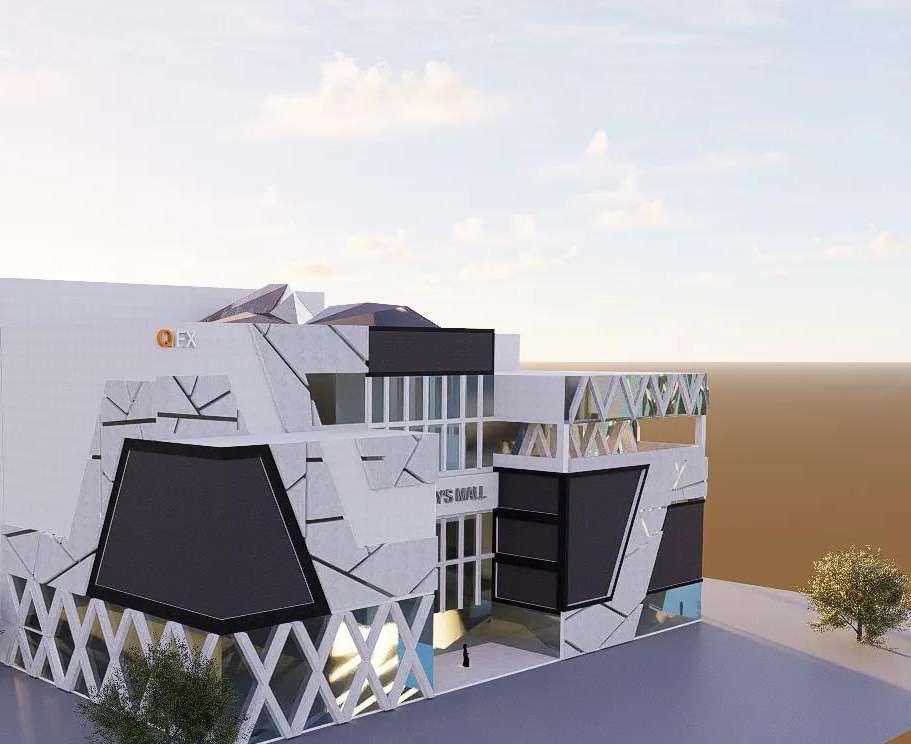

DISPLAY BOARD BYALLEY'S MALL QFX CINEMAS DISPLAY BOARD DISPLAY BOARD DISPLAY BOARD DISPLAY BOARD QFX CINEMAS DISPLAY AREA DISPLAY BOARD QFX CINEMAS OUTDOOR SPACE PLAZA DISPLAY BOARD QFX CINEMAS DISPLAY AREA DISPLAY BOARD QFX CINEMAS OUTDOOR SPACE PLAZA east elevation west elevation north elevation south elevation 07 3D VIEW FROM SOUTH EAST

fifth floor plan

sixth floor plan

SECTION AT Y-Y

section at y-y

ESCALATOR ESCALATOR SERVICE UP UP FOOD COURT CINEMAHALL-1CAPACITY=160PERSONS FOOD COURT CINEMAHALL-1CAPACITY=180PERSONS CANDY STALL BUBBLE TEA STALL SERVICE ROLLER SKATING TICKET COUNTER ROLLER RINK STORAGE FIRST AID GEAR COLLECTION AND LOCKER FOOD AND DRINKS ARCHERY TICKET COUNTER FOOD AND DRINKS OFFICE STORAGE SHOOTING RANGE BOW AND ARROW DOWN Y Y X X RETAIL SHOP RETAIL SHOP RETAIL SHOP RETAIL SHOP RETAIL SHOP MASSAGE SPA ACCESSORIES SHOP OFFICE OFFICE ARCHERY SERVICE BUBBLE TEA STALL POPCORN/DRINKS SECURITY OFFICE MOVIE HALL 2 SECTION AT X-X SERVICE SERVICE SERVICE SERVICE SERVICE SERVICE SERVICE OUTDOOR SPACE WAFFLE AND BUBBLE TEA SHOP GAME ZONE SERVICE PROJECTOR ROOM SERVICE PLAZA ROAD LOWER BASEMENT -7000 MM UPPER BASEMENT -3500 MM ROAD LVL 0000 MM FIRST FLOOR +4500 MM SECOND FLOOR +7800 MM THIRD FLOOR +11100 MM FOURTH FLOOR +14400 MM FIFTH FLOOR SIXTH FLOOR +21000 MM SEVENTH FLOOR +24300 MM +17700MM PLINTH LVL +1200 MM TOP FLOOR +27600 MM section at x-x RETAIL SHOP MASSAGE SPA OFFICE PASSAGE PASSAGE PASSAGE PASSAGE PASSAGE ATRIUM PASSAGE PASSAGE PASSAGE PASSAGE PASSAGE PASSAGE PASSAGE PASSAGE SERVICE SERVICE SERVICE SERVICE SERVICE SERVICE SERVICE LIFT BUBBLE TEA SHOP SECURITY SERVICE SERVICE BIKE PARKING BIKE PARKING CIRCULATION CIRCULATION CIRCULATION CIRCULATION MOVIE HALL 1 LOWER BASEMENT -7000 MM UPPER BASEMENT -3500 MM ROAD LVL 0000 MM FIRST FLOOR +4500 MM SECOND FLOOR +7800 MM THIRD FLOOR +11100 MM FOURTH FLOOR +14400 MM FIFTH FLOOR SIXTH FLOOR +21000 MM SEVENTH FLOOR +24300 MM

BIKE PARKING BIKE PARKING MAINTAINANCE ROOM OUTDOOR SPACE OUTDOOR SEATING SPACE GAME ZONE CIRCULATION CIRCULATION CIRCULATION CIRCULATION CIRCULATION CIRCULATION CIRCULATION CIRCULATION PASSAGE UP DN UP UP UP UP UP DN DN DN DN DN +17700MM PLINTH LVL +1200 MM TOP FLOOR +27600 MM

ESCALATOR ESCALATOR SERVICE UP UP SERVICE CANDY STALL CINEMAHALL-1CAPACITY=160PERSONS PROJECTOR ROOM CINEMAHALL-1CAPACITY=180PERSONS PROJECTOR ROOM SECURITY BOX OFFICE TICKET COUNTER POPCORN POPCORN DRINKS DRINKS DOWN Y Y X X Y1 X1 X1 Y1 08

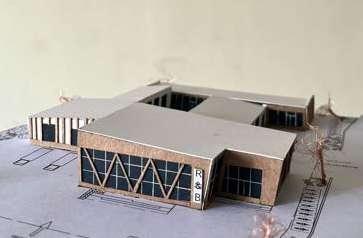

R&B HOME DECOR FURNITURE FACTORY

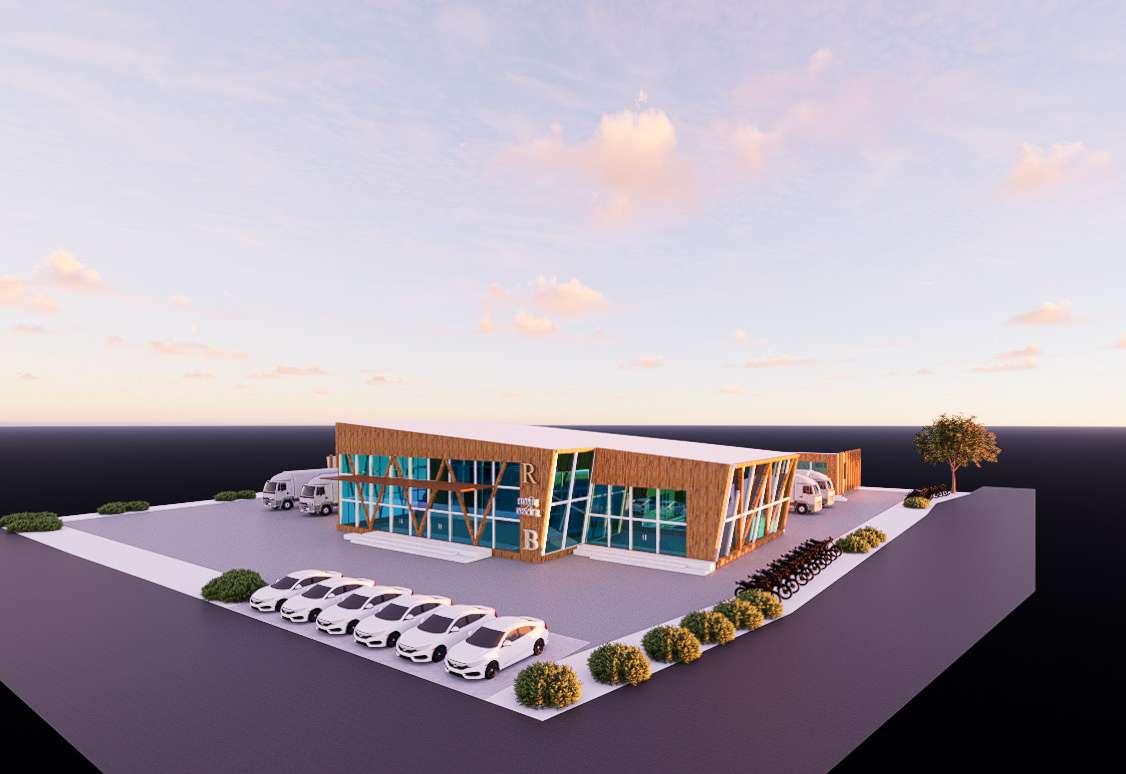

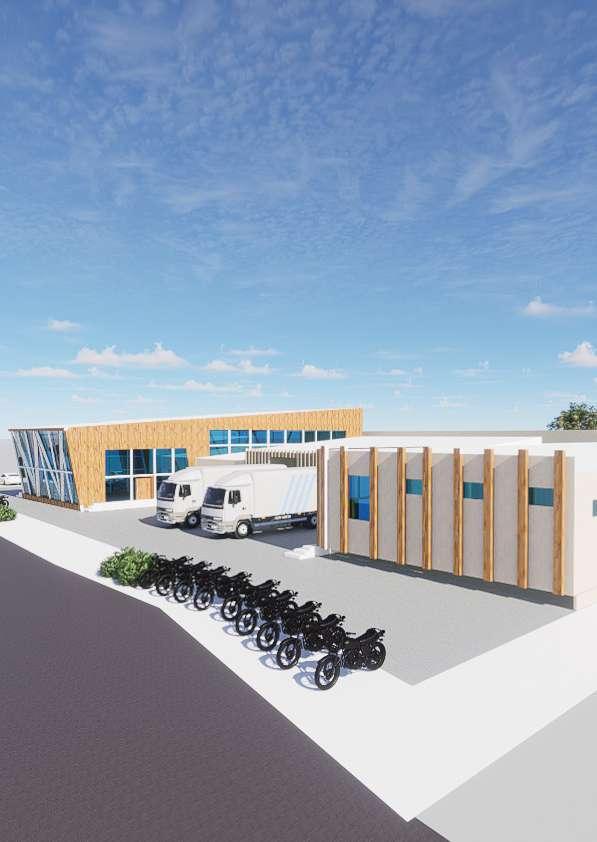

BALKUMARI ,LALITPUR 6TH SEMESTER PROJECT 09 3D VIEW FROM NORTH

PROJECT BRIEF

Located in Balkumari, Lalitpur. R & B Home Decor is a long span structure with a capacity for 25 workers. Both manufacturing unit and shiowroom and administration block is supported by truss constuction.

While the remaining manufacturing units are single-story buildings, the showroom and administration building has two stories which emphasizes the showroom and offers hierarchies.

I designed this building for my design studio project in the sixth semester of architecture school under the guidance of Ar. Arjun Basnet and Ar. Prajjwol Joshi

design approach

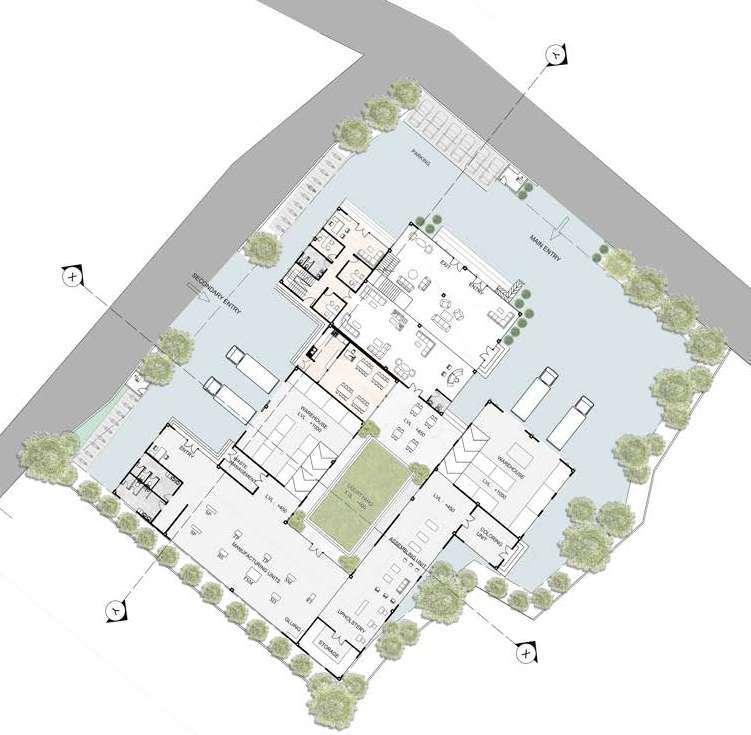

master plan

TOTAL SITE AREA : 4359.38 M^2

ground coverage ratio : 37.2% 4)

MONOPITCH ROOF AS A DESIGN ELEMENT

1) maximum footprint 2) courtyard for maximum light and ventilation 3) division of the volume as per the function 10

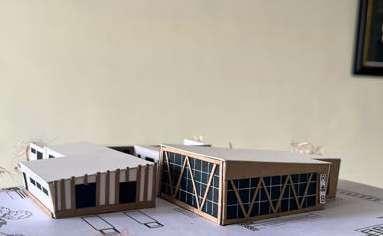

South west elevation South east elevation

profile

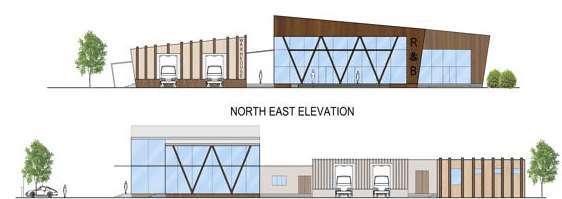

north west elevation

ELEVATION

WEST ELEVATION

EAST ELEVATION TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL,LALITPUR NAME BINI JOSHI BATCH/ROLLNO HCOE076BAR013 DATE : 11/03/2023 SCALE: 1:125 CHECKED BY SUBJECT DESIGN STUDIO - VI TITLE : ELEVATION 0 NORTH WEST ELEVATION SOUTH WEST ELEVATION SOUTH EAST ELEVATION TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL,LALITPUR NAME BINI JOSHI BATCH/ROLLNO HCOE076BAR013 DATE 11/03/2023 SCALE: 1:125 CHECKED BY SUBJECT DESIGN STUDIO - VI TITLE : ELEVATION 0 ROOF STRUCTURE (SCALE 1:150) TRUSS DETAIL RAFTER PURLIN GUSSET PLATE GUTTER AND TRUSS CONNECTION PORTAL FRAME DETAIL (SCALE :1:40) COLUMN GROUT CEMENT CONCRETE BASE BASE PLATE PLAN SECTION FOUNDATION DETAIL (SCALE 1:10) TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL,LALITPUR NAME BINI JOSHI DATE 11/03/2023 CHECKED BY : SUBJECT : DESIGN STUDIO - VI TITLE : CONSTRUCTION DETAILS

STRUCTURE (SCALE 1:150) CEMENT CONCRETE BASE PLINTH STEEL COLUMN PIPE GUTTER GUSSET BOLTS TRUSS DETAIL RAFTER PURLIN GUSSET PLATE STRUT METAL ROOF COVERING GUTTER AND TRUSS CONNECTION DETAIL SECTION COLUMN GUTTER METAL PANEL RAFTER EAVES HAUNCH GUTTER PIPE PLINTH PORTAL FRAME DETAIL (SCALE :1:40) COLUMN GROUT CEMENT CONCRETE BASE BASE PLATE PLAN SECTION FOUNDATION DETAIL (SCALE 1:10) UNIVERSITY GUTTER GUSSET TRUSS DETAIL RAFTER PURLIN GUSSET PLATE STRUT METAL ROOF COVERING foundation detail truss detail foundation detail 11 3D VIEW FROM SOUTH WEST

elevations construction details

elevations

NORTH WEST

SOUTH

ROOF

UNIVERSITYHIMALAYACOLLEGEOF ENGINEERING DEPARTMENTOFCHYASAL,LALITPURARCHITECTURE

COLUMN GROUT CEMENTCONCRETEBASEBASEPLATE PLAN SECTIONTRIBHUVANFOUNDATIONDETAIL(SCALE1:10)

ROOFSTRUCTURE(SCALE1:150)

FIRST FLOOR plan roof structure

TITLESUBJECT:DESIGNSTUDIO-VI :CONSTRUCTIONDETAILS

GUTTERANDTRUSSCONNECTIONDETAIL

SECTION AT X-X

DATE:11/03/2023

SECTION AT X-X

PORTALFRAMEDETAIL (SCALE:1:40)

NAME:BINIJOSHI

SECTION AT Y-Y

UP COURTYARD Y Y X X ASSEMBLING UNIT

UNLOADING LVL ±0000 ROAD LVL LVL : ± 1000 GROUND LVL LVL ± 4500 ROOF LVL LVL ±4000 SILL LVL LVL ± 6800 LOWER ROOF LVL LVL ±3750 FIRST FLOOR LVL COURTYARD LVL ± 8450 TOP ROOF LVL

ASSEMBLING UNIT SECTION AT X-X UNLOADING LVL ±0000 ROAD LVL LVL ± 1000 GROUND LVL LVL ± 4500 ROOF LVL LVL ±4000 SILL LVL WASTE MANAGEMENT LVL ±0000 ROAD LVL LVL ± 0450 GROUND LVL LVL ± 6800 LOWER ROOF LVL LVL ±3750 FIRST FLOOR LVL

AT Y-Y LVL ±1950 SILL LVL MACHINERY UNITS UNLOADING KITCHEN COURTYARD LVL ± 8450 TOP ROOF LVL

SECTION

CEMENTCONCRETEBASE PLINTH STEELCOLUMN PIPE GUSSETGUTTER BOLTS TRUSSDETAIL RAFTER PURLIN GUSSETPLATE STRUT METALROOFCOVERING

GUTTERMETALPANEL RAFTER EAVESHAUNCH GUTTERPIPE PLINTH

C-SECTIONCOLUMN

BATCH/ROLLNO: HCOE076BAR013

SCALE:1:10, CHECKEDBY:

working drawings

ground floor plan first floor plan

section at x-x section at y-y

GYM YOGA ROOM 4000*3600 LVL +300 LIVING ROOM 3000*4600 LVL +300 W/C 1500*2600 LVL +300 STAIRCASE 2650*3600 LVL:1660 300200 1000 200300250 1000 650 800 250300 1400 300 800 30050 2100 450300 2750 300 1700 3250 1700 1100 2900 3050 300 1400 300250 2400 300300350 1800 350300250 2100 250300 2750 300 1700 3250 2800 2900 3050 14000 300 350 1800 250 300 250 1800 350 300 910 2100 840 300 250 1000 3000 300 2700 2650 4150 1850 2750 14400 300 50 700 150 0 300 200 800 200 300 250 1800 300 300 910 2100 840 300 300 1000 250 300 300 1800 350 300 1200 1500 2650 4150 1850 2750 14400 1 2 3 4 5 6 7 1 2 3 5 6 7 G E D C B A E D C B A D1 D4 D4 D4 D2 D2 2 4 5 6 7 8 9 10 12 13 14 15 16 UP COUTYARD W5 W4 W4 W4 W4 W1 W1 W1 W2 W3 V1 W2 W4 W1 W4 W4 W4 W4 W3 KITCHEN AND DINING 4500*5800 LVL +300 D3 GUEST BEDROOM 2600*3400 LVL +300 Y Y X X 300 700 1400 295 200 125 700 1400 295 325 700 1400 267 355 8460 LVL ±0000 ROAD LEVEL LVL ±0300 GROUND FLOOR LVL ±1000 LINTEL LVL LVL ± 3020 FIRST FLOOR LVL ±3420 LINTEL LVL LVL ±5120 SILL LVL LVL ±5740 SECOND FLOOR LVL ±6440 LINTEL LVL LVL ±7840 SILL LVL LVL ±8460 TOP LVL LVL ±2400 SILL LEVEL LVL : ±0000 ROAD LEVEL LVL ±0300 GROUND FLOOR LVL ±1000 LINTEL LVL LVL ± 3020 FIRST FLOOR LVL ±3420 LINTEL LVL LVL ±5215 SILL LVL LVL ±5740 SECOND FLOOR LVL ±6440 LINTEL LVL LVL ±7940 SILL LVL LVL ±8460 TOP LVL LVL : ±1700 SILL LEVEL 300200 1000 200300250 1000 650 800 250300 1400 300 800 30050 2100 450300 2750 300 1700 3250 1700 1100 2900 3050 300 1400 300250 2400 300300350 1800 350300250 2100 250300 2750 300 1700 3250 2800 2900 3050 300 350 1800 250 300 250 1800 350 300 910 2100 840 300 250 1000 3000 300 2700 2650 4150 1850 2750 300 50 700 150 0 300 200 800 200 300 250 1800 300 300 910 2100 840 300 300 1000 250 300 300 1800 350 300 1200 1500 2650 4150 1850 2750 1 2 3 4 5 6 7 1 2 3 5 6 7 G E D C B A E D C B A MASTER BEDROOM 4000*3600 LVL +3170 LAUNDRY ROOM 2600*3400 LVL +3020 W/C 1535*2600 LVL +3020 DAUGHTER'S BEDROOM 2600*2900 LVL +3020 COMMON W/C 1800*2900 LVL +3020 READING SPACE 2700*2700 LVL +3020 SON'S BEDROOM 3000*4600 LVL +3020 GAME ROOM 1800*2000 LVL +3020 FAMILY SPACE 2700*7800 LVL +3020 STAIRCASE 2650*3600 LVL:+4380 500 500 500 500 15000 500 500 500 500 15400 15400 D1 D2 D2 W5 W4 W4 W4 W4 W1 W1 W1 W2 W3 V1 W2 W4 W1 W4 W4 W3 W3 W4 W4 W3 D3 D3 D2 D2 D2 1 2 3 7 8 11 13 14 UP W D Y Y X X 14000 300 700 1400 295 200 125 700 1400 295 325 700 1400 267 355 8460 LVL ±0000 ROAD LEVEL LVL ±0300 GROUND FLOOR LVL ±1000 LINTEL LVL LVL ± 3020 FIRST FLOOR LVL ±3420 LINTEL LVL LVL ±5215 SILL LVL LVL ±5740 SECOND FLOOR LVL ±6440 LINTEL LVL LVL ±7940 SILL LVL LVL ±8460 TOP LVL LVL ±1700 SILL LEVEL

exterior wall detail

EXTERIOR WALL SECTION INTERIOR WALL SECTION

AFFILIATED TO TRIBHUVAN UNIVERSITY

TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR

HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL

SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN

HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE

SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN

interior wall detail

50 600 50 700 50 50 W2 800 50 850 50 50 950 50 W1 1050 50 725 50 725 50 50 825 50 825 50 1800 W4 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 700 50 50 800 W2 PLAN 50 950 50 1050 W1 PLAN 50 825 50 825 50 1800 W4 PLAN ELEVATION 50 625 50 750 50 725 50 825 750 825 2400 50 1196 50 50 1296 50 1400 W5 WINDOW PLAN 825 750 825 2400 50 550 50 650 50 550 50 600 50 650 50 600 50 50 2100 50 1196 50 50 1296 50 1400 600 50 650 50 600 50 50 2100 W3 WINDOW PLAN ELEVATION ELEVATION ELEVATION ELEVATION SECTION FRAME DETAIL 65 12.5 50 12.5 75 12.5 35 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN NAME BINI JOSHI DATE 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE : 1:100 10 SAM AND OS 75 975 975 75 2100 50 950 50 950 50 2100 75 850 75 1000 75 650 75 800 D1 PLAN D4 PLAN D2 PLAN D3 PLAN 75 899 125 949 50 50 949 100 949 50 50 800 50 50 700 50 1050 1050 1050 1050 800 1000 2100 2100 ELEVATION ELEVATION ELEVATIONELEVATION 75 2100 DOOR SECTION FRAME DETAIL 65 12.5 50 12.5 75 12.5 35 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN NAME BINI JOSHI DATE 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE : 1:100 11 SAM AND OS

detail door detail LVL ±0000 GROUND LVL LVL ±0300 PLINTH LVL LVL ±1000 LINTEL LVL LVL ± 3020 FIRST FLOOR LVL ±3420 LINTEL LVL LVL ±5120 SILL LVL LVL ±5740 SECOND FLOOR LVL ±6440 LINTEL LVL LVL ±7840 SILL LVL LVL ±8460 TOP LVL LVL ±2400 SILL LEVEL 20MM THICKNESS MARBLE FINISH 20MM TH. 1:2:4 CONCRETE SCREED 75 MM TH. 1:3:6 LAYER OF BRICK SOILING 150MM TH. SAND FILLING COMPACT EARTH FILLING 8460 500 230* 355 MM RCC BEAM BRICK LINTEL SILL 230* 355 MM RCC BEAM 230* 355 MM RCC BEAM 125MM RCC SLAB 75 MM PCC BRICK SOLING FOOTING 125MM RCC SLAB 230* 355 MM RCC BEAM BRICK LINTEL SILL 380 75 75 75 200 230 650 LVL ±0000 LVL ±0300 PLINTH LVL LVL ±1000 LINTEL LVL LVL ± 3020 FIRST FLOOR LVL ±3420 LINTEL LVL LVL ±5120 SILL LVL LVL ±5740 SECOND FLOOR LVL ±6440 LINTEL LVL LVL ±7840 SILL LVL LVL ±8460 TOP LVL LVL ±2400 SILL LEVEL 295 8460 500 125MM RCC SLAB SILL 230* 355 MM RCC BEAM SILL SILL 230* 355 MM RCC BEAM 125MM RCC SLAB 20MM THICKNESS MARBLE FINISH 20MM TH. 1:2:4 CONCRETE SCREED 75 MM TH. 1:3:6 1 LAYER OF BRICK SOILING 150MM TH. SAND FILLING COMPACT EARTH FILLING 75 MM PCC BRICK SOLING FOOTING 380 75 75 75 200 230 650

window

AFFILIATED TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR SUBJECT : AUTO CAD TITLE :WALL SECTION NAME BINI JOSHI DATE 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE 1:100 8 SAM AND OS 75 975 975 75 2100 50 950 50 950 50 2100 75 850 75 1000 75 650 75 800 D1 PLAN D4 PLAN D2 PLAN D3 PLAN 75 899 125 949 50 50 949 100 949 50 50 800 50 50 700 50 1050 1050 1050 1050 800 1000 2100 2100 ELEVATION ELEVATION ELEVATIONELEVATION 75 2100 DOOR SECTION FRAME DETAIL 65 12.5 50 12.5 75 12.5 35 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN NAME BINI JOSHI DATE : 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE : 1:100 11 SAM AND OS 75 975 975 75 2100 50 950 50 950 50 2100 75 850 75 1000 75 650 75 800 D1 PLAN D4 PLAN D2 PLAN D3 PLAN 75 899 125 949 50 50 949 100 949 50 50 800 50 50 700 50 1050 1050 1050 1050 800 1000 2100 2100 ELEVATION ELEVATION ELEVATIONELEVATION 75 2100 DOOR SECTION FRAME DETAIL 65 12.5 50 12.5 75 12.5 35 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN NAME BINI JOSHI DATE : 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE : 1:100 11 SAM AND OS north west elevation G D C B A W4 W4 W1 W3 D3 south west elevation 1 2 5 6 W5 W4 D2 W3 G E D C A W4 W4 W1 W3 D3 7 3 2 1 W3 W2 W1 W1 G D C W4 W4 W1 W4 W2 V1 D2 D4 south east elevation ROOF PLAN 1 2 5 6 G E D C B A 7 6 3 2 1 W3 W2 W1 W1 G D C A W4 W4 W1 W4 W2 V1 D2 D4 north east elevation ROOF PLAN G E C B A W4 W4 W1 W3 D3 G E D C B A W4 W4 W1 W4 W2 V1 D2 D4

AFFILIATED

NAME BINI JOSHI DATE 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE : 1:100 10 SAM AND OS 20MM THICKNESS MARBLE FINISH 20MM TH. 1:2:4 CONCRETE SCREED 75 MM TH. 1:3:6 LAYER OF BRICK SOILING 150MM TH. SAND FILLING COMPACT EARTH FILLING 230* 355 MM RCC BEAM BRICK LINTEL SILL 230* 355 MM RCC BEAM 230* 355 MM RCC BEAM 125MM RCC SLAB 75 MM PCC BRICK SOLING FOOTING 125MM RCC SLAB 230* 355 MM RCC BEAM BRICK LINTEL SILL LVL ±0000 LVL ±0300 PLINTH LVL LVL ±1000 LINTEL LVL LVL ± 3020 FIRST FLOOR LVL ±3420 LINTEL LVL LVL ±5120 SILL LVL LVL ±5740 SECOND FLOOR LVL ±6440 LINTEL LVL LVL ±7840 SILL LVL LVL ±8460 TOP LVL LVL ±2400 SILL LEVEL 295 8460 500 125MM RCC SLAB SILL 230* 355 MM RCC BEAM SILL SILL 230* 355 MM RCC BEAM 125MM RCC SLAB 20MM THICKNESS MARBLE FINISH 20MM TH. 1:2:4 CONCRETE SCREED 75 MM TH. 1:3:6 1 LAYER OF BRICK SOILING 150MM TH. SAND FILLING COMPACT EARTH FILLING 75 MM PCC BRICK SOLING FOOTING 380 75 75 75 200 230 650 WALL SECTION INTERIOR WALL SECTION UNIVERSITY ENGINEERING ARCHITECTURE SUBJECT : AUTO CAD TITLE :WALL SECTION NAME BINI JOSHI DATE 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE 1:100 8 SAM AND OS 50 600 50 700 50 50 W2 800 50 850 50 50 950 50 W1 1050 50 725 50 725 50 50 825 50 825 50 1800 W4 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 700 50 50 800 W2 PLAN 50 950 50 1050 W1 PLAN 50 825 50 825 50 1800 W4 PLAN ELEVATION 50 625 50 750 50 725 50 825 750 825 2400 50 1196 50 50 1296 50 1400 W5 WINDOW PLAN 825 750 825 2400 50 550 50 650 50 550 50 600 50 650 50 600 50 50 2100 50 1196 50 50 1296 50 1400 600 50 650 50 600 50 50 2100 W3 WINDOW PLAN ELEVATION ELEVATION ELEVATION ELEVATION SECTION FRAME DETAIL 65 12.5 50 12.5 75 12.5 35 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN NAME : BINI JOSHI DATE : 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE 1:100 10 SAM AND OS 50 600 50 700 50 50 W2 800 50 850 50 50 950 50 W1 1050 50 725 50 725 50 50 825 50 825 50 1800 W4 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 700 50 50 800 W2 PLAN 50 950 50 1050 W1 PLAN 50 825 50 825 50 1800 W4 PLAN ELEVATION 50 625 50 750 50 725 50 825 750 825 2400 50 1196 50 50 1296 50 1400 W5 WINDOW PLAN 825 750 825 2400 50 550 50 650 50 550 50 600 50 650 50 600 50 50 2100 50 1196 50 50 1296 50 1400 600 50 650 50 600 50 50 2100 W3 WINDOW PLAN ELEVATION ELEVATION ELEVATION ELEVATION SECTION FRAME DETAIL 65 12.5 50 12.5 75 12.5 35 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY

OF ENGINEERING

CHYASAL LALITPUR

HIMALAYA COLLEGE

DEPARTMENT OF ARCHITECTURE

NAME BINI JOSHI DATE 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE : 1:100 10 SAM AND OS 50 600 50 700 50 50 W2 800 50 850 50 50 950 50 W1 1050 50 725 50 725 50 50 825 50 825 50 1800 W4 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 700 50 50 800 W2 PLAN 50 950 50 1050 W1 PLAN 50 825 50 825 50 1800 W4 PLAN ELEVATION 50 625 50 750 50 725 50 825 750 825 2400 50 1196 50 50 1296 50 1400 W5 WINDOW PLAN 825 750 825 2400 50 550 50 650 50 550 50 600 50 650 50 600 50 50 2100 50 1196 50 50 1296 50 1400 600 50 650 50 600 50 50 2100 W3 WINDOW PLAN ELEVATION ELEVATION ELEVATION ELEVATION SECTION FRAME DETAIL 65 12.5 50 12.5 75 12.5 35 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY

CHYASAL LALITPUR

NAME : BINI JOSHI DATE : 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE 1:100 10 SAM AND OS 50 600 50 700 50 50 W2 800 50 850 50 50 950 50 W1 1050 50 725 50 725 50 50 825 50 825 50 1800 W4 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 700 50 50 800 W2 PLAN 50 950 50 1050 W1 PLAN 50 825 50 825 50 1800 W4 PLAN ELEVATION 50 625 50 750 50 725 50 825 750 825 2400 50 1196 50 50 1296 50 1400 W5 WINDOW PLAN 825 750 825 2400 50 550 50 650 50 550 50 600 50 650 50 600 50 50 2100 50 1196 50 50 1296 50 1400 600 50 650 50 600 50 50 2100 W3 WINDOW PLAN ELEVATION ELEVATION ELEVATION ELEVATION SECTION FRAME DETAIL 65 12.5 50 12.5 75 12.5 35 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN NAME : BINI JOSHI DATE 08/07/2022 SUBMITTED TO BATCH : HCE076BAR013 SCALE 1:100 10 SAM AND OS 50 600 50 700 50 50 W2 800 50 850 50 950 50 W1 1050 50 725 50 725 50 50 825 50 825 50 1800 W4 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 700 50 50 800 W2 PLAN 950 50 1050 W1 PLAN 50 825 50 825 50 1800 W4 PLAN ELEVATION 50 625 50 750 50 725 50 825 750 825 2400 50 1196 50 50 1296 50 1400 W5 WINDOW PLAN 825 750 825 2400 50 550 50 650 50 550 50 600 50 650 50 600 50 50 2100 50 1196 50 50 1296 50 1400 600 50 650 50 600 50 50 2100 W3 WINDOW PLAN

ELEVATION ELEVATION SECTION

65 12.5 50 12.5 75 12.5 35 12.5 65

50 12.5 12.5 25 62.5 37.5

ELEVATION ELEVATION

FRAME DETAIL

STYLE DETAIL

60 35 65 35 12.5 35 12.5

MULLION DETAIL

LALITPUR

65 75 12.5 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN NAME BINI JOSHI DATE : 08/07/2022 SUBMITTED TO : BATCH HCE076BAR013 SCALE 1:100 10 SAM AND OS 50 600 50 700 50 50 W2 800 50 850 50 50 950 50 W1 1050 50 725 50 725 50 50 825 50 825 50 1800 W4 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 50 1196 50 50 1296 50 1400 700 50 50 800 W2 PLAN 50 950 50 1050 W1 PLAN 50 825 50 825 50 1800 W4 PLAN ELEVATION 50 625 50 750 50 725 50 825 750 825 2400 50 1196 50 50 1296 50 1400 W5 WINDOW PLAN 825 750 825 2400 50 550 50 650 50 550 50 600 50 650 50 600 50 50 2100 50 1196 50 50 1296 50 1400 600 50 650 50 600 50 50 2100 W3 WINDOW PLAN ELEVATION ELEVATION ELEVATION ELEVATION SECTION FRAME DETAIL 65 12.5 50 12.5 75 12.5 35 12.5 65 STYLE DETAIL 50 12.5 12.5 25 62.5 37.5 MULLION DETAIL 60 35 65 35 12.5 35 12.5 AFFILIATED TO TRIBHUVAN UNIVERSITY HIMALAYA COLLEGE OF ENGINEERING DEPARTMENT OF ARCHITECTURE CHYASAL LALITPUR SUBJECT : AUTO CAD TITLE : GROUND FLOOR PLAN NAME : BINI JOSHI DATE : 08/07/2022 SUBMITTED TO BATCH HCE076BAR013 SCALE 1:100 10 SAM AND OS 14

FRAME DETAIL
