Hi,I’m Billa.A simple-minded architecture graduate who has an interest inBuilding InformationModeling (BIM). Tend to maximize the potential for continuouslearning in termsof technology and creative thinking skills

I believe that as longasyou decide to open the box,you will end up being partof the ideas.

CAD Drafter Taman Safari Indonesia

Student Internship SHL Asia, Bali

Assistant Lecturer

Universitas Gadjah Mada

Research Assistant Lecturer Universitas Gadjah Mada

ORGANIZATION

Jan 2022 - Sep 2022

Jan 2021 – Mar 2021

Sep 2020 – Jul 2021

Dec 2020 – May 2021

Microsoft Office

SOFTSKILLS

Creative Thinking

Problem Solving

Team Work

INTEREST

nabilakhairinisag@gmail.com

instagram.com/gunawanbilla

linkedin.com/in/billagunawan

+62 878 8425 1110

Staff of Entepreneurial Division

KMTA | Universitas Gadjah Mada

Staff of Interset & Talent Division

KMTA | Universitas Gadjah Mada

Staff of Event Division

Wiswakharman Expo 2019 held at Prambanan, Yogyakarta

Dec 2019 – Dec 2020

Dec 2018 – Dec 2019

Jan 2019 – Jun 2019

Building Information Modeling

Architecture Visualization

Graphic Design

Photography

Travelling

Music

2021 | BEKASI

APARTMENT AT GRAND KALAMA LAGOON

2021 | PONOROGO

ANANTA PRAYANAM: MUSEUM & ART GALLERY PONOROGO

2022 | JAKARTA

COVID-19 SELF ISOLATION CENTER

2022 | SURAKARTA

SOLO SAFARI REVITALIZATION

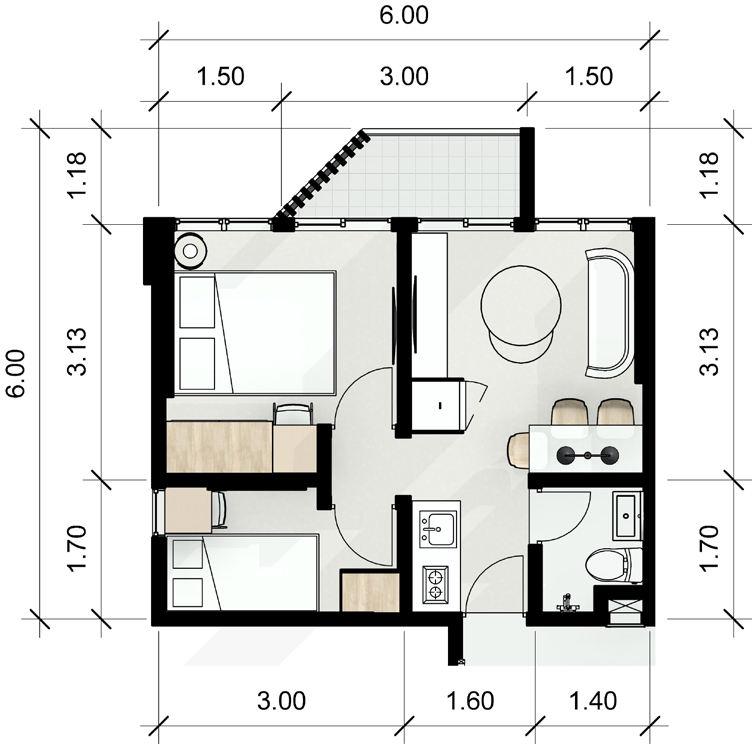

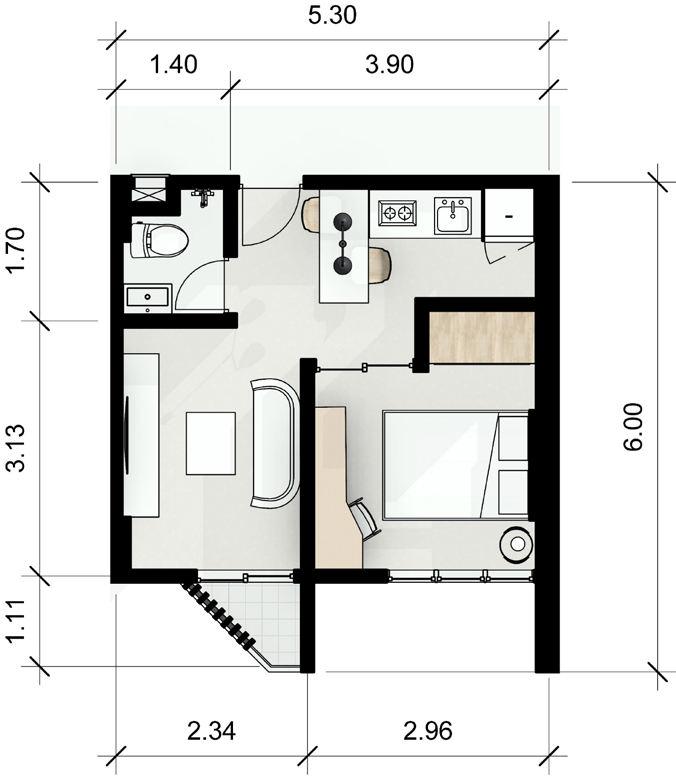

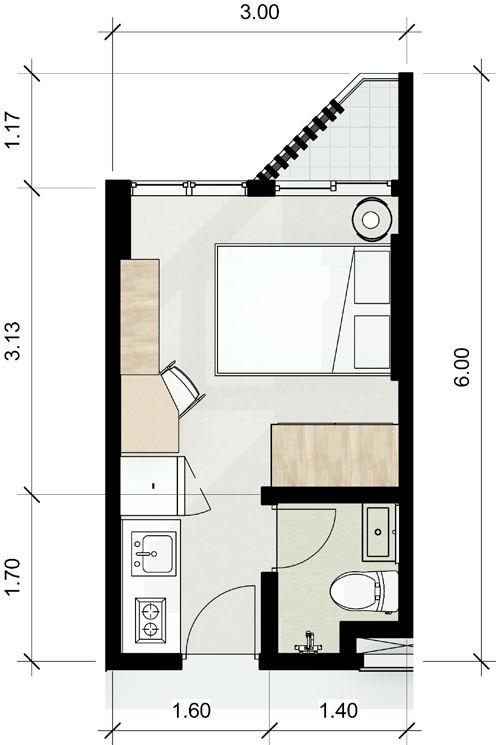

APARTMENT

AT GRAND KAMALA LAGOON

Nominated as Best Academic Project 2021 | Individual Project

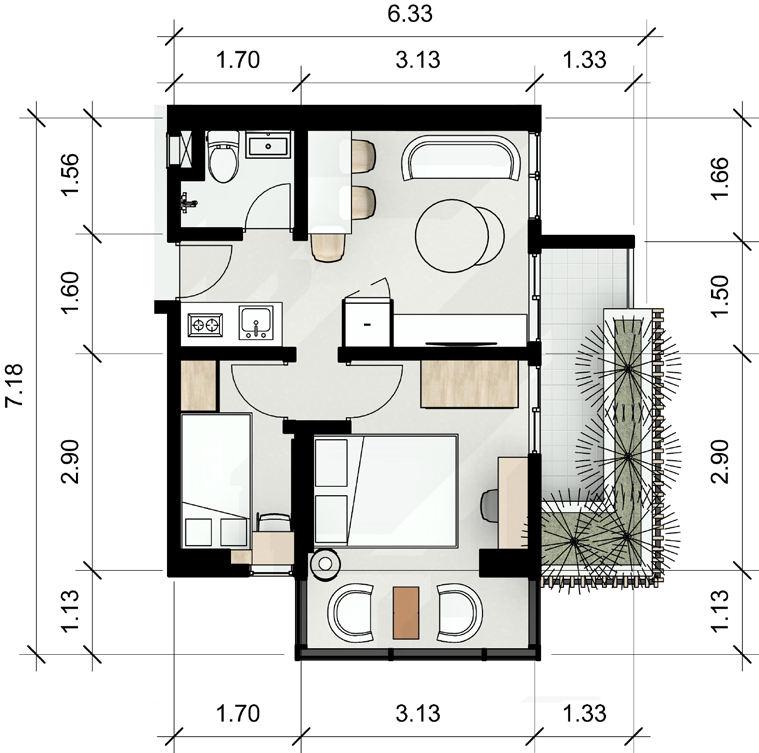

Middle-Class Apartment | 3rd Year Academic Project

Year: 2021

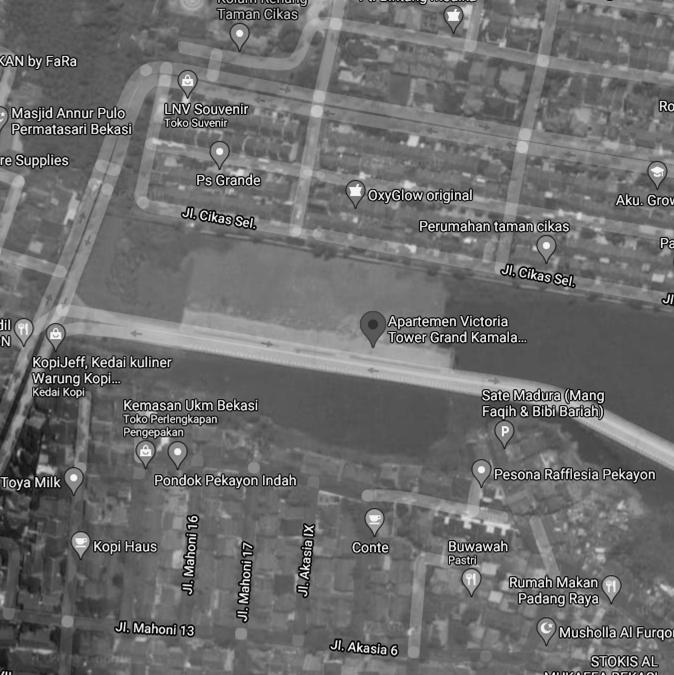

Area: Location: Bekasi, West Java

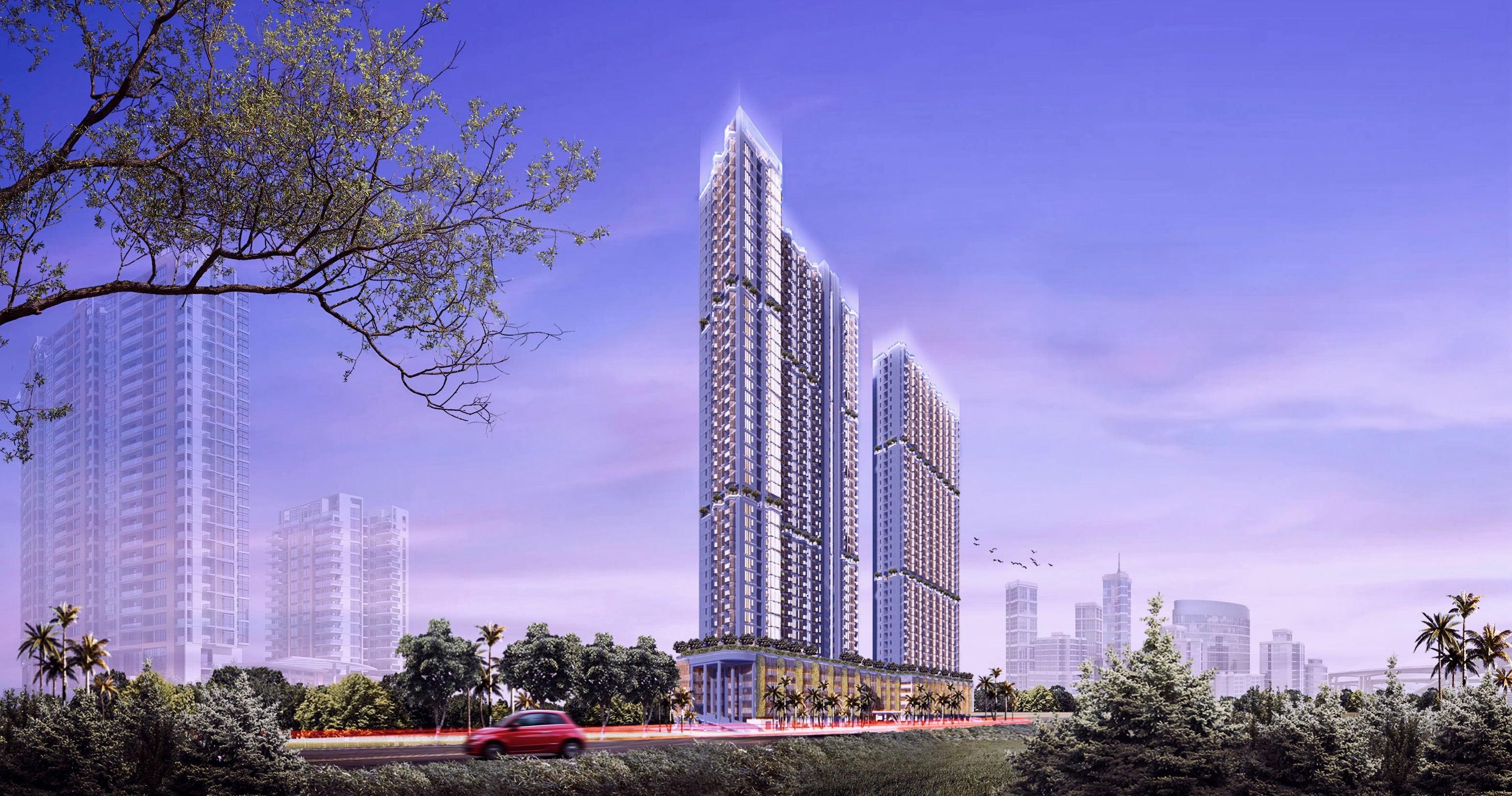

A mid-class apartmentlocated in the Grand Kamala Lagoon

Bekasi CBD area. Under the auspices of PP Properti, this apartment has become a new icon to increase property selling prices in the area

“wondrous seamless harmony”

Anapartment that provides a balance of lifestyle amidst the rapidly growing businessactivities with the presence of a green landscape in the building to create a freshatmosphere after a day of activities.

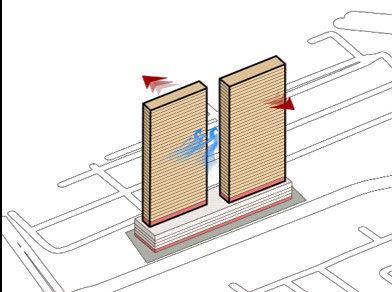

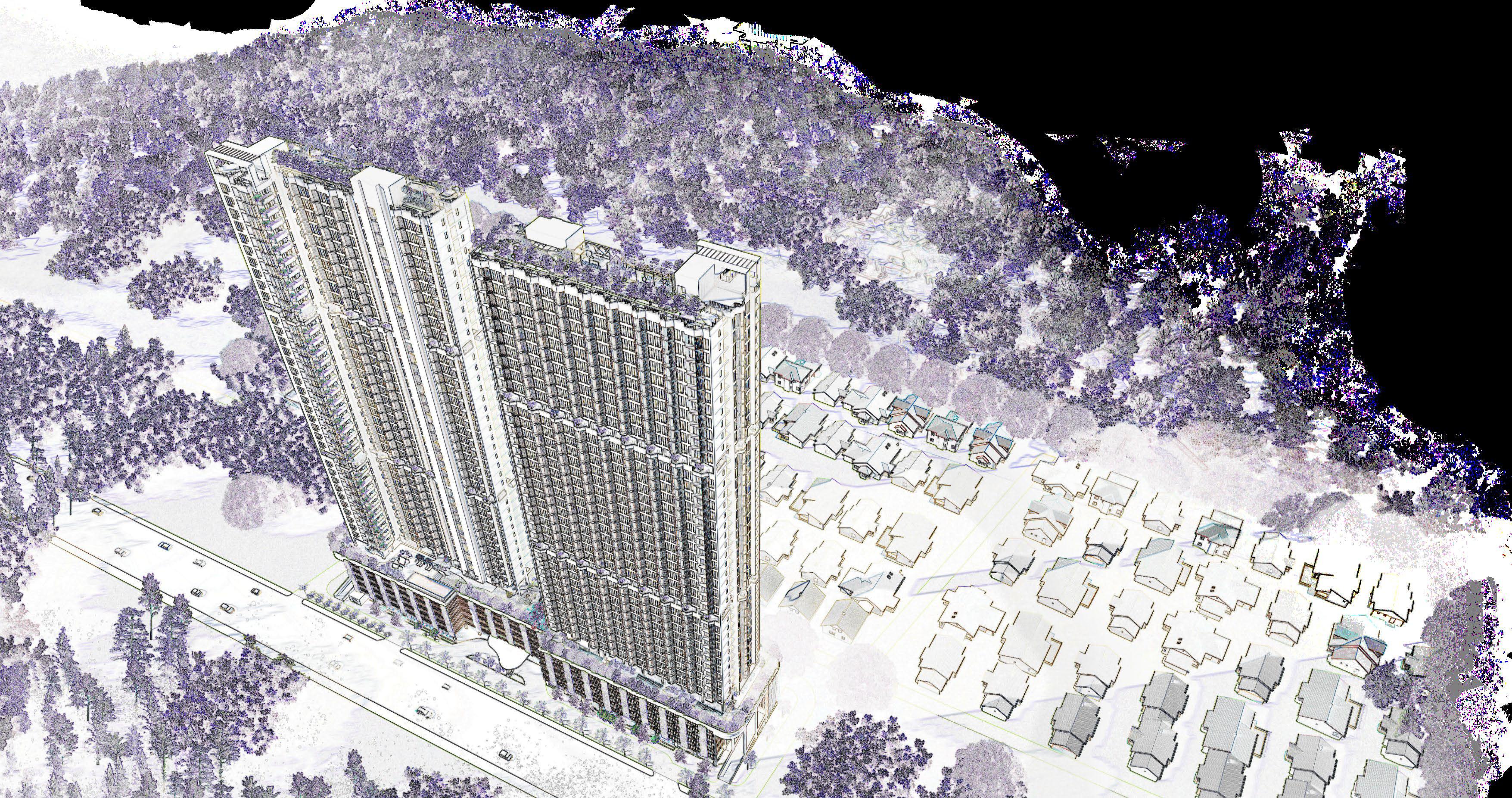

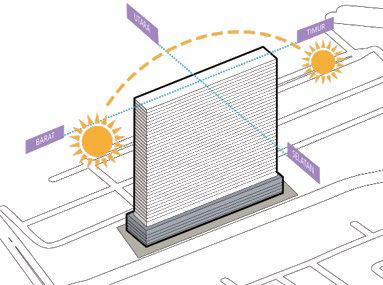

The building responds to its site with a thin building mass and a north-south orientation to avoid excessiveheat from the sun

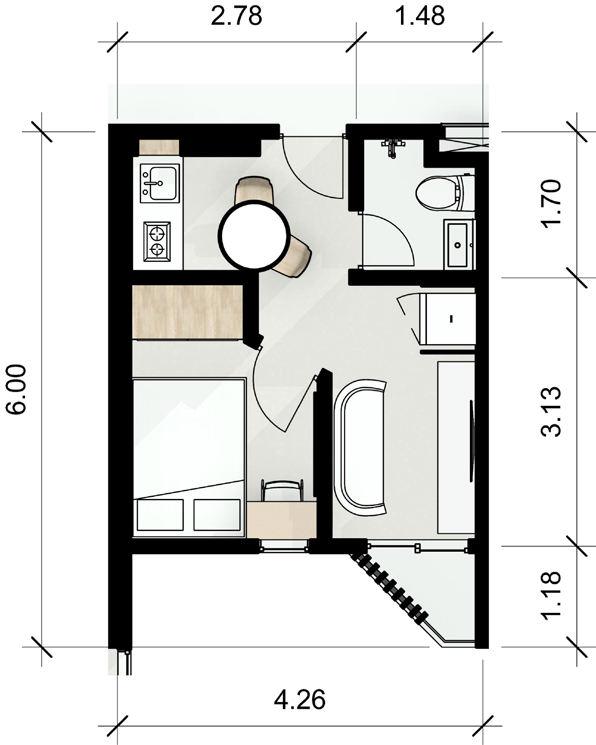

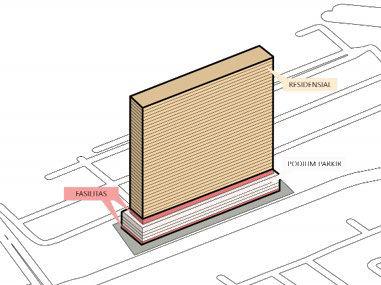

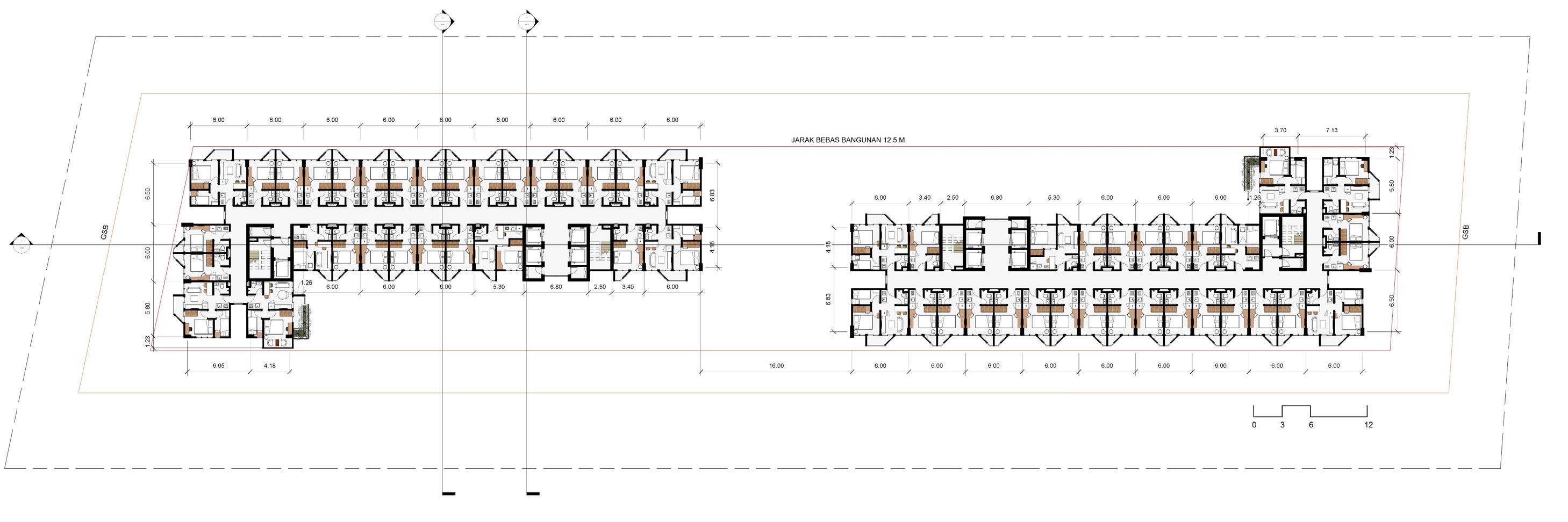

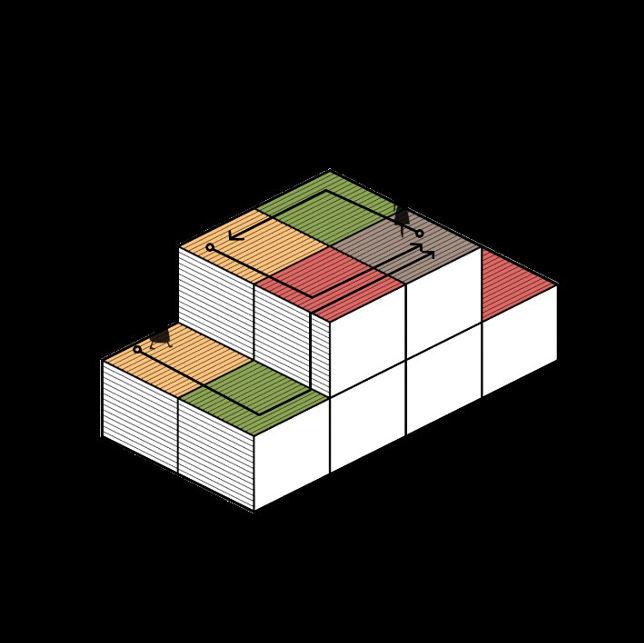

The zoningof apartment units in the tower, commercial areas, and parking in the podium acts as a buffer from the public areas to the semi-public areas above

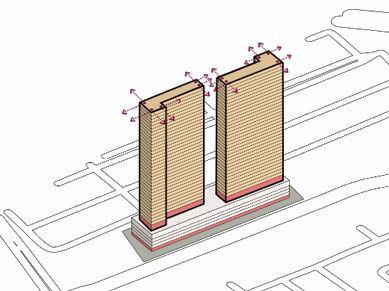

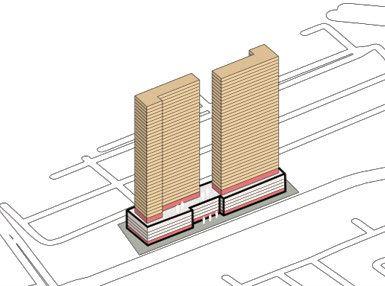

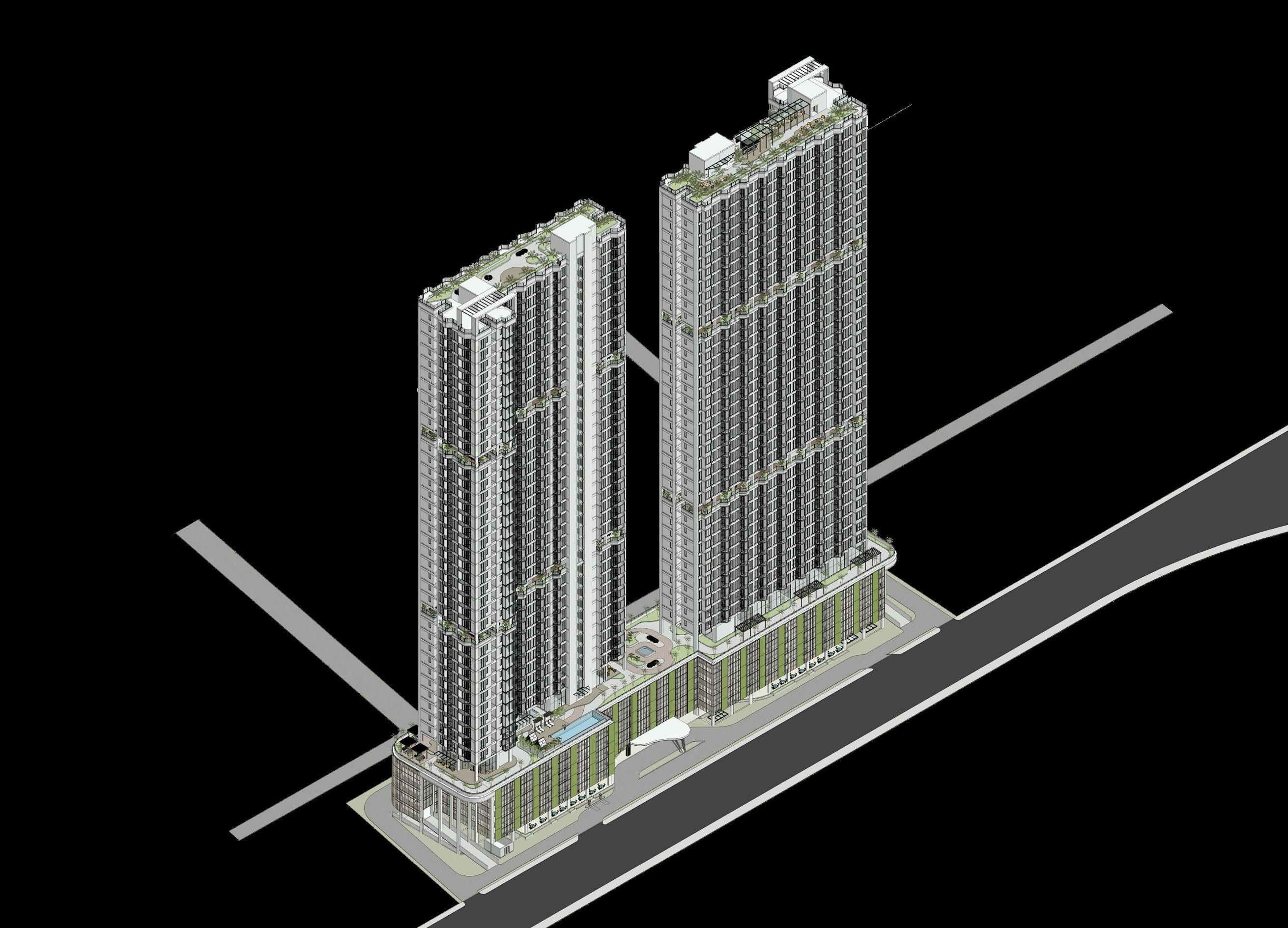

The tower mass is fragmented and shifted in opposite directions to maximize views, reduce windloads, and enhance the privacy of apartment residents

The addition of mass to the tower creates a dynamic character and increases the number of premium corner units

Indoor/semi-outdoor spaces in the podium are interconnected, creating commercial spaces with attractive landscapes.

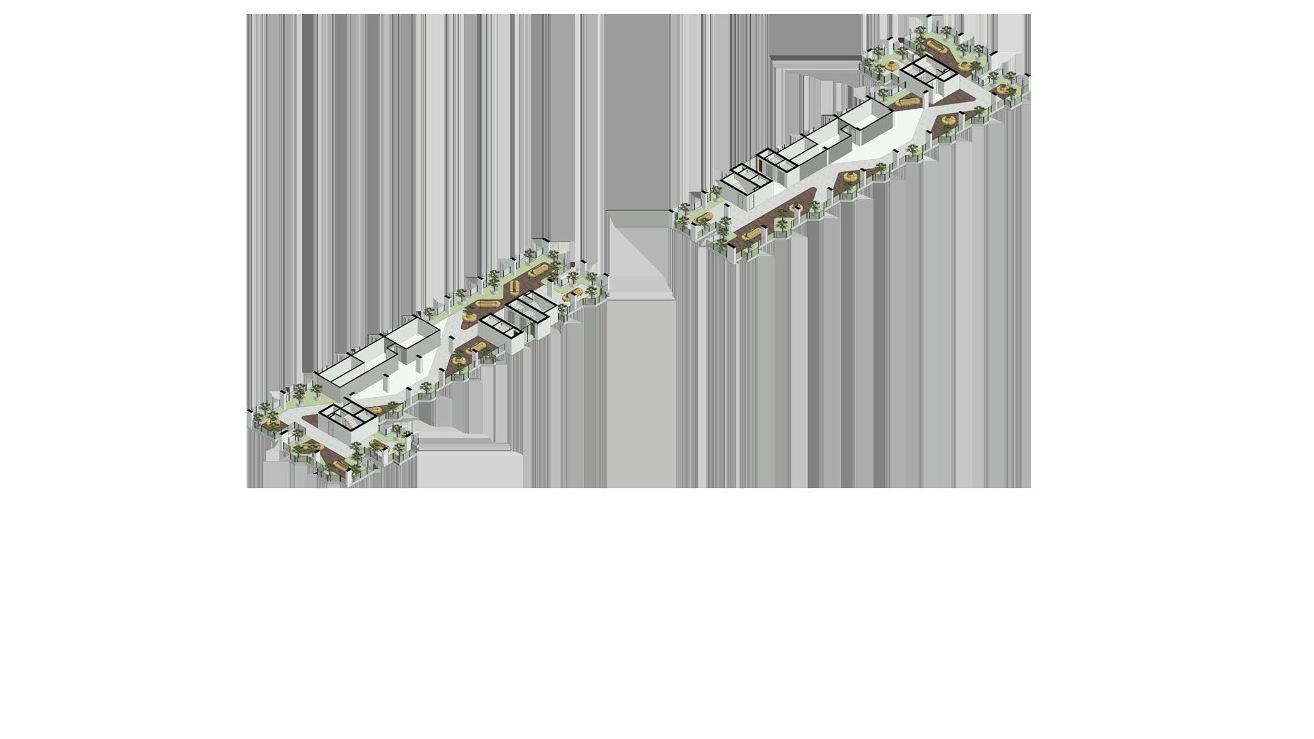

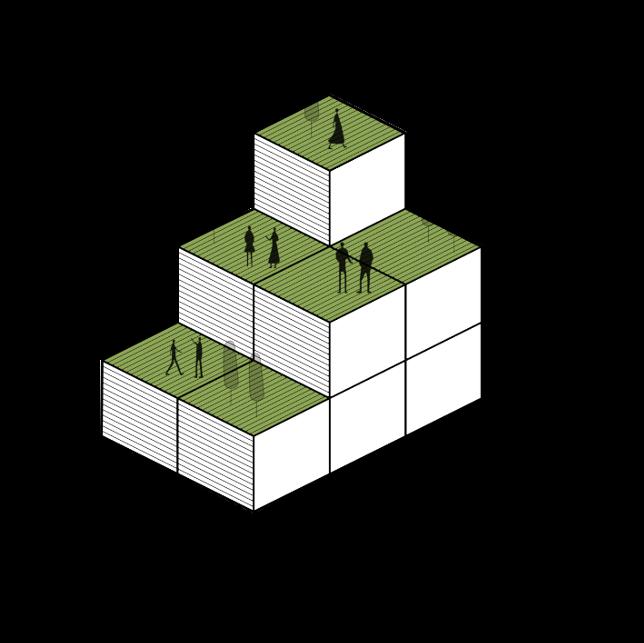

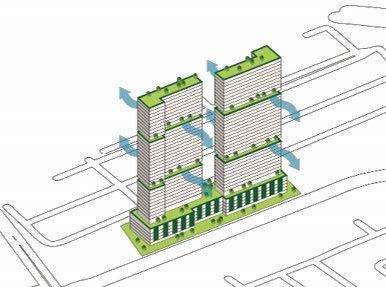

Greenspaces are vertically stacked to form gardens with flowing air circulation, while also creating spaces for user interaction

Raya

Bekasi, West Java

Total Area 7083 m2

The east-west walls of the tower aremore solid with limited window openings The curtain wallin the premium units uses Low-E glass to reduce the entry ofsolar heat intothe rooms

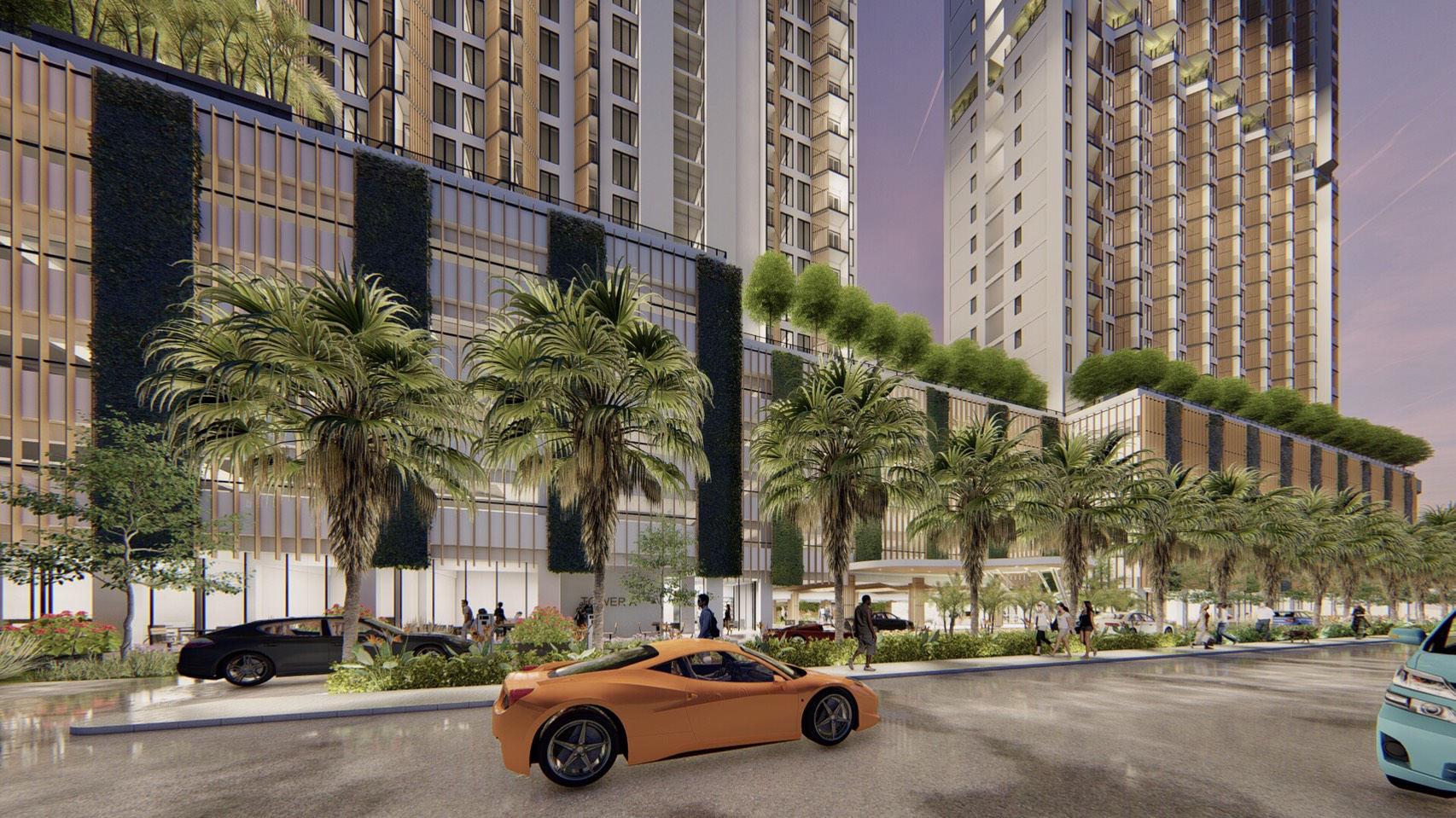

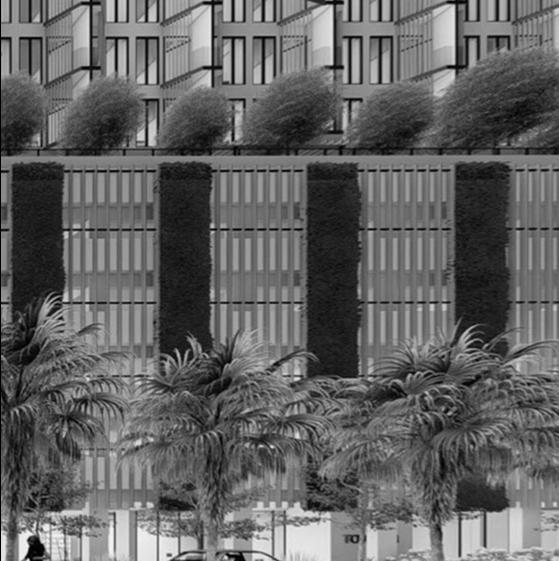

The aluminum wood-finished grilles and green walls in the parking podium allow for natural ventilation and filterairpollution.

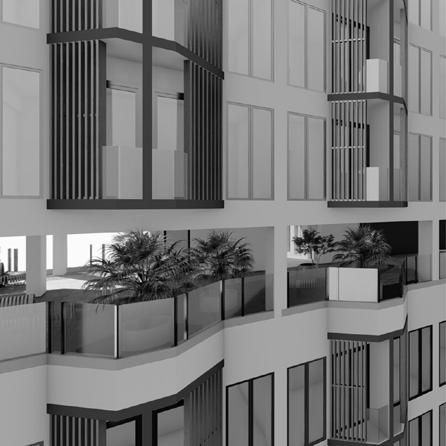

The aluminum wood-finished grilles on theunit balconies provide privacy, reduce excessive sunlight,and introduce a natural impression to the building.

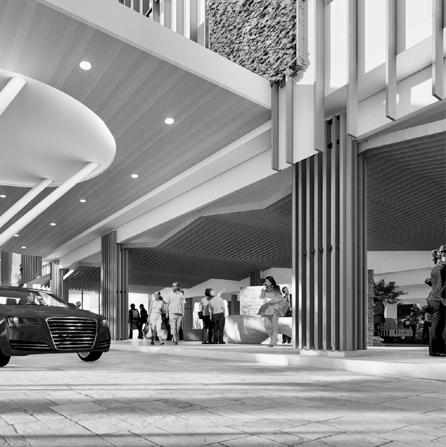

The drop-off lobby is dominated by wooden materials,givinga warm welcoming impression, and full-width glass in the commercial area to make it appealing to visitors.

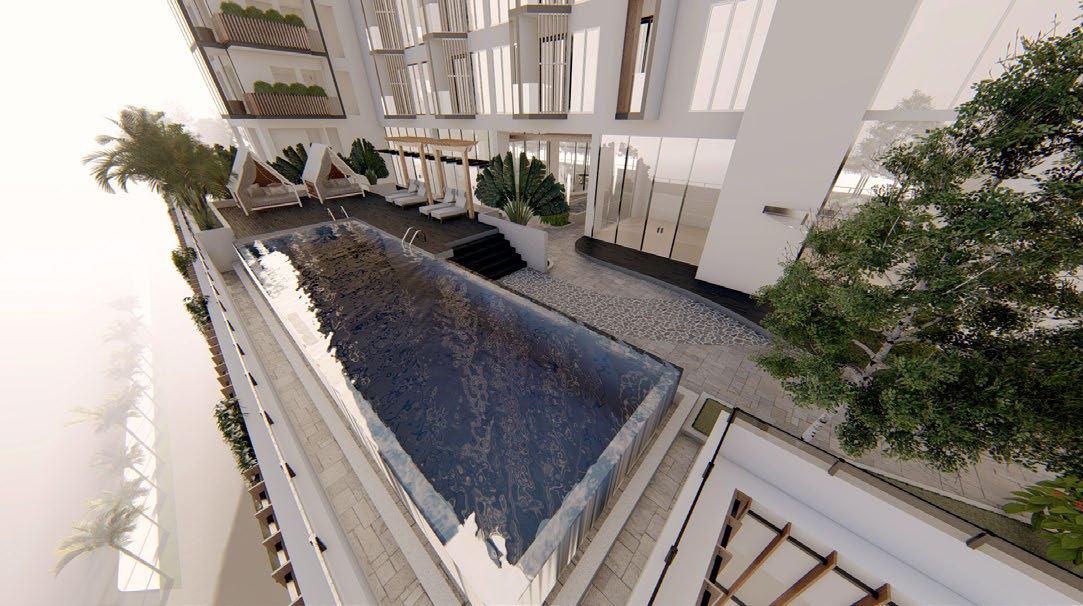

INFINITY POOL

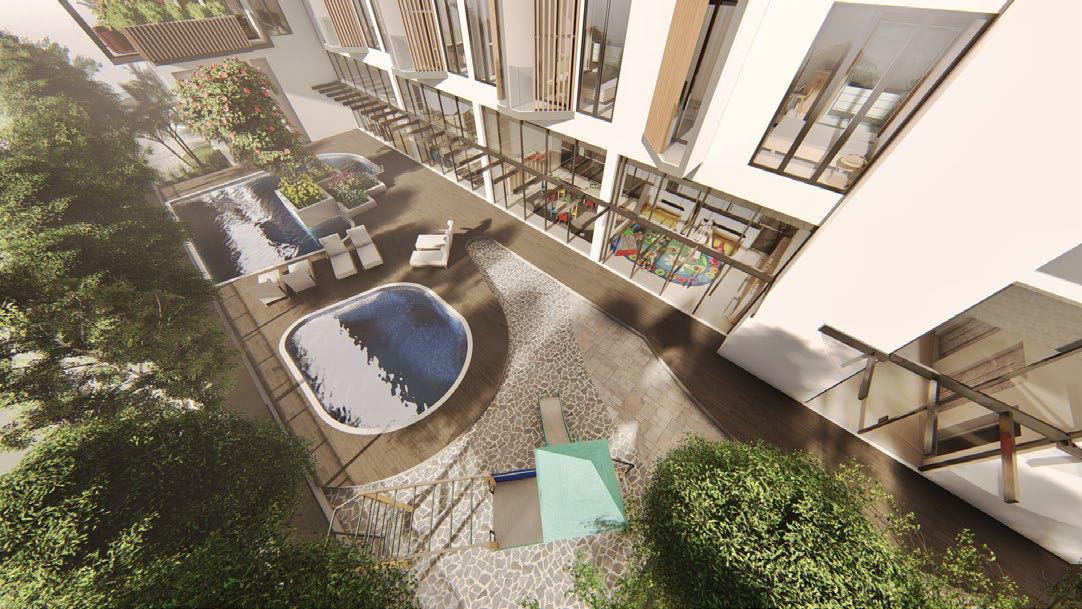

KIDS POOL & PLAYGROUND

FENCELESS FRONTAGE

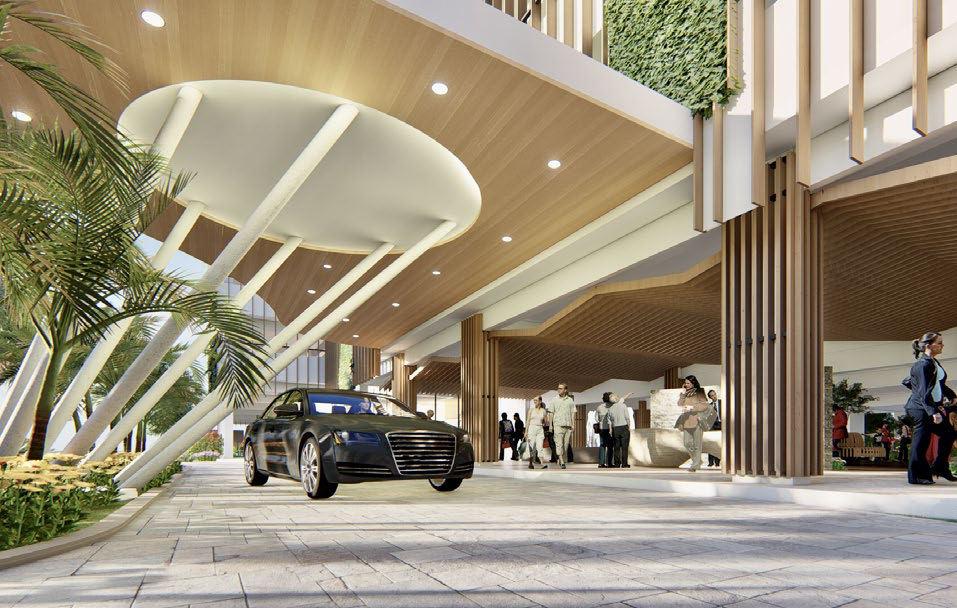

DROP OFF LOBBY

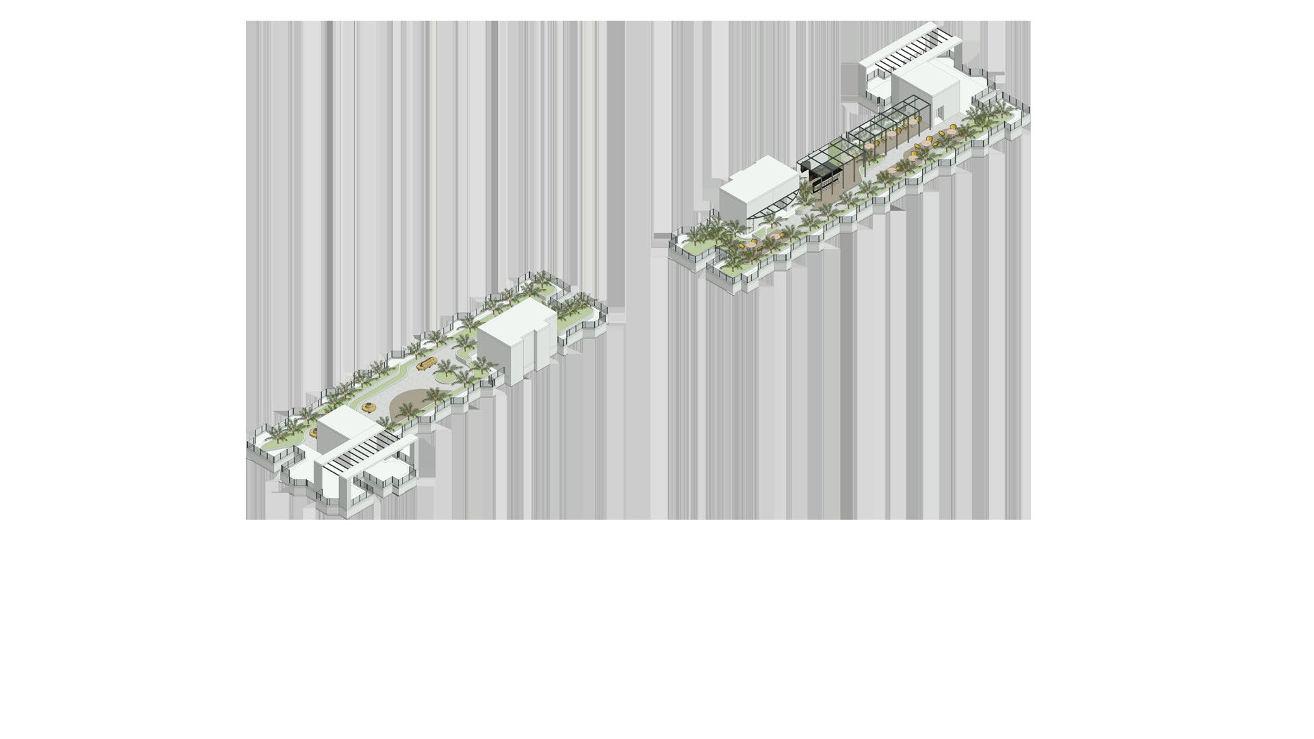

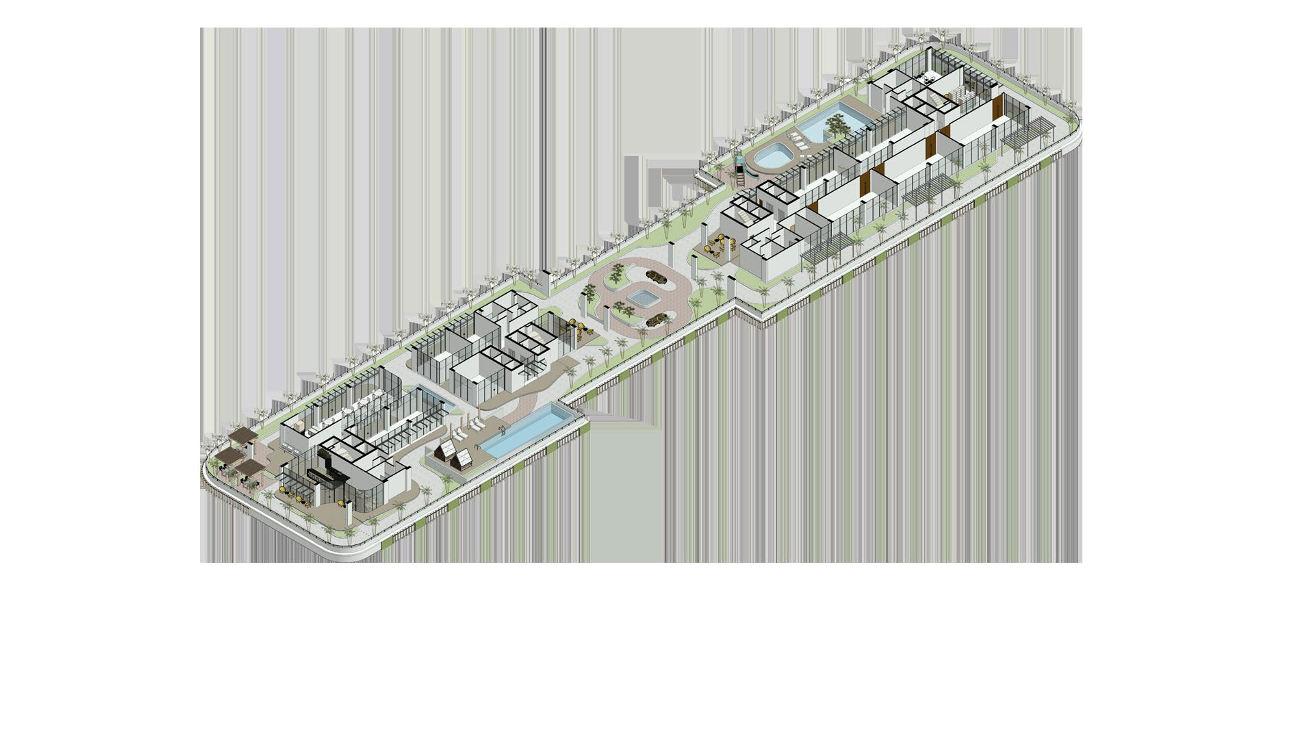

PODIUM GARDEN

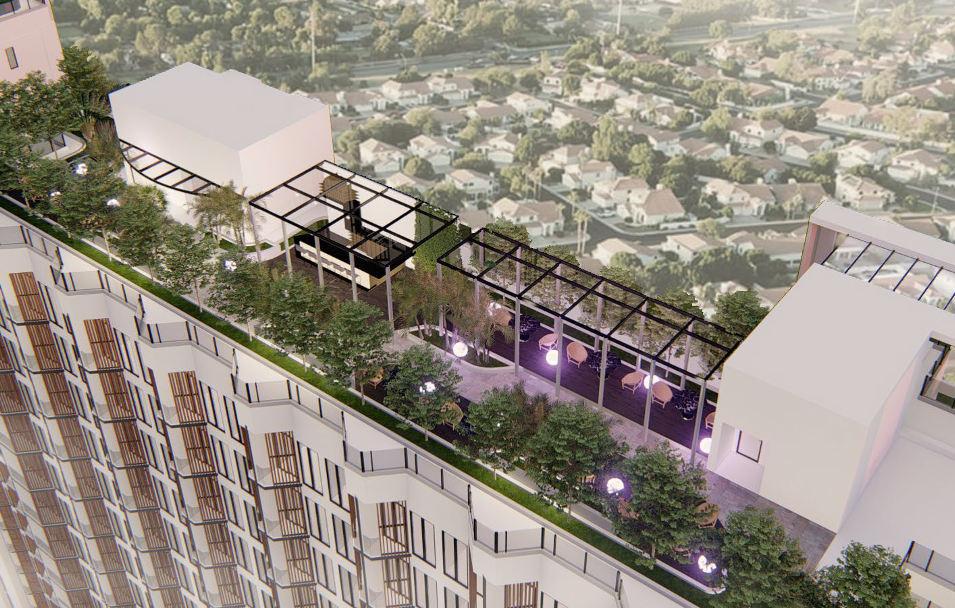

SKY BAR

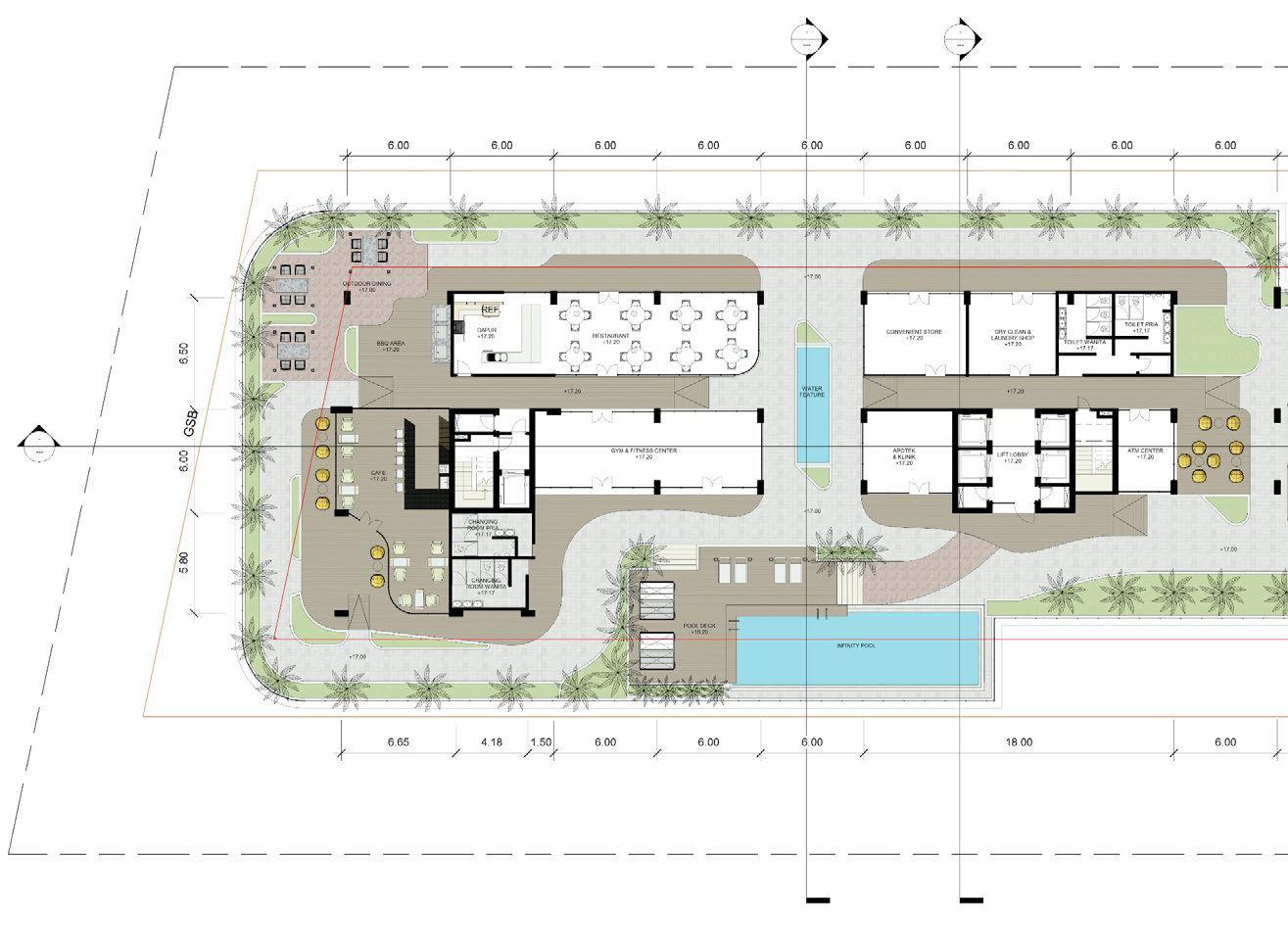

PODIUM

SOUTH ELEVATION

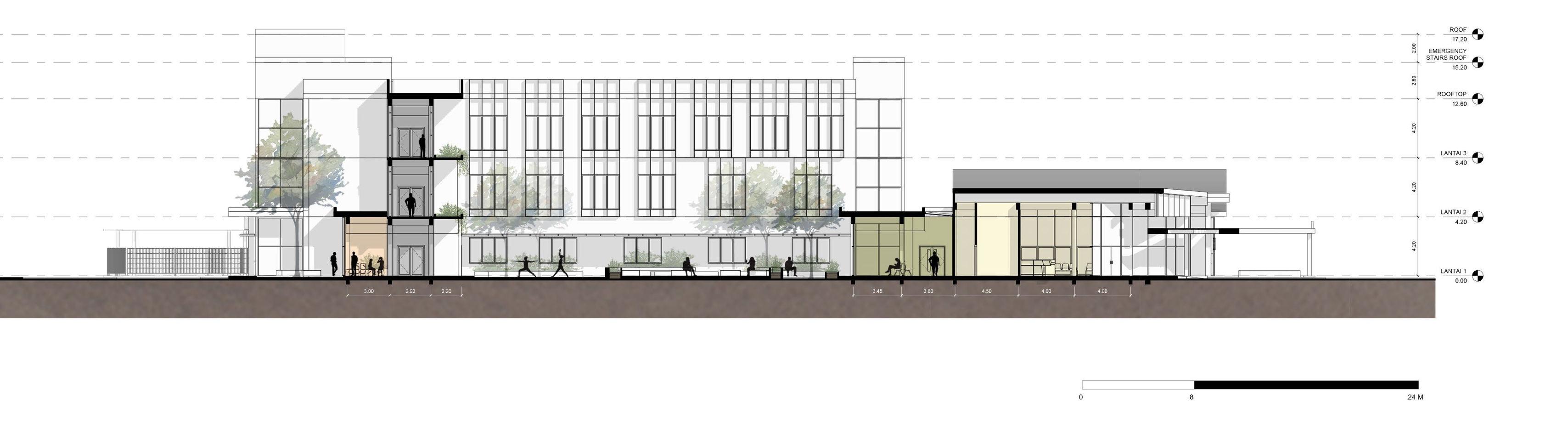

SECTION A-A

ANANTA PRAYANAM

MUSEUM & ART GALLERY PONOROGO

Nominated as Best Academic Project 2021 | Individual Project

Museum & Art Gallery | 4th Year Academic Project

Year: 2021

Area:

Location: Ponorogo, East Java

The design of the Reog Ponorogo Museum and Gallery buildingis based on the concepts andcharacteristics of sustainability, contextuality,futurism, attractiveness, and recreation, which are developed in accordance with the Regional Tourism Development Master Plan (RIPPDA) of Ponorogo Regency. The design incorporates existing literature derived from cultural values and physical culturalartifacts in the area The creative ideas developed must be able to represent the local uniqueness (identity) and authenticity related to the natural and cultural aspects of the Sampung Area,Sampung District, Ponorogo Regency, EastJava.

Eternal: change is constantand ongoing, sohumans need to immortalize every moment sothatnothing is missed.

NATURECULTURE

Throughout their lives, humansconstantly adapt and are connected to nature, thustheyhave an obligation to preserve the environment and their surroundings.

Reyog, as the pinnacle of culture, serves as a meansof spreading Islam in Ponorogo by BatharaKatong.

ENDLESS JOURNEY OF REYOG

ANANTA PRAYANAM

endless limitless infinity

journey progress to initiate movement

"The dynamic journey of human life, growing and developing alongside a rich cultural environment. Humans have a role in realizing sustainability by preserving nature and the cultural heritage, ensuring they are not eroded by time."

GARIS

as the axis of arrangement for the gallery zone,

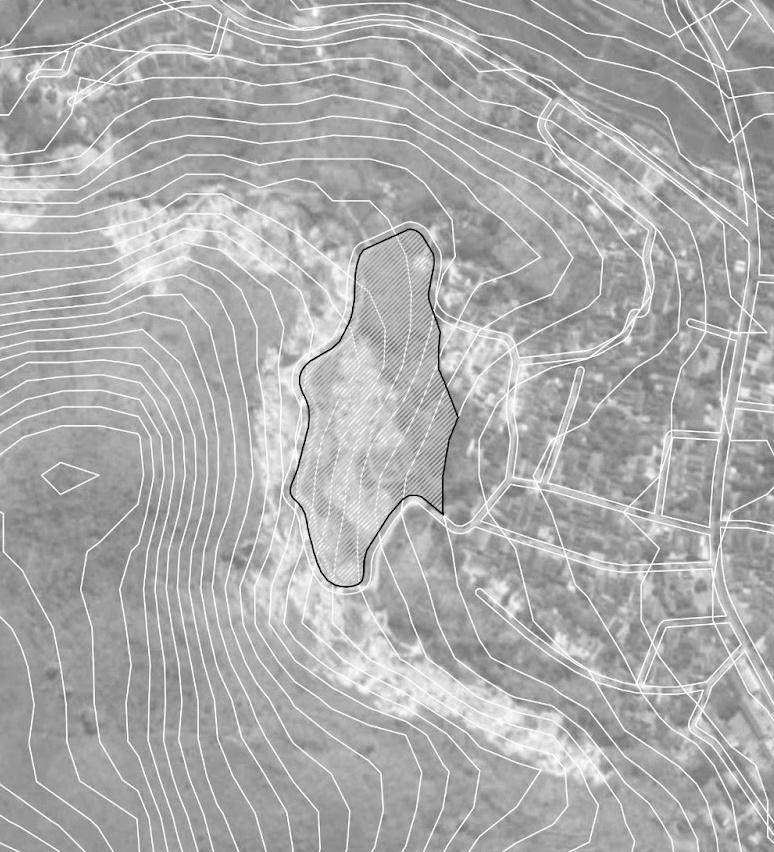

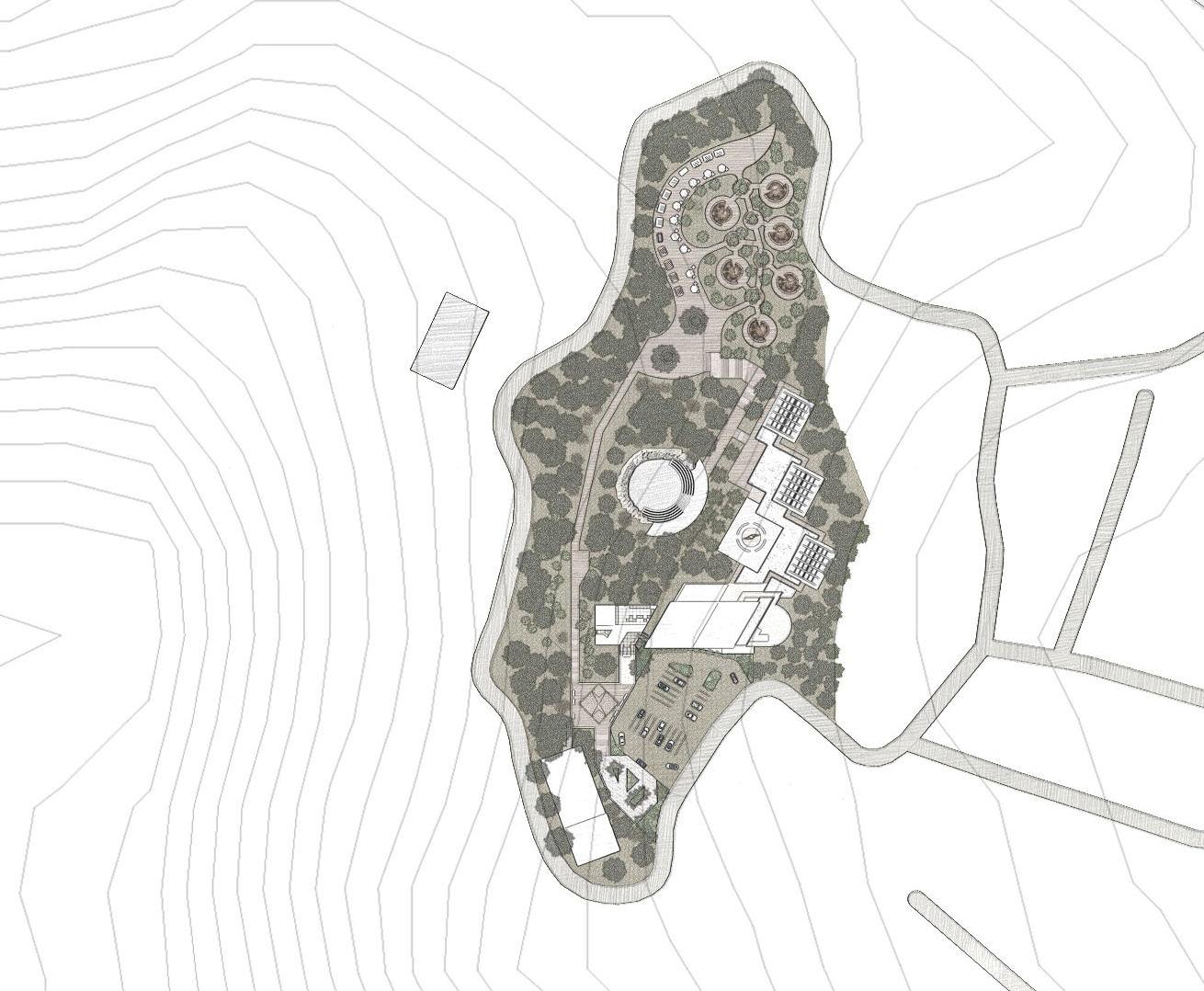

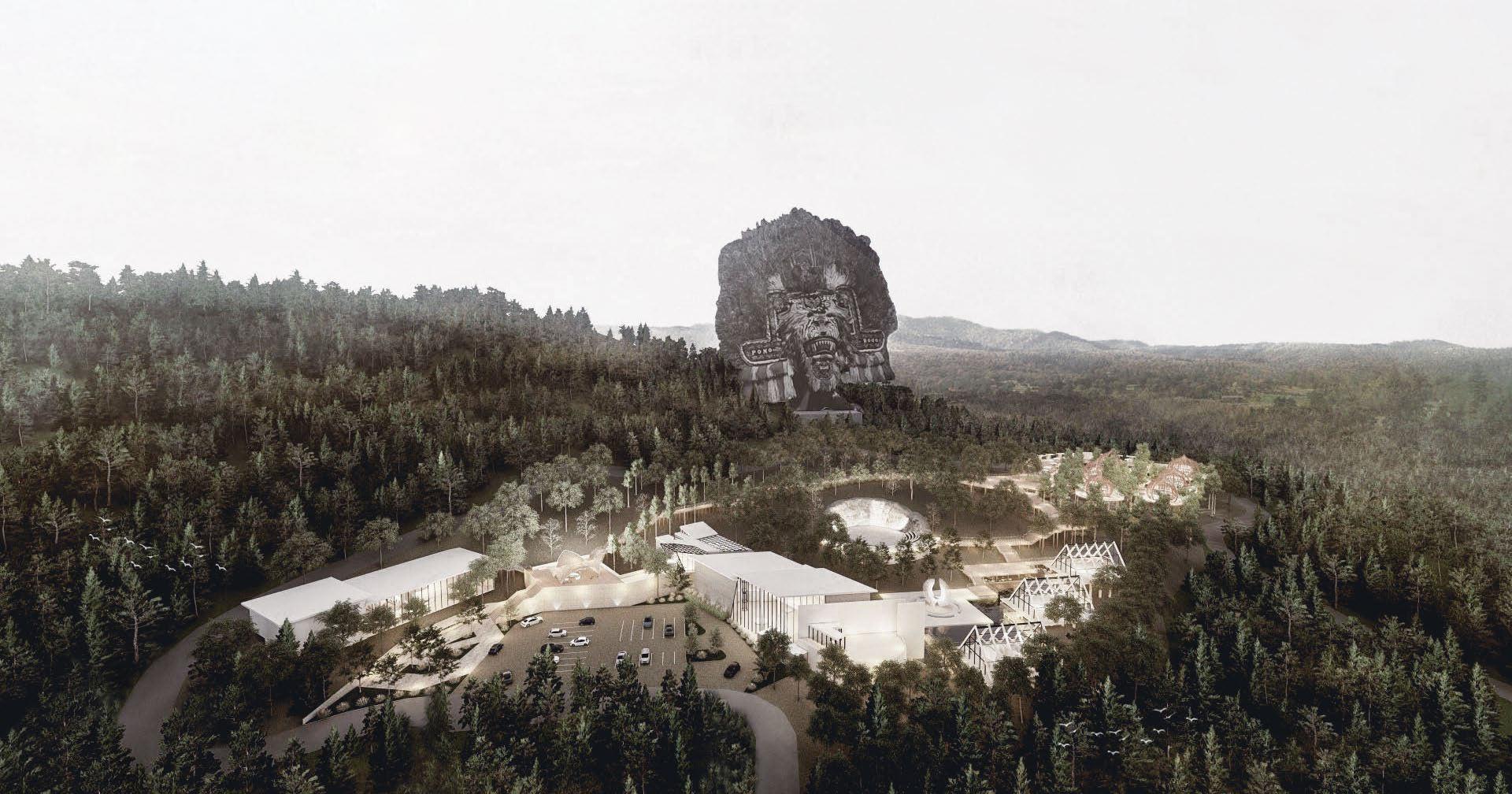

SITE

Sampung Village, Sampung

Ponorogo,

a. Area size:31,028m2

b. Surrounded by mining access roads

c. The site has agentlysloping terrain (13%,including mild slopesof 8-15%)

d. The site isdirectlyvisible from the main road (Jalan RayaSampung)

e. Connected tothe mainroadaccess(Jalan Raya Sampung)

The Gregorian concept from Hindu culture in the 8th century as the axis of the museum zoning

CARDINAL POINT THE RISE AND DROWN OF THE SUN

1. MAIN GATE & DROP OFF

2. WAITING BAY

3. MUSEUM ZONE

4. GALLERY ZONE

5. AMPHITEATER

6. SME ZONE

7. OFFICE ZONE

8. ZEN BRIDGE

9. REYOG MONUMENT

LINEAR CONTOUR ON THE SITE

SME zone, and office zone

East Java

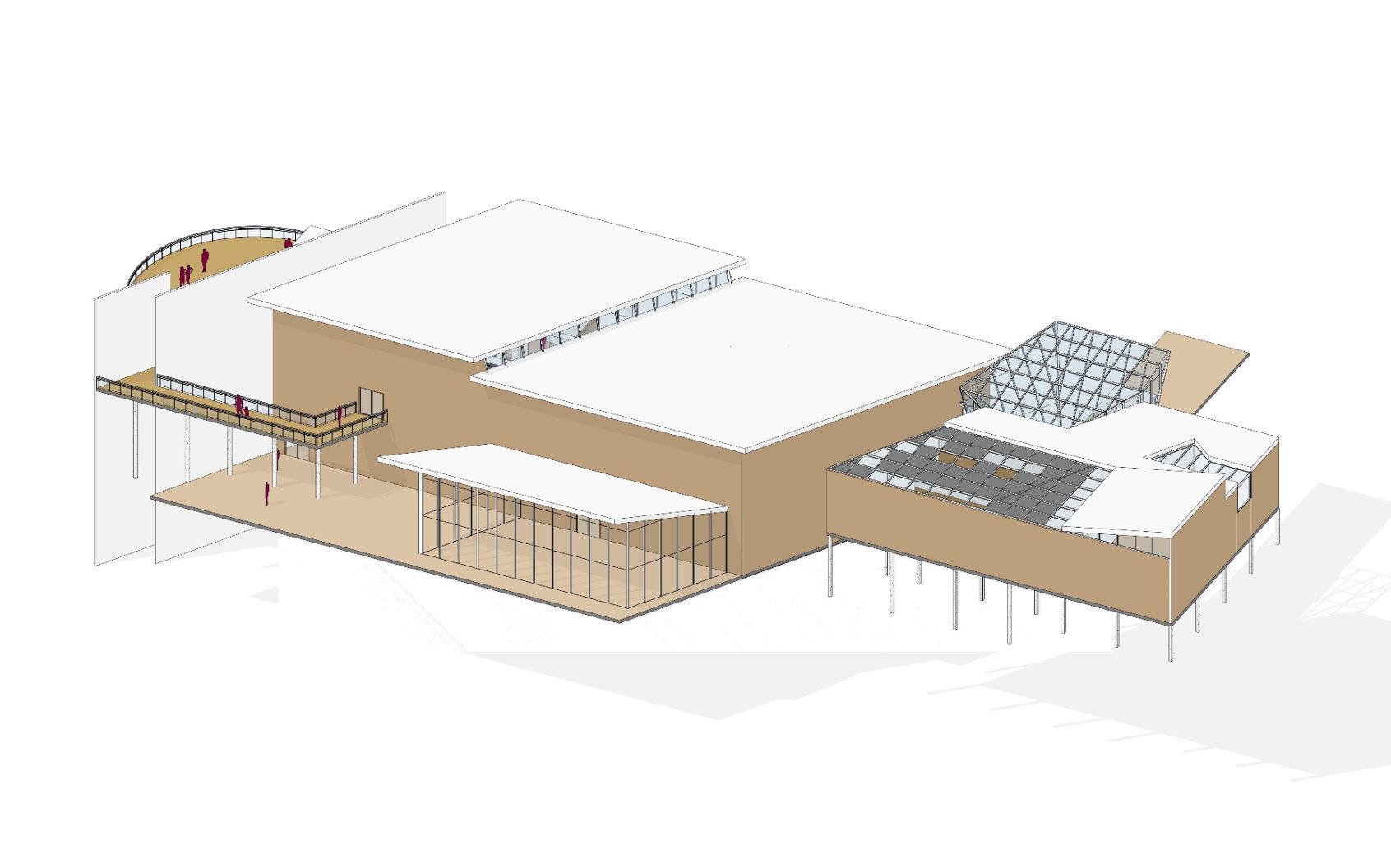

The museum embodies the figure of Warok in Reyog, characterized by firmness, wisdom, and broadmindedness.This is implemented in the museum's architecturaldesign withsharp angles and the inclusion of a roof deck as a contemplative area to observe the horizon

2 3

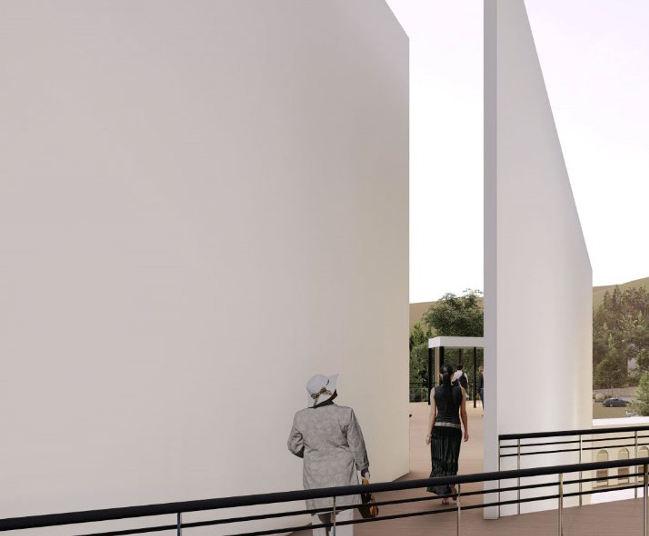

The two tall walls that flank the bridge depict a phase where humans feel smalland are reminded not to be arrogant and to always be wise.

The roof deck serves as a contemplative areawhere humans are shownthe vast worldthat is always waitingto be explored 1

Humanswalkacross the bridge to observe the surroundingnature.

MUSEUM

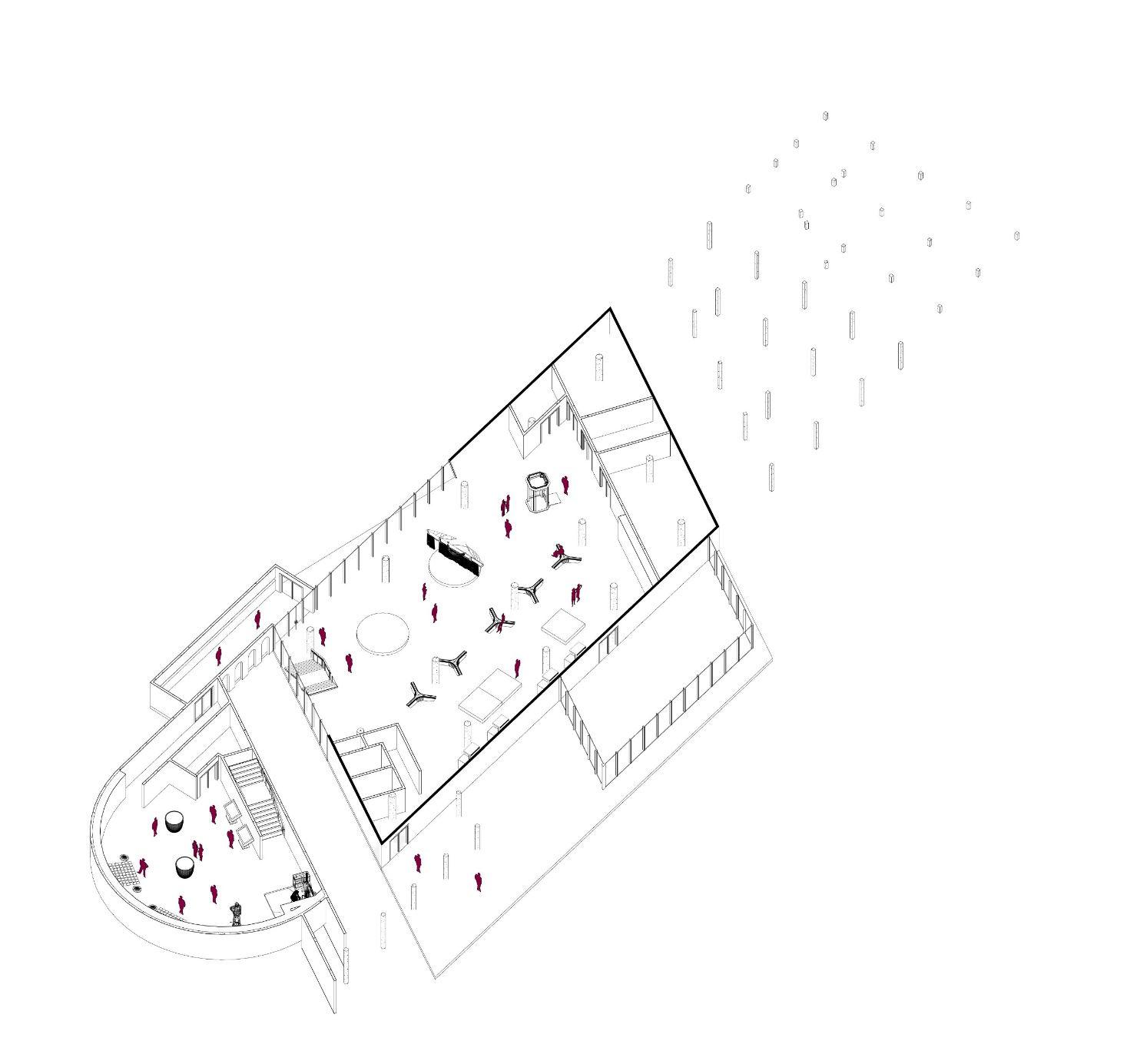

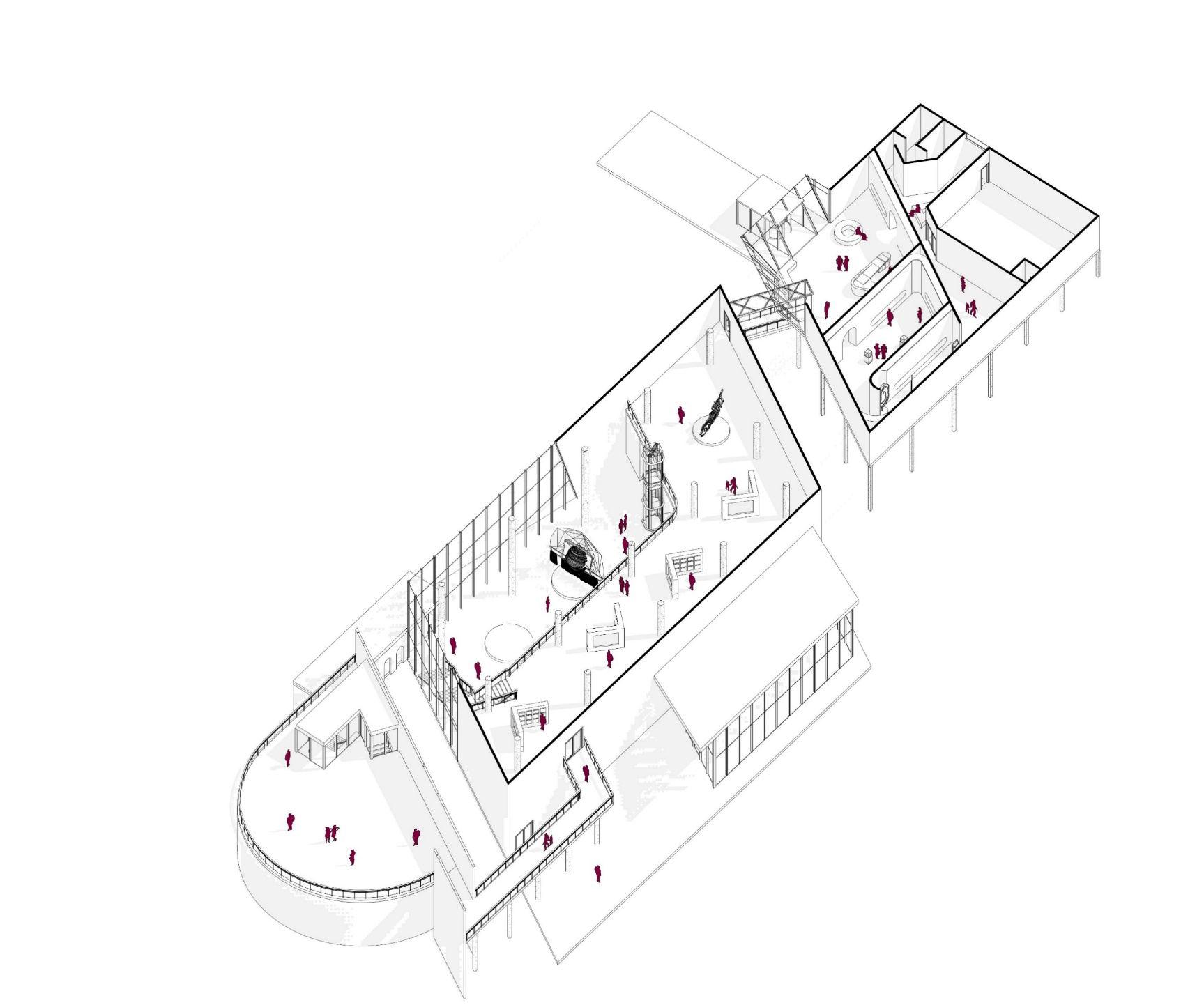

EXHIBITION CONCEPTOF THE MUSEUM

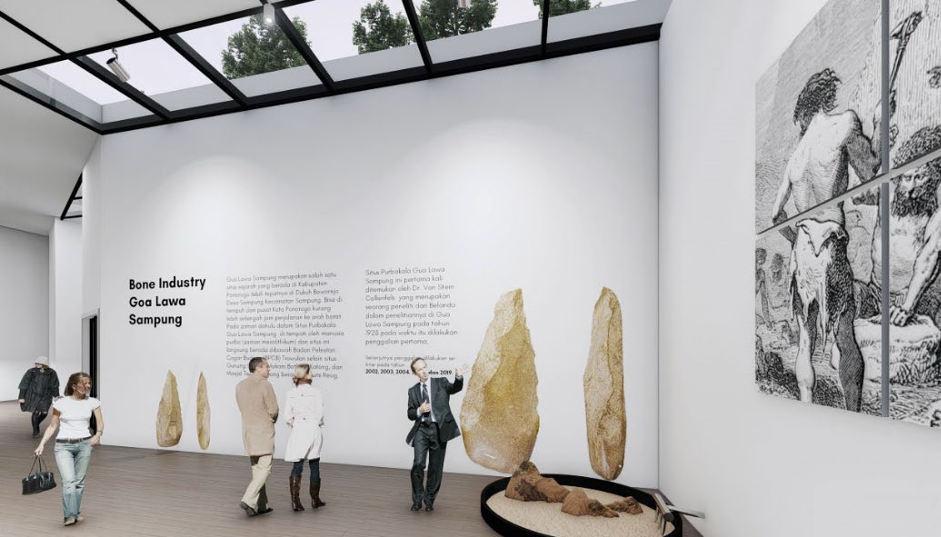

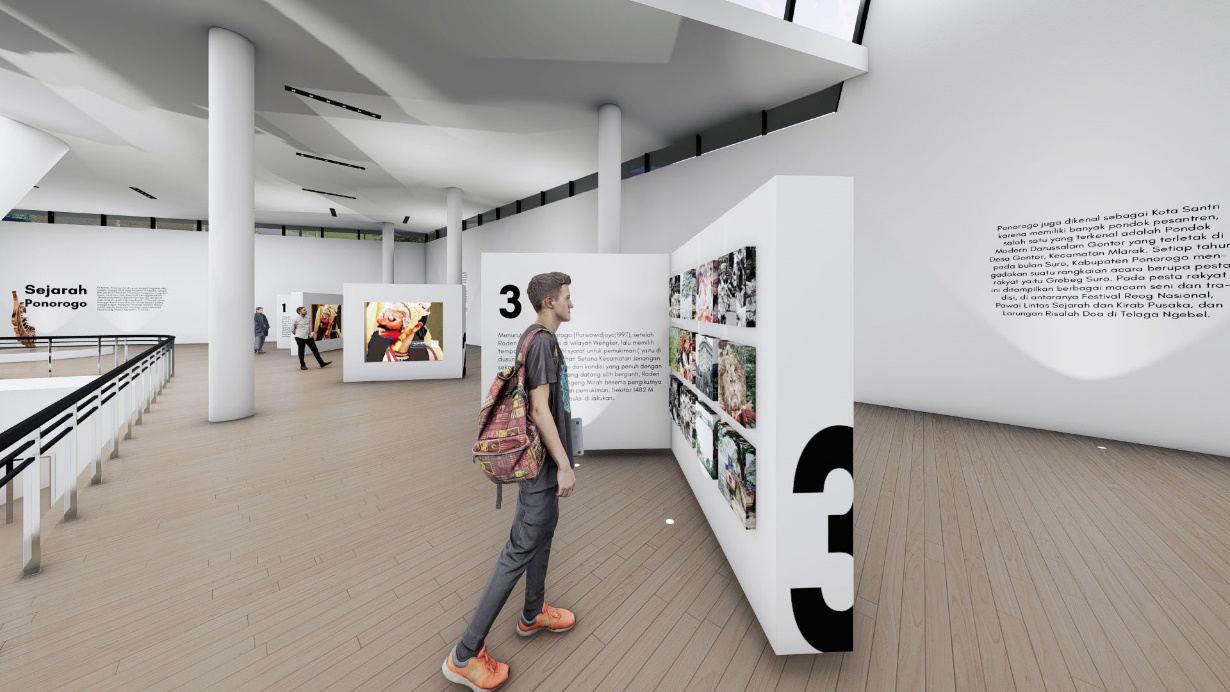

The exhibition space in the museum showcases the richcultural heritage of Batu Sampung Stepping into the exhibition room, visitors are greeted with a captivating display of stone artifacts, each carrying a story of ancient traditions and customs The carefully curated exhibits provide a glimpse into the profound significance of stone in the local culture, showcasing intricate carvings, tools, and sculptures that reflect the craftsmanship and artisticprowess ofthe community

The exhibition hall in the museum showcases the vibrant culture of Reyog Ponorogo Spanning acrosstwo floors within the main museum building, the space offers a captivating journey into the traditions and artistry of Reyog Theupper floor focuses on the historical background and origins of Reyog, while the ground floor explores the various characters, stories, and symbolismassociated withthis traditional art form Through interactive displays,multimedia presentations, and informativepanels,visitors are fully immersed in the enchanting world of Reyog, gaining a deeper appreciation for the cultural significance of this Ponorogo heritage

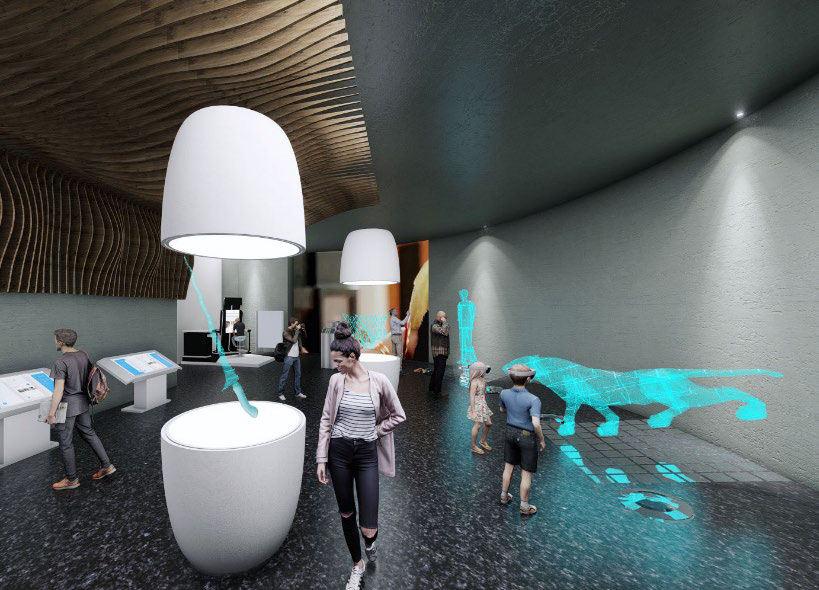

Interactive Room

The interactiveexhibition room offers a unique and immersive experience of Reyog Ponorogo's culture using virtual reality and hologram technology Visitors are transported into a captivating world where they can witness performances, interact with digital masks and costumes, and participateinsimulated dance routines Holographic displays bring the characters and stories of Reyog to life, creatingan engaging atmosphere This innovative exhibition format educates visitors about Reyog's cultural significancewhileenabling active engagement, fostering a deeper understanding andappreciation forthisdistinctive artformfrom Ponorogo

TheBridge

The bridge offersvisitors a unique experience as they traverse between two towering walls This immersive journey allows themto reflect and find solaceamidst the grandeur ofthe surroundings

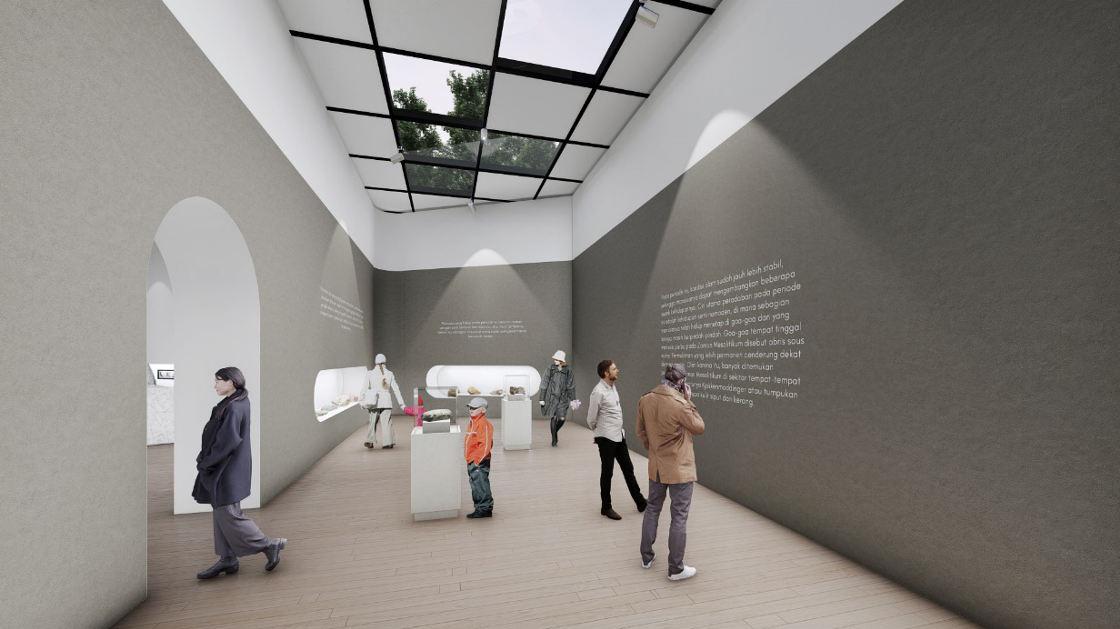

Exhibition Room 1

Exhibition Room 2&3

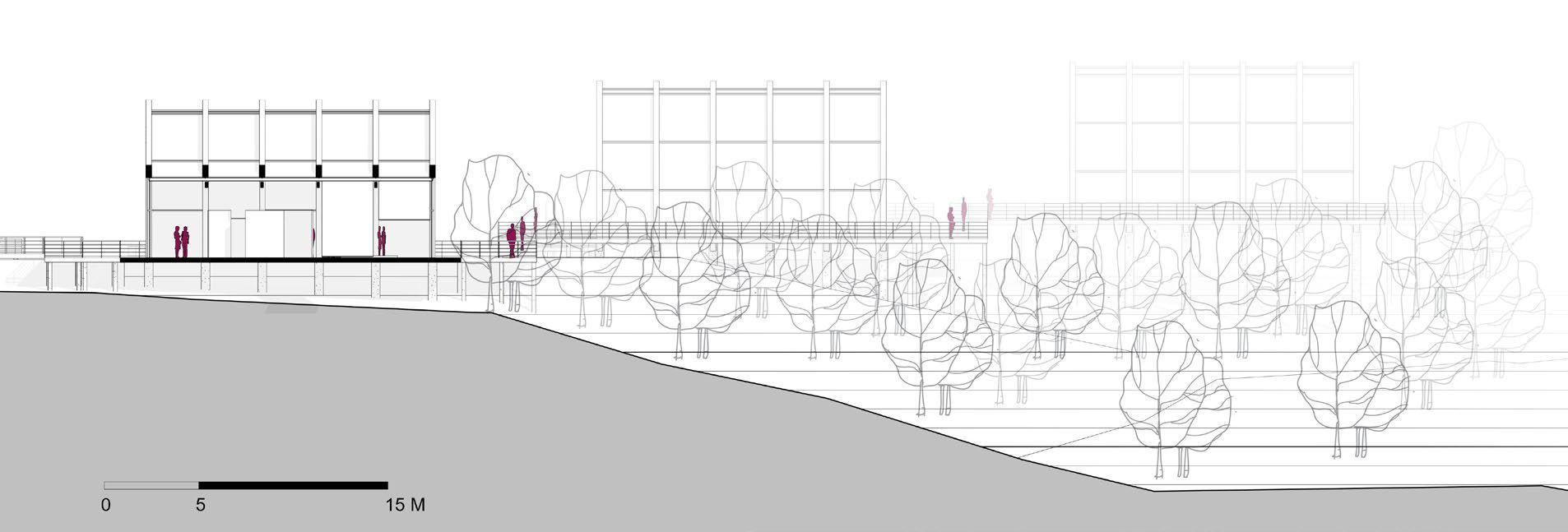

MUSEUM SECTION 1

1. ENTRANCE

2. MUSEUM LOBBY

3. AUDIO VISUAL

4. TOILET

5. EXHIBITION ROOM 1

11. ALLEY

12. STAFF ROOM

13. CONSERVATORY

14. PRESERVATION ROOM

15.STORAGE

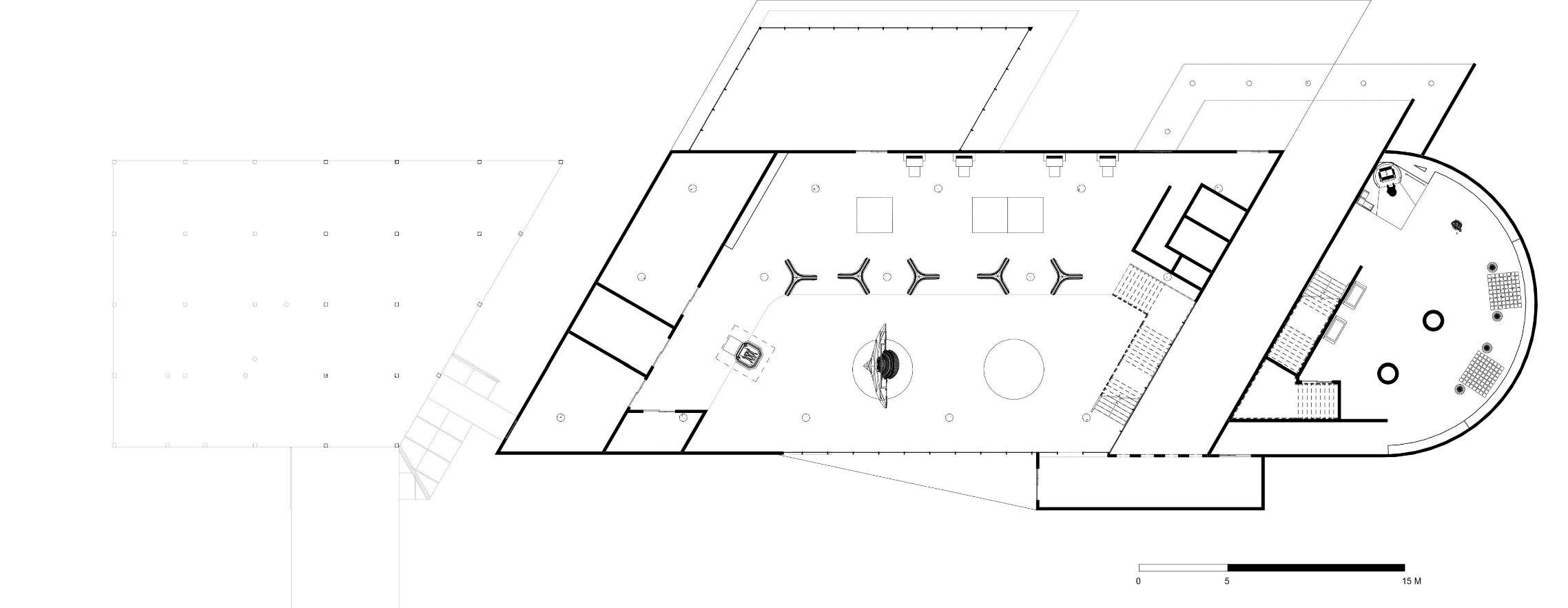

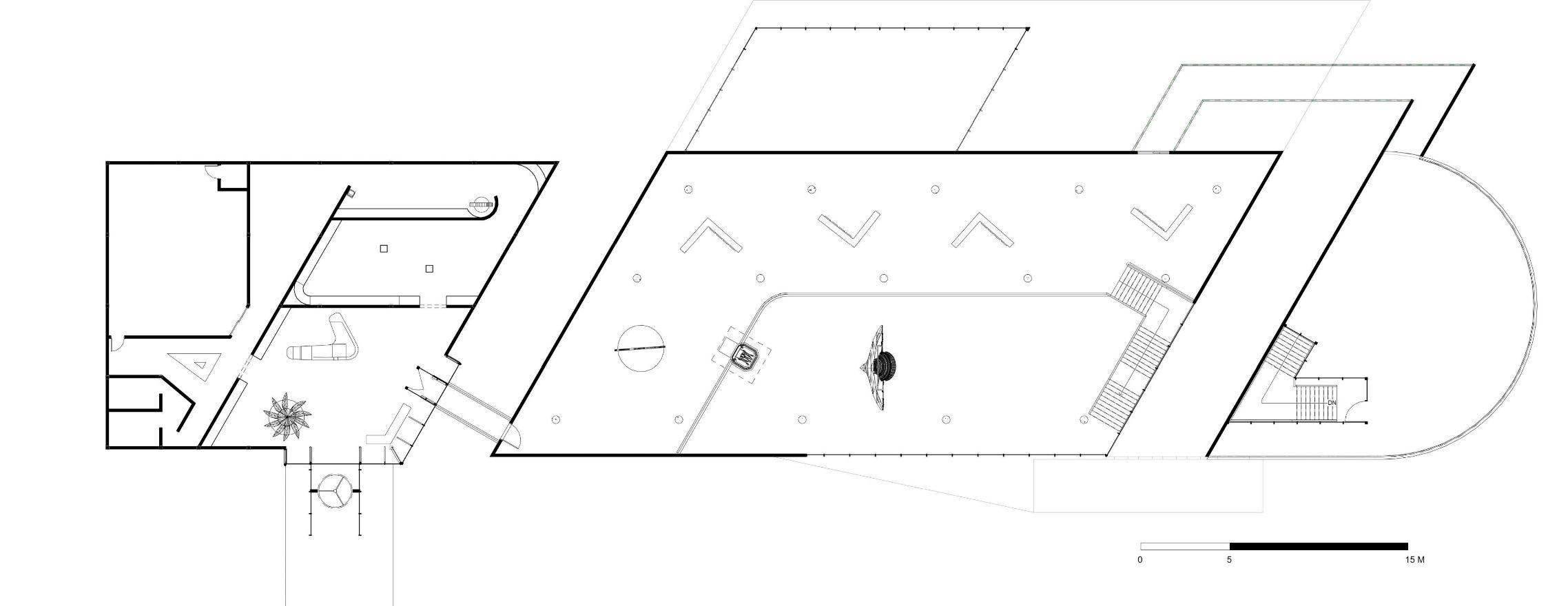

GROUND FLOOR

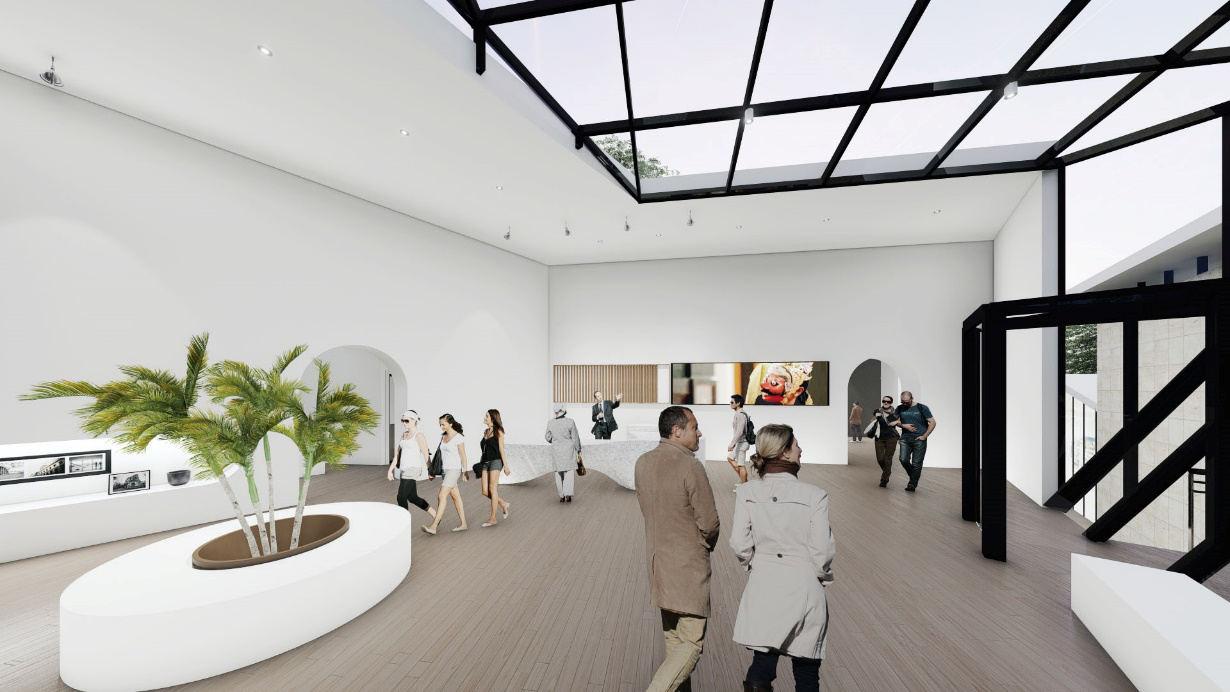

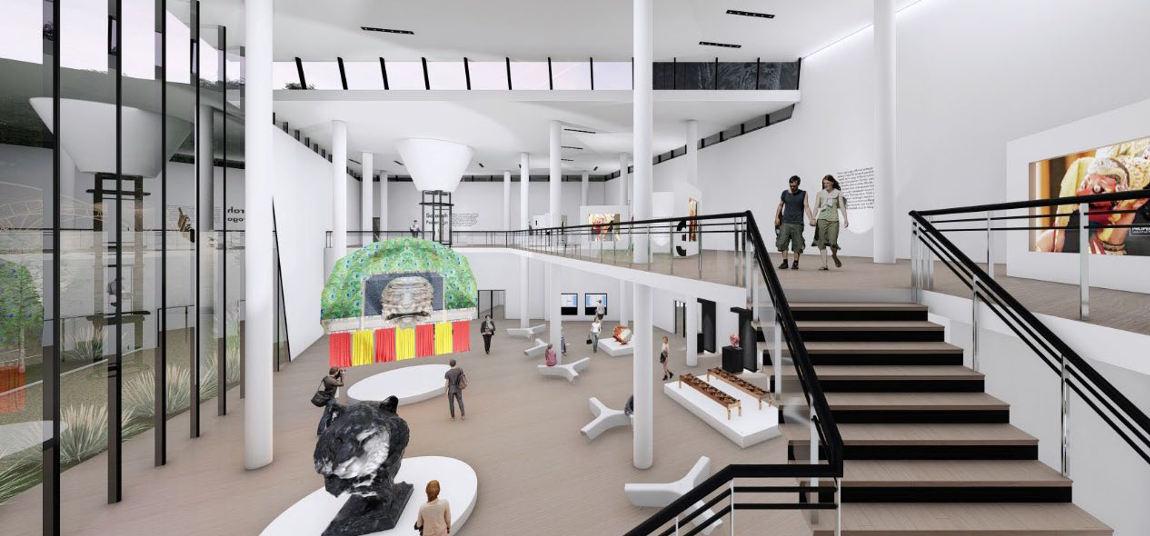

MUSEUM LOBBY

EXHIBITION ROOM 1

EXHIBITION ROOM 2

6. THE BRIDGE

7. EXHIBITION ROOM 2

8. ROOFDECK

9. EXHIBITION ROOM 3

10. INTERACTIVE ROOM

16. LIBRARY

17. PATIO

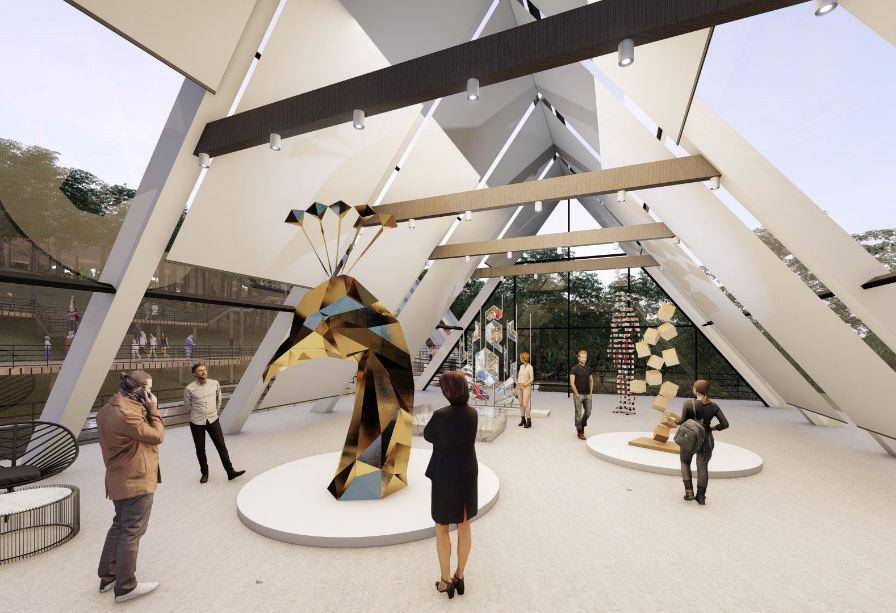

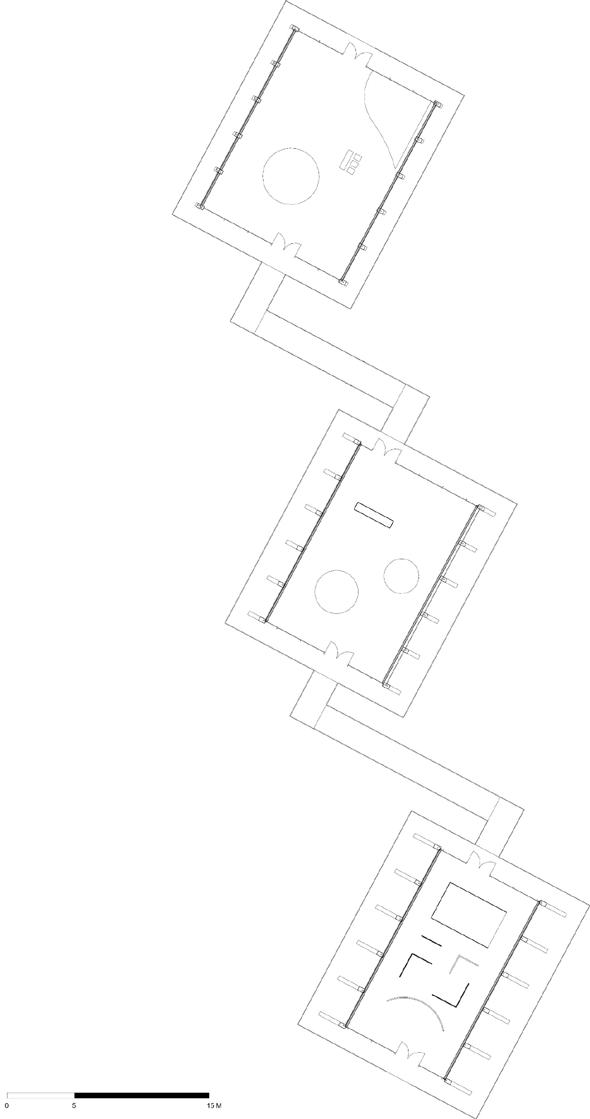

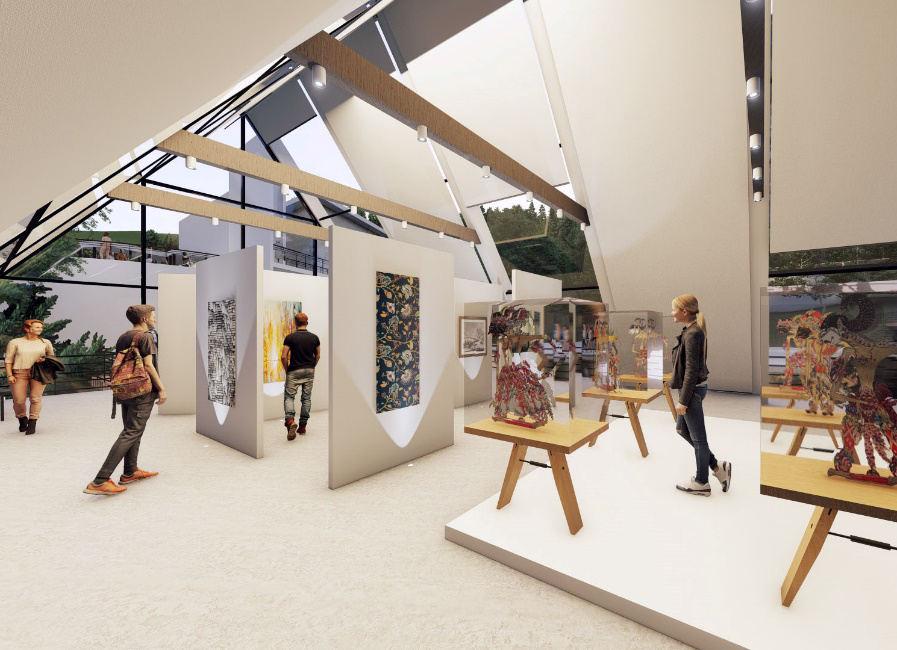

GALLERY 1

GALLERY 2

GALLERY 3

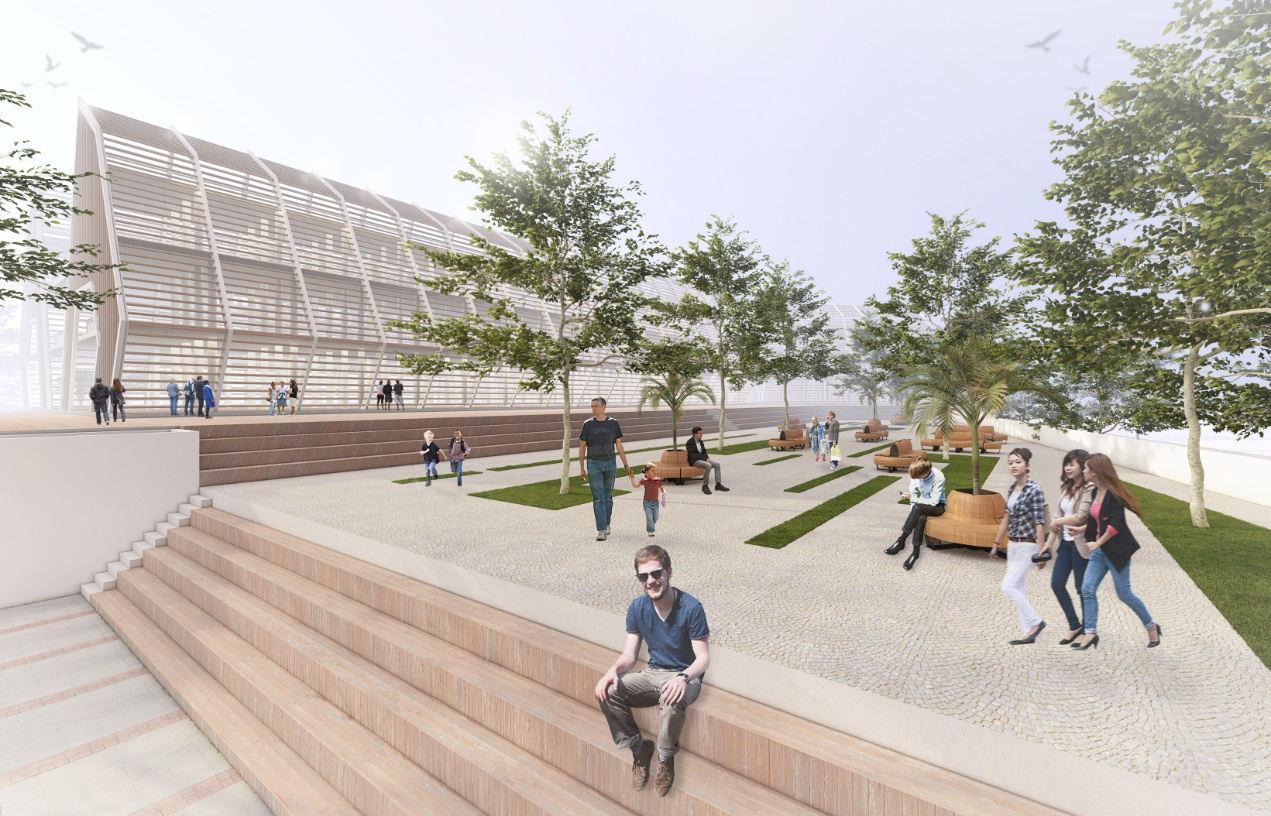

GALLERY PLAZA

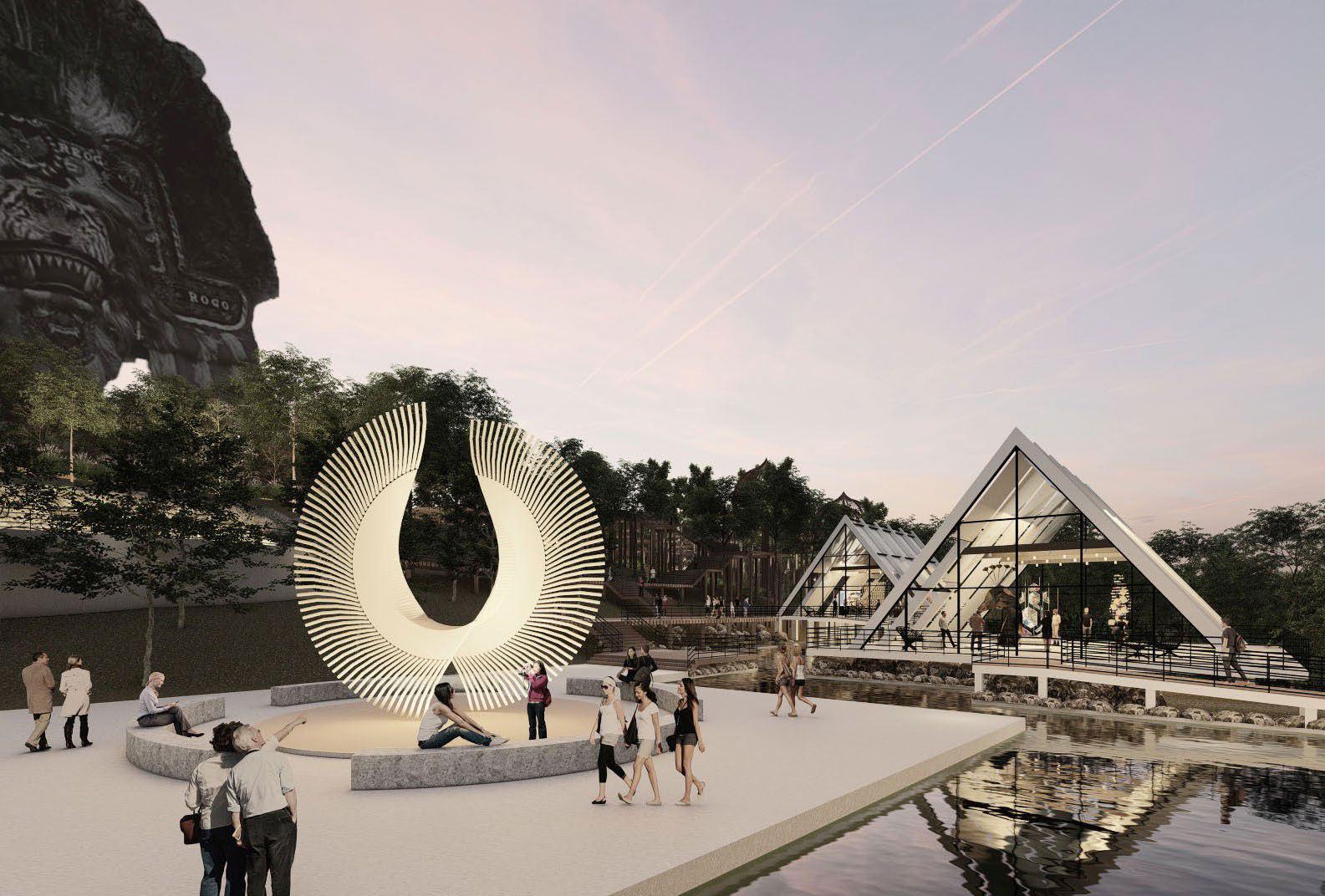

Dhadak Merak is manifested in the form of an installation in the plaza area

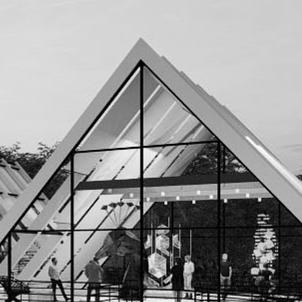

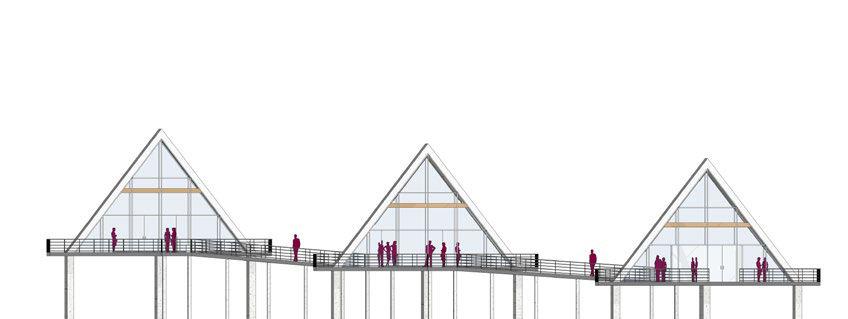

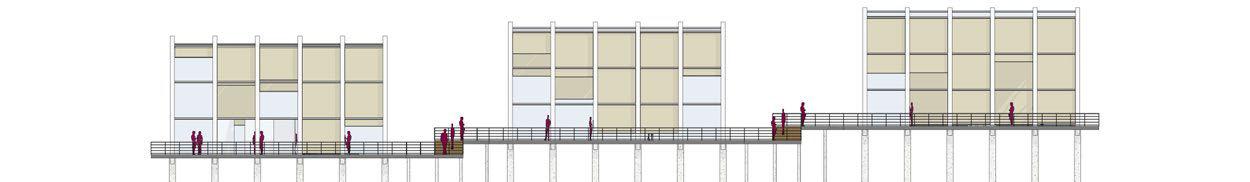

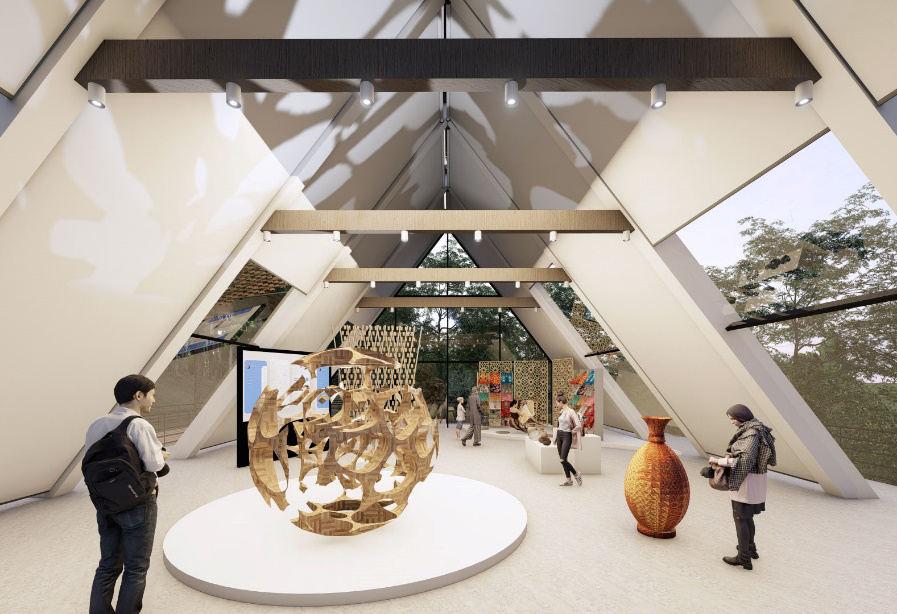

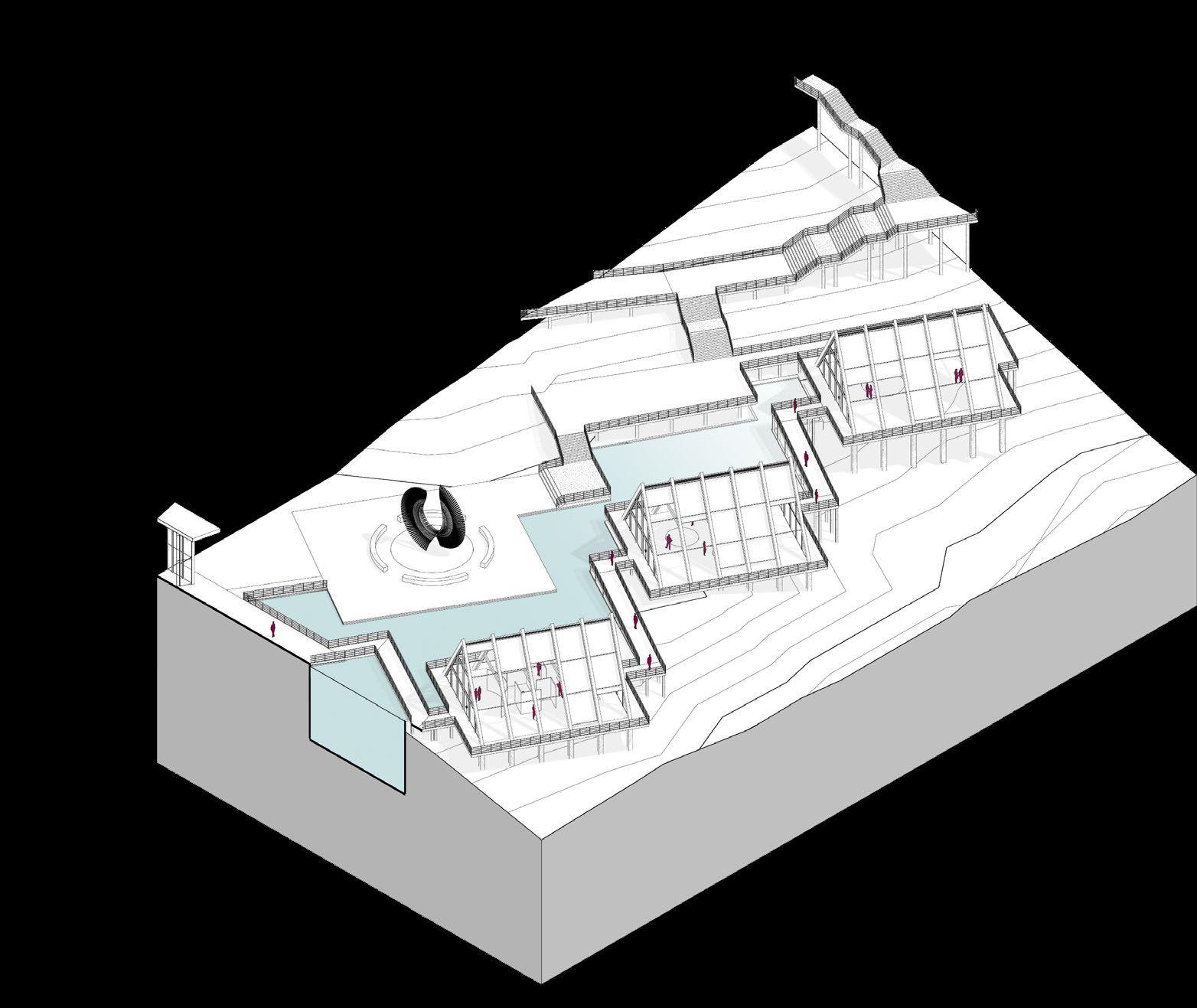

The three gallery masses represent the embodiment of Barongan,which has sharp teeth, hence the building masses are tapered upwards

The water element serves as a connection between the museum zoneand the gallery, forming a cohesiveunitythat does not stand alone.

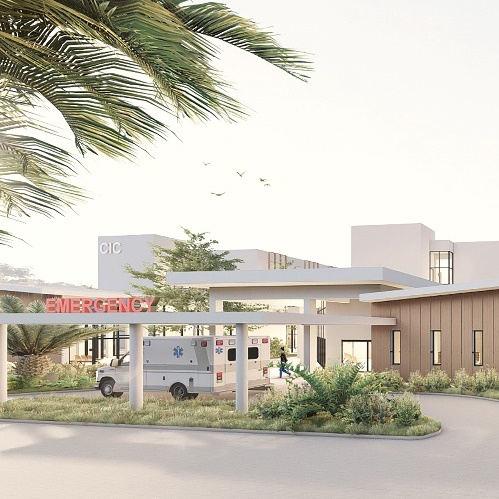

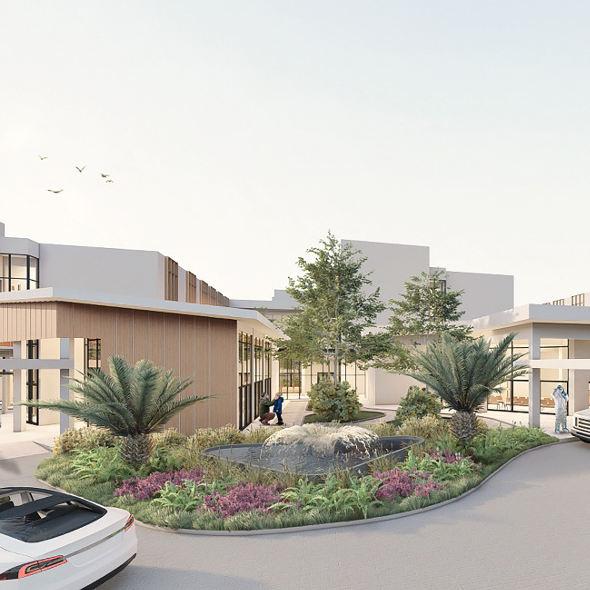

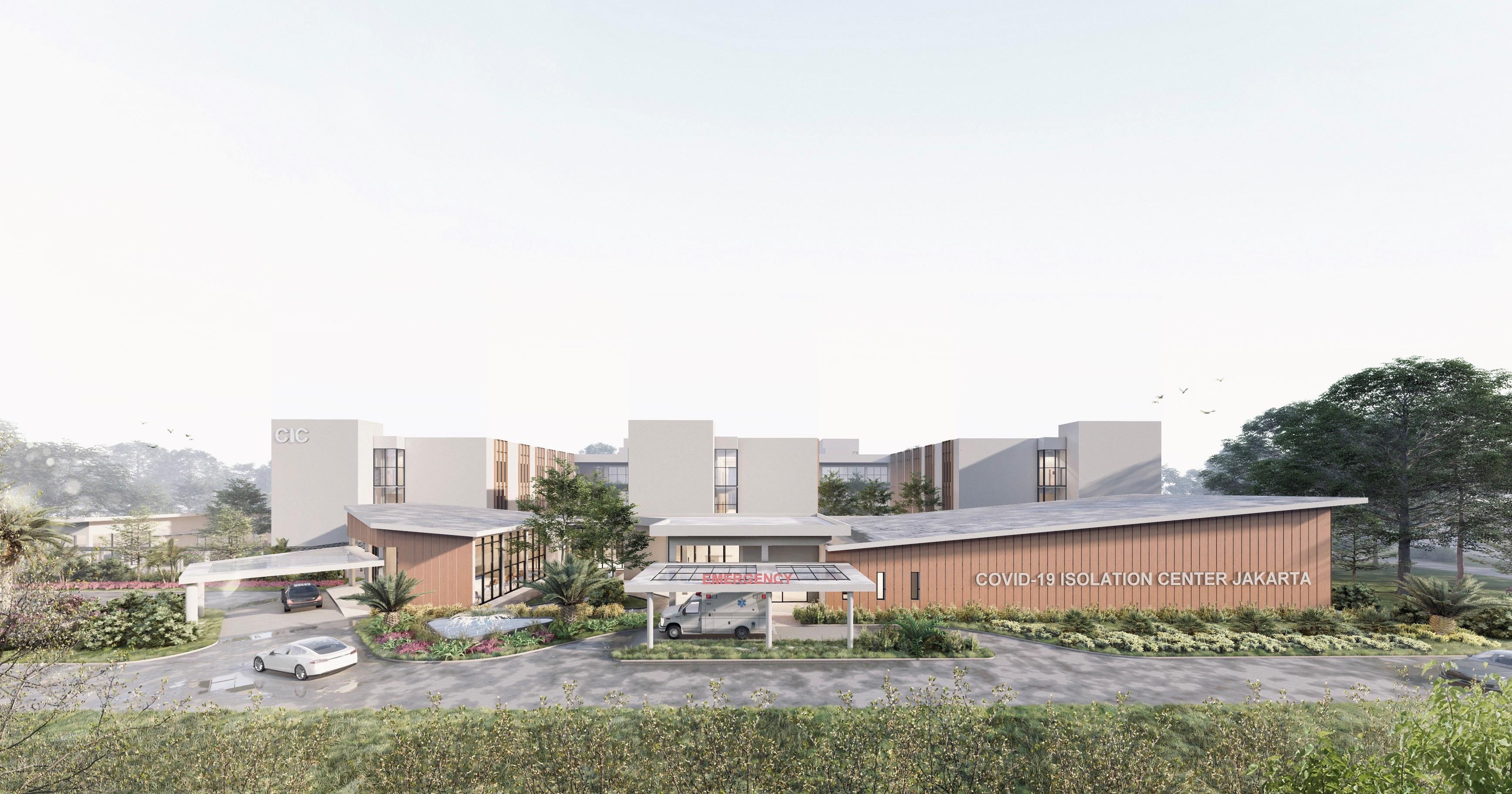

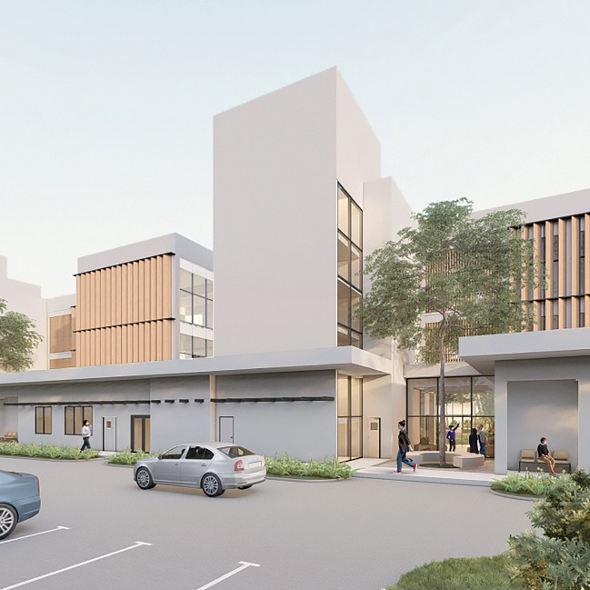

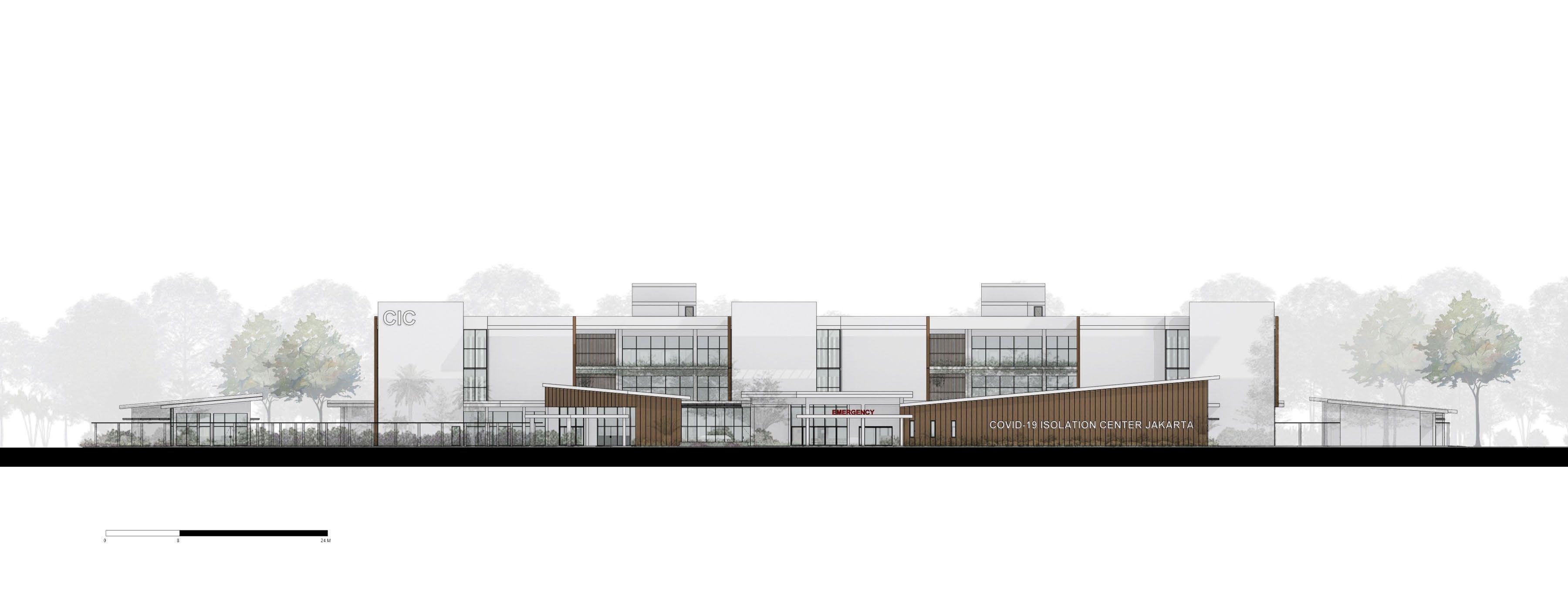

COVID-19 SELF ISOLATION CENTER

Academic Final Project

Speciality Hospital

Year: 2022

Area:

Location: West Jakarta

The design of a COVID-19 self-isolation center in Jakarta aims to address the escalating cases of COVID-19 inIndonesia,particularlyin Jakarta, the rising death tollresulting from self-isolation outside healthcare facilities, and the mental healthchallenges associated with self-isolation The center focuseson two key issues: first, designing a self-isolation facility to alleviate the burden on referral hospitals while ensuring technical requirementsare met, and second,creating a supportive environment thatminimizes infection transmission and fosters patient well-being By implementing thesemeasures, the center aims to effectively manage the surgein COVID-19 cases while prioritizing the physical and mental health of individualsinself-isolation.

APPROACH

THERAPEUTIC ARCHITECTURE

BUILT ENVIRONMENT

HUMAN SENSE HUMAN PSYCHOLOGY RECOVERY

THERAPEUTIC DESIGN CRITERIA

CARE IN COMMUNITY DESIGN FOR DOMESTICITY SOCIAL VALORISATION

How design can accommodate the social interaction process of its users.

How design can create an atmosphere like at home (homey).

How design is able to maintain user privacy and security.

INTEGRATED WITH NATURE

How design can maximize the relationship between buildings and nature.

Therapeutic or healing therapeutic architecture is an architectural concept that involves design asa medium to accelerate the healingand recovery processes of residents (Fadillah et al, 2021)

The built environment provides easy access for fast care.

connection between installations

circulation of people and goods

use of space

The built environment supports interactions between human-human and human-nature to achieve balance.

safe and comfortable

THERAPEUTIC ARCHITECTURE ELEMENTS

access to green space

dialog space

CONCEPT EMBRACE THROUGH SPACES

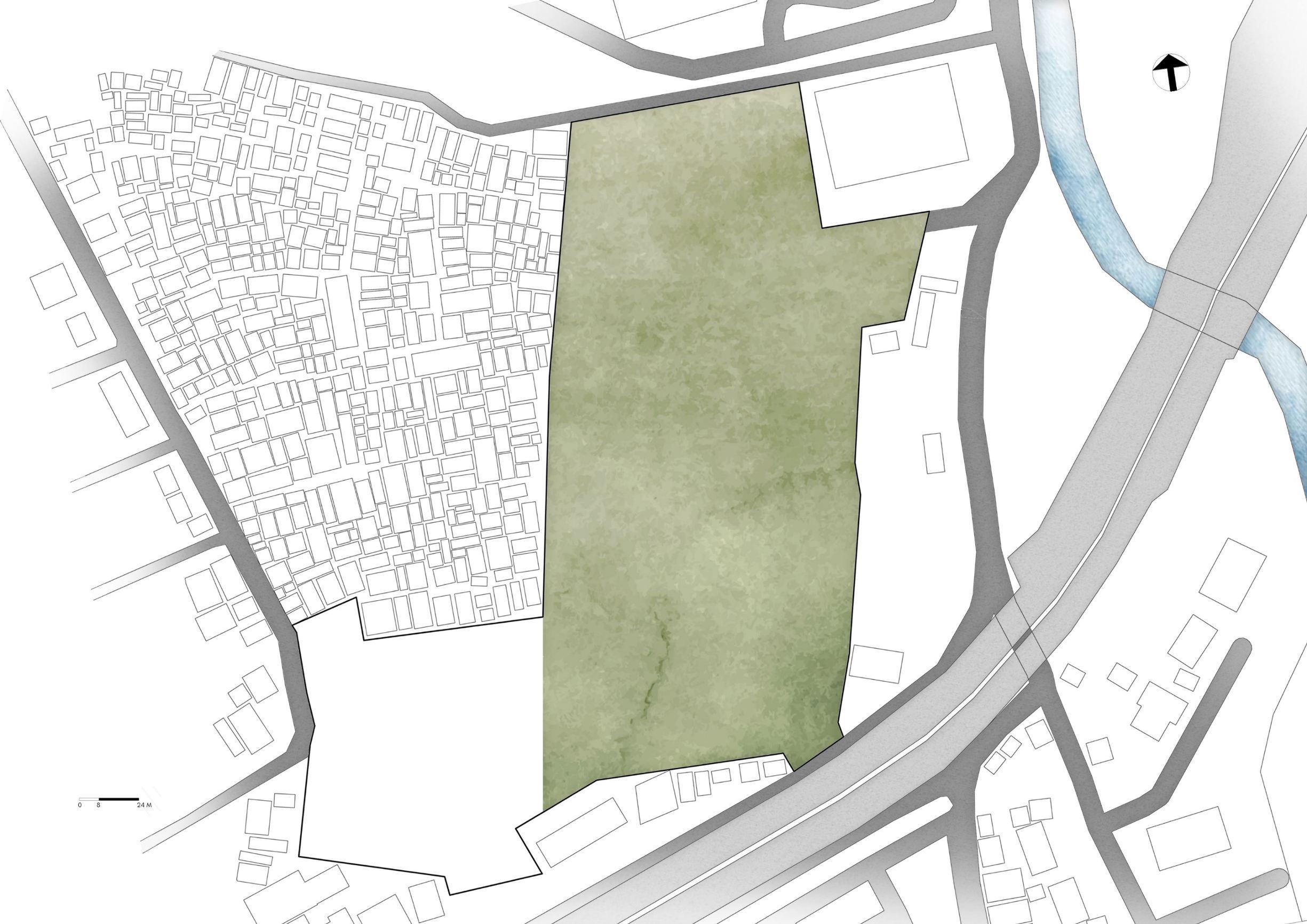

LOCATION

Based on Peraturan Daerah DKI Jakarta

No.1 Tahun 2014concerning Detailed Spatial Planning and Zoning Regulations,the location of thesite is includedin the mixed zone.

1 Condition

The main road is on the east Response

Create the main entrance and public zone on the east side of the site

2 Condition

The site is surrounded by buildings so that the view to the outside is not attractive Response

Create a new view inward

3 Condition

The site extends in a North-South direction Response

Making the order of the mass of the building extend in an East-West direction to avoid the sun's heat from the West

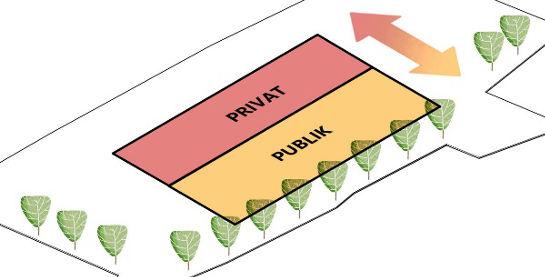

4 Condition

The highest noise comes from the main road and the wind comes from the east Response

Create a private zone on the West side and add trees as a buffer on the East side

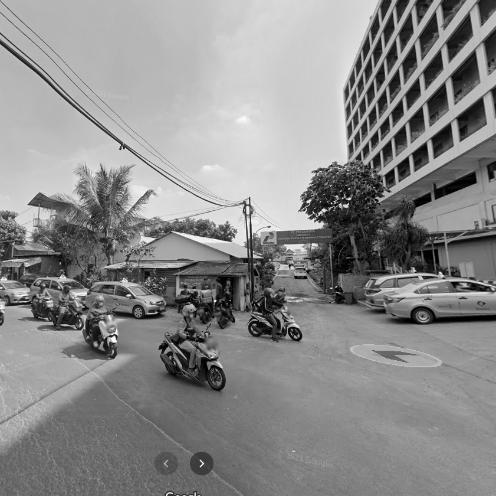

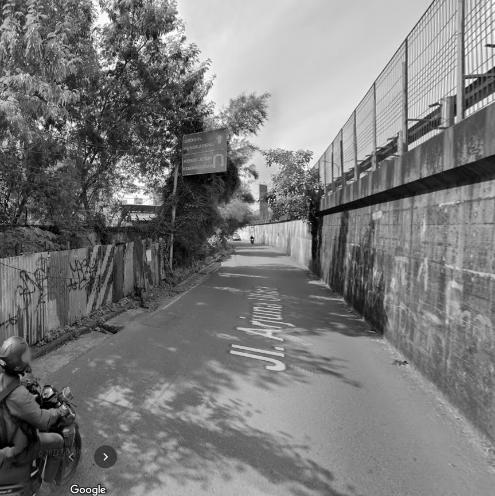

EAST Arjuna Utara Street (main road) and commercials.

SOUTH Arjuna Utara Street and commercials.

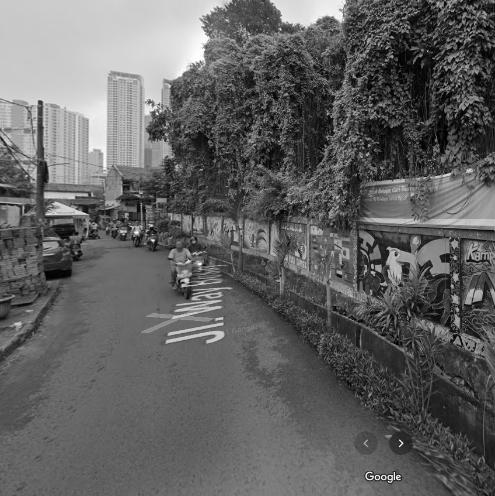

WEST Way Bessay Street and residential area.

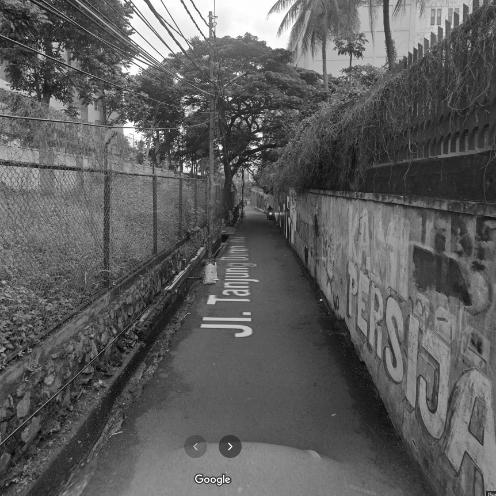

NORTH Tanjung Duren Timur I Street.

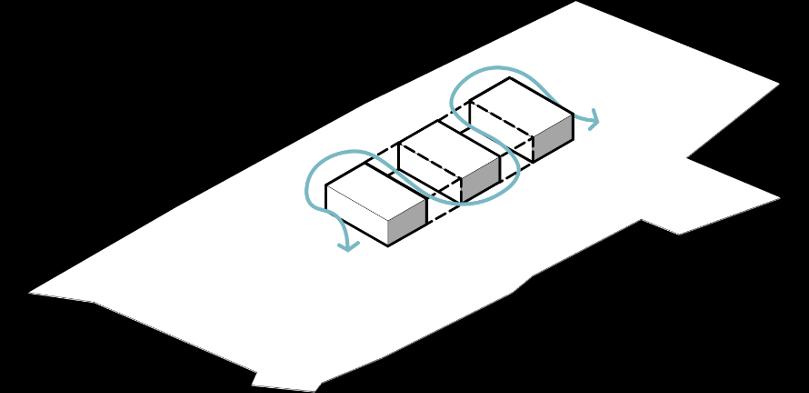

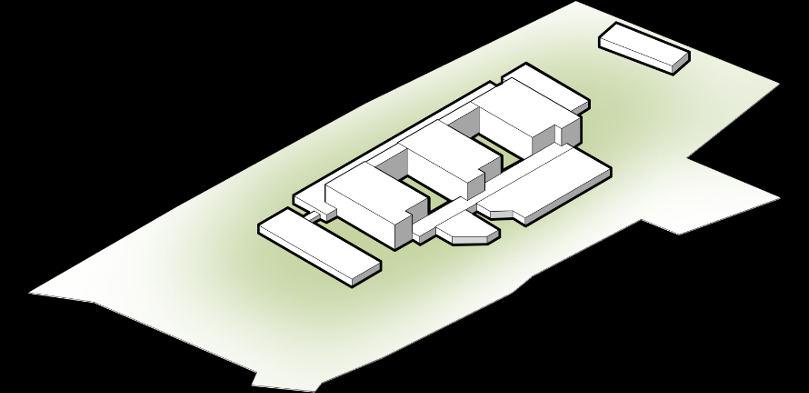

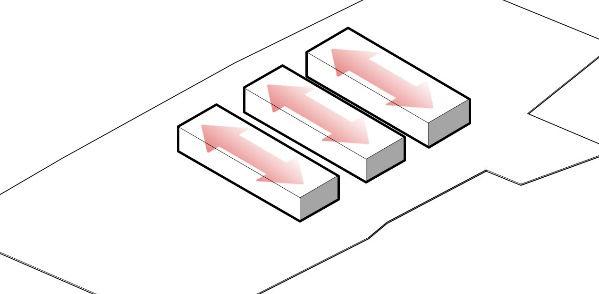

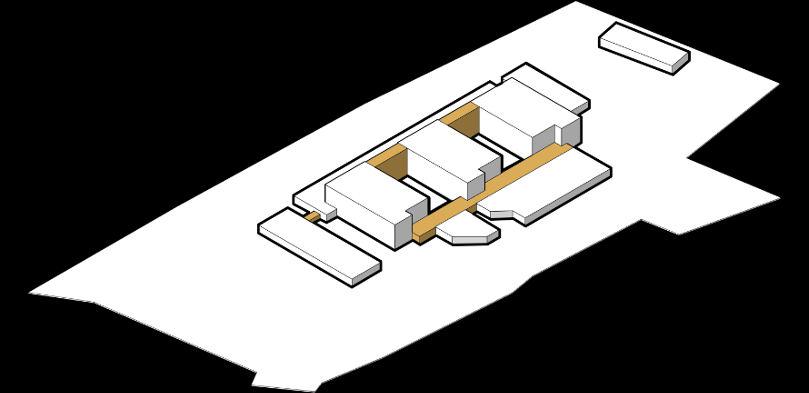

The mass is made elongated to follow the shape of the site, but the mass looks massive and tends to be intimidating

The mass is then broken pieces so that the mass east-west and produces

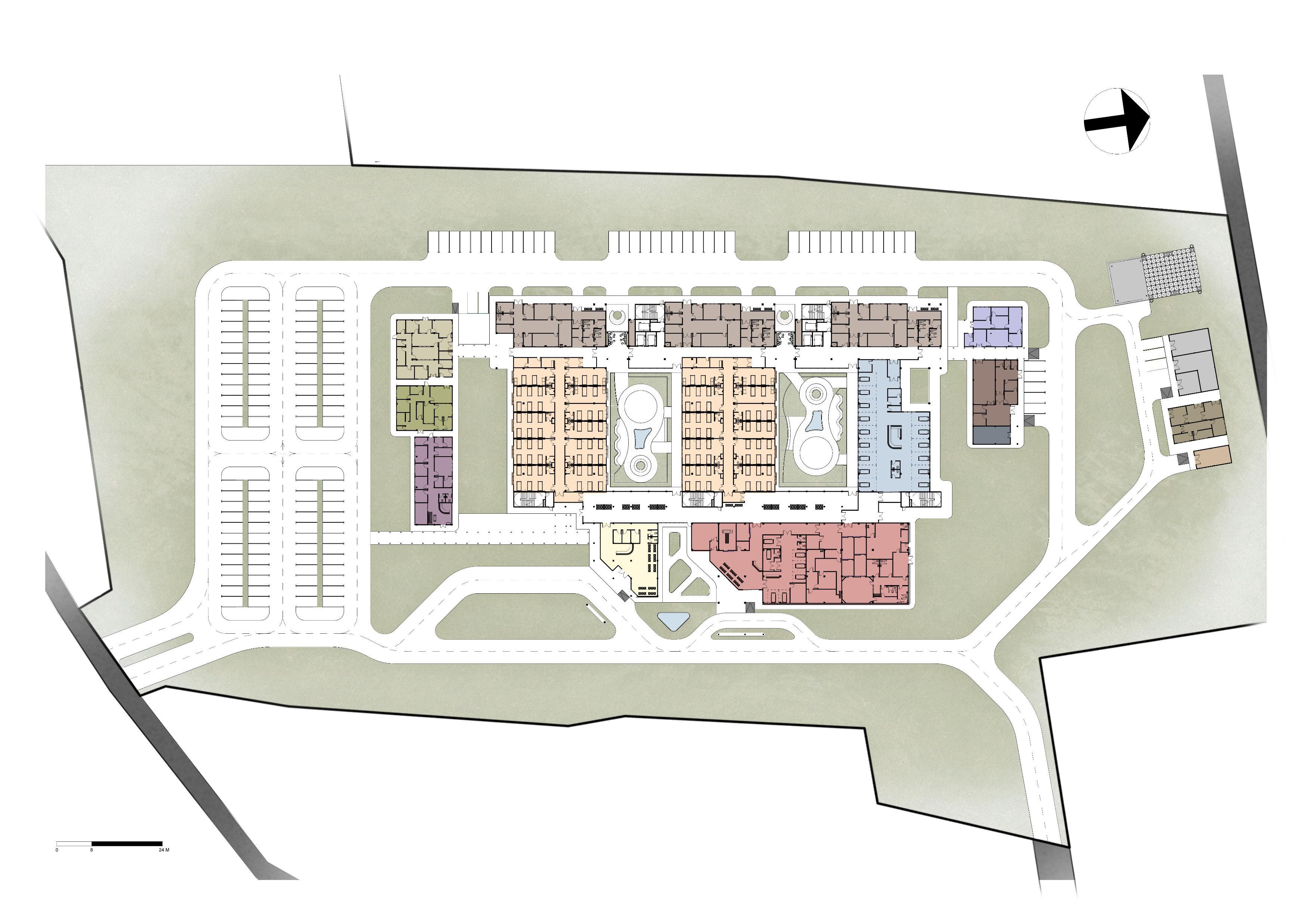

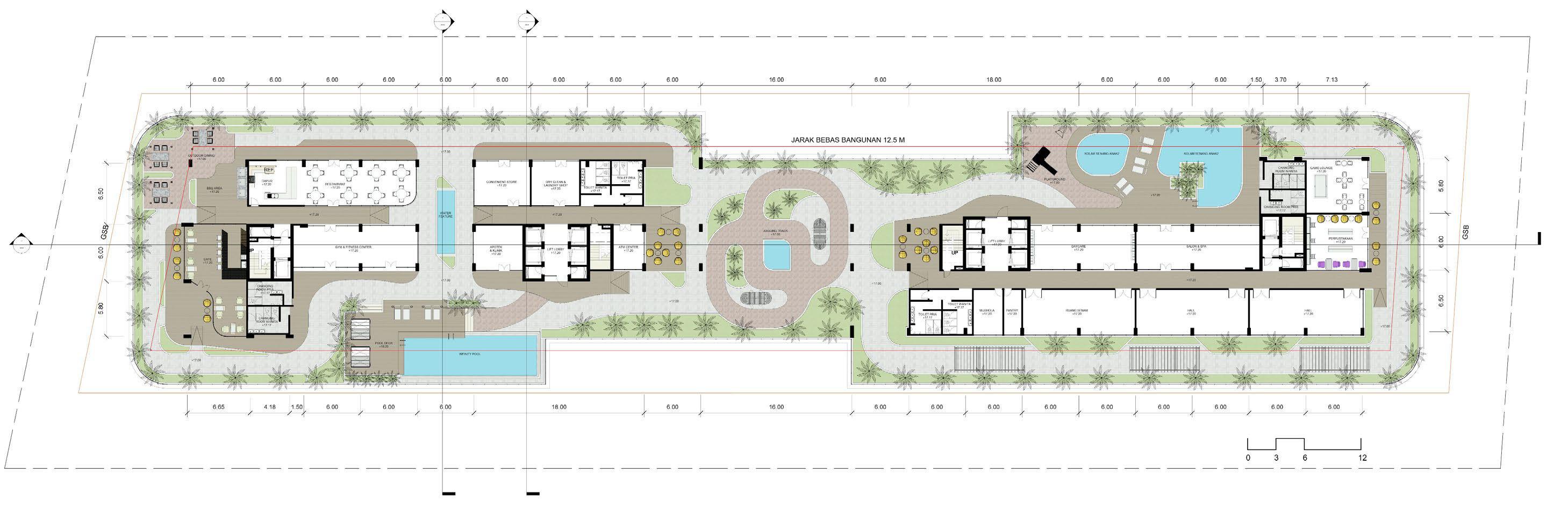

ZONATION

BASED

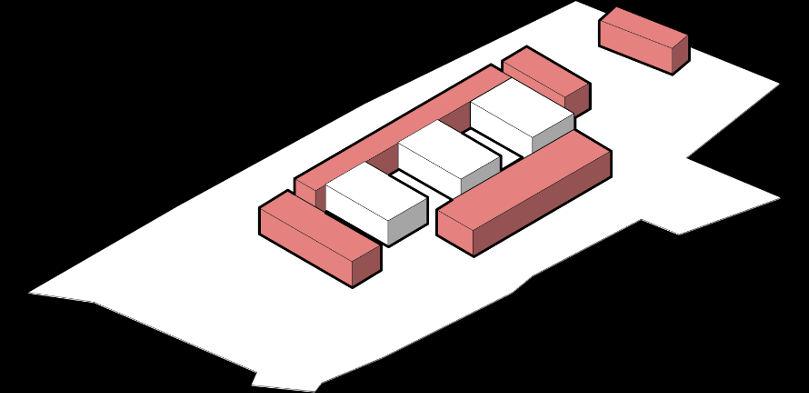

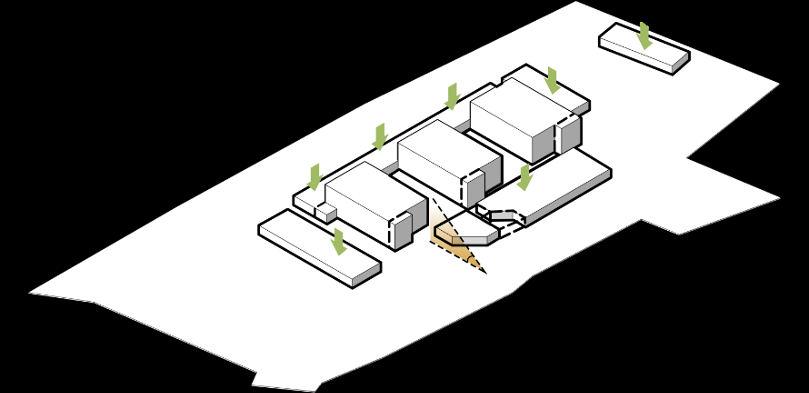

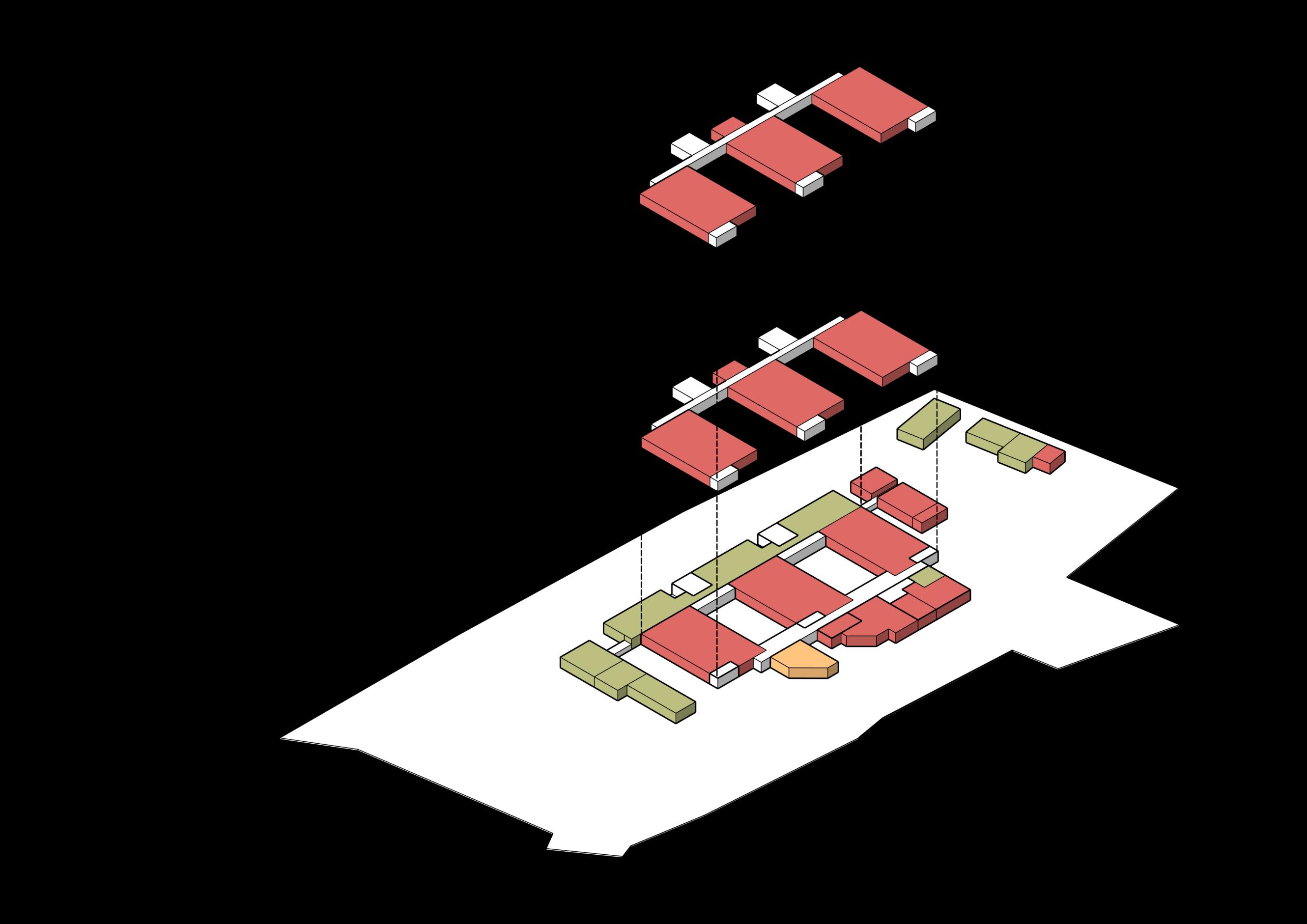

Addition of building masses to meet space requirements

Adjustment of the masses to adjust towards the building

1. EMERGENCY

2. LAB & RADIOLOGY

3. CSSD

4. OK

6. ICU

MID 5. 03 | COVID19 SELF ISOLATION CENTER

7. INPATIENT

8. PATIENT LOUNGE

13. LAUNDRY

14. MORTUARY

16. INCENERATOR

Addition of connecting mass for circulation inbuildings

The addition of a green view of the site and various sides ofthe building

9. STAFF AREA

10. NUTRITIONIST UNIT

11. PHARMACY

12. COMMAND CENTER

15. WORKSHOP

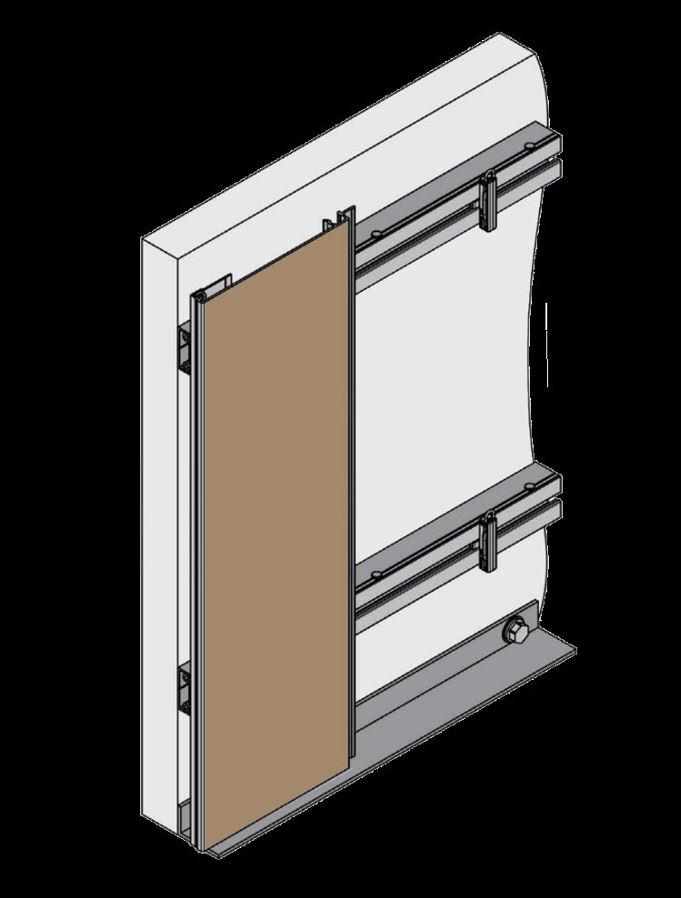

BOLT CONNECTIONS FITTING CLIP

MOUNTING TRACK

CLIP-ON ALUMUNIUM PANEL NATURAL VENEER COATED

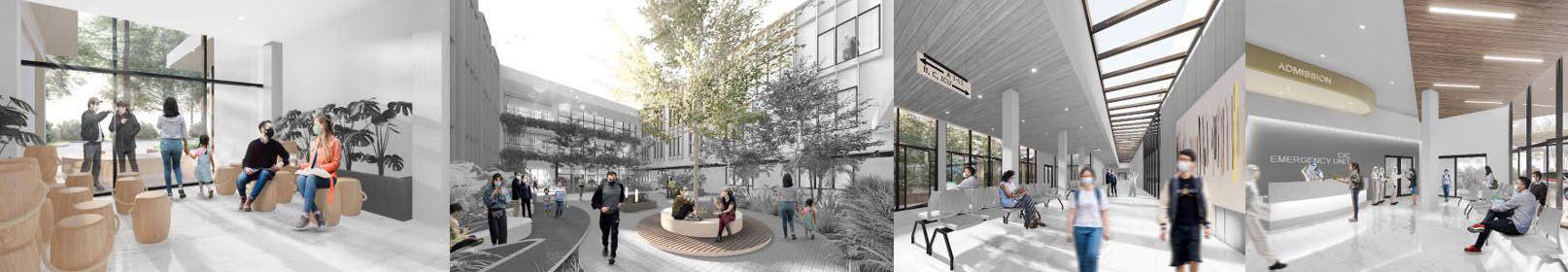

FromWindow toEmotion

The glass wall as a barrier as well as connecting the inside-outside area allows the patient to interact "directly"with the familyso that it canreduce anxiety from both the patient and familyside

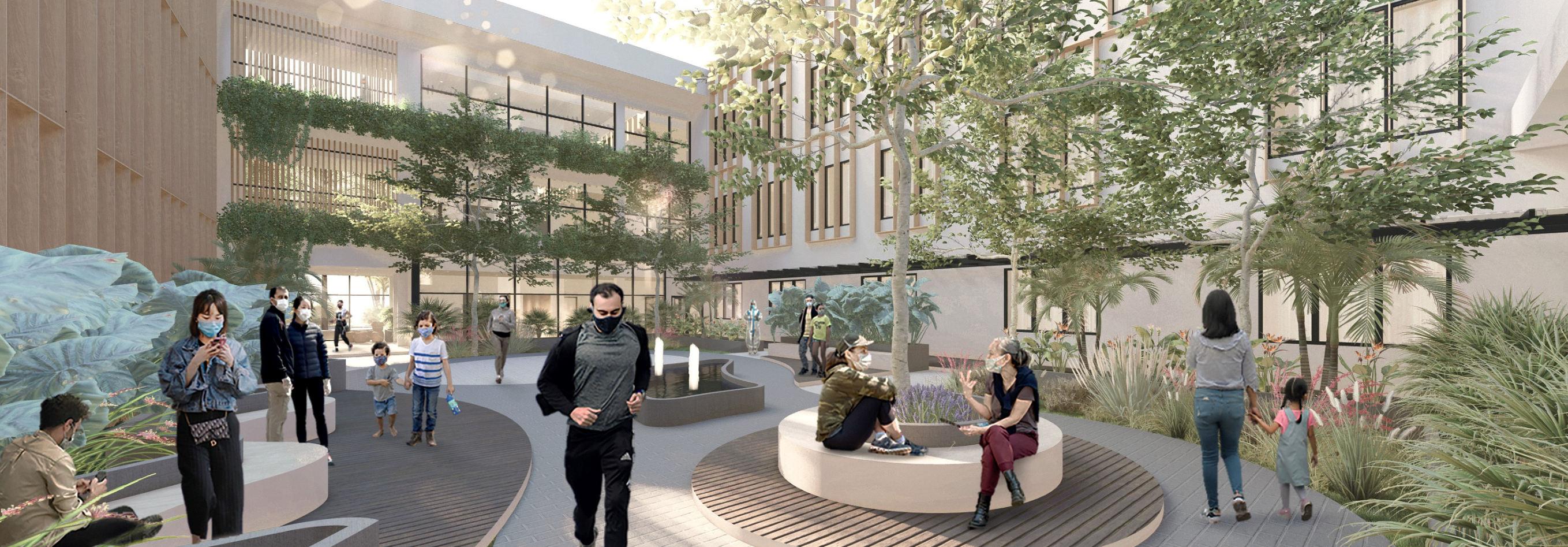

GroupGatheringSpace

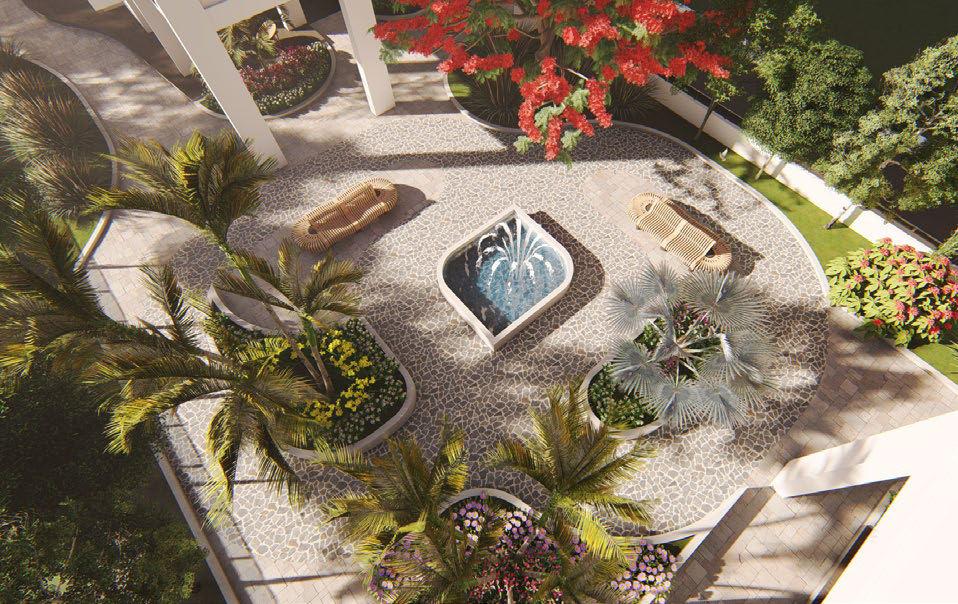

Provision of a variety of seats in the courtyard area to support the socialinteraction process of residents

Movement & Exercise

Paved areas allow patients to do light joggingor gymnasticsto reduce stress, improve mood, and reduce depression

Natural Sound

The soundof splashing water from the water feature canreduce a person's tension

Signage

Simplify wayfinding and mobilitywithin buildings

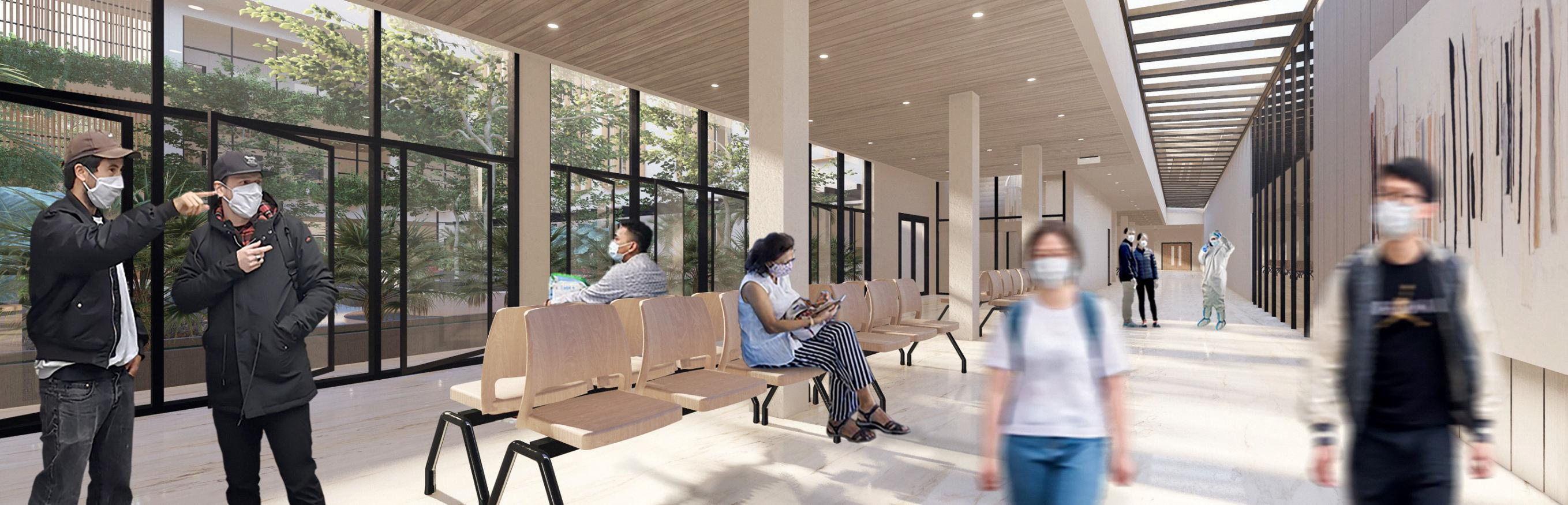

Access to Greenery

The use of glass wallsin the waiting area facing directly towards the courtyard The panels on the glass walls can be opened atany time for natural ventilation

Skylight forNatural Lighting

Colour Scheme

The use of earth tone colors such as pale green and wood elements to suppress anxiety whileincreasing relaxation

Good Lighting

Stools as Positive Distraction

The seats are movable allowing for variety so that the user can choose theirpreferred location and seat

Various Vegetations

Variety of vegetation as a coolant as well as a positive distraction for relaxation.

Incorporate natural lighting through skylights to reduce the burden of lights in the waiting corridor area during the day.

Art as Positive Distraction

Painting provides a positive distraction for the observer.

Good lighting is obtained from glass walls (natural light) and lights (artificiallight), as well asa view of the green space asa positive distraction The panels on the glass walls can be opened atany time for natural ventilation

Access to Natural Light

Glass windows at the end of the corridor to include natural light.

Signage

Simplify wayfinding and mobility within buildings.

Good Lighting & Access to Greenery

The use of lights and window glass to achieve good lighting intensity standards. Glass windows also provide a view towards the courtyard and can be opened by 15o to include natural ventilation (air exchange) but are also concerned with aspects of occupant safety.

Colour Scheme

The use of earth tone colors and wood elements.

Sense of Control

The use of curtains on each bed where patients can exercise control over their privacy.

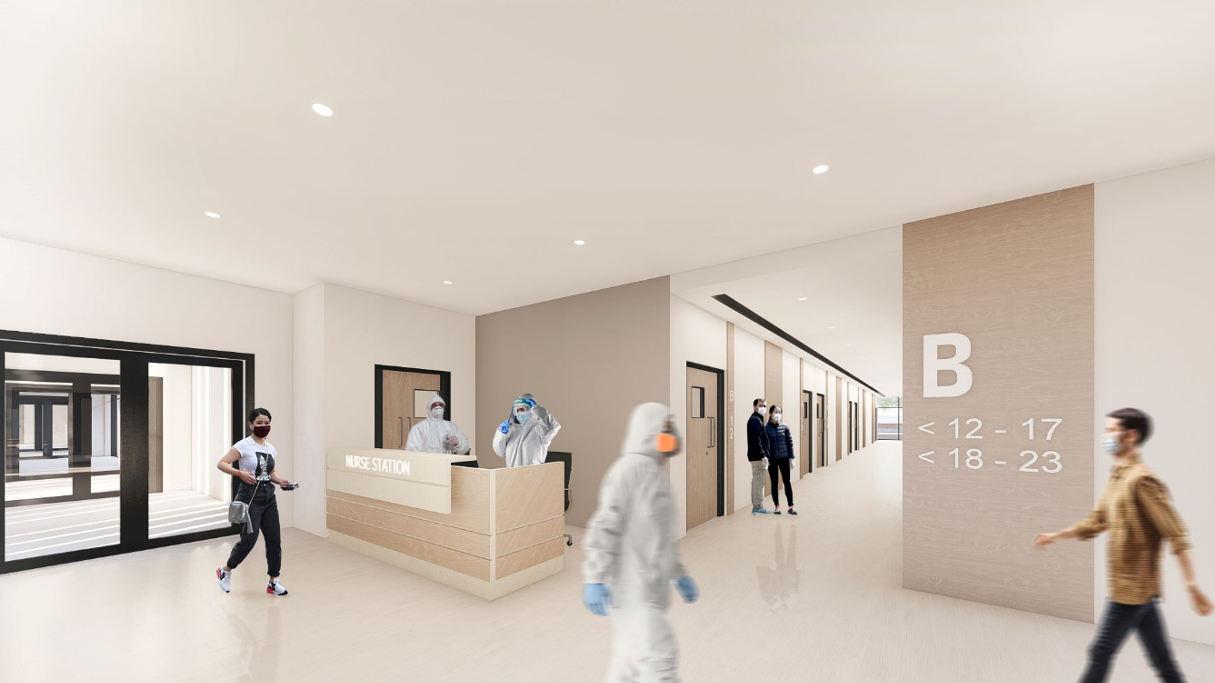

INPATIENT CORRIDOR

Group Gathering Space

Good Lighting & Access to Greenery

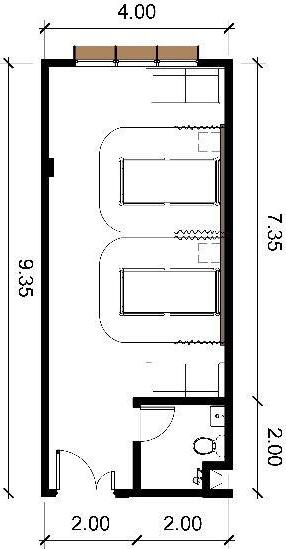

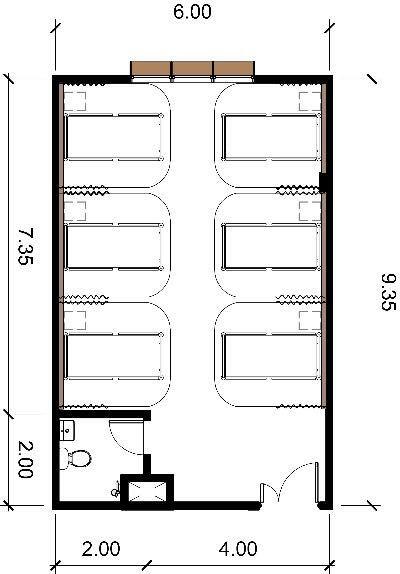

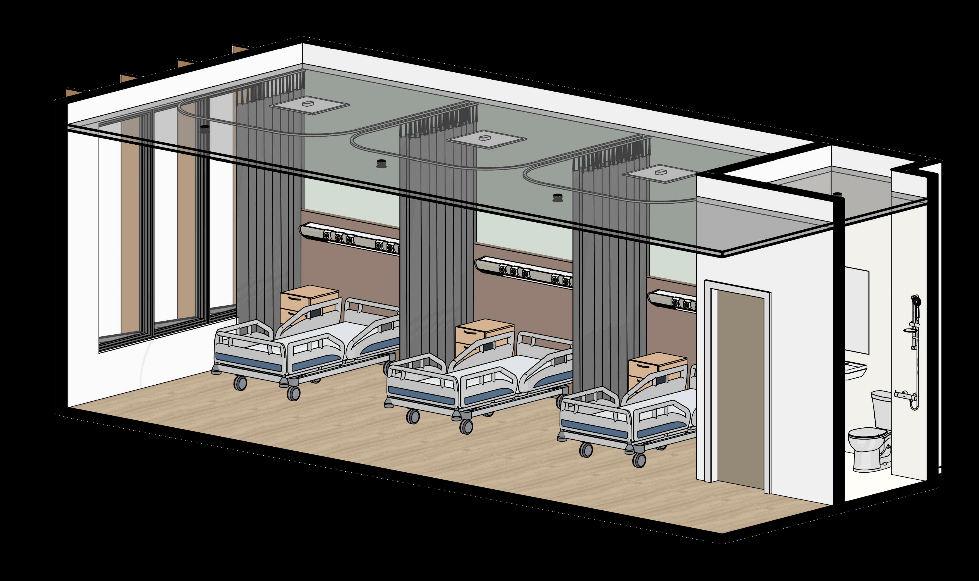

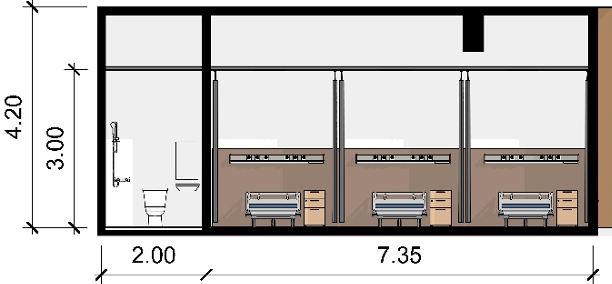

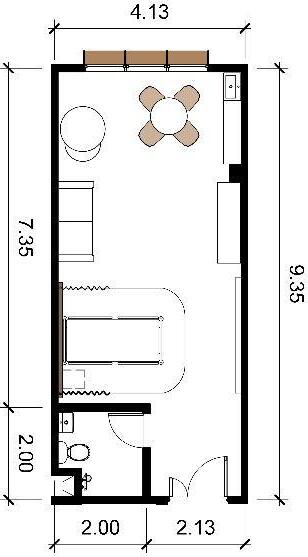

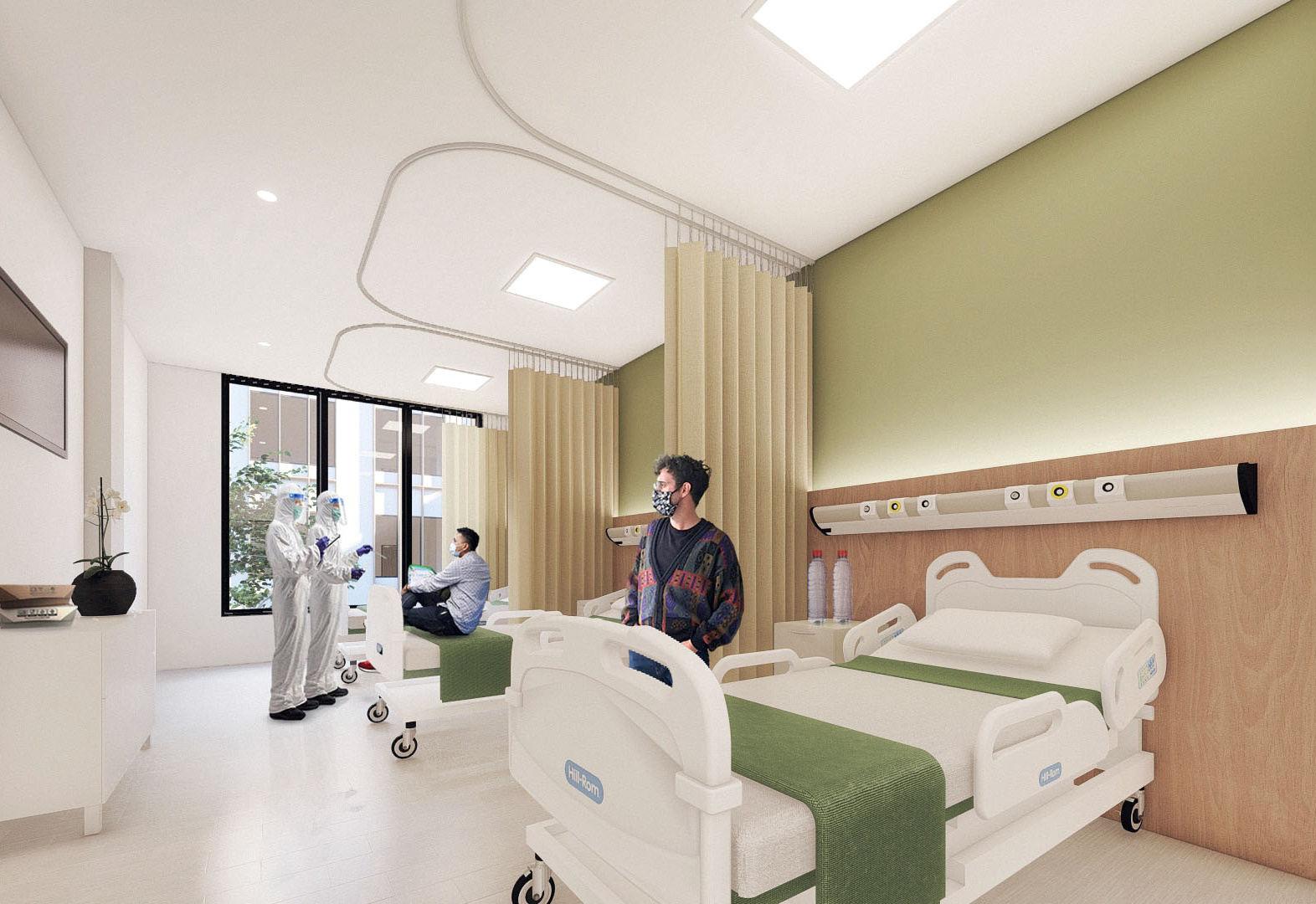

INPATIENT ROOM CLASS 2

Aluminium Composite Panel Wood Veneer Coated 4,5mm

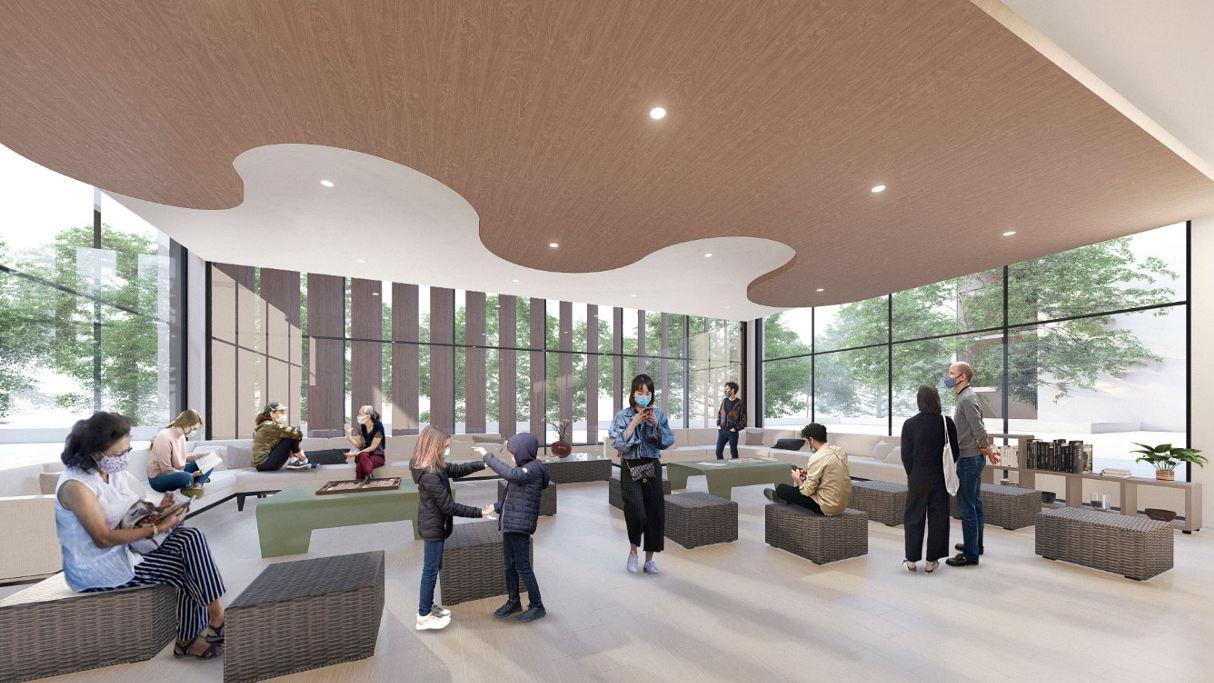

PATIENT LOUNGE

Gypsum Board 9mm fin. Paint Pale Sage Green

Antibacteria Paint

Vinyl

Homogenous Tile Anti Slip 30x30

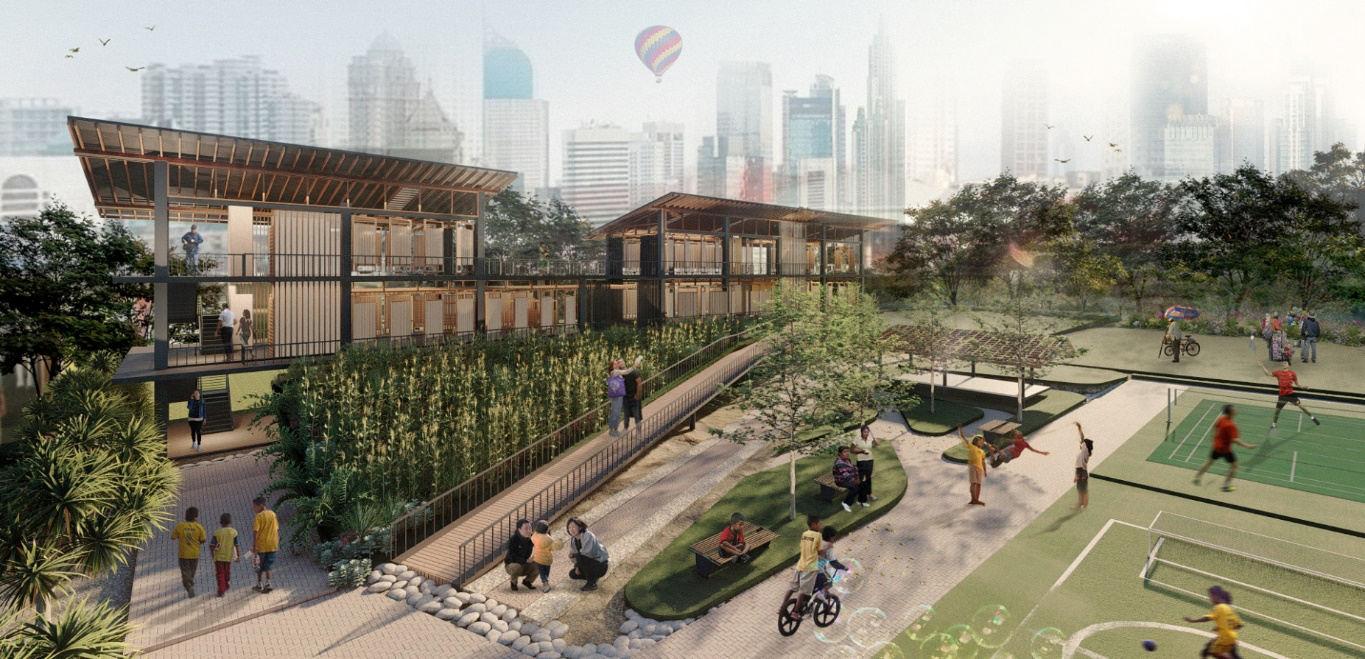

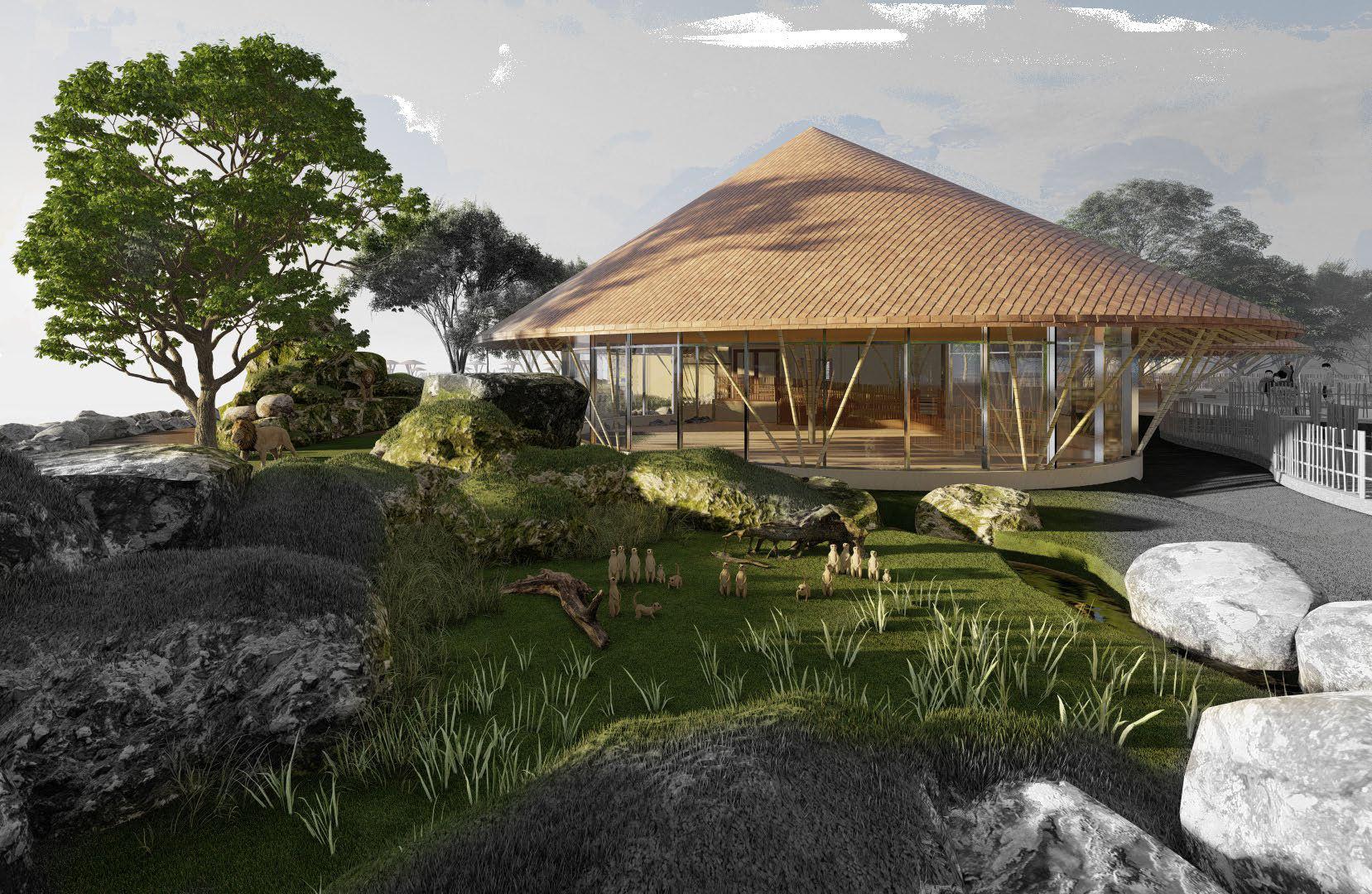

SOLO SAFARI REVITALIZATION AT SURAKARTA, CENTRAL JAVA

Design Development | Taman Safari Indonesia

Public Zoo | Internship

Year: 2022

Location: Surakarta, Central Java

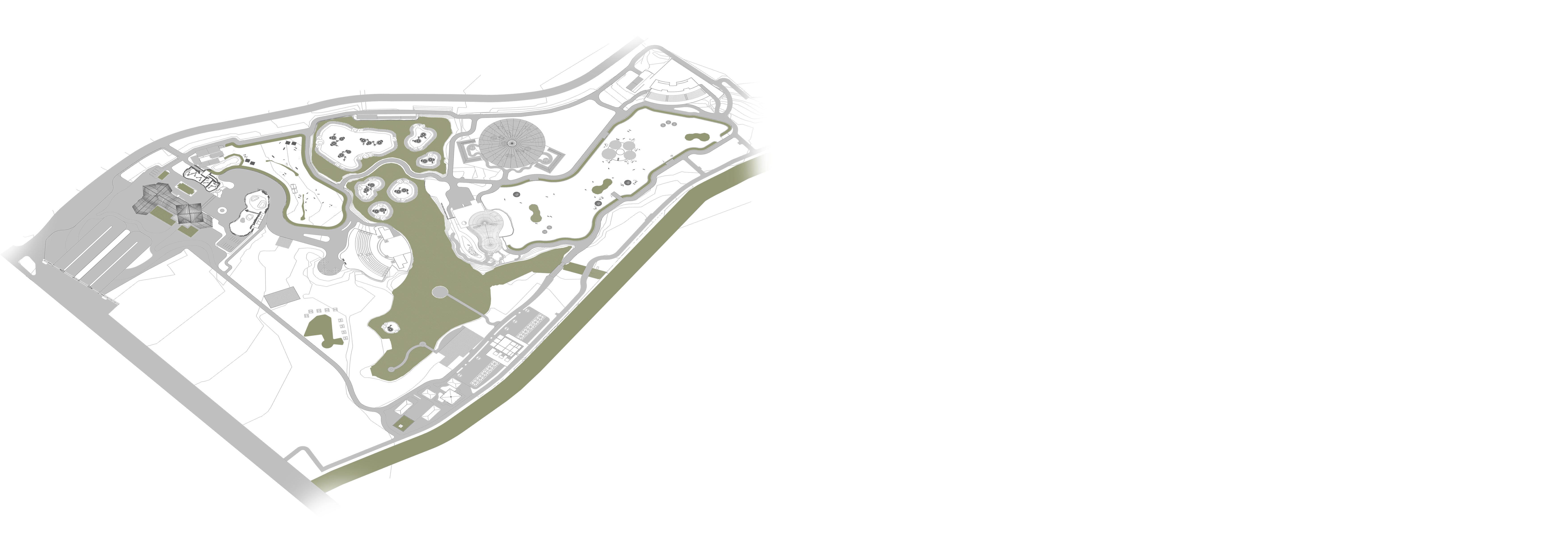

The revitalization of Solo Safari, formerly known as Taman Satwa Taru Jurug, is a project aimed at renewing andenhancing the wildlife park located inSolo, Central Java, Indonesia. Solo Safari has undergone significant transformation inits efforts to become one of thepremier tourist destinations in the region

The revitalization of Solo Safari aims to create a more engaging, informative, and educational wildlife experience for visitors. The park now offers a variety of modern attractions and facilities thatcombinethe concept ofa safari park with a focus on wildlife conservation and education.

1. Entrance

2. Main Ticketing

3. Binturong, Jelarang, Musang Pandan

4.Komodo &Wallabys

5. Asian Panoramic

6. Open Stage

7. Primate Island

8. LionCafe

9. Meerkat

10.Aviary

11. African Savannah

12. Elephant Show

13. Hippo (Phase II)

14. Otter (Phase II)

15. BOH & Clinic

16. Petting Zoo (Phase II)

17. Birds of Prey (Phase II)

18. Leopard (Phase II)

19.HarimauSumatera (Phase II)

20. Crocodile (Phase II)

21. Foodcourt

22. Tourist Information Center

23. Main Restaurant (Phase II)

24. Floating Restaurant (Phase II)

25. Pelican

26.Musholla

27. Gesang Monument & Gallery

28. Kids Pool & Playground (Phase II)

One of the major changes in this revitalizationis the provision of more naturalandspacious habitats for the animals residing inSolo Safari. These areas have beendesigned with consideration for the needs and characteristics of theexisting species, allowing the animals to livein environments more similar totheir natural habitats. Furthermore, Solo Safarihasalso enhanced interactive facilities that provide visitors with opportunities to learnand directly interact with theanimals. Visitors can observe the animals up close through safari tours

The revitalization of Solo Safari has transformed it into an attractivetouristdestination for bothlocal andinternational travelers. By providing interactive, educational,and highquality experiences, the parkstrives to raise public awareness about the importance of preserving wildlife and theirecosystems.

3rd Winner Competition Held byBAPPEDA LITBANG Demak Regency 2021 | Team Entree
