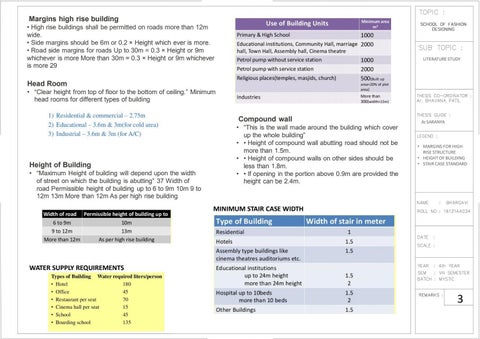

Margins high rise building • High rise buildings shall be permitted on roads more than 12m wide. • Side margins should be 6m or 0.2 × Height which ever is more. • Road side margins for roads Up to 30m = 0.3 × Height or 9m whichever is more More than 30m = 0.3 × Height or 9m whichever is more 29
LITERATURE STUDY
Head Room • “Clear height from top of floor to the bottom of ceiling.” Minimum head rooms for different types of building
Compound wall
Height of Building • “Maximum Height of building will depend upon the width of street on which the building is abutting” 37 Width of road Permissible height of building up to 6 to 9m 10m 9 to 12m 13m More than 12m As per high rise building
• “This is the wall made around the building which cover up the whole building” • • Height of compound wall abutting road should not be more than 1.5m. • • Height of compound walls on other sides should be less than 1.8m. • • If opening in the portion above 0.9m are provided the height can be 2.4m.
Ar.SARANYA
• MARGINS FOR HIGH RISE STRUCTURE • HEIGHT OF BUILDING • STAIR CASE STANDARD
MINIMUM STAIR CASE WIDTH
WATER SUPPLY REQUIREMENTS
3
