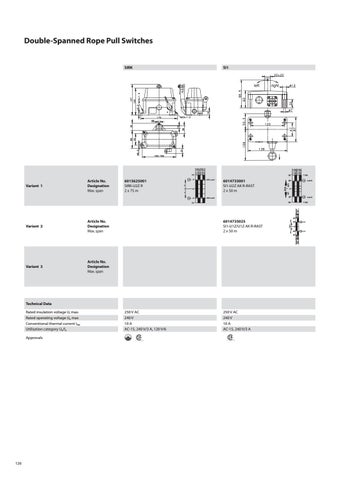

Double-Spanned Rope Pull Switches SI1
6015625001 SIRK-U2Z R 2 x 75 m
35N Latch
6014735001 SI1-U2Z AK R-RAST 2 x 50 m
Latch right
Article No. Variant 1 Designation Max. span
right
Lever
left
left
SIRK
Latch
System left
35N Latch
right
Latch
Latch
System right
Lever
6014735025 SI1-U1Z/U1Z AK R-RAST 2 x 50 m
left
Article No. Variant 2 Designation Max. span
Article No. Variant 3 Designation Max. span
Technical Data Rated insulation voltage Ui max. Rated operating voltage Ue max Conventional thermal current Ithe Utilisation category Ue/Ie Approvals
126
250 V AC 240 V 10 A AC-15, 240 V/3 A, 120 V/6
250 V AC 240 V 10 A AC-15, 240 V/3 A
