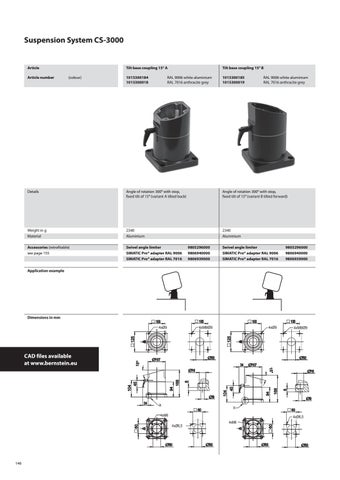

Suspension System CS-3000
Article Article number
(colour)
Tilt base coupling 15° A
Tilt base coupling 15° B
1015300184 1015300018
1015300185 1015300019
RAL 9006 white aluminium RAL 7016 anthracite grey
RAL 9006 white aluminium RAL 7016 anthracite grey
Details
Angle of rotation 300° with stop, fixed tilt of 15° (variant A tilted back)
Angle of rotation 300° with stop, fixed tilt of 15° (variant B tilted forward)
Weight in g Material
2340 Aluminium
2340 Aluminium
Accessories (retrofitable) see page 155
Swivel angle limiter 9805296000 SIMATIC Pro® adapter RAL 9006 9806940000 SIMATIC Pro® adapter RAL 7016 9806939000
Swivel angle limiter 9805296000 SIMATIC Pro® adapter RAL 9006 9806940000 SIMATIC Pro® adapter RAL 7016 9806939000
Application example
Dimensions in mm 100
100 4xØ9
4xØ9
125
125
4xM8/Ø9
Ø50
Ø50
Ø107
34
Ø107
15°
X
94
Ø9 X
60
8
45
104
Ø9 34
Ø16
8
94
104 45
168
Ø16
168
15°
CAD files available at www.bernstein.eu
100
100
4xM8/Ø9
60
4xM6
4xØ6,5 4xØ6,5
Ø50
146
60
60
4xM6
Ø50
Ø50
Ø50
