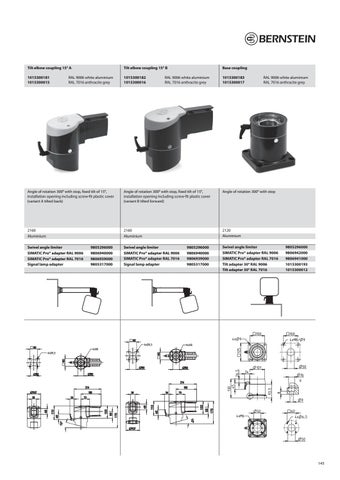

Tilt elbow coupling 15° A
Tilt elbow coupling 15° B
Base coupling
1015300181 1015300015
1015300182 1015300016
1015300183 1015300017
RAL 9006 white aluminium RAL 7016 anthracite grey
RAL 9006 white aluminium RAL 7016 anthracite grey
RAL 9006 white aluminium RAL 7016 anthracite grey
Angle of rotation 300° with stop, fixed tilt of 15°, installation opening including screw-fit plastic cover (variant A tilted back)
Angle of rotation 300° with stop, fixed tilt of 15°, installation opening including screw-fit plastic cover (variant B tilted forward)
Angle of rotation 300° with stop
2160 Aluminium
2160 Aluminium
2120 Aluminium
Swivel angle limiter 9805296000 SIMATIC Pro® adapter RAL 9006 9806940000 SIMATIC Pro® adapter RAL 7016 9806939000 Signal lamp adapter 9805317000
Swivel angle limiter 9805296000 SIMATIC Pro® adapter RAL 9006 9806940000 SIMATIC Pro® adapter RAL 7016 9806939000 Signal lamp adapter 9805317000
Swivel angle limiter 9805296000 9806942000 SIMATIC Pro® adapter RAL 9006 SIMATIC Pro® adapter RAL 7016 9806941000 Tilt adapter 30° RAL 9006 1015300193 Tilt adapter 30° RAL 7016 1015300012
60 4xØ6,5 60
4xM6
4xM6
60
60
4xØ6,5
Ø50
Ø50
Ø50
Ø50
214 214 Ø107
160
160
175
100 45
175
100
55
45
55
70
15°
15°
46
110
70
110
34
34
46
36
36
Ø107
145
