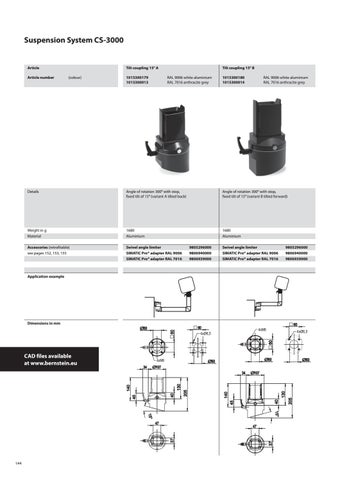

Suspension System CS-3000
Tilt coupling 15° A
Article Article number
(colour)
1015300179 1015300013
Tilt coupling 15° B RAL 9006 white aluminium RAL 7016 anthracite grey
1015300180 1015300014
RAL 9006 white aluminium RAL 7016 anthracite grey
Details
Angle of rotation 300° with stop, fixed tilt of 15° (variant A tilted back)
Angle of rotation 300° with stop, fixed tilt of 15° (variant B tilted forward)
Weight in g Material
1680 Aluminium
1680 Aluminium
Accessories (retrofitable) see pages 152, 153, 155
Swivel angle limiter 9805296000 SIMATIC Pro® adapter RAL 9006 9806940000 SIMATIC Pro® adapter RAL 7016 9806939000
Swivel angle limiter 9805296000 SIMATIC Pro® adapter RAL 9006 9806940000 SIMATIC Pro® adapter RAL 7016 9806939000
Application example
Dimensions in mm
60
60 4xØ6,5
4xM6
4xØ6,5
60
60
Ø50
4xM6
Ø50
Ø50
140
130
Ø107
45
205
45
40
140
130
34
15°
15° 47
37
47 37
144
Ø50
Ø107
205
34
40
CAD files available at www.bernstein.eu
