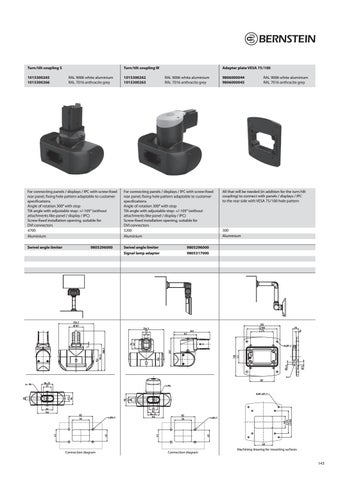

Turn/tilt coupling S 1015300265 1015300266
Turn/tilt coupling W RAL 9006 white aluminium RAL 7016 anthracite grey
1015300262 1015300263
Adapter plate VESA 75/100 RAL 9006 white aluminium RAL 7016 anthracite grey
9806000044 9806000045
RAL 9006 white aluminium RAL 7016 anthracite grey
For connecting panels / displays / IPC with screw-fixed rear panel, fixing hole pattern adaptable to customer specifications. Angle of rotation 300째 with stop Tilt angle with adjustable stop: +/-105째 (without attachments like panel / display / IPC) Screw-fixed installation opening, suitable for DVI connectors 4700 Aluminium
For connecting panels / displays / IPC with screw-fixed rear panel, fixing hole pattern adaptable to customer specifications. Angle of rotation 300째 with stop Tilt angle with adjustable stop: +/-105째 (without attachments like panel / display / IPC) Screw-fixed installation opening, suitable for DVI connectors 5200 Aluminium
All that will be needed (in addition for the turn/tilt coupling) to connect with panels / displays / IPC to the rear side with VESA 75/100 hole pattern
Swivel angle limiter
Swivel angle limiter 9805296000 Signal lamp adapter 9805317000
9805296000
Connection diagram
Connection diagram
300 Aluminium
Machining drawing for mounting surfaces
143
