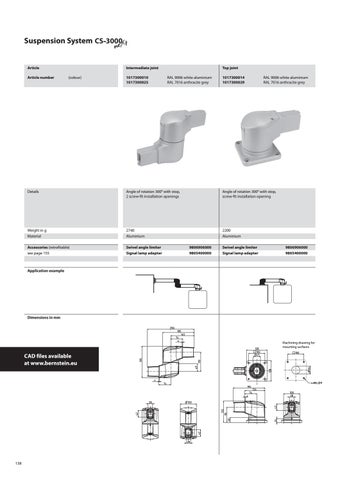

Suspension System
Intermediate joint
Article Article number
(colour)
1017300010 1017300025
Top joint RAL 9006 white aluminium RAL 7016 anthracite grey
1017300014 1017300029
RAL 9006 white aluminium RAL 7016 anthracite grey
Details
Angle of rotation 300° with stop, 2 screw-fit installation openings
Angle of rotation 300° with stop, screw-fit installation opening
Weight in g Material
2740 Aluminium
2200 Aluminium
Accessories (retrofitable) see page 155
Swivel angle limiter Signal lamp adapter
9806906000 9805400000
Swivel angle limiter Signal lamp adapter
9806906000 9805400000
Application example
Dimensions in mm
Machining drawing for mounting surfaces
CAD files available at www.bernstein.eu
138
