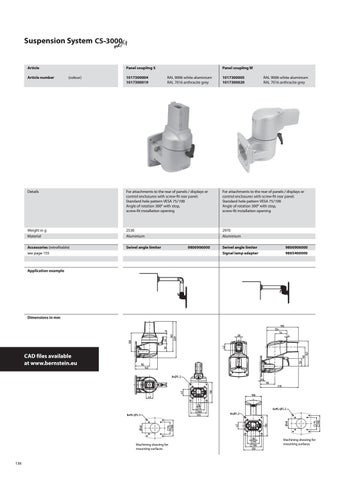

Suspension System
Panel coupling S
Article Article number
(colour)
1017300004 1017300019
Panel coupling W RAL 9006 white aluminium RAL 7016 anthracite grey
1017300005 1017300020
RAL 9006 white aluminium RAL 7016 anthracite grey
Details
For attachments to the rear of panels / displays or control enclosures with screw-fit rear panel. Standard hole pattern VESA 75/100 Angle of rotation 300° with stop, screw-fit installation opening
For attachments to the rear of panels / displays or control enclosures with screw-fit rear panel. Standard hole pattern VESA 75/100 Angle of rotation 300° with stop, screw-fit installation opening
Weight in g Material
2530 Aluminium
2970 Aluminium
Accessories (retrofitable) see page 155
Swivel angle limiter
9806906000
Swivel angle limiter Signal lamp adapter
9806906000 9805400000
Application example
Dimensions in mm
CAD files available at www.bernstein.eu
Machining drawing for mounting surfaces
136
Machining drawing for mounting surfaces
