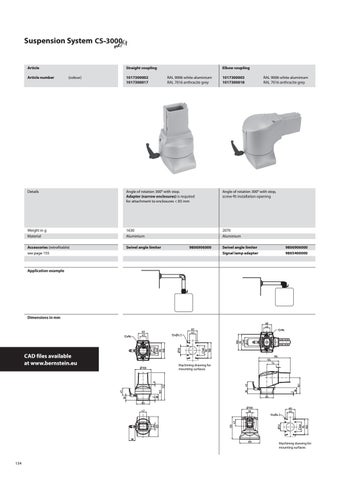

Suspension System
Straight coupling
Article Article number
(colour)
1017300002 1017300017
Elbow coupling RAL 9006 white aluminium RAL 7016 anthracite grey
1017300003 1017300018
RAL 9006 white aluminium RAL 7016 anthracite grey
Details
Angle of rotation 300° with stop. Adapter (narrow enclosures) is required for attachment to enclosures < 83 mm
Angle of rotation 300° with stop, screw-fit installation opening
Weight in g Material
1630 Aluminium
2070 Aluminium
Accessories (retrofitable) see page 155
Swivel angle limiter
9806906000
Swivel angle limiter Signal lamp adapter
9806906000 9805400000
Application example
Dimensions in mm
CAD files available at www.bernstein.eu
Machining drawing for mounting surfaces
Machining drawing for mounting surfaces
