belassi.com MARINE POWER UNIT
DEVELOPED IN AUSTRIA. DESIGNED FOR THE FORCE OF WATER.
BELASSI MARINE POWER UNIT
INNER VALUES THAT STAND OUT.
The engine is the foundation upon which our product is built. It is the beating heart that gives life to everything else. Crafted from the ground up by Belassi in Austria, this engine is designed to break new ground in marine performance.
The engine package is designed to provide the perfect balance between optimal performance and fuel efficiency without compromising an unforgettable experience. The Marine Power Unit is the key to unlocking the true potential to add to your product portfolio.
MPU APPLICATION VARIANTS
The Marine Power Unit is specifically designed to fit in small Jetboats or Personal Waterctaft up to 3.6 meters (12 feet) and waterjet Powered Boats up to 6 meters (20 feet).
Jetboat application with focus on Durability
• MPU Mini Peak power of 260 hp @ 7200 rpm
• MPU Power Peak power of 330 hp @ 7800rpm
Personal Watercraft application with focus on Perfomance
• MPU Pure Peak power of 400 hp @ 8300rpm
up to 3.6 m / 12 feet OR up to 6 m / 20 feet
UNIQUE VALUES & BENEFITS
COMPACT SIZE PLUG & PLAY
EASILY ADAPTABLE
With its small dimensions and weight of only 117 kgthe engine can be mounted on small boats without affecting the performance
To simplify the whole process, the MPU can be connected to a battery, a fuel source and a water hose and then started up
All technical information for coupling shafts, motor mounts and electronic communication protocols will be made available
MARINE POWER UNIT
AVAILABLE PACKAGES WITH PEAK POWER 260hp 330hp 400hp MPU MINI MPU POWER MPU PURE
ENGINE SPECIFICATIONS
Engine type
Displacement
Length x Width x Height
Bore x stroke
Intake system
Turbocharger
Exhaust system
Valve train
Compression ratio
Lubrification system
Cooling system
Valve cover
General information
Marine 3 cylinder - 4 stroke
1602 cc
100 x 50 x 60 cm / 39.3 x 19.6 x 23.6 inch
100 x 68 mm / 3.9 x 2.7 inch
Turbocharged with watercooled intercooler
Pressure control via electromagnetic wastegate valve
Water cooled with water injection
DOHC - 12 V
9.1:1
Full dry sump 6-stage gear pump
Open loop cooling
Made of aluminium
Cylinder liners: NSC coated, forged crankshaft, conrod and piston for high engine perfomance with low pressure casting
Weight
117 kg / 260 lbs
MARINE POWER UNITS OVERVIEW

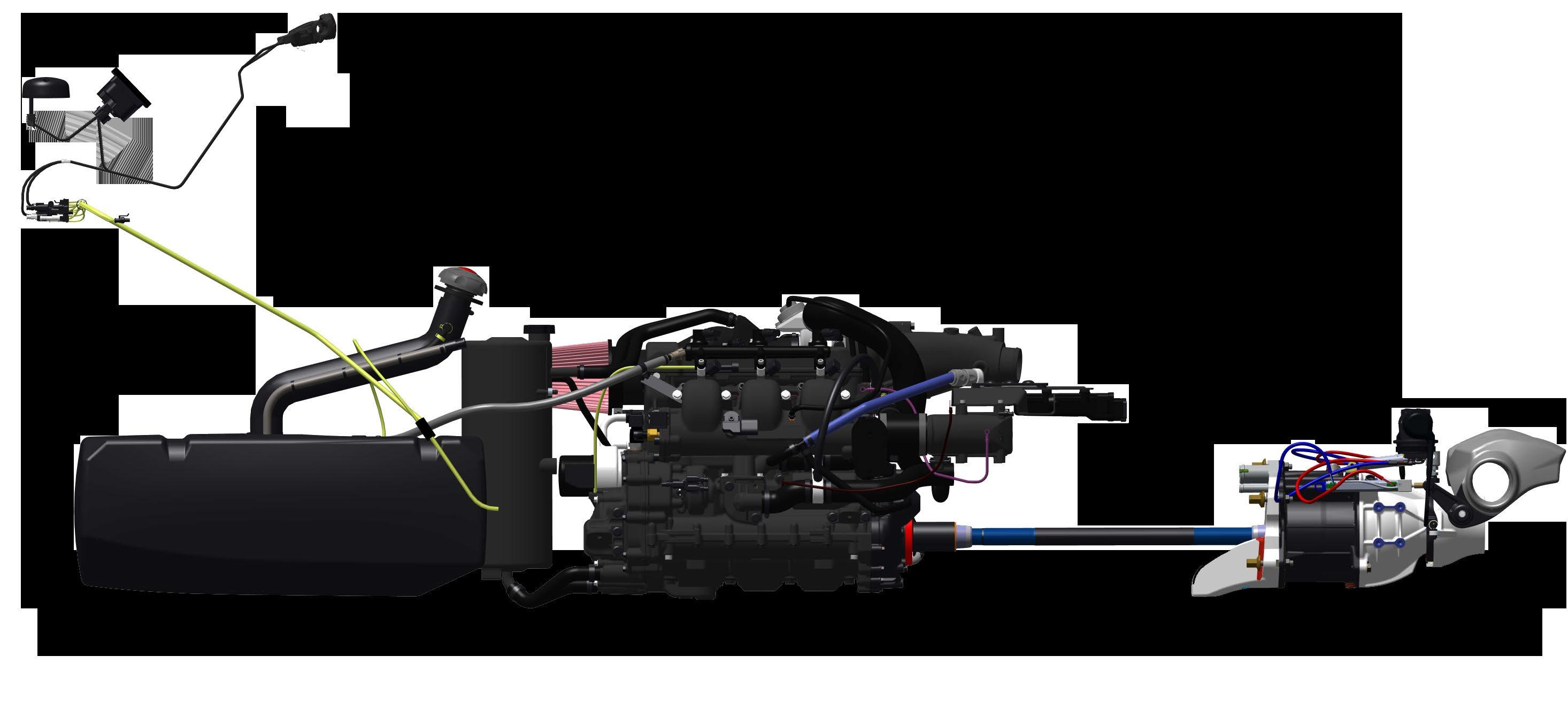

ADDITIONAL COMPONENTS
Included in every Marine Power Unit Package:
• Engine + Water to air intercooler
• Wire harness with complete E-architecture, ECU, Starter relay and start stop / mode keypad
Additionally, there will be a variety of options available to add on, including:
• Jet pump with drive shaft
• Additional alternator for second battery
• Handlebar mounted throttle lever
• Hydraulic brake / reverse and trim system
• 5” or 7” touch screen color display
• Fuel system (pump and sender or complete tank)
Peak Power hp Max RPM Fuel Requirement RON Application MPU Mini 260 7400 95 Jetboats until 6 m MPU Power 330 7800 95 Jetboats until 6 m MPU Pure 400 8300 98/100 PWC / Jetboats until 3.6 m
DISPLAY WITH GPS
HYDRAULIC TRIM SYSTEM
THROTTLE LEVER
COMPLETE TANK
WATER TO AIR INTERCOOLER
MARINE POWER UNIT
ECU
JET PUMP
ADDITIONAL MPU COMPONENTS OVERVIEW
THE MARINE HYPERCRAFT
BURRASCA
We combine the performance of our Marine Power Unit with the current Personal Watercraft to create the most luxurious and best performing Marine Hypercraft on the market.
10 > 80km/h 10 > 100km/h Power Dry weight Power / Weight Ratio 2.8sec 3.6sec 320hp 367kg 0,87
GET IN TOUCH We will help you with any questions or requests and wishes, contact us. office@belassi.com | +43 (0)732 249 251 MARINE POWER UNIT send email book a meeting
