Earth’s most innovative oil refinement solutions.
Turnkey Post Processing Systems
Beaker & Wrench's turnkey systems are designed to roll into your lab and boost efficiencies on day one. With cutting-edge equipment that streamlines your lab operations, you can scale faster & smarter.
Cannabis Oil Distillation Process Cannabis Oil Distillation Process
Solvent Recovery
Solvent Recovery
Solvent recovery is the process of removing 95% + of the solvent in your crude cannabis extract.
Wiped film Distillation
Wiped film Distillation
is the final step, first pass for terpene stripping and second step is to capture cannabinoids. Under a vacuum, the cannabis oil is loaded onto a heated and rotating vertical cylinder. Wipers continuously wipe the extract creating a thin film on the evaporative surface. A chilled condenser in the center of the wiped-film column condenses cannabinoid vapor into oil.
This step, called the centrifugal cryogenic Extraction Extraction First pass: For
Final product
EXTRACTION: Done with Butane, CO2, ethanol, or other solvent.
Decarb process
Decarboxylation of Cannabinoids is essential to a smooth distillation. Not decarbing prior to distillation will prevent proper vacuum levels from being reached due to the gas production of this process.
Crude goes into the machine
Crude and solvent separate
Table of contents
4. Learn About Our SinterTekTM Technology
New Beaker & Wrench® patent-pending technology for wiped-film sets the bar even higher for a new level of clarity.
6. Wiped Film Distillation
Beaker & Wrench offers two options for wiped film distillation; the BW-6WFE and BW-12WFE. Which size is right for your lab?
8. Decarboxylation
Beaker & Wrench’s decarboxylation reactors have the ability to remove light and medium weight terpenes under vacuum, making the terpene stripping portion of distillation extremely efficient.
10. Solvent Recovery
The BW-SR50 is a self-contained system with large energy-saving capacity.
13. Processing Pumps
Continuous flow is the rule, not the exception, and we set out to make pumps that provide the exact amount of flow you need every single time
14. Adapters
Beaker & Wrench offers a wide variety of adapters from stainless steel, PTFE to borosilicate glass.
16. Media + Swag
Stay up to date with all our latest media spots & swag drops.
18. What to expect when working with us
You will receive honest, direct, and personalized advice when deciding which machine is right for you.
A New Level of Clarity: Beaker & Wrench patent-pending technology sets a new standard of excellence in the industry.
“From contact to install to getting started, the whole process was surprisingly simple.
I’m making 3x times the product with way more confidence and a lot more profit. I just wish I’d made the leap sooner.”
Beaker & Wrench has filed a patent for a brand new sinteredmesh technology, SinterTek™.
...But how will it benefit your distillate production?
Most wiped-film evaporators contain the wiper blades in a column enclosed in a cage attached to a spinning rotor. Beaker & Wrench’s patentpending* innovation is a sintered stainless steel mesh called SinterTek™ that fits perfectly into the wiper cage.
This mesh not only increases your purity, it prevents splashing of contaminants onto your internal condenser.
The 6” wiped-film provides 0.25m² surface area for evaporation, with the sintered mesh providing a droplet barrier between the evaporator and condenser. With SinterTek™, drips or splashes can’t reach the condenser and cause “streaking.”
Secondly, it also provides a fractioning surface. You will get a higher purity product.
One client went from 80% to 90% CBD purity starting with crude oil. Another client went from low 90% to high 98% + total cannabinoid content in one run using our sintered mesh technology.
SinterTek™ can increase your purity by over 10% in one run.**
Request For Quote
We don’t believe in up-selling at Beaker & Wrench. From the ground-level, we provide what we feel is the best-in-class and powerful enough to run your lab at top-notch efficiency. Opportunity cost is the most expensive commodity in this exploding industry; you need to start off right from day 0 to succeed.
SinterTek™ now comes standard with every wiped-film evaporator we sell.
*Patent application no. 17462178
**Subject to variability due to input material.
Turnkey Distillation
BW-6WFE
3-5L/hr finished distillate*
5-10L/hr Terpene removal
300 CFM Diffusion Pump
SinterTek™
Evaporator Body (0.25m² evaporative area)
Cold Trap
System Power Switch
One NEMA 14-50
Single-Phase 240V Plug to power the entire machine
8-ch UL PID Temperature Controller Panel
Vacuum Gauge 40L Feed Tank
36 CFM Rotary Vane Vacuum Pump
Immersion Probe (no dry ice needed)
BW-6WFE:
75”W x 30”D x 86”T
*(can be reduced to 80” to fit through doors)
*Subject to material composition
Inlet and Outlet Gear Pumps (continuous flow)
Crude Cozy Heater Jacket
BW-12WFE
15-25L/hr finished distillate*
25-45L/hr Terpene removal
Single-Plug 240V
Three-Phase to power the entire machine Integrated 23” Touch-Screen Control
Video
Dual Stage Cold Trap -50/-100C
Six Zone Evaporator Body (1.1m² evaporative area)
200L Feed Tank
Self-Contained Heater Circulator
Heated Hose
BW-12WFE:
Drip Tray ACS 100 60 CFM dry screw vacuum pump Carbon Filter (eliminates odors) 2000 CFM Diffusion Pump
Skid only :75”W x 30”D x 83”T
Skid + Feed Tank: 110”W x 30”D x 86”T *Subject to material composition
Feed Filter
Food Service
Inlet and Outlet Gear Pumps (continuous flow)
Request For Quote
Turnkey Reactors
BW-40LDR
10-40L of crude oil decarbed in 2-3hrs
Video
Collection Jar
Chemical Resistant Vacuum Pump
Pressure/Vacuum Control Valve
3/4HP High Efficiency Mixer
Dry Ice Cold trap (Optional -55°C Chiller)
Carbon Exhaust Filter
Access Lid
UL508A Power Distribution & Control Box
BW-40LDR:
L 75’’ x W 33” x H 88 1/2
*Results may vary depending on residual solvents
Inlet and Outlet Valve with Heated Hose
3kW Oil Circulator
BW-200LDR
Solvent Recovery
BW-SR50
The BW-SR50 is ready to roll through your door and start running the same day you set it up—no hassle, no delays. It's a self-contained system that uses a patented heat pump-driven distillation process to eliminate external heaters or chillers and use a fraction of the power of a falling film. This unit combines large energy-saving capacity with a convenient single-plug design, making it perfect for businesses aiming to streamline their operations.
Saving Today! Pharmaceutical Grade Condenser Pharmaceutical Grade Evaporator Phase Separator
Automated Feed valve
Patented Heat Pump System (no external Heaters or Chillers)
Fully Automated Controls
240VAC, 1ph, 30A
Turnkey Short Path System
The Beaker & Wrench short path system was designed with small processors in mind— say goodbye to 14-hour workdays and cut your processing time in half or more, all while achieving your distillation goals. The 12L short path is equipped with the BWRV48 Vacuum Pump, featuring an Oil Mist Filter, Air Carbon Filter, and Vacuum Gauge for exceptional performance. It also includes the Beaker & Wrench Outlet Pump for maximum flow and comes with the B&W stainless steel short path head, plus much more. Whether you’re upgrading your setup, purchasing a short path system for the first time, or just starting your search, our system checks all the boxes. Your search ends here.
Contact Sales
Vacuum Gauge
Cold Trap
BWRV-48 Vacuum Pump
Outlet Pump
Air Carbon Filter
SS Distillation Head
12L Digital Heating Mantle
Solvents & Liquids
Daily Kleen:
If you like performing daily maintenance on your Wiped Film Evaporator, choose Daily-Kleen™ by Beaker & Wrench®.
Mega Kleen
Mega-Kleen™ by Beaker & Wrench® will cleanse your Wiped Film Evaporator of yesterday’s carelessness and into today’s gold!
High Temperature Silicone Fluid
Beaker & Wrench® offers a silicone based fluid that is ideally suited for high oxidation or complete exposed systems, like open baths.
BW-704 Diffusion Pump Oil
BW-704 Diffusion Pump Oil will keep your diffusion pump clean of carbon and tar buildup.
Ultra Premium Vacuum Pump Oil
Beaker & Wrench's Ultra Premium Vacuum Pump Oil is chemically engineered to maintain viscosity at higher running temperatures.
Beaker Kool
Beaker Kool™ is manufactured specifically for your wiped-film systems to help reduce vapor lock and reduce corrosion.
Processing Pumps
Outlet Pump
The Outlet Pump (also known as a Gear Pump or Discharge Pump), regulates output dosage from 0-7L/hr. This allows the operator to have control over residence time, flow rate, and overall time management. This pump is also a great option to use as a feed or dosing pump for your system.
Peristaltic Dosing Pump
The Peristaltic Dose Pump was engineered with distilling cannabis oil via wiped film evaporator in mind, and to resolve the ongoing bottleneck.
Beaker & Wrench's 3 GPM Solvent Pump
The Beaker & Wrench 3gpm solvent pump is used for solvent discharge from falling films or other applications moving low viscosity products up to 680lph.
Explosion Proof Oil Pump
The Beaker & Wrench EPOP is used for oil discharge from falling films or other applications moving viscous products up to 100lph.
Vacuum Pumps
Beaker & Wrench offers rotary vane and diffusion vacuum pumps, for applications like our wiped-film systems. Explosion proof variant, Dry Scroll, Dry Screw, Diaphragm, and Turbo pumps are available upon request.
Outlet Pump
Peristaltic Dosing Pump
3gpm Pump
Explosion Proof Oil Pump

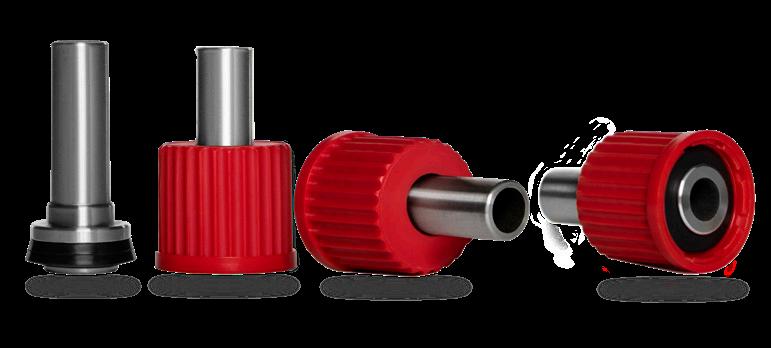

Adapters
PTFE Adapters
‐ 2’’ TC to m35/40
‐ 3/4’’ TC to m24/25
‐ 30mm to 24/40
‐ NW-80 to 71/40
‐ 50MM Sphere to F24/40
‐ KF-25 to m24/40
‐ 2” TC to m24/40
Stainless Steel Adapters
‐ 1.5″ Tri-Clamp to 1/2″mBSPP
‐ 35MM Sphere to 1/2″BSPP
‐ KF16 to 1/2″ mBSPP
‐ KF25 to 1/2″ mBSPP
‐ KF25 Cap
‐ 29/42 female (male glass) to Wide-mouth Mason Jar Lid
‐ Wide Mouth Mason Jar Adapters
‐ GL-18 to 3/8’’ OD tube stub
‐ GL-14 to 1/4’’ OD tube stub
‐ 1.5inch Tri-clamp to Mason Jar
Glass Adapters
‐ 1000mL Flasks
‐ 24/40m (female glass) to GL-18 Adapter
‐ 24/40m (female glass) to GL-14 T-Arm Adapter
‐ KF25 to 35MM Sphere Sight Glass
‐ GL18 to KF25
‐ KF25 to GL-18 Sight Glass
‐ 35mm sphere to f24/40
‐ Chemical Resistant Clamp & Gasket
PTFE Adapters
Stainless Steel Adapters
Glass Adapters
Temperature Control
PID Temperature Controllers
Beaker & Wrench® provides a range of PID controllers that are manufactured in Los Angeles and are compatible with NEMA 5-15R heating accessory and a K-Type Thermocouple.
Crude Cozy
It’s time to heat things up with Beaker & Wrench’s Crude Cozy™, an excellent approach to heat your crude to flowable temperatures in less than a hour! The Crude Cozy™ is a heating apparatus meant for 5 gallon metal buckets (or our 20L Feed Flask), designed to bring the heat from all angles!
Heated Transfer Line
Beaker & Wrench offers a smooth bore teflon steel braided hose (convoluted teflon hose), perfect for deep vacuum and high temperatures. A heated transfer line works as a viable conduit between feed and still. In addition, it can be used to daisy-chain two distillation apparatuses, turning a single stage into a dual stage.
High Density Heat Pad
The Beaker & Wrench 11'' High Density Heat Pad is designed for spherical surfaces. It works both on glass and on stainless steel. The Heat Pad arrives ready to be plugged in.
PID Temperature Controllers
Crude Cozy
Heated Transfer Line
High Density Heat Pad
Media
Podcast Features
Top Cannabis Employer of 2022
We were honored to have been chosen and featured in mg retailer's article “America’s Top Cannabis Employers” for 2022.”
Read our feature in mg magazine
Our Founders Vanessa de la Puente and Ace Shelander have been featured in some great podcasts. Vanessa was featured on High on Feminism and Ace was featured on CannabisTalk 101. Scan the codes above to watch their episodes.
The Beaker & Wrench 12'' Wiped-Film was featured in MG Magazine as part of their innovators article. Read about how Beaker & Wrench has developed technology that is helping businesses boost efficiency and break bottlenecks.
Meet the Team
Vanessa de la Puente President
Ace Shelander CEO
Lora Edward CFO
Jill Tomassian COO
Trevor Wallace Sales Lead
Robert Genovese Principal Engineer
Ana Ramirez Marketing Director
Anna Naumova Business Analyst
Rayde Reyes Lead Manufacturing Technician
Sean Hernandez Warehouse Associate
Luis Salinas Electrical Technician
Victor Sifuentes Electro Mechanical Assembly Tech.
Hasala Senevirathne Senior Software Engineer
Bradley Kucmierz Assembly Technician
Stephen Budai Mechanical Technician
Denis Pascua Lopez Panel Design Engineer
Christian Savala Welder/Fabricator
Salvador Villegas Manufacturing & QC
What to expect when working with us
Competent and Honest advice:
You will receive honest, direct, and personalized advice when deciding which machine is right for you.
Highest Industry Standards:
We have installed machines in GMP labs around the world. Our equipment is designed, assembled, and tested in California.
Transparency:
We are happy to answer your questions as often as you need. Lead times are clearly stated and we work hard to maintain them.
Up and Running:
Your machine will roll off the lift gate and into your lab, working within hours of delivery.
Consulting Services
Skip the trial and error and move straight to results. Our licensed engineers diagnose and correct laboratory bottlenecks during consultations, which save customers a considerable amount of time and money. Our mission is to prevent costly mistakes and improve your overall production!
We focus on streamlining your process while advising on mechanical aspects pertaining to your laboratory set up. Our consultations tackle inefficiencies, improve processes, and prevent costly mistakes, ensuring enduring value for your business.
Our consultations provide ingenuity, knowledge, and answers your business needs to produce top quality cannabis oil. Optimize your SOP today and let one of our engineers provide their expertise to achieve the goals you desire!
Let's Get You Booked!:
