LED | HID | LAMPS | BALLASTS | EMERGENCY
CONTENT PREMIUM PRODUCTS
GROWLITE, A DIVISION OF BARRON LIGHTING GROUP
GROWLITE
Growlite, a division of Barron Lighting Group, is a manufacturer of lighting products and solutions used for indoor and greenhouse horticulture applications. Growlite offers comprehensive lighting and environmental control units, modular LED systems, traditional HID fixtures, plant-safe emergency and task lighting as well as retrofit solutions and recycle programs. Growlite is an industry leader in technology and has acquired a reputation for quality, safety and producing high-performing products that meet the unique needs of indoor growers.
BARRON LIGHTING GROUP
Barron Lighting Group, headquartered in Glendale, Arizona, has over 47 years of design, engineering and manufacturing experience in the electronics and lighting industries. Barron is comprised of four individual lighting brands. Exitronix, the inventor of the LED emergency exit sign and the largest, most comprehensive independent life-safety brand in the industry. The TraceLite brand offers both indoor and outdoor LED commercial/industrial lighting solutions suitable for virtually every application. The specialtyLED brand thrives in providing the “wow-factor,” offering a wide variety of flexible and rigid architectural LED solutions to add color and pizazz to any room or application. Growlite is an industry leader offering a wide variety of greenhouse and indoor horticultural lighting products, systems and solutions and is known for thinking outside of the box and elevating technology standards.
1 LED SOLUTIONS
VARIUS LED SERIES
TERRA
WIDE BODY VEG
CLONER
GERMINATOR FLAT
PANEL VEG
11 REFLECTOR ADVANTAGES
13 HID SYSTEMS
ARCHON DE
SafeDElock SOCKET
HDE-8
OG
OG-315
HSE-CONVEX
21 LAMPS
HPS
CMH
METAL HALIDE
T5
25 29 27
BALLASTS
315W BALLAST
1000W BALLAST
PLANT-SAFE
EMERGENCY
ACCESSORIES

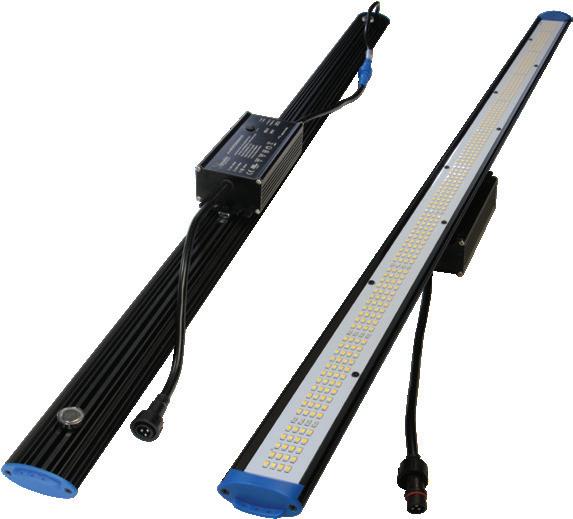

VARIUS® LED SERIES
MODULAR LED GROW LIGHTS
VARIUS LED is a series of single bar fixtures, each utilizing their own unique spectral distribution. VARIUS LED was specifically designed for growers using pallet racking, but its versatile design is useful for any grow application.
HIGH PERFORMANCE SPECTRUMS: Red- and blue-focused full spectrums offer growers a powerful light for any stage of plant growth. Combining two or more spectrums increases intensity and spectral quality beyond the capability of standard fixed spectrum fixtures.
MAGNET MOUNT: Powerful magnets allow the VARIUS LED to attach directly to the pallet rack frame. The ease of installation makes for easy adjustment of bar spacing to customize light intensity and uniformity all while saving money on installation labor.
CUSTOM SPACING: Unlike standard bar systems, the VARIUS LED’s magnet mounts allow growers to customize light coverage and intensity based on their plant’s needs by easily adjusting distances between fixtures.
The provided cable connects up to eight bars to one input cord with included individual drivers.
RED LED
The VARIUS RED emits a strong red spectrum with enhanced red and far red energy. The red to far red ratio combined with the proper blue to far red ratio emits a spectrum that greatly enhances flowering growth.
Dimensions: L 44.50” x W 2.60” x H 2.10” | Weight: 4.5 lbs / 2.0 kgs
ORDERING INFORMATION
SKU Description
AVAILABLE WHILE SUPPLIES LAST
AG90-R-001 LED Light Bar, Red Flower Spectrum, 90W, 120-277VAC Input, 1-10V Dimming, Black Extrusion w/ Red End Caps and Driver Connectors, 120VAC Straight Blade Line Cord
BLUE LED
The VARIUS BLUE is a veg spectrum with added red energy ideal for overall plant health and light balance.
Dimensions: L 44.50” x W 2.60” x H 2.10” | Weight: 4.5 lbs / 2.0 kgs
ORDERING INFORMATION
SKU Description
AVAILABLE WHILE SUPPLIES LAST
AG90-B-001 LED Light Bar, Blue Veg Spectrum, 90W, 120-277VAC Input, 1-10V Dimming, Black Extrusion w/ Blue End Caps and Driver Connectors, 120VAC Straight Blade Line Cord
* Single bar mounted 12" above canopy.
**
Typical fruit/flower application with eight (8) AG90-R bars spaced 4" apart and mounted 12" above canopy.
* Single bar mounted 18" above canopy.
**
Typical veg application with eight (8) AG90-B bars spaced 6" apart and mounted 24" above canopy.
TOP
600W LINEAR LED GROW LIGHT
The 600W TERRA Linear LED Grow Light is a high-performance, highly versatile, energy-efficient horticulture cultivation LED fixture. Perfect for both greenhouse supplemental lighting and warehouse single-level indoor cultivations.
The slim profile and small form factor power supply provide minimal shadow and easy installation. The 120º beam angle provides superb even light distribution. A well-balanced red-to-blue full-spectrum provides deep canopy penetration and quality results.
FEATURES
• Low profile, ideal for greenhouses and warehouses
• Aluminum housing with anodic oxidation finish
• Uniform light distribution, 120° beam angle
• Well-balanced red-to-blue full-spectrum
• 0-10V Dimming
• 100-277VAC Input
• 25” Line cord w/ blunt end
• Two aircraft cable spring clips (included)
• IP65, cETL Listed for Wet Locations
• Five Year Warranty (Terms and Conditions Apply)
300W LED fixture for the vegetative stage that is designed to replace a ten lamp T5HO or a 400W MH fixture on a one-for-one basis. The wide distribution, coverage and intensity make the WIDE BODY VEG the logical choice for veg and mother rooms.
The full-spectrum white LEDs provide a perfect full-spectrum performance for plants in the early stages of plant growth, leafy greens and mother plants.
FEATURES
• 300W Full-spectrum LED array
• Over 70% of lighting intensity concentrated within the 120° beam angle
• Superior optics control light distribution while maximizing intensity
• Isolated, vented driver compartment optimizes thermal dissipation
• Wide body design ensures smooth, even light distribution
• 1-10V Dimming
• 120VAC Line cord with plug (6’ length)
• 120-277VAC Input
• 5’ Cable mount kit included
• UL Listed for Damp Locations
• Five Year Warranty (Terms and Conditions Apply)
ORDERING INFORMATION
200W LINEAR LED GROW LIGHT
200W LED fixture ideal for cloning and vegetative applications. Designed to replace six and eight lamp T5HO fixtures on a one-for-one basis. The full-spectrum white LEDs provide better spectral performance than traditional 54W T5HO and Metal Halide lamps. The low-profile housing is ideal for applications with limited overhead space such as vertical racks.
FEATURES
• 200W Full-spectrum LED output
• Low profile ideal for vertical grows
• Full-spectrum white LEDs outperform T5 fluorescents & MH lamps
• Diffused lens provides gentle, even distribution
• Vented driver compartment for optimized thermal management
• 0-10V Dimming
• 10’ 120VAC Line cord with plug
• 120-277VAC Input
• UL Listed for Dry Locations
GERMINATOR
40W 4’ LINEAR VAPORTIGHT LED
GERMINATOR 40W 4’ linear vaportight LED grow light is an energysaving alternative to T5HO fixtures. Ideal for clones and germination applications. The GERMINATOR’s sealed, moisture-resistant housing makes the perfect choice for cloning racks and light maintenance in small hoop houses and greenhouses.
FEATURES
• 40W Full-spectrum LED for clones and germination
• Low profile ideal for vertical grows
• Full-spectrum white LEDs outperform T5 fluorescents
• Precision optical lens efficiently delivers light to the plant canopy
• IP65 rated making it ideal for multi-level growing environments in wet locations
• 6’ 120VAC Line cord with plug
• 120-277VAC Input
• UL Listed
• Five Year Warranty (Terms and Conditions Apply)
FLAT PANEL VEG
30W AND 60W LED FLAT PANELS
Ultrathin, energy-efficient LED lighting offers incredible performance for clone racks and small veg rooms. Available in two different dimensions, the FPV’s versatility will outperform more light-intensive fixtures.
FEATURES
• Low profile, ideal for vertical grows
• Soft and uniform light distribution, 120° beam
• Full-spectrum, white LEDs outperform T5 fluorescents
• UV-stabilized PMMA optical lens efficiently delivers light to the plant canopy
• 1-10V Dimming (FPV14-A)
• 0-10V Dimming (FPV24-A)
• 120VAC Line cord with plug (10’ length)
• 120-277VAC Input
• Available cable mounting kit (LPA-CMK) - Consult Factory
• cETL Listed for Damp Locations
• Five Year Warranty (Terms and Conditions Apply)
ENGINEERING EXPERTISE
Barron’s engineering DNA dates back to 1973. Before we had our own line of products, we were focused strictly on engineering and design solutions for industrial markets. We combine our years of experience and professionalism with the creativity, flexibility, responsiveness, and technical excellence demanded by today’s lighting. Our talented technical team offers our clients diverse backgrounds and complementary lighting expertise.
DID YOU KNOW?
• Our engineers not only design our products, they also perform the required code-compliance, safety, performance and life tests.
• Our lab is a UL Certified DAP Lab for emergency, indoor/outdoor and horticultural lighting.
• We utilize over 75 pieces of test equipment that are calibrated to the U.S. National Institute of Standards and Technology to ensure all test results are traceable and accurate.
• Our environmental chambers (shown above) allow us to simulate the harshest weather conditions, with temperatures ranging from -70°C to 190°C (-94°F to 374°F) and 5% to 95% Relative Humidity.
ENVIRONMENTAL TESTING CHAMBER
GROWLITE REFLECTOR ADVANTAGES
Reflectors are a critical component to providing the intensity and uniformity needed for indoor plant growth. Growlite was founded on a principal of producing highly effective and efficient reflectors that outperform the standard products in the market.

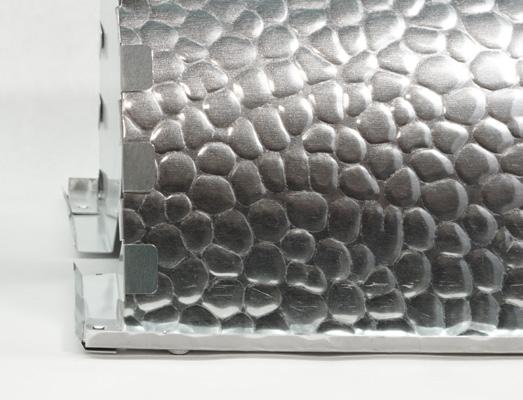

HAMMERTONE
Fine hammertone allows for more efficient distribution of light with better penetration.
INTERIOR END CAP
Hammertone on the end cap enhances the distribution of light, creating superior uniformity.
PROFILED END CAP
An angled end cap allows for a wider, more uniform distribution of light.
CENTER REFLECTOR
Keeps light from bouncing back into the arc tube which can cause damage to the lamp and shorten the lamp’s life.
The OG-315 offers growers the highest performing reflector available in the industry. The parabolic design uses a specular reflector which includes micro-bend intensifiers. The micro-bends multiply and effectively stretch the arc tube, maximizing the
VS
WHAT IS CONVEX TECHNOLOGY?
CONVEX technology positions the lamp within the reflector allowing the outer envelope of the lamp to be precisely positioned below the horizontal plane of the fixture. This increases the lamp’s ability to evenly spread light across the plant canopy in conjunction with the reflector controlling light distribution to the plants.
Shown with included removable universal ballast mounting bracket.
Typical competitor 315 CMH hammertone reflectors diffuse the light using a square footprint design.
Specular micro-bend reflector
ARCHON DE
DOUBLE-ENDED GROW LIGHT SYSTEM
UPGRADED DESIGN
The ARCHON DE featuring the addition of the SafeDElock™ socket (Patent No. 10,720,741 and 10,873,169) is an upgraded design from our original HDE reflector family. The optical design of the reflector is unique when compared to competitive products. The fine hammertone texture provides more reflective surface area resulting in more intense uniformity than large hammertone reflectors. Photometric performance was increased by reducing the space between the lamp and reflector intersection, minimizing light loss.
The reflector was designed with the grower in mind for ease of use and superior yielding performance.
FEATURES
• Compact reflector design maximizes DE lamp performance and photometric control
• 95% Reflective aluminum with fine hammertone texture increases intensity and uniformity
• SafeDElock™ socket (Patent No. 10,720,741 and 10,873,169) ensures safe installation of the lamp, eliminating shock and fire hazards which are common with standard DE sockets
• Installation of DE lamps from the top of the unit allows for easier and safer work environment
• Remote ballast mounting capability (15 feet)
Patent No. 10,720,741
Patent No. 10,873,169
Vertical Bracket and Ballast Included
Integral Vertical Bracket and Ballast Included

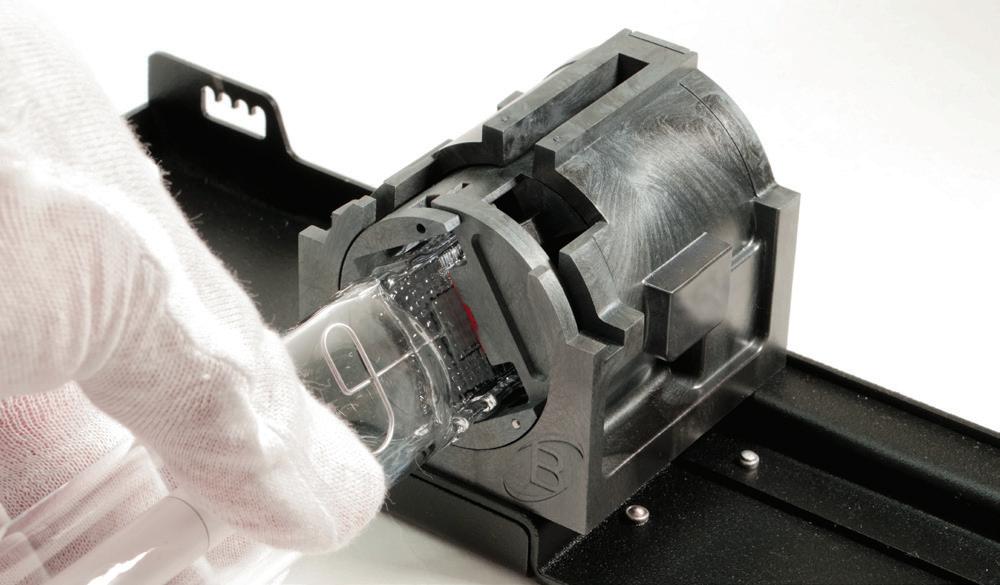

SafeDElock SOCKET
UL LISTED DE SOCKET
FEATURING OUR ALL NEW!
Patented (Patent No. 10,720,741 and 10,873,169) double-ended socket system. The SafeDElock socket eliminates shock and fire hazards which are common with standard DE sockets.
1. Insert lamp into socket (no electrical connection)
2. Close lid
4. Lamp is now safely installed and ready for operation
3. Rotate lamp 172° inside socket to initiate power/electrical connection
HDE-8
AIR-COOLED DE GROW LIGHT SYSTEM
The only air-cooled double-ended reflector with Concealed Vacuum Airflow Technology® (CVAT®). The HDE runs air behind the reflector rather than over the lamp. This patented design efficiently removes heat from the grow room, maintaining an optimal working environment for the lamp. This is critical for proper DE lamp performance in air-cooled reflectors.
The HDE offers 4-way ducting allowing growers to customize their airflow This flexibility makes the setup and management of ducting much easier than fixed airflow designs.
The optical design of the HDE reflector is unique when compared to competitive products. The fine hammertone texture provides more reflective surface area and a higher intense uniformity than large hammertone reflectors. Combined with CVAT, the HDE outperforms any air-cooled DE system available today.
FEATURES
• Patented CVAT maximizes photometric performance and thermal dissipation
• Includes 4-way, 8” removable flanges, solid plates, and louvered plates for customized air-cooled or non air-cooled operations
• Trap door DE sockets make re-lamping quick and easy
• Removable 1/8” thick tempered glass door for optional air-cooled or non air-cooled operation
• Removable door for easy lamp access and cleaning
• Standard with 15’ cord and ballast plug
• One (1) pair of V-hooks for mounting
• ETL Listed for Damp Locations
The HDE is available as a full system (lamp, ballast, reflector) or as a stand-alone reflector.
ORDERING INFORMATION
Description GLH-HDE-8
HDE-8 Reflector only GLH-HDE-8-1000-HPS-240/277
GLH-HDE-8-315-CSI-120/277
HDE-8 Reflector, 1000W HPS DE lamp, 1000W DE ballast
HDE-8 Reflector, 315W CMH DE lamp, 315W digital ballast
Note: GLH-HDE-8-1000-HPS-120/277 mounted 60” above 6’ x 6’ grow table
AVAILABLE WHILE SUPPLIES LAST
GLH-HDE-E-UL, GLB-1000-DE-240/277 & GLB-315-A-120/277 (Reflector and Ballasts only)
VERTICAL GROW LIGHT SYSTEM
The first air-cooled reflector with zero light loss due to air ducting. The Concealed Vacuum Airflow Technology® (CVAT®) utilizes 100% of the hood’s reflective surface which far outperforms any air-cooled reflector on the market.
No open duct holes increase the reflective area by 30% when compared to standard air-cooled designs. This patented design creates more light on the plant canopy and uniform light distribution promoting large, consistent yields.
FEATURES
• Patented reflector design increases light output 30% over traditional, vented hoods
• Provides even lumen distribution without excessive dissipation, eliminating the “pyramid” effect
• Cooler lamp and housings reduce heat load issues and costs
• Vertical lamp orientation extends lamp life versus horizontal reflectors
• Improved airflow efficiency allows more hoods to be vented using fewer fans
• 8” Removable ducts for air-vented applications
• 8” Removable louvered plates for use with no fans
The OG is available as a full system (lamp, ballast, reflector) or as a stand-alone fixture.
(400-700nm): 823 µmol/m²/s PPFD Max (400-700nm): 982 µmol/m²/s PPFD Min (400-700nm): 596 µmol/m²/s Light Uniformity (max/min): 1.65 Light Uniformity (avg/min): 1.38
Note: GLH-OG-8-1000-HPS-120/277 mounted 48” above 8’ x 8’ grow table
Dimensions L 22.2” x W 22.2” x H 12.4” 8” Ducts (add 5” per Length) and Top Housing Included (add 5.8” per Height) L 27.2” x W 22.2” x H 18.2” Weight 28.0 lbs / 12.7 kgs AVAILABLE WHILE SUPPLIES LAST
GLH-OG-8 & GLB-1000-DE-240/277 (Reflector and Ballast only)
OG-315-E
CMH GROW LIGHT SYSTEM
The OG-315 was designed specifically for 315W CMH lamps (see page 10). The design and performance of this reflector puts it in a class all by itself.
The specular reflector with micro-bends efficiently focuses all available light produced by the lamp down to the plant canopy. No other horticulture fixture offers this micro-bend design. This one-of-a-kind reflector doubles the intensity of competitive products resulting in faster plant growth, better quality and higher yields than any other 315 system on the market.
FEATURES
• The parabolic reflector outperforms square and rectangle reflectors
• The specular, micro-bend reflector dramatically outperforms hammertone reflectors
• Unique reflector design saves energy by increasing the performance of the 315W CMH lamp to the level of a 600W HPS lamp
• Compact, vertical design provides superior photometric uniformity for a level canopy
• Extremely lightweight allowing the reflector to be mounted at various angles and to be used for interlighting and supplemental applications
• Full-spectrum 315W CMH lamp with enhanced red spectral energy
The OG-315 is available as a full system (lamp, ballast, reflector) or as a stand-alone reflector.
ORDERING INFORMATION
PPFD Avg (400-700nm): 700 µmol/m²/s
PPFD Max (400-700nm): 1023 µmol/m²/s
PPFD Min (400-700nm): 358 µmol/m²/s
Light Uniformity (max/min): 2.85
Light Uniformity (avg/min): 1.96
Note: GLH-OG-315-3-315-CSI-120/277 mounted 30” above 6’ x 6’ grow table
AVAILABLE WHILE SUPPLIES LAST
GLH-OG-315-E & GLB-315-A-120/277 (Reflector and Ballast only)
SINGLE-ENDED GROW LIGHT SYSTEM
Growlite was the first horticulture lighting company to specifically design a compact reflector for reduced jacketed 1000W lamps.
The HSE-CONVEX precisely positions the outer envelope of the lamp slightly below the horizontal plane of the unit increasing the lamp’s ability to evenly spread light across the plant canopy while the reflector controls light distribution.
Utilizing a mogul base socket, the HSE-CONVEX allows the reflector to operate a wide selection of wattages as well as HPS, CMH and Metal Halide lamps. Its small footprint, light weight and functionality make this a versatile product for many grow room applications.
FEATURES
• Lamp sits just below bottom of the unit for direct, even light distribution
• Small, compact reflector design maximizes performance for lower wattage, reduced jacket lamps
• Great for greenhouse applications
• Mogul base socket allows for a wide range of wattages and lamp types
• Fine hammertone reflector with 95% reflectance intensifies light with even coverage
• Universal ballast bracket allows for integral or remote ballast operation
The HSE-CONVEX is available as a full system (lamp, ballast, reflector) or as a stand-alone reflector.
Dimensions L 16.0” x W 11.5” x H 4.5”
Bracket Included (add 14.5” to Height) L 16.0” x W 11.5” x H 19.0” Weight 4.05 lbs / 1.84 kgs
PPFD Avg (400-700nm): 442 µmol/m²/s
PPFD Max (400-700nm): 529 µmol/m²/s
PPFD Min (400-700nm): 365 µmol/m²/s
Light Uniformity (max/min): 1.45
Light Uniformity (avg/min): 1.21
Note: GLH-HSE-600-HPS-120/277 mounted 60” above 6’ x 6’ grow table
AVAILABLE WHILE SUPPLIES LAST
GLH-HSE, GLB-1000-DE-240/277 & GLB-315-A-120/277 (Reflector and Ballasts only)
ORDERING INFORMATION
SKU Description
GLH-HSE HSE Reflector only
PRODUCTION CONSISTENT HIGH QUALITY
Supplying superior products to our customers requires not only excellent engineering and design, but also outstanding manufacturing quality. Our employees are well trained and highly motivated, with the average tenure in the production department being14 years.
DID YOU KNOW?
• Our modular production line gives us the versatility to meet the fast-paced demands of the lighting industry.
• Working closely with our Engineering Department, the Barron production team can rapidly adapt to custom requests and implement design changes with ease.
• Our Production team receives ongoing education in order to strengthen their skills and cross-train them in multiple areas of the department.
“ ”
Our customers rely on our consistency. We provide that through our staff’s expertise gained by practical experience combined with engineering proficiency. The result is very high levels of accuracy and repeatable and faultless production disciplines.
Alan Tracy, President
HPS LAMPS
OPEN RATED REAL RED SPECTRUM
Growlite REAL RED HPS horticulture lamps produce a spectrum with a deep red focus enhancing plant quality during the flowering stage.
High Pressure Sodium lighting is still one of the most efficient and reliable lighting technologies for growing plants indoors. HPS lamps have been the standard for decades due to their ability to shower the plant canopy with an abundance of light energy/photons. A critical demand for plants that require high levels of light intensity.
DOUBLE-ENDED HPS 1000W
CMH LAMPS
Growlite CMH lamps were designed with plants in mind. The spectrum provides a very broad range of light with a perfect ratio of blue, red and far red light very closely mimicking natural sunlight. CMH lamps are known to greatly increase plant quality due to the wide spectrum, and at only 315W they are a great energy-saving solution.
315W T15 FULL-SPECTRUM

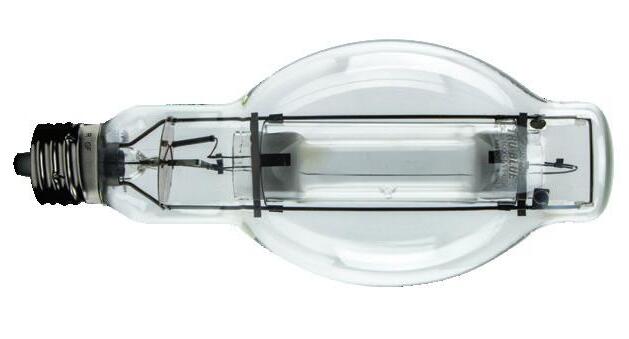

METAL HALIDE LAMPS
OPEN RATED TRU BLUE SPECTRUM
Growlite TRU BLUE Metal Halide horticulture lamps produce a spectrum with a deep blue focus while keeping plant intermodal spacing short and compact during the vegetative stage.
The TRU BLUE spectrum is ideal for plants in the beginning stages of plant growth and can dramatically increase quality and yield during the flowering stage when used in conjunction with HPS lights. These lamps are designed to be operated in standard screw in, mogul base fixtures and are open rated meaning they can be safely used in any fixture. SE lamp performance is maximized when used in the OG and CONVEX fixtures, yet they can also be used in any mogul base fixture.
T5 LAMPS
FLUORESCENT REAL RED AND TRU BLUE
Growlite 24W and 54W T5HO fluorescent horticulture lamps offer a low-wattage, low-heat solution for growers. Growlite’s REAL RED and TRU BLUE T5HO lamps emit spectrums specifically designed for horticulture applications.
REAL RED T5 FLUORESCENT
TRU BLUE T5 FLUORESCENT
315 BALLAST
315W CMH ELECTRONIC BALLAST 120-277VAC
The newest generation of the 315W CMH ballast was developed to optimize the output of our 315W CMH lamps. Our lamp and ballast are tuned to work together at over 99% efficiency when operated together, you will receive less color shifts, lower lamp temperatures, and less frequency humming.
FEATURES
• Operates all 315W CMH lamps
• Soft Start stabilizes start-up loads and extends lamp life and performance
• LED status displays voltage and wattage in normal operation
• 6’ 120VAC power cord provided
• Three year warranty (Terms and Conditions Apply)
PROTECTIONS
• Short circuit
• Ignition failure
• Overheat
• Over/under voltage
• Open circuit
• End of Lamp Life (EOL)
• Hot-start
PERFORMANCE
Rated Voltage: 120-277VAC
Input Frequency: 50/60Hz
Ambient Operating Temperature (TA): -25°C~50°C
Crest Factor (CF): <1.5
Power Factor (PF): ≥0.95
Total Harmonic Distortion (THD): <20%
Current Draw: 2.84A @ 120VAC, 1.42A @ 240V, 1.23A @ 277VAC
ORDERING INFORMATION
AVAILABLE WHILE SUPPLIES LAST
1000 BALLAST
1000W DE ELECTRONIC BALLAST
Growlite’s 1000W DE ballast was developed to optimize the output of our 1000W SE and DE lamps. Our lamps and ballast as of result work together at over 99% efficiency. You receive fewer color shifts, lower lamp temperatures, a stable burning lamp, and optimal lamp maintenance over time.
FEATURES
• Operates SE and DE 1000W lamps only
• 825W, 750W and 600W dimmable settings
• 1150W Overdrive setting
• External control capability (Controls sold separately)
• RJ11 port takes a DC supply from 0-10V to control the dimming
• Staggered start ignition
• Soft-start/Soft dimming
• Fanless design
• 240/277VAC voltage sensing input
• Weathertight twist-lock power input connector
• 6’ 240VAC Line cord with plug
• Standard S-Type lamp connector
• LED display with status indicator
• Three year warranty (Terms and Conditions Apply)
PROTECTIONS
• Short circuit
• Ignition failure
• Thermal Protection
• Over voltage
• Hot Re-strike
• Open circuit
• End of Lamp Life (EOL)
• Soft-start
• Under voltage
AVAILABLE WHILE SUPPLIES LAST
PERFORMANCE
Rated Voltage: 240/277VAC
Input Frequency: 50/60Hz
Ambient operating temperature (TA): -20°C to 40°C (-4°F to
Crest Factor (CF): <1.7 Power Factor (PF): ≥0.97
Total Harmonic Distortion (THD): <10%
Current draw: 4.50A @ 240VAC, 3.80A @ 277VAC
Inrush Current: 40A Operates > 100kHz
NOTE: This ballast is designed to accommodate remote mounting. Ballast may be connected with up to 15 feet of cable between the lamp and ballast. However, due to high frequency design of the ballast and resulting power losses in the cable, power delivered to the lamp may be reduced by as much as 3% or 30 watts.
ORDERING INFORMATION
PLANT-SAFE
SOFT GREEN LED PRODUCTS
The soft green LED product line is specifically designed for horticulture applications to provide plant-safe green egress and task lighting.
The GLE-GL is a task light used in grow rooms during the dark cycle, allowing growers to work on plants with plant-safe green lighting. The GLE-S is a code compliant exit sign which emits a plant-safe, soft green light perfect for use in grow rooms. GLE-S also allows for needed life-safety compliance without risk to the grow cycle. The GLE-GL-RKU is an easy retrofit kit for hallway lighting outside grow rooms. Hallway lighting leaking into grow rooms can have an adverse affect on plants during the dark cycle.
Growlite Soft Green LED Spectrum
Competitor’s Green Spectrum
Growlite’s patent pending soft green spectrum does not emit blue and red light.
Competitor’s green spectrums produce blue and red light which is dangerous during dark cycles.
GLE-S
Soft Green LED Exit Sign
GROWLITE SPECTRUM COMPETITOR
• Soft green LEDs provide plant-safe egress lighting
• UL 924 Listed 90 minute emergency run time, 24 hour recharge time
• Maintenance-free NiMH (standard) and Lead Calcium (G1) batteries
• Ceiling, end or wall mount
• Optional Guardian Self-diagnostics (G1) available
• 120/277VAC Dual primary, 50/60Hz input
• Standard finish: Black
ORDERING INFORMATION
Notes See specification sheet for complete list of available accessories
1 Not available with G1 (Self-diagnostics)
2 Only available with power source “WB” utilizing a lead calcium battery
4
3 Must order Tamper Tool (TRHT-6H-8H) as separate line item
Only available with WB (lead calcium battery) and G1 (self-diagnostics)
Must order (2) GREN3BL
Blue Red
GLE-GL
Soft Green LED Vaportight Luminaire
• Soft green LEDs provide plant-safe egress and task lighting
• Lumens: 1069 lumens in AC operation, 715 lumens in battery backup operation (90 minute battery backup)
• Stainless steel mounting brackets and 15’ line cord included on all configurations (Mounting magnets provided for AC only version GLE-GL and GLE-GL-277)
• Diffused polycarbonate lens
ORDERING INFORMATION
SKU Description
GLE-GL
GLE-GL-277
GLE-GL-BB
Vaportight, 20W, soft green LED, 120V line cord w/plug
Vaportight, 20W, soft green LED, 277V line cord w/blunt end
Vaportight, 20W, soft green LED, 120-277V, w/battery back-up
GLE-GL-RKU
Soft Green LED Retrofit Kit
• Soft green LEDs provide plant-safe light for hallways outside grow rooms
• Easy retrofit installation in all types of general lighting
• Lumens: over 2100 lumens when installed in the typical troffer style fixture
• Includes two (2) 24” soft green LED strips allowing for adaptable field installation
• Long-life, plant-safe soft green LEDs provide over 130,000 hours of operation at 25°C (77°F) with at least 70% of initial lumen output (L70)
ORDERING INFORMATION
SKU Description
GLE-GL-RKU Retrofit kit, 40W, soft green LED
ACCESSORIES
Our top-of-the-line horticultural lighting accessories deliver the finishing touch to new or existing indoor and greenhouse grow installations.
SOCKET EXTENDER
Mogul to mogul pulse-rated porcelain socket extender
• Extends lamp 1-¹/8”
• Designed to be used with HID lamps only
• Recommended for use with 400W and 600W lamps
ORDERING INFORMATION
SKU Description
AVAILABLE WHILE SUPPLIES LAST
GLA-SE Mogul to mogul pulse-rated porcelain socket adapter
HEAVY DUTY ROPE RATCHETS
Adjustable hangers for reflectors, light fixtures, filters and ventilation equipment
• (2) ¹/8” Rope ratchets
• Suited for large reflectors
• Max weight capacity - 150 lbs (68 kgs)
• 8” Rope
ORDERING INFORMATION
SKU Description
GLA-HDH Heavy duty rope ratchet hangers (2 pack)
LAMP CORD EXTENSION
S-Type extension cord
• Available in 15’ and 40’ lengths
• High performance, shielded wiring
• 16AWG, 600V STO oil-resistant, portable cable
• Molded, commercial quality, S-Type connectors
• Low impedance improves conductivity
ORDERING INFORMATION
SKU Description
GLA-LE-15 15’ S-Type extension cord
GLA-LE-40 40’ S-Type extension cord
SOLID COVER 8
8” Removable solid cover plate
• Constructed of heavy-duty 22 gauge steel
• Quick 8” replaceable or add-on solid cover for the HDE reflector
• Allows for modular placement on HDE reflector
ORDERING INFORMATION
8” Removable solid cover for HDE
LOUVERED COVER 8
8” Removable louvered cover plate
• Constructed of heavy-duty 22 gauge steel
AVAILABLE WHILE SUPPLIES LAST
• Quick 8” louvered cover add-on or replacement for OG & HDE reflectors
• Allows for modular placement on HDE reflector
ORDERING INFORMATION SKU Description
DUCT 8
AVAILABLE WHILE SUPPLIES LAST
8” Removable louvered cover for OG and HDE
8” Removable DUCT / FLANGE
• Constructed of heavy-duty 22 gauge steel
• Quick 8” duct add-on or replacement for OG & HDE reflectors
• Allows modular placement of 8” ducts on HDE reflector
AVAILABLE WHILE SUPPLIES LAST
ORDERING INFORMATION
