from work to play

6

residency housing

14

market hall

20

social and cultural center

28

other works

36

gamlestaden, gothenburg, sweden master‘s thesis project | spring 2023

ringön, gothenburg, sweden master‘s studio project | spring 2022

orust, sweden master‘s studio project | fall 2021

stvolínky, czech republic bachelor‘s thesis project | spring 2021

from work to play exploring the preservation of the industrial building and its reactivation through adaptive reuse

Industrial heritage often presents a unique challenge within the heritage and conservation discourse as its significance has been somehow recognized only in the last 50 years and its value is still frequently being dismissed. The question is also how do we approach their preservation as these usually large-scale buildings were mainly made to accommodate machinery, not human beings?

Heritage preservation in general does not have one size fits all solution. Even though many may argue there is a preferred approach, which can often be seen in institutionally protected “monuments”. It is typically to maintain the objects and do only the necessary, minimal interventions. This often makes them objects that cannot be interacted with but that we passively view while listening to their story that was curated by someone else providing a set narrative.

Industrial heritage can here provide more interesting opportunities for how to approach the preservation of a building. These were once places of work that people interacted with daily, and some may still remember them being in use. They were never intended as untouchable monuments but as functional buildings, always meant to change depending on the current needs. So, their new evolution and the idea of their change, even if just subtle, may feel like a more organic part of their life.

Using the M-verkstaden in Gamlestaden, a former machine repair workshop for the SKF, built in the early 1900s, and situated in the heart of SKF’s complex, as a site of investigation, this thesis aims to look at the industrial heritage as valuable evidence of its time that can be used to inform and shape its new future. spring 2023 | master‘s thesis direction: matter space structure see more here

6

master‘s thesis

from work to play

7

exploded axonometry shows the structure of the building in the state of a new proposal unchanged parts are shown in blue while interventions are highlighted in red 8

master‘s thesis

new window in place of the door in contrasting colour new entrance metal door bricked up hole from garage doors - brick pattern with skipped bricks for light effect

reused ladder (on interior and exterior)

detail A

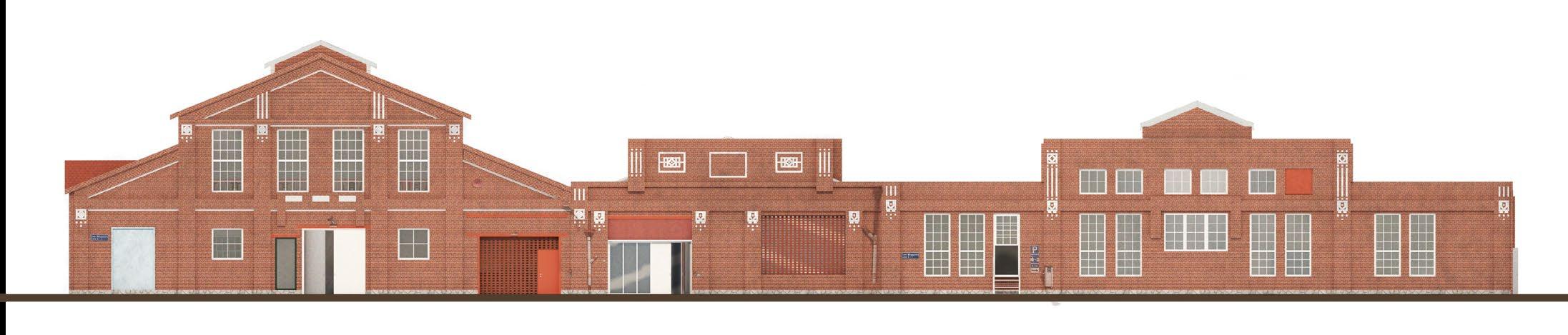

south facade elevation | 1:400

current state

metal part is left from the previous garage doors

new windows by the entrance (they are placed by the entrance to create a more inviting space where the visitor can see what is going on inside and is not scared to enter) existing additions that are left

new metal door (metal is used as it is a material commonly used in the building, silver finish contrast the existing metal and signals its new addition, it is used in all public entrances to the building to clearly signal its function)

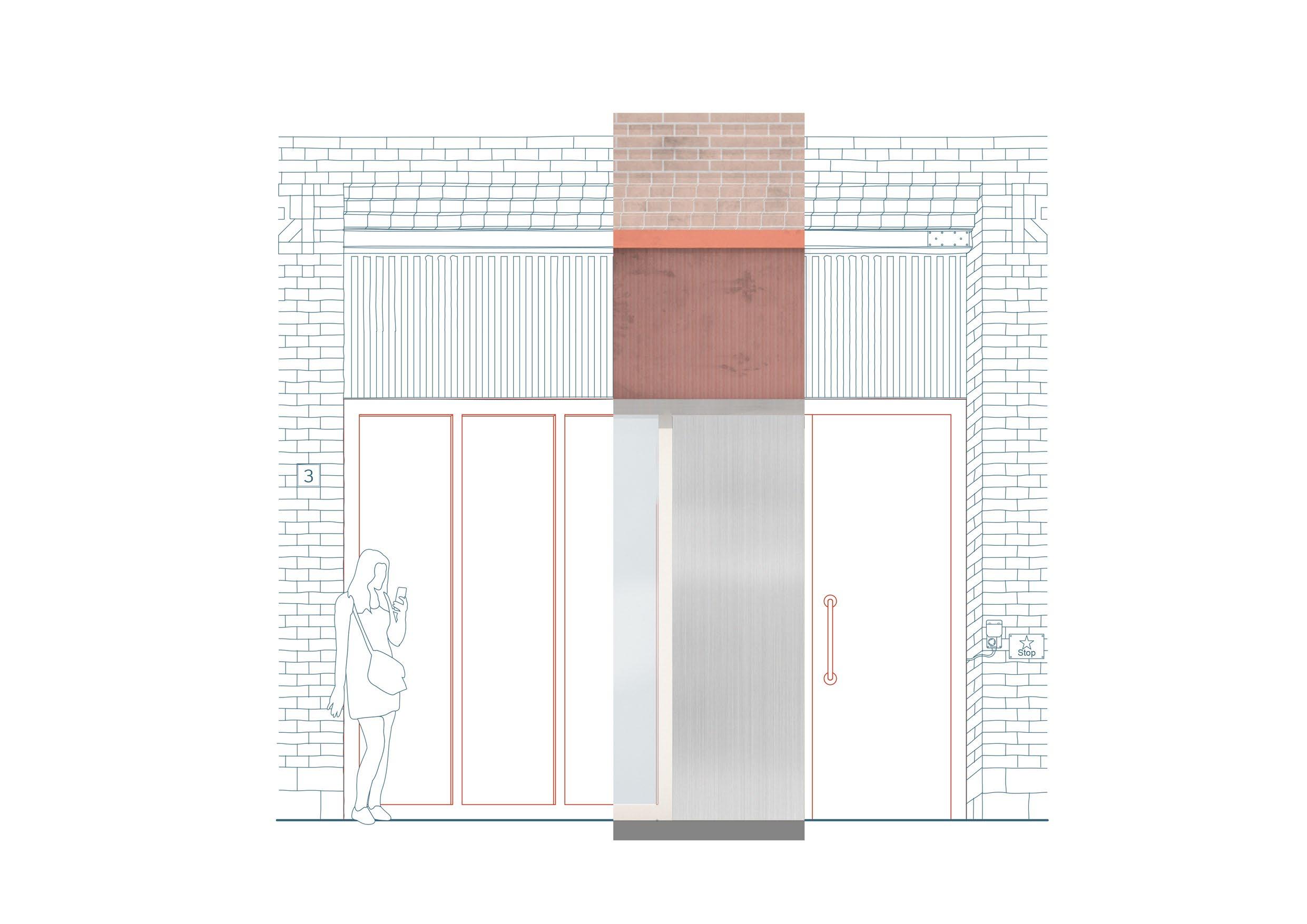

south facade intervention - detail A | 1:40 from work to play

9

Tile designs are a result of pattern explorations based on the brick patterns and ornaments found in the facade of the building.

They are a new element inspired by the building and its already existing elements and colours.

south entrance - upper market hall entrance - lower | interior views 10

master‘s thesis

Despite the unity of the facades, interior of the building is somehow heterogeneous and every room has its unique atmosphere and visual identity. My goal was to preserve this individualities providing a new experience entering into another space.

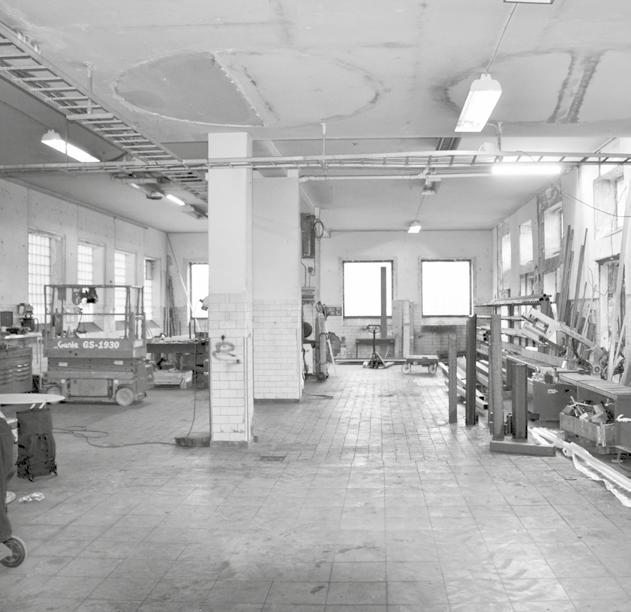

examples of the reused elements Largest space in the building contains a lot of elements and machinery previously used to move around objects. These elements are preserved and reused as a possible playground parts.

from work to play

upper - square interior views | lower - gallery 11

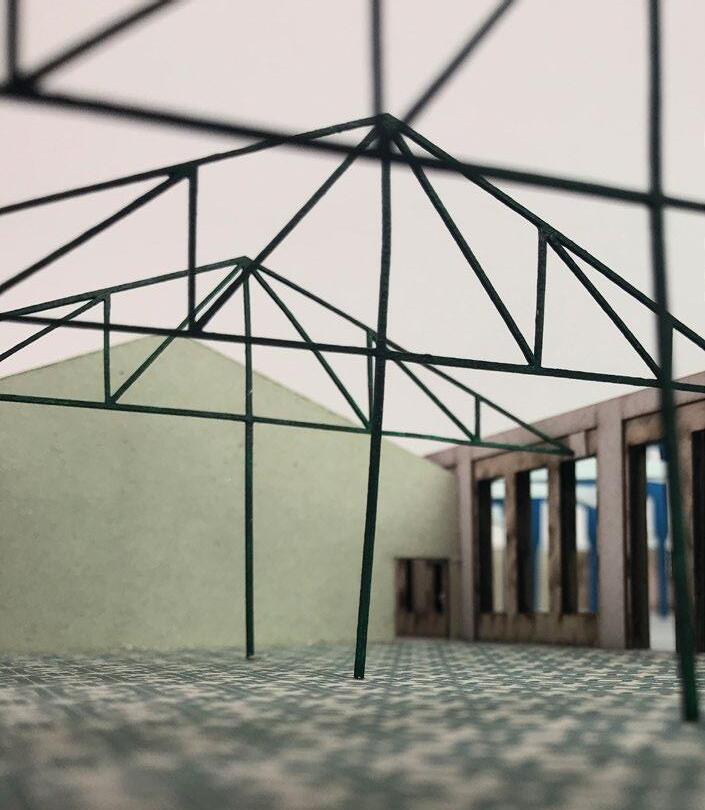

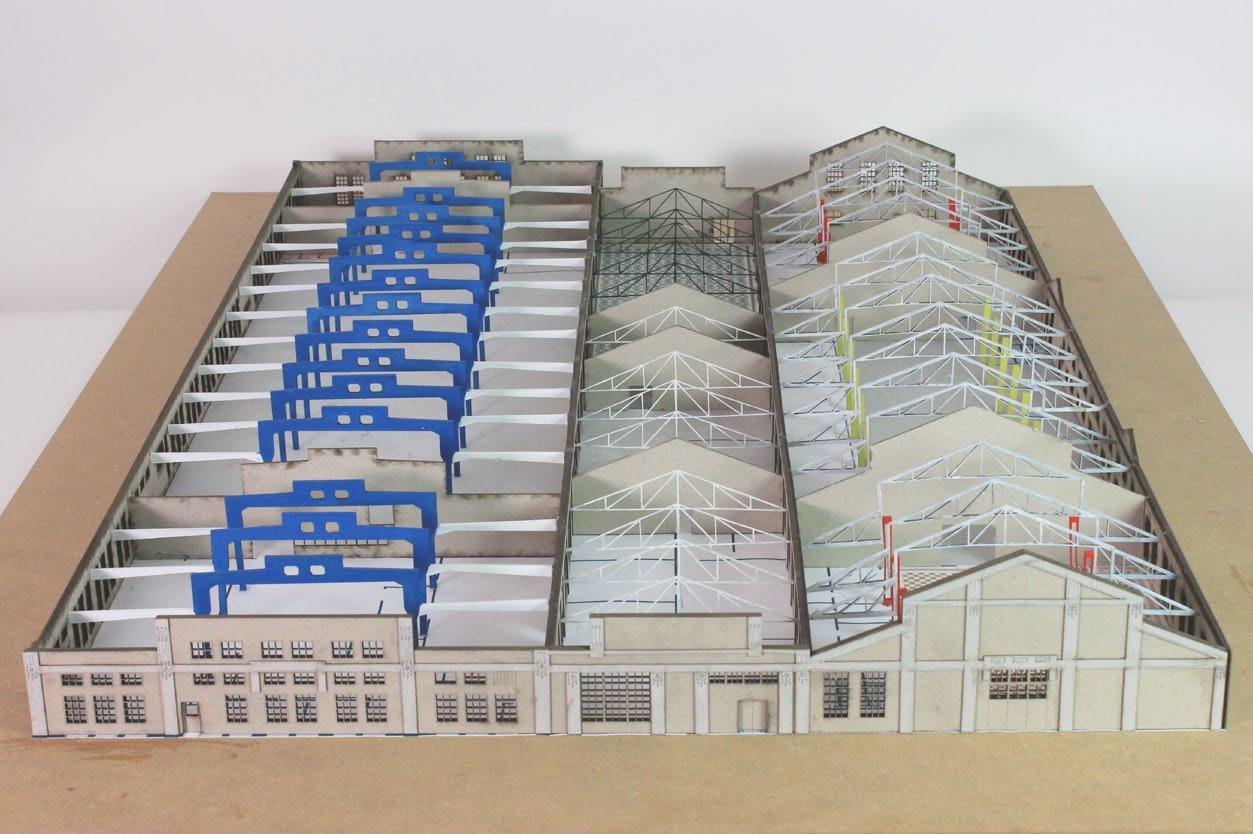

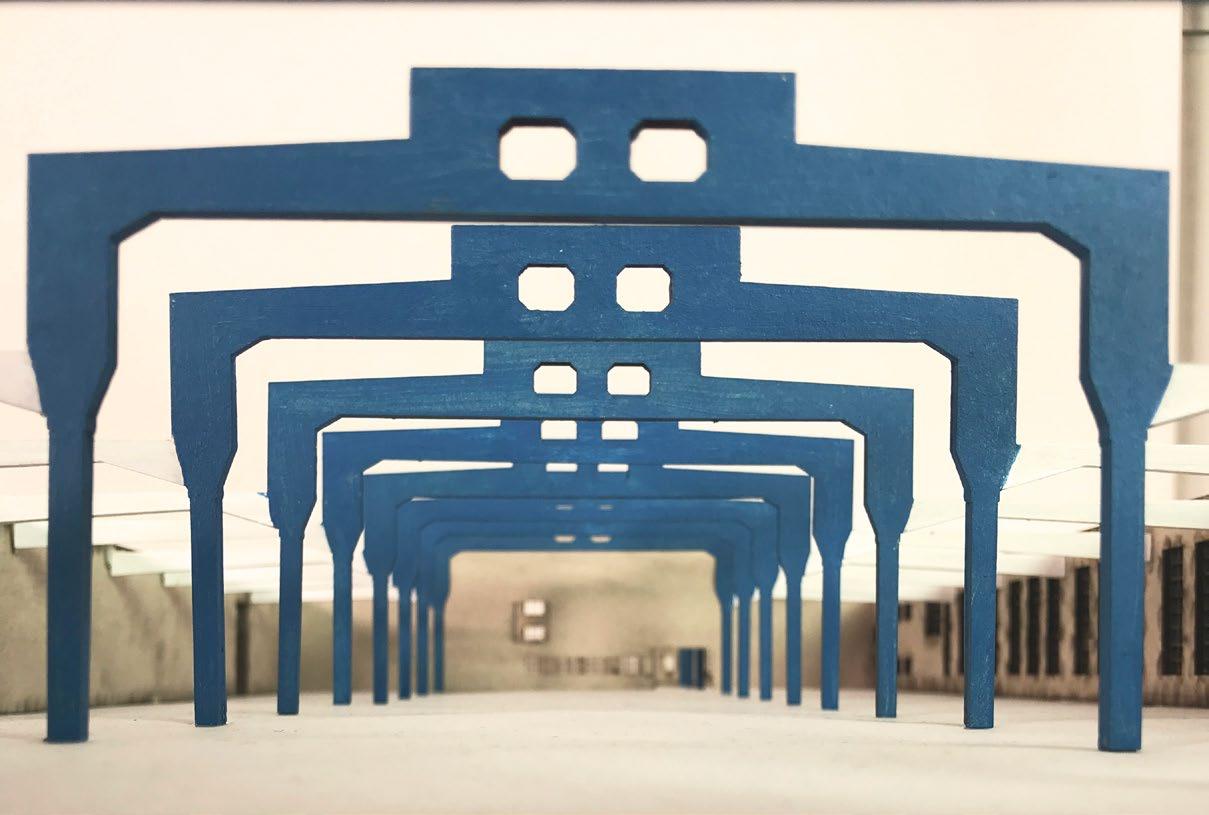

photos of the physical model | 1:100 cardboard | laser-cut

12

master‘s thesis

from work to play

exterior axonometric view on the roof terrace

13

ringön residency housing exploring alternative living space, flexibility, and self-building

Using a warehouse in Ringön, I wanted to explore alternative options for housing. Proposing questions like “What is it a living space?”, “How flexible can housing be?” and “What happens when architect leaves the design and lets inhabitants “build it themselves?”.

In my project I propose a simple timber constructions so the future inhabitants are able to build structures themselves as they need or want.

Design is based on a grid 1200x1200mm that enables to fill the whole warehouse and avoid existing trusses and other structures.

Only intervention proposed to the building itself are roof windows necessary to bring in the daylight while keeping the space visually separated from the outside. They are facing north for the most stable light.

Project is designed as an imagined starting point of creating an alternative housing space that inhabitants could build themselves and further development is left for speculation.

spring 2022 | ARK 132 - matter space structure 2

14

master‘s project

ringön residency housing

15

roof - proposed north facing windows

gradually growing structures

grid - proposed starting point

exploded axonometry showing different layers of the structure 16

master‘s project

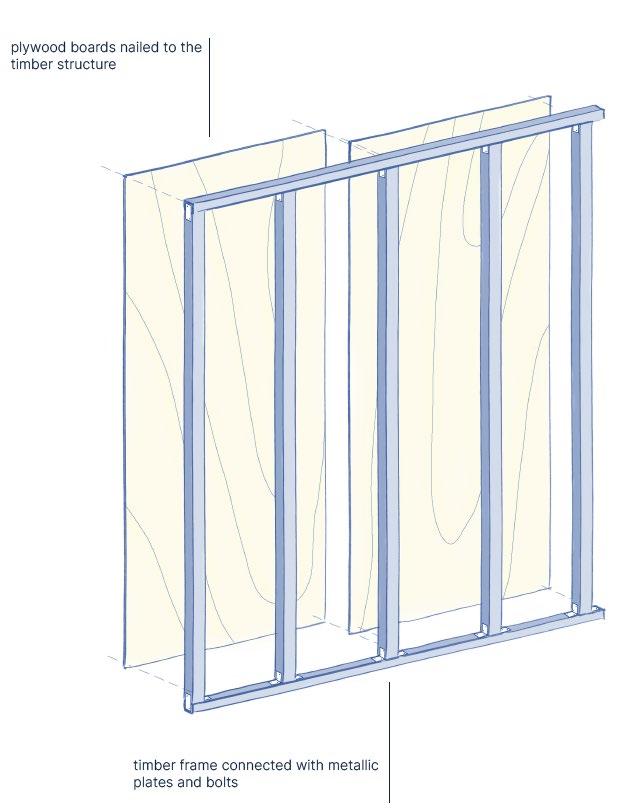

plywood boards nailed to the timber structure

timber frame connected with metallic plates and bolts

basic structure construction

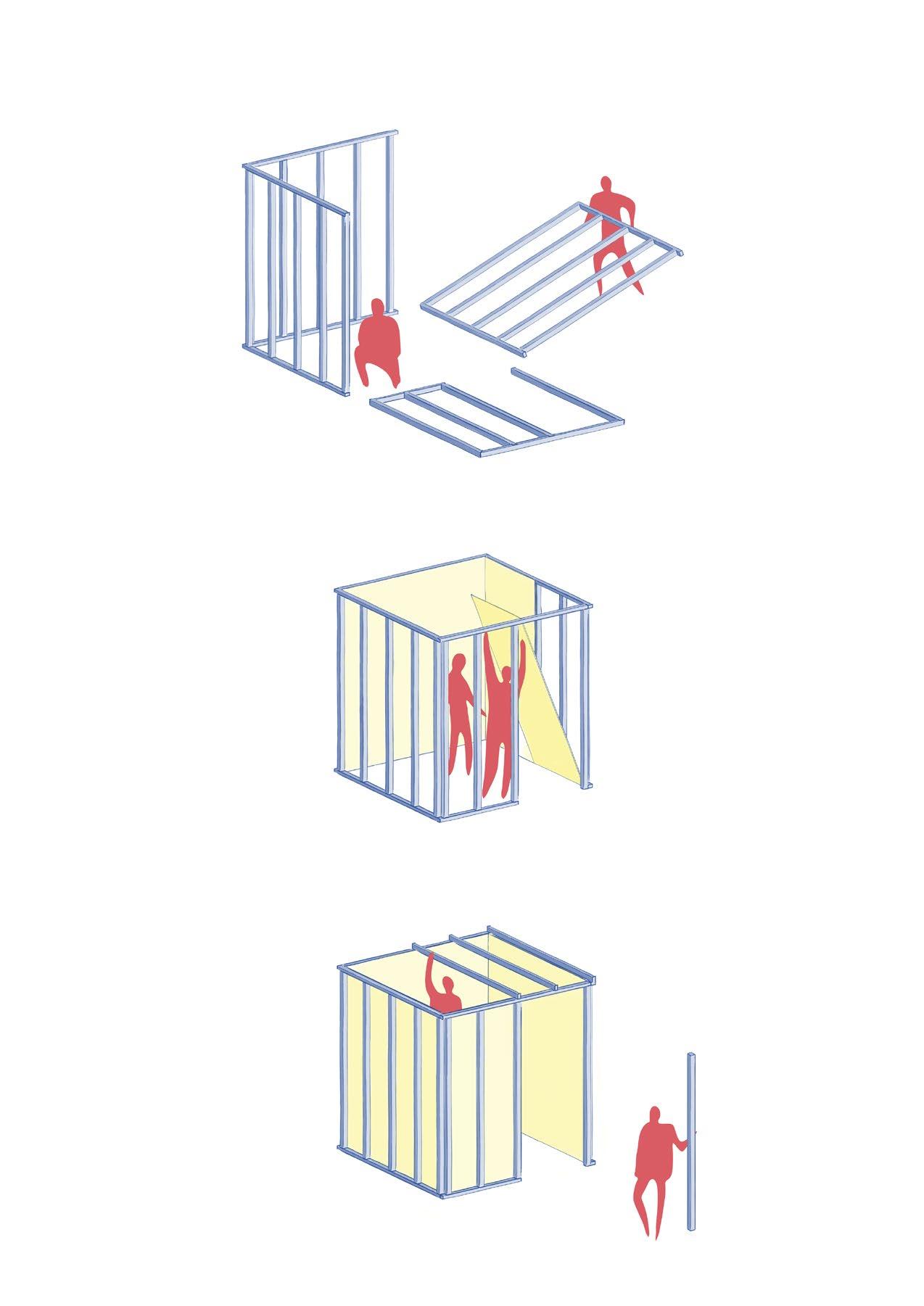

how to ‘build‘ manual ringön residency housing

17

B‘

B‘

A

A‘

A

B

B

A‘

scale 1:100 built in time first

last

axonometric drawing showing possible „growth“

plywood

OSB

textile

polycarbonate

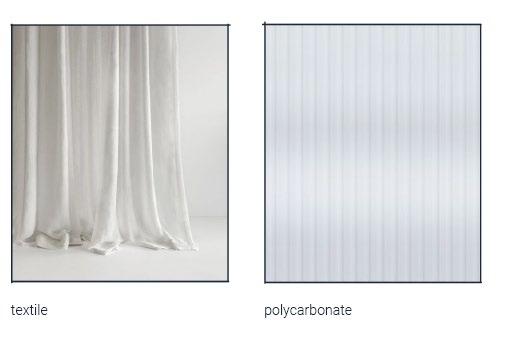

materials 18

master‘s project

interior renders ringön residency housing

19

orust market hall transformation project

The dairy central in Vräland on Orust was first built in the 1930‘s and has since been remodeled several times. Even if the Dairy has been closed for many years it still holds a place in the memory of the inhabitants of Orust. By interviewing some of the inhabitants, we realised they are missing a meeting point and a place for the local small businesses to collaborate. Our aim for this project is to create a market hall for local producers where they have the opportunity to develop their business. Through working with co-sharing and flexible areas we hope to achieve a space that works over the year and provide new opportunities both for the inhabitants and visitors of Orust.

group project with Clara Alexandersson Frick and Michael Gates Carlsson fall 2022 | ARK 626 - transformation projects and environmental care see more here

20

master‘s project

orust old dairy

farmers - crops farmers - animals craftsmanship associations and organisations orust market hall

21

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11., 12.

lecture hall meeting room copying room storage silent office meeting room cleaning room meeting room open office space coffee room wc

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

dishing room entrance market hall main dishing room equipped kitchen storage storage fridge room loading of goods waste room wc

A. B. C. D. E., F. G.

community workshop timbers storage bee hives garden patch parking terrace

B. C.

D.

E.

A. 16.

21.

17.

18.

1.

19.

20.

13.

9.

2.

23.

6.

11.

15.

7.

3.

4.

5.

10.

8.

12.

14.

G.

F.

first floor | 1:400 22

current

additions

master‘s project

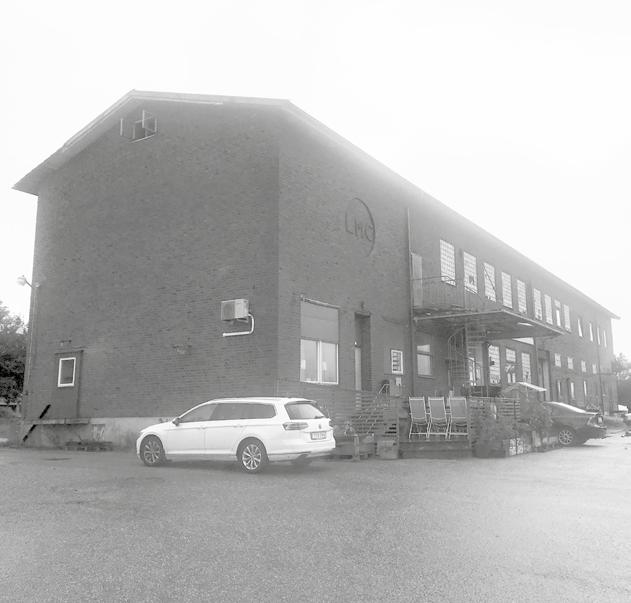

photos of a current state of the building | september 2021

1.

2.

3.

4.

5.

6.

7.

dishing room preparation kitchen bar market hall wc storage seating area

6.

1.

2.

5.

4.

7.

3.

second floor | 1:400

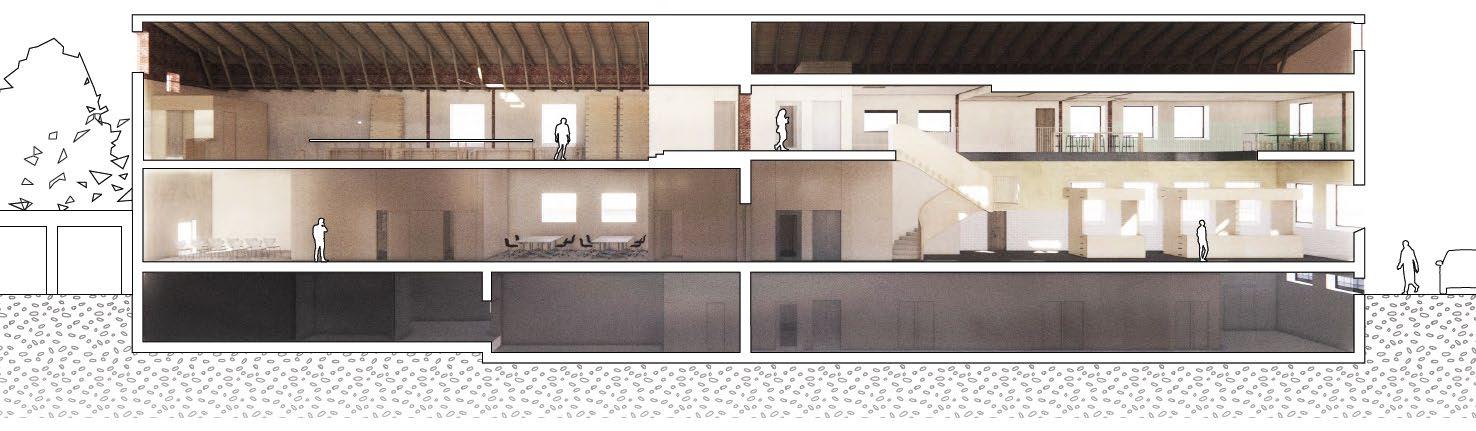

section | 1:400 orust market hall

23

section with details, show 24

master‘s project

assemblage of wooden modular stands and seating

wing new structures in red orust market hall

25

intervention: remodeling trusses

roof intervention: removing ceiling

trusses and attic

intervention: added windows

facades

addition: bar

intervention: door openings

intervention: floor opening addition: ramp and stairs

2nd floor addition: elevator addition: sculptural staircase modular food stands

addition: windbreak

1st floor basement

26

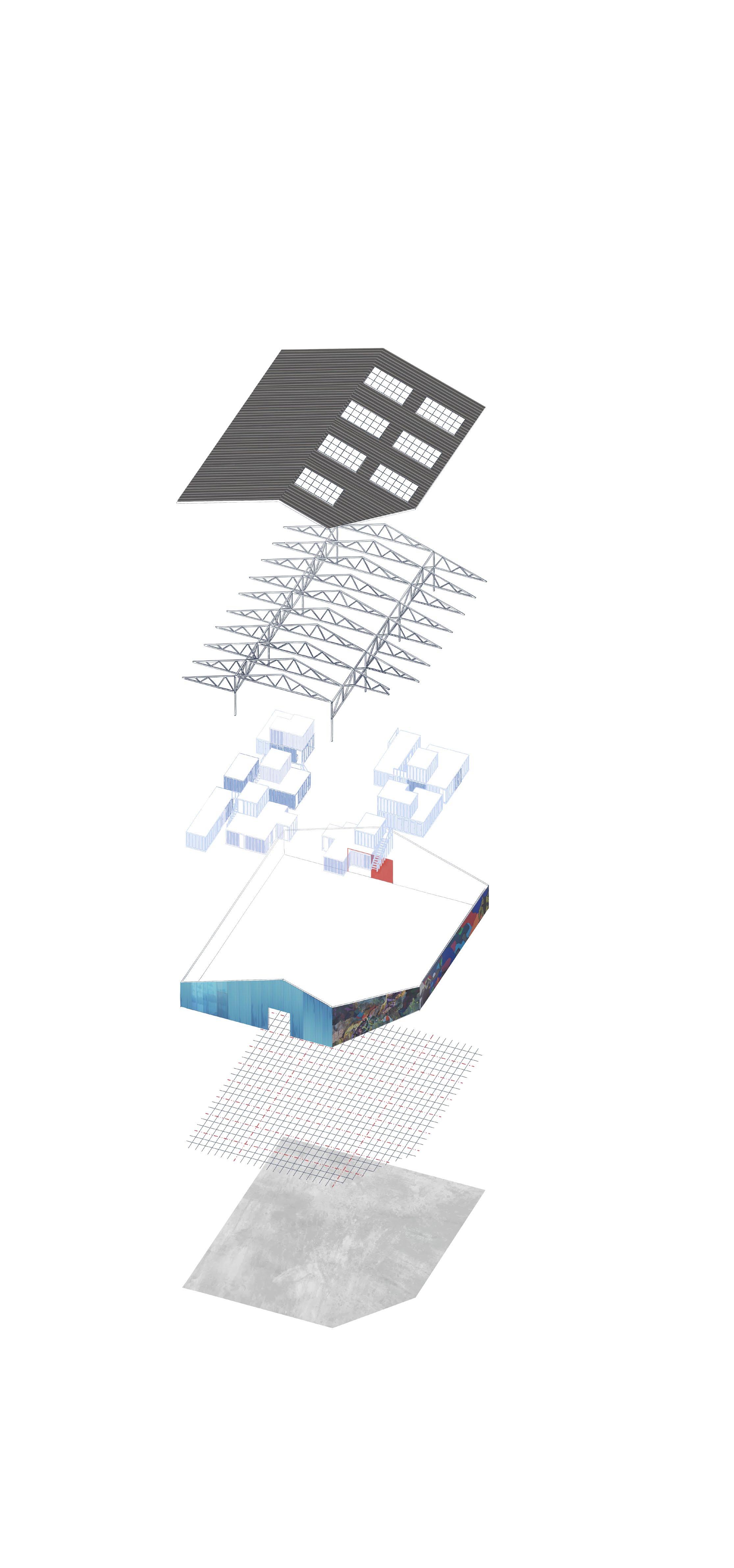

exploded axonometry showing changes and new additions in red

master‘s project

exterior terrace view

interior upper hall view

orust market hall

27

social and cultural centre stvolínky, czech republic

Design of a social and cultural centre as one of the buildings within the restoration of the defunct farmyard in Stvolínky near Česká Lípa. The new building respects the location and dimensions of the original building. It is designed as an elongated ground floor building with a sloping roof and a brick facade. The cultural and social centre is to serve mainly as a meeting place for all generations. It consists of two clubrooms, a cafe and a hall. Providing a space for various events and activities to take place.

bachelor´s thesis spring 2021 | Studio Girsa - Architectural Conservation Heritage Design see more here

28

bachelor‘s thesis

social and cultural centre

29

new building

buildings of the defunct farmyard

05

10

50

100 meters

castle

figure-ground diagram of the town stvolínky 30

bachelor‘s thesis

interior views | upper - hall, lower - cafe social and cultural centre

31

BA

4 4

2 2

7 7

AB

5 5

3

6

3

6

1 1

A´

B‘

1,2 KLUBOVNA

3 VSTUP

4 KUCHYŇKA

5 KAVÁRNA

6 SKLAD KAVÁRNY

floor

7 ZÁZEMÍ KAVÁRN

-0,320

-0,520

5

1 840 250 2 900

3 000

10m -1,070

P4

200

2

1 400

1

P3 150 250 170

1 070

750

1 250

500

0

P1

±0,000

500

P1

±0,000

100

250 100

PH

2 900

PH

2 900

100

250

8 050

2 800

5 050

160

1 840 160 2 800

2 800

160

1 840

PODÉLNÝ ŘEZ

-1,070

-1,070

-1,570

SPOLEČENSK A KULTURNÍ CENTRUM STVOLÍNKY SPOLEČENSKÉ A KULTURNÍ CENTRUM STVOLÍNKY

A - A‘

secti

250

8 050

4 230

570

PŘÍČNÝ ŘEZ

3 000

GSEducationalVersion

-0,520

500 550

-0,320 -1,070 -1,570

west

south

LEGENDA materiálů Porotherm 44T Pro

5

200

150

170

±0,000

10m

LEGENDA skladeb a prvků P1 S1 PH

facade e

skladba podlah - viz. tabulka skladba střechy - viz. tabulka SDK podhled

Porotherm 30 Pro

zděné příčky

32

bachelor‘s thesis lícové zdivo

12

-1,070

200

-0,520

1 400

150 250 170

P3

500

1 070

750

-0,320

1 250

500

P1

±0,000

-1,070

13

1 840 100

250

2 800

160

1 840 160 2 800 250 100

PH

P4

P4

2 900

12

P1

±0,000

A‘B´ 3 000

2 900

PH

clubroom entrance kitchenette cafe cafe storage cafe personal technical room reception, wardrobe foyer hall storage personal hall 2 900

100

10

PH

2 900

100

8

5 050

250

10

9

8

8 050

11

250

9

1,2 3 4 5 6 7 8 9 10 11 12 13

1 840 160

11 2 800

160 2 800

1 840

PODÉLNÝ ŘEZ

P2

P2

13

-1,070

-1,570

plan

NY

8 TECHNICKÉ ZÁZEMÍ

9 ŠATNA, RECEPCE

10 FOYER

11,12 ZÁZEMÍ SÁLU

13 SÁL PŘÍČNÝ ŘEZ

1 840

1 840

1 840

570

+8,050

4 230 8 050

5 050 8 050

2 800 250

160

2 800 250 100

160

2 800 250 100

160

S1

P2

P1

P1

250 3 000

3 000

100 2 900

P1

P1

P1

±0,000

±0,000

170

P2

PH

-1,070

-1,070 -1,570

PŮDORYS

-1,570

B - B‘

ions

materiálů

-0,520

500 550

-0,320 -1,070

200

150

P4

PH

2 900

2 900

PH

+3,000

-1,570

SPOLEČENSKÉ A KULTURNÍ CENTRUM STVOLÍNKY

SPOLEČENSKÉ A KULTURNÍ CENTRUM STVOLÍNKY

LEGENDA skladeb a prvků P1 S1 PH

Porotherm 44T Pro

skladba podlah - viz. tabulka skladba střechy - viz. tabulka SDK podhled

Porotherm 30 Pro

zděné příčky +8,050

lícové zdivo S1

železobeton

betonové tvárnice - ztracené bednění +3,000

xPS

P1

SPOLEČENSKÉ A KULTURNÍ CENTRUM STVOLÍNKY

-1,570

SPOLEČENSKÉ A KULTURNÍ CENTRUM STVOLÍNKY

SPOLEČENSKÉ A KULTURNÍ CENTRUM STVOLÍNKY

east

elevations

10m

social and cultural centre

33

roof tiles horizontal batten on counter battens 40/60 mm breathable sarking membrane 160 mm insulation between rafters 120 mm insulation under rafters

40° vapour control layer metal profiles and service cavity 12.5 mm plasterboard

180/250 mm tie beam 140/160 mm wall plate 100 mm insulation

ventilation gap gutter metal drip edge concrete template

brick veneer 40 mm air cavity Porotherm 440T Profi 5 mm interior plaster

5

310

130

40

115

600 detail - pitched roof | 1:10

35 mm interior wooden sill 30 mm concrete screed

wooden window frame 2%

± 0.000

metal flashing over sill brick sill

145 mm

PUR foam

000,0±

metal anchor

Vedoucí práce: prof. Ing. arch. Ak Ústav: 15114 Ústav památkové pé Konzultant: Ing. Arch. Aleš Miku Vypracovala: Barbara Kraus Semestr: LS 2020/21

detail - window sill | 1:10 34

bachelor‘s thesis

social and cultural centre

exterior view

35

other works

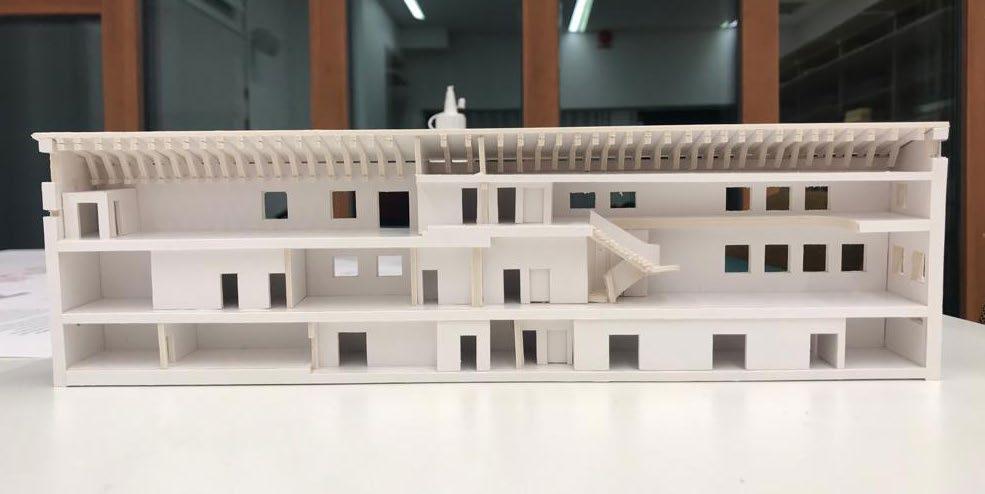

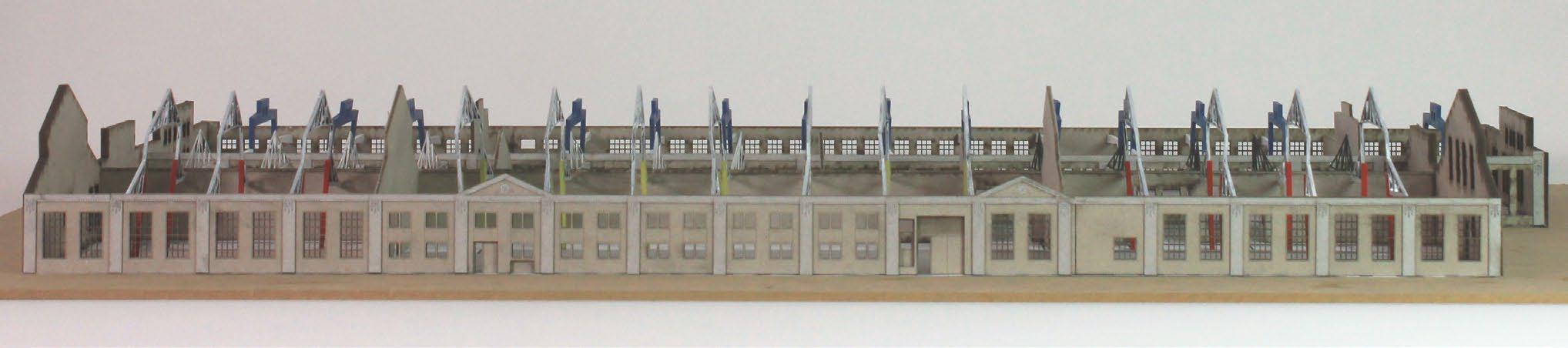

orust market hall | cardboard section model - 1:150 | 2021

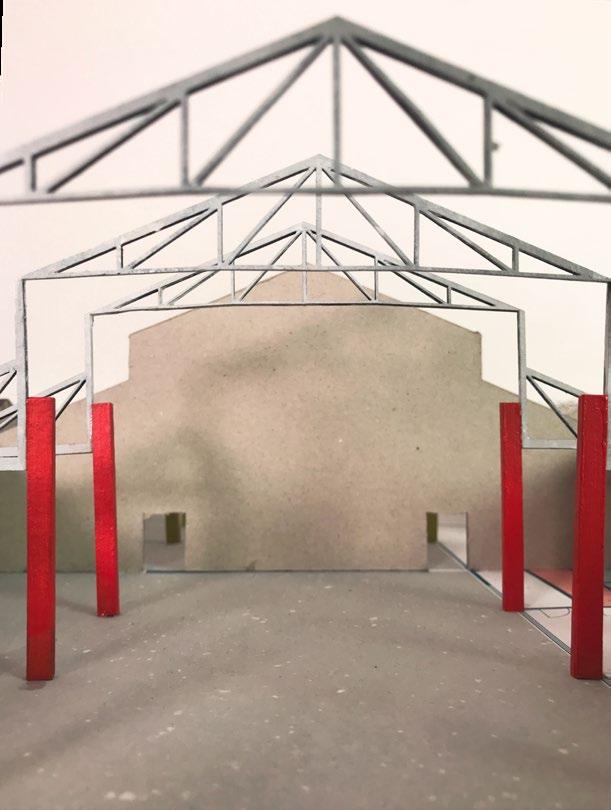

installation | pokoje - exhibition

skin | superstudio - 24h student competition | ostrava, 2020

antarctic polar station | 3D printed model - 1:100 | 2019

36

project poster | design & c

other works

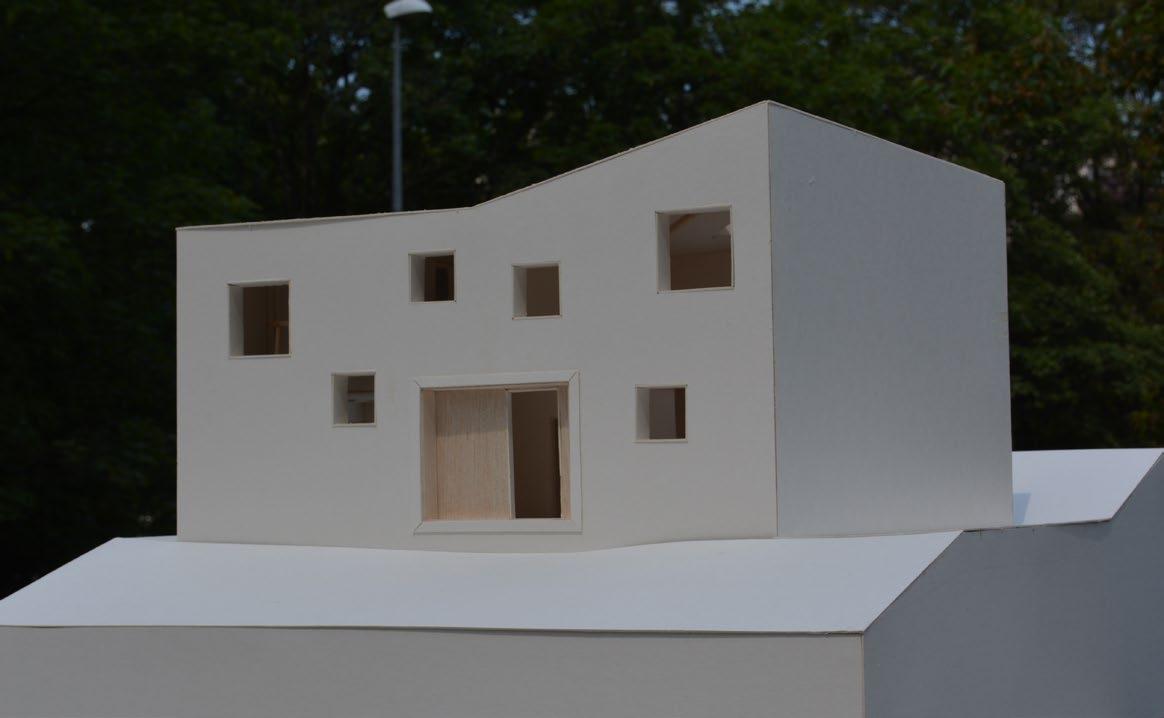

family house and artist´s studio | cardboard model - 1:50 | 2018

n of young art | prague, 2019

material and space study | AI workshop | 2022

communication tools course | 2022

examples

cottage restoration study | 2021

37
