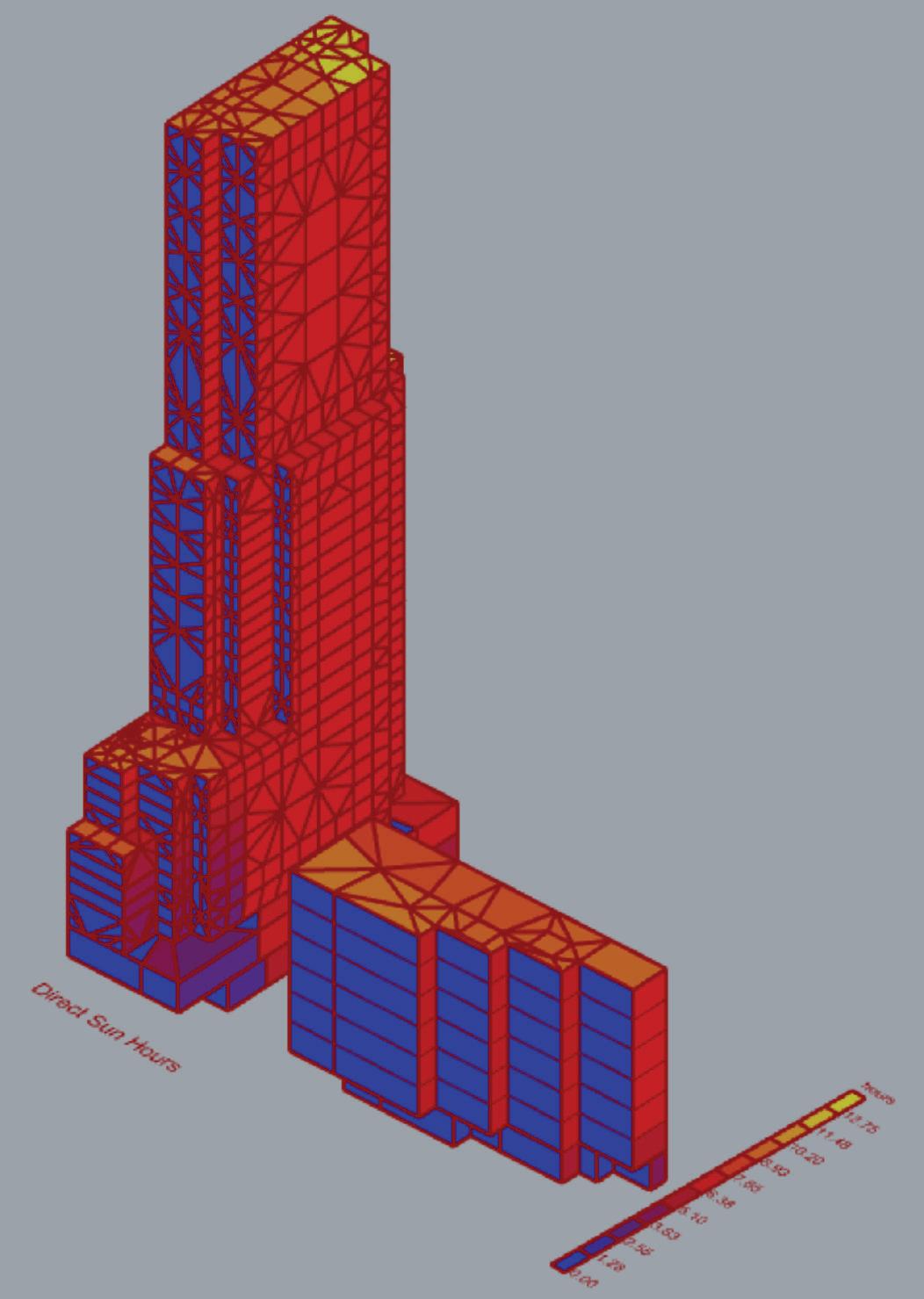

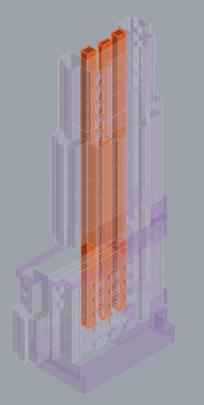

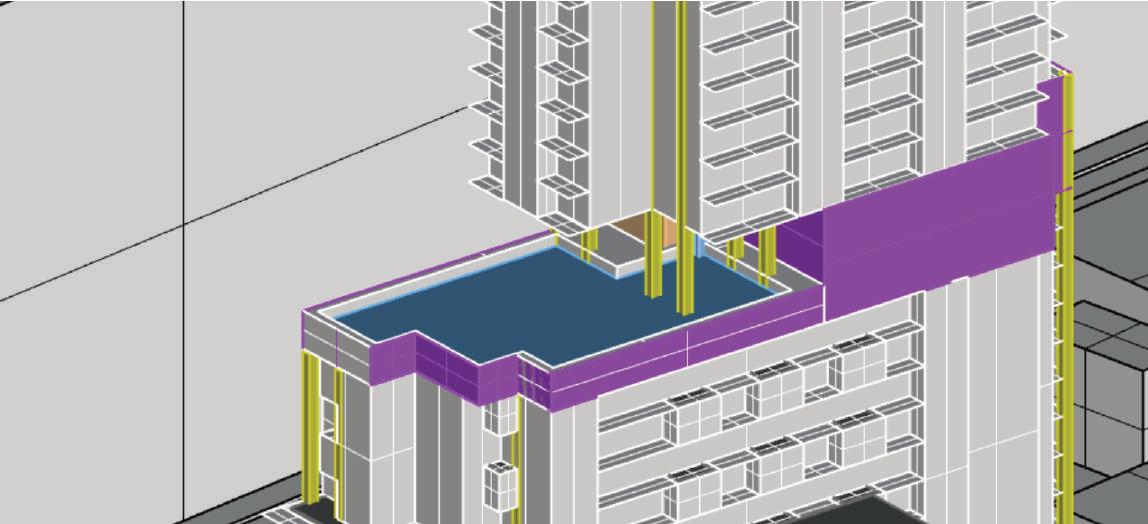

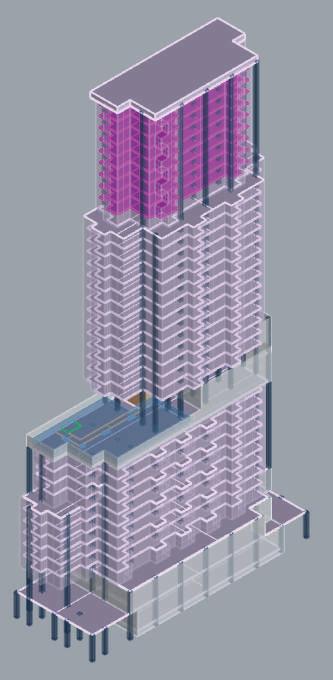

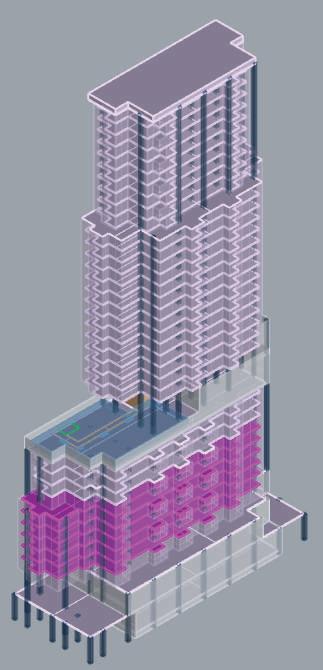

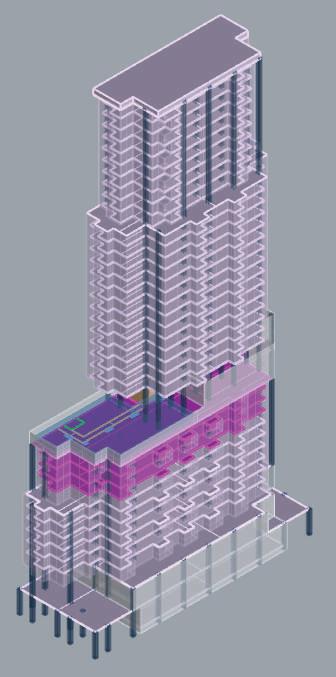

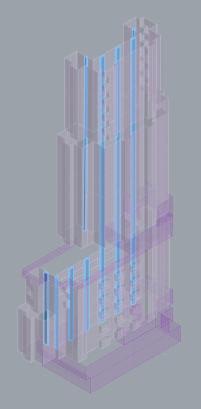

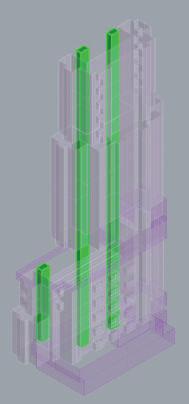

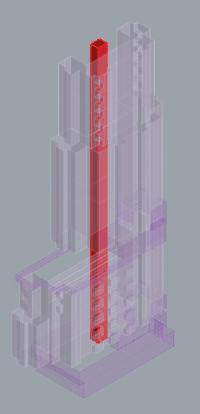

TETRIS 8-bits, pixel, fill the space with the shapes that have 4 boxes arrange in different ways to clear the line. Shaft - Machanical Room - Garbage Room - Aircondition Control Room Fire Escape Elevator Column and Beam System RC. Column 800x800 mm RC. Column 650x650 mm RC. Column 475x475 mm Concrete Slab 200 mm CONDOMINIUM AND GAMES CENTER Target Group : Gamer, Young Generation, Steamer Conceopt : Good Game GG Mixed-Used Condominium Bannaporn Ubonsaen 63120500020 STUDIO YEAR 3/2 INSTRUCTOR : MICHAEL PARIPOL TANGTRONGCHIT Direct Sun Analysis From Direct Sun analysis that generated from grasshopper. Roof top swimming pool will get direct sunlight upto 12 hours per day. So the building have been shift in to have roof covering some part of the pool all day and create shading for the pool as well. Back part of the swimming pool is toilet, change room, lockger and shower. and the next room is finess for condominium user.

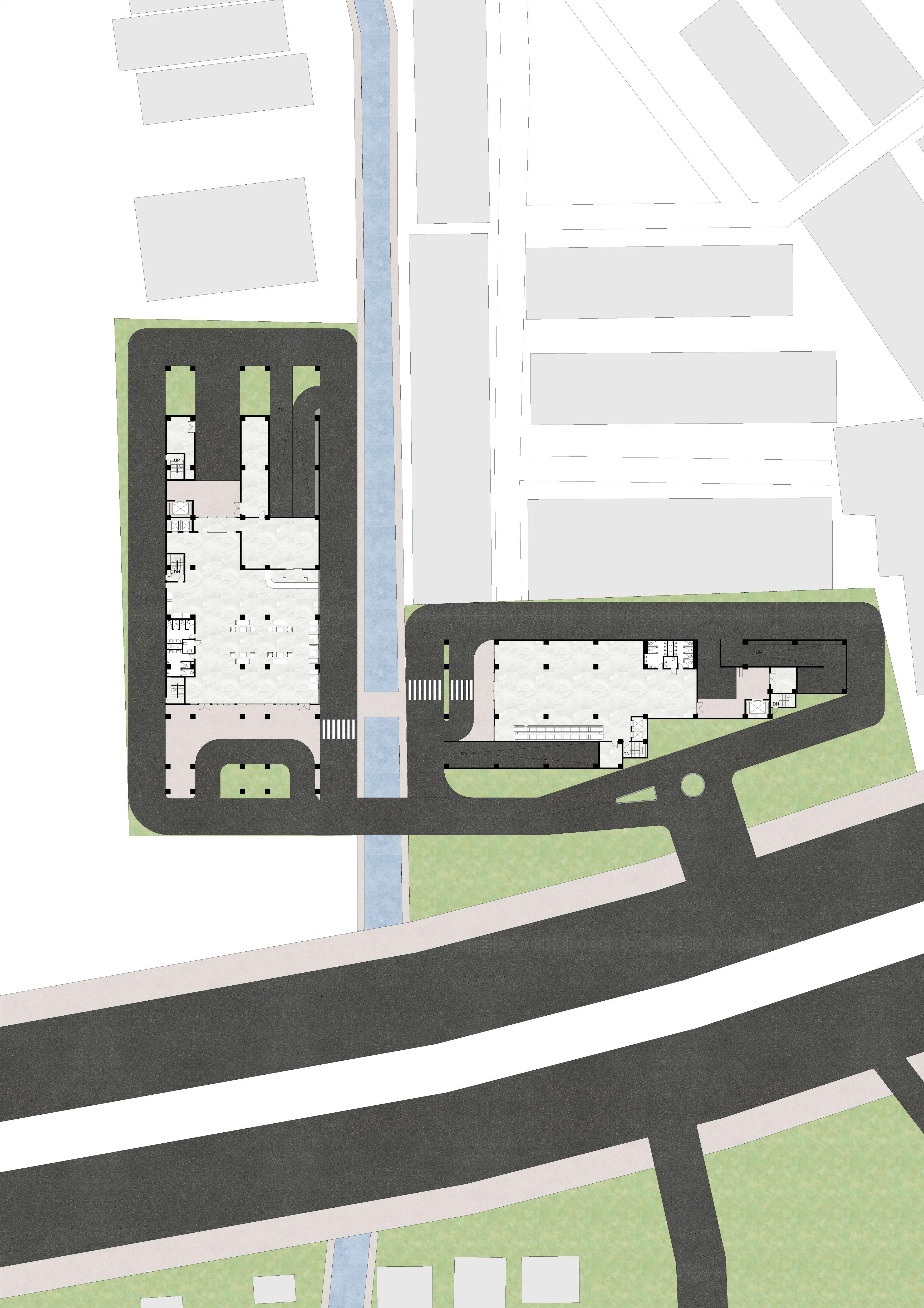

SITE PLAN scale 1:250 GG Mixed-Used Condominium Bannaporn Ubonsaen 63120500020 STUDIO YEAR 3/2 INSTRUCTOR :
PARIPOL TANGTRONGCHIT
MICHAEL

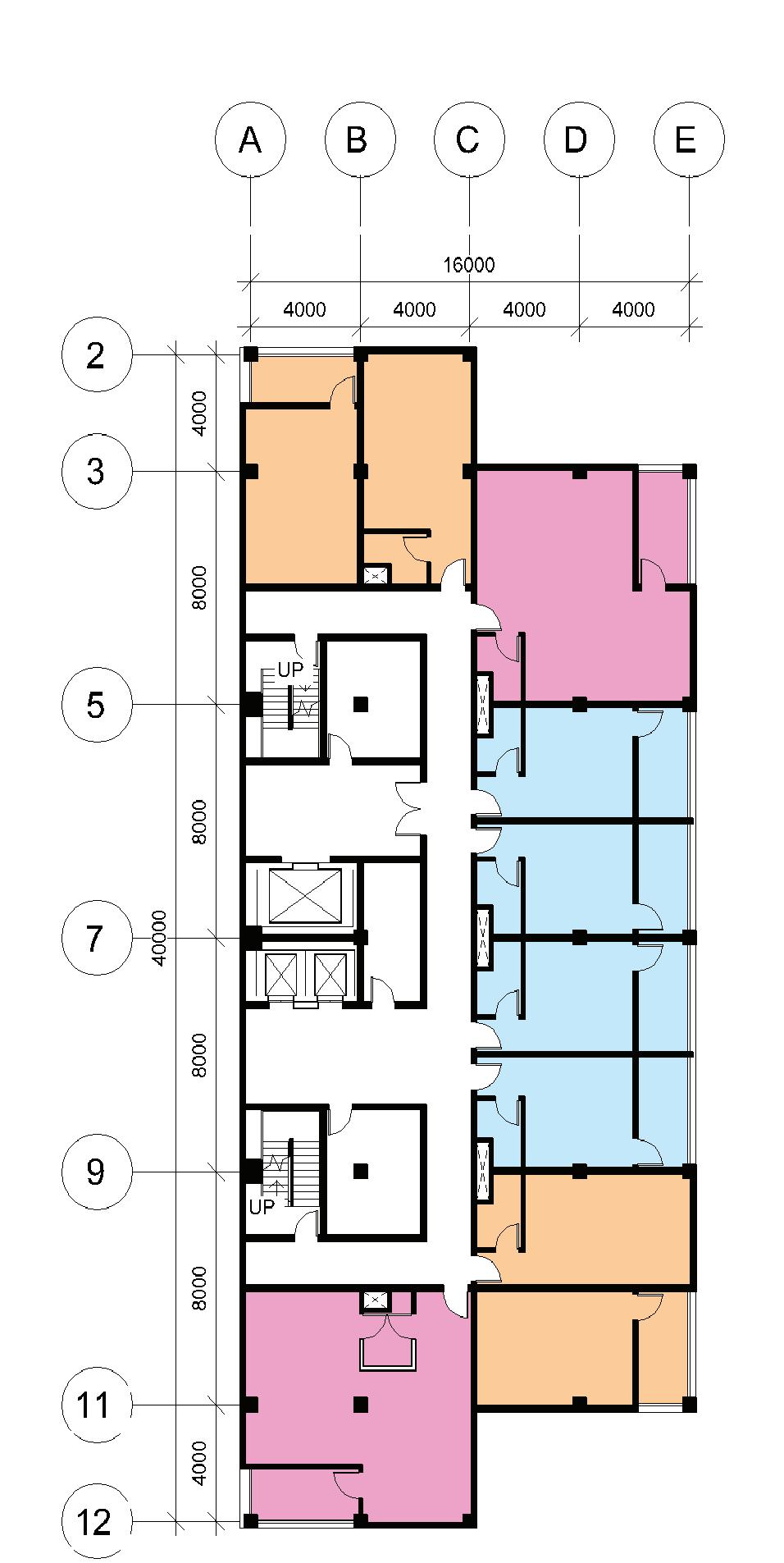

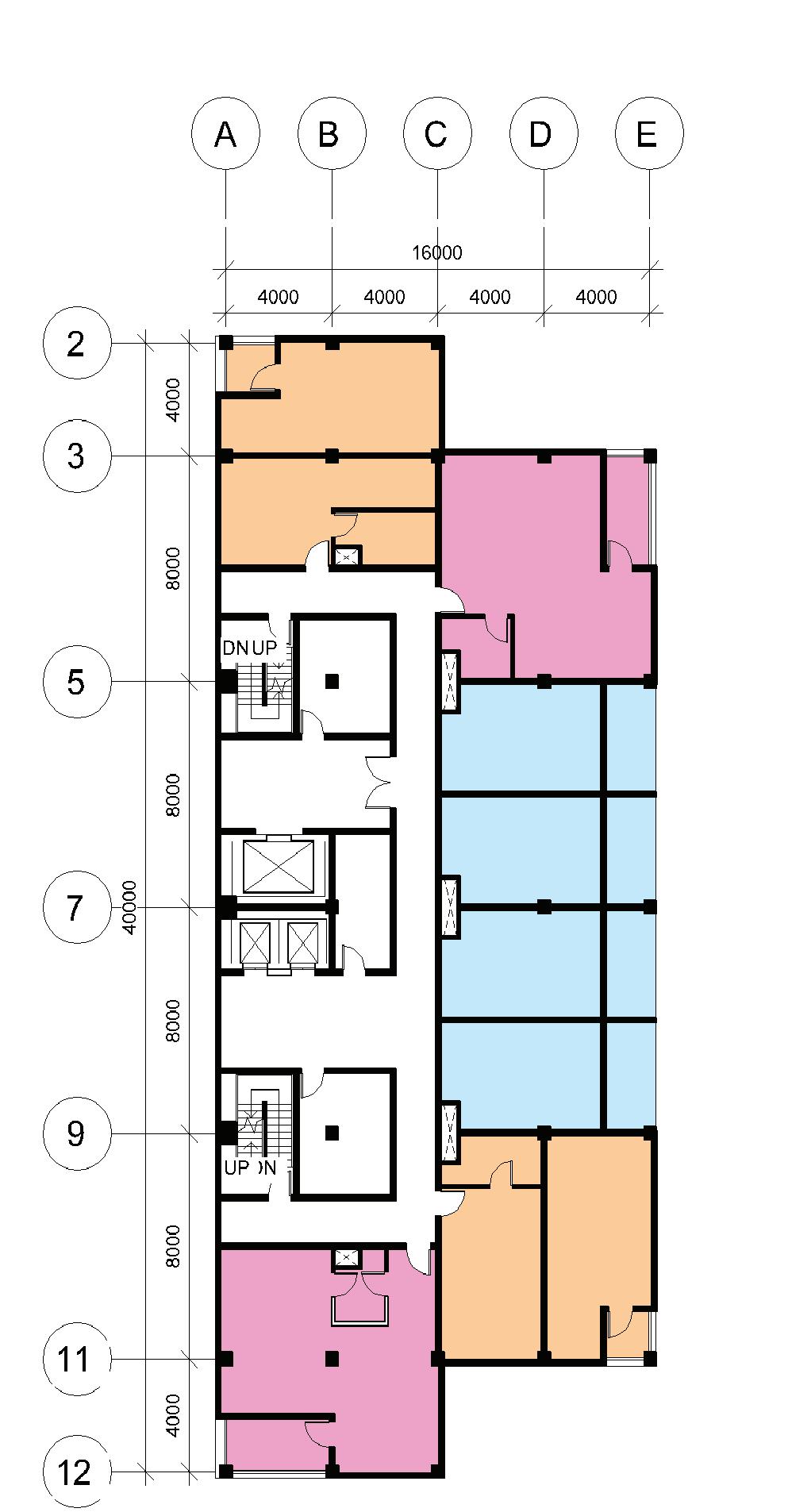

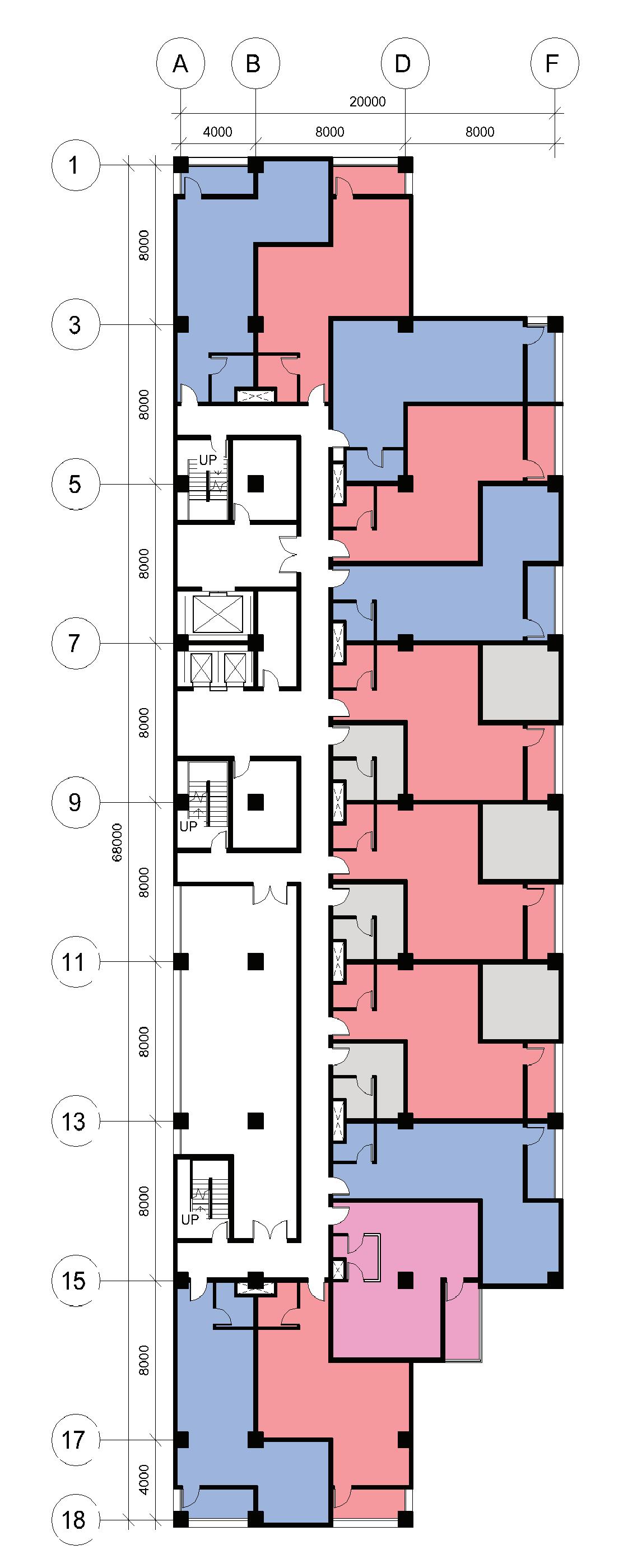

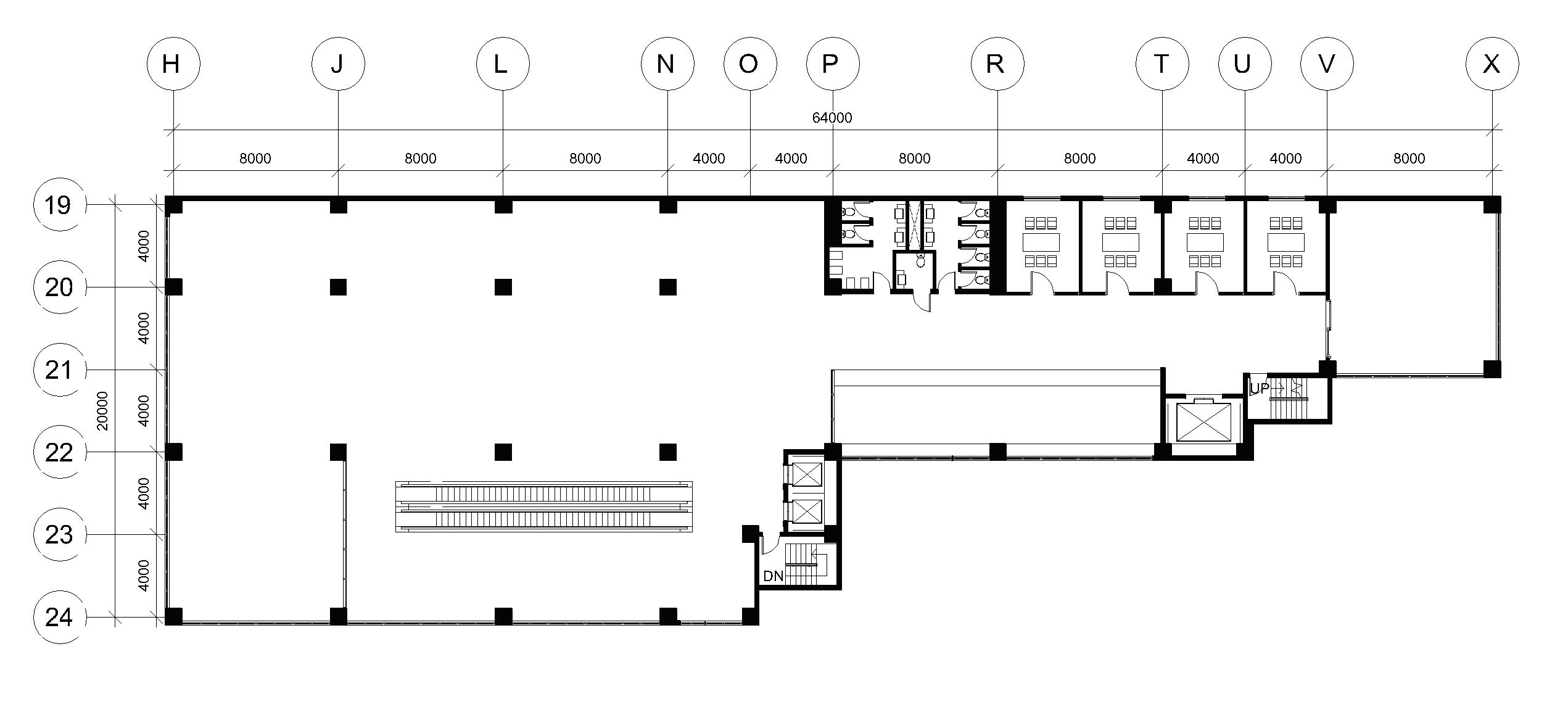

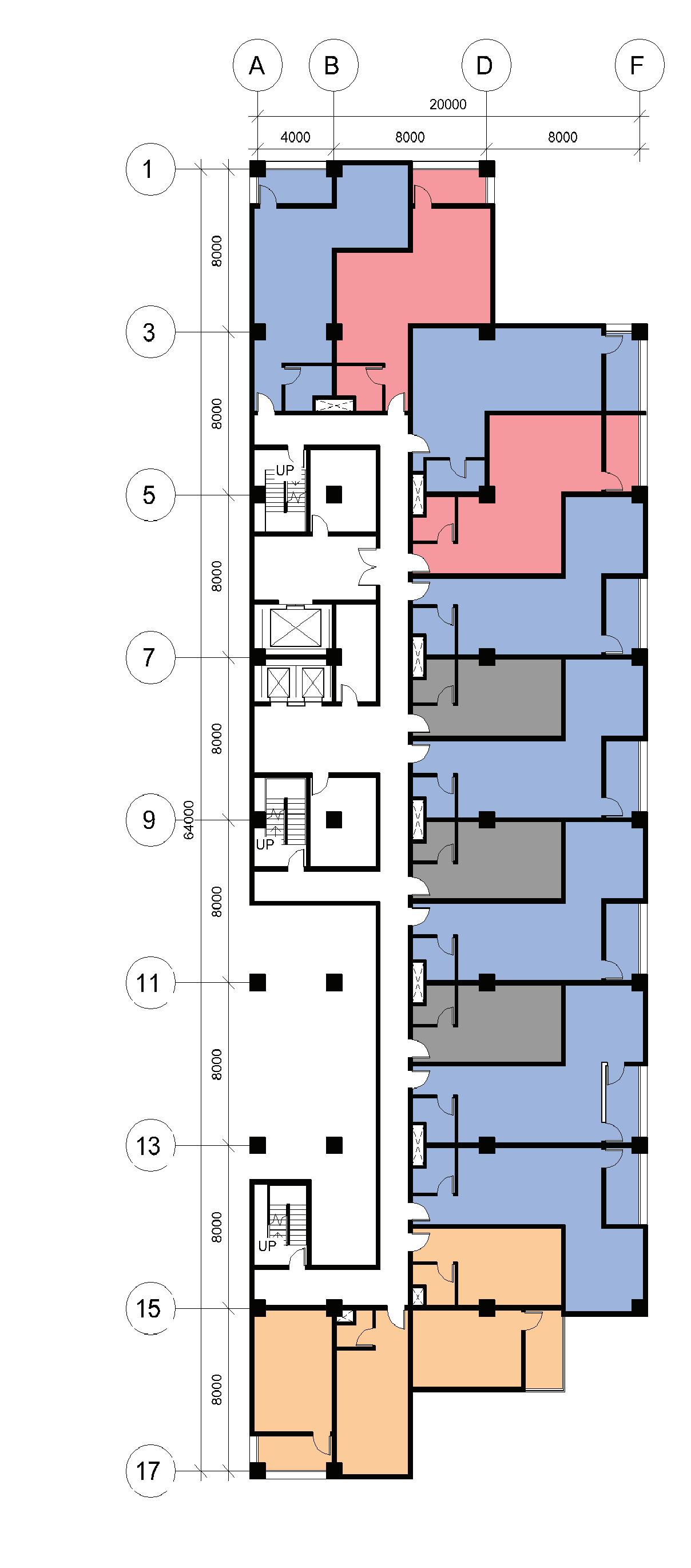

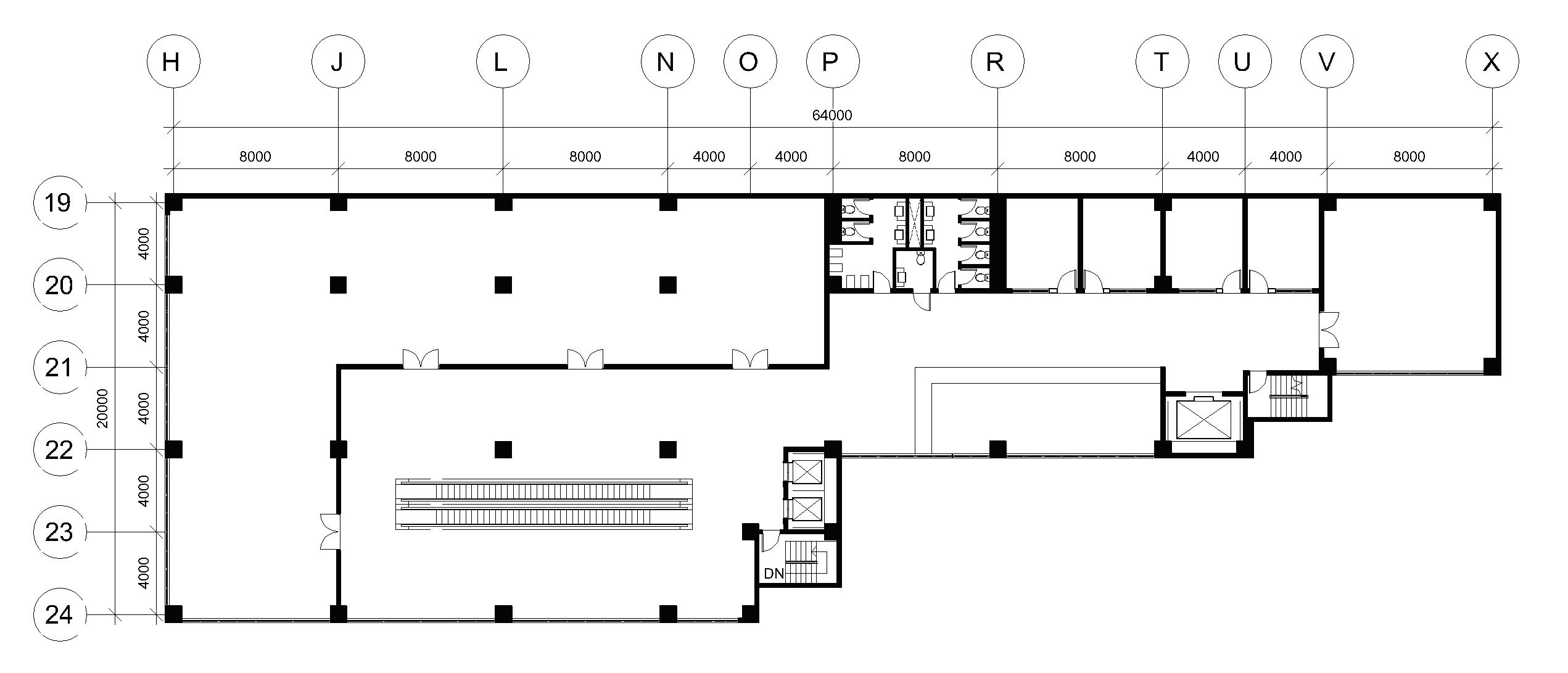

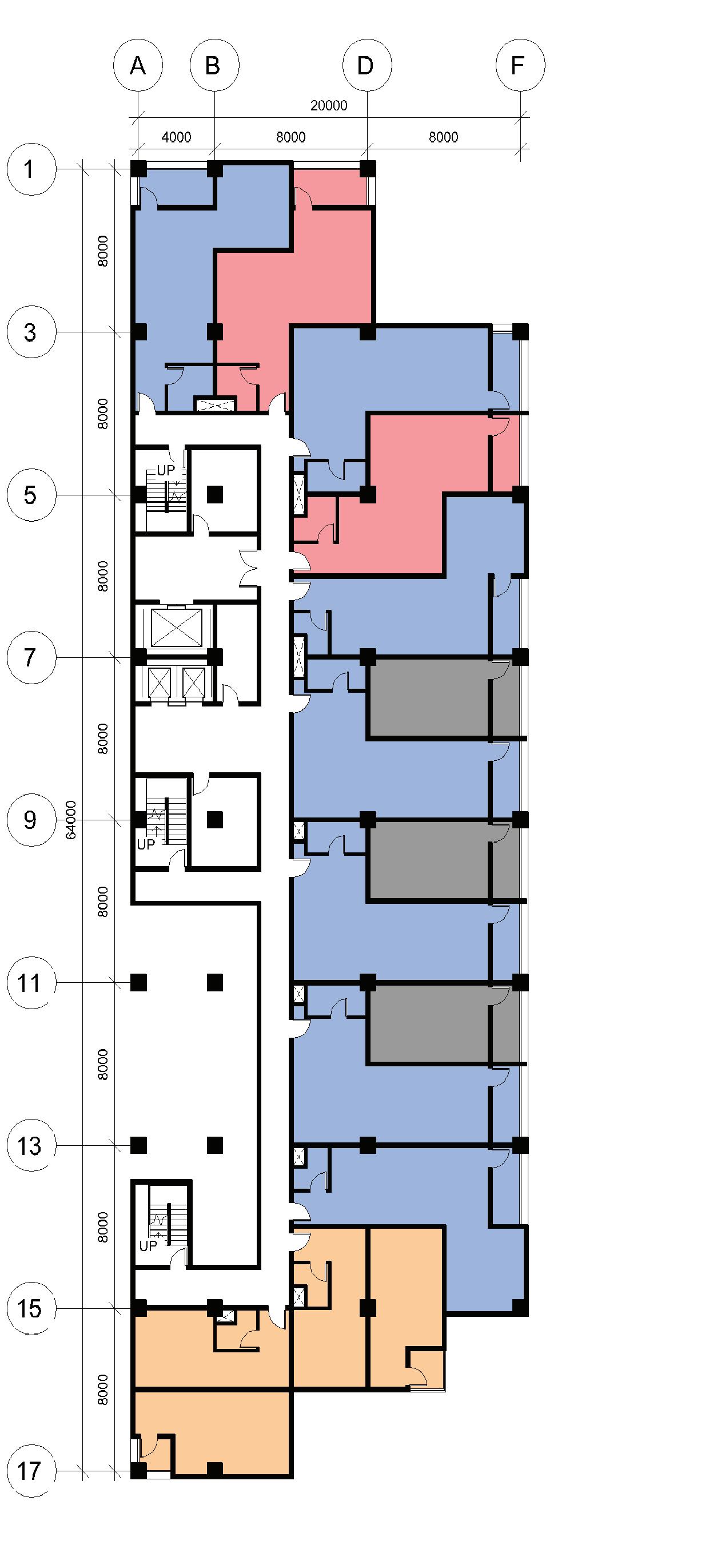

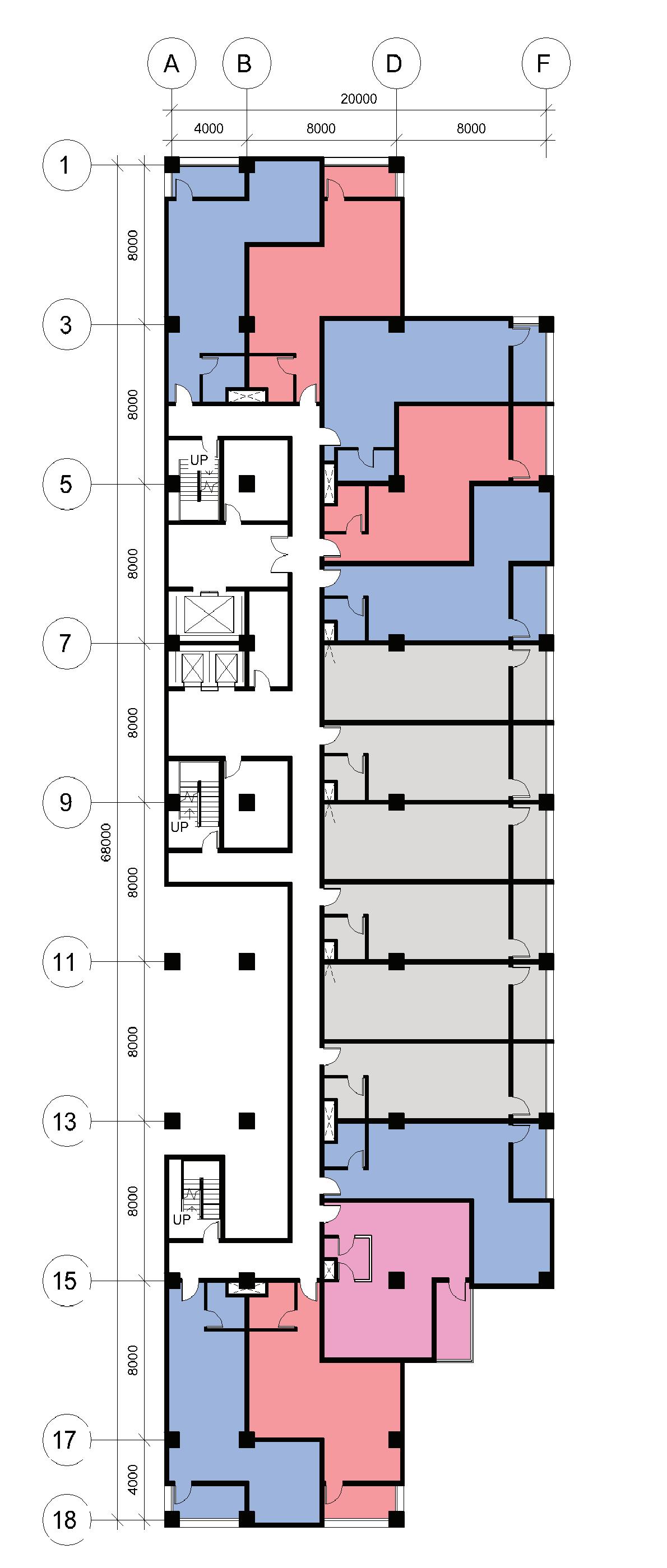

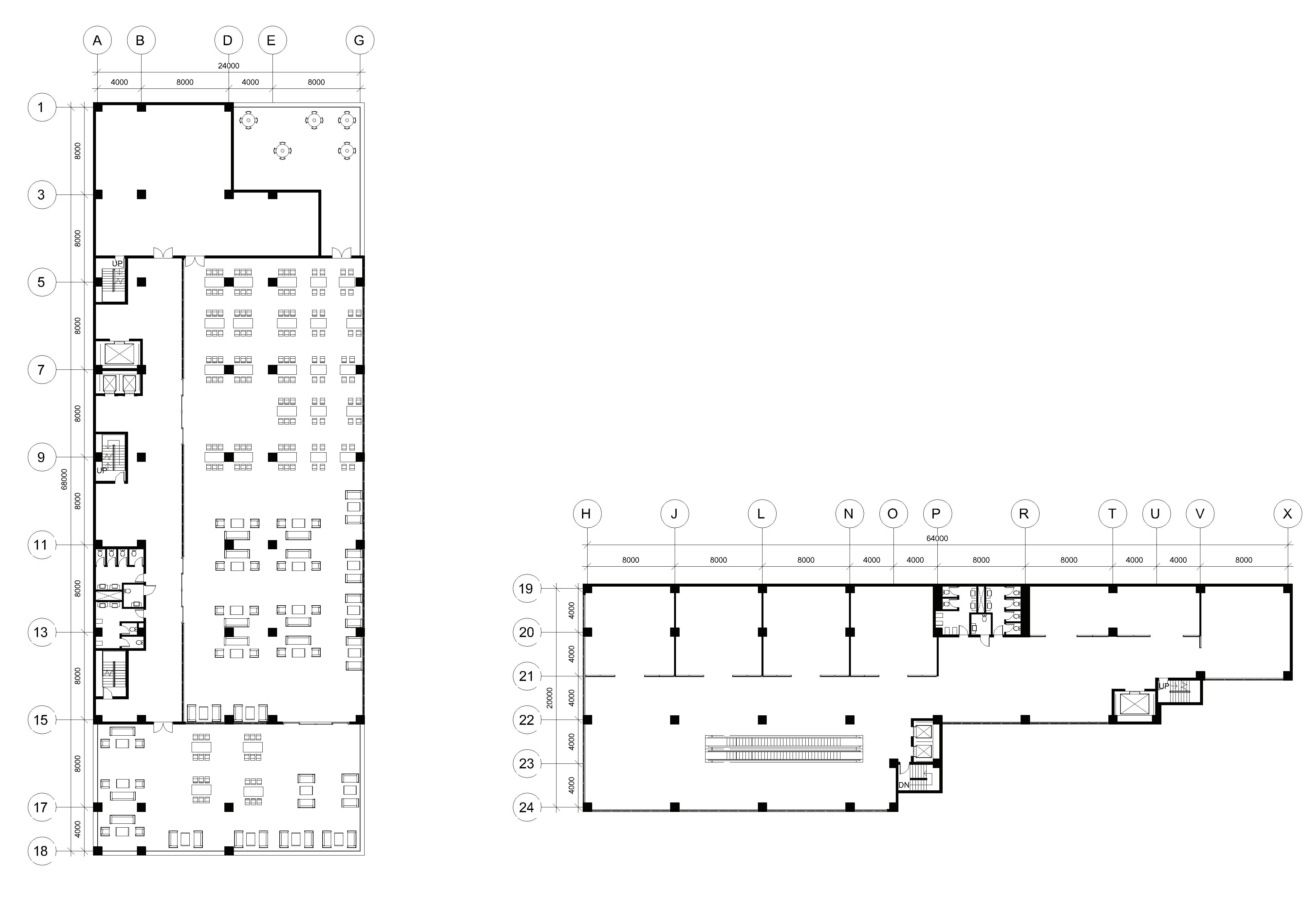

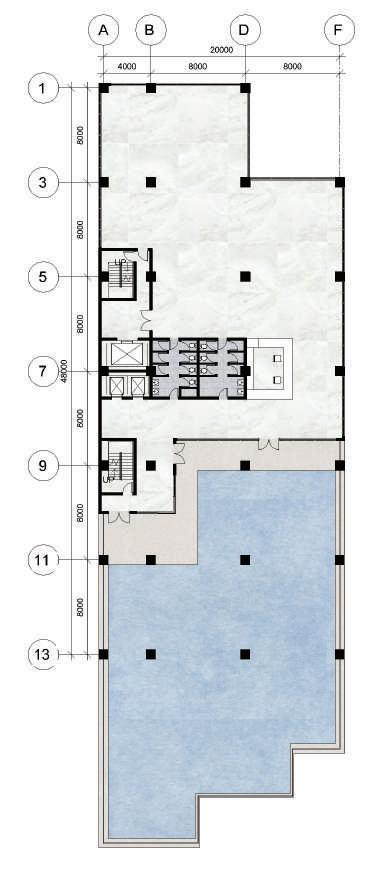

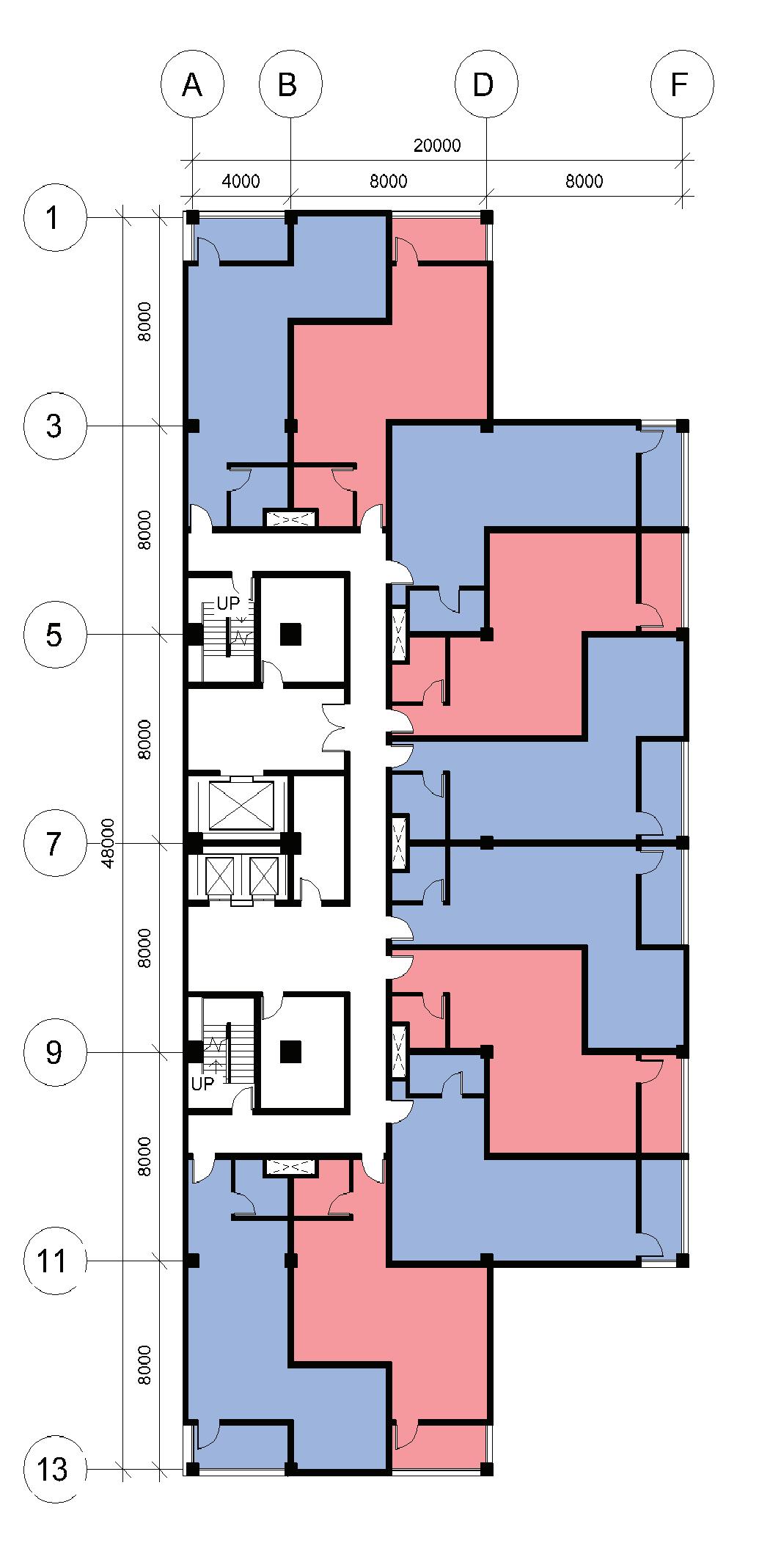

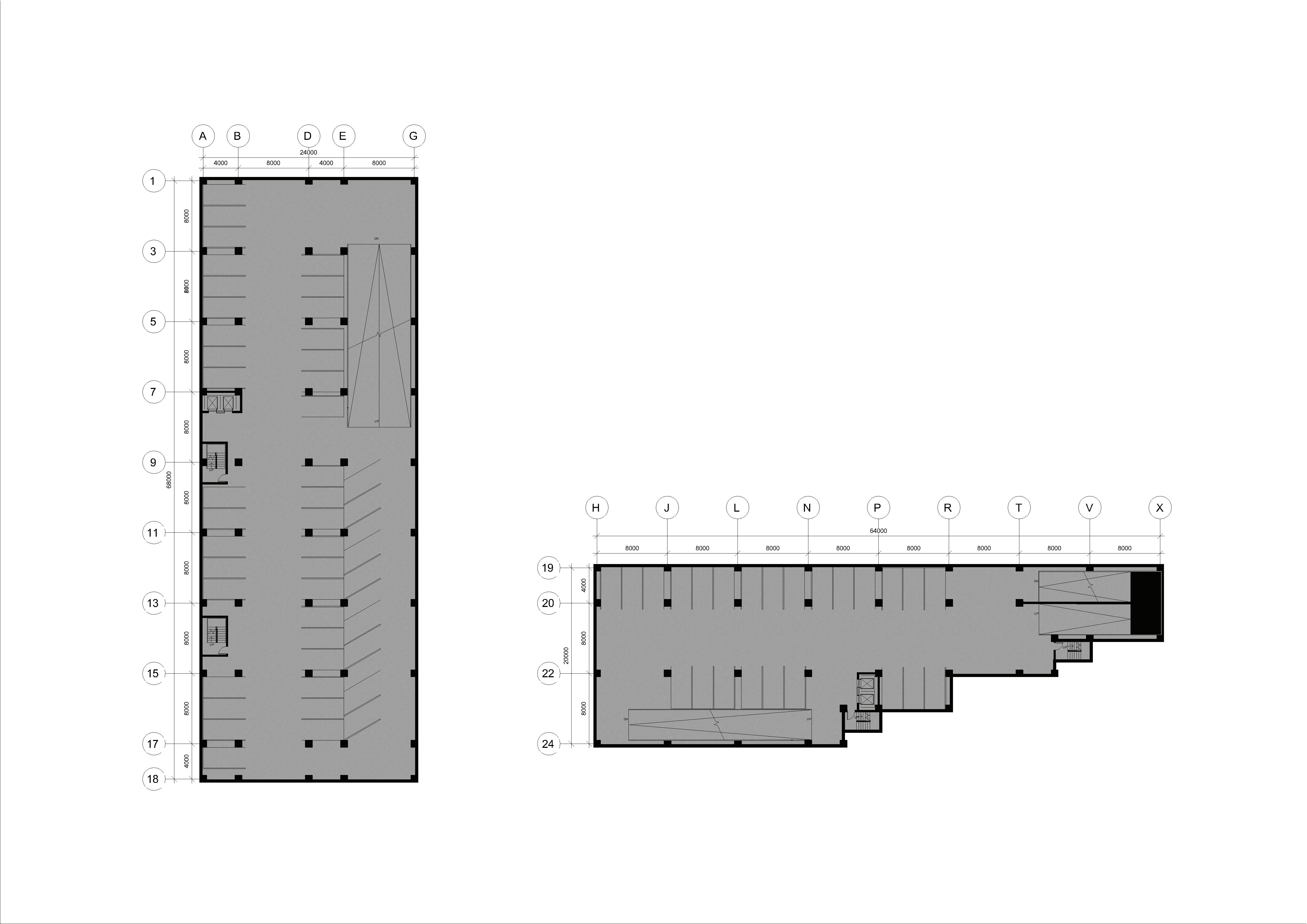

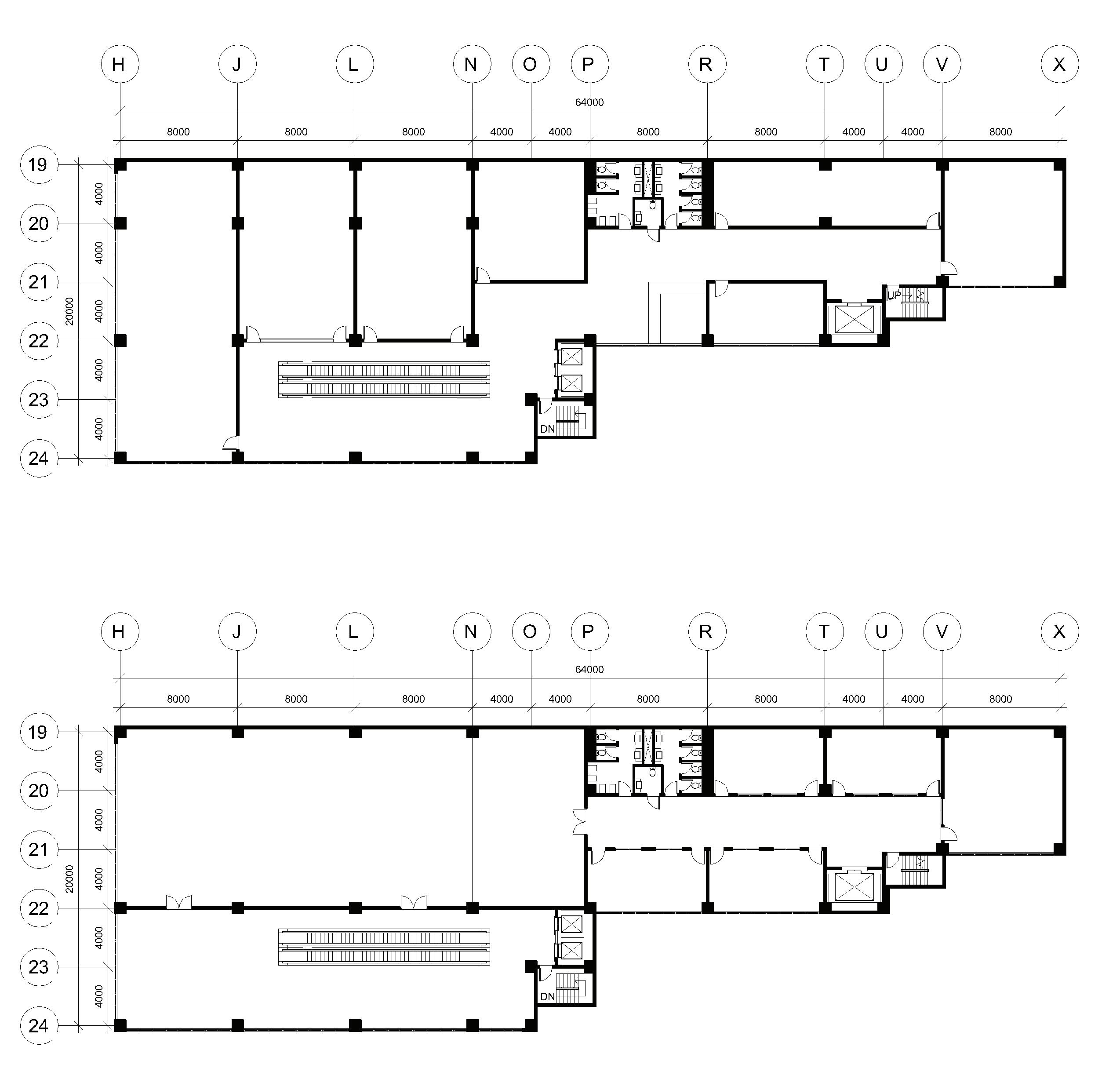

1st FLOOR PLAN scale 1:500 PARKING PLAN B1-B4 scale 1:500 Game Center 2nd Floor Plan scale 1:500 Game Center 3rd Floor Plan scale 1:500 Game Center 4th Floor Plan scale 1:500 Game Center 5th Floor Plan scale 1:500 Game Center 6th Floor Plan scale 1:500 Condo 2nd Floor Plan scale 1:500 Condo 3rd Floor Plan scale 1:500 Condo 8th Floor Plan scale 1:500 Condo 9th Floor Plan scale 1:500 Condo 14th Floor Plan scale 1:500 Condo 35th Floor Plan scale 1:500 Condo 36th Floor Plan scale 1:500 Condo 12th Floor Plan scale 1:500 GG Mixed-Used Condominium Bannaporn Ubonsaen 63120500020 STUDIO YEAR 3/2 INSTRUCTOR : MICHAEL PARIPOL TANGTRONGCHIT

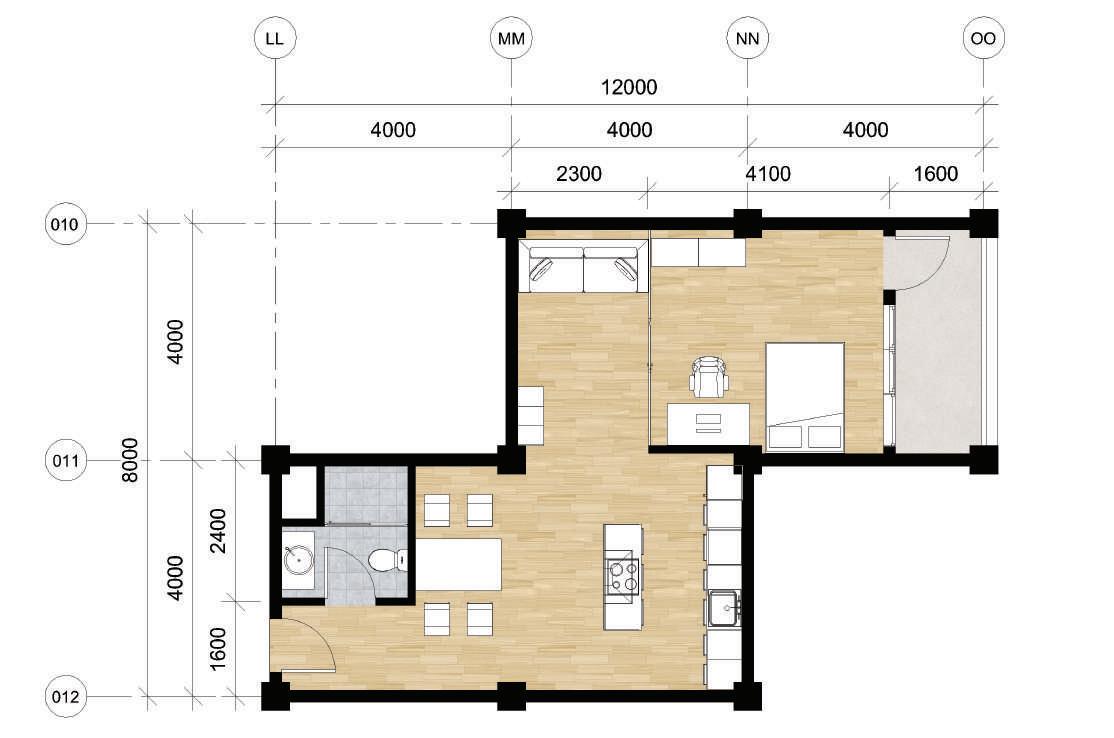

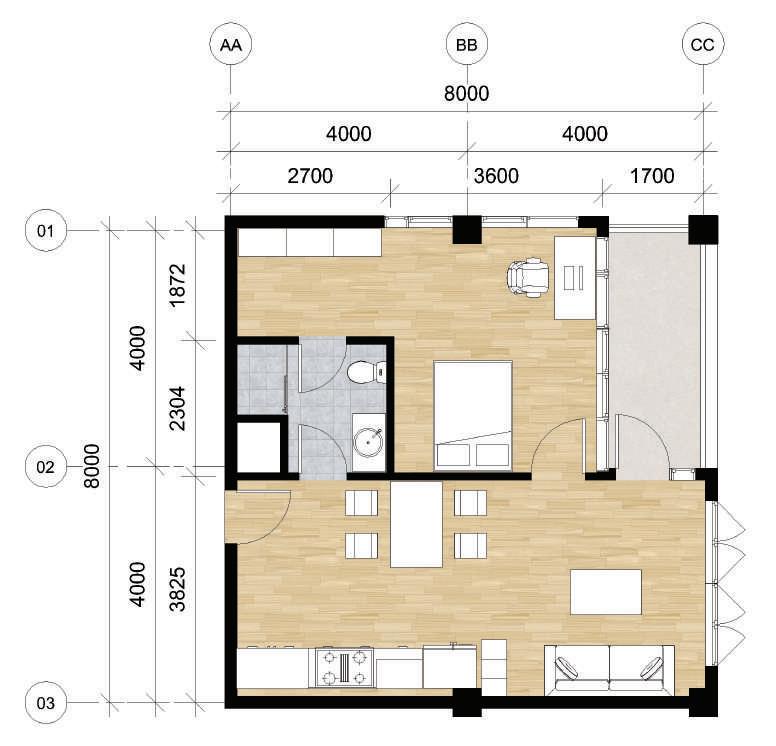

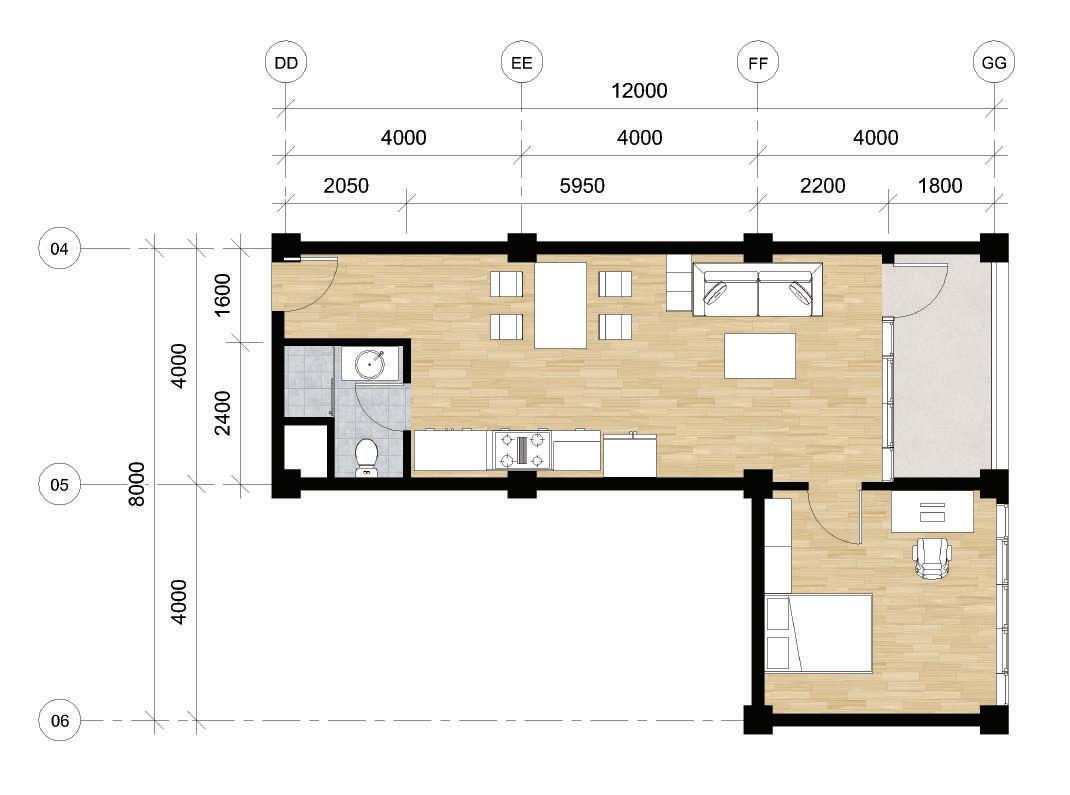

Square Type Plan scale 1:100 L1 Type Plan scale 1:100 L2 Type Plan scale 1:100 Z Type Plan scale 1:100 GG Mixed-Used Condominium Bannaporn Ubonsaen 63120500020 STUDIO YEAR 3/2 INSTRUCTOR : MICHAEL PARIPOL TANGTRONGCHIT

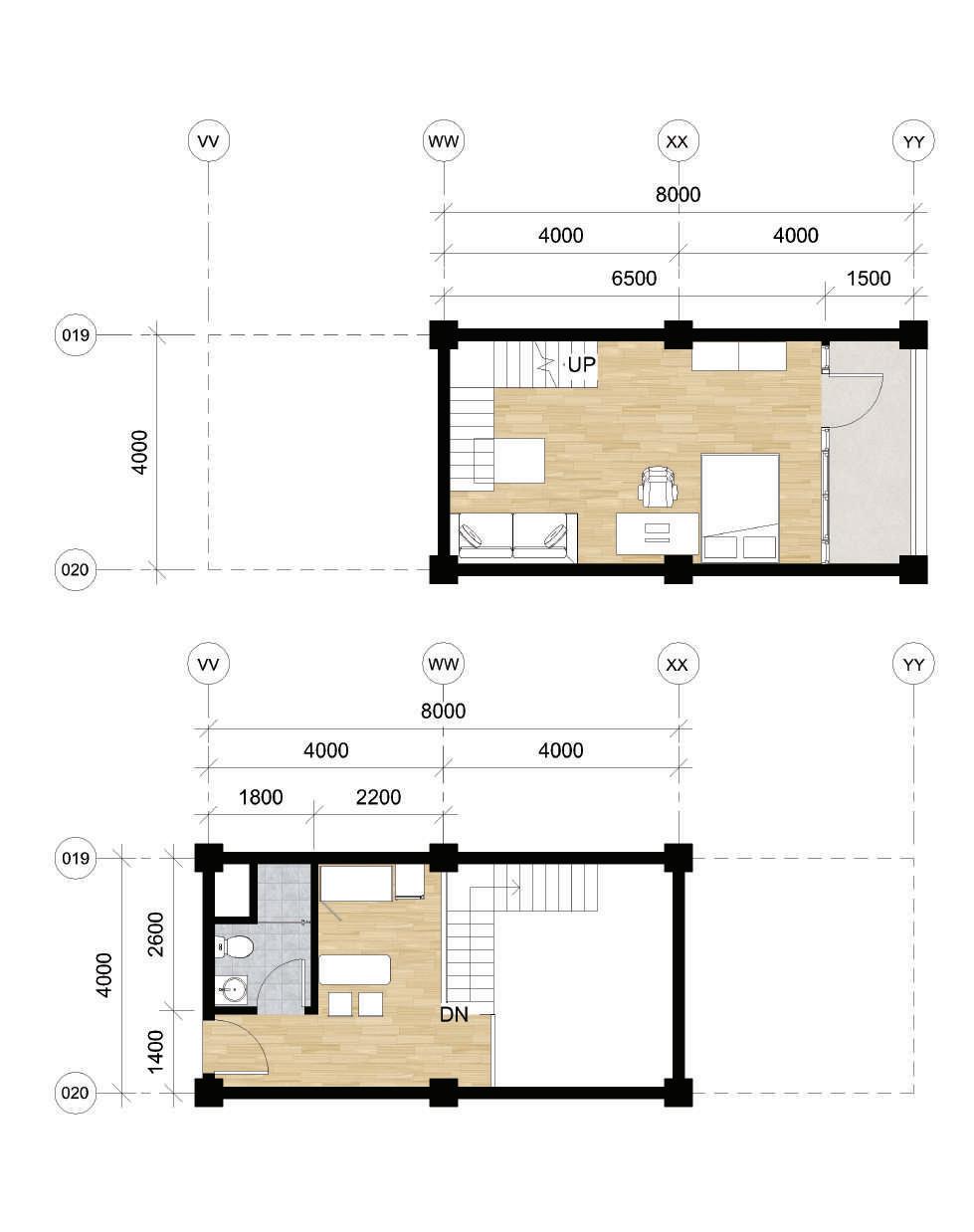

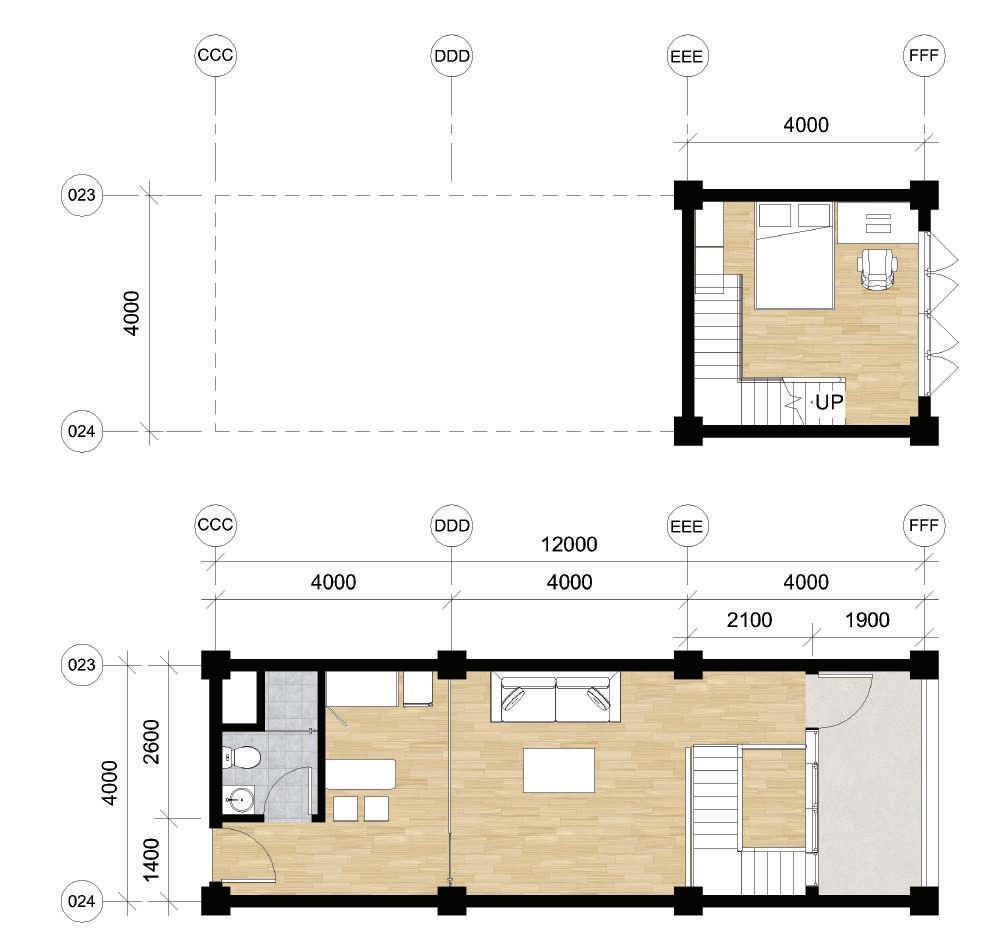

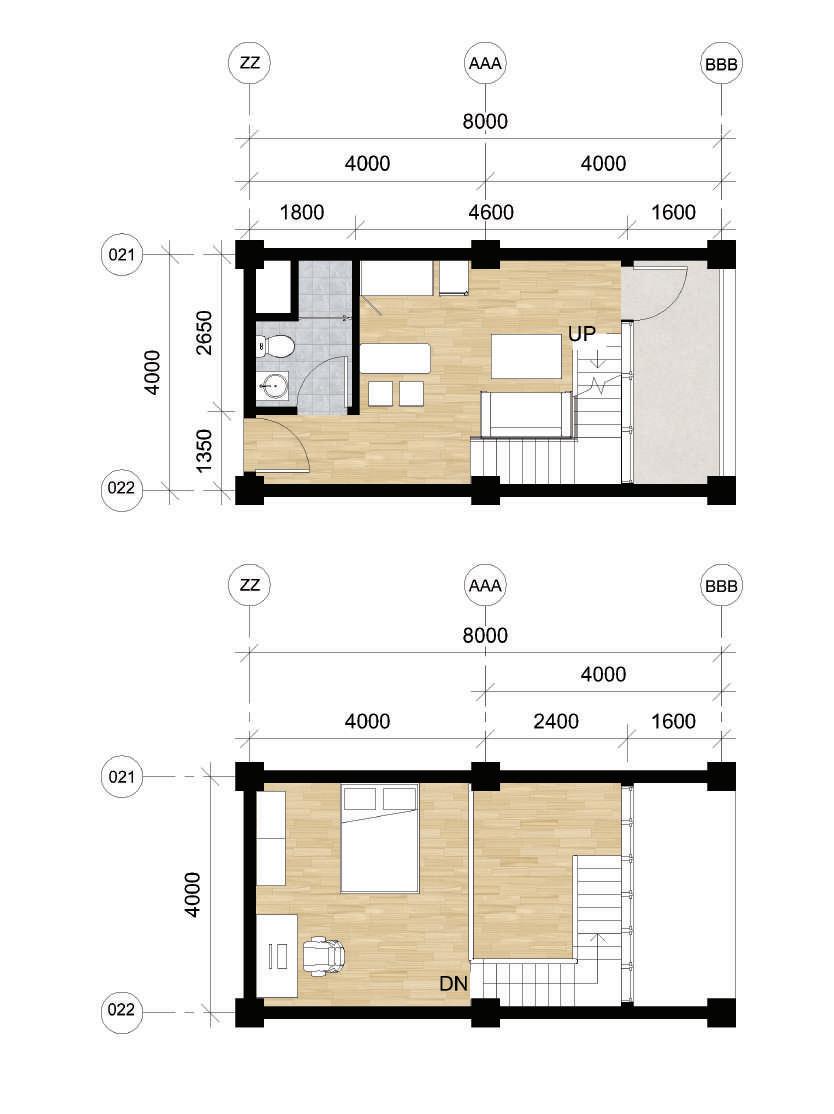

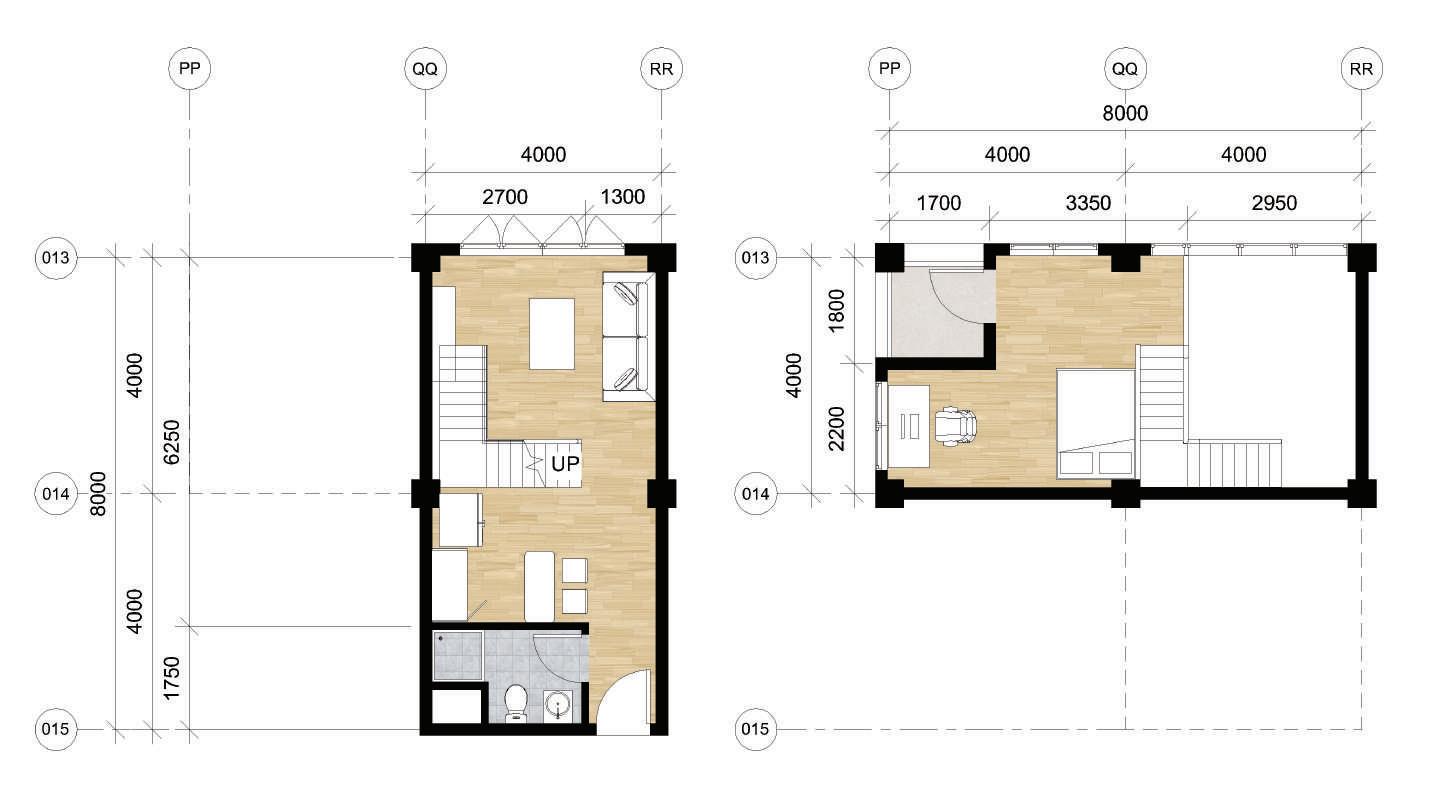

EAST ELEVATION scale 1:500 NORTH ELEVATION scale 1:500 S1 Duplex Type 1st Floor Plan scale 1:100 S1 Duplex Type 2nd Floor Plan scale 1:100 S2 Duplex Type 1st Floor Plan scale 1:100 S2 Duplex Type 2nd Floor Plan scale 1:100 Z Duplex Type 1st Floor Plan scale 1:100 Z Duplex Type 2nd Floor Plan scale 1:100 GG Mixed-Used Condominium Bannaporn Ubonsaen 63120500020 STUDIO YEAR 3/2 INSTRUCTOR : MICHAEL PARIPOL TANGTRONGCHIT

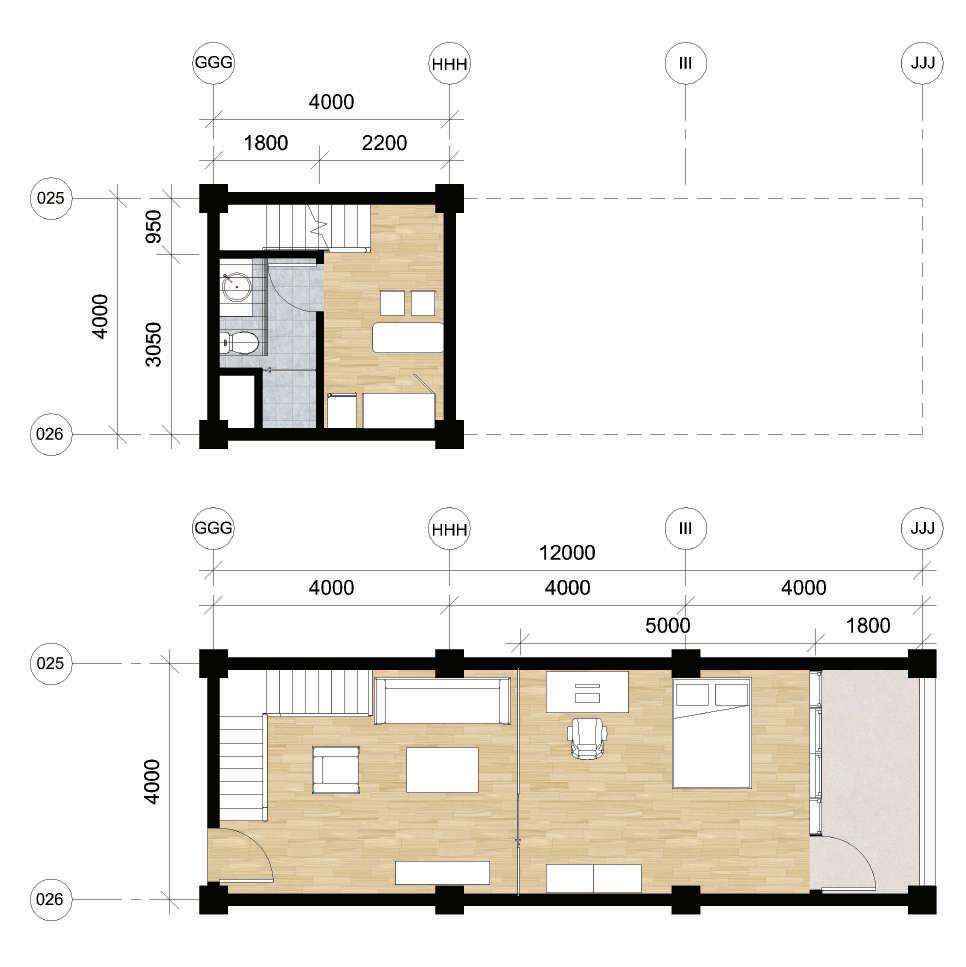

WEST ELEVATION scale 1:500 SOUTH ELEVATION scale 1:500 Square Duplex Type 1st Floor Plan scale 1:100 Square Duplex Type 2nd Floor Plan scale 1:100 L1 Duplex Type 1st Floor Plan scale 1:100 L1 Duplex Type 2nd Floor Plan scale 1:100 L2 Duplex Type 1st Floor Plan scale 1:100 L2 Duplex Type 2nd Floor Plan scale 1:100 GG Mixed-Used Condominium Bannaporn Ubonsaen 63120500020 STUDIO YEAR 3/2 INSTRUCTOR : MICHAEL PARIPOL TANGTRONGCHIT
