Professional + Academic Projects

BA REUM SON Collective Works / 2020 - 2024

PORTFOLIO

Testing Ponds Habitat Forum, 2023

Table of Contents

04

UH DOWNTOWN: GATOR EXPANSION

12

PRAIRIE VIEW A&M DESIGN PROPOSAL

18

HARRIS COUNTY CSCD RECEPTION CENTER

24

EMANCIPATION EDUCATION CENTER

34

REGENERATING WASTE STOP

University campus building Houston, TX | 2024

University campus building Prairie View, TX | 2023

Corrections Office Atascocita, TX | 2025

Black history education center Houston, TX | Fall 2021

Plastic recycling facility Brady Island,TX | Fall 2020

Project | UHD Gator Expansion

01

Ba Reum Son

UH DOWNTOWN GATOR EXPANSION TYPE

EDUCATION

UHD Gator Expansion; Campus expansion and renovation for University of HoustonDowntown. In partnership with RDLR Architects, interior and department programming will be re-located for easier wayfinding. In addition to interior renovation, an expansion of a 4th floor

4

LOCATION

HOUSTON, TX

YEAR

2026

will be newly constructed on the existing roof of the Girard St. Building (GSB). Current UHD campus compromises of 3 separately built buildings that is only connected altogether on the 3rd level. Newly constructed 4th floor will be designed to interconnect all buildings.

Collective Works

UHD Gator Expansion | Project

5

Project | UHD Gator Expansion

Ba Reum Son

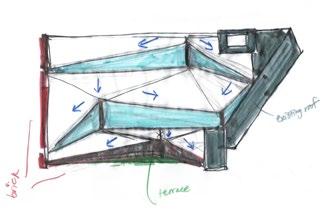

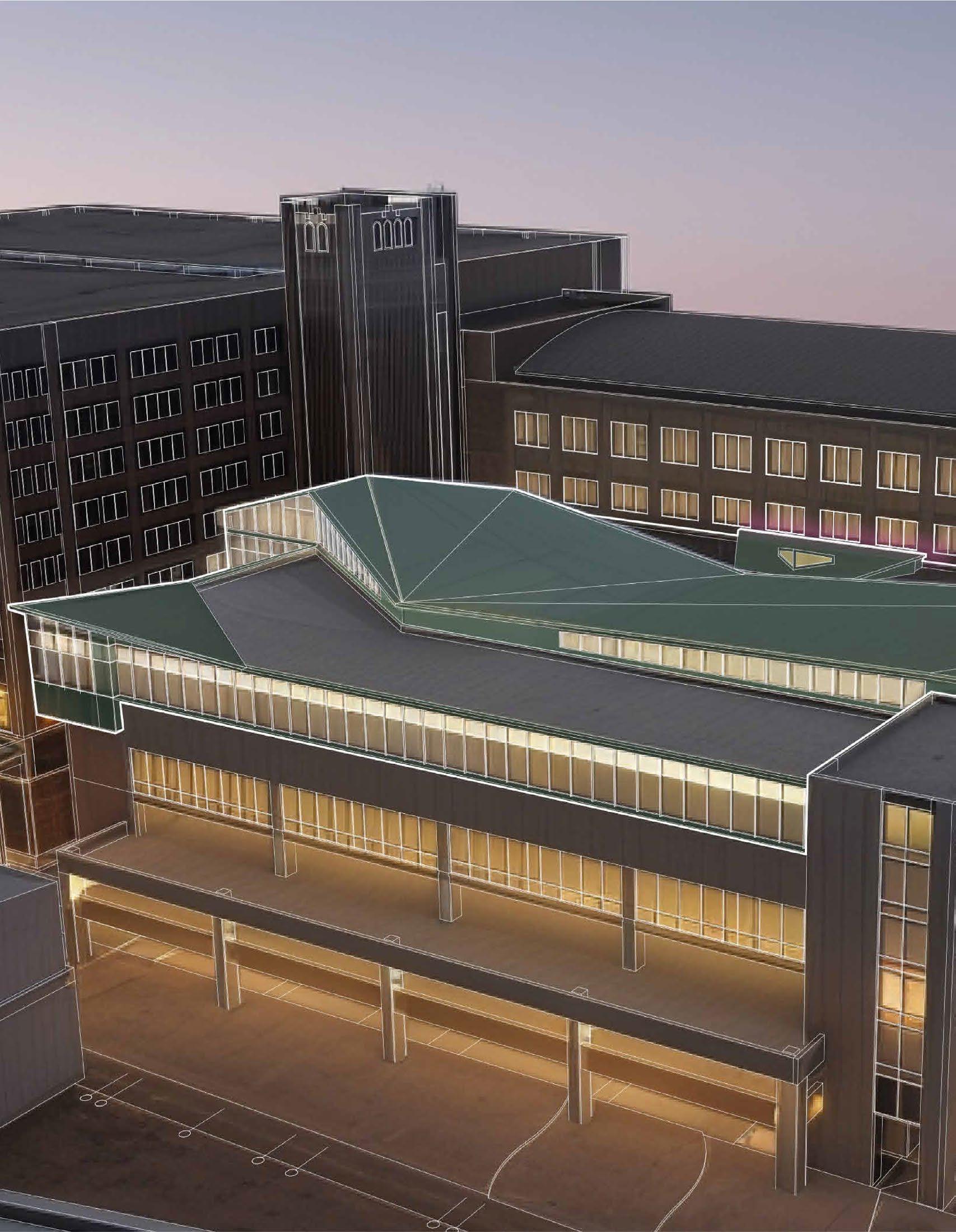

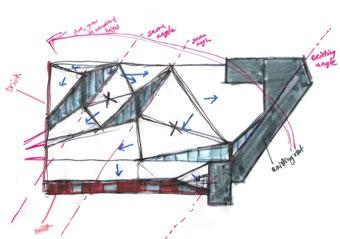

Gator Expansion Design inspiration is taken from UHD alligator mascot sun-bathing to present as a campus statement piece. Roof volume is sculpted by

pushing and pulling to form an alligator body structure and complimented with high-reflective metal standing seam roof to add shine.

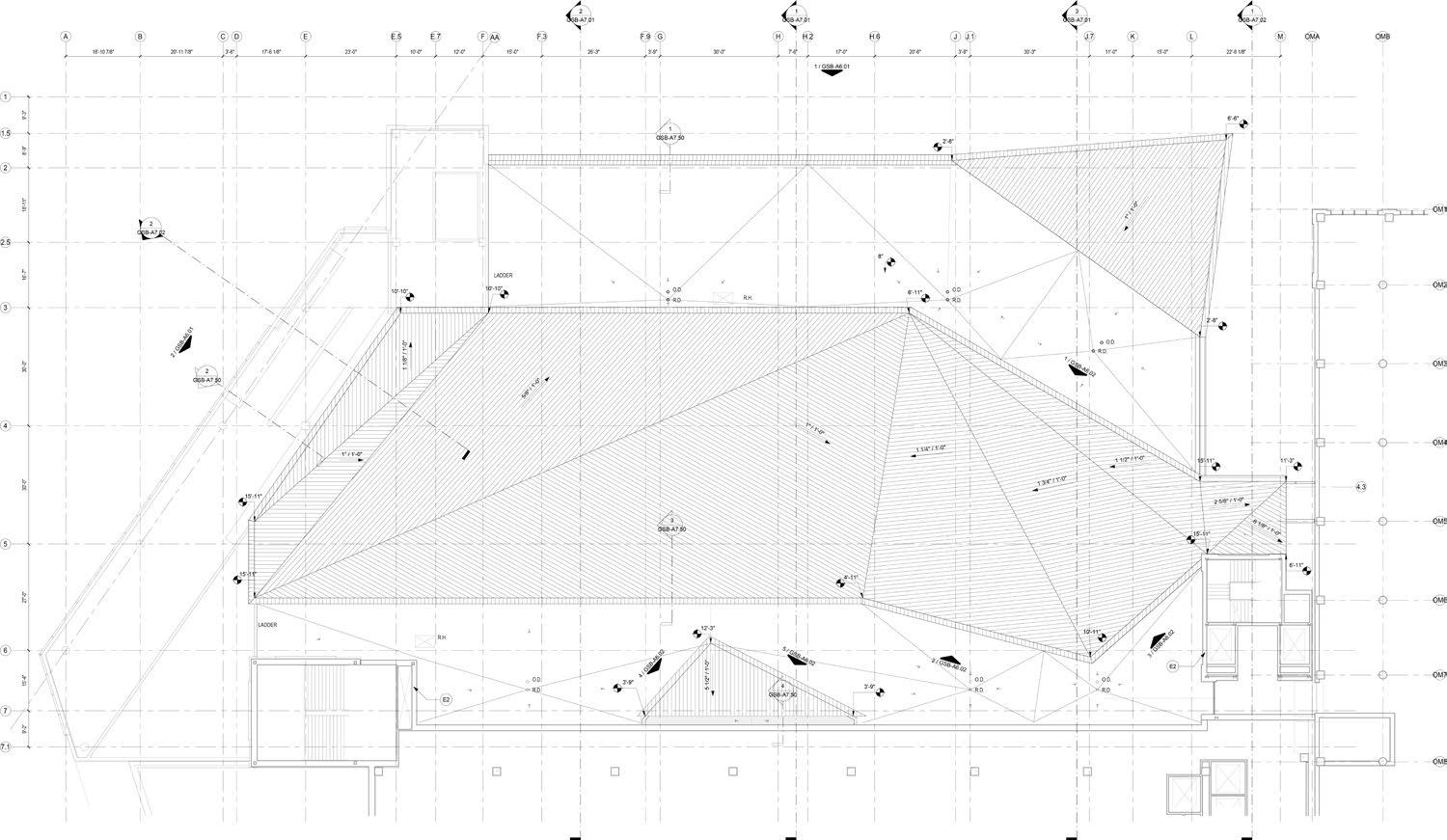

ROOF PLAN

South Lounge 6

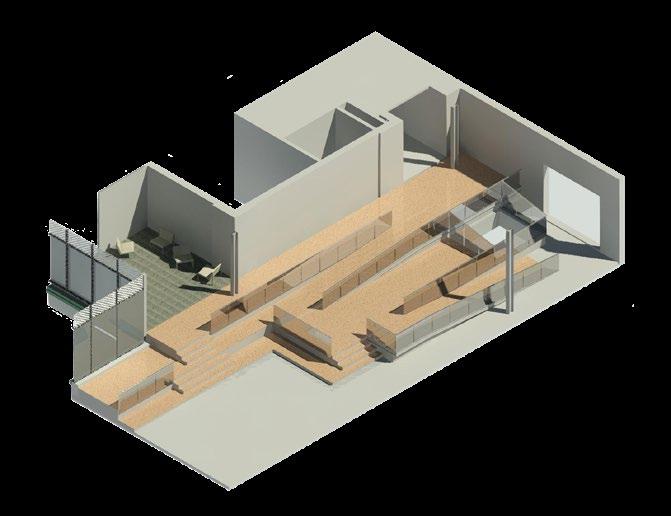

Stair-Ramp @ East Lounge

Collective Works

UHD Gator Expansion | Project

Expansion Floor Programs FINANCIAL AID

STUDENT ACCOUNTING

CASHIER

SUPPORT

SEMINAR ROOM VETERAN SERVICES

STUDENT BELONGING & ADVOCACY

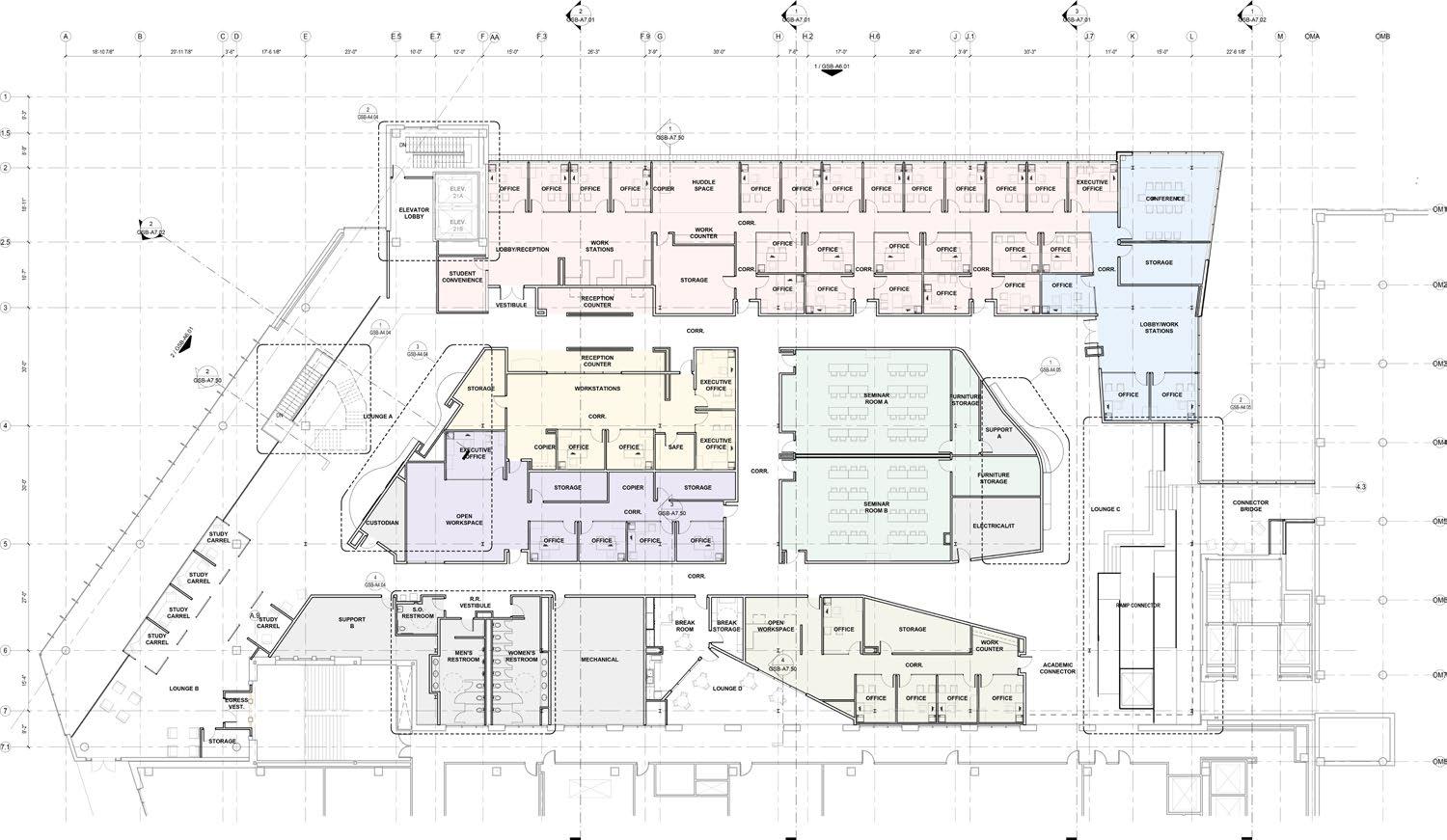

LV. 4 FLOOR PLAN

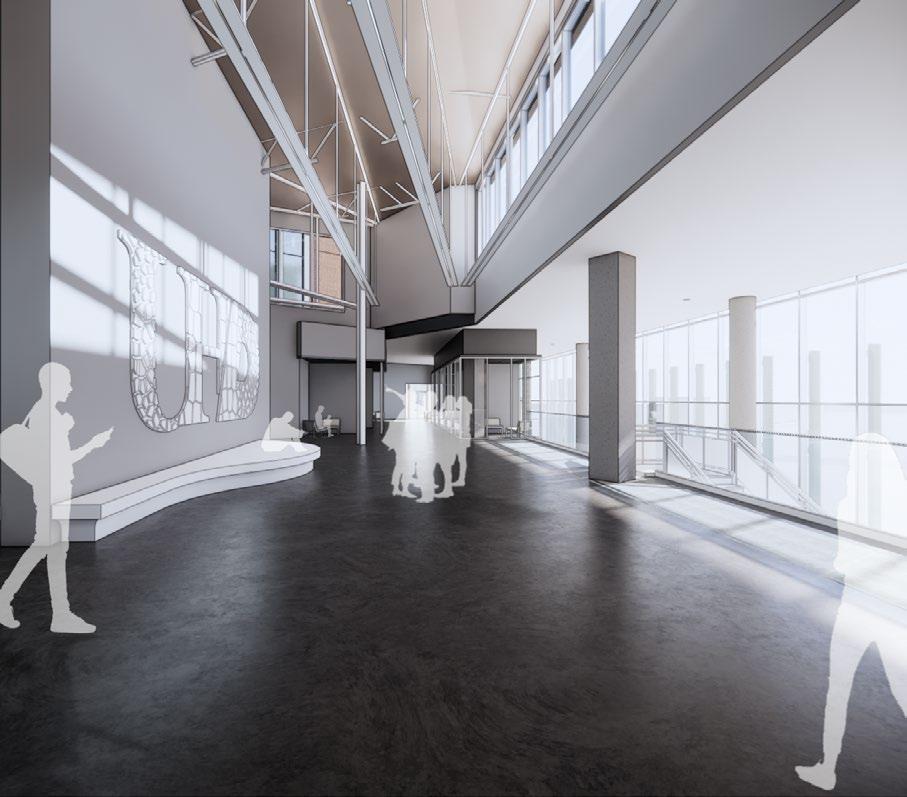

“Alligator Wall” @ East Lounge

West Lounge 7

Project | UHD Gator Expansion

Ba Reum Son

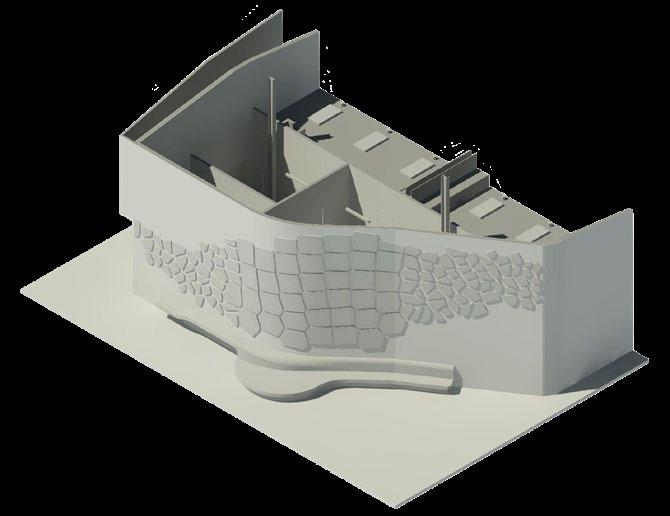

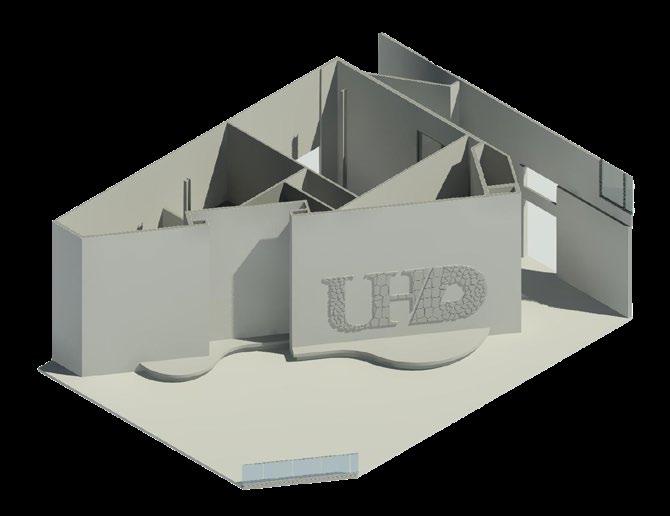

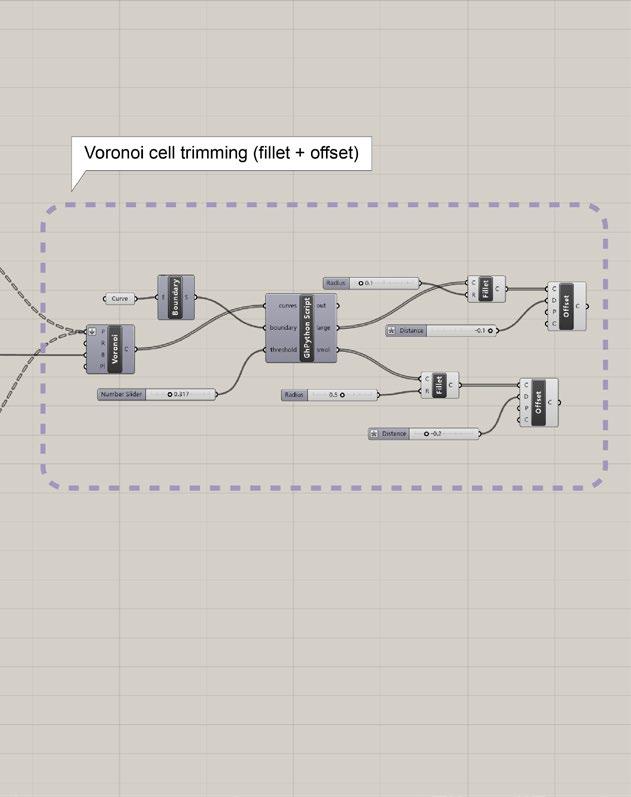

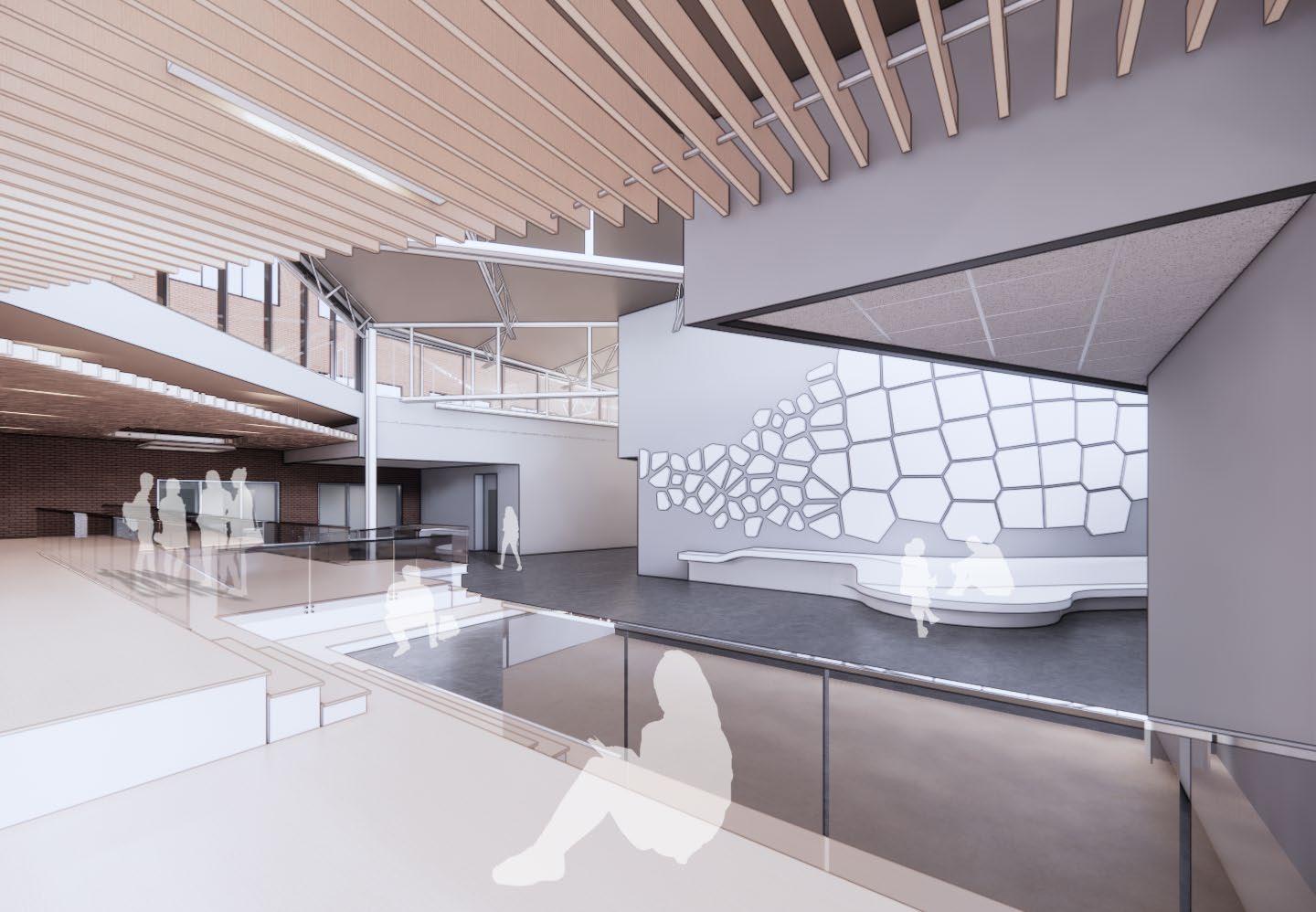

Computational Design & Scripting The new expansion floor features parametric design walls inspired by the skin texture of an alligator which is the mascot for the UHD to infuse the university identity into the

architecture. Parametric modeling for the design walls was done through Rhino/Grasshopper using mainly two-step methods of manipulating Voronoi pattern and PopulateGeometry.

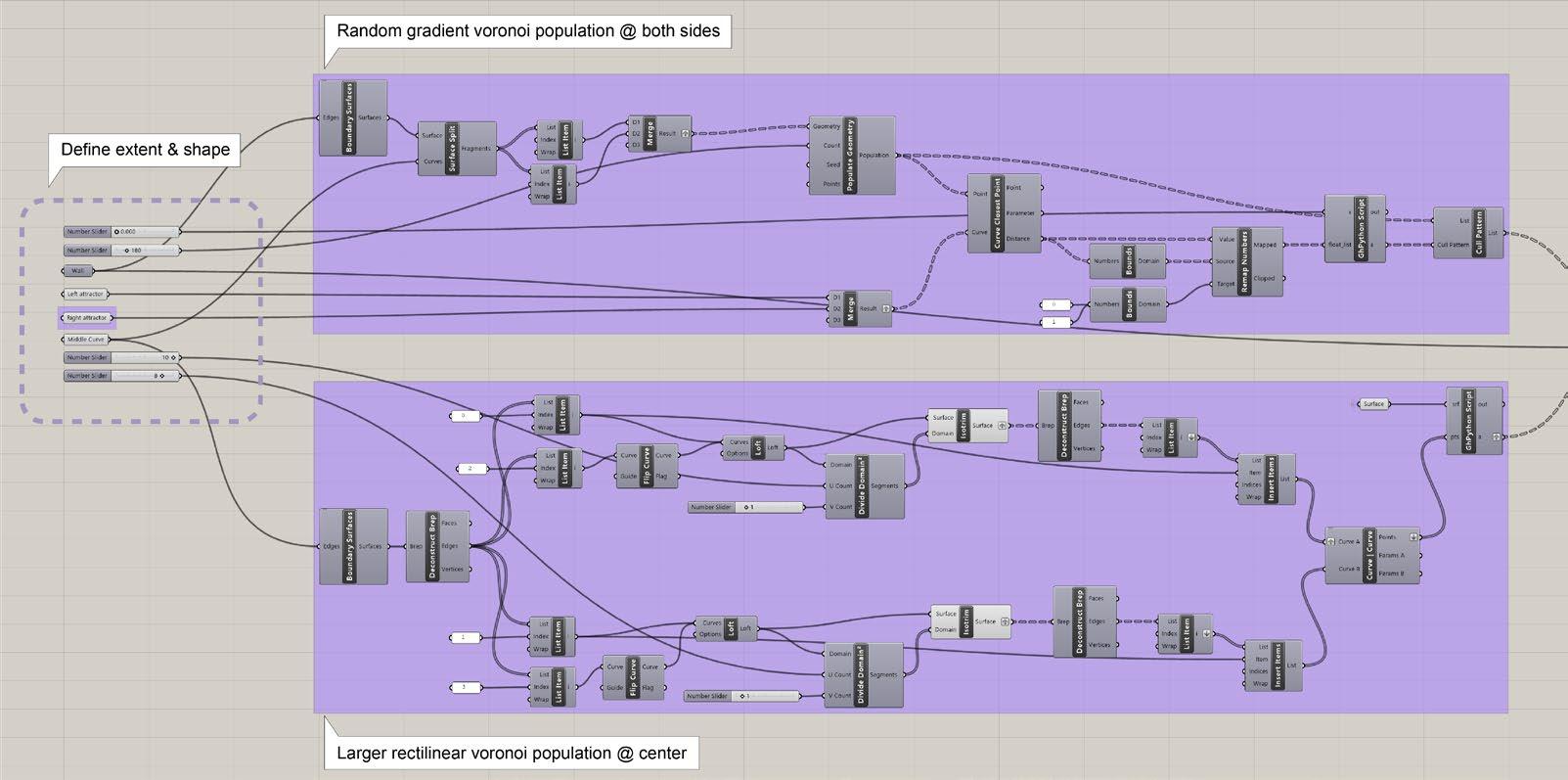

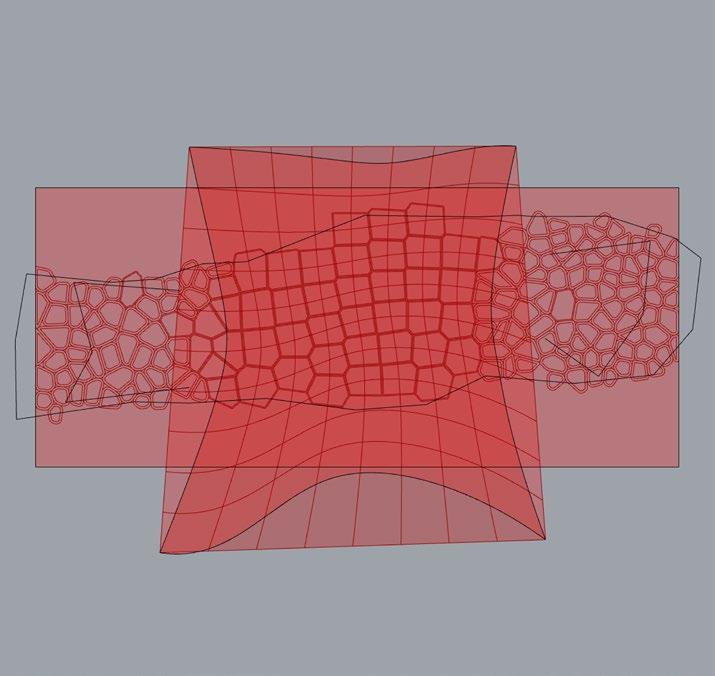

Grasshopper: ‘Voronoi’ + ‘PopulateGeometry’

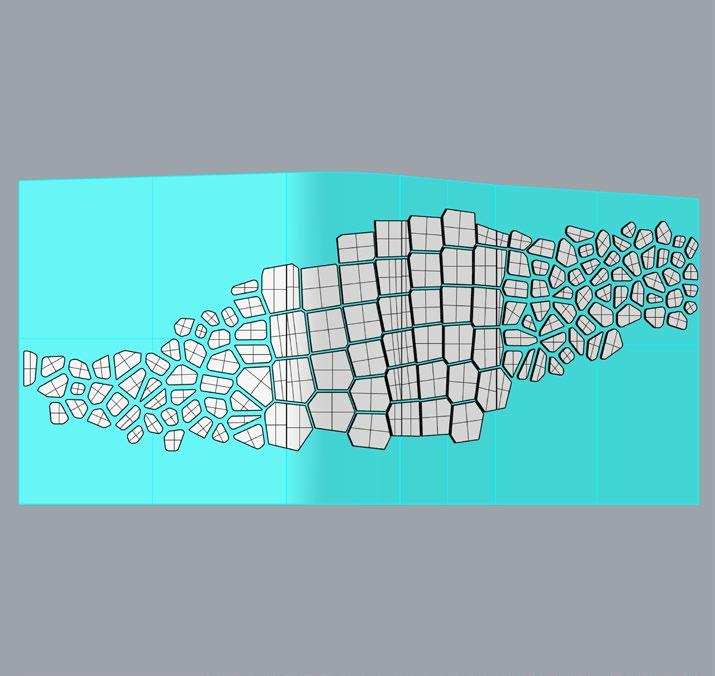

Voronoi design ‘FlowAlongSrv’ on curved wall

8

Collective Works

UHD Gator Expansion | Project

9

Project | UHD Gator Expansion

10

Ba Reum Son

Collective Works

UHD Gator Expansion | Project

11

Project | PVAMU Design Competition

02

Ba Reum Son

PRAIRIE VIEW A&M DESIGN PROPOSAL TYPE

EDUCATION

PVAMU New Student Center; Prairie View A&M will be building a new mixed-use student center at a site in between academic and recreational buildings. In support of programming and site analysis document provided by CannonDesign, two main design

12

LOCATION

PRAIRIE VIEW, TX

YEAR

2023

proposals were developed to enter for consideration and qualification review.

Historically brick and simple forms, the proposed designs will diversify the architectural scene of the university campus and contribute to the upbringing of newer, modern buildings.

Collective Works

PVAMU Design Competition | Project

13

Project | PVAMU Design Competition

Ba Reum Son

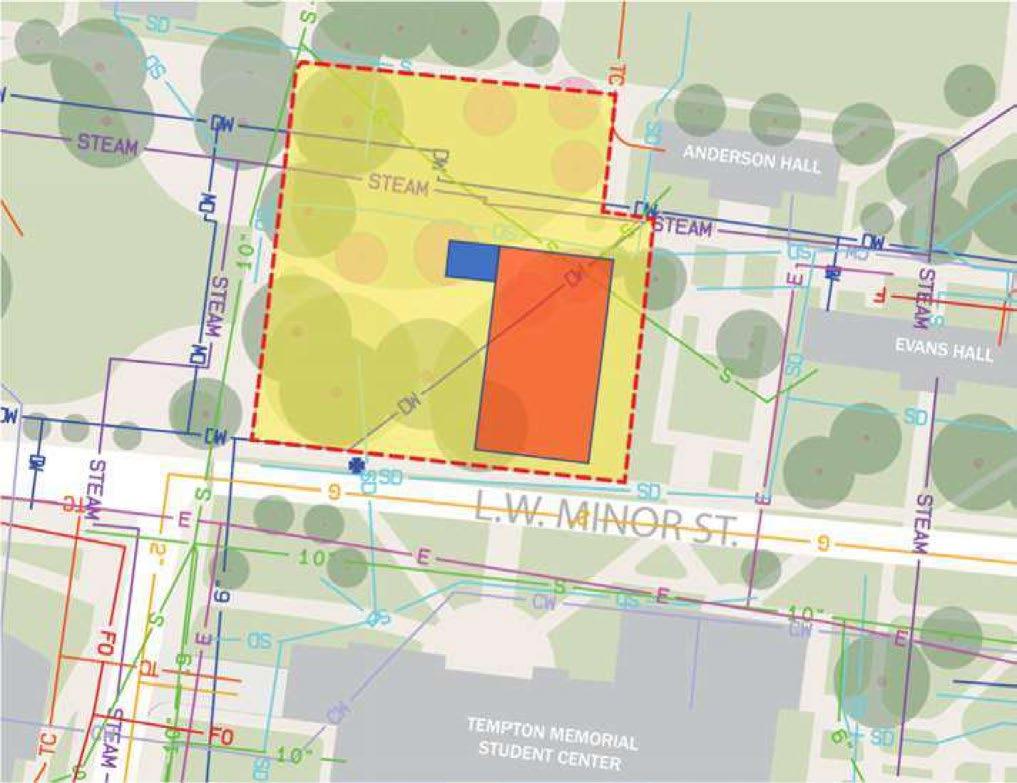

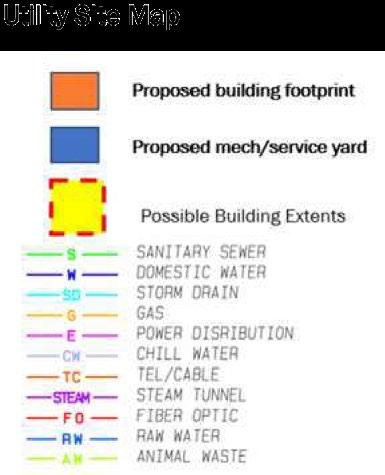

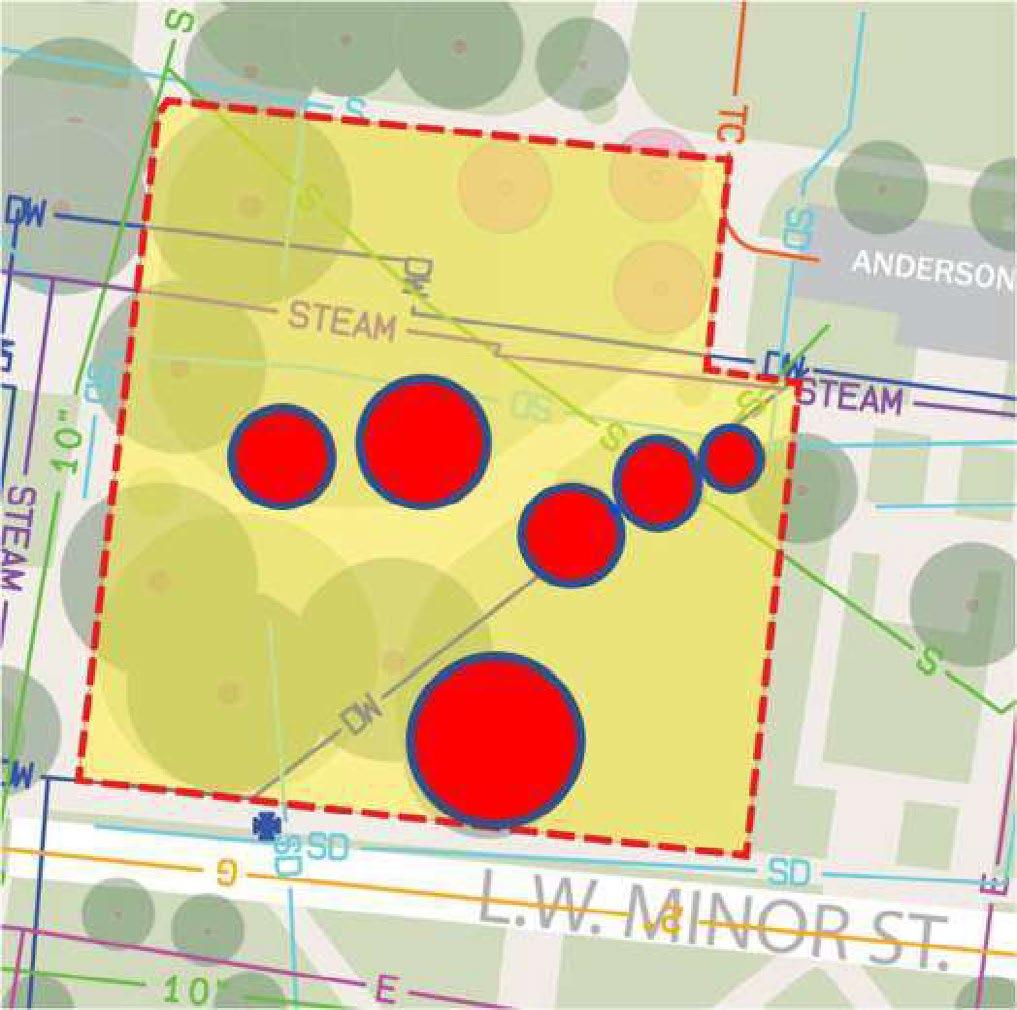

Site Constraints Building site currently has large grown trees to the West that will remain untouched. Smaller, medium-sized trees (colored in red) will be removed to make space for construction. Utility lines running through the site further constrains building footprint and area on ground and sets the boundary on how to locate and position building on the land.

14

Collective Works

PVAMU Design Competition | Project

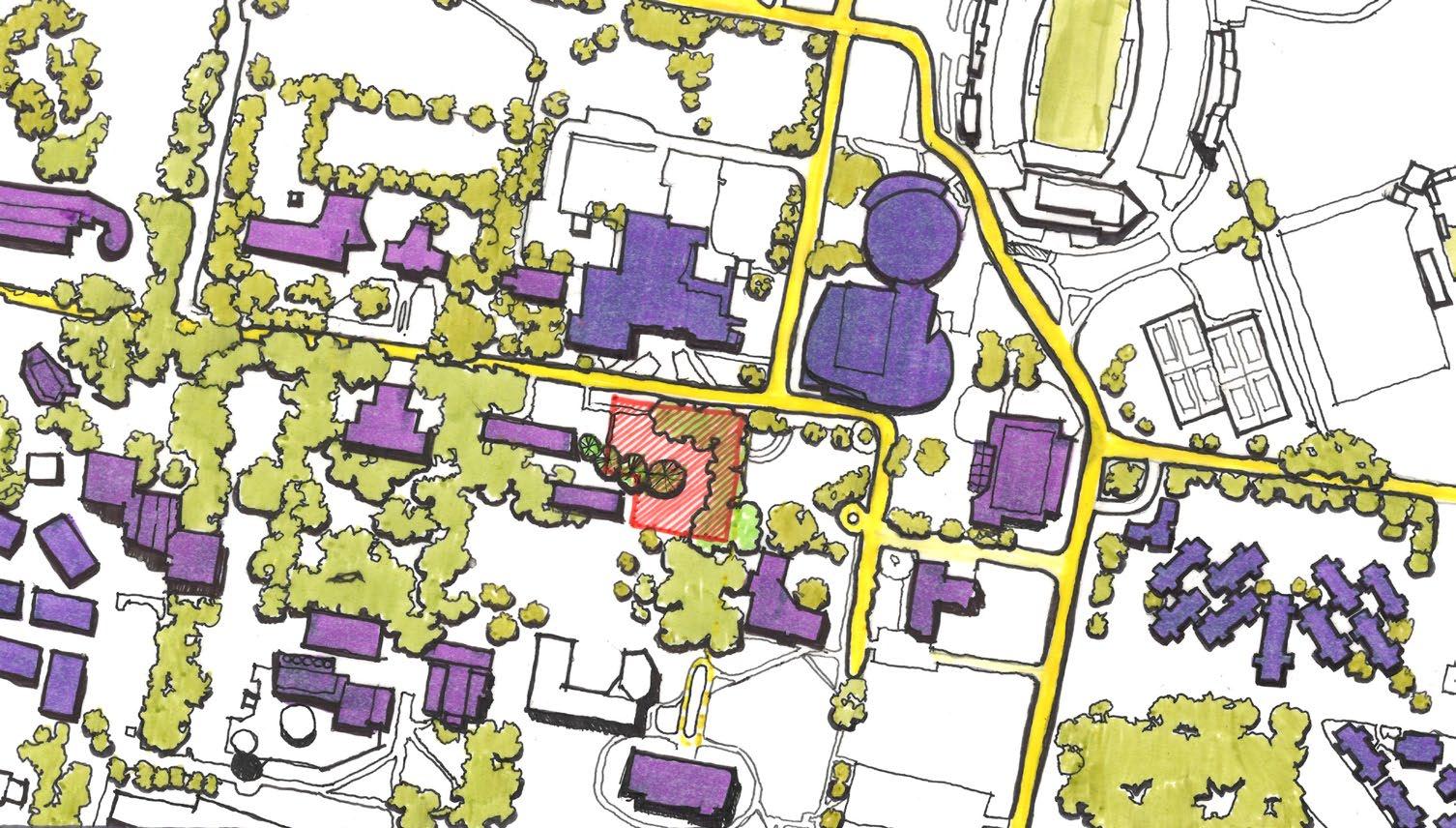

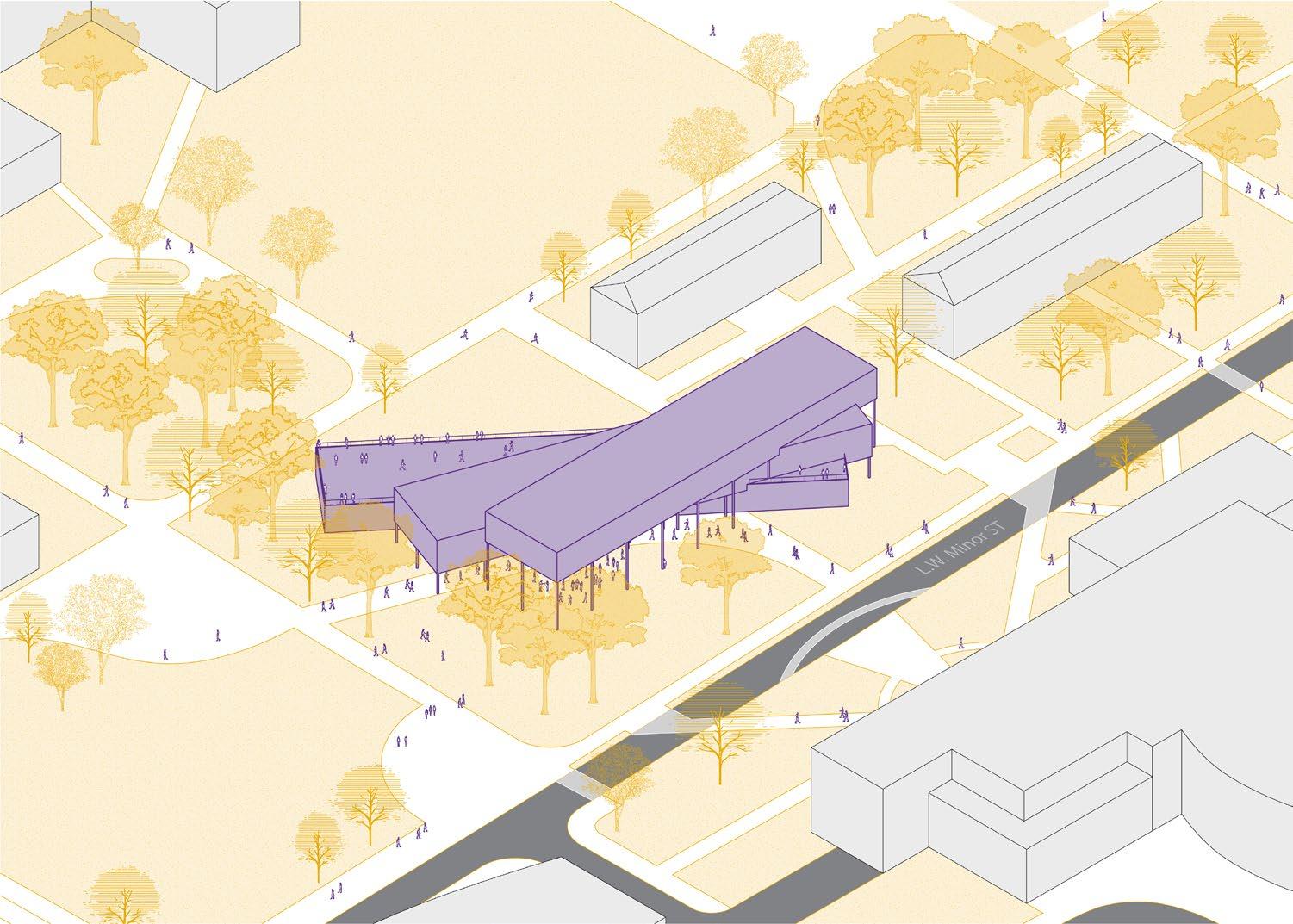

SITE CONTEXT- BUILDINGS & TREES

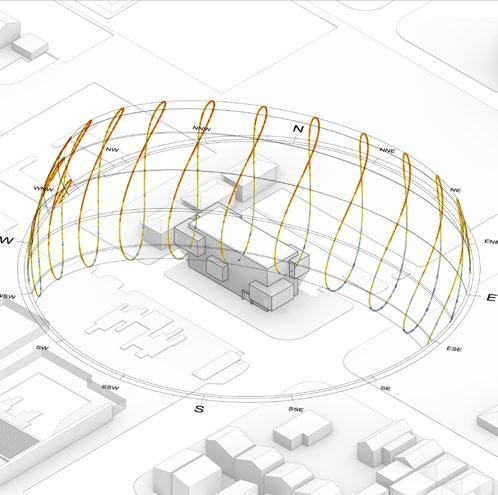

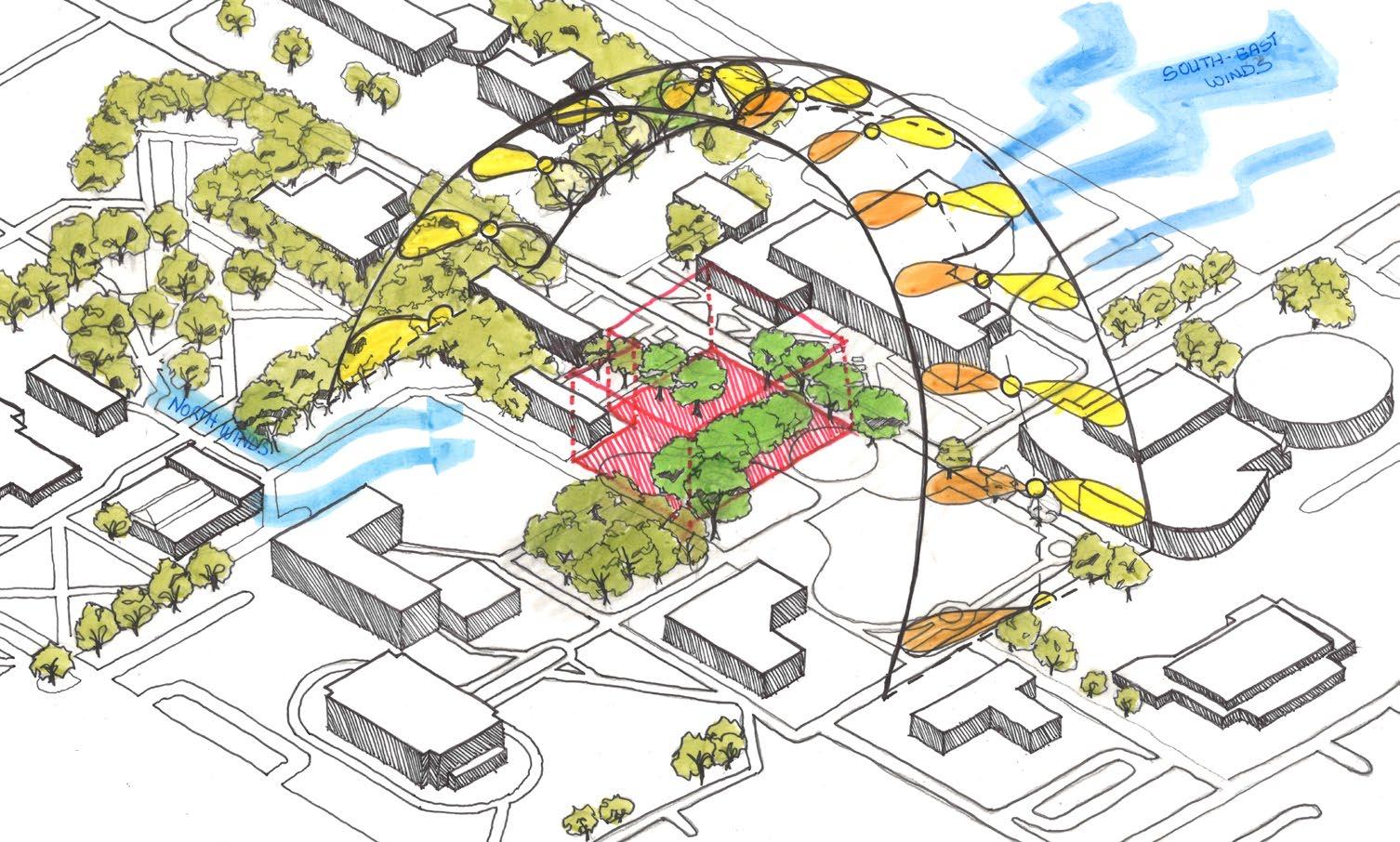

SOLAR ANALYSIS 15

Project | PVAMU Design Competition

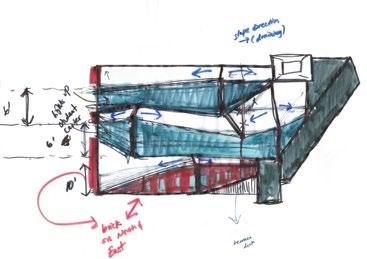

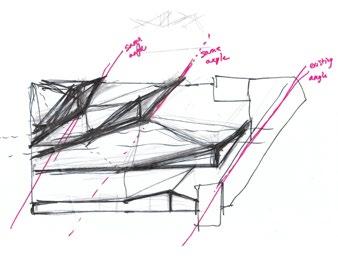

Design #1: Tilt & Tier

16

Ba Reum Son

Collective Works

PVAMU Design Competition | Project

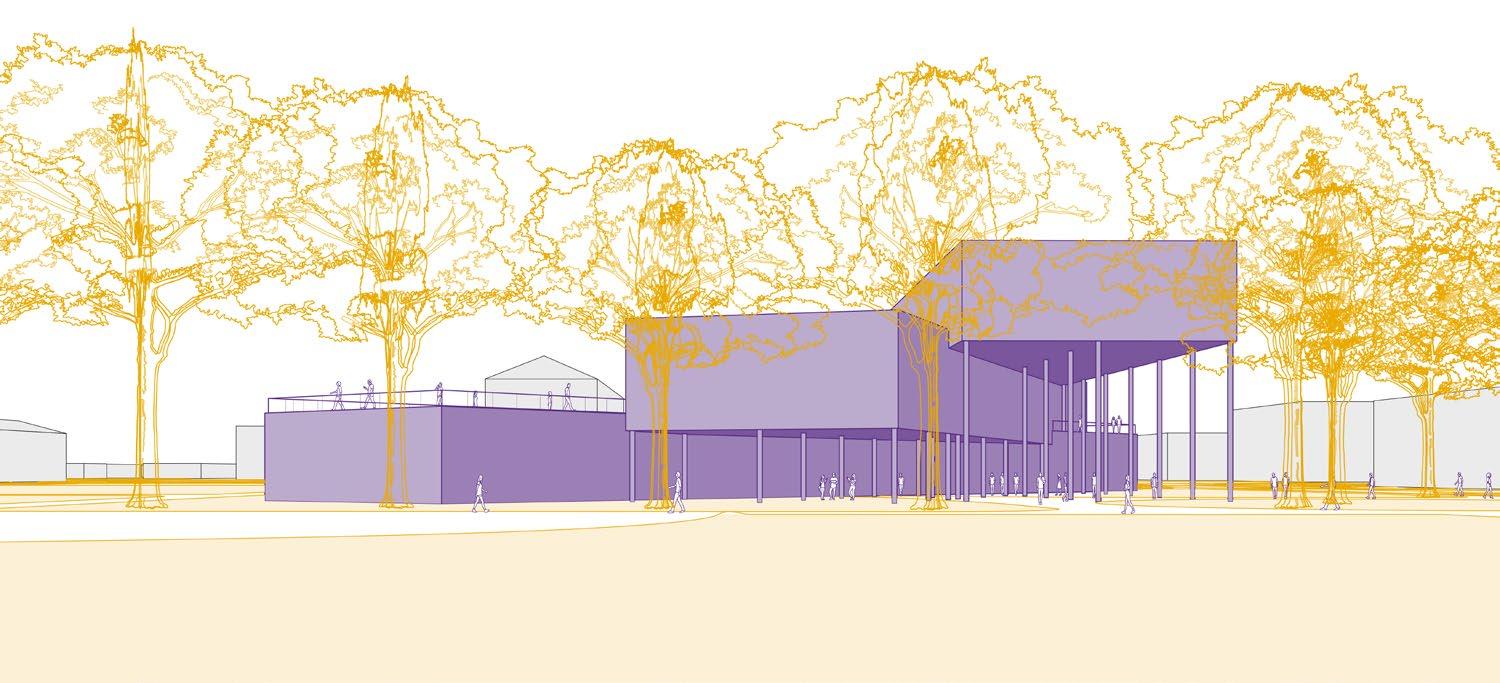

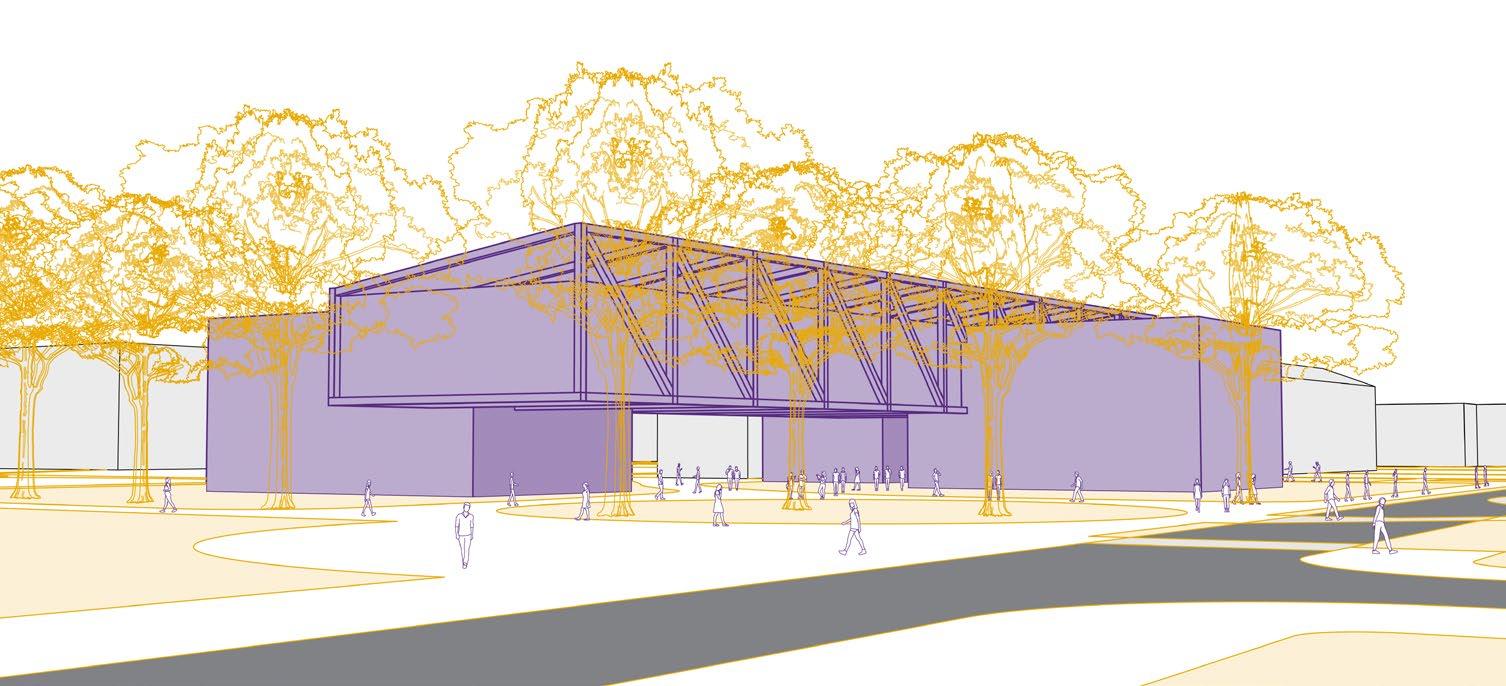

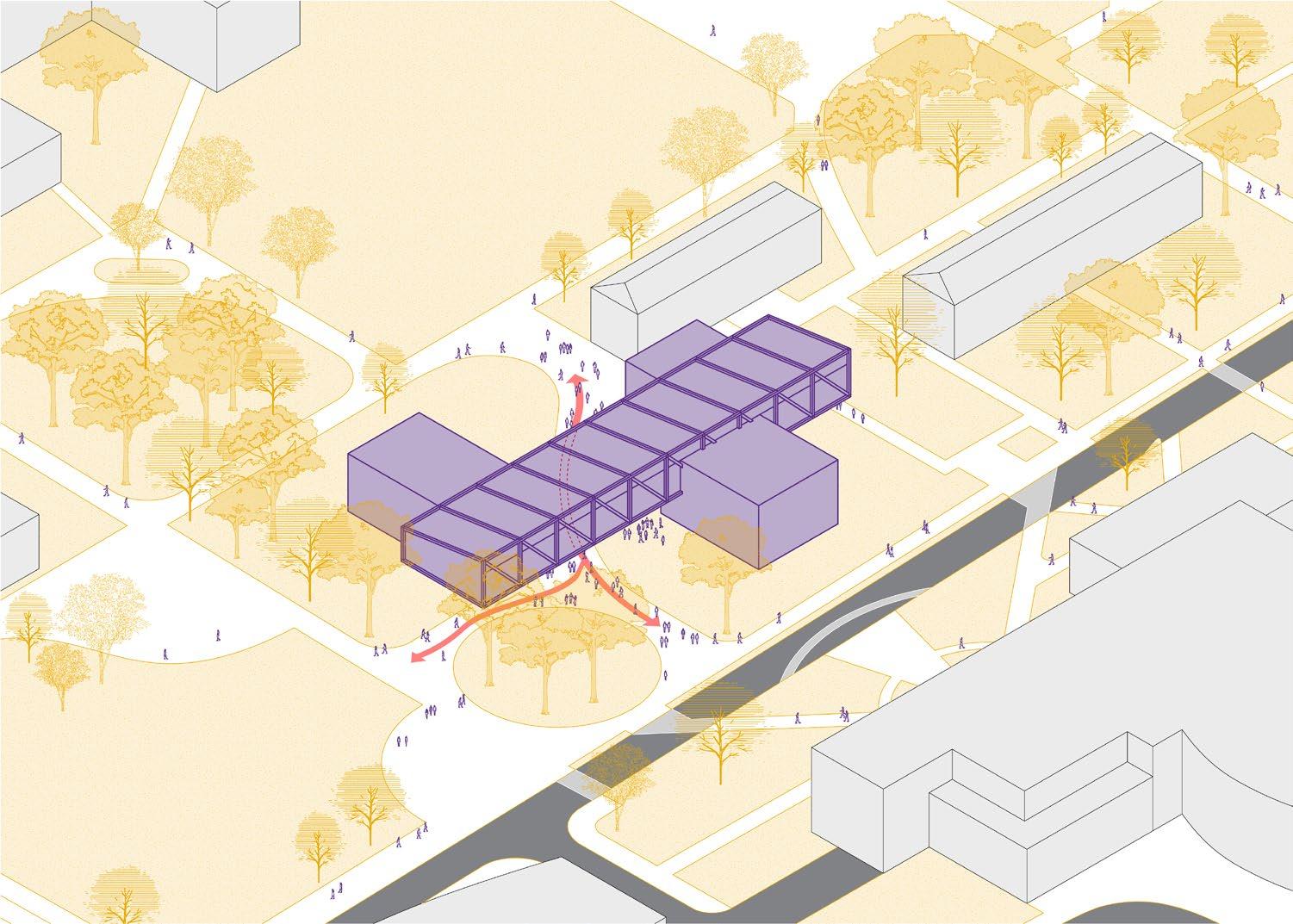

Design #2: Elevated Bar

17

Project | HARRIS COUNTY CSCD

03

Ba Reum Son

HARRIS COUNTY CSCD RECEPTION CENTER TYPE

CIVIC

CSCD Reception Center; Final phase 5 of the new CSCD for Harris County is the Reception Center that will intake new clients, hold visitations, run counseling and work sessions, and accomodate employee space. The reception building is a pre-engineered metal building that is largely divided into North and South wing. The North wing houses public and

18

LOCATION

ATASCOCITA, TX

YEAR

2025

employee activities such as intake, visitation, and secured employee locker and break room.

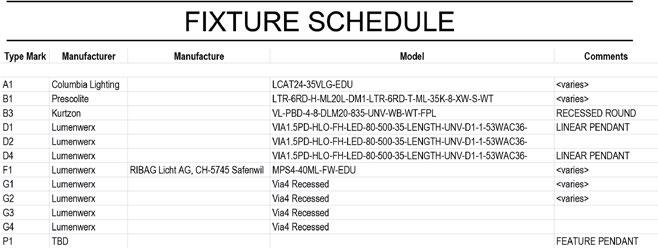

The South wing house counseling rooms and work stations. Wood finishes and intricate lighting design in ceiling and interiors were put at public and engaging spaces shown through the reflected ceiling plans and the corresponding ceiling section details.

Collective Works

Harris County CSCD | Project

19

Project | HARRIS COUNTY CSCD

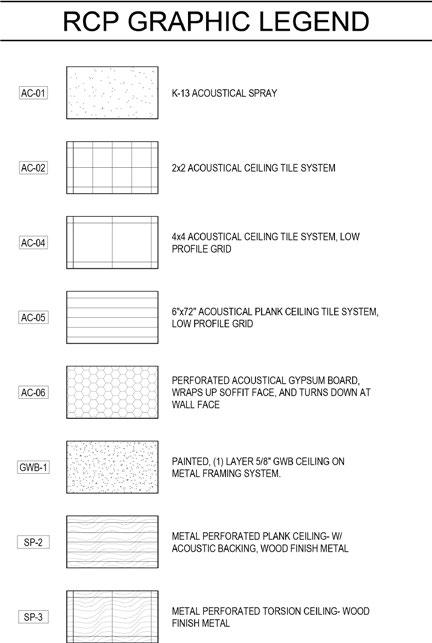

Reflected Ceiling Plan

OVERALL REFLECTED CEILING PLAN - NORTH WING

OVERALL REFLECTED CEILING PLAN - SOUTH WING 20

Ba Reum Son

Collective Works

Harris County CSCD | Project

Ceiling Design & Details

ENLARGED RCP @ WORK STATIONS

ENLARGED RCP @ CONFERENCE ROOM

3/5A5.10 - SOFFIT CEILING DETAIL @ TRANSITION

1/5A5.10 - DROP DOWN CLOUD CEILING DETAIL

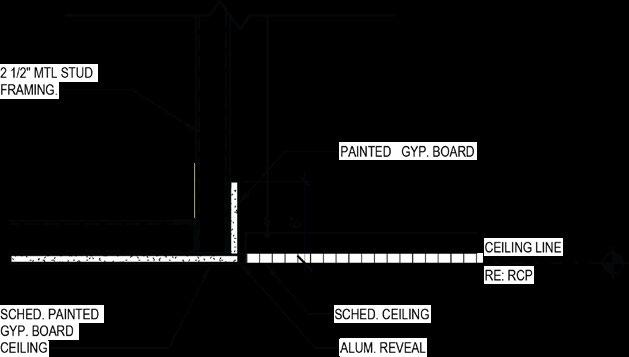

4/5A5.10 - SOFFIT CEILING DETAIL @ TRANSITION 21

Project | HARRIS COUNTY CSCD

Ba Reum Son

ENLARGED RCP @ BREAK ROOM

ENLARGED RCP @ ENTRY & WAITING

7/5A5.11 - FUR DOWN DETAIL 1

FUR DOWN DETAIL 2

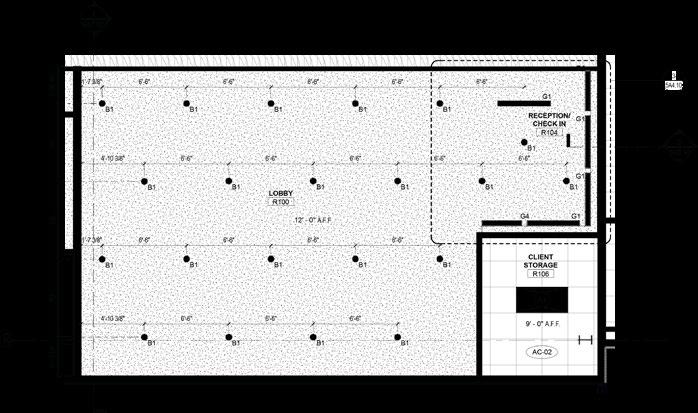

ENLARGED RCP @ LOBBY

2/5A5.10 - COVE LIGHT DETAIL

22

Collective Works

Harris County CSCD | Project

WOOD CEILING SECTION 1

ENLARGED RCP @ VISITATION

WOOD CEILING SECTION 2

6/5A5.11 - ACOUSTIC CEILING DETAIL

8/5A5.11 - GYP. TO WOOD CEILING DETAIL 23

Project | Emancipation Education Center

04

EMANCIPATION EDUCATION CENTER TYPE

EDUCATION

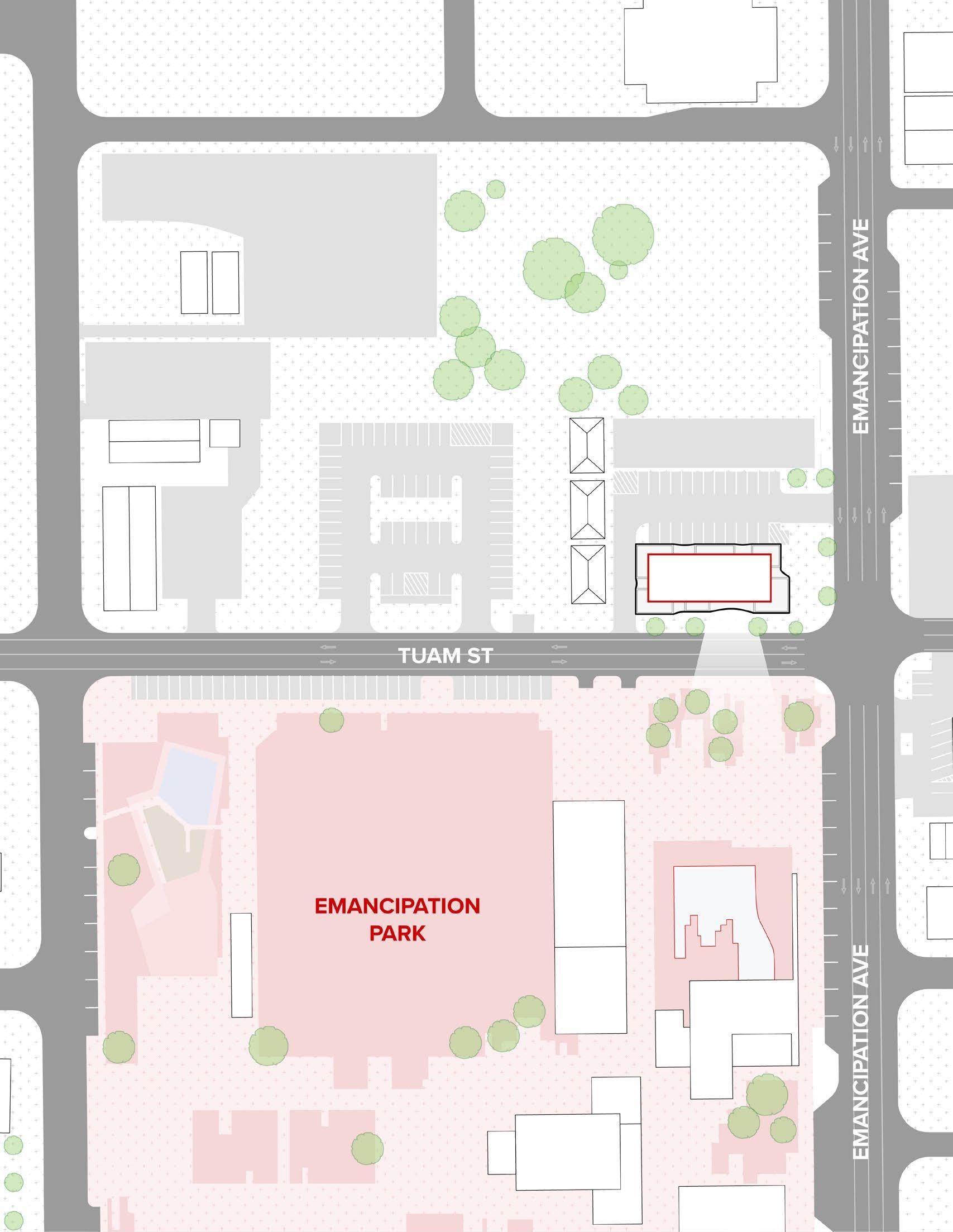

Emancipating Black History; This facility is a multi-use historical, social, and ecological archive that will serve as an orientation place for the public and visiting researchers. At the site of Emancipation Park, stories and historical records that have been gathered in support of

24

Ba Reum Son

LOCATION

THIRD WARD, HOUSTON

YEAR

2021

the significance of the Emancipation National Historic Trail will be studied and researched in the project building. The institution will draw visitors from the Emancipation Park and work in conjuction to develop a greater community devoted to raise awareness of Black history.

Collective Works

Emancipation Education Center | Project

25

Project | Emancipation Education Center

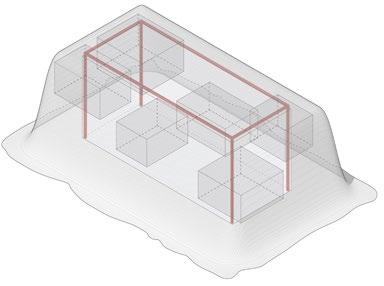

Face of the enslaved The building performs as the face of the enslaved and explicitly surfaces the negative connotation of slavery history that is hushed but needs to be remembered. Blood red emphasis on structure and rigid boney edges of extruding volumes, the architecture depicts a veil masked over a facial figure that is reminiscent of all those who were enslaved and oppressed in the past.

26

Ba Reum Son

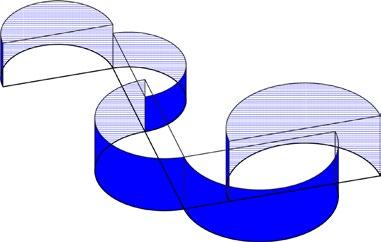

Blood of the enslaved structure

Facial bones program space

Drapery

Tight-fitted veil

Collective Works

Emancipation Education Center | Project

27

Project | Emancipation Education Center

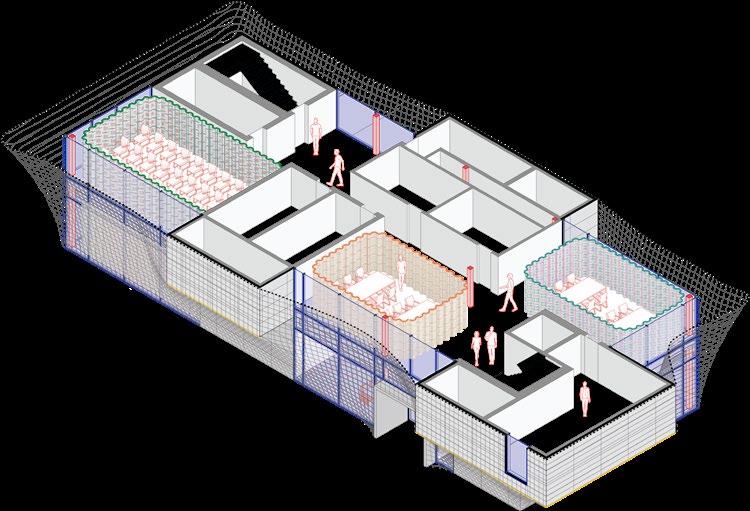

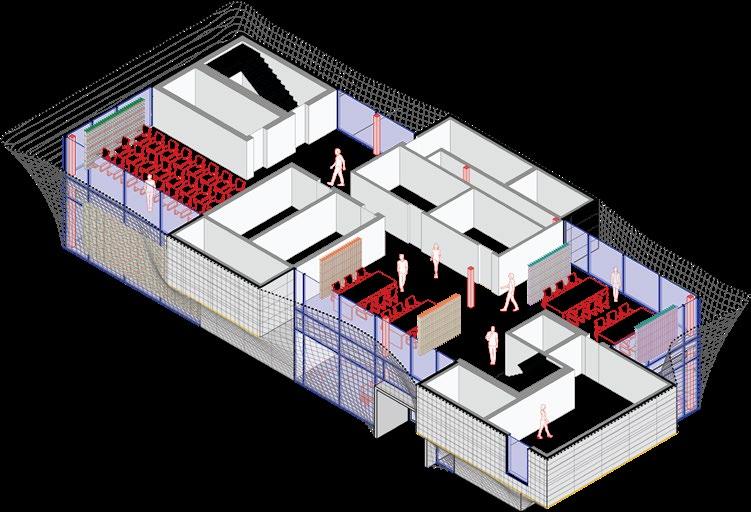

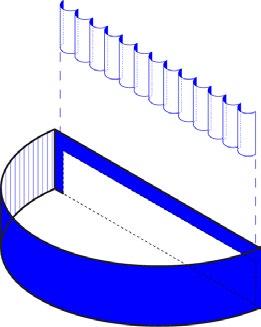

Excluding technical and private spaces that have to be hidden, program spaces are wallfree and uses curtain drapery as spatial dividers 28

Ba Reum Son

when in use. Textile for the interior curtains is made with the same textile of thick, coarse linen cloth that were worn commonly by slaves.

Collective Works

4426 Hours

Emancipation Education Center | Project

2213

40

0

20

0

C

29

Project | Emancipation Education Center

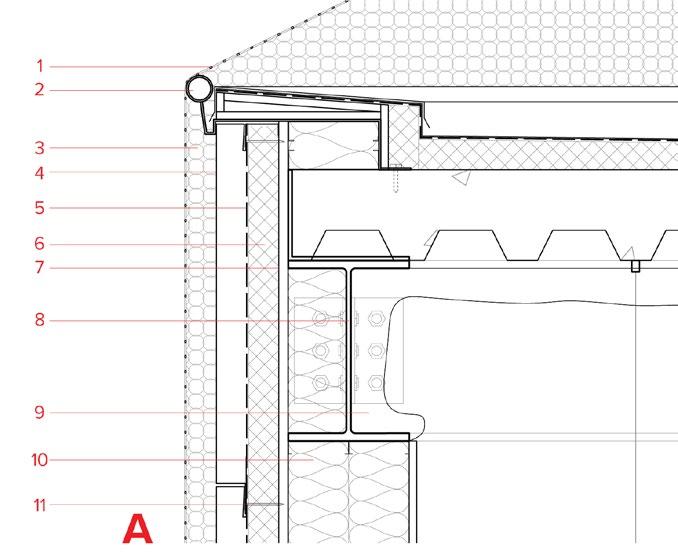

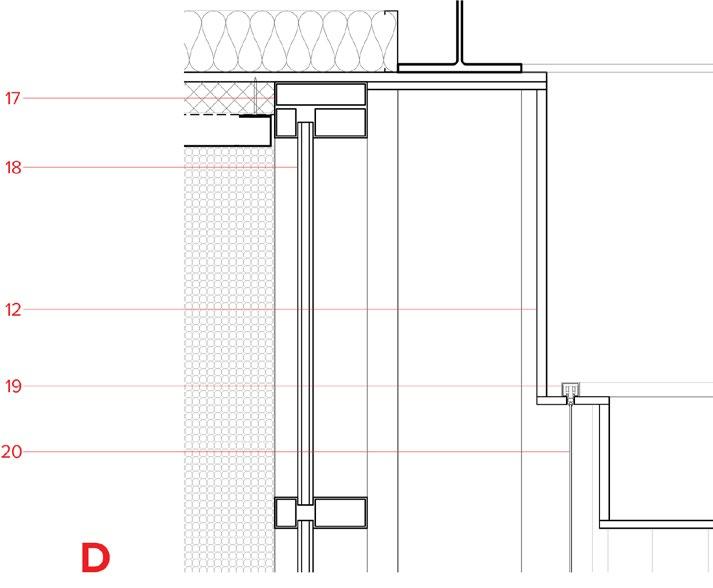

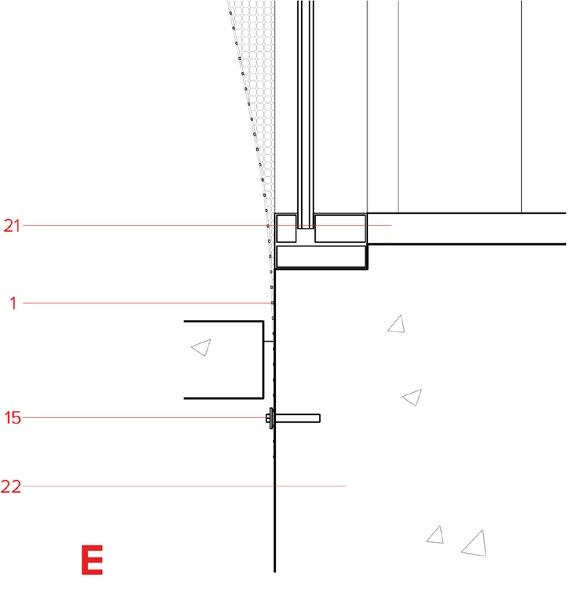

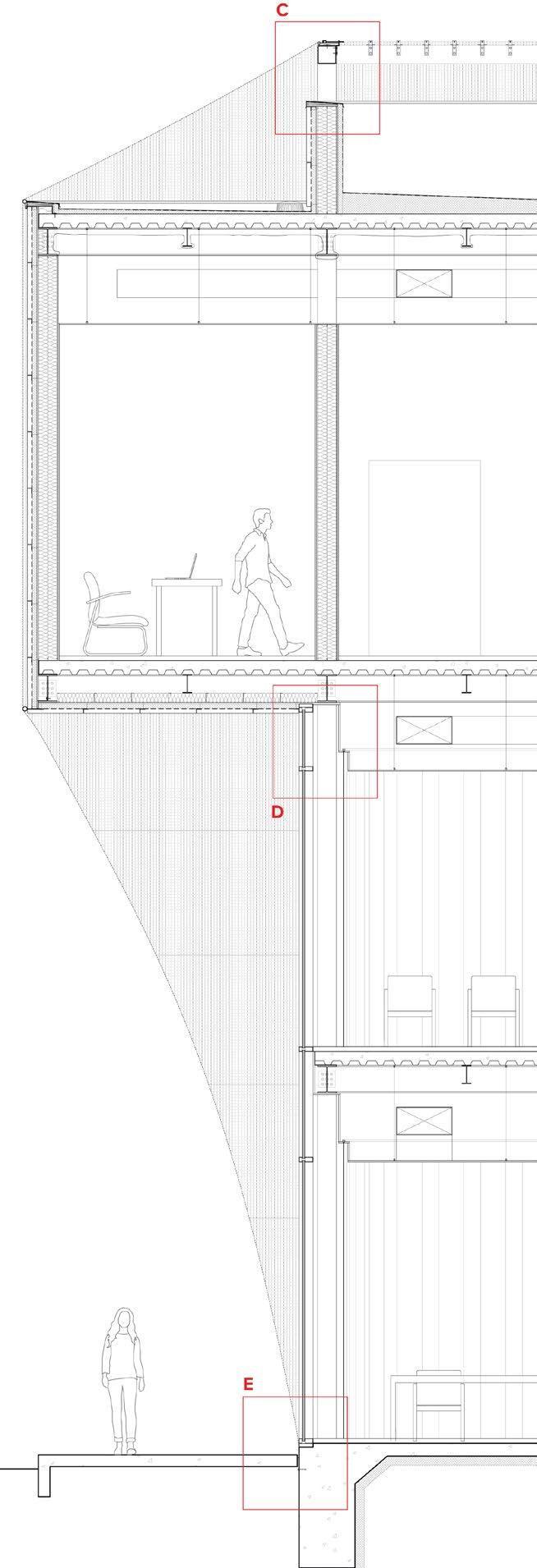

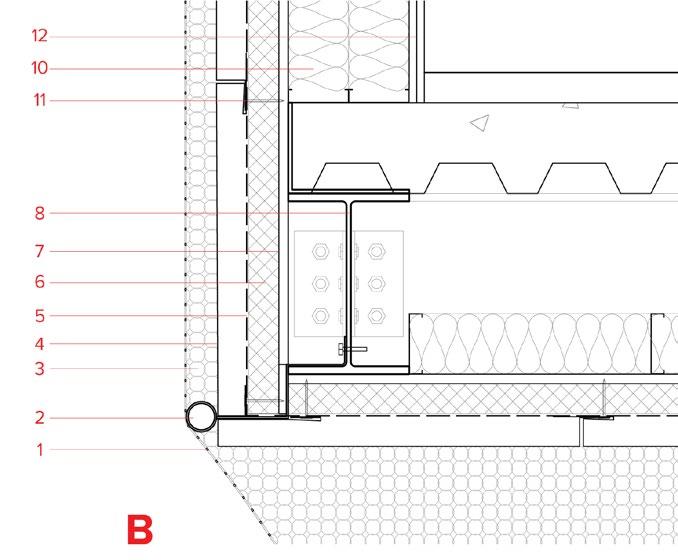

Facade details Circular chainmail stainless metal mesh - flexible to drape over a building due to its geometry.

1. 2” dia. Chainmail ring mesh 2. Steel tie rod 3. Air space 4. Metal cladding panels 5. Vapor barrier 6. Rigid insulation 7. Exterior sheathing 8. Steel wide-flange beam 9. Spray foam insulation 10. Insulation-filled metal studs 11. Fasteners 12. Gypsum board 13. Chainmail mesh clamp 14. Steel HSS beam 15. Steel bolts 16. Steel HSS column 17. Aluminum mullion 18. Double layer glass 19. Recessed curtain track 20. Coarse cloth curtain 21. Topping concrete slab 22. Concrete foundation

30

Ba Reum Son

Collective Works

Emancipation Education Center | Project

31

Project | Emancipation Education Center

32

Ba Reum Son

Collective Works

Emancipation Education Center | Project

33

Project | Regenerating Waste Stop

05

Ba Reum Son

PLASTIC RECYCLING EDUCATION CENTER TYPE

INDUSTRIAL

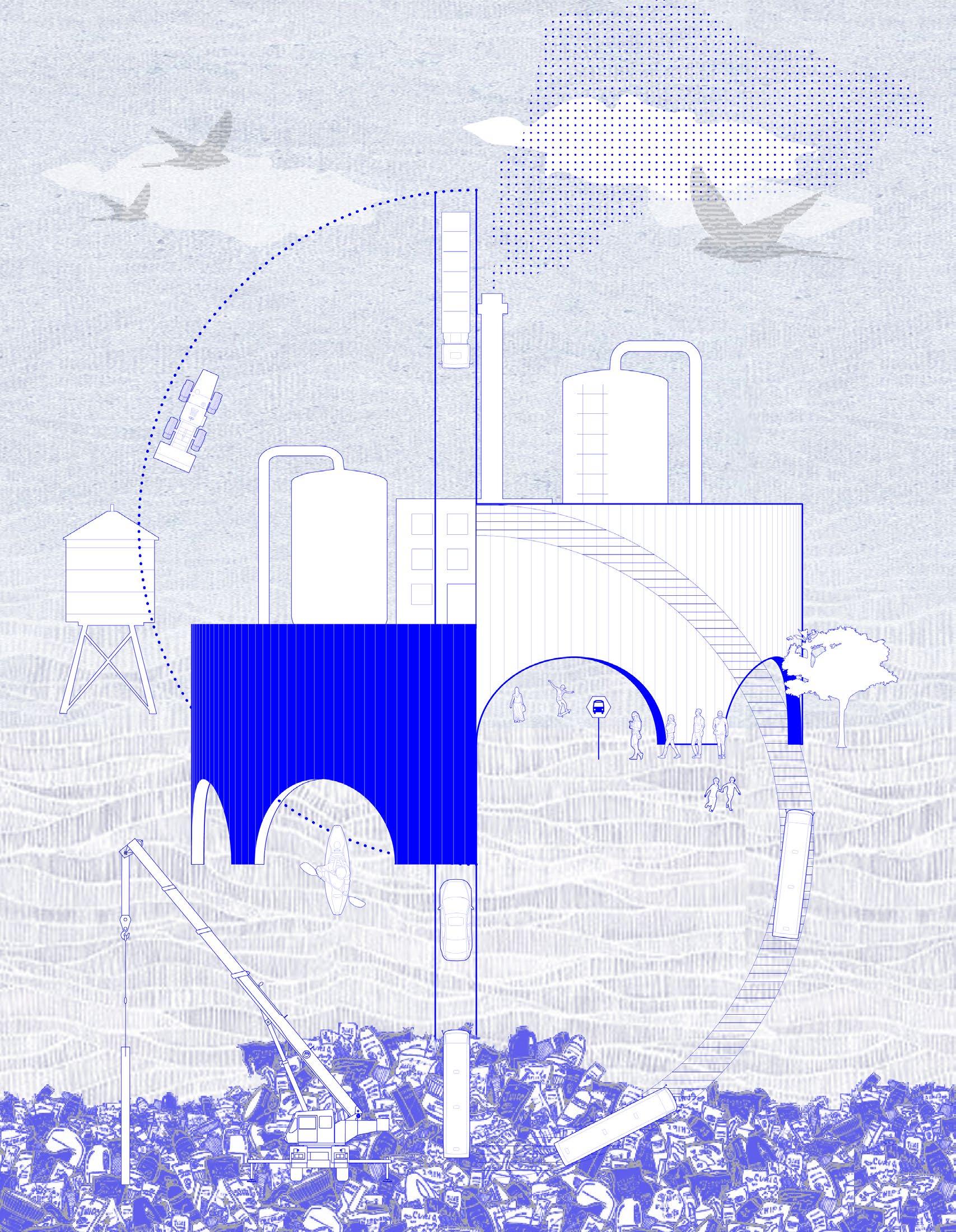

Plastic waste to bus transportation; Millions of barrels, shipped by cargos, parade through Buffalo Bayou every day in Houston. The incoming oil is transformed into a million tons of plastic waste that ironically will flow back into the Gulf, swimming in front of Brady Island.

This project will be a plastic recycling plant + production center that will use the recycled plastic directly gathered from the Buffalo Bayou

34

LOCATION

BRADY ISLAND, TX

YEAR

2020

and the Harrisburg community to make bus window panels and bus stops to support for insufficient public transportation in the Harrisburg community. The plant will have a built-in bus stop area for buses to travel into the island, increasing accessibility for the community residents to visit and for local workers employed at the recycling plant + production center to commute.

Collective Works

Regenerating Waste Stop | Project

35

Project | Regenerating Waste Stop

Ba Reum Son

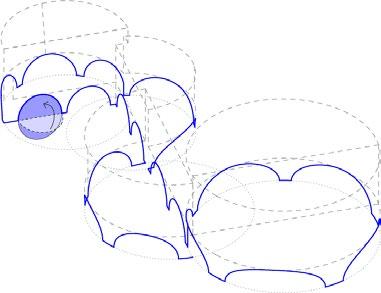

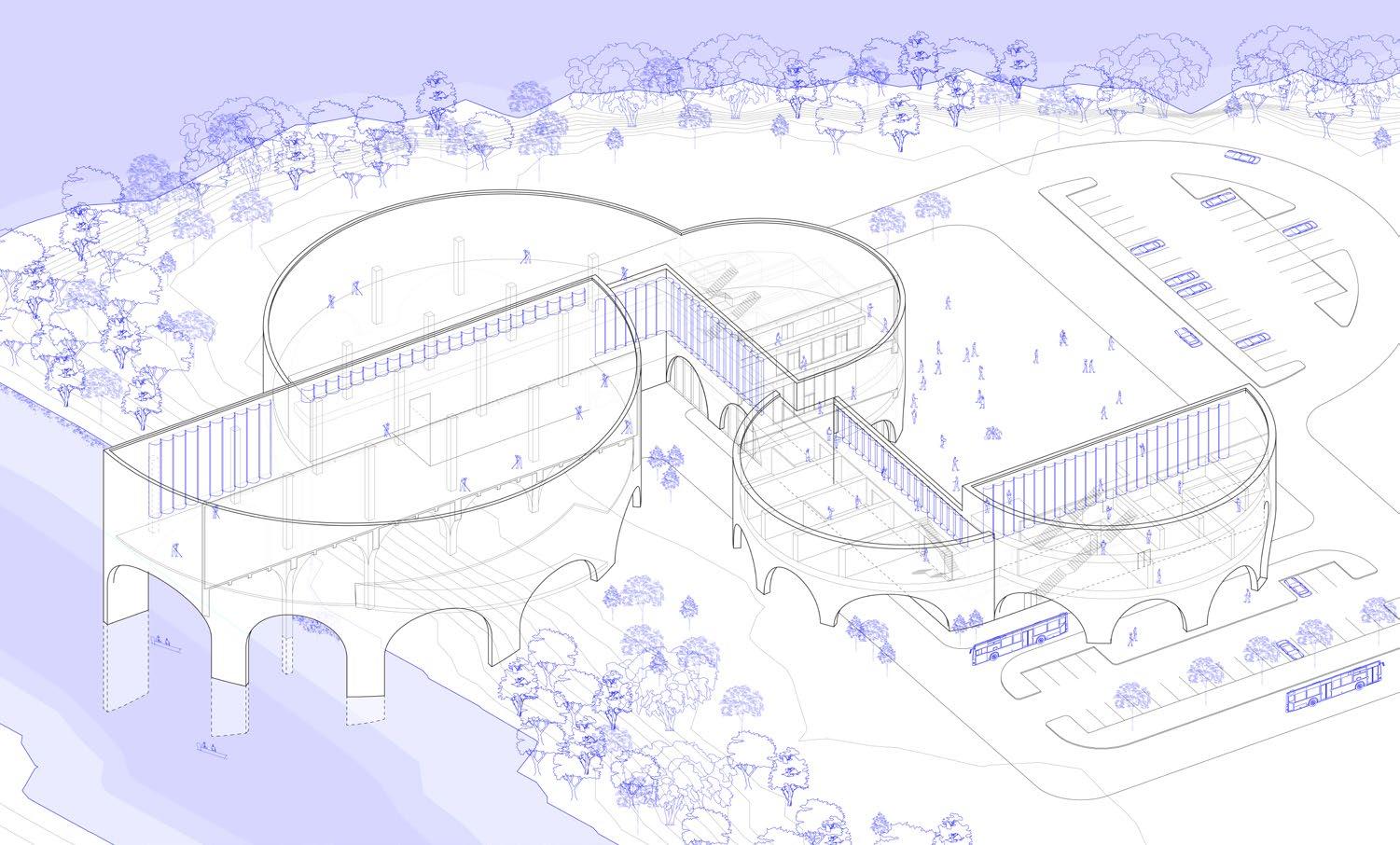

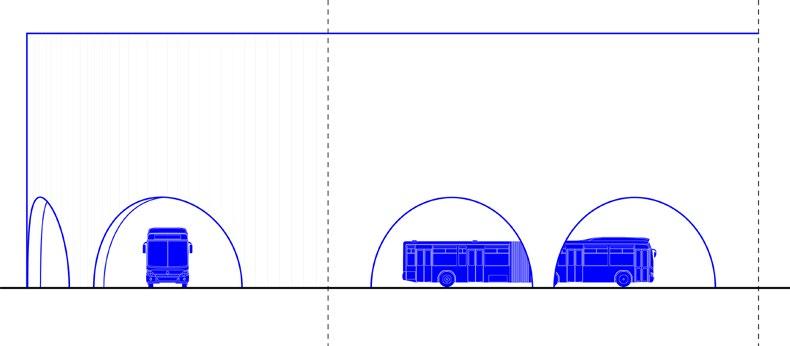

Arches hold up the building volume above ground in consideration of future flooding in the area as well as for buses and cars to travel under the building.

36

Collective Works

Regenerating Waste Stop | Project

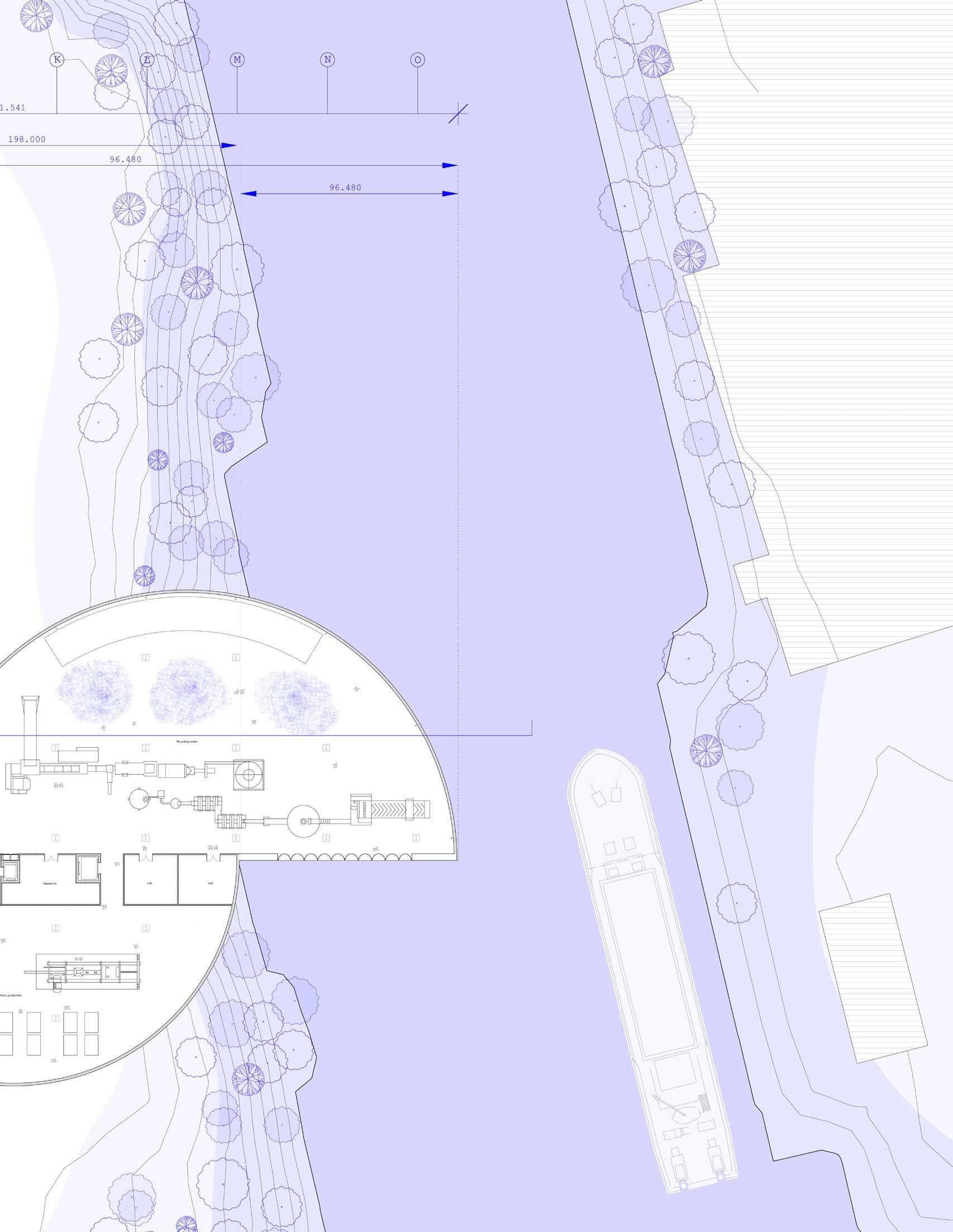

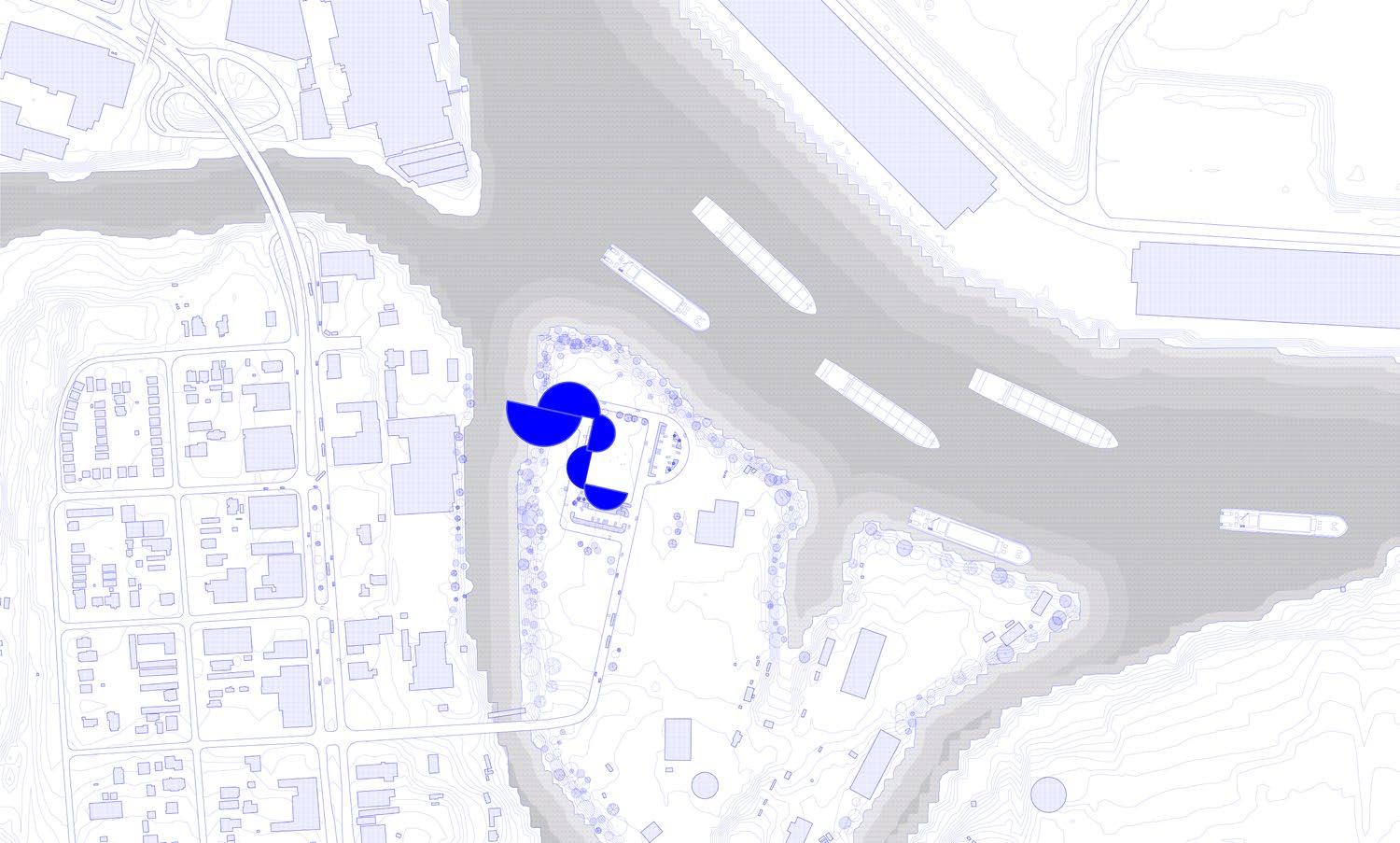

SITE PLAN

37

Project | Regenerating Waste Stop

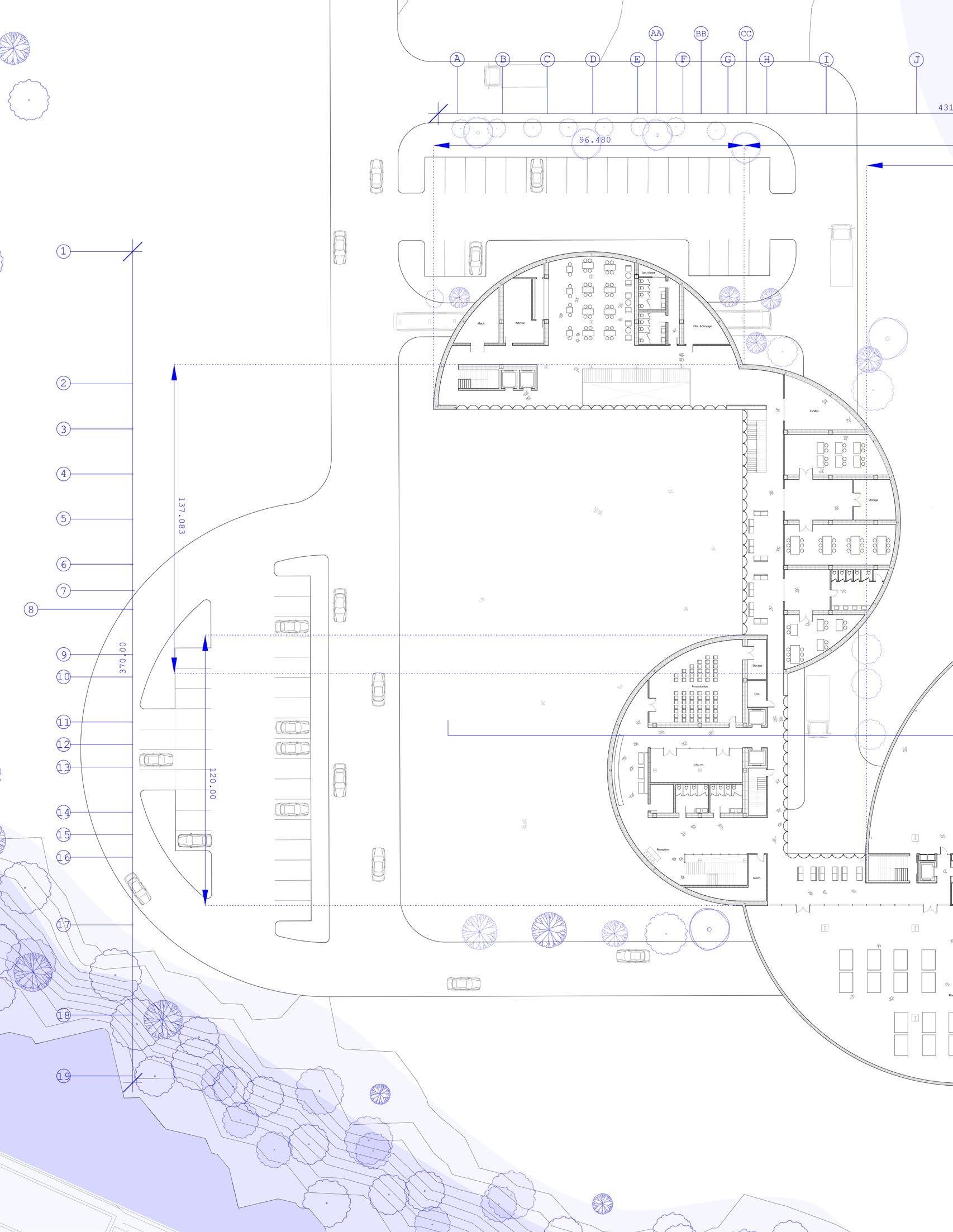

FLOOR 2 38

Ba Reum Son

Collective Works

Regenerating Waste Stop | Project

39

Project | Regenerating Waste Stop

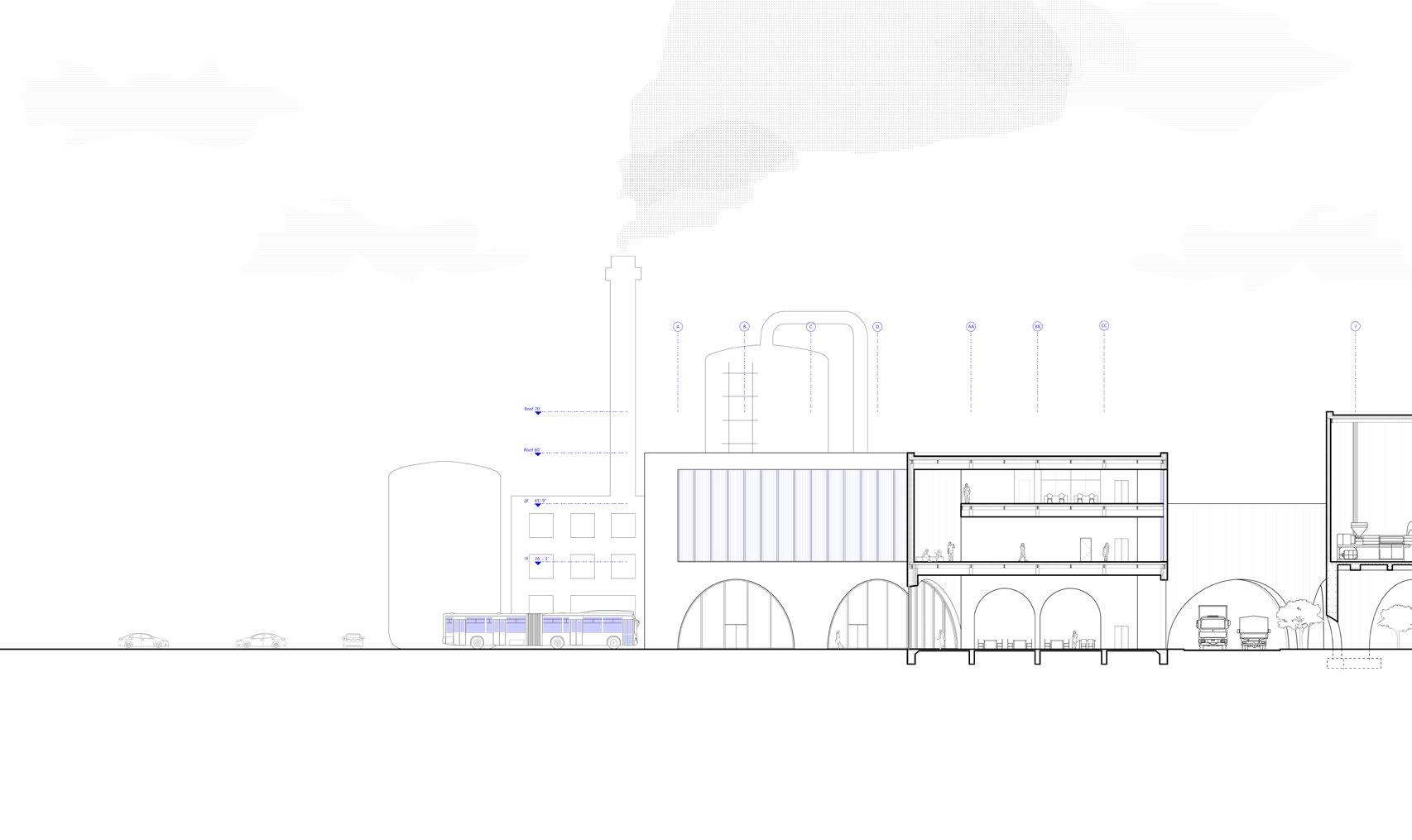

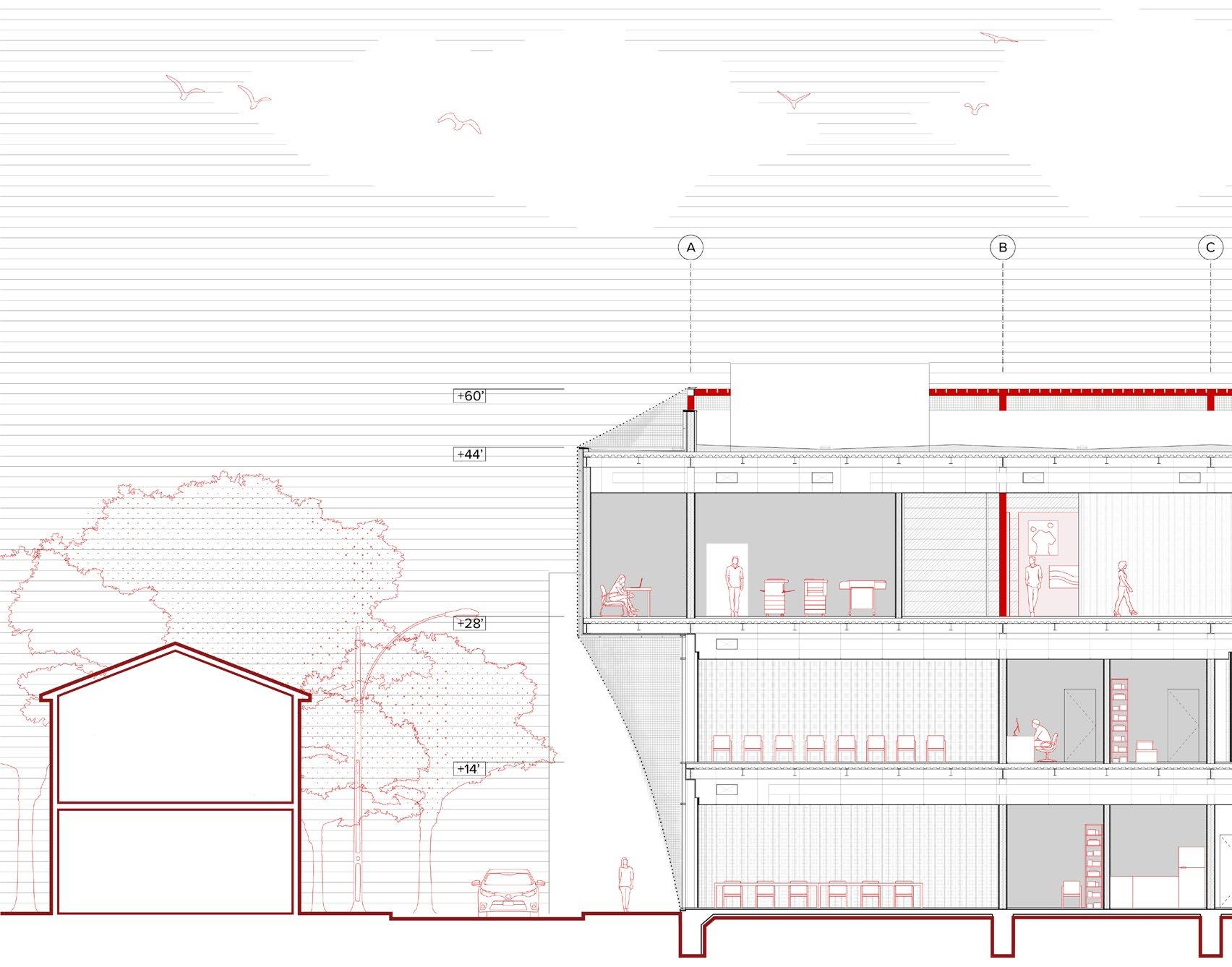

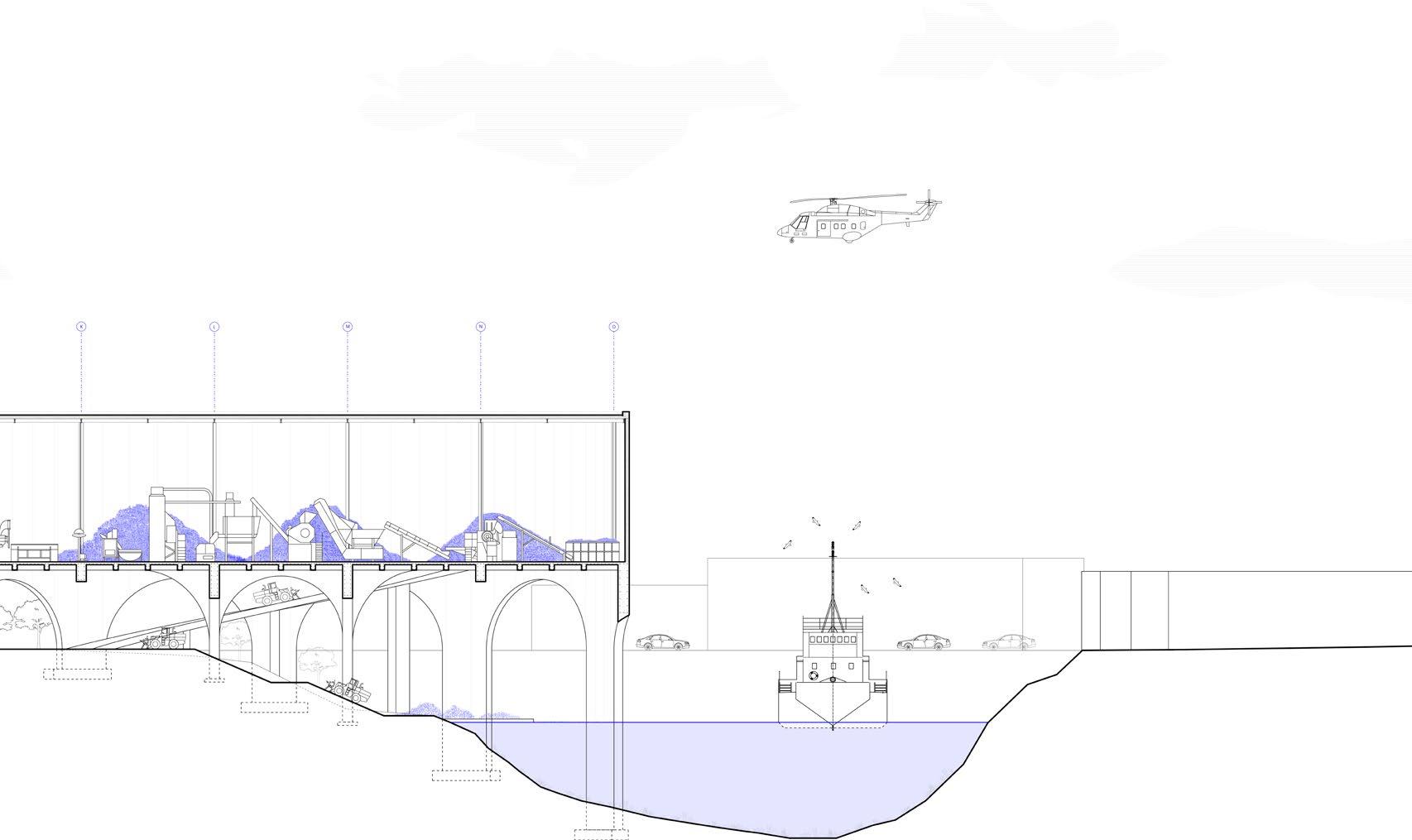

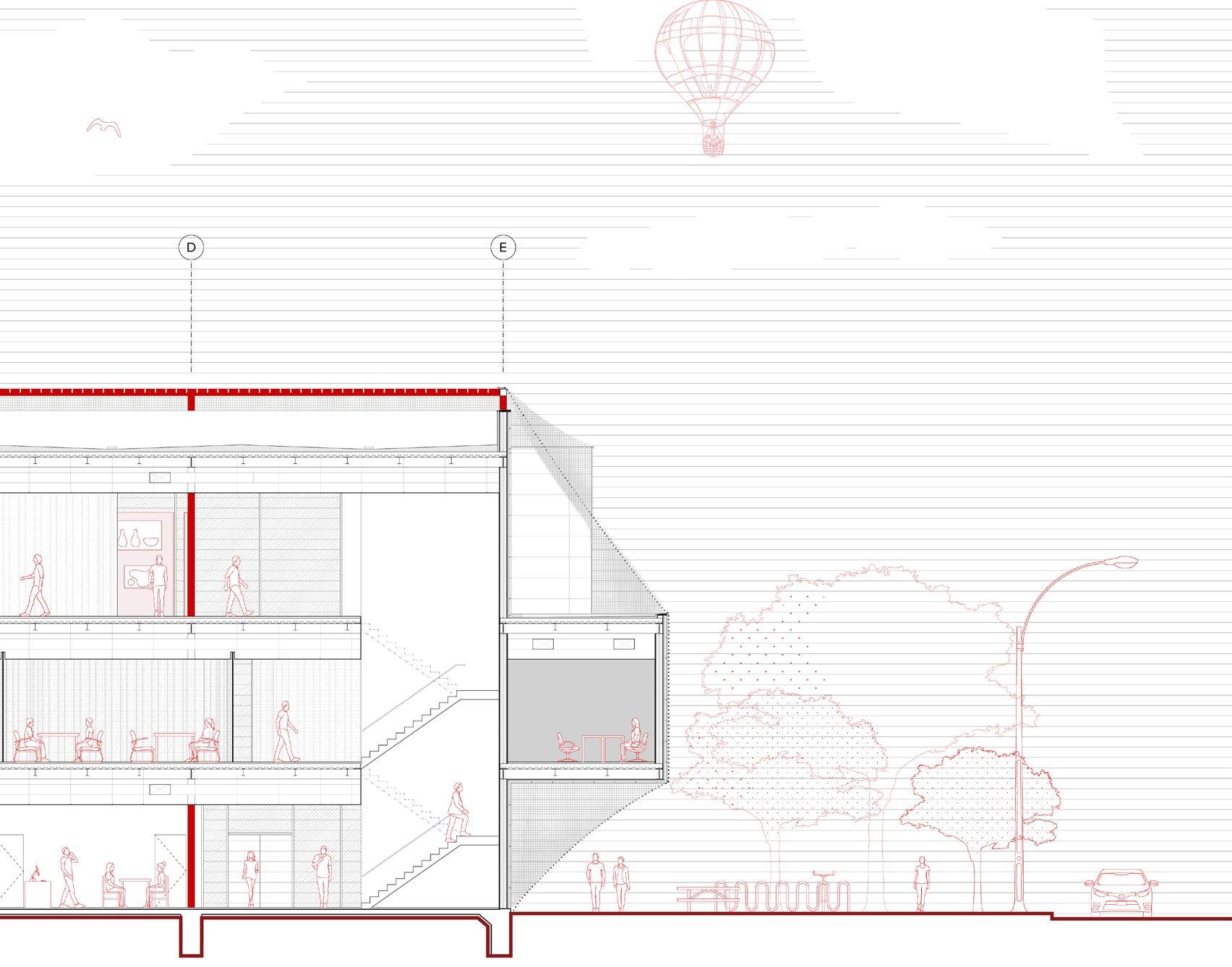

NORTH SECTION

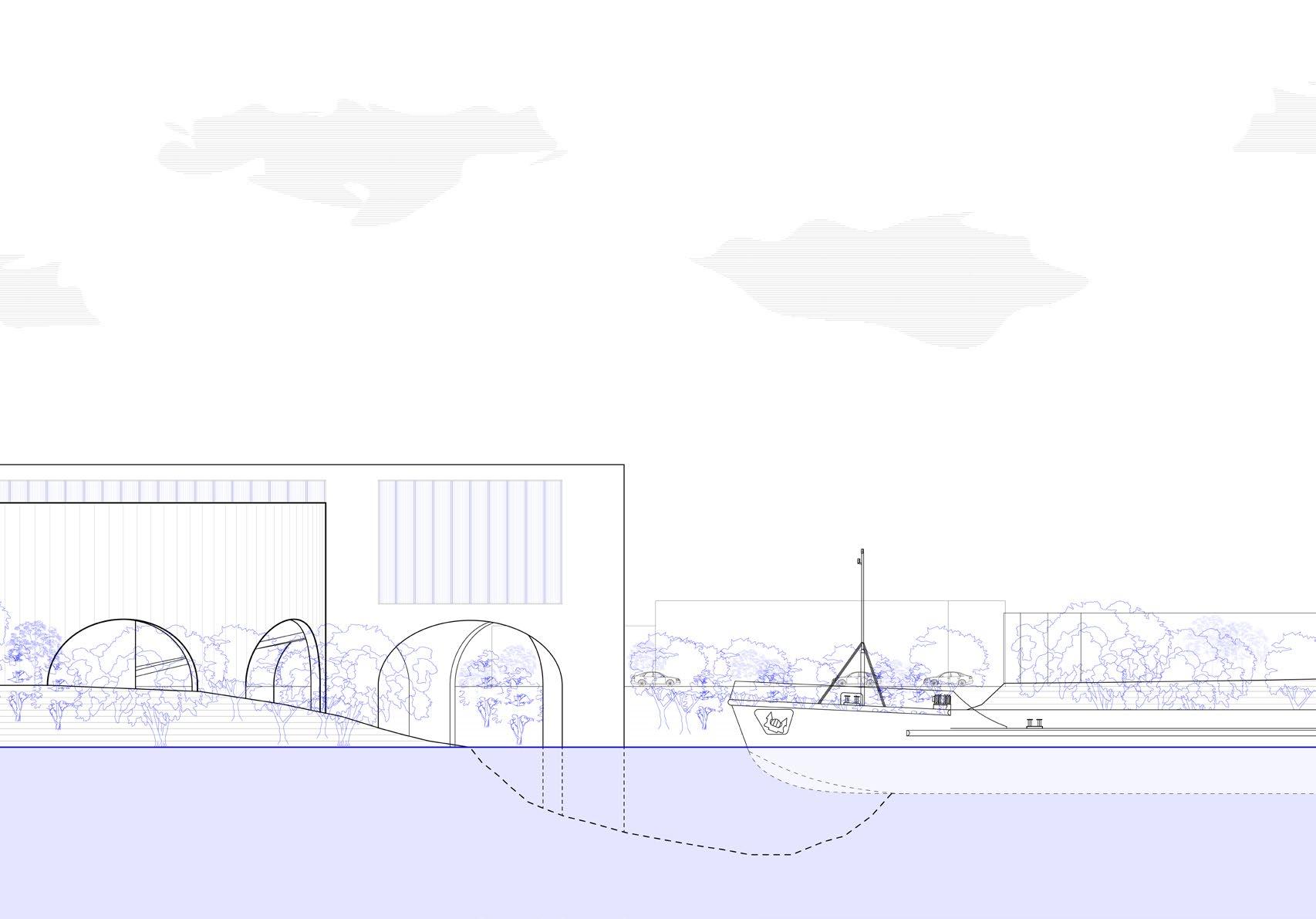

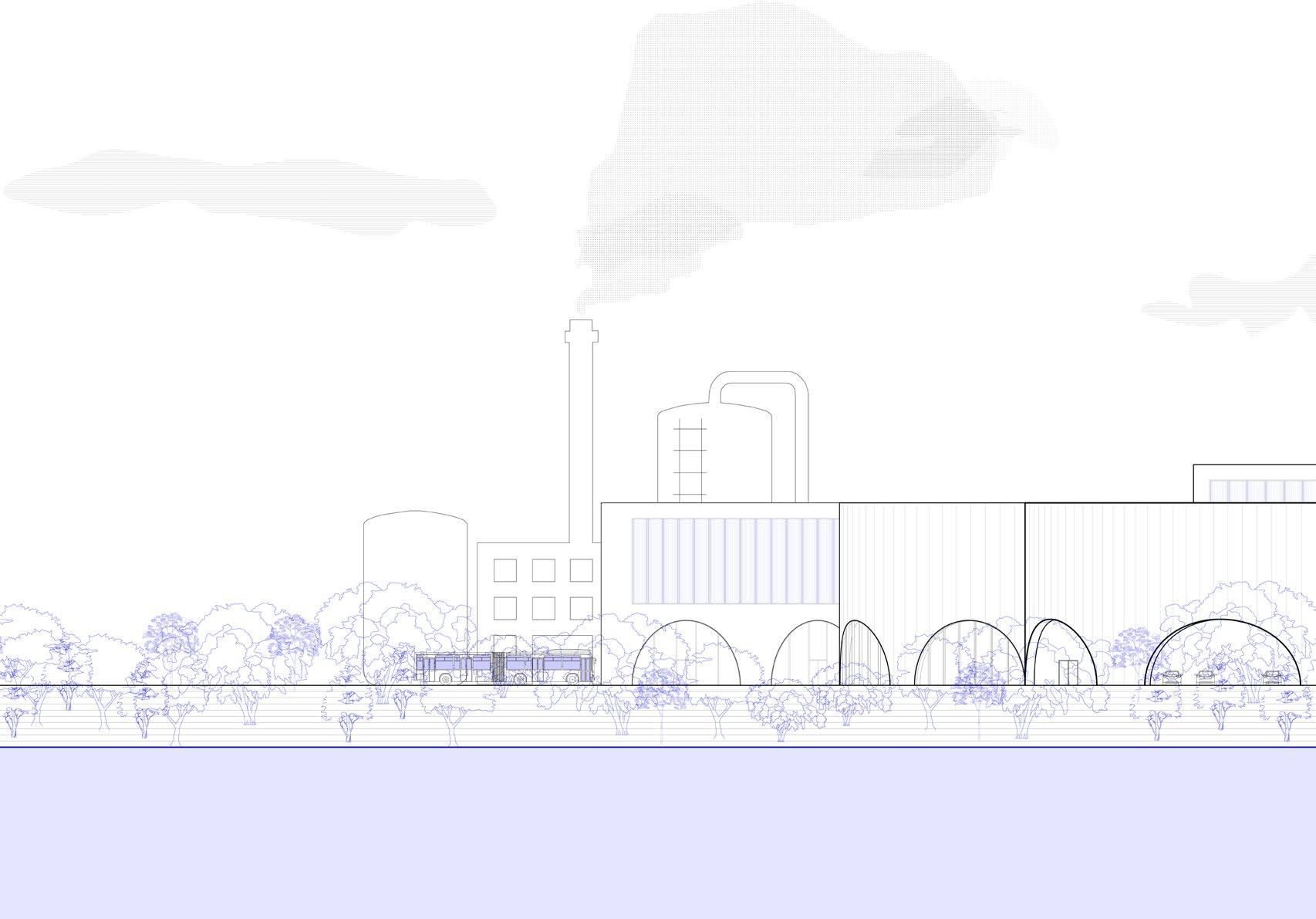

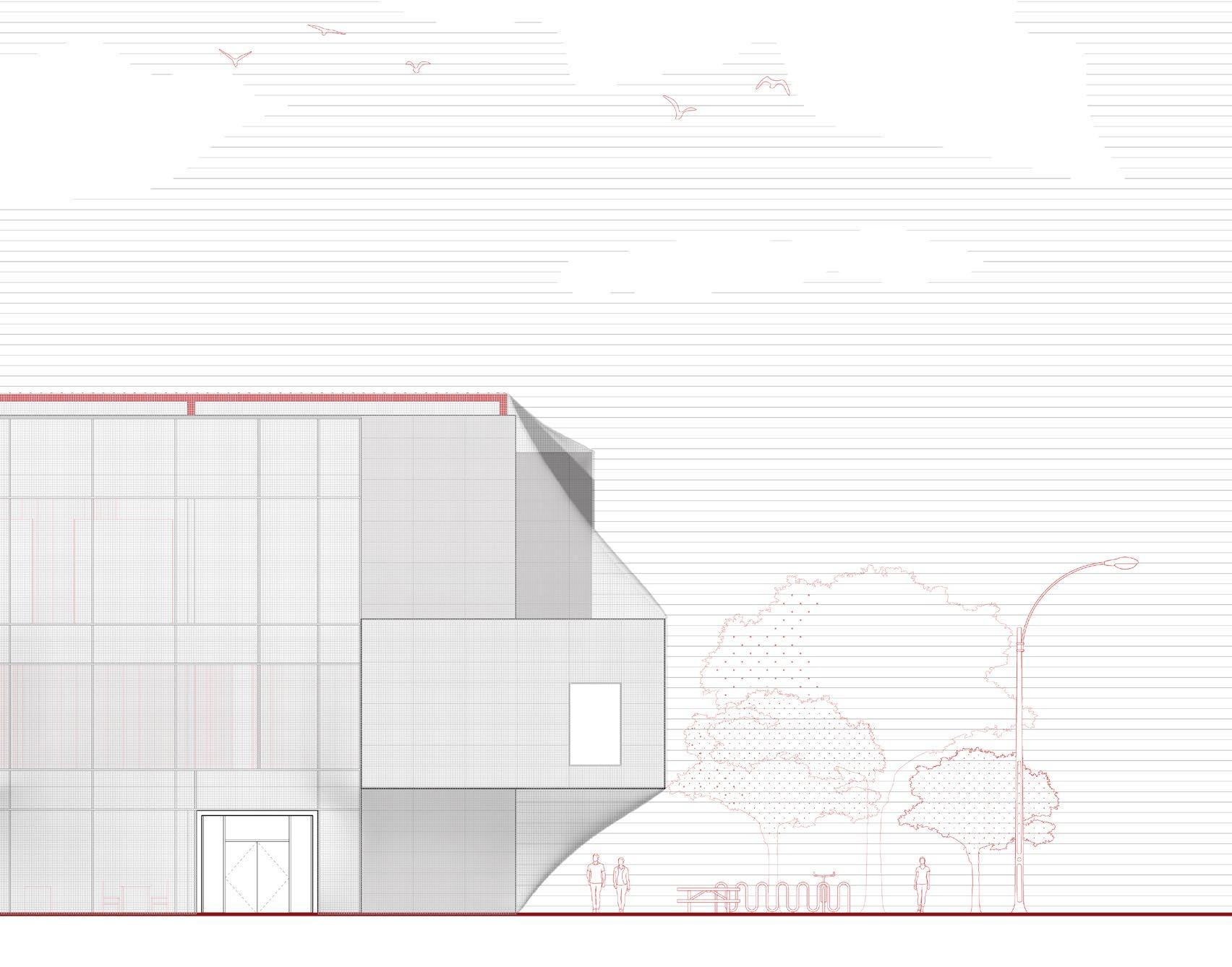

NORTH ELEVATION 40

Ba Reum Son

Collective Works

Regenerating Waste Stop | Project

41

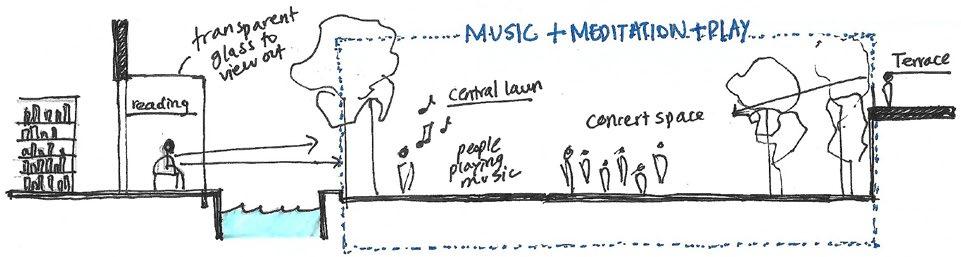

Library to Waters & Courtyard Eldorado Ballroom, 2022
