Thesis topic
Impact of Urbanization on Sociability
(Including EKISTICS principle for sociability in housing design)
Submitted byAnuja R. Bahadure (DA2014) BNCA | SY | SEM IV
Guided byProf. Dhanashree Sardeshpande
1 DA2014| BNCA | SY | SEM IV
Abstract
In Urbanized city, the quality of being sociable is missing due to lack of interactive spaces, and neighborhood spaces and vertical growth of a built form.
Which affects physical, psychological, and perceptual comfort to residents which were there in traditional Indian cities.
With rapid norms of living, the Indian houses are also transformed towards optimizing living spaces which is a financial need understood by the market.
The only attempt in history which has been done towards localizing in urban form has been done by C.A. Doxiadis through his theory of ekistics which explains, advocates and appropriate sociability with respect to traditional urban fabric.
Aim
To increase the sociability within a housing using digital design tools.
2 DA2014| BNCA | SY | SEM IV
S O C I A B I L I T Y
A total system of relationship between people which are either visible or invisible and physical. Social contacts
SOCIABILITY safety and security
social protective system
3 DA2014| BNCA | SY | SEM IV S O C I A B I L I T
Y
Present Urban Scenes Urbanization in India
India : Degree of urbanization from 2010 to 2020 Source - World bank @ Statista 2022
Population Density Changes of Lifestyle
4 DA2014| BNCA | SY | SEM IV
I S S U E
Population Density Traditional Settlement
More availability of a Land Less Population
5 DA2014| BNCA | SY | SEM IV
Settlement
Source - Archdaily I S S U E
Pattern
Population Density Urbanized Area
India : Population density per sq.km (Year - 2010 - 2020)
Less availability of a Land More Population Source - Archdaily
Affect on built form (Vertical Growth of a housing)
6 DA2014| BNCA | SY | SEM IV I S S U E
Population Density
Traditional Settlement
7 DA2014| BNCA | SY | SEM IV
Availability of spaces | Social Interaction I S S U E Source - Pinterest
Population Density
Modern Settlement
Availability of spaces | Isolated living
8 DA2014| BNCA | SY | SEM IV
I S S U E
Source - Pinterest
High-rise residential building in India
Entrance - one main entrance and several smaller entrances with security checks
Exterior areas / Open areas - site are inaccessible to the public and are reserved for residents
Lack of sociability leads to isolation as the controlled section does not fulfill any form of social function or does not offer an opportunity for tenants to interact in street life.
Security Open Areas Streets
CHARACTERISTICS OF HIGH-RISE RESIDENTIAL BUILDINGS
9 DA2014| BNCA | SY | SEM IV
I S S U E
High-rise residential building in India
Lift
Interior public spaces that are used for circulation, not socializing
No Social Interaction
Without social interaction, people living in the same physical area represent a group of individuals living separately with little sense of community.
Meet mostly in the Elevator
Most high-rise residents have little opportunity to socially interact with their neighbors. They only meet in the elevators and have few chances to socialize.
Modern urban residents are exposed to various people on a daily basis; however, they still feel lonely because the psychological needs of community life are not satisfied in the same way they are in traditional living environments.
10 DA2014| BNCA | SY | SEM IV
Plan of a Apartment Living area Common Lobby
I S S U E
The community-relevant problems of high-rise residential buildings
Lack of space for social interaction
Limitation of exterior public space
Lack of interior public space
Poor social relations | Lack of Social security | Reduced helpfulness | Hindered child development
11 DA2014| BNCA | SY | SEM IV
Source - Pinterest
(Intangible qualities)
Traditional settlements Private spaces
Social Interaction
(Range of private places to public places)
-Convert these intangible into built form -Balance between both
Ekistics (C.A. Doxiadis)
Science of human settlements
In application at achieving harmony between the inhabitants of a settlement and their physical and socio-cultural environments.
12 DA2014| BNCA | SY | SEM IV
H O W ?
DOXIADIS THEORY
Doxiadis is the father of "ekistics", which concerns the science of human settlements, including regional, city, community planning and dwelling design. Ekistics attempts to encompass all scales of human habitation and seeks to learn from the archaeological and historical record by looking not only at great cities, but, as much as possible, at the total settlement pattern. Its major incentive was the emergence of increasingly large and complex conurbations, tending even to a worldwide city. It aimed at achieving harmony between the inhabitants of a settlement and their physical and socio-cultural environments.
CONSTANTINOS APOSTOLOU DOXIADIS
Theory of Ekstics

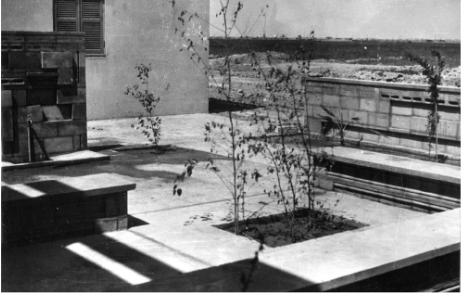

Gossip Square
13 DA2014| BNCA | SY | SEM IV A B O U T
| Society | Nature | Network | Buildings
Science of Human Settlement
1. Maximization of man’s potential contacts with elements of nature.
3. Optimization of man’s protective spaces.
2. Minimization of the effort required for the achievement of man’s actual and potential contacts.
5. Man organize his settlements in an attempt to achieve an optimum synthesis of the other four principles.
4. Optimization of the quality of man’s relationship with his environment.
14 DA2014| BNCA | SY | SEM IV
Man
Man
D E S I G N S
R
T
Society Nature Network G
Buildings (Shell)
T
A
E
Y
Need to systematically develop a science of human settlements for future cities. Consideration of the principles man takes into account when building his settlement The evolution of human settlements through history in terms of size and quality.
1. Maximization of man’s potential contacts with elements of nature.
2. With other people
Interaction (Visually and Physically)
1. Elements of nature
1. Contact with nature
2. Contact of built footprint with environment
Man alone always seeks to increase his contacts.
3. With works of man(buildings and roads)
Private | Public | Semi-Public Physical movement | connecting paths
Privacy Social Interaction
15 DA2014| BNCA | SY | SEM IV
D E S I G N
S T R A T E G Y
2. Minimization of the effort required for the achievement of man’s actual and potential contacts.
Built Form
Which allows sociability
Which gives shaded places
Maximum connectivity with nature
Man always gives his structures the shape, or selects the route, that requires the minimum effort.
Form | Network (Sociability)
Sociability distances via Pedestrian Variety of pedestrian access and distances
Meandering | increasing possibility of connect with man and nature
Can be maximum distances
Utilitarian distances via Vehicular access
Vehicular access for convenience (Emergency routes | grocery)
Separate Networks for Human and vehicles
Underground vehicular road system
Direct linear connections(Minimum Path) Covered and shaded Pathways
16 DA2014| BNCA | SY | SEM IV
D E S I G N S T R A T E G Y Source - Pinterest
3. Optimization of man’s protective spaces.
( Built space | People )
Scales of sociability and human security
Man | Woman | Child Their connectivity with other people
Personal scale of social interaction
Built level Neighbors 4 families (20 people)
Community Level - 20 - 50 people Scales of public spaces
17 DA2014| BNCA | SY | SEM IV
D E S I G N S T R A T E G Y
4. Optimization of the quality of man’s relationship with his environment.
Man’s relationship with his environment.
Green environment
Social environment
- Parks
- Green Open Spaces
- Number of people - Security between people
18 DA2014| BNCA | SY | SEM IV
D E S I G N S T R A T E G Y
Parameters
Intangible. 1. 2. 3. Neighborhood. Site Context.
How intangible aspects are converted into built form. eg. -Social gathering places -Privacy
Study of townships/neighborhood which are based on traditional settlements. Study of existing traditional patterns of living within settlements.
Area of these projects. Based in urbanized areas.
1. Asiad Game Village, Delhi.
2. Tara Group Housing, New Delhi.
3. Linked Hybrid, Beijing.
19 DA2014| BNCA | SY | SEM IV
C A S E S T U D Y
Case Study -1
ASIAD GAMES VILLAGE, DELHI Architect - Raj Rewal
20 DA2014| BNCA | SY | SEM IV
ASIAD GAMES VILLAGE, DELHI
1. Conversion of intangible aspects into architectural built-form. -Sense of enclosure -Continuity of movement -Sense of Community - Sense of place Streets
Pedestrian
-Narrow -Shaded -Broken up into small parts for creating pauses or points of rest
Vehicular
-Separated from settlement at the periphery. -Parking is off the peripheral road
Built-form Clusters
-Each unit has private Open to sky space -Alternate terraces
-Formation of Courtyard/Terraces, which are less private shared space or communal area
-Overlooking the internal pedestrian streets or galis -Sense of Participation
21 DA2014| BNCA | SY | SEM IV
C A S E S T U D Y1
Open area as a community space
Open area
Un-built area - 40.4 %
Built-up area - 59.6 %
Vehicular access
Peripheral Vehicular Movement
Width - 12 m
22 DA2014| BNCA | SY | SEM IV
C A S E S T U D Y1
ASIAD GAMES VILLAGE, DELHI
Building that surrounds an open area
(Sense of Enclosure | Sense of Community)
Height differences of building
Minimum Height - 4. 5 m
Maximum Height - 12 m
Distance between Buildings
Around streets Between Buildings
Minimum Distance - 4.5 m
Maximum Distance - 8 m
Minimum Distance - 18 m
Maximum Distance - 40 m (Visual Interaction)
23 DA2014| BNCA | SY | SEM IV
C A S E S T U D Y1
Streets
24 DA2014| BNCA | SY | SEM IV
Narrow
shaded streets
C A S E S T U D Y1
| Built Form Street widths Minimum Distance - 4 m Maximum Distance - 9 m
and
Over-viewing Balcony Street to built ratio - 1: 3
Case Study -2
TARA GROUP HOUSING, NEW DELHI
Architect - Charles Corea
25 DA2014| BNCA | SY | SEM IV
TARA GROUP HOUSING
Plan
Analysis on the basis of Ekistics
1. Maximization of man’s potential contacts with elements of nature.
1. Elements of nature 2. With other people 3. With works of man (buildings and roads) Interaction (Visually and Physically) Privacy Social Interaction
Buildings Built form
Streets Physical movement | connecting paths
Built area Open area Vehicular access Green areas Water body
26 DA2014| BNCA | SY | SEM IV
C A S E S T U D Y2
Sense of community
Central courtyard or rather a community space onto which all apartments overlook
Eyes on the street Socially secure spaces
Kids can play in the central open space observed by elders generates a good social environment. It is mutually beneficial for kids and elders too.
- The middle community space has the same character a typical Indian street has -Accesses to dwelling from the central Courtyard
27 DA2014| BNCA | SY | SEM IV
C A S E S T U D Y2
Sense of community
Distance between buildings
Min - 8 m Max - 25 m
Staggered built form for privacy and shading effect
The central open space acts doubly as a community space. Sittings and gathering areas are designed in this space to create interest. The architect has used the time-tested method of mutual shading in the design.
28 DA2014| BNCA | SY | SEM IV
C A S E S T U D Y2
Plan of a cluster (3 m x 15 m)
The staggering of dwelling units created mutual shading and also reduced the monumentality of the long building face making the building suit human scale.
The dwellings mostly are duplex and span the entire width of built space in such a way that all units are exposed to the internal courtyard as well as exterior. To achieve this, the architect had to keep the width of each dwelling unit minimal.
The architect staggered the units in section to create terraces on the outer periphery and thereby cleverly achieved shading of internal courtyards which is a common thermal comfort strategy historically adopted in old Indian cities.
Parking was provided according to the requirements of that period.
Vehicular and Pedestrian Movement is different.
Vehicular access (Width - 15 m) (Width - 8 m)
Pedestrian access Parking
29 DA2014| BNCA | SY | SEM IV
C A S E S T U D Y2
Case Study - 3
Linked Hybrid, Beijing, China
30 DA2014| BNCA | SY | SEM IV
Architects - Steven Holl Architects
Analysis
Linked Hybrid
on
the basis of Ekistics
1. Maximization of man’s potential contacts with elements of nature.
1. Elements of nature 2. With other people 3. With works of man (buildings and roads) Interaction (Visually and Physically)
Privacy Social Interaction
Buildings Built form
Streets Physical movement | connecting paths
Plan Plan
Built area Open area Vehicular access Green areas Water body
31 DA2014| BNCA | SY | SEM IV
C A S E S T U
D Y3
32 DA2014| BNCA | SY | SEM IV C A S E S T U D Y3
Height differences of building
Connectivity via Bridges View Point
Ground Level Podium
Minimum Height - 21 m Maximum Height -63 m Basement
Bridges
Minimum - 30 m Maximum -100 m
Distance between Buildings
R E N C E S
Asian Game Village, New Delhi. (1980)
Tara Group Housing, New Delhi. (1975 - 1978)
Linked Hybrid, Beijing. (2003- 2009)
Architect Ar. Raj Rewal Ar. Charles Correa Steven Holl Architects
Area 800 acres 3.7 acres 220000 m²
FSI/FAR (low rise housing with high density) 0.1 Housing units 700 160
Housing Density 1800 people 25 units per hectare 525 people per hectare
Number of people living in one cluster (social scale) range of 100 to 350 people living in 1 cluster range of 16 to 160 people living in 1 cluster range of 330 to 336 people living 1 cluster
Number of floor per cluster Vary from 2 to 4 story 4 floors 21 floors
Impact on Socialization and built form (interaction)
1. Streets - Broken up into small parts for creating pauses or points of rest
2. Formation of Courtyard/ Terraces, which are less private shared space or communal area -Overlooking the internal pedestrian streets or galis
3. Connecting Bridges
Geometric Attributes
1. Distance between buildings
1. Width of each dwelling unit is minimum.
2. Central Open area
3. The middle community space has the same character a typical Indian street has.
1. Longest routes for pathways. 2. Central open area for visual interaction.
3. They have used tradition of china for landscaping.
Distance between buildings Min -18 m Max - 40 m Min- 8 m Max -25 m Min - 30 m Max - 100 m
2. Height Variations
Height of a Built Form Min - 6 m Max - 12 m
3. Street Study
No Height Variation Min - 21 m Max - 63 m
Street to Built ratio 1 : 2 2 : 3
Street width Min- 5.5 m Max -12 m Min- 8 m Max -15 m
Pedestrian -vehicular width Pedestrian - 5.5 m Vehicular - 12 m
Pedestrian - 8 m Vehicular - 15 m
33 DA2014| BNCA | SY | SEM IV I N F
E
Asiad Game Village
Tara Group Housing Linked Hybrid
Balcony/Terrace
Plan Cluster
Plan Plan Cluster Cluster
Balcony/Terrace Balcony/Terrace Built Form Built Form Built Form Bridge Bridge Bridge
A basic unit of 4 apartments is designed in such way that it can be linked with cantilevers on ends and partly on fronts to create a variety of interlinking spaces.
A basic unit of 2 apartments is designed in such way that it is forming a staggered form. In plan, staggering is maintaining the privacy and in section it is the part of sociability.
Linked hybrid is designed to increase the sociability. They have designed public places accordingly. They have connected the buildings via bridges. But it failed to do so at this much height.
34 DA2014| BNCA | SY | SEM IV
I N F E R E N C E S
Densification | Urbanization
Cluster of 4 floors for increasing sociability
Need a design which is considering the bye laws and not affecting the social scale.
Vertical Development
35 DA2014| BNCA | SY | SEM IV
I N F E R E N C E S
Volume Vertical connections between buildings (green belt\bridges\plates)
Height variations Open areas between built mass
Social Scale
Distance between Buildings
36 DA2014| BNCA | SY | SEM IV
P A R A M E T E R S
E N C E S
Social Scale
1 person
Close People (Daily)
Occasionally
Close Social Circle Extended Social Circle Community Social Circle
Very Few
10 -12 people
(Interaction in Lobbies)
(During evening interaction)
During community function
People living in 1 cluster 25 - 30 people 60 - 80 people
Visual interaction
People living in 1 clusterMinimum - 60 people Maximum - 80 people 15 - 20 people per floor 4 -5 units per floor plate
37 DA2014| BNCA | SY | SEM IV
I N F E
R
Design Strategy
38 DA2014| BNCA | SY | SEM IV D E S I G N
Windows for ventilation
Affect of Built form on sociability
N
Expansion of a units into Floor plans 2- unit Floor Plan
interior public spaces that are used for circulation, not socializing
Source - teoalida.com
Rectilinear eight-unit floor plan with two edges designed to invite sunlight in as possible
39 DA2014| BNCA | SY | SEM IV
N
S T R A T E G Y
Windows for ventilation
Y
Expansion of a units into Floor plans
Floor Plan
Affect of Built form on sociability
N
interior public spaces that are used for circulation, not socializing
Source - teoalida.com
40 DA2014| BNCA | SY | SEM IV
S T R
A T E G
Rectilinear eight-unit floor plan with two edges designed to invite sunlight in as possible N
Square Apartment Rectangular Apartment
No visibility between apartments
Use of Windows/terraces for ventilation
Circulation Space Apartments No Visibility
compact nature of developments reduces opportunities to incorporate interior public space
To Preserve Privacy
clear boundary between public and private spaces
No buffer spaces
Therefore, residents have very few or No opportunities to interact with each other
41 DA2014| BNCA | SY | SEM IV
C O N C L U S I O N
Square Apartment Rectangular Apartment
Sociability within Built form
Combinations
T - shaped unit
U - shaped unit L - shaped unit
Z - shaped unit
Parameters
Maximum functional area in a unit| Livable and communicating terraces | High degree of enclosure within a cluster
42 DA2014| BNCA | SY | SEM IV
Square Apartment Rectangular Apartment
Sociability within Built form
Terrace position
(At the any edge) 20% of a floor plate
Area of 1 unit60 -80 sq.m
Terrace position
Shadow Study
43 DA2014| BNCA | SY | SEM IV
Plan
Analysis on the basis of Ekistics
1. Elements of nature 2. With other people 3. With works of man (buildings and roads) Interaction (Visually and Physically)
Buildings Built form
Privacy Social Interaction
1. Maximization of man’s potential contacts with elements of nature. Plan
Streets Physical movement | connecting paths
44 DA2014| BNCA | SY | SEM IV C O N C L U S I O N
Terrace space from Two sides Functional Area | Living Space Windows for Visual Interaction with nature Green | Open Area
Plan Analysis on the basis of Ekistics
1. Maximization of man’s potential contacts with elements of nature.
1. Elements of nature 2. With other people 3. With works of man (buildings and roads)
Interaction (Visually and Physically)
View
Privacy Social Interaction
Buildings Built form
Streets Physical movement | connecting paths
Plan
Terrace space from Two sides
Functional Area | Living Space
Windows for Visual Interaction with nature
Green | Open Area
45 DA2014| BNCA | SY | SEM IV
C O N C L U S I O N
View
Plan Analysis on the basis of Ekistics
1. Maximization of man’s potential contacts with elements of nature.
1. Elements of nature 2. With other people 3. With works of man (buildings and roads)
Interaction (Visually and Physically)
Buildings Built form
Privacy Social Interaction
Streets Physical movement | connecting paths
46 DA2014| BNCA | SY | SEM IV
C O N C L U S I O N
Computation Logic
Y
1 2 3 4
L - shaped built form (Single unit)
Forming the clusters of L- shaped built form (Neighborhood Level)
Analysis of a case study. Study of a shape grammer and shape rule.
Using parameters like distance between built form, orientation, radiation analysis
Context study and Radiation analysis.
Repeating cluster of 4 floors considering sociability. Adding bridges as a gathering spaces.
Giving Maximum Sociability using principle of Ekistics
Cluster for accommodating people considering social scale.
For getting shaded places, and
Height Optimization Vertical stacking What? How? Why?
Achieving height for a building considering present urbanization.
47 DA2014| BNCA | SY | SEM IV
S T R
A T E G
L - shaped built form (Single unit)
Computation Logic
Y
Shape Grammar
Parameter
Shape
Shape rule
For Cluster
Distance Between Building
Min - 4.5 m
Max - 18 m
Area of a floor plate
48 DA2014| BNCA | SY | SEM IV
Area of a terrace Orientation of terrace S T R A T E G
1
Position of terraces
A T E G Y
2
Forming the clusters of L- shaped built form (Neighborhood Level)
Computation Logic
Social scale within 1 cluster
Aggregation - 1 Aggregation - 3 Aggregation - 2
Terraces(means of communication) Alternate terraces
Aggregation - 4
Aggregation - 5
- 6
Getting aggregation using Shape grammar S T R
Max 2 connectionopen sides (Connection with nature) (Means of development)
Terraces facing towards each other(Visual distance ) min max
Aggregation
Aggregation 1 Aggregation 2 Aggregation 3 Aggregation 4 Aggregation 5 Aggregation 6
Terraces Open Area Built-up Site
Aggregation 1 Aggregation 2 Aggregation 3 Aggregation 4 Aggregation 5 Aggregation 6
Site area 4418 sq.m 6022 sq.m 8000 sq.m 8625 sq.m 11500 sq.m 12500 sq.m
Built to site 24 % 22% 31.36% 26.08% 24.78% 30.65%
Open to site 10% 26% 20.31 32.46% 23.91% 22%
Terrace to site 8.3 % 9.1% 17.53% 9.04% 11.20% 12.74%
Terrace to built 33.5 41.03% 55.91 34.66% 45.22% 41.57%
Habitants 64 72 136 120 152 204
Parameters
Area of a sitemin - 10000 sq.m max - 16000 sq.m
More spaces for interaction = Maximum open area Services = minimum 1 for 80 units
People living in 1 cluster(social scale) = number of units
50 DA2014| BNCA | SY | SEM IV
Height Optimization
Computation Logic
Minimum radiation
Maximum radiation Moderate radiation
For getting more shaded places where people can interact
Public gathering spaces Orientation of a building
Orientation of a building
Height variation
51 DA2014| BNCA | SY | SEM IV S T R A T E
3
G Y
Vertical stacking
Computation Logic
Vertical stacking
For 1 cluster , Minimum Height - 6 m Maximum height- 12m
Cluster of 1 social scale is repeated
Repetition of clusters vertically
Vertical connections between buildings (green belt\bridges\plates)
With projection of terrace / balconyBetter visual communication
Without projection - minimum scope for communication
Cluster to repeat
52 DA2014| BNCA | SY | SEM IV
S T R A T E G
4
Y
CLUSTER
1 unit - 65 sq. m
Terrace - 20 % of 1 unit
Total - 40 units (1 floor plate)
- Built - 24.78 %
- Terrace - 11.20 %
- Terrace to built - 45.22 %
- Habitats- 160 (1 floor plate)
Orientation of terraces
53 DA2014| BNCA | SY | SEM IV
Plan
54 DA2014| BNCA | SY | SEM IV
SOLAR RADIATION Height range - 6m to 12m Analysis Period Ahemdabad 18 may 12 : 00 - 19 jun 3 : 00 Low 1.30 kwh/sq.km 2.82 kwh/sq.km High
CLUSTER - AGGREGATION
55 DA2014| BNCA | SY | SEM IV
Plan
12
12
12
Repetition of a cluster 1 Cluster of 4 floors
m
m
m
56 DA2014| BNCA | SY | SEM IV
alternate
4.3 m Basement Plan
CLUSTER - BUILT FORM Section showing
terraces 1m 19.7m 3.5m 3.5m 3.5m 3.5m 3.5m 1m
57 DA2014| BNCA | SY | SEM IV CLUSTER - SERVICES AND BRIDGES Plan Services Bridges Services 1service core per 80 people Area - 90 sq.m Bridges Width - min 1 m max - 1.2m ConnectivityA. Service block to service block B. Service block to public gathering spaces - ( Terraces)
58 DA2014| BNCA | SY | SEM IV
Plan
CLUSTER - OPEN AREA WITHIN BUILT FORM Image showing overlooking terraces
PARAMETERS
Availability of Land (Developing Area) Scope for horizontal expansion
Sociability and Traditional values
Urban area Rural area Fringe area
Urban - Rural Fringe Area
59 DA2014| BNCA | SY | SEM IV S I T E C O N T E X T
PARAMETERS
Micro Level Macro Level
Urban Fringe Areas
Population: Less than 100,000 Density: Less than 400 persons per sq. km Intangible
Psychological needs Perceptual needs Social needs
Land Use - Residential area Site AreaMin -10,000 sq.m Max - 16,000 sq.m Greenfield Development
60 DA2014| BNCA | SY | SEM IV
S I T E C O N T E X T
Urbanized City 1. 2. 3. Nagpur Developing
Pune Urbanized
Ahmedabad
city
City
10.7 KM Rural area Fringe area
Urban - Rural Fringe Area
61 DA2014| BNCA | SY | SEM IV
Urban area Ahmedabad
62 DA2014| BNCA | SY | SEM IV Core area Density - 120 pph Fringe area Density - 258/km2 (670/sq mi) Rural area Density - 890 people/sq.km
Ahemdabad City
Ramol Village
63 DA2014| BNCA | SY | SEM IV S I T E C O N T E X T
ROAD HIERARCHY
National Highway (30 m Wide) (12 m Wide) (8 m Wide)
Arterial Road Local Roads Potential site
Population density - 258/km2 (670/sq mi)
64 DA2014| BNCA | SY | SEM IV
S I T E C O N T E X T
Site Radiation Analysis (Orientation)
(Floor Height | Orientation)
Connectivity
Service Block
Min - 1 (at center)
Max - Depends on number of habitats
Peripheral Road Pathways
Divides site into open area and built-up (Underground Network)
Direct path to service block
65 DA2014| BNCA | SY | SEM IV
D E M O N S T A T I O N
PSEUDO CODE
SITE
Boundary Conditions
- Separate pedestrian and vehicular entries
- Vehicular Entry form minimum 1 side
- Pedestrian Entry form minimum 1 side
Site Area - 15,200 sq.m
FSI - 1.2
Total b/u - 18,240 sq.m
Peripheral Road
Peripheral Road
66 DA2014| BNCA | SY | SEM IV
SITE D E M O N S T A T I O N
67 DA2014| BNCA | SY | SEM IV
4. March _ 3pm 1. March _ 12pm 5. June _ 3pm 2. June _ 12pm 6. Nov _ 3pm 3. Nov _ 12pm D E M O N S T A T I O N
SHADOW STUDY
PLACEMENT OF A BUILT FORM
Area calculation -
1. plot area - 15 ,200 sq.m 2. fsi 1.2 - 18,240 sq.m
3. basic floor plate - 2840 sq.m 4. no of floor -12 no of flat per floor = 36 to 40 no of floor =12 total no of flat = 420 area of flat = 65 sq.m
Peripheral Road
Built area Open area
Peripheral Road
68 DA2014| BNCA | SY | SEM IV
D E M O N S T A T I O N
SITE
69 DA2014| BNCA | SY | SEM IV SITE Plan Area for public Gathering Entry Pedestrian Entry Pedestrian Entry Exit to Basement Parking Exit Entry to Basement Parking D E M O N S T A T I O N
SITE
RADIATION ANALYSIS
Maximum solar radiation
Moderate Solar radiation
Minimum Solar radiation
Minimum and Moderate Solar radiationPublic spaces | open terraces | Public gathering spaces
Analysis PeriodAhmedabad
18h june 12:00 - 18 june 15:00
70 DA2014| BNCA | SY | SEM IV
D E M O N S T A T I O N
Section A A
Section B
71 DA2014| BNCA | SY | SEM IV
SECTIONS
B
D E M O N S T A T I O N
RENDERS
VIEW FROM GALLERY Physical and Visual Interaction
72 DA2014| BNCA | SY | SEM IV
Public Gathering space
Terrace D E M O N S T A T I O N
Bridges
73 DA2014| BNCA | SY | SEM IV
Lifts and Staircase
Bridges View from gallery
74 DA2014| BNCA | SY | SEM IV
Existing Buildings 1. Location, Ahmedabad
C O M P A R I S I O N
12
Proposed Buildings
Range Existing Proposed Design Plot area 10000 sq.m - 16000 sq.m 14900 sq.m 15200 sq.m FSI 1.2 1.2 Total Built -up area 17880 sq.m 18240 sq.m area of a 1 unit 60 - 80 sq.m 60 - 70 sq.m 65 sq.m area of a 1 floor 20% - 25% of a total plot area - 2840 sq.m - 21.23 total number of units 400 - 500 448 420 Number of floors 8 - 15 12
Sociability Factor
Range Existing Proposed Design
open area 20 % - 25% of a total plot area 1490 sq.m (10%) 2100 sq.m
Area for public gathering 10% - 12% of a open area - 1300 sq.m
Area for Services - 270 sq.m
Parking Underground Parking on ground Under ground on ground - 867.5 sq.m
area for bridges 10% - 14% to built up area - 2580 sq.m
75 DA2014| BNCA | SY | SEM IV C O N C L U S I O N
