Conceptualization

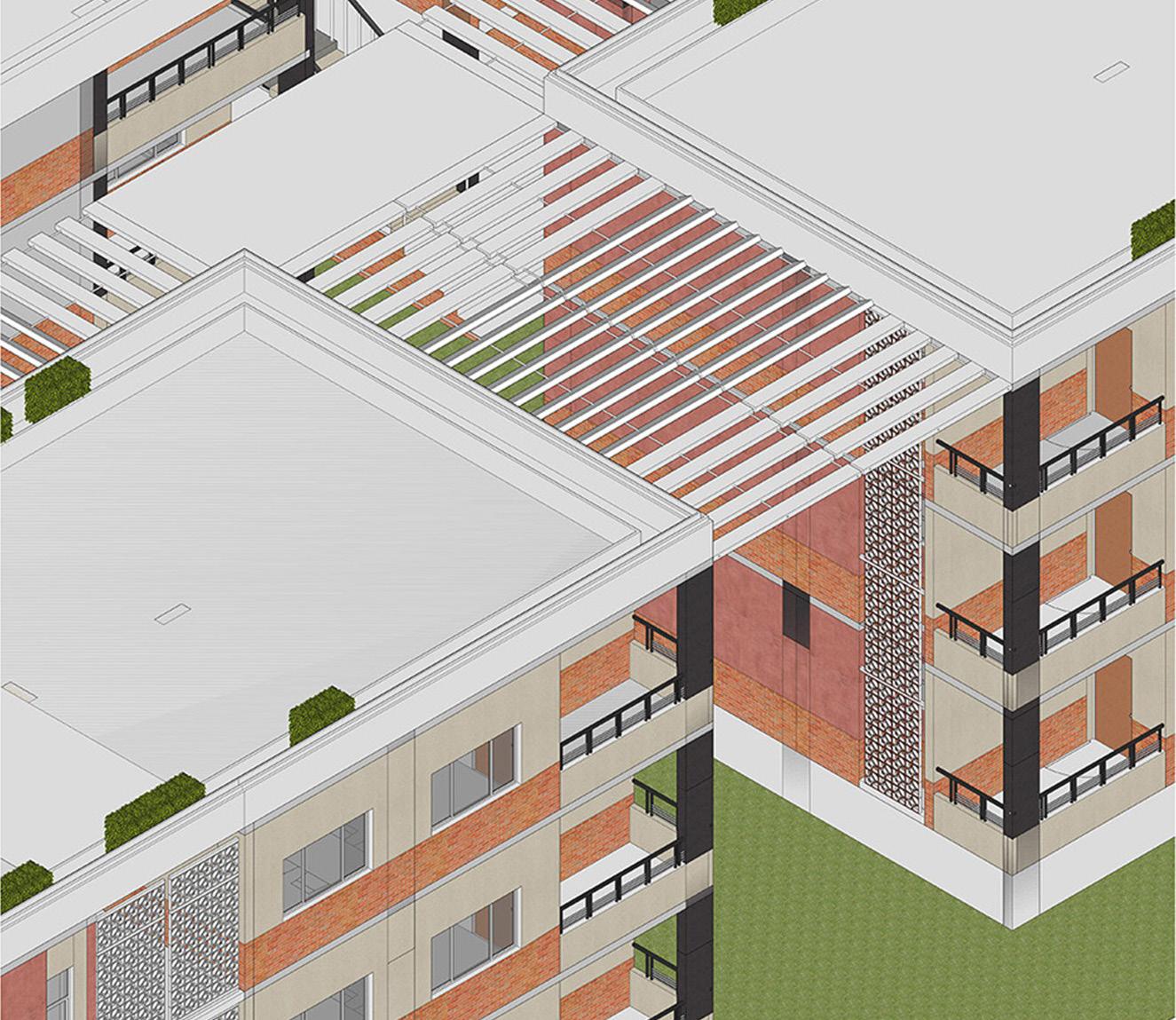

The idea is to plan a purely functional campus and for that the gird iron planning of various building blocks stretched/planned throughout the whole site.

The grid iron pattern gives us unrestricted circulation/movement and maximum open spaces. It also mitigates any negative spaces.

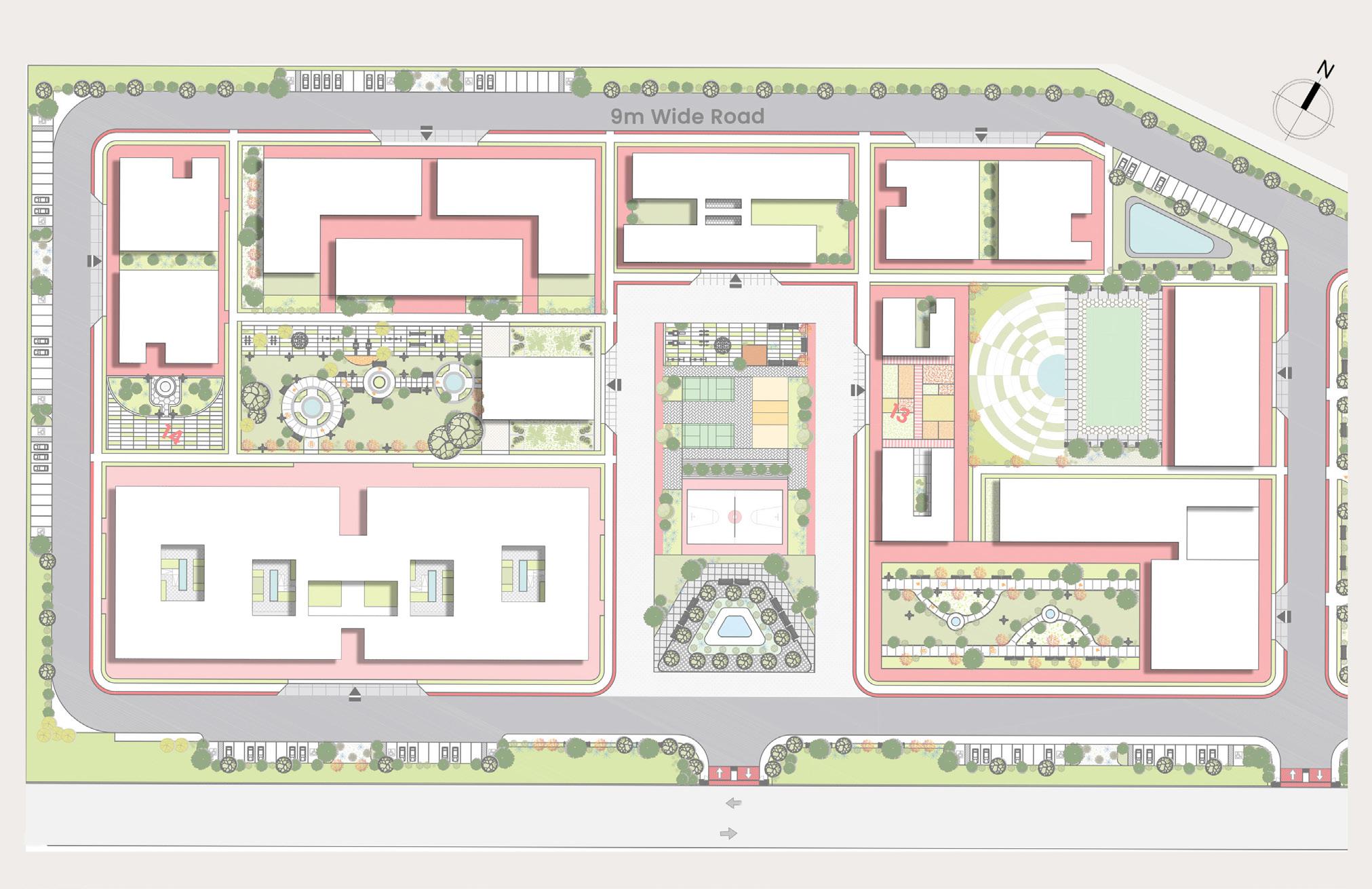

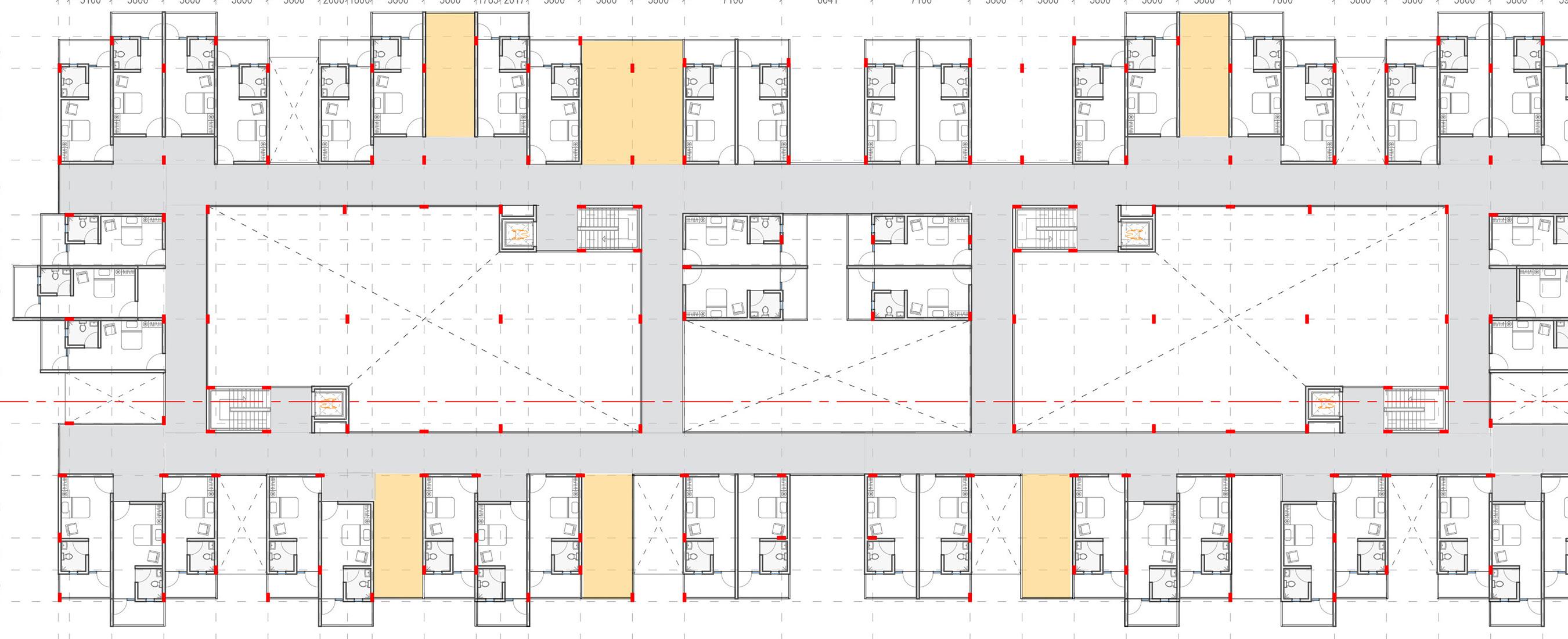

Site Plan

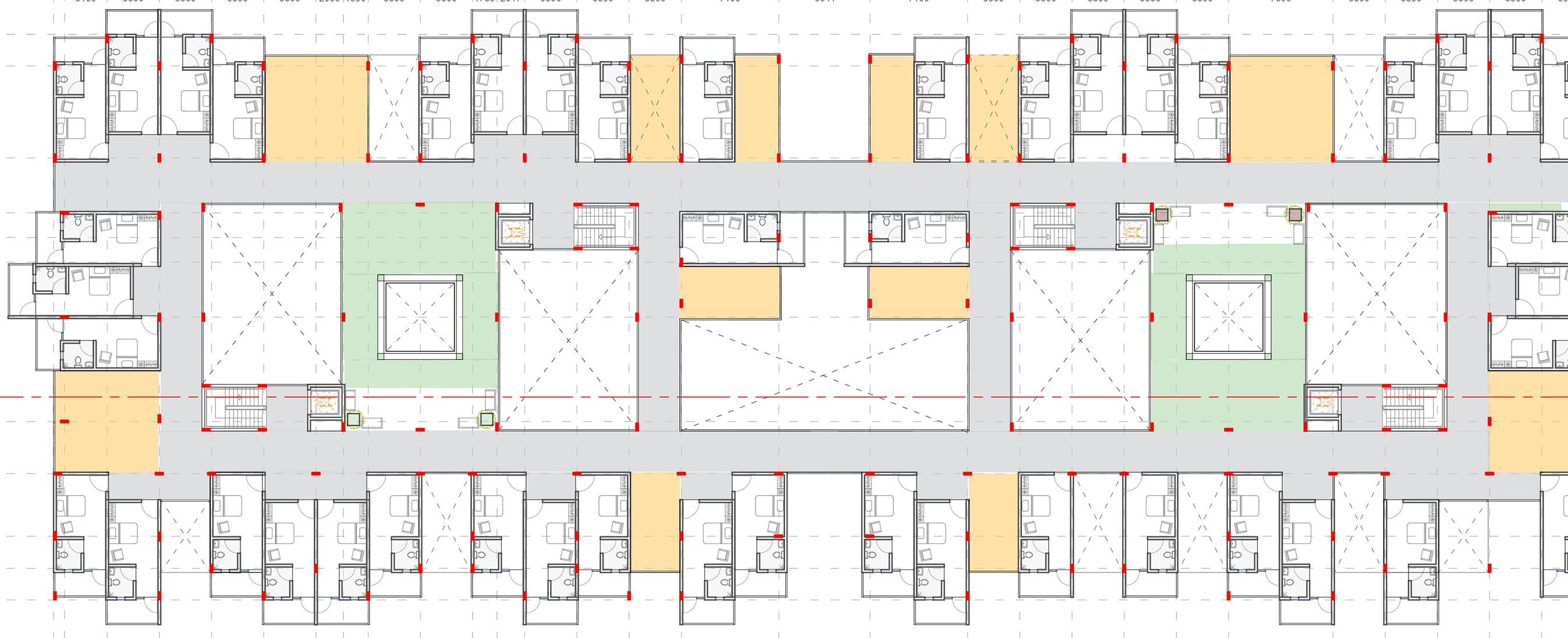

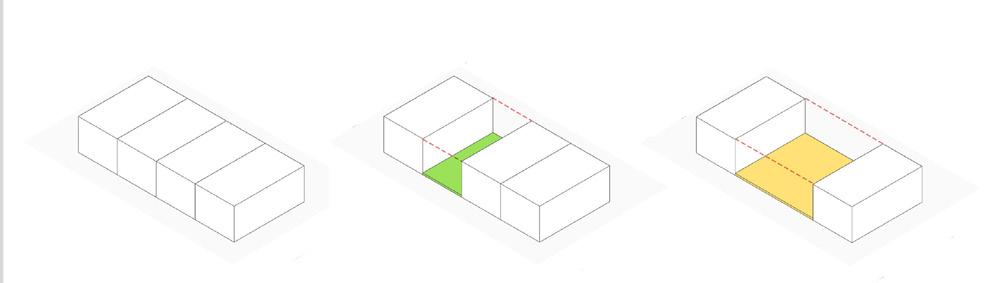

Courtyard

Courtyards are incorporated within every zones which will provide a spacious environment as well as add an additional advantage form environmental point of view and further leads to overall ambiance of campus.

The whole layout is purely on functional basis. Thus, i am co-relating my zoning according to the function of human body where every part does their own function without conflicting the function of others.

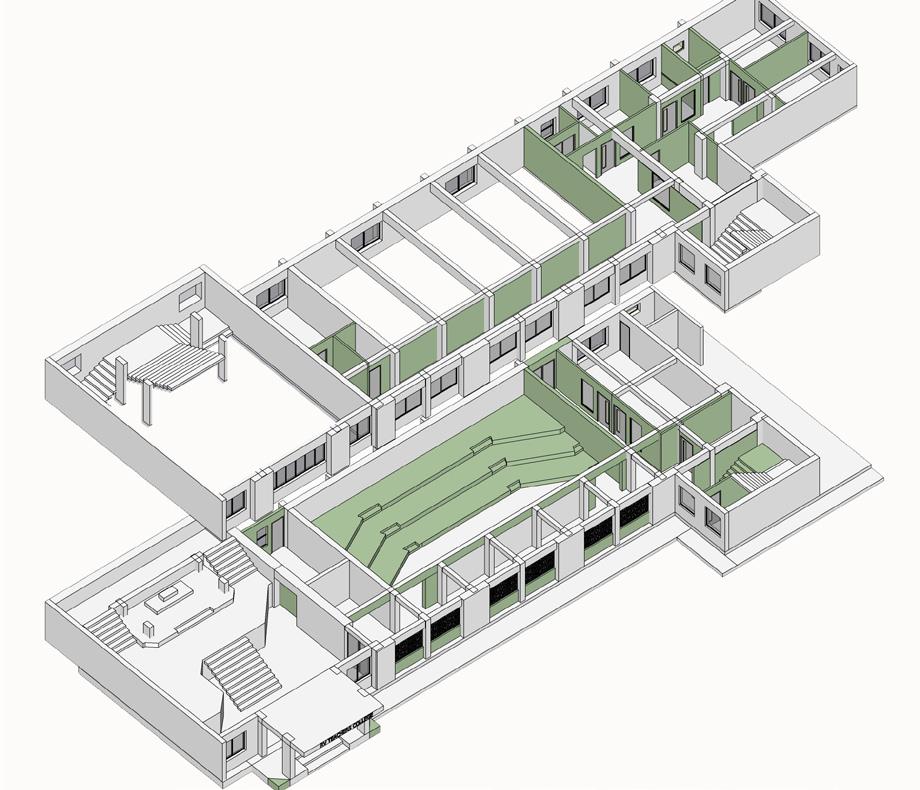

01 Renovation: RV Management Program

Total Area4065 sq.ft

StatusCompleted

Team-

Principal Ar. Meghana Dutta

Senior Ar. Shiraj Kharb

Junior Ar. Ayush Singh

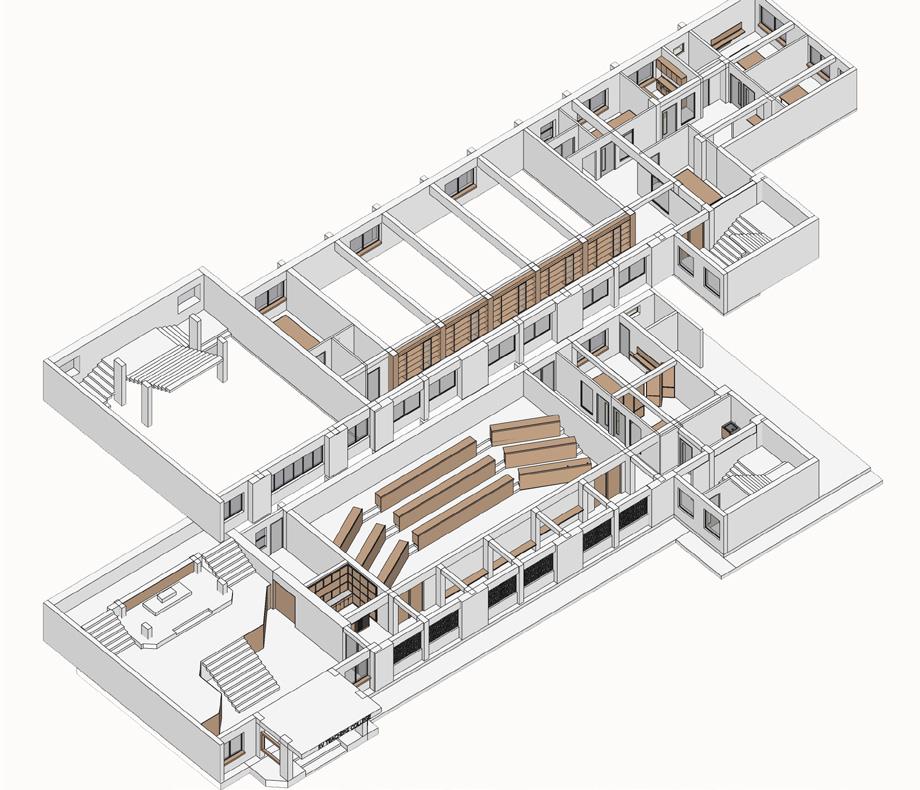

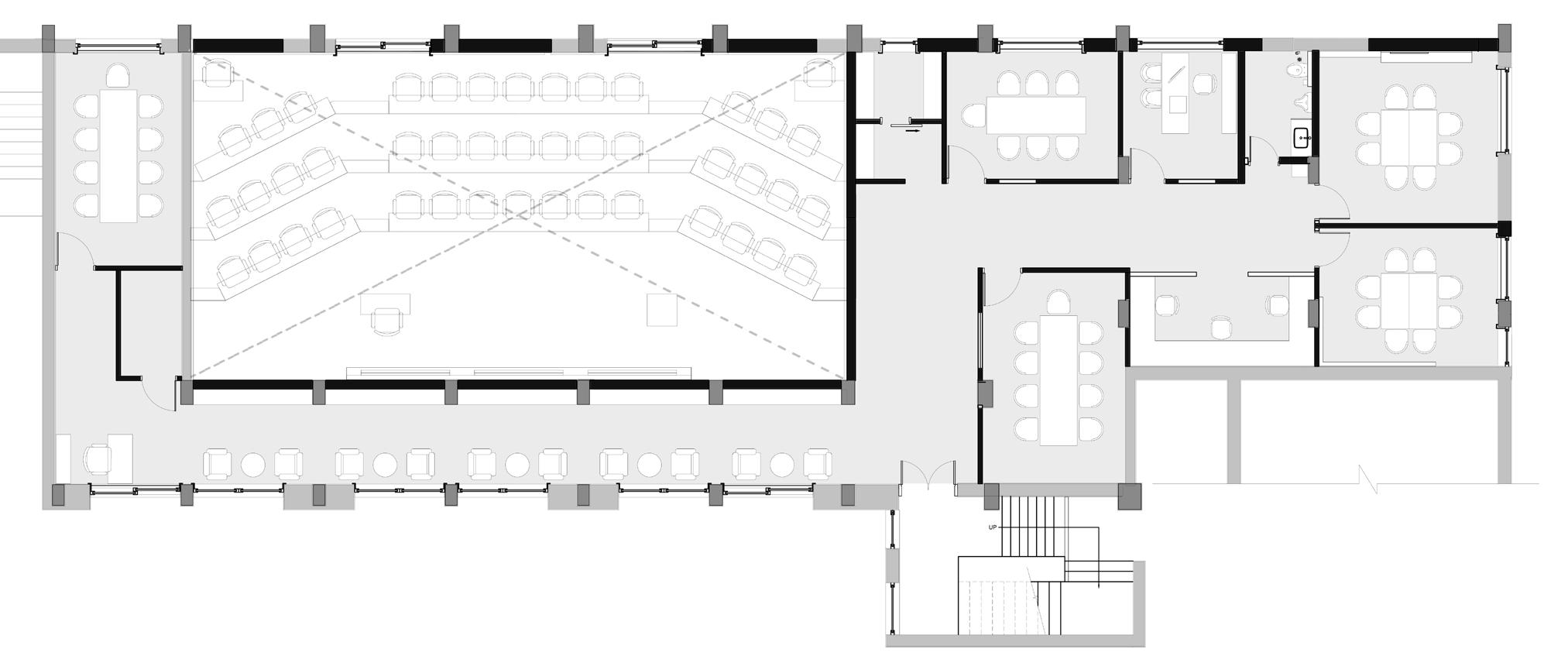

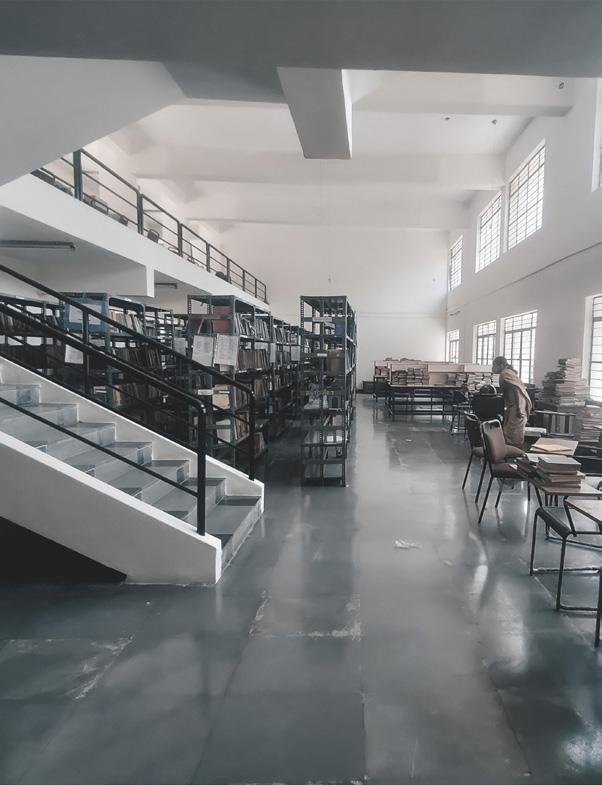

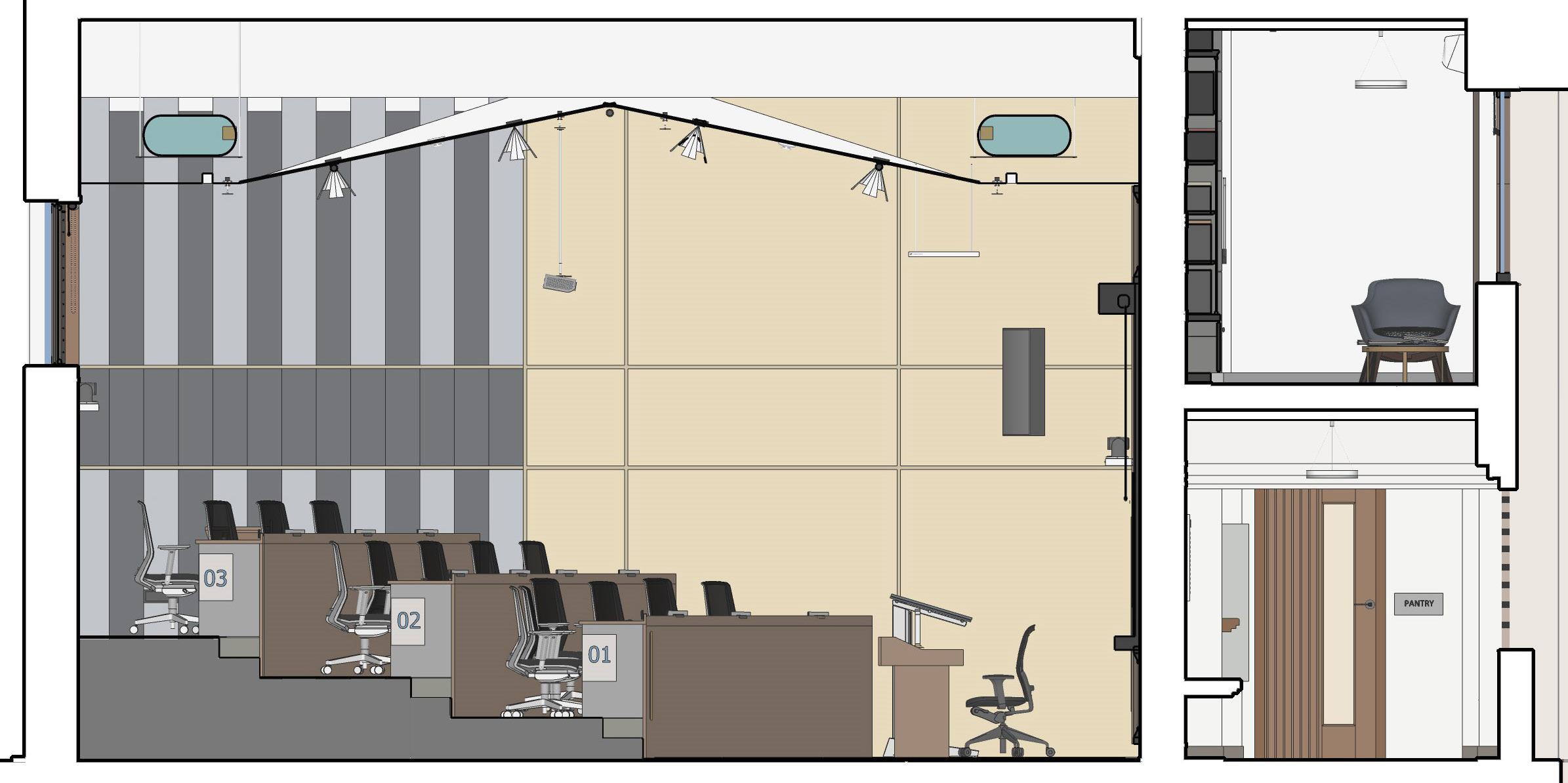

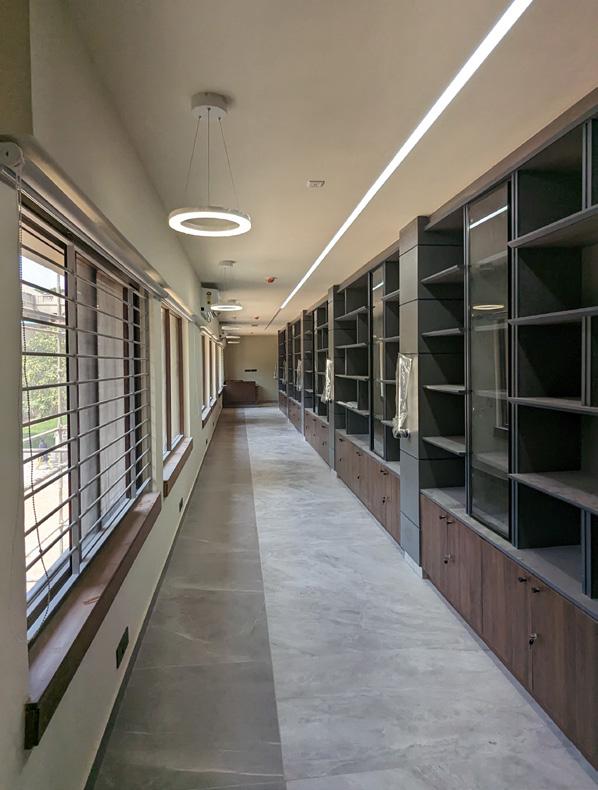

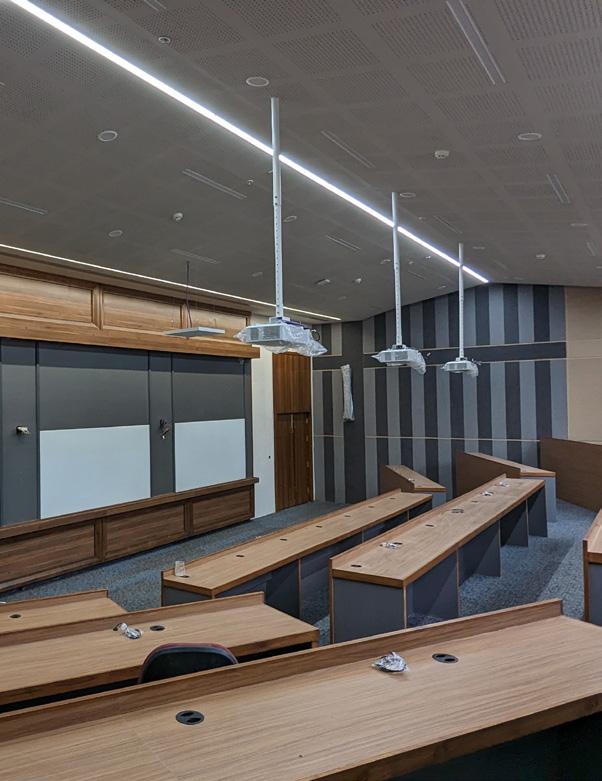

Our objective was to uplift the existing space for MBA students and provide them with all necessary advanced AV tech for classroom where both online and offline classes can be held together, small library space and discussion room.

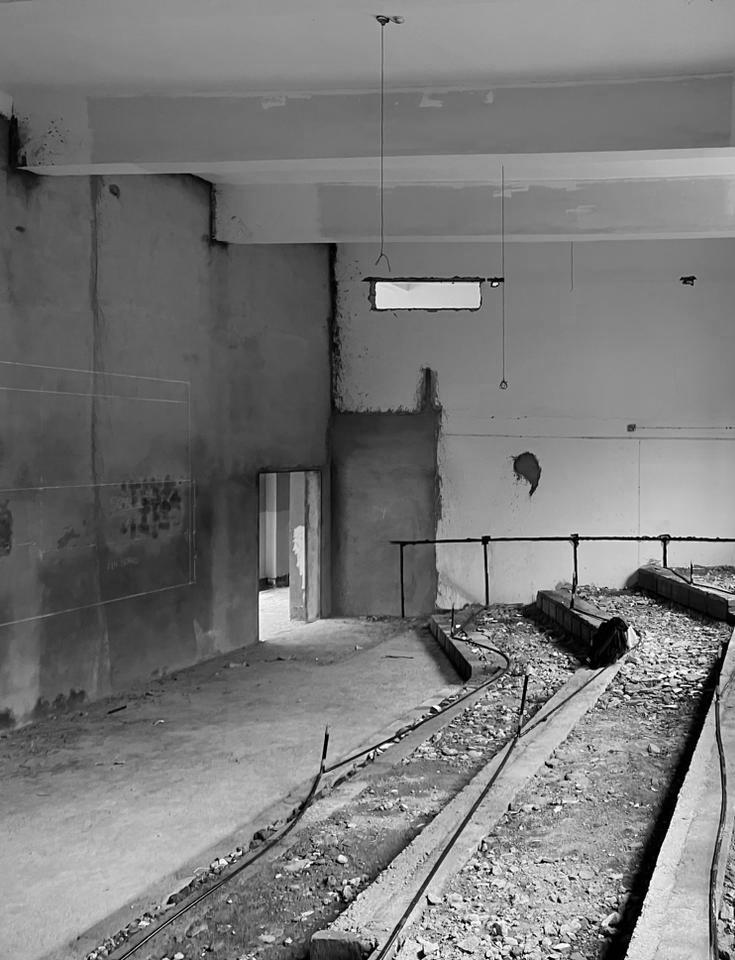

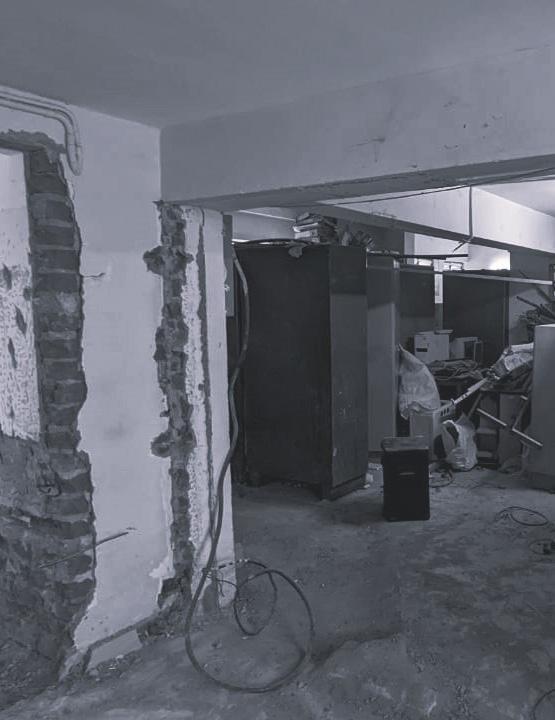

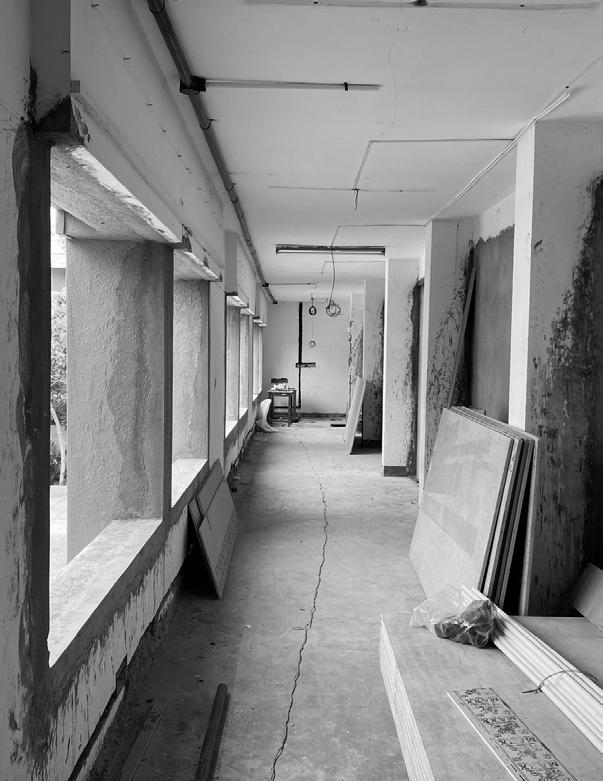

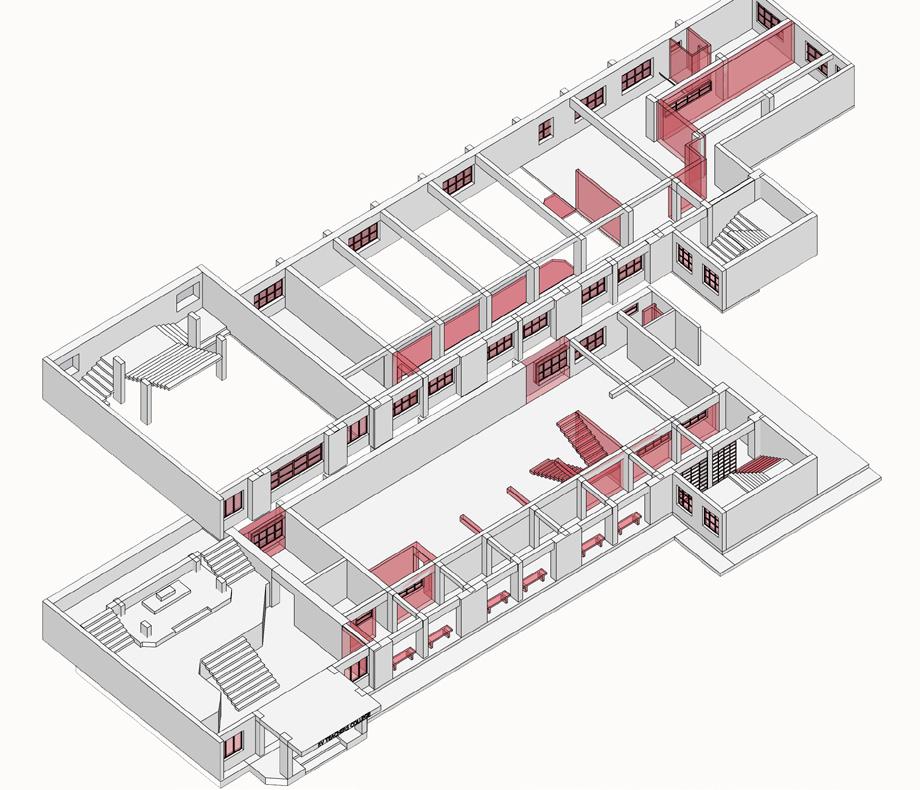

Demolition work

Removal of exisiting wall, flooring, door, window , slab and existing steps to introduce new staircase. Use of debris in classroom steps as filler.

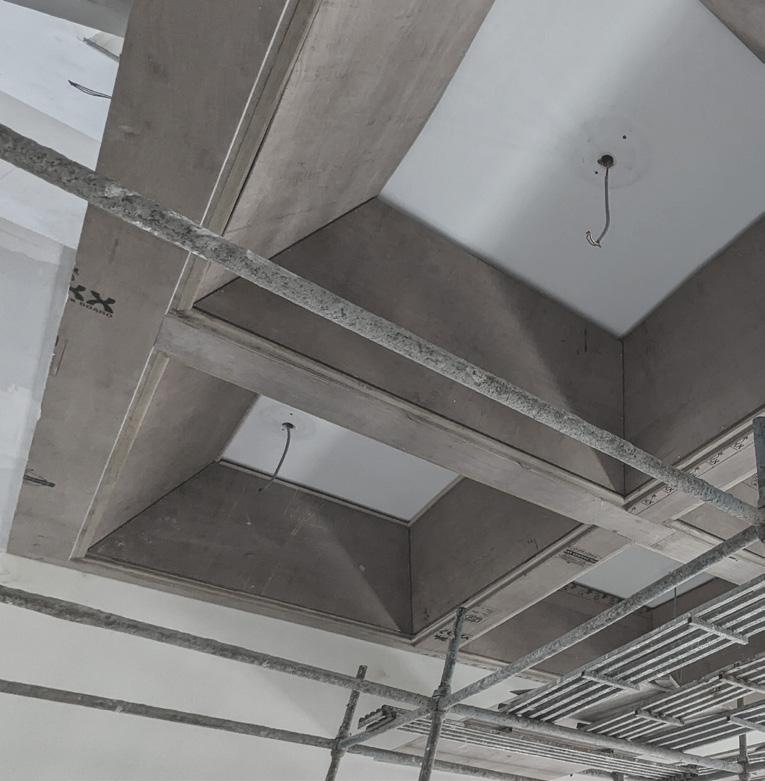

Civil work

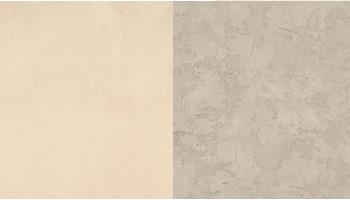

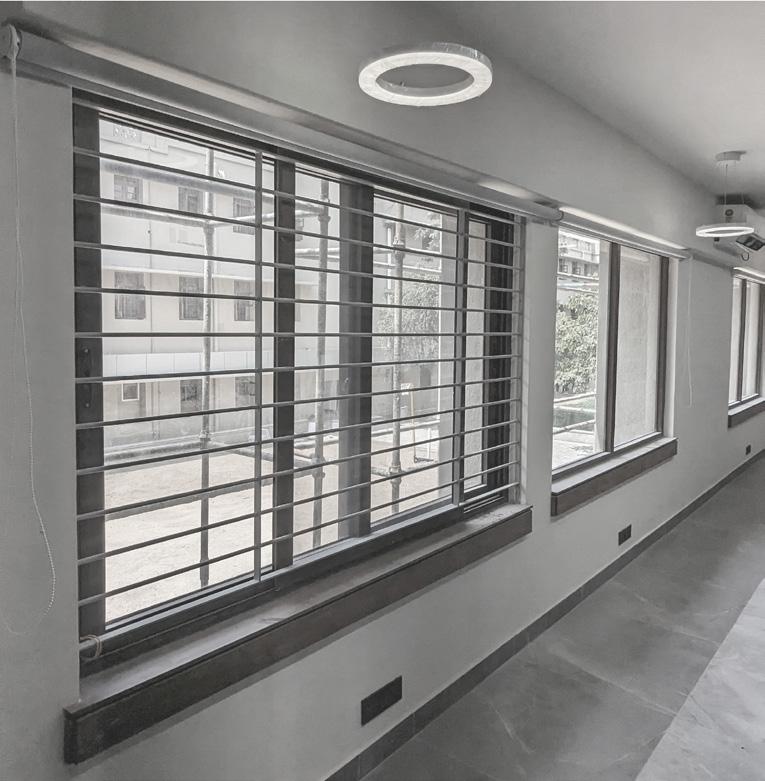

New masonary and partition wall to create new space. Different type of floorings as per spaces requirement. Newly design window, jaalis and door.

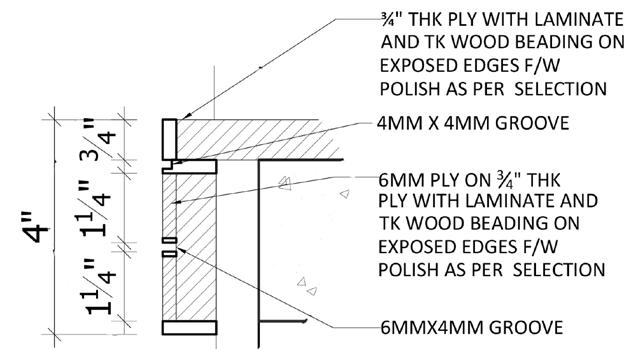

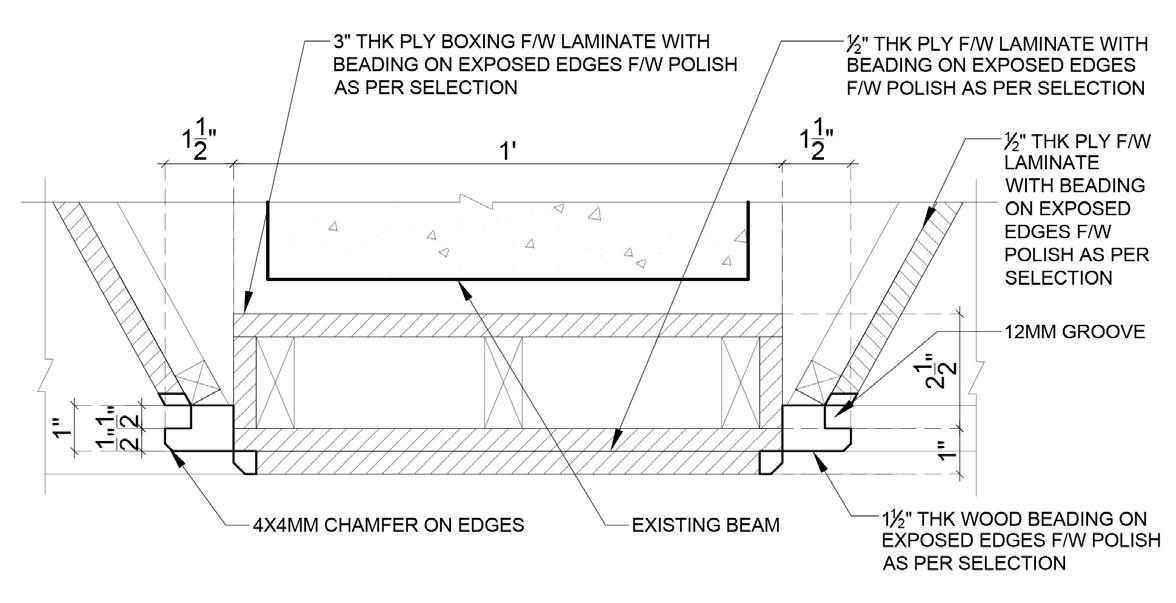

Carpentary work

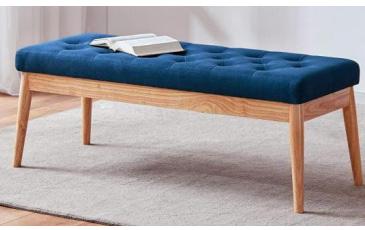

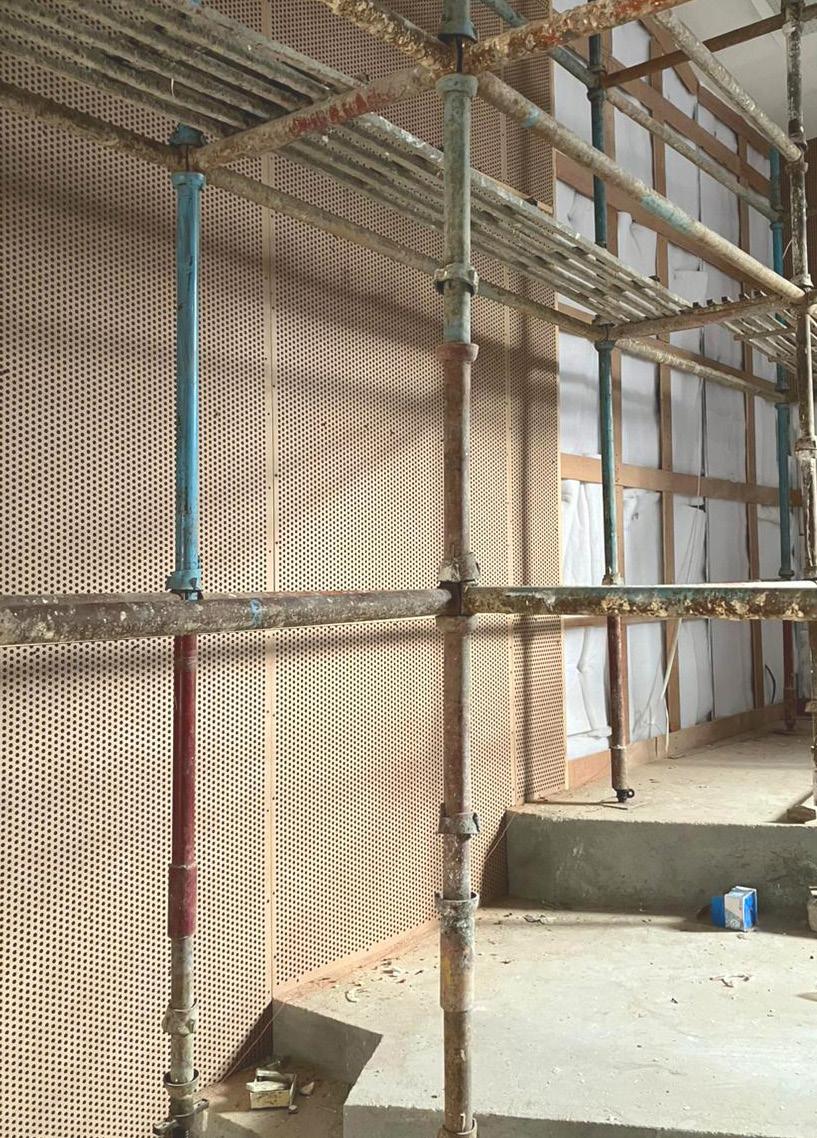

Acoustical panels, doors for classroom and discussion room, with newly design for furnitures, bookshelves and wall panels.

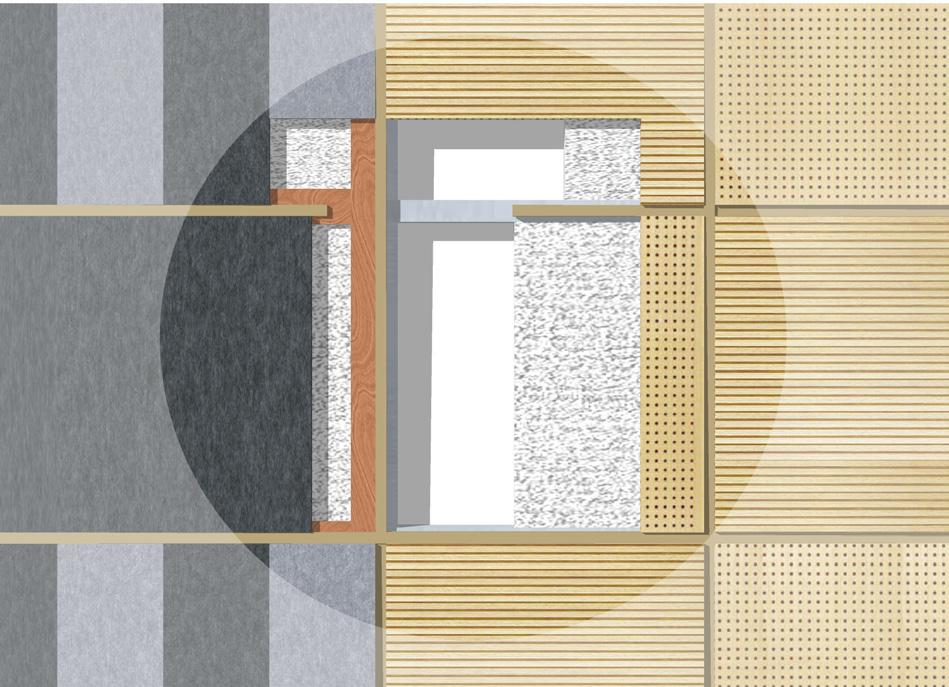

12mm Polyester fiber panel board

4mm Wood beading

25mm Perforated acoustic wood board

12mm MDF Board

300mm Existing wall

50mm Metal framework

50mm Insulation

25mm Linear acoustic wood board

02 Renovation: RV VIP Lounge

Total Area4065 sq.ft

StatusCompleted

Team-

Principal Ar. Meghana Dutta Junior Ar. Ayush Singh

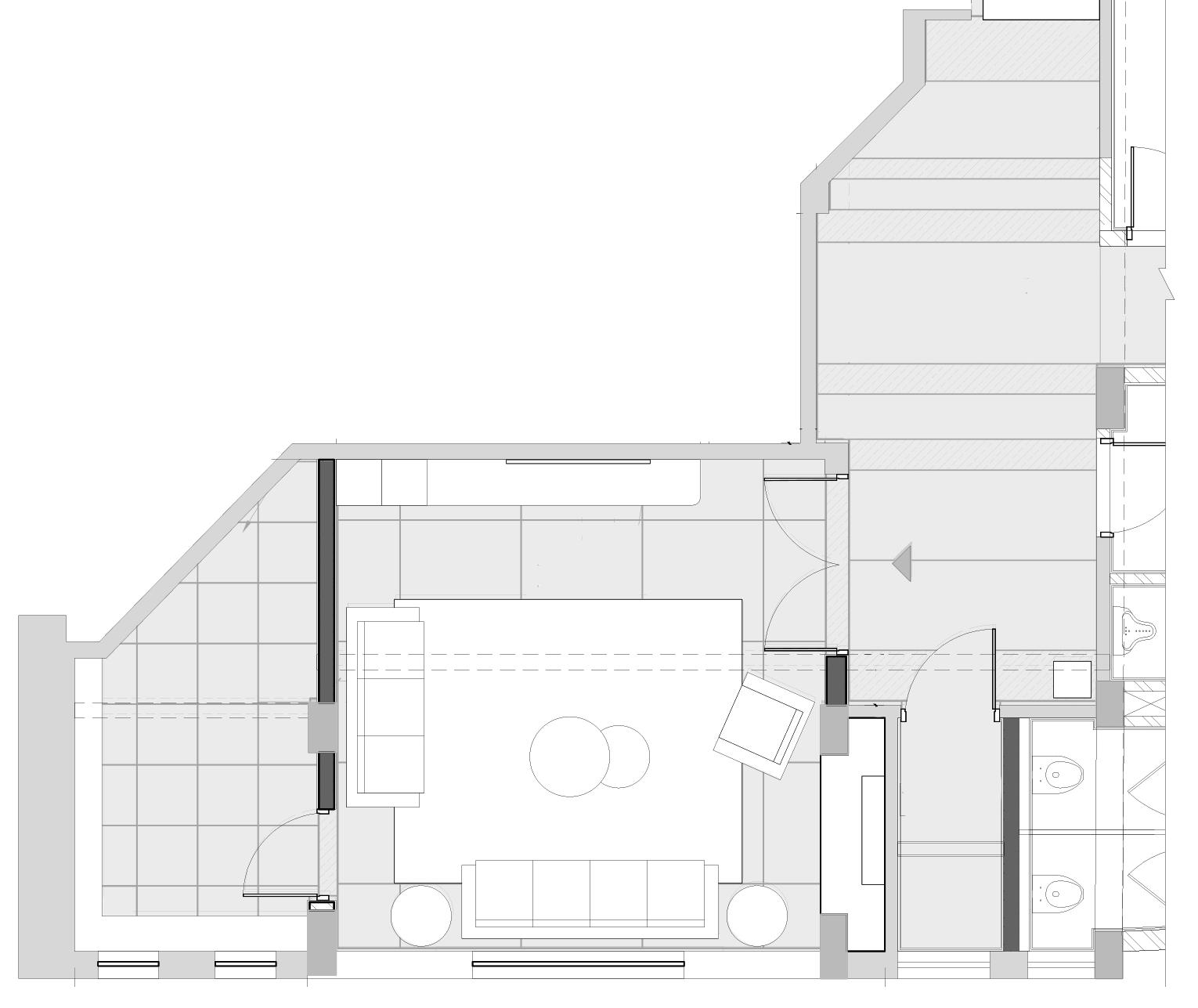

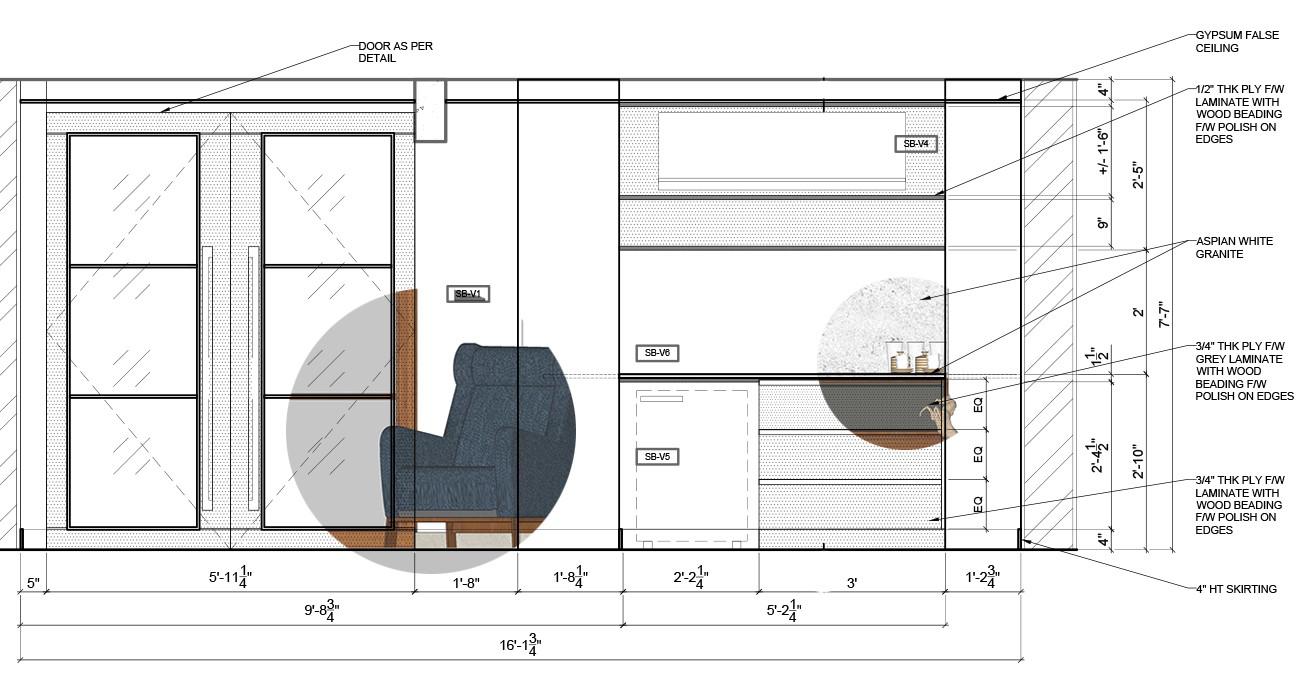

Our objective was to uplift the existing space for visitors and create waiting area with all necessary facility. The finshes and material are kept same as managment block.

03 Extension: Bysani Residence

Total Area2205 sq.ft

StatusOngoing

Team-

Principal Ar. Meghana Dutta

Senior Ar. Shiraj Kharb

Junior Ar. Ayush Singh

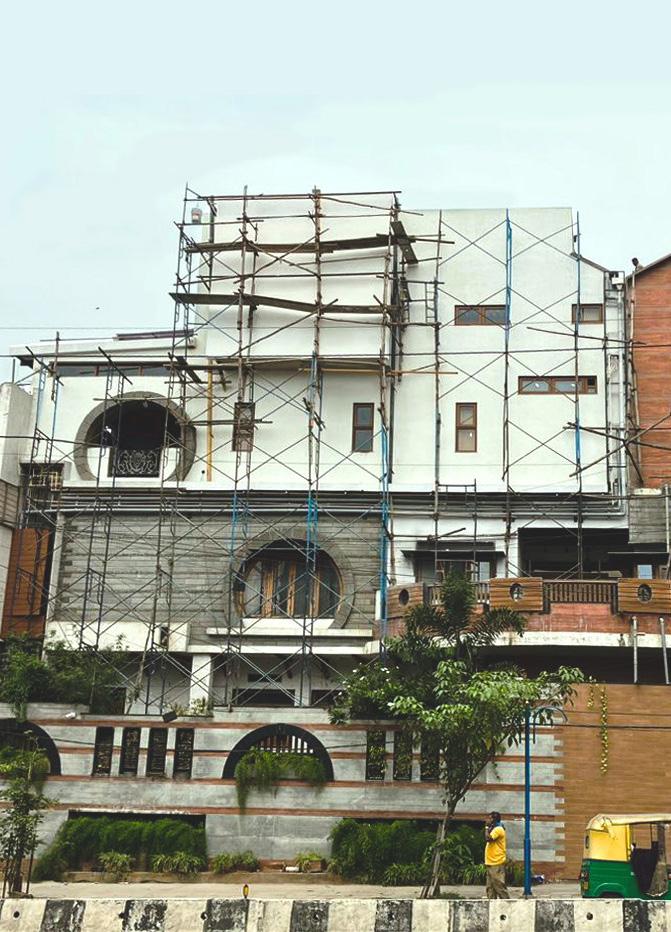

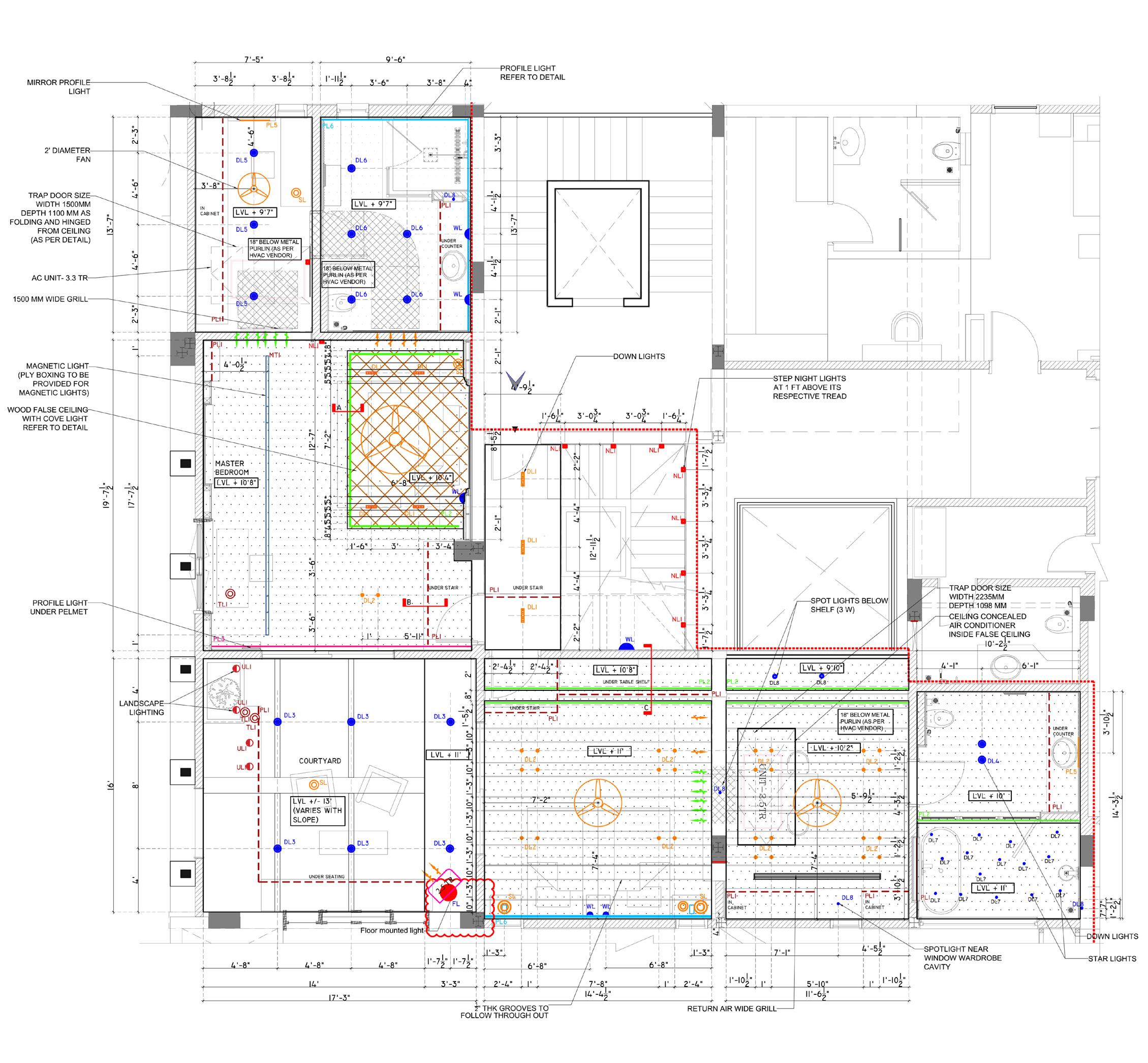

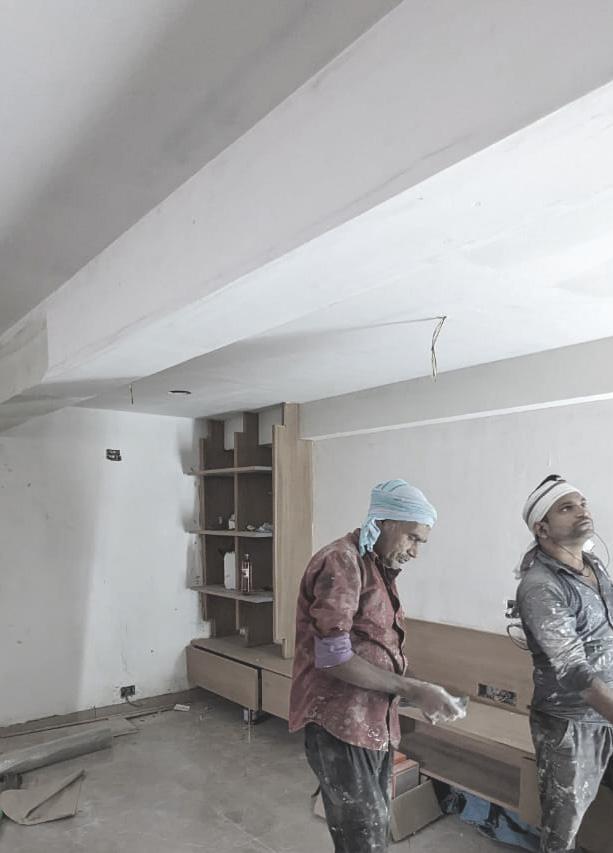

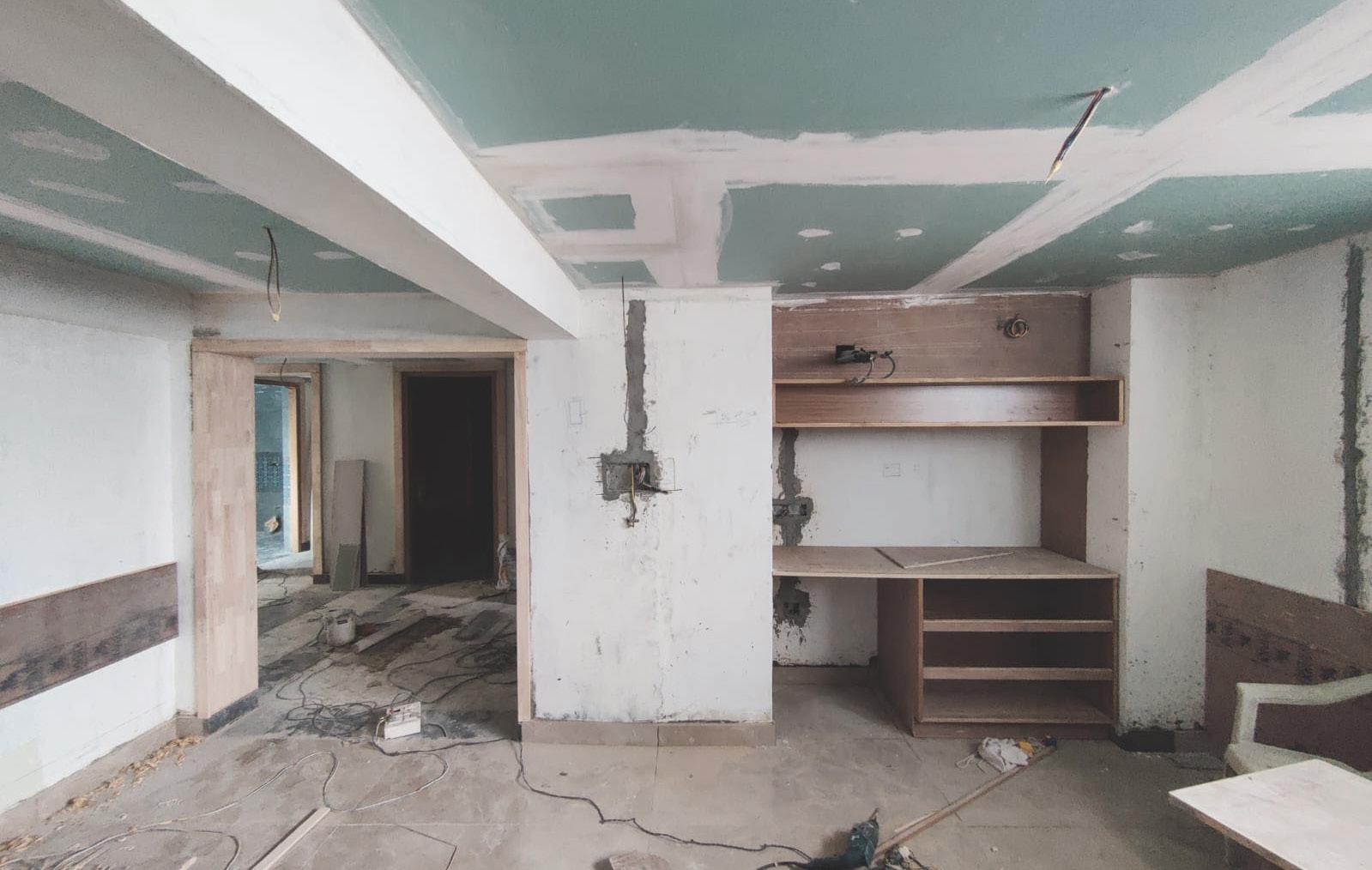

The project was an extention of two floor to an existing two floor residence of two brothers. The project was divided in two phase for two brother. I worked on the electrical and interior details as per proposed design.

Desgin Competition

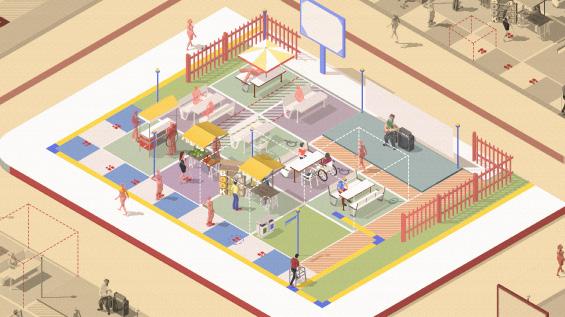

6 feet Apart is an inclusive streetscape that aims to create a social venue that brings diverse groups together. We are bound to maintain the 6 feet distance which created an opportunity for people with disabilities to access the public spaces.
