ARCHITECTURE PORTFOLIO

AYUSHI JOSHI

2019-2023

EDUCATION

2019-24

BACHELOR OF ARCHITECTURE

UNIVERSITY SCHOOL OF ARCHITECTURE AND PLANNING, GGSIPU, DELHI, INDIA

2018

AUTOCAD DIPLOMA

CADD MASTERR, PITAMPURA, DELHI AUTHORISED AUTODESK TRAINING CENTRE

2004-18

AYUSHI JOSHI

DATE OF BIRTH: 08 DEC’00 (22 YEARS)

+91 9971172936

B-7/19&20, SECTOR-4, ROHINI, DELHI-85

ayushijoshi0812@gmail.com

https://www.linkedin.com/ in/ayushi-joshi-08122000/

LANGUAGES

ENGLISH HINDI FRENCH

REFERENCES AVAILABLE UPON REQUEST

SENIOR SECONDARY SCHOOL (CBSE)

SACHDEVA PUBLIC SCOOL, SECTOR-13, ROHINI, DELHI

WORK EXPERIENCE

2021-23 2020

FREELANCING FOR NAV NIRMAN

DRAFTING, MEASURED DRAWINGS, RENDERING, PLANNING & DESIGNING

INTERN AT SHITIJ DOGRA ARCHITECTS

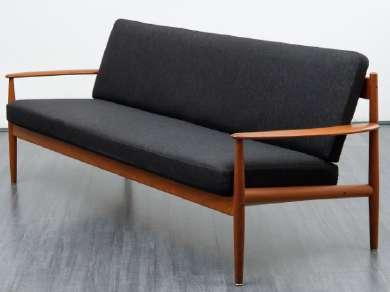

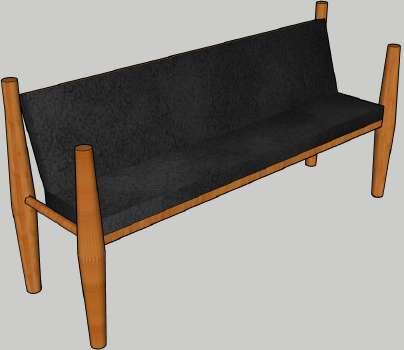

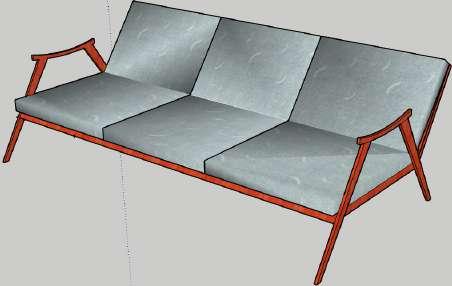

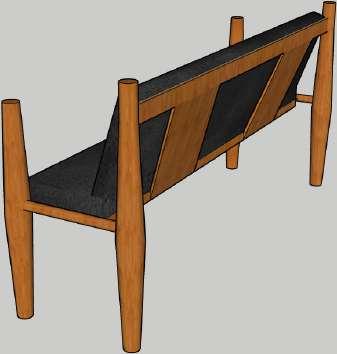

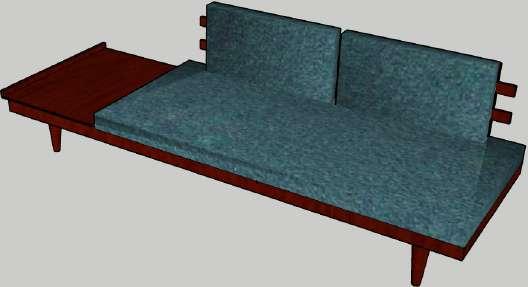

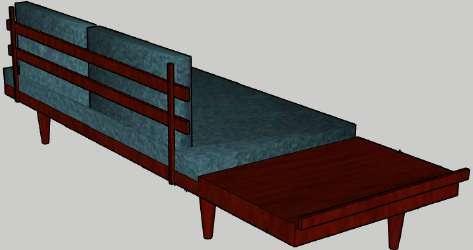

RESEARCH, DATA COLLECTION, DESIGNING BROCHURES, FURNITURE DESIGN

COMPETITIONS

2021 HOSPICE DESIGN (UNI)- Shortlisted

2021

2020

DESTECH (NASA)- Participation

SUNDARBARI (INTERNATIONAL)- Shortlisted

2020 ANDC (NASA)- Runner-ups

CERTIFIED COURSES & TRAINING

• UDEMY - Climate Responsive Design

• UGREEN - Green Building School

• DESIGN MORPHINE - Morphy Towers V1.0

• LINKEDIN - Complete Course on Revit

• HARVARD - The Architectural Imagination

OBJECTIVE

Highly passionate and dedicated architecture student seeking a challenging position to kickstart a successful career in the field of architecture, leveraging my strong design sensibilities, proficiency in architectural software, and collaborative mindset to create innovative and visually striking spaces that inspire and enhance people’s lives.

Seeking opportunities that allow me to further develop my skills in architectural design, construction documentation, and project coordination. Committed to working alongside experienced professionals to gain hands-on experience and contribute to the successful execution of diverse architectural projects.

SKILL SET

AUTOCAD

REVIT

PHOTOSHOP

INDESIGN

ILLUSTRATOR

SKETCHUP

ENSCAPE

VRAY

LUMION

BLENDER

MS-OFFICE

LIGHTROOM

TOD HOUSING DREAM TOWN 06 HOSPITAL DESIGN 10 GLOBAL HEALTHCARE SENIOR LIVING 16 OLD FOLKS HOME CULTURAL CENTRE 20 PALACE OF ILLUSIONS HOMETSEAD DESIGN 22 SUNDARBARI C E T N O N S T

XJ SLAB 0.02 M THICK CEMENT MORTAR PARAPET STONE AS SPECIFIED 0.45 M HIGH PARAPET WALL (0.23 M THICK) 0.9 M HIGH RAILING SLAB SLAB DEPTH BEAM 0.1 M PCC BRICK BATS RAMMED EARTH 0.15 Ø0.02 M S.S. PIPE (WELDED TO Ø0.05 M S.S. PIPE) Ø0.025 M S.S. PIPE (WELDED TO Ø0.05 M S.S. PIPE) NOSING (0.01 M) Ø0.015 M HOLLOW S.S. HANDRAIL 1 0.1 X 0.065 X 0.006 M (WELDED TO 50 MM 0.012 M THICK CEMENT 0.1 0.5 KOTA STONE AS SPECIFIED Ø0.02 M S.S. PIPE (WELDED TO Ø0.05 M S.S. PIPE) Ø0.02 M S.S. PIPE (WELDED TO Ø0.05 M S.S. PIPE) Ø0.05 M S.S. BALUSTER (WELDED TO HANDRAIL) 0.02 M THICK CEMENT MORTAR R.C.C. SLAB (A.P.S.) 0.06 M THICK CEMENT 0.1 X 0.1 X 0.01 M S.S. GROOVE IN PLASTER 0.1 0.15 0.15 0.15 0.15 R.C.C. SLAB (A.P.S.) 0.15 M RISER NOSING (0.01 M) KOTA STONE AS SPECIFIED 0.02 M THICK CEMENT 0.006 M THICK CEMENT SECTION AA' (SECTION THROUGH STAIRCASE) A C DETAIL B WORKING DRAWINGS 24 SCHOOL DESIGN RAGHUNATH MANDIR FREELANCE WORK NAV NIRMAN 30 INTERNSHIP WORK 33 SHITIJ DOGRA ARCHITECTS MISCELLANEOUS 34 ARTWORK C E T N O N S T

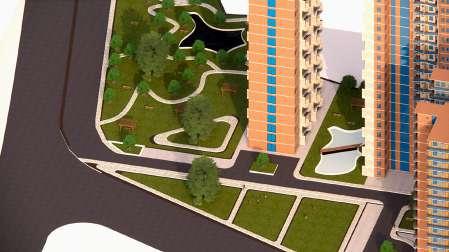

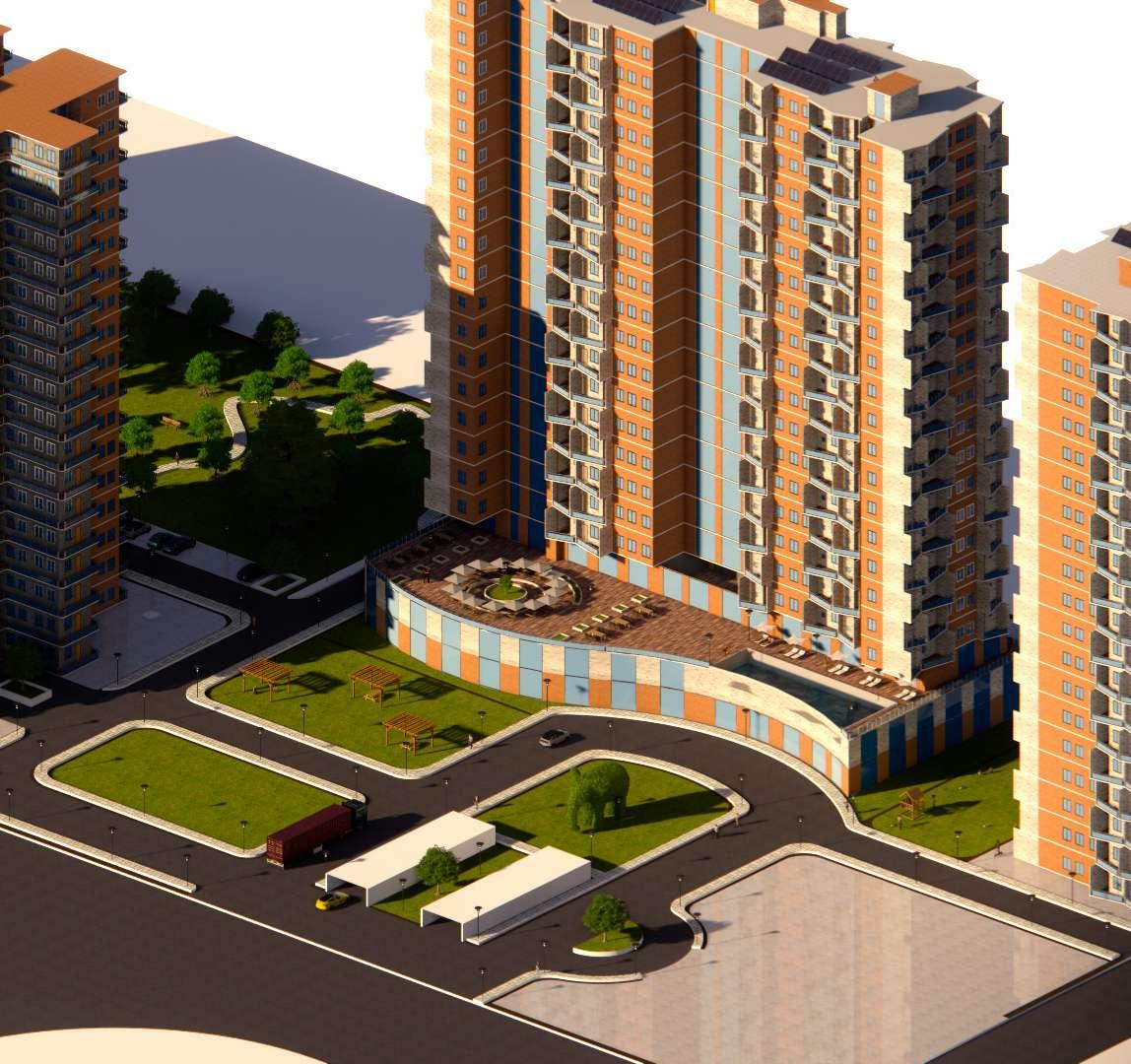

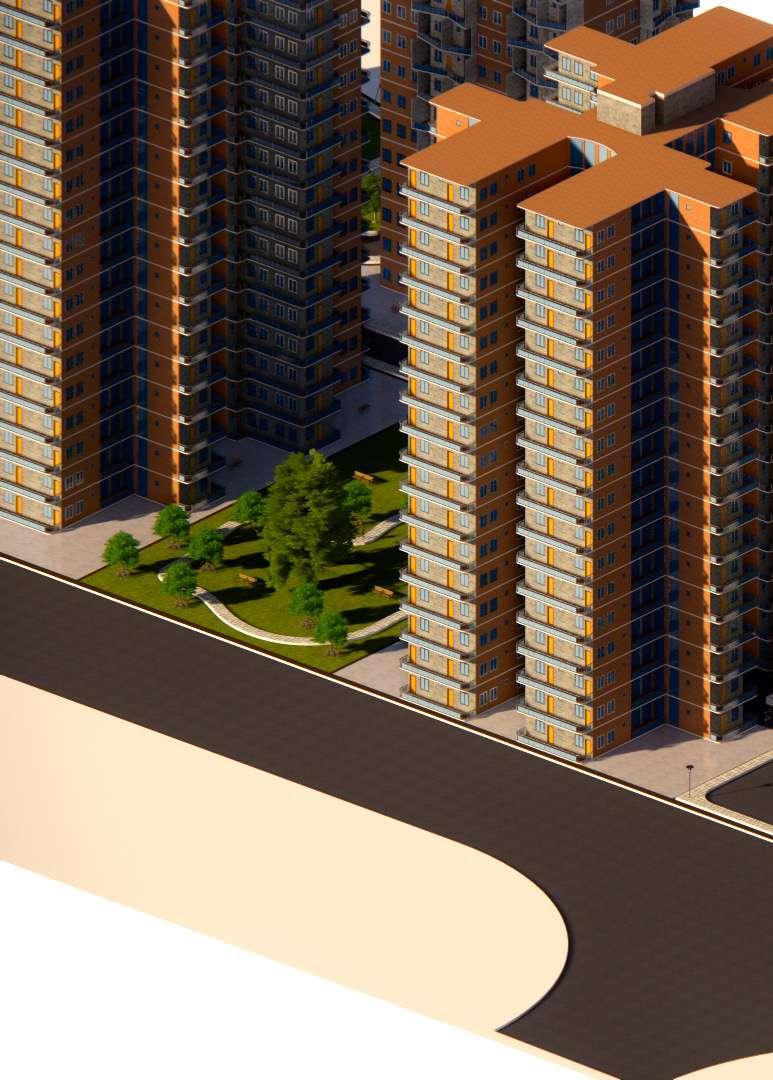

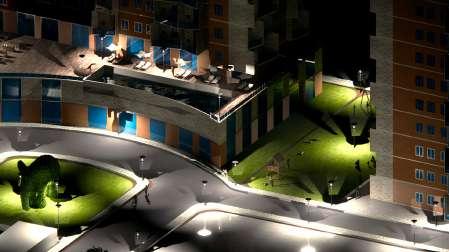

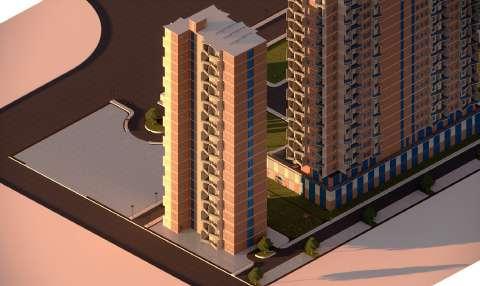

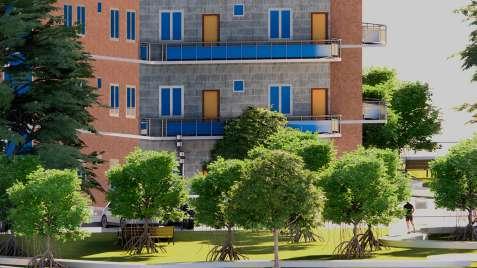

01 DREAM TOWN

TRANSIT ORIENTED DEVELOPMENT HOUSING

YEAR 4 SEMESTER 7 2022

INVOLVEMENT & ROLE ` PLANNING, 3D MODELLING, RENDERING & VIZUALISATION, COMPOSITION & PRESENTATION CORE MEMBER (GROUP PROJECT)

ABOUT THE PROJECT

PROVISION OF TRANSIT ORIENT DEVELOPMENT IN KARKARDUMA. THE DEVELOPMENT FOCUSES ON CREATING COMMUNITIES THAT ARE CENTERED AROUND PUBLIC TRANSPORTATION OPTIONS, MAKING IT EASIER FOR RESIDENTS TO GET AROUND WITHOUT RELYING ON PERSONAL VEHICLES.

IT FOCUSES ON DEVELOPING HIGH DENSITY HOUSING WITH GREATER FAR AND ZERO SETBACKS. PROVISION OF HOUSING FOR ALL PEOPLE BELONGING TO DIFFERENT AGE GROUPS AND ECONOMIC BACKGROUNDS.

AVAILABILTY OF ALL SERVICES AND AMENITIES WITHIN THE SITE TO REDUCE TRANSPORTATION AND AVAILABLE TO ALL GENERAL PUBLIC.

SOFTWARES USED

PROJECT TYPE TOD GROUP HOUSING LOCATION KARKARDUMA, EAST DELHI, INDIA SITE AREA 13 ACRES

GROUND

40%

FAR: 300

SETBACKS: 0M PARKING: 1 ECS

REQUIREMENTS PERMISSIBLE

COVERAGE:

PERMISSIBLE

TOD

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 6 | DREAM TOWN ACADEMIC

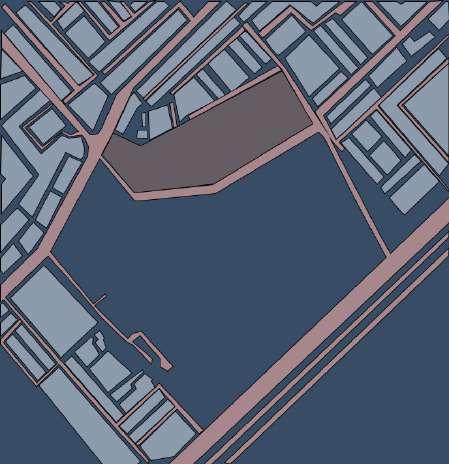

LOCATION

28.6925N,77.3023E

DELHI, INDIA

CHALLENGES & SOLUTIONS

EXISTING VEGETATION LACK OF USABLE AREAS

ELONGATED SITE DUE TO HIGH DENSITY HOUSING, ROAD NETWORK PLANNING ALONG WITH OTHER BUILDINGS IS A CHALLENGE.

SOLUTION: INTEGRATING EXISTING VEGETATION IN DESIGN BY PROVIDING FORMAL & INFOMAL GREEN SPACES SUCH AS CYCLE TRACKS, TOT-LOTS, JOGGING TRACKS ETC.

SOLUTION: PROVIDING MAIN ACCESS ROAD WITH BRANCHING TO ALL SEPARATE BUILDINGS WITH REQUIRED ROW.

EAST DELHI

UNDERGRADUATE ARCHITECTURAL PORTFOLIO

KARKARDUMA

AYUSHI JOSHI

7 | DREAM TOWN

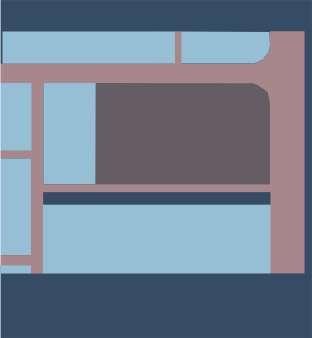

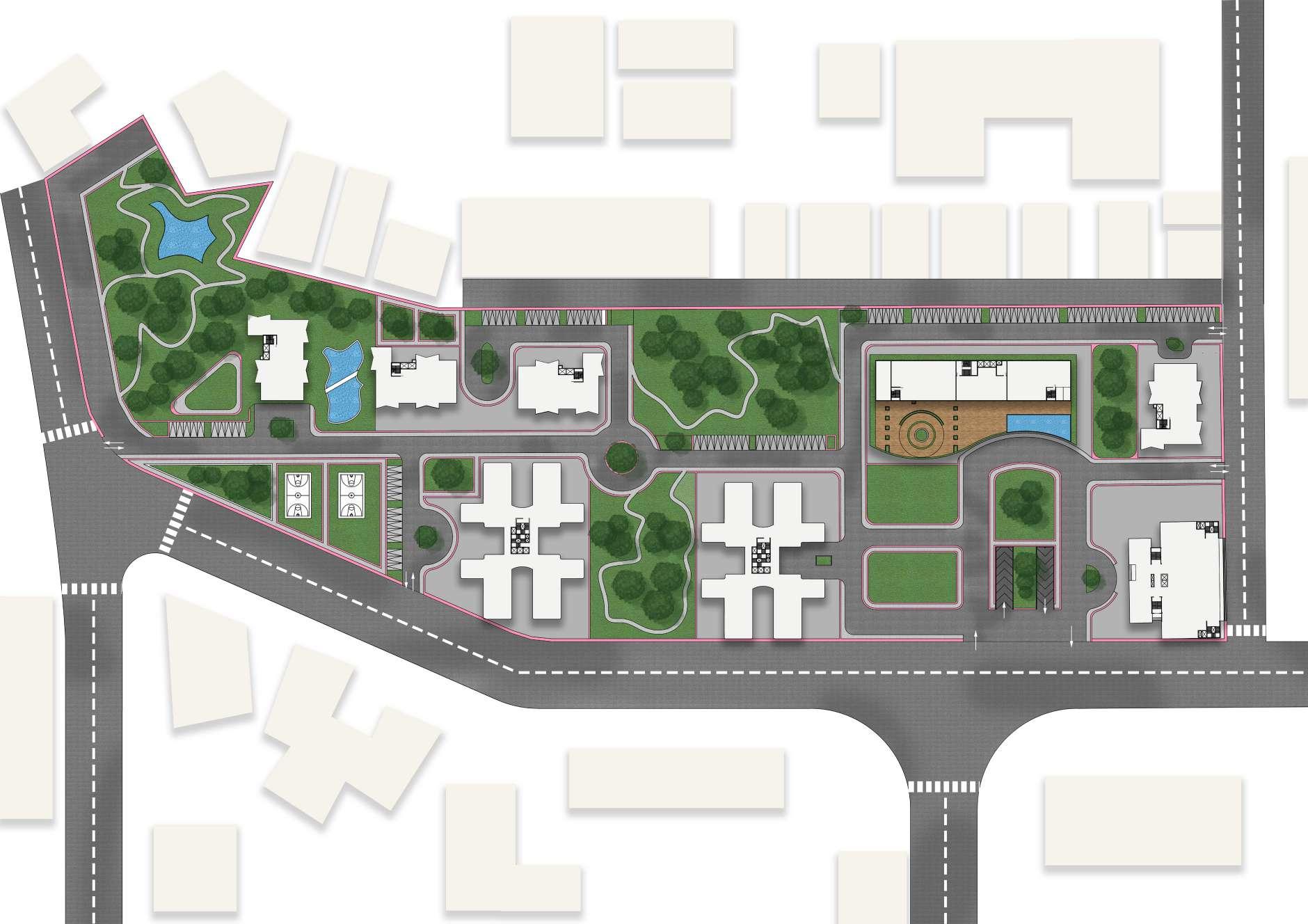

KEY PLAN

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 1 3 2 2 2 2 4 4 5 6 7 7 7 8 8 ENTRY/ EXIT ENTRY/ EXIT ENTRY/ EXIT ENTRY/ EXIT ENTRY/ EXIT 9

LEGEND 1 - MIXED USED 3BHK HOUSING + CLUBHOUSE 2 - 2BHK HOUSING 3 - MIXED USED 2BHK HOUSING 4 - 4BHK HOUSING 5 - BASEMENT RAMPS 6 - TOT-LOTS 7 - JOGGING TRACKS 8 - POND

8 | DREAM TOWN

9 - BASKETBALL COURT

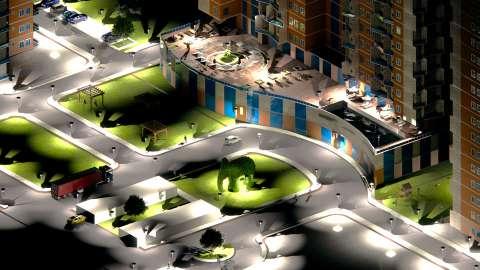

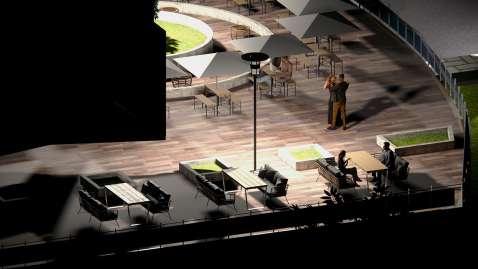

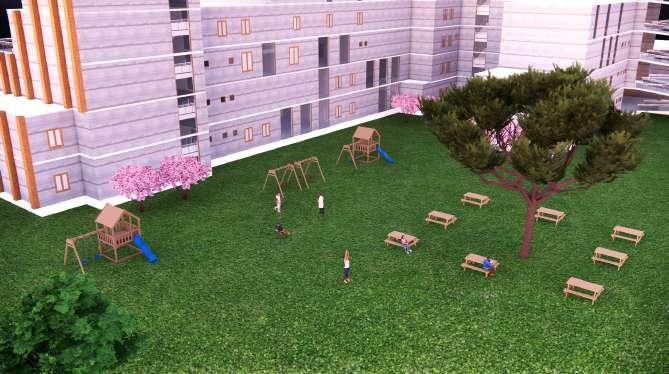

AMENITIES & FACILITIES

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI

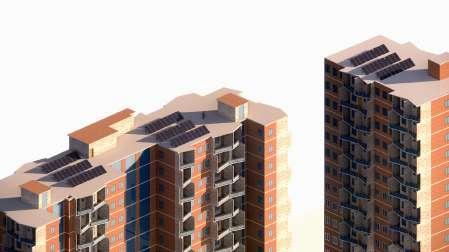

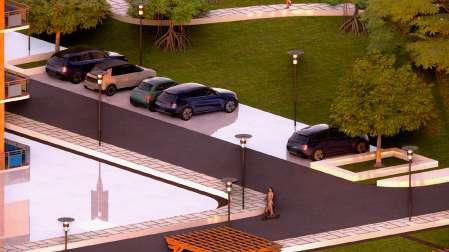

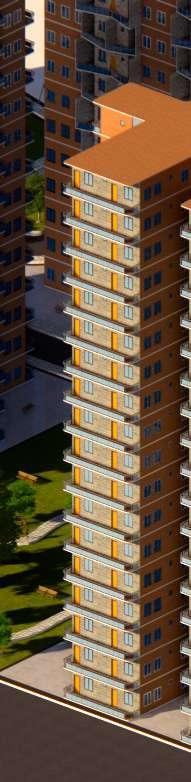

JOGGING TRACK SOLAR PANELS BASEMENT RAMPS SURFACE PARKING SWIMMING POOL 2-3 BHK HOUSING ODD FLOORS 2-3 BHK HOUSING EVEN FLOORS 2 BHK HOUSING ODD FLOORS 2 BHK HOUSING ODD FLOORS

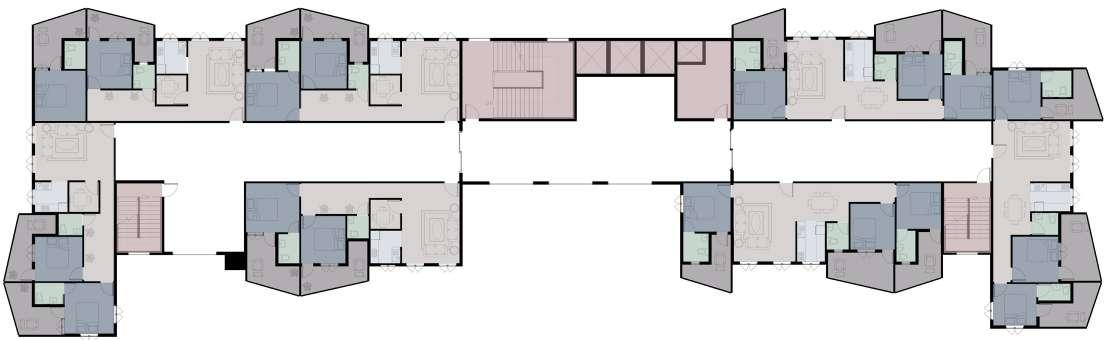

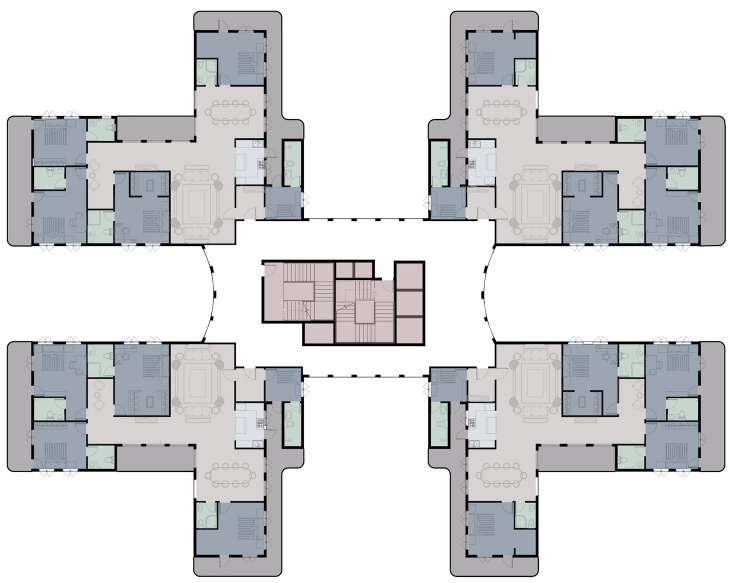

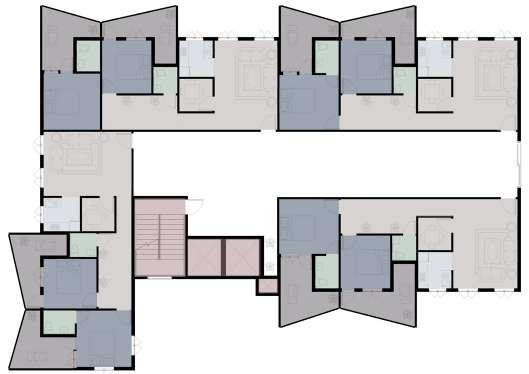

4 BHK HOUSING TYPICAL FLOORS BEDROOMS BALCONY BUILDING CORE

WASHROOMS LOBBY 9 | DREAM TOWN KITCHEN

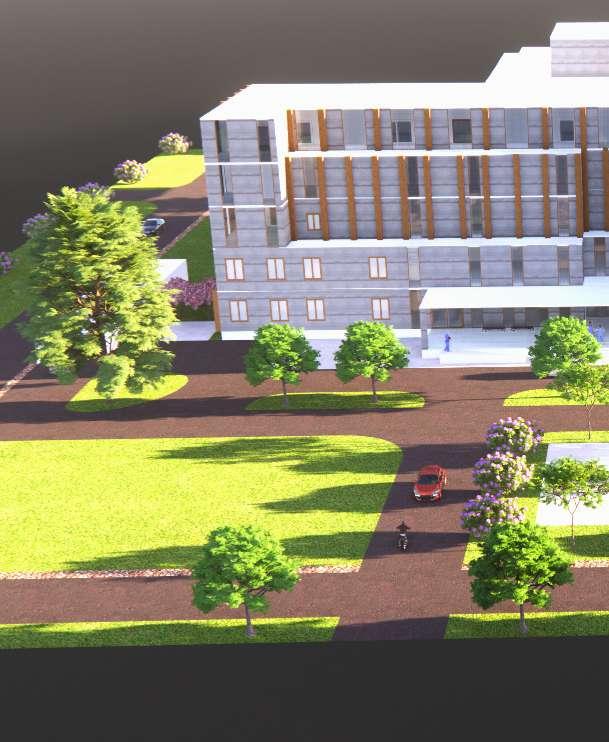

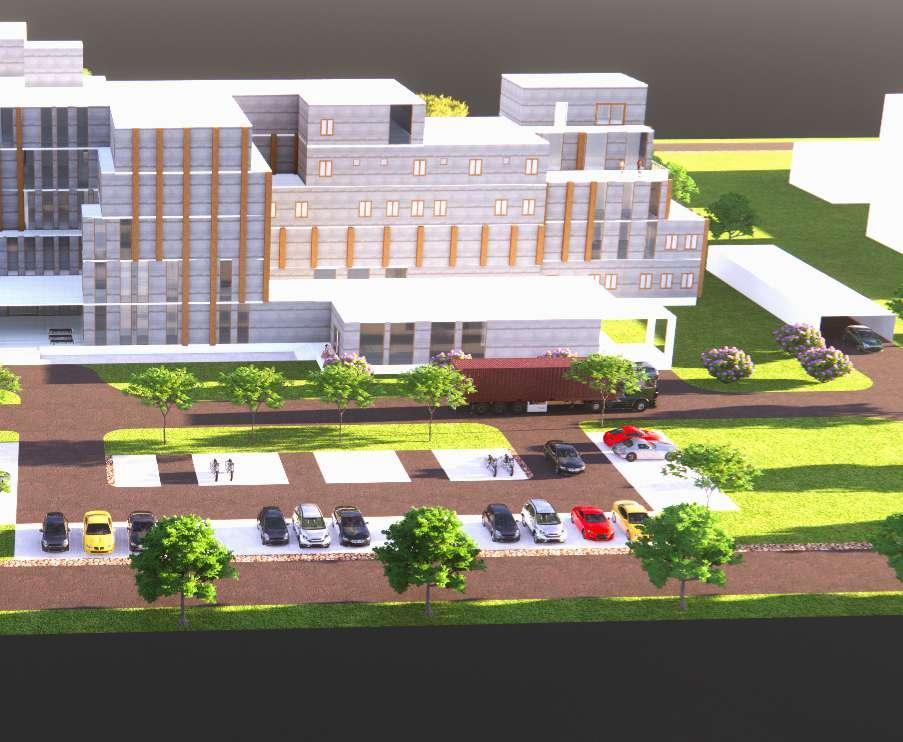

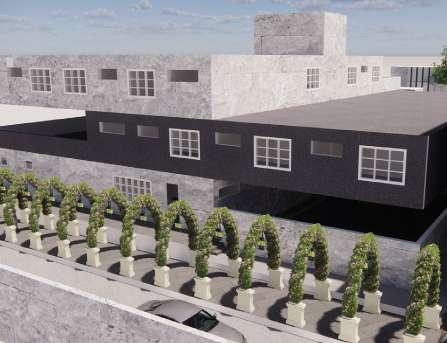

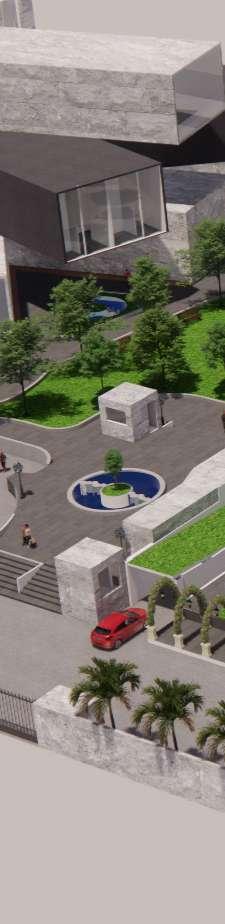

02 GLOBAL HEALTHCARE

100-BED GENERAL HOSPITAL WITH THERAPUTIC GREENS

YEAR 3 SEMESTER 6 2022

PROJECT TYPE HOSPITAL DESIGN

LOCATION

SECTOR-9, DWARKA, SOUTH-WEST DELHI, INDIA

SITE AREA

4 ACRES REQUIREMENTS

PERMISSIBLE GROUND

COVERAGE: 30%

PERMISSIBLE FAR: 1.2

FRONT SETBACK: 15M

SIDE SETBACK: 9M

PARKING: 2 ECS

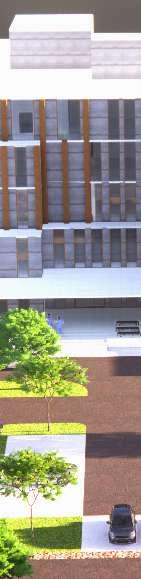

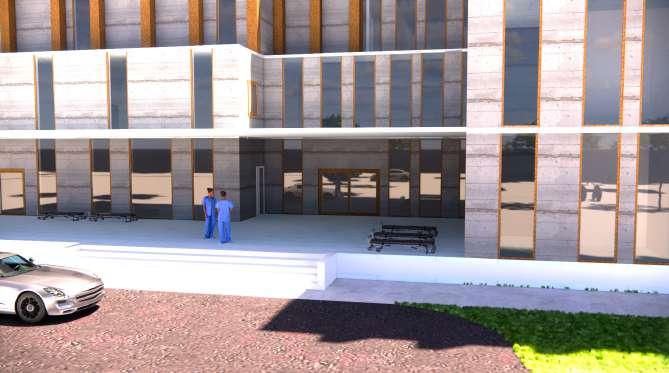

ABOUT THE PROJECT

PROVISION OF 100 BED GENERAL HOSPITAL IN DWARKA WITH FACILITIES LIKE EMERGENCY SEVICES, IN-PATIENT AND OUTPATIENT DEPARTMENTS, BLOOD BANK, DIAGNOSTICS DEPARTMENT, PEDIATRIC DEPT AND OPERATION THEATRES WITH PROPER SERVICES AND CIRCULATION.

SECOND HALF OF THE SITE IS LEFT FOR FUTURE DEVELOPMENTS OF HOUSING AND TEACHING COLLEGE FOR DOCTORS AND NURSES AS GIVEN BY THE MPD.

IMPACT OF COVID 19 PANDEMIC REQUIRED SPECIAL SANITATION, PROVISION FOR WHICH IS GIVEN IN THE DESIGN. GOVERNMENT HOSPITAL WITH PROPER SANITATION AND FACILITIES TO CATER STAFF, VISITORS AND PATIENTS.

INVOLVEMENT & ROLE ` PLANNING, 3D MODELLING, RENDERING & VIZUALISATION, COMPOSITION & PRESENTATION

INDIVIDUAL PROJECT SOFTWARES USED

10 | GLOBAL

HEALTHCARE

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI ACADEMIC PROJECT

SPECIAL FEATURES

SURFACE PARKING

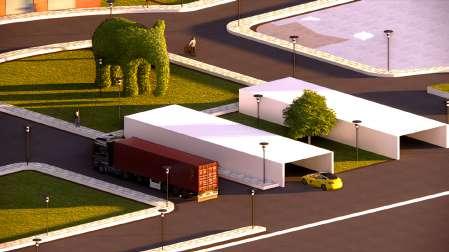

LOADING DOCK ON-SITE SURFACE PARKING FOR VISITORS TO AVOID CONGESTION ON ROADS BY PARKED CARS, WITH SUN-SHADING PROVIDED BY AMPLE OF TREES.

LOADING DOCK ON THE BACK SIDE FOR MACHINERY TO BE TRANSFERED TO THE BASEMENT STORE AND ANOTHER ON THE FRONT FOR THE CAFETARIA SUPPLY.

ANTI-CLOCKWISE CIRCULATION

ONE-WAY ROADS, ANTI-CLOCKWISE CIRCULATION TO AVOID TRAFFIC CONGESTION WITHIN THE SITE.

FURTHER HELPING IN SMOOTH AND FAST MOVEMENT OF AMBULANCE

IN-DEPARTMENT CSSD

PROVISION OF CENTRAL STERILE SERVICES DEPARTMENT TO CATER

IN-DEPARTMENT NEEDS WHICH AVOIDS TRANSPORTATION COSTS AND OTHER INCONVENIENCES.

LOCATION DELHI, INDIA 28.6925N,77.3023E SOUTH-WEST DELHI

KEY PLAN

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 11 | GLOBAL HEALTHCARE

SEC-9, DWARKA

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI LVL +0.6 ROOF LVL +15

FOR

5 3 4 2 1 9 6 7 8

AREA

FUTURE EXPANSION

LEGEND 1 - MAIN BUILDING ENTRANCE 2 - EMERGENCY ENTRY 3 - CAFETARIA ENTRANCE 4 - LOADING DOCK

MAIN ENTRY MAIN EXIT SERVICE ENTRY SERVICE EXIT 12 | GLOBAL HEALTHCARE

5 - VISITOR SERVICE PARKING

6 - THERAPUTIC GREENS 7 - LOADING DOCK 8 - STAFF ENTRANCE 9 - AMBULANCE PARKING

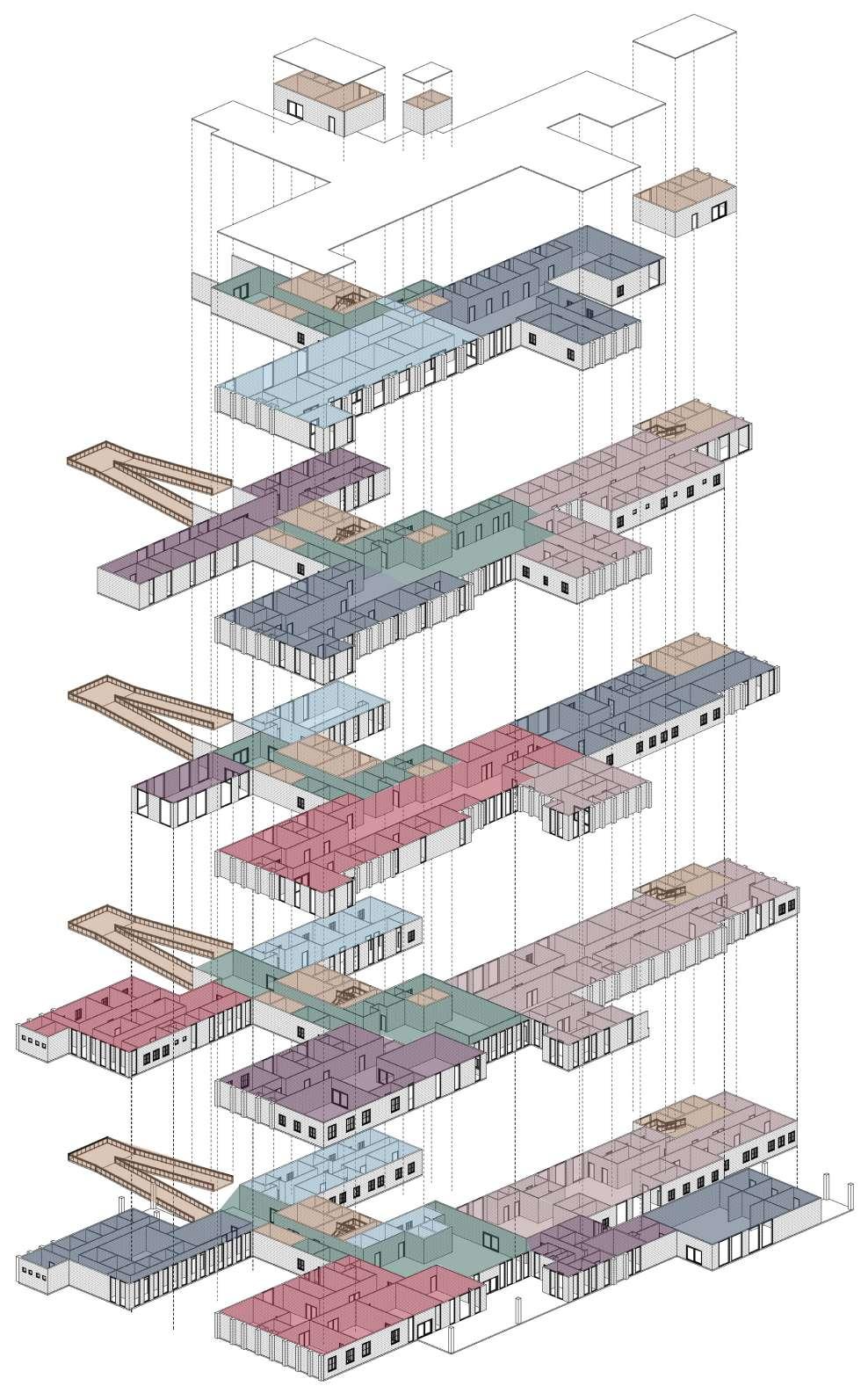

VERTICAL STACKING

CORE

LOBBY

4TH - OT FLOOR

POST OP ROOMS

OPERATION THEATRE

4 OPERRATION THEATRES WITH 2 SHARING SCRUB ROOMS SEPARATE CLEAN AND DIRTY CORRIDOORS TO MAINTAIN SANITATION, CONNECTED WITH 10 POST-OP ROOMS TO OBSERVE PATIENTS.

3RD - PRIVATE WARDS FLOOR

PRIVATE ROOMS

SEMI-PRIVATE ROOMS

ICU

10 SEMI-PRIVATE AND 12 PRIVATE ROOMS WITH SEPARATE PANTRY, CLEAN AND DIRTY UTILITY ROOMS.

8 ICU UNITS WITH SERPARATE AHU UNITTO KEEP THE INFECTION AWAY FROM HIGH RISK PATIENTS

PEDIATRIC WARDS

NICU

LIBRARY

MULTI-PURPOSE HALL

MATERNITY WARDS

2ND - MATERNITY FLOOR

MATERNITY ROOMS WITH 1ST STAGE ROOM AND LABOUR ROOMS, CONNECTED WITH NICU AND NURSERY MAKING THE CONNECTIVITY OF MOTHERS TO REACH EASILY THEIR NEWBORNS.

PROVISION OF MAMMORGRAPHY ROOM, ULTRA SOUND WITH OB-GYN AND NEONATAL DOCTORS ON THE FLOOR.

PEDIATRIC DEPARTMENT WITH 4 PEDS ROOMS

1ST - GENERAL IPD FLOOR

DIAGNOSTICS DEPARTMENT

GENERAL WARDS

OFFICES

LABORATORIES

8-BED, 2 GENERAL ROOMS WITH COMMON WASHROOMS AND AVILABILITY OF A TREATMENT ROOM TO EASE THE MOVEMENT OF PATIENTS. DIAGNOSTICS DEPARTMENT DIRECTLY ON TOP OF THE OPD FOR EASE OF MOVEMENT FOR THE PATIENTS NOT BEING ADMITTED AND MAINTAINING THE SANITATION OF REST OF THE HOSPITAL.

LABORATORY AND OFFICES ON THE REAR SIDE OF THE HOSPITAL.

GROUND - EMERGENCY AND OPD FLOOR

CAFETARIA

OPD

BLOOD BANK

ADMIN DEPARTMENT

EMERGENCY DEPARTMENT

OPD WITH ALL MAJOR SPECIALITY DOCTORS AND A PROCEDURE ROOM FOR ANY TREATMENT REQUIRED.

PROVISION OF BLOOD BANK WITH SPARATE COMPONENTS SEPARATION ROOM SO AS TO SAVE COST IN LONG RUN IN SENDING THE BLOOD TO OTHER LABS.

EMERGENCY DEPARTMENT WITH SEPARATE ENTRY TO TAKE GURNEY DIRECTLY IN TRAIGE WITH MOBILE ECG AND X-RAY MACHINES AND MINOR OT.

ADMIN DEPT WITH BILLING COUNTERS AND CAFETARIA FOR VISITORS AND FAMILY MEMBERS.

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI

13 | GLOBAL HEALTHCARE

DOCTOR/NURSE CIRCULATION PATH PATIENT/ VISITOR CIRCULATION PATH

CAFETARIA OPD

BLOOD BANK

ADMIN DEPARTMENT

EMERGENCY DEPARTMENT

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 14 | GLOBAL HEALTHCARE

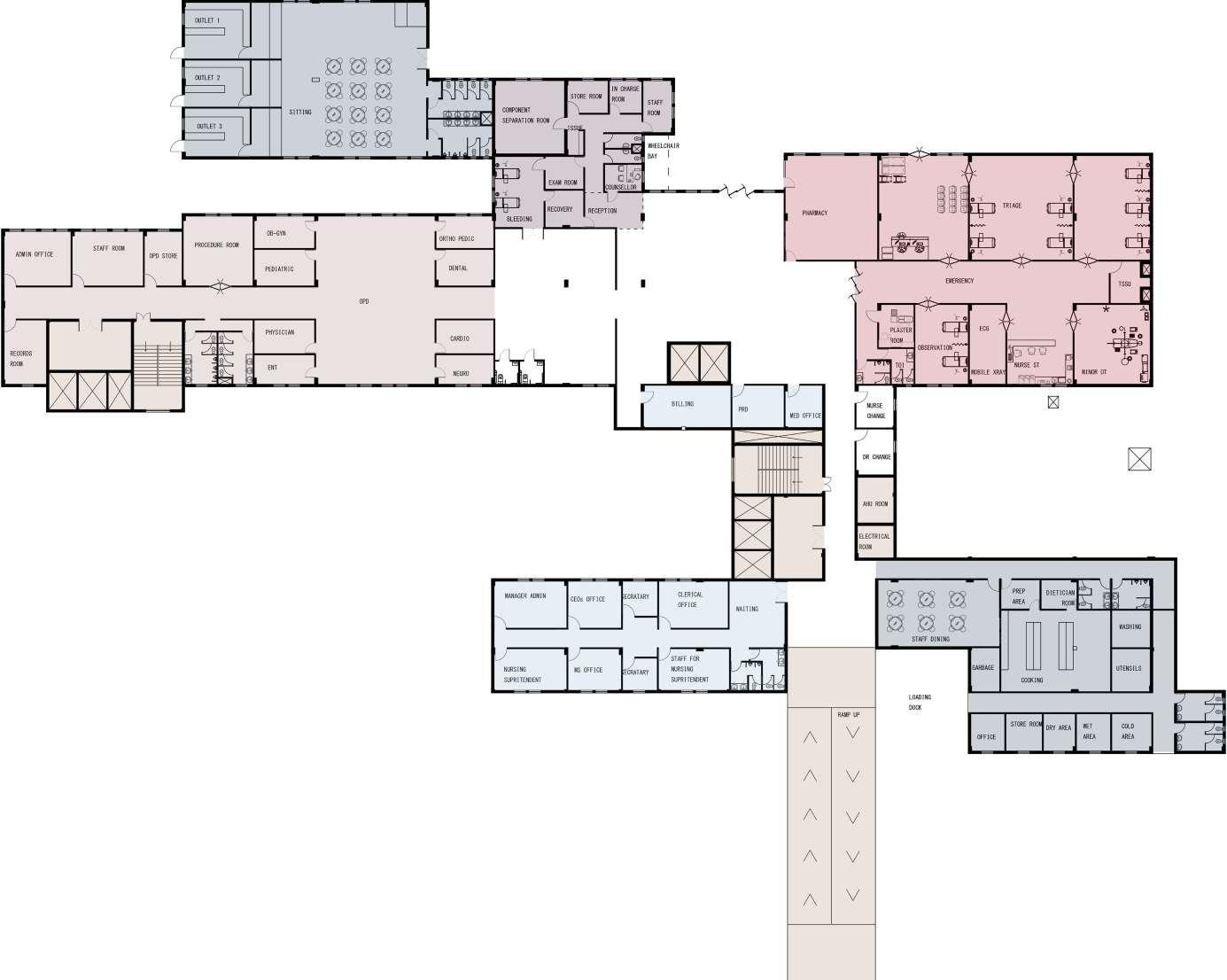

GROUND FLOOR PLAN

STORE ROOMS

CONTROL CENTRES

BODY HOLDING

CSSD

CORE

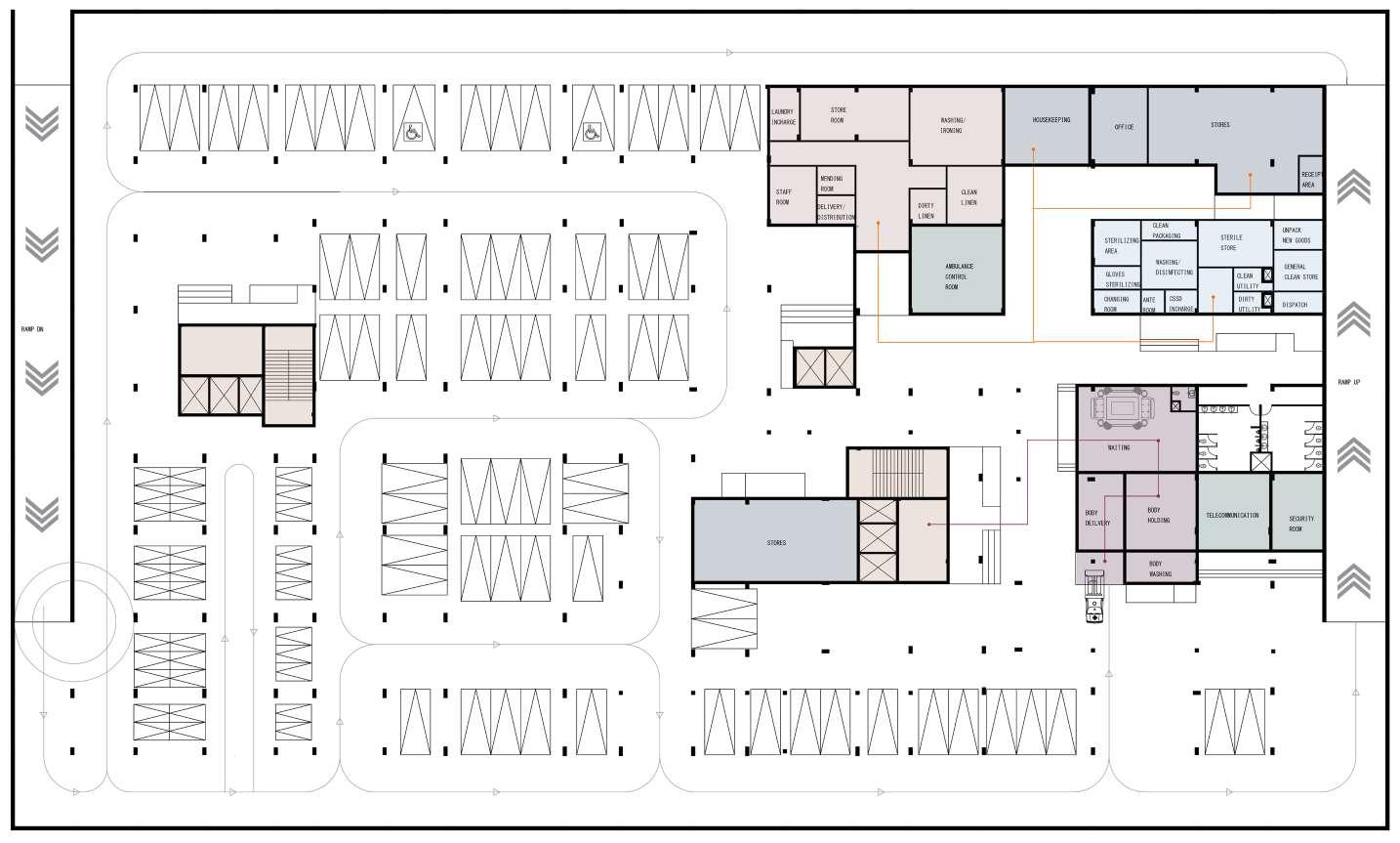

BASEMENT FLOOR PLAN

DOCTOR/NURSE CIRCULATION PATH

PATIENT/ VISITOR CIRCULATION PATH

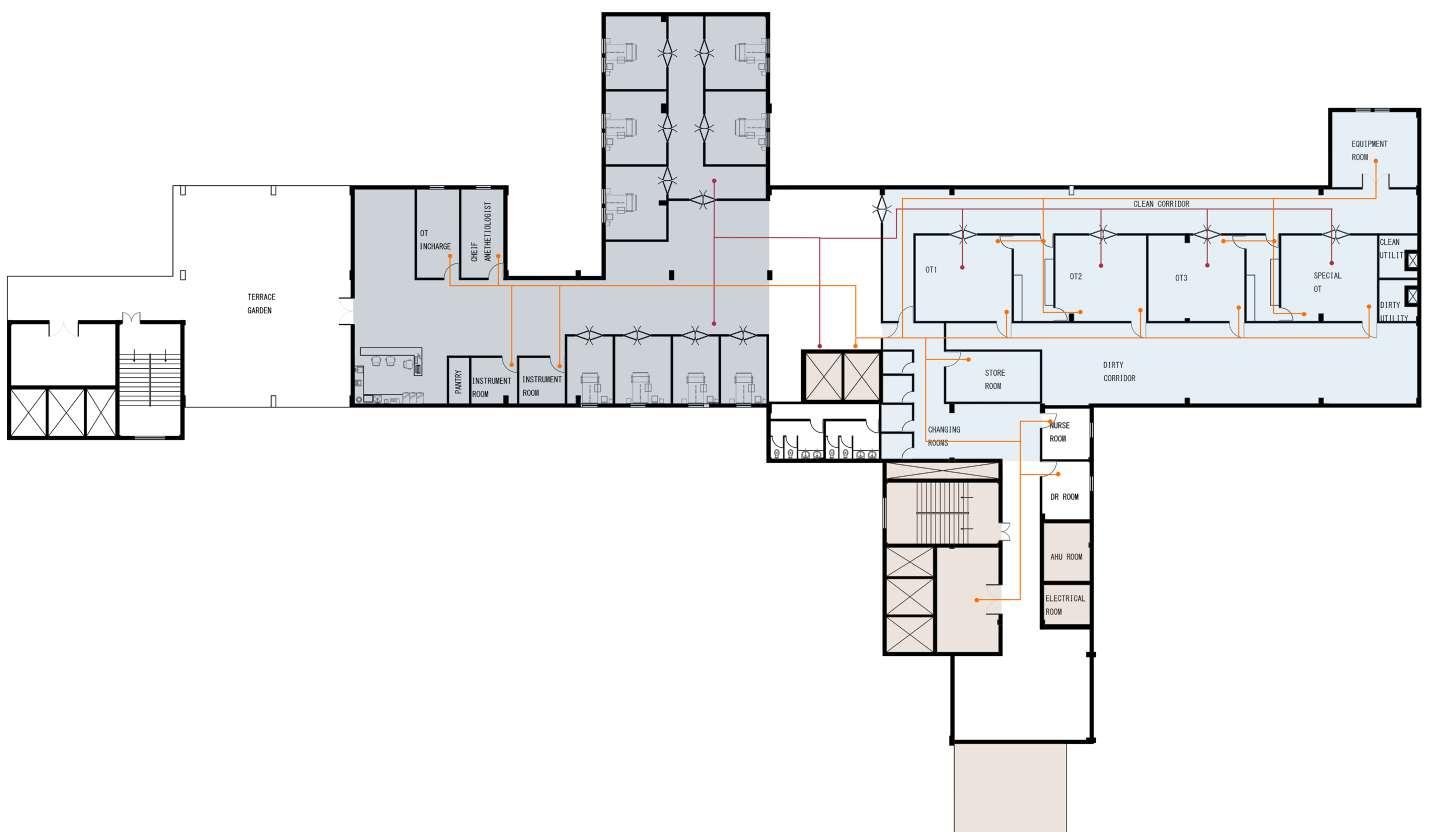

FOURTH FLOOR PLAN

PRE-OP/POST OP ROOMS

CORE

OPERATION THEATRES

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 15 | GLOBAL HEALTHCARE

PROJECT TYPE

OLD AGE HOME DESIGN

LOCATION

KAMALUA GANJA ROAD, HALDWANI, NAINITAL, INDIA

SITE AREA

1.4 ACRES

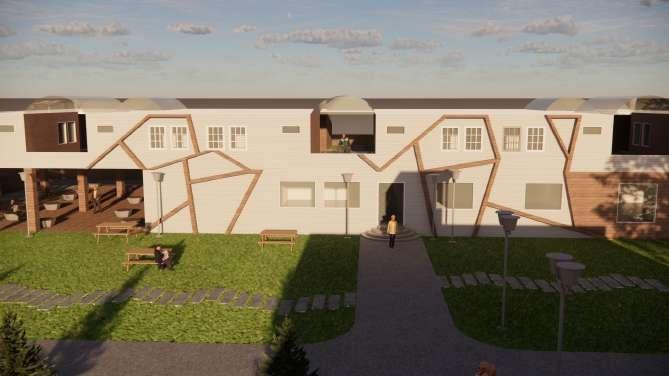

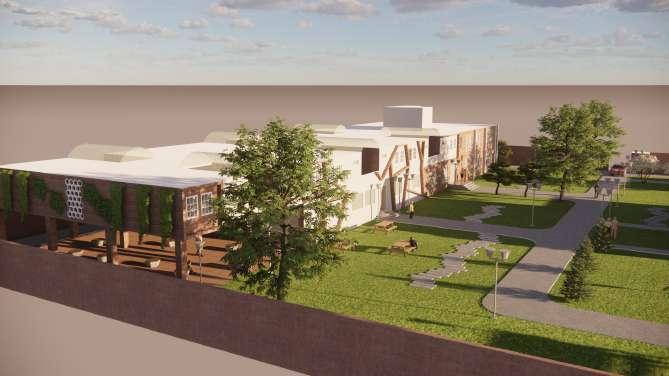

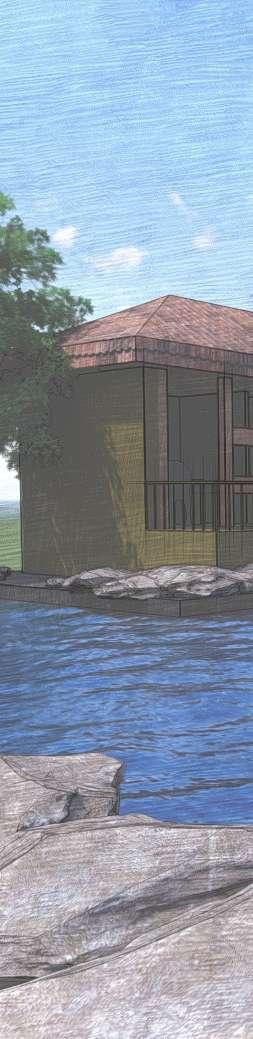

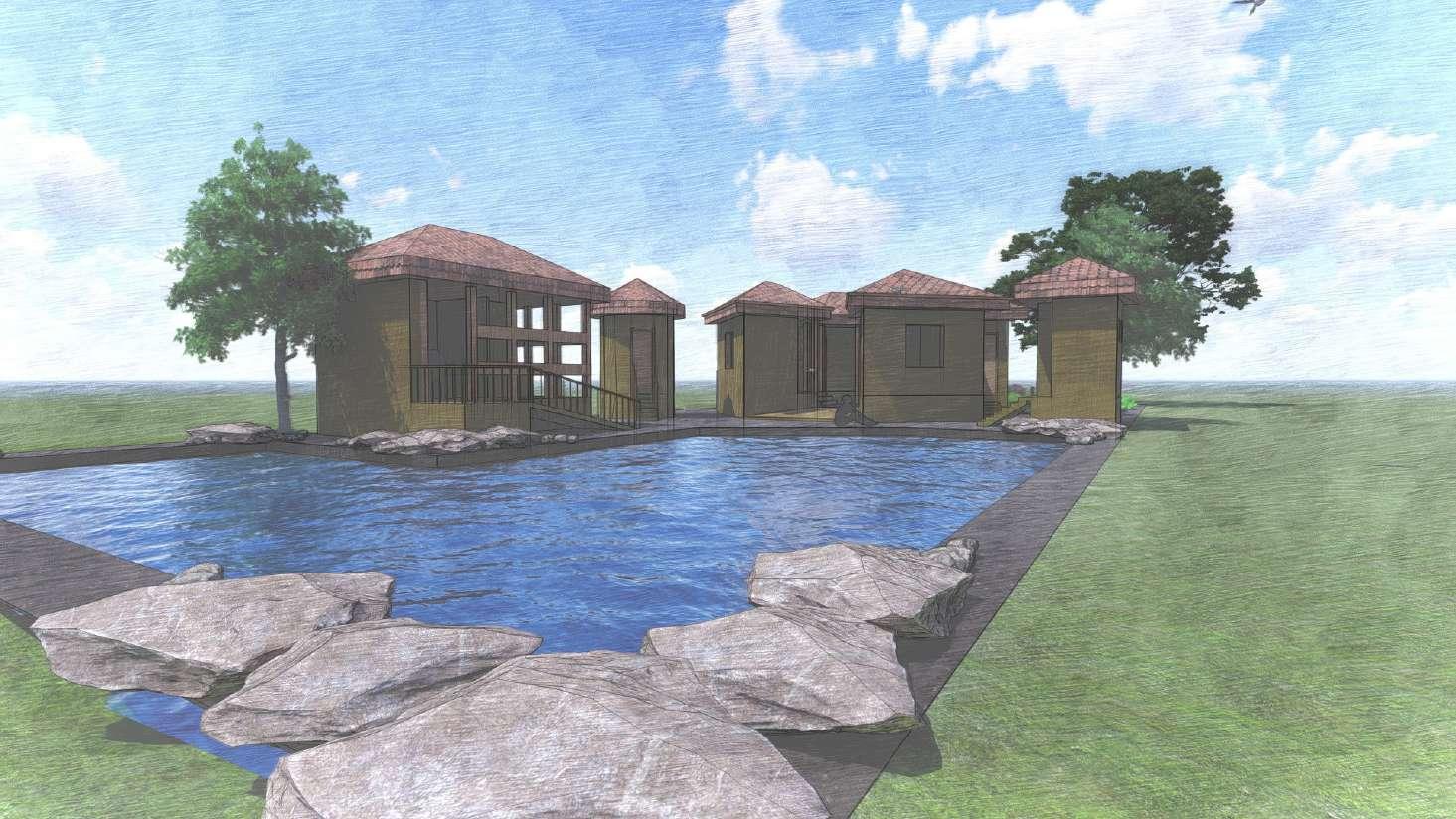

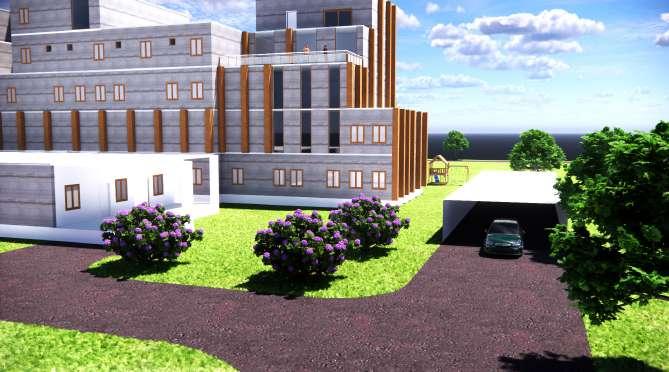

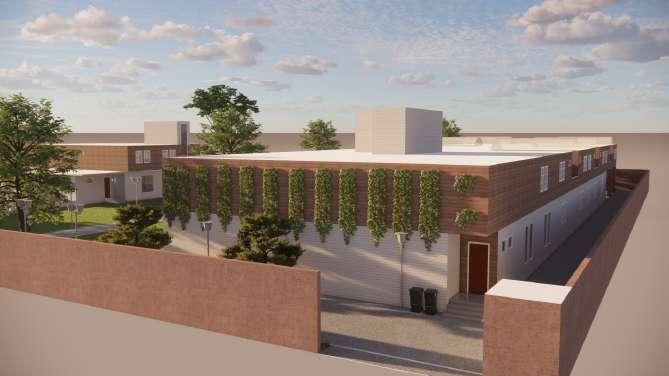

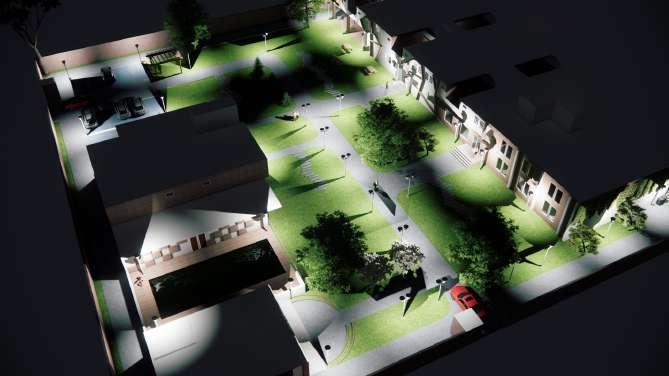

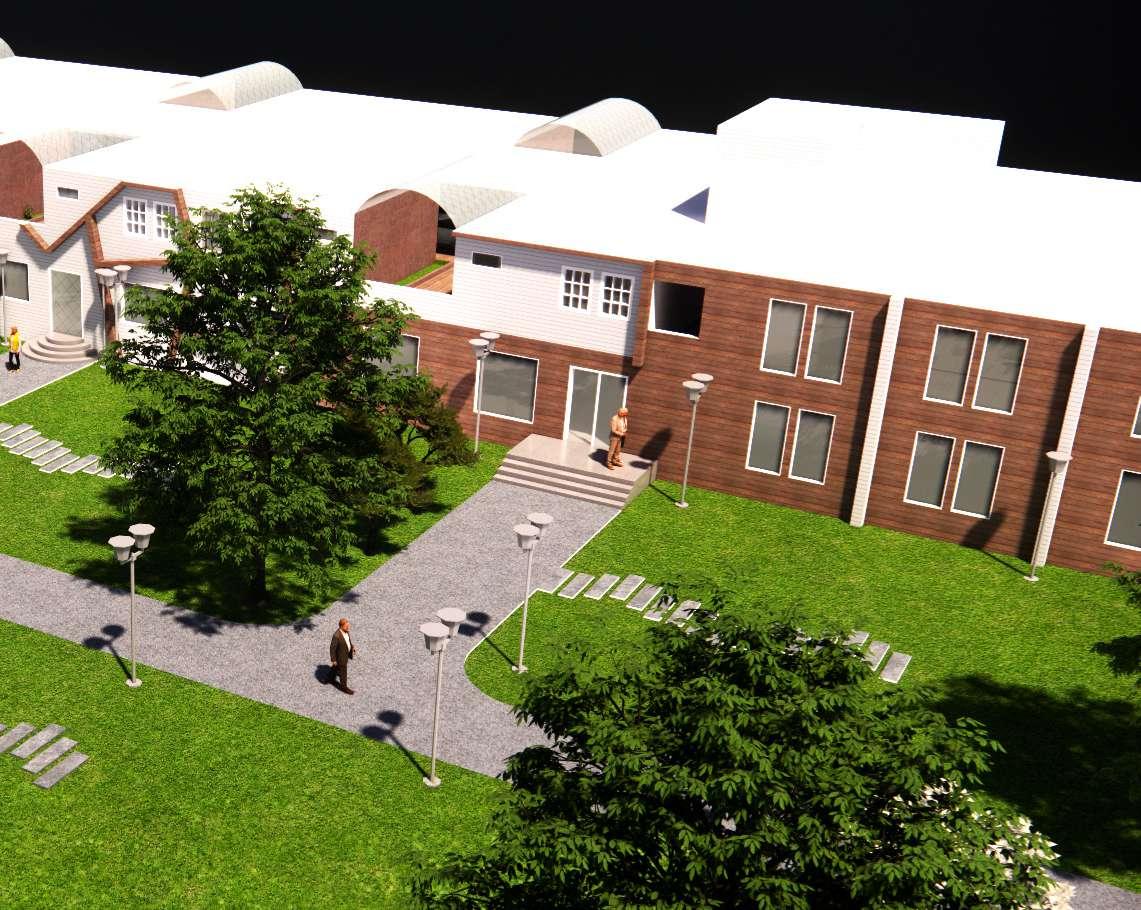

OLD FOLKS HOME

LUXURY SENIOR CITIZEN LIVING CENTRE

YEAR 3 SEMESTER 6

2022

REQUIREMENTS

PARKING 4-WHEELER:10

PARKING 2-WHEELER: 10 ROOMS REQUIREMENT:10

PROJECT UNDER:

NAV NIRMAN ARCHITECTS & ENGINEERS

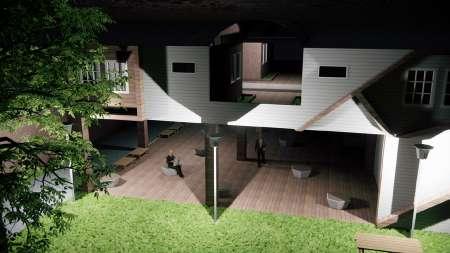

ABOUT THE PROJECT

AIMED TO PROVIDE A LUXURY SENIOR CITIZEN HOME IN NANITAL WITH 10 ROOMS FOR THE CITIZENS, ORIENTED IN NORTH DIRECTION FOR GLARE-FREE LIGHT THROUGHOUT THE YEAR.

ROOMS ARE ON THE 1ST FLOOR FOR PRIVACY, ACCESS VIA ELEVATORS WITH LAVISH AND COMFORTABLE DESIGN. ALL POSSIBLE FACILITIES ARE PROVIDED, RECREATIONAL AS WELL AS MEDICAL. COMMUNITY HALL PROVIDED FOR HOSTING DIFFERENT FUNCTIONS/ USED IN TIMES OF FESTIVALS OR GATHERINGS.

OUTDOOR FIREPIT AND WORKSHOP ROOMS FOR THE CITIZENS. STAFF QUARTERS FOR ON-CALL NURSING STAFF OR OTHER SERVICE STAFF FOR THE CONVENIENCE OF THE CITIZENS.

INVOLVEMENT & ROLE ` PLANNING, 3D MODELLING, RENDERING & VIZUALISATION, COMPOSITION & PRESENTATION

INDIVIDUAL PROJECT

SOFTWARES USED

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 16 | OLD FOLKS HOME

03 FREELANCE PROJECT

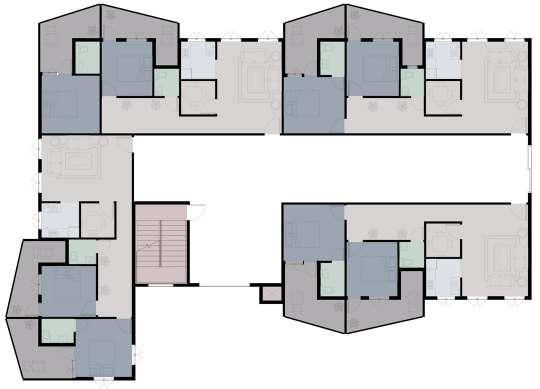

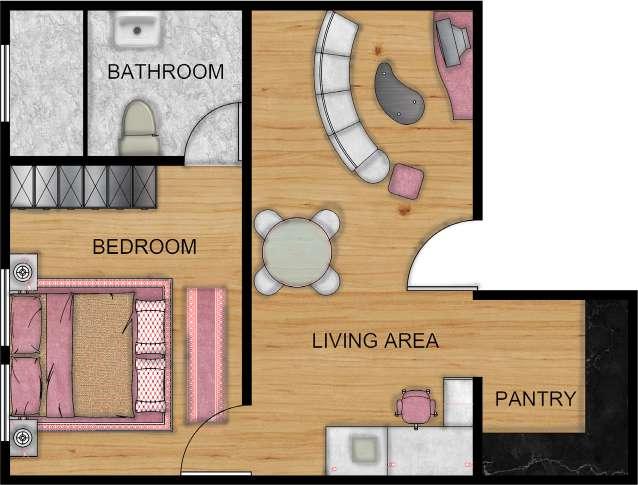

TYPICAL ROOM LAYOUT

KEY PLAN LOCATION UTTARAKHAND, INDIA 29.21167N, 79.46537E

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 17 | OLD FOLKS HOME

HALDWANI, NANITAL KAMALUA GANJA ROAD, HALDWANI

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 18 | OLD FOLKS HOME 7

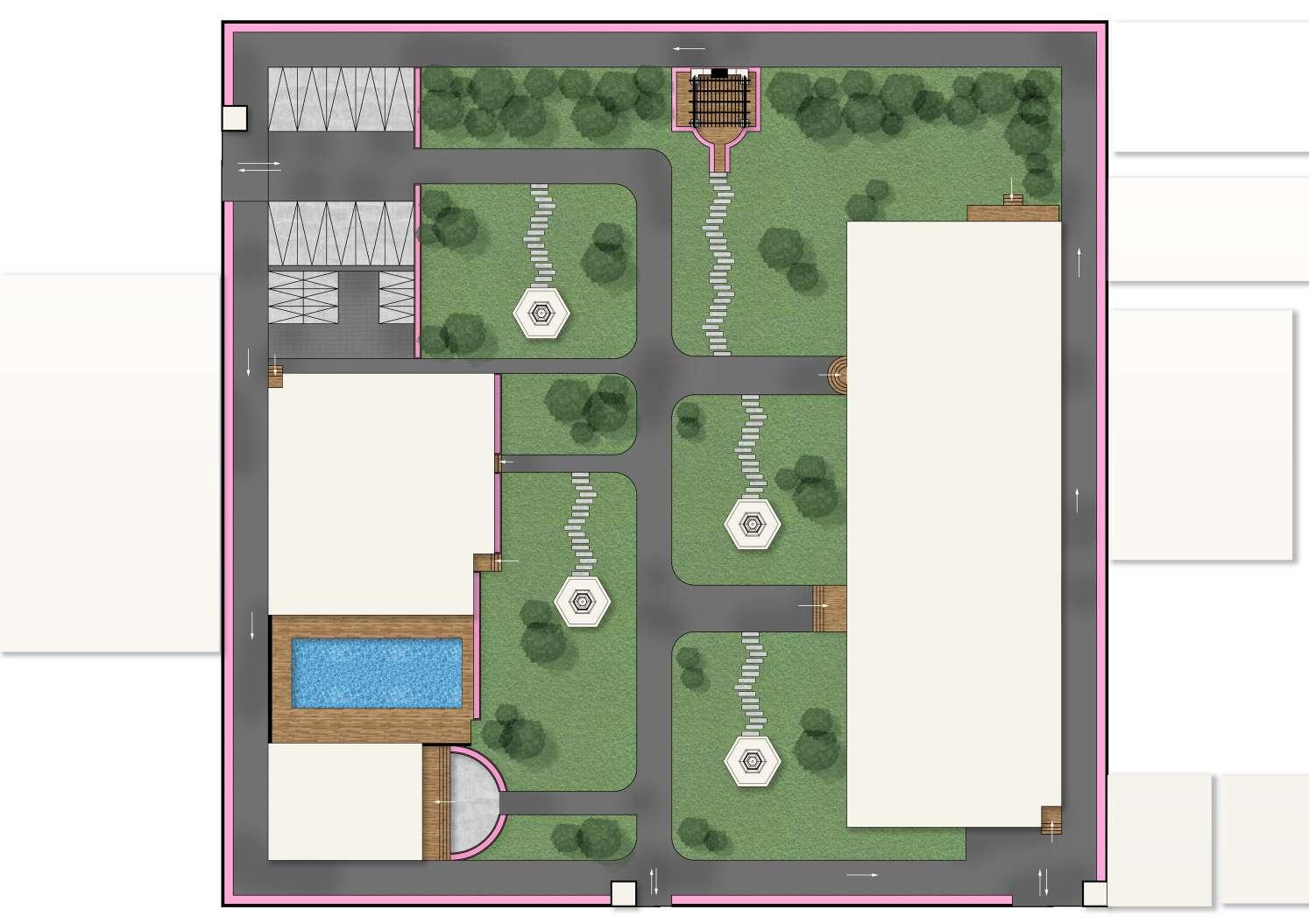

LEGEND 1 - MAIN BUILDING ENTRANCE 2 - MAIN BUILDING 3 - SERVICE ENTRANCE 4 - COMMUNITY HALL 5 - SWIMMING POOL MAIN ENTRY/EXIT 6 - GARDEN GAZEBO 7 - STAFF QUARTERS 8 - 2/4-WHEEKER PARKING 9 - STILTED SITTING AREA

5 4 2 3 8 10 9 1 6

10 - OUTDOOR FIREPLACE

PARKING ENTRY/EXIT 3

SERVICE ENTRY/EXIT

STAFF QUARTERS

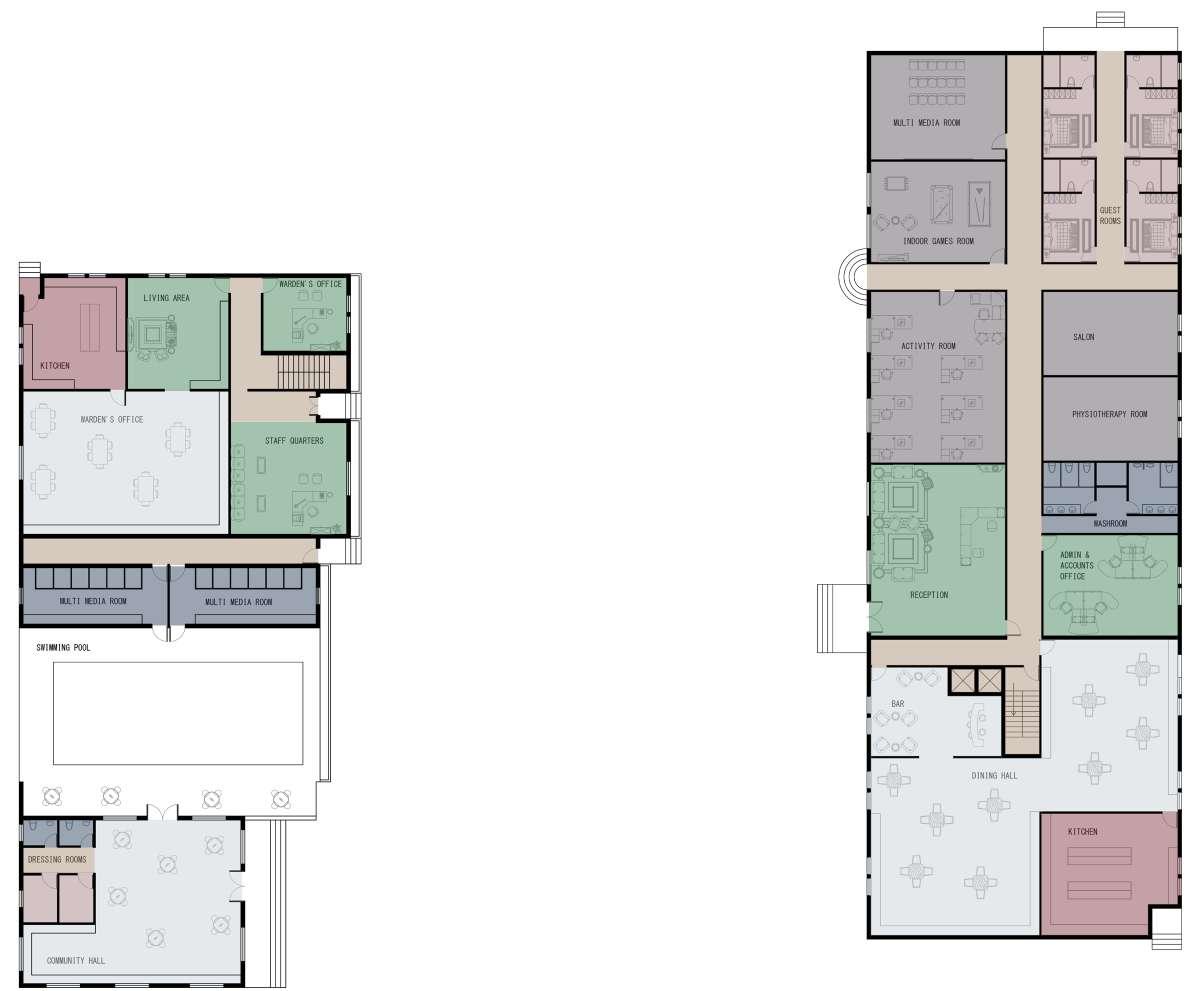

GROUND FLOOR PLAN

COMMUNITY HALL

AMENITIES & FACILITIES

GUEST ROOMS

INTERACTION SPACES

WASHROOMS

OFFICES/RECEPTION

KITCHEN

DINING HALL

CIRCULATION AREA

MAIN BUILDING

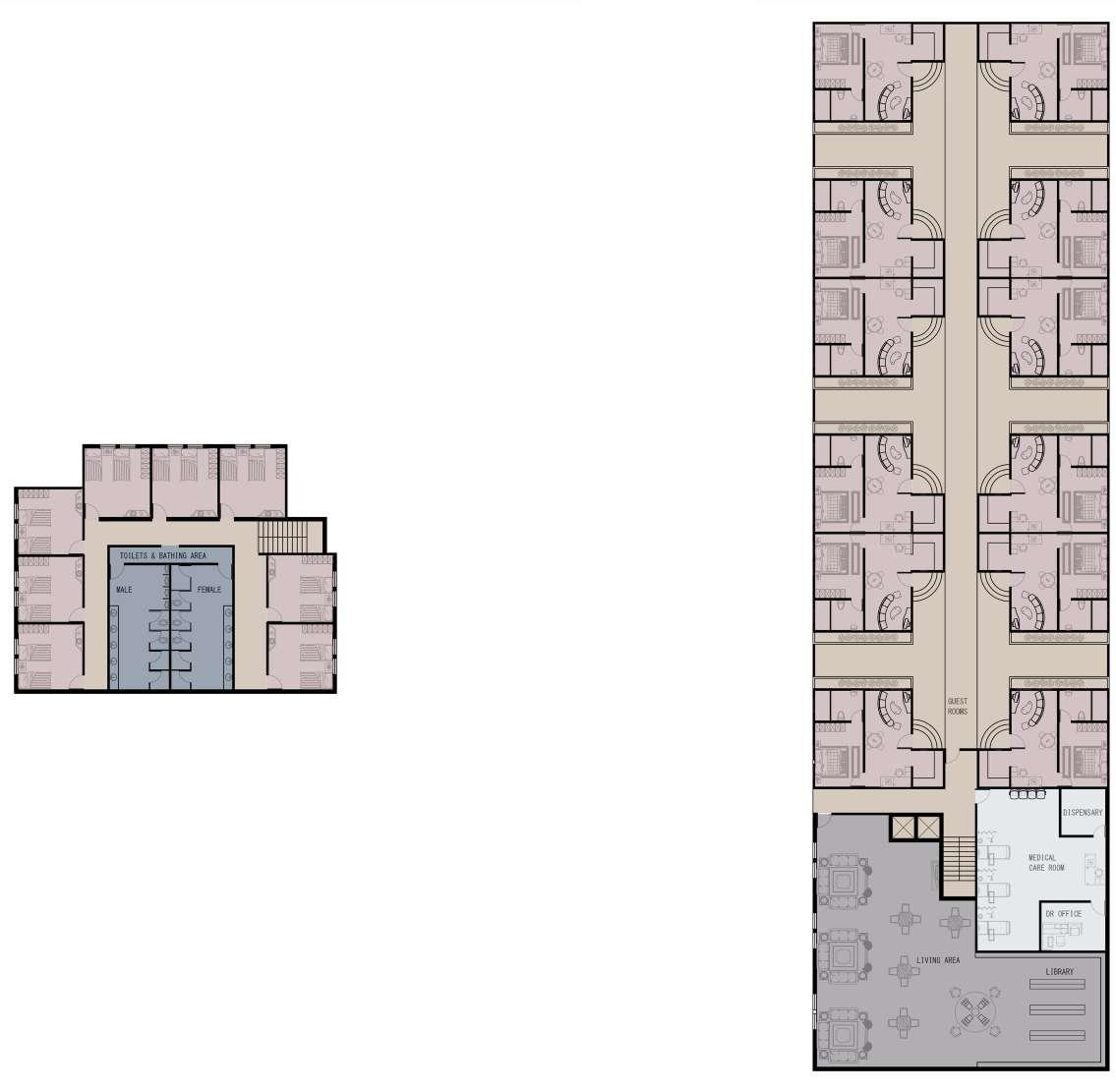

FIRST FLOOR PLAN

STAFF QUARTERS

WASHROOMS

MEDICAL CARE ROOM

INTERACTION SPACES

ROOMS

CIRCULATION AREA

MAIN BUILDING

STILTED SITTING

DECK KITCHEN GARDEN ROOM’S ENTRANCE

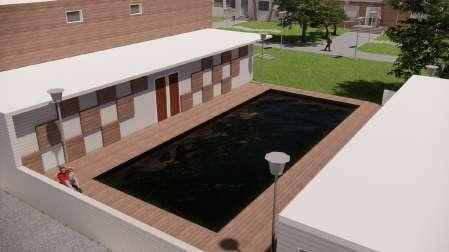

SWIMMING POOL

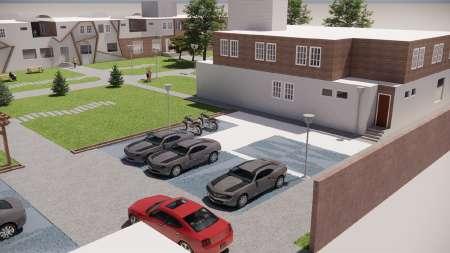

SURFACE PARKING

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 19 | OLD FOLKS HOME

PROJECT TYPE

CULTURAL CENTRE DESIGN

LOCATION

SECTOR-10, ROHINI, NORTH-WEST DELHI, INDIA

SITE AREA

11 ACRES REQUIREMENTS

PERMISSIBLE BUILT-UP:

56136 SQ. MT

PERMISSIBLE HT: 28.5 M

PERMISSIBLE GROUND

COVERAGE: 9344.73 SQ. MT

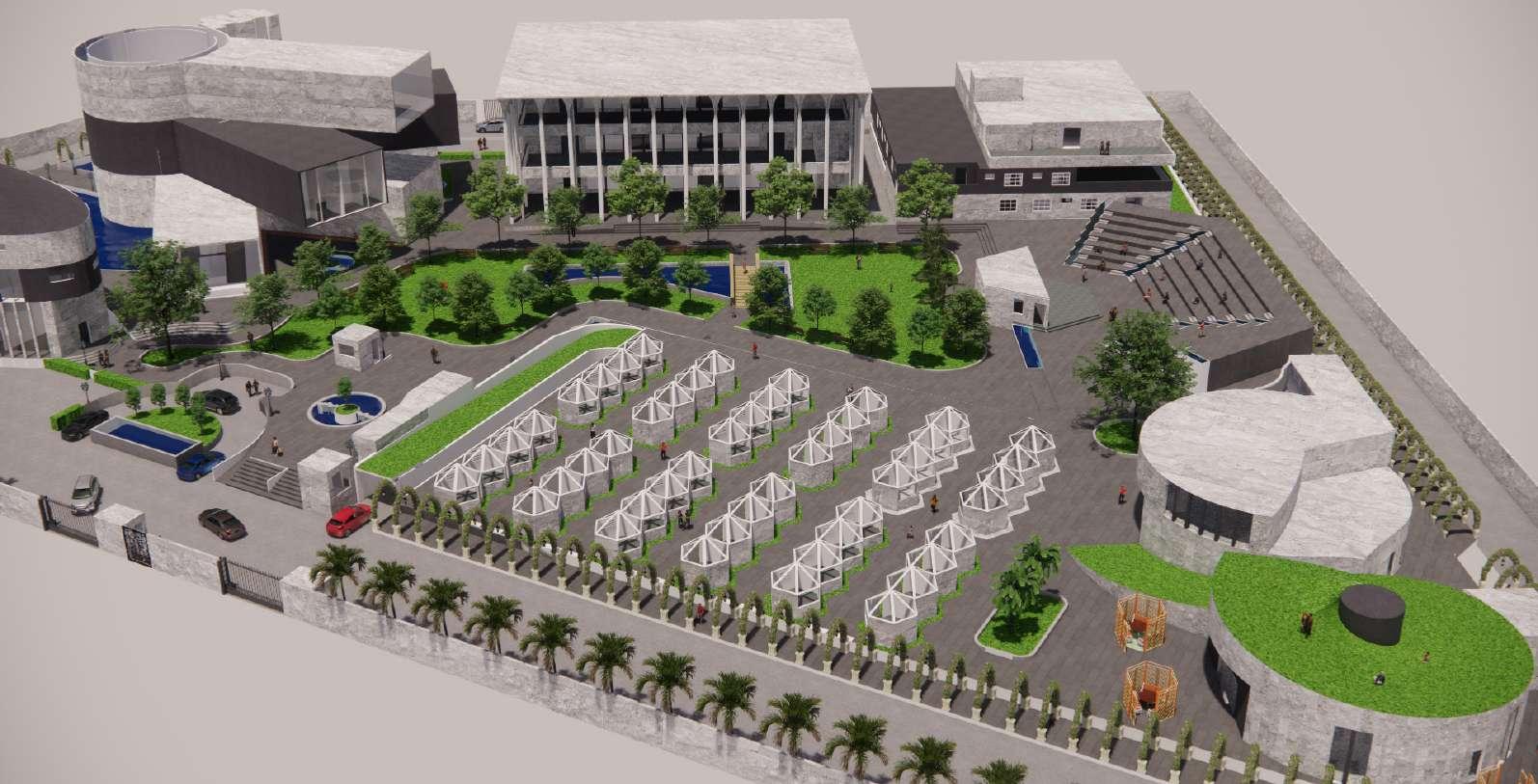

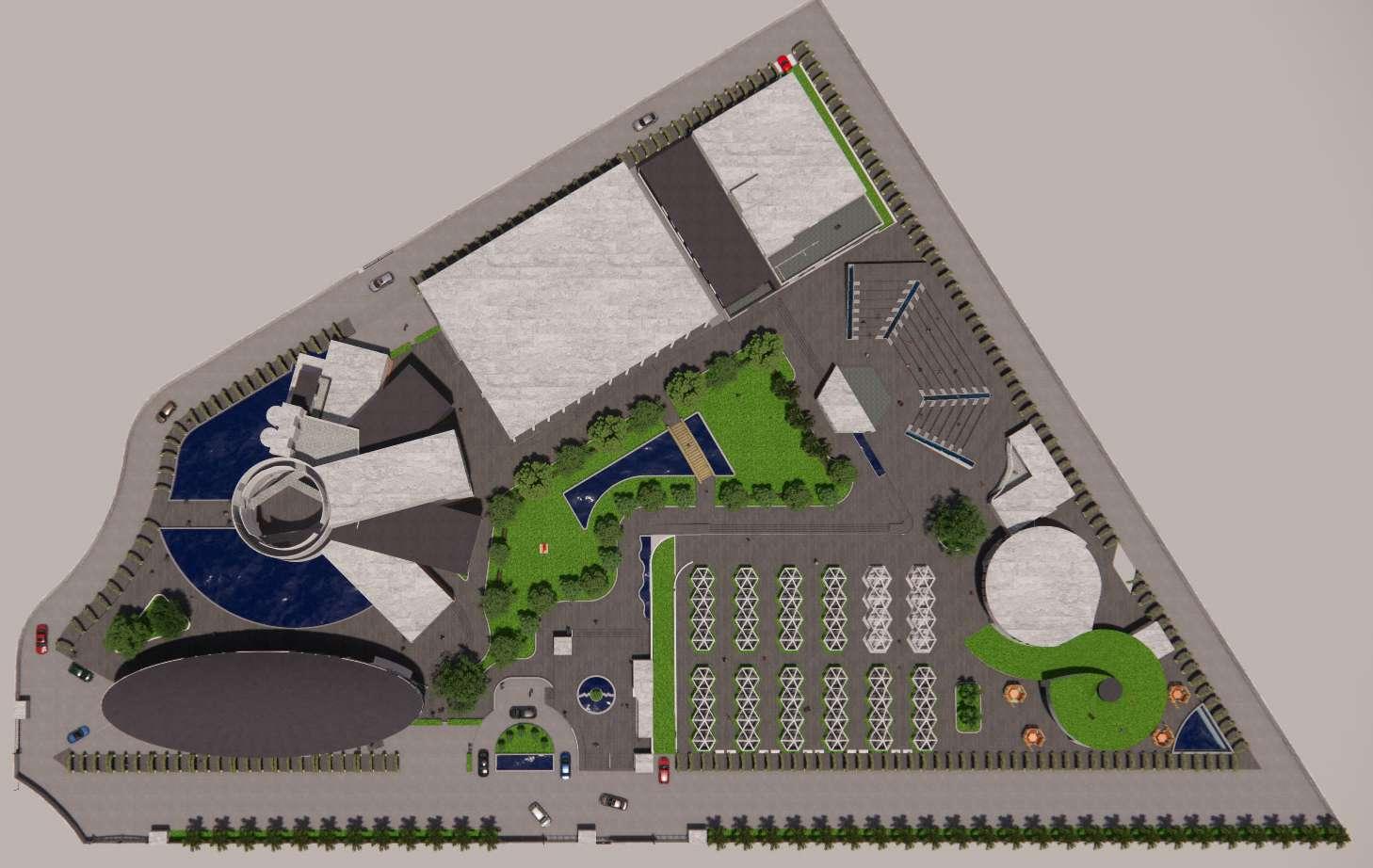

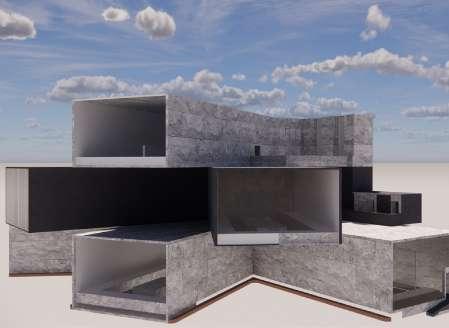

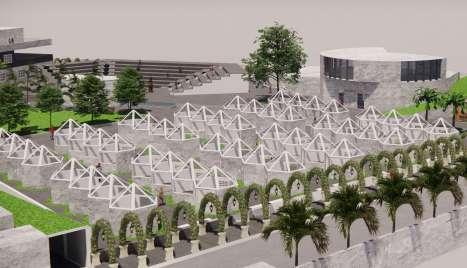

PALACE OF ILLUSIONS

DELHI CULTURAL CENTRE CONNECTING TO OUR ROOTS

YEAR 2 SEMESTER 4 2021

INVOLVEMENT & ROLE ` PLANNING, 3D MODELLING, RENDERING & VIZUALISATION, COMPOSITION & PRESENTATION

INDIVIDUAL PROJECT

ABOUT THE PROJECT

A CULTURAL CENTER PLAYS A VITAL ROLE IN RETAINING VALUES AND BELIEFS FOR THE COMMUNITY. INDRAPRASTHA IS CONSIDERED TO HAVE BEEN THE FIRST SIGNIFICANT SETTLEMENT IN THE DELHI AREA, WHICH HAS SINCE HOSTED A SUCCESSION OF KINGDOMS AND GIANT CIVILISATIONS. AT SOME POINT, INDRAPRASTHA FELL FROM GRACE, EITHER CONQUERED OR ABANDONED.

PALACE OF ILLUSIONS, INDRAPRASTHA WAS FAMOUS FOR ITS GRANDEUR AND ILLUSIONS, SIMILARLY THIS SOCIO-CULTURAL CENTRE ACCOMODATES DIFFERENT STRUCTURES CREATING DIFFERENT ILLUSIONS

SOFTWARES USED

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 20 | PALACE OF ILLUSIONS 04 ACADEMIC PROJECT

SHAPED LIKE INFINITY WITH OUTDOOR EATING ON THE GRASS COVERED RAMP.

BLOCKS OF FLOORS ARE STACKED ONE OVER ANOTHER WITH CANTILEVERED PORTION APPEARING AS IF THE BLOCKS ARE FLOATING.

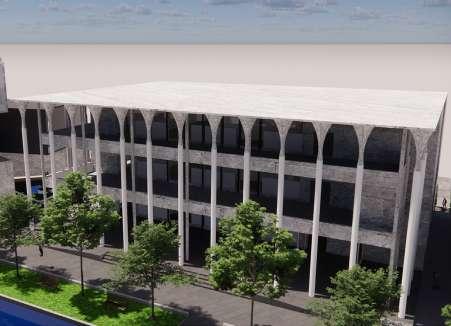

MULTIPLE FUNNEL SHAPED COLUMNS ON THE TALL FACADE OF THE BUILDING APEARS AS A WATERFALL

IT HAS A WATERFRONT, HENCE ITS APPEARING TO BE FLOATING ON THE WATER.

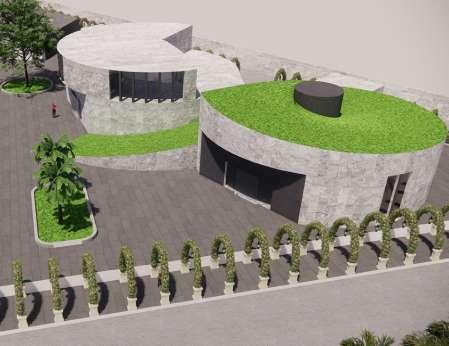

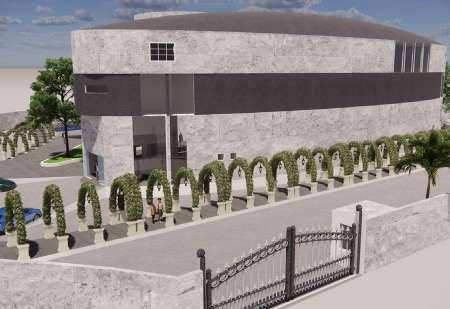

STREAMLINE SHAPED WITH OVAL BASE AND CURVED ROOF RESEMBLES THE COMMAND CENTRE IN PALACE OF ILLUSIONS

STAGGERED STAIRCASE IS PROVIDED WHICH APPEARS TO BE MOVING.

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 21 | PALACE OF ILLUSIONS 12 LEGEND 1 - MAIN ENTRANCE 2 - DROP-OFF 3 - RAMP DOWN 4 - STALLS 5 - CAFETARIA 6 - PUBLIC WASHROOM 7 - OAT 8 - PICNIC GARDEN 9 - HOSTELS 10 - RAMP UP 11 - LIBRARY 12 - MUSEUM 13 - ADMINISTRATIVE OFFICE 11 1 2 5 3 4 7 6 9 10 13 8 MAIN ENTRY SERVICE ENTRY EXIT CAFETARIA MUSEUM LIBRARY HOSTEL

OPEN AIR THEATRE ADMIN OFFICE

PROJECT TYPE

CYCLONE-RESISTANT

HOMESTEAD DESIGN

LOCATION

LOWER SUNDARBANS, SUNDARBAN DELTA

SITE AREA

1000 SQ. M

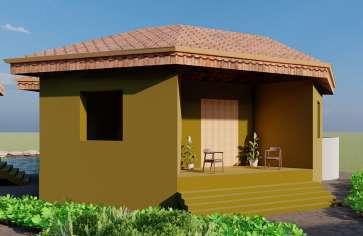

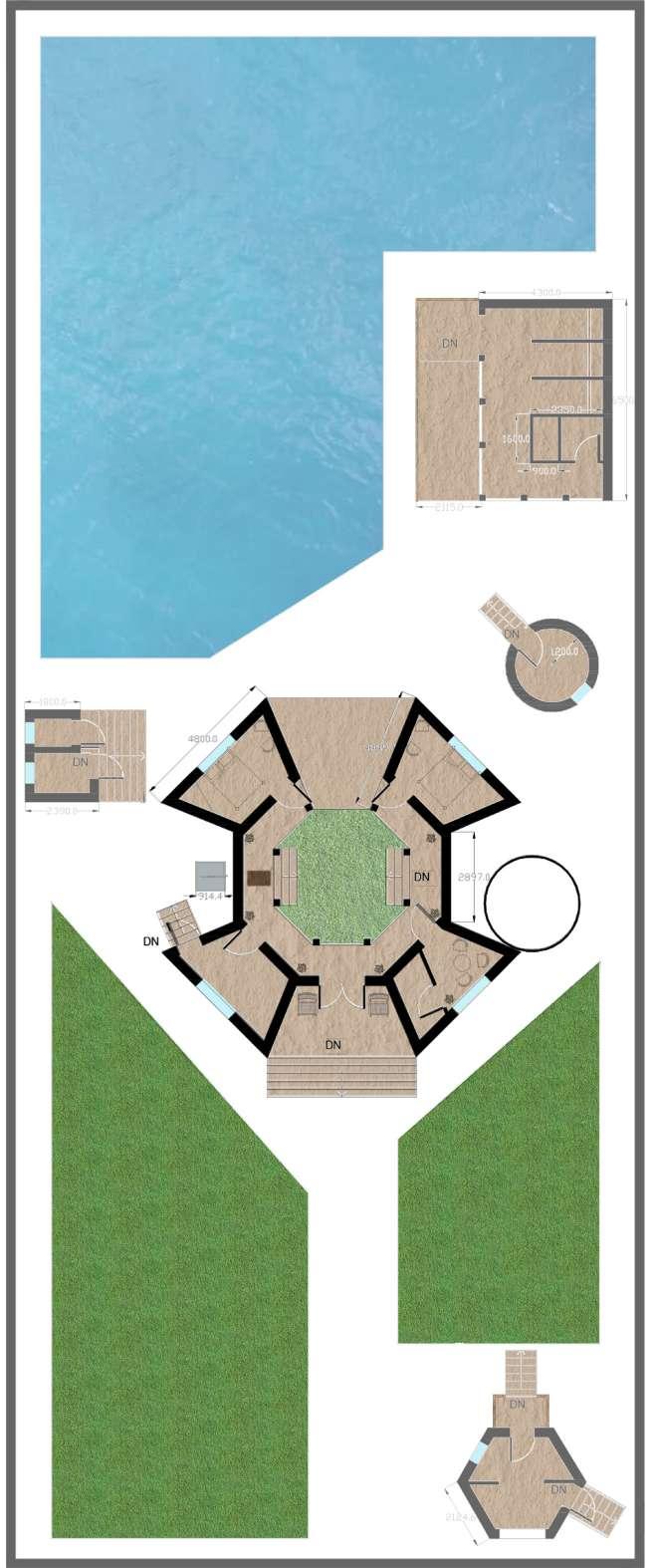

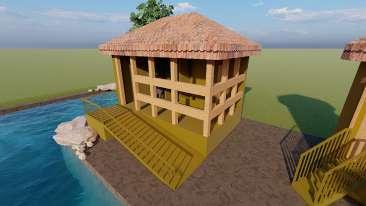

SUNDAR BARI

A HOMESTEAD IN THE SUNDARBANS

YEAR 1 SEMESTER 2 2020

ABOUT THE PROJECT

IN SUNDARBANS DELTAIC AREA, THE LAND IS ON A LOWER LEVEL AS COMPARED TO LEVEL OF THE RIVER, MAKING THIS MANGROVE REGION VULNUERABLE TO GETTING SUBMERGED UNDER WATER.

THE DESIGN TARGETS ON BUILDING A SUSTAINABLE, CYCLONE & FLOOD RESILIENT & ECONOMIC STRUCTURE THAT WOULD PROVIDE RESPITE TO THE PEOPLE OF SUNDARBANSLIVING UNDER THE CONSTANT THREAT OF NATURAL CALAMITIES LIKE CYCLONE, UNTIMELY RAIN AND FLOORING WHICH ARE INCREASING WITH TIME DUE TO THE ADVERSE EFFECT OF CLIMATIC CHANGE.

REQUIREMENTS

COVERED & SEMICOVERED

AREA: 120 SQ. M

FAMILY OF 5-6

CYCLONE RESISTANT STRUCTURE

ACCESS PATH: 5M

INVOLVEMENT & ROLE ` RESEARCH, PLANNING, DRAFTING, 3D MODELLING, COST ESTIMATE, PRESENTATION

GROUP PROJECT

SOFTWARES USED

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 22 | SUNDAR BARI 05

INT. COMPETITION

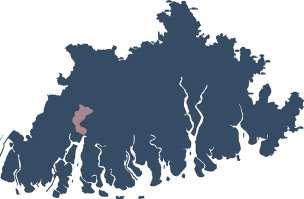

LOCATION

22.154503N, 88.403601E

SUNDARBANS, WEST BENGAL

WEST BENGAL, INDIA

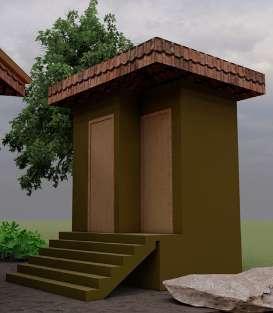

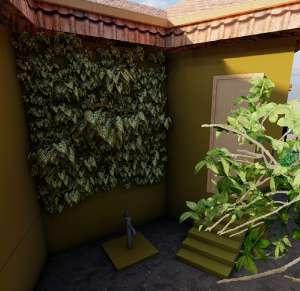

BATHROOM & LATERINE EXTERIOR BATHROOM AND LATERINE WITH CONNECTION TO SEPTIC TANK

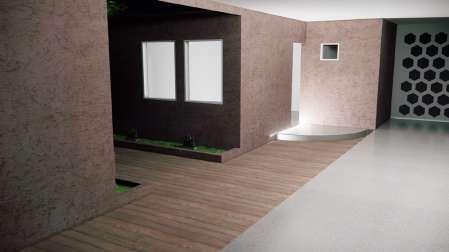

JALI

JALIS ARE GIVEN ON OPPOSITE WALLS. THEY ENSURE CROSS VENTILATION & AT THE TIME OF CYCLONE TRY TO BREAK THE PRESSURE DIFFERENCE BEING ESTABLISHED.

RAIN WATER HARVESTING ON-SITE WATER TANK WITH A FILTER INSTALLED AT THE TOP, COLLECTS CLEAN WATER THAT FALLS ON THE ROOF WITH THE HELP OF PIPES.

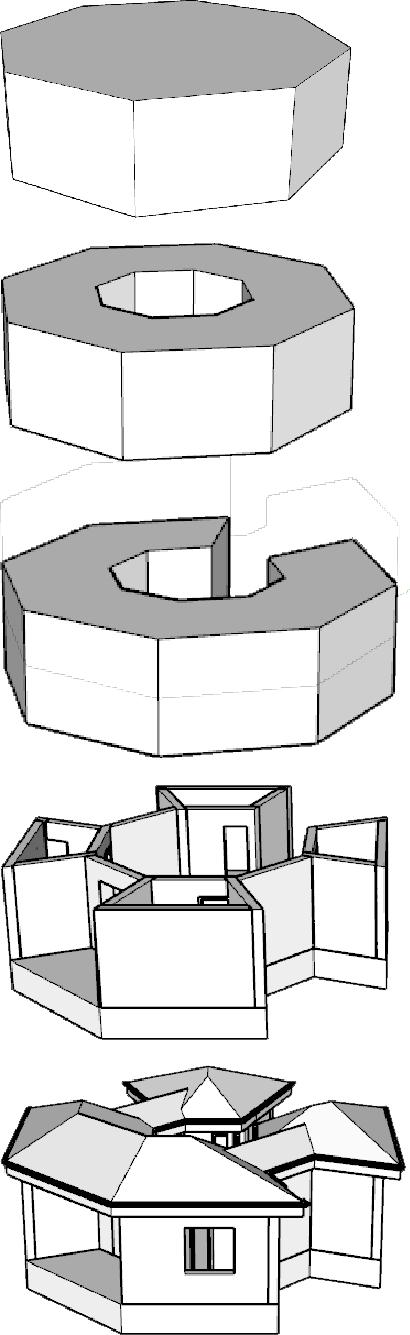

DEVELOPMENT

VERANDAH A SEMI-COVERED SPACE MADE AVAILABLE FOR THE PEOPLE TO SIT & TAKE A LOOK OUTSIDE WITHOUT BEING EXPOSED TO THE VARIOUS CLIMATIC CONDITIONS

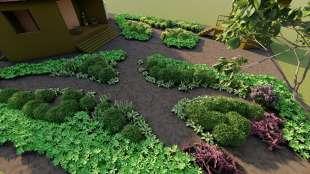

VEGETABLE GARDEN

GARDEN WHICH THE FAMILY MEMBERS WILL CULTIVATE AS A SOURCE OF THEIR FOOD, WITH THE SURPLUS BEING SOLD TO MARKETS.

WORKSHOP

WORKSHOP & SHOP ARE CONNECTED. THE SHOP ACTS AS A SOURCE OF INCOME. WORK LIFE PROCESSING & FINE TUNING IS DONE IN THE WORKSPACE.

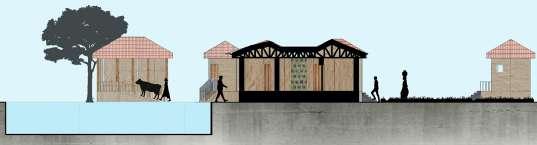

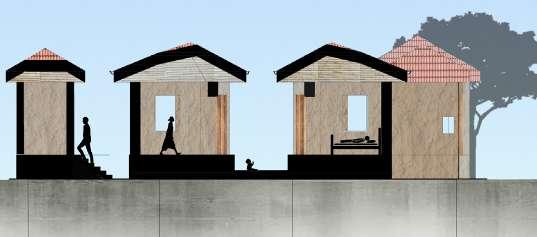

SECTIONS

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 23 | SUNDAR BARI

GRANARY CATTLE SHED & POND FORM

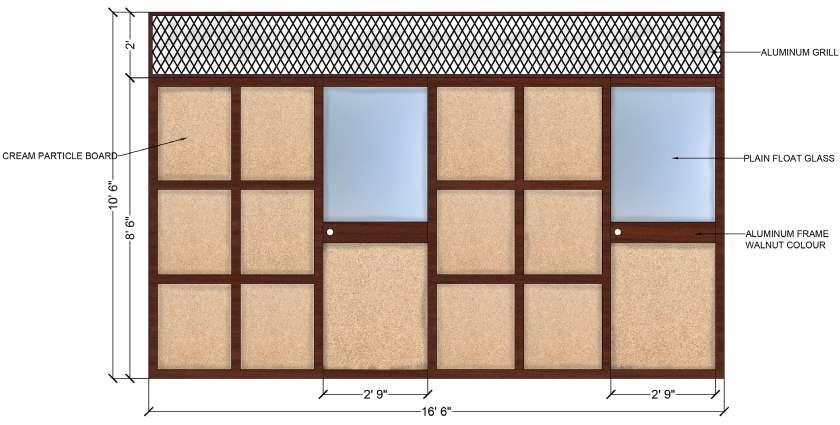

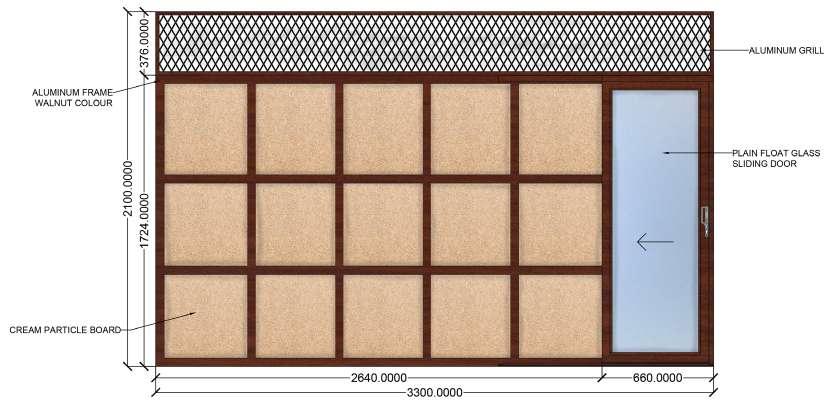

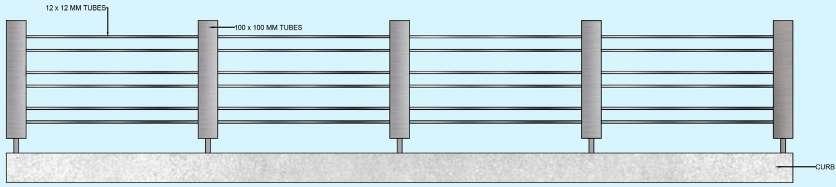

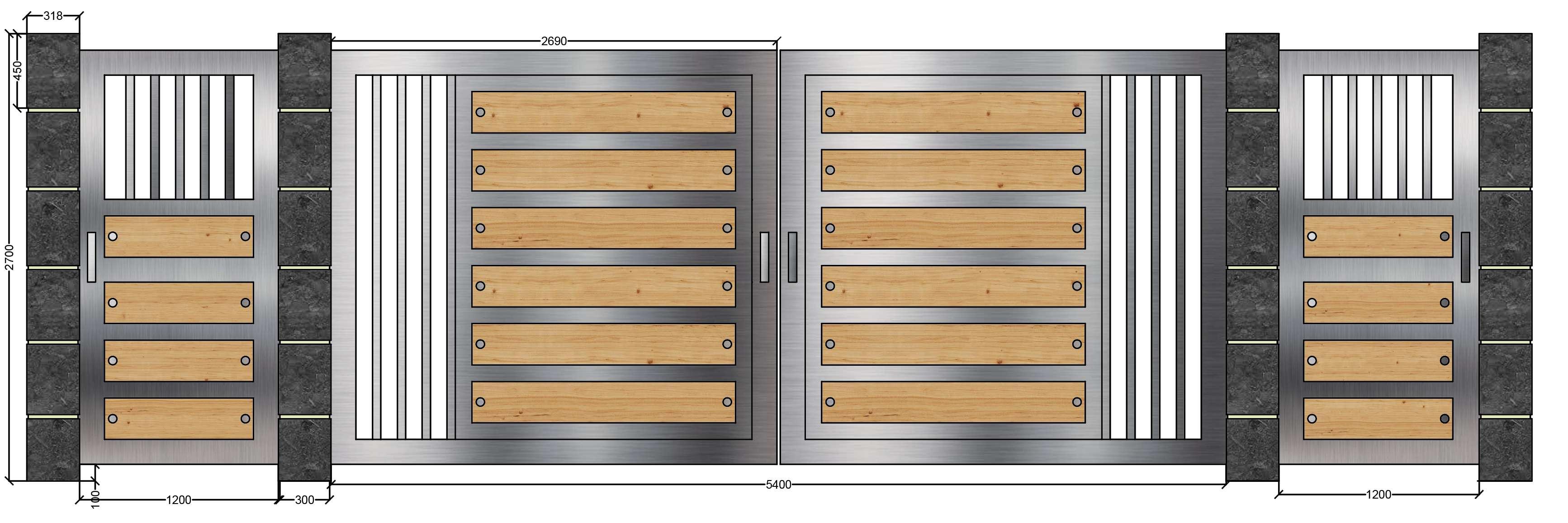

WORKING DRAWINGS 06

ALL REQUIRED WORKING DRAWINGS OF SCHOOL DESIGN YEAR 3 SEMESTER 6 2022

SOFTWARES USED:

GROUND FLOOR PLAN

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 24 | WORKING DRAWINGS

WORKING DRAWINGS LOCATION PHULWARI SHARIF, PATNA, BIHAR, INDIA

PLANNING, DRAFTING, PRESENTATION & COMPOSITION INDIVIDUAL PROJECT

PROJECT TYPE

INVOLVEMENT & ROLE `

SITE AREA 6 ACRES N 1. ALL DIMENSIONS ARE IN M 2. ALL WALLS ARE TO 230 MM THICK UNLESS OTHERWISE SPECIFIED 3. FINISH SCHEDULE 4. ALL DIMENSIONS ARE TO BE READ NOT SCARED 5. ANY DISCREPANCY SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY 6. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF THE WORK 7. ALL DOORS AND WINDOW LEVELS ARE WITH RESPECT TO FINISHED FLOOR LEVEL 8. TYP TYPICAL 9. A PS – AS PER STRUCTURE 10. SC-STAIR CASE 11. W-WASHROOM NOTES DWG NO. A103 DATE: MAR 14'22 AYUSHI JOSHI 3B 07817301619 GROUND FLOOR ARCHITECTURAL PLAN UNIVERSITY SCHOOL OF ARCHITECTURE & PLANNING SCALE: 1:200 SCHEDULE OF OPENINGS No. TYPE WIDTH CILL LVL LINTE LVL HEIGHT D1 2.4 - 2.4000 2.4 D2 - 2.4000 2.4 D3 1.2000 - 2.4000 2.4000 D4 - 2.4000 2.4 D5 0.91 - 2.4000 2.4 D6 0.8 - 2.4000 2.4 D7 0.75 - 2.4000 2.4 W1 4 0.9 2.4000 15 W2 2 0.9 2.4000 1.5 10 W3 1.5 0.9 2.4000 1.5 11 W4 1.2 0.9 2.4000 1.5 W5 0.8 0.9 2.4000 1.5 13 V1 1.8 2.400000 0.6 14 V2 1.8 2.4000 0.6 15 V3 0.8 1.8 2.4000 0.6 16 V4 0.5000 1.8000 2.4000 0.6000 DRY COMPUTER LAB MEN'S WC GREEN ROOM WET CLASSROOM GIRLS LAB CLASSROOM CLASSROOM V3 V3 3 5 6 8 9 10 11 12 13 14 4a 5a 8a 15a 15 16 17 18 19 20 20a 21 22 23 24 26 27 28 29 30 30a 31a 31 25 27a 32a 32 33 34 35 36 37 37a 39 40 41 42 44 45 46 43a 44a 46a 47a 47 48 59 60 E A B C D Da F G Ga H Ha J K Pa P Pb Qa Q R La L M N Bb Cb Xa V W X Xb Y Z A' B' C'a C' D' F' G' H' H'a Wa E' S T U Ua 5b 26' 27' Ba Aa Ca 38 43 61 62 WASH 9' 3.5 3.2 3.2 6.2 6 6 10.7 6 6 5.8 2.2 2 2.2 3.7 6 1.8 3.7 1.8 0.3 5 4 2.3 8 5.5 4 2 2.5 3.5 3.2 3.2 1.8 3.7 2.2 3.7 2.2 3.7 1.8 6.7 6.7 8 6 6 6 5.2 5.2 7.5 6.5 9.5 2.2 4.7 6.00 3.80 2.2 2 2 0.5 0.4 3.2 3.2 3.5 3.7 2.2 3.7 2.2 3.7 1.8 1.8 5.7 6 4.8 7.5 6 6 5.7 1.8 0.8 2 2.5 2 5 8.2 7.5 4 8.6 2.3 2.3 6 3.2 3.2 3.5 3.7 2.2 3.7 2.2 3.7 1.8 1.8 8.5 28a 4.2 11a 1.2 2.5 27b 8b L' M' N' 26a Cc LVL +0.9 LVL +0.9 LVL +0.9 SC-1 W=1.5 ROOM D3 W4 W4 W5 W5 W5 W5 W5 W5 V4 XX D4 XX D7 D7 XX D7 V4 XX D4 XX D7 XX D7 A XX 0.9 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1 1.04 1.04 6 1.5 1 1.5 1 0.55 0.55 0.05 0.08 0.3 .012 .012 TOILET FLOOR PLAN SCALE 1:20 VITROUS BASIN SPECS. BOTTLE AS PER V4 XX D4 XX D7 XX D7 XX D7 XX V4 D4 XX D7 D7 XX 0.9 1 1 1 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1.04 1.04 6 9 1.5 1.5 0.55 0.55 0.05 0.08 0.3 V4 XX D4 XX D7 XX D7 XX D7 XX V4 XX D4 XX D7 D7 XX 6 9 .012 .012 6 LEGEND 6A 30W DOWNLIGHT PICTURE ELECTRIC FALSE SERVICE PLAN SCALE 1:20 TOILET FLOOR PLAN SCALE 1:20 REFLECTIVE CEILING PLAN SCALE 1:20 VITROUS BASIN SPECS. BOTTLE AS PER V4 D4 XX D7 A XX D7 XX D7 A XX V4 XX D4 D7 XX D7 0.9 1 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1.04 1 1.04 1 6 9 1.5 1.5 0.55 0.55 0.05 0.2 0.08 0.3 V4 D4 XX D7 XX D7 A XX D7 XX V4 XX D4 D7 XX D7 XX 6 .012 .012 6 9 LEGEND 30W PICTURE ELECTRIC FALSE SERVICE PLAN SCALE 1:20 TOILET FLOOR PLAN SCALE 1:20 REFLECTIVE CEILING PLAN SCALE 1:20 VITROUS BASIN SPECS. V4 XX D4 D7 XX D7 D7 V4 D4 A XX D7 XX D7 0.9 1 1 1 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1.04 1 1.04 1 6 9 1.5 1.5 0.55 0.55 0.05 0.2 0.08 0.3 V4 D4 XX D7 XX D7 XX D7 XX V4 XX D4 D7 D7 XX 6 9 LEGEND Ø32 MM WATER SUPPLY PIPE Ø110 MM SOIL WATER PIPE Ø110 MM WASTE WATER PIPE WATER TRAP WATER SUPPLY cPVC PIPES SOIL WATER uPVC PIPES WASTER WATER uPVC PIPES .012 .012 6 LEGEND 6A SOCKET 30W DOWNLIGHT PICTURE LIGHT ELECTRIC CONDUIT LINE FALSE CEILING 0.9 0.45 0.45 0.45 0.7 5.6 1.04 6 9 1.5 0.55 0.05 0.2 0.3 V4 XX V4 D7 D7 D7 D4 XX V4 XX V4 0.75 0.6 1.8 0.3 0.65 0.25 1.4 COLUMN IN ELV 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR VITROUS CHINA BASIN BOTTLE TRAP A C SERVICE PLAN SCALE 1:20 TOILET FLOOR PLAN SCALE 1:20 REFLECTIVE CEILING PLAN SCALE 1:20 A TOILET FLOOR PLAN SCALE 1:20 SECTION AA' SCALE 1:20 0.115 M THICK WALL 0.02 M THICK CEMENT MORTAR 0.013 M THICK WHITE SLATE TILE MIRROR AS PER SPECS 0.075 M THICK RCC SLAB FOR BASIN WITH 0.015 M THICK GRANITE STONE OVER 0.02 M THICK CEMENT MORTAR VITROUS CHINA BASIN AS PER SPECS. BOTTLE TRAP AS PER SPECS. 0.15 0.325 0.5 TAP AS PER SPECS 0.125 M HIGH AND 0.018 M THICK GRANITE SKIRTING 0.115 M THICK WALL 0.02 M THICK CEMENT MORTAR 0.02 M THICK CEMENT MORTAR 0.015 M THICK BLACK GRANITE 0.015 M THICK BLACK GRANITE CC FILLET 0.075 X 0.075 M CC FILLET 0.075 X 0.075 M RCC BEAM (A.P.S.) 0.075 M THICK PCC LAID TO SLOPE IN 100 MM 0.15 M BROKEN AAC BLOCKS DETAIL A SCALE 1:5 DETAIL C SCALE 1:5 V4 XX D4 XX D7 D7 D7 V4 XX D4 A XX D7 D7 XX 0.9 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1.04 1 1.04 1 6 1.5 1.5 0.55 0.05 0.2 0.08 0.3 V4 D4 XX D7 A XX D7 D7 XX V4 XX D4 D7 D7 XX 6 LEGEND Ø32 MM WATER SUPPLY PIPE Ø110 MM SOIL WATER PIPE Ø110 MM WASTE WATER PIPE WATER TRAP WATER SUPPLY cPVC PIPES SOIL WATER uPVC PIPES WASTER WATER uPVC PIPES .012 .012 6 9 LEGEND 6A SOCKET 30W DOWNLIGHT PICTURE LIGHT ELECTRIC CONDUIT LINE FALSE CEILING 1 1 1 0.9 0.45 0.45 0.45 0.7 5.6 1.04 9 1.5 1 0.55 0.05 0.2 0.3 V4 V4 A XX D7 XX D7 XX D7 XX D7 XX D7 XX D4 V4 XX V4 XX 0.75 2.1 0.6 1.8 0.3 0.65 0.25 1.4 COLUMN IN ELV 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR VITROUS CHINA BASIN BOTTLE TRAP A SERVICE PLAN SCALE 1:20 TOILET FLOOR PLAN SCALE 1:20 REFLECTIVE CEILING PLAN SCALE 1:20 A TOILET FLOOR PLAN SCALE 1:20 SECTION AA' SCALE 1:20 0.115 M THICK WALL 0.02 M THICK CEMENT MORTAR 0.013 M THICK WHITE SLATE TILE MIRROR AS PER SPECS 0.075 M THICK RCC SLAB FOR BASIN WITH 0.015 M THICK GRANITE STONE OVER 0.02 M THICK CEMENT MORTAR VITROUS CHINA BASIN AS PER SPECS. BOTTLE TRAP AS PER SPECS. 0.15 0.325 0.5 TAP AS PER SPECS 0.125 M HIGH AND 0.018 M THICK GRANITE SKIRTING 0.115 M THICK WALL 0.02 M THICK CEMENT MORTAR 0.02 M THICK CEMENT MORTAR 0.015 M THICK BLACK GRANITE 0.015 M THICK BLACK GRANITE CC FILLET 0.075 X 0.075 M CC FILLET 0.075 X 0.075 M RCC BEAM (A.P.S.) 0.075 M THICK PCC LAID TO SLOPE IN 100 MM 0.15 M BROKEN AAC BLOCKS DETAIL A SCALE 1:5 DETAIL DETAIL C SCALE 1:5

TOILET FLOOR PLAN SERVICE PLAN RCP PLAN ACADEMIC PROJECT

N 1. ALL DIMENSIONS ARE IN MM 2. ALL WALLS ARE TO 230 MM THICK UNLESS OTHERWISE SPECIFIED 3. FINISH SCHEDULE 4. ALL DIMENSIONS ARE TO BE READ NOT SCARED 5. ANY DISCREPANCY SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY 6. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF THE WORK 7. ALL DOORS AND WINDOW LEVELS ARE WITH RESPECT TO FINISHED FLOOR LEVEL 8. TYP – TYPICAL 9. A PS – AS PER STRUCTURE 10. SC-STAIR CASE 11. W-WASHROOM NOTES DWG NO. A104 DATE: MAR 14'22 AYUSHI JOSHI 3B 07817301619 GROUND FLOOR FRAMING PLAN UNIVERSITY SCHOOL OF ARCHITECTURE & PLANNING SCALE: 1:200 2 3 4 6 8 9 10 11 12 13 14 4a 5a 8a 8b 15a 15 16 17 18 19 20 20a 21 22 23 24 26 27 28 29 30 30a 31a 31 25 27a 32a 32 33 34 35 36 37 37a 39 40 41 42 44 45 46 43a 44a 46a 47a 47 48 59 60 E A B C D Da F G Ga H Ha J K Pa P Pb Qa Q R Cc La L M N Bb Cb Xa V W X Xb Y Z A' B' C'a C' D' F' G' H' H'a Wa E' S T U Ua 5b 26' 27' Ba Aa Ca 38 43 61 62 9' 3.5 3.2 3.2 6.2 6 6 6 10.7 6 6 6 5.8 2.2 2.2 3.7 6 1.8 3.7 2 1.8 0.3 5 4 2.3 8 5.5 4 2.5 3.5 3.2 3.2 1.8 3.7 2.2 3.7 2.2 3.7 1.8 6.7 6.7 8 6 6 6 5.2 5.2 2.5 8.5 7.5 6.5 9.5 2.2 4.7 3.80 2.2 2 0.5 0.4 3.2 3.2 3.5 3.7 2.2 3.7 2.2 3.7 1.8 1.8 5.7 6 4.8 7.5 6 6 5.7 1.8 0.8 2 2.5 2 8.2 7.5 4 8.6 2.3 2.3 6 3.2 3.2 3.5 3.7 2.2 3.7 2.2 3.7 1.8 1.8 28a 4.2 11a 1.2 27b 26a L' M' N' 6.00 SUNK 300 0.15 0.30 0.30 1.78 1.78 2.40 0.15 0.30 0.30 1.78 1.78 2.40 0.3 3.6 0.6 5.6 5.6 UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 25 | WORKING DRAWINGS ARCHITECT 6. COMMENCEMENT 7. RESPECT 8. 9. 10. 11. DATE: APR TERRACE UNIVERSITY SCHOOL ARCHITECTURE & SCALE: 1:100 S. LVL +4.65 TERRACE BELOW RIDGE RIDGE RIDGE RIDGE RIDGELINE RIDGE RIDGELINE RIDGE RIDGE LINE 1. ALL DIMENSIONS ARE IN M 2. ALL WALLS ARE TO 0.23 M THICK UNLESS OTHERWISE SPECIFIED 3. FINISH SCHEDULE 4. ALL DIMENSIONS ARE TO BE READ NOT SCARED 5. ANY DISCREPANCY SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY 6. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF THE WORK 7. ALL DOORS AND WINDOW LEVELS ARE WITH RESPECT TO FINISHED FLOOR LEVEL 8. TYP – TYPICAL 9. A PS – AS PER STRUCTURE 10. SC-STAIR CASE 11. W-WASHROOM NOTES D4 A XX D7 A XX D7 A XX 0.9 1 1 1 0.45 0.45 0.7 1 1.04 1 1.5 1 0.55 0.08 1.4 3 0.1 2.1 0.23 0.75 1 0.3 0.075 M THICK LINTEL BAND OVER 2.1 M HIGH AND 0.23 M THICK BRICK WALL COLUMN IN ELV VITROUS CHINA BASIN BOTTLE TRAP 0.125 M HIGH AND 0.018 M THICK MARBLE SKIRTING MIRROR 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR 0.012 M THICK CERAMIC TILES 0.02 M THICK CEMENT MORTAR V4 A XX BEAM IN ELV 0.006 M THICK CEMENT PLASTER 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING 0.23 1 1.80 0.6 2.1 0.3 SECTIONAL ELEVATION 'A' A B D C SECTIONAL ELEVATION 'B' 1. ALL 2. ALL OTHERWISE 3. FINISH 4. ALL 5. ANY ARCHITECT 6. ALL COMMENCEMENT 7. ALL RESPECT 8. TYP 9. A PS 10. SC-STAIR 11. W-WASHROOM NOTES DATE: APR TOILET ELEVATION UNIVERSITY SCHOOL ARCHITECTURE & PLANNING SCALE: 1:15 S. No. 10 11 12 13 14 15 16 V4 A XX D4 XX D7 A XX D7 A XX D7 XX V4 XX D4 A XX D7 XX D7 A XX 0.9 1 1 1 1 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1 1.04 1 1.04 1 6 9 1.5 1.5 0.55 0.55 0.05 0.2 0.08 0.3 1.4 3 0.1 2.1 0.23 0.75 1 0.3 0.075 M THICK LINTEL BAND OVER 2.1 M HIGH AND 0.23 M THICK BRICK WALL COLUMN IN ELV VITROUS CHINA BASIN BOTTLE TRAP 0.125 M HIGH AND 0.018 M THICK MARBLE SKIRTING MIRROR 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR V4 A XX 0.65 0.35 1.5 1.8 0.6 0.15 0.1 COLUMN IN ELV 0.006 M THICK CEMENT PLASTER 0.075 M THICK LINTEL BAND OVER 2.1 M HIGH AND 0.23 M THICK BRICK WALL 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR 0.012 M THICK CERAMIC TILES 0.02 M THICK CEMENT MORTAR V4 XX BEAM IN ELV 0.006 M THICK CEMENT PLASTER 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING 0.23 1 1.80 0.6 2.1 0.3 D4 A XX 2.4 0.12 1.4 COLUMN IN ELV 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR 0.65 TOILET FLOOR PLAN SECTIONAL ELEVATION 'A' A B D C SECTIONAL ELEVATION 'B' SECTIONAL ELEVATION 'D' SECTIONAL ELEVATION 'C' 1. ALL DIMENSIONS ARE IN M 2. ALL WALLS ARE TO 0.23 M THICK UNLESS OTHERWISE SPECIFIED 3. FINISH SCHEDULE 4. ALL DIMENSIONS ARE TO BE READ NOT SCARED 5. ANY DISCREPANCY SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY 6. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF THE WORK 7. ALL DOORS AND WINDOW LEVELS ARE WITH RESPECT TO FINISHED FLOOR LEVEL 8. TYP – TYPICAL 9. A PS – AS PER STRUCTURE 10. SC-STAIR CASE 11. W-WASHROOM NOTES D4 A XX D7 A XX D7 A XX 0.9 0.45 1 1.04 1 1.5 1 0.55 0.08 1.4 3 0.1 2.1 0.23 0.75 1 0.3 0.075 M THICK LINTEL BAND OVER 2.1 M HIGH AND 0.23 M THICK BRICK WALL COLUMN IN ELV VITROUS CHINA BASIN BOTTLE TRAP 0.125 M HIGH AND 0.018 M THICK MARBLE SKIRTING MIRROR 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR 0.012 M THICK CERAMIC TILES 0.02 M THICK CEMENT MORTAR V4 A XX BEAM IN ELV 0.006 M THICK CEMENT PLASTER 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING 0.23 1 1.80 0.6 2.1 0.3 SECTIONAL ELEVATION 'A' A B D C SECTIONAL ELEVATION 'B' 1. ALL DIMENSIONS 2. ALL WALLS OTHERWISE 3. FINISH SCHEDULE 4. ALL DIMENSIONS 5. ANY DISCREPANCY ARCHITECT 6. ALL DIMENSIONS COMMENCEMENT 7. ALL DOORS RESPECT TO 8. TYP – TYPICAL 9. A PS – AS 10. SC-STAIR 11. W-WASHROOM NOTES DATE: APR 30'22 TOILET ELEVATION UNIVERSITY SCHOOL ARCHITECTURE & PLANNING SCALE: 1:15 SCHEDULE S. No. TYPE D1 D2 3 D3 4 D4 5 D5 6 D6 7 D7 8 W1 9 W2 10 W3 11 W4 12 W5 13 V1 14 V2 15 V3 16 V4 V4 XX D4 A XX D7 A XX D7 A XX D7 A XX V4 A XX D4 A XX D7 A XX D7 A XX 0.9 1 1 1 1 1 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1 1.04 1 1.04 1 6 9 1.5 1 1.5 1 0.55 0.55 0.05 0.2 0.08 0.3 1.4 3 0.1 2.1 0.23 0.75 1 0.3 0.075 M THICK LINTEL BAND OVER 2.1 M HIGH AND 0.23 M THICK BRICK WALL COLUMN IN ELV VITROUS CHINA BASIN BOTTLE TRAP 0.125 M HIGH AND 0.018 M THICK MARBLE SKIRTING MIRROR 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR V4 A XX 0.65 0.35 1.5 1.8 0.6 0.15 0.1 COLUMN IN ELV 0.006 M THICK CEMENT PLASTER 0.075 M THICK LINTEL BAND OVER 2.1 M HIGH AND 0.23 M THICK BRICK WALL 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR 0.012 M THICK CERAMIC TILES 0.02 M THICK CEMENT MORTAR V4 A XX BEAM IN ELV 0.006 M THICK CEMENT PLASTER 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING 0.23 1 1.80 0.6 2.1 0.3 D4 XX 2.4 0.12 1.4 COLUMN IN ELV 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR 0.65 TOILET FLOOR PLAN SECTIONAL ELEVATION 'A' A B D C SECTIONAL ELEVATION 'B' SECTIONAL ELEVATION 'D' SECTIONAL ELEVATION 'C' 1. ALL DIMENSIONS 2. ALL WALLS OTHERWISE SPECIFIED 3. FINISH SCHEDULE 4. ALL DIMENSIONS 5. ANY DISCREPANCY ARCHITECT IMMEDIATELY 6. ALL DIMENSIONS COMMENCEMENT 7. ALL DOORS RESPECT TO FINISHED 8. TYP – TYPICAL 9. PS AS PER 10. SC-STAIR CASE 11. W-WASHROOM NOTES DATE: APR 30'22 AYUSHI TOILET SECTION UNIVERSITY SCHOOL OF ARCHITECTURE & PLANNING SCALE: 1:20 SCHEDULE D1 D3 D4 D5 D7 W2 W4 13 15 V3 D4 XX D7 XX D7 D7 0.9 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1.04 1.04 1.5 1.5 0.55 0.05 0.3 D7 D7 D4 XX LEGEND Ø32 MM WATER Ø110 MM SOIL WATER PIPE Ø110 MM WASTE WATER TRAP WATER SUPPLY cPVC PIPES WASTER WATER uPVC PIPES .012 9 LEGEND 6A SOCKET 30W DOWNLIGHT PICTURE LIGHT ELECTRIC CONDUIT LINE FALSE CEILING 0.9 0.45 0.45 5.6 1.04 1.04 9 1.5 1.5 0.55 0.55 0.05 0.2 0.08 0.3 V4 D7 D7 D7 XX D4 XX D4 V4 V4 0.6 0.65 1.4 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING COLUMN IN ELV 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR VITROUS CHINA BASIN COLUMN IN ELV BOTTLE TRAP MIRROR 0.125 M HIGH AND 0.018 M THICK GRANITE SKIRTING 0.23 THICK WALL SERVICE PLAN SCALE 1:20 TOILET FLOOR PLAN SCALE 1:20 REFLECTIVE CEILING PLAN SCALE 1:20 A A' TOILET FLOOR PLAN SCALE 1:20 SECTION AA' SCALE 1:20 0.115 M THICK WALL 0.02 M THICK CEMENT MORTAR 0.013 THICK WHITE SLATE TILE MIRROR AS PER SPECS 0.075 M THICK RCC SLAB FOR BASIN WITH 0.015 M THICK GRANITE STONE OVER 0.02 M THICK CEMENT MORTAR VITROUS CHINA BASIN AS PER SPECS. BOTTLE TRAP AS PER SPECS. 0.15 0.325 0.5 TAP AS PER SPECS 0.125 M HIGH AND 0.018 M THICK GRANITE SKIRTING 0.115 THICK WALL 0.02 M THICK CEMENT MORTAR 0.015 M THICK BLACK GRANITE 0.015 THICK BLACK GRANITE CC FILLET 0.075 0.075 CC FILLET 0.075 0.075 RCC BEAM (A.P.S.) RCC BEAM (A.P.S.) 0.075 M THICK PCC LAID TO SLOPE IN 100 MM 0.15 BROKEN AAC BLOCKS DETAIL A SCALE 1:5 DETAIL B SCALE 1:5 DETAIL C SCALE 1:5 N 1. ALL DIMENSIONS ARE IN M 2. ALL WALLS ARE TO 0.23 M THICK UNLESS OTHERWISE SPECIFIED 3. FINISH SCHEDULE 4. ALL DIMENSIONS ARE TO BE READ NOT SCARED 5. ANY DISCREPANCY SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY 6. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF THE WORK 7. ALL DOORS AND WINDOW LEVELS ARE WITH RESPECT TO FINISHED FLOOR LEVEL 8. TYP – TYPICAL 9. A PS – AS PER STRUCTURE 10. SC-STAIR CASE 11. W-WASHROOM NOTES DWG NO. A107 DATE: APR 30'22 AYUSHI JOSHI 3B 07817301619 TOILET FLOOR PLANS, SECTION & DETAILS UNIVERSITY SCHOOL OF ARCHITECTURE & PLANNING SCALE: 1:20 SCHEDULE OF OPENINGS No. TYPE WIDTH CILL LVL LINTE LVL HEIGHT D1 2.4 - 2.4000 2.4 D2 - 2.4000 2.4 D3 1.2000 - 2.4000 2.4000 D4 - 2.4000 2.4 D5 0.91 - 2.4000 2.4 D6 0.8 - 2.4000 2.4 D7 0.75 - 2.4000 2.4 W1 0.9 2.4000 15 0.9 2.4000 1.5 10 W3 1.5 0.9 2.4000 1.5 W4 0.9 2.4000 1.5 12 W5 0.8 0.9 2.4000 1.5 13 V1 1.8 2.400000 0.6 14 V2 1.8 2.4000 0.6 15 V3 0.8 1.8 2.4000 0.6 16 V4 0.5000 1.8000 2.4000 0.6000 V4 A XX D4 XX D7 XX D7 XX D7 XX V4 XX D4 A XX D7 XX D7 0.9 1 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1.04 1.04 6 1.5 1.5 0.55 0.55 0.2 0.08 V4 XX D4 D7 XX D7 XX D7 XX V4 D4 XX D7 D7 XX 6 LEGEND Ø32 MM WATER SUPPLY PIPE Ø110 MM SOIL WATER PIPE Ø110 MM WASTE WATER PIPE WATER TRAP WATER SUPPLY cPVC PIPES SOIL WATER uPVC PIPES WASTER WATER uPVC PIPES .012 .012 9 LEGEND 6A SOCKET 30W DOWNLIGHT PICTURE LIGHT ELECTRIC CONDUIT LINE FALSE CEILING 0.9 1 0.9 0.45 0.45 0.45 0.45 0.7 5.6 1.04 1.04 6 9 1.5 1.5 1 0.55 0.55 0.05 0.2 0.08 0.3 V4 V4 A XX D7 A XX D7 D7 D7 XX D7 D4 D4 XX V4 XX V4 0.75 2.1 0.6 1.8 0.3 0.65 0.25 1.4 1 0.12 M HIGH AND 0.018 M THICK MARBLE SKIRTING COLUMN IN ELV 0.012 M THICK CEMENT PLASTER 0.02 M THICK CEMENT MORTAR VITROUS CHINA BASIN COLUMN IN ELV BOTTLE TRAP MIRROR 0.125 M HIGH AND 0.018 M THICK GRANITE SKIRTING 0.23 M THICK WALL C SERVICE PLAN SCALE 1:20 TOILET FLOOR PLAN SCALE 1:20 REFLECTIVE CEILING PLAN SCALE 1:20 A A' TOILET FLOOR PLAN SCALE 1:20 SECTION AA' SCALE 1:20 0.115 M THICK WALL 0.02 M THICK CEMENT MORTAR 0.013 M THICK WHITE SLATE TILE MIRROR AS PER SPECS 0.075 M THICK RCC SLAB FOR BASIN WITH 0.015 M THICK GRANITE STONE OVER 0.02 M THICK CEMENT MORTAR VITROUS CHINA BASIN AS PER SPECS. BOTTLE TRAP AS PER SPECS. 0.15 0.325 0.5 TAP AS PER SPECS 0.125 M HIGH AND 0.018 M THICK GRANITE SKIRTING 0.115 M THICK WALL 0.02 M THICK CEMENT MORTAR 0.02 M THICK CEMENT MORTAR 0.015 M THICK BLACK GRANITE 0.015 M THICK BLACK GRANITE CC FILLET 0.075 X 0.075 M CC FILLET 0.075 X 0.075 M RCC BEAM (A.P.S.) RCC BEAM (A.P.S.) 0.075 M THICK PCC LAID TO SLOPE IN 100 MM 0.15 M BROKEN AAC BLOCKS DETAIL A SCALE 1:5 DETAIL B SCALE 1:5 DETAIL C SCALE 1:5 GROUND FLOOR FRAMING PLAN TERRACE DRAINAGE PLAN TOILET SECTION DETAIL ‘A‘ DETAIL ‘B‘

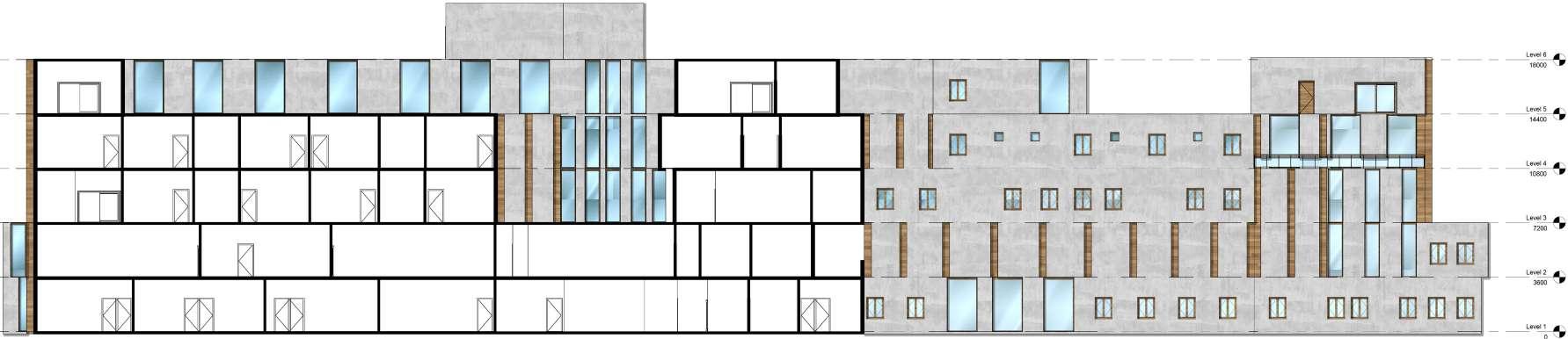

ELEVATION

SECTIONAL

2.4 0.05 0.05 0.95 0.95 0.05 0.6 0.03 0.03 0.15 0.65 0.03 0.03 0.8 0.4 D2 (2 x 2.4) 2.4 2.4 0.05 0.05 1.15 1.15 0.05 0.8 0.03 0.8 0.4 0.00 2.00 0.15 D1 (2.4 x 2.4) 0.91 2.4 0.95 0.15 0.05 0.05 0.05 D5 (0.91 x 2.4) 0.8 2.4 0.05 0.05 0.05 0.95 0.15 D6 (0.8 x 2.4) 0.75 2.4 0.05 0.05 0.05 0.95 0.15 D7 (0.75 x 2.4) 1.2 0.6 1.8 V1 (1.2 x 0.6) 0.6 1.8 V2 (1 x 0.6) V3 (0.8 1.2 0.05 0.05 EQ EQ 0.05 0.05 0.05 W4 (1.2 x 1.5) 0.8 1.5 0.9 0.05 0.05 0.05 0.05 W5 (0.8 x 1.5) COLUMN IN ELEVATION 0.23 M BRICK WALL 0.015 M PLASTER 0.025 M KOTA STONE 0.02 M MORTAR 0.1 M PCC (1:4:8) LAYER 0.15 M BRICK BATS 0.45 M PLINTH BEAM RAMMED EARTH 0.025 M KOTA STONE 0.02 M CEMENT MORTAR BEAM IN ELEVATION 0.23 M BRICK WALL 0.015 M PLASTER 0.025 M KOTA STONE SKIRTING COLUMN IN ELEVATION BRICK COBA PARAPET STONE AS SPECIFIED 0.02 M THICK CEMENT MORTAR 0.23 M THICK PARAPET WALL 0.025 M WATERPROOFING LAYER 0.15 M RCC SLAB BEAM 0.45 M DEPTH 0.15 M SHEAR WALL 0.3 M SHEAR WALL 0.1 M PCC LAYER 0.15 M BRICK BATS RAMMED EARTH RCC RAFT SLAB (1:1.5:3) 0.025 M WATER PROOFING 0.1 M PCC LAYER LIFT PIT COPING BITUMINOUS FILLER 0.075 M TUCKING CHASE 0.15 M RCC SLAB 0.015 M PLASTER BITUMINOUS FILLER 0.075 M EXPANSION JOINT C A BEAM DEPTH 0.45 M 0.15 M RCC SLAB 0.23 M BRICK WALL TOILET DETAILS REFER SHEET A07 & A08 REFER SHEET A10 & A11 W4 XX W4 XX W4 A XX W4 XX XG XHa XH XJ N 1. ALL DIMENSIONS ARE IN M 2. ALL WALLS ARE TO 0.23 M THICK UNLESS OTHERWISE SPECIFIED 3. FINISH SCHEDULE 4. ALL DIMENSIONS ARE TO BE READ NOT SCARED 5. ANY DISCREPANCY SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY 6. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF THE WORK 7. ALL DOORS AND WINDOW LEVELS ARE WITH RESPECT TO FINISHED FLOOR LEVEL 8. TYP – TYPICAL 9. A PS – AS PER STRUCTURE 10. SC-STAIR CASE 11. W-WASHROOM NOTES DWG NO. A113 DATE: MAY 07'22 AYUSHI JOSHI 3B 07817301619 SECTIONS UNIVERSITY SCHOOL OF ARCHITECTURE & PLANNING SCALE: 1:50 SCHEDULE OF OPENINGS S. No. TYPE WIDTH CILL LVL LINTE LVL HEIGHT D1 2.4 - 2.4000 2.4 D2 2 - 2.4000 2.4 D3 1.2000 - 2.4000 2.4000 D4 - 2.4000 2.4 D5 0.91 - 2.4000 2.4 D6 0.8 - 2.4000 2.4 D7 0.75 - 2.4000 2.4 W1 4 0.9 2.4000 15 W2 2 0.9 2.4000 1.5 10 W3 1.5 0.9 2.4000 1.5 11 W4 1.2 0.9 2.4000 1.5 12 W5 0.8 0.9 2.4000 1.5 13 V1 1.2 1.8 2.400000 0.6 14 V2 1.8 2.4000 0.6 15 V3 0.8 1.8 2.4000 0.6 16 V4 0.5000 1.8000 2.4000 0.6000 CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM MUSIC ROOM INDOOR GAMES ROOM DANCE ROOM SENIOR LIBRARY RESEARCH LAB STAFF ROOM STAFF ROOM REST ROOM CLINIC REST ROOM BOYS GIRLS W=1.5 R=0.15 STEPS=26 W5 W5 XX W5 W5 XX W5 W5 W5 XX XX W5 XX W5 XX W5 XX W5 XX W5 W5 XX W5 W5 W5 W5 W5 W5 XX W5 W5 W5 XX W5 XX W5 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 XX D3 D3 D3 W5 XX W5 W5 W5 W5 W4 W4 D3 D4 XX W5 XX W5 XX W5 W5 W5 D4 XX D3 SCIENCE LAB W5 XX DN UP MACHINE ROOM LIFT PIT EXPANSION JOINT BEAM DEPTH 0.45 M 0.1 M TRIMIX CONCRETE 0.15 M RCC SLAB 0.23 M BRICK WALL 0.1 M PCC LAYER 0.15 M BRICK BATS 0.45 M PLINTH BEAM W4 XX W4 XX W4 A XX W4 A XX W4 XX W4 XX W4 XX W4 XX W4 A XX W4 A XX W4 XX W4 XX W4 XX W4 XX W4 A XX W4 A XX W4 XX W4 XX W4 XX W4 XX W4 A XX W4 A XX W4 XX W4 XX W4 XX W4 XX W4 XX W4 A XX W4 A XX W4 XX W4 A XX W4 XX W3 XX W5 A XX W5 A XX W5 XX W5 XX A B C D E X8 X8b X2 X5 X9 X10 X13 X14 X15 B B' A A' SECTION AA' SECTION BB' DETAIL A DETAIL B DETAIL C DETAIL D DETAIL E PLAN COLUMN IN ELEVATION 0.23 M BRICK WALL 0.015 M PLASTER 0.025 M KOTA STONE 0.02 M MORTAR 0.1 M PCC (1:4:8) LAYER 0.15 M BRICK BATS 0.45 M PLINTH BEAM RAMMED EARTH 0.025 M KOTA STONE 0.02 M CEMENT MORTAR BEAM IN ELEVATION 0.23 M BRICK WALL 0.015 M PLASTER 0.025 M KOTA STONE SKIRTING COLUMN IN ELEVATION BRICK COBA PARAPET STONE AS SPECIFIED 0.02 M THICK CEMENT MORTAR 0.23 M THICK PARAPET WALL 0.025 M WATERPROOFING LAYER 0.15 M RCC SLAB BEAM 0.45 M DEPTH 0.15 M SHEAR WALL 0.3 M SHEAR WALL 0.1 M PCC LAYER 0.15 M BRICK BATS RAMMED EARTH RCC RAFT SLAB (1:1.5:3) 0.025 M WATER PROOFING 0.1 M PCC LAYER LIFT PIT COPING BITUMINOUS FILLER 0.075 M TUCKING CHASE 0.15 M RCC SLAB 0.015 M PLASTER BITUMINOUS FILLER 0.075 M EXPANSION JOINT C A BEAM DEPTH 0.45 M 0.15 M RCC SLAB 0.23 M BRICK WALL TOILET DETAILS REFER SHEET A07 & A08 REFER SHEET A10 & A11 W4 A XX W4 XX W4 XX W4 A XX XG XHa XH XJ N 1. ALL DIMENSIONS ARE IN M 2. ALL WALLS ARE TO 0.23 M THICK UNLESS OTHERWISE SPECIFIED 3. FINISH SCHEDULE 4. ALL DIMENSIONS ARE TO BE READ NOT SCARED 5. ANY DISCREPANCY SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY 6. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF THE WORK 7. ALL DOORS AND WINDOW LEVELS ARE WITH RESPECT TO FINISHED FLOOR LEVEL 8. TYP – TYPICAL 9. A PS – AS PER STRUCTURE 10. SC-STAIR CASE 11. W-WASHROOM NOTES DWG NO. A113 DATE: MAY 07'22 AYUSHI JOSHI 3B 07817301619 SECTIONS UNIVERSITY SCHOOL OF ARCHITECTURE & PLANNING SCALE: 1:50 SCHEDULE OF OPENINGS S. No. TYPE WIDTH CILL LVL LINTE LVL HEIGHT D1 2.4 - 2.4000 2.4 D2 - 2.4000 2.4 3 D3 1.2000 - 2.4000 2.4000 4 D4 - 2.4000 2.4 D5 0.91 - 2.4000 2.4 6 D6 0.8 - 2.4000 2.4 D7 0.75 - 2.4000 2.4 8 W1 0.9 2.4000 15 9 W2 0.9 2.4000 1.5 10 W3 1.5 0.9 2.4000 1.5 11 W4 1.2 0.9 2.4000 1.5 12 W5 0.8 0.9 2.4000 1.5 13 V1 1.2 1.8 2.400000 0.6 14 V2 1.8 2.4000 0.6 15 V3 0.8 1.8 2.4000 0.6 16 V4 0.5000 1.8000 2.4000 0.6000 CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM CLASSROOM MUSIC ROOM INDOOR GAMES ROOM DANCE ROOM SENIOR LIBRARY RESEARCH LAB STAFF ROOM STAFF ROOM REST ROOM CLINIC REST ROOM BOYS GIRLS SC-2 R=0.15 T=0.3 STEPS=26 W5 W5 W5 W5 W5 W5 W5 W5 W5 W5 W5 W5 XX W5 W5 W5 W5 XX W5 W5 XX W5 XX W5 W5 XX D3 D3 XX D3 XX XX XX D4 XX D4 W5 W5 W5 W5 W4 W4 XX D4 W5 XX W5 W5 W5 W5 XX V4 D4 D4 SCIENCE LAB UP MACHINE ROOM LIFT PIT EXPANSION JOINT BEAM DEPTH 0.45 M 0.1 M TRIMIX CONCRETE 0.15 M RCC SLAB 0.23 M BRICK WALL 0.1 M PCC LAYER 0.15 M BRICK BATS 0.45 M PLINTH BEAM W4 XX W4 A XX W4 XX W4 A XX W4 A XX W4 XX W4 XX W4 A XX W4 XX W4 A XX W4 A XX W4 XX W4 XX W4 A XX W4 XX W4 A XX W4 A XX W4 XX W4 XX W4 A XX W4 XX W4 A XX W4 A XX W4 XX W4 A XX W4 XX W4 A XX W4 XX W4 XX W4 A XX W4 XX W4 XX W3 XX W5 W5 W5 W5 A B C D E X8 X8b X2 X5 X9 X10 X13 X14 X15 B B' A A' SECTION AA' SECTION BB' DETAIL A DETAIL B DETAIL C DETAIL D DETAIL E PLAN 2 2.4 0.05 0.05 0.95 0.95 0.05 0.6 0.03 0.03 0.15 0.65 0.03 0.8 0.4 D2 (2 x 2.4) 2.4 2.4 0.05 0.05 1.15 1.15 0.05 0.8 0.03 0.8 0.15 D1 (2.4 x 2.4) 0.05 D3 0.15 0.25 0.25 0.03 0.91 2.4 0.95 0.15 0.05 0.05 0.05 D5 (0.91 x 2.4) 0.8 2.4 0.05 0.05 D6 (0.8 x 2.4) 0.75 0.05 0.05 0.95 0.15 D7 (0.75 x 2.4) 1.2 0.6 1.8 V1 (1.2 x 0.6) 0.6 1.8 V2 (1 x 0.6) 0.8 0.6 1.8 V3 (0.8 x 0.6) 1.2 0.05 0.05 EQ EQ 0.05 1.4 0.05 0.05 W4 (1.2 x 1.5) 0.8 1.5 0.9 0.05 0.05 1.4 W5 (0.8 x 1.5) 0.05 0.05 0.95 0.95 0.6 0.03 0.03 0.15 0.65 0.03 0.8 0.4 D2 (2 x 2.4) 2.4 0.05 0.05 1.15 1.15 0.8 0.03 0.03 0.8 0.4 0.00 2.00 0.15 D1 (2.4 x 2.4) 0.15 0.03 0.91 2.4 0.95 0.15 0.05 0.05 0.05 D5 (0.91 x 2.4) 0.8 0.05 0.05 D6 (0.8 x 2.4) 0.75 0.05 0.05 D7 (0.75 x 2.4) 1.2 V1 (1.2 x 0.6) 0.6 1.8 V2 (1 x 0.6) 0.8 0.6 1.8 V3 (0.8 x 0.6) 1.2 1.5 0.9 0.05 0.05 EQ EQ 0.05 1.4 0.05 0.05 W4 (1.2 x 1.5) 0.8 1.5 0.9 0.05 0.05 W5 (0.8 x 1.5) 2 2.4 0.05 0.05 0.95 0.95 0.05 0.6 0.03 0.03 0.15 0.65 0.03 2.00 0.03 0.8 0.4 D2 (2 x 2.4) 2.4 2.4 0.05 0.05 1.15 1.15 0.05 0.8 0.03 0.03 0.8 0.4 0.00 0.15 D1 (2.4 x 2.4) 1 0.05 D3 (1.2 x 2.4) 0.05 2.4 0.2 0.15 0.25 0.25 0.35 0.15 1.40 0.25 0.03 1 0.05 0.05 0.05 2.4 0.95 0.15 D4 (1 x 2.4) 0.91 2.4 0.95 0.15 0.05 0.05 0.05 D5 (0.91 x 2.4) 0.8 2.4 0.05 0.05 0.05 0.95 0.15 D6 (0.8 x 2.4) 0.75 2.4 0.05 0.05 0.05 0.95 0.15 D7 (0.75 x 2.4) 1.2 1 0.8 0.5 2 1.5 0.9 0.05 0.05 EQ EQ 0.05 1.4 0.05 0.05 W2 (2 x 1.5) 1.5 1.5 0.9 0.05 0.05 EQ EQ 0.05 1.4 0.05 0.05 W3 (1.5 x 1.5) 1.2 0.05 0.05 EQ EQ 0.05 0.05 0.8 0.05 0.05 0.05 2 2.4 0.05 0.05 0.95 0.95 0.05 0.6 0.03 0.03 0.15 0.65 0.03 2.00 0.03 0.8 0.4 D2 (2 x 2.4) 2.4 2.4 0.05 0.05 1.15 1.15 0.05 0.8 0.03 0.03 0.8 0.4 0.15 D1 (2.4 x 2.4) 0.05 D3 (1.2 x 2.4) 0.05 2.4 0.2 0.15 0.25 0.25 0.35 0.15 1.40 0.25 0.03 1 0.05 0.05 0.05 2.4 0.95 0.15 D4 (1 x 2.4) 0.91 2.4 0.95 0.15 0.05 0.05 0.05 D5 (0.91 x 2.4) 0.8 2.4 0.05 0.05 0.05 0.95 0.15 D6 (0.8 x 2.4) 0.75 2.4 0.05 0.05 0.05 0.95 0.15 D7 (0.75 x 2.4) 1.2 0.8 0.5 ALL DIMENSIONS 2. ALL WALLS OTHERWISE 3. FINISH SCHEDULE 4. ALL DIMENSIONS 5. ANY DISCREPANCY ARCHITECT 6. ALL DIMENSIONS COMMENCEMENT 7. ALL DOORS RESPECT TO 8. TYP – TYPICAL 9. A PS AS 10. SC-STAIR 11. W-WASHROOM NOTES UNIVERSITY SCHOOL ARCHITECTURE SCHEDULE D1 D2 D3 D4 D5 D6 D7 W1 W3 W4 W5 13 V1 14 V2 15 V3 V4 2 1.5 0.9 0.05 0.05 EQ EQ 0.05 1.4 0.05 0.05 W2 (2 x 1.5) 1.5 1.5 0.9 0.05 0.05 EQ EQ 0.05 1.4 0.05 0.05 W3 (1.5 x 1.5) 1.2 0.05 0.05 EQ EQ 0.05 0.05 0.8 0.05 0.05 0.05 SCHEDULE OF OPENING DETAILS UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 26 | WORKING DRAWINGS SECTION AA’ SECTION BB’ PLAN DETAIL ‘E‘ DETAIL ‘D‘ DETAIL ‘B‘ DETAIL ‘A‘ DETAIL ‘C‘ DOOR/ WINDOW SCHEDULE

AHATAS 1 TO 4 Ahatas 5-8, Don't forget to mirror plans and elevations)

AHATAS 1 TO 4 ( for Ahatas 5-8, Don't forget to mirror

RAGHUNATH MANDIR DOCUMENTATION

AHATAS 1 TO 4 ( for Ahatas 5-8, Don't forget to

AHATAS 1 TO 4 for Ahatas 5-8, Don't forget to mirror plans

AHATAS 1 TO 4 ( for Ahatas 5-8, Don't forget to mirror plans and elevations)

SOFTWARES USED

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 28 | DOCUMENTATION

07 DETAILLED DOCUMENTATION OF RAGHUNATH MANDIR YEAR 4 SEMESTER 8 2023 PROJECT TYPE DOCUMENTATION LOCATION RAGHUNATH MANDIR CHOWK JAMMU CITY, JAMMU AND KASHMIR, INDIA SITE AREA 5 ACRES INVOLVEMENT & ROLE ` DOCUMENTING, DRAFTING, COMPOSITION & PRESENTATION GROUP PROJECT ELEVATION A ELEVATION C ELEVATION D ELEVATION B Detail A Ahata No.1 Detail B

Detail A Detail B Detail C ELEVATION C ELEVATION A ELEVATION B ELEVATION D 4 4 2 D B B C Detail A Detail B Detail A Detail B Detail C Ahata No.1 2 4 6

B Detail C A D C D B B C 4 5 1 4 A D D B 3 7 C D B 1 7 B C A E D A E 4 ELEVATION A ELEVATION C ELEVATION D ELEVATION B Detail A Ahata No.1 2 A E B B B D B B C 7 2 3

and elevations)

D Detail A Detail B 1 4 E D B C D D C A 4 1 1 Detail C ELEVATION A ELEVATION C ELEVATION D ELEVATION B Detail A Ahata No.1 Detail B

Detail A Detail B Detail C Detail C ELEVATION C ELEVATION A ELEVATION B ELEVATION D 4 4 2 1 4 5 D B B C 5 Detail A 2 4 6 B C

B A D C D B B 6 C 4 2 5 1 4 A D D B 3 7 C D B A 1 3 E 7 B C A E D A E 4 2 AHATA NO.1 AHATA NO.2 SECTIONS & ELEVATIONS SECTIONS & ELEVATIONS

ACADEMIC PROJECT

site plan 1 2 C D A B UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 29 | DOCUMENTATION 4 2 ELEVATION C E 6 ELEVATION A ELEVATION C 2 ENTRY/EXIT ELEVATION B ELEVATION B 5 ELEVATION D ELEVATION A 4 C D ELEVATION D 4 ELEVATION 6 6 B ELEVATION B 5 A E 5 4 elevations) 7 3 C ELEVATION D ELEVATION C 1 C 4 C A 5 ELEVATION AHATA NO.4 SECTIONS & ELEVATIONS SECTIONS & ELEVATIONS AHATA NO.3 SITE PLAN MANDIR SHIKHAR

DRAFTING & RENDERING WORK UNDER NAV NIRMAN

2021-2023

ELEVATION OF PARTITION WALLS (DON BOSCO INSTITUTE, OKHLA)

COLUMN JACKETTING DETAILS (DON BOSCO SCHOOL, ALAKNANDA, NEW DELHI)

UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 30 | FREELANCE WORK

FREELANCE WORK

FREELANCE PROJECTS EXT. FLOOR LVL EXISTING BEAM EPOXY FILLING EXISTING COLUMN ADHESIVE COATING WITH OLD CONCRETE VERTICAL BAR Ø16 MM (MIN. 12 Nos.) ANCHOR BAR Ø12 MM (MIN. 20 Nos. FOR 1 COLUMN) STIRRUPS Ø8 MM @ 150 MM C/C REBARING WITH EXISTING FOOTING EXISTING PLINTH BEAM EXISTING FOOTING EXISTING PCC KOTA STONE FLOOR FINISH CEMENT CONCRETE DETAIL 'A' DETAIL 'B' 75 MM THICK CONCRETE JACKETING 75 75 MM THICK CONCRETE JACKETING EXISTING PCC EXISTING FOOTING COLUMN SECTION COLUMN PLAN Ø12 MM ANCHOR BAR (MIN 20 REBARING PER COLUMN) 150 600 Ø16 MM VERTICAL BAR STIRRUPS Ø8 MM @150 MM C/C ADHESIVE COATING WITH OLD CONCRETE EXISTING COLUMN 75 MM THICK CONCRETE JACKETING Ø16 MM VERTICAL BAR (MIN 12 Nos.) STIRRUPS Ø8 MM @150 MM C/C EXISTING COLUMN (APPROX. 1'0" x 2'0") 75 MM THICK CONCRETE JACKETING 75 75 DETAIL 'A' DETAIL 'B' NAV NIRMAN Consulting Engineers.Turnkey contractors.Govt Approved Contractors

ELECTRICAL LAYOUT PLAN (ROHINI, DELHI, INDIA)

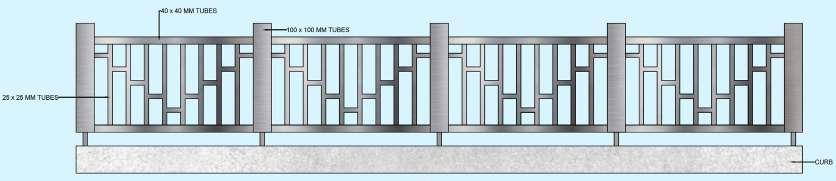

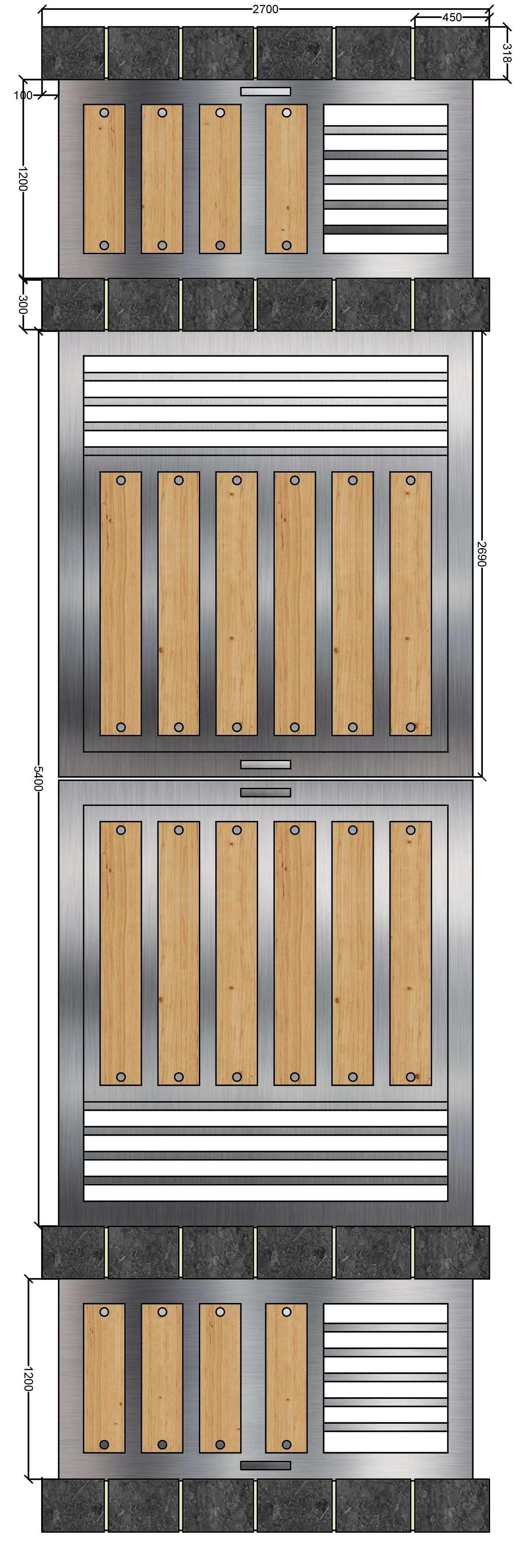

RAILING DESIGNS (HOLY CHILD AUXILARY SCHOOL, VASANT VIHAR)

GROUND FLOOR FIRST FLOOR

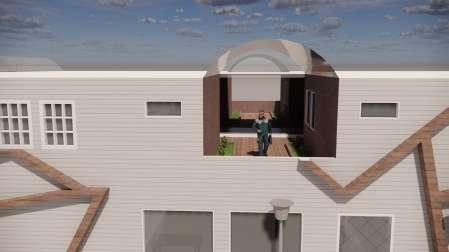

DUPLEX DESIGN (HALDWANI, NAINITAL, UTTARAKHAND)

BR2 (4.2 x 3.5) MASTER BR (4 x 3.5) WALK-IN CLOSET DINING + LOBBY DRAWING ROOM (5 x 3.5) KITCHEN (3.5 x 2) PORCH MANDIR (2 x 1.5) PDR ROOM BREAKFAST ISLAND D1 D2 D1 D3 D3 D3 W W W W W W V V W W W2 V1 V W1 D4 D4 D4 D4 D4 BATHING AREA BATHING AREA W2 BALCONY TERRACE GARDEN WC WC WC WC KITCHEN ROOF OVER DRIVEWAY ROOF OVER DRIVEWAY D1 W W W W V W W W2 V1 V V W2 D2 D2 D3 D3 D4 D4 D4 3 10 11 12 13 14 15 16 17 18 19 20 3 5 6 10 11 12 13 14 15 16 17 18 19 20 UP UP 2 3 4 5 6 7 2 3 8 10 11 12 13 14 15 16 17 18 19 20 UP UP GROUND FLOOR FIRST FLOOR LVL +450 LVL +0.9 DRIVEWAY LVL +4.2 DOUBLE HEIGHT WITH SKYLIT ROOF at lvl +7.5 N 20.7 20.2 12 10.6 D3 D4 SEPTIC TANK (4.5 x 1.5) SEPTIC TANK (4.5 x 1.5) WATER TANK (2.5 x 2) WATER TANK (2.5 x 2) WATER TANK (2.5 x 2) WATER TANK (2.5 x 2) 4 M WIDE ROAD 4 M WIDE ROAD ALL DIMENSIONS ARE IN METRE UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 31 | FREELANCE WORK

NAV NIRMAN

Engineers.Turnkey contractors.Govt Approved Contractors

Consulting

ELECTRICAL LEGEND DOWN LIGHT BRACKET LIGHT ON WALL LED TUBE LIGHT CEILING FAN EXHAUST FAN AS/ APPROVAL SWITCH BOARD 5A RAW POWER SOCKET 15A RAW POWER SOCKET 5A RAW POWER SOCKET & SWITCH 15A RAW POWER SOCKET & SWITCH BELL PUSH BUTTON CHANDELIER TELEVISION POINT TELEPHONE POINT DATA POINT DISTRIBUTION BOARD BEDROOM (4000 3300) SWITCH @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM BEDROOM (3500 3000) (3000 2300) (8000 4000) BEDROOM (3800 3300) BEDROOM (4000 3500) BEDROOM (4000 3300) LIFT SHAFT VENTILATION SHAFT (1700 800) WASHROOM (2500 2000) WASHROOM (2500 1800) UP 1630 BRACKET LIGHT 2200 MM BTM SWITCH 300 MM BTM 5A SOCKET @ 300 MM BTM 15A AC OUTLET @ 300 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM TV POINT 1200 MM BTM DATA POINT @ 1200 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET 1200 MM BTM 15A REFRIGERATOR OUTLET @ 1200 MM BTM 15A MICROWAVE OUTLET @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM 15A SOCKET @ 1200 MM BTM LED TUBELIGHT @ 2200 MM BTM 15A GYSER OUTLET @ 2000 MM BTM MIRROR LIGHT @ 2200 MM BTM CEILING FAN 3000MM BTM SWITCH @ 1200 MM BTM 5A SOCKET 1200 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM 15A SOCKET @ 1200 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET 1200 MM BTM 5A SOCKET 900 MM BTM TV POINT @ 1200 MM BTM 5A SOCKET 900 MM BTM BRACKET LIGHT 2200 MM BTM CEILING FAN 3000 MM BTM SWITCH @ 900 MM BTM 5A SOCKET 900 MM BTM 15A AC OUTLET 900 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET 1200 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM TV POINT @ 1200 MM BTM BRACKET LIGHT 2200 MM BTM LED TUBELIGHT 2200 MM BTM LED TUBELIGHT @ 2200 MM BTM SWITCH @ 300 MM BTM 5A SOCKET @ 300 MM BTM 15A AC OUTLET @ 300 MM BTM EXHAUST FAN 2200 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET 1200 MM BTM 15A GYSER OUTLET @ 2000 MM BTM 5A SOCKET @ 1200 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM TV POINT @ 1200 MM BTM BRACKET LIGHT 2200 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM DISTRIBUTION BOARD @ 2500 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM BELL PUSH BUTTON @ 1200 MM BTM SWITCH 1200 MM BTM 5A SOCKET 1200 MM BTM CHANDELIER @ 3000 MM BTM SWITCH @ 1200 MM BTM 5A SOCKET @ 1200 MM BTM 15A AC OUTLET @ 1200 MM BTM 5A SOCKET 1200 MM BTM SWITCH @ 300 MM BTM 5A SOCKET @ 300 MM BTM 15A AC OUTLET 300 MM BTM UP BRACKET LIGHT @ 2200 MM BTM AYUSHI JOSHI 3B ROLL NO. 34 ELECTRICAL LAYOUT PLAN

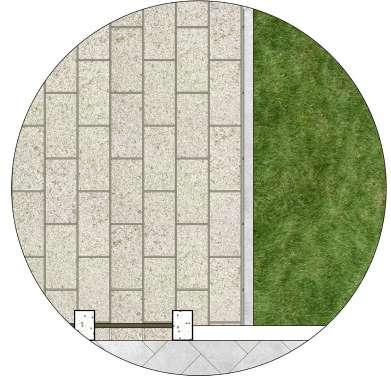

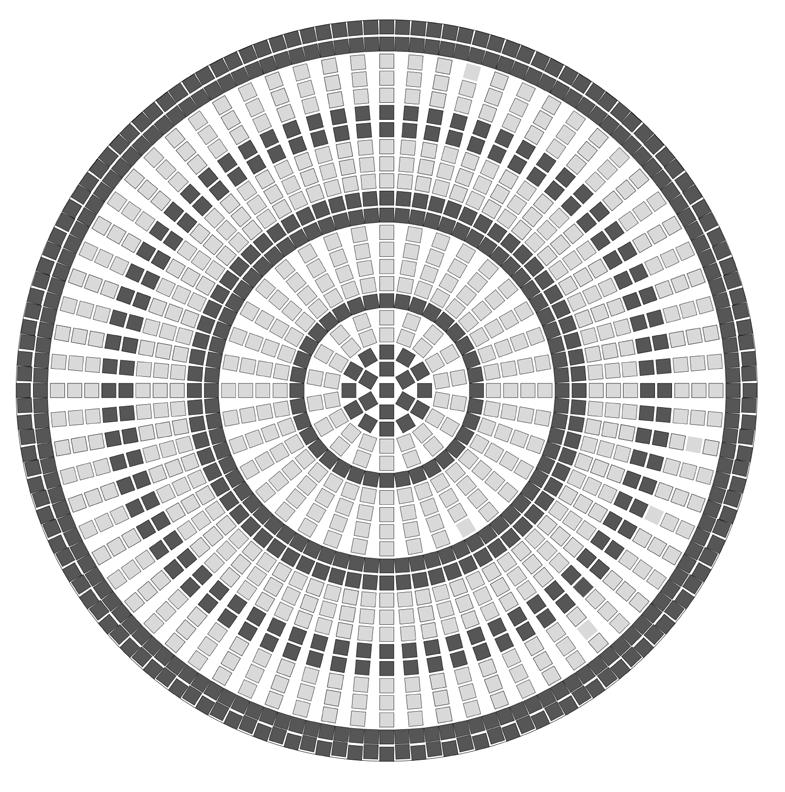

PAVEMENT PATTERN (MONT FORT SCHOOL, ASHOK VIHAR)

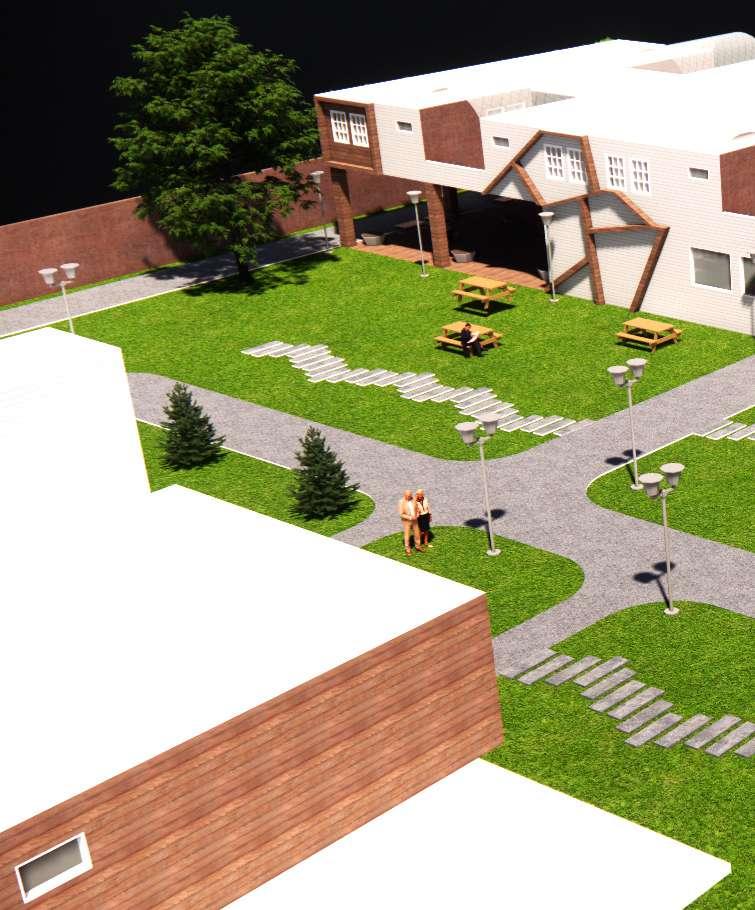

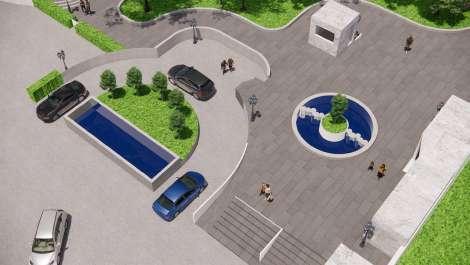

EXTERNAL DEVELOPMENT (HOLY CHILD AUXILARY SCHOOL, VASANT VIHAR)

INDUSTRIAL PLOT SURVEY (BHEEL AKHBARPUR)

TOTAL AREA OF PLOT (A) = 34620.00 sq ft

TOTAL AREA OF PLOT (B) = 15429.98 sq ft

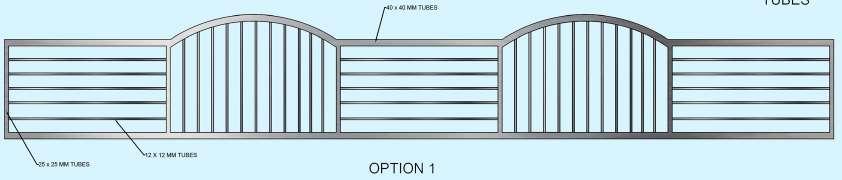

MAIN GATE DESIGN (HOLY CHILD AUXILARY SCHOOL, VASANT VIHAR)

APPROX 16 20 FT WIDE ROAD EXISTING SHOPS 65'9" 7'9" 20'0" REVISED INDUSTRIAL PLOT OF MR. PUNKAJ GUPTA AT BHEEL AKHBARPUR B A 22'0" EAST FACING LINE 15° 40 FT WIDE ROAD LVL ±0'0" R1 5'0" + 10'0" WIDE ROAD E PROPOSED PLOT SIZE EXCLUDING AREA OF SHOP PLUS FRONT PART SIZE AREA = 170'9" x 224'2" =38275.30 sq ft AREA OF SMALL TRIANGLE = 0.5 47'0"x10'0" = 235.00 sq ft Less for other's plot area 1) 22'6" x 42'0" = 945.00 2) 22'6" x 42'0" = 945.00 3) 25'0" x 42"0" = 1050.00 4) 0.5(49' + 37') x 45'0" = 1935.00 Add road area 122'0" 10'0" =1220.00 NET AREA OF PLOT = 34855.00 Sq ft

122'0"

224'2" 170'9" 74'4" 135'6" 57'0" 38'6" 26'9" 34'3" 384'0"

100'0" 100'0" B C F E J M A D G I L H K 67'7" 25'0" 42'6" 25'0" AREA (A) 0.5 x 69'10" x (10'0"+ 27'5") =1307.80 sq ft AREA (B) 1 x 67'7" x 100'0" = 6758.33 sq ft AREA (C) - 0.5 x 25'0" x 100'0" = 1250.00 sq ft AREA (D) - 1.0 x 27'5" x 100'0" = 2750.00 sq ft AREA (E) 1.0 x 42.5 x 100'0" = 4250.00 sq ft AREA (F) - 0.5 x 25'0" x 100'0" = 1250.00 sq ft AREA (G) - 0.5 x 24'11" x 100'0" = 1246.00 sq ft AREA (H) - 0.5 x 25'11" x 100'0" = 1295.00 sq ft AREA (I) - 1.0 x 52'4" x 100'0" = 5233.00 sq ft AREA (J) 0.5 x 100'0" (17'6" +42'6") = 3000.00 sq ft AREA (K) 0.5 x 25'9" x 100'0" = 1287.00 sq ft AREA (L) - 1.0 x 77'3" x 100'0" = 7725.00 sq ft AREA (M) - 0.5 x 69'10" x 17'6" = 611.00 sq ft ROAD - 369'10" X 20"0" = 7396.60 sq ft TOTAL AREA = 45369.07 sq ft 42'6" 17'6" 27'5" 69'10" 10'0" 77'2" 52'4" NAV NIRMAN ARCHITECTS & ENGINEERS Pvt. Ltd A-3/ 28, Sector 4, Rohini, DELHI = 110085 Ph/ 9811172936, 8920290016, 27933092, 27931685 FLOORING 19.25 2.09 28.05 3.68 2.8 12.6 3.65 9.3 12.75 15.7 5.45 10.95 3.25 3.05 FLOORING OPTIONS (REFER NEXT PAGE OF PDF) LEGEND INTERLOCKING CONCRETE TILES PEARL SANDBLAST KATTAPPA STONE GRASS GRATING 12.6 3.65 9.3 12.75 SLOPE 1:100 UNDERGRADUATE ARCHITECTURAL PORTFOLIO AYUSHI JOSHI 32 | FREELANCE WORK NAV NIRMAN Consulting Engineers.Turnkey contractors.Govt Approved Contractors

INTERNSHIP WORK 09

WORK DONE UNDER SHITIJ DOGRA ARCHITECTS

2020

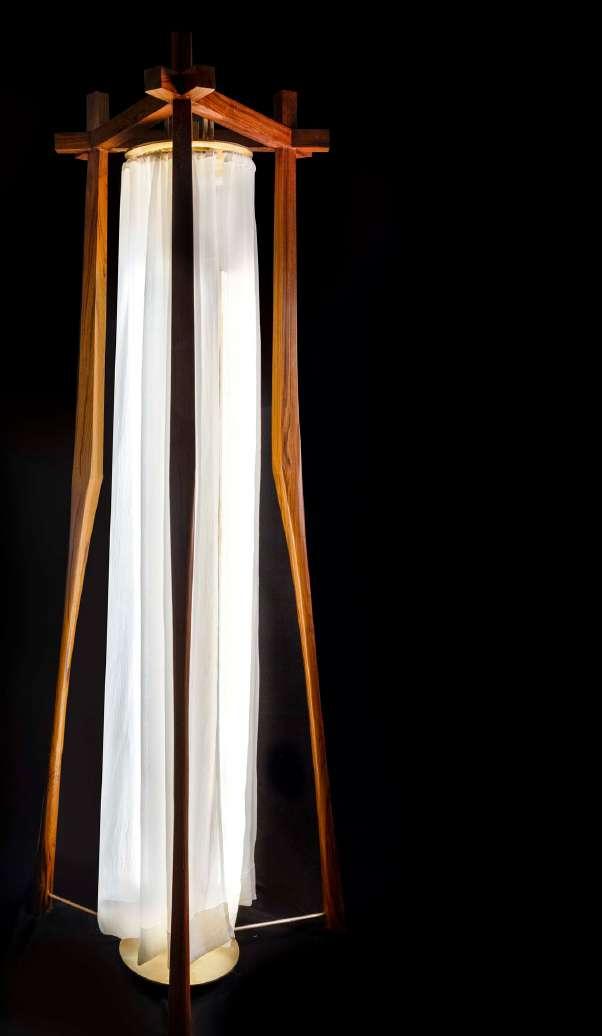

Type : Free Standing Lamp

Size : 2.25 ft x 5 ft

Materials : Cp Teakwood | Fabric | Brass

The yellow king was imagined as a free standing lamp with two dominant materials separated by a see-through curtain in the middle. The two materials have been interlocked with utmost care and detail. The piece can also be used without the fabric, depending on the client’s requirement.

Please contact us in case of any requirement for the same. We would love to stay connected. We look forward to a fruitful collaboration.

Kindly, let us know if you require a catalog of our furniture series.
