SAKIN
residence
LOCATION : Mavoor , Kerala
SITE AREA : 743 m2
BUILT-UP AREA : 340 m2
The residence was tailored to accommodate a businessman's joint family, who originally resided in the bustling city of Kozhikode. Seeking tranquility and solace amidst the verdant surroundings of Mavoor, they relocated for a more serene lifestyle. Central to their decision was a yearning to reconnect with nature, influencing the design of each space to offer views of the surrounding landscapes. Embracing the presence of an ancient tree at the heart of the property, the architectural concept stemmed from its existence. Strategically harnessing the northern sunlight and optimizing fenestration in the southwest to align with prevailing wind patterns, the design meticulously considers both site context and climate conditions.
W PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT
7 V 01
PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT UP UP UP UP 21 20 19 18 17 16 15 14 13 12 11 10 21 m² Master Bedroom 3 m² Bathroom 9 m² Office Room 11 m² Kitchen 4 m² Bathroom 15 m² Bedroom 13 m² Work Area 4 m² Store Room 3 m² Bathroom 11 m² Servent's Room 2 m² W/C 17 m² Living Room 26 m² Dining Room 10 m² Sitout 1 2 3 4 5 6 7 8 9 10 11 12 13 14 35 m² Porch 300 500 1550 500 4125 1000 1000 1000 375 1000 1000 1000 1700 2000 1350 5000 2400 2000 1000 4600 3300 2100 3500 4700 5200 5200 200 2750 150 1500 200 2000 150 3050 200 3300 200 4600 0 5100 100 5100 200 28800 550 500 1800 500 350 1000 2000 700 3700 900 200 900 945 1000 1205 2000 2850 1350 1650 1700 1000 3000 1000 200 1800 900 2000 500 3500 1700 2000 200 3300 200 3500 200 200 4400 200 3100 200 3350 150 1900 200 1150 200 3150 0 200 5000 200 1800 200 3000 200 12699 500 2000 3350 500 1100 500 650 4099 3974 3200 1700 3500 450 3649 200 3000 200 1900 150 2950 200 28800 7400 4600 3300 2100 3500 4700 5200 5200 D4 D4 D4 D4 D2 D2 D3 D1 D2 D2 D2 W1 W1 W2 W2 W2 W2 W2 W2 W3 W3 W3 W1 W1 W3 W W3 W1 W1 W2 D2 D2 W3 D4 FG3 v v v v v A A' B B' GROUND FLOOR PLAN SCALE 1:125
9 RESIDENCE | ACADEMIC WORKS UP 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 4 m² Bathroom 15 m² Bedroom 25 m² Family Living Room 21 m² Guest Bedroom 3 m² Bathroom 4 m² Bathroom 15 m² Bedroom 14 m² Balcony 17 m² Open Terrace 10 m² Study Room 524 500 1840 500 524 900 2600 4600 3300 2100 3500 4700 5200 5200 3500 1700 2000 1200 3500 1700 2000 200 3300 200 3488 200 28860 7460 4600 2700 500 1800 500 950 1000 1000 650 4600 1600 2000 3900 2000 1000 4600 3300 5600 4700 5200 5200 D4 D2 D2 D2 D2 D4 D4 D2 D2 W3 W3 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W3 W3 W3 W2 W2 4600 200 2000 150 3550 100 2900 200 4600 5100 200 5000 200 200 2950 150 1900 200 3175 28860 500 2000 2900 3175 8660 4600 1100 2000 200 1000 2000 2800 1350 1910 1940 500 3000 500 700 900 4275 4600 200 3100 200 3350 150 1900 200 1150 200 1910 1240 200 5000 200 5175 v v v B B' A A' FIRST FLOOR PLAN SCALE 1:125
PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT
FRONT ELEVATION
SECTION AA'
SIDE ELEVATION
11 RESIDENCE | ACADEMIC WORKS SECTION
BB'
EXPLODED VIEW
13 RESIDENCE | ACADEMIC WORKS
SOFTWARES USED : Revit, Illustrator, Enscape, Lumion, Lookx
ARAYIE
warehouse
LOCATION : Kallai , Kerala
SITE AREA : 1233 m2
BUILT-UP AREA : 648 m2
This warehouse is meticulously designed with adaptability in mind, allowing it to be easily customized to suit various user requirements. Its cuboid structure ensures stability while offering maximum flexibility to accommodate diverse needs. The warehouse is divided into three units by vaulted roofs, facilitating efficient organization and utilization of space. To maintain authenticity, exposed brick and concrete are prominently featured in both the interior and exterior, adding to the industrial aesthetic and reinforcing the structure's robustness
PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT WW | N OF NIT
15 V 02
1. LOBBY2. LOBBY
2. AUDITORIUM
3. STAGE
4. DRESSING ROOMS
5. TOILETS
PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT A B B A' 1 4 4 2 2 4 2 3 5 5 3 3 FLOOR PLAN | scale - 1:150
6. LIFT

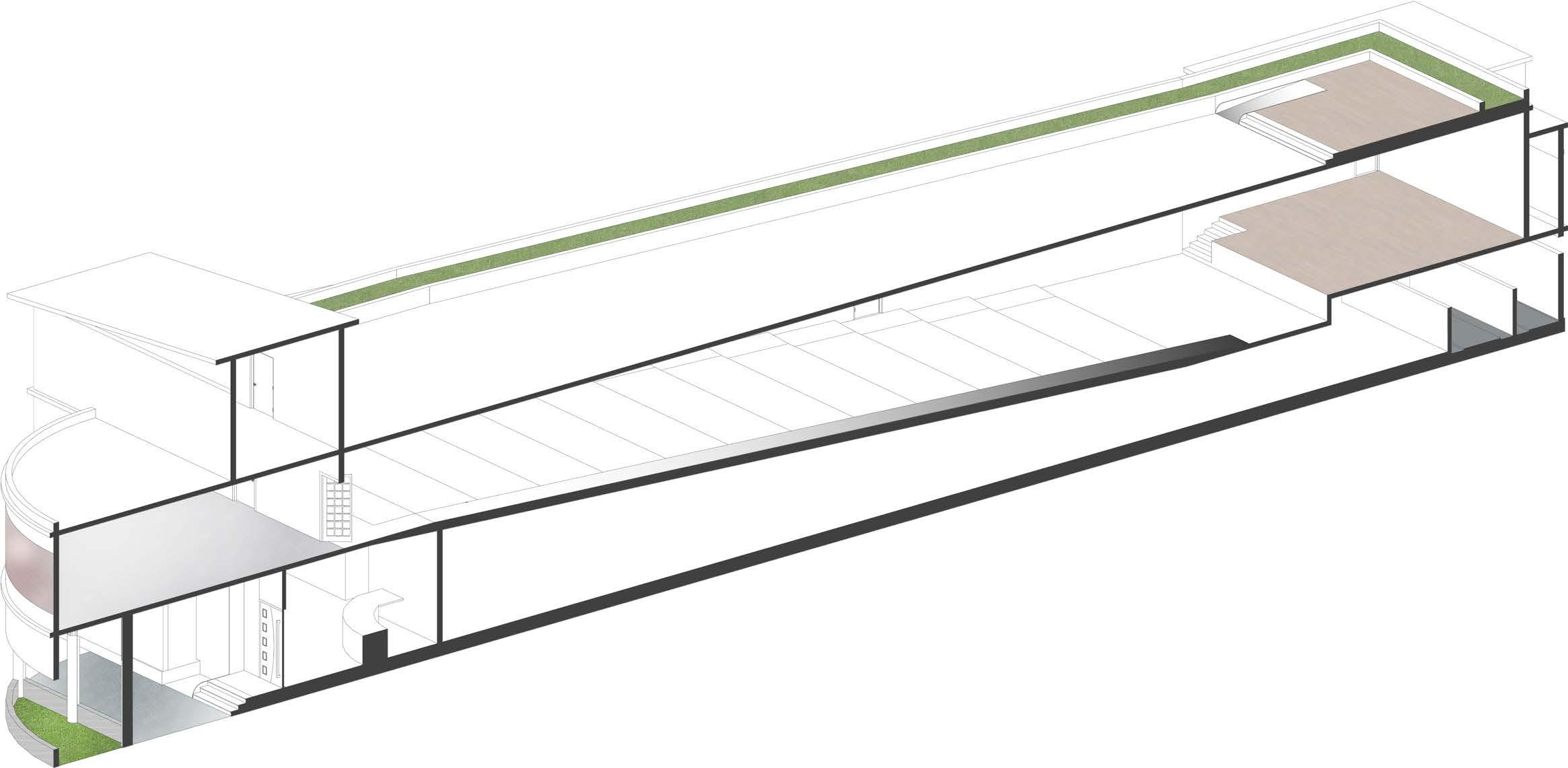

PERSPEVTIVE SECTION AA' | scale - 1:200
PERSPECTIVE SECTION BB' | scale - 1:200
17
| ACADEMIC PROJECT
WAREHOUSE
SOFTWARES USED : Sketchup, Lumion, Photoshop
NAHRIYA convention
centre
LOCATION : Kallai , Kerala
SITE AREA : 6875 m2
BUILT-UP AREA : 2318 m2
The convention centre has been designed using the concept of prosperity and refugee theory which explains how one wishes to view and explore their surroundings simultaneously having a sense of being protected. This concept is manifested in the inclusion of a semicircular transparent wall, offering visitors a panoramic view of Kerala's lush greenery while providing a sense of protection. Additionally, transparent walls along the rear corridor spaces afford captivating vistas of the Kallaayi river. The use of locally sourced materials such as clay bricks and timber not only supports the regional economy by generating employment but also serves as a symbolic representation of the identity of Kallayi.
V PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT
V 19 03
PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT
21 CONVENTION CENTRE | ACADEMIC PROJECT 1 3 2 1 6 4 4 5 5 3 8 9 2 11 4 8 5 7 6 10 9 1. PORCH 2. LOBBY 3. RECEPTION 4. DINING 5. WASH AREA 6. PANTRY 7. VESSEL ROOM 8. LADIES TOILET
GENTS TOILET 10. SERVICE
2. AUDITORIUM 3. STAGE 4. DRESSING ROOMS 5. TOILETS 6. LIFT GROUND FLOOR PLAN | SCALE 1: 250 FIRST FLOOR PLAN | SCALE 1 : 250
9.
PORCH 1. LOBBY
SECTIONAL 3D
SECTION AA'
PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT | AYSHA LATHEEF N K | NIT CALICUT
1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8
3.
4.
1. PORCH 2. ENTRANCE
RECEPTION
DINING 5. WASH 6. STAGE 7. AUDITORIUM 8.
LOBBY
23
CENTRE | ACADEMIC PROJECT
CONVENTION
SOFTWARES USED : SketchUp, Lumion, Photoshop
· HANDRAIL IS OF MS BARS OF 30MM DIA.BY PROVIDING THEM IN THE OUTSIDE OF THE STEPS SPACE FOR FURNITURE MOVEMNT WILL INNCREASE.
· BEAM ABOVE THE ROOF REMOVES THE NEED OF PARAPET ABOVE MUMPTY
PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT 04 WORKINGDRAWING SECTION BB' PLAN SECTION AA' 2600 1000 1000 ∅30
GROUND LEVEL PLINTH LEVEL 1st LANDING 3rd LANDING FIRST FLOOR 2nd FLOOR 3rd FLOOR
A A' B B' 2nd LEVEL GROUND FLOOR 150MM ROOF SLAB 150MM ROOF SLAB 150MM ROOF SLAB DETAIL A POWDER COATED ALUMINIUM BALUSTER DETAIL A
ALUMINIUM CASEMENT SLIDING WINDOW ALUMINIUM DOOR
ALUMINIUM CASEMENT SLIDING WINDOW ALUMINIUM DOOR
25 WORKING DRAWINGS | ACADEMIC PROJECT SUBJECT: DETAIL A DETAIL B DETAIL C DETAIL A DETAIL B DETAIL C A A' SECTION AA' ELEVATION PLAN ELEVATION PLAN
EXTERIOR PAINTED ALUM STOREFRONT DOORS WITH 1800 MM TOP AND BOTTOM RAILS AND VERTICAL STILES CONCEALED GALVANIZED STEEL STRUCTURAL TUBING FOR CANOPY SUPPORT DETAIL D DETAIL D SUBJECT: DETAIL A DETAIL B DETAIL C DETAIL A DETAIL B DETAIL C A A' SECTION AA' ELEVATION PLAN ELEVATION PLAN
EXTERIOR PAINTED ALUM STOREFRONT DOORS WITH 1800 MM TOP AND BOTTOM RAILS AND VERTICAL STILES CONCEALED GALVANIZED STEEL STRUCTURAL TUBING FOR CANOPY SUPPORT DETAIL D DETAIL D
PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT 05 INTERNSHIP
27 INTERNSHIP | NON-ACADEMIC PROJECT
SOFTWARES USED : SketchUp, Lumion, V-Ray, Photoshop
PORTFOLIO | AYSHA LATHEEF N K DEPARTMENT OF ARCHITECTURE AND PLANNING | NIT CALICUT 06 MISCELLANEOUS
29 MISCELLANEOUS | NON-ACADEMIC PROJECT
