Avi Muhammad Harris jatisampurna, bekasi, west java email phone instagram linkedin address
Languages
Bahasa Indonesia (native) English(fluent)
WEX UGMWiswakharman Expo UGM 2022
Secretary&PICforPublications
Apresiasi Seni Incasa 2021
Avi Muhammad Harris

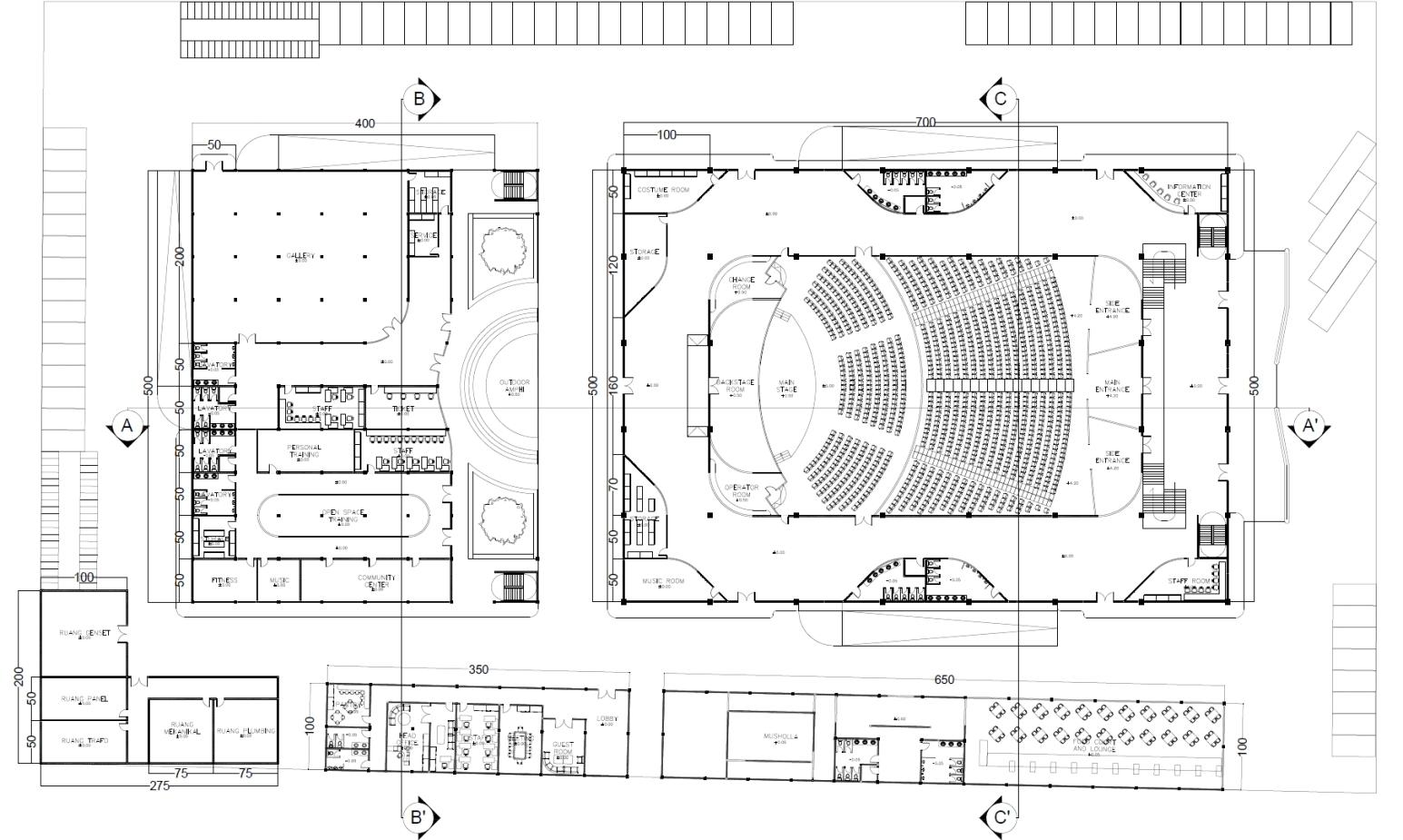

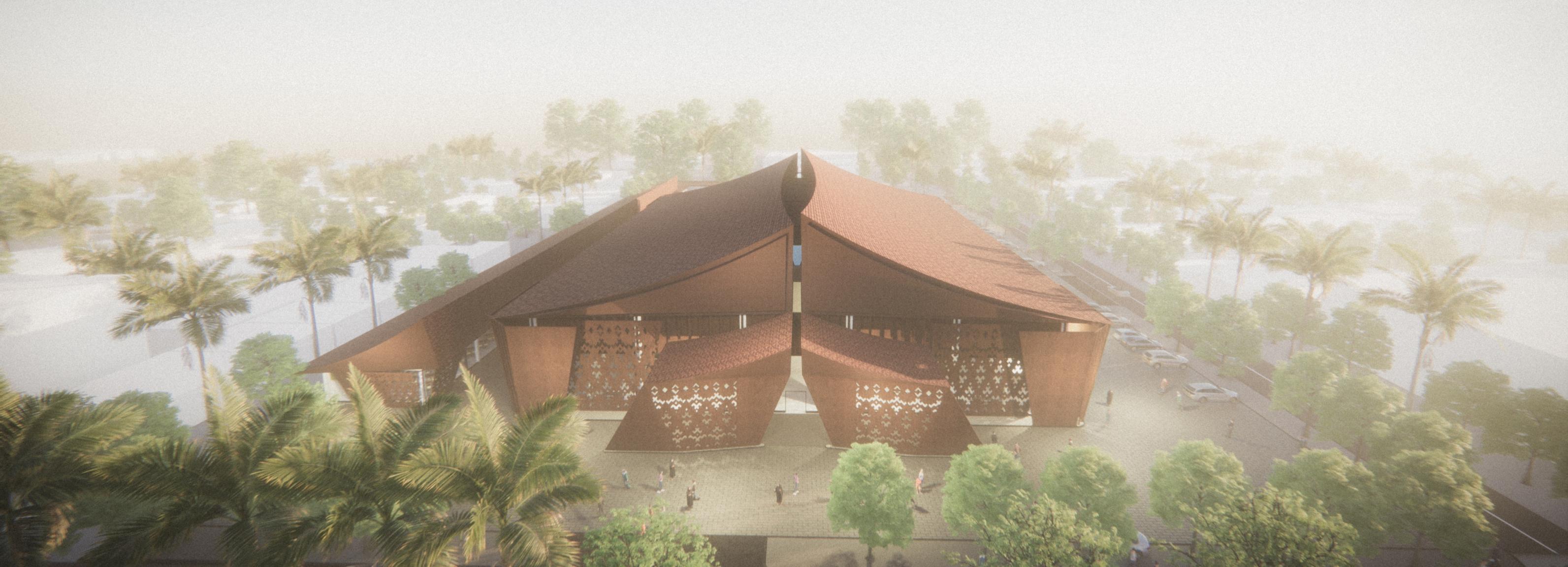

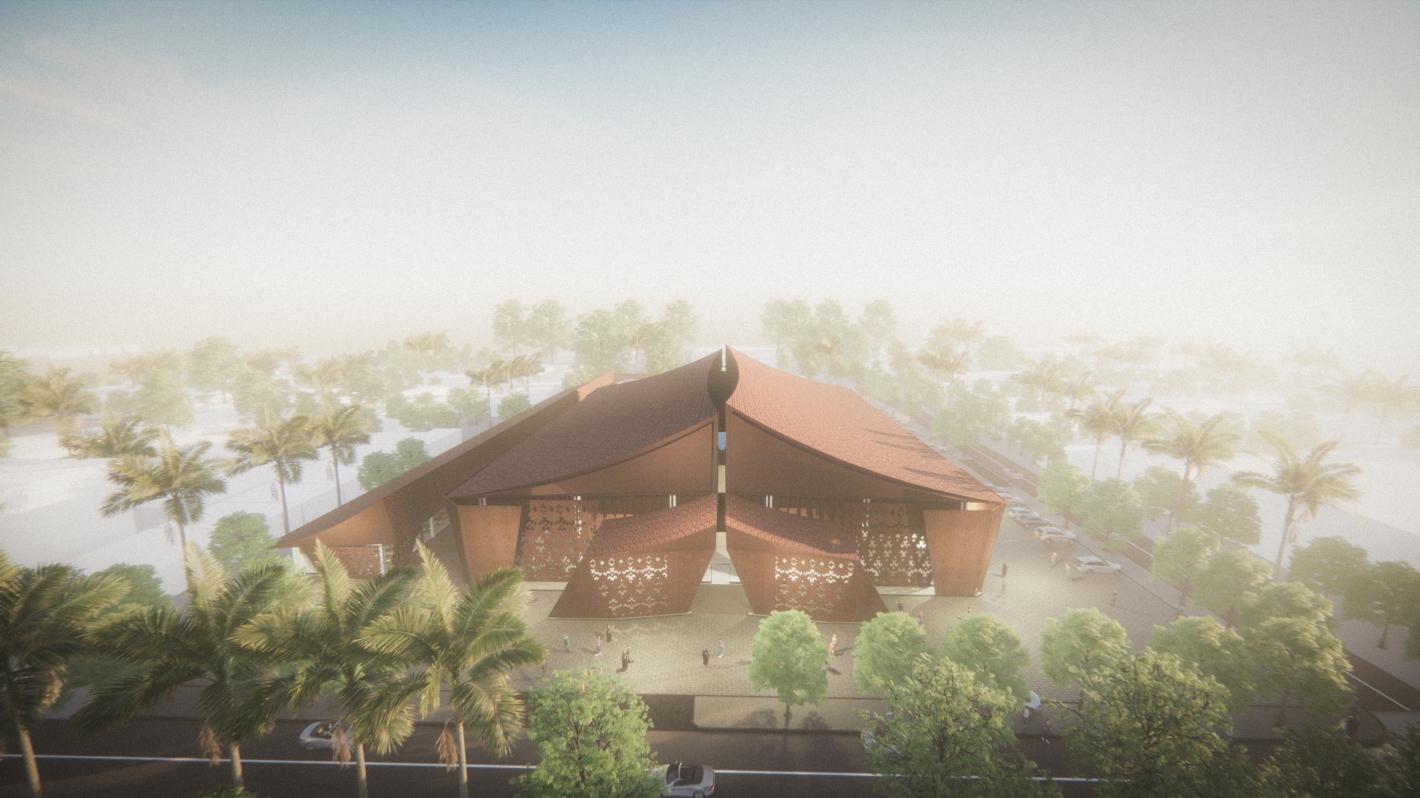

Cultural Performing Arts Center with an Eco-cultural Architecture Approach in Padang City, West Sumatera
Final Thesis | 2024
location
Padang, West Sumatera software used SketchUP, AutoCAD, Adobe Photoshop, Enscape

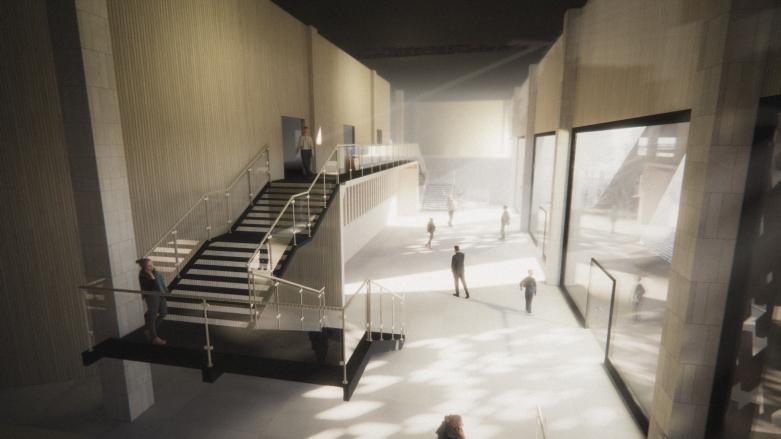

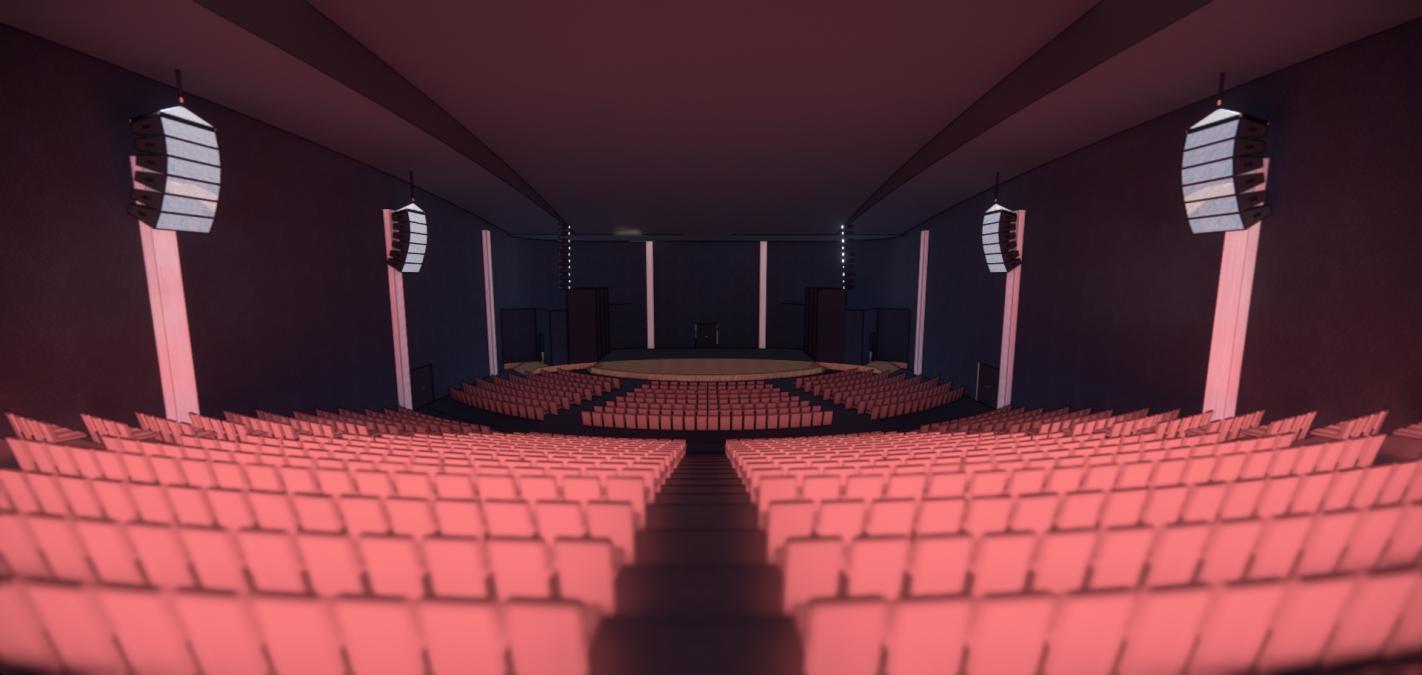

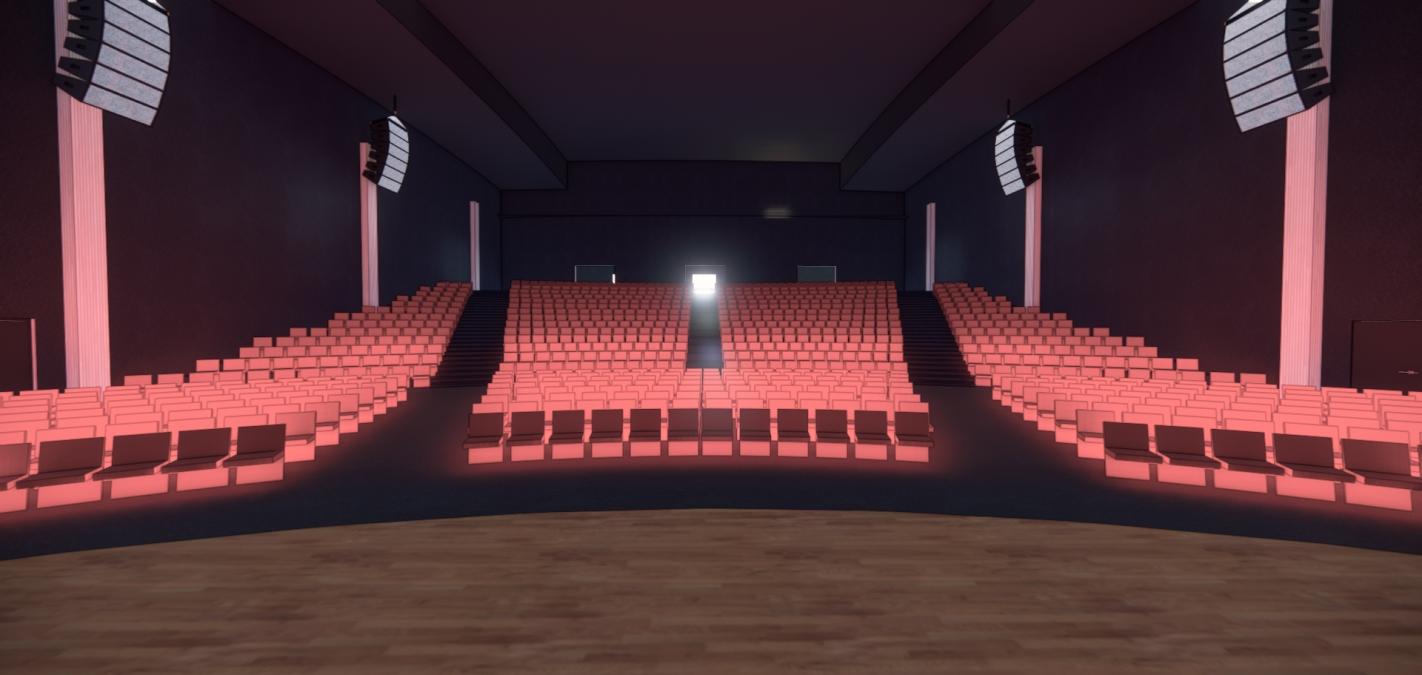

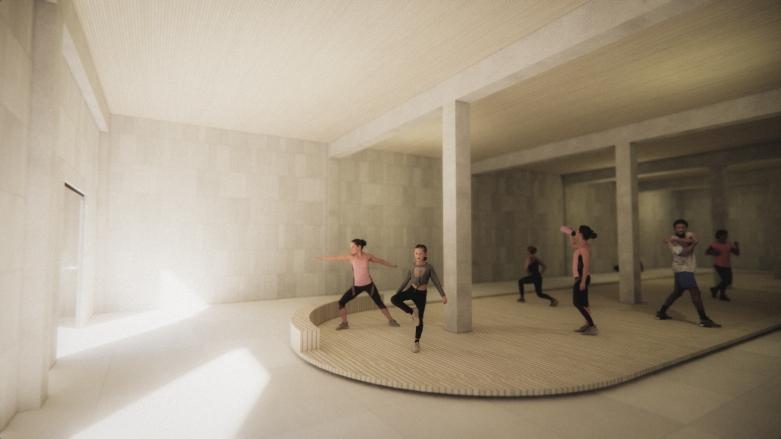

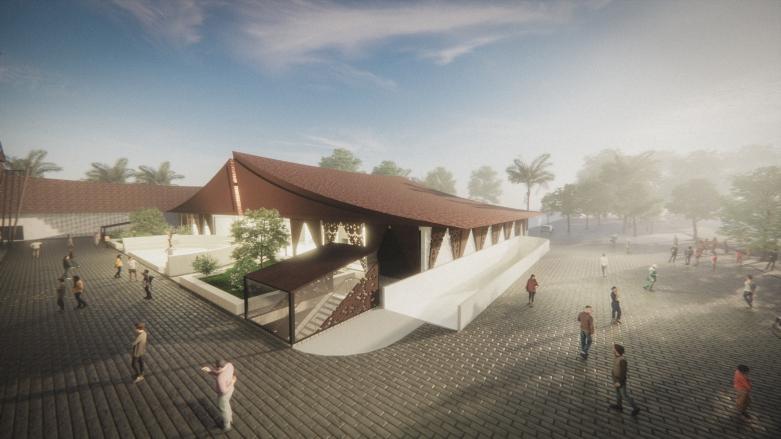

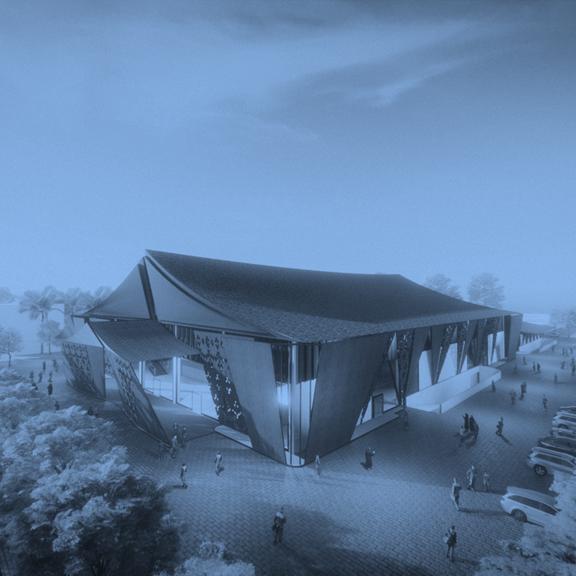

The design reflects the community’s cultural identity through the use of locally sourced materials and traditional building techniques The architecture harmonizes with the natural landscape, incorporating ecofriendly elements like outer facades with local materials that enhance both aesthetic appeal and environmental benefits. Inside, flexible performance spaces accommodate a wide range of artistic expressions, from traditional music and dance to contemporary theater This center also serves as a vibrant community hub, encouraging cultural education, artistic collaboration, and local engagement, embodying the idea that architecture can bridge the gap between cultural preservation and environmentalsustainability
Site Information & Analysis

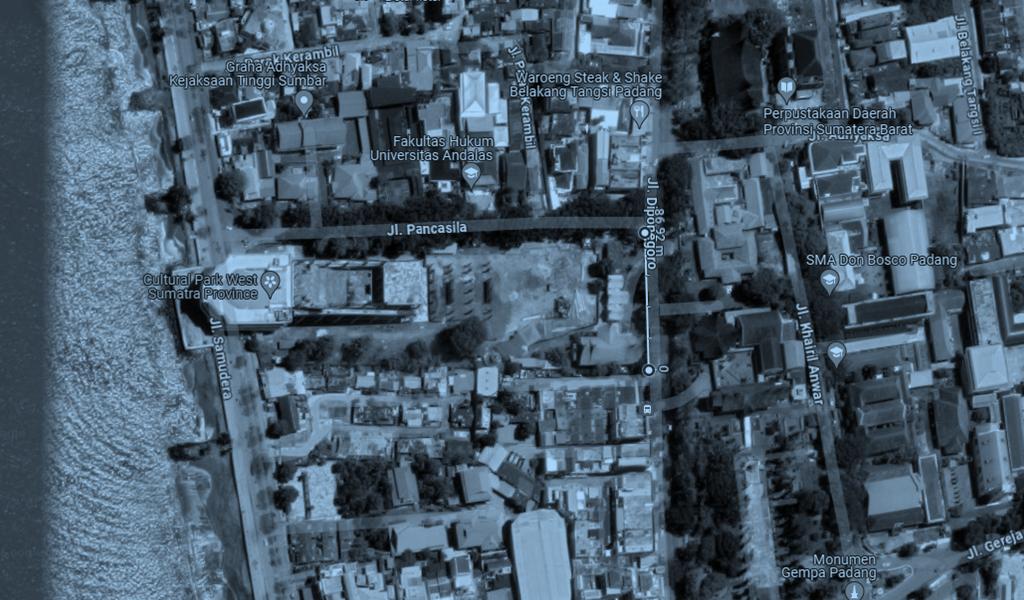

The site location is on Jl. Pangeran Diponegoro, Kel. Belakang Tangsi, Kec. Padang Barat, Padang City, West Sumatra. The site has a length of 154 m in the north, 154 m in the south, 88 m in the west, and 91 m in the east. The selected site has an area of approximately 13,800 m2. The site is bordered by Jalan Pancasila and Jalan Pangeran Diponegoro. Based on the calculation results of KDB, KLB, GSB, and building height at the site location, the site area permitted for buildingconstructionis9,660m2.
Design Concept

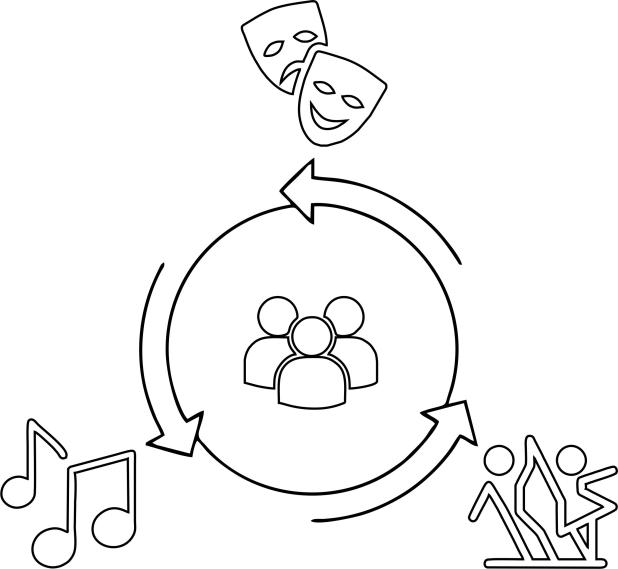

The concept, which has the name “Embracing the Movements”, aims to produce a design that can gather the arts community and performing arts artists in West Sumatra in one central facility that can facilitate all forms of performing arts activities, with the design results also applyinganeco-culturalarchitectureapproachtoitsdesign.
Reviving and developing Minangkabau culture
Adequate space and facilities for artists and local cultural performing arts communities
Implementation of design criteria in the Eco-cultural Architecture approach

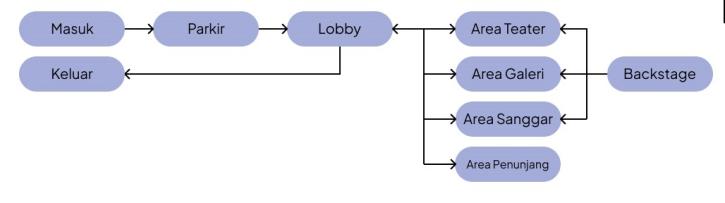

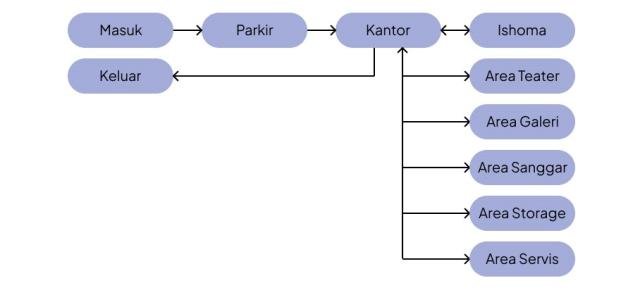

Building User Circulation
Artists & Arts Community Flow Management O ce Flow
Adapting some aspects of local architecture in the building mass
Visitors Flow Sta O ce Flow

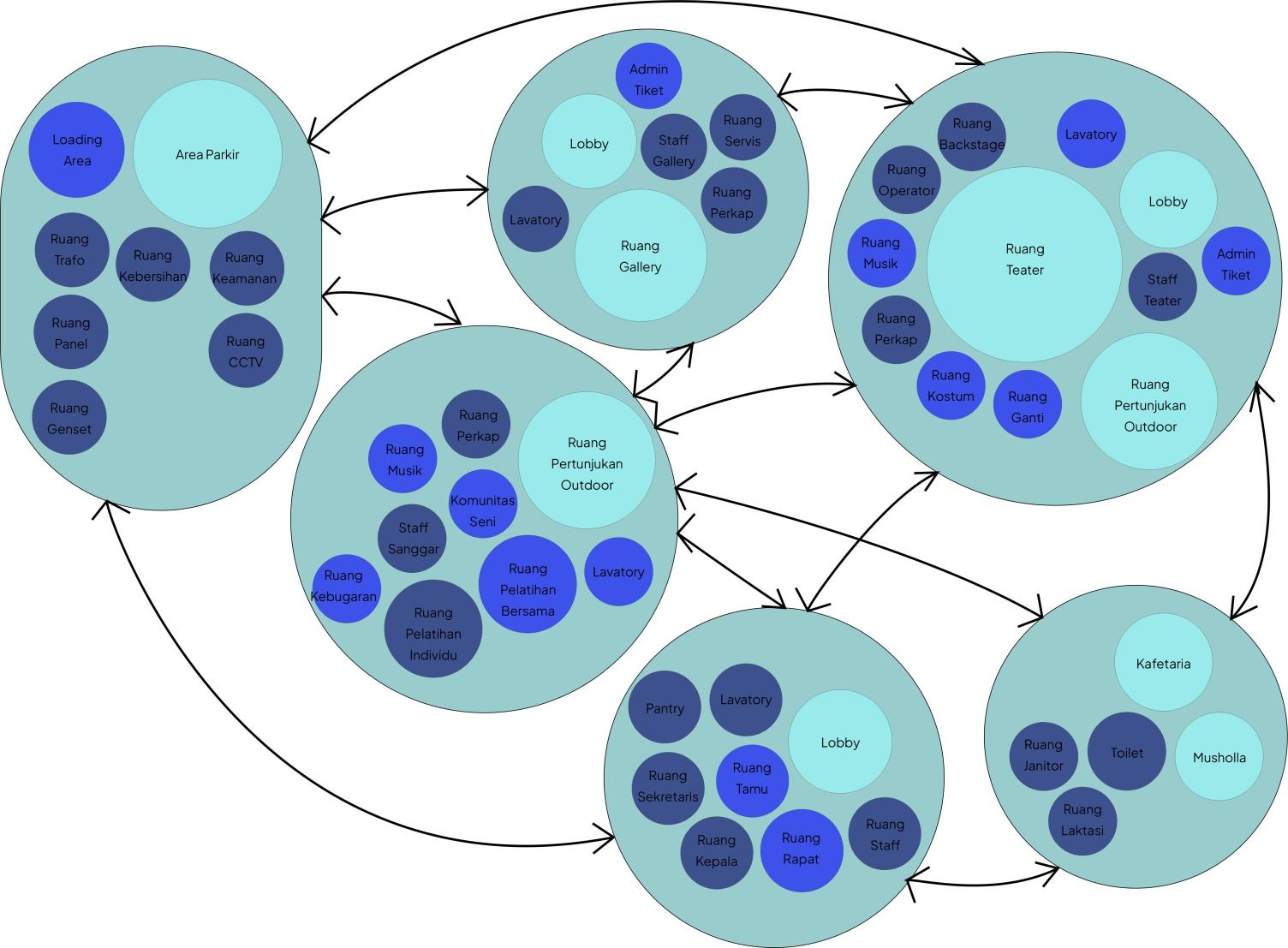

Bubble Diagram per Area
Building Mass Transformation
After the space area is divided per area, the building mass will be formed according to the area and zone that has been determined by the results of the previous site analysis. The formationofseparatebuildingmassesisdesignedtomeetthecriteriaofthe imageofspace, whichadaptsdi erentmassesinthelargeRumahGadang.
Local Architecture Adaptation
Some parts of the building adapt from local architecture, this is also in accordance with the criteria for implementing the Eco-cultural Architecture approach, namely in the criteria of buildingimageandidealizedconceptofplace.

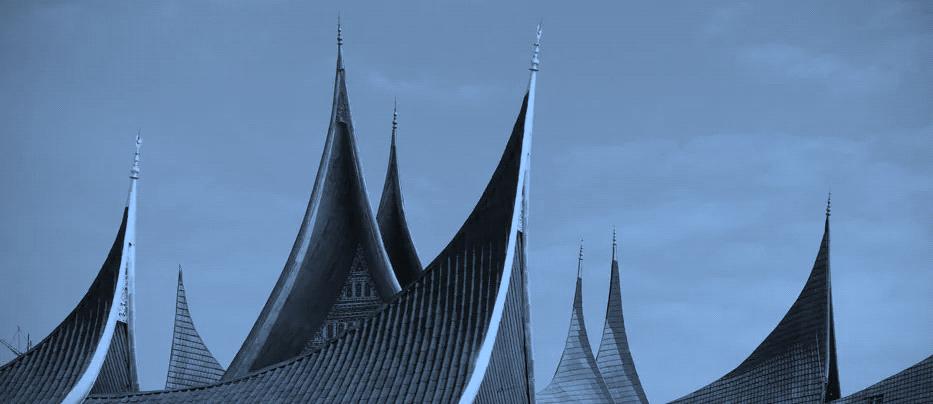

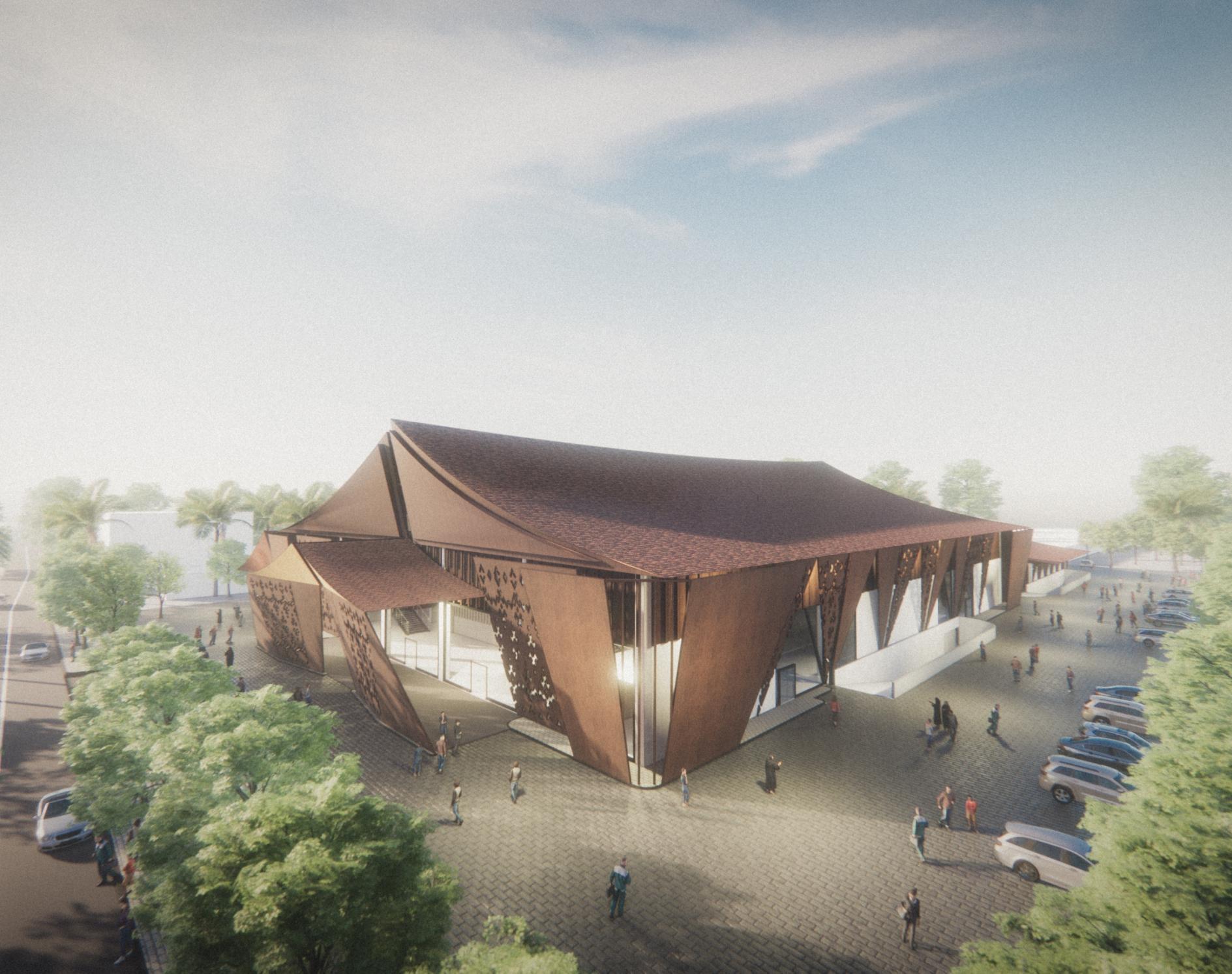

On the roof, the building adapts the bagonjong roof shape of the Minangkabau traditional house,whichisshapedlikeabu alohorn,withapointedtipatthetopoftheroof.Thebuilding adapts this shape as one form of representation of the unique local Minangkabau architectureintheshapeofitsroof.

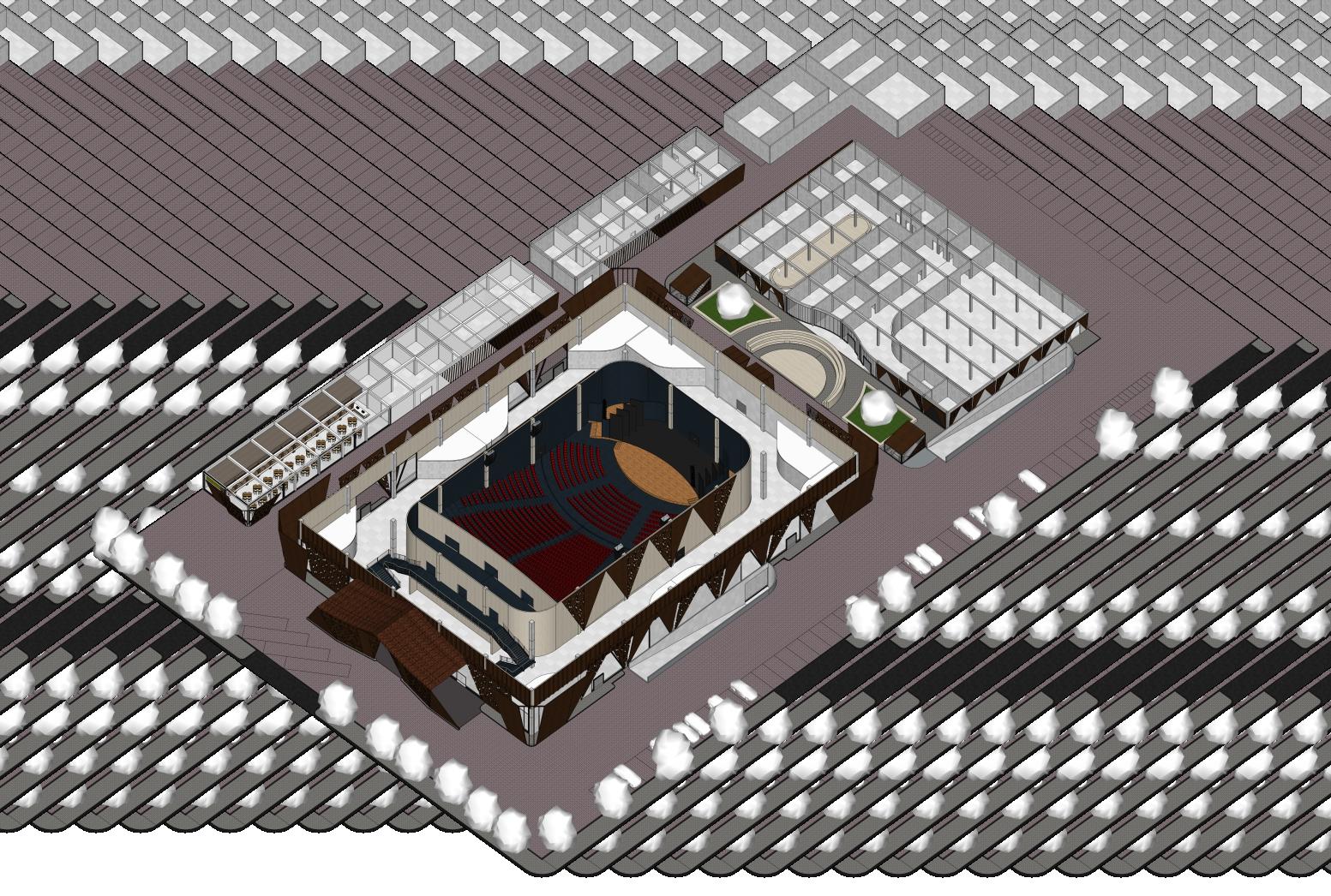

Architecture Approach Implementation

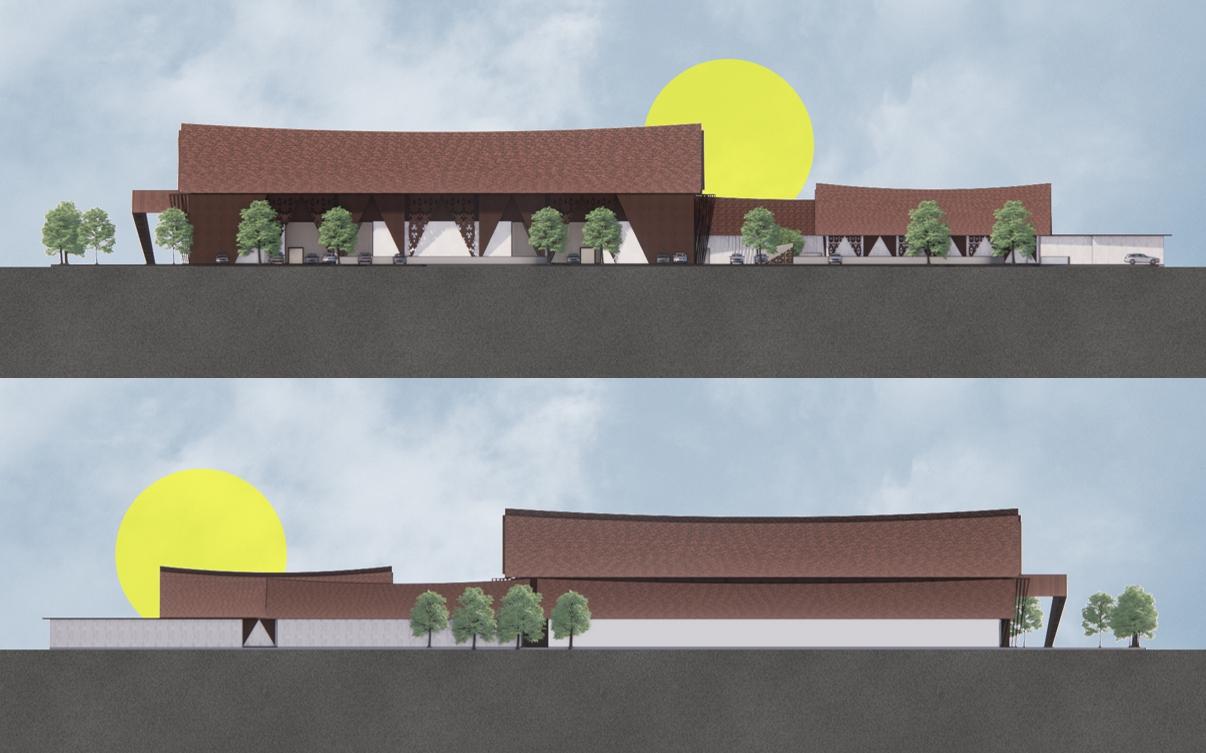

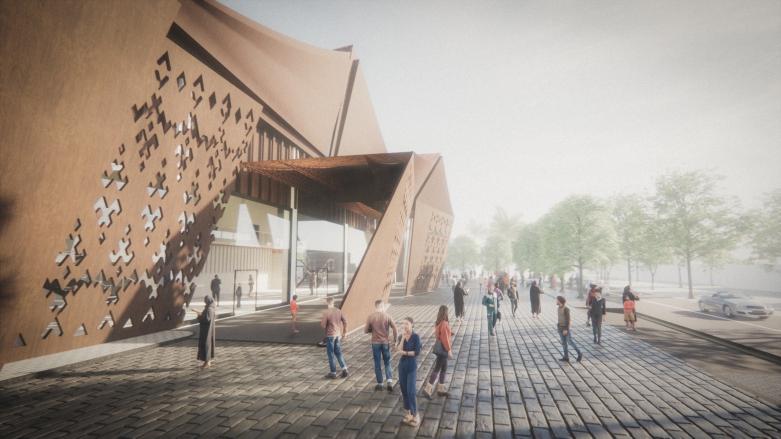

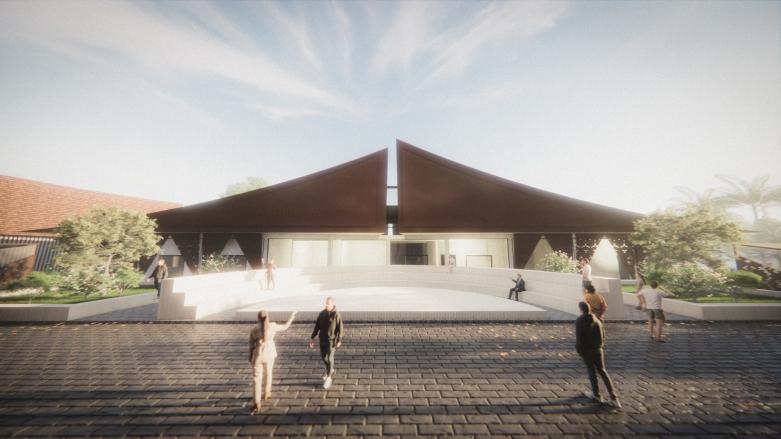

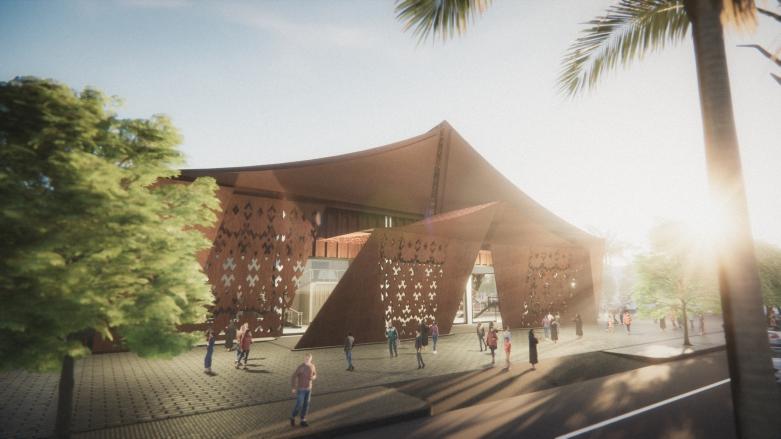

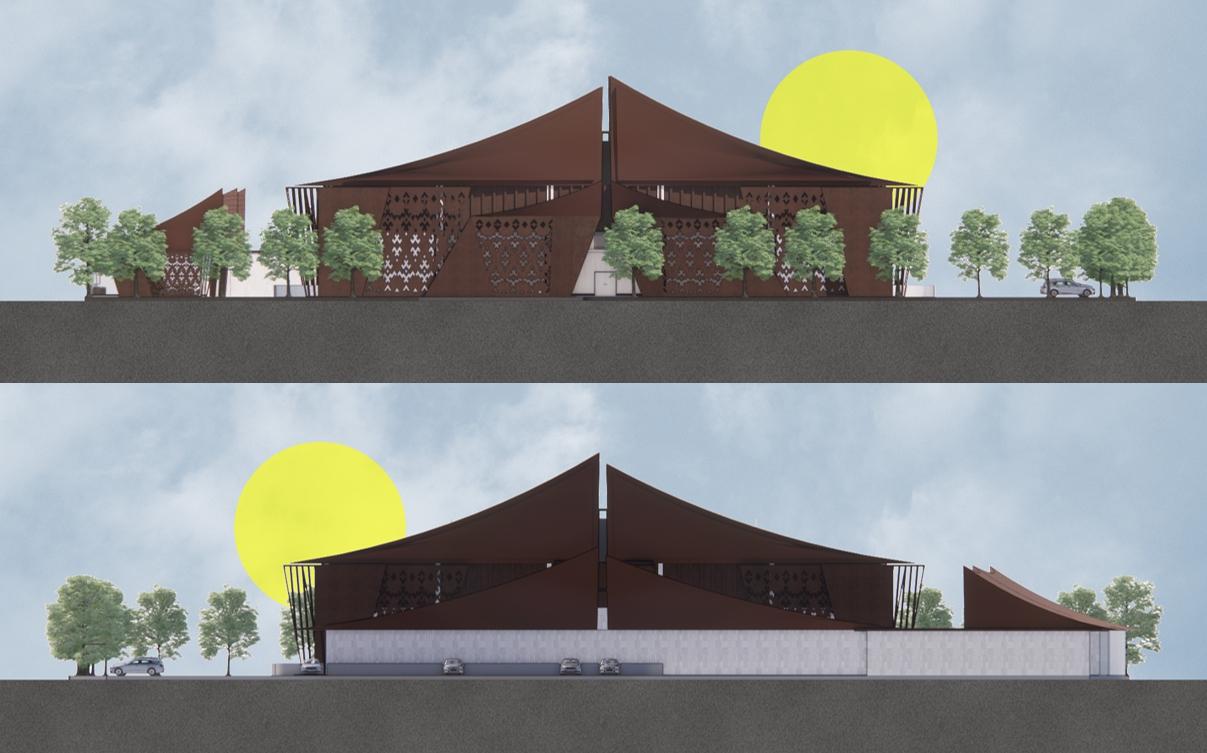

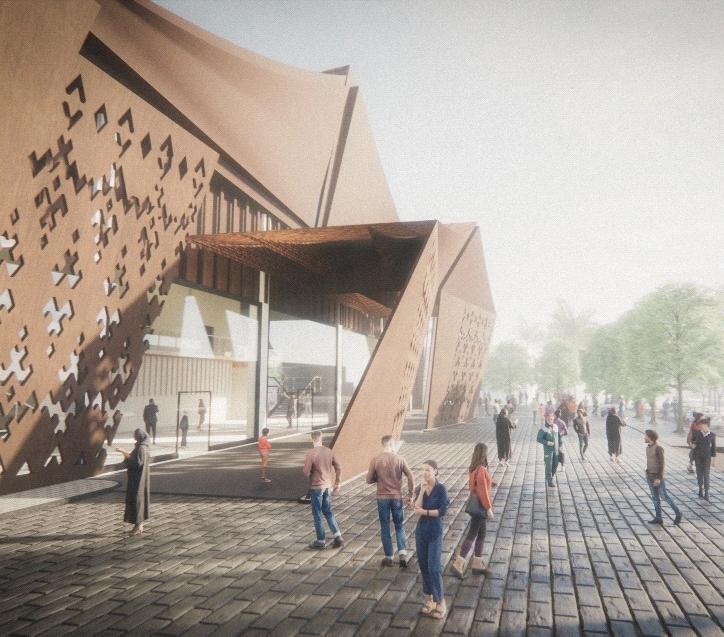

The outer facade of the building design also adapts the form of the Minangkabau songket motif which will be chosen to be used as an opening in the building which will also provide a semi-outdoor atmosphere in several parts of the room in the building design. The outer facade of the building has a slope that is designed to follow the sloping shape produced on the roof of the building so that it gives a harmonious impression to the two di erent parts of the building, and uses local materials in the form of wood, and both of these are e orts to me etthecriteriaoftechnologiesandimageofspaceintheapproachapplied.

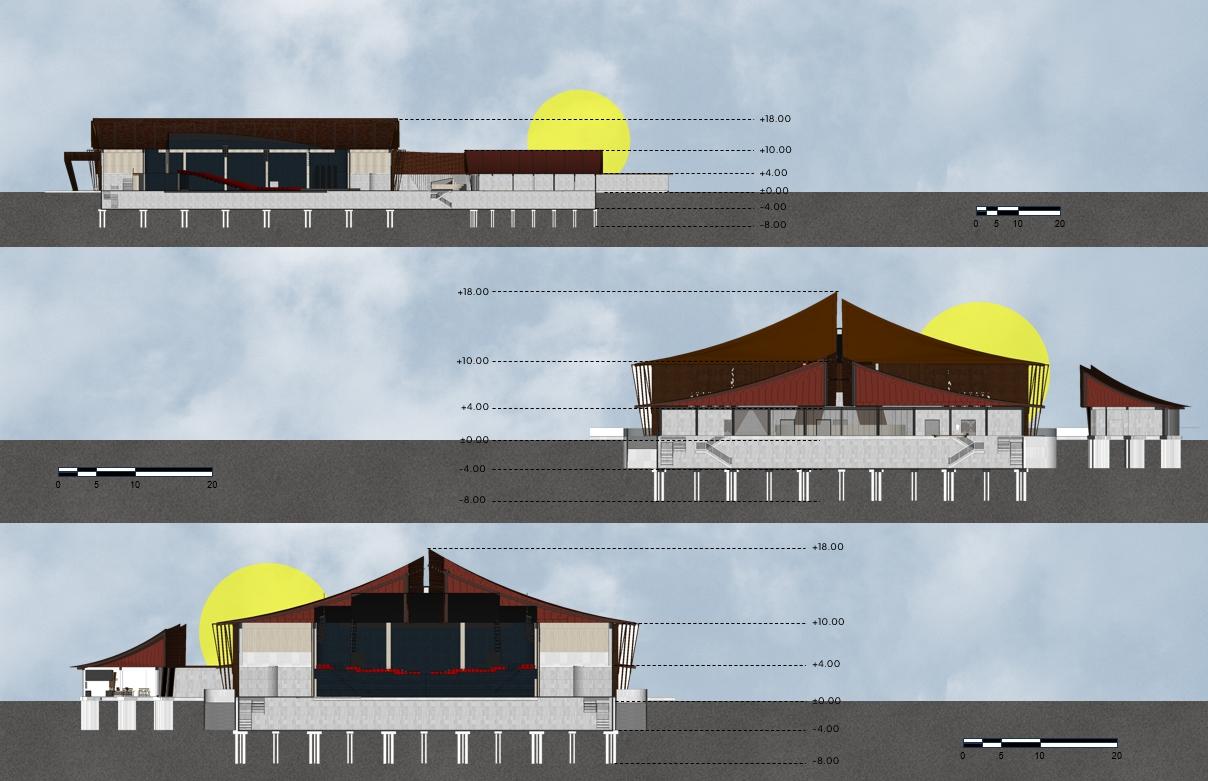

Sections
Pavilion Indonesia with Parametric Architecture Approach
Circles of Cuisines: World Expo 2025 Osaka
Thematic Studio | 2023
location
Osaka, Japan software used Rhinoceros 3D, Grasshopper, AutoCAD, Adobe Photoshop, Enscape

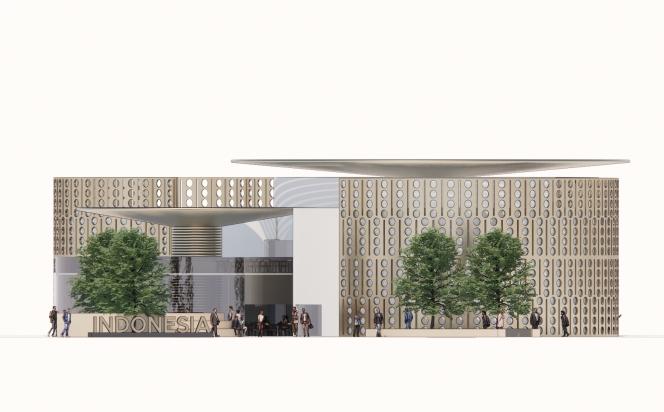

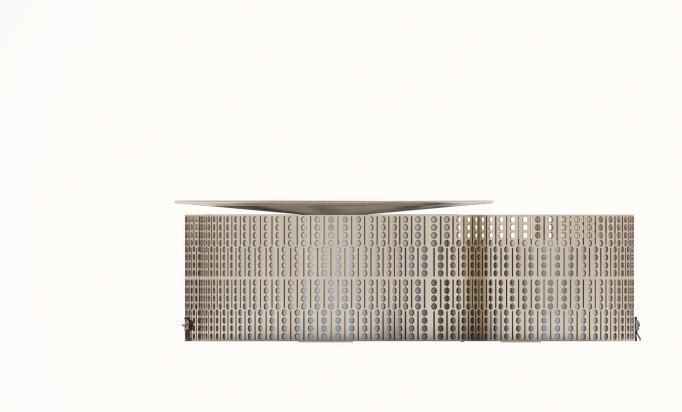

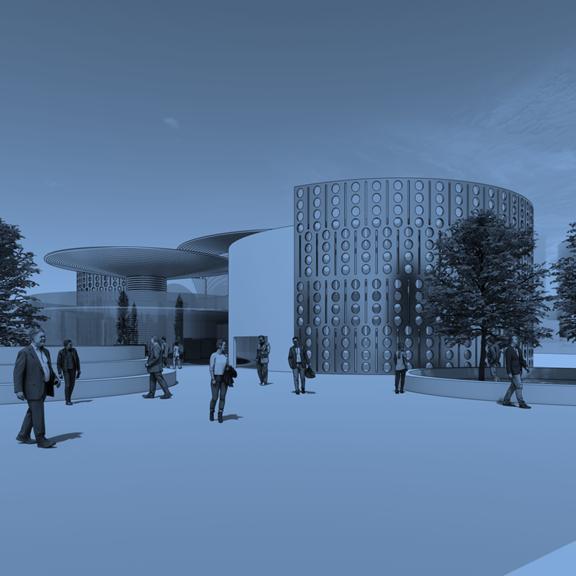

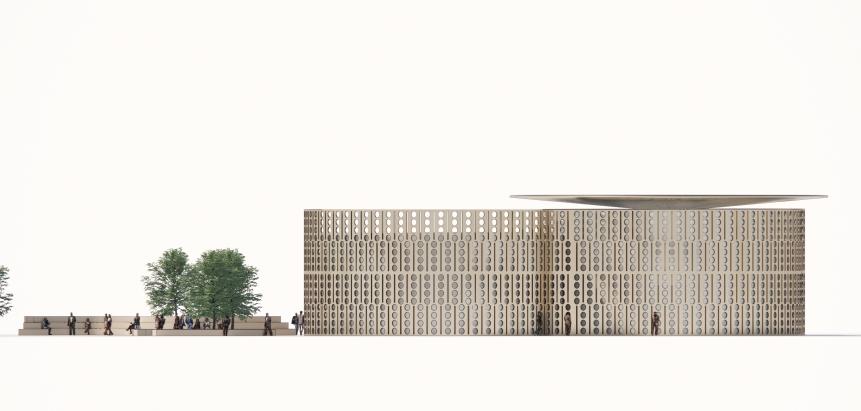

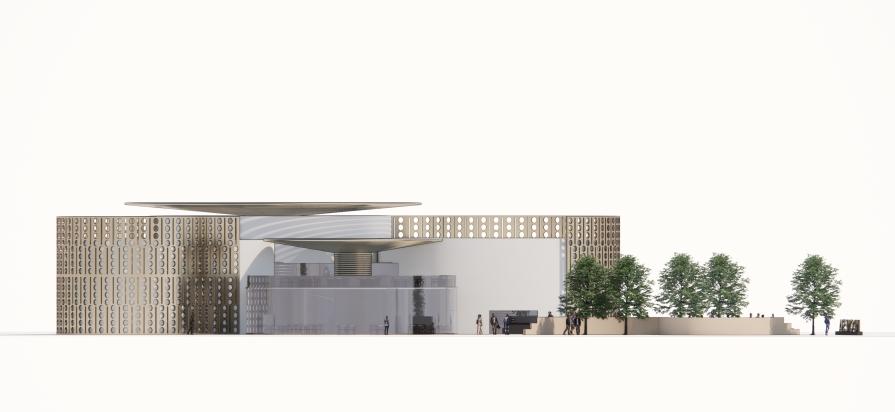

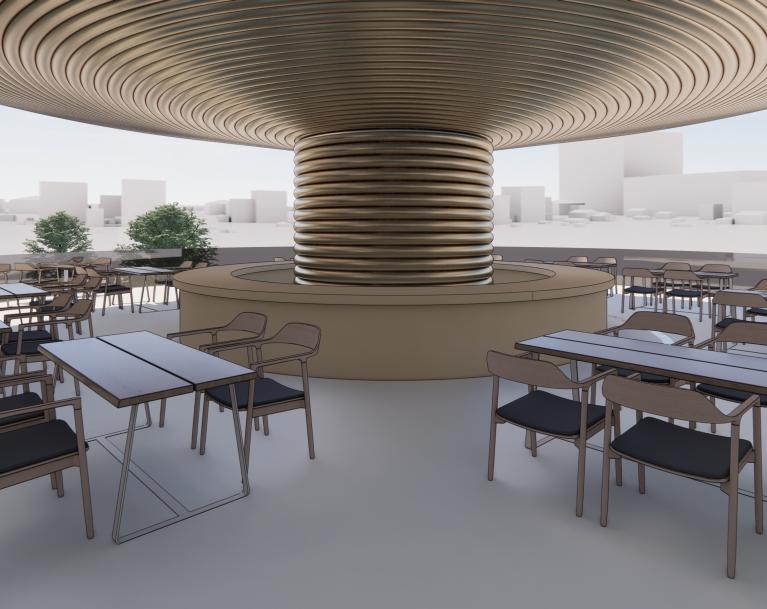

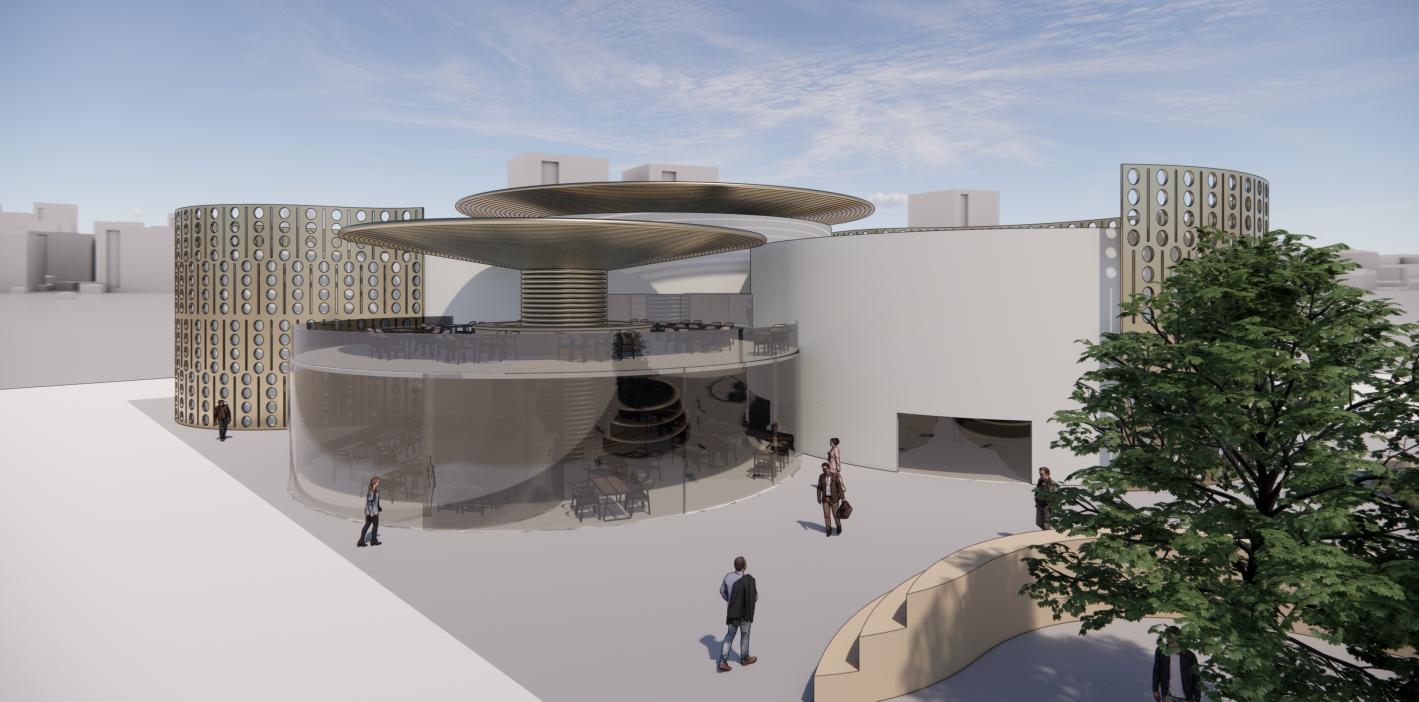

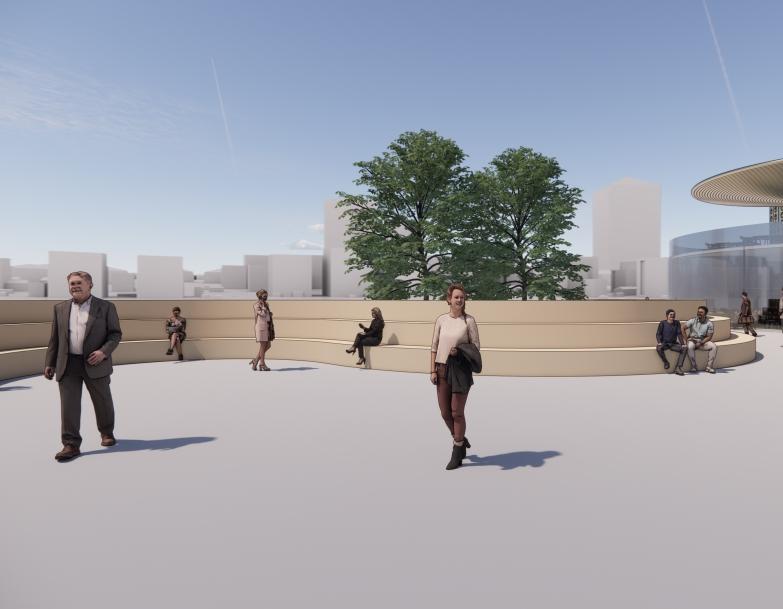

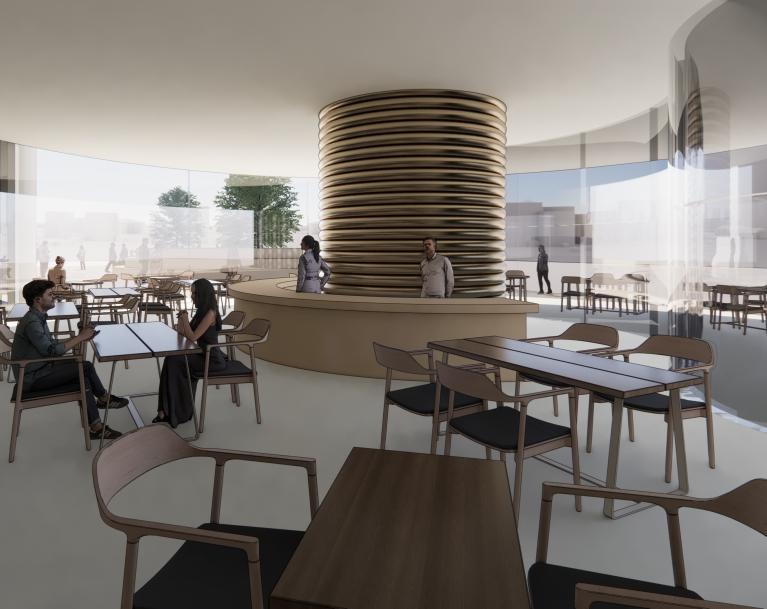

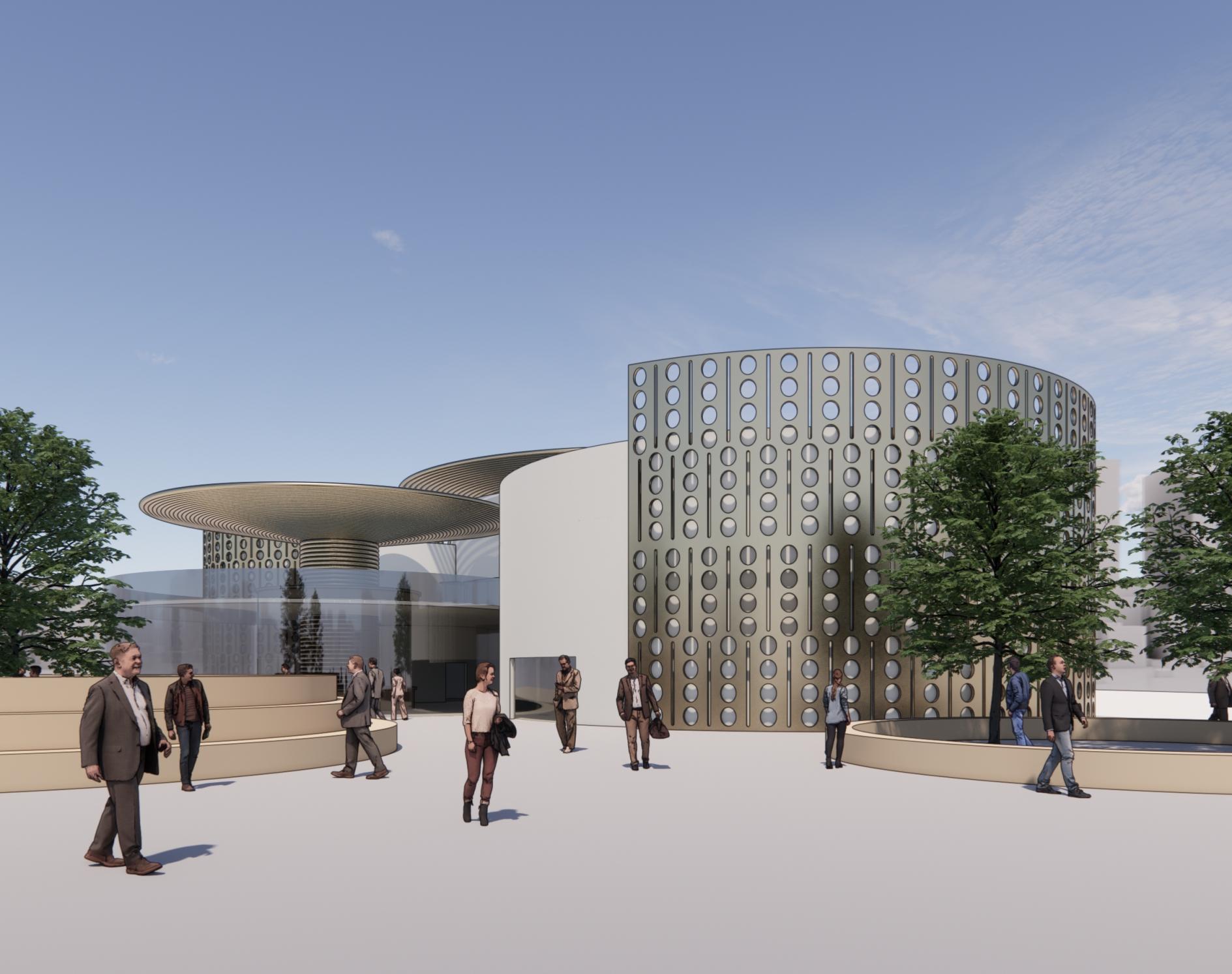

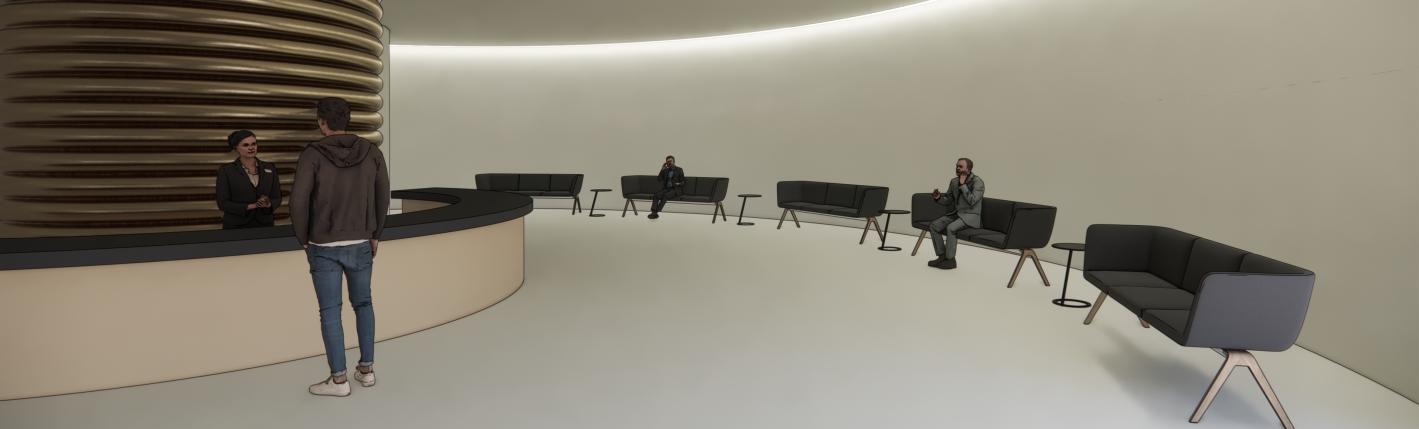

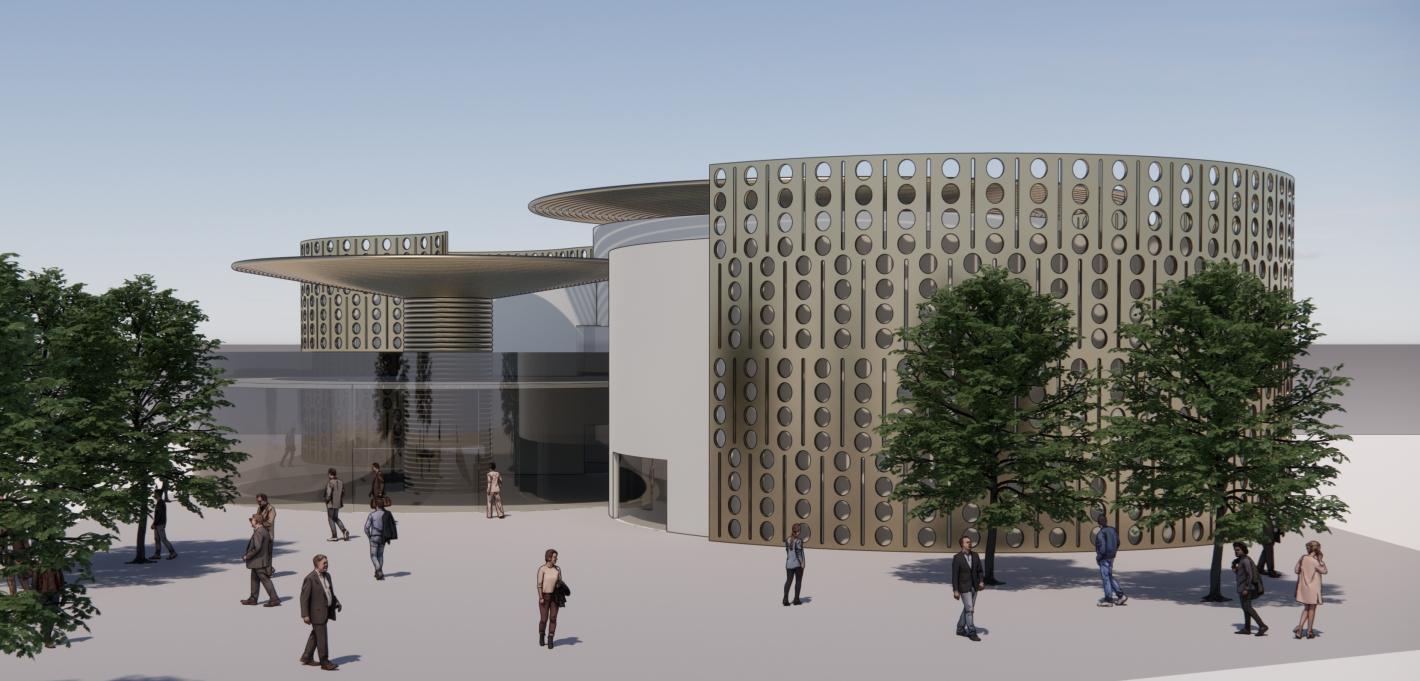

Pavilion Indonesia with the concept of cuisine connectivity represents the richness of Indonesian culture and culinary diversity In this pavilion, visitors can experience and explore the culinary network that connects various regions in Indonesia. Through stunning visual presentations such as video screenings of cultural performances and authentic dishes, this pavilion creates a space where visitors can experience the uniqueness of Indonesia in everything, from its taste to its cultural diversity, and feel connected to Indonesia'srichculinaryheritagefromacrossthearchipelago.

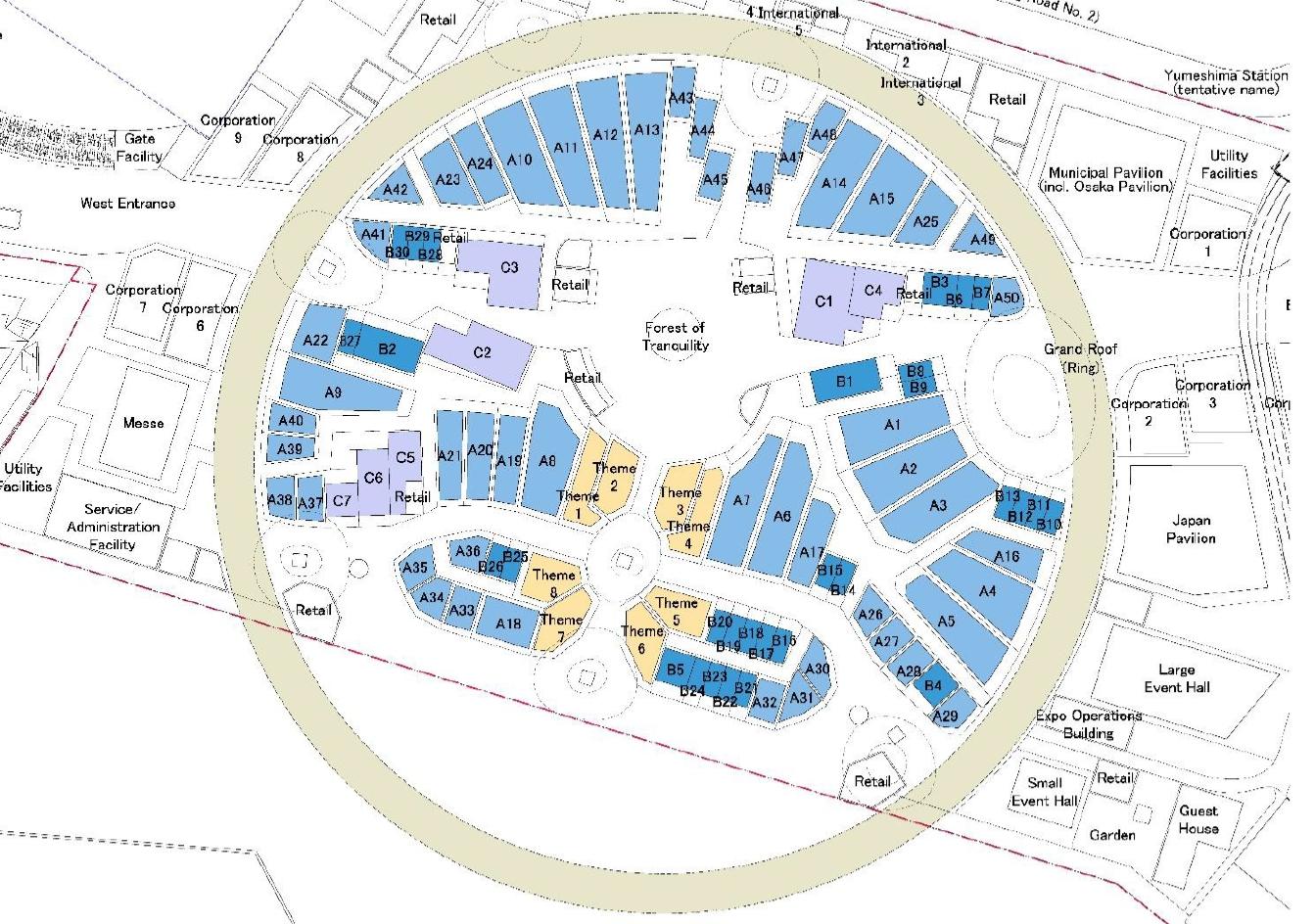

The seventh semester thematic studio's project is to design a pavilion that will be one of the series of World Expo approved and implemented by Bureau International des Expositions (BIE), which will be held in Osaka, Japan on April 13 to October 13, 2025. This concept was raised by Expo Osaka 2025 with the hope of making individuals think about how they want to live and how they can maximize their potential. With this theme, the expo area is divided into three sub-themes, namely Connecting Lives, Empowering Lives, and Saving Lives The selectedareathatwillbethelocationofIndonesia Pavilion is inConnectingLivesarea.
Connecting Lives area is the suitable area for Indonesia Pavilion because of the concept that the design wants to achieve is how many type cuisines in Indonesia can bring such diversity in thecountryandhowitbecometheconnectorofpeopleinIndonesia.
Sections
Floorplans
Sugarcane Makerspace
Tentangtebu Gondang Winangoen
Sugarcane Creative Crafts
Urban Architecture Studio | 2023
location
Klaten, Central Java software used SketchUP, Adobe Photoshop, Enscape

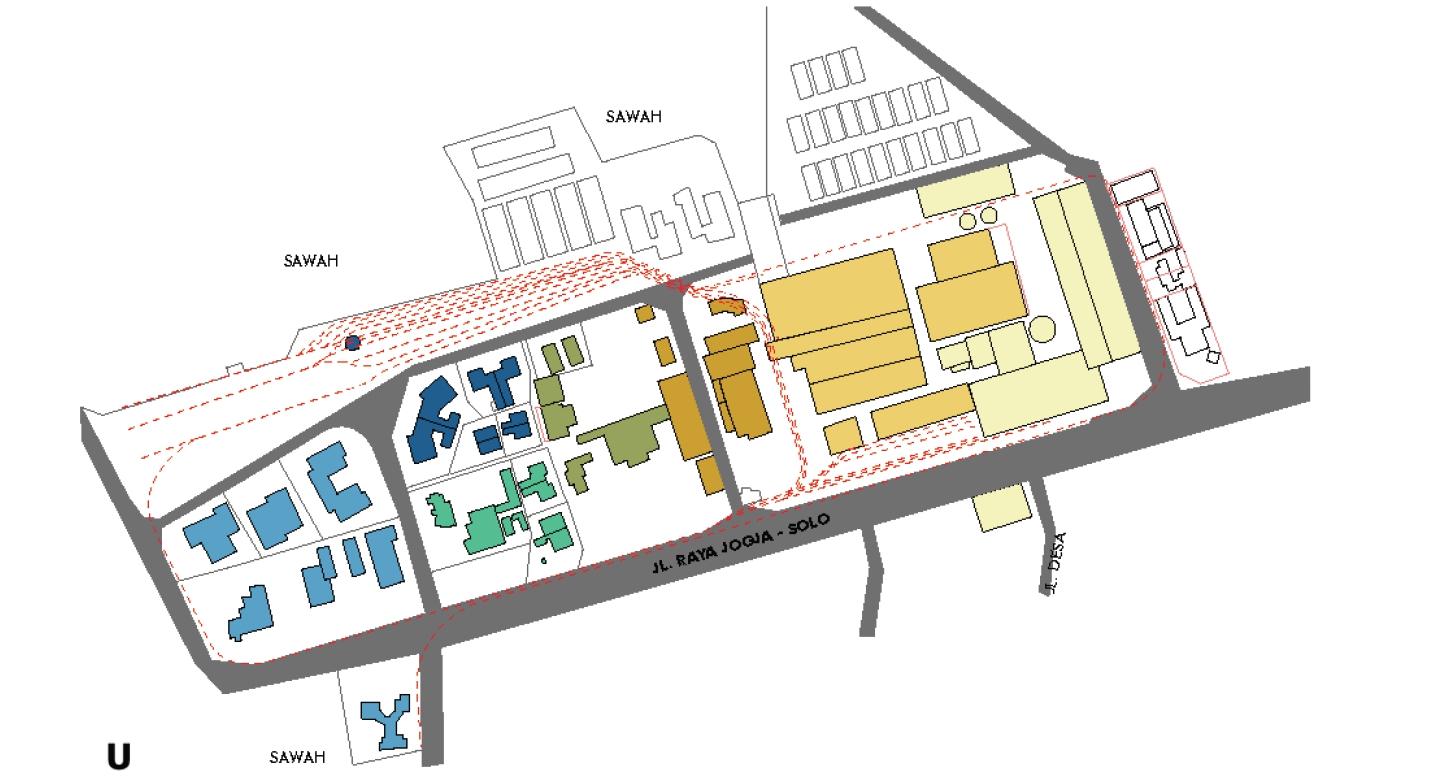

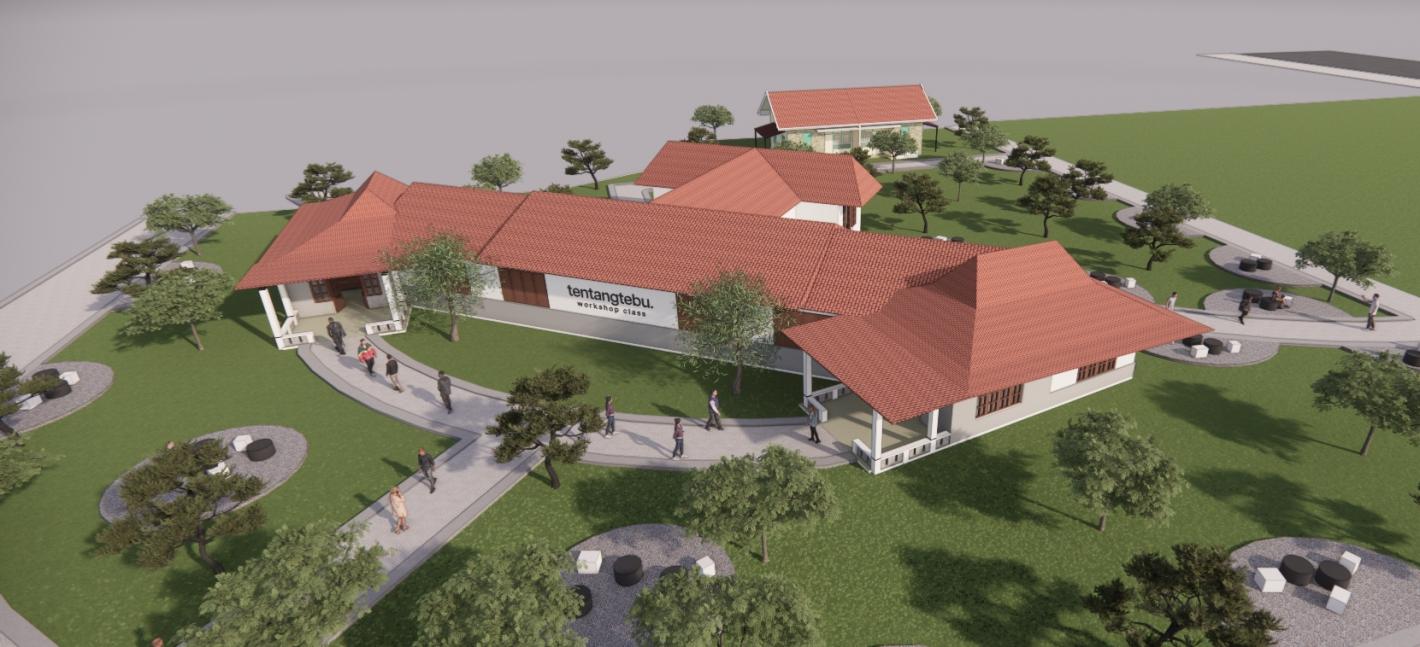

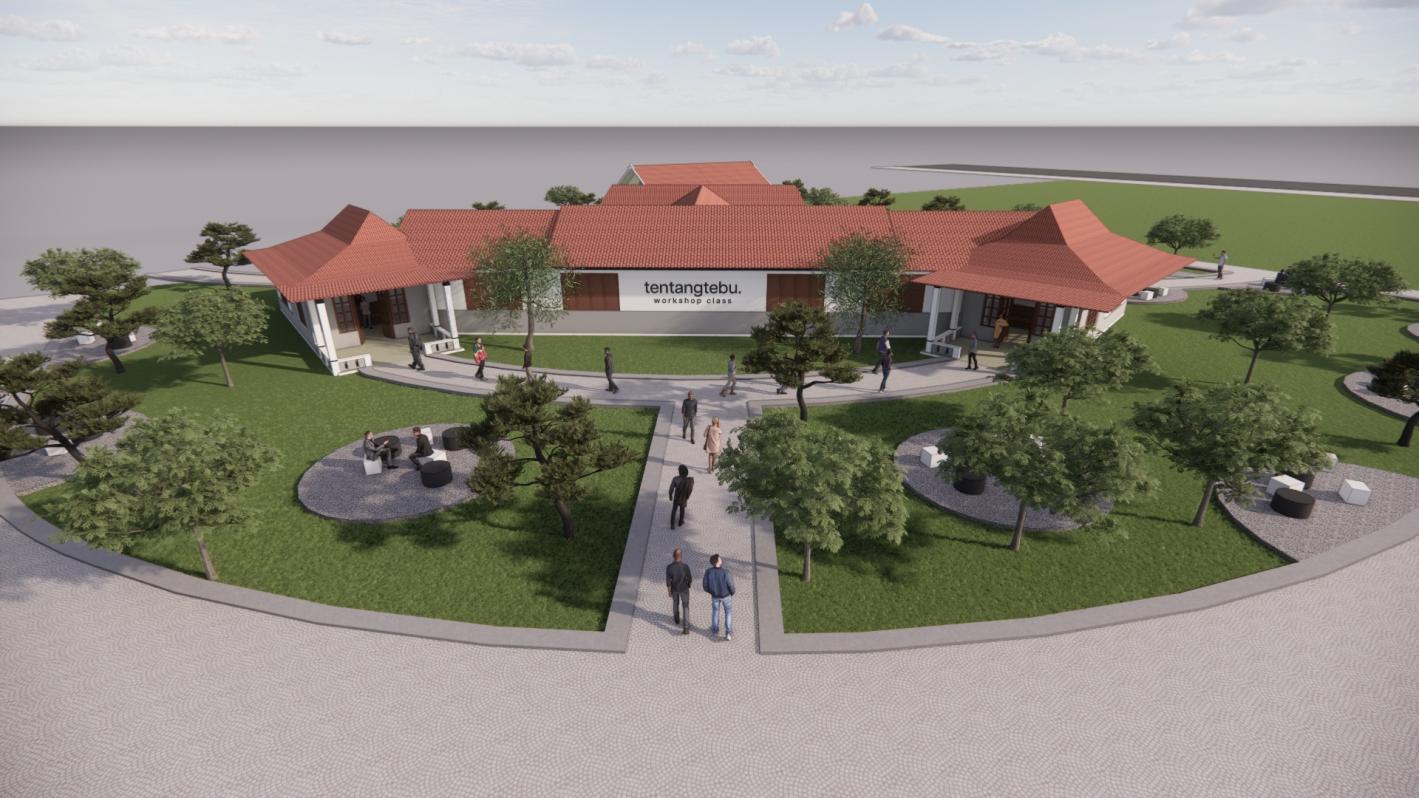

This project main goal is to redesign an abandoned heritage sugar factory in Klaten, Central Java into a collective place and space to accommodate all forms of creativities that exists in Klaten. This area planned to focused in sugarcane-relatedactivities,suchaslearnthehistoryofsugarcaneandthe place, the processing of sugarcane, as well as the cultivation of sugarcane. Tentangtebu Creative Hub includes many facilities thatmeet the needs of visitors that visiting the Gondang Winangoen area. The concept of the area is developed by a studio academic group, and then the areas will be divided based on the functions of each areas This project is a development design to a former residential area in the abandoned sugar factory into a creative hub building that focused on usage of sugarcane intomanytypesofhand-madecrafts.

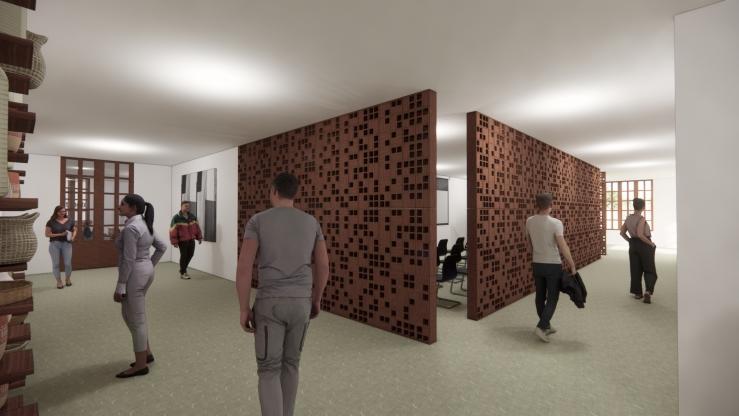

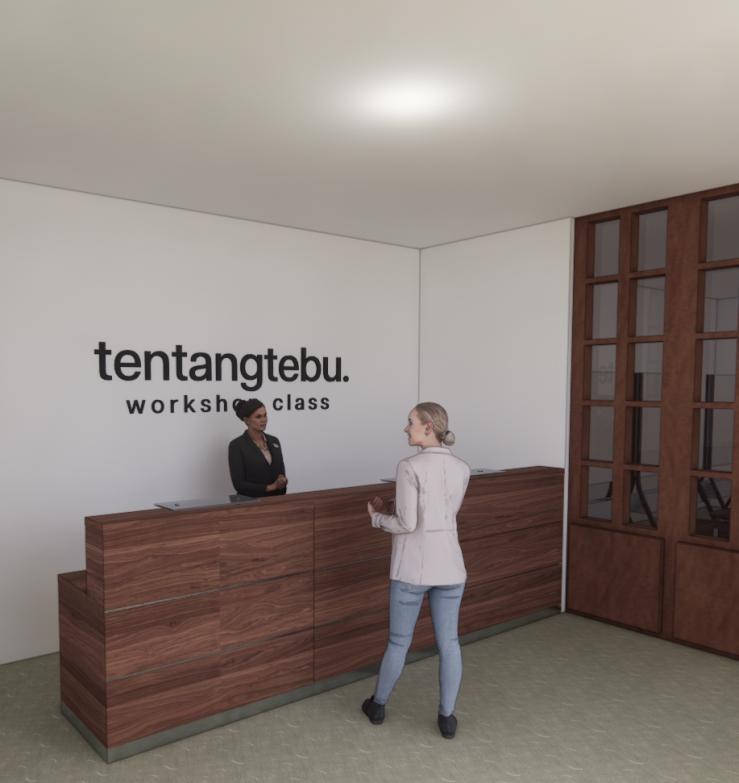

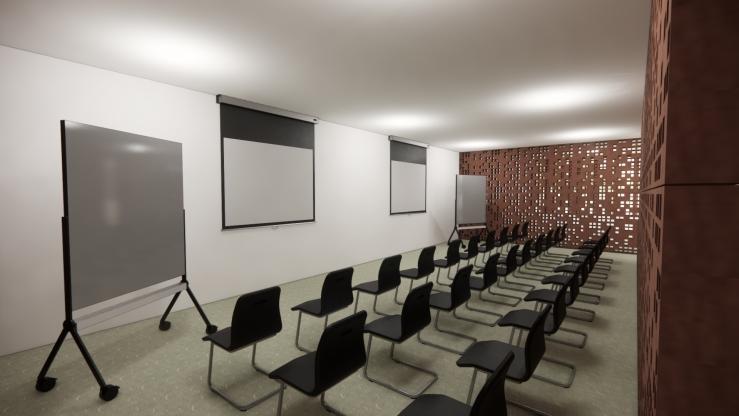

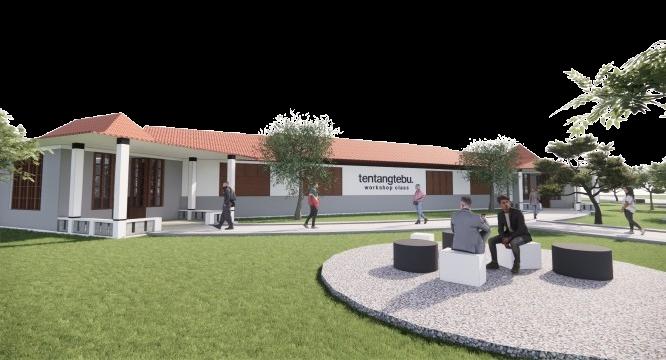

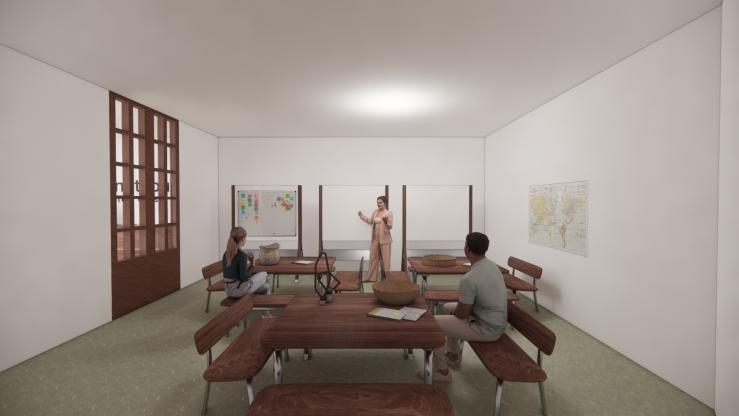

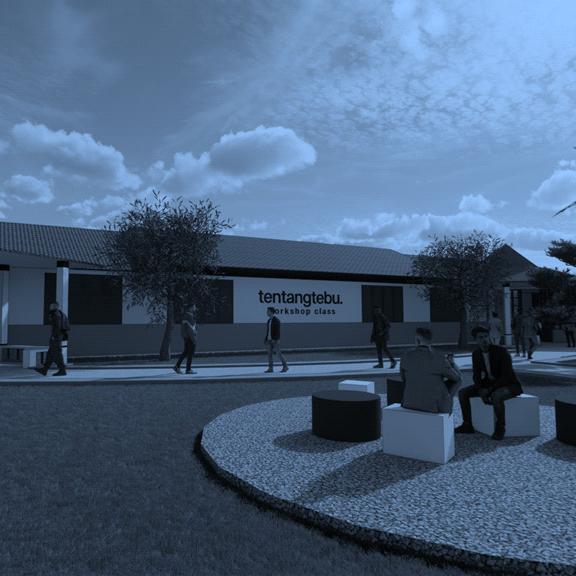

TheareaofGondangWinangoeninthisdesignisdevelopedintoacollectiveplaceandspace to accommodate all forms of creativities that exists in Klaten. Tentangtebu Creative Hub includes many facilities thatmeet the needs of visitors that visiting the Gondang Winangoen area One of the areas that has a creative hub concept is the makerspace area which functions to develop the creativity of visitors by making crafts from sugarcane. Visitors' creativitycanbeformedwellwiththeworkshopintheformofmakingsugarcanecrafts.Inthis area, not only practical activities but activities such as seminars or talkshows can also be carried out to increase insight into sugarcane-processed crafts. This sugarcane-themed makerspace also helps increase the value of sugarcane as a source of raw materials, not only asasourceofsugar
Design Transformation

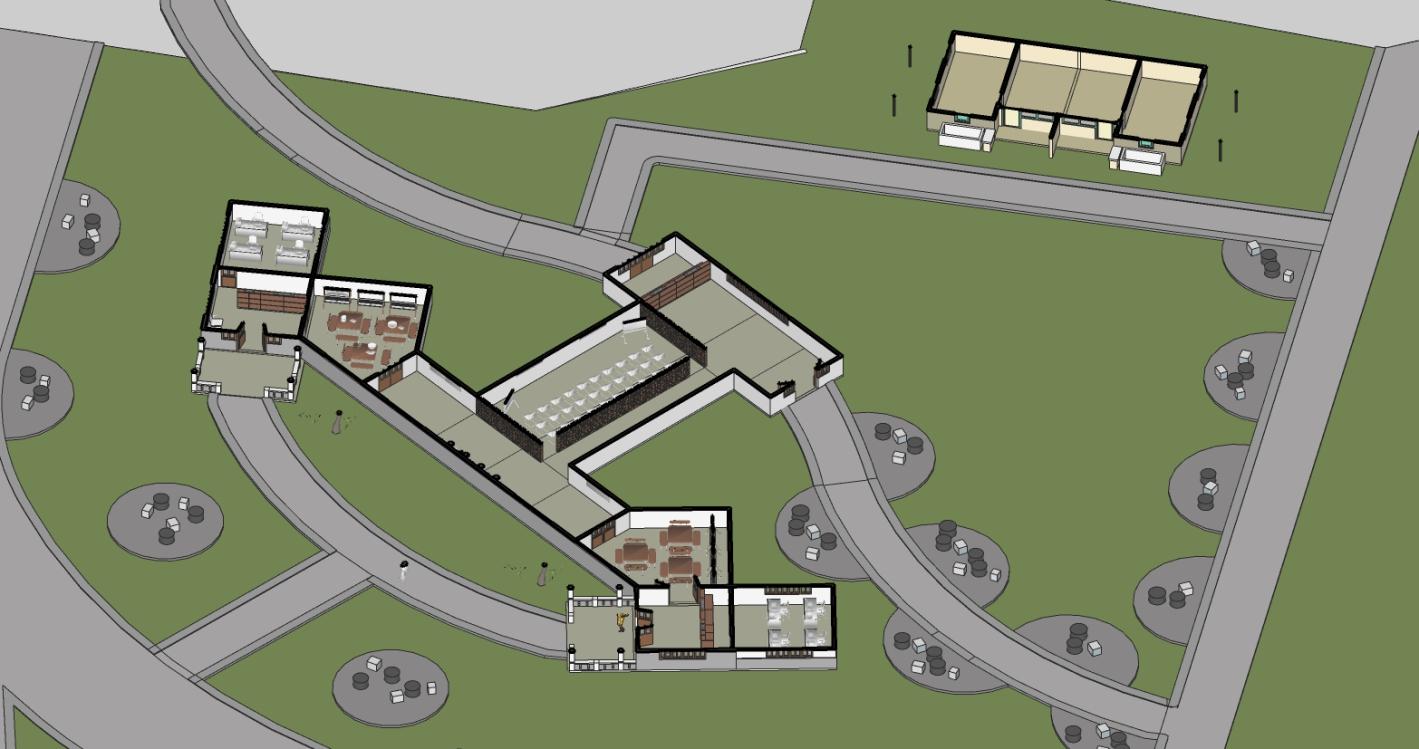

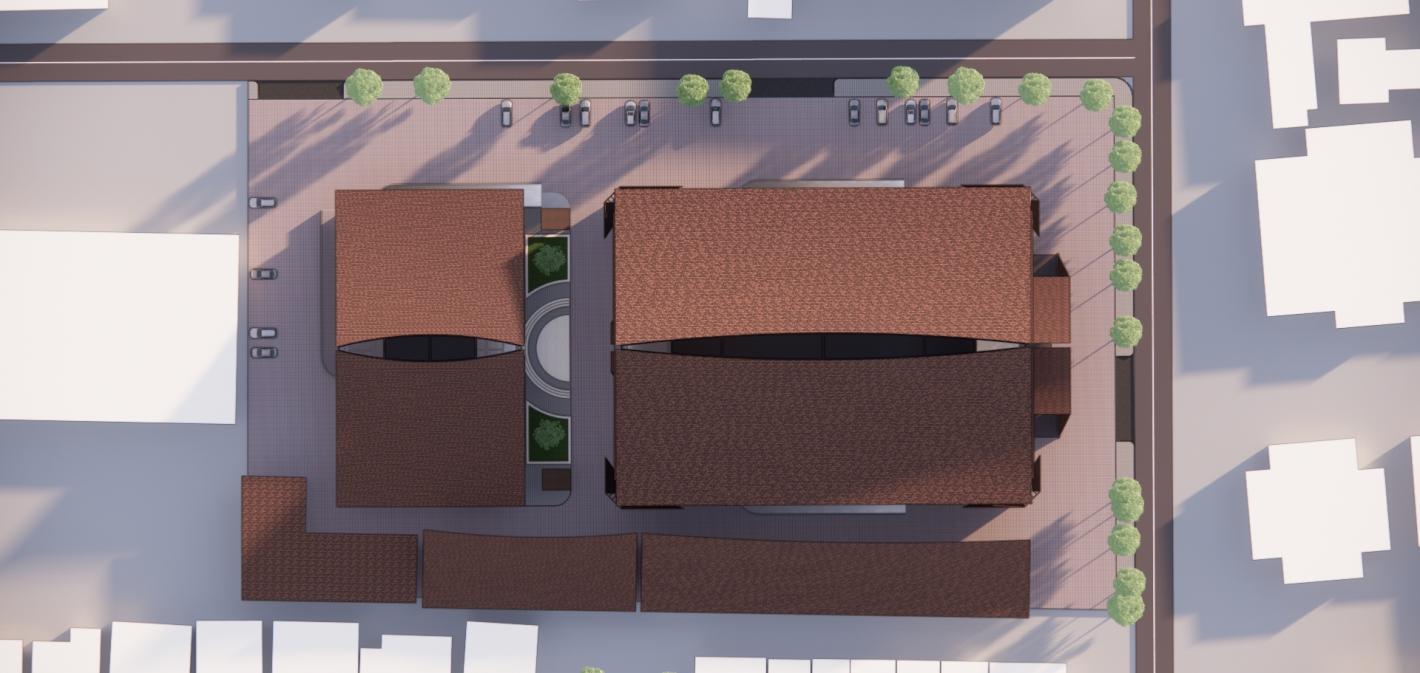

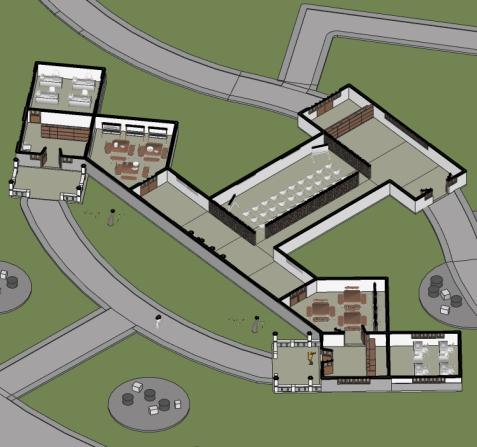

The existing buildings in the area were originally two buildings separated by a wall. In order to fit the design of the area, adjustments were made to the space required for the design with the space in the existing building. The adjustments were in the form of restructuring the boundaries of the space such as walls according to the division of space required for the design. Redesign was only carried out in the interior of the building, with the outer facade of the building still maintained as before. Then, additional road paving was also carried out to connect the building with other buildings according to the flow and function and the addition ofvegetationandpublicopenareastosupportoutdooractivitiesinthedesign.
o ce
ticketing
multi-purpose area storage
Highway Hotel
3-star Strategic Tourism Hotel
Comprehensive Architecture Studio | 2023
location
Kulon Progo, DI Yogyakarta software used
AutoCAD, SketchUP, Adobe Photoshop, Enscape

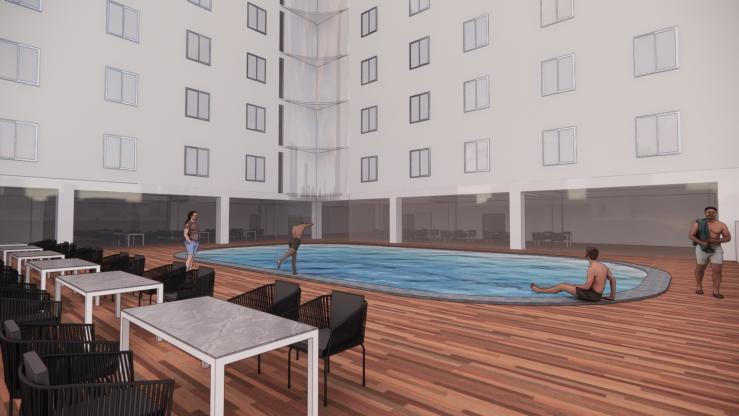

This hotel has the types of Tourism Hotel, following the location of the hotel which is close to Yogyakarta International Airport (YIA), so it is hoped that the hotel can be one of a good resting place for tourists that visiting Yogyakarta. This hotel has the concept of following the highway on the site, by taking the shape of the site mass that resembles the shape of a reversed highway With a mass shape that is designed to give the impression of embracing public areas, such as restaurants and swimming pool at the hotelandprovideagreatviewandcomforttohotelusers.

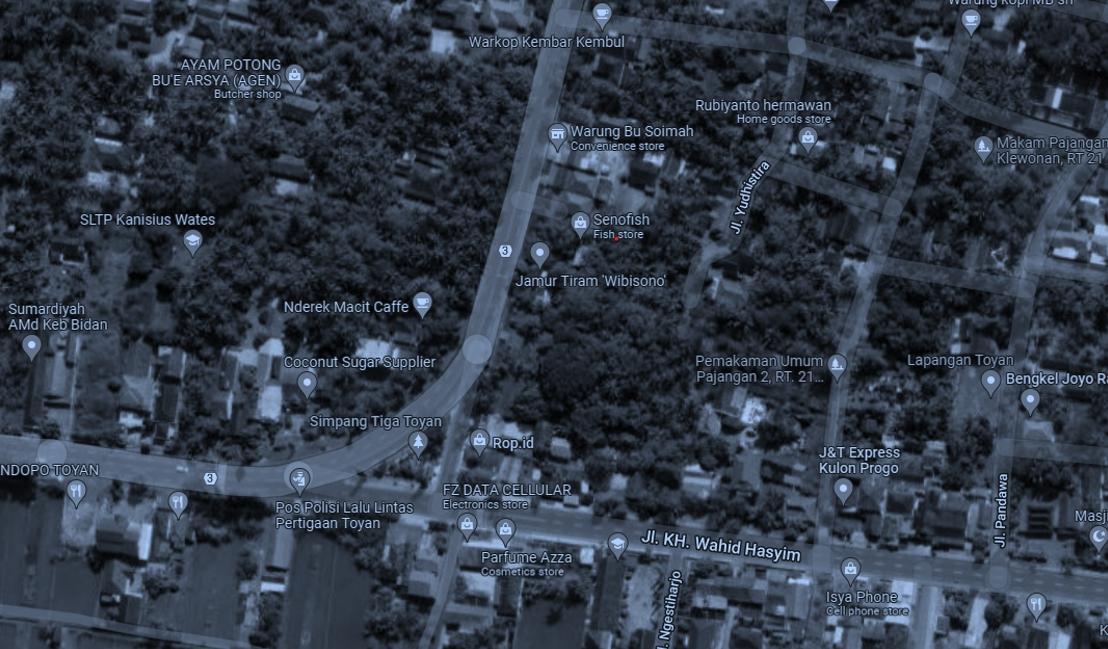

The site is on the main road to Yogyakarta International Airport, precisely in Kuwonan, Triharjo, Wates, Kab. Kulon Progo, DI Yogyakarta. The location of the site is close to Yogyakarta International Airport. According to the site analysis results, the site is located between 2 main roads which makes the site a strategic place to build an accommodation center. However, because of this, problems arise at the site, namely noise and air pollution. The site is also locatednearthebeachtothesouthofYogyakarta.

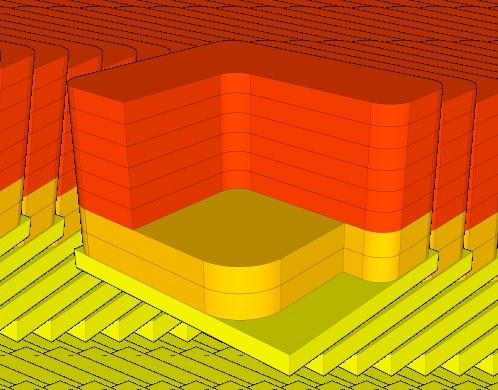

In the initial stage of mass composition, the design takes a square shape on the site which is adjusted to the boundaries of the site, then the mass is divided into three zones according to thespacezoningrequiredinthebuilding,namelyServiceZone,PublicZoneandPrivateZone. The mass is pulled up to suit whatever needs are in each zone. In the Private Zone section, the mass is drawn to follow the shape of the reversed highway in order to optimize the view and response from analysis at the site. The outdoor part of the Public Zone is located far from the mainroadwhichisdesignedtooptimizecomfortinthePublicZone.

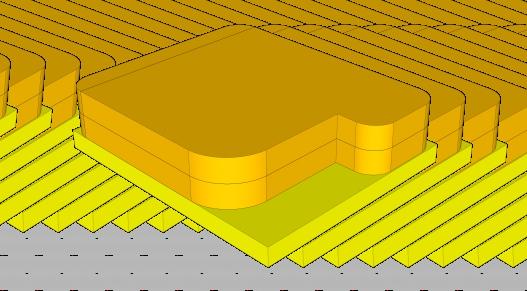

Axonometrical Structure
In this building, the structure applied to the design is main columns on the building that is about 8 meters apart, with the core located at the front of the building. The most column structures are located in the basement of the building, some parts of which continue to the lobby floor and the 1st floor, and then continue according to the typical hotel floor shape. The foundation of the hotel building uses a footplate foundation with 4 parts that continue into the ground which will supporttheloadofthehigh-risebuilding.

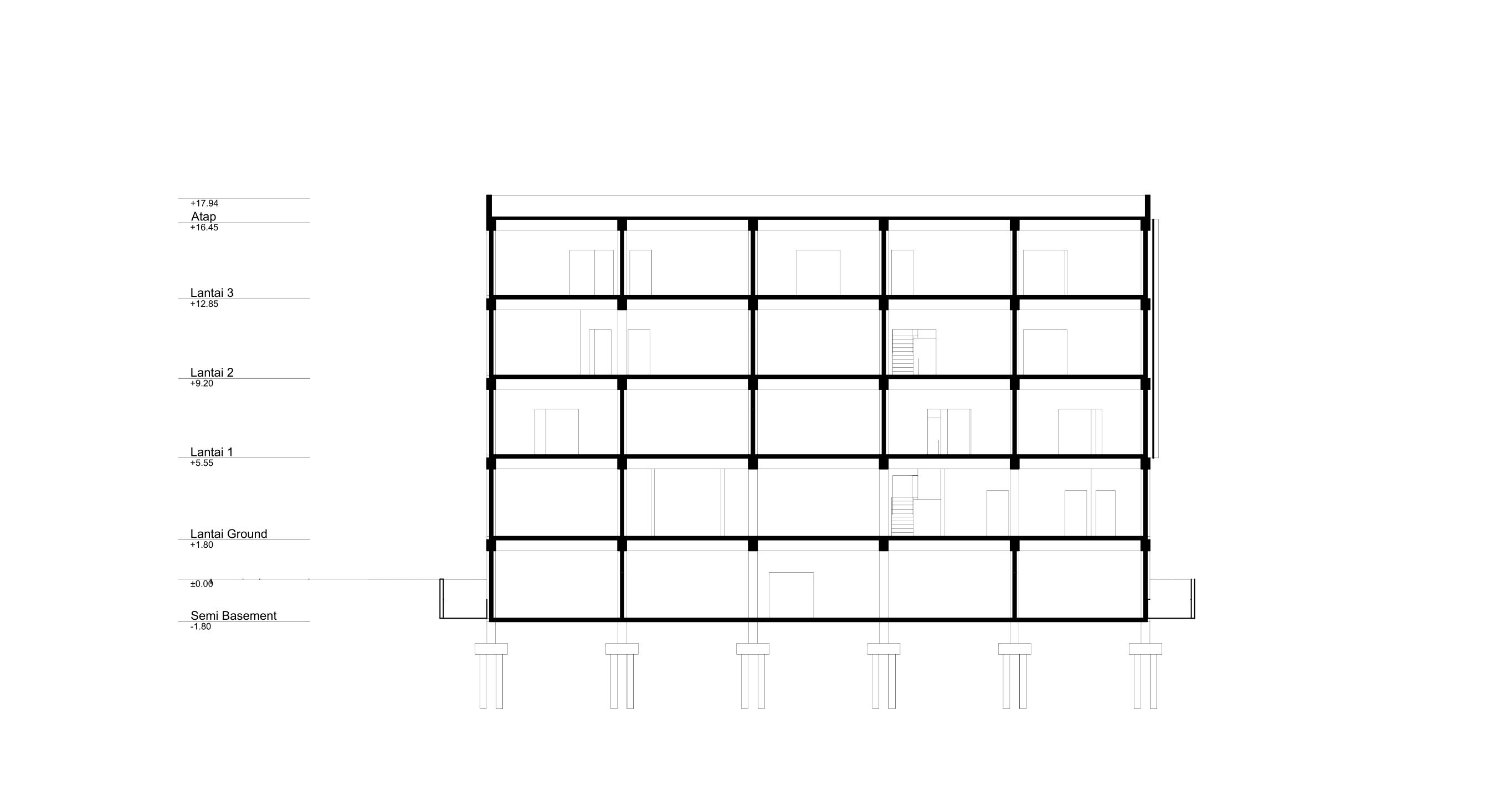

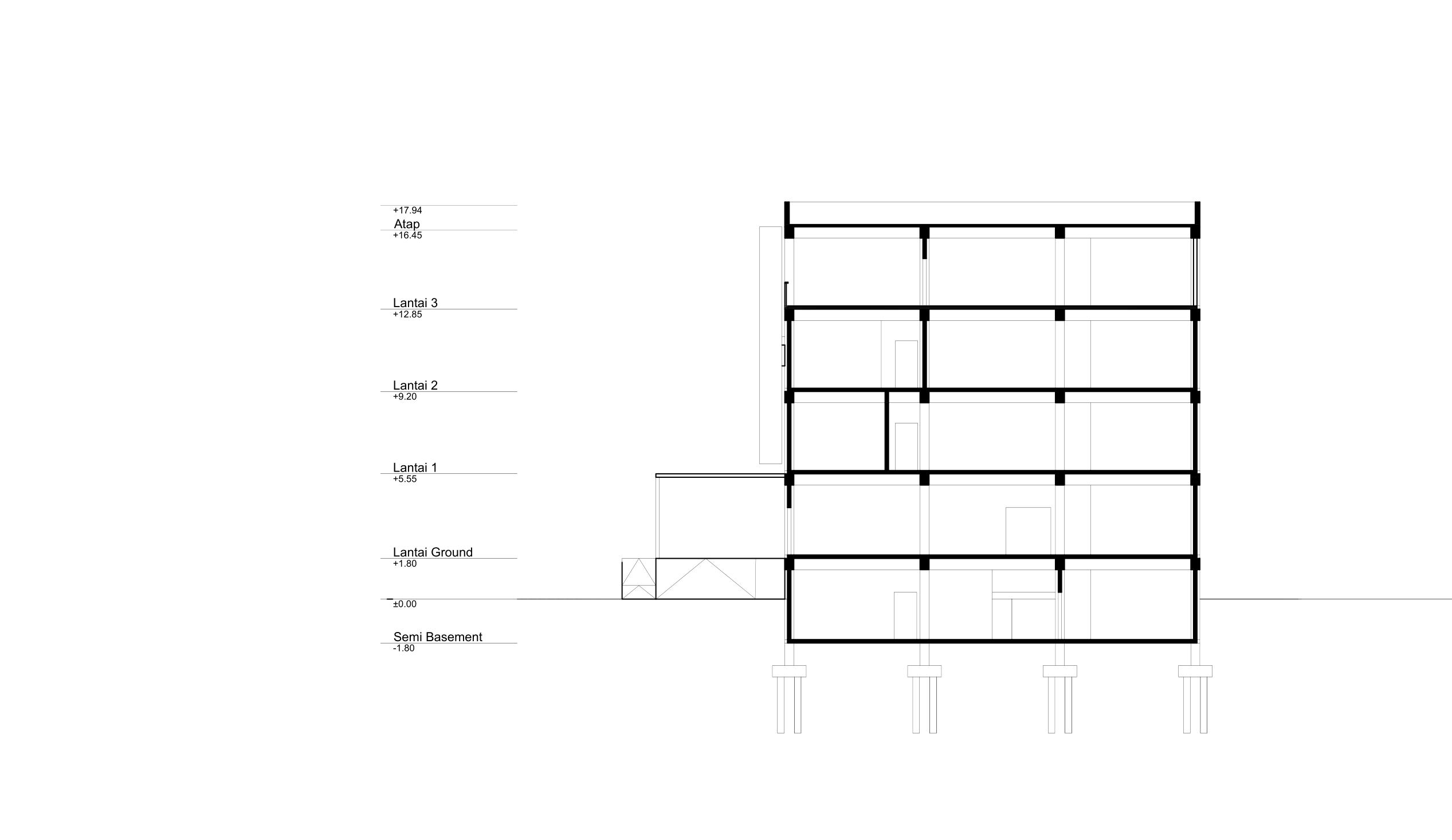

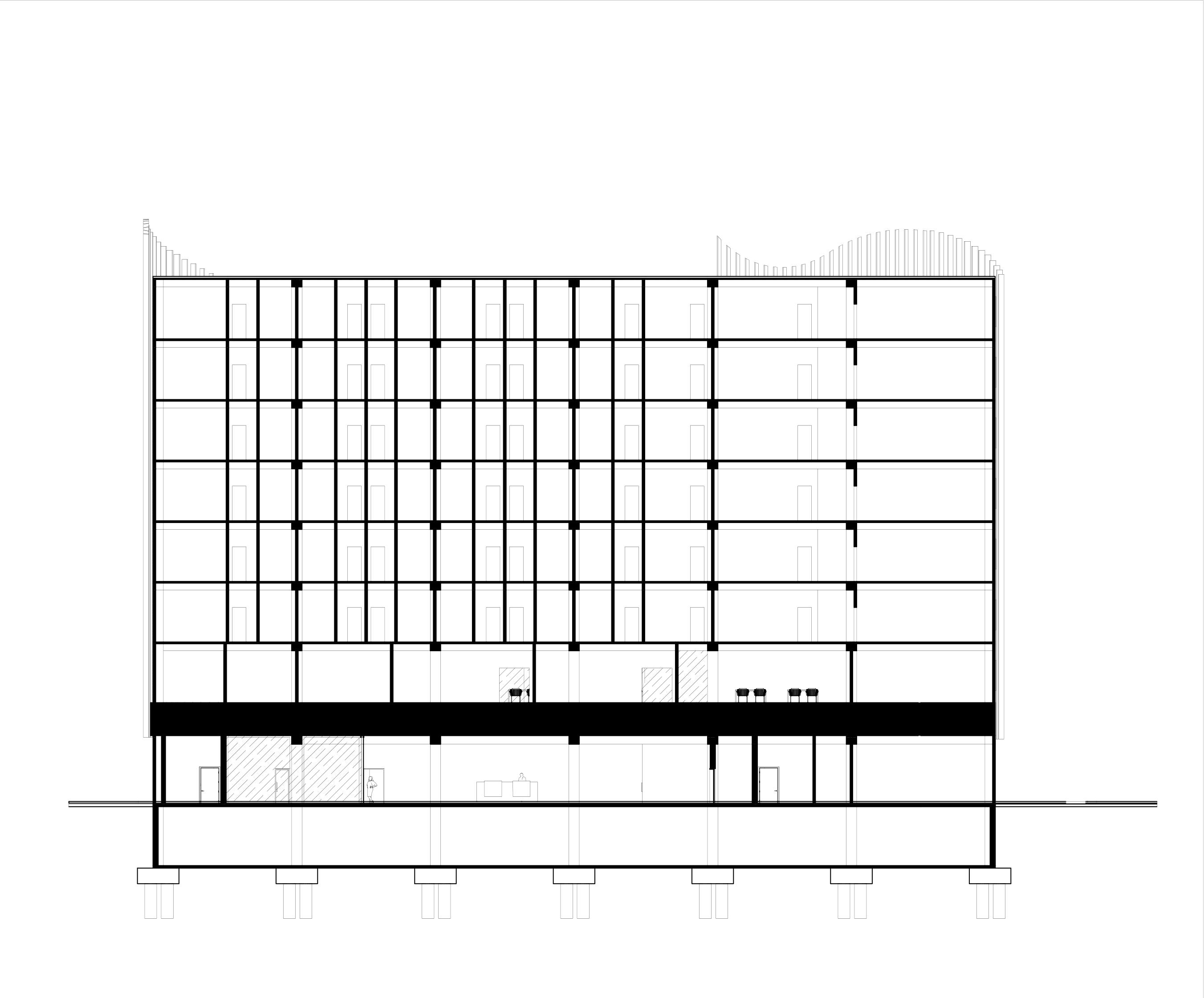

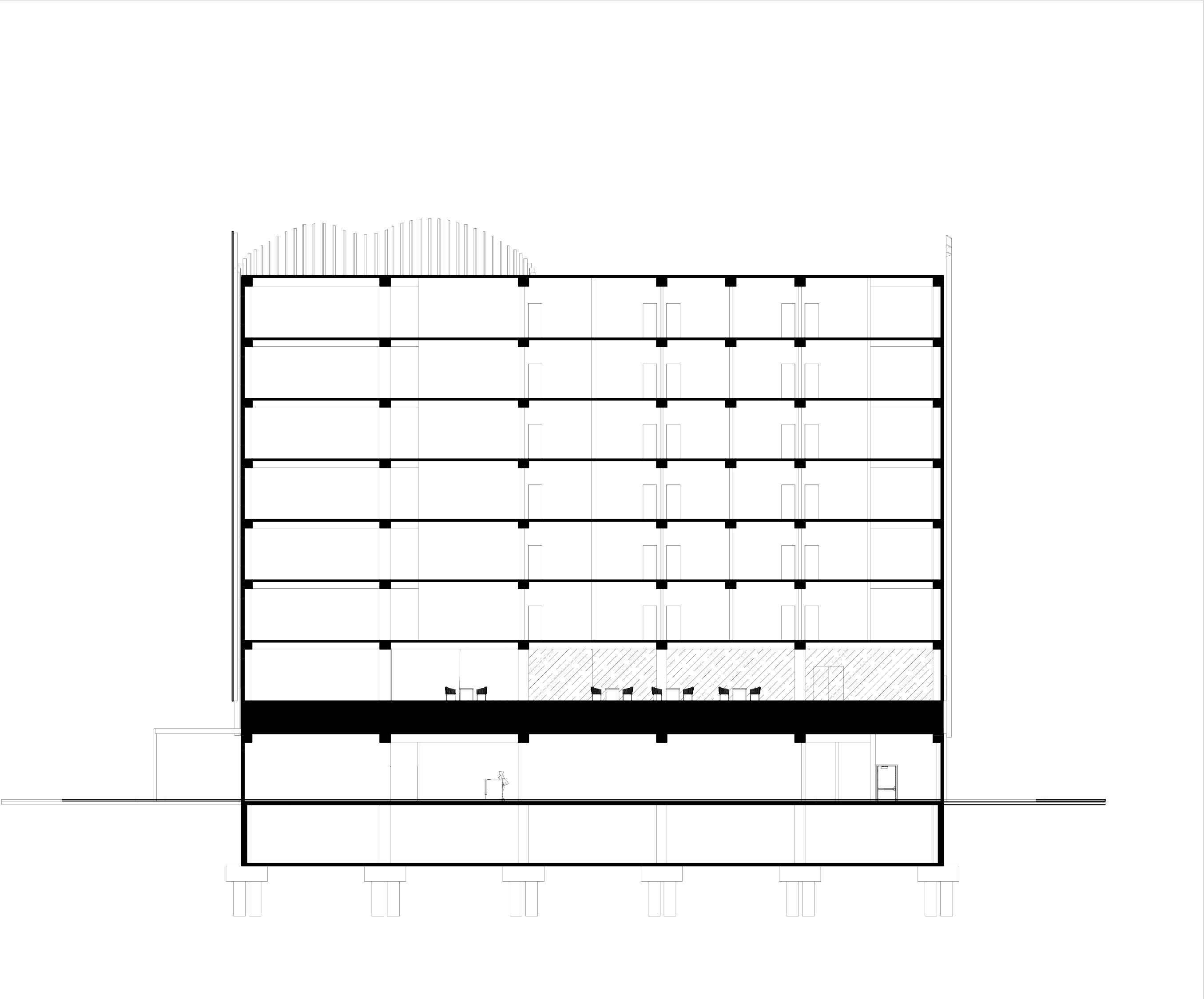

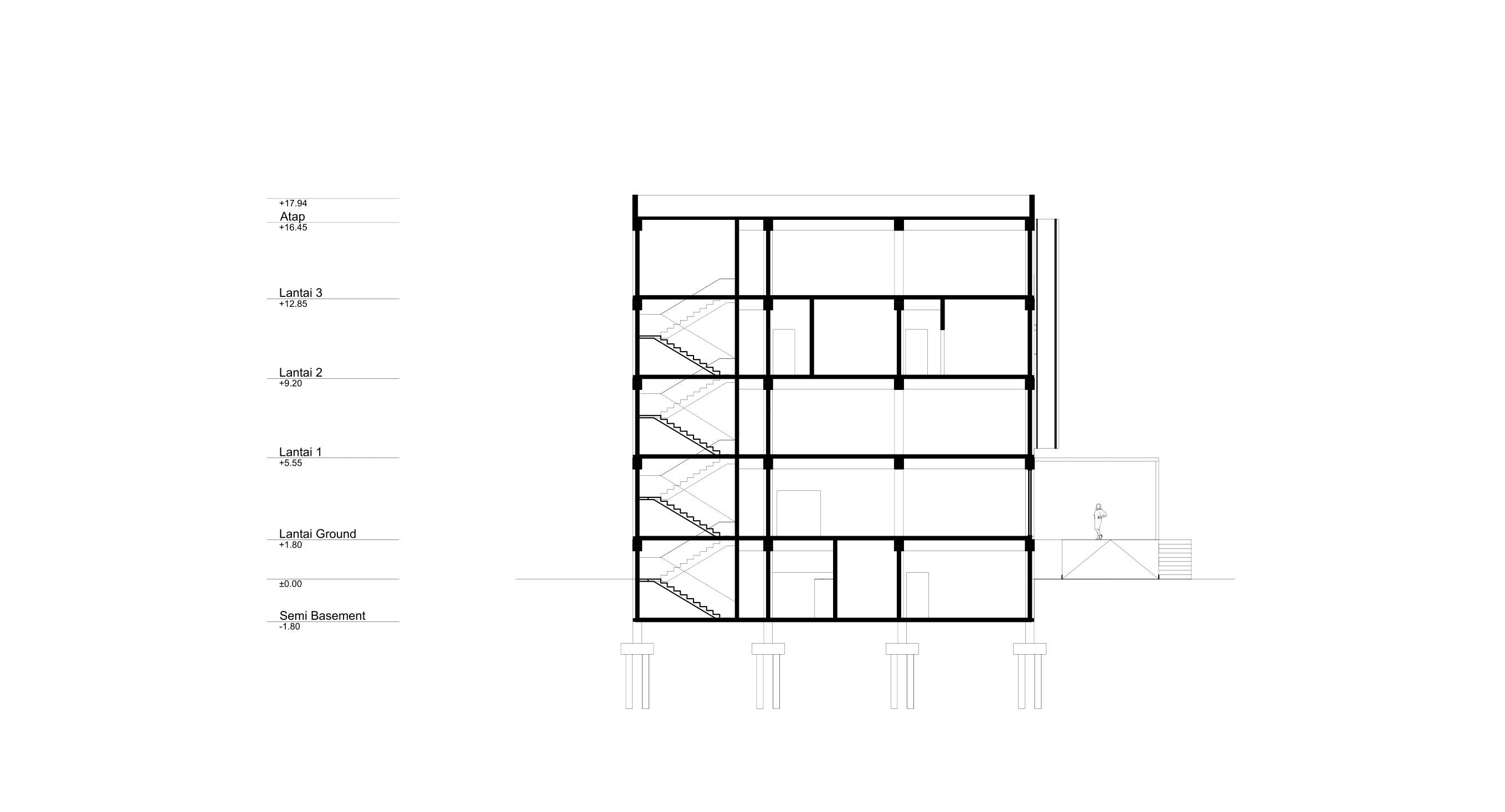

Sections

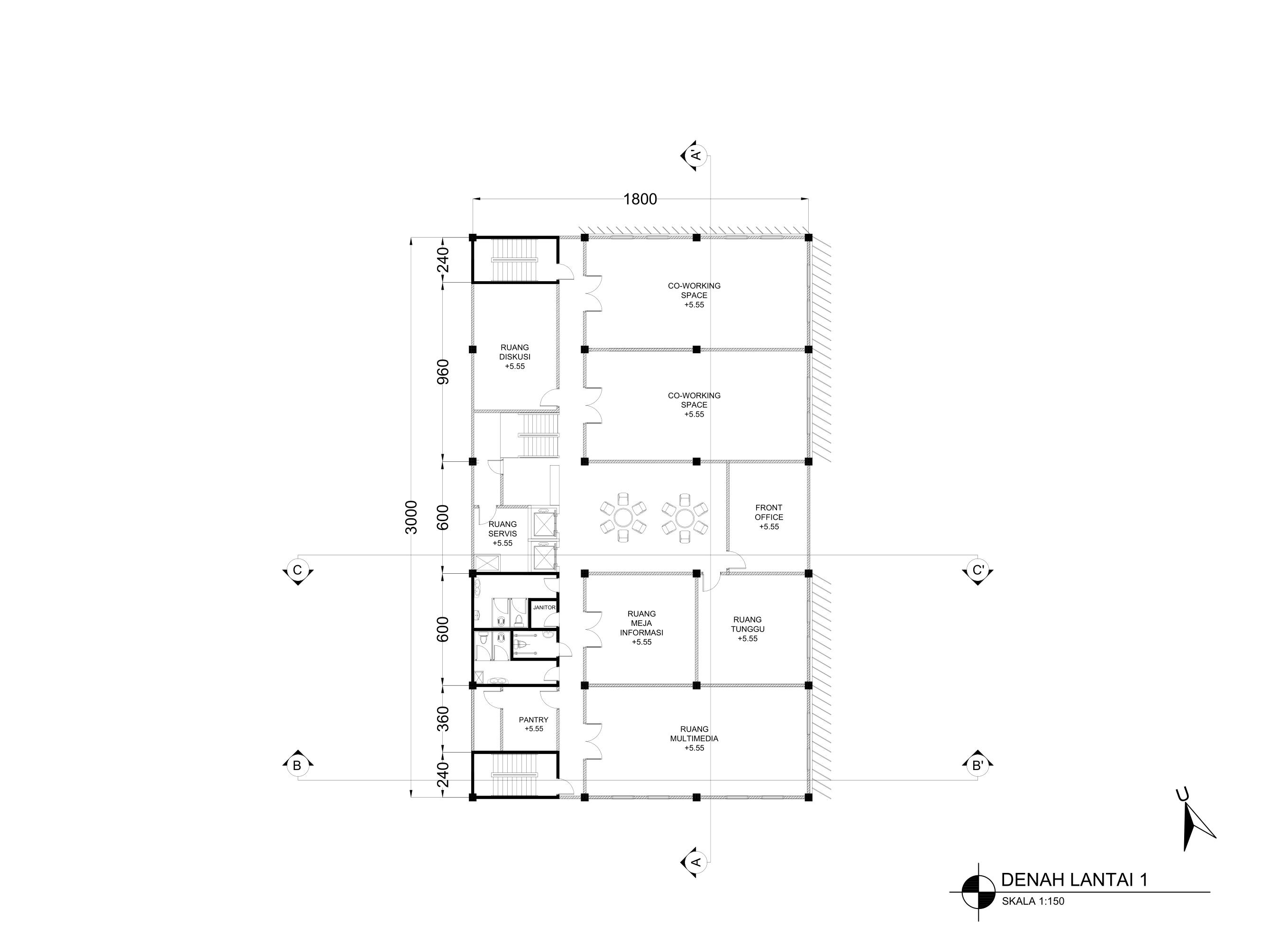

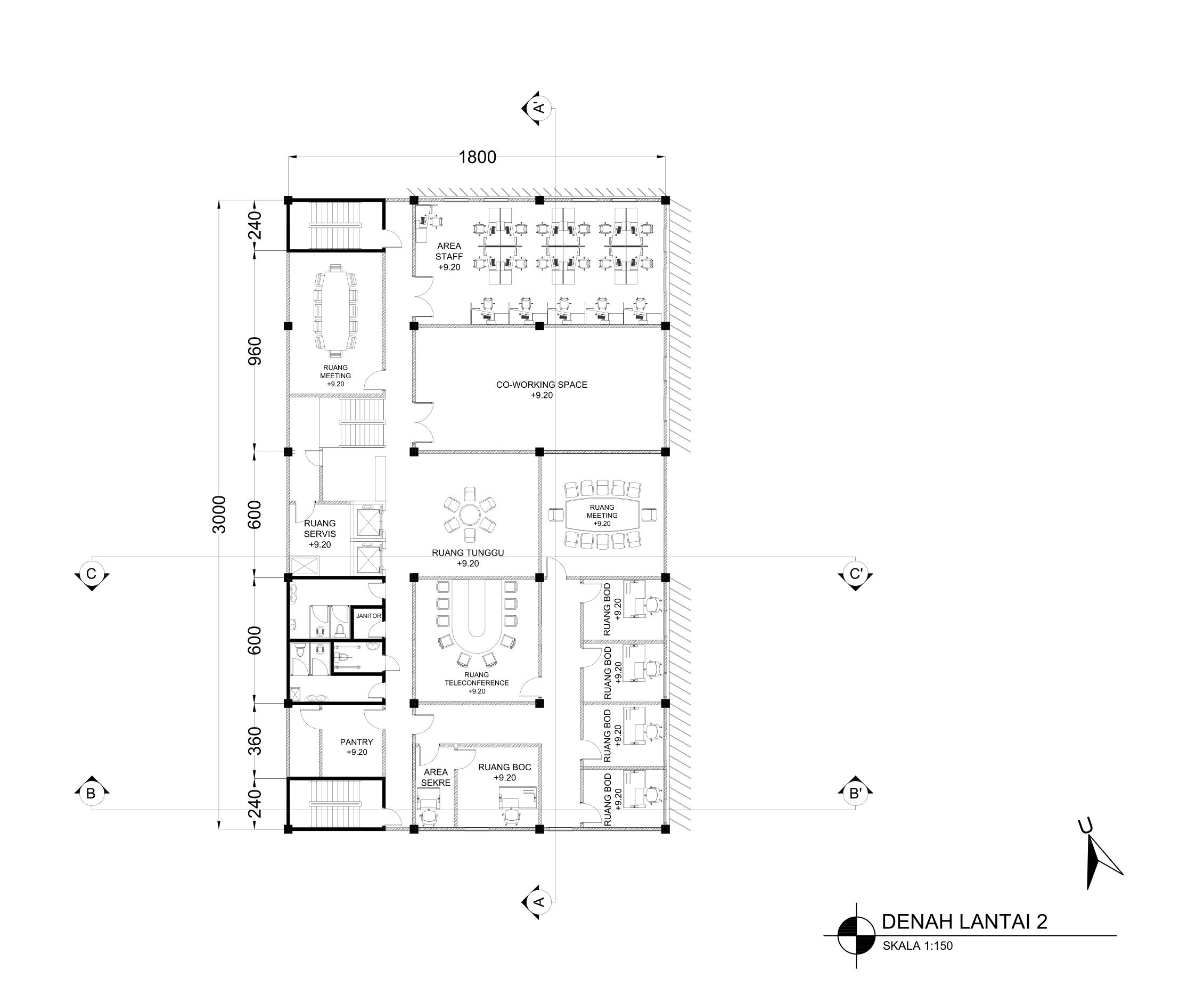

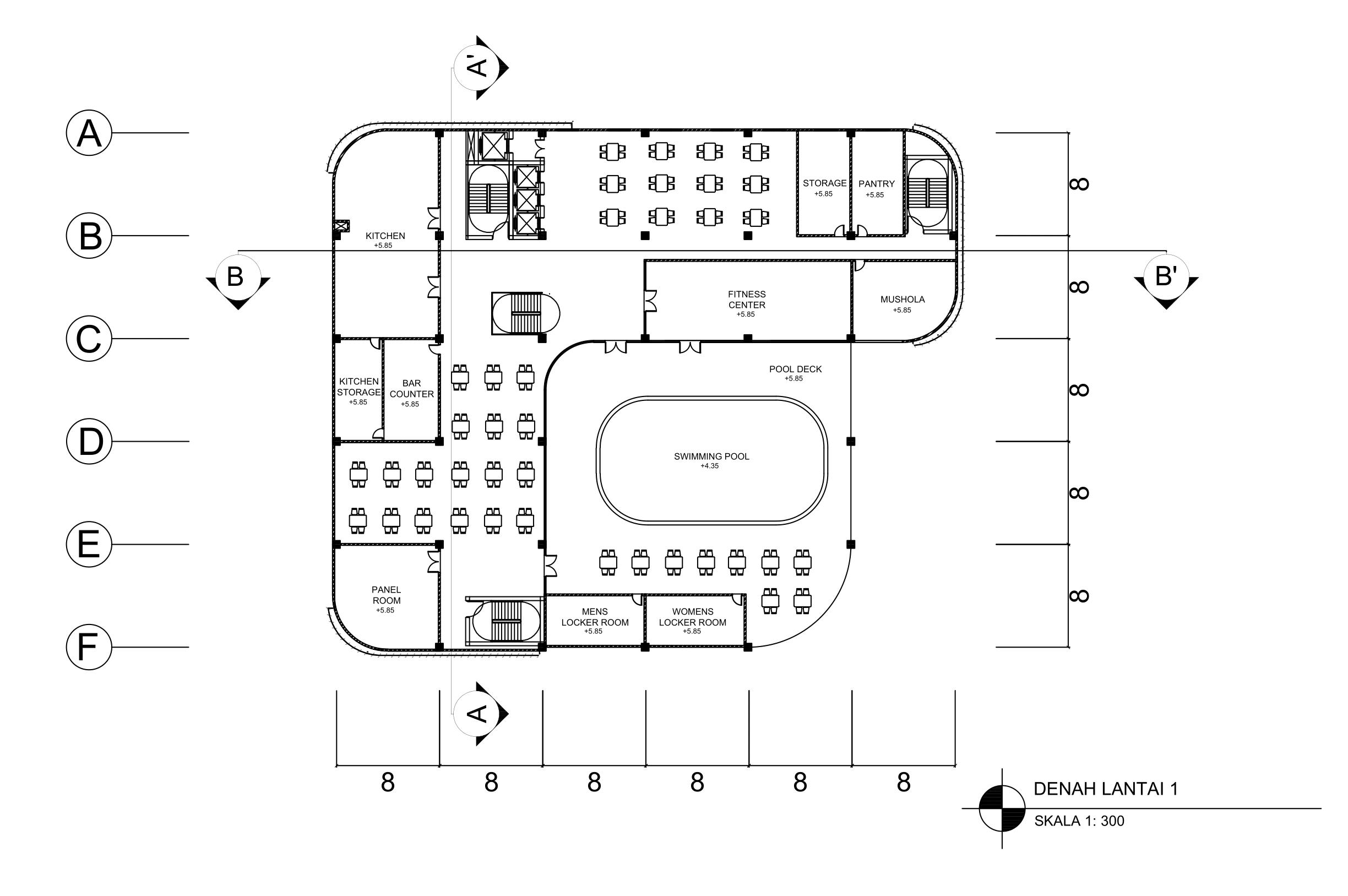

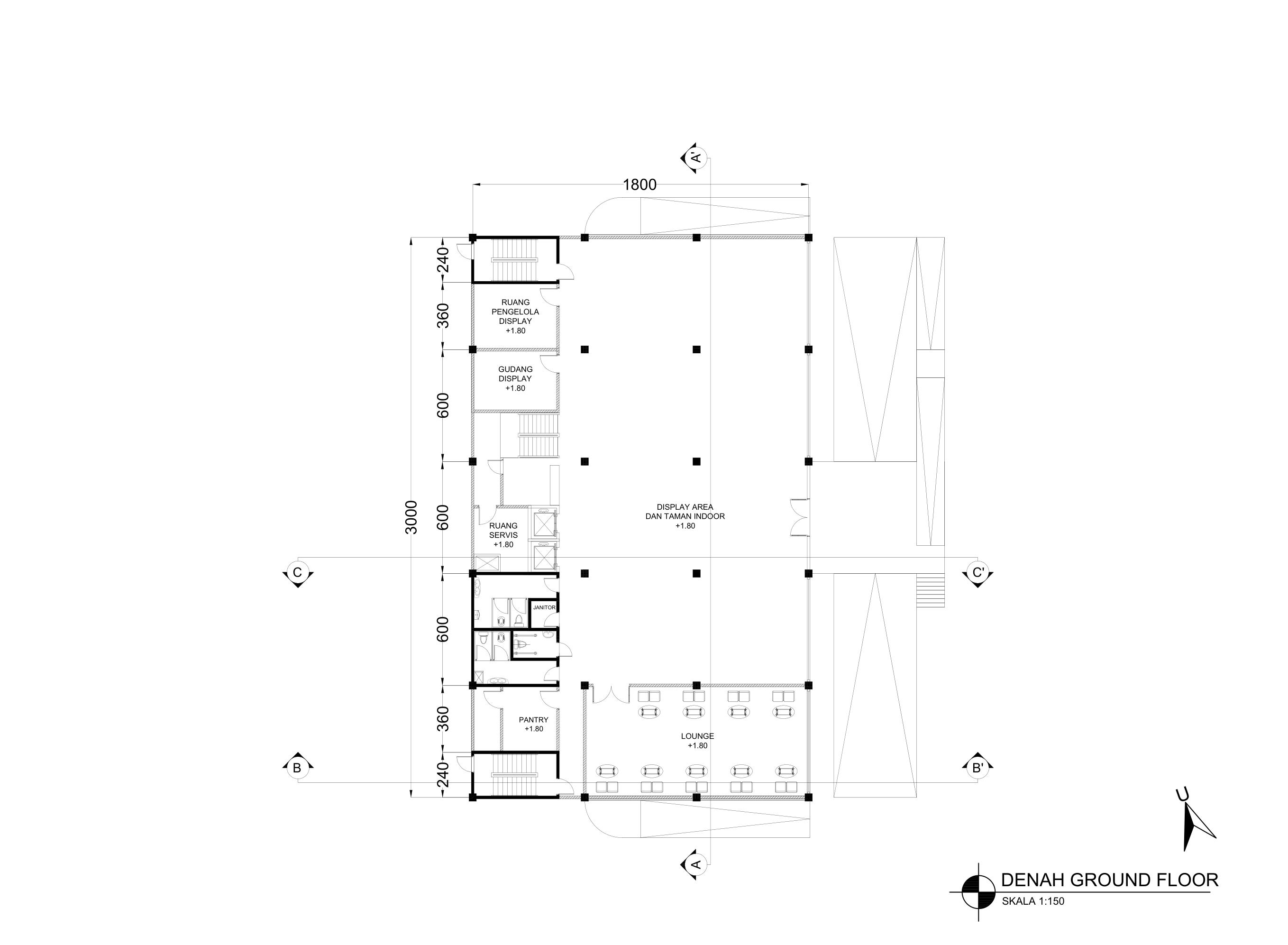

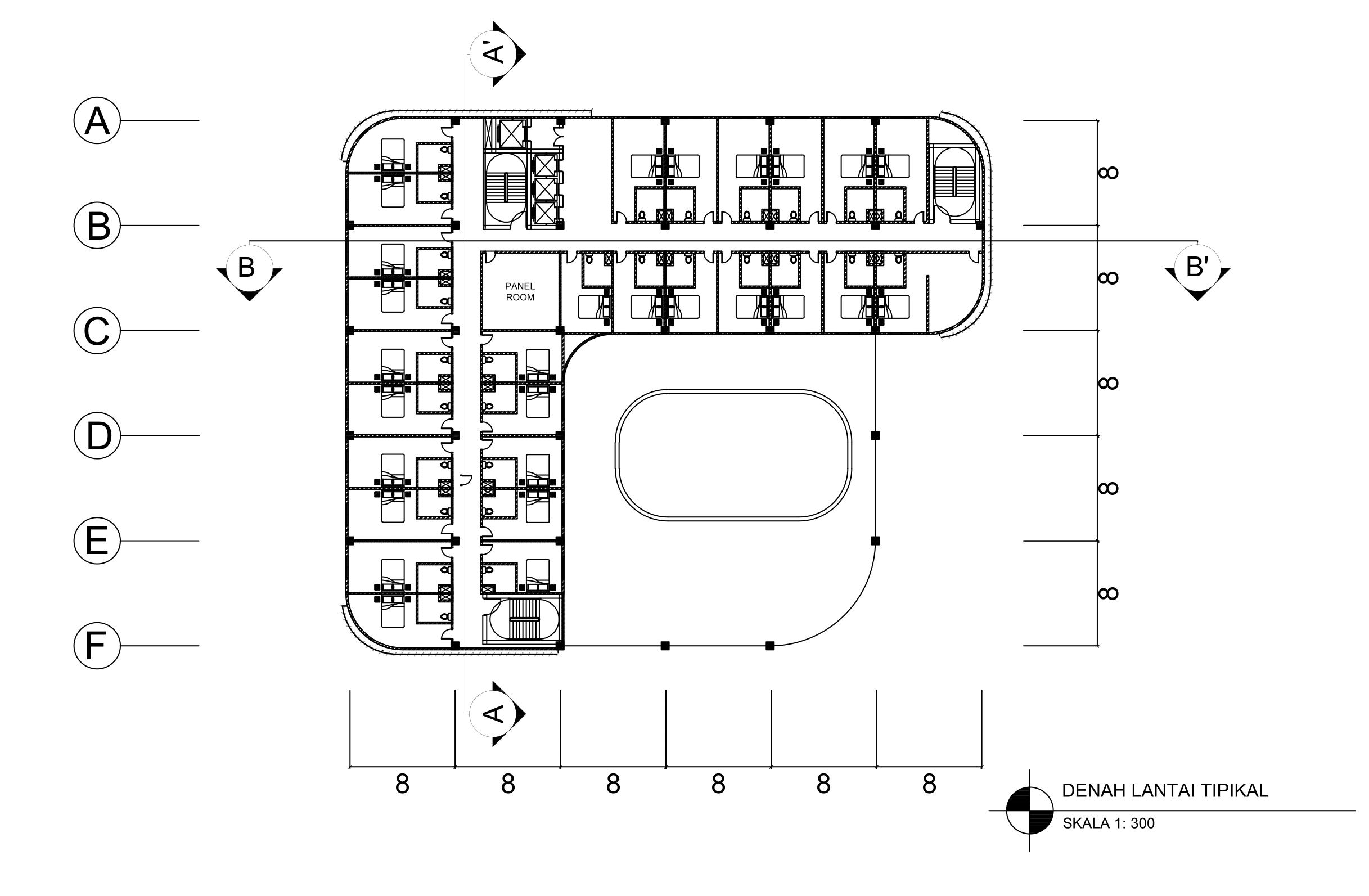

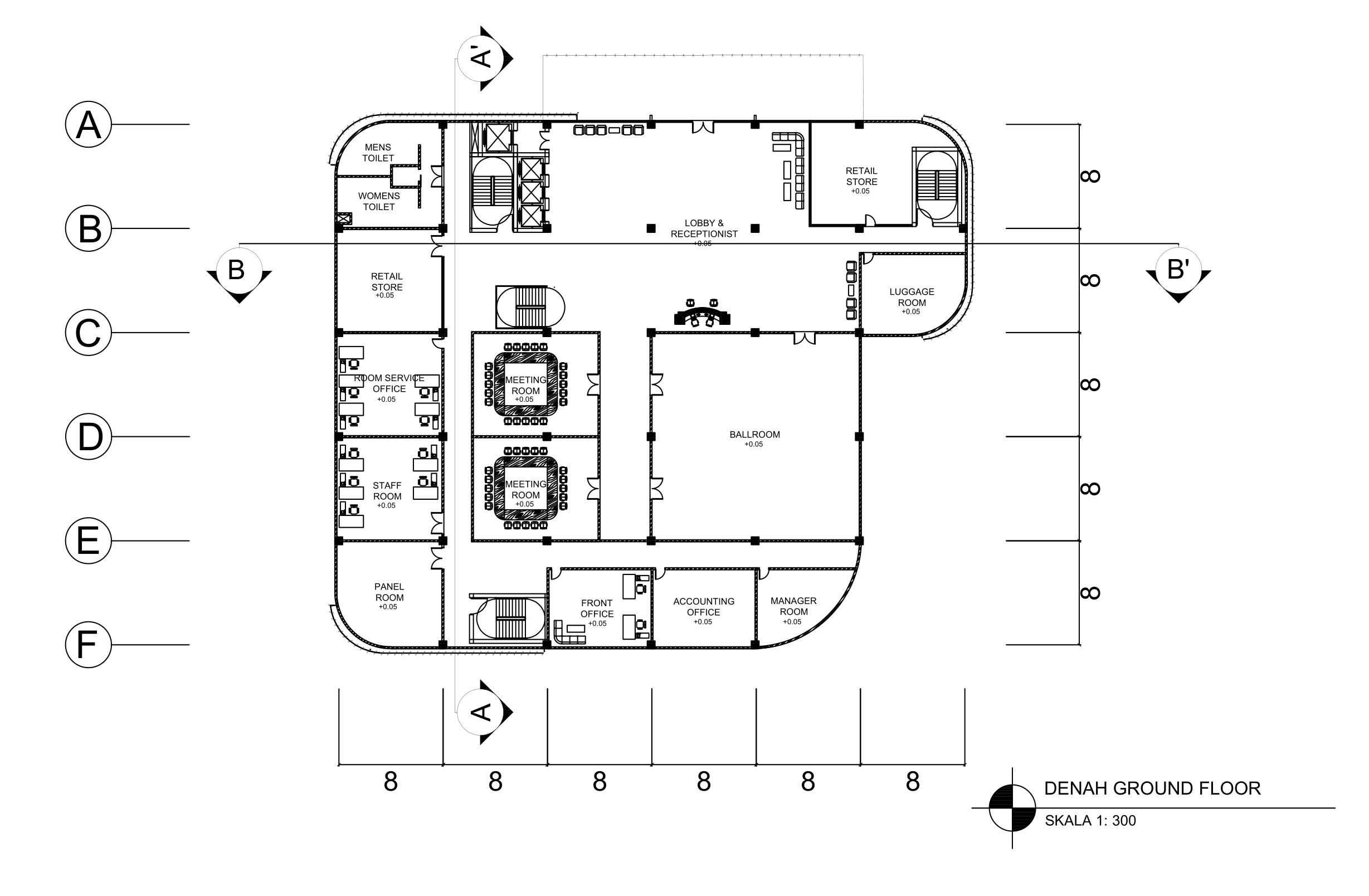

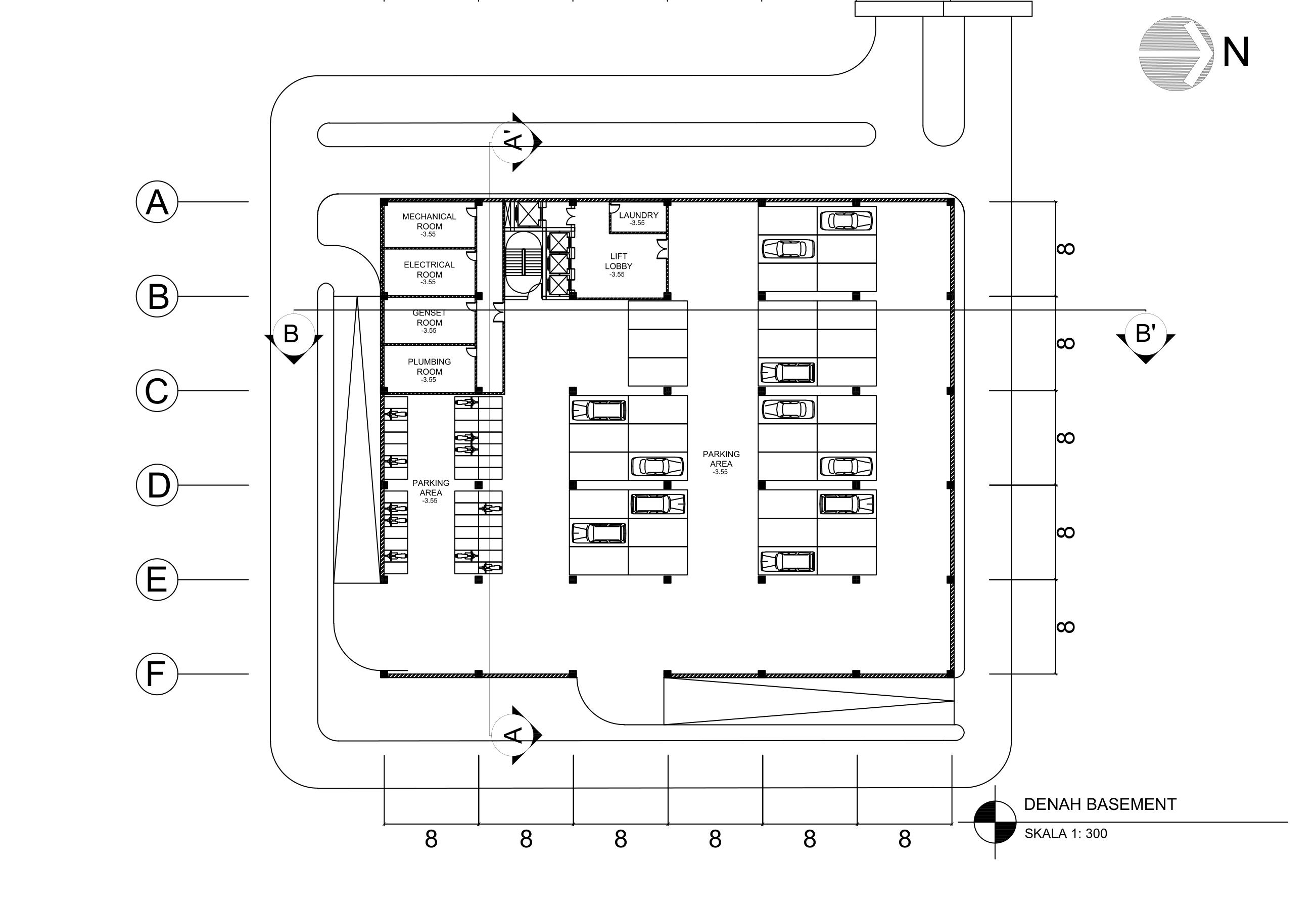

Floorplans

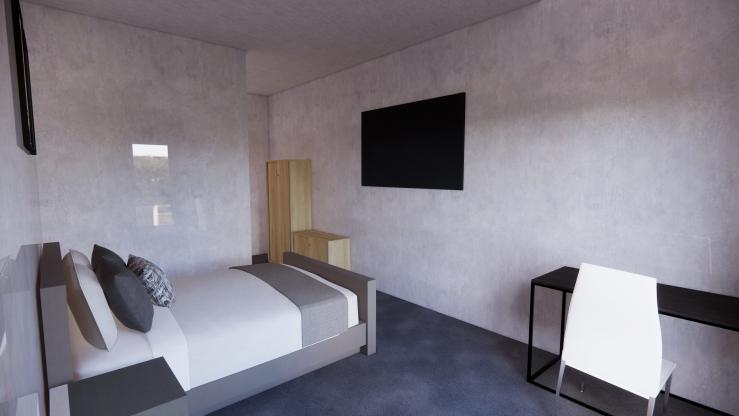

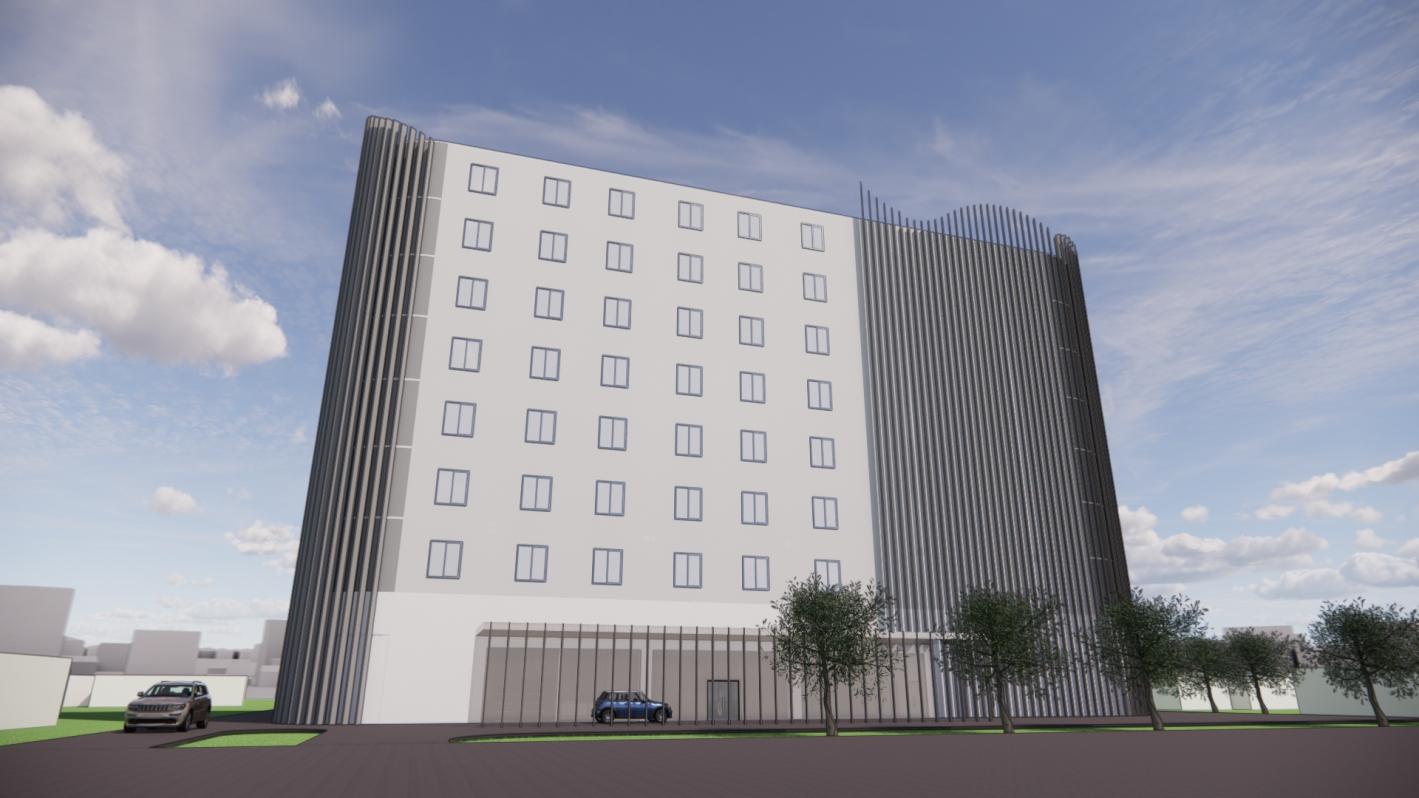

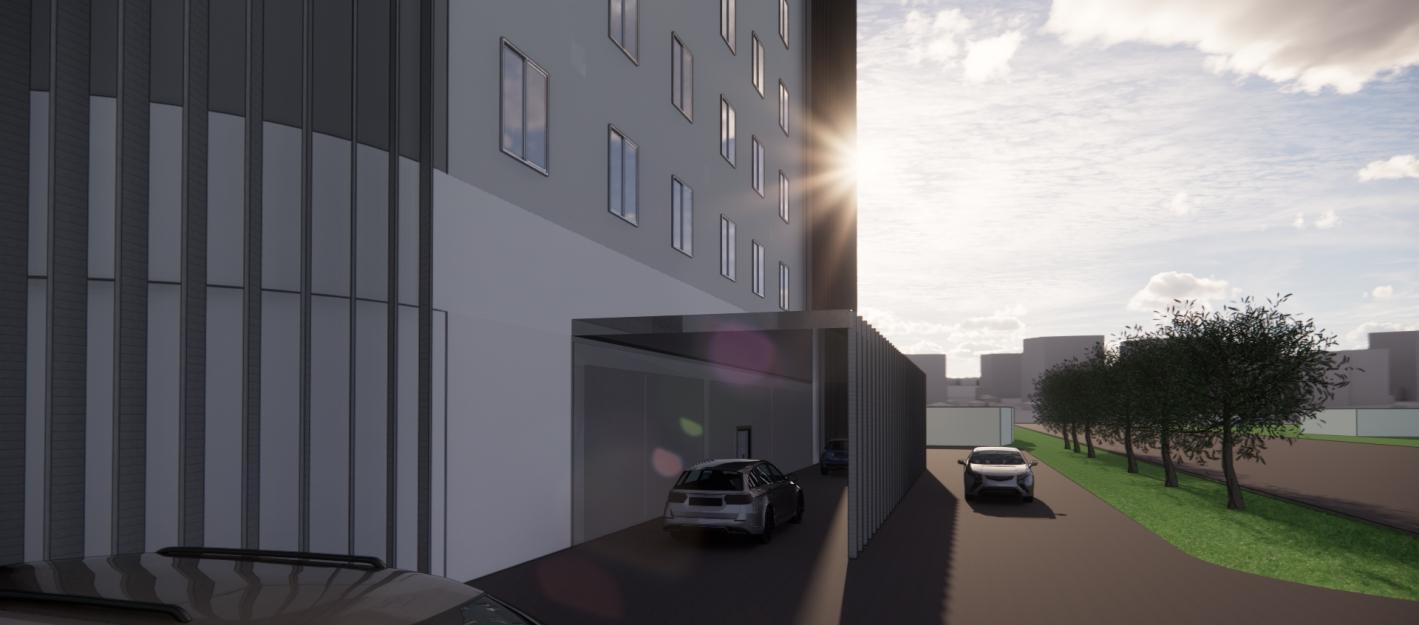

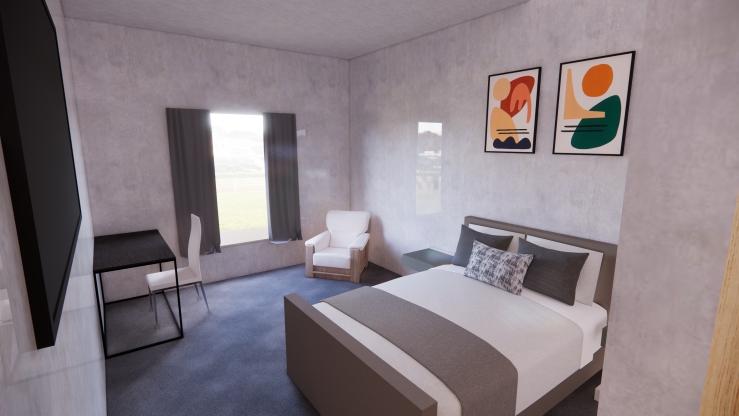

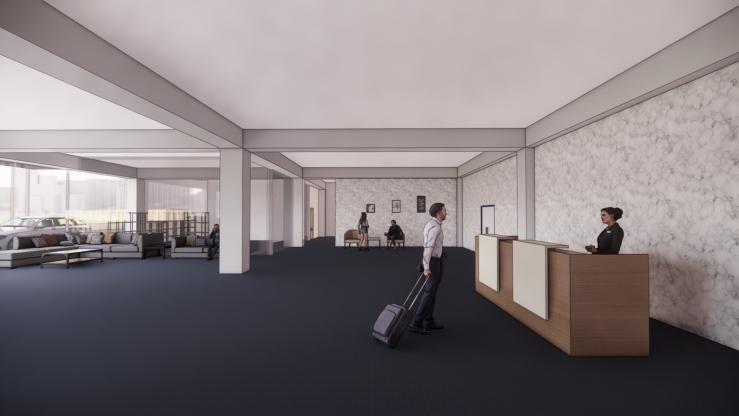

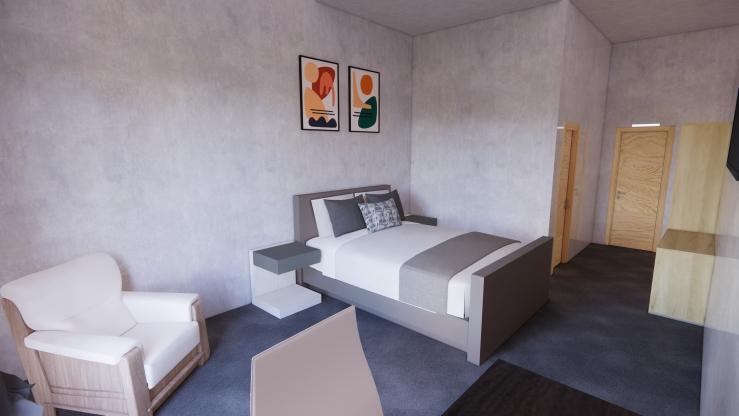

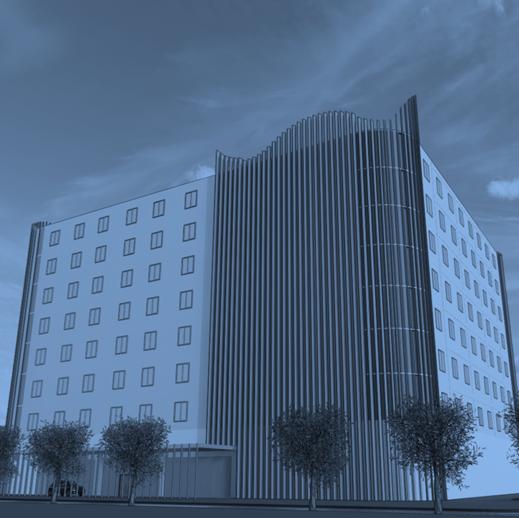

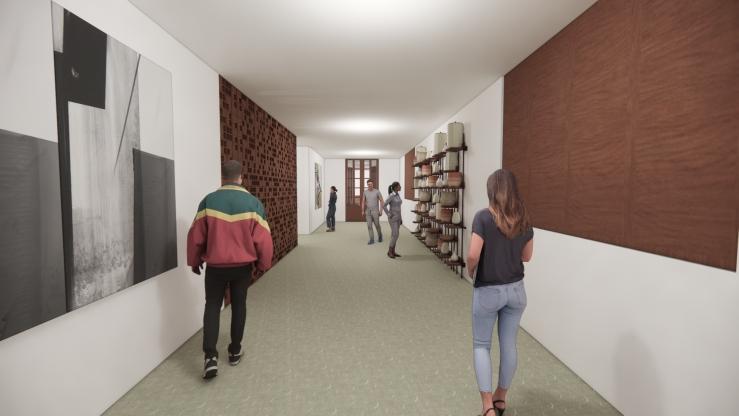

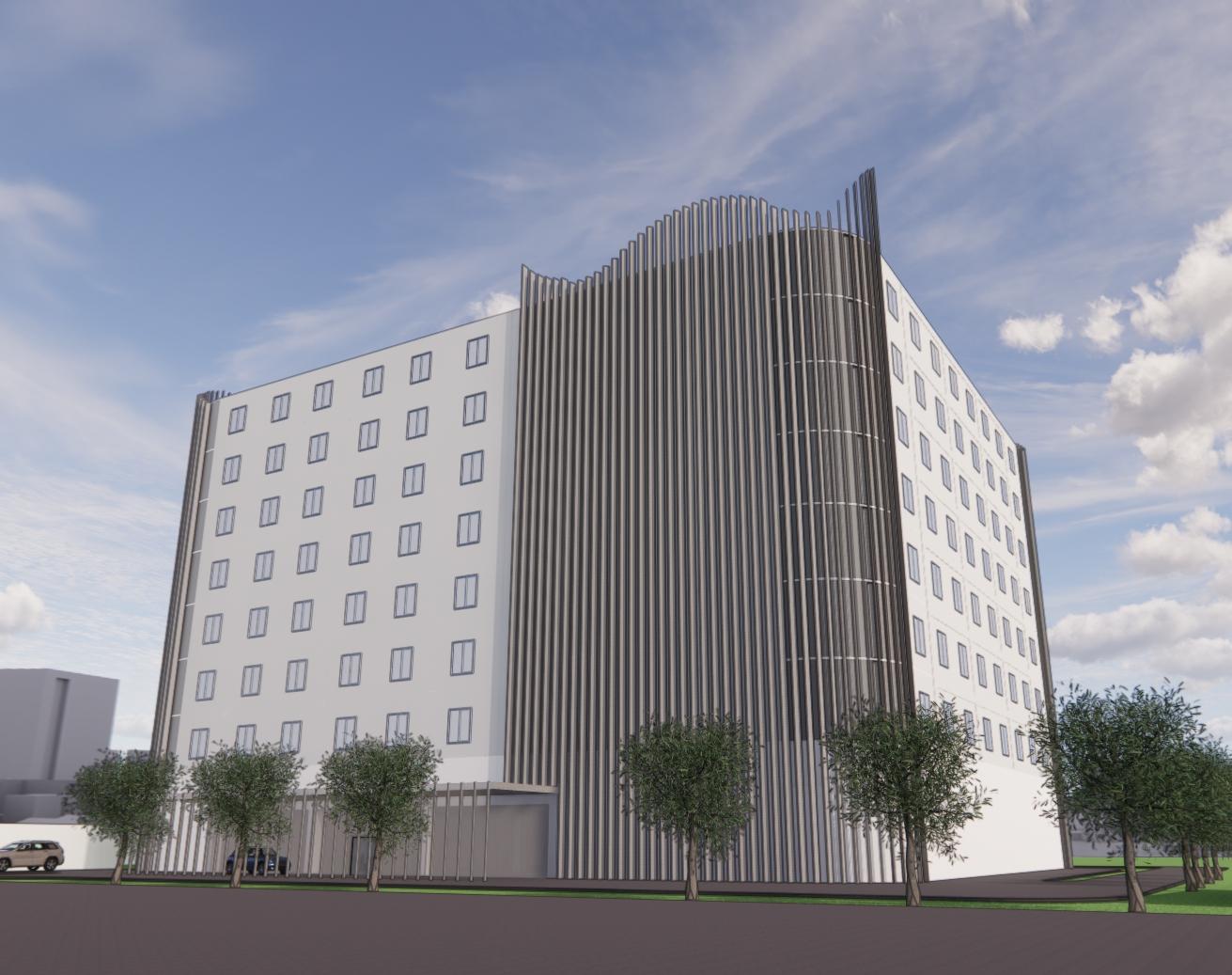

Perspectives

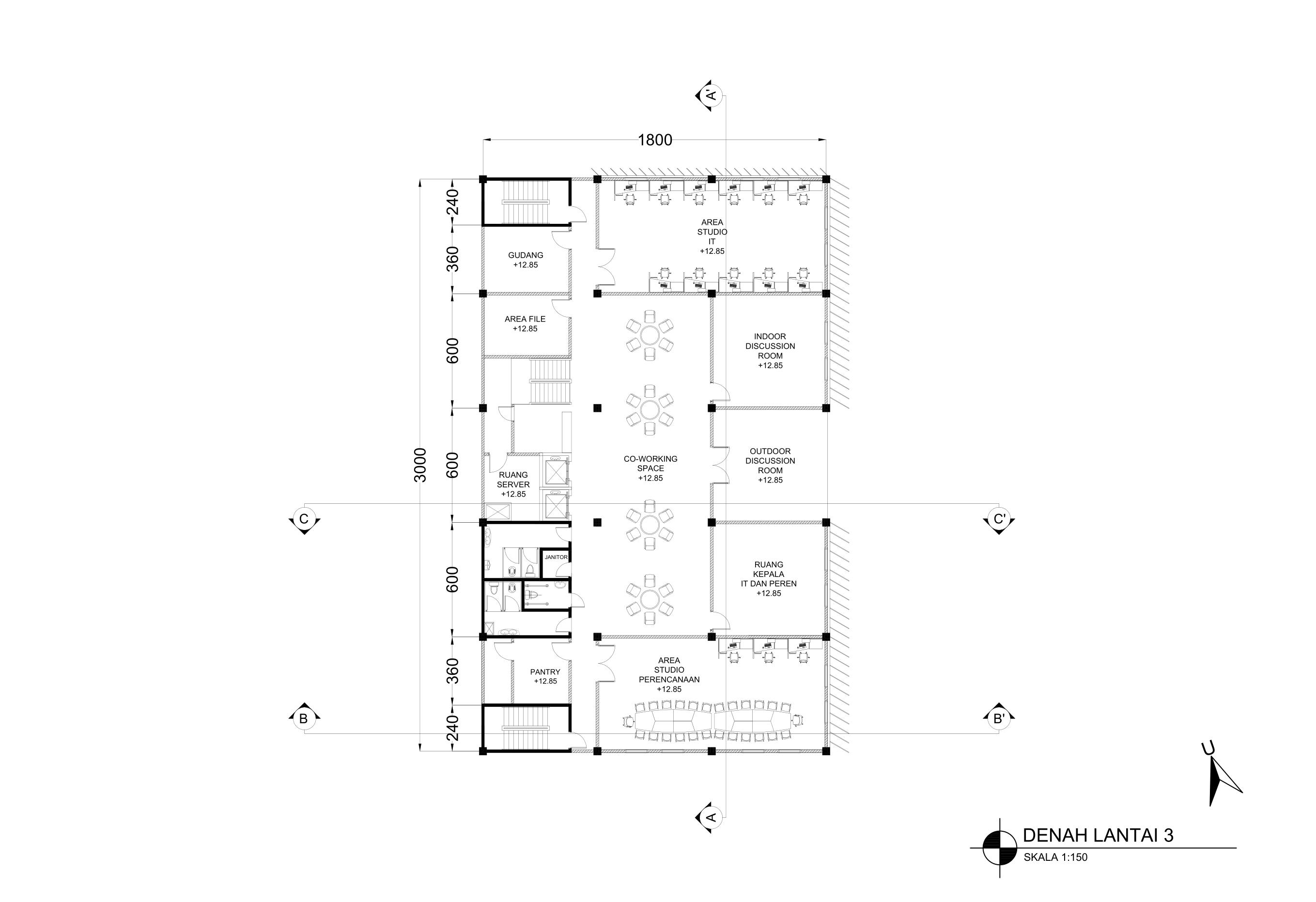

Compact Workspace for Dynamic Workflow
Contextual Architecture Studio | 2023
location
Sleman, DI Yogyakarta software used
AutoCAD, SketchUP, Adobe Photoshop, Enscape

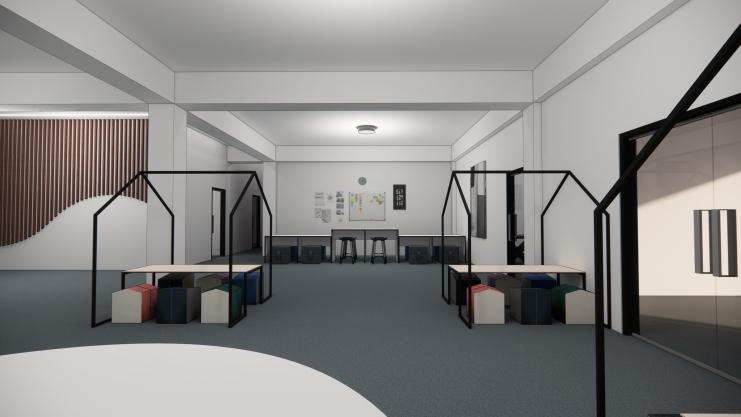

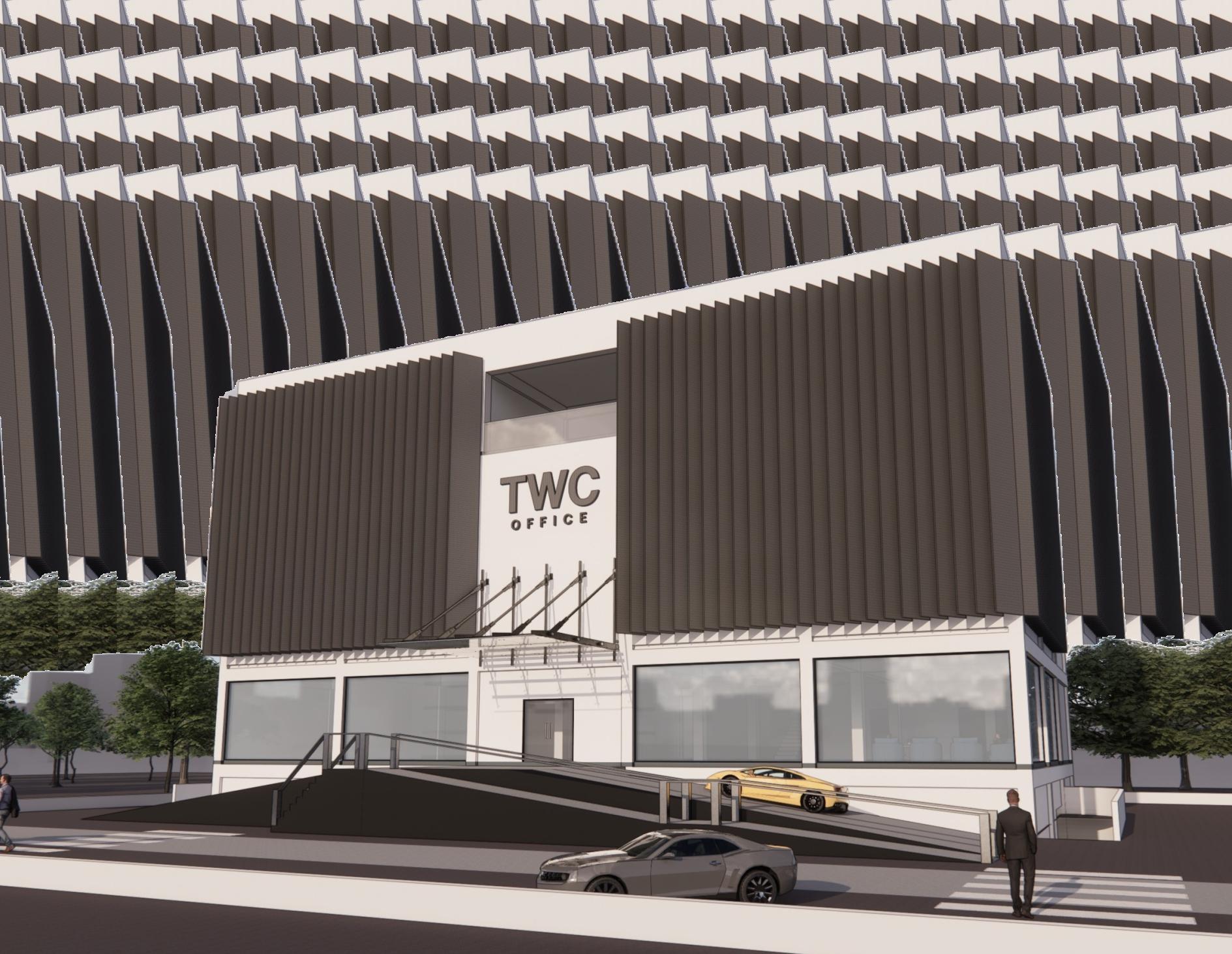

The goal of this tourist agent o ce designed in a compact workspace is to build great social relations between TWC employees in the o ce. This concept also helps keep the o ce open for collaborations between other companies, which also able to make several possible dynamic workflows between TWC employees, other companies, and their tourist clients. With this design, the o ce only requires low and e cient maintenance services so the maintenance of the building will not cost a lot and disrupt activities in o ce,andwillalwayskeepthebuildingfunctioningproperly

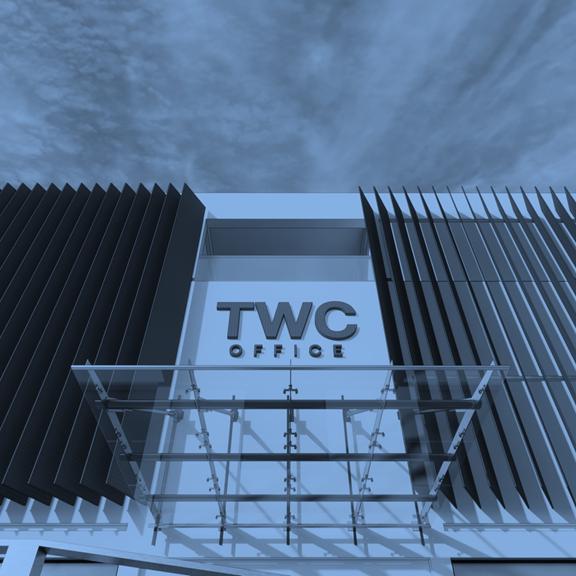

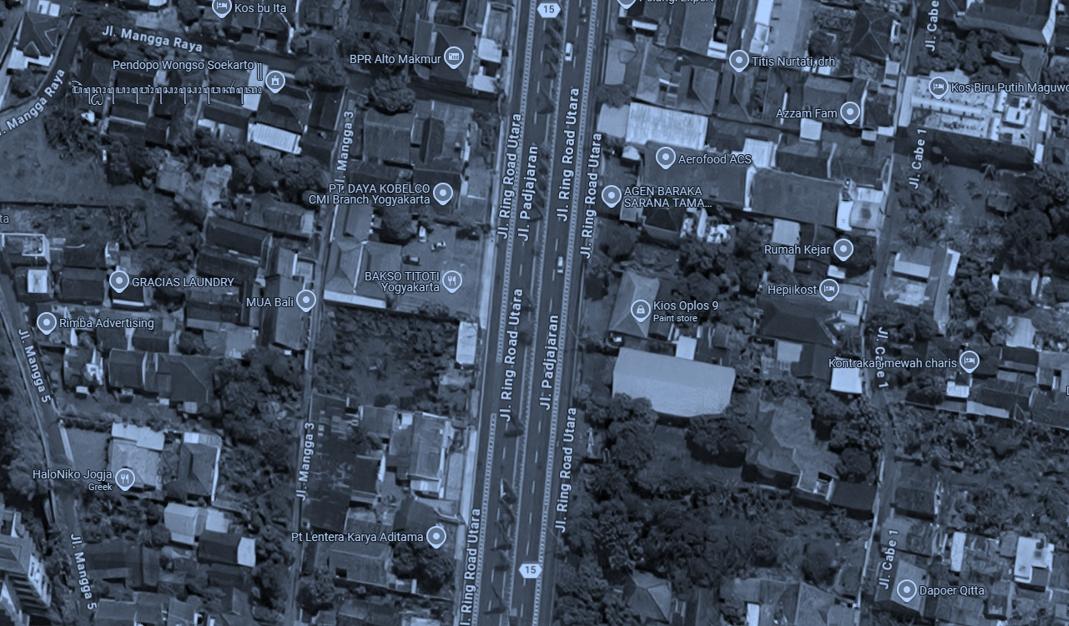

Basedontheanalysisonsitebeforethedevelopmentofthedesign,thebuildingdesignedto shapedaccordingtowinddirection,sunlightdirection,andstreetnoisebyusingasecondary skin that can help reduce the intensity of sunlight entering the building, direct wind into the building to help ventilate the building, and reduce noise that will disrupt activities inside the building. The usage of vegetations located at the north side of the site also helps the reductionofnoiseandpollutionsthatcamefromnorth.
Avi Muhammad Harris +62 811 8332 334 aviharris26@gmail.com linkedin.com/in/aviharris/
