PREVENT OVERCHARGING & DISCHARGING
B AT T E R Y P ACK CELL BAL

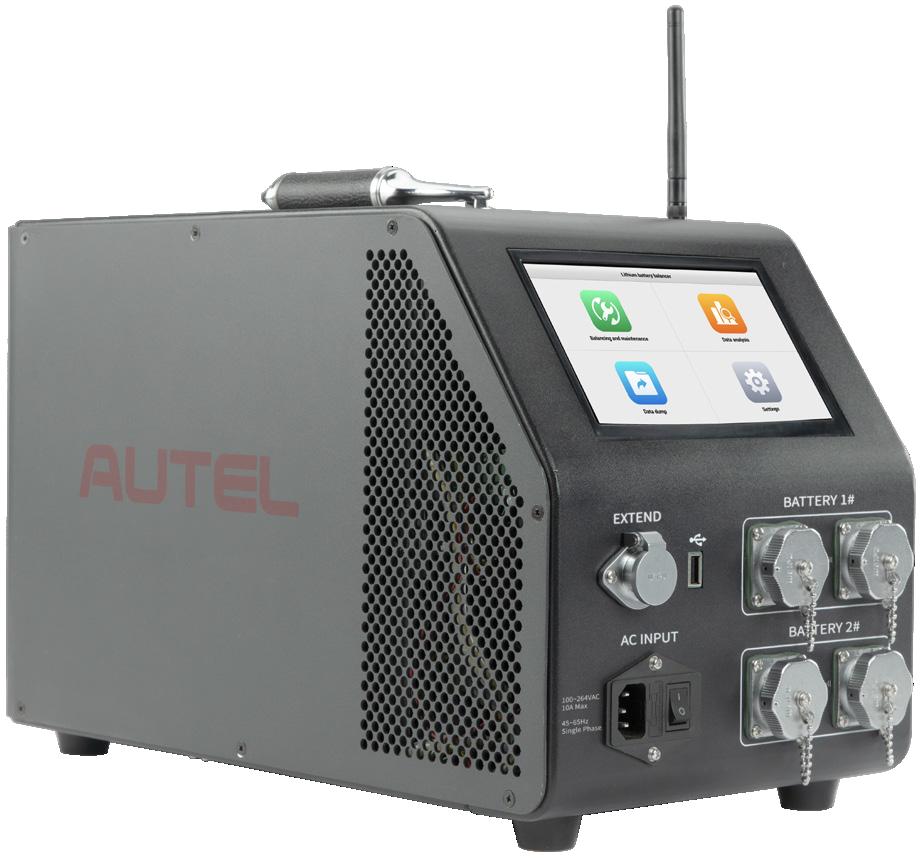

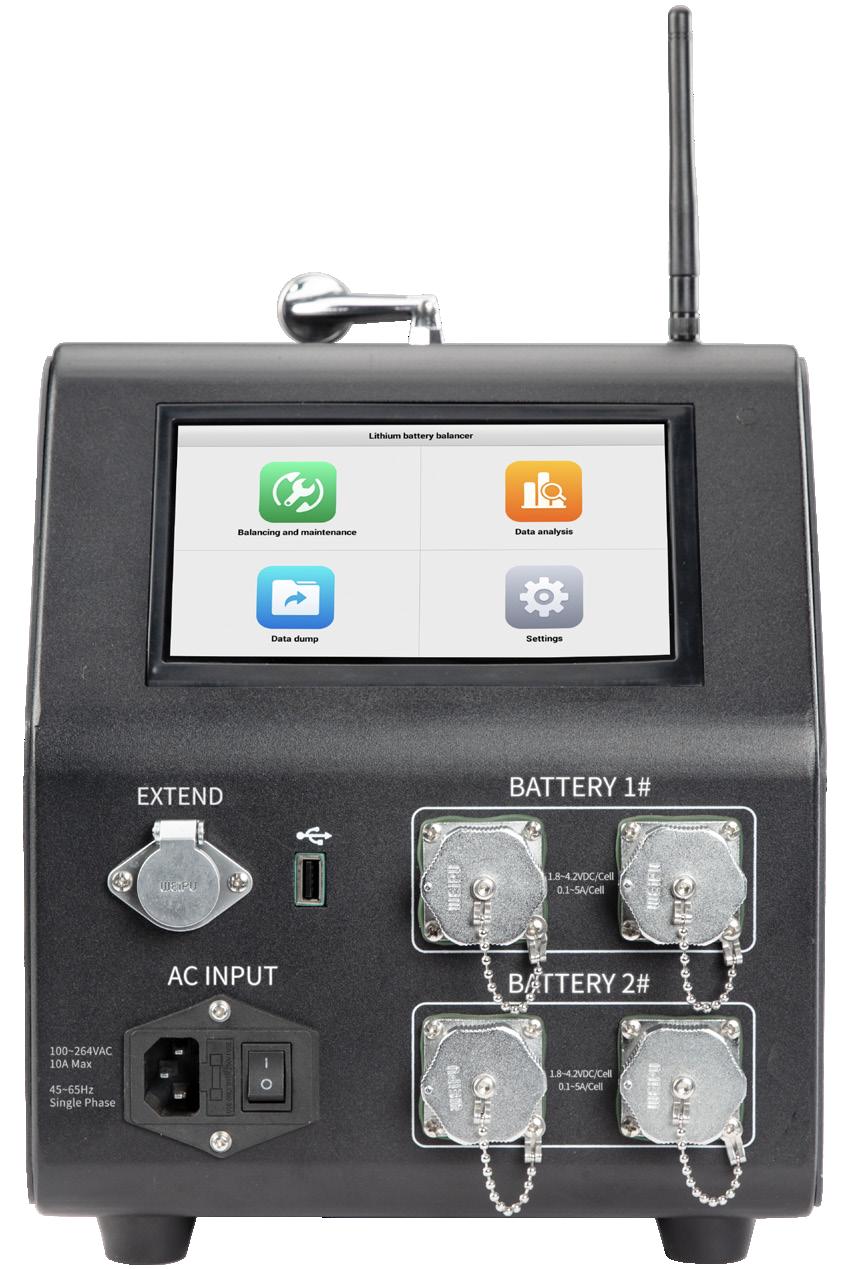

M A X I E V
B C E 1 0 0
REAL TIME CHARGE BALANCING & CALIBRATION
• Detect and charge module cells evenly and prevent overcharging of cells.
• Ensure accurate measurements by detecting and correcting voltage and current values
• Overvoltage protection technology ensures that the cell voltage is close to the target threshold during the testing process
• Additional protections for undervoltage, overcurrent, shor t circuit and reverse polarity.
HA R D WA R E SP E C I F I C AT I O N S
CHARGE AND DISCHARGE VOLTAGE RANGE 1.8-5V
CHARGE AND DISCHARGE CURRENT RANGE 0.1-5A
VOLTAGE DETECTION ACCURACY
CURRENT SAMPLING ACCURACY
±0.1%FS±2mV ( maximum range 5 V)
±1%FS±0.05A ( maximum range 5 A)
CHARGE AND DISCHARGE POWER 600W Max
TEST CELL QUANTITY
POWER INPUT
Max 2 Packs and 12 Cells (max) Per Pack (Suppor ts 2X12 / 1X24)
AC 110V/220V
CHARGE CONTROL Constant Current and Voltage Charging
DISCHARGE WORKING MODE Constant Current
PROTECTIVE FUNCTION
DIMENSIONS (WEIGHT)
Input Over-Current and Over-Voltage Protection; Output Over-Current and Over-Temperature Protection
496x246x262mm (14kg)
