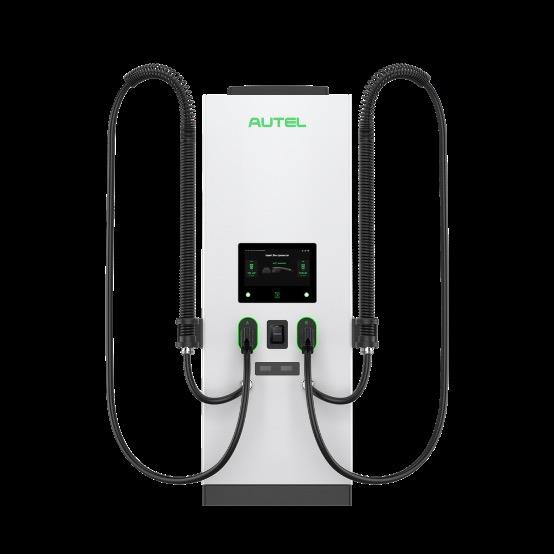

MaxiCharger DC Series

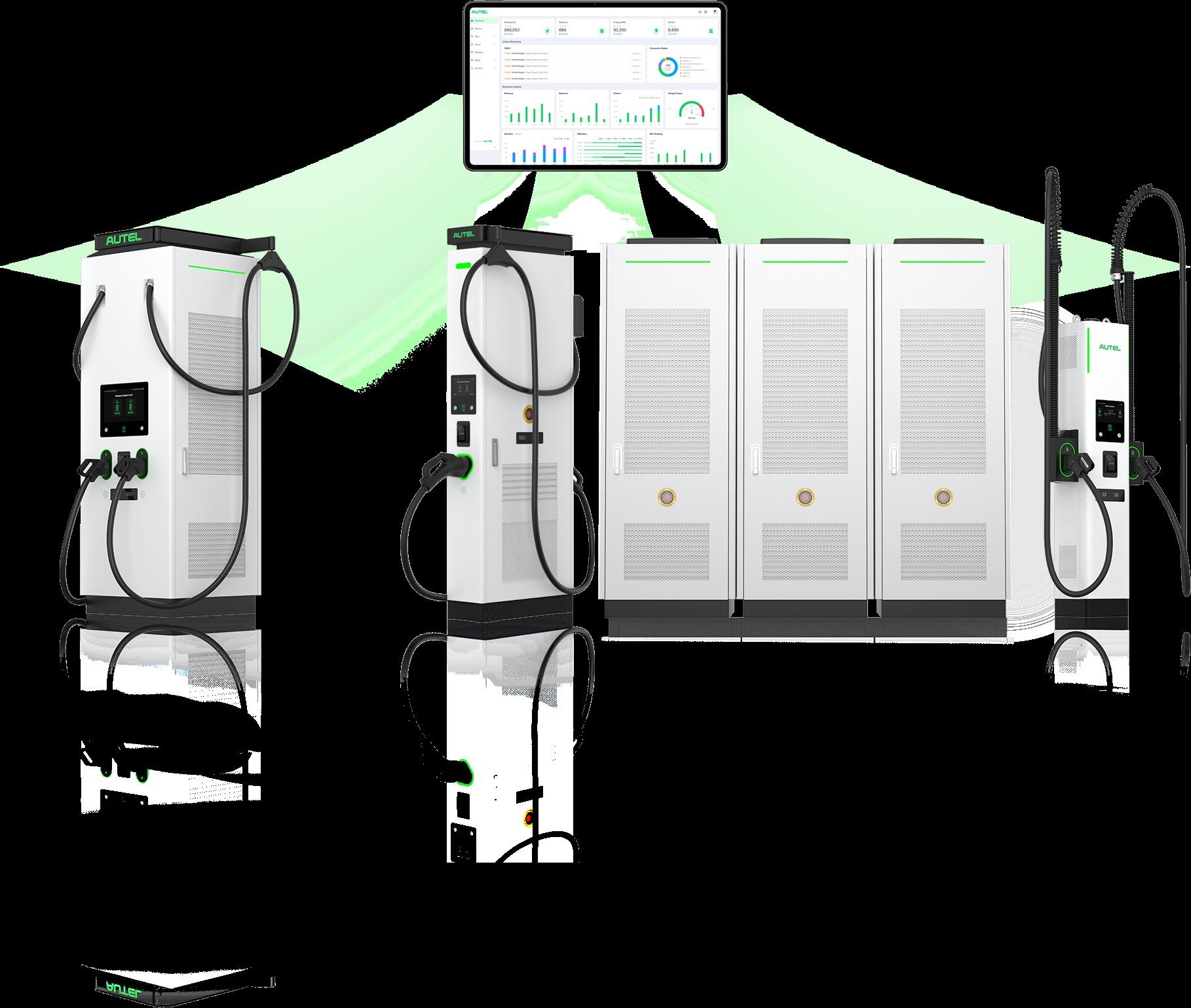

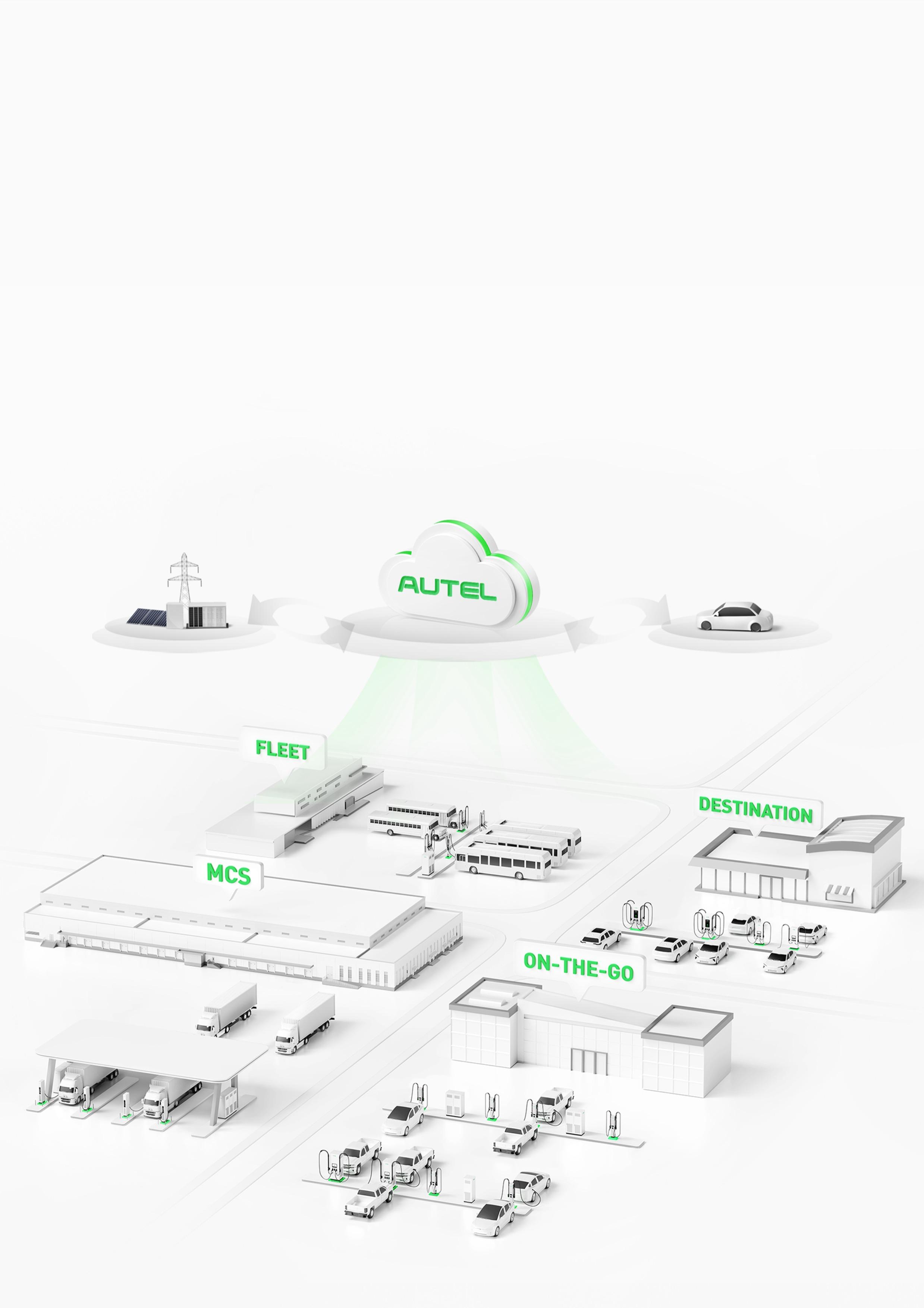

The new-generation MaxiCharger DC series offers the one-stop intelligent charging network with cuttingedge innovations powered by AI. It provides a reliable performance with full-modular design, Eco-Cooling technology and site-level network hot backup. Intelligent vehicle-charger-cloud compatibility and charging curve prediction technology empower customers to maximize yield. Paired with PV+ESS integration and real-time energy dispatch algorithms, it optimizes total cost of ownership (TCO) while increasing revenue.
120kW-480kW
120kW-1440kW
Output Power
Minimum Adjustable Power
Output Voltage
Output Current
Peak Efficiency
Number of Outputs (Max.)
Charging Mode
Earthing System
Input Voltage
Input Frequency
Network Type Power Factor
Harmonic Distortion (THDi) Overvoltage Category
Dimensions (W D H)
Connectivity
Screen Type
Cable Length Standby Power
Enclosure Rating
Communication to the EV
Software Update
Accessibility
Emergency Button Warranty
Status Indication
Languages
120kW; 160kW; 200kW; 240kW 40kW
150-1000V
Air Cooling: 380A (Max. 500A); 300A (Optional) 96% 2 2*CCS2 3P+PE
3-phase 400V AC ±10% 50Hz/60Hz
TN-S, TN-C, TN-C-S, TT 0.99 <5% AC side (Input) OVC: III
782mm x 480mm x 2150mm
Double SIM 4G, 5G, Wi-Fi, Ethernet 15.6 inch LCD Touch Screen (1920*1080) 5m; 7.5m(Optional) <85W (Depending on configuration) IP54/IK10
ISO/IEC 15118 with PnC, DIN 70121
OTA updates via web portal, FTP, FTPS, HTTPS Meets ADA requirements for height, reach, and user interface Yes 24 months, warranty extension possible
English, French, Spanish, German, Italian (others available via software upgrade)
Payment Terminal Nayax Onyx; Payter P66/Apollo; PAX IM30; Worldline Valina; Castles S1U2
RFID Protocols
User Authentification
Communication Protocols Cable Management System
Humidity
Operating Altitude
Operating Temperature Range
Storage Temperature Range
Noise
EMC Compliance
Compliance and Safety
Certification
ISO 14443 A/B, ISO/IEC 15693, MIFARE
AutoCharge, Plug & Charge, APP, RFID card, QR code, Credit Card (Optional) Standard OCPP 1.6J (OCPP 2.0.1 Optional) Standard
<95 % RH, non-condensing 2000m
-35 ~ 55 / -31 ~ 131
-40 ~ 70 / -40 ~ 158
55dBA (Silent Model) EMC Class A
IEC 61851-1, IEC 61851-21-2, IEC 61000, Eichrecht
CE; UKCA; TR25; ETSI EN 303645; TÜV
