Textile Development and Marketing Portfolio

“Philipp Otto Runge” by: Austin Che

Philipp Otto Runge was a German romantic artist and color theorist from the eighteenth century. He’s known for painting many artworks relating to himself, his family, and religious stories.

Brighton

Pantone: 131 C

Smoke

Pantone: 7615 C

Carrie

Pantone: 105 C

Creme

Pantone: 7401 C

Milk

Pantone: 7436 C

Kale

Pantone: 7738 C

Swicy

Pantone: 7563 C

Oceania

Pantone: 5265 C

Night

Pantone: 6 C

Lila

Pantone: 2695 C

Night Creme Kale

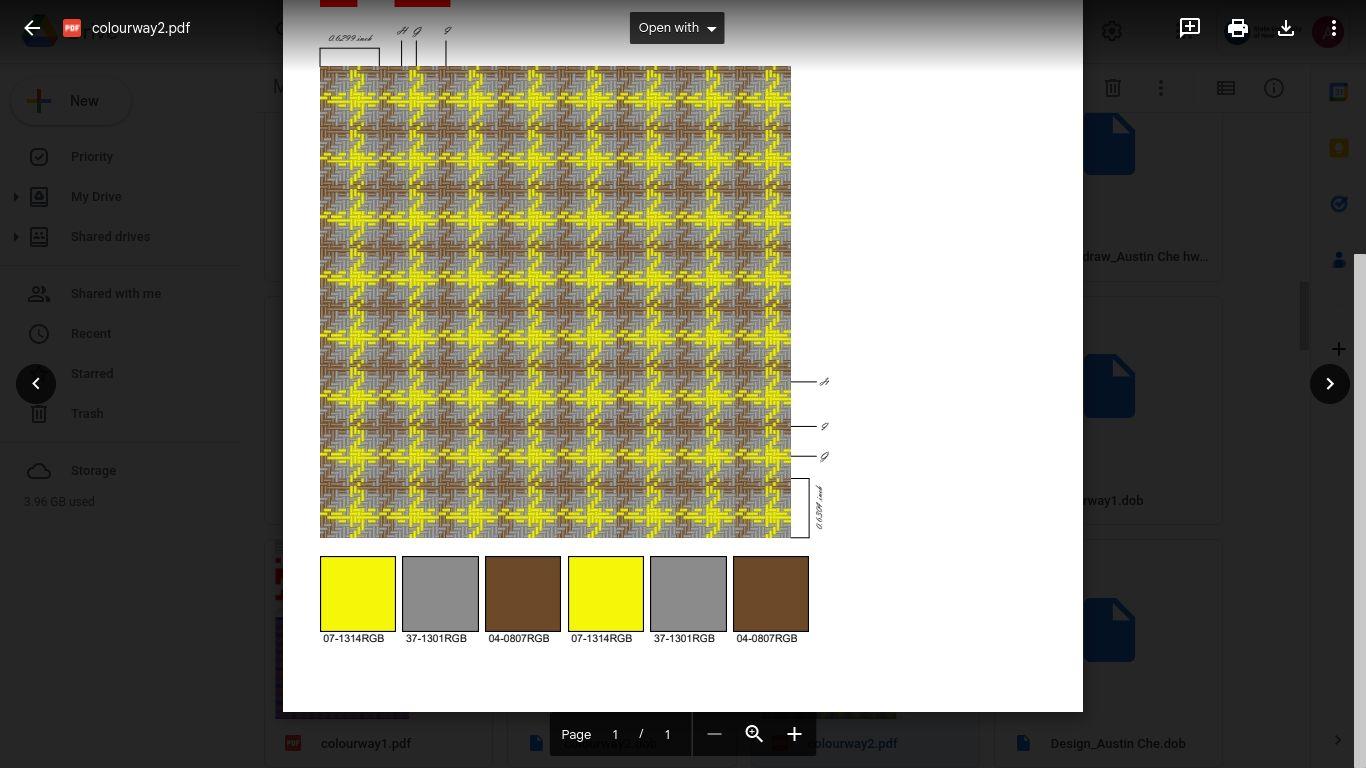

Coordinating Fabric #1 Colorways “Imperial” “Orchard”

Night Creme Kale

Coordinating Fabric #2 Colorways “Sweet”

“Tropical”

Brighton
Lila
Oceania
Swicy
Creme Swicy

Yarns: black Filling

Yarns: 20/1 cc white

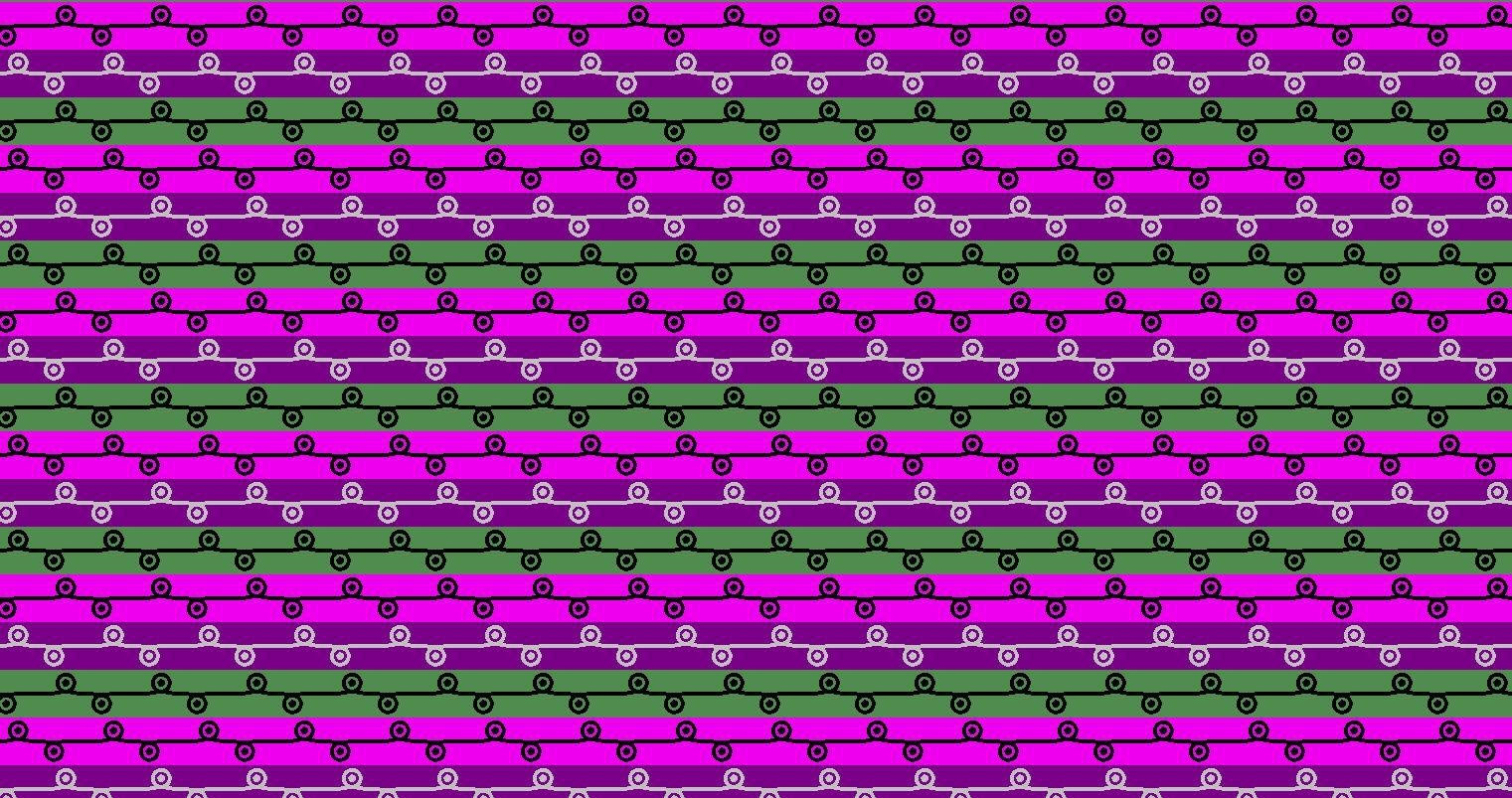

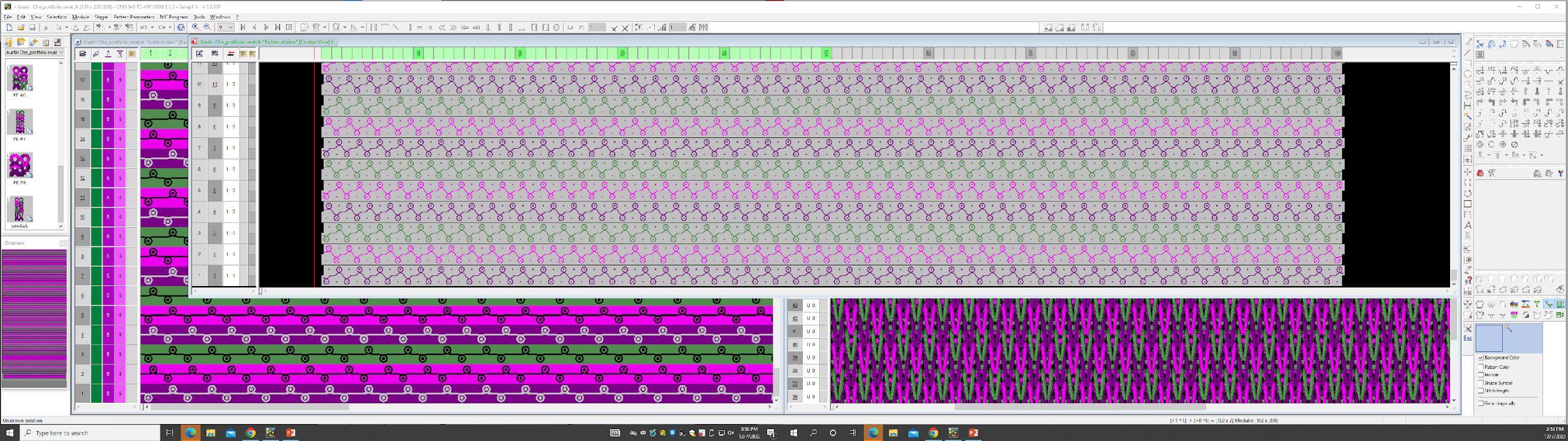

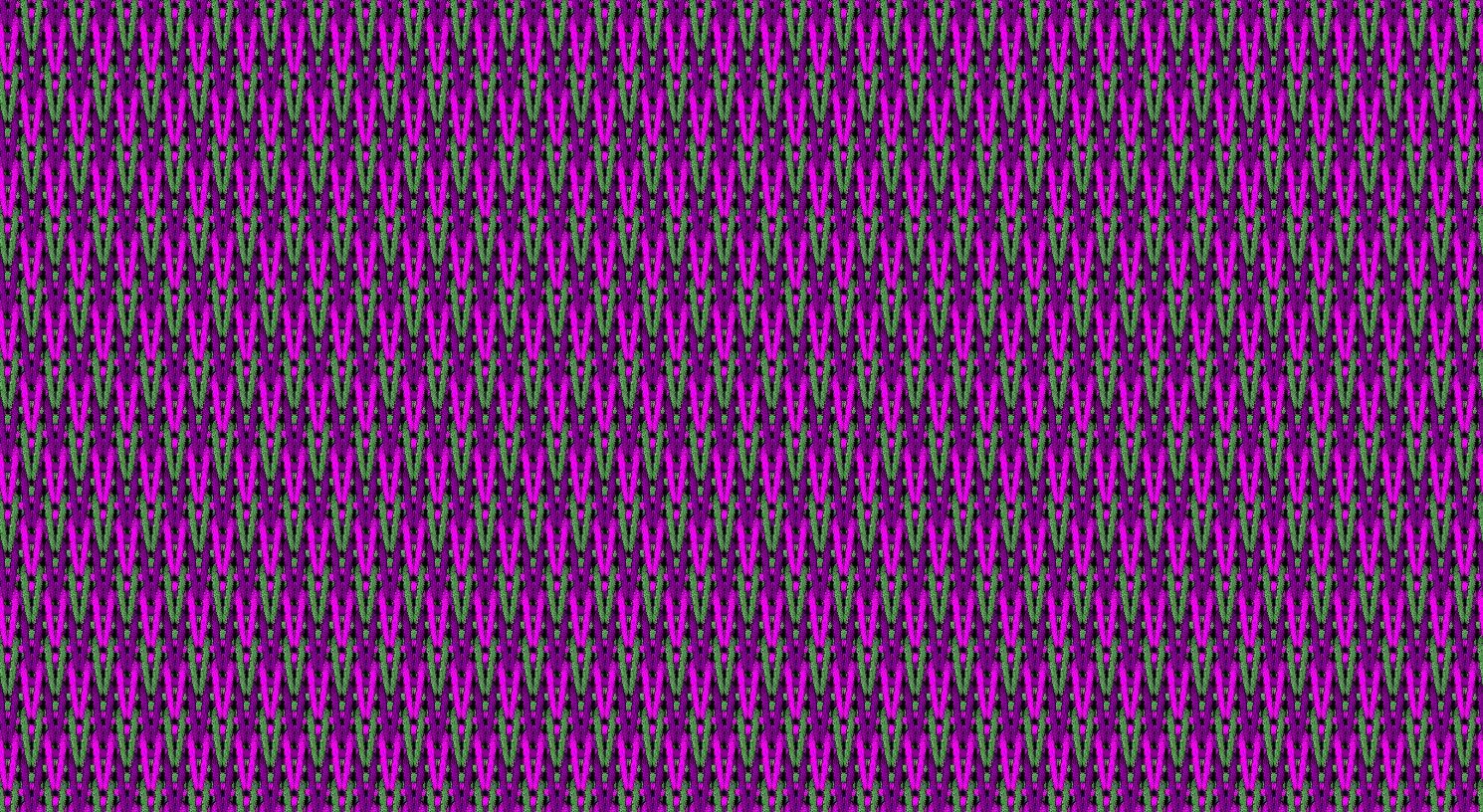

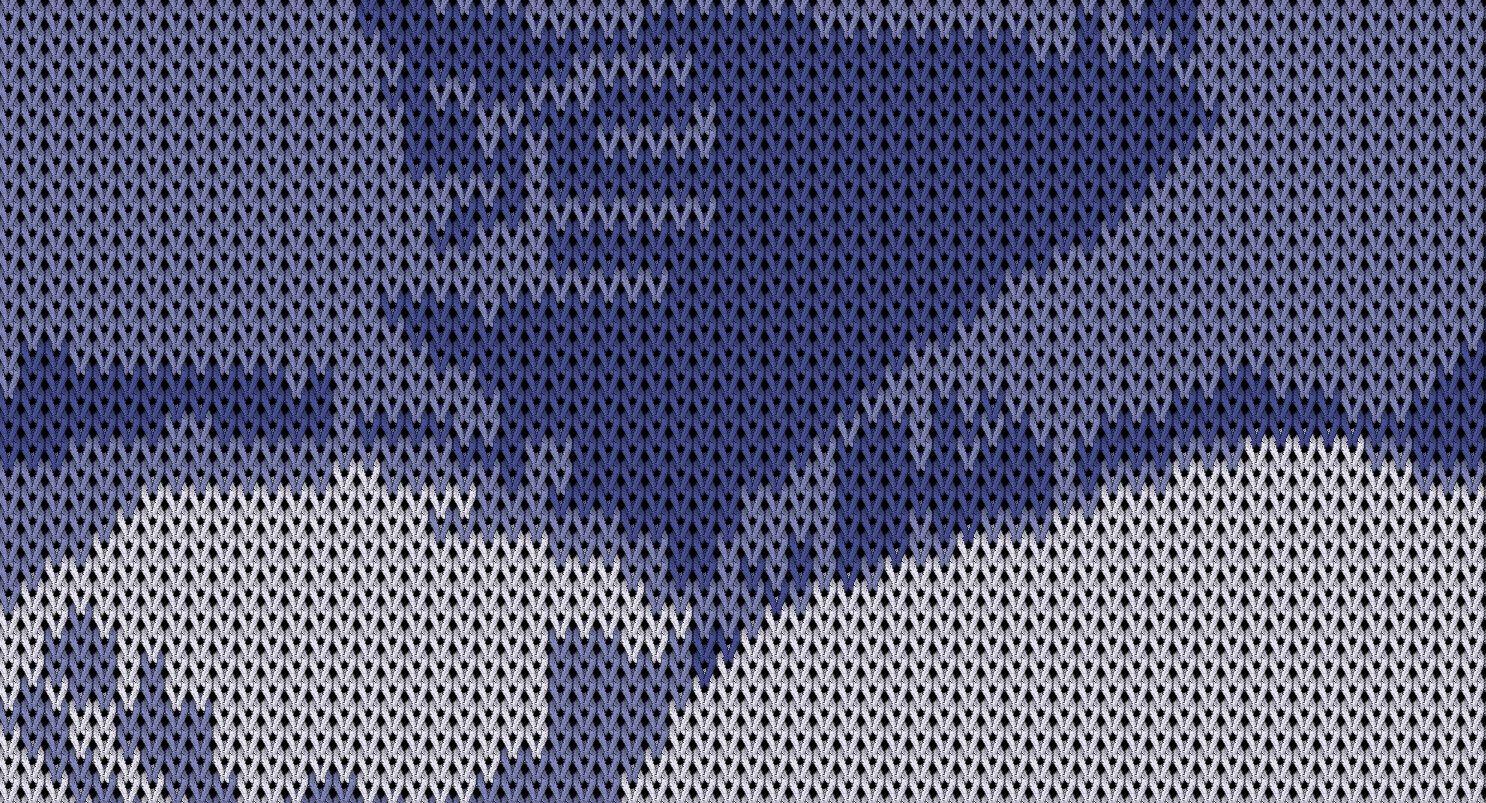

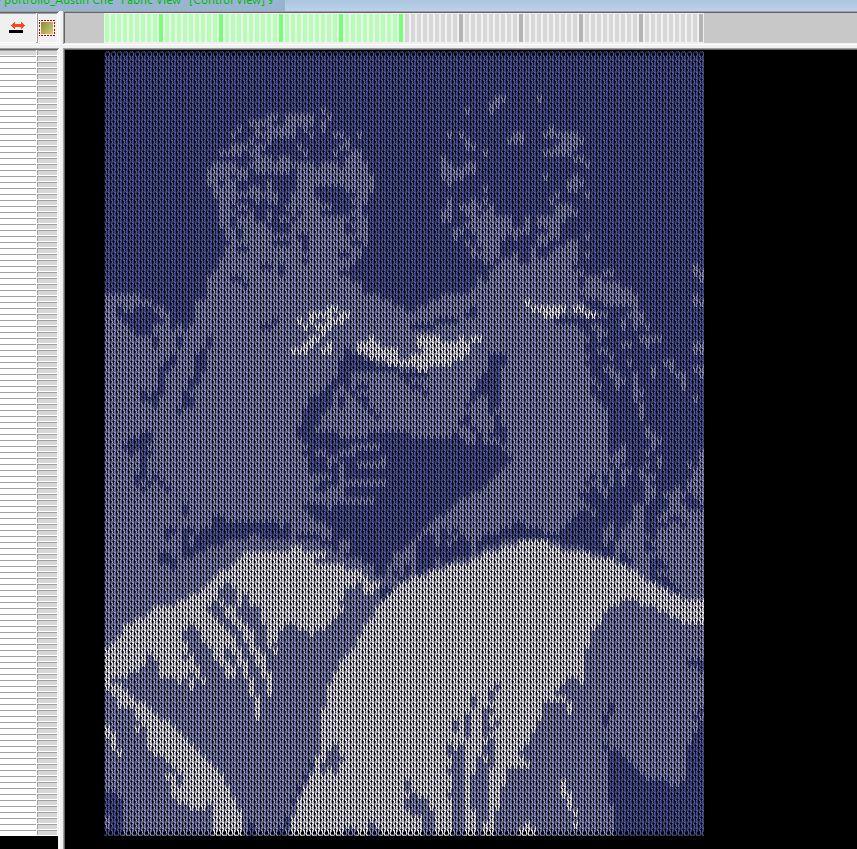

Simulation in Stoll

Feed 1 Feed 2 Feed 3 2 4 6 1 3 5 2 4 6 1 3 5 2 4 6 1 3 5 Feed 4 Feed 5 Feed 6 2 4 6 1 3 5 2 4 6 1 3 5 2 4 6 1 3 5

Stitches

❖ Stitch density: 16X15

❖ Yarns:

White Teal Purple ➢ 1 end

100% Wool

2/20

1 end

100% Wool

2/20

1 end

100% Wool

2/20

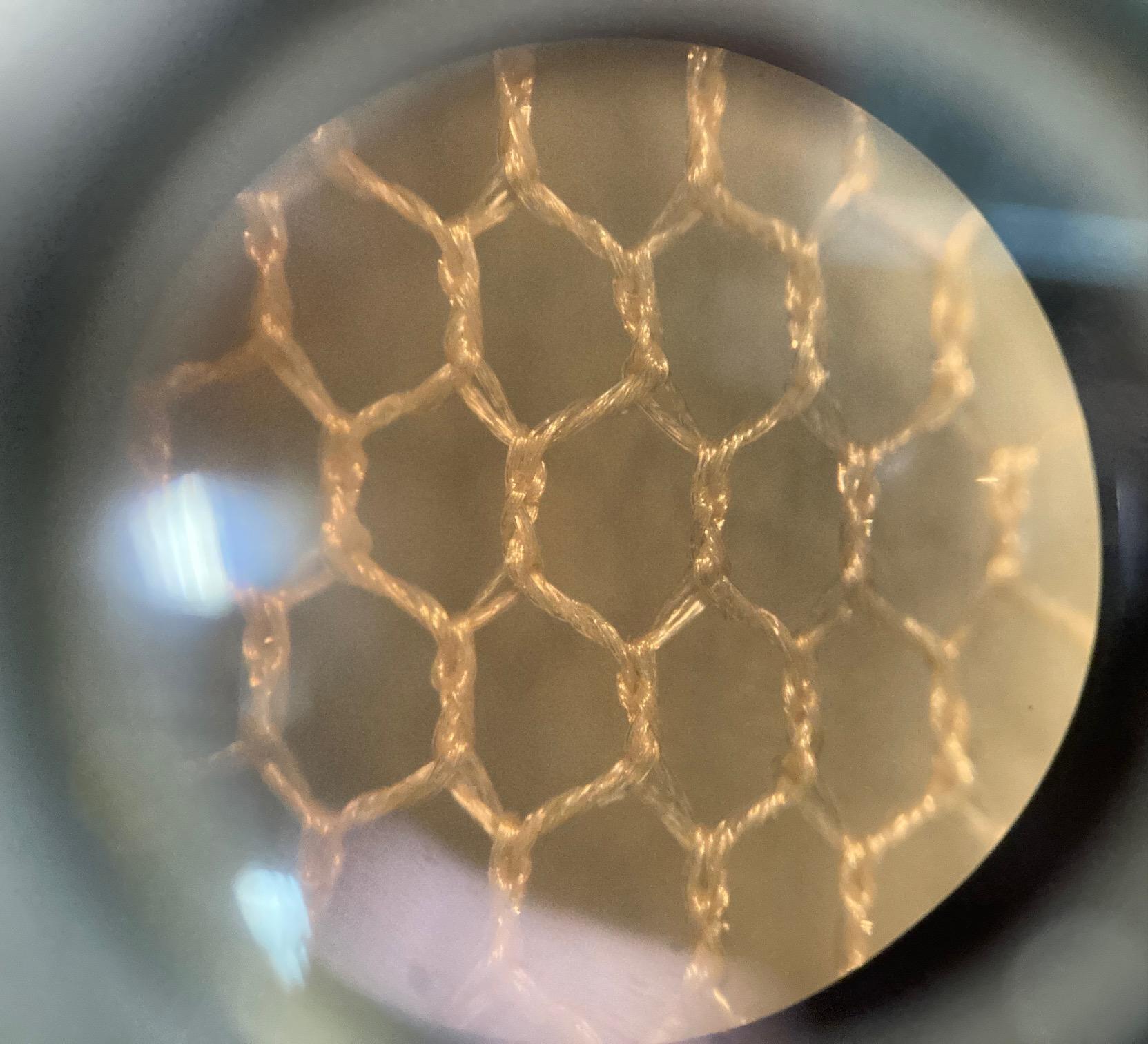

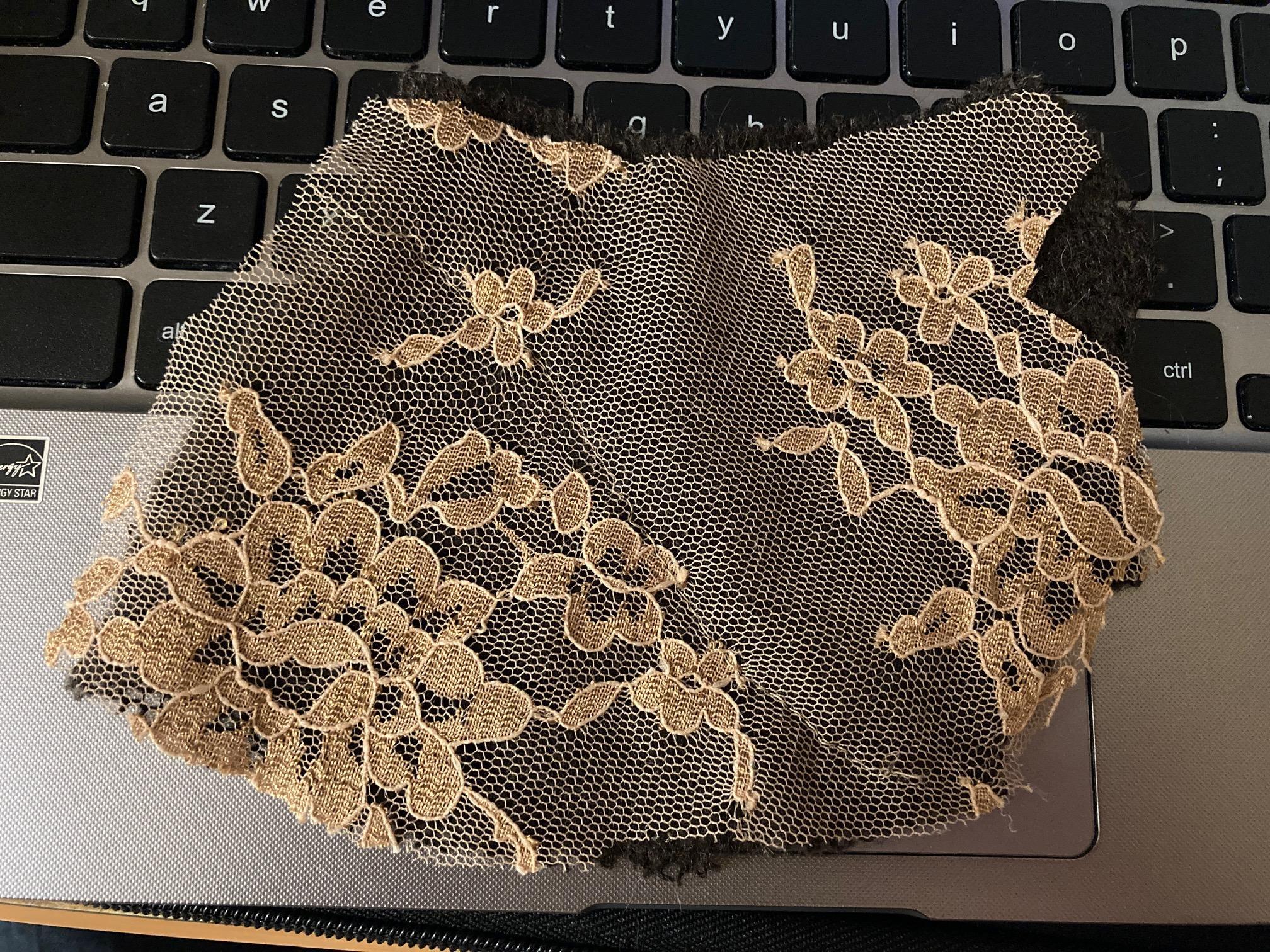

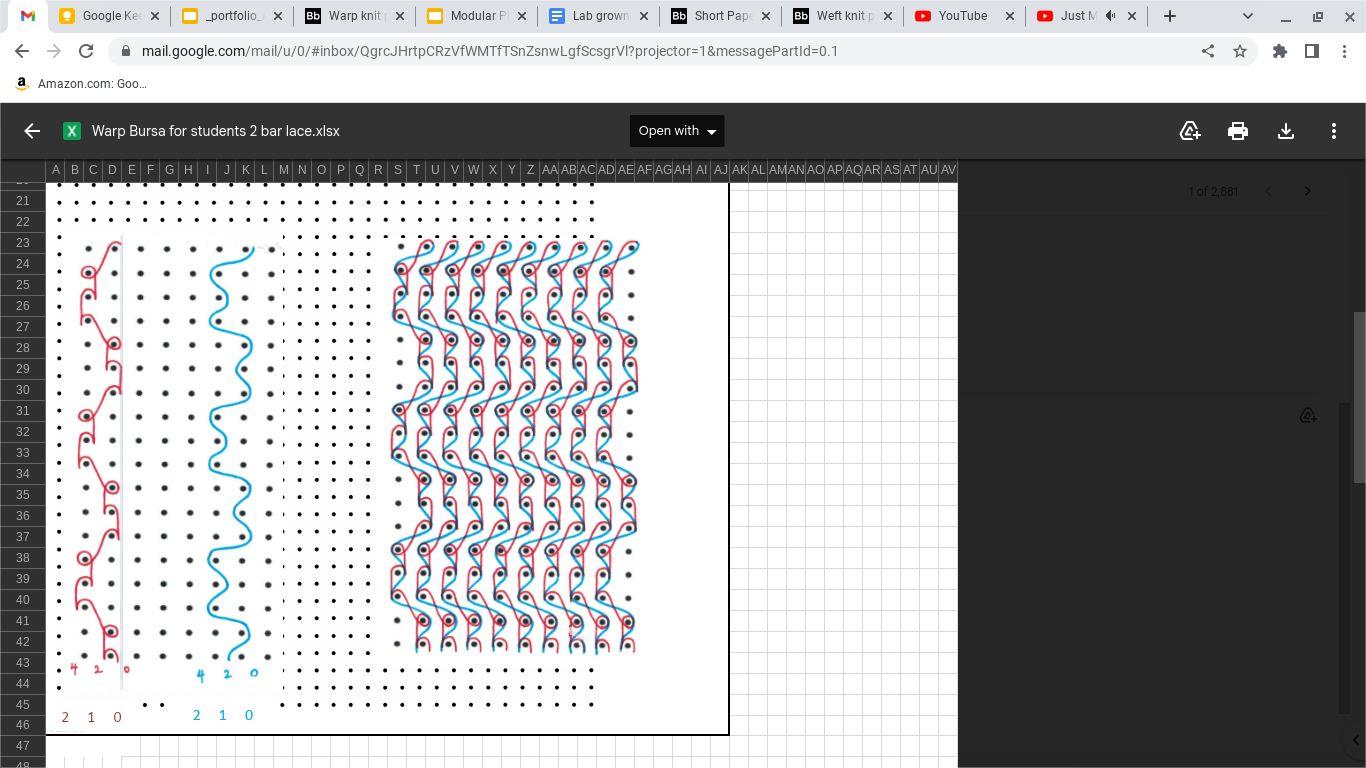

Warp Knit Analysis

❖ Fabric type: 2 Bar Lace

❖ Merchandising name: Secret Garden

❖ Design Repeat: 1 Wale X 6 Courses

❖ Fiber Content: Nylon

❖ Color: Gold

❖ Yarn identification: multifilament

Bar Threading Lapping movements (numerical)

FB fully 0/1, 1/0, 1/2, multifilament

Yarn

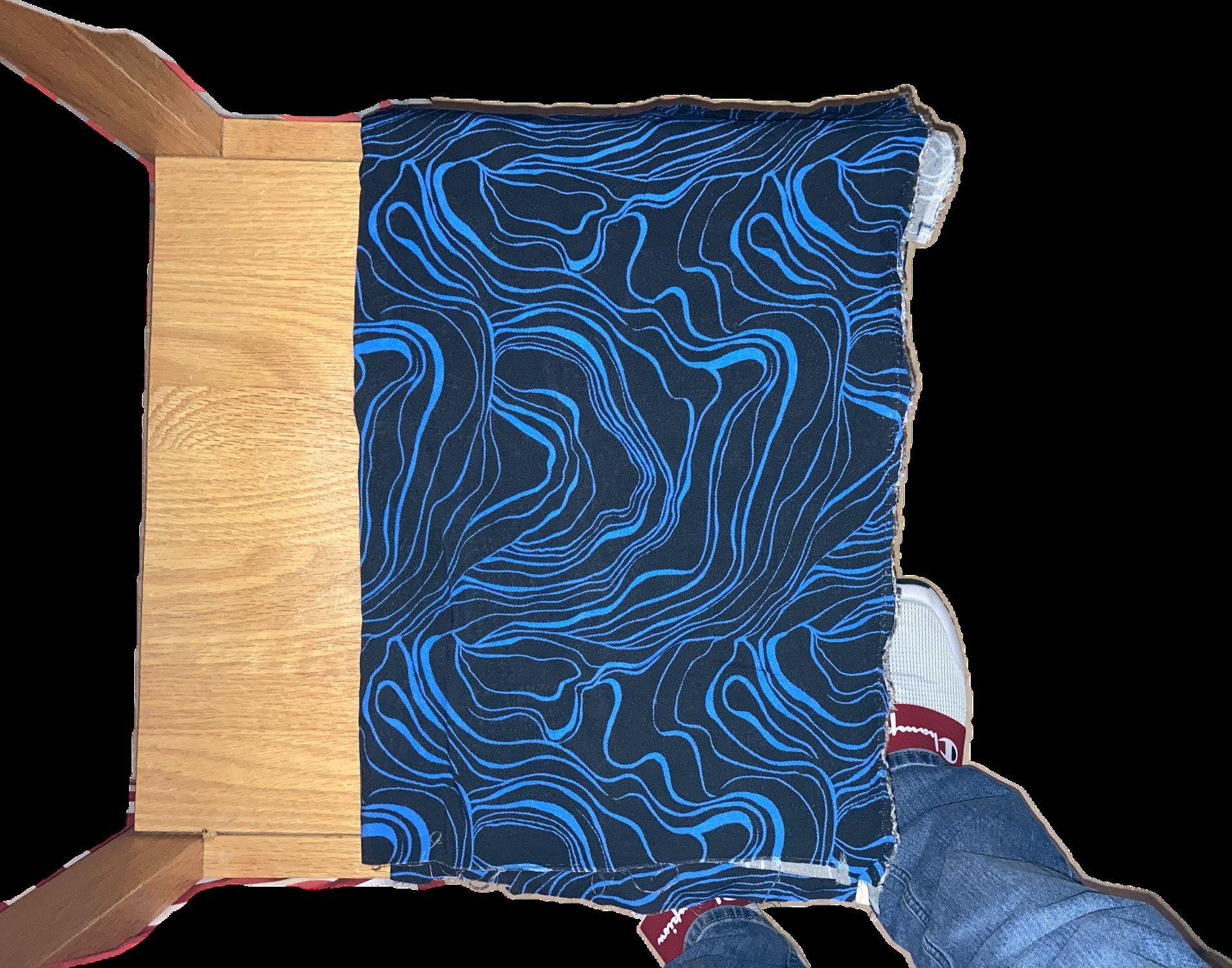

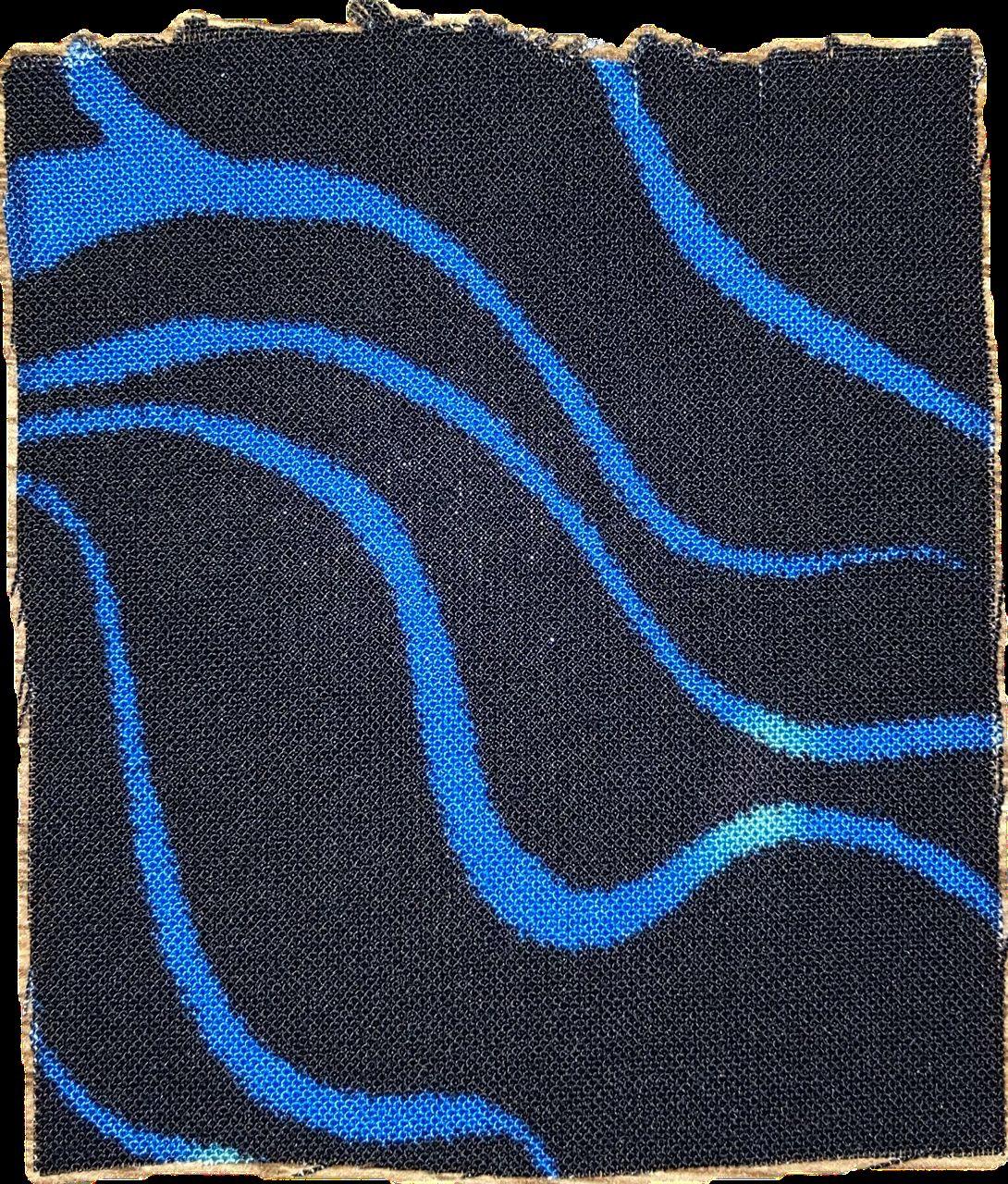

soft, lightweight woven rayon textile. Printed like the ocean waves, with a repeating black and blue ripple effect.

Introducing our exquisite soft and lightweight rayon woven textile, adorned with a captivating black and blue ripple effect. This beautifully printed fabric combines elegance and comfort, making it perfect for a variety of Crafted with meticulous attention to detail, our rayon textile boasts a luxurious touch and a gentle drape, ensuring a delightful experience for

End Uses

Fiber content

Women’s blouse, bedsheets, pillow cases. Rayon (regenerated cellulose)

Construction Yarn description

Plain weave

Single yarns

➢ High twist

➢ Filament

➢ S-twist

EPI: 77 PPI: 68

Full Width

55 inches / 139.7 centimeters

Print description

Usable Width

54.38 inches / 138.11 centimeters

Repeat height

Two color ripple effect (black and blue) 11.25 inches

Average Cutting Efficiency

The height of the repeat is relatively large, and the design printed on the fabric appears to be off or not aligned properly. There is variance in the ripple, which would make the aesthetic hard to incorporate consistently on a garment or bedding set. However, on a more abstract design, it may be used liberally.

Durability

Machine washing (suggestion)

Colorfastness Care

➢ Perspiration (suggestion)

➢ Light (minimal change)

➢ Bleaching

Avoid bleach, hand wash in cold water and mild detergent.

Non-chlorine bleach Chlorine bleach

Tensile (Breaking) Strength Tear Strength

WARP:

1. 39.151 LBF

2. 50.39 LBF

3. 44.77 LBF (AVERAGE)

WEFT:

1. 27.607 LBF

2. 31.377 LBF

3. 29.493 LBF (AVERAGE)

WARP:

1. 8.013 LBF

2. 6.963 LBF

3. 7.488 LBF (AVERAGE)

WEFT:

1. 7.995 LBF

2. 7.128 LBF

3. 7.562 LBF (AVERAGE)

Fiber Greige Goods

Using polyester opposed to a regenerated fiber, so costs for raw materials can be reduced. I think the number of warp yarns could potentially be reduced based on the prior breaking strength testing. However, reducing the filling yarn can lead to issues for the desired end use.

Preparation

Before any kind of coloration or finishing takes place, traces of debris in the textile should be cleaned to achieve a blank canvas.

Coloration

All possible dye formulas incorporate two different dyes to achieve the blue. Each formula has approximately the same quantity of dye needed, except for the last option which uses about two times the amount. The cost of an individual dye should be considered, and how much is needed. However, there will always be waste no matter the amount of dye used.

Coloration (continued)

The color matching was done relatively efficiently, and I would not expect a problem to find a similar shade in the industry for the sake of consistency. Depending on the desired end uses, colorfastness may also be a factor to take into account when it comes to formula selection. The fabric was affected by both wet and dry crocking, but far more to wet.

Finishing Global Factors

The fabric doesn’t have any noticeable finishes. Although finishing can enhance the value of a textile, it adds additional costs to production. Doing production in low economic countries may be desired, but taking global politics into account, doing such should be executed in a sustainable, ethical, and humane manner.

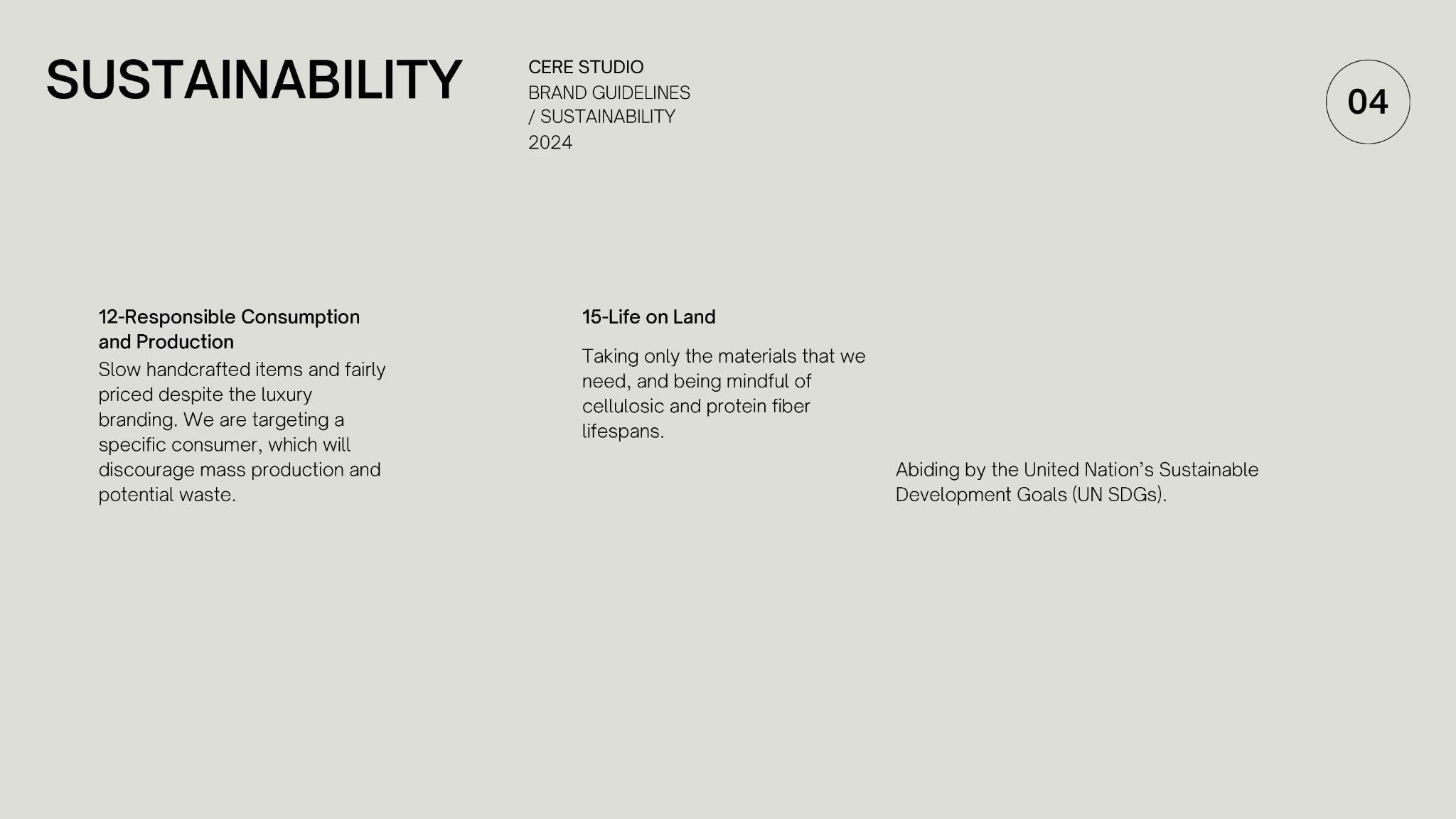

❖ Use of natural fibers

❖ Transparency in our slow production

❖ Eco-friendly processes and organic patterns

Marketing

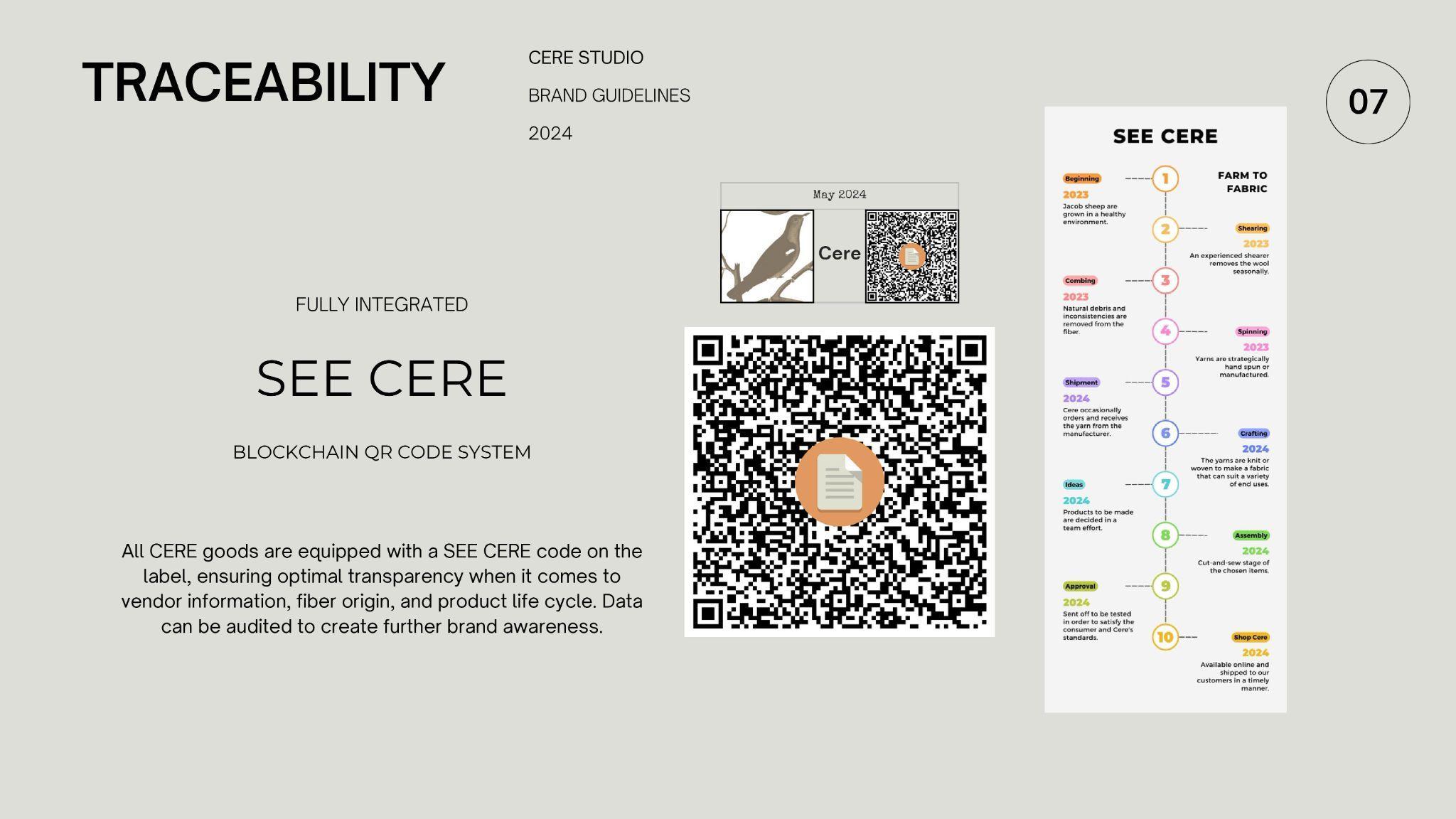

Integrated QR Code System

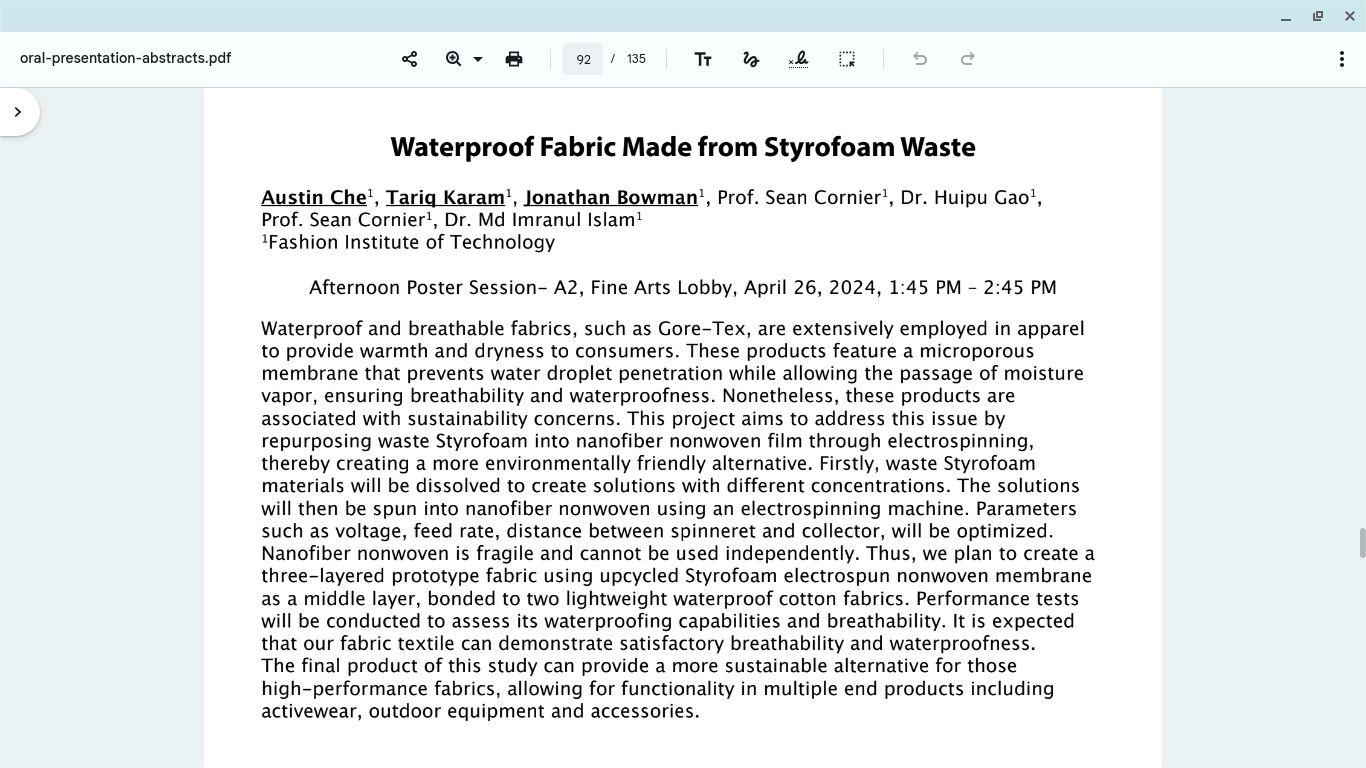

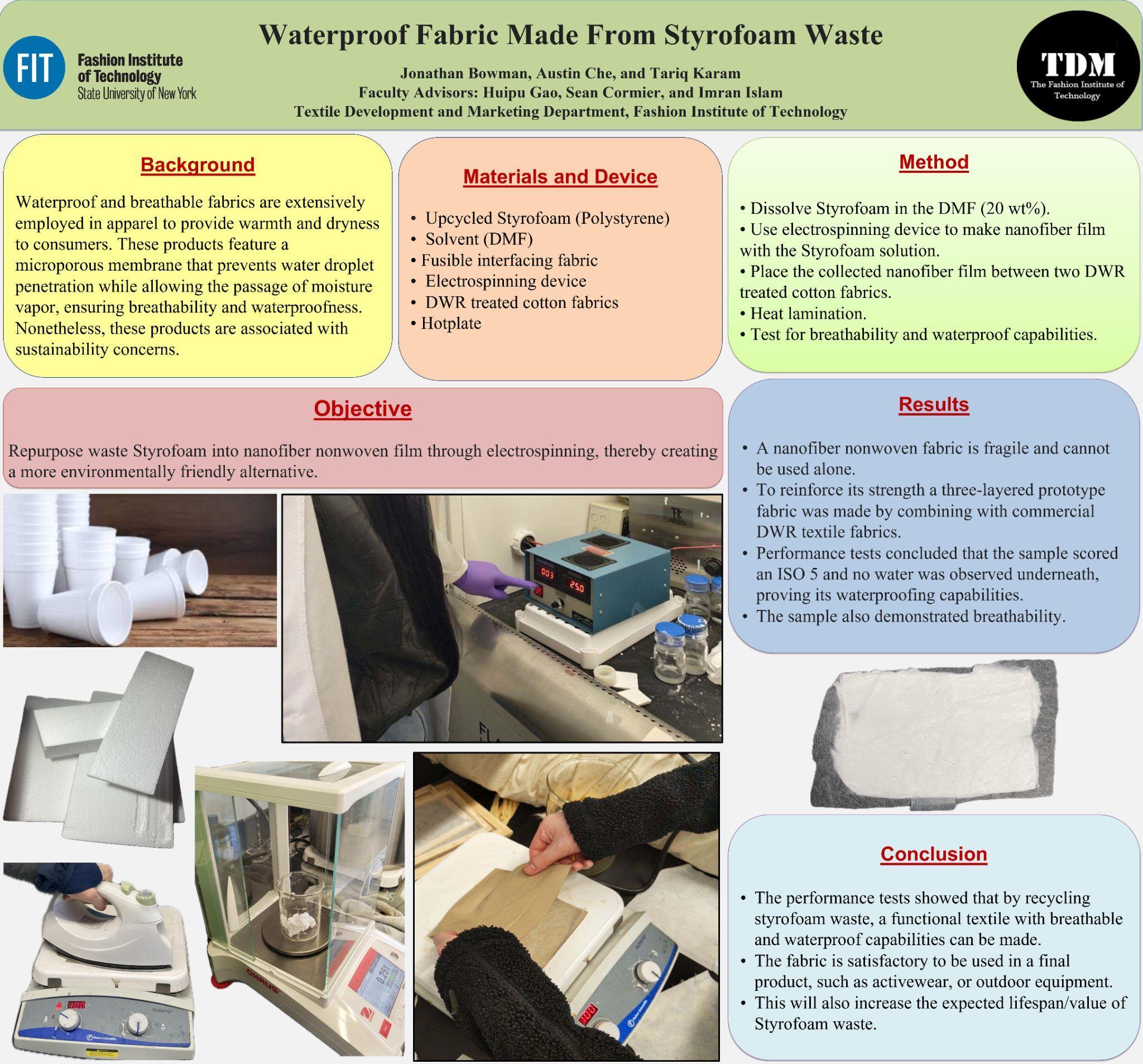

SUNY Undergraduate Research Conference
