Lauren Marcu Portfolio 2024

2024 lauren marcu. portfolio.

name age city phone mail school lauren marcu 26 stuttgart 0176 70952735 lauren.marcu97@gmail.com hochschule für technik hello.

education

since sept 2021

feb 2024 - july 2024

hochschule für technik ba innenarchitektur stuttgart

politecnico de leiria, esad erasmus caldas da rainha

skills

cad

3d modelling

rendering

adobe cc

vectorworks

rhino3d sketchup 3ds max

twinmotion lumion chaos corona

photoshop indesign illustrator lightroom

language skills

german

english

mother tongue fluent

1 2 3

showroom spatial design 3 2024 pavillon fundamentals of design 1 2022 dream room fundamentals of design 2 2023

projects. one two three

four five six

4 5 6

kitchen furniture theory 2 2023 construction construction 2 2023 more work different subjects 2022-24

project one.

subject spatial design

teacher peter krebs

semester 3

this project, developed in collaboration with sara musovic, focuses on the adaptive reuse of an existing building in karlsruhe, currently used partially as a grocery shopping space. the building is connected to residential buildings behind it, and our task was to integrate four new functions into the two building blocks: a café, an office, a presentation room, and a showroom for sustainable building materials.

our design approach prioritized maintaining the original building structure and materials wherever possible, ensuring a mindful and sustainable renovation process. to reflect the sustainable focus of the building, we incorporated eco-friendly materials such as clay, wood, hemp, and bricks, all of which are showcased in the showroom. we chose a color palette of natural, warm, earthy tones to complement the materials used and enhance the overall aesthetic, while also allowing the showcased materials to stand out prominently. we logically structured the building into two main zones. the public zone is open to guests, allowing them to explore and engage with the space freely. in contrast, the private zone is not accessible at all times, providing necessary privacy for specific functions. we utilized the existing concrete structure to delineate these zones effectively. at the heart of our design concept is a stair system that not only enables guests to access the lower level but also connects the two buildings. along these stairs, large panels and shelves display the sustainable materials, inviting visitors to see and touch them. this interactive element enhances the educational aspect of the showroom, making sustainability tangible. the façade design adheres to the same principles as the interior, showcasing the building‘s original structure through the use of wooden beams on the exterior. this approach honors the building‘s history while seamlessly integrating it with the new sustainable design.

through this project, we aimed to create a harmonious blend of the old and the new, reflecting a commitment to sustainability and respect for the building‘s heritage. the result is a thoughtfully designed space that serves multiple functions while promoting eco-friendly materials and practices.

1 rhino3d twinmotion vectorworks photoshop indesign

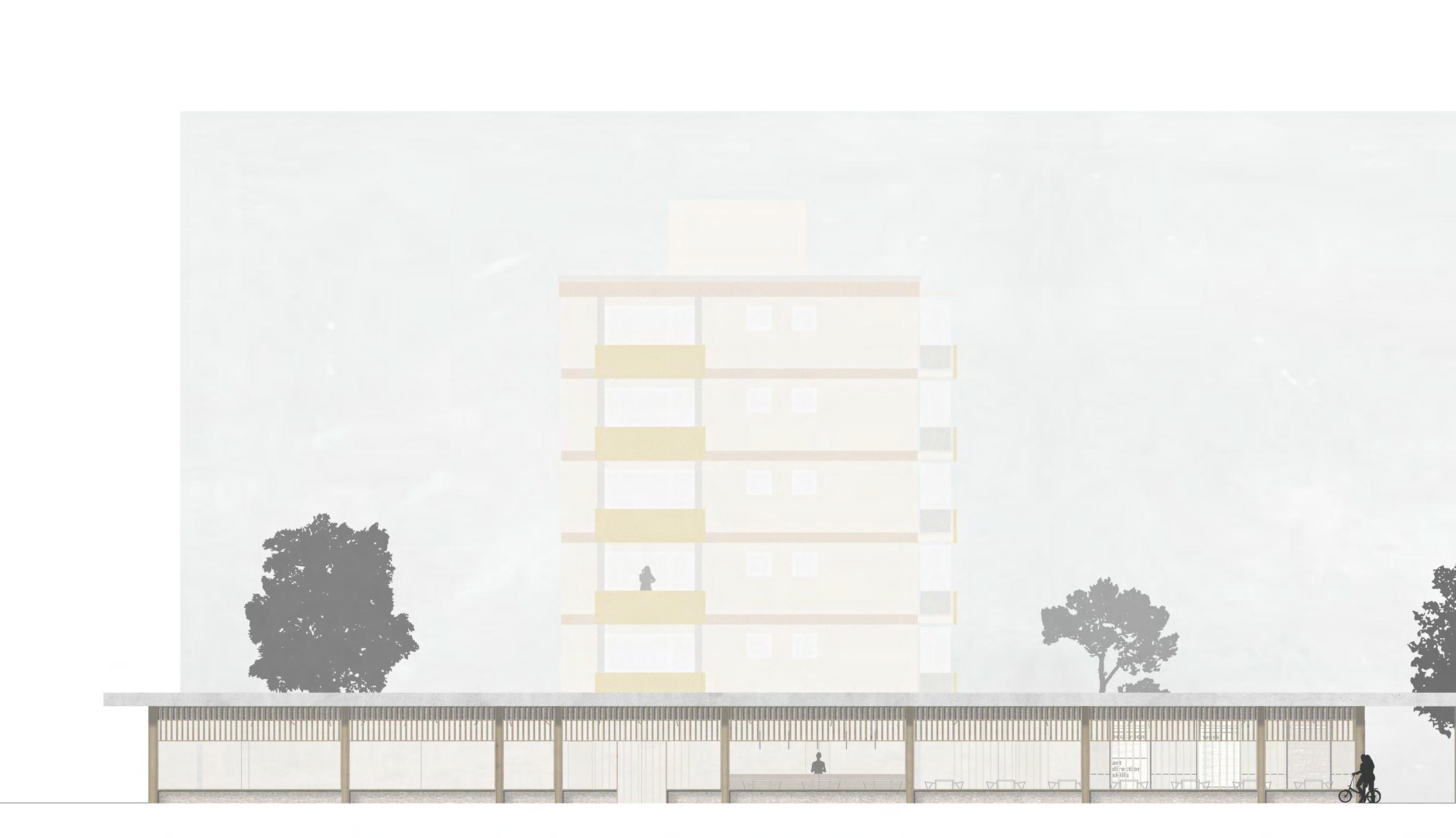

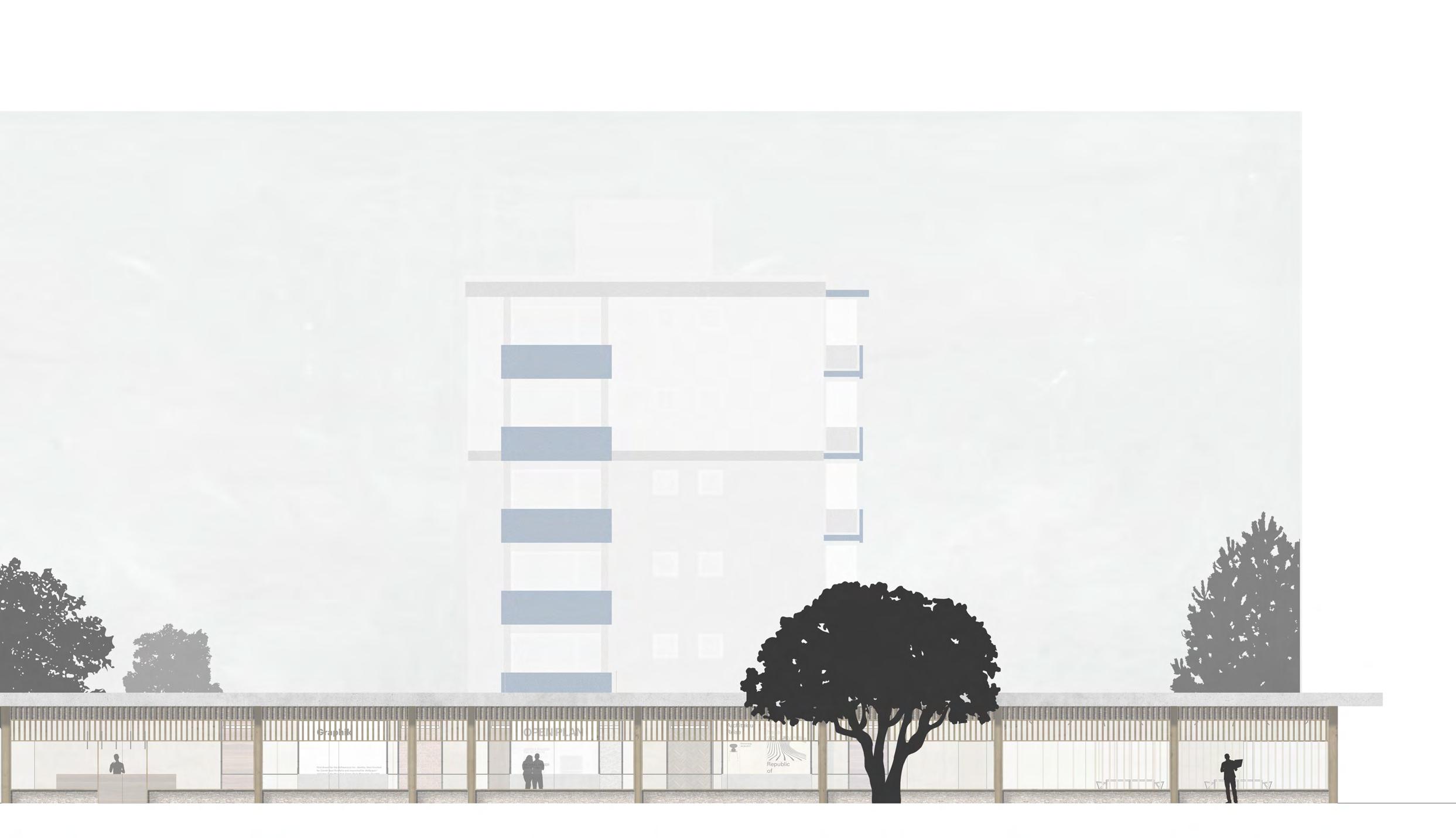

1 elevation

south

2 interior visualisation café

3 interior visualisation showroom

project two.

subject fundamentals of design teacher andreas kretzer semester 1

the task for this project was to design a pavilion for the bundesgartenschau (buga) 2024 in mannheim, using basic geometric shapes as a starting point.

my design is based on a combination of triangular and rectangular forms. the structure tapers forward and increases in height. the proportions of the individual parts of the pavilion are harmoniously balanced. the aim was to guide visitors through the pavilion, allowing views to the outside only through the narrow side openings between the different parts, while forward views were obstructed by suspended wall panels. this design choice ensures that the final reveal, a view of the buga grounds, becomes the ultimate „artwork“ at the end of the journey.

the pavilion model was constructed at a scale of 1:20 using grey cardboard. interior photographs were taken and subsequently edited with photoshop to enhance the visual presentation.

rhino3d photoshop indesign

2

technical drawings

LAUREN MARCU 1004217 DREITAFELPROJEKTION M 1:100 GRUNDLAGEN GESTALTUNG WISE 2022/23

4

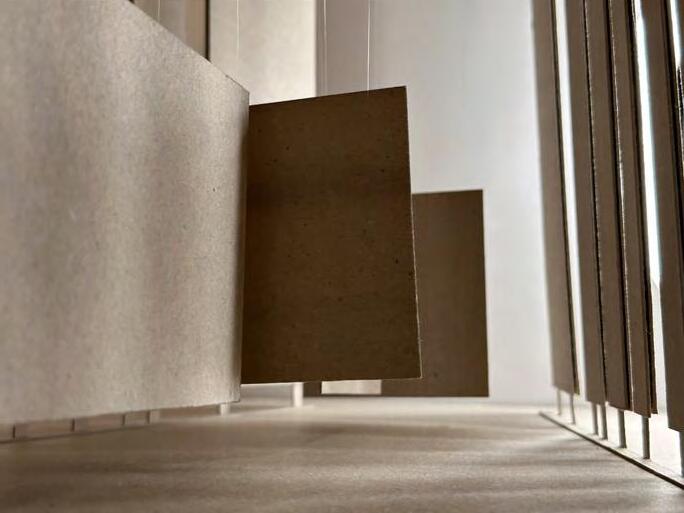

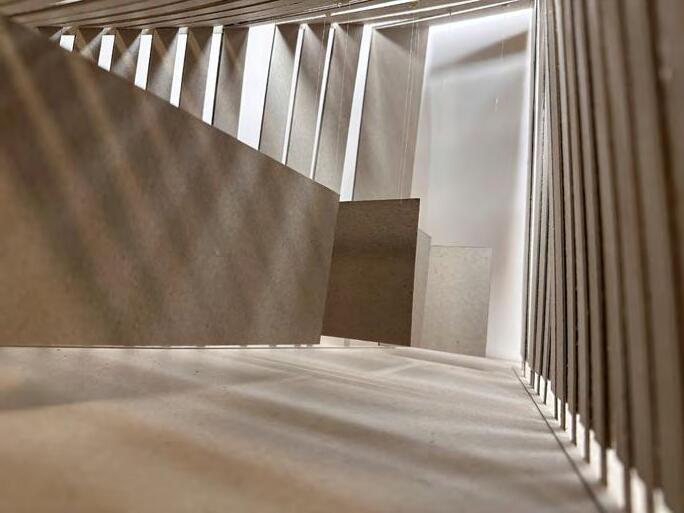

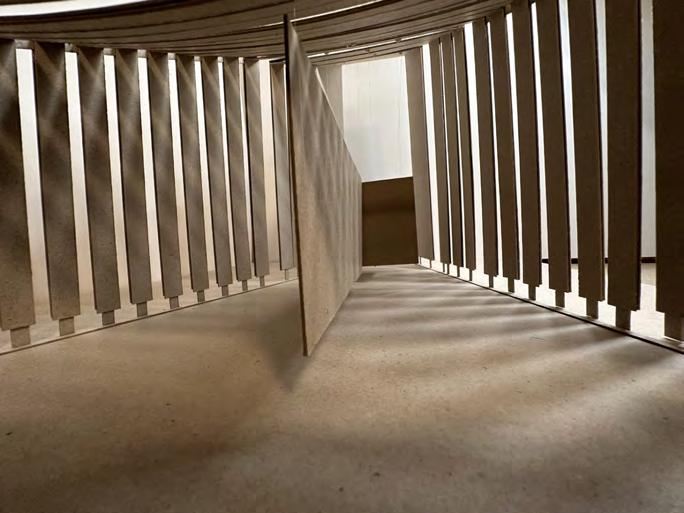

5 pictures of cardboard model

LAUREN MARCU 1004217 ZUSÄTZLICHE BILDER GRUNDLAGEN GESTALTUNG WISE 2022/23

project three.

subject fundamentals of design

teacher monika joos-keller semester 2

in this course, we were tasked with analyzing a building of our choice. following the analysis, we were to create a modified 3d model of the building and visualize this model in two different ways using photoshop. the inspiration for the first visualization was open to our choice, while the second visualization had to focus on sustainable building materials.

i chose ludwig godefroy‘s merida house as my subject, which i then recreated in a modified form using rhino3d. the first visualization drew inspiration from the renowned japanese architect tadao ando. the concept envisioned the building largely constructed from exposed cast concrete, with doors and shutters made of black steel. plants and colorful furniture were added to contrast and breathe life into the architecture.

for the second visualization, the building was reimagined using repurposed shipping containers. the interior was designed to be lined with esb-panels, emphasizing sustainability and innovative reuse of materials.

3 rhino3d photoshop indesign

6 interior visualisation one

7

two

interior visualisation

project four.

subject furniture theory teacher jens betha semester 2

in the furniture theory 2 course, we were tasked with technically planning a kitchen based on our spatial design from the first semester. the focus was on the planning of the cabinetry, which forms the foundation of the kitchen. in addition to a 3d model and visualizations, the kitchen design required dimensioned technical drawings of all views as well as detailed drawings.

the kitchen was designed to exude simple elegance while remaining inviting. to achieve this, i utilized a high-quality yet limited material palette with natural color tones. the harmonious combination of walnut wood and fine stoneware creates the desired warm and welcoming impression despite the minimalist design. black powder-coated steel fixtures complete the overall aesthetic. a standout feature is the gas cooktops situated on an otherwise monolithic kitchen island, which also functions as a bar.

4 rhino3d vectoworks twinmotion indesign

Einbau-Kühl-

100 750 30 1138 30 452 30 770 50 3350 900 600 1000 800 50 100 750 30 20 600 20 30 950 30 770 50 3020 20 2970 30 20 4 596 4 584 4 576 4 636 4 558 30 2400 620 30 1198 0 1168 4 596 4 20

Gefrier-Kombi Siemens IQ700

Zweilochbatterie und Spülbrausegarnitur Dornbarcht

20 20 30 95 330 95 60 95 340 95 60 95 340 20 600 590 590 1140 20 20 560 20 20 100 20 90 20 1798 20 432 20 20 760 20 50 ANSICHT 01 M 1:20 FRONTSCHNITT 01 M 1:20 8 technical drawing one 9 technical drawing two

Einzelbecken Dornbracht

Vollauszüge Actro YOU XL verschiedene Größen Hettich

mit Einzelrosetten

Spülbrausegarnitur

Dornbarcht META 02

Einzelbecken Dornbracht

Vollintergrierter

Geschirrspüler

Siemens IQ700

Sockelfüße 100mm

340 95 30 1 598 1 30 95 340 95 30 590 600 590 30 30 100 20 250 30 250 30 150 3020 20 600 20 20 360 20 270 20 270 20 20 760 20 50 30 20 1150 20 20 55 27 20 5 15 51 5 10 5

FRONT M 1:1

Hettich

DETAILSCHNITT

10 technical detail drawing

project five.

subject constructionw teacher jens betha semester 2

this project from the second semester‘s construction course builds upon our initial spatial design. the task was to comprehensively plan the entire building, utilizing timber frame construction with a ventilated rainscreen façade. this project was a collaborative effort with sara musovic.

the two-story building is anchored on a reinforced concrete foundation within an excavation filled with foam glass gravel for added insulation and stability. the floor features floating screed, providing a smooth and durable surface. both the interior and exterior walls are constructed using a timber frame method, ensuring structural integrity and design flexibility. a key feature is the ventilated rainscreen façade, which allows for effective moisture regulation and enhances thermal performance. this façade system also contributes to the building‘s modern aesthetic.

the building is topped with a flat roof and parapet, creating a sleek and contemporary look. the flat roof design complements the overall aesthetic and provides space for potential future installations like solar panels or a green roof. throughout the project, we focused on integrating sustainable building practices and materials. the use of timber framing and foam glass gravel for the foundation enhances the building‘s insulation and energy efficiency.

overall, this construction project exemplifies a thoughtful and detailed approach to modern building design, combining structural efficiency, aesthetic appeal, and sustainability.

5 vectoworks indesign

ANKOMMEN

SCHLAFEN 1

ARBEITEN

SCHLAFEN 2

WOHNEN ESSEN KOCHEN BAD 1

KOCHEN

SCHLAFEN

11 section one

Vollholz

Lehmbauplatte

Dämmung, weich

Abdichtung

OKFFB +0.0 OKRFB -0.16

+3.74

+3.85

ESSEN

SCHNITTE M 1:50

ESB-Platte

12 section two

Estrich Stahlbeton Dämmung, hart Glasschaumschotter

OKFFB +0.0 OKRFB -0.16 +3.67 +3.52 +3.85 +3.74

Kies SCHLAFEN WOHNEN KOCHEN/ ESSEN

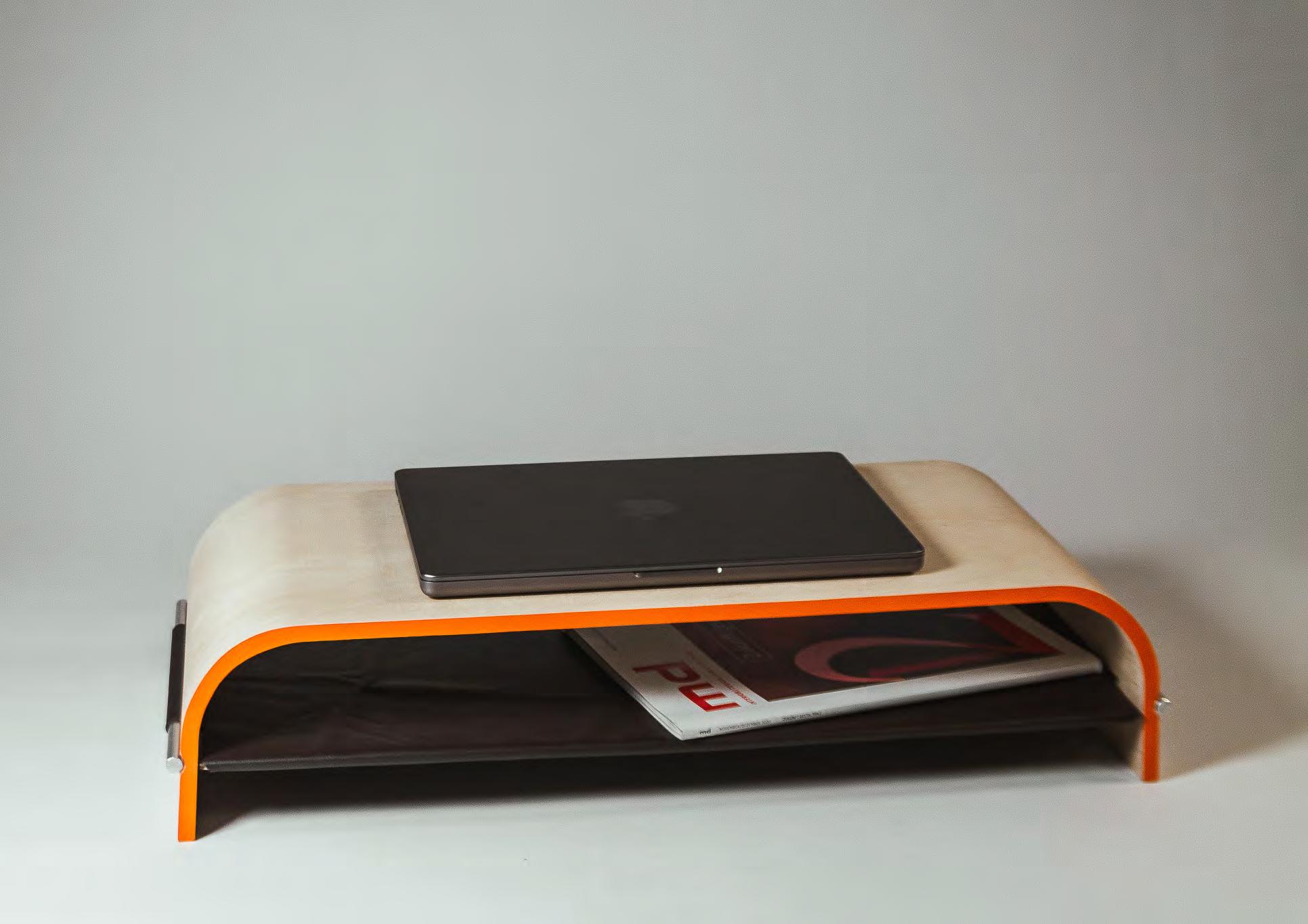

more work.

In addition to the detailed projects highlighted above, I am pleased to present a selection of other works I have undertaken. These projects, though not as extensively documented here, showcase my versatility and range in design and construction. Each piece reflects my commitment to creativity, technical proficiency, and sustainable practices. I invite you to explore these works for a broader understanding of my design capabilities and professional growth.
