Single concrete filled kerb
Stainless steel kerbs provide a strong, aesthetically pleasing and hygienic base for panel walling systems. Various types of profile can be formed to suit the flooring finish. Single kerbs made to suit and fully welded on site to provide a seamless wall protection system. The back plate can be made from galvanised steel if the rear is not seen to keep costs down.
Double sided concrete filled kerb
Double sided kerbs in stainless, made to suit, fully welded on site to ensure suitability for hygienic environments. The kerbs are fixed to the floor surface and are concrete filled to form a solid structure.
Clip
on kerb
Stainless clip on non-concrete filled normally used on existing floors and can be adjusted to fit the fall of the floor. The kerb is custom-made to create a suitable coving joint to the floor. Kerbing is fully welded to ensure suitability for hygienic environments.
Gully
Stainless steel drain channels provide cleanable seamless drainage. Anti-slip gullies are 145mm wide with standard pedestrian gratings ideal for kitchens and light use made to your requirements, lengths and depths.
Various gratings are available, heavy duty for fork lift truck areas, medium duty for general areas.
Ladder grate, heavy duty
Pedestrian grate
Anti-slip stainless ladder grate for heavy duty use. Anti-slip stainless ladder grate for general use.Gully pot –bottom exit
Gully pot in stainless steel with pedestrian grate. Bottom exit, standard size 255mm x 255mm with removable foul air traps to allow for the rodding on the drainage. Large solids collection baskets. Round bases and concrete location tags. Adjustable tops if required.
Gully pot –side exit
Side exit gully pot to adjoin onto existing waste pipe. Outlets can be horizontal or vertical to suit your drainage systems.
Gully pot cover plate
Heavy duty plate made in 10mm stainless steel to cover gullies for forklifts or any other heavy duty use.
IBC stainless steel platform
Our expertise lies in the precise design and meticulous fabrication of stainless steel IBC platforms, ensuring robust structures that meet industry standards for durability, functionality, and safety.
HVAC pipework
316 stainless steel is an austenitic chromium-nickel stainless and heat-resisting steel with superior corrosion resistance as compared to other chromium-nickel steels when exposed to many types of chemical corrodents such as sea water.
Purged pipework
In the pipework industry there are many types of material that need to be welded including Stainless Steel, Chrome and Titanium. One of the most important factors a welder is faced with would be purging the inside of the pipe. The purpose of purging is to ensure no atmospheric air enters the pipe system; this will cause the molten weld material to instantly oxidize resulting in numerous problems such as root porosity, incomplete fusion and changes in the weld metal.
Square to round ducting in stainless steel
Aluminium frame LEADING SPECIALISTS
An aluminium heightadjustable frame, designed and manufactured to transport carbon fibre cones around the workshop, tailored for a customer in the aerospace industry.
Mild steel handrail
Utilizing SolidWorks, we have undertaken the task of developing a square-toround duct in stainless steel. This intricate process involves transforming a square crosssection into a seamlessly integrated cylindrical form, showcasing our proficiency in design and engineering. Handrail made in mild steel and hot dipped in galvanised zinc to stop corrosion. We can either make with Key clamp fittings or it can be welded. Our handrail is made to meet all regulations, and made to any requirements.
Racks
Stainless steel racks made from 304 box section and profiled angle. All made to suit buyers requirements. Castors are phenolic and are suitable for high temperatures, the carriages are also in stainless. The trays made to go in the rack are stainless steel mesh, perforated trays or solid trays.

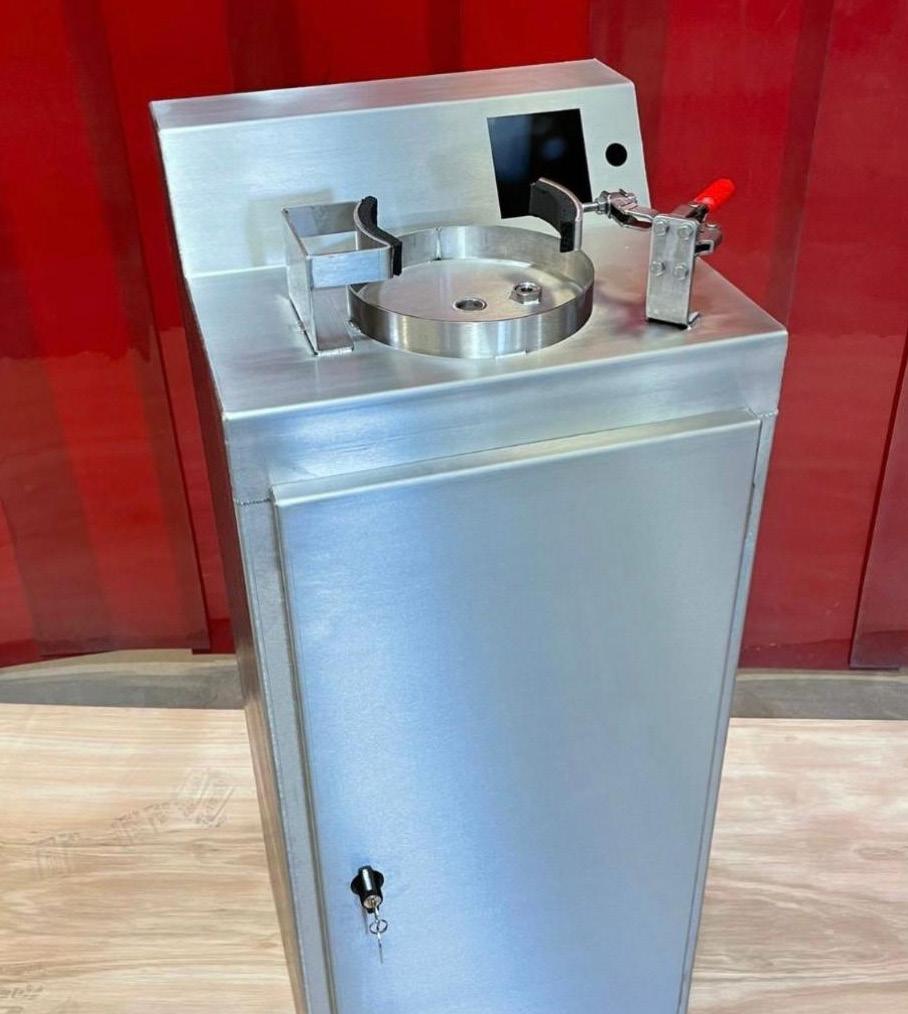

Enclosures
We create stainless steel enclosures according to custom specifications, designing and manufacturing them with attention to detail.

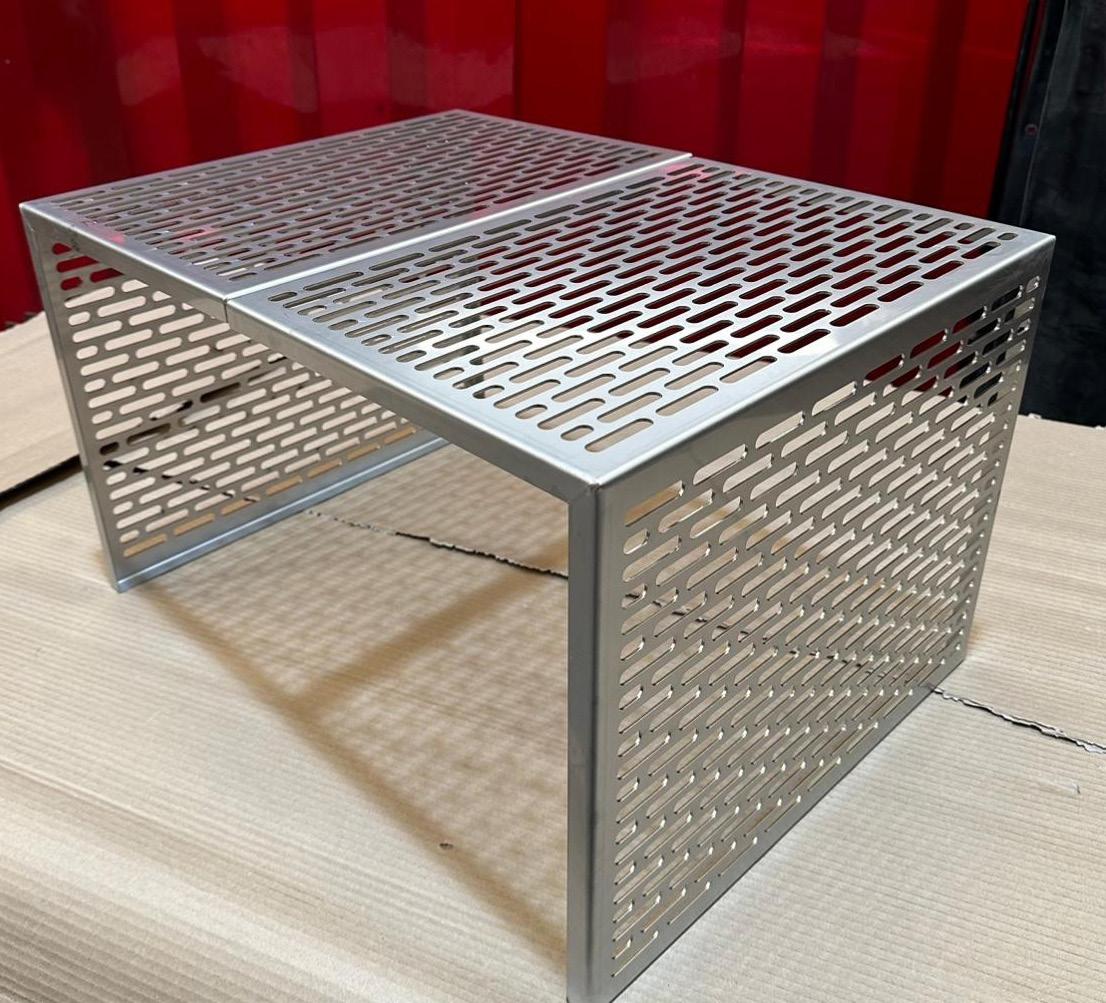

Machine guard
A machine guard manufactured using laser cutting, expert folding, and careful welding, all done to meet every health and safety requirement.
LEADING SPECIALISTS IN STAINLESS & MILD STEEL FABRICATION
Stainless steel pipework
Fabricating sizeable stainless steel pipework incorporating slip flanges, specifically tailored for a customer within the utilities sector in the UK.
Stainless steel bollards
These can also be manufactured in mild steel, galvanised & painted yellow.
Structural steel
Atom Fabs holds accreditation for BS EN1090 UKCA, signifying our expertise in CE marked structural steel. In a recent project, we successfully designed, manufactured, and installed a structure within a larger building, showcasing our capabilities.
Fire escape
A fire escape constructed from galvanized steel, complete with intermediate landings, meticulously designed, manufactured, and expertly installed.
Contemporary staircase
The blend of contemporary and modern interior design is on display, combining solid oak stair treads with ornamental concrete walls, and elevated by a striking black painted staircase. Noteworthy is the staircase’s creation using the latest SolidWorks software, infusing innovation into the design.
Galvanized ships ladder
Designed, manufactured, and installed this galvanized ship’s ladder for a local customer operating in the utilities sector.
Purged pipework
Installation of purged pipework at customer sites within the food and beverage industry.
Chamber Bottom Access Doors
Designed and crafted with a strong emphasis on health and safety. These doors have been created to address the possibility of someone accidentally falling into the chamber. In such unfortunate incidents, these doors facilitate the safe and swift extraction of individuals from the chamber.
At Atom Fabs, our sales team offers an estimation service to a steadily increasing clientele. Whether your project is large or small, we are capable of providing you with a competitive quotation.
Utilizing the latest Solidworks 3D design software and drawing from an extensive wealth of knowledge, the design department at Atom Fabs will partner with you to turn ideas into reality.
Sales Design Manufacturing
Our modern, purpose-built factory is equipped with a variety of capabilities, including Press Brake folding , Laser Cutting , Rolling , Mig , Tig , and Stick Weldin g. These resources allow us to handle projects of different sizes and types effectively. It’s worth noting that all our welders hold relevant coding certifications, and we can obtain specific certifications tailored to unique applications if necessary.
Site Installation
We employ our own directly contracted personnel for the installation of our work, a practice that guarantees the consistent control and maintenance of work quality and health & safety standards at a superior level. Our commitment to comprehensive RAMS (Risk Assessments and Method Statements) further reinforces this commitment to excellence.
Accreditations
Atom Fabs has achieved notable certifications including the BS EN 1090 UKCA CE marking , ISO 9001 , Safe Contractor , as well as recognition from EHEDG , the E uropean Hygienic Engineering & Design Group.
