Chamber of fashion_ AR 50475 MSc_ ED | university of Bath

Multidisciplinary Project AR

MSc Architectural engineering_ environmental design Rahul Nair

50475

Proposal for BANES council, Somerset, UK

Chamber of Fashion

BATH Fashion Forward

Masterplan Targets

kWh/m2/y

Design goals and brief *

Establish a 1.6 Km long energized pathway connecting selected pockets within the urban landscape as per masterplan

To create a comfortable, sustainable, and inspiring building aiming towards net zero emissions

macro

kWh/m2/y

Economic Development Zone

Ecological Network (NE5)

Site and context

UNESCO World Heritage

300 years

John Wood the Elder and John Wood the Younger were both architects who played a signiﬁcant role in the development of Bath's architecture during the 18th century.

Bath Enterprise Zone

Historic Environment

Conservation areas (HE1)

World Heritage Site Boundary (B4)

World Heritage Site Indicative Extent (B4)

Outstanding Universal Value (OUV).

Placemaking Plan Allocated Sites

Ecological Zone 16 century, Clothing

market Walcot Parish

Relevant Precedents

De Beauvoir Block

Unlisted early-20th century factory complex refurbished as studios, oﬃces, and café.

Timber-clad interiors and subdivided spaces for workspaces. Improved insulation and air tightness standards. Use of recyclable steelwork and certiﬁed timber for extensions.

Reduction of carbon dioxide emissions by 31.3% through insulation and rooﬁng upgrades.

Air source heat pumps for space heating and cooling.

Incorporation of energy-efficient measures like LED light fittings and low water use fittings.

Sustainability measures include insulation, reglazing windows, and underﬂoor heating.

Ground source heat pumps used for heating.

Installation of photovoltaic cells for renewable energy generation.

MVHR system utilizing historic chimney ﬂues for ventilation.

1. 2. 3. 4. 5. 6. New Court, Trinity College, Cambridge Grade l-listed building erected in 1825 1. 2. 3. 4.

Building & User study

Heritage regulations

schedule Solar reﬂective index

Occupancy

Sustainability and Resilience strategy

Kineticenergy: UsingPavegenpanels'eachfootstep cangenerateupto5wattsofpower dependingontheperson'sweight andspeed.Inhigh-traﬃcareas,this energycanbeusedtopower variouselectronicdevicessuchas lightinganddisplays.

Reduce energy demand Energy eﬃciency Renewable energy, low & zero carbon technologies ≈ 30.17% ≈ 20% 1 2 3

WHERE DO WE NEED TO BE?

EUI is expressed as energy per square meter per year. It is calculated by dividing the total energy consumed by the building in one year (measured in kWh) by the total ﬂoor area of the building. The most common unit for EUI is kWh/m2/year.

Spatial Daylight Autonomy (SDA) describes the percentage of ﬂoor area that receives at least 300 lux for at least 50% of the annual occupied hours.

Annual Solar Exposure (ASE) refers to the percentage of space that receives too much direct sunlight (1000 Lux or more for at least 250 occupied hours per year), which can cause glare or increased cooling loads.

kWh/m2/y kWh/m2/y

BENCHMARKS

Spatial Daylight analysis

The percentage of ﬂoor area that receives at least 300 lux for at least 50% of the annual occupied hours (8am-6pm) on the horizontal work plane (30" above the ﬂoor or work plane height).

60% Studios

20% Work

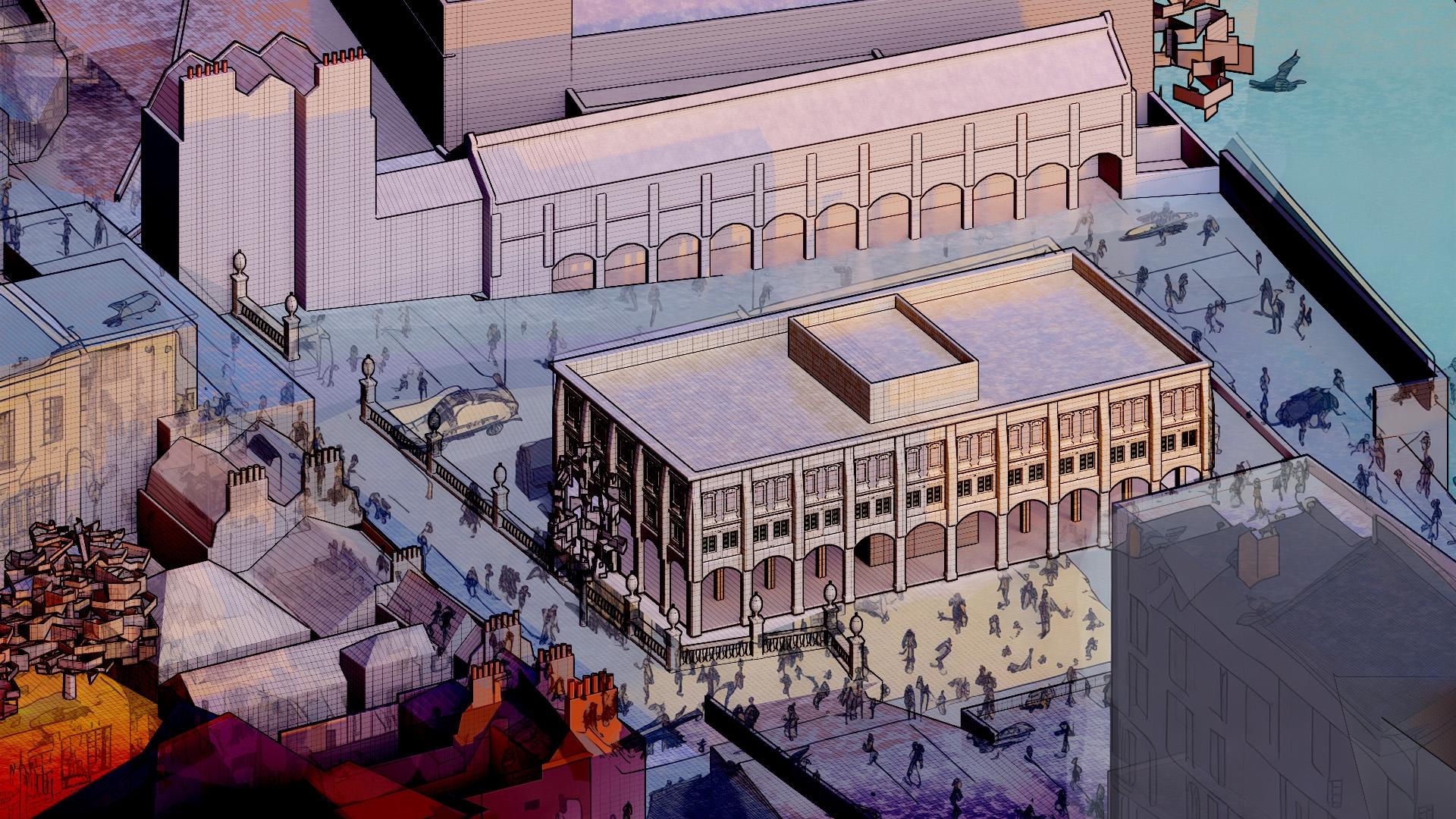

The image tile captures a vibrant, bustling scene of a busy day in the bustling chamber. The illustration is ﬁlled with intricate details and vibrant colors, showcasing a multitude of activities taking place simultaneously.

Spatial Daylight Autonomy (sDA): Yearly metric that describes the percent of space that receives suﬃcient daylight.

Fenestration design

N S

Codes

Part L

Thermal insulation, ventilation and renewables

Part F

Part E

Air tightness, ventilation

Sound insulation and reverberation

Base line energy

Cooling

Thecoolingisnotdominating theenergyuse.Thisbecause yourHDDdaysarehigher thanCDDdays.

Heating

Theheatingloadisnotdominating yourenergyuse.ThismakessensealthoughyourHDDdaysarehigher thanyourCDD,theequipmentloadis dominatingthecalculation.

Water use

Lighting

Thelightingloadcontributesto24.75% ofthetotalEUI.Youcanreduceyour lightingloadbyreducingyourlighting powerdensityandhavingdaylightand occupancysensors.

Equipment

Equipmentloaddominatestheenergy use,Thiscanbereducedbylowering theappliancepowerdensity

Hot Water

Yourhotwaterloadcontributesto 5.15%ofthetotalEUI.Youcanreduce yourhotwaterloadbyreducingthe domestichotwaterdemandandusing amoreeﬃcienthotwatergeneration system.
