Master’s Projects
REVIVE S9
S9 Railway Stations: A Transit-Oriented Regeneration Approach
Location: Milan, Italy 1

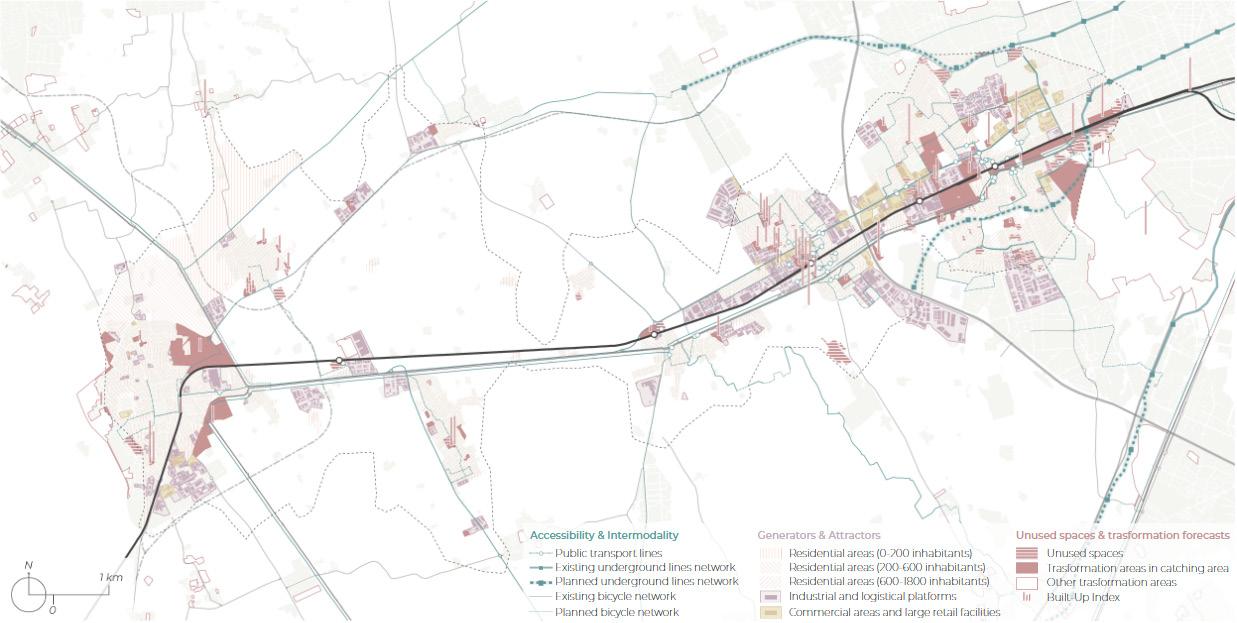

The S9 Railway Stations Regeneration project is a strategic urban redevelopment initiative aimed at revitalizing underutilized railway stations along Milan's S9 suburban rail line. This project, developed as part of the Spatial Planning and Infrastructure Design Studio at Politecnico di Milano, applies GIS-based analysis, stakeholder engagement, and transit-oriented development (TOD) principles to enhance connectivity, improve land use efficiency, and promote sustainable mobility.

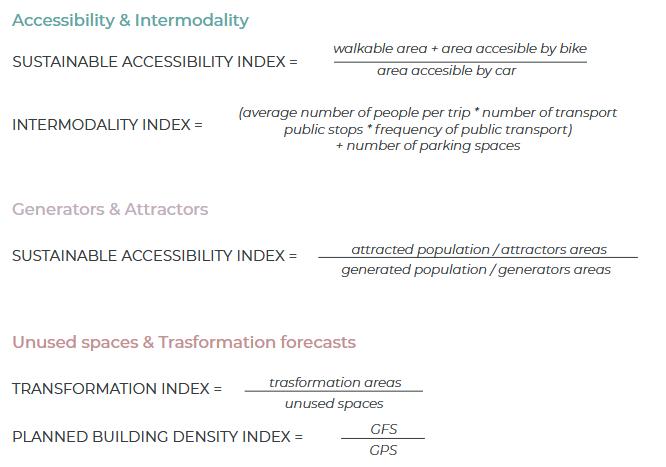

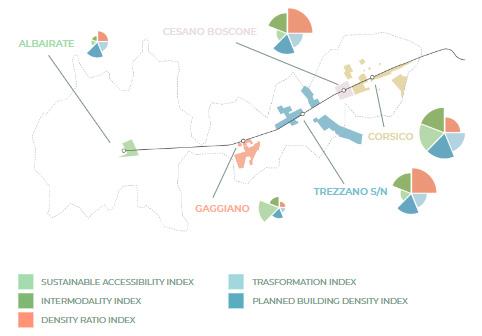

STATION CLASSIFICATION INDICATOR OUTPUT
STATION ANALYSIS

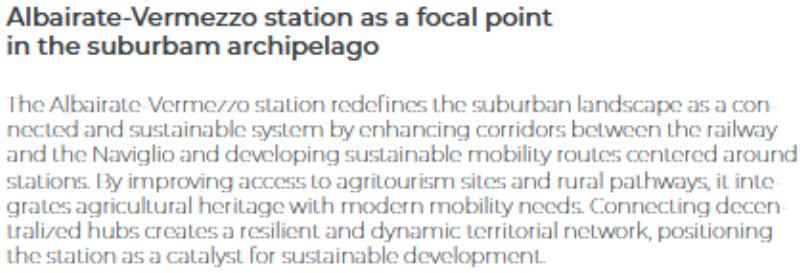

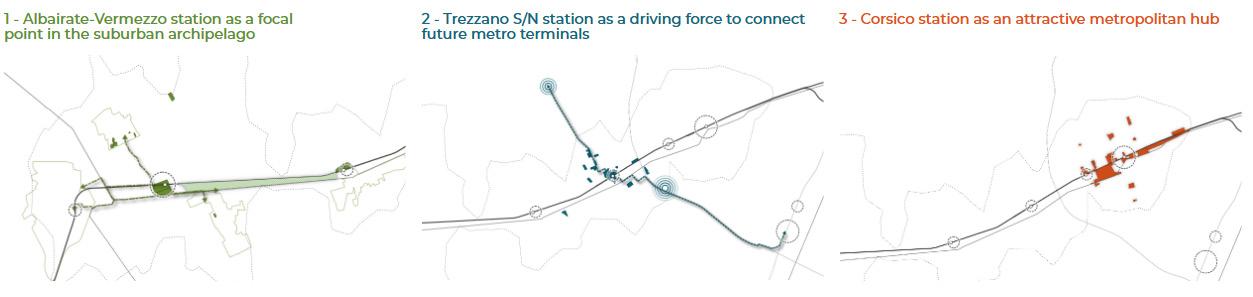

VISIONS

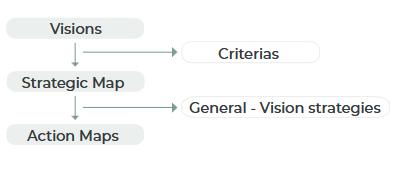

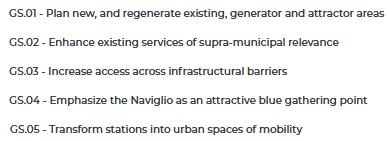

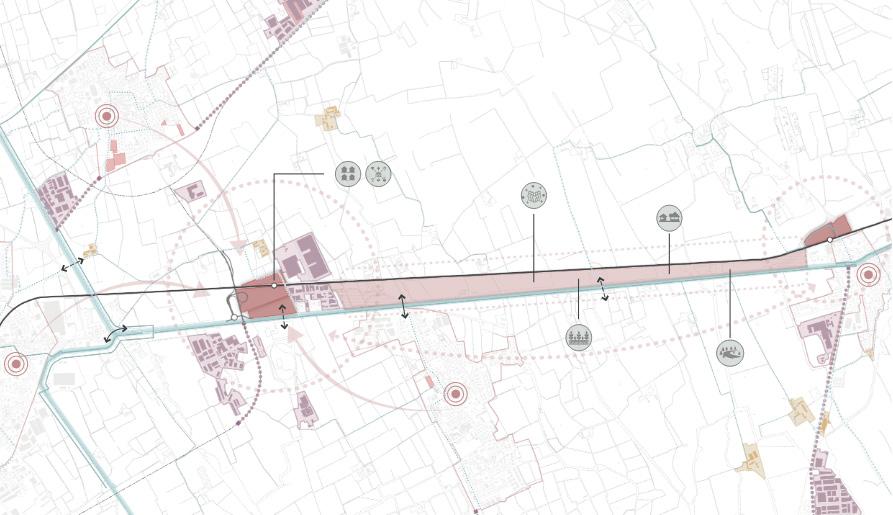

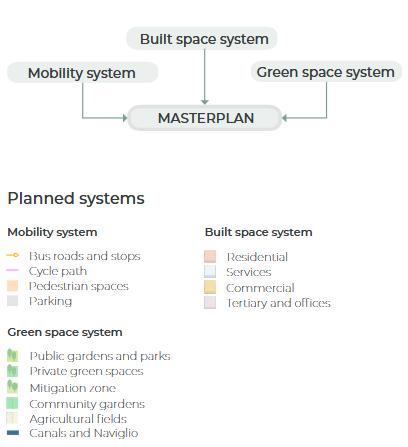

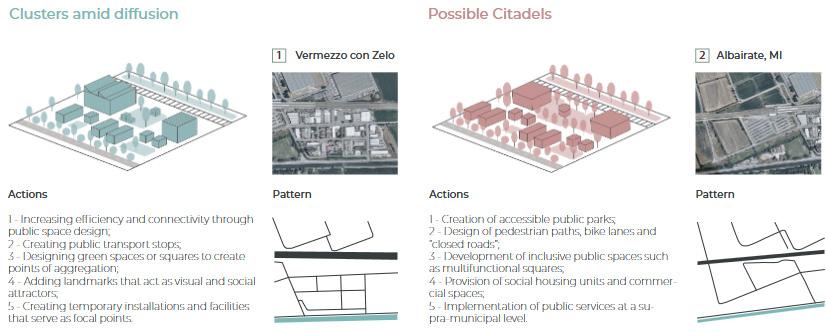

THE STRATEGIC PROCESS GENERAL STRATEGIES

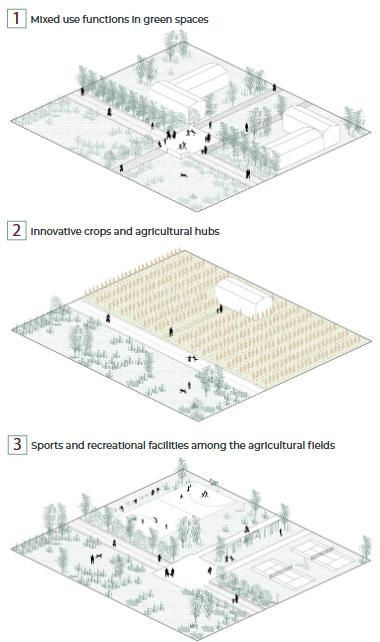

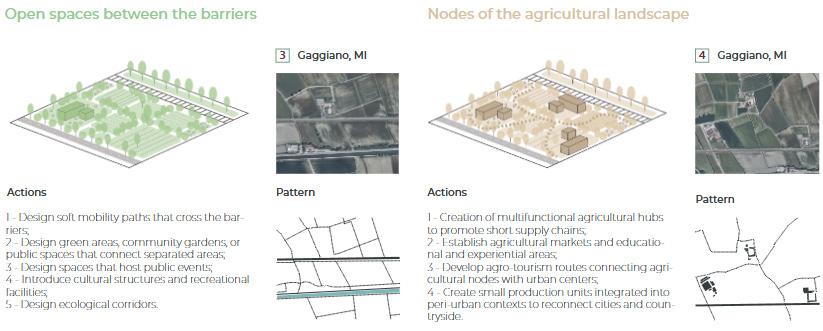

VISION STRATEGIES

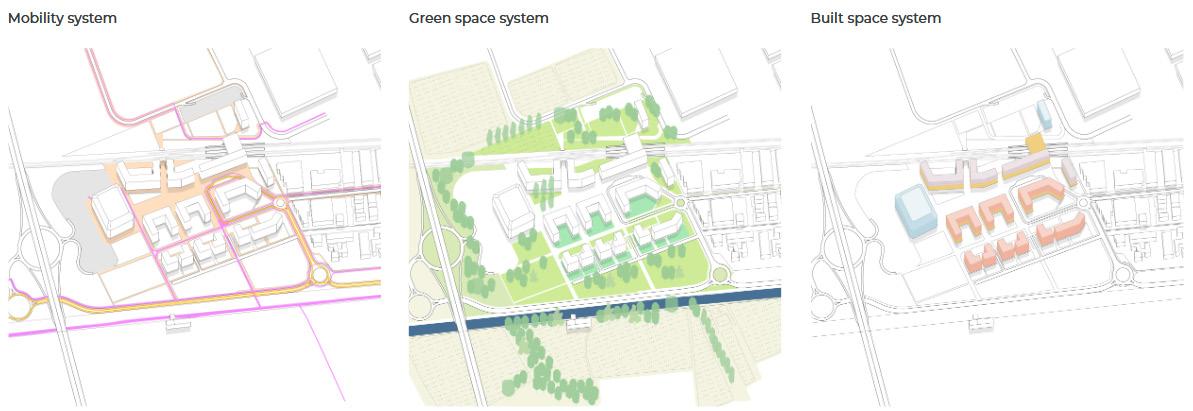

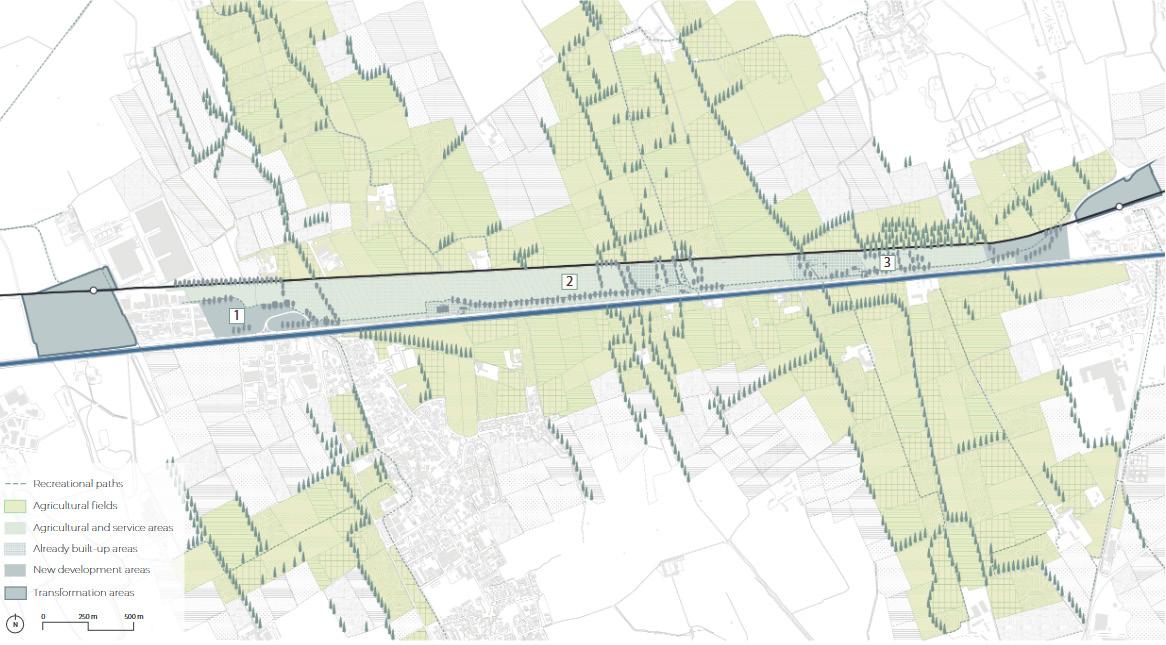

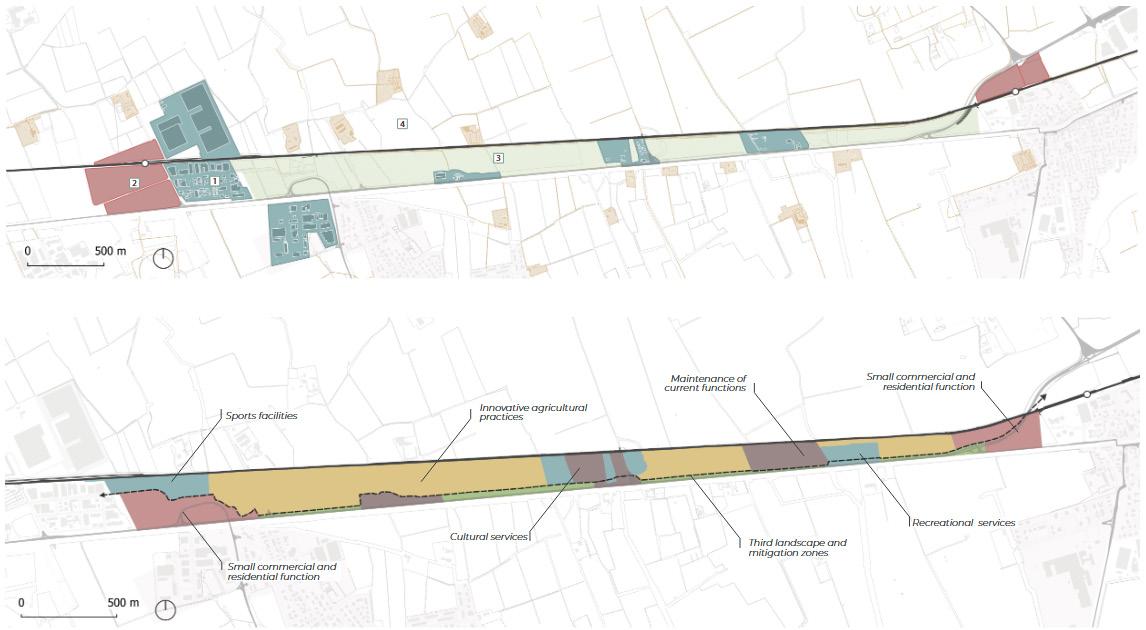

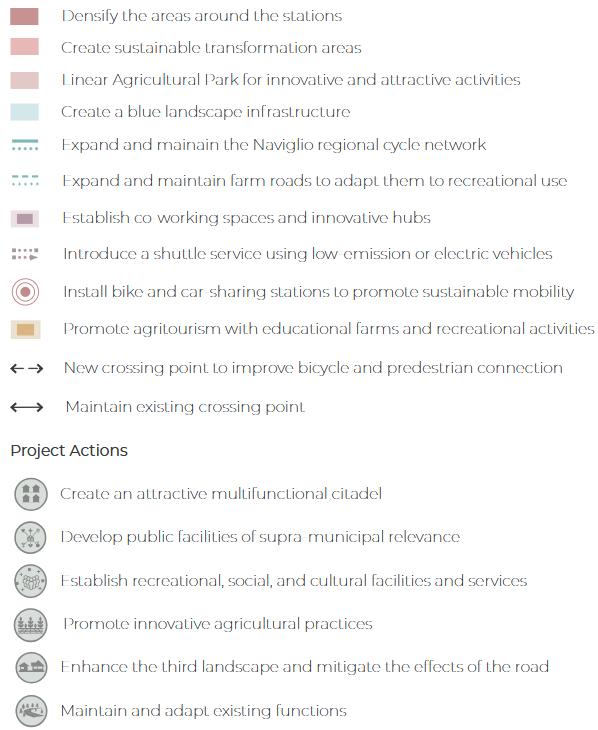

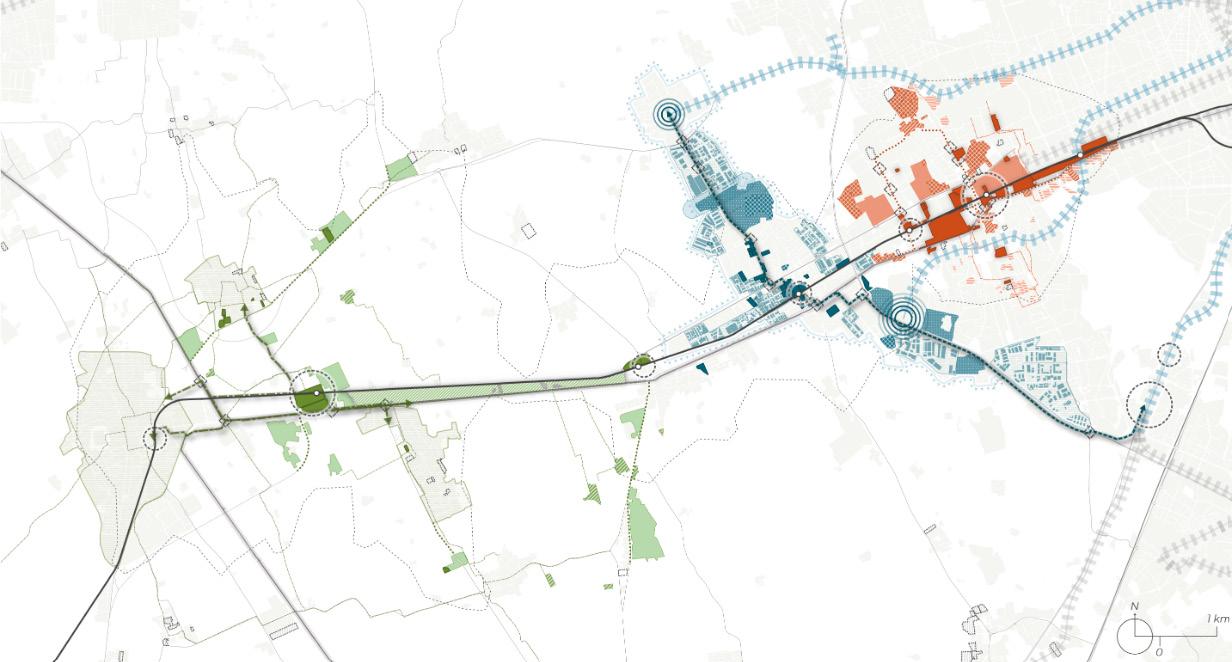

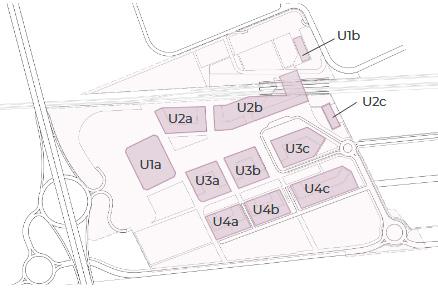

THE ACTION MAP DESIGN

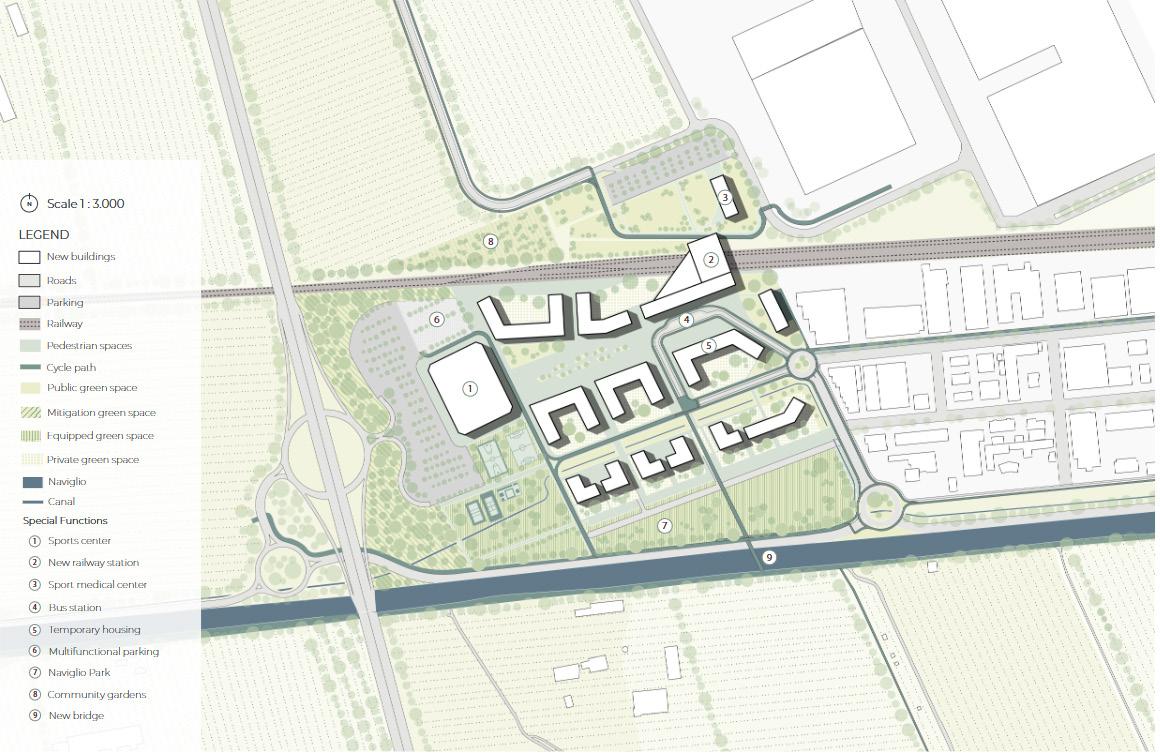

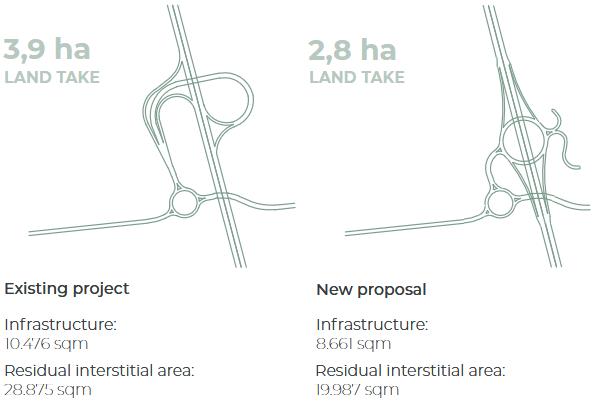

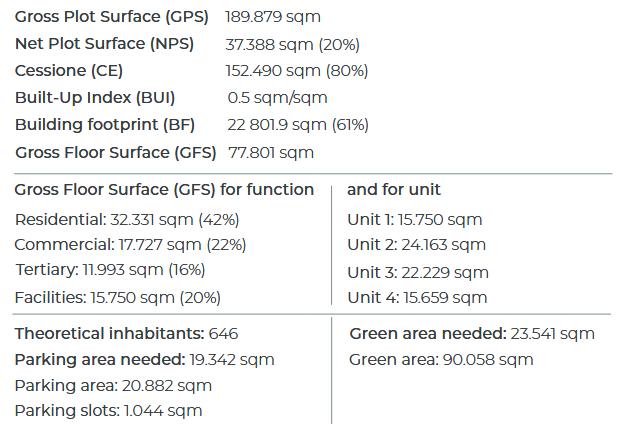

MASTER PLAN MEASUREMENTS
OF MASTER PLAN

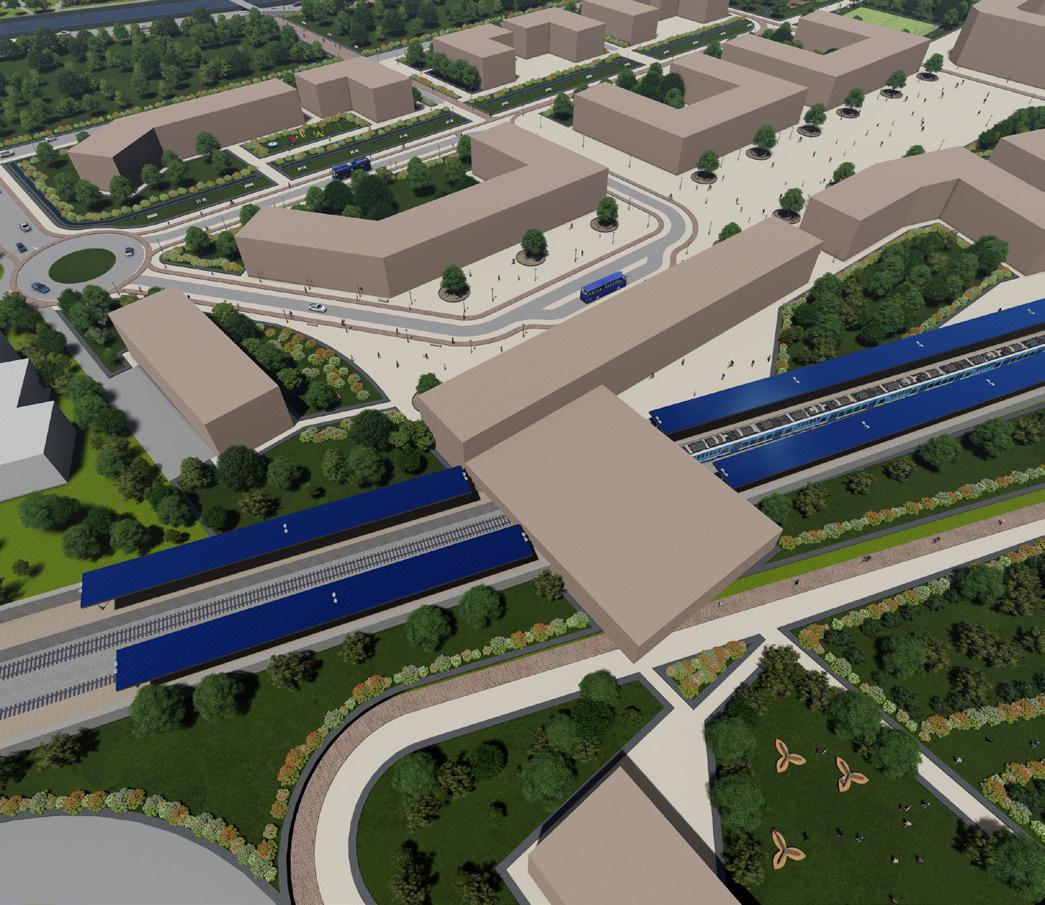

3D
GREENETWORK
Linking for a greener future

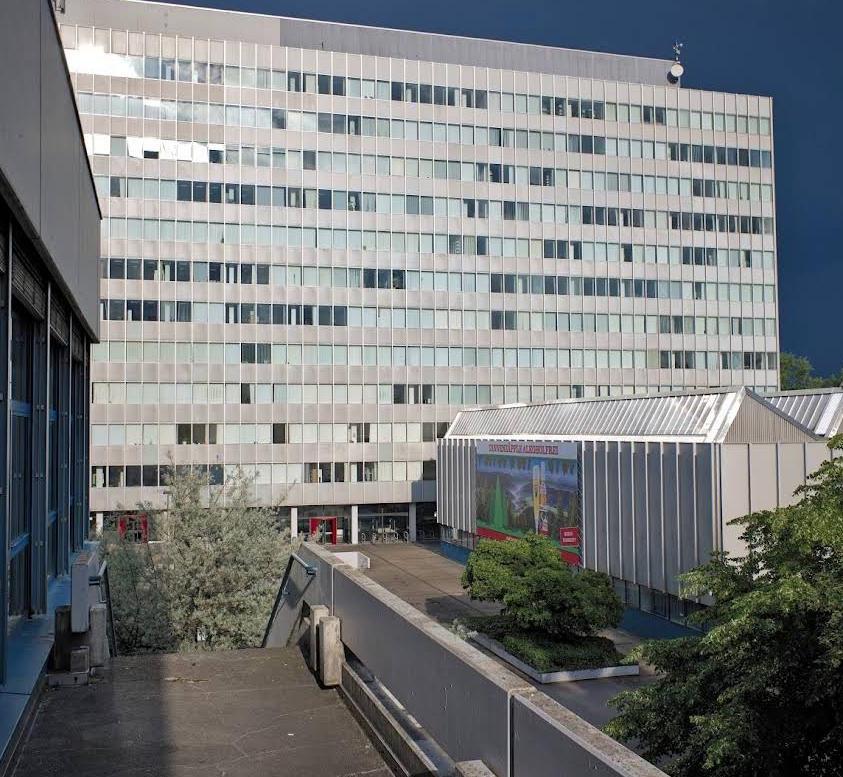

Location: Kultur Campus, Bockenheim, Frankfurt, Germany

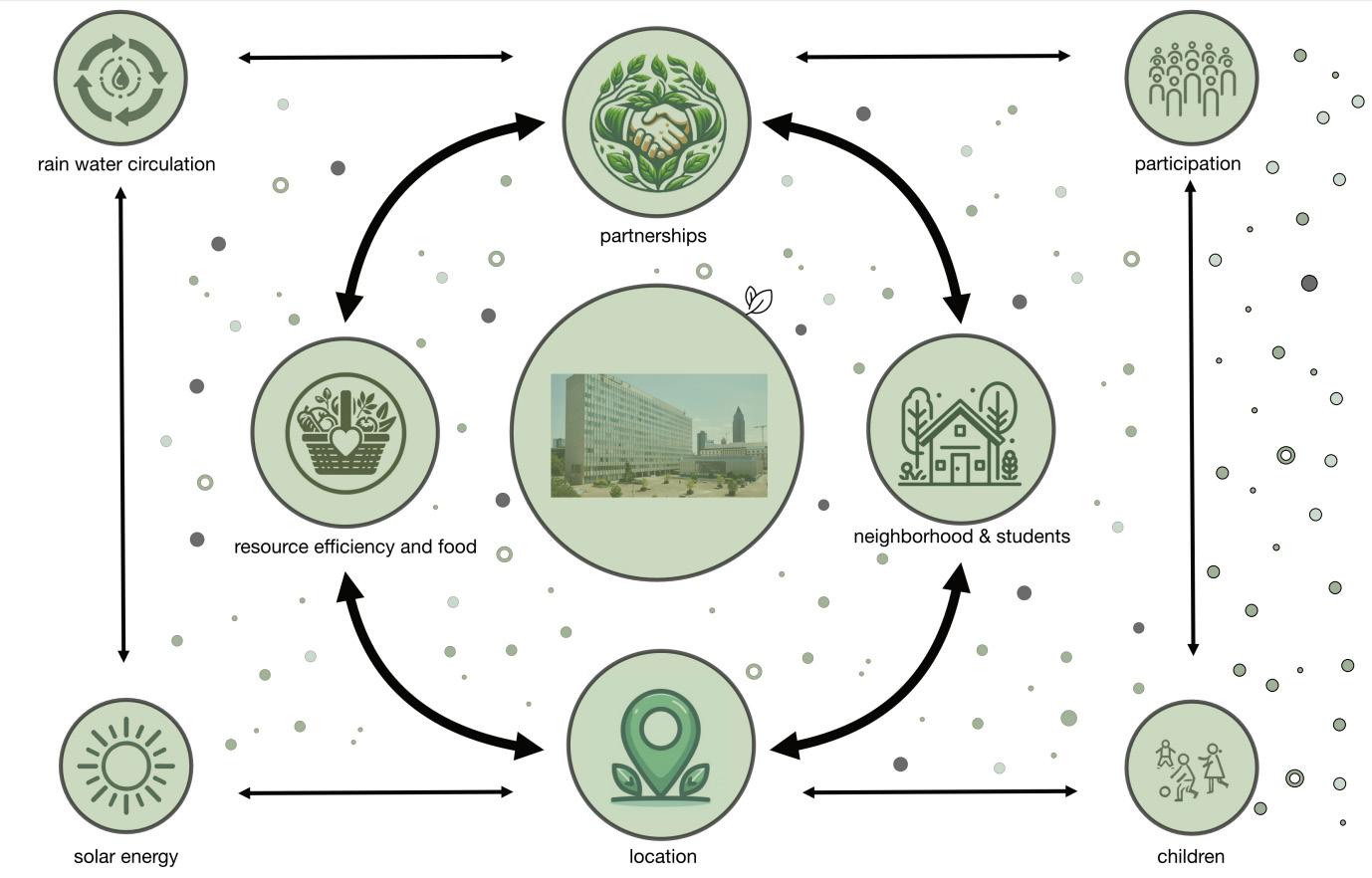

GreeNetwork enhances sustainable connections within the Kulturkampus through initiatives like the Ada Cantine, Ada Garden, and urban farming. By empowering children as key actors and collaborating with banks, the city, and associations, the project aims to build a greener, more connected community. Through innovative interventions and a detailed, realistic process plan, GreeNetwork fosters environmental education, communityengagement, and sustainable development.
1:1 INTERVENTION

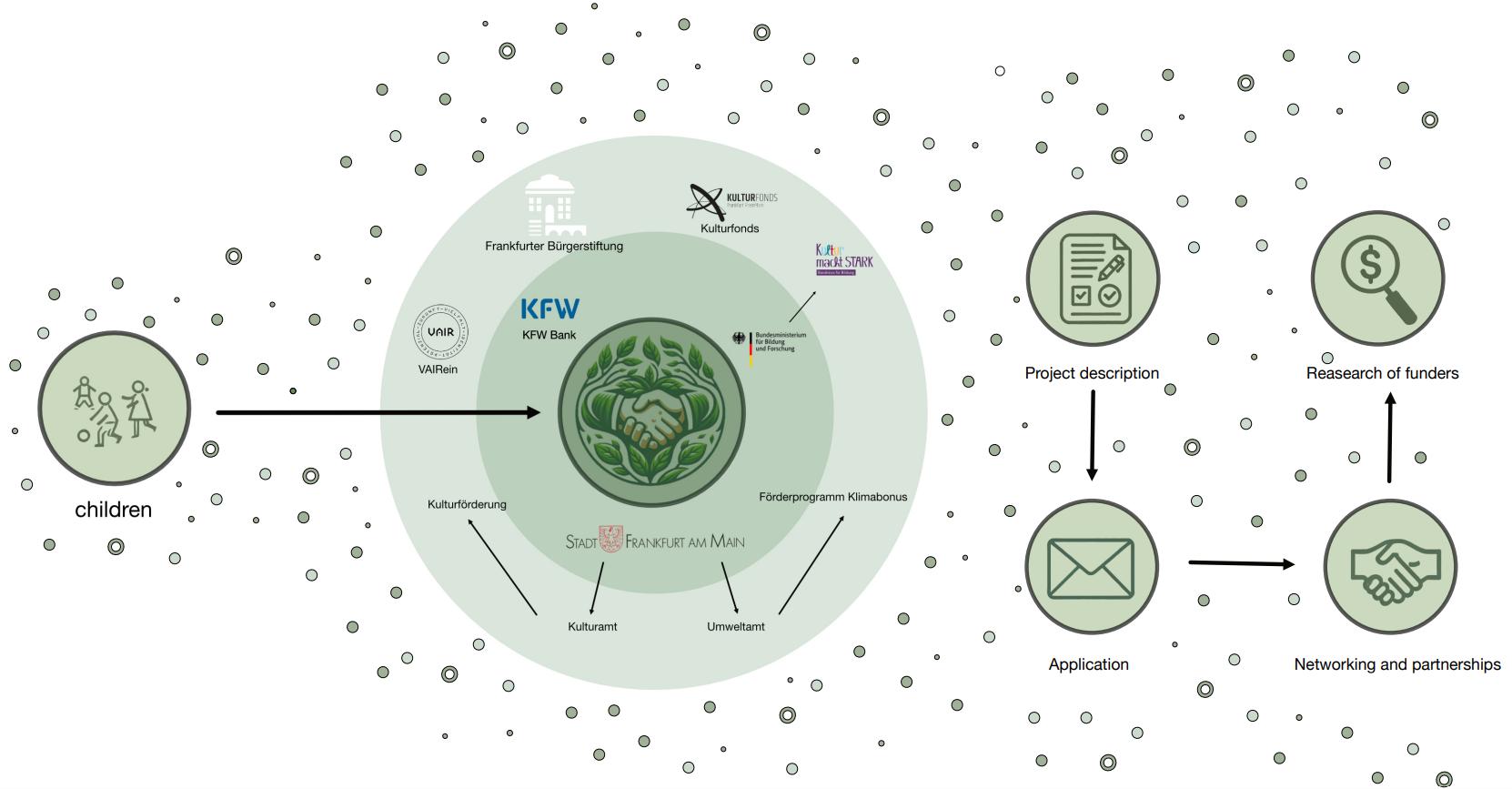

STAKEHOLDER MAPPING

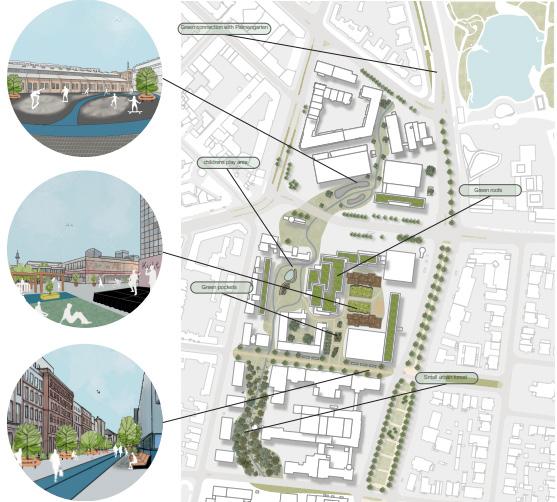

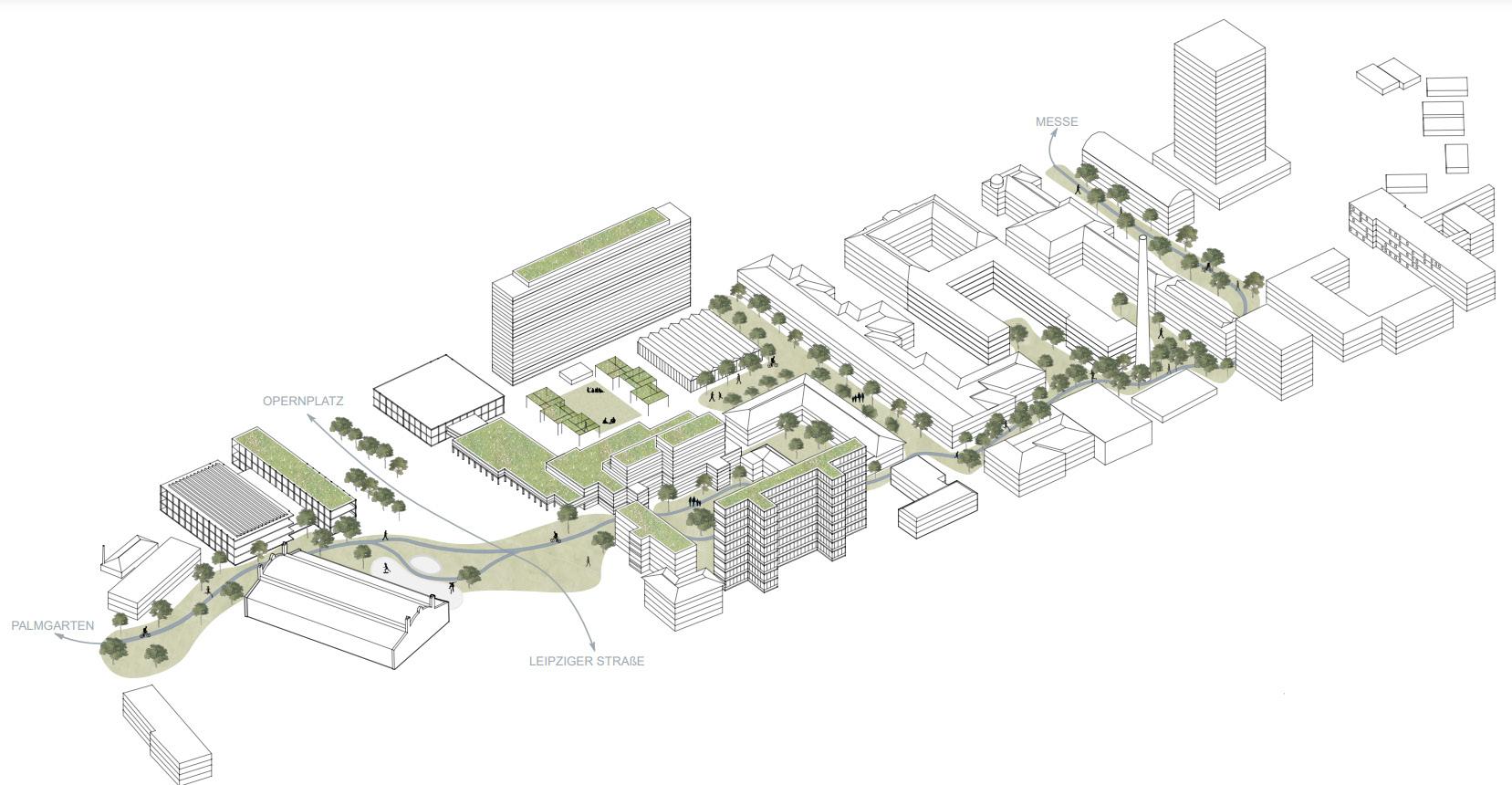

PROPOSED PLAN AND FOCUSED VIEWS
R EINVENTION

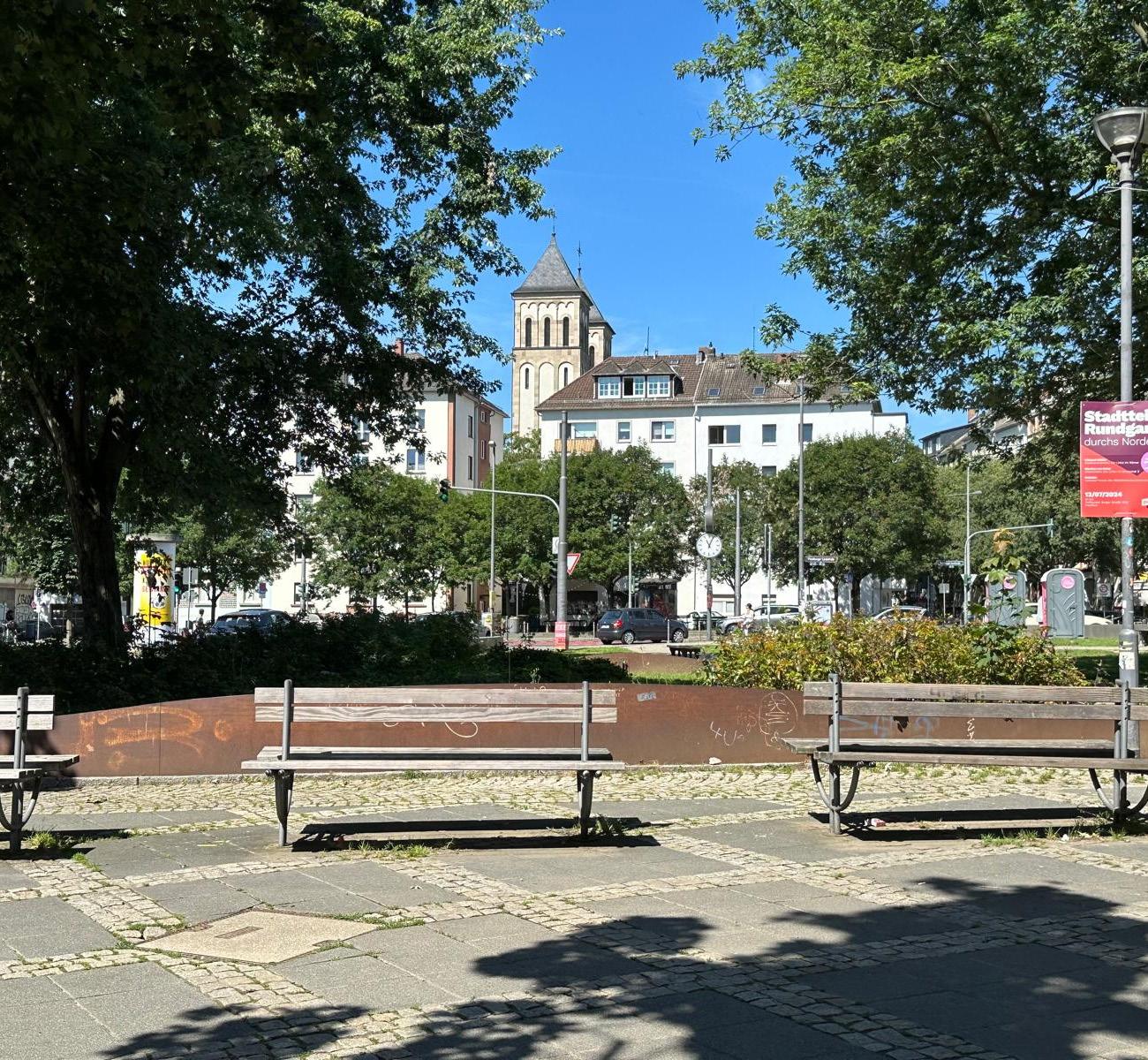

Redesign of Friedberger platz Frankfurt, Germany

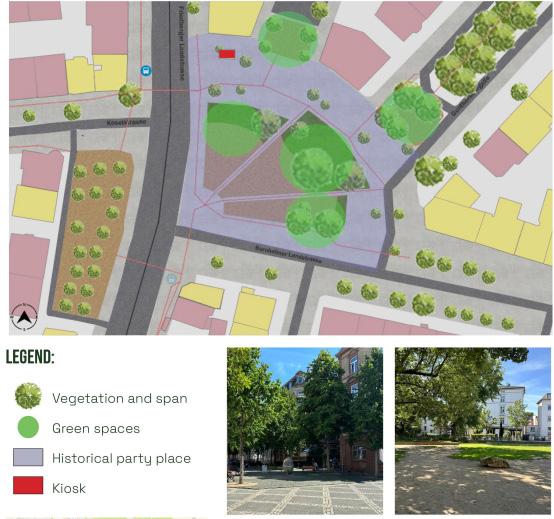

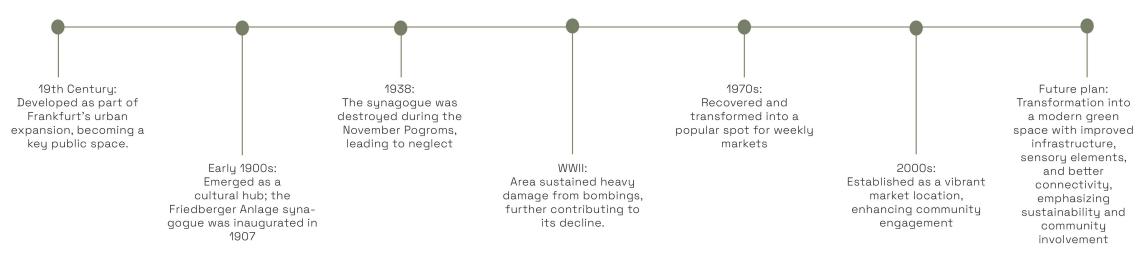

The Friedberger Platz revitalization project aimed to transform a historic public space in Frankfurt into a vibrant, community-oriented hub. The design focused on significantly expanding green areas, implementing accessible features, and providing a variety of community amenities. By incorporating sustainable materials and practices, the project sought to create a more inviting and enjoyable public space that promotes both community well-being and environmental sustainability. These efforts were intended to enhance the overall quality of life for residents and visitors alike.

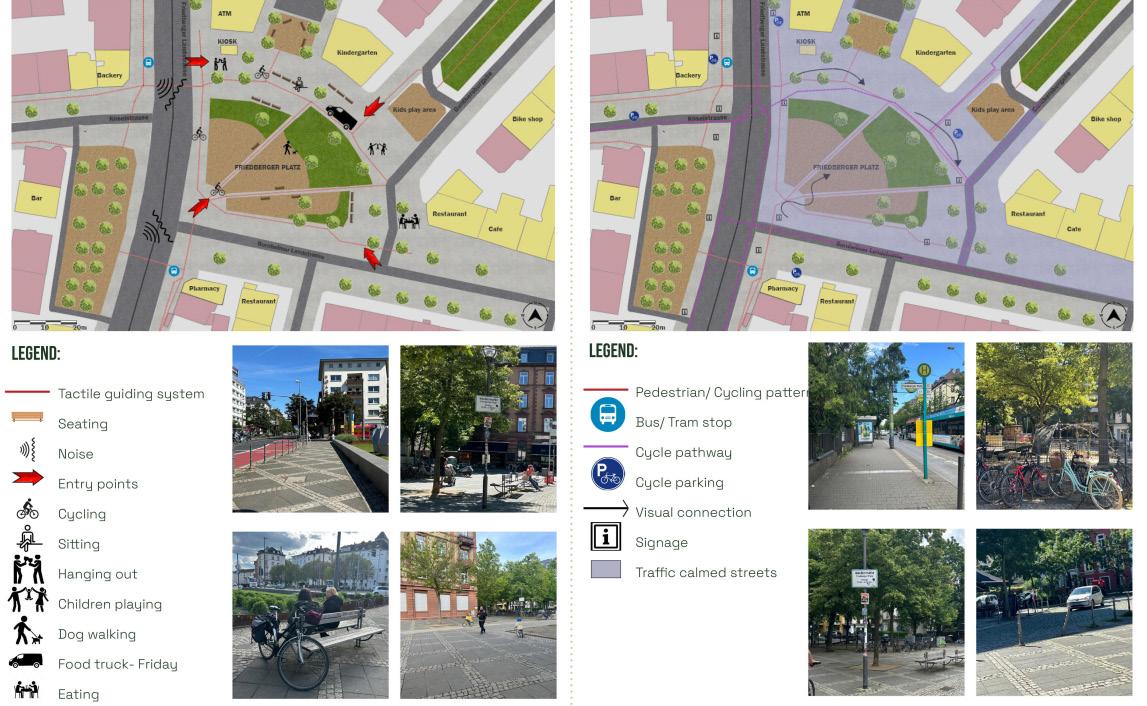

USABILITY/ACCESSIBILITY MOBILITY AND ORIENTATION

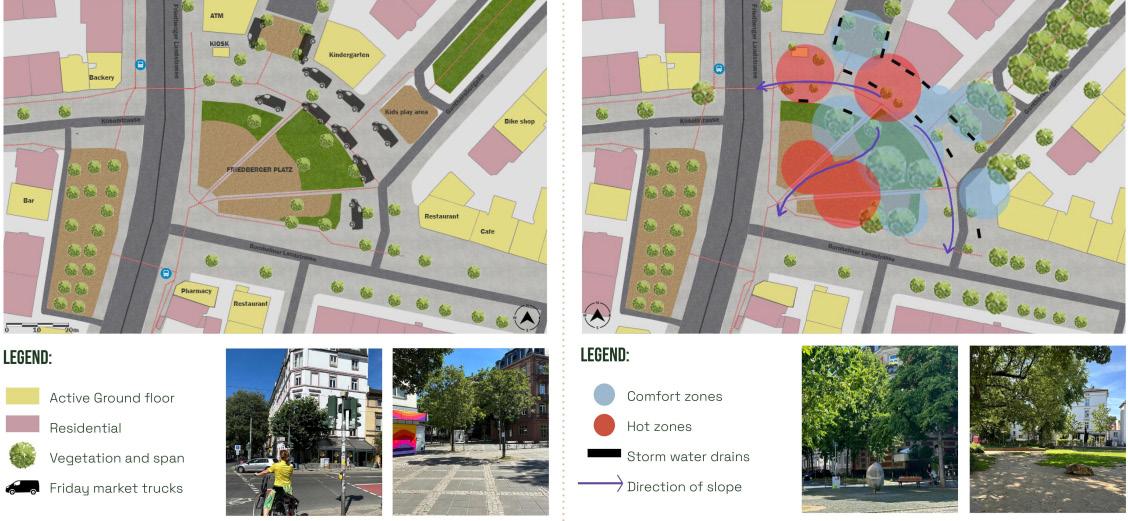

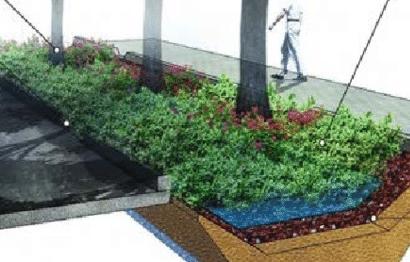

QUALITY OF GREEN SPACESS CLIMATE COMFORT/STORMWATER

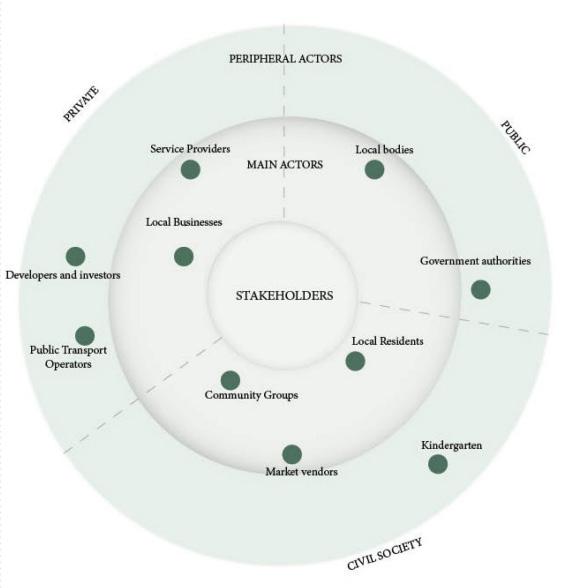

STAKEHOLDER MAPPING

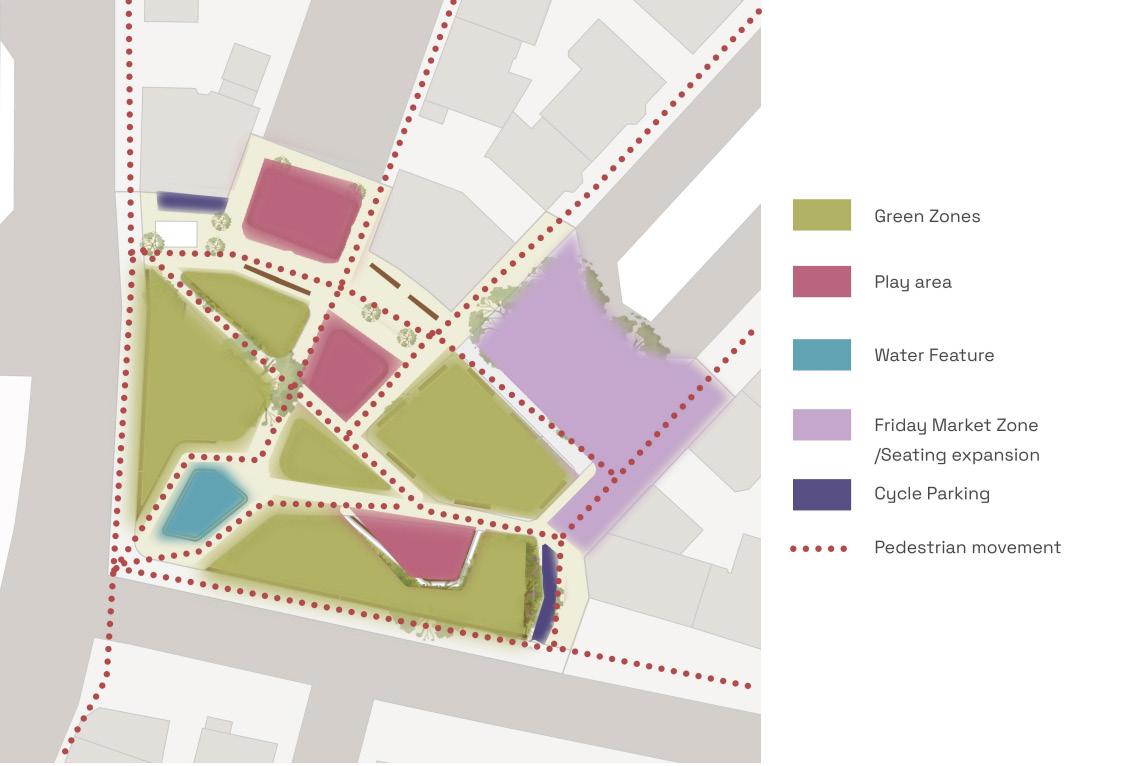

PROPOSED DESIGN- ZONING AND PEDESTRIAN MOVEMENT

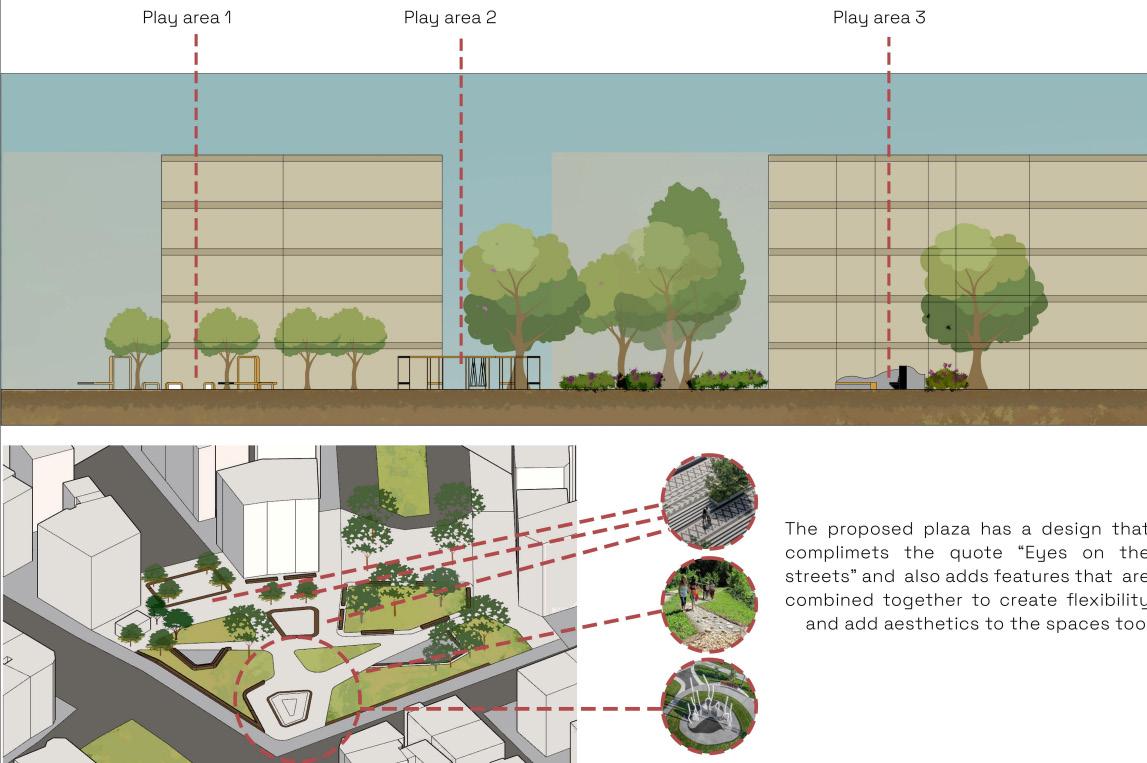

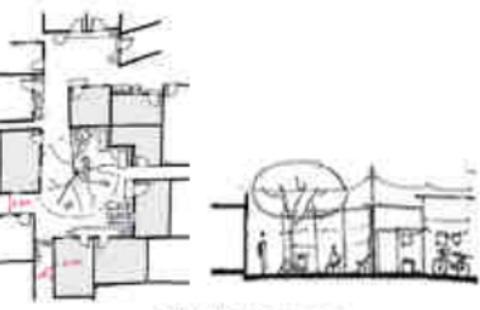

PROPOSED DESIGN- SECTION AND ISOMETRIC

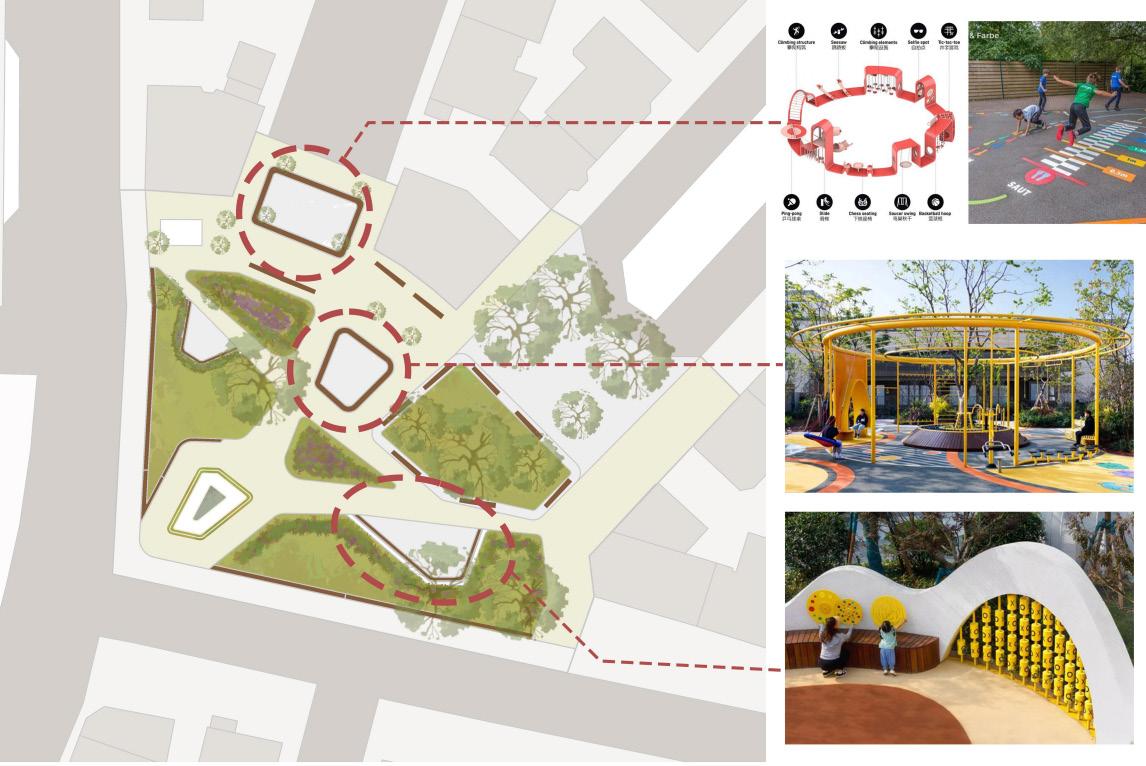

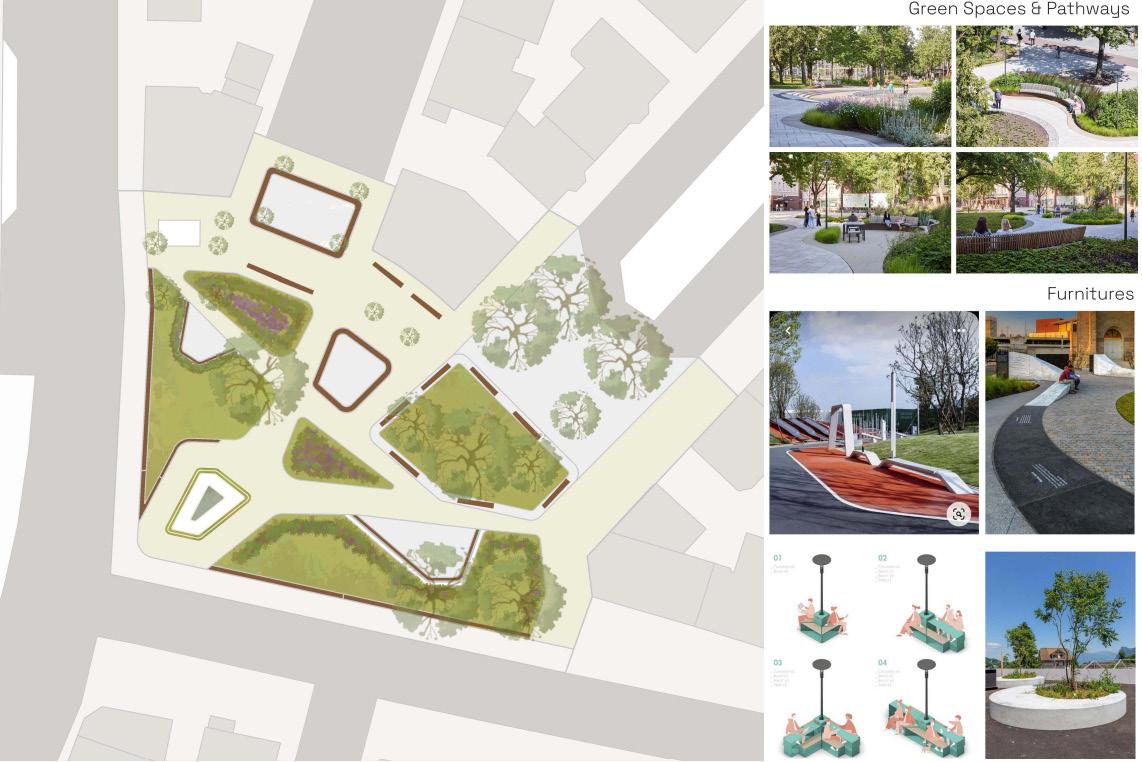

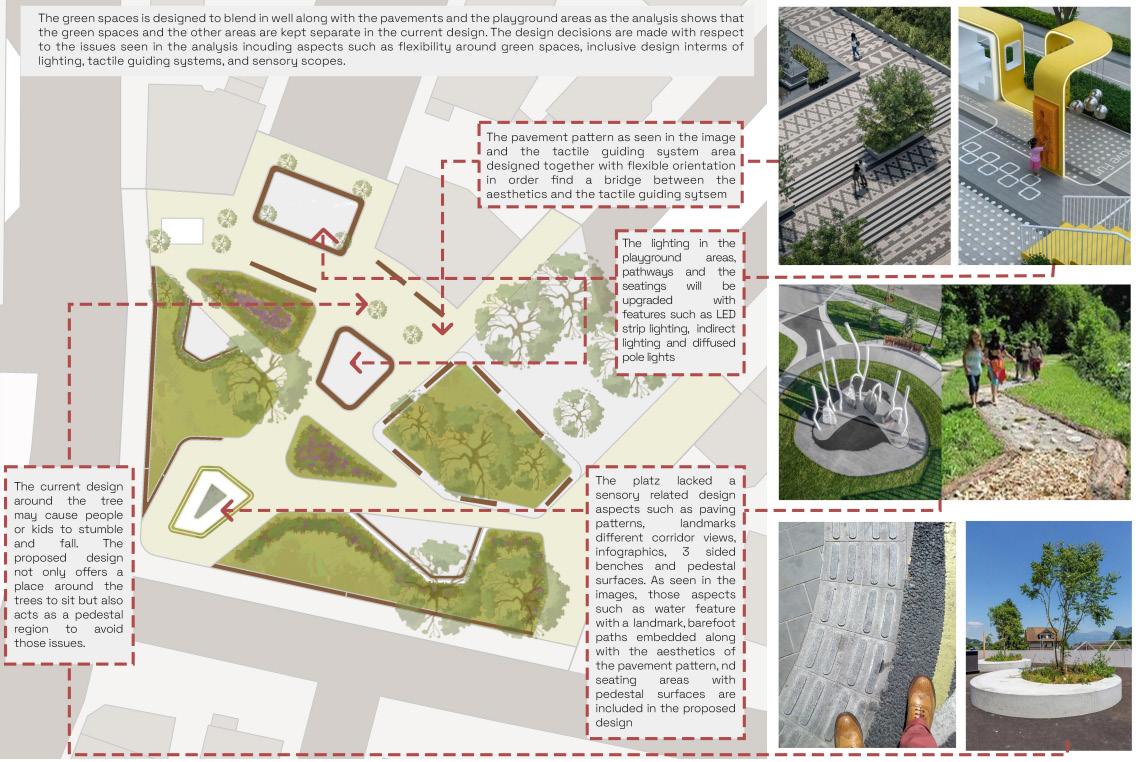

PROPOSED DESIGN- GREEN SPACES
V IKAS
Dharavi Redeveoplment Project
Location: Dharavi, Mumbai
Site Area: 33,774M2
Built-up Area: 6,359M2

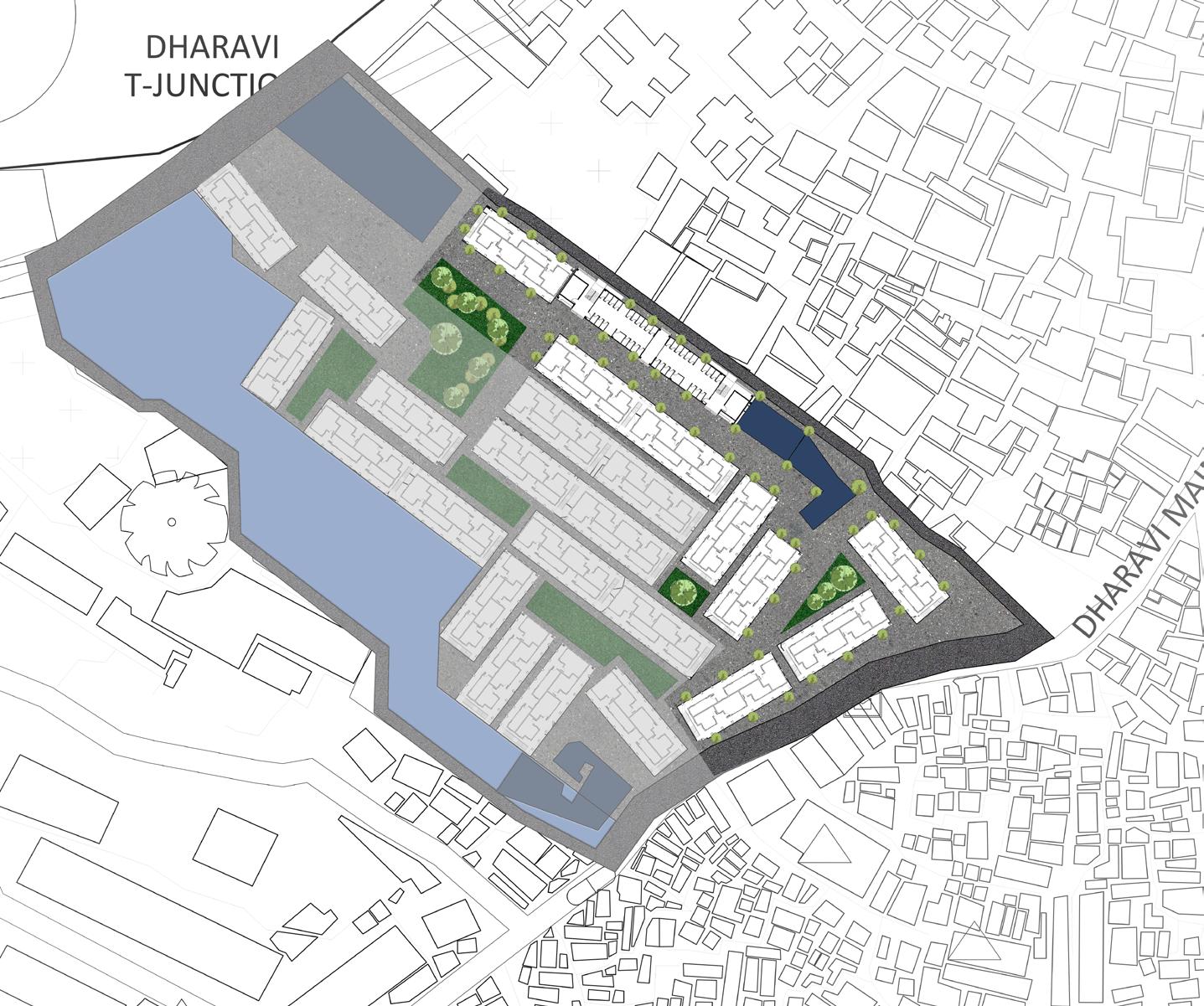

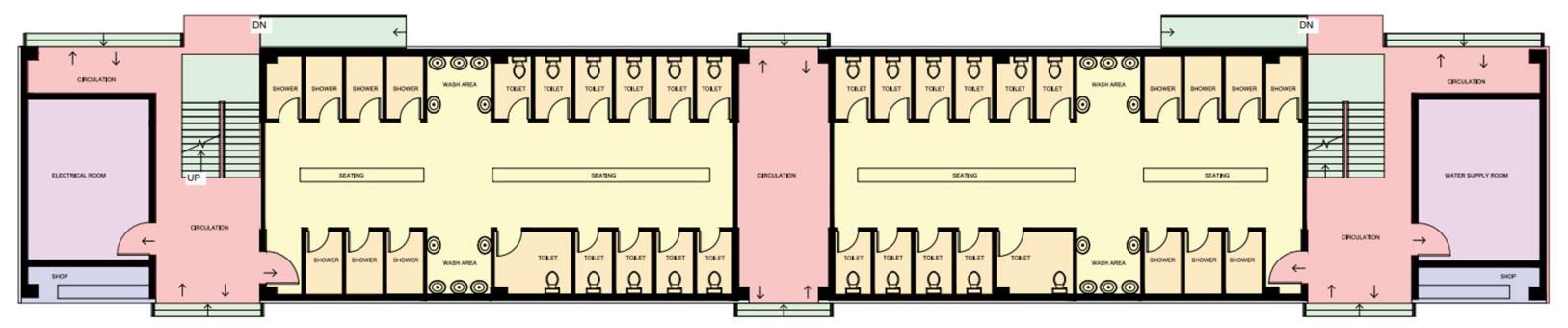

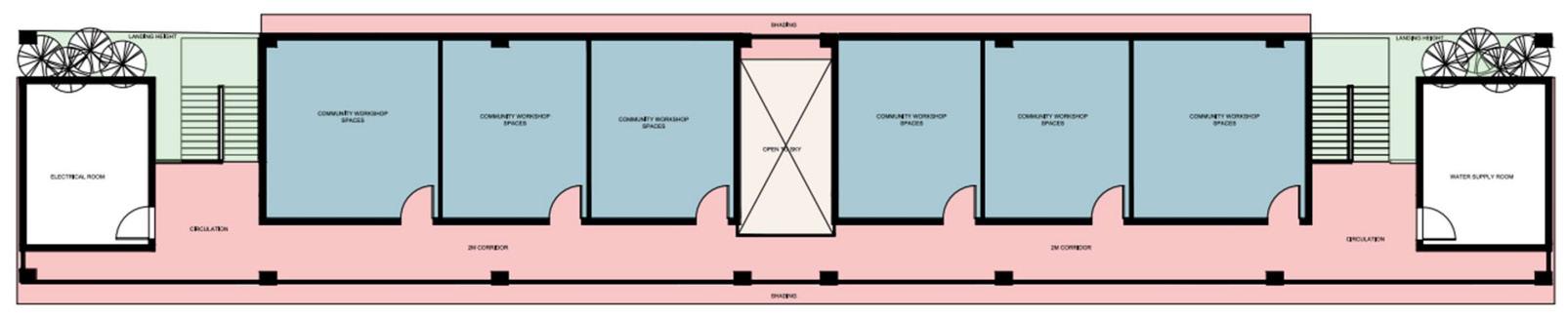

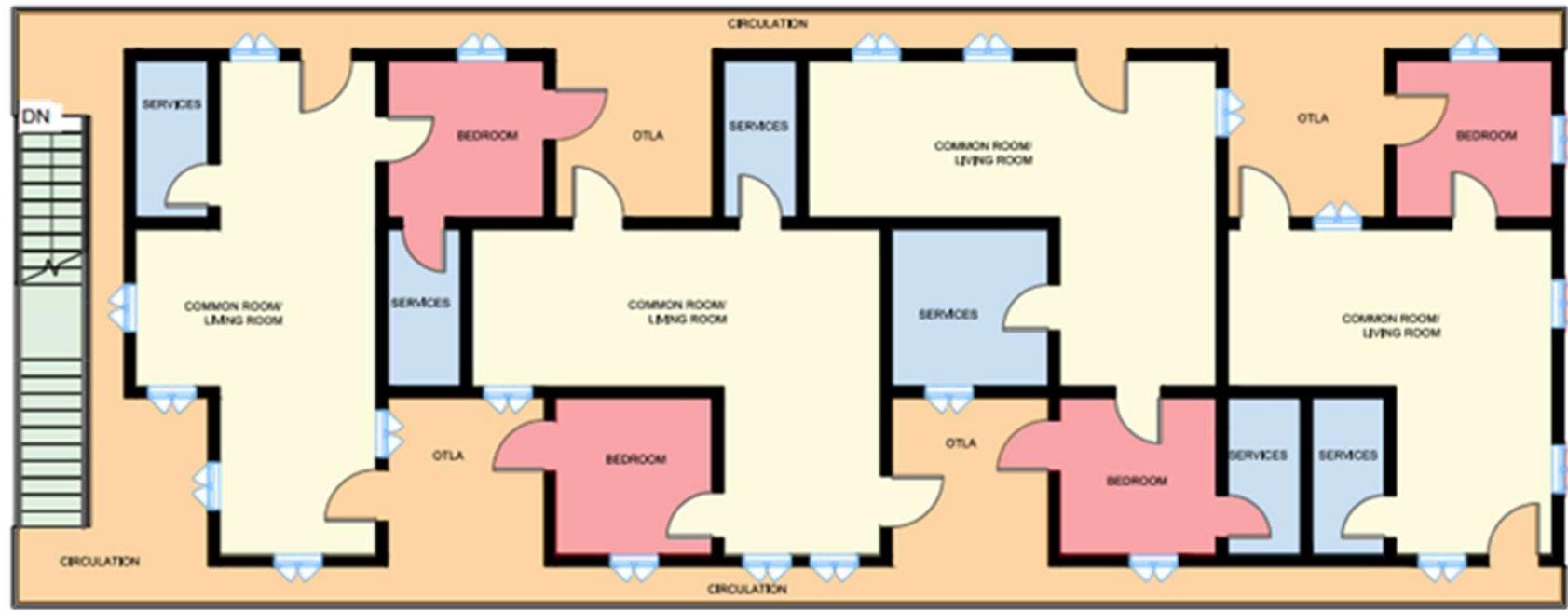

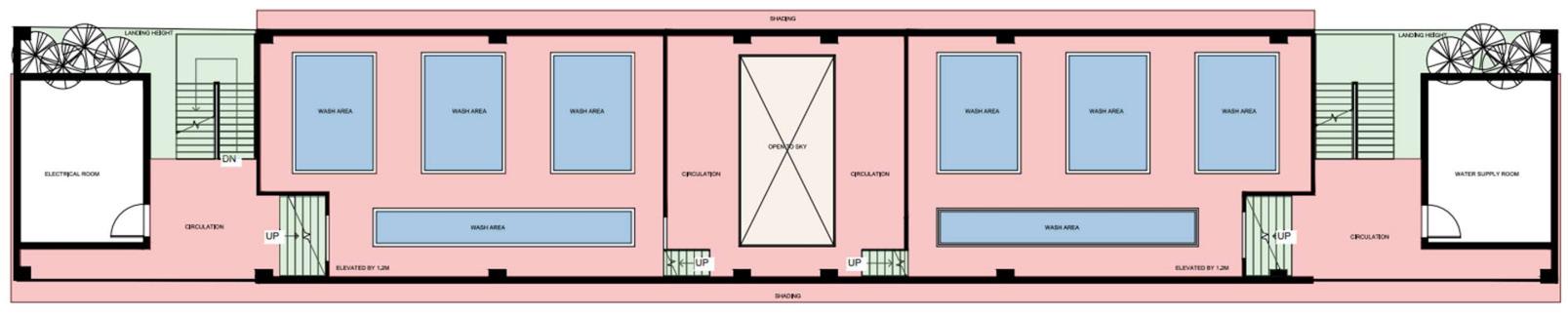

Dharavi, also known as the Slum of Hopes and Expectations, is one of Asias biggest slums. It is made up of a complete ecosystem of networks that have been established over time, and the people who live there require improved working and living circumstances. The projects goal was to develop design ideas to enhance living standards by providing sanitary facilities, improved housing conditions, and public meeting areas.

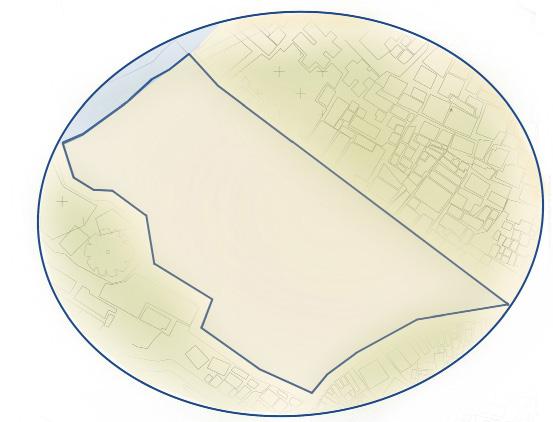

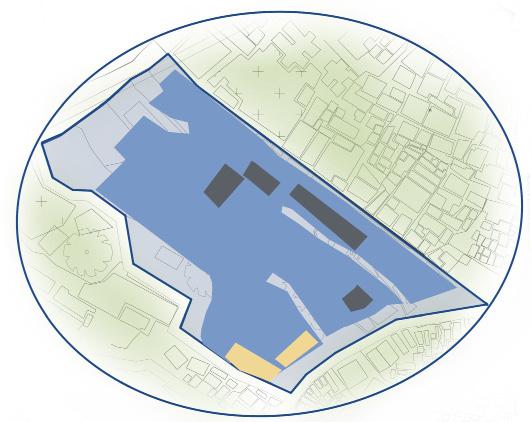

SITE ANALYSIS

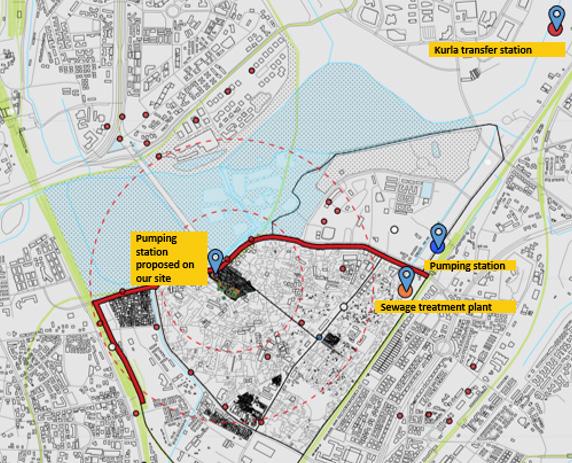

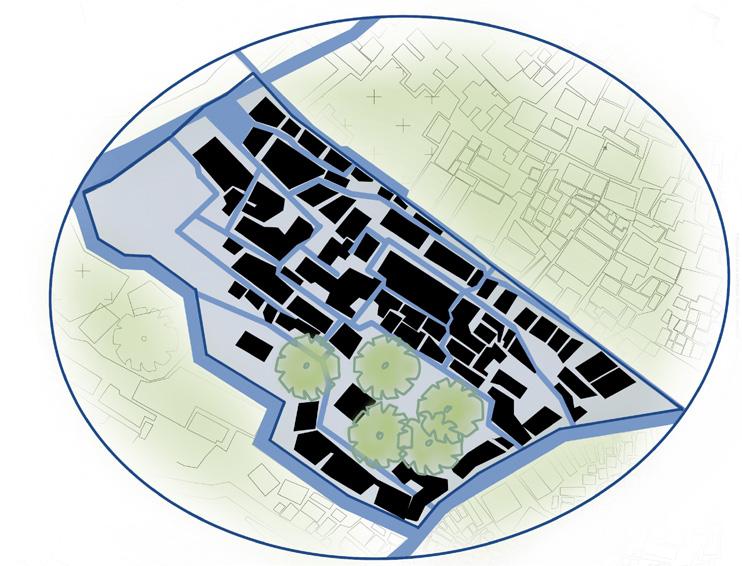

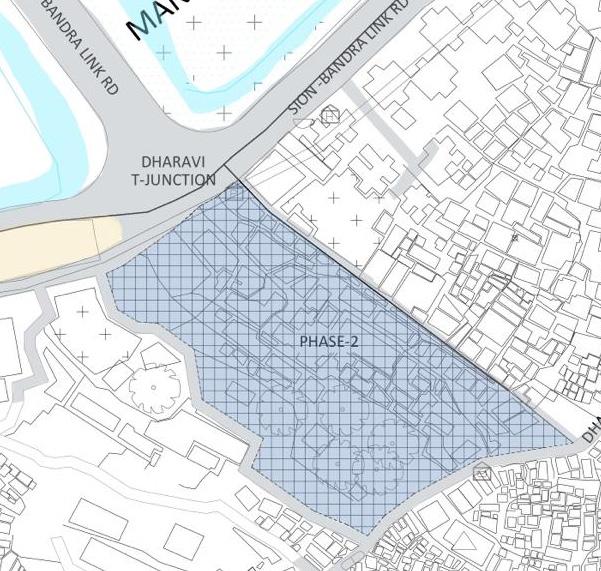

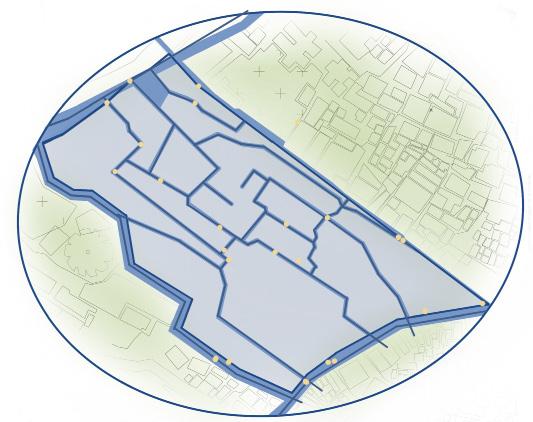

FIGURE GROUND MAP: BUILDINGS ROAD NETWORK UTILITIES ANS SERVICES: PROPOSED PUMPING STATIONS SERVICE LINES RUN ALONG ROAD NETWORK
4

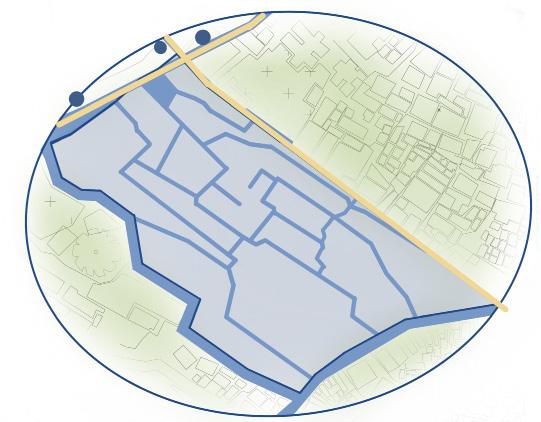

TRANSPORT:
ACCIDENT PRONE AREA BUS STOP MAIN ROADS

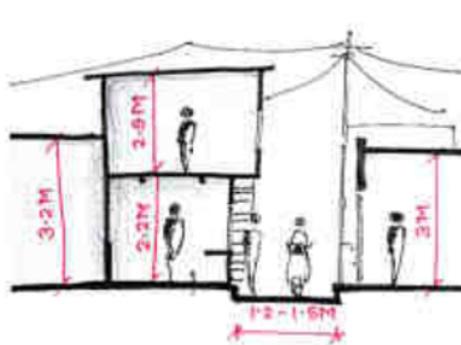

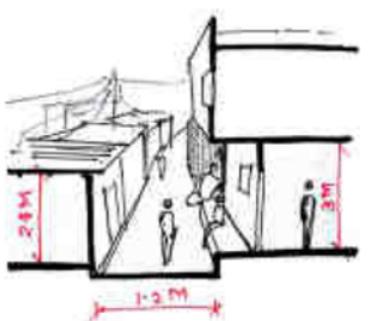

SITE CONTEXT
BUILDINGS AND HOUSING:
BUILDINGS CESSED BUILDINGS HERITAGE BUILDINGS
ECOLOGICAL FACTORS: FLOOD PRONE AREA MANGROVES
5 MAHIKA
Faculty Housing
Location: Manipal, Karnataka
Site Area: 30,350M2
Built-up Area: 66,790M2

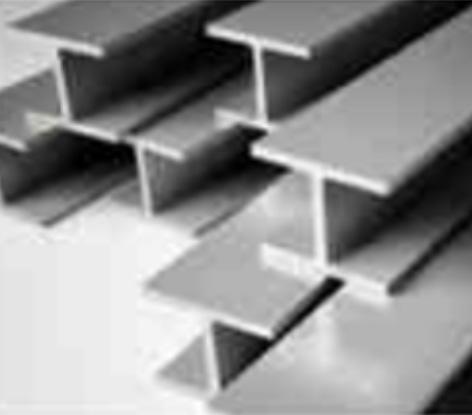

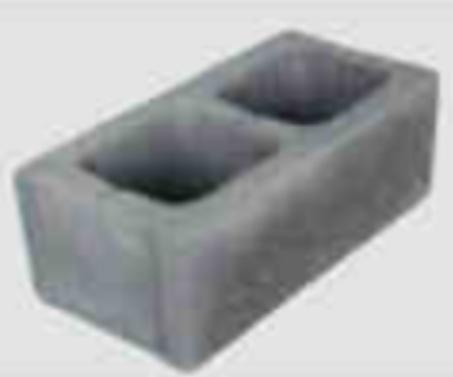

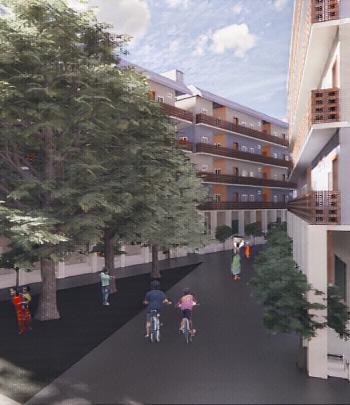

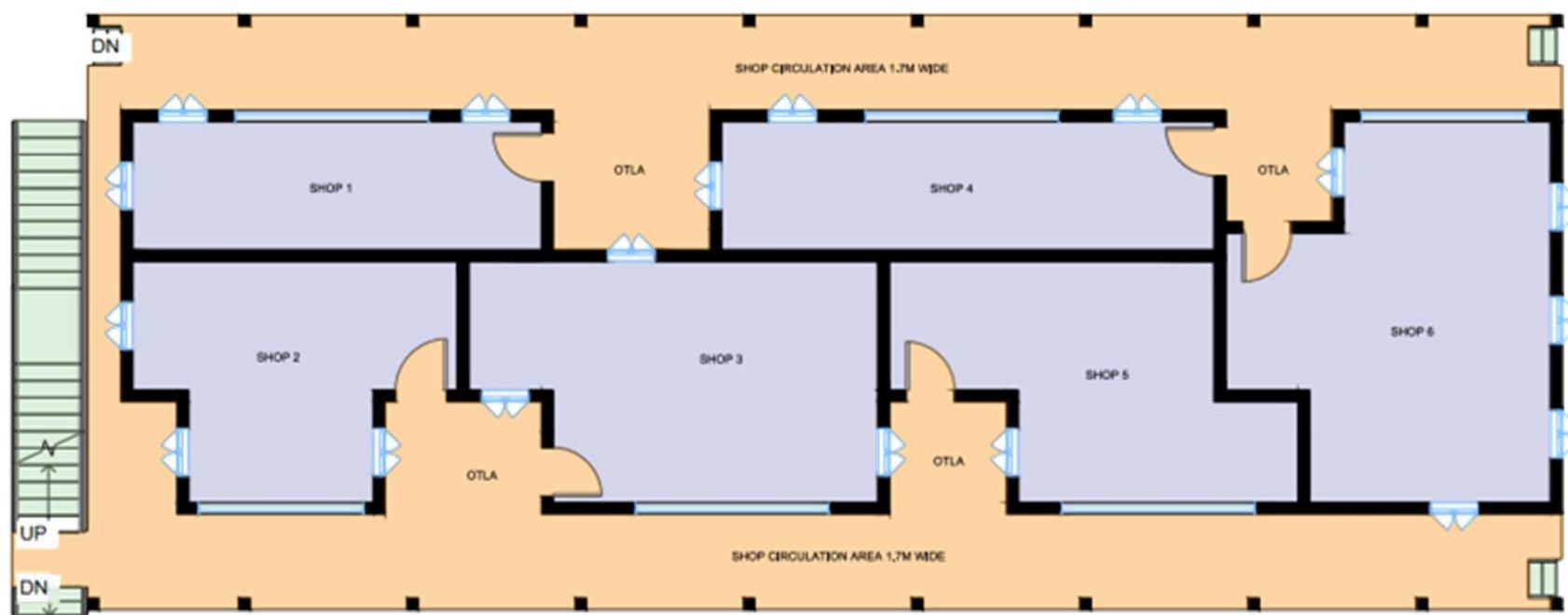

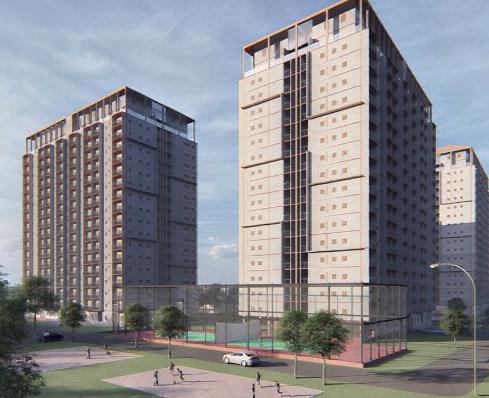

A redevelopment project for the faculty housing of MAHE. A high-rise residential project made using prefab construction techniques including 5 types of units. The blocks contain a party hall, retail store, activity rooms and interactive spaces with parking provided in the basement creating a complete new environment for the users.

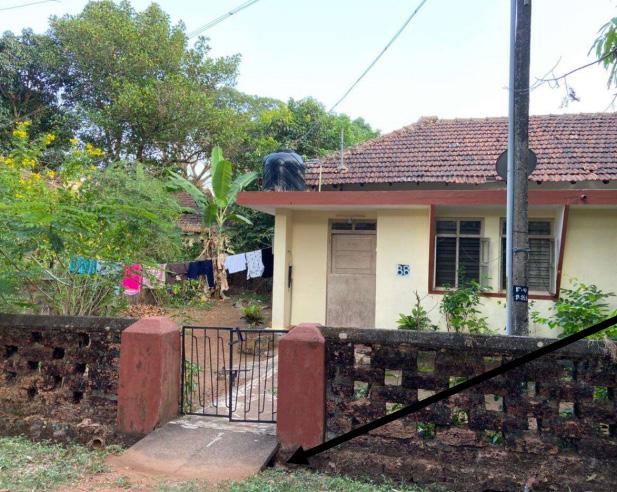

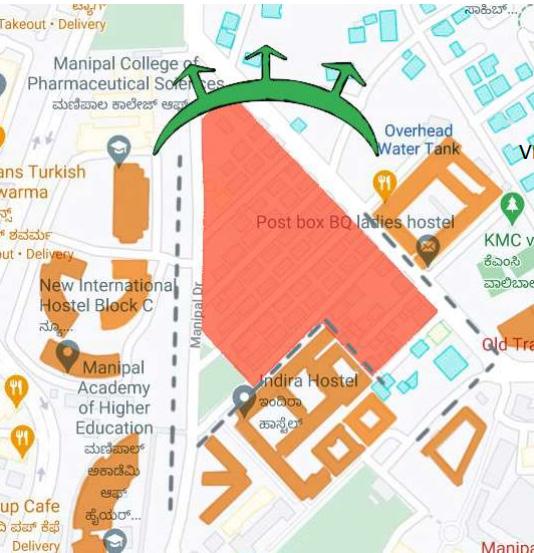

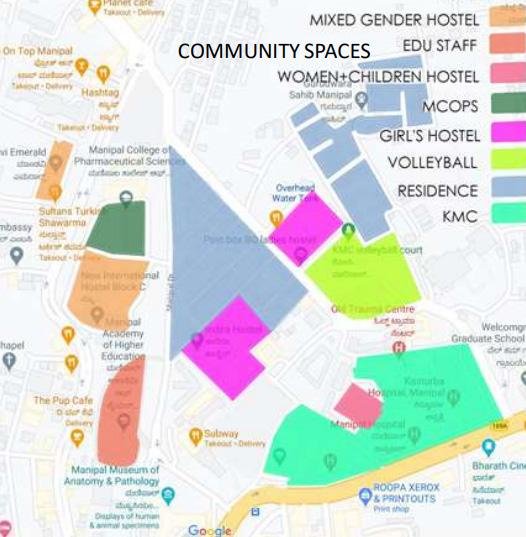

SITE CONTEXT
WASTE MANAGEMENT

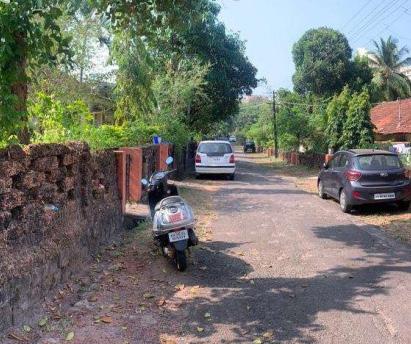

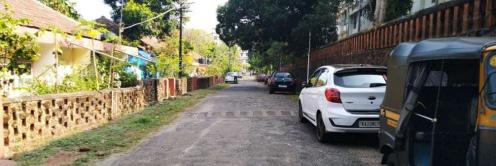

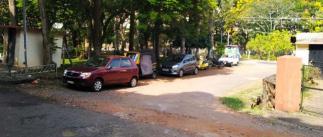

GOOD ROADS AROUND THE SITE WITH PEDESTRIAN PATHWAYS. NO PROPER PARKING SPACE, NEEDED TO BE ADDRESSED
ROAD
