Engine - Engine and crankcase

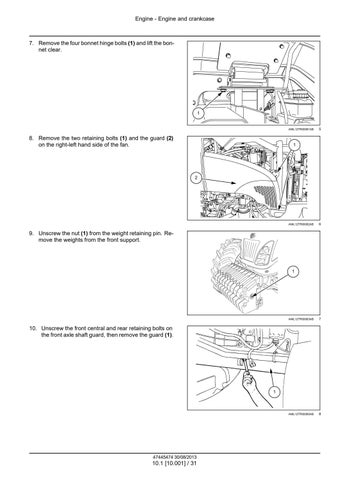

7. Remove the four bonnet hinge bolts (1) and lift the bonnet clear.

ANIL12TR00061AB

5

ANIL12TR00062AB

6

ANIL12TR00063AB

7

ANIL12TR00065AB

8

8. Remove the two retaining bolts (1) and the guard (2) on the right-left hand side of the fan.

9. Unscrew the nut (1) from the weight retaining pin. Remove the weights from the front support.

10. Unscrew the front central and rear retaining bolts on the front axle shaft guard, then remove the guard (1).

47445474 30/08/2013

10.1 [10.001] / 31
