Graduation_project

STUDENT HOUSING

Laâyoune | Morocco

Student housing holds within its conception a common human character, however, it controversially implies a contextualization necessity of creating the adequate environment in terms of functions, users and milieu.

2

14

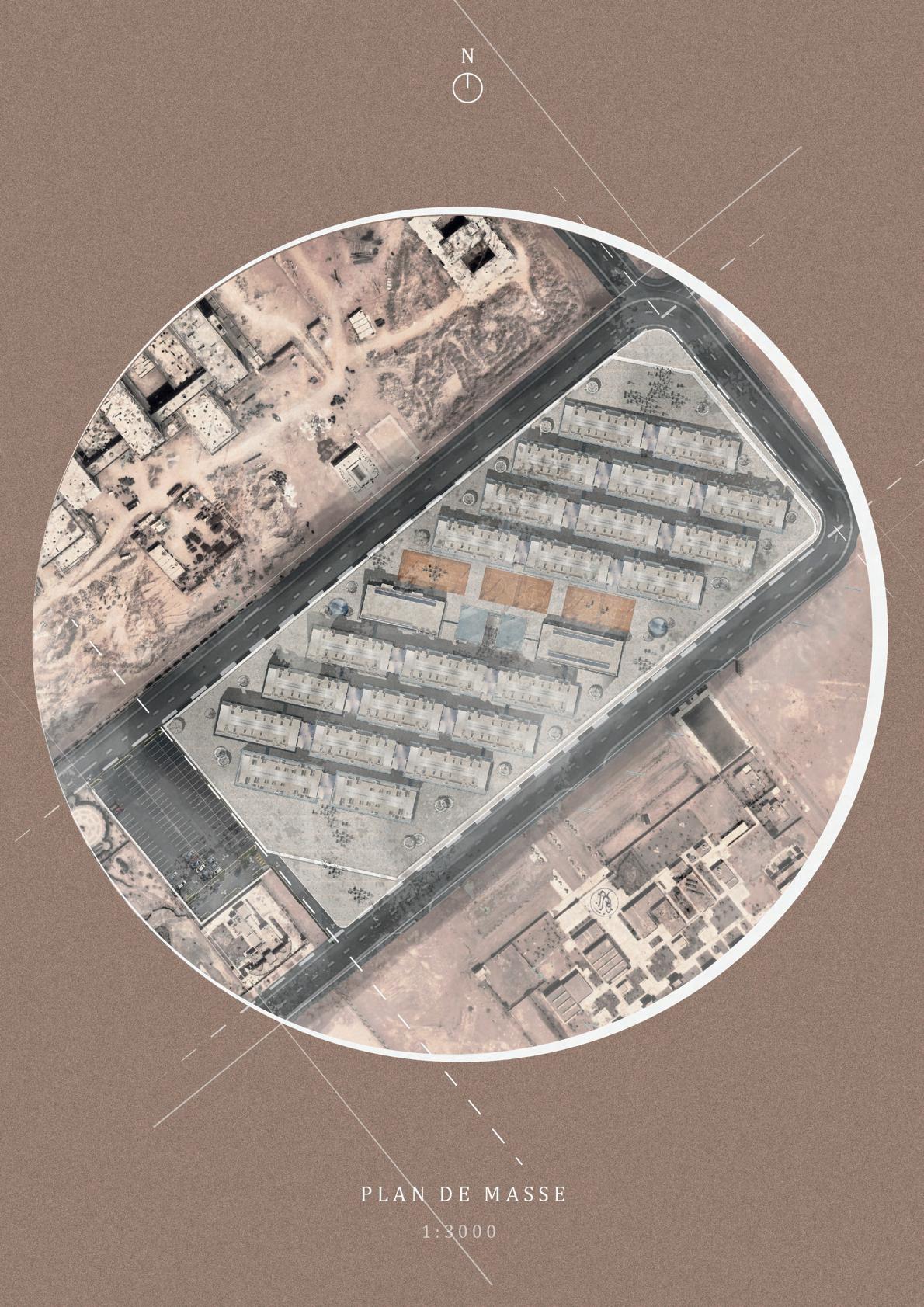

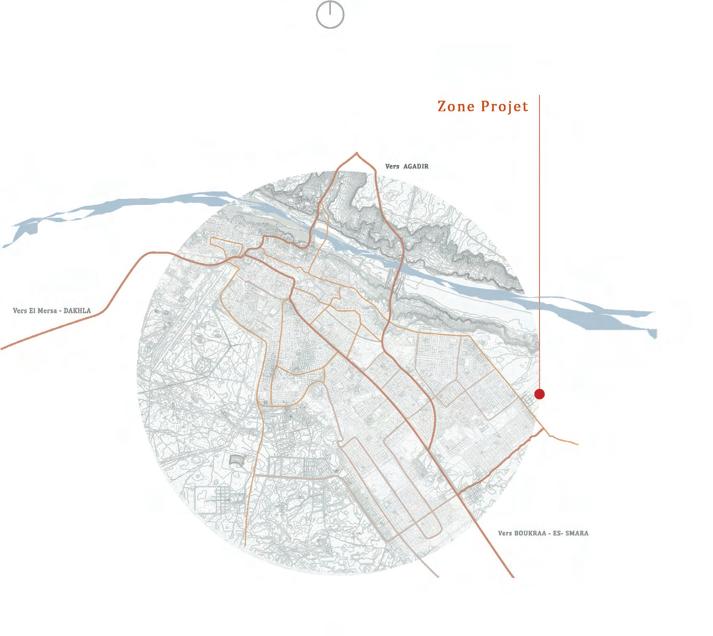

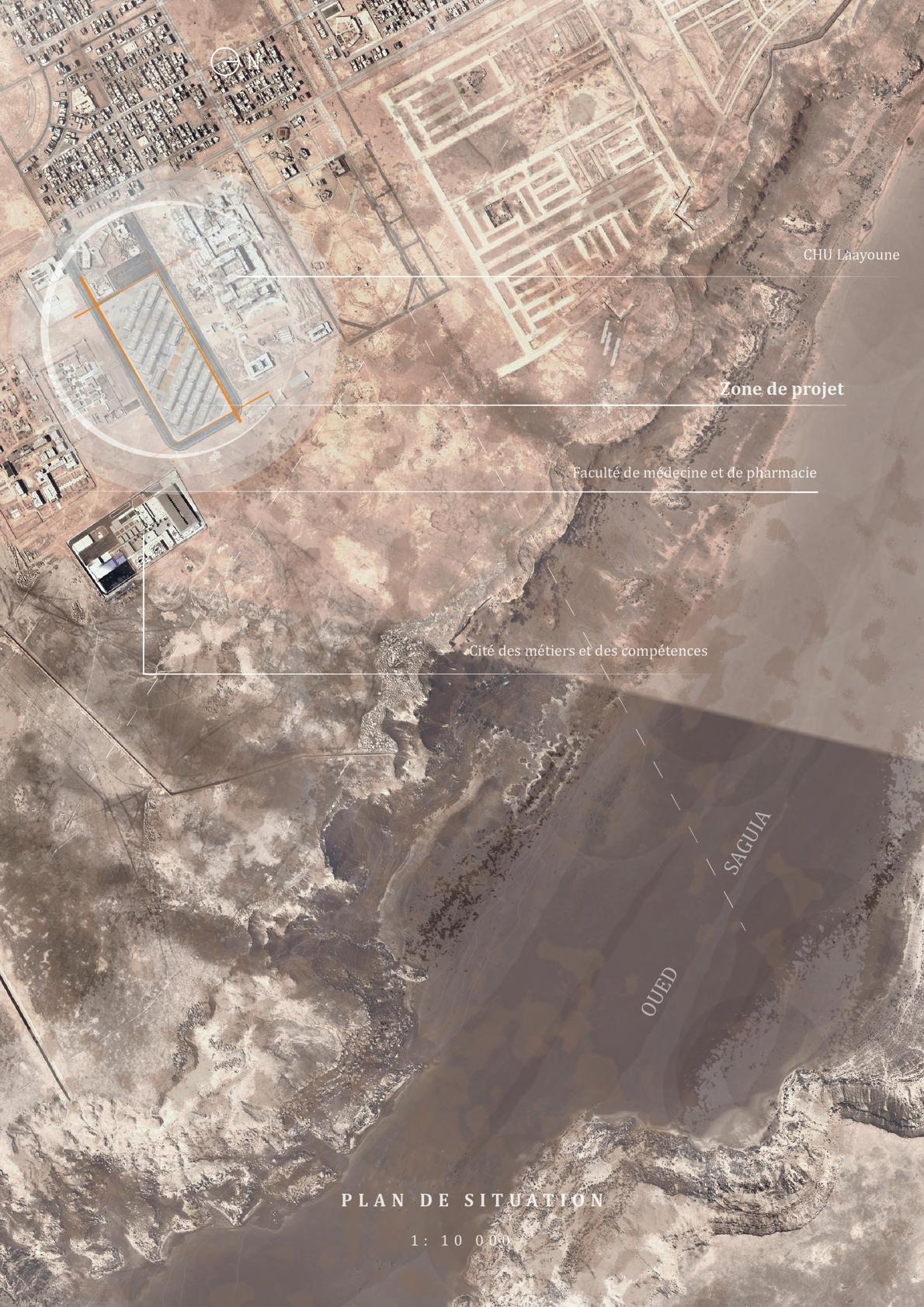

My project proposal takes place in the development area of Laâyoune city, the site is centrally located to all schools, faculties and training centers on site. Its rectangular shape and flat topography offer a variety of design choices.

Adaptation and inlay

The design approach consists on reincarnating an architectural morphology resarch process, adapted to the context of Laâyoune. The idea rests on the developement of a housing solution destined to students from all kinds of environments, adapted to the rigorous conditions of the climate, the chromatic palette and the local material of use, along with generating an indoor microclimate on different levels.

15

Composition

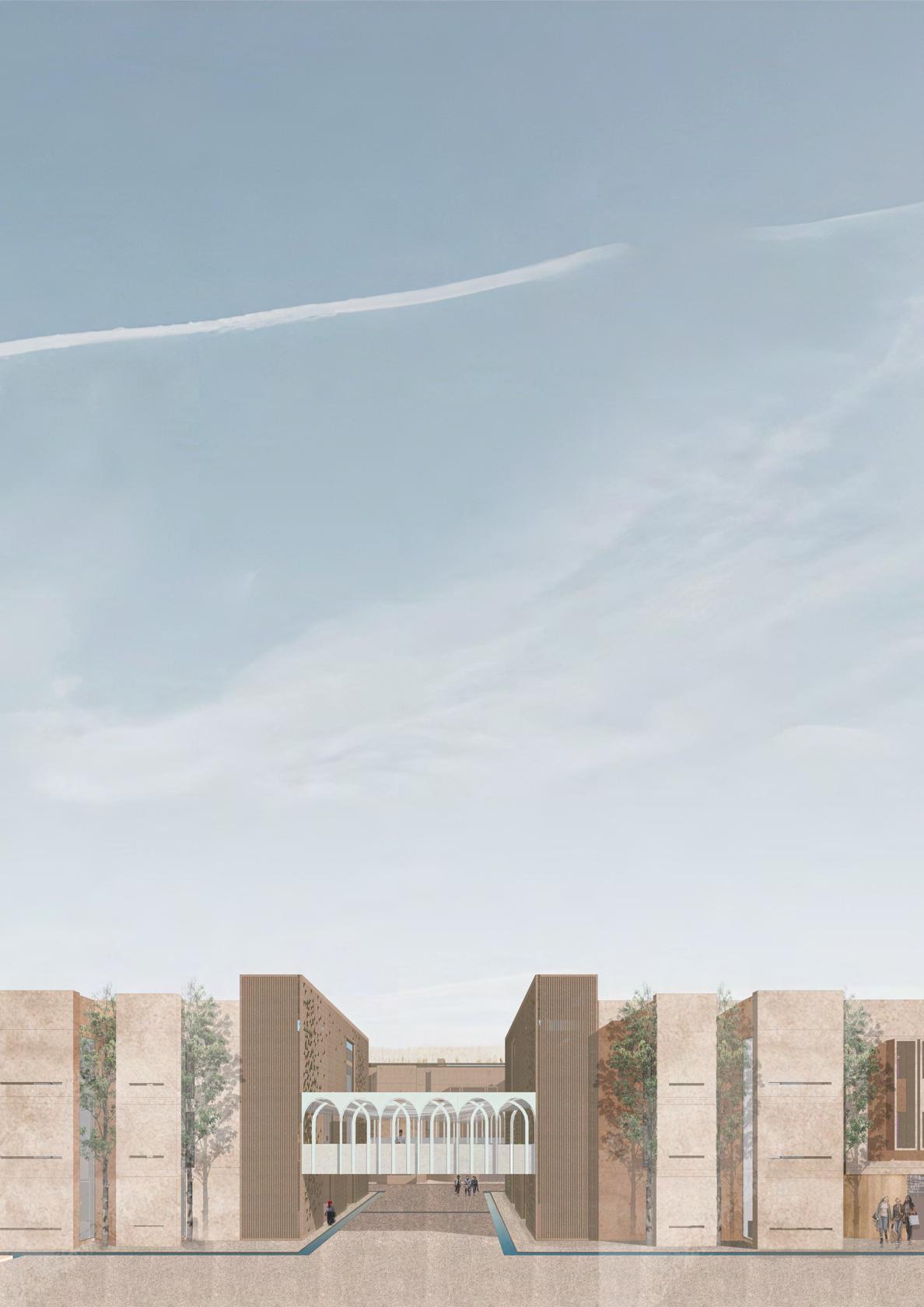

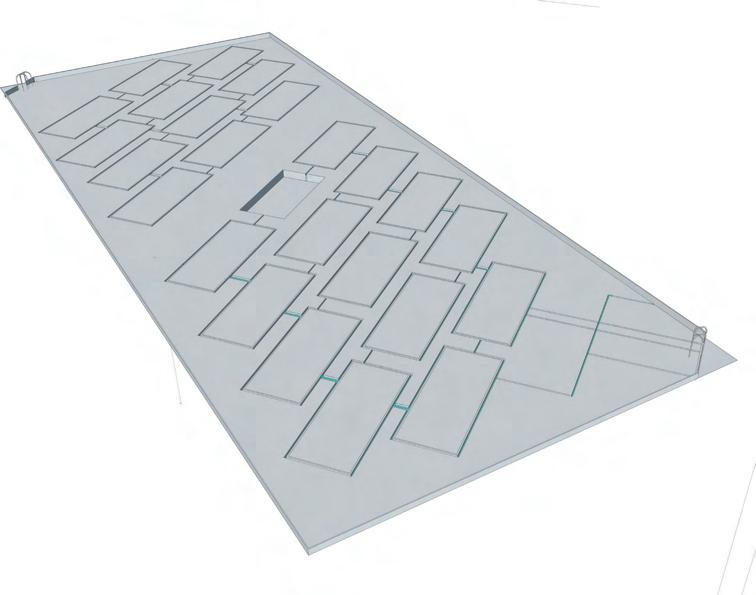

Following a geometric logic, the layout of the project constitutes a pattern of parallel directional lines along which the housing modules are positioned. The two wings of the campus are arranged according to a central symmetry.

The ocher aspect of the superstructure is soothed by the embeded vegetal and aquatic elements, a landscape arrangement that fits into the urban and natural chromatic palette of the city of Laâyoune.

16

The area between the two parts is destined for common use, inclusing the study hall, the dining hall, the sports fields and the underground celebration space.

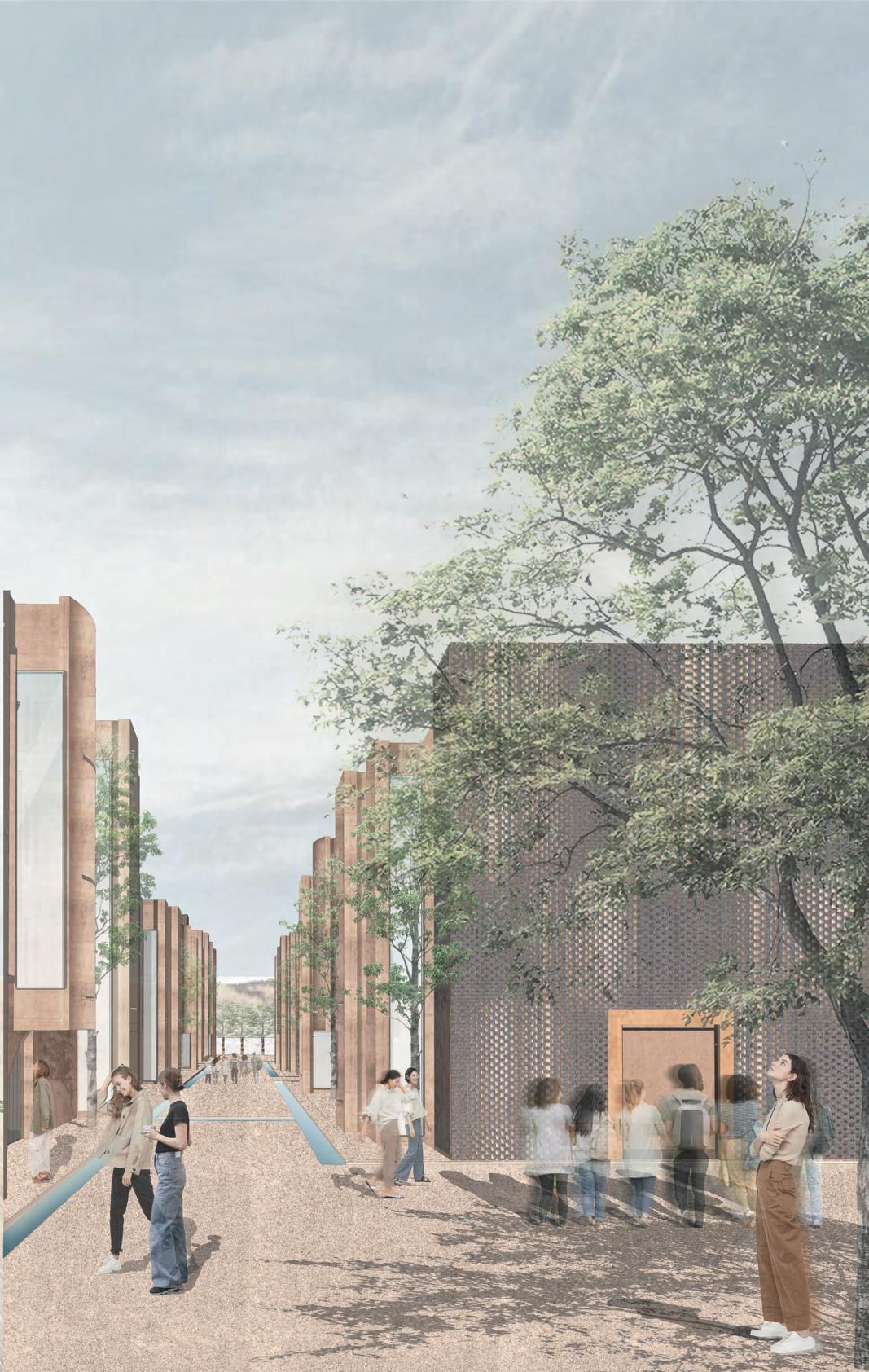

The presence of the water element along with the greenery reinforces the freshness effect and mitigates the felt air temperature while walking through the ailes. This highlights the idea of the microclimate generation and comfort establishement through a passive cooling system similar to the oasis effect.

Water channel

Direct connection Indirect connection Common use

The water course runs through the campus and along the building facades in a closed loop that also supplies the water body above the celebration Hall.

17 Housing

Study

Sports �ield Clay

Housing

Water course The tank Glass sheet

50 cm Pumping Tank supply Well

Unit R+2 Celebration Space

Hall

Dining Hall

Unit R+3 Well points Water cycle

Injection

HOUSING MODULE R+3 HOUSING MODULE R+3 HOUSING MODULE R+3 HOUSING MODULE R+2 HOUSING MODULE R+2 HOUSING MODULE R+2 HOUSING MODULE R+2 HOUSING MODULE R+2 HOUSING MODULE R+3 HOUSING MODULE R+3 HOUSING MODULE R+3 HOUSING MODULE R+2 HOUSING MODULE R+2 HOUSING MODULE R+2 HOUSING MODULE R+2 HOUSING MODULE R+2 SPORTS FIELD SPORTS FIELD SPORTS FIELD STUDY HALL DINING HALL CELEBRATION SPACE

The degrees of intimacy are gradually increasing throughout the user experience.

Community spaces are embeded in the optic of strengthening the sense of belonging to a single body. ( the student housing, the bloc, the floor,...)

Figure. Floor plan

Study Hall Shared by the bloc residents

Laundromat

Figure. Ground floor

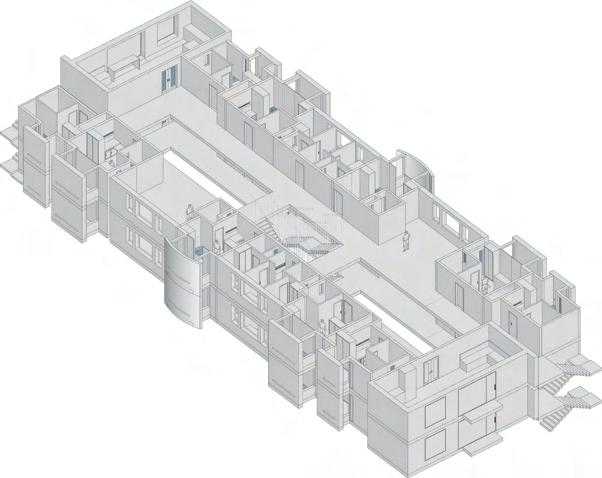

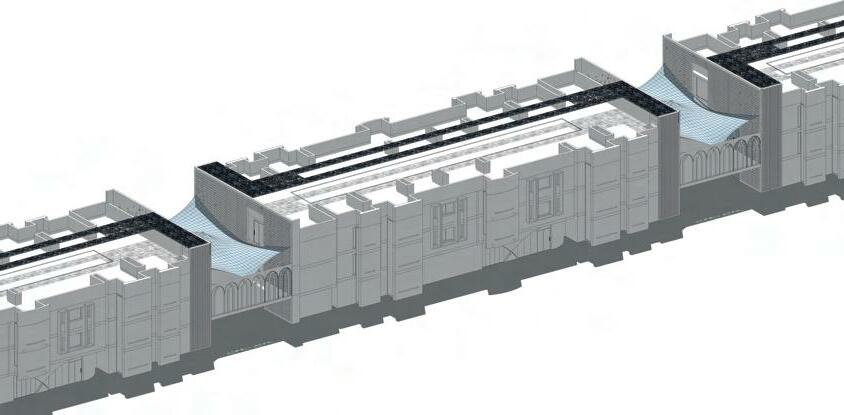

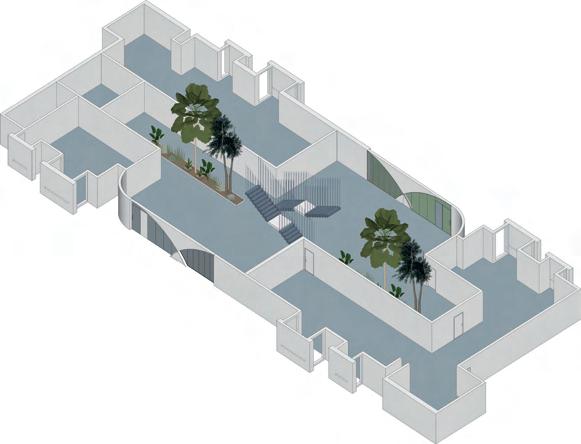

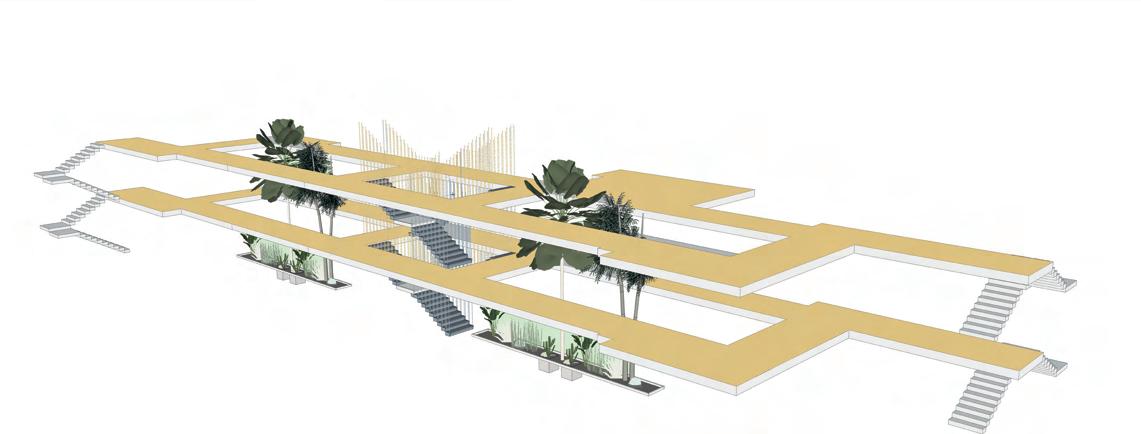

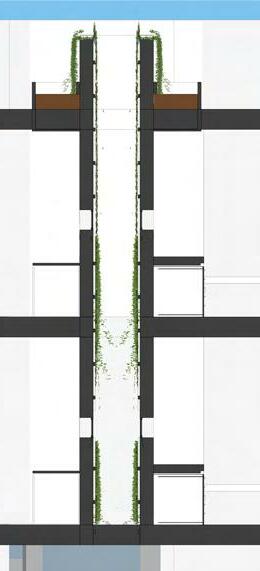

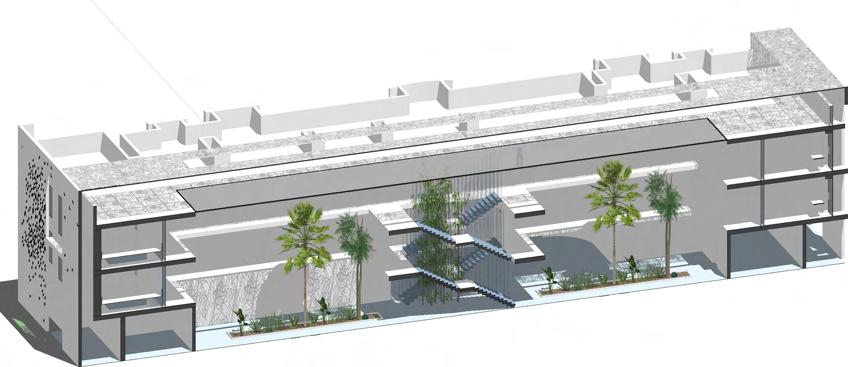

The horizontal circulation consists of corridors linked by bridges to maintain contact with the interior garden and create a dramatic effect. The main central staircase is also convinient for convivial gatherings under the subdued light coming from the skydome.

This quality is also maintained in the the emergency exit through the textured shade provided by the mesh and the wood slats. Protected terraces are designed between blocks in the spirit of creating a buffer zone, an

in-between space that can be reached from the two wings. The series of arches recall the emblem of Laâyoune and the canvas roof protects and sets up a scenography with the the fabric motion.

18

+ Common dining

Individual rooms Common Space Common kitchen

room Shared rooms

Accès

Private use Semo-private use Semi-collective use Restricted access ( Staff)

Shared by the bloc residents

Accès T.R Maintainance and stocking

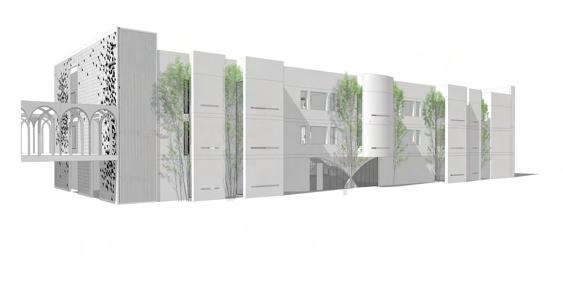

Double skin

Protected terraces

Wood slats

Pergola

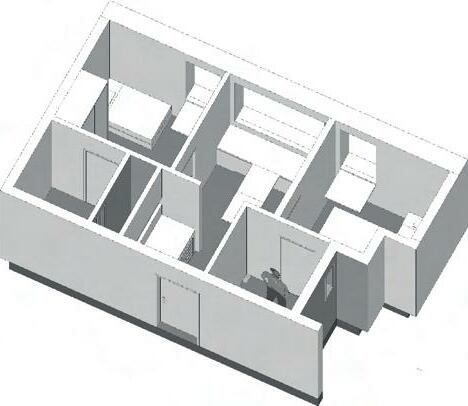

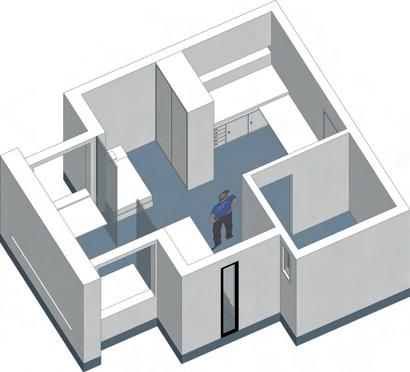

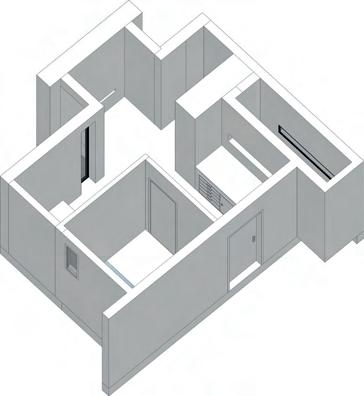

The two units typologies embody the same functions: the utilitarian between kitchen and bathroom, work, rest and conviviality. The models are concieved in a spirit of sharing and respect of individual limits along with the plurality of the choices that is made in order to allow the student to feel they possess the liberty to choose.

Common space Rest + Convivality

Individual unit 1:100

19

Exhibit(A) Work Rest Utility Work and rest Utility & Conviviality Work and rest Shared utilities Shared workplace

Detail

Type -1 - Individual unit Type - 2 - Shared unit 10 12 10 12 14 16 17 18 12 13 14 15 16 +3.55 +3.50 +3.45 +3.50 +3.55 +0.00 +0.00 +3.50 20 175 60 205 10 25 100 35 40 15 230 15 200 25 20 50 20 200 20 93 167 60 20 73 20 315 100 235 93 70 70 75 360 75 93 20 260 20 90 20 206 57 93 110 40 40 5 80 5 20 160 10 91 85 10 20 245 140 150 20 15 225 20 140 60 20 70 20 20 50 220 30 30 140 30 30 90

plan: Units typology. 1:100 1:200 Exhibit (A) Shared unit

050 100 200 N

Technical systems

In order to priviege the natural airflow and sain ventilation, windcatchers were included in the architectural enveloppe bringing fresh air according to a three-steps process: dust filtration, fresh air supply and stale air extraction.

Mirror Duct

Illumination Ventilation Wind catchers

Light is a design element in this project, thus, a «mirror duct» system is embeded in the wind catchers, allowing natural light to be reflected back to the interior spaces, including the kitchen and the bathroom.

20

Daylight

unit Metal structure Fixed on wall

Fente de ventilation

Mirror

Radiation

Filtration grid Ventilation openings

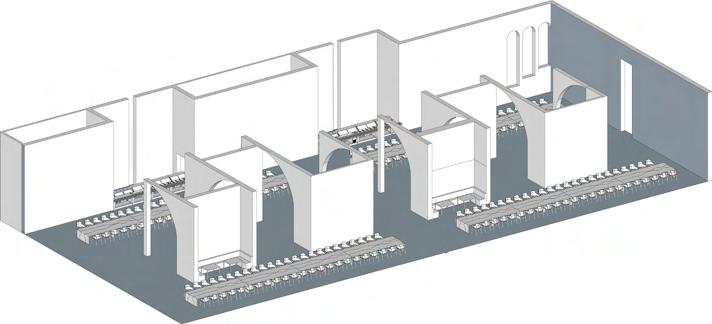

The Halls regroup the themes of the professional project, the utility and the festivities of the social space. With a centralized configuration around an arcade passage with niches on the sides

destined for group use.

The zenithal lighting is privileged and the high bays embody their HALL quality.

S T U D Y H A L L

COMMON AREAS

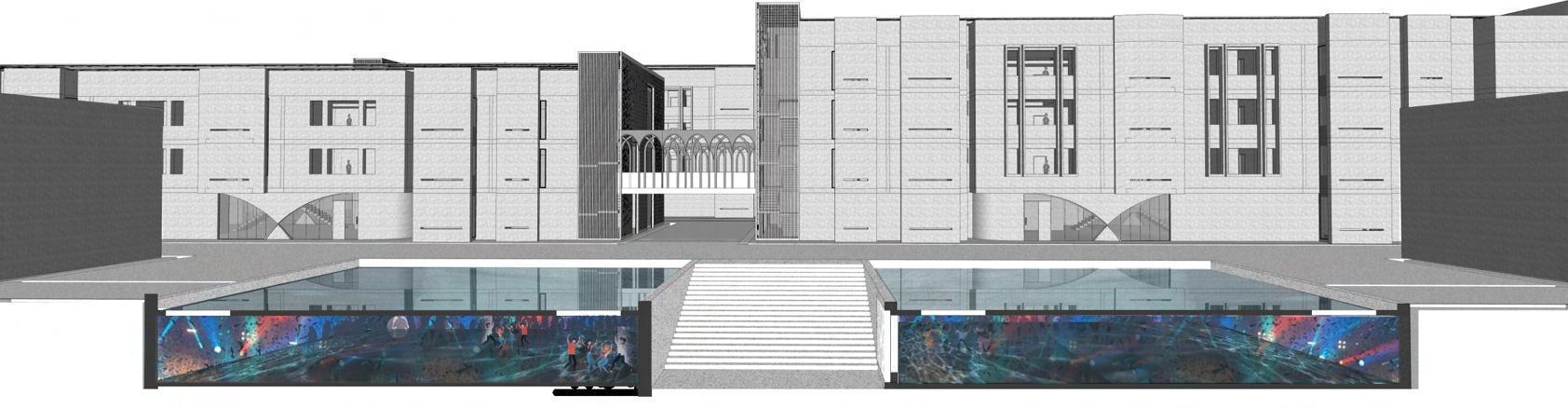

The celebration space is designed in two underground units, surmounted by two water basins allowing the absorption of noises coming from the halls, protecting

the blocks from any possible noise pollution, Not to mention that the skydomes also allow the penetration of a textured light, thus establishing a romantic atmosphere.

21 1er

RDC Sources de lumière

de lumière zénitale Tables

Comptoirs

service

étage

Pénétration

communes

de

Niches de groupes Eclairage zénital

D I N I N G

H A L L

CELEBRATION HALL

Design

Acacia stenophylla

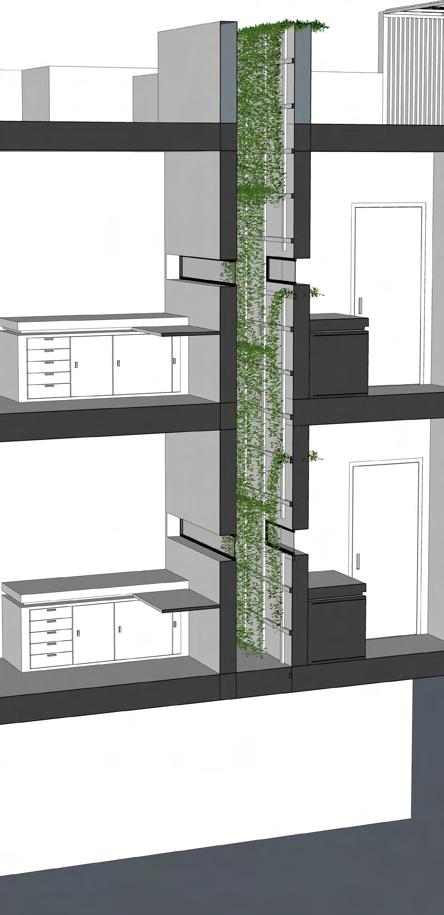

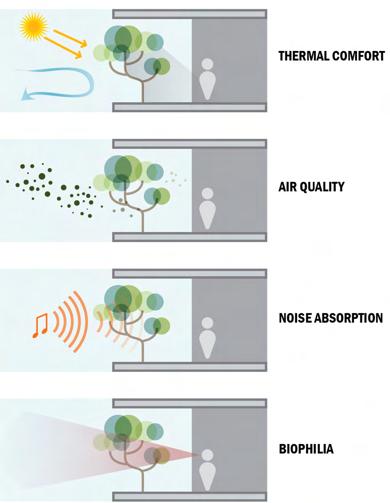

The architectural volume of the main module contains imbrications between which are placed the acacia trees, a species specific to the region, in order to ensure thermal comfort, air quality, noise absorption and a biophilic aura.

LANSDCAPE

22

Palmier Ocotillo Lierre Palo Verde Cactus

23

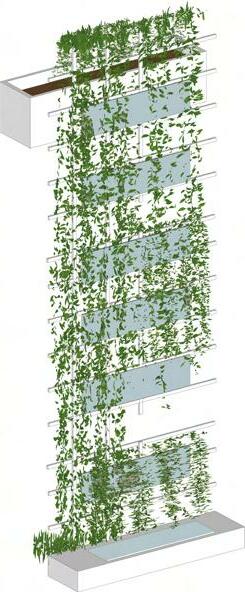

Lierre

24

25

26

27

28

29

30

31

32

33

ECOLE DES BEAUX ARTS

Asilah, Morocco

A school that joins the spirit artistic freedom and the serenity of its spatial context to maintain a sustainable temporality

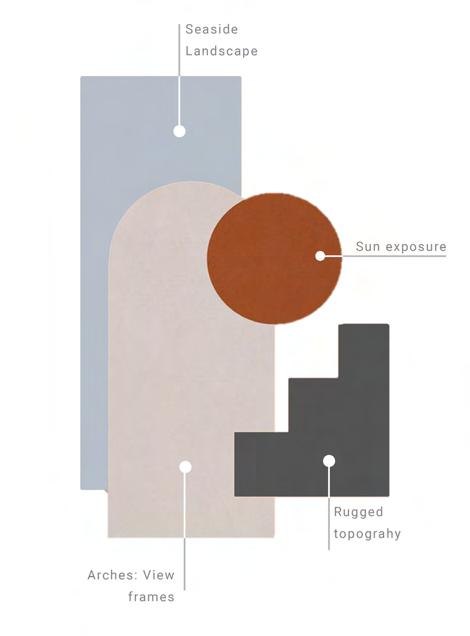

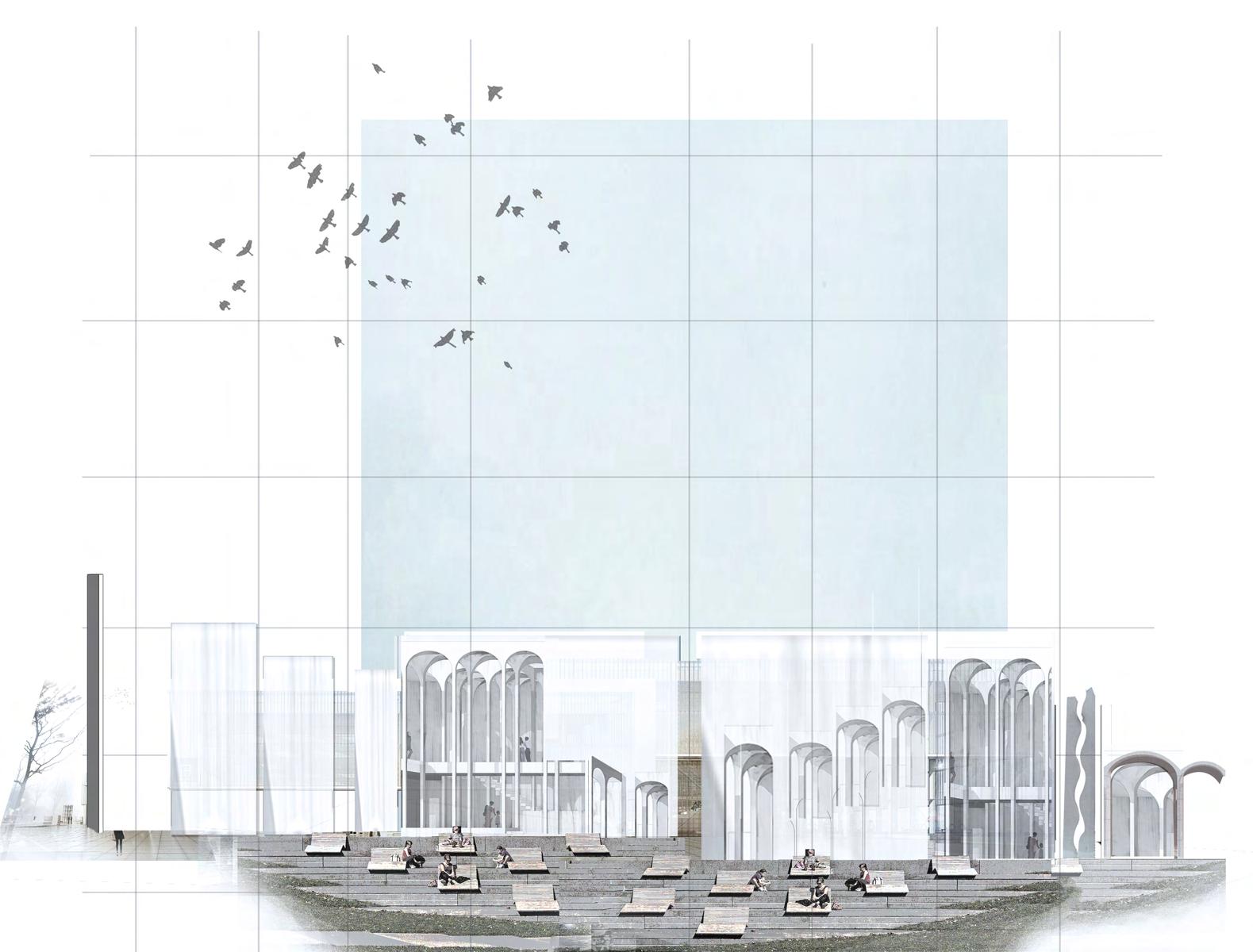

A contact with the seaside landscape, emblem of the city of Asilah, through arched view frames. A space of interaction, of sensual and sensory exchange.

4 Education_project_2021

34

The design approach consists on creating a splintered volume whose components are aligned with the line joining the highest points of the site, this composition forms openings between the main buildings that offer seaside frames along the project.

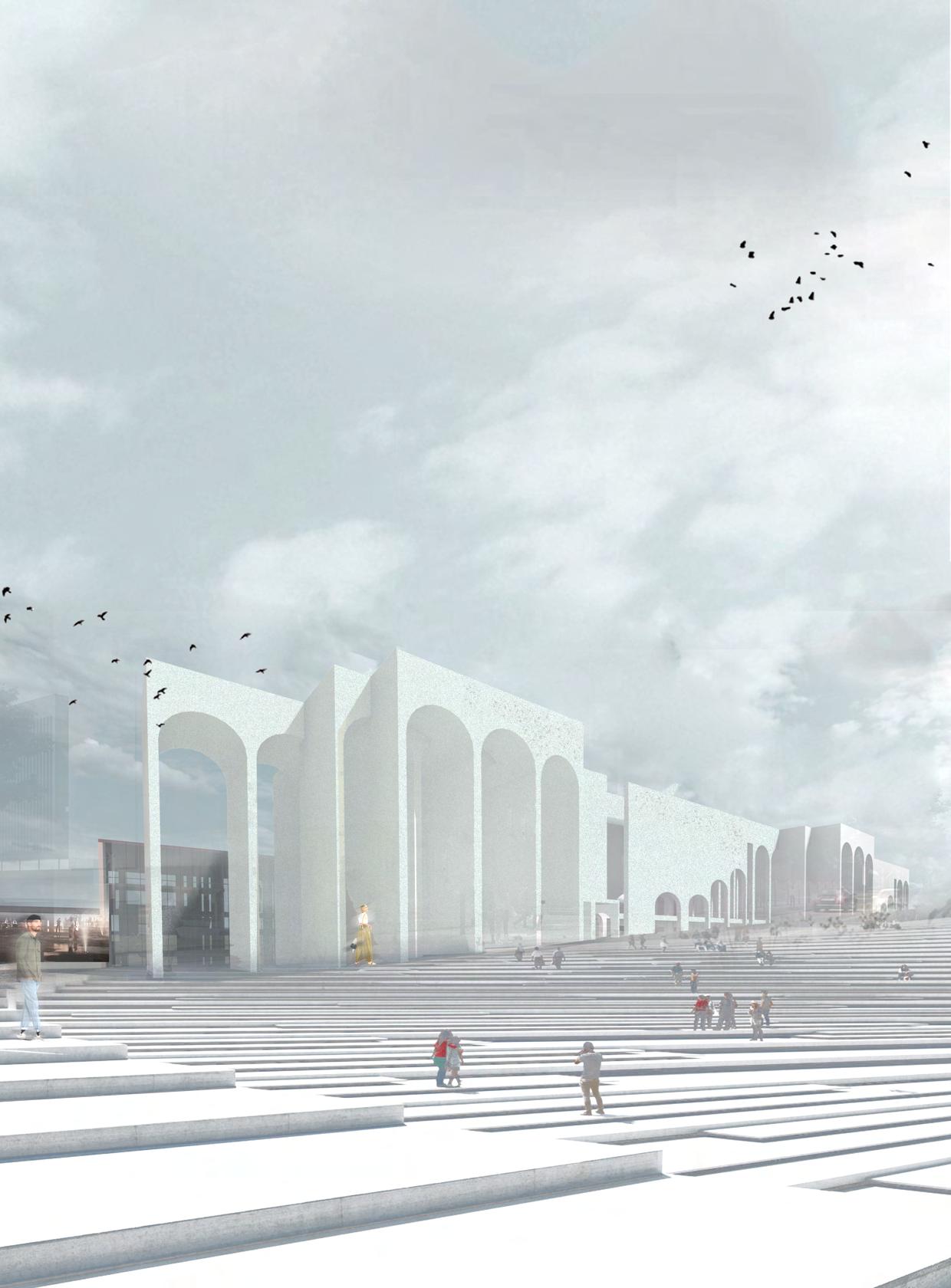

The access to the main buildings is established through dugged ramps that allow light and easy path to walk. The central part is entirely arranged in tiers, a public space for exchange and interaction.

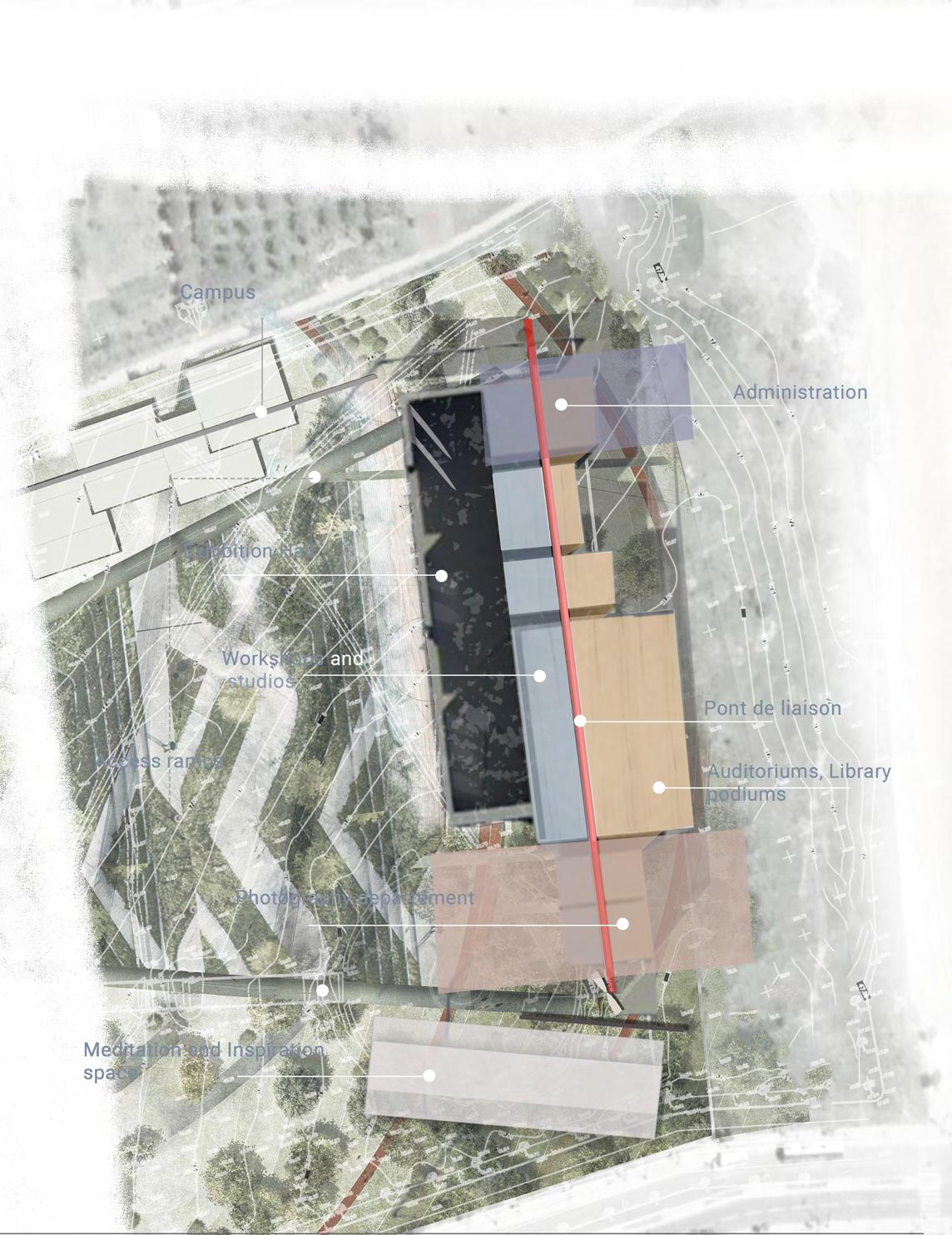

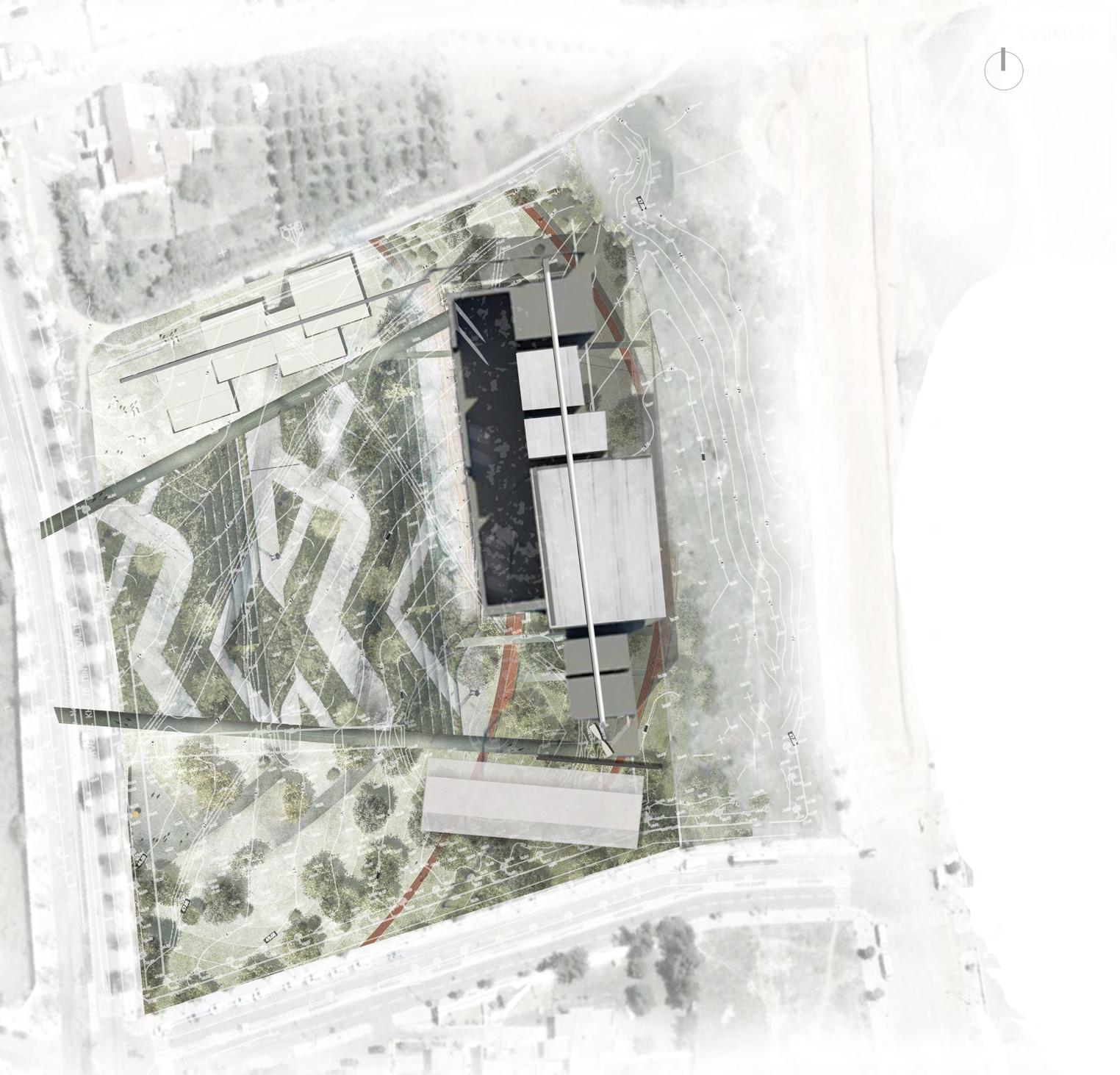

MASTER PLAN 1:1300 1:700

FLOOR PLAN 36

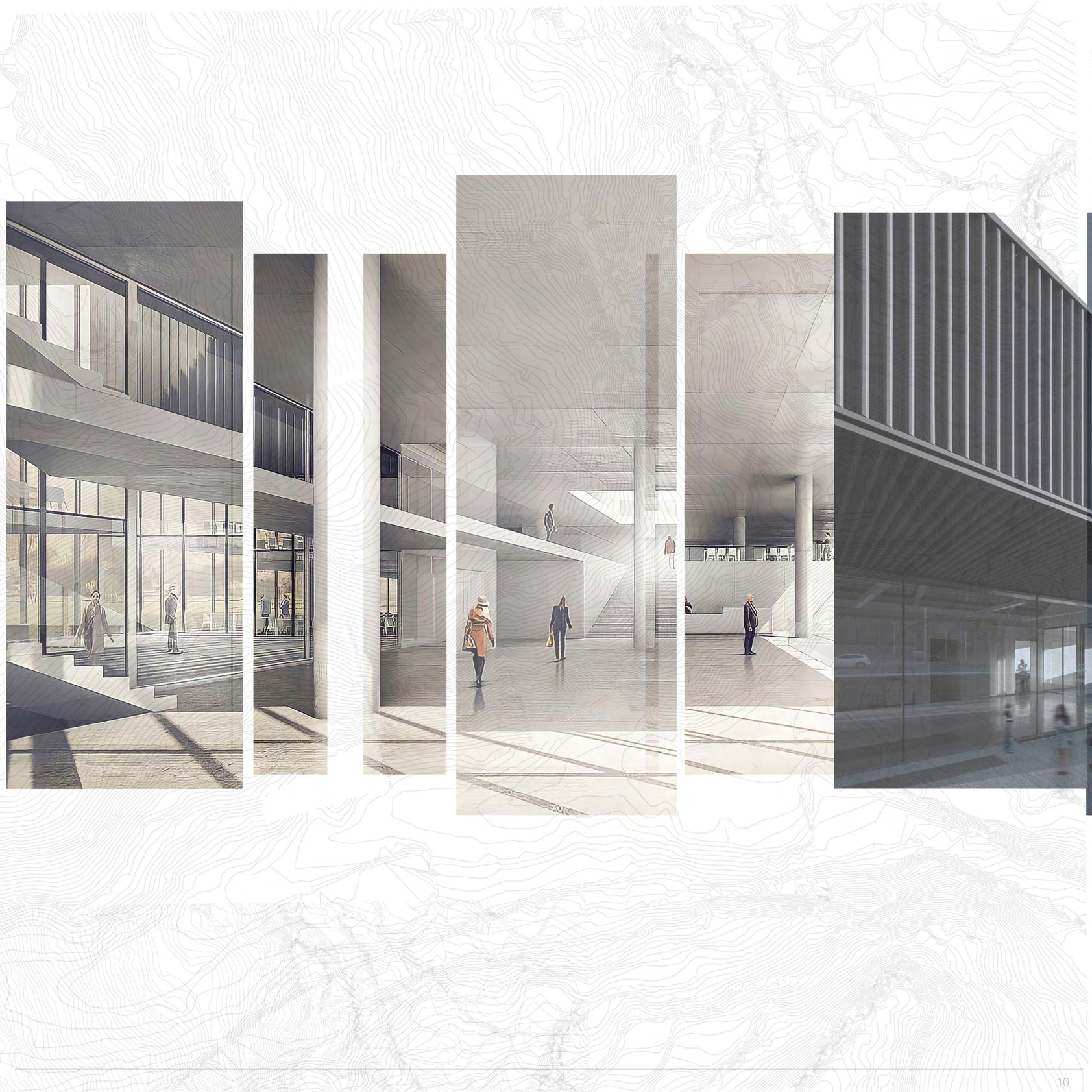

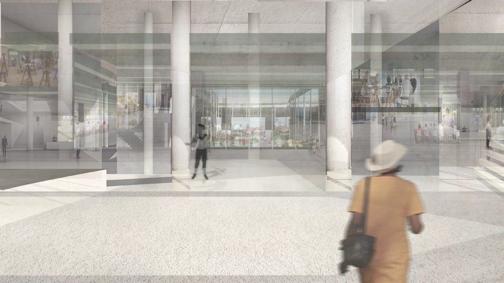

INTERIORS

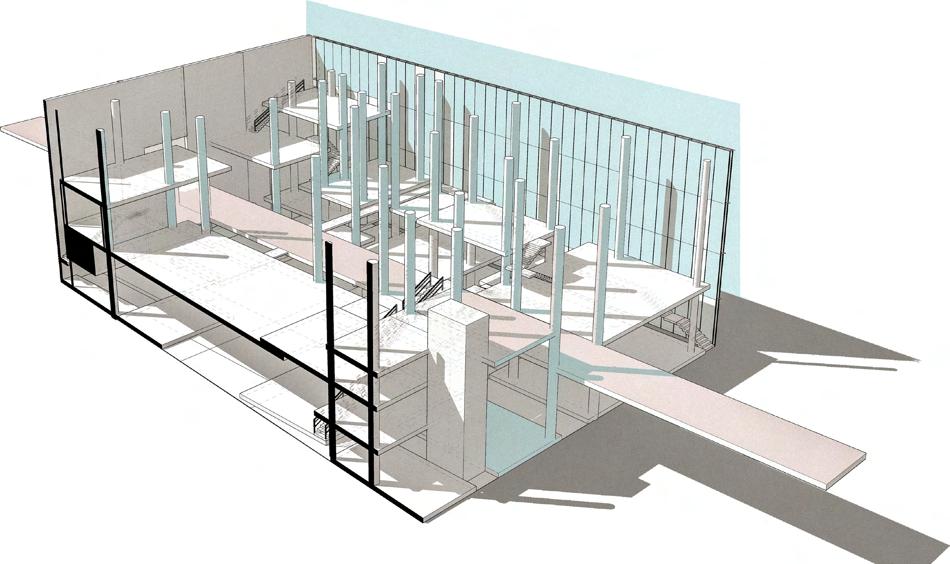

The platforms of the workshops are divided into modules whose dimensions vary according to the use of each one. They are connected by the main walkway and by vertical stairs and a common space in the form of an open space overlooks the exhibition space.

The load-bearing structure of the block is composed of reinforced concrete columns that support pre-stressed concrete slabs. Two double-glazed walls run along the two façades of the building.
